Welcome
Welcome to the Danby family. We are proud of our quality products, and we believe in dependable service, like you will
find in this Owner’s Use and Care Guide, and like you will receive from our friendly customer service department. Best
of all, you will experience these values each and every time you use your Danby appliance. That is important, because
your new appliance will be a part of your family for a long time.
Note the information below; you will need this information to obtain service under warranty.
To receive service, you must provide the original receipt.
Model Number:
Serial Number:
Date of Purchase:
NEED HELP?
Before you call for service, here are a few things you can do to help
us serve you better:
Read this Owner’s Use and Care Guide:
It contains instructions to help you use and maintain your
appliance properly.
If you received a damaged appliance:
Immediately contact the retailer (or builder) that sold you the
appliance.
Save time and money:
Check the Troubleshooting section at the end of the guide before calling. This section helps you solve common problems that may occur.
If you do need service, you can relax, knowing help is only a phone
call away.
1-800-26-
(1-800-263-2629)
Installation Instructions
Remove exterior and interior packings, wipe the outside thoroughly with a soft dry cloth and the inside with a wet,
lukewarm cloth. Avoid placing the unit in a narrow recess or near any heat source, direct sunlight, or moisture. Let
air circulate freely around the unit. Keep the rear of the refrigerator 2 inches away from the wall.
LOCATION
1) Select a place with a strong, level floor.
2) Allow 2 inches of space between the back of the refrigerator and any adjacent wall.
3) Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause
higher electricity consumption.
The refrigerating system in this refrigerator is a “Frost Free” system. This type of system requires no user intervention (i.e. defrosting) other than selecting required cooling temperatures and the usual care and
maintenance.
To avoid vibration, the unit must be set level. This is accomplished by adjusting the (2) front leveling legs, located
under the refrigerator.
Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
ELECTRICAL REQUIREMENTS
An empty refrigerator is a very dangerous attraction to children. Remove the gasket, latches, lids or doors
from unused appliances, or take some other action that will guarantee the appliance harmless.
DANGER: Risk of child entrapment. Before you throw away your old refrigerator:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb in.
DON’T WAIT! DO IT NOW!
IMPORTANT WARNING!
This appliance must be grounded. In case of a short circuit, grounding reduces the risk of electric shock by providing
an escape for the electrical current.
This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded.
WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or
serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance
is properly grounded.
DO NOT USE AN EXTENSION CORD
Use an exclusive 115V wall outlet. Do not connect your refrigerator to extension cords or together with any other
appliance in the same wall outlet. Do not splice the cord.
SAVE THESE INSTRUCTIONS!
Please ensure that component parts shall be replaced with like components and that servicing shall be
done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.
Risk of fire or explosion due to puncturing of refrigerant tubing. Do not use sharp objects to aid in defrost.
Please handle with care. Keep flammable materials and vapors such as gasoline away from the refrigerator. Use nonflammable cleaner.
Disposal of this unit should be in accordance with federal and local regulations.
WARNING! EXPLOSION HAZARD!
1
Installation Instructions
The refrigerator temperature will vary depending on the quantity of food stored and the frequency with which the door
is opened.
NOTES:
• This appliance is intended for FREE-STANDING INSTALLATION ONLY, and is NOT intended to be built-in.
• Before connecting this appliance to electrical power supply, leave it to stand for approx. 24 hours, which will
reduce the possibility of malfunction in the cooling system due to transport handling.
• This appliance is approved for INDOOR USE ONLY and is NOT intended for outdoor operation.
IMPORTANT
Install this appliance in an area where the ambient temperature is
between 55°F (13°C) and 110°F (43°C). If the temperature around
the appliance is too low or high, cooling ability may be affected.
DOOR REVERSAL
INSTRUCTIONS
Your refrigerator is built with a reversible door. You have the choice of either opening it from the left or the right side.
In order to reverse the opening direction of your door, please follow these simple instructions:
IMPORTANT
Before you begin, unplug refrigerator or disconnect power.
Remove food and any adjustable door or utility bins from doors.
DOOR AND HINGE REMOVAL
1. Unplug refrigerator or disconnect power.
2. Keep both doors closed until you are ready to lift them free from the cabinet.
NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door mag-
nets to hold the doors in place while you are working.
3. Remove the parts for the top hinge as shown in Top Hinge graphic. Lift the freezer door from the cabinet.
4. Remove the parts for the center hinge as shown in the Center Hinge graphic. Lift the refrigerator door free from the
cabinet.
5. Remove the parts for the bottom hinge as shown in the Bottom Hinge graphic.
DOOR REVERSAL CABINET
1. Remove the cover of upper hinge hole from left side and move them to opposite side (see Graphic 1).
2. Remove hole plugs from left side and move them to opposite side (see Graphic 2).
DOORS
1. Remove door hinge hole plug from the top of freezer and refrigerator door (see graphic 4).
2. Remove the door stop from refrigerator door and move to the other side (see graphic 5).
3. Take out the left door stop of freezer door and screw from the accessory bag and fix it on the handle (see graphic 3).
2
Installation Instructions
DOOR REVERSAL INSTRUCTIONS
NOTE: The left door and the right door stop of the freezer door are different. They can’t replace each other.
DOOR AND HINGE REPLACEMENT
1. Replace the parts for the bottom hinge as shown (see Bottom Hinge graphic). Tighten screws. Replace the refriger-
ator door.
NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.
2. Assemble the parts for the center hinge as shown and tighten all screws (see Center Hinge graphic). Replace the
freezer door.
3. Assemble the parts for the top hinge as shown (see Top Hinge graphic). Do not tighten screws completely.
4. Line up the doors so that the bottom of the freezer door aligns evenly with the top of the refrigerator door. Tighten
all screws.
FINAL STEPS
1. Check all holes to make sure that hole plugs and screws are in place.
2. Plug in refrigerator or reconnect power.
3. Reset the controls (see “ temperature control” section).
4. Return all removable door parts to doors and food to product.
3

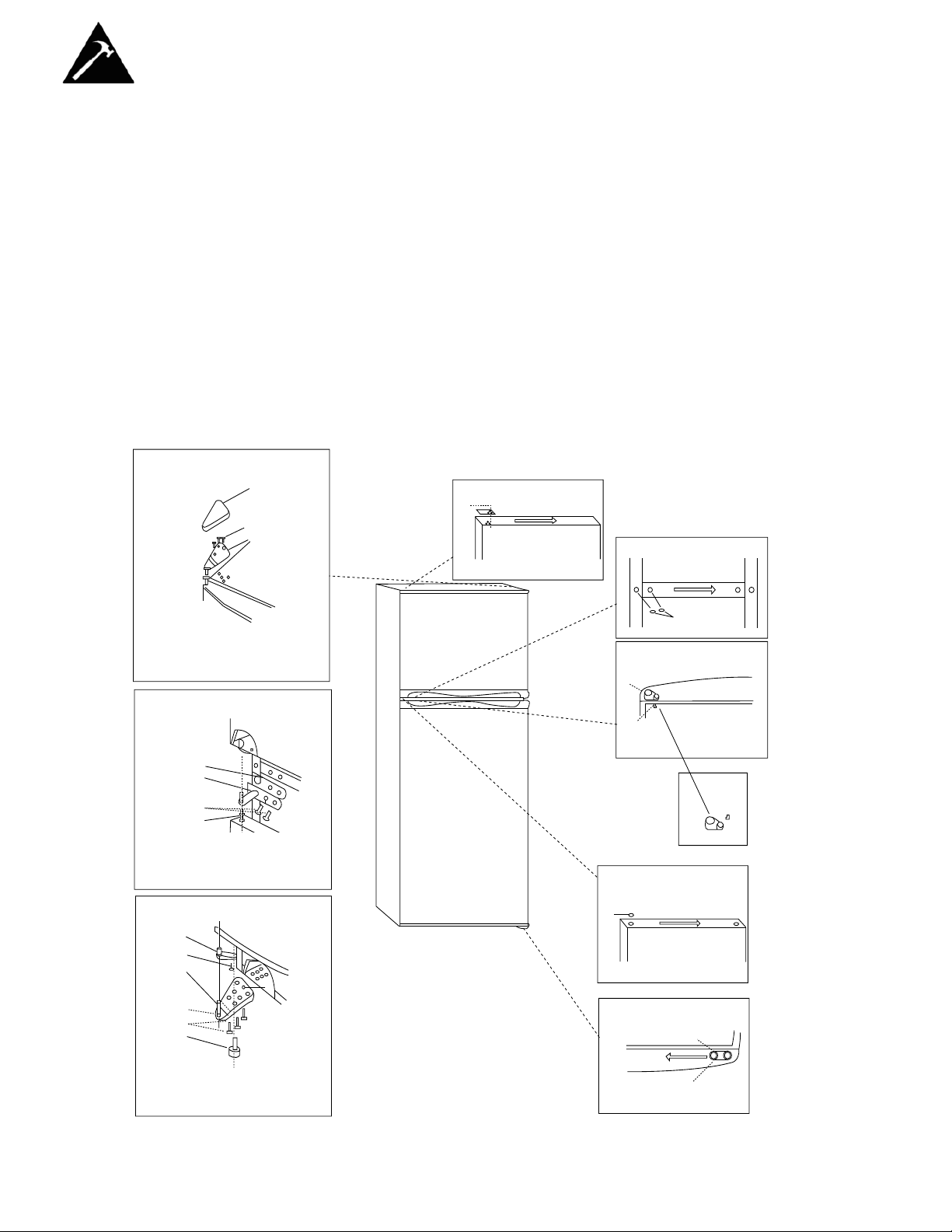

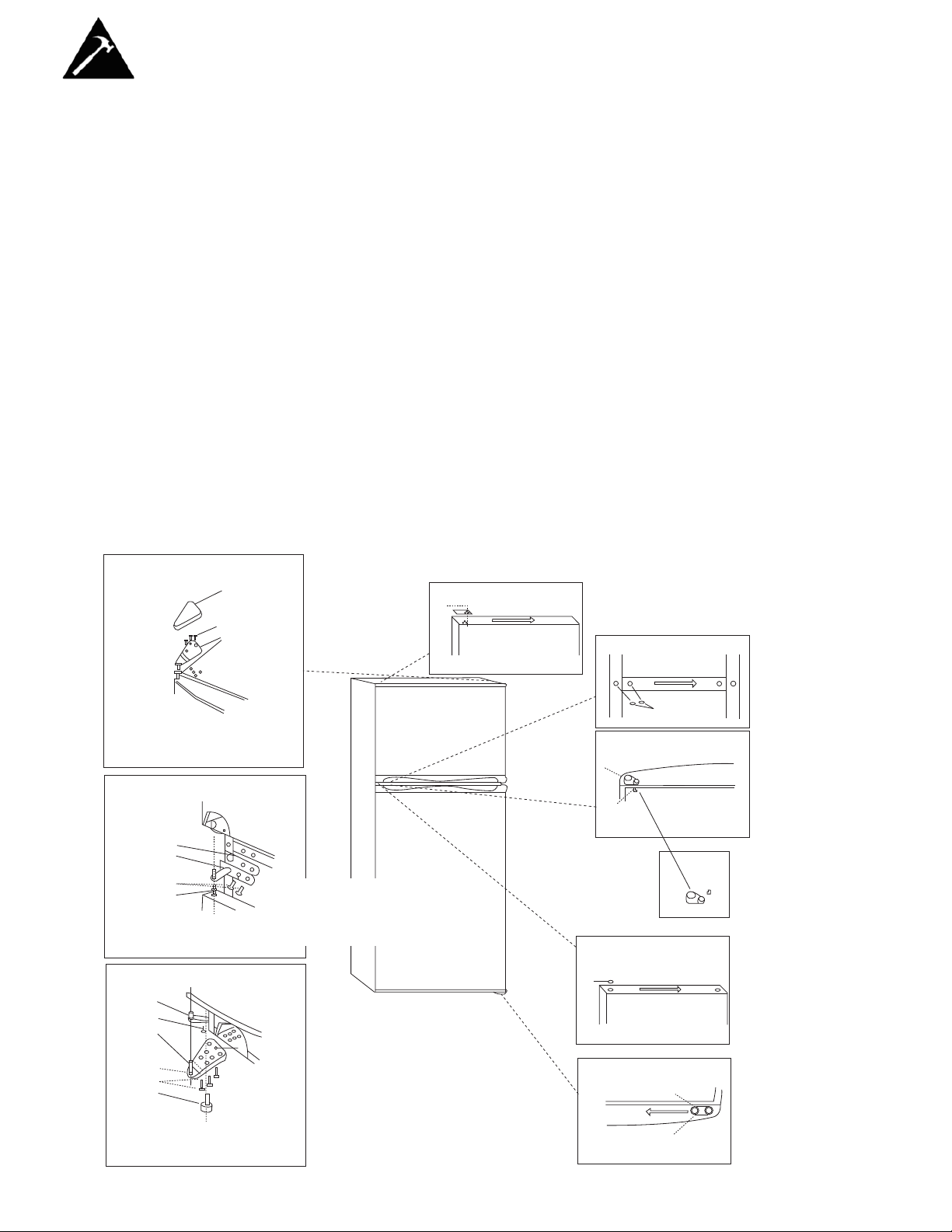

Top Hinge
1. Top hinge Cover
2. Top Hinge Spindle
3. Top Hinge
1
2
3
1
1.Cover Of Upper Hinge Hole
2
1.Hole Plugs
3
1
1
1
2
1.Left Door Stop
2.Door Stop Screw
Accessory
Bag
4
1
1.Door Hinge Hole Plug
5
1
2
1.Door Stop
2.Door Stop Screw
Bottom Hinge
1.Door Stop
2.Door Stop Screw
3.Door Stop Pole
4.Bottom Hinge
5.Bottom Hinge Screws
6.Adjustable Foot
1
2
3
4
5
6
Center Hinge
1.Center Hinge Spacer
2.Center Hinge
3.Screws
4.Bush
1
2
3
4
Installation Instructions
FEATURES
ICE CUBE TRAY
The ice cube tray is flexible. Twist tray to remove the ice cubes. If the ice
cube tray is frozen solid to the evaporator surface, run a little water over
the tray. Never use a knife or other metal instruments to remove the ice
cube tray, as this may damage the evaporator.
4

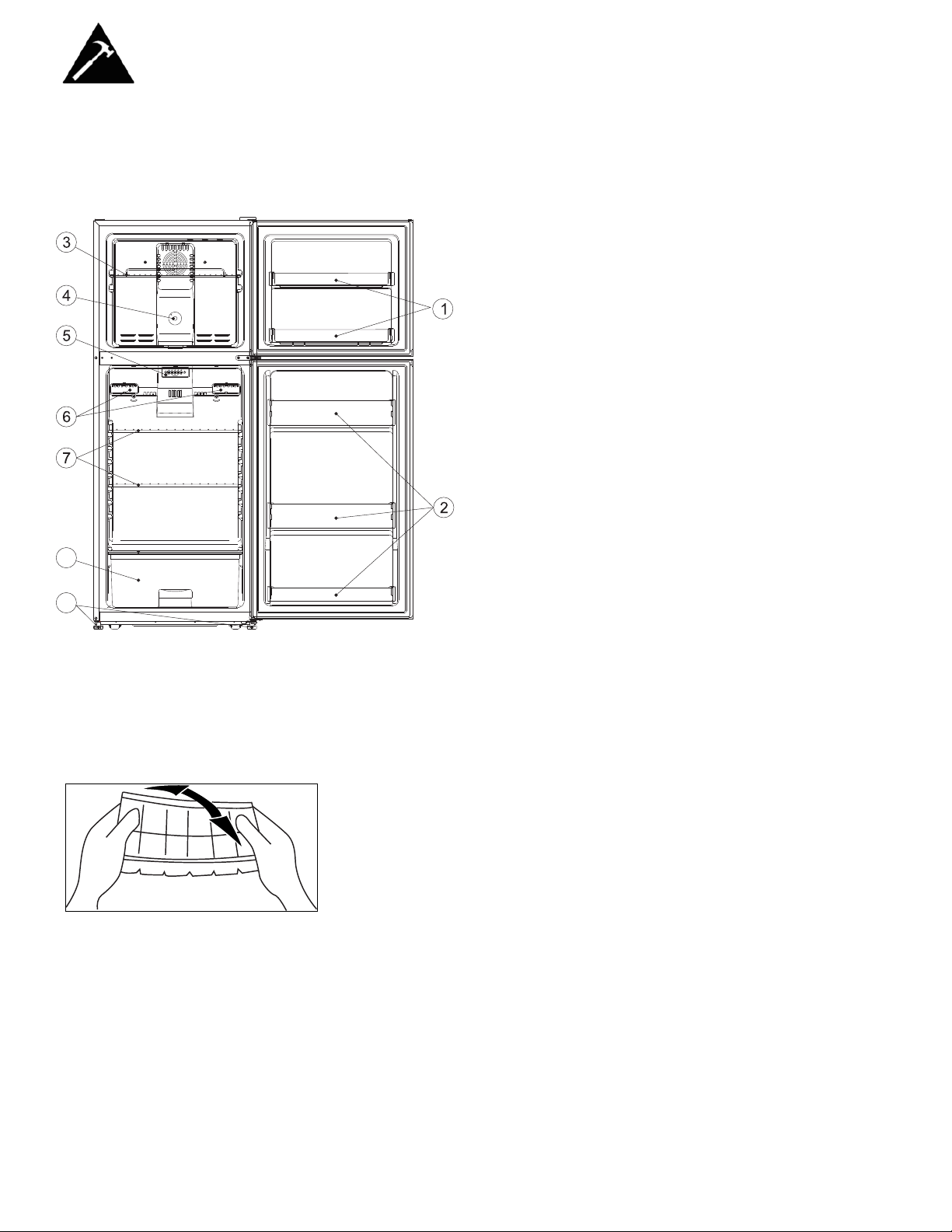

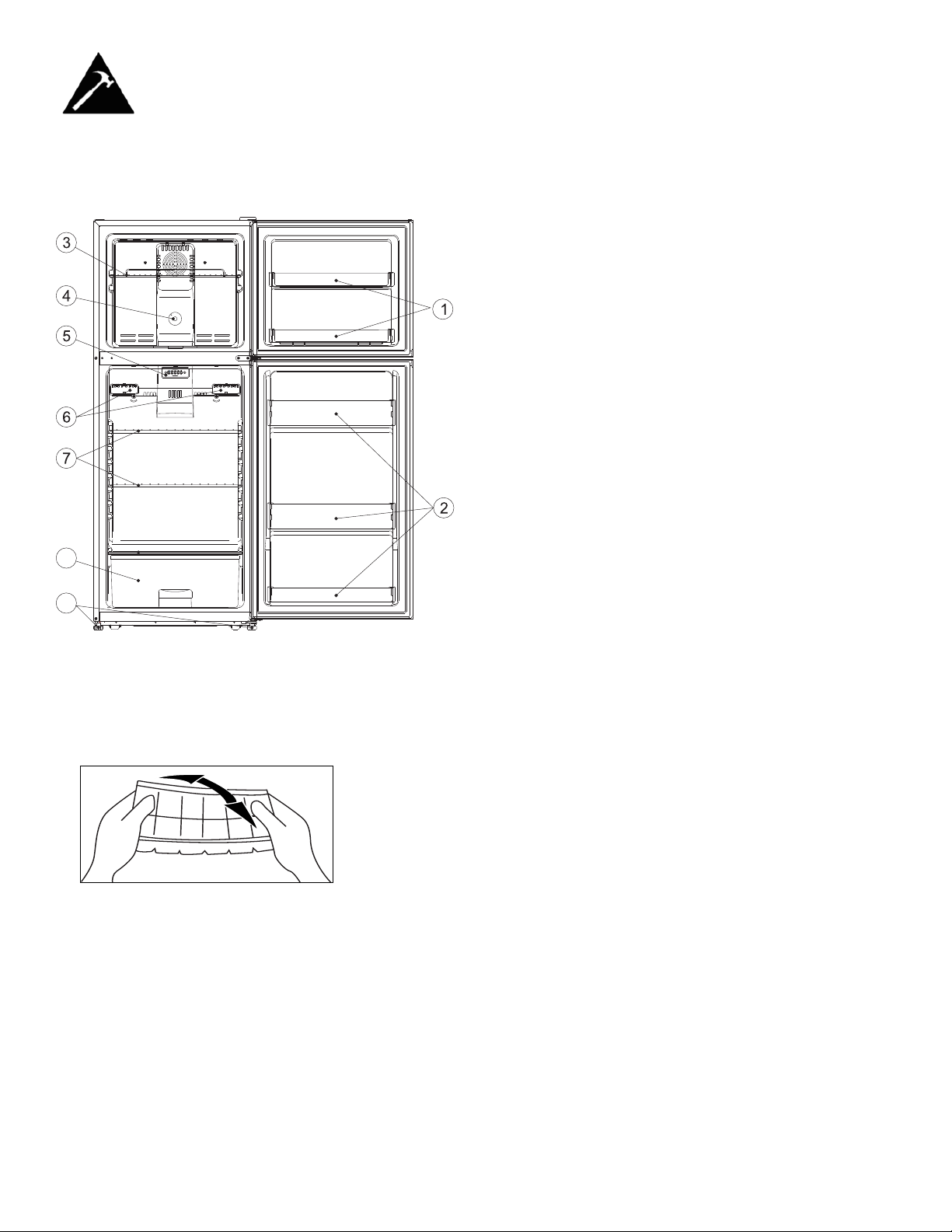

1) FREEZER DOOR BIN
2) REFRIGERATOR DOOR BIN
3) FREEZER SHELF
4) FREEZER TEMPERATURE CONTROL PANEL
5) REFRIGERATOR TEMPERATURE CONTROL
6) INTERIOR LIGHT
7) REFRIGERATOR SHELF
8) CRISPER
9) LEVELING LEGS
8
9
Installation Instructions

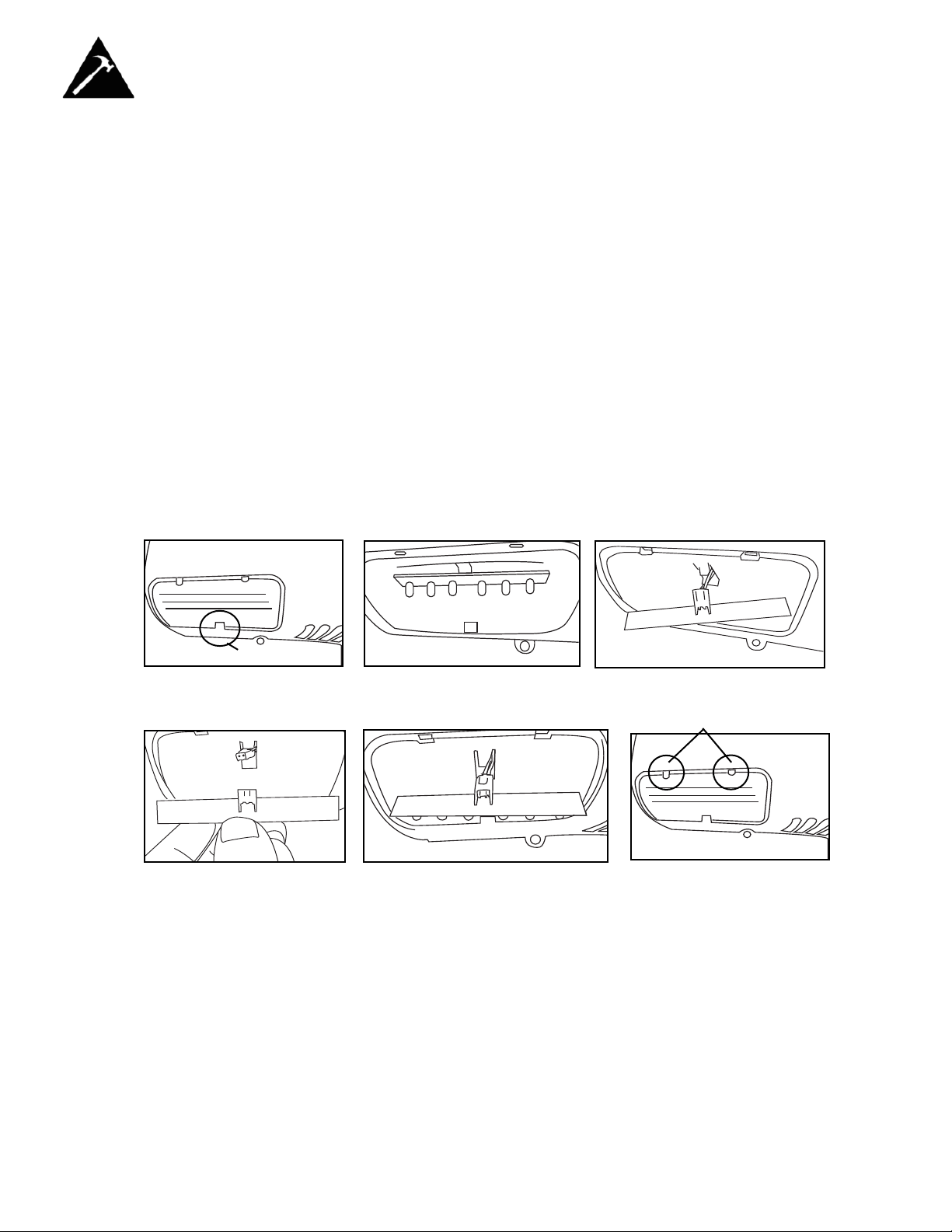

Please follow the steps below
We recommend that you start by unplugging your refrigerator unit.
1. Take off the light cover by flicking the bottom tab up (the bottom tab is located at the bottom middle of the
light cover).
2. Take out the LED display by pulling it down and unhooking it from the port, it is best to use your thumb on
the front of the LED and you fingers at the back near the port.
3. Put in the new LED by inserting it into the port.
4. Once the LED is secured, put the cover back on by inserting the two top tabs in to their slots and pushing
the bottom tab back into place, you should hear a quiet click.
Once you have secured the light cover back on, you can plug your refrigerator back in.

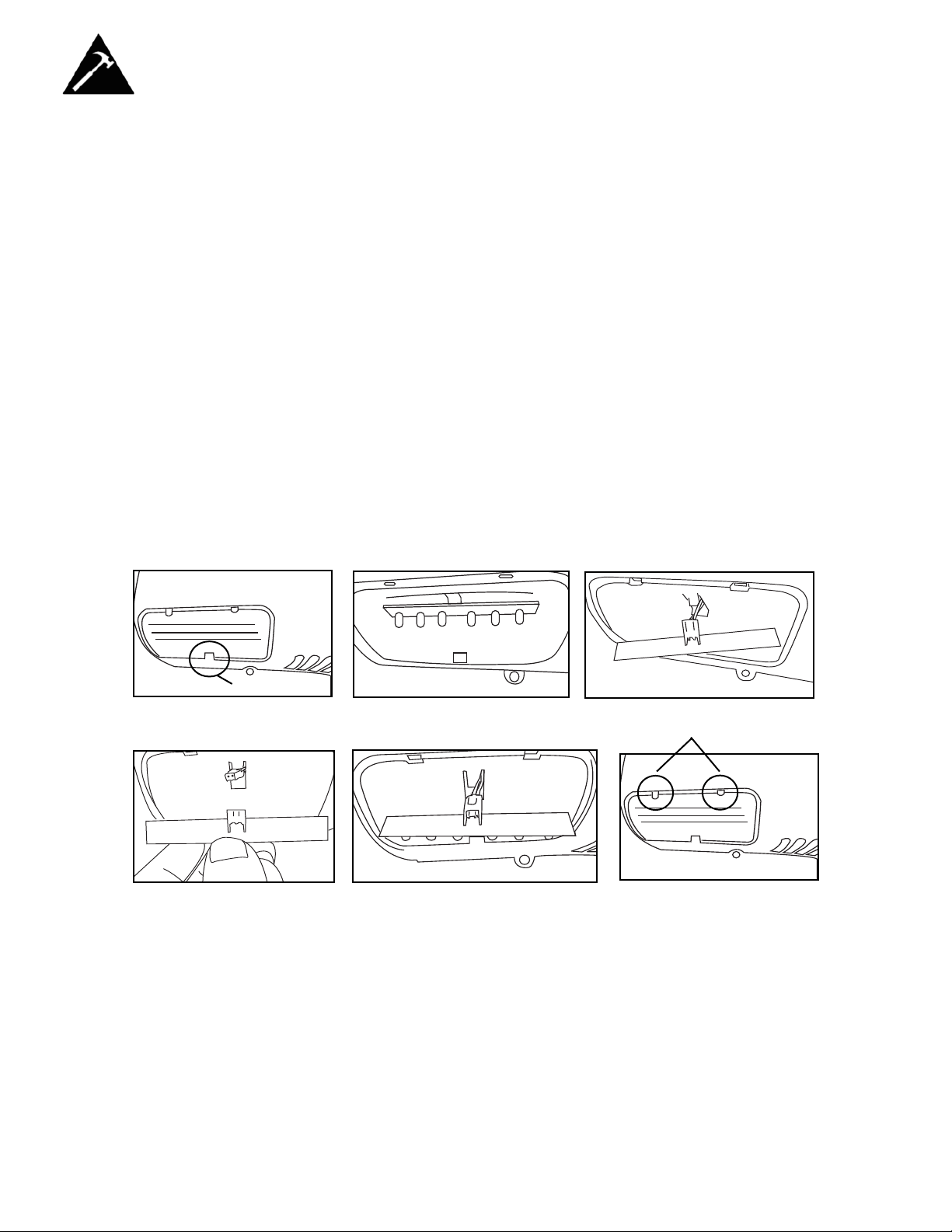

Take off the light cover by
flicking up bottom tab
You will see the LED display
Unhook the LED display
using your thumb and fingers
Hook the new LED display to the
port
12
3
Bottom tab
Pull the LED display down
4
Top tabs
Put the cover
back on
CHANGING LED LIGHT
5
OPERATING
FREEZER
COMPARTMENT

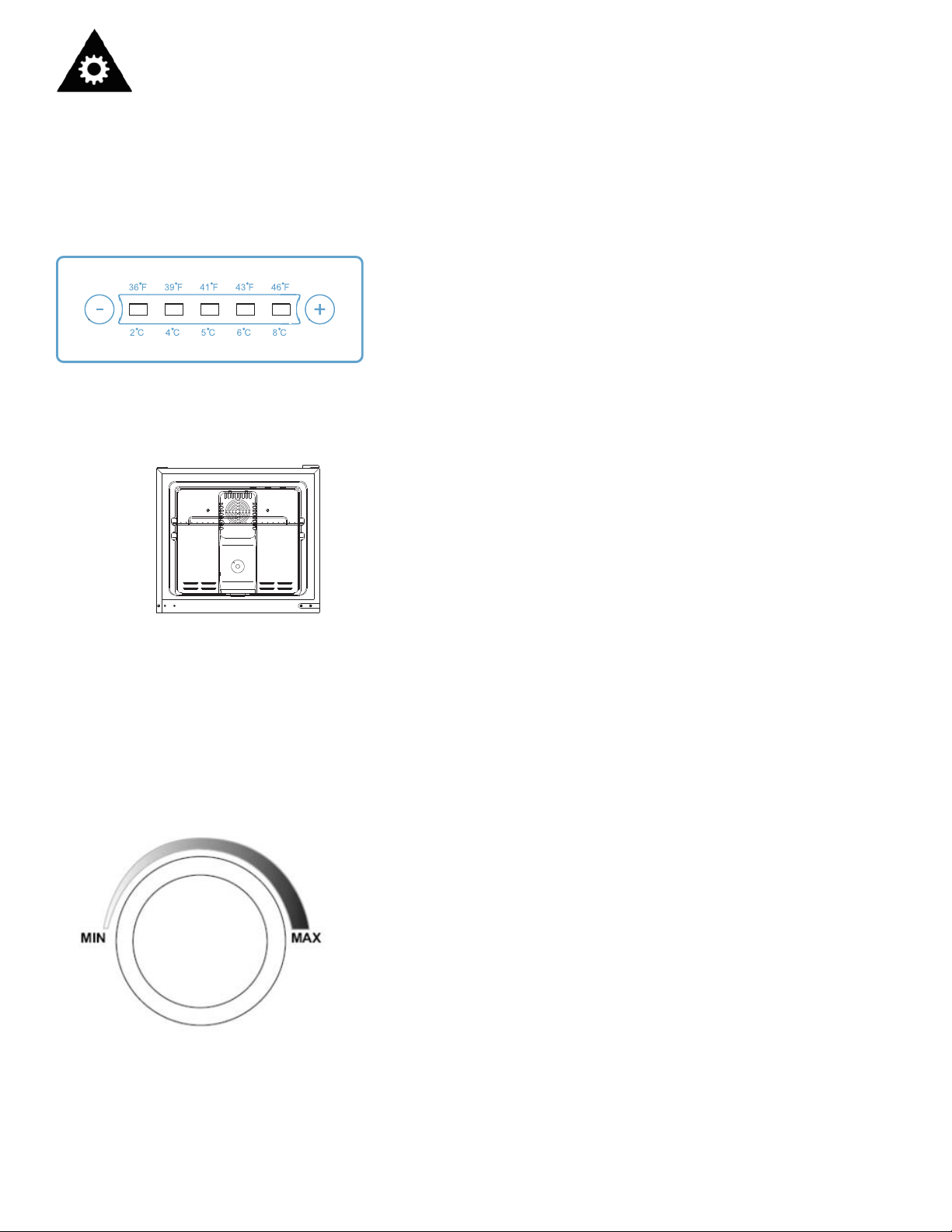

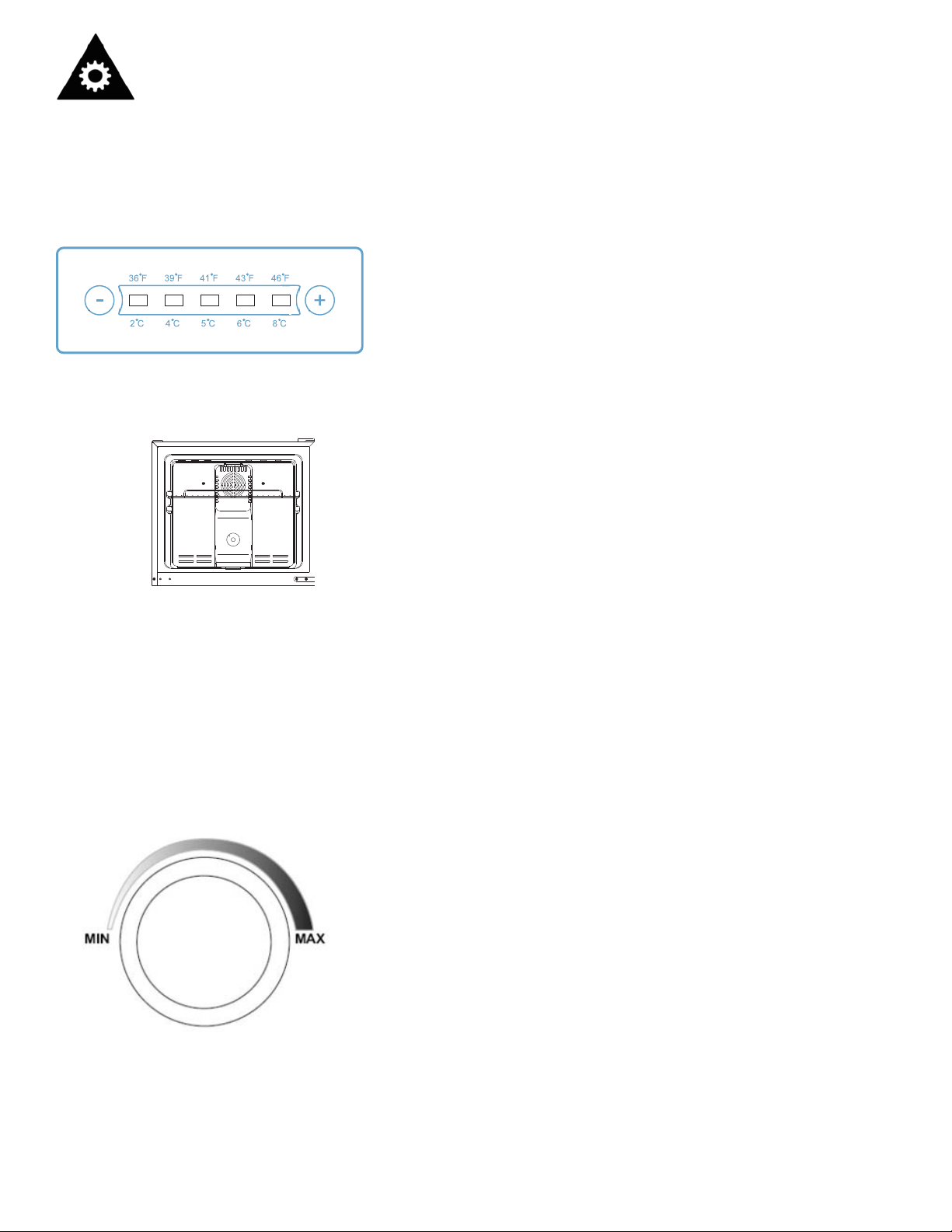

FREEZER TEMPERATURE CONTROL
• Your refrigerator has one vent control for regulating the temperature in the
freezer compartment (See Fig.4.). The temperature control is located on the
center of the freezer compartment’s interior back panel.
• The first time you turn the unit on, adjust the temperature control knob to
“MAX” and let the unit run for at least 2 hours before putting food inside. This
will ensure that the freezer cabinet is thoroughly chilled before food is put in.
• The FREEZER temperature control ranges from "MIN" (the warmest) to
"MAX" (the coldest). Adjust this control to get the desired temperature. The recommended factory setting is MEDIUM (half way between “MIN” and “MAX”).
THE FREEZER COMPARTMENT
• This compartment is designed for the long-term storage of frozen food.
Storage time period is up to three months.
• The storage life of frozen foods varies and the recommended storage time
should not be exceeded.
• Place frozen food into the freezer as quickly as possible after purchase. If
there are instructions on the package, carefully follow these
instructions regarding storage times.instructions regarding storage times.
Freezer Temperature Control
MIN
MAX
Operating Instructions
NOTE:
• If the unit is unplugged, you must wait 3 to 5 minutes before restarting the
unit (plugging the unit back in). If you attempt to restart before 3 to 5 minutes,
the refrigerator will not start.
• If the power goes out, the unit should restart itself when the power comes
back on.
• Large amounts of food will lower the cooling efficiency of the appliance.
• Do not place food so that it blocks an air vent, and leave adequate space
between food items for air flow in the cabinet.
• Allow several hours for temperature to stabilize between two
temperature selections.
• Selecting different temperatures on the refrigerator digital temperature
display, will affect the temperature in BOTH the fridge and the freezer compartments.
OPERATING YOUR
REFRIGERATOR
REFRIGERATOR TEMPERATURE CONTROL
• There is a digital temperature display panel in the REFRIGERATOR compartment (See Fig.2.). The digits on the upper line are in degrees Celsius,
while the bottom digits are in degrees Fahrenheit.
• Press the “-” sign or ”+” sign to reach the desired temperature.
• The first time you turn the unit on, please select 2°C/36°F and let the unit
run for at least 2 hours before putting food inside. This will ensure the refrigerator compartment is thoroughly chilled before food is put in. The recommended factory setting is 4°C / 39°F.
6
Fig. 2
Fig. 4
Fig. 3
Temperature
Température
Care and Maintenance
POWER FAILURE
Most power failures are corrected within an hour or two, and will not affect your refrigerator temperatures. However,
you should minimize the number times you open the door while the power is off. During power failures of longer duration, take steps to protect your food.
IF YOU MOVE
Remove, or securely fasten down, all loose items inside the refrigerator. To avoid damaging the leveling legs, turn
them all the way into the base.
SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR
• Never place hot foods in the refrigerator
• Beverages should be stored in sealed containers
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene, or kept in glass containers.
Never place spoiled food in the refrigerator.
• Don’t overload the refrigerator.
• Don’t open the door unless necessary.
• Should the refrigerator be stored without use for long periods, it is suggested, after careful cleaning, to leave the
door ajar to allow the air to circulate inside the unit in order to avoid the possible formations of condensation, mold,
or odors.
FOOD STORAGE SUGGESTIONS
Fresh Food Compartment
• Never cover food compartment shelves with aluminum foil or any other shelf covering material which may prevent air
circulation.
• Always remove porous store wrapping paper from meats, poultry, and fish. Meats should be wrapped individually
and placed in a dish for storage.Wrap fish and poultry in foil or heavy waxed paper. Most fish should be used the
same day of purchase. Packaged meats such as ham, bacon, dried beef, or frankfurter, store best in their original
packages.
• Allow warm foods to cool to room temperature before placing them in the refrigerator.
• Always cover open dishes of food, especially leftovers. Use leftovers within 2 or 3 days.
VEGETABLE CRISPER
The tray at the bottom of the refrigerator is covered to retain moisture. The crisper compartment will enable you to
store vegetables and fruits which would otherwise dry out rapidly.
COOLING SYSTEM
This refrigerator is inclusive of a “Frost Free” type cooling system, which means you never have to defrost the freezer
compartment. Defrosting is done automatically by means of a defrost heating element and a defrost timer factoryprogrammed to operate (cycle) approximately every 8 hours. The defrost water is routed into a defrost pan located
directly above the compressor, where it then evaporates.
CLEANING
Before cleaning the refrigerator or freezer, always disconnect the refrigerator from the power supply. To clean the
inside, use a soft cloth and a solution of a tablespoon baking soda to one quart (4 cups) of water, or a mild soap suds
solution or mild detergent. Wash ice cube tray, drip tray, and glide out shelves in a mild detergent solution, then wipe
dry with a soft cloth. Clean the outside with a damp soft cloth and some mild detergent or appliance cleaner.
SETTING THE THERMOSTAT
The thermostat setting can be adjusted from minimum setting through maximum (coldest setting). We recommend setting the thermostat at a medium setting. However, if you find this setting inadequate for your cooling requirements,
adjust as needed by rotating the thermostat dial. The thermostat dial is located on the front top section of the refrigerator compartment. The thermostat controls temperature for both the freezer and refrigerator compartments.
VACATION TIME
For short vacation periods, leave the control knob at the usual setting. During longer absences:
a) remove all food,
b) disconnect from electrical outlet,
c) leave the door open to avoid possible formations of condensation, mold, or odors.
7
Loading...
