Danby DDW1805W User Manual [fr]

Portable Dishwasher

Instruction Manual

DDW1805W

Write the model and serial

numbers here: Model # __________________ Serial # __________________

You can find them on the tub wall just inside the door or the lower part of the back.

Dishwashers

SAVE THESE INSTRUCTIONS

Safety Information

. . . . . . . . . . . . . . . . . . .. . . . . . 1

Danby

& You,

A Service Partnership

Thank you for buying this product. As a home appliances producer, we are proud of our quality products and we are committed to providing dependable service. We are able to utilize our global resources in creating innovation that makes housework lighter and easier, and provide a truly comfortable home for you to relax and enjoy.

Read this Manual

This manual contains specific operating instructions, safety instructions and troubleshooting tips. Please take a moment to carefully read the contents of this manual thoroughly and familiarize yourself with all operational aspects of your new dishwasher. This information will help you to use and maintain the dishwasher properly. These instructions are not meant to cover every possible condition and/or situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Operating Instructions

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Dishwasher Features . . . . . . . . . . . . . . . . . . . . . . . . 2

Wash Cy cle Tabl e . . . . . . . . . . . . . . . . . . . . . . . .. . . . 3

Water S ofte ner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Detergent Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . 5

Rinse Aid Dispenser. . . . . . . . . . . . . . . . . . . . . . . . . 5

Loading the Dishwasher Rack . . . . . . . . . . . . . . . 6,7

Turning On the Appliance . . . . . . . . . . . . . . . . . . . . .7

Filtering System . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Caring for the Dishwasher . . . . . . . . . . . . . . . . . . 8,9

Safety Instructions

Operating Instructions

Before Calling for Service

Before calling for service, review the section on troubleshooting tips. It may save you time and costly expense. This list includes common problems that are not the result of defective workmanship or materials in this appliance. NOTE: Never attempt to repair any equipment you are not properly qualified (trained) to service.

If You Need Service

If you can not solve the problems by yourself after reading the section on Troubleshooting Tips, please contact our professional Customer Service Centre at 1-800-26-DANBY (1-800-263-2629). Danby's Customer Service Centre is open Monday - Thursday from 8:30 a.m. to 5:00 p.m. and on Friday from 8:30 a.m. to 4:00 p.m. EST.

Troubleshooting Tips

Before calling for service. . . . . . . . . . . . . . . . . 10,11

Troubleshooting Tips

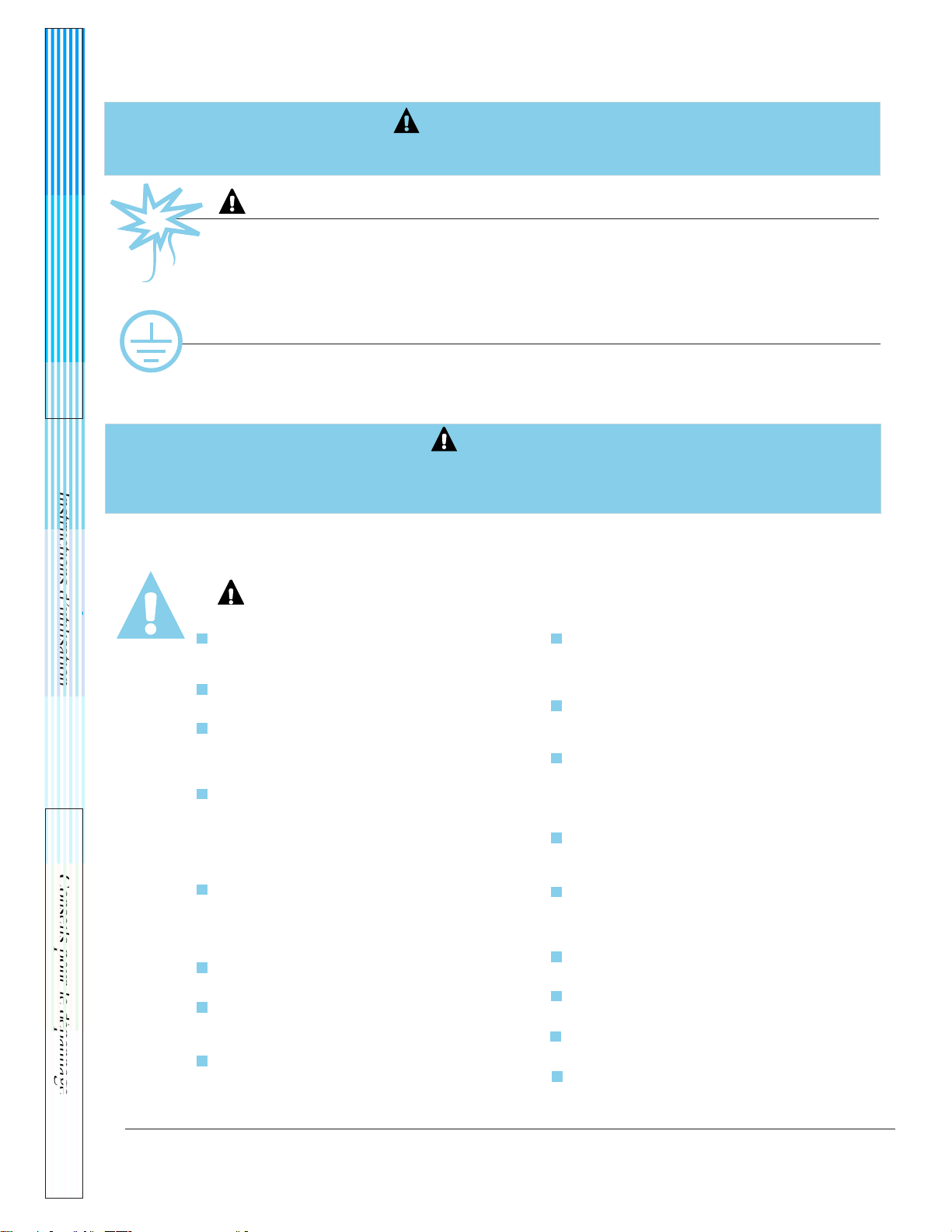

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

Safety Instructions

Operating Instructions

WAR NIN G!

When using your dishwasher, follow the

WARNING! HYDROGEN GAS IS EXPLOSIVE

Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

GROUNDING INSTRUCTIONS

Power Cord Models This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment -grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed in an accordance with all local codes and ordinances.

below basic precautions

WAR NIN G!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock . Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance? If it will not fit the outlet, ha ve a proper outlet installed by a qualified electrician.

Cable Direct This appliance must be connected to a grounded metal, permanent wiring system , or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Troubleshooting Tips

WARNING! PROPER USE

Do not abuse, sit or stand on the door or dishrack of the dishwasher.

Do not touch the heating element during or immediately after use.

Do not wash plastic items unless they are marked

dishwasher safe. For unmarked plastic items,

check the manufacturer's recommendations.

Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap , laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

Keep children away from the detergent and rinse aid, and from the open door of the dishwasher, as there could still be some detergent left inside.

The door should not be left in the open position as this could present a tripping hazard.

During installation, the power supply must not be excessively or dangerously bent or flattened.

To reduce the risk of injury, do not allow children to play in or on a dishwasher.

Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water spraying out.

Do not place any heavy objects on the door when it is open. The appliance could tip forward.

When loading items to be washed:

1) Load sharp items so that they are not likely to damage the door seal

2) Load sharp knives with the handles up to reduce the risk of cuts.

When using your dishwasher, you should prevent

items from coming in contact with the heating element.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician to avoid a hazard.

Please dispose of packing materials properly.

Use the dishwasher only for its intended function.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

Do not tamper with the controls.

plastic

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY

SAVE THESE INSTRUCTIONS

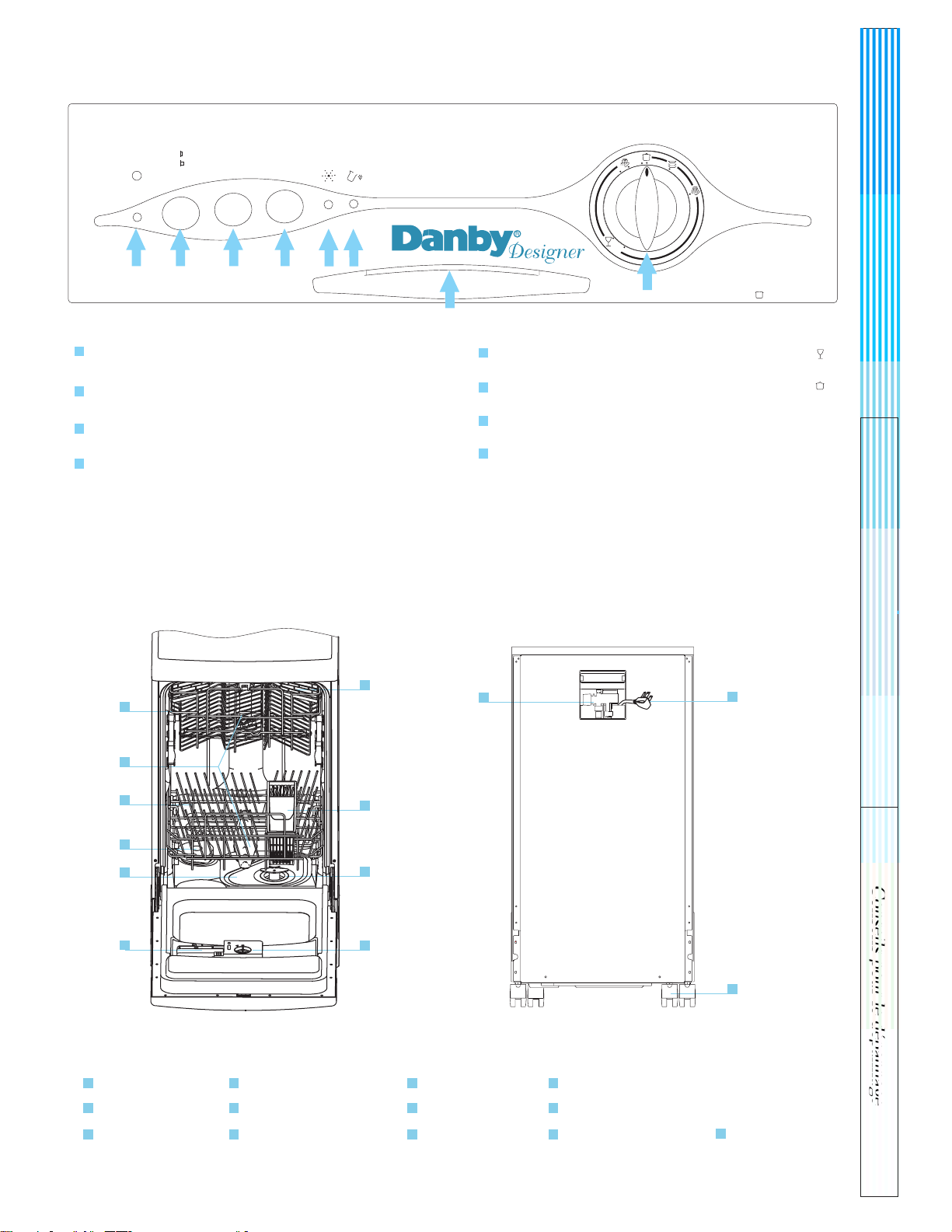

CONTROL PANEL

1.000

Model

: DDW1805W

Rapid

OFF

1 4 5 6

Power ON Light: Illuminates pressed down.

Rinse Aid Warning Light: Illuminates

needs to be refilled. Salt Warning Light: Illuminates when the water

needs

to be refilled.

ON/OFF Button: Tu r n s o n / o f f the power supply.

Plus

2 3

when the ON/OFF Button is

when the dispenser

softener

DISHWASHER FEATURES

Safety Instructions

STOP

Rapid Button: Only used with cycle ".

Plus Button: Only used with cycle

Door Handle: Pull to open the door.

Was hing Prog ram Selector: Turn the dial clockwise

to select the desired wash cycle.

Operating Instructions

2 3

4 5

Front View (Door open)

Upper Basket

1 4

Spray Arms

2 3

Lower Basket

Wat er Softener

Detergent Dispenser

Cup Shelf

7 8

Silverware BasketMain Filter

Coarse Filter

Back View

Rinse Aid Dispenser

Portable Faucet Adapter Assembly

11 12

Power Cord

Troubleshooting Tips

Castors

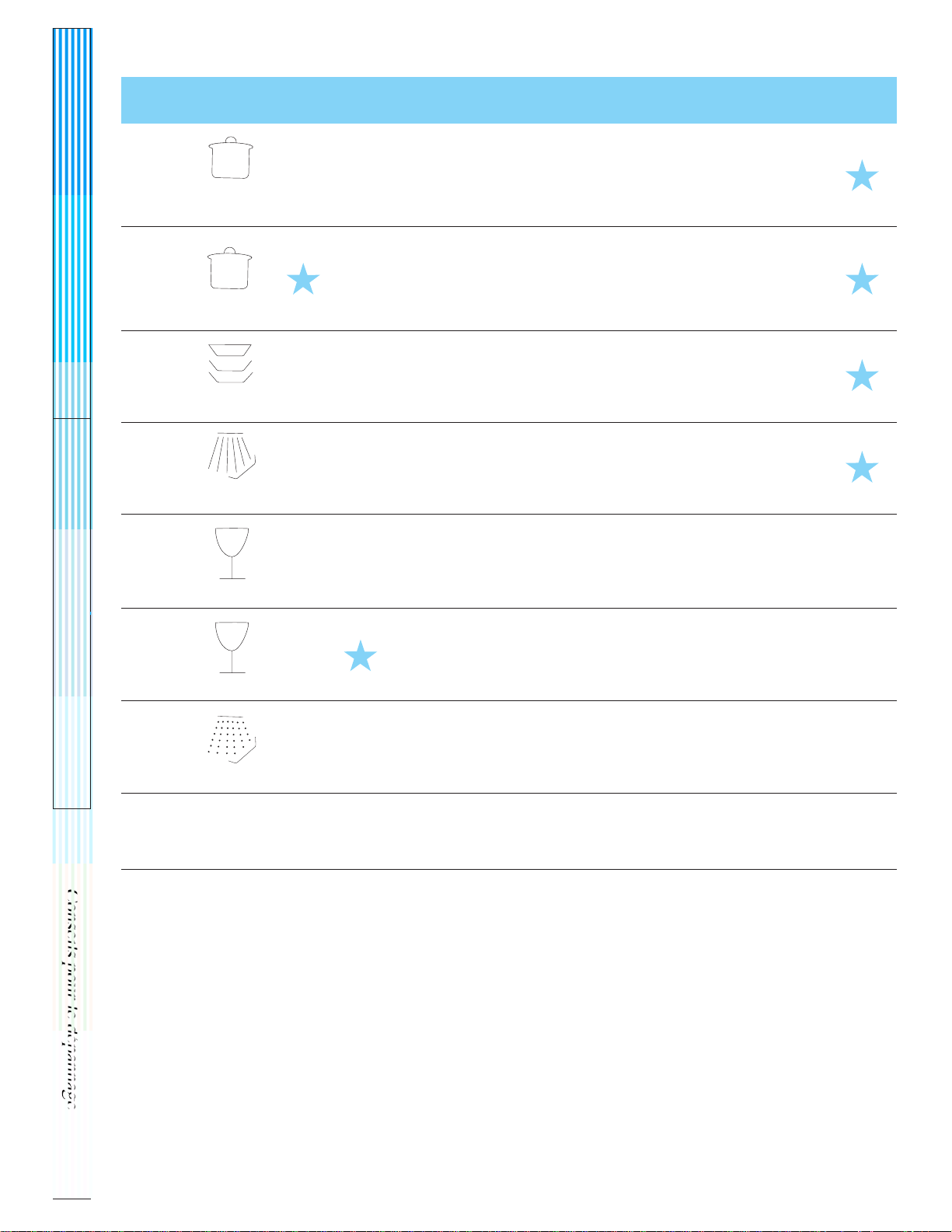

WASH CYCLE TABLE(DDW1805W)

Safety Instructions

Operating Instructions

Program

Normal

Intensive

Economic

Rinse

Glass

Cycle

Normal Wash

(IEC-EN 50242)

Normal Wash

Light Wash

Rinse

Glassware

Plus

Button

Rapid

Button

Cycle Selection

Information

For normally soiled loads, such as , plates,glasses and lightly soiled pans. Standard Daily Cycle.

For heavily soiled loads, such as pots,pans,casserole dishes and dishes with dried food.

For lightly soiled loads,such as plates,glasses,bowls and lightly soiled pans.

For dishes that need to be rinsed and dried only.

For lightly soiled loads, such as glasses, crystal and fine china.

pots

Description

Pre Wash (60˚ Rinse Rinse (72˚ Drying

Pre 50˚) Wash (60˚) Rinse Rinse Rinse (72˚) Drying

Wash ( 60˚) Rinse Rinse (72˚) Drying

Rinse Rinse (68˚) Drying

Rinse (45˚) Rinse (72˚) Drying

of Cycle

-rinse

-rinse(

Detergent pre/main

)

4/20 gr.

)

4/20 gr.

20 gr.

15 gr.

Rinse

Aid

Troubleshooting Tips

Rinse (45˚) Rinse (50˚) Drying

Pre-rinse

15 gr.

Rapid

Soak

A shorter wash for lightly soiled loads that do not need drying.

Glassware

Use to rinse the dishes that you plan to wash later that day.

Soak

WASH CYCLE ADJUSTMENT BUTTONS

Plus Button

This button (see " Control panel " ) is used with the normal cycle where pots and pans have dry, caked-on food.

This is not recommended for delicate items as the high temperature could make their surfaces opaque or their decorative colors lighten after repeated washings.

Rapid Button

This button (see " Control panel " )when used with wash cycle 4(glassware) makes it possible to run the wash cycle at a lower temperature (50 C) and eliminates the drying phase.

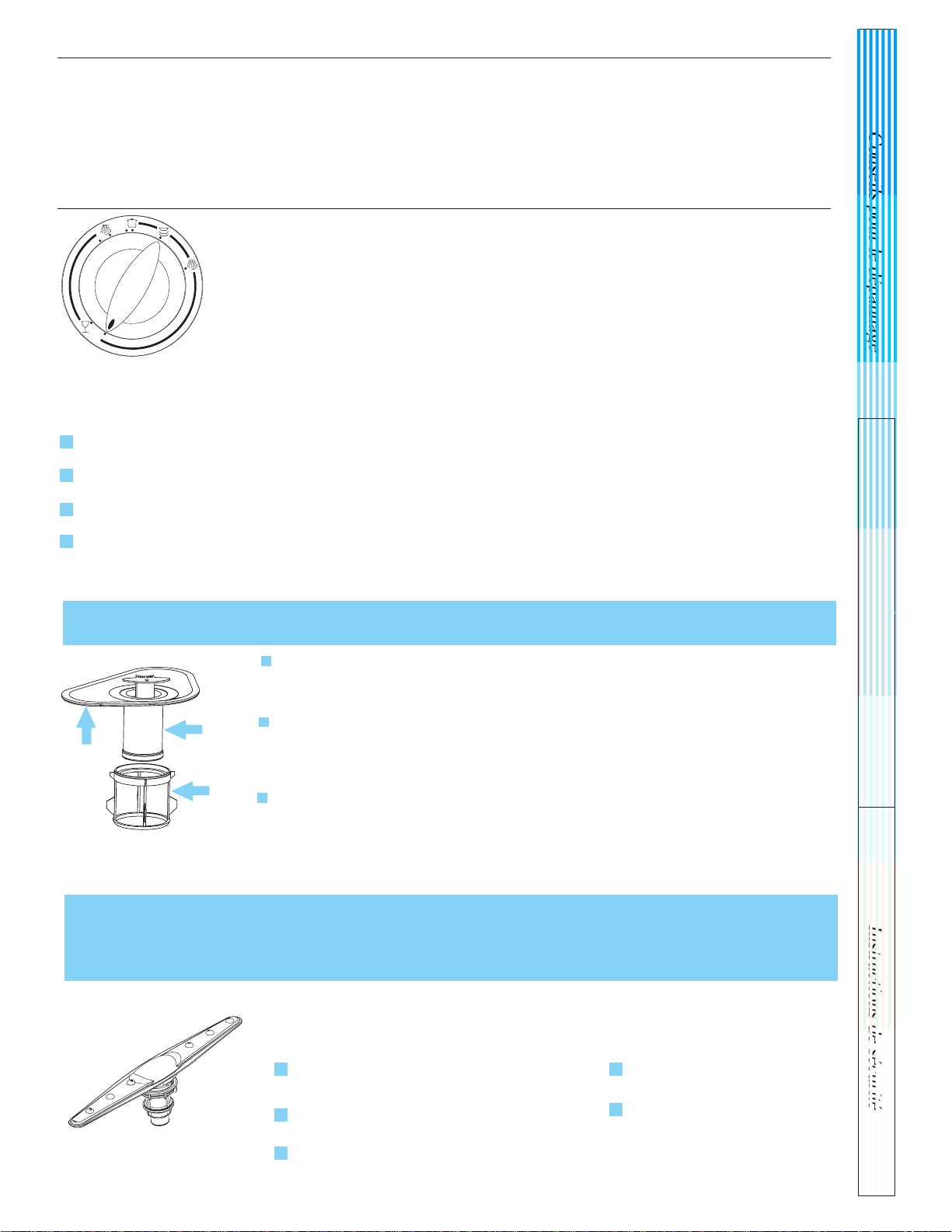

WATER SOFTENER

There are two ways to reduce the hardness: one way is by

water

using water softener, the other is by

using detergent.

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance water.

is equipped with a special softener that uses salt specifically designed to eliminate lime and minerals from the

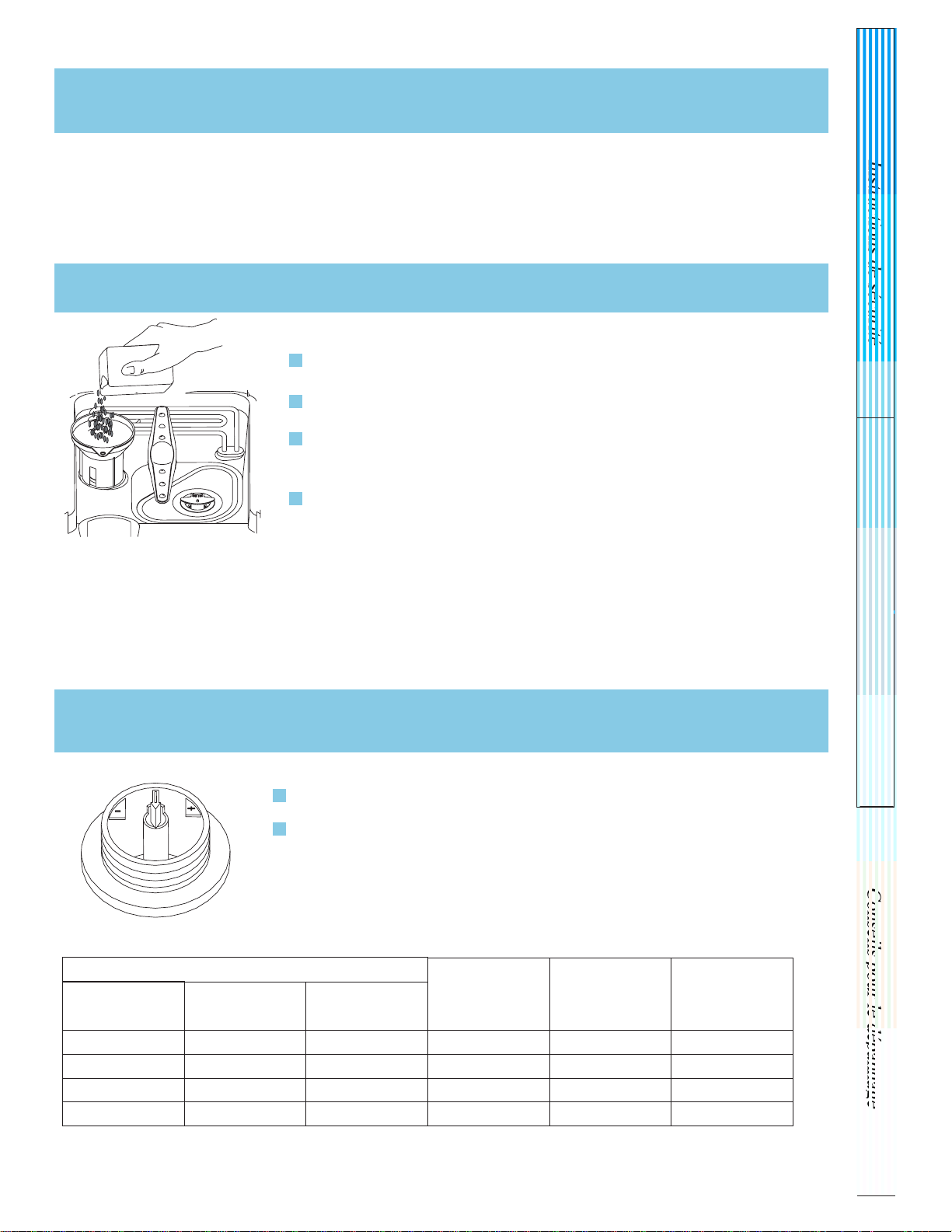

Loading the Salt into the Softener

Always use salt intended for use with dishwashers. The salt container is located beneath the lower rack and should be filled as follows:

Remove the lower basket and unscrew and remove the cap from the salt container.

If you are filling the container for the first time , fill 2/3 of its volume with water.

Place the end of the salt filter(supplied) into the hole and introduce about 2kg of

salt .It is normal for a small amount of water to come out of the salt container.

Carefully screw on the cap.

Safety Instructions

Operating Instructions

1. The salt container must be refilled when the salt warning light comes on. Though the salt container is filled,

NOTE:

the indicator light may not black out before the salt fully dissolves.

2. If there are spills of salt, a soak program could be run to clean the spills.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption.

Unscrew the cap from the salt container.

There is a ring on the container with an arrow on it (see Figure to the side). If

necessary, rotate the ring in the counterclockwise direction from the "-" setting toward the "+" sign, based on the hardness of the water being used.It is recommended that adjustments should be made in accordance with the following chart:

WATER H ARDNESS

Auto nomy

(cycles/2kgs)

Clarke Degrees

mmol/l

Selector Position

Salt consumption

(gram/cycle)

Troubleshooting Tips

0~14 0~10 0~1.7

14~36 18~44 1.8~4.4

36~71 45~89 4.5~8.9

71 89 8.9

Contact your local water board for information on the hardness of your water supply.

MED

20 60

40 40

60 25

SCALE

1.000

SCALE

1.000

Safety Instructions

DETERGENT DISPENSER

The dispenser must be refilled before the start of each wash cycle according to the instructions provided in the" Wash Cycle Table". Our dishwashers than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

IF THE WATER ISN'T TOO HARD, YOU MAY ALSO PREVENT THE FORMATION OF DEPOSITS BY ADDING DETERGENT. The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use

use less detergent and rinse aid

little by little until you find the correct amount.

Operating Instructions

Removing Hard Water Spots

From Dishes

SCALE

1.000

Main Wash Detergent

Dispenser Lid lever

Prewash Detergent Compartment

Rinse Aid Level Indicator

Rinse Aid Compartment

Detergent Compartment Lid

To remove hard water spots, try the following: Run dishes through a normal wash program. Remove all metal dishware, such as cutlery, pans, etc.,

from the dishwasher. Do not add detergent. Pour two cups of vinegar into a bowl and set the bowl face

up on the lower rack of the dishwasher. Run the dishes through a normal wash program. If this doesn't work, try the same process with 1 / 4 cup of citric acid crystals instead of vinegar.

Proper Use of Detergent

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you are ready to wash dishes.

WA RN I NG!

Dishwasher detergent is corrosive! Take care to keep it out of the reach of children.

Troubleshooting Tips

RINSE AID DISPENSER

SCALE

1.000

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to overfill. Replace the cap by inserting it aligned with "open" arrow and turning it to the "close" (right) arrow.

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to "sheet" off the dishes.

Our dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The dispenser holds about 100 ml of liquid rinse aid.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close the dishwasher door. If you have soft water, you may not need rinse aid as it may cause a white film to develop on your dishes.

Adjusting Rinse Aid Dispenser

A measured amount of rinse aid is released during the final rinse. As with

detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather or foaming and can cause cloudiness or streaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water.

The rinse aid dispenser has six settings. Always start with the dispenser set on " 1 ". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "2". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. We suggest the setting of "4".

When to Refill the Rinse Aid Dispenser

Safety Instructions

When the rinse aid dispenser is empty, the rinse aid warning light (on control panel) will illuminate, indicating the dispenser needs to be refilled. The black dot on the rinse aid dispenser indicated the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3 / 4 full 1 / 2 full 1 / 4 full - Should refill to eliminate spotting Empty

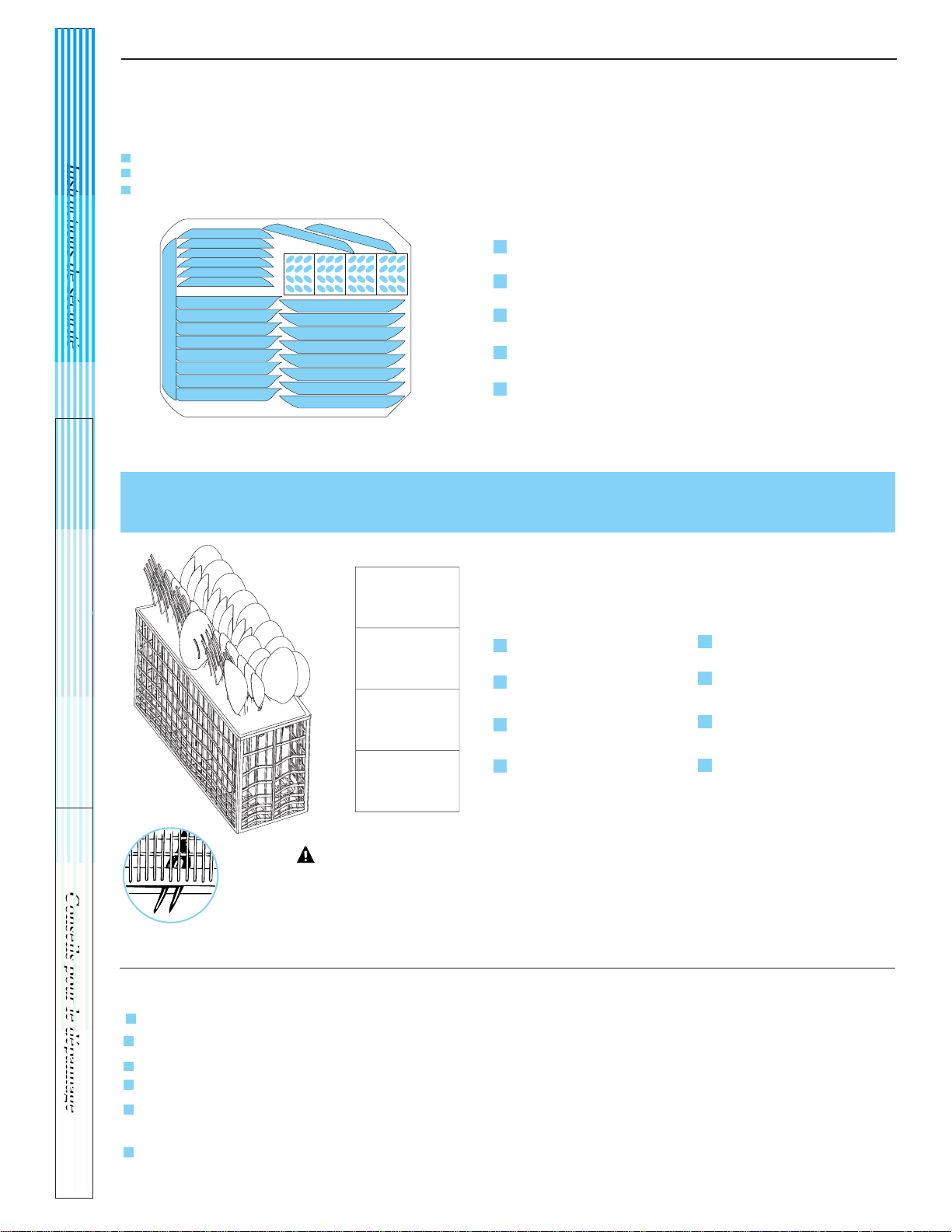

Loading the Dishwasher Racks

For best performance,

baskets may vary from your model.

follow these loading guidelines. Features and appearance of racks and silverware

How to use the Upper Rack

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and lightly soiled Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be adjusted for height by putting wheels of different height into the rails.

shallow pans.

Operating Instructions

Cups

Small serving bowl

Large serving bowl

Glasses

Saucers

Dish

Plates

Troubleshooting Tips

How to use the Lower Rack

Safety Instructions

Operating Instructions

We reco mmen d that you place large items

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Pots, serving bowls, etc, must always be placed top down. Deep pots should be slanted to allow water flow.

The bottom rack features fold down tine rows so that larger or more pots and pans can be loaded.

in the lower rack: pots, pans, lids, serving dishes and bowls, as shown below.

Oval platter

Dinner plates

Soup plates

Dessert dishes

Silverware basket

SILVERWARE BASKET

Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually in the appropriate slots. Long utensils should be placed in the horizontal position at the

front of the upper rack.

Troubleshooting Tips

1 1 1

1 1 4

7 8 1

1 1 6

4 3 3

3 3 3

2 5 3

3 3

2 3

WA RN I N G!

Do not let any item extend through the bottom of the basket.

TURNING ON THE APPLIANCE

Starting a wash cycle. . .

Forks

Soup spoons

Dessert spoons

Teaspoons

Knife

Serving spoon

Gravy ladle

Serving fork

Make sure that the plug for the appliance is inserted into the wall socket.

Make sure that the water supply is turned on to full pressure.

Load the dishwasher(see the section entitled, " Loading the Dishwasher " ). Pour in the detergent(see the section entitled, " Salt, Detergent and Rinse Aid " ).

Turn the dial

setting is aligned Press the ON/ OFF button, and the ON/OFF light will turn on. At this point, the wash cycle will begin.

located on the right of the control panel in the clockwise direction until the number or the symbol for the cycle

with the reference mark (see the section entitled, " Wash Cycle Table " ).

Cancell

A cy cle t h at is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have

already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser

must be refilled (see the paragraph entitled " Loading the Detergent " ). Press the ON/OFF button, and the ON light will turn off. Rotate the dial the section entitled

ing or modifying a wash cycle setting. . .

in the clockwise direction to the desired cycle setting (see

" Starting a wash cycle. . . " ).

Then, turn the dishwasher back on using

the ON/OFF button.

At the End of the Wash Cycle

STOP

When the dial stops turning and is aligned with the STOP mark(see figure), the cycle has finished . Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dish washer to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage.

Forget to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

Pull the door handle.

Safety Instructions

Do not open the door until the water spray action stops. Steam may rise out of the dishwasher.

Add forgotten dishes.

Push the door to close . When the door is properly closed, a click will sound.

FILTERING SYSTEM

For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter.

Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.

Coarse filter Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs on top of this filter and lift it out.

Fine filter This filter holds soil and food residue in the sump area and prevents it from being redeposited on the dishes during a cycle.

CARING FOR THE DISHWASHER

o clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good

appliance polish wax.

Operating Instructions

Troubleshooting Tips

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

Cut off electrical power to the dishwasher

and remove fuses or trip circuit breaker.

Turn off the water supply and disconnect the

water inlet pipe from the water valve.

Drain the water from the inlet and water valve. pipe

(Use a pan to catch the water.)

Reconnect the water inlet to the

water valve. Remove the plastic sump cover in the

tub the bottom and use a sponge to soak up the water in rubber boot.

pipe

+ 22 hidden pages
