INDEX
STRUCTURE AND PRINCIPLE
Features 36
Specifications 36
How dehumidifying works 37
Structure of dehumidifier 37
OPERATION
Operation panel 38
Switch function 39
Operation steps 39-40
Draining the water 40-41
MAINTENANCE
Caring for the dehumidifier 42
Storing the dehumidifier 42
Notation for safe operation 43
Removing breakdowns 43-44
APÉNDIX
Electric Schematic Diagram 45
INGLES
- 36 -
● The dehumidification capacity is the value obtained after the dehumidifier was continuously run in the
room temperature of 30ºC with the relative humidity 80%.
● The amount of dehumidification is the amount per day (24 hours.)
● If specifications are changed without notice for further improvement, they are data on nameplate of the
unit.
● The work temperature is in the range 2ºC to 38ºC. If the room temperature is beyond the range, the unit
can not operate normally.
Structure and Principle
Powerful dehumidifying capability
● Taking advantage of refrigeration principle,
the dehumidifier powerfully removes partial
moisture from air to drop the humidity of the
room and keep indoor air dry and comfortable.
Quiet operation
● When the dehumidifier operates in QUIET
mode, the value of its noise is so low and
makes your room quiet.
Using refrigerant for protecting environment
● The dehumidifier uses the no CFC refrigerant
for protecting environment to reduce to pollute environment.
Excellent drying laundry function
● The dehumidifier dries laundry quickly. This
can prevent laundry and furniture from becoming damp and musty in a rainy season.
Drainage tank with a large capacity
● The drainage tank capacity is large to 6 liters;
this will reduce the times of your discarding
water.
Saving energy
● The power consumption is low.
SPECIFICATIONS
● Features
Structure and Principle
Power Supply 220~230V, 50Hz
Dehumidifying Capacity 12 L/day 20 L/day
Power Consumption 190W 360W
Drainage Tank Capacity 6,0 L (automatic stop at about 5.5L)
Weight 12,5 kg 14 kg
Dimension (height x width x depth)) 545 mm x 380 mm x 261,5 mm
Model ADD12 ADD20
● Specifications
- 37 -
INGLES
Structure and Principle
If you pour cold water into a cup, the air around the cup is cooled, and drops of water form on the
surface of the cup. The dehumidifier takes advantage of this phenomenon to remove moisture.
➀ It draws in room air, cools it with a coo-
ling unit, and changes the humidity to
drops of water.
➁ The drops of water fall into a drainage
tank.
➂ The dehumidified air is re-heated by a
heating unit and discharged.
Steps ➀, ➁ and ➂ are repeated to remove
humidity from the room.
● After the air passes through the re-heating unit, its temperature will rise a little, so that the tempe-
rature of the room will rise appreciably. This is normal phenomenon.
● How dehumidifying works
Structure and Principle
● Structure of dehumidifier
Louver
Operation panel
Guard
Water level gauge
Drainage tank
Handle
Discharge port
Float
Cooling unit
Moist air
Compressor
Dried air
Drainage tank
Re-heating unit
INGLES
- 38 -

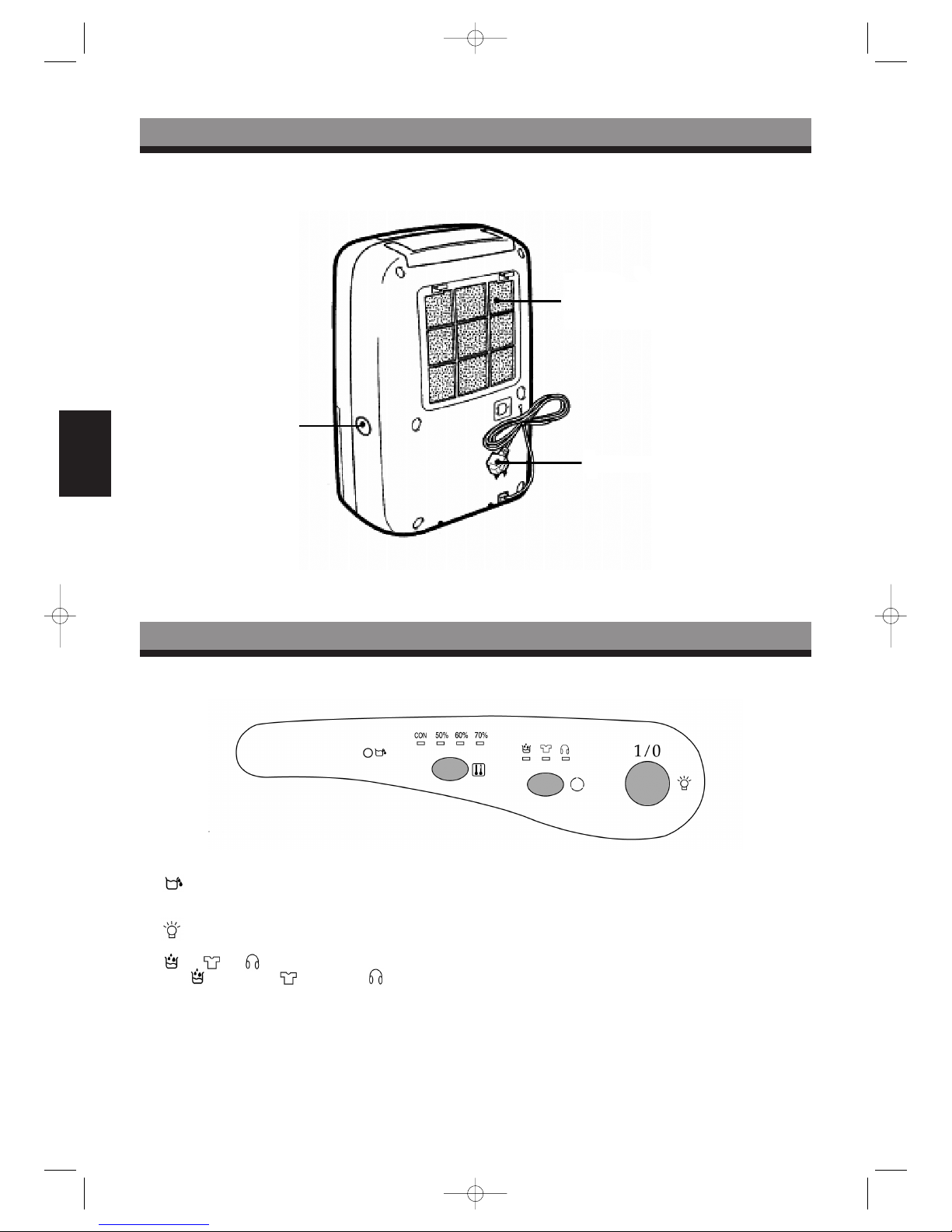

Structure and Principle
Air filter (Air intake
port, do not obstruct!)
Power supply plug
Continuous
drainage port
Operation
● Operation panel
Indicator lamp
1. “ ”: Tank full indicator lamp
It will light when the drainage tank is full or positioned incorrectly. Empty the water out of the drainage tank,
and make sure the tank is positioned properly.
2. “ ”: Power indicator lamp
It will light when the unit is plugged in.
3. “ ”, “ ”, “ ”: mode indicator lamp
When “ ” lamp or “ ” lamp or “ ” lamp is lighted, it respectively indicates that operation is in DEHUMIDIFY, LAUNDRY or QUIET mode.
4. “50%”, “60%”, “70%”: Humidity indicator lamp
When “50%” lamp, “60%” lamp or “70%” lamp is lighted, it respectively indicates that the current setting
humidity is “50%”, “60%” or “70%”.
5. “CON”: Continuously dehumidity indicator lamp
When “CON” lamp is lighted, it indicates that the operation is in CONTINUOUS mode.
