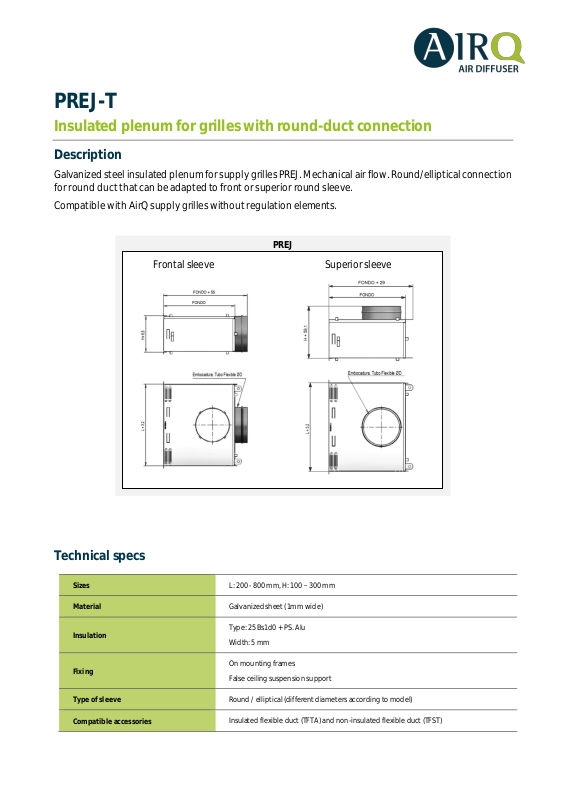

PREJ
PREJ-T
Insulated plenum for grilles with round-duct connection
Description
Galvanized steel insulated plenum for supply grilles PREJ. Mechanical air flow. Round/elliptical connection
for round duct that can be adapted to front or superior round sleeve.
Compatible with AirQ supply grilles without regulation elements.
Frontal sleeve Superior sleeve
Technical specs
HxL
Number/diameter according to size
(Depth)
200
250
300
350
400
450
500
550
600
650
700
750
800
100
160*
(XS)
160*
(XS)
160*
(XS)
160*
(XS)
160*
(XS)
2x160*
(XS)
2x160*
(XS)
2x160*
(XS)
2x160*
(XS)
2x160*
(XS)
2x160*
(XS)
2x160*
(XS)
2x160*
(XS)
150
160
(S)
160
(S)
160
(S)
160
(S)
200*
(S)
200*
(S)
200*
(S)
200*
(S)
200*
(S)
2x160
(S)
2x160
(S)
2x160
(S)
2x160
(S)
200
160
(S)
160
(S)
200
(M)
200
(M)
200
(M)
200
(M)
200
(M)
250*
(M)
250*
(M)
250*
(M)
250*
(M)
2x200
(M)
2x200
(M)
250
160
(S)
200
(M)
200
(M)
200
(M)
250
(M)
250
(L)
250
(L)
250
(L)
250
(L)
250
(L)
300*
(L)
300*
(L)
300*
(L)
300
200
(M)
200
(M)
200
(M)
250
(L)
250
(L)
250
(L)
250
(L)
300
(XL)
300
(XL)
300
(XL)
300
(XL)
300
(XL)
2x250
(L)
XS: 257,4 mm
S: 307,4 mm
M: 357,4 mm
L: 407,4 mm
XL: 457,4 mm
L: Length (mm)
H: Height (mm)
Number/diameter of the sleeves according to size and depth (mm)
(*) Elliptical
