Daikin EHVZ04S18E*6V, EHVZ08S18E*6V, EHVZ08S23E*6V, EHVZ08S18E*9W, EHVZ08S23E*9W User reference guide
User reference guide
Daikin Altherma 3 R F
EHVZ04S18E*6V
EHVZ08S18E*6V
EHVZ08S23E*6V
EHVZ08S18E*9W
EHVZ08S23E*9W
Table of contents
Table of contents
1 General safety precautions 4
1.1 About the documentation .............................................................................................................................................. 4
1.1.1 Meaning of warnings and symbols ................................................................................................................ 4
1.2 For the user..................................................................................................................................................................... 5
2 About this document 7
3 About the system 9
3.1 Components in a typical system layout.......................................................................................................................... 9
4 Operation 10
4.1 User interface: Overview ................................................................................................................................................ 10
4.2 Possible screens: Overview............................................................................................................................................. 11
4.2.1 Home screen................................................................................................................................................... 12
4.2.2 Main menu screen.......................................................................................................................................... 14
4.2.3 Setpoint screen............................................................................................................................................... 15
4.2.4 Detailed screen with values ........................................................................................................................... 16
4.3 Turning operation ON or OFF ......................................................................................................................................... 17
4.3.1 Visual indication.............................................................................................................................................. 17
4.3.2 To turn ON or OFF .......................................................................................................................................... 18
4.4 Space heating control ..................................................................................................................................................... 19
4.4.1 About space heating control .......................................................................................................................... 19
4.4.2 Setting the space operation mode................................................................................................................. 19
4.4.3 Determining which temperature control you are using ................................................................................ 19
4.4.4 To change the desired room temperature .................................................................................................... 20
4.4.5 To change the desired leaving water temperature ....................................................................................... 20
4.5 Domestic hot water control............................................................................................................................................ 22
4.5.1 About domestic hot water control................................................................................................................. 22
4.5.2 Reheat mode .................................................................................................................................................. 23
4.5.3 Scheduled mode ............................................................................................................................................. 23
4.5.4 Scheduled + reheat mode .............................................................................................................................. 24
4.5.5 To change the domestic hot water temperature .......................................................................................... 24
4.5.6 Using DHW powerful operation ..................................................................................................................... 24
4.6 Advanced usage .............................................................................................................................................................. 25
4.6.1 Using quiet mode ........................................................................................................................................... 26
4.6.2 Using holiday mode ........................................................................................................................................ 27
4.6.3 Reading out information ................................................................................................................................ 27
4.6.4 To configure time and date ............................................................................................................................ 28
4.7 Preset values and schedules........................................................................................................................................... 28
4.7.1 Using preset values......................................................................................................................................... 28
4.7.2 Setting the energy prices................................................................................................................................ 29
4.7.3 Using and programming schedules................................................................................................................ 31
4.7.4 Schedule screen: Example.............................................................................................................................. 34
4.8 Weather-dependent curve ............................................................................................................................................. 38
4.8.1 What is a weather-dependent curve? ........................................................................................................... 38
4.8.2 2-points curve ................................................................................................................................................. 39
4.8.3 Slope-offset curve........................................................................................................................................... 39
4.8.4 Using weather-dependent curves.................................................................................................................. 41
4.9 Menu structure: Overview user settings........................................................................................................................ 43
4.10 Installer settings: Tables to be filled in by installer ........................................................................................................ 44
4.10.1 Configuration wizard ...................................................................................................................................... 44
4.10.2 Settings menu................................................................................................................................................. 44
User reference guide
2
5 Energy saving tips 46
6 Maintenance and service 47
6.1 Overview: Maintenance and service .............................................................................................................................. 47
6.2 To find the contact/helpdesk number............................................................................................................................ 48
7 Troubleshooting 49
7.1 To display the help text in case of a malfunction........................................................................................................... 49
7.2 To check the malfunction history ................................................................................................................................... 49
7.3 Symptom: You are feeling too cold (hot) in your living room........................................................................................ 50
7.4 Symptom: The water at the tap is too cold.................................................................................................................... 50
7.5 Symptom: Heat pump failure ......................................................................................................................................... 51
7.6 Symptom: The system is making gurgling noises after commissioning......................................................................... 51
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Table of contents
8 Relocation 53
8.1 Overview: Relocation...................................................................................................................................................... 53
9 Disposal 54
10 Glossary 55
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
3
1 | General safety precautions
1 General safety precautions
1.1 About the documentation
▪ The original documentation is written in English. All other languages are
translations.
▪ The precautions described in this document cover very important topics, follow
them carefully.
▪ The installation of the system, and all activities described in the installation
manual and in the installer reference guide MUST be performed by an authorised
installer.
1.1.1 Meaning of warnings and symbols
DANGER
Indicates a situation that results in death or serious injury.
DANGER: RISK OF ELECTROCUTION
Indicates a situation that could result in electrocution.
DANGER: RISK OF BURNING/SCALDING
Indicates a situation that could result in burning/scalding because of extreme hot or
cold temperatures.
DANGER: RISK OF EXPLOSION
Indicates a situation that could result in explosion.
WARNING
Indicates a situation that could result in death or serious injury.
WARNING: FLAMMABLE MATERIAL
CAUTION
Indicates a situation that could result in minor or moderate injury.
User reference guide
4
NOTICE
Indicates a situation that could result in equipment or property damage.
INFORMATION
Indicates useful tips or additional information.
Symbols used on the unit:
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Symbol Explanation
Before installation, read the installation and operation
manual, and the wiring instruction sheet.
Before performing maintenance and service tasks, read the
service manual.
For more information, see the installer and user reference
guide.
The unit contains rotating parts. Be careful when servicing or
inspecting the unit.
Symbols used in the documentation:
Symbol Explanation
Indicates a figure title or a reference to it.
Example: " 1–3 Figure title" means "Figure 3 in chapter 1".
Indicates a table title or a reference to it.
Example: " 1–3 Table title" means "Table 3 in chapter 1".
1 | General safety precautions
1.2 For the user
WARNING
If you are NOT sure how to operate the unit, contact your
installer.
WARNING
Children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of
experience and knowledge can only use this appliance if
they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their
safety.
Children MUST NOT play with the appliance.
Cleaning and user maintenance MUST NOT be carried out
by children without supervision.
WARNING
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
To prevent electrical shocks or fire:
▪ Do NOT rinse the unit.
▪ Do NOT operate the unit with wet hands.
▪ Do NOT place any objects containing water on the unit.
User reference guide
5
1 | General safety precautions
▪ Units are marked with the following symbol:
This means that electrical and electronic products may NOT be mixed with
unsorted household waste. Do NOT try to dismantle the system yourself: the
dismantling of the system, treatment of the refrigerant, of oil and of other parts
must be done by an authorized installer and must comply with applicable
legislation.
Units must be treated at a specialized treatment facility for reuse, recycling and
recovery. By ensuring this product is disposed of correctly, you will help to
prevent potential negative consequences for the environment and human
health. For more information, contact your installer or local authority.
▪ Batteries are marked with the following symbol:
CAUTION
▪ Do NOT place any objects or equipment on top of the
unit.
▪ Do NOT sit, climb or stand on the unit.
This means that the batteries may NOT be mixed with unsorted household
waste. If a chemical symbol is printed beneath the symbol, this chemical symbol
means that the battery contains a heavy metal above a certain concentration.
Possible chemical symbols are: Pb: lead (>0.004%).
Waste batteries must be treated at a specialized treatment facility for reuse. By
ensuring waste batteries are disposed of correctly, you will help to prevent
potential negative consequences for the environment and human health.
User reference guide
6
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
2 About this document
Thank you for purchasing this product. Please:
▪ Read the documentation carefully before operating the user interface to ensure
the best possible performance.
▪ Request the installer to inform you about the settings that he used to configure
your system. Check if he has filled in the installer settings tables. If not, request
him to do so.
▪ Keep the documentation for future reference.
Target audience
Endusers
Documentation set
This document is part of a documentation set. The complete set consists of:
▪ General safety precautions:
- Safety instructions that you must read before operating your system
- Format: Paper (in the box of the indoor unit)
2 | About this document
▪ Operation manual:
- Quick guide for basic usage
- Format: Paper (in the box of the indoor unit)
▪ User reference guide:
- Detailed step-by-step instructions and background information for basic and
advanced usage
- Format: Digital files on http://www.daikineurope.com/support-and-manuals/
product-information/
Latest revisions of the supplied documentation may be available on the regional
Daikin website or via your installer.
The original documentation is written in English. All other languages are
translations.
Breadcrumbs
Breadcrumbs (example: [4.3]) help you to locate where you are in the menu
structure of the user interface.
1 To enable the breadcrumbs: In the home screen or main menu
screen, press the help button. The breadcrumbs appear in the
top left corner of the screen.
2 To disable the breadcrumbs: Press the help button again.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
This document also mentions these breadcrumbs. Example:
1 Go to [4.3]: Space heating/cooling > Operation
range.
This means:
User reference guide
7
2 | About this document
4
Space heating/cooling
Operation range
4.3
1 Starting from the home screen, turn the left dial and go to
Space heating/cooling.
2 Press the left dial to enter the submenu.
3 Turn the left dial and go to Operation range.
4 Press the left dial to enter the submenu.
User reference guide
8
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
3 About the system
d
a
b
c
e
f
g
BC
A
Depending on the system layout, the system can:
▪ Heat up a space
▪ Cool down a space (if a heating/cooling heatpump model is installed)
▪ Produce domestic hot water (if a DHWtank is installed)
3.1 Components in a typical system layout
3 | About the system
A Main zone. Example: Living room.
B Additional zone. Example: Bedroom.
C Technical room. Example: Garage.
a Outdoor unit heatpump
b Indoor unit heatpump
c Domestic hot water (DHW) tank
d User interface of the indoor unit
e User interface used as room thermostat
f Underfloor heating
g Radiators, heatpump convectors, or fancoil units
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
9
4 | Operation
a
b
c
a b c d e
4 Operation
4.1 User interface: Overview
The user interface has the following components:
a Status indicator
b LCD screen
c Dials and buttons
Status indicator
The LEDs of the status indicator light up or blink to show the operating mode of the
unit.
LED Mode Description
Blinking blue Standby The unit is not in operation.
Continuous blue Operation The unit is in operation.
Blinking red Malfunction A malfunction occurred.
See "7.1To display the help text in case
of a malfunction"[449] for more
information.
LCD screen
The LCD screen has a sleeping function. After 15min of non-interaction with the
user interface, the screen darkens. Pressing any button or rotating any dial
awakens the display.
Dials and buttons
You use the dials and buttons:
▪ To navigate through the screens, menus and settings of the LCD screen
▪ To set values
User reference guide
10
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
4 | Operation
+
–
a
OR
b
c
c2
c4
c1
c3
Item Description
a Left dial The LCD shows an arc on the left side of the display when
you can use the left dial.
▪ : Turn, then press the left dial. Navigate through the
menu structure.
▪ : Turn the left dial. Choose a menu item.
▪ : Press the left dial. Confirm your choice or go to a
submenu.
b Back button : Press to go back 1 step in the menu structure.
c Home button : Press to go back to the home screen.
d Help button : Press to show a help text related to the current page (if
available).
e Right dial The LCD shows an arc on the right side of the display when
you can use the right dial.
▪ : Turn, then press the right dial. Change a value or
setting, shown at the right side of the screen.
▪ : Turn the right dial. Navigate through the possible
values and settings.
4.2 Possible screens: Overview
The most common screens are as follows:
▪ : Press the right dial. Confirm your choice and go to
the next menu item.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
a Home screen
b Main menu screen
User reference guide
11
4 | Operation
6
1.6
bar
26 Feb 2019
22:19
55
21
35
j
e2
l
k1
k2
k3
45
d
e1
g3
g2
h1
g1
f
i2 i3 i4 h2i1
a2a1e3 b c
55
4.2.1 Home screen
c Lower level screens:
c1: Setpoint screen
c2: Detailed screen with values
c3: Screen with weather-dependent curve
c4: Screen with schedule
Press the button to go back to the home screen. You see an overview of the unit
configuration and the room and setpoint temperatures. Only symbols applicable
for your configuration are visible on the home screen.
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.
Item Description
a Domestic hot water
a1 Domestic hot water
a2
Measured tank temperature
b Disinfection / Powerful
Disinfection mode active
Powerful operation mode active
c Emergency
Heat pump failure and system operates in Emergency mode
or heat pump is forced off.
d Current date and time
e Smart energy
(a)
User reference guide
12
e1 Smart energy is available via solar panels or smart grid.
e2 Smart energy is currently being used for space heating.
e3 Smart energy is currently being used for domestic hot water.
f Space operation mode
Heating
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Item Description
6
21
35
g Outdoor / quiet mode
g1
Measured outdoor temperature
(a)
g2 Quiet mode active
g3 Outdoor unit
h Indoor unit / domestic hot water tank
h1 Floor-standing indoor unit with integrated tank
Wall-mounted indoor unit
Wall-mounted indoor unit with separated tank
h2 Water pressure
i Main zone
i1 Installed room thermostat type:
4 | Operation
Unit operation is decided based on the ambient temperature
of the dedicated Human Comfort Interface (BRC1HHDA used
as room thermostat).
Unit operation is decided by the external room thermostat
(wired or wireless).
— No room thermostat installed or set. Unit operation is
decided based on the leaving water temperature regardless
of the actual room temperature and/or heating demand of
the room.
i2 Installed heat emitter type:
Underfloor heating
Fancoil unit
Radiator
i3
i4
Measured room temperature
Leaving water temperature setpoint
j Holiday mode
Holiday mode active
(a)
(a)
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
13
4 | Operation
45
a
2
Main zone
Additional zone
Room
Malfunctioning
Space heating/cooling
Item Description
k Additional zone
k1 Installed room thermostat type:
Unit operation is decided by the external room thermostat
(wired or wireless).
— No room thermostat installed or set. Unit operation is
decided based on the leaving water temperature regardless
of the actual room temperature and/or heating demand of
the room.
k2 Installed heat emitter type:
Underfloor heating
Fancoil unit
Radiator
k3
Leaving water temperature setpoint
l Malfunction
A malfunction occurred.
(a)
4.2.2 Main menu screen
Starting from the home screen, press ( ) or turn ( ) the left dial to open
the main menu screen. From the main menu, you can access the different setpoint
screens and submenus.
See "7.1To display the help text in case of a
malfunction"[449] for more information.
(a)
If the corresponding operation (for example: space heating) is not active, the circle is
greyed out.
a Selected submenu
Possible actions on this screen
Go through the list.
Enter the submenu.
Enable/disable breadcrumbs.
User reference guide
14
Submenu Description
[0]
or Malfunctioning
Restriction: Only displayed if a malfunction
occurs.
See "7.1To display the help text in case of a
malfunction"[449] for more information.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Submenu Description
4 | Operation
[1]
Room
Restriction: Only displayed if a dedicated
Human Comfort Interface (BRC1HHDA used as
room thermostat) is controlling the indoor
unit.
Set the room temperature.
[2]
Main zone
Shows the applicable symbol for your main
zone emitter type.
Set the leaving water temperature for the
main zone.
[3] Additional zone Restriction: Only displayed if there are two
leaving water temperature zones. Shows the
applicable symbol for your additional zone
emitter type.
Set the leaving water temperature for the
additional zone (if present).
[4]
Space heating/
cooling
Shows the applicable symbol of your unit.
Put the unit in heating mode or cooling mode.
You cannot change the mode on heating only
models.
[5]
Tank
Set the domestic hot water tank temperature.
4.2.3 Setpoint screen
[7]
User settings
Gives access to user settings such as holiday
mode and quiet mode.
[8]
Information
Displays data and information about the
indoor unit.
[9]
Installer settings
Restriction: Only for the installer.
Gives access to advanced settings.
[A]
Commissioning
Restriction: Only for the installer.
Perform tests and maintenance.
[B]
[C]
User profile
Operation
Change the active user profile.
Turn heating/cooling functionality and
domestic hot water preparation on or off.
[D] Wireless gateway Restriction: Only displayed if a wireless LAN
(WLAN) is installed.
Contains settings needed when configuring
the Daikin Residential Controller app.
The setpoint screen is displayed for screens describing system components that
need a setpoint value.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
15
4 | Operation
+
–
21°C
1
Room
+
–
35°C
2
Main zone
+
–
45°C
3
Additional zone
+
–
50°C
5
Tank
a1
d
+
–
d
e
d
e
c
a2
b1
b2
a bc
a bc
7.2.1
Time/date
Hours
11
30
Minutes
Examples
[1] Room temperature screen
[3] Additional zone screen
Explanation
Possible actions on this screen
[2] Main zone screen
[5] Tank temperature screen
Minimum temperature limit a1 Fixed by the unit
Maximum temperature limit b1 Fixed by the unit
Current temperature c Measured by the unit
Desired temperature d Turn the right dial to increase/
Submenu e Turn or press the left dial to go to
4.2.4 Detailed screen with values
Go through the list of the submenu.
Go to the submenu.
Adjust and automatically apply the desired temperature.
Item Description
a2 Restricted by the installer
b2 Restricted by the installer
decrease.
the submenu.
Example:
User reference guide
16
a Settings
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
b Values
1.6
bar
55
21
35
45
a
1.6
bar
55
21
35
45
b
1.6
bar
55
21
35
45
c
1.6
bar
55
21
35
45
d
c Selected setting and value
Go through the list of settings.
Change the value.
Go to the next setting.
Confirm changes and proceed.
4.3 Turning operation ON or OFF
4.3.1 Visual indication
Certain functionalities of the unit can be enabled or disabled separately. If a
functionality is disabled, the corresponding temperature icon in the home screen
will be greyed out.
4 | Operation
Possible actions on this screen
Room temperature control
a Room temperature control ON
b Room temperature control OFF
Space heating/cooling operation
c Space heating/cooling operation ON
d Space heating/cooling operation OFF
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
17
4 | Operation
1.6
bar
55
21
35
45
e
1.6
bar
55
21
35
45
f
Operation
Room
Space heating/cooling
On
On
C.1
Operation
Space heating/cooling
Tank
Off
On
On
Room
C.2

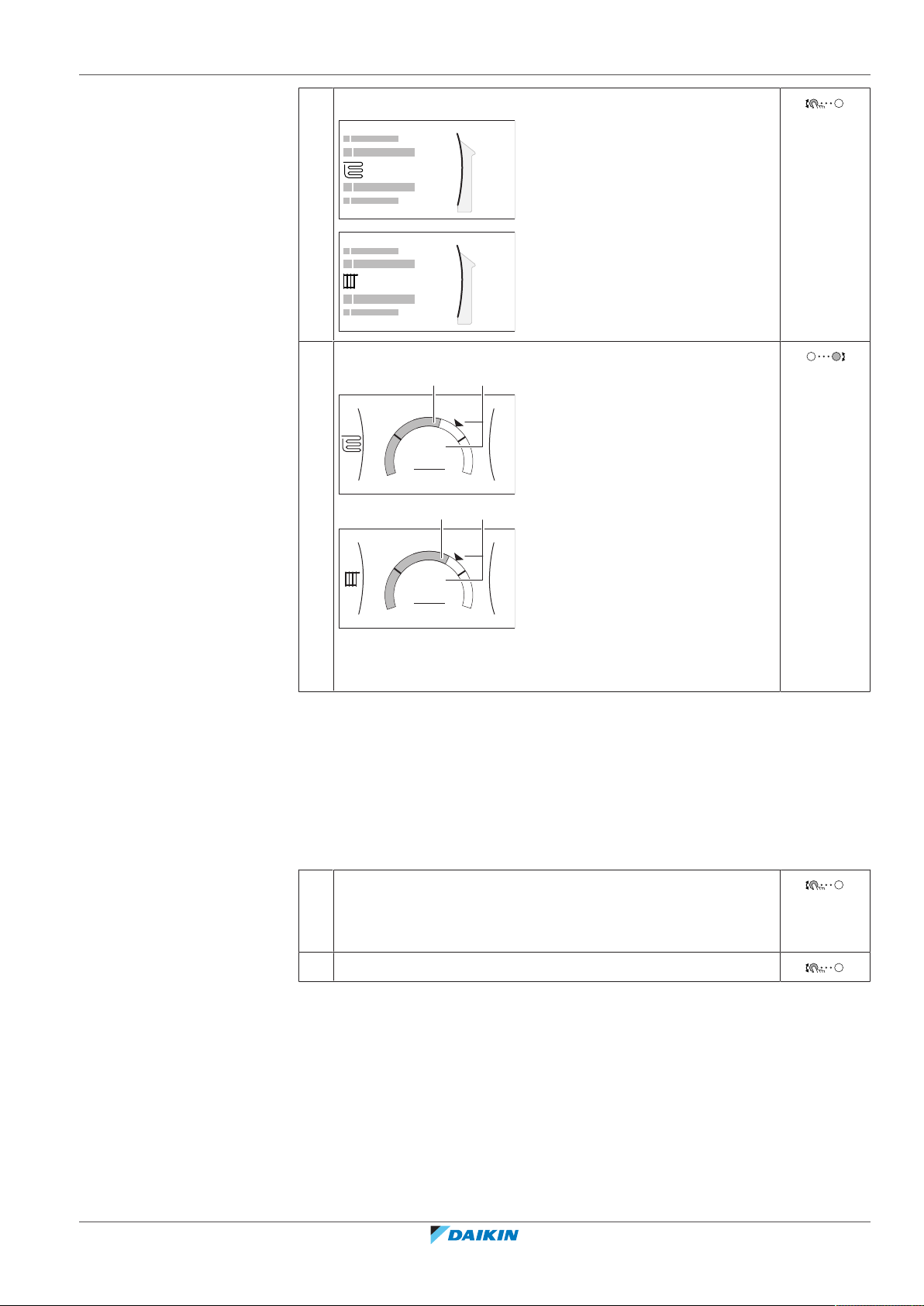

4.3.2 To turn ON or OFF
Tank heating operation
e Tank heating operation ON
f Tank heating operation OFF
Room temperature control
1 Go to [C.1]: Operation > Room.
2 Set operation to On or Off.
Space heating/cooling operation
NOTICE
Room frost protection. Even if you turn OFF space heating/cooling operation ([C.2]:
Operation > Space heating/cooling), room frost protection –if enabled– will
remain active.
NOTICE
Water pipe freeze prevention. Even if you turn OFF space heating/cooling operation
([C.2]: Operation > Space heating/cooling), water pipe freeze prevention –if
enabled– will remain active.
1 Go to [C.2]: Operation > Space heating/cooling.
2 Set operation to On or Off.
User reference guide
18
Tank heating operation
NOTICE
Disinfection mode. Even if you turn OFF tank heating operation ([C.3]: Operation >
Tank), disinfection mode will remain active. However, if you turn it OFF while
disinfection is running, an AH error occurs.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
1 Go to [C.3]: Operation > Tank.
Operation
Tank
Off
On
Space heating/cooling
C.3
6
1.6
bar
22:19
55
21
35
45
a2
a1
b
18 Feb 2018
2 Set operation to On or Off.
4.4 Space heating control
4.4.1 About space heating control
Controlling space heating typically consists of the following stages:
1 Setting the space operation mode
2 Controlling the temperature
Depending on the system layout and installer configuration, you use a different
temperature control:
4 | Operation
▪ Room thermostat control
▪ Leaving water temperature control
▪ External room thermostat control
4.4.2 Setting the space operation mode
About space operation modes
This unit is a heating only model. The system can heat up a space, but NOT cool
down a space.
4.4.3 Determining which temperature control you are using
To determine which temperature control you are using (method1)
Check the installer settings table filled in by the installer.
To determine which temperature control you are using (method 2)
You can see on the home screen which temperature control you are using.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
a1 Heat emitter of the main zone (in this example Underfloor heating)
a2 Heat emitter of the additional zone (in this example Radiator). If no icon is displayed, there is no
additional zone.
b Room thermostat type of the main zone:
User reference guide
19
4 | Operation
Room
1
+
–
21°C
1
a b
Room
If b=… Then the temperature control is…
Main zone Additional zone (if any)
Room thermostat control External room thermostat
External room thermostat
control
control
No icon Leaving water
4.4.4 To change the desired room temperature
During room temperature control, you can use the room temperature setpoint
screen to read out and adjust the desired room temperature.
1 Go to [1]: Room.
2 Adjust the desired room temperature.
temperature control
Leaving water
temperature control
a Actual room temperature
b Desired room temperature
If scheduling is on after changing the desired room temperature
▪ The temperature will stay the same as long as there is no scheduled action.
▪ The desired room temperature will return to its scheduled value whenever a
scheduled action occurs.
You can avoid scheduled behaviour by (temporarily) turning off scheduling.
To turn off room temperature scheduling
1 Go to [1.1]: Room > Schedule.
2 Select No.
4.4.5 To change the desired leaving water temperature
INFORMATION
The leaving water is the water that is sent to the heat emitters. The desired leaving
water temperature is set by your installer in accordance with the heat emitter type.
Only adjust the leaving water temperature settings in case of problems.
You can use the leaving water temperature setpoint screen to read out and adjust
the desired leaving water temperature.
User reference guide
20
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
1 Go to [2]: Main zone or [3]: Additional zone.
Main zone
2
Additional zone
3
+
–
35°C
2
a b
Main zone
+
–
45°C
3
a b
Additional zone
2 Adjust the desired leaving water temperature.
4 | Operation
a Actual leaving water temperature
b Desired leaving water temperature
If scheduling is on after changing the desired leaving water temperature
▪ The temperature will stay the same as long as there is no scheduled action.
▪ The desired leaving water temperature will return to its scheduled value
whenever a scheduled action occurs.
You can avoid scheduled behaviour by (temporarily) turning off scheduling.
To turn off leaving water temperature scheduling
1 Go to one of the following:
▪ [2.1]: Main zone > Schedule
▪ [3.1]: Additional zone > Schedule
2 Select No.
To enable weather-dependent operation for the leaving water temperature
See "4.8.4Using weather-dependent curves"[441].
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
21
4 | Operation
[5.1]
[5.2]
[5.3]
[5.4]
[5.5]
Eco setpoint
Schedule
Reheat setpoint
Comfort setpoint
Powerful operation
4.5 Domestic hot water control
4.5.1 About domestic hot water control
Depending on the DHW tank mode (installer setting), you use a different domestic
hot water control:
▪ Reheat only
▪ Schedule + reheat
▪ Schedule only
CAUTION
The booster heater permission schedule is used to restrict or allow booster heater
operation based on a weekly program. Advice: In order to avoid unsuccessful
disinfection function, at least allow the booster heater (by the weekly program) for
minimum 4hours starting from the scheduled start-up of disinfection. If the booster
heater is restricted during disinfection, this function will NOT be successful and the
applicable warning AH will be generated.
INFORMATION
In case of error code AH and no interruption of the disinfection function occurred
due to domestic hot water tapping, following actions are recommended:
▪ When the Reheat only or Schedule + reheat mode is selected, it is
recommended to program the start-up of the disinfection function at least
4hours later than the last expected large hot water tapping. This start-up can be
set by installer settings (disinfection function).
▪ When the Schedule only mode is selected, it is recommended to program an
Eco action 3 hours before the scheduled start-up of the disinfection function to
preheat the tank.
To determine which domestic hot water mode you are using (method 1)
Check the installer settings table filled in by the installer.
To determine which domestic hot water mode you are using (method 2)
1 Go to [5]: Tank.
2 Check which items are displayed:
If… is displayed Then the DHWtank mode =…
Only [5.1] Powerful
Reheat only
operation
All items except [5.4] Reheat
Schedule only
setpoint are displayed
All items including [5.4]
Schedule + reheat
Reheat setpoint are
displayed
User reference guide
22
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
4.5.2 Reheat mode
t
60°C
00:00 07:00
50°C
15°C
40°C
14:00 21:00
1
2
3
4
T
t
t
60°C
00:00 07:00
50°C
15°C
40°C
14:00 21:00
1
2
3
4
5
T
t
4 | Operation
In reheat mode the DHWtank continuously heats up to the temperature shown on
the home screen (example: 50°C) when the temperature drops below a certain
value.
TtDHWtank temperature
t Time
INFORMATION
When the DHW tank mode is reheat, the risk for capacity shortage and comfort
problem is significant. In case of frequent reheat operation, space heating function is
regularly interrupted.
4.5.3 Scheduled mode
In scheduled mode the DHWtank produces hot water corresponding to a schedule.
The best time to allow the tank to produce hot water is at night, because the space
heating demand is lower.
Example:
▪ Initially, the DHW tank temperature is the same as the temperature of the
▪ At 00:00 the DHW tank is programmed to heat up the water to a preset value
▪ During the morning, you consume hot water and the DHW tank temperature
TtDHWtank temperature
t Time
domestic water entering the DHWtank (example: 15°C).
(example: Comfort = 60°C).
decreases.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
▪ At 14:00 the DHW tank is programmed to heat up the water to a preset value
(example: Eco = 50°C). Hot water is available again.
▪ During the afternoon and evening, you consume hot water again and the
DHWtank temperature decreases again.
▪ At 00:00 the next day, the cycle repeats.
User reference guide
23
4 | Operation
t
T
t
60°C
00:00 07:00
50°C
45°C
15°C
14:00 21:00
35°C
1
2
4
5
3
Tank
5
+
–
50°C
5
a b
Tank
4.5.4 Scheduled + reheat mode
4.5.5 To change the domestic hot water temperature
In scheduled + reheat mode, the domestic hot water control is the same as in
scheduled mode. However, when the DHWtank temperature drops below a preset
value (=reheat tank temperature – hysteresis value; example: 35°C), the DHWtank
heats up until it reaches the reheat set point (example: 45°C). This ensures that a
minimum amount of hot water is available at all times.
Example:
TtDomestic hot water tank temperature
t Time
In Reheat only mode, you can use the tank temperature setpoint screen to read
out and adjust the domestic hot water temperature.
1 Go to [5]: Tank.
2 Adjust the domestic hot water temperature.
a Actual domestic hot water temperature
b Desired domestic hot water temperature
In other modes, you can only view the setpoint screen but not modify it. Instead,
you can modify the settings for the Comfort setpoint [5.2], Eco setpoint
[5.3] and Reheat setpoint [5.4].
User reference guide
24
4.5.6 Using DHW powerful operation
About powerful operation
Powerful operation allows the domestic hot water to be heated by the
backup heater or booster heater. Use this mode on days when there is more hot
water usage than usual.
To check if powerful operation is active
If is displayed on the home screen, powerful operation is active.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
4 | Operation
User profile
B
1234
Advanced user
Activate or deactivate Powerful operation as follows:
1 Go to [5.1]: Tank > Powerful operation
2 Turn powerful operation Off or On.
Usage example: You immediately need more hot water
You are in the following situation:
▪ You already consumed most of your domestic hot water.
▪ You cannot wait for the next scheduled action to heat up the domestic hot water
tank.
Then you can activate powerful operation. The domestic hot water tank will start
heating up the water to the Comfort temperature.
INFORMATION
When powerful operation is active, the risk of space heating and capacity shortage
comfort problems is significant. In case of frequent domestic hot water operation,
frequent and long space heating interruptions will happen.
4.6 Advanced usage
The amount of information you can read out and edit in the menu structure
depends on your user permission level:
▪ User: Standard mode
▪ Advanced user: You can read out and edit more information
To change the user permission level
You can change the user permission level as follows:
1 Go to [B]: User profile.
2 Enter the applicable pin code for the user permission level. —
▪ Browse through the list of digits and change the selected digit.
▪ Move the cursor from left to right.
▪ Confirm the pin code and proceed.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Advanced user pin code
The Advanced user pin code is 1234. Additional menu items for the user are
now visible.
User pin code
The User pin code is 0000.
User reference guide
25
4 | Operation
0000
User
4.6.1 Using quiet mode
About quiet mode
You can use quiet mode to decrease the sound of the outdoor unit. However, this
also decreases the heating/cooling capacity of the system. There are multiple quiet
mode levels.
You can:
▪ Completely deactivate quiet mode
▪ Manually activate a quiet mode level until the next scheduled action
▪ Use and program a quiet mode schedule
INFORMATION
If the outdoor temperature is below zero, we recommend to NOT use the most quiet
level.
To check if quiet mode is active
If is displayed on the home screen, quiet mode is active.
To use quiet mode
1 Go to [7.4.1]: User settings > Quiet > Activation.
2 Do one of the following: —
If you want to… Then…
Completely deactivate quiet
mode
Manually activate a quiet
mode level
Use and program a quiet mode
schedule
Usage example: Baby is sleeping in the afternoon
Select Off.
Select the applicable quiet mode
level. Example: Most quiet.
Select Automatic.
Go to [7.4.2] Schedule and
program the schedule. For more
information about scheduling, see
"4.7.4Schedule screen:
Example"[434].
User reference guide
26
If you are in the following situation:
▪ You have programmed a quiet mode schedule:
- During the night: Most quiet.
- During the day: Off to ensure the heating/cooling capacity of the system.
▪ However, during the afternoon the baby is sleeping and you want it to be quiet.
Then you can do the following:
1 Go to [7.4.1]: User settings > Quiet > Activation.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
2 Select Most quiet.
Activation
Till
7.3.1
From
Advantage:
The outdoor unit runs in its most quiet level.
4.6.2 Using holiday mode
About holiday mode
During your holiday, you can use the holiday mode to deviate from your normal
schedules without having to change them. While holiday mode is active, space
heating/cooling operation and domestic hot water operation will be turned off.
Room frost protection and anti-legionella operation will remain active.
Typical workflow
Using holiday mode typically consists of the following stages:
1 Setting the starting date and ending date of your holiday.
2 Activating the holiday mode.
To check if holiday mode is activated and/or running
If is displayed on the home screen, holiday mode is active.
4 | Operation
To configure the holiday
1 Activate the holiday mode. —
▪ Go to [7.3.1]: User settings > Holiday > Activation.
▪ Select On.
2 Set the first day of your holiday. —
▪ Go to [7.3.2]: From.
▪ Select a date.
▪ Confirm the changes.
3 Set the last day of your holiday. —
▪ Go to [7.3.3]: Till.
▪ Select a date.
4.6.3 Reading out information
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
▪ Confirm the changes.
To read out information
1 Go to [8]: Information.
User reference guide
27
4 | Operation
Possible read-out information
In menu… You can read out…
[8.1] Energy data Produced energy, consumed electricity,
and consumed gas
[8.2] Malfunction history Malfunction history
[8.3] Dealer information Contact/helpdesk number
[8.4] Sensors Room, tank or domestic hot water,
outside, and leaving water temperature
(if applicable)
[8.5] Actuators Status/mode of each actuator
Example: Domestic hot water pump
ON/OFF
[8.6] Operation modes Current operation mode
Example: Defrost/oil return mode
[8.7] About Version information about the system
[8.8] Connection status Information about the connection
status of the unit, the room thermostat
and the LAN adapter.
[8.9] Running hours Running hours of specific system
4.6.4 To configure time and date
1 Go to [7.2] User settings > Time/date.
4.7 Preset values and schedules
4.7.1 Using preset values
About preset values
For some settings in the system, you can define preset values. You only need to set
these values one time, then reuse the values in other screens such as the
scheduling screen. If you later want to change the value, you only have to do it in
one place.
Possible preset values
You can set the following user-defined preset values:
components
User reference guide
28
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
4 | Operation
Preset value Where used
Tank temperatures
under [5] Tank
Restriction: Only
applicable if a
DHW tank is
present.
[5.2] Comfort
setpoint
[5.3] Eco
setpoint
[5.4] Reheat
setpoint
You can use these preset values in [5.5]
Schedule (weekly schedule screen for
the DHW tank) if the DHW tank mode is
one of the following:
▪ Schedule only
▪ Schedule + reheat
The software uses this preset value if
the DHW tank mode is
Schedule + reheat.
Electricity prices
under [7.5] User
settings >
Electricity
price
[7.5.1] High You can use these preset values in
[7.5.2] Medium
[7.5.3] Low
[7.5.4] Schedule (weekly schedule
screen for the energy prices).
See "4.7.2Setting the energy
prices"[429].
Restriction: Only
applicable if
Bivalent is
enabled by the
installer.
Additional to the user-defined preset values, the system also contains some
system-defined preset values that you can use when programming schedules.
Example: In [7.4.2] User settings > Quiet > Schedule (weekly schedule for
when the unit has to use which quiet mode level), you can use the following
system-defined preset values: Quiet/More quiet/Most quiet.
4.7.2 Setting the energy prices
In the system, you can set the following energy prices:
▪ a fixed gas price
▪ 3 electricity price levels
▪ a weekly schedule timer for electricity prices.
Example: How to set the energy prices on the user interface?
Price Value in breadcrumb
Fuel: 5.3euro cents/kWh [7.6]=5.3
Electricity: 12euro cents/kWh [7.5.1]=12
To set the gas price
1 Go to [7.6]: User settings > Gas price.
2 Select the correct gas price.
3 Confirm the changes.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
INFORMATION
Price value ranging from 0.00~990valuta/kWh (with 2 significant values).
User reference guide
29
4 | Operation
To set the electricity price
1 Go to [7.5.1]/[7.5.2]/[7.5.3]: User settings > Electricity
price > High/Medium/Low.
2 Select the correct electricity price.
3 Confirm the changes.
4 Repeat this for all three electricity prices. —
INFORMATION
Price value ranging from 0.00~990valuta/kWh (with 2 significant values).
INFORMATION
If no schedule is set, the Electricity price for High is taken into account.
To set the electricity price schedule timer
1 Go to [7.5.4]: User settings > Electricity price >
Schedule.
2 Program the selection using the scheduling screen. You can set
the High, Medium and Low electricity prices according to your
electricity supplier.
3 Confirm the changes.
INFORMATION
The values correspond with the electricity price values for High, Medium and Low
previously set. If no schedule is set, the electricity price for High is taken into
account.
About energy prices in case of an incentive per kWh renewable energy
An incentive can be taken into account when setting the energy prices. Although
the running cost can increase, the total operation cost, taking into account the
reimbursement will be optimized.
NOTICE
Make sure to modify the setting of the energy prices at the end of the incentive
period.
To set the gas price in case of an incentive per kWh renewable energy
Calculate the value for the gas price with the following formula:
—
User reference guide
30
▪ Actual gas price+(Incentive/kWh×0.9)
For the procedure to set the gas price, see "To set the gas price"[429].
To set the electricity price in case of an incentive per kWh renewable energy
Calculate the value for the electricity price with following formula:
▪ Actual electricity price+Incentive/kWh
For the procedure to set the electricity price, see "To set the electricity
price"[430].
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Example
4 | Operation
This is an example and the prices and/or values used in this example are NOT
accurate.
Data Price/kWh
Gas price 4.08
Electricity price 12.49
Renewable heat incentive per kWh 5
Calculation of the gas price
Gas price=Actual gas price+(Incentive/kWh×0.9)
Gas price=4.08+(5×0.9)
Gas price=8.58
Calculation of the electricity price
Electricity price=Actual electricity price+Incentive/kWh
Electricity price=12.49+5
Electricity price=17.49
Price Value in breadcrumb
Gas: 4.08/kWh [7.6]=8.6
Electricity: 12.49/kWh [7.5.1]=17
4.7.3 Using and programming schedules
About schedules
Depending on your system layout and installer configuration, schedules for
multiple controls may be available.
You can… See…
Set if a specific control needs to act according
to a schedule.
Select which schedule you currently want to use for a specific control. The system
contains some predefined schedules. You can:
Consult which schedule is currently
selected.
Select another schedule if needed. "Using and programming
Program your own schedules if the
predefined schedules are not satisfactory.
The actions you can program are control
specific.
"Activation screen" in "Using and
programming schedules"[432]
"Schedule/Control" in "Using and
programming schedules"[432]
schedules"[432]
▪ "Possible actions" in "Using and
programming schedules
"[432]
▪ "4.7.4 Schedule screen:
Example"[434]
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
31
4 | Operation
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
Delete
Rename
Select
To select which schedule you currently want to use
1 Go to the schedule for the specific control.
See "Schedule/Control" in "Using and programming schedules
"[432].
Example: For the schedule for the desired room temperature in
heating mode, go to [1.2] Room > Heating schedule.
2 Select the name of the current schedule.
3 Select Select.
4 Select the schedule that you currently want to use.
Possible schedules
The table contains the following information:
▪ Schedule/Control: This column shows you where you can consult the currently
selected schedule for the specific control. If needed, you can:
- Select another schedule. See "Using and programming schedules"[432].
- Program your own schedule. See "4.7.4Schedule screen: Example"[434].
▪ Predefined schedules: Number of available predefined schedules in the system
for the specific control. If needed, you can program your own schedule.
▪ Activation screen: For most controls, a schedule is only effective if it activated in
its corresponding activation screen. This entry shows you where to activate it.
▪ Possible actions: Actions you can use when programming a schedule. For most
schedules, you can program up to 6 actions per day.
Schedule/Control Description
[1.2] Room > Heating
schedule
Schedule for the desired room
Predefined schedules: 3
Activation screen: [1.1] Schedule
Possible actions: Temperatures within range.
temperature in heating mode.
User reference guide
32
[2.2] Main zone > Heating
schedule
Schedule for the desired leaving
water temperature for the
main zone in heating mode.
Predefined schedules: 3
Activation screen: [2.1] Schedule
Possible actions:
▪ In case of weather-dependent: Shift
temperatures within range.
▪ Otherwise: Temperatures within range
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Schedule/Control Description
4 | Operation
[3.2] Additional zone >
Heating schedule
Schedule for when the system
is allowed to heat up the
additional zone in heating
mode.
[5.5] Tank > Schedule
Schedule for the domestic hot
water tank temperature for
your normal domestic hot
water needs.
Predefined schedules: 1
Activation screen: [3.1] Schedule
Possible actions:
▪ Off: When the system is NOT allowed to heat
up the additional zone.
▪ On: When the system is allowed to heat up the
additional zone.
Predefined schedules: 1
Activation screen: Not applicable. This schedule
is automatically activated if the DHW mode is
one of the following:
▪ Schedule only
▪ Schedule + reheat
Possible actions:
▪ Comfort: When to start heating the tank to
the user-defined preset value [5.2] Comfort
setpoint.
▪ Eco: When to start heating the tank to the
user-defined preset value [5.3] Eco
setpoint.
[7.4.2] User settings >
Quiet > Schedule
Schedule for when the unit has
to use which quiet mode level.
[7.5.4] User settings >
Electricity price >
Schedule
Schedule for when a certain
electricity tariff is valid.
▪ Stop: When to stop heating the tank, even if
the desired tank temperature is not reached
yet.
Note: In Schedule + reheat mode, the
system also takes the user-defined preset value
[5.4] Reheat setpoint into account.
Predefined schedules: 1
Activation screen: [7.4.1] Activation (only
available to installers).
Possible actions: You can use the following
system-defined preset values:
▪ Quiet
▪ More quiet
▪ Most quiet
See "About quiet mode"[426].
Predefined schedules: 1
Activation screen: Not applicable
Possible actions: You can use the following
system-defined preset values:
▪ High
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
▪ Medium
▪ Low
See "4.7.2Setting the energy prices"[429].
User reference guide
33
4 | Operation
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
Delete
Rename
Select
4.7.4 Schedule screen: Example
This example shows how to set a room temperature schedule in heating mode for
the main zone.
INFORMATION
The procedures to program other schedules are similar.
To program the schedule: overview
Example: You want to program the following schedule:
Prerequisite: The room temperature schedule is only available if room thermostat
control is active. If leaving water temperature control is active, you can program
the main zone schedule instead.
1 Go to the schedule.
2 (optional) Clear the content of the whole week schedule or the content of a
selected day schedule.
3 Program the schedule for Monday.
4 Copy the schedule to the other weekdays.
5 Program the schedule for Saturday and copy it to Sunday.
6 Give the schedule a name.
To go to the schedule
1 Go to [1.1]: Room > Schedule.
2 Set scheduling to Yes.
3 Go to [1.2]: Room > Heating schedule.
To clear the content of the week schedule
1 Select the name of the current schedule.
User reference guide
34
2 Select Delete.
3 Select OK to confirm.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
To clear the content of a day schedule
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
Delete
Edit
Copy
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
Delete
Edit
Copy
0
6:00
8:30
17:30
20°C
18°C
22:00
--:--
18°C
--
21°C
12 24
Mon
1 Select the day of which you want to clear the content. For
example Friday
2 Select Delete.
3 Select OK to confirm.
To program the schedule for Monday
1 Select Monday.
4 | Operation
2 Select Edit.
3 Use the left dial to select an entry and edit the entry with the
right dial. You can program up to 6 actions each day. On the
bar, a high temperature has a darker colour than a low
temperature.
Note: To clear an action, set its time as the time of the previous
action.
4 Confirm the changes.
Result: The schedule for Monday is defined. The value of the
last action is valid until the next programmed action. In this
example, Monday is the first day you programmed. Thus, the
last programmed action is valid up to the first action of next
Monday.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
35
4 | Operation
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
Delete
Edit
Copy
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
Delete
Edit
Copy
Paste
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
To copy the schedule to the other weekdays
1 Select Monday.
2 Select Copy.
Result: Next to the copied day, "C" is displayed.
3 Select Tuesday.
4 Select Paste.
Result:
5 Repeat this action for all other weekdays.
To program the schedule for Saturday and copy it to Sunday
—
User reference guide
36
1 Select Saturday.
2 Select Edit.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
3 Use the left dial to select an entry and edit the entry with the
0
8:00
23:00
--:--
21°C
18°C
--
12 24
Sat
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
C
Mon
Sat
Wed
Fri
Thu
Tue
Sun
User defined 1
Delete
Rename
Select
right dial.
4 Confirm the changes.
5 Select Saturday.
6 Select Copy.
7 Select Sunday.
8 Select Paste.
Result:
4 | Operation
To rename the schedule
1 Select the name of the current schedule.
2 Select Rename.
3 (optional) To delete the current schedule name, browse
through the character list until ← is displayed, then press to
remove the previous character. Repeat for each character of
the schedule name.
4 To name the current schedule, browse through the character
list and confirm the selected character. The schedule name can
contain up to 15characters.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
5 Confirm the new name.
INFORMATION
Not all schedules can be renamed.
Usage example: You work in a 3-shift system
If you work in a 3-shift system, you can do the following:
User reference guide
37
4 | Operation
4.8 Weather-dependent curve
4.8.1 What is a weather-dependent curve?
1 Program 3 room temperature schedules and give them appropriate names.
Example: EarlyShift, DayShift and LateShift
2 Select the schedule that you currently want to use.
Weather-dependent operation
The unit operates 'weather dependent' if the desired leaving water or tank
temperature is determined automatically by the outdoor temperature. It therefore
is connected to a temperature sensor on the North wall of the building. If the
outdoor temperature drops or rises, the unit compensates instantly. Thus, the unit
does not have to wait for feedback by the thermostat to increase or decrease the
temperature of the leaving water or tank. Because it reacts more quickly, it
prevents high rises and drops of the indoor temperature and water temperature at
tap points.
Advantage
Weather-dependent operation reduces energy consumption.
Weather-dependent curve
To be able to compensate for differences in temperature, the unit relies on its
weather-dependent curve. This curve defines how much the temperature of the
tank or leaving water must be at different outdoor temperatures. Because the
slope of the curve depends on local circumstances such as climate and the
insulation of the house, the curve can be adjusted by an installer or user.
Types of weather-dependent curve
There are 2 types of weather-dependent curves:
▪ 2-points curve
▪ Slope-offset curve
Which type of curve you use to make adjustments, depends on your personal
preference. See "4.8.4Using weather-dependent curves"[441].
Availability
The weather-dependent curve is available for:
▪ Main zone - Heating
▪ Main zone - Cooling
▪ Additional zone - Heating
User reference guide
38
▪ Additional zone - Cooling
▪ Tank (only available to installers)
INFORMATION
To operate weather dependent, correctly configure the setpoint of the main zone,
additional zone or tank. See "4.8.4Using weather-dependent curves"[441].
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
4.8.2 2-points curve
Y1
Y2
X1 X2
a
4 | Operation
Define the weather-dependent curve with these two setpoints:
▪ Setpoint (X1, Y2)
▪ Setpoint (X2, Y1)
Example
Item Description
a Selected weather dependent zone:
▪ : Main zone or additional zone heating
4.8.3 Slope-offset curve
Slope and offset
▪ : Main zone or additional zone cooling
▪ : Domestic hot water
X1, X2 Examples of outdoor ambient temperature
Y1, Y2 Examples of desired tank temperature or leaving water temperature.
The icon corresponds to the heat emitter for that zone:
▪ : Underfloor heating
▪ : Fan coil unit
▪ : Radiator
▪ : Domestic hot water tank
Possible actions on this screen
Go through the temperatures.
Change the temperature.
Go to the next temperature.
Confirm changes and proceed.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Define the weather-dependent curve by its slope and offset:
▪ Change the slope to differently increase or decrease the temperature of the
leaving water for different ambient temperatures. For example, if leaving water
temperature is in general fine but at low ambient temperatures too cold, raise
the slope so that leaving water temperature is heated increasingly more at
decreasingly lower ambient temperatures.
▪ Change the offset to equally increase or decrease the temperature of the leaving
water for different ambient temperatures. For example, if leaving water
temperature is always a bit too cold at different ambient temperatures, shift the
offset up to equally increase the leaving water temperature for all ambient
temperatures.
User reference guide
39
4 | Operation
X1 X2
c
d
e
Y1
Y2
Y3
Y4
a b
Y1
Y2
Y3
Y4
X1 X2
a b
c
d
e
Examples
Weather-dependent curve when slope is selected:
Weather-dependent curve when offset is selected:
Item Description
a WD curve before changes.
b WD curve after changes (as example):
▪ When slope is changed, the new preferred temperature at X1 is
unequally higher than the preferred temperature at X2.
▪ When offset is changed, the new preferred temperature at X1 is
equally higher as the preferred temperature at X2.
c Slope
d Offset
e Selected weather dependent zone:
▪ : Main zone or additional zone heating
▪ : Main zone or additional zone cooling
▪ : Domestic hot water
X1, X2 Examples of outdoor ambient temperature
Y1, Y2, Y3,Y4Examples of desired tank temperature or leaving water
temperature. The icon corresponds to the heat emitter for that
zone:
▪ : Underfloor heating
User reference guide
40
▪ : Fan coil unit
▪ : Radiator
▪ : Domestic hot water tank
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
4.8.4 Using weather-dependent curves
Configure weather-dependent curves as following:
To define the setpoint mode
To use the weather-dependent curve, you need to define the correct setpoint
mode:
Go to setpoint mode … Set the setpoint mode to …
Main zone – Heating
[2.4] Main zone > Setpoint mode WD heating, fixed cooling OR
4 | Operation
Possible actions on this screen
Select slope or offset.
Increase or decrease the slope/offset.
When slope is selected: set slope and go to offset.
When offset is selected: set offset.
Confirm changes and return to the submenu.
Weather dependent
Main zone – Cooling
[2.4] Main zone > Setpoint mode Weather dependent
Additional zone – Heating
[3.4] Additional zone > Setpoint
mode
WD heating, fixed cooling OR
Weather dependent
Additional zone – Cooling
[3.4] Additional zone > Setpoint
Weather dependent
mode
Tank
[5.B] Tank > Setpoint mode Restriction: Only available to installers.
Weather dependent
To change the type of weather-dependent curve
To change the type for all zones (main + additional) and for the tank, go to [2.E]
Main zone > WD curve type.
Viewing which type is selected is also possible via:
▪ [3.C] Additional zone > WD curve type
▪ [5.E] Tank > WD curve type
Restriction: Only available to installers.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
To change the weather-dependent curve
Zone Go to …
Main zone – Heating [2.5] Main zone > Heating WD
curve
Main zone – Cooling [2.6] Main zone > Cooling WD
curve
Additional zone – Heating [3.5] Additional zone > Heating
WD curve
User reference guide
41
4 | Operation
Zone Go to …
Additional zone – Cooling [3.6] Additional zone > Cooling
WD curve
Tank Restriction: Only available to installers.
[5.C] Tank > WD curve
INFORMATION
Maximum and minimum setpoints
You cannot configure the curve with temperatures that are higher or lower than the
set maximum and minimum setpoints for that zone or for the tank. When the
maximum or minimum setpoint is reached, the curve flattens out.
To fine-tune the weather-dependent curve: slope-offset curve
The following table describes how to fine-tune the weather-dependent curve of a
zone or tank:
You feel … Fine-tune with slope and
offset:
At regular outdoor
temperatures …
At cold outdoor
temperatures …
Slope Offset
OK Cold ↑ —
OK Hot ↓ —
Cold OK ↓ ↑
Cold Cold — ↑
Cold Hot ↓ ↑
Hot OK ↑ ↓
Hot Cold ↑ ↓
Hot Hot — ↓
To fine-tune the weather-dependent curve: 2-points curve
The following table describes how to fine-tune the weather-dependent curve of a
zone or tank:
You feel … Fine-tune with setpoints:
At regular outdoor
temperatures …
At cold outdoor
temperatures …
Y2
(a)
Y1
(a)
X1
(a)
X2
(a)
OK Cold ↑ — ↑ —
OK Hot ↓ — ↓ —
Cold OK — ↑ — ↑
User reference guide
42
Cold Cold ↑ ↑ ↑ ↑
Cold Hot ↓ ↑ ↓ ↑
Hot OK — ↓ — ↓
Hot Cold ↑ ↓ ↑ ↓
Hot Hot ↓ ↓ ↓ ↓
(a)
See "4.8.22-points curve"[439].
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
[2]
Main zone
Schedule
Heating schedule
Setpoint mode
Cooling schedule
Heating WD curve
Cooling WD curve
WD curve type
[3]
Additional zone
Schedule
Heating schedule
Setpoint mode
Cooling schedule
Heating WD curve
Cooling WD curve
WD curve type
[4]
Space heating/cooling
Operation mode
Operation mode schedule
[7]
User settings
Language
Time/date
Holiday
Quiet
Electricity price
Gas price
[8]
Information
Energy data
Malfunction history
Dealer information
Sensors
Actuators
Operation modes
About
Connection status
Running hours
[B]
User profile
[C]
Operation
Room
Space heating/cooling
Tank
[1.4]
Antifrost
Activation
Room setpoint
[1.5]
Setpoint range
Heating minimum
Heating maximum
Cooling minimum
Cooling maximum
[7.2]
Time/date
Hours
Minutes
Year
Month
Day
Daylight savings time
Format
[7.3]
Holiday
Activation
From
Till
[7.4]
Quiet
Activation
Schedule
Level
[7.5]
Electricity price
High
Medium
Low
Schedule
[8.1]
Energy data
Electricity input
Produced heat
(**)
(**)
[5]
Tank
Powerful operation
Comfort setpoint
Eco setpoint
Reheat setpoint
Schedule
WD curve
WD curve type
(*)
(*)
(*)
(*)
(*)
(*)
(*)
(*)
[D]
Wireless gateway
Mode
WPS
Reboot
Device info
(***)
[1.9]
Room comfort setpoint
Heating comfort setpoint
Cooling comfort setpoint
(*)
[1]
Room
Room sensor offset
Setpoint range
Antifrost
Cooling schedule
Heating schedule
Schedule
(*)
Room comfort setpoint
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
4.9 Menu structure: Overview user settings
Setpoint screen
(*) Only applicable when EKHVCONV2 is installed
(**) Only accessible by installer
(***) Only applicable when WLAN adapter is installed
INFORMATION
Depending on the selected installer settings and unit type, settings will be visible/
invisible.
4 | Operation
User reference guide
43
4 | Operation
4.10 Installer settings: Tables to be filled in by installer
4.10.1 Configuration wizard
Setting Fill in…
System
Indoor unit type (read only)
Backup heater type [9.3.1]
Domestic hot water [9.2.1]
Emergency [9.5]
Number of zones [4.4]
Backup heater
Voltage [9.3.2]
Configuration [9.3.3]
Capacity step 1 [9.3.4]
Additional capacity step 2
[9.3.5] (if applicable)
Main zone
Emitter type [2.7]
Control [2.9]
Setpoint mode [2.4]
Schedule [2.1]
Additional zone (only if [4.4] = 1)
Emitter type [3.7]
Control (read only) [3.9]
Setpoint mode [3.4]
Schedule [3.1]
Tank
Heat up mode [5.6]
Comfort setpoint [5.2]
Eco setpoint [5.3]
4.10.2 Settings menu
User reference guide
44
Reheat setpoint [5.4]
Setting Fill in…
Main zone
Thermostat type [2.A]
Additional zone (if applicable)
Thermostat type [3.A]
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
Setting Fill in…
Information
Dealer information [8.3]
4 | Operation
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
45
5 | Energy saving tips
5 Energy saving tips
Tips about room temperature
▪ Make sure the desired room temperature is NEVER too high (in heating mode) or
too low (in cooling mode), but ALWAYS according to your actual needs. Each
saved degree can save up to 6% of heating/cooling costs.
▪ Do NOT increase/decrease the desired room temperature to speed up space
heating/cooling. The space will NOT heat up/cool down faster.
▪ When your system layout contains slow heat emitters (example: underfloor
heating), avoid large fluctuation of the desired room temperature and do NOT let
the room temperature drop too low/rise too high. It will take more time and
energy to heat up/cool down the room again.
▪ Use a weekly schedule for your normal space heating or cooling needs. If
necessary, you can easily deviate from the schedule:
- For shorter periods: You can overrule the scheduled room temperature until
the next scheduled action. Example: When you have a party, or when you are
leaving for a couple of hours.
- For longer periods: You can use the holiday mode.
Tips about leaving water temperature
▪ In heating mode, a lower desired leaving water temperature results in lower
energy consumption and better performance. In cooling, the opposite is valid.
▪ Set the desired leaving water temperature in accordance with the heat emitter
type. Example: Underfloor heating is designed for lower leaving water
temperature than radiators and heatpump convectors.
Tips about DHWtank temperature
▪ Use a weekly schedule for your normal domestic hot water needs (only in
scheduled mode).
- Program to heat up the DHW tank to a preset value (Comfort = higher
DHWtank temperature) during the night, because then space heating demand
is lower.
- If heating up the DHW tank once at night is not sufficient, program to
additionally heat up the DHWtank to a preset value (Eco = lower DHW tank
temperature) during the day.
▪ Make sure the desired DHW tank temperature is NOT too high. Example: After
installation, lower the DHWtank temperature daily by 1°C and check if you still
have enough hot water.
▪ Program to turn ON the domestic hot water pump only during periods of the day
when instant hot water is necessary. Example: In the morning and evening.
User reference guide
46
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
6 Maintenance and service
6.1 Overview: Maintenance and service
The installer has to perform a yearly maintenance. You can find the contact/
helpdesk number via the user interface.
1 Go to [8.3]: Information > Dealer information.
As enduser, you have to:
▪ Keep the area around the unit clean.
▪ Keep the user interface clean with a soft damp cloth. Do NOT use any detergents.
▪ Regularly check if the water pressure is above 1bar.
Refrigerant
This product contains fluorinated greenhouse gases. Do NOT vent gases into the
atmosphere.
Refrigerant type: R32
6 | Maintenance and service
Global warming potential (GWP) value: 675
NOTICE
Applicable legislation on fluorinated greenhouse gases requires that the refrigerant
charge of the unit is indicated both in weight and CO2 equivalent.
Formula to calculate the quantity in CO2 equivalent tonnes: GWP value of the
refrigerant × total refrigerant charge [in kg] / 1000
Please contact your installer for more information.
WARNING: FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
WARNING
The appliance shall be stored in a room without continuously operating ignition
sources (example: open flames, an operating gas appliance or an operating electric
heater).
WARNING
▪ Do NOT pierce or burn refrigerant cycle parts.
▪ Do NOT use cleaning materials or means to accelerate the defrosting process
other than those recommended by the manufacturer.
▪ Be aware that the refrigerant inside the system is odourless.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
WARNING
The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the
refrigerant leaks in the room and comes in contact with fire from a burner, a heater,
or a cooker, this may result in fire, or the formation of a harmful gas.
Turn off any combustible heating devices, ventilate the room, and contact the dealer
where you purchased the unit.
Do NOT use the unit until a service person confirms that the part from which the
refrigerant leaked has been repaired.
User reference guide
47
6 | Maintenance and service
6.2 To find the contact/helpdesk number
1 Go to [8.3]: Information > Dealer information.
User reference guide
48
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
7 Troubleshooting
Contact
For the symptoms listed below, you can try to solve the problem yourself. For any
other problem, contact your installer. You can find the contact/helpdesk number
via the user interface.
1 Go to [8.3]: Information > Dealer information.
7.1 To display the help text in case of a malfunction
In case of a malfunction, the following will appear on the home screen depending
on the severity:
▪ : Error
▪ : Malfunction
You can get a short and a long description of the malfunction as follows:
1 Press the left dial to open the main menu and go to
Malfunctioning.
7 | Troubleshooting
Result: A short description of the error and the error code is
displayed on the screen.
2 Press in the error screen.
Result: A long description of the error is displayed on the
screen.
7.2 To check the malfunction history
Conditions: The user permission level is set to advanced end user.
1 Go to [8.2]: Information > Malfunction history.
You see a list of the most recent malfunctions.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
49
7 | Troubleshooting
7.3 Symptom: You are feeling too cold (hot) in your living room
Possible cause Corrective action
The desired room temperature is too
low (high).
The desired room temperature cannot
be reached.
The weather-dependent curve is set
incorrectly.
Increase (decrease) the desired room
temperature. See "4.4.4To change the
desired room temperature"[420].
If the problem recurs daily, do one of
the following:
▪ Increase (decrease) the room
temperature preset value. See
"4.7.1Using preset values"[428].
▪ Adjust the room temperature
schedule. See "4.7.3 Using and
programming schedules" [4 31] and
"4.7.4 Schedule screen:
Example"[434].
Increase the desired leaving water
temperature in accordance with the
heat emitter type. See "4.4.5To change
the desired leaving water
temperature"[420].
Adjust the weather-dependent curve.
See "4.8Weather-dependent
curve"[438].
7.4 Symptom: The water at the tap is too cold
Possible cause Corrective action
You ran out of domestic hot water
because of unusual high consumption.
The desired DHWtank temperature is
too low.
If you immediately need domestic hot
water, activate the DHW tank
Powerful operation. However, this
consumes extra energy. See
"4.5.6Using DHW powerful
operation"[424].
If the problems recurs daily, do one of
the following:
▪ Increase the DHW tank temperature
▪ Adjust the DHW tank temperature
preset value. See "4.7.1 Using preset
values"[428].
schedule. Example: Program to
additionally heat up the DHWtank to
a preset value (Eco setpoint =
lower tank temperature) during the
day. See "4.7.3 Using and
programming schedules" [4 31] and
"4.7.4 Schedule screen:
Example"[434].
User reference guide
50
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
7.5 Symptom: Heat pump failure
When the heat pump fails to operate, the backup heater can serve as an
emergency heater. It then takes over the heat load either automatically or by
manual interaction.
▪ When Emergency is set to Automatic and a heat pump failure occurs, the
backup heater automatically takes over the domestic hot water production and
space heating.
▪ When Emergency is set to Manual and a heat pump failure occurs, the
domestic hot water heating and space heating stops.
To manually recover it via the user interface, go to the Malfunctioning main
menu screen and confirm whether the backup heater can take over the heat load
or not.
▪ Alternatively, when Emergency is set to:
- auto SH reduced/DHW on, space heating is reduced but domestic hot
water is still available.
- auto SH reduced/DHW off, space heating is reduced and domestic hot
water is NOT available.
- auto SH normal/DHW off, space heating operates as normally but
domestic hot water is NOT available.
Similarly as in Manual mode, the unit can take the full load with the backup
heater if the user activates this via the Malfunctioning main menu screen.
7 | Troubleshooting
When the heat pump fails, or will appear on the user interface.
Possible cause Corrective action
Heat pump is damaged. See "7.1To display the help text in case
of a malfunction"[449].
INFORMATION
When the backup heater or booster heater takes over the heat load, electricity
consumption will be considerably higher.
7.6 Symptom: The system is making gurgling noises after commissioning
Possible cause Corrective action
There is air in the system. Purge air from the system.
Various malfunctions.
Check if or is displayed on the
home screen of the user interface. See
"7.1To display the help text in case of a
malfunction"[449] for more
information about the malfunction.
(a)
We recommend to purge air with the air purge function of the unit (to be performed by
the installer). If you purge air from the heat emitters or collectors, mind the following:
(a)
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
51
7 | Troubleshooting
WARNING
Air purging heat emitters or collectors. Before you purge air from heat emitters or
collectors, check if or is displayed on the home screen of the user interface.
▪ If not, you can purge air immediately.
▪ If yes, make sure that the room where you want to purge air is sufficiently
ventilated. Reason: Refrigerant might leak into the water circuit, and
subsequently into the room when you purge air from the heat emitters or
collectors.
User reference guide
52
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
8 Relocation
8.1 Overview: Relocation
If you want to relocate parts of your system, contact your installer. You can find the
contact/helpdesk number via the user interface.
1 Go to [8.3]: Information > Dealer information.
8 | Relocation
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
53
9 | Disposal
9 Disposal
NOTICE
Do NOT try to dismantle the system yourself: dismantling of the system, treatment of
the refrigerant, oil and other parts MUST comply with applicable legislation. Units
MUST be treated at a specialised treatment facility for reuse, recycling and recovery.
User reference guide
54
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
10 Glossary
DHW = Domestic hot water
LWT = Leaving water temperature
Dealer
Authorised installer
User
Applicable legislation
Service company
10 | Glossary
Hot water used, in any type of building, for domestic purposes.
Water temperature at the water outlet of the unit.
Sales distributor for the product.
Technical skilled person who is qualified to install the product.
Person who is owner of the product and/or operates the product.
All international, European, national and local directives, laws, regulations
and/or codes that are relevant and applicable for a certain product or
domain.
Qualified company which can perform or coordinate the required service to
the product.
Installation manual
Instruction manual specified for a certain product or application, explaining
how to install, configure and maintain it.
Operation manual
Instruction manual specified for a certain product or application, explaining
how to operate it.
Accessories
Labels, manuals, information sheets and equipment that are delivered with
the product and that need to be installed according to the instructions in
the accompanying documentation.
Optional equipment
Equipment made or approved by Daikin that can be combined with the
product according to the instructions in the accompanying documentation.
Field supply
Equipment NOT made by Daikin that can be combined with the product
according to the instructions in the accompanying documentation.
EHVZ04+08S18+23EA6V+9W
Daikin Altherma 3 R F
4P629094-1 – 2020.08
User reference guide
55
Verantwortung für Energie und Umwelt
Copyright 2020 Daikin
4P629094-1 2020.08
Loading...
