Daikin ATXF50A2V1B, ATXF60A2V1B, ATXF71A2V1B User reference guide

User reference guide
Daikin room air conditioner
ATXF50A2V1B ATXF60A2V1B ATXF71A2V1B

Table of contents

Table of contents
1 General safety precautions 4
1.1 About the documentation .............................................................................................................................................. 4
1.1.1 Meaning of warnings and symbols ................................................................................................................ 4
1.2 For the user..................................................................................................................................................................... 5
2 About the documentation 7
2.1 About this document ...................................................................................................................................................... 7
2.2 User reference guide at a glance.................................................................................................................................... 7
3 About the system 9
3.1 Indoor unit ...................................................................................................................................................................... 9
3.2 About the user interface................................................................................................................................................. 10
3.2.1 Components: User interface .......................................................................................................................... 11
3.2.2 Status: User interface LCD.............................................................................................................................. 11
3.2.3 To operate the user interface ........................................................................................................................ 12
4 Before operation 13
4.1 Overview: Before operation ........................................................................................................................................... 13
4.2 To fix the user interface to the wall................................................................................................................................ 13
4.3 To insert the batteries .................................................................................................................................................... 13
4.4 To turn on the power supply .......................................................................................................................................... 14
5 Operation 15
5.1 Operation range.............................................................................................................................................................. 15
5.2 When to use which feature ............................................................................................................................................ 15
5.3 Operation mode and temperature setpoint .................................................................................................................. 16
5.3.1 To start/stop operation mode and to set the temperature .......................................................................... 17
5.4 Airflow rate ..................................................................................................................................................................... 17
5.4.1 To adjust the airflow rate ............................................................................................................................... 18
5.5 Airflow direction ............................................................................................................................................................. 18
5.5.1 To adjust the airflow direction ....................................................................................................................... 18
5.5.2 To adjust the louvers (vertical blades) ........................................................................................................... 18
5.6 Comfort airflow operation.............................................................................................................................................. 19
5.6.1 To start/stop Comfort airflow operation ....................................................................................................... 19
5.7 Powerful operation ......................................................................................................................................................... 19
5.7.1 To start/stop Powerful operation .................................................................................................................. 20
5.8 Econo operation.............................................................................................................................................................. 20
5.8.1 To start/stop Econo operation ....................................................................................................................... 21
5.9 OFF/ON timer operation................................................................................................................................................. 21
5.9.1 To start/stop ON timer operation .................................................................................................................. 21
5.9.2 To start/stop OFF timer operation ................................................................................................................. 21
5.9.3 To combine OFF timer and ON timer............................................................................................................. 22
User reference guide
2
6 Energy saving and optimum operation 23
7 Maintenance and service 25
7.1 Overview: Maintenance and service .............................................................................................................................. 25
7.2 To clean the indoor unit and user interface................................................................................................................... 26
7.3 To clean the front panel ................................................................................................................................................. 26
7.4 About the air filters......................................................................................................................................................... 27
7.5 To open the front panel.................................................................................................................................................. 27
7.6 To clean the air filters ..................................................................................................................................................... 27
7.7 To close the front panel.................................................................................................................................................. 28
7.8 To take following items into account before a long idle period.................................................................................... 28
8 Troubleshooting 29
8.1 Symptoms that are NOT system malfunctions............................................................................................................... 31
8.1.1 Symptom: A sound like water flowing is heard ............................................................................................. 31
8.1.2 Symptom: A blowing sound is heard.............................................................................................................. 31
8.1.3 Symptom: A ticking sound is heard................................................................................................................ 31
8.1.4 Symptom: A whistling sound is heard ............................................................................................................ 31
8.1.5 Symptom: A clicking sound during operation or idle time is heard .............................................................. 31
8.1.6 Symptom: A clapping sound is heard............................................................................................................. 31
8.1.7 Symptom: The units can give off odours ....................................................................................................... 31
8.1.8 Symptom: The outdoor fan rotates while the air conditioner is not in operation ....................................... 31
8.2 Solving problems based on error codes ......................................................................................................................... 31
ATXF50~71A2V1B
Daikin room air conditioner
Table of contents
9 Disposal 34
10 Glossary 35
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
User reference guide
3
1 | General safety precautions

1 General safety precautions

1.1 About the documentation

The original documentation is written in English. All other languages are
translations.
The precautions described in this document cover very important topics, follow
them carefully.
The installation of the system, and all activities described in the installation
manual and in the installer reference guide MUST be performed by an authorised installer.

1.1.1 Meaning of warnings and symbols

DANGER
Indicates a situation that results in death or serious injury.
DANGER: RISK OF ELECTROCUTION
Indicates a situation that could result in electrocution.
DANGER: RISK OF BURNING
Indicates a situation that could result in burning because of extreme hot or cold temperatures.
DANGER: RISK OF EXPLOSION
Indicates a situation that could result in explosion.
WARNING
Indicates a situation that could result in death or serious injury.
WARNING: FLAMMABLE MATERIAL
CAUTION
Indicates a situation that could result in minor or moderate injury.
User reference guide
4
NOTICE
Indicates a situation that could result in equipment or property damage.
INFORMATION
Indicates useful tips or additional information.
Symbols used on the unit:
ATXF50~71A2V1B
Daikin room air conditioner

1.2 For the user

1 | General safety precautions
Symbol Explanation
Before installation, read the installation and operation manual, and the wiring instruction sheet.
Before performing maintenance and service tasks, read the service manual.
For more information, see the installer and user reference guide.
Symbols used in the documentation:
Symbol Explanation
Indicates a figure title or a reference to it.
Example: " 1–3 Figure title" means "Figure 3 in chapter 1".
Indicates a table title or a reference to it.
Example: " 1–3 Table title" means "Table 3 in chapter 1".
If you are NOT sure how to operate the unit, contact your installer.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall NOT play with the appliance. Cleaning and user maintenance shall NOT be made by children without supervision.
WARNING
To prevent electric shocks or fire:
Do NOT rinse the unit.Do NOT operate the unit with wet hands.Do NOT place any objects containing water on the unit.
CAUTION
Do NOT place any objects or equipment on top of the unit.Do NOT sit, climb or stand on the unit.
Units are marked with the following symbol:
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
This means that electrical and electronic products may NOT be mixed with unsorted household waste. Do NOT try to dismantle the system yourself: the dismantling of the system, treatment of the refrigerant, of oil and of other parts must be done by an authorized installer and must comply with applicable legislation. Units must be treated at a specialized treatment facility for reuse, recycling and recovery. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. For more information, contact your installer or local authority.
User reference guide
5
1 | General safety precautions
Batteries are marked with the following symbol:
This means that the batteries may NOT be mixed with unsorted household waste. If a chemical symbol is printed beneath the symbol, this chemical symbol means that the battery contains a heavy metal above a certain concentration. Possible chemical symbols are: Pb: lead (>0.004%). Waste batteries must be treated at a specialized treatment facility for reuse. By ensuring waste batteries are disposed of correctly, you will help to prevent potential negative consequences for the environment and human health.
User reference guide
6
ATXF50~71A2V1B
Daikin room air conditioner

2 About the documentation

2.1 About this document

Thank you for purchasing this product. Please:
Keep the documentation for future reference.
Target audience
Endusers
INFORMATION
This appliance is intended to be used by expert or trained users in shops, in light industry, and on farms, or for commercial and household use by lay persons.
Documentation set
This document is part of a documentation set. The complete set consists of:
General safety precautions:
2 | About the documentation
- Safety instructions that you must read before operating your system
- Format: Paper (in the box of the indoor unit)
Operation manual:
- Quick guide for basic usage
- Format: Paper (in the box of the indoor unit)
User reference guide:
- Detailed step-by-step instructions and background information for basic and
advanced usage
- Format: Digital files on http://www.daikineurope.com/support-and-manuals/
product-information/
Latest revisions of the supplied documentation may be available on the regional Daikin website or via your installer.
The original documentation is written in English. All other languages are translations.

2.2 User reference guide at a glance

Chapter Description
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
General safety precautions Safety instructions that you MUST read before
operation
About the documentation What documentation exists for the user
About the system Operation range
Description of indoor unit and user
interface
Before operation What to do before starting operation
Operation How and when to use certain features
User reference guide
7
2 | About the documentation
Chapter Description
Energy saving and optimum
How to save energy
operation
Maintenance and service How to maintain and service the unit
Troubleshooting What to do in case of problems
Disposal How to dispose of the system
Glossary Definition of terms
User reference guide
8
ATXF50~71A2V1B
Daikin room air conditioner

3 About the system

a
c
d
ON/OFF
f
g
l
h
i
k
j
e
b
WARNING: FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
NOTICE
Do NOT use the system for other purposes. In order to avoid any quality deterioration, do NOT use the unit for cooling precision instruments, food, plants, animals, or works of art.

3.1 Indoor unit

CAUTION
Do NOT insert fingers, rods or other objects into the air inlet or outlet. When the fan is rotating at high speed, it will cause injury.
INFORMATION
The sound pressure level is less than 70dBA.
3 | About the system
WARNING
Do not modify, disassemble, remove, reinstall or repair the unit yourself as
incorrect dismantling or installation may cause an electric shock or fire. Contact your dealer.
In case of accidental refrigerant leaks, make sure there are no naked flames. The
refrigerant itself is entirely safe, non-toxic and mildly flammable, but it will generate toxic gas when it accidentally leaks into a room where combustible air from fan heaters, gas cookers, etc. is present. Always have qualified service personnel confirm that the point of leakage has been repaired or corrected before resuming operation.
INFORMATION
The following figures are just examples and may NOT completely match your system layout.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
User reference guide
9
3 | About the system

3.2 About the user interface

a Air inlet b Air outlet
c Flap (horizontal blade) d Louvers (vertical blades) e Front panel
f Model name plate g Room temperature sensor h Signal receiver
i Operation indicator (green)
j Timer lamp (orange) k Indoor unit ON/OFF switch
l Air filter
ON/OFF button
If the user interface is missing, you can use the ON/OFF button on the indoor unit to start/stop operation. When operation is started using this button, the following settings are used:
Operation mode = Automatic
Temperature setting = 25°C
Airflow rate = Automatic
Direct sunlight. Do NOT expose the user interface to direct sunlight.
Dust. Dust on the signal transmitter or receiver will reduce sensitivity. Wipe off
dust with a soft cloth.
Fluorescent lights. Signal communication might be disabled if fluorescent lamps
are in the room. In that case, contact your installer.
Other appliances. If the user interface signals operate other appliances, move
the other appliances, or contact your installer.
Curtains. Make sure that the signal between the unit and the user interface is
NOT blocked by curtains or other objects.
NOTICE
Do NOT drop the user interface.Do NOT let the user interface get wet.
User reference guide
10
ATXF50~71A2V1B
Daikin room air conditioner

3.2.1 Components: User interface

b
d
c
f
h
e
m
l
k
i
j
a
g
3 | About the system
a Signal transmitter b LCD display c ON/OFF button d Fan setting button e Temperature adjustment button
g Timer cancel button h ON timer button
k Econo button
m Powerful button

3.2.2 Status: User interface LCD

f Swing button
i OFF timer button j Comfort airflow button
l Mode selector button
Icon Description
Operation mode = Automatic
Operation mode = Drying
Operation mode = Heating
Operation mode = Cooling
Operation mode = Fan only
Powerful operation is active
Econo operation is active
Operation is active
The indoor unit receives a signal from
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
the user interface
User reference guide
11
3 | About the system
a
Icon Description
Current temperature setting
Airflow rate = Automatic
Airflow rate = Indoor unit quiet
Airflow rate = High
Airflow rate = Medium high
Airflow rate = Medium
Airflow rate = Medium low
Airflow rate = Low
Comfort operation is active
Auto vertical swing is active

3.2.3 To operate the user interface

a Signal receiver
1 Aim the signal transmitter at the signal receiver on the indoor unit (maximum
distance for communication is 7m).
Result: When the indoor unit receives a signal from the user interface, you will hear a sound:
Sound Description
Beep-beep Operation starts.
Beep Setting changes.
ON timer is active
OFF timer is active
User reference guide
12
Long beep Operation stops.
ATXF50~71A2V1B
Daikin room air conditioner

4 Before operation

b ca
2
3
1
AAA.LR03

4.1 Overview: Before operation

This chapter describes what you have to do before operating the unit.
Typical workflow
Before operation usually consist of the following stages:
Inserting the batteries in the user interface.
Fixing the user interface to the wall.
Turning on the power supply.

4.2 To fix the user interface to the wall

4 | Before operation
a User interface b Screws (field supply) c User interface holder
1 Choose a place where the signals reach the unit.
2 Attach the holder with screws to the wall or a similar location.
3 Hang the user interface on the user interface holder.

4.3 To insert the batteries

The batteries will last for about 1 year.
1 Remove the back cover.
2 Insert both batteries at once.
3 Put the cover back.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
User reference guide
13
4 | Before operation

4.4 To turn on the power supply

1 Turn the circuit breaker on.
Result: The flap of the indoor unit will open and close to set the reference position.
User reference guide
14
ATXF50~71A2V1B
Daikin room air conditioner

5 Operation

5.1 Operation range

Operation mode Operation range
Cooling
Heating
Drying
5 | Operation
(a)(b)
(a)
(a)
(a)
A safety device might stop the operation of the system if the unit runs outside its operation range.
(b)
Condensation and water dripping might occur if the unit runs outside its operation range.
Outdoor temperature: –10~46°C DB
Indoor temperature: 18~32°C DB
Indoor humidity: ≤80%
Outdoor temperature: –15~24°C DB
Indoor temperature: 10~30°C DB
Outdoor temperature: –10~46°C DB
Indoor temperature: 18~32°C DB
Indoor humidity: ≤80%

5.2 When to use which feature

You can use the following table to determine which features to use:
Feature Tasks
Basic features
Operation modes and
temperature
Airflow direction
Airflow rate
Advanced features
To start/stop the system and to set the temperature:
Heat up or cool down a room.
Blow air in a room without heating or cooling.
Decrease the humidity in a room.
In Automatic mode, automatically select an
appropriate temperature and operation mode.
To adjust the airflow direction (swing or fixed position).
To adjust the amount of air blown into the room.
To run more quietly.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
Econo
Comfort
To use the system when you are also using other power-consuming appliances.
To save energy.
To provide a comfortable airflow that does NOT come in direct contact with people.
User reference guide
15
5 | Operation
Feature Tasks
Powerful
ON timer + OFF timer
To cool down or heat up the room quickly.
To automatically turn ON or OFF the system.

5.3 Operation mode and temperature setpoint

When. Adjust the system operation mode and set the temperature when you want to:
Heat up or cool down a room
Blow air in a room without heating or cooling
Decrease the humidity in a room
What. The system operates differently, depending on the user selection.
Setting Description
Automatic
Drying
The system cools down or heats up a room to the temperature setpoint. It automatically switches between cooling and heating if necessary.
The system decreases the humidity in a room without changing the temperature.
Heating
The system heats up a room to the temperature setpoint.
Cooling
The system cools down a room to the temperature setpoint.
Fan
The system only controls the airflow (airflow rate and airflow direction).
The system does NOT control the temperature.
Additional info:
Outside temperature. The system's cooling or heating effect decreases when the
outside temperature is too high or too low.
Defrost operation. During heating operation, frost might occur on the outdoor
unit and decrease the heating capacity. In that case, the system automatically switches to defrosting operation to remove the frost. During defrosting operation, hot air is NOT blown from the indoor unit.
User reference guide
16
ATXF50~71A2V1B
Daikin room air conditioner

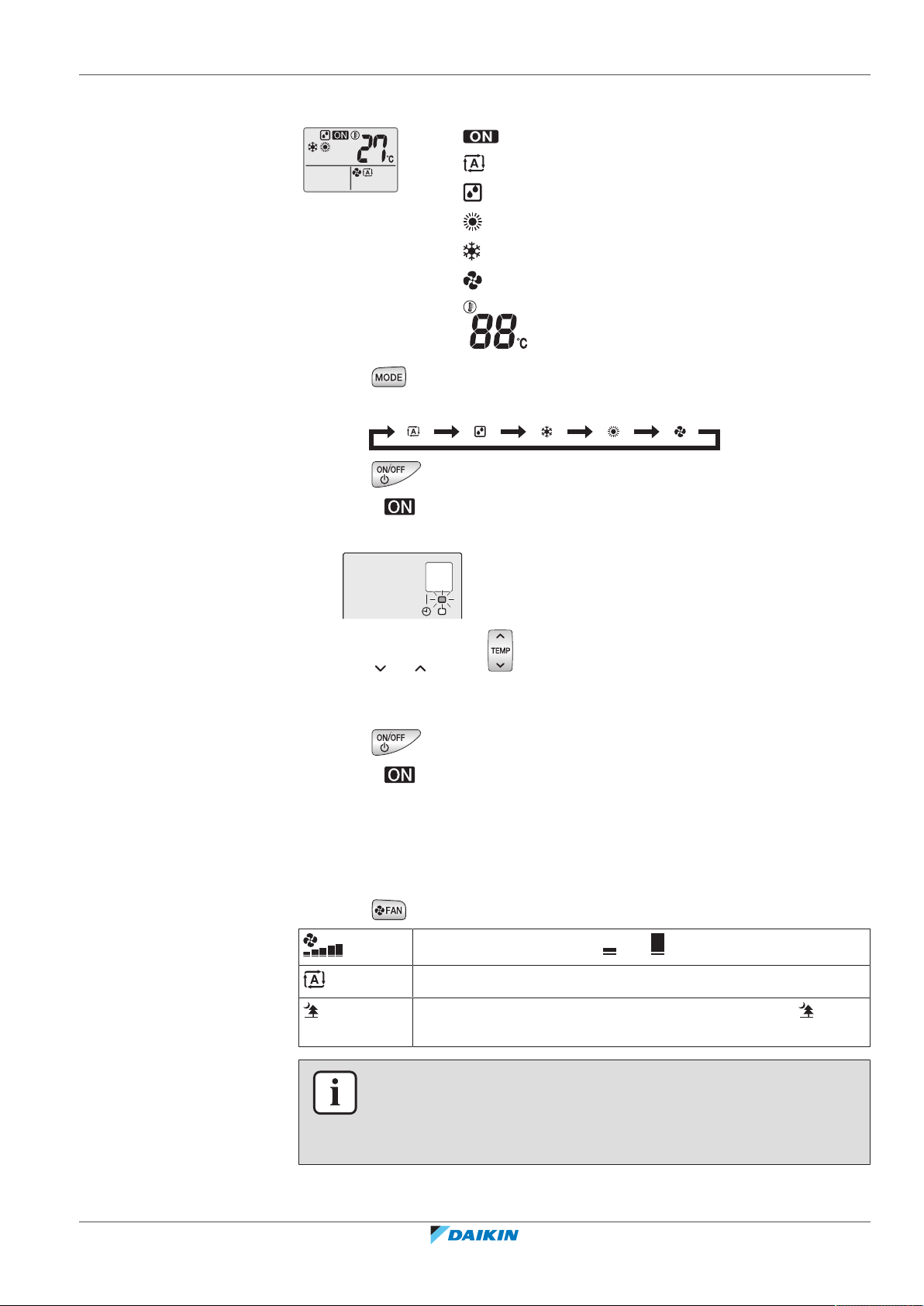

5.3.1 To start/stop operation mode and to set the temperature

: Unit is operating.
: Operation mode = Automatic
: Operation mode = Drying
: Operation mode = Heating
: Operation mode = Cooling
: Operation mode = Fan only
: Shows the set temperature.
1 Press one or more times to select the operation mode.
Result: The mode will be set in the following sequence:
2 Press to start operation.
Result: is displayed on the LCD.
5 | Operation

5.4 Airflow rate

Result: The operation lamp lights up.
3 Press or on the button one or more times to lower or raise the
temperature.
Note: When using drying or fan only mode, you cannot adjust the temperature.
4 Press to stop operation.
Result: disappears from the LCD.
Result: The operation lamp goes off.
1 Press to choose:
5 airflow rate levels, from " " to " "
Automatic operation
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
Indoor unit quiet operation. When the airflow is set to " ", the noise from the unit will be reduced.
INFORMATION
If the unit reach the temperature setpoint in cooling, heating or automatic mode.
Fan will stop operating.
When using drying operation mode, you CANNOT adjust the airflow rate setting.
User reference guide
17
5 | Operation
a
b
c

5.4.1 To adjust the airflow rate

5.5 Airflow direction

1 Press to change the airflow setting as follows:
When. Adjust the airflow direction as desired.
What. The system directs the airflow differently, depending on the user selection
(swinging or fixed position). It does so by moving the vertical blades.
Setting Airflow direction
Vertical auto swing
Moves up and down.
[—] Stays in a fixed position.
CAUTION
ALWAYS use a user interface to adjust the angle of the flap. When the flap is
swinging and you move it forcibly by hand, the mechanism will break.
Be careful when adjusting the louvers. Inside the air outlet, a fan is rotating at
high speed.
Note: The movable range of the flap varies according to the operation mode. The flap will stop at the upper position when the airflow rate is changed to low during the up and down swing setting.
User reference guide
18
a Flap range in cooling or drying operation b Flap range in hating operation
c Flap range in fan only operation

5.5.1 To adjust the airflow direction

1 To use auto swing, press .
Result: will appear on the LCD.
Result: The flap (horizontal blade) will begin to swing.
2 To use fixed position, press when the flap reaches the desired position.
Result: disappears from the LCD.

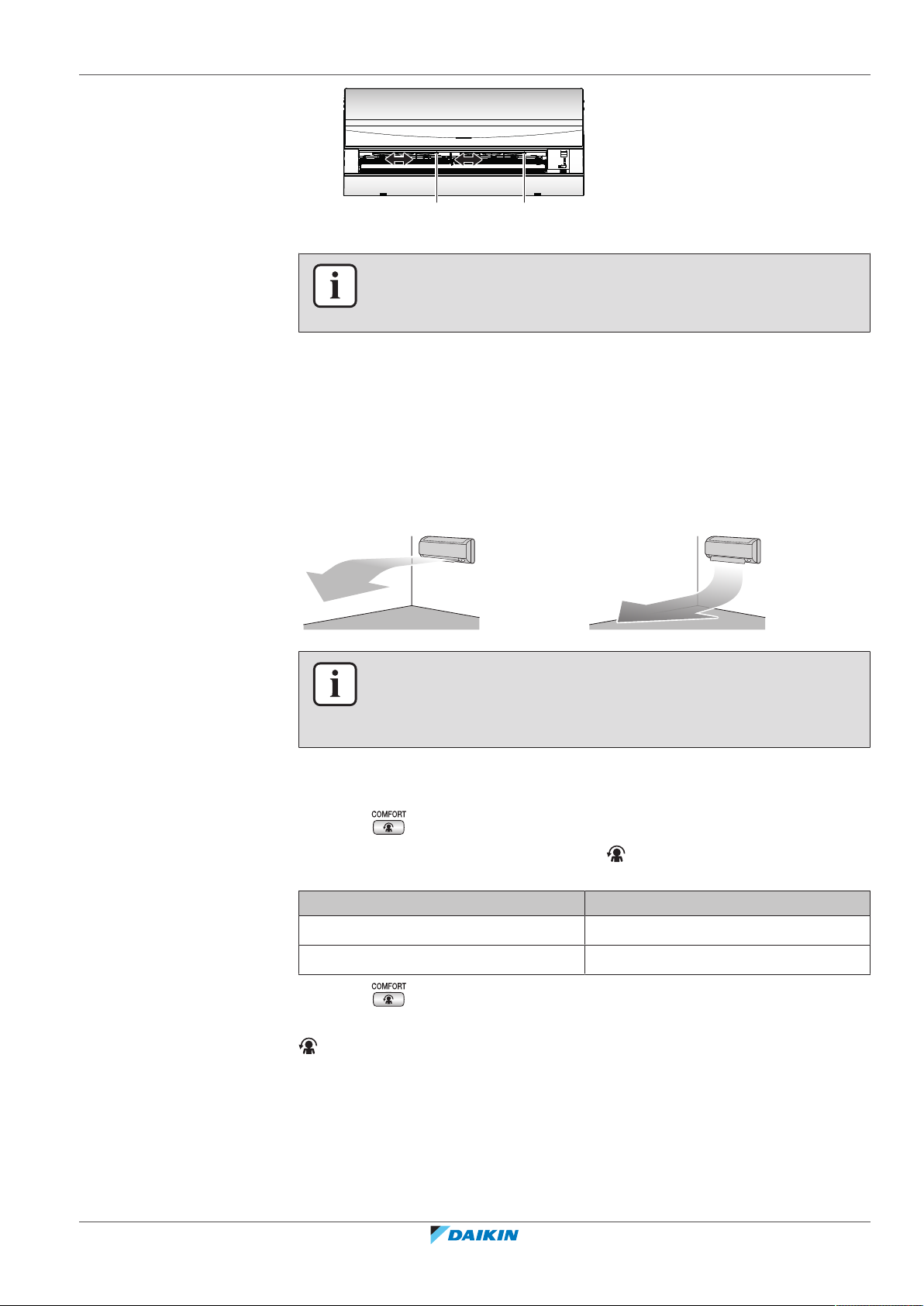

5.5.2 To adjust the louvers (vertical blades)

1 Hold 1 or both knobs and move the louvers.
ATXF50~71A2V1B
Daikin room air conditioner
aa
a Knobs
INFORMATION
When the unit is installed in a corner of a room, the direction of the louvers should be facing away from the wall. Efficiency will drop if a wall blocks the air.

5.6 Comfort airflow operation

This operation can be used in heating or cooling operation mode. It will provide a comfortable wind that will NOT come in direct contact with people. The system automatically sets the fixed airflow position upward in Cooling and downward in Heating operation mode.
5 | Operation
Cooling operation mode Heating operation mode
INFORMATION
Powerful and Comfort airflow operation CANNOT be used at the same time. The last selected function takes priority. If the vertical automatic swing is selected, Comfort airflow operation will be cancelled.

5.6.1 To start/stop Comfort airflow operation

1 Press to start.
Result: The flap position will change, is displayed on the LCD, and the
airflow rate is set to automatic.
Mode Position of flap…
Cooling/Drying Up
Heating Down

5.7 Powerful operation

ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
2 Press to stop.
Result: The flap will return to the position from before the Comfort airflow mode;
disappears from the LCD.
This operation quickly maximizes the cooling/heating effect in any operation mode. You can get the maximum capacity.
User reference guide
19
5 | Operation

5.7.1 To start/stop Powerful operation

INFORMATION
Powerful operation CANNOT be used together with Econo and Comfort airflow operation. The last selected function takes priority.
Powerful operation will NOT increase the capacity of the unit if it already operates at maximum capacity.
1 Press to start.
Result: is displayed on the LCD. Powerful operation runs for 20 minutes;
after that, operation returns to the previously set mode.
Mode Airflow rate
Cooling/Heating/Automatic To maximize the cooling/heating
effect, the capacity of outdoor unit is increased.
The airflow rate is fixed to the
maximum setting.
The temperature and airflow settings
CANNOT be changed.
Drying The temperature setting is lowered by
Fan only The airflow rate is fixed to the
2 Press to stop.
Result: disappears from the LCD.
Note: Powerful operation can be set only when the unit is running. If you press

5.8 Econo operation

This is a function which enables efficient operation by limiting the maximum power consumption value. This function is useful for cases in which attention should be paid to ensure a circuit breaker will not trip when the product runs alongside other appliances.
2.5°C.
The airflow rate is slightly increased.
maximum setting.
, operation will be cancelled; disappears from the LCD.
INFORMATION
Powerful and Econo operation CANNOT be used at the same time. The last
selected function takes priority.
Econo operation reduces power consumption of the outdoor unit by limiting the
rotation speed of the compressor. If power consumption is already low, Econo operation will NOT further reduce power consumption.
User reference guide
20
ATXF50~71A2V1B
Daikin room air conditioner

5.8.1 To start/stop Econo operation

a
A
b
c
d
1 Press to start.
Result: is displayed on the LCD.
2 Press to stop.
Result: disappears from the LCD.
A Running current and power consumption B Time
a Maximum during normal operation
b Maximum during Econo operation
c Normal operation
d Econo operation
The diagram is for illustrative purposes only.
The maximum running current and power consumption of the air conditioner in
Econo operation varies with the connected outdoor unit.
5 | Operation

5.9 OFF/ON timer operation

Timer functions are useful for automatically switching the air conditioner on/off at night or in the morning. You can also use OFF timer and ON timer in combination.
INFORMATION
Program the timer again in case of:
A breaker has turned the unit off.A power failure.After replacing batteries in the user interface.

5.9.1 To start/stop ON timer operation

1 Press to start.
Result: is displayed on the LCD and the timer lamp lights up.
INFORMATION
Each time is pressed, the time setting advances by 1 hour. The timer can be set between 1 to 12 hours.
2 Press to stop.
Result: disappears from the LCD and the timer lamp goes off.

5.9.2 To start/stop OFF timer operation

ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
1 Press to start.
Result: is displayed on the LCD and the timer lamp lights up.
User reference guide
21
5 | Operation

5.9.3 To combine OFF timer and ON timer

INFORMATION
Each time is pressed, the time setting advances by 1 hour. The timer can be set between 1 to 9 hours.
2 Press to stop.
Result: disappears from the LCD and the timer lamp goes off.
INFORMATION
When you set the ON/OFF timer, the time setting is stored in the memory. The memory will be reset when the user interface batteries are replaced.
Use of night set mode in combination with OFF timer
The air conditioner automatically adjusts the temperature setting (0.5°C up in cooling, 2.0°C down in heating) to prevent excessive cooling/heating and ensure a comfortable sleeping temperature.
1 To set the timers, refer to "5.9.2To start/stop OFF timer operation"[421] and
"5.9.1To start/stop ON timer operation"[421].
Result: and are displayed on the LCD.
2 Example of what is displayed on the LCD if you combine the 2 timers:
User reference guide
22
ATXF50~71A2V1B
Daikin room air conditioner
6 | Energy saving and optimum operation

6 Energy saving and optimum operation

INFORMATION
Even if the unit is turned OFF, it consumes electricity.When the power turns back on after a power break, the previously selected
mode will be resumed.
CAUTION
NEVER expose little children, plants or animals directly to the airflow.
WARNING
Do NOT place objects below the indoor and/or outdoor unit that may get wet. Otherwise condensation on the unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, and objects under the unit may get dirty or damaged.
WARNING
Do NOT place a flammable spray bottle near the air conditioner and do NOT use sprays near the unit. Doing so may result in a fire.
CAUTION
Do NOT operate the system when using a room fumigation-type insecticide. Chemicals could collect in the unit, and endanger the health of people who are hypersensitive to chemicals.
Observe the following precautions to ensure the system operates properly.
Prevent direct sunlight from entering a room during cooling operation by using
curtains or blinds.
Make sure the area is well ventilated. Do NOT block any ventilation openings.
Ventilate often. Extended use requires special attention to ventilation.
Keep doors and windows closed. If the doors and windows remain open, air will
flow out of your room causing a decrease in the cooling or heating effect.
Be careful NOT to cool or heat too much. To save energy, keep the temperature
setting at a moderate level.
NEVER place objects near the air inlet or the air outlet of the unit. Doing so may
cause a reduced heating/cooling effect or stop operation.
Turn the breaker off when the unit is NOT used for longer periods of time. If the
breaker is on, the unit consumes electricity. Before restarting the unit, turn the breaker on 6 hours before operation to ensure smooth running.
Condensation may form if the humidity is above 80% or if the drain outlet gets
blocked.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
Adjust the room temperature properly for a comfortable environment. Avoid
excessive heating or cooling. Notice that it may take some time for the room temperature to reach the set temperature. Consider using the timer setting options.
Adjust the air flow direction to avoid cool air from gathering on the floor or warm
air against the ceiling. (Up during cooling or dry operation to the ceiling and down during heating operation.)
Avoid direct air flow to room inhabitants.
User reference guide
23
6 | Energy saving and optimum operation
Operate the system within the recommended temperature range (26~28°C for
cooling and 20~24°C for heating) to save energy.
User reference guide
24
ATXF50~71A2V1B
Daikin room air conditioner

7 Maintenance and service

7.1 Overview: Maintenance and service

The installer has to perform a yearly maintenance.
About the refrigerant
This product contains fluorinated greenhouse gases. Do NOT vent gases into the atmosphere.
Refrigerant type: R32
Global warming potential (GWP) value: 675
NOTICE
Applicable legislation on fluorinated greenhouse gases requires that the refrigerant charge of the unit is indicated both in weight and CO2 equivalent.
Formula to calculate the quantity in CO2 equivalent tonnes: GWP value of the refrigerant × total refrigerant charge [in kg] / 1000
Please contact your installer for more information.
7 | Maintenance and service
WARNING
The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the refrigerant leaks in the room and comes in contact with fire from a burner, a heater, or a cooker, this may result in fire, or the formation of a harmful gas.
Turn off any combustible heating devices, ventilate the room, and contact the dealer where you purchased the unit.
Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired.
WARNING
Do NOT pierce or burn refrigerant cycle parts.Do NOT use cleaning materials or means to accelerate the defrosting process
other than those recommended by the manufacturer.
Be aware that the refrigerant inside the system is odourless.
WARNING
The appliance shall be stored in a room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater).
NOTICE
Maintenance MUST be done by an authorized installer or service agent.
We recommend performing maintenance at least once a year. However, applicable legislation might require shorter maintenance intervals.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
DANGER: RISK OF ELECTROCUTION
To clean the air conditioner or air filter, be sure to stop operation and turn all power supplies off. Otherwise, an electric shock and injury may result.
User reference guide
25
7 | Maintenance and service
WARNING
To prevent electric shocks or fire:
Do NOT rinse the unit.Do NOT operate the unit with wet hands.Do NOT place any objects containing water on the unit.
CAUTION
After a long use, check the unit stand and fitting for damage. If damaged, the unit may fall and result in injury.
CAUTION
Do NOT touch the heat exchanger fins. These fins are sharp and could result in cutting injuries.
WARNING
Be careful with ladders when working in high places.

7.2 To clean the indoor unit and user interface

NOTICE
Do NOT use gasoline, benzene, thinner polishing powder or liquid insecticide.
Possible consequence: Discoloration and deformation.
Do NOT use water or air of 40°C or higher. Possible consequence: Discoloration
and deformation.
Do NOT use polishing compounds.Do NOT use a scrubbing brush. Possible consequence: The surface finishing peels
off.
DANGER: RISK OF ELECTROCUTION
Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord. Otherwise, an electric shock and injury may result.
1 Clean with a soft cloth. If it is difficult to remove stains, use water or a neutral
detergent.

7.3 To clean the front panel

User reference guide
26
1 Clean the front panel with a soft cloth. If it is difficult to remove stains, use
water or a neutral detergent.
ATXF50~71A2V1B
Daikin room air conditioner

7.4 About the air filters

2
1
Operating the unit with dirty filters means that the filter:
CANNOT deodorize the air,
CANNOT clean the air,
poor heating/cooling,
causes odour.

7.5 To open the front panel

1 Hold the front panel by the panel tabs on both sides and open it.
7 | Maintenance and service

7.6 To clean the air filters

1 Push the tab at the centre of each air filter, then pull it down.
2 Pull out the air filters.
3 Wash the air filters with water or clean them with a vacuum cleaner.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
4 Soak in lukewarm water for about 10 to 15 minutes.
5 Install all filters back in their original positions.
User reference guide
27
7 | Maintenance and service

7.7 To close the front panel

1 Gently press the front panel at both sides and at the center until it clicks.

7.8 To take following items into account before a long idle period

INFORMATION
If the dust does NOT come off easily, wash them with a neutral detergent diluted
in lukewarm water. Dry the air filters in the shade.
It is recommended to clean the air filters every 2 weeks.
Operate the unit in fan only mode for several hours to dry the inside of the unit.
1 Press and select fan only operation.
2 Press to start operation.
3 After operation stops, turn the breaker off.
4 Clean the air filters and replace them in their original position.
5 Remove the batteries from the user interface.
INFORMATION
It is recommended to have periodical maintenance performed by a specialist. For specialist maintenance, contact your dealer. Maintenance costs shall be borne by the customer.
In certain operating conditions the inside of the unit may get dirty after several seasons of use. This results in poor performance.
User reference guide
28
ATXF50~71A2V1B
Daikin room air conditioner

8 Troubleshooting

If one of the following malfunctions occur, take the measures shown below and contact your dealer.
WARNING
Stop operation and shut off the power if anything unusual occurs (burning smells etc.).
Leaving the unit running under such circumstances may cause breakage, electric shock or fire. Contact your dealer.
The system MUST be repaired by a qualified service person.
8 | Troubleshooting
Malfunction Measure
If a safety device such as a fuse, a breaker or an earth leakage breaker frequently actuates or the
Turn OFF the main power switch.
ON/OFF switch does NOT properly work.
If water leaks from the unit. Stop the operation.
The operation switch does NOT work well. Turn OFF the power supply.
If the user interface display indicates the unit number, the operation lamp flashes and the
Notify your installer and report the malfunction code.
malfunction code appears.
If the system does NOT operate properly except for the above mentioned cases and none of the above mentioned malfunctions is evident, investigate the system according to the following procedures.
Malfunction Measure
If the system does NOT operate at all.
Check if there is no power failure. Wait until
power is restored. If a power failure occurs during operation, the system automatically restarts immediately after power is restored.
Check if no fuse has blown or breaker is activated.
Change the fuse or reset the breaker if necessary.
Check the batteries of the user interface.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
The system suddenly stops operating.
Check if the air inlet or outlet of the outdoor or
indoor unit is NOT blocked by obstacles. Remove any obstacles and make sure the air can flow freely.
The air conditioner may stop operating after
sudden large voltage fluctuations to protect the system. It automatically resumes operation after about 3minutes.
User reference guide
29
8 | Troubleshooting
Malfunction Measure
The system operates, but cooling or heating is insufficient.
The system operates, but cooling or heating is insufficient (air is NOT blown from the unit).
The system operates, but cooling or heating is insufficient (air is blown from the unit).
Check the airflow rate setting. Refer to
"5.4Airflow rate"[417].
Check the temperature setting. Refer to "5.3.1 To
start/stop operation mode and to set the temperature"[417].
Check if the airflow direction setting is
appropriate. Refer to "5.5Airflow direction"[418].
Check if the air inlet or outlet of the outdoor or
indoor unit is NOT blocked by obstacles. Remove any obstacles and make sure the air can flow freely.
The air conditioner may be warming up for heating
operation. Wait for 1 to 4 minutes.
The unit may be in defrost operation.
Check if the air filters are clogged. Clean the air
filters. See "7Maintenance and service"[425].
Check for open doors or windows. Close doors and
windows to prevent wind from coming in.
Check if the unit operates in Econo operation.
Refer to "5.8Econo operation"[420].
An abnormal function happens during operation.
The unit does NOT receive signals from the user interface.
The user interface display is blank.
An error code is displayed on the user interface.
Other electric appliances start to operate.
Check if there is any furniture directly under or
next to the indoor unit. Move the furniture.
The air conditioner may malfunction because of lightning or radio waves. Turn the breaker OFF and back ON.
Check the batteries of the user interface.
Make sure that the transmitter is NOT exposed to
direct sunlight.
Check if there are any electronic starter type
fluorescent lamps in the room. Contact your dealer.
Replace the batteries of the user interface.
Consult your local dealer. Refer to "8.2Solving
problems based on error codes"[431] for a
detailed list of error codes.
If the user interface signals operate other electric appliances, move the other appliances away, and contact your dealer.
User reference guide
30
If after checking all above items, it is impossible to fix the problem yourself, contact your installer and state the symptoms, the complete model name of the unit (with manufacturing number if possible) and the installation date (possibly listed on the warranty card).
ATXF50~71A2V1B
Daikin room air conditioner

8.1 Symptoms that are NOT system malfunctions

The following symptoms are NOT system malfunctions:

8.1.1 Symptom: A sound like water flowing is heard

This sound is caused by the refrigerant flowing in the unit.
This sound may be generated when water is flowing away from the unit during
cooling or drying operation.

8.1.2 Symptom: A blowing sound is heard

This sound is generated when the direction of the refrigerant flow is changed (e.g. when switching from cooling to heating).

8.1.3 Symptom: A ticking sound is heard

This sound is generated when the unit slightly expands or contracts with changes in temperature.
8 | Troubleshooting

8.1.4 Symptom: A whistling sound is heard

This sound is generated by the refrigerant flowing during defrost operation.

8.1.5 Symptom: A clicking sound during operation or idle time is heard

This sound is generated when the refrigerant control valves or electrical parts operate.

8.1.6 Symptom: A clapping sound is heard

This sound is generated when an external device sucks air out of the room (e.g. exhaust fan, extractor hood) while the doors and windows in the room are closed. Open the doors or windows, or turn off the device.

8.1.7 Symptom: The units can give off odours

The unit can absorb the smell of rooms, furniture, cigarettes, etc., and then emit it again.

8.1.8 Symptom: The outdoor fan rotates while the air conditioner is not in operation

After operation has stopped. The outdoor fan continues to rotate for another
30 seconds for system protection.

8.2 Solving problems based on error codes

ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
While the air conditioner is not in operation. When the outdoor temperature is
very high, the outdoor fan starts to rotate for system protection.
If the unit runs into a problem, the user interface displays an error code. It is important to understand the problem and to take measures before resetting an error code. This should be done by a licensed installer or by your local dealer.
User reference guide
31
8 | Troubleshooting
This chapter gives you an overview of all possible error codes and their descriptions as they appear on the user interface.
For detailed troubleshooting of each error, see the service manual.
Fault diagnosis by user interface
The user interface can receive an error code from the indoor unit referring to the fault. It is important to understand the problem and take measures before resetting the error code. This should be done by a licensed installer or your local dealer.

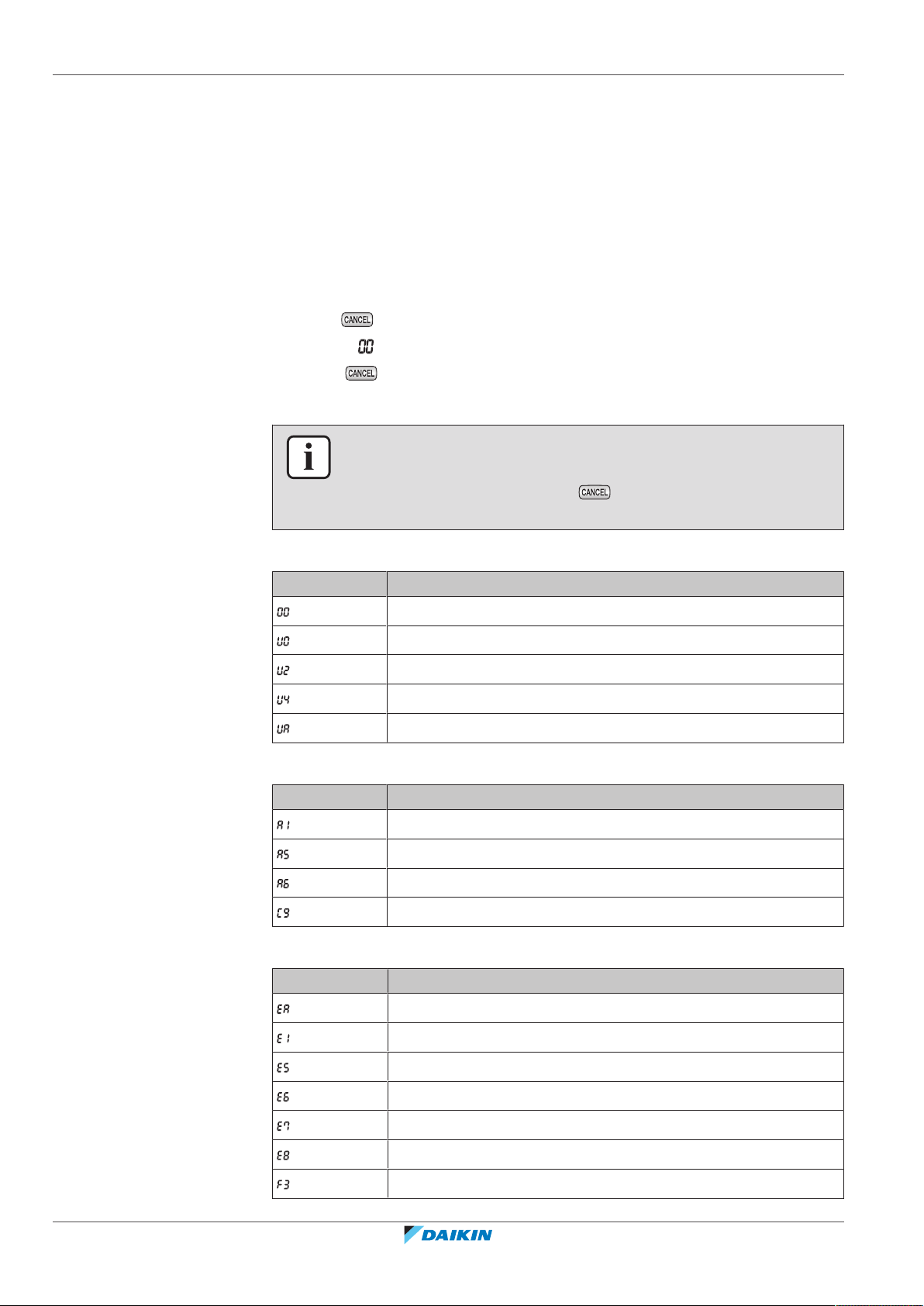

To see the error code on the user interface:
1 Hold for about 5seconds.
Result: blinks in the temperature display section.
2 Press repeatedly until a continuous beep is heard.
Result: The code is now displayed on the display.
INFORMATION
A short beep and 2 consecutive beeps indicate non-corresponding codes.
To cancel the code display, hold the cancel button for 5seconds. The code
will also disappear from the display if the button is NOT pressed within 1minute.
System
Error code Description
Normal
Refrigerant shortage
Overvoltage detection
Signal transmission error (between indoor and outdoor unit)
Indoor/outdoor unit combination fault
Indoor unit
Error code Description
Indoor unit PCB abnormality
Freeze-up protection or high-pressure control
Fan motor (DC motor) abnormality
Room temperature thermistor abnormality
Outdoor unit
Error code Description
User reference guide
32
4-way valve abnormality
Outdoor unit PCB abnormality
Overload activation (compressor overload)
Compressor lock
DC fan lock
Input power overcurrent
Discharge pipe temperature control
ATXF50~71A2V1B
Daikin room air conditioner

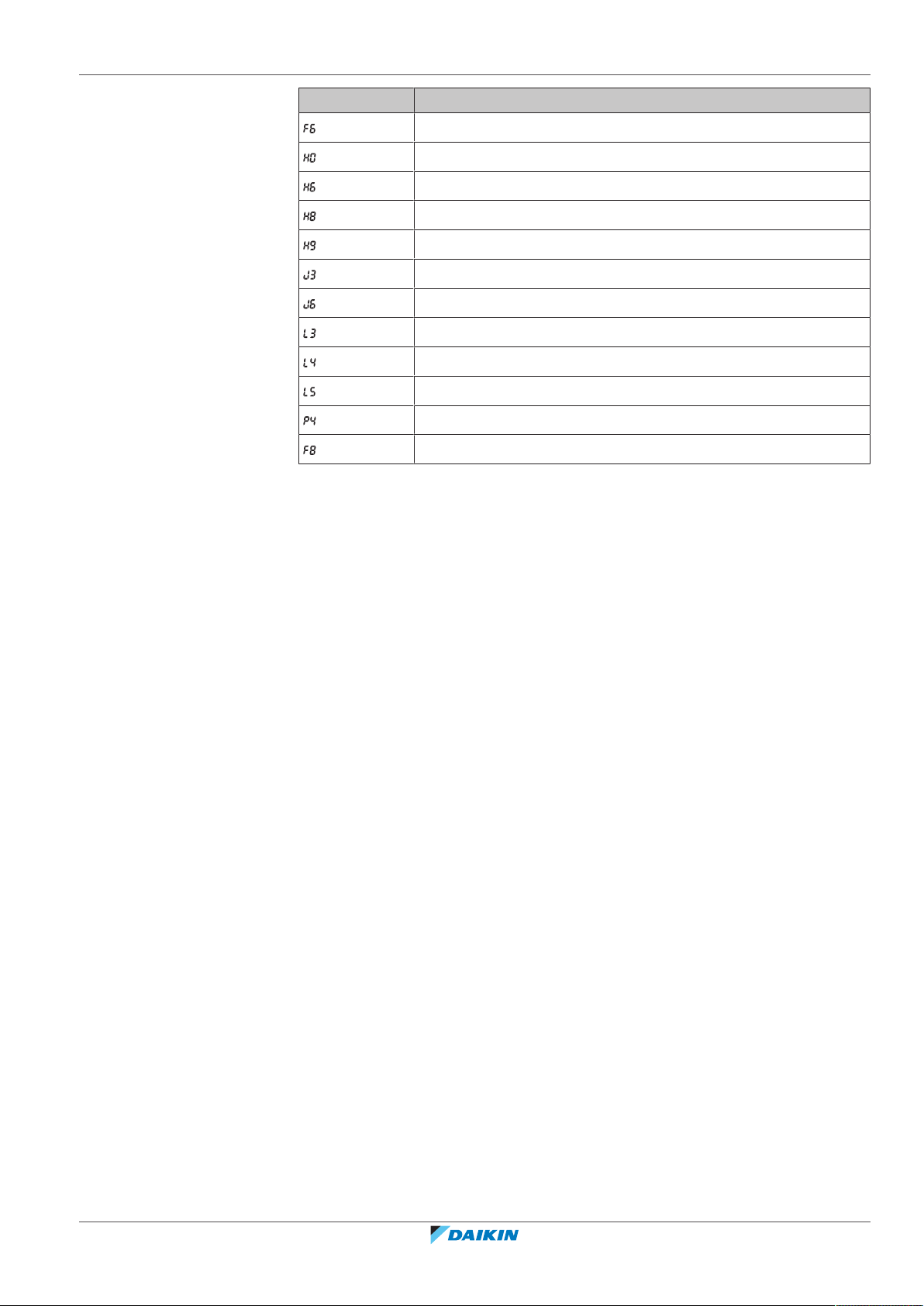

Error code Description
High-pressure control (in cooling mode)
Compressor system sensor abnormality
Position sensor abnormality
DC voltage / current sensor abnormality
Outdoor temperature thermistor abnormality
Discharge pipe thermistor abnormality
Outdoor heat exchanger thermistor abnormality
Electrical parts heat error
Radiation fin temperature rise
Inverter instantaneous overcurrent (DC)
Radiation fin thermistor abnormality
Compressor internal temperature error
8 | Troubleshooting
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
User reference guide
33
9 | Disposal

9 Disposal

NOTICE
Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery.
User reference guide
34
ATXF50~71A2V1B
Daikin room air conditioner

10 Glossary

DHW = Domestic hot water
LWT = Leaving water temperature
Dealer
Authorised installer
User
Applicable legislation
Service company
10 | Glossary
Hot water used, in any type of building, for domestic purposes.
Water temperature at the water outlet of the heatpump.
Sales distributor for the product.
Technical skilled person who is qualified to install the product.
Person who is owner of the product and/or operates the product.
All international, European, national and local directives, laws, regulations and/or codes that are relevant and applicable for a certain product or domain.
Qualified company which can perform or coordinate the required service to the product.
Installation manual
Instruction manual specified for a certain product or application, explaining how to install, configure and maintain it.
Operation manual
Instruction manual specified for a certain product or application, explaining how to operate it.
Accessories
Labels, manuals, information sheets and equipment that are delivered with the product and that need to be installed according to the instructions in the accompanying documentation.
Optional equipment
Equipment made or approved by Daikin that can be combined with the product according to the instructions in the accompanying documentation.
Field supply
Equipment NOT made by Daikin that can be combined with the product according to the instructions in the accompanying documentation.
ATXF50~71A2V1B Daikin room air conditioner 4P513685-6C – 2019.12
User reference guide
35
Verantwortung für Energie und Umwelt
Copyright 2019 Daikin
4P513685-6C 2019.12
Loading...
