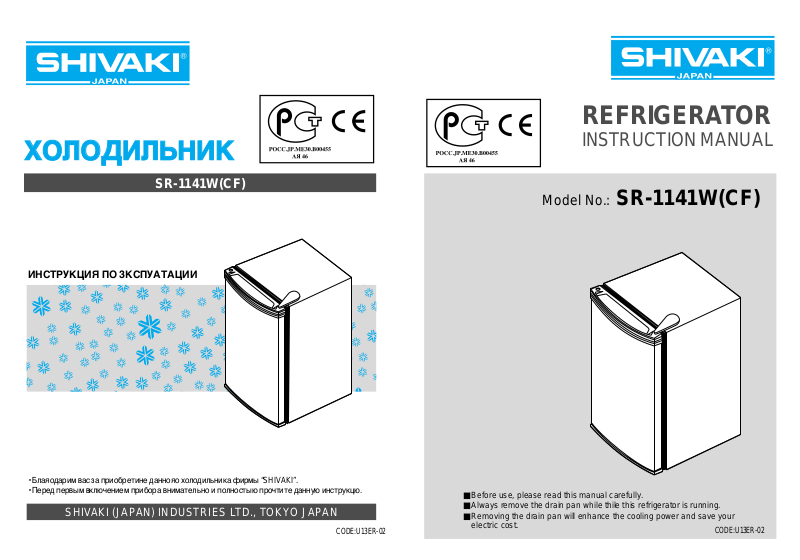

XOJODNJ§HNK
SR-1141W(CF)
NHCTPYKUNR IO SKCIYATAUNN
•<jarodapnm bac sa ipno>petnhe dahhoro xojodnj¶hnka gnpml “SHIVAKI”.
•Ieped iepblm bkjqvehnem ipn>opa bhnmatej¶ho n iojhoctlq ipovtnte dahhyq nhctpykuq.
SHIVAKI (JAPAN) INDUSTRIES LTD., TOKYO JAPAN
CODE:U13ER-02
REFRIGERATOR
INSTRUCTION MANUAL
Model No.: SR-1141W(CF)
■Before use, please read this manual carefully.
■Always remove the drain pan while thile this refrigerator is running. ■Removing the drain pan will enhance the cooling power and save your
electric cost.
NAMES OF THE PARTS
$ ( )@!& # |
% * ^ |
1.EVAPORATOR :
The heart of the refrigerator.
It evaporates the refrigerant fluid and thereby absorbs heat from the surrounding, Made of pure aluminum.
2.DRAIN PAN : (Use of Defrost)
Discards the water that drips of the evaporator when defrosting.
3.CONTROL BOX :
Regulates the operation of the motor and controls the inside temperature of the refrigerator.
4.PLASTIC COATED SHELF : has full width and can slide out.
5.RACK for butter, and small size goods.
6.MAGNETIC DOOR SEAL :
Keeps the refrigerator virtually airtight all along the edge, but is nevertheless easy to open.
7.ICE CUBE TRAY :
Ice cubes are easy to remove from the tray.
8.USABLE RACK for cans or jars.
9.BOTTLE RACK for bottles, cans or jars.
10.CRISPER for vegetables and fruits.
11.SLIDE OUT CRISPER COVER.
1
HOW TO OPERATE
Starting your new Refrigerator
1.Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the inside with a damp cloth.
2.Keep the door open and insert the power supply cord into the socket.
3.Turn the thermostat dial to “7” Close the door and let the refrigerator operate for 15-20 minutes.
The freezer should then show some traces of frost.
Temperature control
You can control the inside temperature by turning the thermostat dial. Higher numbers mean greater cooling power, smaller numbers mean less cooling power, To make ice cubes in the freezer compartment, set the dial to “7”. The dial does not have to be set exactly on the numbers, but can be any place in between.
|
|
|
C |
|
|
|
|
O |
|
|
6 |
|
L |
|
|
|
D |
||
7 |
5 |
E |
||
|
||||
|
R |
|||
|
|
|
||
OFF |
|
|
4 |
1 |
3 |
|
2 |
TEMPERATURE CONTROL
NOTE: Wait 3 to 5 minutes before restarting if you unplug the machine. Unit may fail to operate properly if restarted too quickly.
How to defrost
Defrost the refrigerator when the frost accumulated on the evaporator is about 5mm(1/5inch) thick.
Set the thermostat dial to “OFF”. Remove frozen or perishable foods.
Keep drip tray in place. Defrosting usually takes a few hours. To defrost quickly remove all foods from the refrigerator and leave door open. Never use a knife or other metal instrument to remove ice/frost from the evaporator. After defrosting empty water from drip tray, return the thermostat dial to the desired position to start refrigerating again.
2
