Daewoo SH-9810P, SH-3510P, SH-9840P User Manual

DVD Player + Video Cassette Recorder

Please read this manual carefully before connecting your DVD+VCR and operating it for the first
time.

Keep the manual in a safe place for future reference.

SH-3510P/SH-9810P/SH-9840P

INSTRUCTION MANUAL

SELECT

STANDBY/ON

EJECT

VIDEO AUDIO

REC

STOP REW PLAY/PAUSE FF OPEN/CLOSE

AV INPUT

SH-3510P

SH-9810P & SH-9840P

ENGLISH UK

HELP LINE ; 0 870 100 2525

Contents

Product Information

Important Safeguards ..................................................... 1

Advantages of This Product Are .... ............................ 4

Read Carefully before Using ......................................... 5

Identification of Controls ...............................................6

Remote Control .............................................................. 10

Installation

Setting up your player................................................... 11

Connecting your player through extra equipment

(satellite system) ............................................................ 12

Connecting your player to the Hi-Fi system .............13

How to connect your player to another player,

How to connect your player to a camcorder ............ 14

Connecting Dolby Digital Amp with Digital Audio

Out Jack ...........................................................................15

2nd Scart Socket ............................................................. 16

Basic Operation

Initial Installation ........................................................... 17

Setting time and date / Auto clock ............................ 18

OSD ON & OFF / Output Select ................................ 19

DVD Playback ................................................................ 20

VCR Playback ................................................................ 21

Recording ........................................................................ 22

VCR Operation

Tuning in New Stations ................................................ 24

Timer Recording ............................................................ 26

More Functions .............................................................. 29

Connections and Copying ...........................................33

DVD Operation

Playing a desired scene ................................................ 35

Confirming the current PLAY mode on screen ....... 39

Selecting an AUDIO language, SUBTITLE language

and 3D AUDIO ...............................................................41

Selecting ZOOM and Multi Angle.............................. 42

About MP3 , JPG and MPG discs................................ 43

Displaying menus on a disc. ........................................ 47

Set-up

Language Setup .............................................................. 48

Video Setup ......................................................................50

Audio Setup..................................................................... 51

Other Setup ..................................................................... 52

The others

About DVD...................................................................... 54

Basic information about VCR and Videotape.......... 57

Trouble Shooting guide (VCR) .................................... 58

Trouble Shooting guide (DVD) ................................... 60

Specifications .................................................................. 61

1

Important Safeguards

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and servicing
instructions in the literature accompanying the
appliance.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

IMPORTANT FOR LASER PRODUCTS

• LASER :

This Digital Video Disc Player employs a Laser System. To ensure proper use of this product
please read this instruction manual carefully and retain for future reference. Should the unit
require maintenance, contact an authorized service location - see service procedure.

Use of control adjustments or the performance of procedures other than those specified
may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser
radiation when open and interlocks defeated.
DO NOT STARE INTO THE BEAM.

• DANGER :

Visible laser radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.

• CAUTION : Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to
qualified service personnel.

This set complies with the EMC Directive 89/336 and with the LVD Directive 73/23.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

CAUTION: Any changes or modification in construction of this device which are not expressly approved by

the party responsible for compliance could void the user’s authority to operate the equipment.

• Make sure the unit is placed at least 8cm away from the other home appliances or obstacles in
order to allow sufficient ventilation around the unit.

• This unit should not be exposed to drips or splashes and no objects filled with liquids, such as
vases, should be placed on this unit.

• Switching it off does not disconnect it from the mains (stand-by). To disconnect it from the
mains, you have to unplug it.

• The system is not completely disconnected from the mains when the / I button is set to
the position.

Product information

2

This set has been designed and manufactured to assure
personal safety. Improper use can result in electric shock
or fire hazard. The safeguards incorporated in this unit
will protect you if you observe the following procedures
for installation, use and servicing. This unit is fully
transistorised and does not contain any parts that can be
repaired by the user.

1 READ INSTRUCTIONS

All the safety and operating instructions should be
read before the unit is operated.

2 RETAIN INSTRUCTIONS

The safety and operating instructions should be
retained for future reference.

3 HEED WARNINGS

All warnings on the unit and in the operating
instructions should be adhered to.

4 FOLLOW INSTRUCTIONS

All operating and use instructions should be
followed.

5 ATTACHMENTS

Do not use attachments unless recommended by the
unit’s manufacturer as they may cause hazards.

6 WATER AND MOISTURE

Do not use this unit near water- for example, near a
bath tub, wash bowl, kitchen sink or laundry tub, in
a wet basement, or near a swimming pool.

7 ACCESSORIES

Do not place this unit on an unstable cart, stand,
tripod, bracket, or table. The
unit may fall, causing serious
injury to a child or adult as
well as serious damage to the
unit. Use this unit only with a
cart, stand , tripod, bracket,
or table recommended by the manufacturer.

7A

A unit and cart combination should be moved
with care. Quick stops, excessive force, and uneven

surfaces may cause the product and cart
combination to overturn.

8 VENTILATION

Slots and openings in the case are provided for
ventilation to ensure reliable operation of the unit
and to protect it from overheating. These openings
must not be blocked or covered. These openings
must not be blocked by placing the unit on a bed,
sofa, rug, or other similar surface. This unit should
never be placed near or over a radiator or heat
radiator. This unit should not be placed in a built-in
installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s
instructions have been adhered to.

9 POWER SOURCES

This unit should be operated only from the type of
power source indicated on the rating label. If you are
not sure of the type of power supply to your home,
consult your dealer or local power company. For
units intended to operate from battery power, or
other sources, refer to the operating instructions.

10 MAINS PLUG

We have fitted this unit with a standard mains plug.

• If the mains lead gets damaged it must be replaced
by a qualified service agent with an approved lead
of the same type.

• If the plug is cut off, remove the fuse from the plug
and get rid of it safely, as if you put it into a supply
socket it would be dangerous.

• If you change the plug because the standard plug
is damaged or unsuitable, please destroy the old
plug as it would be dangerous if plugged into a
live power outlet. Follow the wiring instructions
supplied with the new plug.

11 POWER-CORD PROTECTION

You must make sure the mains lead cannot be
walked on, crushed, chafed, cut, and so on.

12 LIGHTNING

For added protection for this unit during a lightning
storm, or when the unit is left unattended and

Important Safeguards

PORTABLE CART WARNING

(symbol provided by RETAC)

3

Important Safeguards

unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the unit due to
lightning and power line surges.

13 DISC TRAY

Keep your fingers well clear of the disc tray as it is
closing.

14 OBJECT AND LIQUID ENTRY

Never push objects of any kind into this unit
through openings as they may touch dangerous
voltage points or “short-out” parts that could result
in a fire or electric shock. Never spill liquid of any
kind on the unit.

15 BURDEN

Do not place a heavy object on or step on the
product. The object may fall, causing serious
personal injury and serious damage to the product.

16 DISC

Do not use a cracked, deformed or repaired disc.
These discs are easily broken and may cause
personal injury and product malfunction.

17 DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer
servicing to qualified service personnel under the
following conditions.

A. When the power-supply cord or plug is

damaged.

B. If liquid has been spilled, or objects have fallen

into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not operate normally by

following the operating instructions. Adjust
only those controls that are covered by the
operating instructions. Improper adjustment of
other controls may result in damage and will
often require work by a qualified technician to
restore the unit to its normal operation.

E. If the unit has been dropped or the cabinet has

been damaged.

18 REPLACEMENT PARTS

When replacement parts are required, have the
service technician verify that the replacements he
uses have the same safety characteristics as the
original parts. Use of replacements specified by the
unit manufacturer.

19 SAFETY CHECK

Upon completion of any service or repairs to this
unit, ask the service technician to perform safety
checks recommended by the manufacturer to
determine that the unit is in safe operating
condition.

20 HEAT

The product should be situated away from heat
sources such as radiators, stoves, or other products
(including amplifiers) that produce heat.

21 NORMAL USE

This product is only designed for household or
similar general use. Any other use may invalidate
the guarantee and could be dangerous.

MAINS FUSE IN THE UK

If you use a 13 amp (BS 1363 type) plug, you must have
a 3 amp (BS1362 type) fuse fitted. For any other type of
plug or connection, you must fit a fuse rated between 3
and 5 amps in the mains plug or adapter, or at the fuse
box feeding this unit.

EUROPEAN SYMBOLS

This unit is double insulated and
an earth connection is not
required.

This unit complies with
European safety and electrical
interference directives.

Product information

4

Advantages of This Product Are .....

• DVD, VCD, CD, CD-R(MP3), CD-RW, VHS

• Watching DVD and recording broadcasts

• Integrated remote control (VCR, DVD)

• VISS function

• Multiplex sound playback/record
(SH-9810P & SH-9840P only)

• High Sound Quality of 6 head Hi-Fi
(SH-9810P & SH-9840P only)

• Simple record function

• MP3 file playback function (CD-R disc having
records of MP3 files)

• GUI (Graphical User Interface) through OSD
(On Screen Display)

By using the [DISPLAY] button on the remote
control, information on the DVD/VCD/CD player
and disc, can be displayed on the TV screen.

• Screensaver function (DVD)

• 3D sound (3D sound effect using 2 speakers)

• High bit / High sampling with 27MHz / 10bit
video encoder

• High bit / High sampling with 96MHz / 24bit
Audio D/A Converter

• Coaxial, Optical digital Audio output (PCM,
Dolby Digital, dts)

You can enjoy high-level digital audio by
connecting with an amplifier embedded with
Dolby Digital / dts decoder.

• Built-in Dolby Digital decoder (DVD)

• Analog audio 2-channels output for
DOWNMIX (x1)

• Composite video output (x1)

• Slow Forward / Reverse playback (DVD)

• Fast Forward / Reverse playback

• Search of title, chapter, and time in DVD disc,
and search of time and track time in VCD

• Various TV aspect (DVD)

4:3 for Pan and Scan, 4:3 for Letter Box, and 16:9 for
Wide

• Repeat playback (title, chapter, and part for
DVD/ track, disc, and part for VCD/CD)

• Selective Play (DVD/VCD/CD)

You can select and play the desired title / chapter
of DVD and track of Video CD/CD in STOP mode.

• 6 languages OSD (On Screen Display)
function (DVD)

You can select and display OSD in 6 languages.
(E / F / S/ G/ I / D)

• Parental Lock function (DVD)

This function can prevent playback of software
that may be unsuitable for children.

• Multi Audio function (DVD)

The audio soundtrack can be heard in up to 8
languages. In the case of SVCD or VCD, it depends
on the disc. (The number of audio languages
depends on the software.)

• Multi Subtitle function (DVD)

The subtitle can be seem in up to 32 languages. In
the case of SVCD or VCD, it depends on the disc.
(The number of subtitle languages depends on the
software.)

• Multi Angle function (DVD)

This function allows you to choose the viewing
angle of scenes which were shot from a number of
different angles. (The number of angles depends
on the software.)

• Screen zoom function (DVD/VCD)

5

Read Carefully before Using

Cautions in use of DVD-Video player are described below.

Please read carefully before using a DVD-Video player.

✔ Installation place and handling

• When you place this player near other devices,
they may affect poorly together.

•

When you place DVD-Video player above or below
a TV, it may cause flickering of pictures or failure
(tape is not ejected).

• When you place this player near strong magnetic
materials, it may affect image or voice poorly or
damage recording.

•

Do not spill volatile liquids like insect spray over
the player. Do not leave rubber or plastic products in
contact with the player for a long time. They will
cause deterioration or paint to peel-off.

✔ Not in use

• When the unit is not in use, be sure to remove the
disc or tape and turn off the power.

•

If you do not use the unit for a long period, remove
batteries in remote control to prevent leakage.

• If you don’t use the unit for a long time, the unit
may not function properly in the future. Turn on
and use the player occasionally.

✔ Moving

• Repack the unit as it was originally packed at the
factory. Alternatively, pack this product with
towel to prevent transit damage.

• Eject any videotape.

✔ Cleaning

• Dust off dirt in cabinet or control panel part
smoothly with a soft cloth.

• For heavy dirt, soak the cloth in a weak detergent
solution, wring it well and wipe. Use a dry cloth
to wipe it out.

• Follow instructions in using chemical cleaners.

• Do not use any type of solvent such as gasoline or
benzene, as they may cause deterioration or paint
to peel-off.

✔ Checking

• The video is a high precision device. To obtain a
clear picture, we recommend regular inspection

and maintenance every 1,000 hours of use by
technical engineers.

• For checking, contact your dealer or your nearest
service centre.

✔ Checking and Replacement of Antenna

• The antenna is subject to change in its direction
or damage by wind and rain. For a clear picture,
contact and consult your nearest aerial rigger
about checking and replacement.

✔ Recording important pictures

•

Be sure to record the screen and check whether
recording is performed properly. Bad recordings
can result if using poor quality tapes.

✔ Copyright

• Do not use your recordings without permission
of a copyrighter except personal usage.

✔ Tape and Disc Handling

•

Do not use any tape and disc in conditions listed
below. Damage of video head or cut/coiling of tape
may cause failure.

- Tape with mold

- Tape or disc stained with juice or food particles

- Tape having breakage connection

- Disassembled tape

- Disc with severe scratch

• Moisture condensation may occur on tape.

Moisture condensation damages the tape. Only
use the tape after the moisture condensation has
disappeared.

• After use, store tape vertically in a case to

prevent the tape from becoming loose.

• Do not store in the following places.

- High temperature and humidity

- Subject to generation of mold

- Subject to direct sunlight

- In dirt or dust

-

Near strong magnetic materials such as a speaker

Product information

6

Identification of Controls

SELECT

STANDBY/ON

EJECT

VIDEO AUDIO

REC

STOP REW PLAY/PAUSE FF OPEN/CLOSE

AV INPUT

!

POWER (STANDBY/ON) button

Use to power the device on/off if AC power supply
is connected.

@

Place to insert videotape

#

Disc tray

$

VIDEO INPUT jack

%

AUDIO INPUT jack

^

EJECT button

&

RECORD button

*

Programme Down/Up button

(

Operation Display Window

Display operation of device. For more information,
see “Operation Display Window” in 7p.

)

SELECT button

Use to change DVD mode to VCR mode, and vice
versa.

1

STOP button

Use to stop playing.

2

REWIND button

Use to rewind currently being played, videotape or
disc; or to review.

3

Playback/PAUSE button

Playback videotape or disc.
Press this button to pause a screen.

4

FAST FORWARD button

Use to wind currently being played videotape or
disc; or to playback rapidly.

5

OPEN/CLOSE Tray button

!

@ # 2

4

$ ^ & ( )

1 3 5

% *

!

@ # 2

4

$ ^ & ( )

1 3 5

% *

Main body (front panel)

■

SH-3510P

■

SH-9810P & SH-9840P

7

Identification of Controls

Timer Recording Standby

Timer Recording Error

Recording in Progress

Timer Recording in
Progress

Recording Pause

Repeat one chapter

[DVD]

Repeat track

[VCD]

Repeat title

[DVD]

Repeat ALL

[VCD]

Repeat a defined period
from A

[DVD, VCD]

Repeat a defined period
from A to B

[DVD, VCD]

- RECORDING MODE - - REPEAT MODE -

DVD playback

Fast playback

Fast reverse playback

Slow playback

Pause picture

- DVD OPERATION -

VCR playback

Fast forward

Rewinding

Fast playback (CUE)

Fast reverse playback
(REVIEW)

Slow playback

Still picture

Stop

Child Lock

- VCR OPERATION -

Operation Display Window

Product information

8

Identification of Controls

!

#

*

&

^

@

$

%

!

POWER CORD

It is a jack for supplying power to the unit.
Connect to outlet in a wall.

@

EURO AV2/DECODER scart socket

#

VIDEO OUTPUT phono socket

$

AUDIO OUTPUT phono socket

%

DIGITAL OUTPUT (OPTICAL/COAXIAL) Jack

To enjoy sound quality of theatre level in home,
connect this jack with amp or unit embedded
with digital audio decoder.

^

Connection to ANTENNA Cable

&

Connection to TV

*

EURO AV1 scart socket

Main body (Rear Panel)

9

Identification of Controls

Remote control 2 Batteries RF cable

Scart cable

(supplied only SH-9840P)

Instruction

Manual

• To purchase accessories or not supplied additional parts, contact your nearest dealer or service centre.

N.B.: Owner’s manual and warranty are not sold additionally.

• Operate remote control within 7m from the unit.

• Do not press 2(two) buttons at the same time.

• Excessive sun light falling on the remote receiver may cause the remote control to become inoperative.

• Do not keep in the place with much dust and humidity.

Instructions in using REMOTE

Accessories

AAA

AAA

✔

Remote control battery installation

Detach the battery cover on the rear of the
remote control, and insert two AAA
batteries with the + and - ends aligned
correctly.

Two “AAA”
batteries
(supplied).

Product information

10

Remote Control

!

#

@

$
%

^

&

(

)

2

4
5

7

9

“

#

‘

=

q

w

e

R

r

T

Y

0

+

E

t

y

W

Q

*

3

1

6
8

!

[DVD]

OPEN/CLOSE button,

[VCR]

EJECT button

@

VCR SELECT button

#

[DVD, VCR]

NUMBER button,

[VCR]

TRACKING -/+

button

$

SYSTEM button (This button is not available for this set)

%

SETUP button

^

[DVD, VCR]

MOVE/SELECT in OSD,

[VCR]

Channel

Up/Down button

&

[DVD]

TITLE /PBC button

*

[DVD]

AUDIO LANGUAGE Select,

[VCR]

AUDIO Select

button (SH-9810P& SH-9840P only)

(

[DVD]

SUBTITLE Select button

)

REVERSE SEARCH button

1

PLAY/PAUSE button

2

[DVD]

PREVIOUS button (move into a previous chapter

or track)

3

[VCR]

Record SPEED button

4

[VCR]

Record button

5

[VCR]

TV/VCR button

6

[DVD]

3D button

7

[VCR]

CM SKIP

8

[VCR]

Replay button

9

POWER button

0

DVD SELECT button

“

[VCR]

INPUT Selection button

‘

CLEAR button

+

[DVD, VCR]

OSD DISPLAY button

=

OK/ENTER button

Q

[DVD]

MENU button

q

[DVD]

Chapter/Title/Time SEARCH button

W

[DVD]

ZOOM button

w

FORWARD SEARCH button

E

STOP button

e

[DVD]

NEXT button (Move into a next chapter or track) ,

[VCR]

Frame Advance button in pause mode

R

[DVD]

REPEAT Playback button

r

[DVD]

REPEAT a defined period from A to B button

T

[DVD]

ANGLE button

t

[DVD]

MARK button

Y

[DVD, VCR]

PROGRAMME button (SH-9840P only)

y

[VCR]

LAST CHANNEL button (Return to the previous

TV channel which was being watched.)

Press the power [ ] button of the remote for about
5 seconds. No buttons of front panel can be operated

now and Lock indicator (“ ”) will be
displayed on window display. To release child lock,
press any button on the remote control.

POWER ON

Player will POWER ON if any button on the
remote control is pressed.

Child Lock !

11

Setting up your player

With this connection, if your player is receiving CH BBC1 and your TV is displaying CH3, when you press the
[TV/VCR] button on the remote control, your TV will automatically display the CH BBC1. “VCR” will be
shown in the display.
In this mode, to change the viewing channels the [PR-] and [PR+] buttons on the player remote need to be used.
To switch off this mode press [TV/VCR] on the remote control, TV remote can now be used as normal. You will
get better pictures and sound quality if you connect your player using a scart lead.

■ Before you start, unplug all the equipment from the mains supply.

Television

Aerial

The type of aerial you
should use, depends on
local interference and how
far you are from the
transmitter. You should
contact a local retailer if you
have any questions about
your aerial.

Back view of your player

200-240V~,
50/60 Hz

Television

Aerial

Back view of your player

200-240V~,
50/60 Hz

Scart lead (supplied only
SH-9840P )

(Option 1) - Connecting your player through RF lead

(Option 2) - Connecting your player through a scart lead

Installation

12

Connecting your player through
extra equipment (satellite system)

■ Before you start, unplug all the equipment from the mains supply.

Television

Aerial

Back view of your player

200-240V~,
50/60 Hz

You can use this connection if your player has two scart sockets. This will improve sound and picture quality
when you are recording from satellite.

Satellite

(Option 1) - Connecting your player through RF lead

13

Connecting your player to the Hi-Fi system

■ Before you start, unplug all the equipment from the mains supply.

Television

Plug a phono cable into the
“Audio L/R” sockets on the
back panel and into the audio
sockets on any audio
amplifier, if needed. If your
player does not have this
connection, see page 15.

Player

200-240V~,
50/60 Hz

You can also use a scart lead to improve picture and sound quality from your player.

Hi-Fi

Aerial

Television

If required, plug a scart to
phono cable into the “AV1”
socket on the back panel and
into the audio socket on any
audio amplifier.

Player

200-240V~,
50/60 Hz

Hi-Fi

Aerial

Option 1

Option 2

Installation

14

How to connect your player to another player

■ Before you start, unplug all the equipment from the mains supply.

First player

Second player

200-240V~,
50/60 Hz

1) Insert the tape you wish to record on into the first player and press [INPUT] until “AV1” appears on the front
display.

2) Insert the tape you wish to copy from into the second player. Press the [PLAY] button on the second player.

3) Press the [RECORD] button on the first player.

The player will start recording.

If your player has two scart sockets, you can use the other socket “AV2” to connect other equipment.
To use this function, see page 16.

How to connect your player to a camcorder

■ Before you start, unplug all the equipment from the mains supply.

If you have connected your camcorder in this way, you can also connect a scart lead from “AV2” on the
back panel of the player to the television. To use this function, see page 16.

You can also connect the camcorder by using a phono cable if your player has front input sockets.
Check the front of your player for this connection, see page 16.

Camcorder

Aerial

200-240V~,
50/60 Hz

Television

Player

to

camcorder

Scart Plug to
TV

How to connect

How to connect

connect a scart lead
from player to second
VCR

15

Connecting Dolby Digital Amp with
Digital Audio Out Jack

(L) AUDIO IN (R)

1

1 Select either COAXIAL or OPTICAL to connect to amp of Dolby Digital.

** If you want to know about “Dolby Digital”, please refer to [About DVD] in 54-56p.

Home Theatre Receiver with Dolby Digital decoding capability

REAR PANEL OF DVD-VIDEO

CONNECTING CABLE
(Not supplied)

Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

How to connect

“DTS” and “DTS Digital Out” are trademarks of Digital Theatre Systems, Inc.

Installation

16

2nd scart socket

If your video has the AV2 output, shown in the diagram below, you can connect other equipment as seen on
pages 12-15.

2nd scart

INPUT ONLY

INPUT+OUTPUT

When connecting other equipment please refer to their manuals for further information. This video manual
recommends the set up as shown on page 12. If the equipment is turned off when connected by this method, the
video behaves as normal, but if the equipment is turned on the video will automatically switch over to AV2
mode and displays the channel of the other equipment, channel selection can only be performed by the other
equipment, the video PR+/PR- buttons have no effect.

To return to normal video use the other equipment must be turned off.

Recording from other Equipment.

Simple recording can be performed, ensure the equipment is turned on and is displaying the correct channel.
Timer recording, set the video to perform a timed recording ensuring AV1 is selected as the channel to be
recorded. Some equipment may have a timer which allows it to be powered on to the correct channel, if this
feature is not available the other equipment should be left powered on.

Front AV

If the video has front input sockets, it is possible to connect devices such as a
camcorder to the video. To watch a camcorder tape the video must be in
AVF mode. Recordings of this input are the same as described on page 14.

2nd scart socket

17

Initial Installation

■ Switch the TV on.

■ You can also start "AUTO SET" in the SETUP "PR PRESET"

➝

"AUTO SET".

■ To tune in new stations (manual tuning) and to enter station names see page 24-25.

• If you don´t see this picture, because you don´t use a SCART cable,

search this picture now (CH 52) with the station tuning functions of
your TV set (see its user manual).

• In case of interference problems on CH 52, type in an

other transmission channel between 21 and 69 using
the number buttons.

Setting up the player

SETUP:END

PLEASE WAIT...

CH 25

RF OUTPUT SET

0-9:SELECT(21-69)
OK:CONFIRM SETUP:END

CURRENT CH 52
RECOMMENDED CH 54

You should see this picture the first time you switch on the TV
and player.

1

OK for "AUTO SET!".

"AUTO SET" tunes in all the stations you can receive in your
country.

Clock is automatically set.

2

If other stations are positioned on near the current RF OUTPUT
CH, the guide message appears automatically.

The player recommends the optimal RF OUTPUT CH number
automatically.

3

Press the [OK] button to confirm the recommended PR.

Should you wish the stations to have the same numbers as those
used on the TV, follow the instructions in "Sorting programme
locations" on page 25.

Otherwise ...
exit the basic installation function and enjoy your player.

4

PLEASE CHANGE THE TV
CH TO 54.

IMPORTANT!

MANUAL SET

PR01 P-O1 PR08 P-08
PR02 P-02 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 P-05 PR12 ---­PR06 P-06 PR13 ---­PR07 P-07 PR14 ----

PR+/-:SELECT
OK:CONFIRM SETUP:END

OK:CONFIRM SETUP:END

AUTO SET

Basic Operation

18

■ Press [VCR] button on the remote control to change into VCR Mode and follow the procedure

below.

Call up the player’s "SETUP" menu,
choose "VCR SETUP", then "CLOCK SET".

1

Move to the position you want to change and type in the
new values.
Wait a few seconds after typing a one-digit number.

2

Store with [OK] button and exit with [SETUP] button.

CLOCK SET

0-9:SETUP (HOUR)

/➝:CORRECT SETUP:END

TIME - - : - -

DATE - - / - - /- - - -

CLOCK SET

0-9:SETUP (HOUR)

/➝:CORRECT

OK:CONFIRM SETUP:END

TIME 06:05

DATE 08/08/2004(SUN)

Setting time and date

Auto clock

■ Auto Clock is only available for models with the VPS/PDC function (see page 26).

Some broadcasting stations may send the time and date along with the VPS/PDC data. The video will
automatically use this time and date during the initial setting up procedure during normal use, and every
time you switch the video off at the mains. If you find that this time and date is incorrect you can remove
this feature by following the steps below changing it to OFF mode, you will then have to manually set the
time and date, see above.

AUTO CLOCK

ON
OFF

PR+/-:SELECT
OK:CONFIRM SETUP:END

VCR SETUP

CLOCK SET
RF OUTPUT SET
16:9 SET
OSD ON/OFF
AUTO CLOCK

PR+/-:SELECT
OK:CONFIRM SETUP:END

Setting time and date

Setting Auto clock

➝

➝

19

OSD ON & OFF

Output Select

Press [DVD] button.

If DVD mode is correctly selected, DVD is displayed on the operation
display. Then, REMOTE control works in DVD function.

Press [VCR] button.

If VCR mode is correctly selected, DVD on the operation display
window goes out. Then, REMOTE button works as VCR function. Press
the [VCR] button, then it becomes to the VCR OPERATION mode.

Press [INPUT] button.

When you press [INPUT] button, BROADCASTING RECEPTION and EXTERNAL INPUT will be selected.
But, this button will not function in PLAY, REC and DVD mode.

Call up the player’s "SETUP" menu.

1

Choose “VCR SETUP”.
And press the [OK] button.

2

Select “OSD ON/OFF”.
If you want OSD OFF mode, select it and press [OK] button to
confirm.
Then OSD characters are not displayed in the normal picture.

3

This player is set to “OSD (On Screen Display) ON” mode before shipping and you can change it
to OFF mode.

VCR SETUP

CLOCK SET
RF OUTPUT SET
16:9 SET
OSD ON/OFF
AUTO CLOCK

PR+/-:SELECT
OK:CONFIRM SETUP:END

OSD ON/OFF

ON
OFF

PR+/-:SELECT
OK:CONFIRM SETUP:END

SETUP

TIMER PROGRAM
PR PRESET
VCR SETUP
TAPE CONTROL

PR+/-:SELECT
OK:CONFIRM SETUP:END

OSD (On Screen Display) ON & OFF

To Select DVD

To Select VCR

To Select Operation Mode or External Input

Basic Operation

20

DVD Playback

Press [ ] button to power on.

Press [DVD] button of REMOTE to select DVD mode.

Press [OPEN/CLOSE] button to open the disc tray.

Place a disc firmly on the disc tray, ensuring the disc’s label is uppermost.

Insert the disc and press [OPEN/CLOSE] button to close the tray.

The disc tray will close and after initialisation, Playback or Stop function starts
to operate.

1

2

3

To play the disc, press [PLAY/PAUSE] button.

• In the case of DVD,
DVD menus and titles are displayed on TV screen.

• In the case of S-VCD and VCD2.0

the menus are displayed on the TV screen and it is converted into PBC

(Playback Control) mode.

• In the case of CD, VCD1.1 and MP3,
the disc plays.

4

To stop it, press [ ] button.

For pause, press [PLAY/PAUSE] button in playback mode.
If you press this button once more, it starts playback again.

5

Press [OPEN/CLOSE] button to remove the disc.

6

Various Playback Methods

■ If you want fast forward (cue) or reverse (review) playback, press [

√√√√

] or [

œœœœ

]
button in Playback mode. You can watch fast playing (reverse ) screen.
* This reverse playback may be unavailable for certain DVD.

■ If you want slow (or reverse) playback, press [

√√√√

] or [

œœœœ

] button in Pause mode.

You can watch the desired scene in the slow forward (reverse) playback.

* In the case of Video CD, this reverse slow playback function is unavailable.

The mark will appear.

■ If you want a still picture, press [PAUSE] button in Playback mode. You can watch

the desired screen in Pause status.

21

VCR Playback

Press [ ] button to power on.

Press [VCR] button of remote control to change to VCR mode.

Insert the desired tape.

If you want to playback, press [PLAY/PAUSE] button.

When the operational status is flickering, adjust [TRACKING +/-] button.

1

2

3

To stop it, press [ ] button.

For pause, press [PLAY/PAUSE] button in playback mode.
If you press this button once more, it starts playback again.

4

Press [EJECT] button on the front part of the unit or [OPEN/CLOSE]
button on remote control to eject the tape.

5

If the product, which
has a auto-detector,
detects a contaminated
head(s), it shows the
conditions to notice the
contamination on
screen.

* In case of the notice

on screen, please rub
the heads with a head­cleaner followed by
“How to use a head­cleaner”.

Various Playback Methods

■ If you want fast forward (or reverse) playback, press [

√√√√

] or [

œœœœ

] button in

Playback mode. You can watch fast playing cue/review (rewinding) on screen.
* NOTE: You might see no colour and a noise band when you fast forward (or

reverse) playback the tape which is recorded in LP mode.

■ If you want Still picture, press [PLAY/PAUSE] in Playback mode. You can watch

the desired scene in pause status.

■ If you want slow-motion playback, press [

√√√√

] button in Pause mode. You can

watch the desired scene in the slow forward (cue) playback.

* NOTE: VCR doesn’t have Slow Reverse Playback function.

■ If you want to watch a series of screens one by one, (FRAME ADVANCE) press

[NEXT

√√√√

❚ ] button in Pause mode. Each time you press this button, the picture

advances by one frame.

■ If you press [REPLAY] button in playback mode, the player quickly rewinds 15

seconds of the tape and plays it again.

■ If you press [CM SKIP] button in playback mode, the player quickly skips 30

seconds of the tape and then reverts to play again.

To Adjust Display

This product includes an automatic Tracking feature and enables users to enjoy clear
pictures without any additional operation. Provided that the following problems can be
solved by manual adjustment, which improves display quality. (During automatic
picture adjustment, “Adjusting Display” is displayed on TV screen.)

- If the picture is poor in Playback mode,

-

If noises occur in the upper or lower part of the picture in slow playback (cue) mode,

- If paused picture vibrates up and down.
Use [TRACKING +/-] buttons of remote control to adjust the display for optimum
viewing.

Basic Operation

22

1

1 If you want to playback DVD during recording with video, insert a DVD disc.

Place the desired DVD disc on DVD tray, press [DVD] button to convert OUTPUT
into DVD mode and press [PLAY] button. Then, you can watch DVD.

2

2 If you want to watch a TV channel during DVD recording with video, press

[VCR] button to convert OUTPUT into VCR mode and press [PR+/-] button.

Then , you can watch a TV channel.

Press [ ] button to power on.

• Press [VCR] button of remote control to change to VCR mode.

Insert a recordable tape.

Insert a tape with recording tab.

With [CHANNEL], [NUMBER] and [INPUT] buttons, select the desired
broadcasting channel or external input unit to be recorded.

1

2

3

Select the desired speed (SP or LP) with [SPEED] button.

4

Press [REC] button.

Then, it starts recording.

5

If you want to pause recording, press [PAUSE] button.

After pressing [PAUSE] button, if the pause status continues for five minutes, it
will be released and the recordings will continue automatically.

6

To exit recording, press [STOP] button.

7

Recording

To Record With VCR

To Enjoy a TV Channel or DVD during recording

23

Recording

“This product incorporates copyright protection technology that is protected by
U.S patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision,
and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.”

■ If you need to make an instant recording, or you want to record the current TV programme for a pre-

determined time , follow the procedures below.

1

1 Insert the desired DVD disc.

When the DVD disc is copyright protected, you can’t copy it. If DVD disc is not
copy protected then insert a blank tape.

2

2 Press [REC] button during playing of DVD.

DVD plays and VCR starts recording.

3

3 If you press STOP [ ] button in DVD mode, DVD and VCR will stop at the

same time.

If you press STOP [ ] button in VCR mode, VCR stops to record and DVD
continues to play.

1

1 First, follow the steps 1 to 4 in “Recording With VCR”.

2

2 Press [REC] button reference the “Recording Times Table” below.

Once continuous recording until you press STOP button
Twice recording for 30 mins from current time
3 (times) recording for 1 hour

Incrementing recording for 30 mins at each press.

21 recording for 10 hours
22 returning to the status of Once Press

3

3 To stop Recording mode, press [STOP] button more than 5 seconds.

To Copy From DVD To Videotape

One Touch timer Recording (OTR)

Basic Operation

24

Tuning in New Stations

■ The TV and player are switched on.

■ To see the picture from your player, press the input or AV (Audio/Video) button on the TV.

To complete the set-up of your video recorder when the
auto set has not stored all of the channels or when you wish
to store a new channel.
Call up the video’s "SETUP" menu, choose "PR PRESET".

1

Select "MANUAL SET".

2

Choose any unused programme number "----" or "P-xx" ...

It's best to use the same programme number on both the TV
and video.

... and confirm by selecting “OK” button.

3

Set the station you want:

• the programme number;

• the broadcast system you want (Aerial(CH) or
Cable(CC)),

• You can directly enter the real channel number with the
[0 to 9] buttons, or search by pressing [

œœ /√√

],

• The fine tuning you can adjust,

• When the programme is encoded (and you have a
decoder connected to socket EURO AV2), press the [

œœ

or

√√

] to select ON or OFF.

• Change or create the station name.

4

Once you see the station you want, store it by selecting OK.

Tune in further stations (from step 3 onwards) or exit
tuning mode.

5

PR PRESET

AUTO SET
MANUAL SET
PR ERASE
PR ALIGN

PR+/-:SELECT
OK:CONFIRM SETUP:END

MANUAL SET

PR+/-: UP/DOWN

/➝: SELECT

OK:CONFIRM SETUP:END

MANUAL SET

PR01 P-O1 PR08 P-08
PR02 P-02 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 P-05 PR12 ---­PR06 P-06 PR13 ---­PR07 P-07 PR14 ----

PR+/-:SELECT
OK:CONFIRM SETUP:END

PR 04
RECEPTION AERIAL
AUTOSEARCH CH

_ _
FINE TUNING
DECODER ON
NAME

_ _ _ _

MANUAL SET

PR+/-: UP/DOWN

/➝: SELECT

OK:CONFIRM SETUP:END

PR 03
RECEPTION AERIAL
AUTOSEARCH CH 03
FINE TUNING
DECODER ON
NAME

_ _ _ _

MANUAL SET

PR+/-: UP/DOWN
0/1: CHANGE/CREATE
OK:CONFIRM SETUP:END

PR 03
RECEPTION AERIAL
AUTOSEARCH CH

_ _
FINE TUNING
DECODER ON
NAME

_ _ _ _

Tuning

➝

➝

25

■ If your player is showing no station name or is showing a station name incorrectly, you can correct

this.

Call up this menu (see the previous page),
if it isn't displayed.

Select NAME position.
Press the [0] button to change the given name.
Or press the [1] button to create the station name.

1

Either select the name from the stored list or
create the station name by entering 4 letters/digits.
Change the letters with the [PR +/–] buttons,

move to the next letter with the [

œœ /√√

] buttons.

2

Store and exit.

3

MANUAL SET

PR+/-:SELECT
OK:CONFIRM SETUP:END

PR01 BBC1 PR08 SKYS
PR02 BBC2 PR09 MTVE
PR03 ITV PR10 P-10
PR04 CHA4 PR11 P-11
PR05 SKY1 PR12 ---­PR06 SKYN PR13 ---­PR07 SKYM PR14 ----

MANUAL SET

PR+/-: UP/DOWN
0/1: CHANGE/CREATE
OK:CONFIRM SETUP:END

PR 01
RECEPTION AERIAL
AUTOSEARCH CH01
FINE TUNING
DECODER ON
NAME

_ _ _ _

MANUAL SET

PR+/-: SELECT CHARACTER

/➝: SELECT POSITION

OK:CONFIRM SETUP:END

PR 01
RECEPTION AERIAL
AUTOSEARCH CH

_ _
FINE TUNING
DECODER ON
NAME O

_ _ _

If the location numbers used for programmes stored in your TV and player are different, you can change them on
the player. To do this, move the stations to the right numbers, until they are arranged the way you want.

1

1 Call up the player’s "SETUP" menu,

choose "PR PRESET" then "PR ALIGN".

2

2

Select the programme to swap.

Confirm by pressing OK button.
Move the station to the desired location number.
Confirm by pressing OK button.

1

1 Call up the player’s "SETUP" menu,

choose "PR PRESET" then "PR ERASE".

2

2 Select the station (location number) you want to clear.

Review the picture by pressing [

œœ

] button.

Clear by pressing OK button.

PR ERASE

PR+/-:SELECT

:PR VIEW

OK:ERASE SETUP:END

PR ALIGN

PR+/-:ALIGN

:PR VIEW

OK:CONFIRM SETUP:END

PR01 BBC1 PR08 SKYS
PR02 BBC2 PR09 MTVE
PR03 ITV PR10 P-10
PR04 CHA4 PR11 P-11
PR05 SKY1 PR12 ---­PR06 SKYN PR13 ---­PR07 SKYM PR14 ----

PR01 BBC1 PR08 SKYS
PR02 BBC2 PR09 MTVE
PR03 ITV PR10 P-10
PR04 CHA4 PR11 P-11
PR05 SKY1 PR12 ---­PR06 SKYN PR13 ---­PR07 SKYM PR14 ----

Tuning in New Stations

Station names

Sorting programme locations

Clearing programme locations

➝

➝

➝

VCR Operation

26

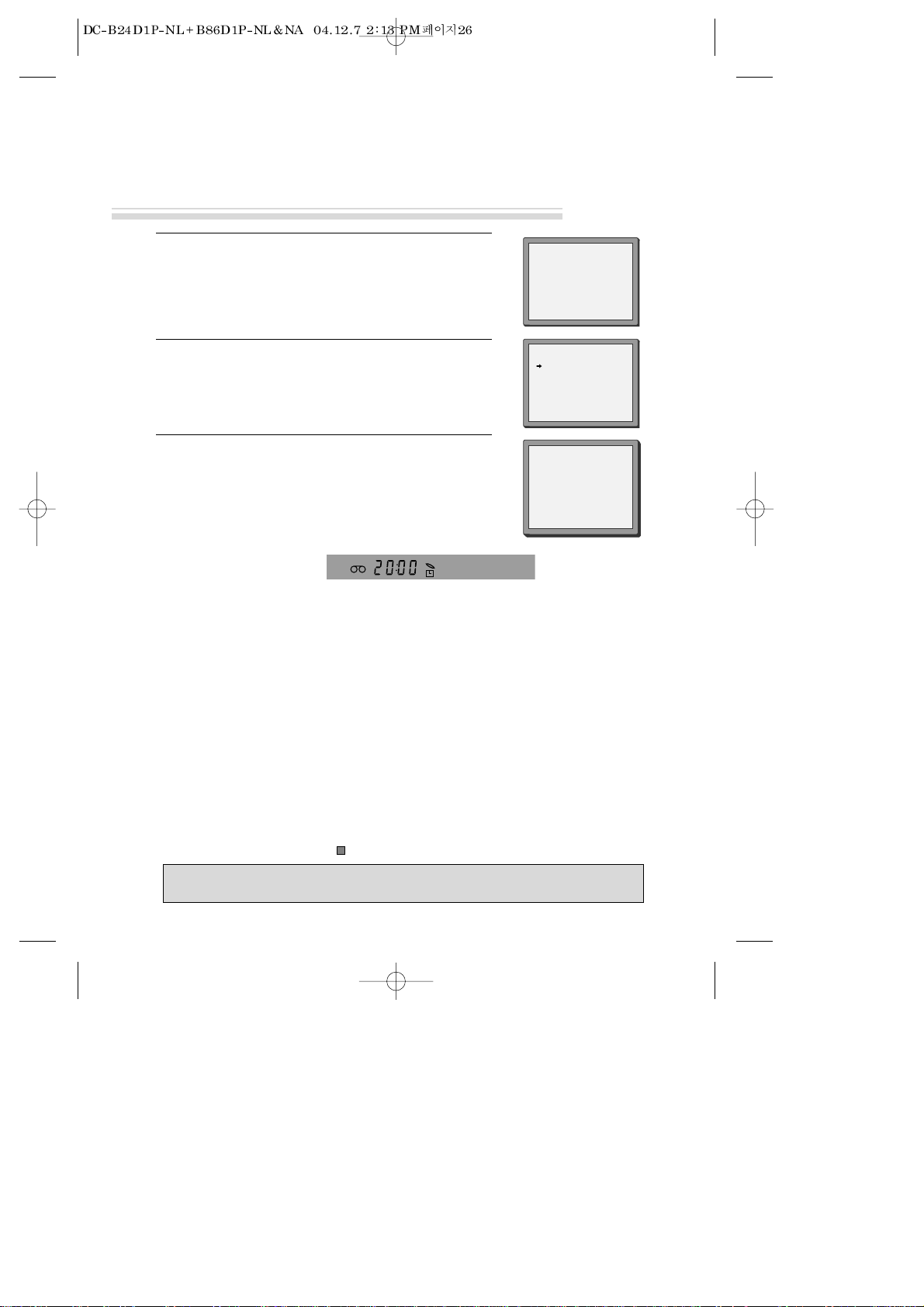

Timer Recording

■ For timer recordings, clock, date, and stations must be set correctly.

■ Load a cassette with its safety tab in place and with sufficient free space for the recording.

Call up the VideoPlus menu by pressing PROGRAM on the
remote control.

From your TV magazine, type in the number next to the
programme you want to record ...

... and confirm.

1

Decide if you want to record "ONCE", "WEEKLY" or "DAILY"...

... and confirm.

2

If you wish to make changes:
Move to the position you want to change using the [œœ/√√]

buttons.
Change the setting using the [……/††] or [number] buttons. If all

setting are ok, press [OK], till you see “OK: CONFIRM” in the
bottom line.
Confirm.

3

Switch your player off.

0-9:VIDEOPLUS NUMBER

:CORRECT

OK:CONFIRM SETUP:END

VIDEOPLUS

83077----

HOW OFTEN DO YOU WANT
TO RECORD THIS PROGRAM?

PR+/-:SELECT
OK:CONFIRM SETUP:END

TIMER PROGRAM (ONCE)

PR 03
START TIME 21:20
END TIME 22:20
START DATE 14/08(SAT)
TAPE SPEED SP
VPS/PDC ON
PR+/-:SELECT (AV1/AV2)

0-9 : SETUP (PR)

/➝ :CORRECT

OK:CONFIRM SETUP:END

ONCE

WEEKLY(ONCE A WEEK)

DAILY(MON-FRI)
DAILY(MON-SAT)
DAILY(MON-SUN)

Timer recording using VideoPlus (SH-9840P only)

•

VPS/PDC is a service provided by some stations to enable you to perform timer recordings
precisely even if the broadcaster delays the start time of the programme slightly. The time you enter
is the VPS/PDC time so must be correct. Not all stations offer VPS/PDC, in which case the player
will start at the time you enter and not the actual start time of the programme.
If you wish to start recording at a specific time without it being adjusted by the VPS/PDC system
in the event of a delay, switch VPS/PDC off otherwise the player will not record at the preset time.

• If you don’t have the VIDEOPLUS numbers see next page for the normal timer operation.

• If you have made a mistake, move back to the relevant position with the [

œœ

] button and change

the setting.

• If there is no programme location displayed under “PR” in the change menu, the player doesn’t
yet know the location number for the programme you want. Type it in and this will be stored
for last recordings.

• If you wish to record from a satellite receiver, select under “PR” the satellite programme
location or AV (1/2) (depending on the connection with the antenna cable or the SCART-cable).
Leave the satellite tuner turned on and switched to the programme you want.

• Should programming overlap, you get a warning.

• To cancel the recording press the button (stop) for more than 5 seconds.

• VIDEOPLUS is a trademark applied for by Gemstar Development Corp.. The VIDEOPLUS
system is manufactured under license from Gemstar Development Corporation.

➝

➝

27

Timer Recording

■ For timer recordings, clock, date, and stations must be set correctly.

■ Load a cassette with its safety tab in place and with sufficient free space for the recording.

Call up the player’s "SETUP" menu and, choose "TIMER
PROGRAM".
Decide if you want to record "ONCE", "WEEKLY" or
"DAILY"...
... and confirm.

1

Type in one after the other:

• The programme location number;

• the time the broadcast starts,

• the time the broadcast ends,

• the day of the broadcast, if it is not today.

• Select LP if you wish to make a long play recording .

• Switch off VPS/PDC here if you need to .

2

If you wish to make changes:
Move to the position you want to change using the [œœ/

√√

]
buttons. Change the setting using the [PR+/- ] or [number]
buttons.

If all settings are ok, press [œœor √√], till you see “OK :
CONFIRM” in the bottom line.
Confirm.

3

Switch your player off.

• Wait a few seconds after typing a one-digit-number.

• If you have made a mistake, move to the position you want to change using the [

œœ/√√

] buttons

and change the setting.

• If programme timings overlap, the machine will give a warning message. If you don’t adjust
the times, the machine will record the first programme completely then continue with the
second one.

• If there is no sufficient free space for the recording on the cassette the video switches
automatically to “LP” for double recording capacity.

• The recorder will eject cassettes which have the safety tab removed.

• The player will be powered on and record the program at the set time.

• If the player is powered on after a timer recording has been set, the player cannot record in
VCR mode but can record in DVD mode.

PR+/-:SELECT(AV1/AV2)
0-9 :SETUP(PR)

/➝:CORRECT SETUP:END

PR -­START TIME --:-­END TIME --:-­START DATE --/-­TAPE SPEED SP
VPS/PDC ON

TIMER PROGRAM (ONCE)

PR 01
START TIME 18:10
END TIME 20:30
START DATE 20/08(FRI)
TAPE SPEED LP
VPS/PDC ON

PR+/-:SELECT(AV1/AV2)

0-9 : SETUP (PR)

/➝:CORRECT

OK:CONFIRM SETUP:END

TIMER PROGRAM (ONCE)

HOW OFTEN DO YOU WANT

TO RECORD THIS PROGRAM?

PR+/-:SELECT
OK:CONFIRM SETUP:END

ONCE

WEEKLY(ONCE A WEEK)

DAILY(MON-FRI)
DAILY(MON-SAT)
DAILY(MON-SUN)

Normal timer recording

➝

➝

VCR Operation

28

Timer Recording

Call up the player’s "SETUP" menu,
choose "TIMER PROGRAM".

1

Select the programming you wish to change or
erase.
If you want to erase this programming press
button [0], confirm with OK.
If you wish to make changes:
Move to the position you want to change using the
[

œœ

/√√] buttons.
Change the settings using the [PR +/–] or
[number] buttons.
If all settings are ok, press [œœor

√√

], until you see
"OK: CONFIRM" in the bottom line.
Confirm changes with [OK]. Exit the menus.

2

TIMER PROGRAM

PR START END DATE
03 21:20 22:20 14/08

01 18:10 20:30 20/08

-- -- : -- -- : -- -- / --

-- -- : -- -- : -- -- / --

-- -- : -- -- : -- -- / --

-- -- : -- -- : -- -- / --

-- -- : -- -- : -- -- / --

-- -- : -- -- : -- -- / --

PR+/-:SELECT
OK:CONFIRM SETUP:END

TIMER PROGRAM (ONCE)

PR 03
START TIME 21:20
END TIME 22:20
START DATE 14/08(SAT)
TAPE SPEED SP
VPS/PDC ON

0 :ERASE

/➝:CORRECT SETUP:END

Timer Review – changing and erasing

➝

29

More Functions

■ The counter counts in real time from the point you load the cassette. This does not have to be its

beginning! The counter does not count unrecorded parts of the tape.

■ If you rewind beyond the zero position, the counter counts in negative values (e.g. – 0:01:15).

Each time you press [DISPLAY] button,
1x: Time and date+current status ➝Time and date
2x: Counter+current status ➝counter
3x: disappear.

• If the tape is not wound (PLAY, FF, REW,...), the tape remaining time does not appear.

• If the timer recording information is contained within the received broadcast signal , press the button to
display the VPS/PDC icon within the received broadcast signal.

STOP SP PR01 BBC1

14:00 08/08 E180 00:48

STEREO ON

V

When you want the player to show the time remaining from the current player tape position (to find out if
there is sufficient space for a recording, for example).
To ensure the remaining time shown is accurate, select from the list given in the menu the cassette tape
length currently being used.

Call up the player’s "SETUP"
menu,choose "TAPE CONTROL".

• Remaining time display is only
possible when the cassette is
loaded.

TAPE CONTROL

TAPE REMAIN

E-240 01:27

TAPE REMAIN
GO TO ZERO
COUNTER RESET
INDEX+
INDEX-

E-180
E-240
E-300

PR+/-:SELECT
OK:CONFIRM SETUP:END

PR+/-:SELECT
OK:CONFIRM SETUP:END

When you record a programme, the VCR places an index mark at the start
of the recording.
To search fo an index mark

1. Call up the player’s "SETUP" menu, choose "TAPE CONTROL"

2. Choose index + to search forward or index - to search backward.
The VCR will locate your index mark and begin playback.

TAPE CONTROL

TAPE REMAIN
GO TO ZERO
COUNTER RESET
INDEX+

INDEX­PR+/- :SELECT
OK:CONFIRM SETUP:END

Clock / counter display

Remaining time and cassette length

Searching a recorded programme with index

VCR Operation

30

The player will wind to the position 0:00:00 and stop.

REW SP
GO TO ZERO

0:02:13

Reset the counter.

COUNTER RESET

0:00:00

Using this player you can play and record programmes having 16:9 Wide-Screen
format.

• 16:9 Set

-Auto : This video automatically detects the programme format (16:9 or 4:3) and
records or plays this programme in the same format.

-ON : The video will play or record all broadcasts in 16:9 format. 4:3 broadcasts will

be converted to 16:9 format.

-OFF : The video will play or record all broadcasts in 4:3 format only.

VCR SETUP

CLOCK SET
RF OUTPUT SET
16:9 SET
OSD ON/OFF
AUTO CLOCK

PR+/-:SELECT
OK:CONFIRM SETUP:END

16:9 SET

AUTO
OFF
ON

PR+/-:SELECT
OK:CONFIRM SETUP:END

• If you watch a programme which is recorded in 16:9 wide screen format with

this player, your TV must have 16:9 wide screen function and you have to
connect the TV and player with the A/V scart cable.

If you press the [PLAY] button for 5secs during stop or still mode, Auto repeat mode is engaged. This player
then repeatedly plays the tape from beginning to end.

To release this mode, press the [ ] button or mode operation button. (PLAY, FF, REW or STOP)

More Functions

Accessing counter zero position

Resetting the counter to zero

16 : 9 Wide Screen Format Playing back / Recording

AUTO REPEAT

31

Dimmer : Your player dims its display when switched to stand-by mode.
Auto power off : Your player switches to stand-by after 5 minutes, if no tape is played and no tuning signal is

received.

Press the [ ] button for about 5 seconds.
No buttons on the front panel can be operated now and LOCK INDICATOR
(“ ”) will be displayed on the window display. Keep your remote control in a
safe place.

To release child lock, press any button on the remote control.

Use only good quality tape cassettes with the VHS logo.

•Keep cassettes away from excessive moisture or dust, magnetic and electrical fields
(loud speakers and computer monitors, for example).

•Always wind the tape to the beginning when you have finished. Store with the full
spool at the bottom and with the cassette in its cover.

You can protect your precious recordings from being wiped by breaking out the safety
tab on the back of the cassette (some cassettes have a slide). Should you wish to re-use
the tape after removing the tab, cover the hole with adhesive tape.

PAL

More Functions

Cassettes

and ...

Child lock

VCR Operation

32

■ The player records the complete sound signal transmitted by the TV station.

■ On the mono VCR, you will hear the normal mono sound.

In addition to the normal mono sound track of VHS video recorders, your player is equipped with a high­quality Hi-Fi sound system.

This means you can enjoy

• films with excellent stereo sound

• films of full-length concerts in high quality stereo

• films with impressive Surround Sound using additional Surround equipment

• films with two dialogue modes (dual, bilingual), usually the original sound track and dubbed sound track

• VHS cassettes with Hi-Fi stereo sound and VHS cassette with normal sound

During Stop, the player displays what the current station is broadcasting. When
you switch to another station or the current station changes the sound mode, your
player displays the programme and sound mode on screen (if not, press AUDIO).

• “STEREO” = stereo
“BIL I / BIL II ”=bilingual

nothing= monaural sound

During Playback, the player displays what is recorded on
the cassette (if not, press AUDIO).

• “Hi-Fi” = stereo/bilingual
nothing = monaural sound

STOP SP PR10 EURO

STEREO ON

PLAY SP Hi-Fi

L+R

During a stereo performance (playback-”Hi-Fi”/ broadcast

- “STEREO”):
Hi-Fi stereo ➝ left audio channel only ➝ right channel
only ➝ the normal mono sound track of a Hi-Fi cassette

• During broadcasting a bilingual performance : Main
language (original sound track) ➝sub-language
(dubbed)

➝

both main language and sub-language

➝

OFF.

• For mono performances , there is no choice available.

PLAY SP Hi-Fi

L+R
HI-Fi
LEFT

Hi-Fi

RIGHT
Hi-Fi
OFF

More Functions

The Hi-Fi system (SH-9810P &SH-9840P only)

What you can listen to (SH-9810P &SH-9840P only)

Choice of sound output (SH-9810P &SH-9840P only)

STOP SP PR10 EURO

BIL

BIL I

II

BIL

I+II

BIL
OFF

33

Connections and Copying

■ If you are using a SCART cable, select the AV input on the TV to see the picture from the player.

■ If you are not using a SCART cable, select the programme number on the TV reserved for video

input to see the picture from the player.

If you are not using a SCART cable, your player can transmit pictures and sound to the TV via the coax aerial
cable. Just tune the TV to the player's transmitting channel (factory set to UHF CH 52). Tune the TV carefully to
ensure the best pictures and sound.

Once you have carried out the steps in "Connecting up the player" , switch
on your TV.
Press the [ENTER] button of the player’s remote control for longer than 5
seconds to call up the player´s test signal.
Tune the TV to the test signal using the channel pre-set functions of your
TV as described in its manual.
When you have found the test signal, store it under the channel number
on your TV for player input.
Press the [ENTER] button of the player’s remote control again for longer
than 5 seconds to remove the test signal.

1

• If the quality of the test signal transmitted to the TV is poor due to
interference caused by a station transmitting on channel 52, you can tune
the player to a different transmitting channel. Find a free channel
between 21 and 69 on your TV.

Call up the player’s "SETUP" menu, choose "VCR SETUP" then "RF
OUTPUT SET".

Type in the free channel.

Store and exit.

2

• If the quality of the test signal transmitted to the TV is poor, fine-tuning on the TV may help
(refer to the TV manual).

• Without a scart cable, you will not get stereo sound from a TV capable of stereo sound.

RF OUTPUT SET

0-9:SELECT (21-69)
OK:CONFIRM SETUP:END

CH 52

To the TV via antenna cable (if you are not using a SCART cable)

VCR Operation

34

Connections and Copying

■ Switch off all components when connecting or disconnecting cables.

To copy to your player from another video
machine, connect the two machines with a cable
between their EURO AV (SCART) sockets and
select as programme "AV 1/AV 2" or “F. AV”
(front sockets) using the [AV], [PR+/-] or [INPUT]
button.
Set the other video machine to playback and your
machine to record.

•To connect a mono audio source, use the front
Audio In socket marked L.

To copy to another video machine from your
player, connect the two machines by means of
their EURO AV (SCART) sockets.
On the other video, select its AV input and set the
machine to record.
Switch your player to play back at the position you
want copying to start.

TV
(other VCR)

Other VCR
Decoder for Pay-TV
Camcorder
Video Player
Satellite Receiver

Audio Amp.
devices

Should you wish to assemble your own film, from camcorder footage for example, use the assembly technique
for smooth edit points:

• The symbol is lit in VCR mode and goes out in TV
mode.

• This symbol means the cassette is in.

• This symbol means a timer recording is setting.

For the best results, the source cassette from which
you are recording should already be playing back
when you start recording.

Copying

Assembling

35

To move to next chapter (or track), press [

√√❚

NEXT] button.

The current chapter (or track) moves to the next chapter (or track).

Press [

❚œœ

PREV] button.

The current scene moves to the previous chapter (or track) or first scene of current
chapter (or track).

Press the [TITLE/PBC] or [MENU] button.

A list of the titles on the disc is displayed.

* For the case of VCD disc, menu screen will

appear only when the disc has PBC function
and PBC ON is activated.

1

Press the [ENTER] button or [PLAY] button
after pressing the [

œ √…†

] button to select

the desired title.

For the case of VCD disc, press the [Number]
button.
The selected title now starts playing.

2

■

Some movie discs may contain multiple titles. If the disc has a movie title menu recorded on it, the [TITLE/PBC] or
[MENU] button can be used to select the movie title. Details of operation may differ depending on the disc used.

* Selecting a title may not be available on certain DVD discs.

Playing a desired scene

To skip scenes in a disc

Moving directly to a desired title

DVD Operation

36

■ You may repeat a defined period from A to B.

A MP3 disc may
not be repeated
from A to B.

At the point where you want to start the repeat
playback period, press [A-B] button.

The figure shown on the right appears and the repeat
playback start position (A) is set.

1

At the point where you want to end the repeat
playback, press [A-B] button again.

The repeat playback end position (B) is set and the
repeat playback period from A-B is defined.

2

To exit from repeat playback mode, press [A-B] button.

Repeat playback mode is cancelled and Normal Playback
mode is resumed.

3

• CHAPTER : Current chapter will play repeatedly.

• TITLE : Current title will play repeatedly.

• TRACK : Current track will play repeatedly.

• ALL : Current disc will play repeatedly.

• Repeat one : Current file will play repeatedly.

• Repeat all : All files on the disc will play repeatedly.

• Random : Tracks on the disc will play in random order.

• OFF : Repeat playback will be cancelled.

* For the case of VCD disc, repeat playback starts only in PBC OFF mode.

- DVD -

CHAPTER

TITLE

OFF

➝➝

➝

- VCD -

TRACK

ALL

OFF

➝➝

➝

- CD/MP3 -

Repeat one

Repeat all

Random

➝➝

OFF

➝

➝

Each time you press [REPEAT] button in playback mode, repeat playback starts as below.

A-

A-B

OFF

Playing a desired scene

Repeating a defined period

Repeating a defined period from A to B

37

Playing a desired scene

If you want to search with a title number, press
[SEARCH] button one time.

It shows current and total title numbers. Please enter
the new title number to be searched using the
[NUMBER] buttons.

1

If you want to search with a time, press
[SEARCH] button three times.

Please enter the new time to be searched using the
[NUMBER] buttons.

After completing the enteries, please press
[ENTER] button.

PLAY starts from the selected position.

3

If you want to search with a chapter number,
press [SEARCH] button twice.

It shows current and total chapter numbers.
Please enter the new chapter number to be searched
using the [NUMBER] buttons.

2

001/003

➟

total title
number

➟

current title
number

001/023

➟

total chapter
number

➟

current chapter
number

01:03:20

➟

current time

Searching DVD with a title number, a chapter number or a time

DVD Operation

38

Playing a desired scene

If you want to search with a track number, press
[SEARCH] button once.

If PBC is OFF, the screen like the figure to the right
appears. It shows current and total track
numbers. Please enter the new track number to
be searched using the [NUMBER] button.

* If PBC is ON, pressing track number converts PBC to

OFF mode automatically.

1

After completing the enteries, please press
[ENTER].

PLAY starts from the selected position.

3

If you want to search with a track time, press
[SEARCH] button twice.

If PBC is OFF, the screen like the figure to the right
appears.

It shows total track time.
Please enter the new time to be searched using the
[NUMBER] button.

2

001/013

➟

total track
number

➟

current track
number

01:03:20

➟

current time

■ Storing a MARKER in the DVD memory is similar to marking your page in a book. It allows you to

quickly return to any point on the disc.

Storing a marker in the memory.

Press [MARK] during play and press
[PROGRAM] at the starting point of the section
to be viewed (listened to) again.

1

Recalling/ Clearing a marker

Press [MARK] during playback. Press [œ √] to select the marker to be
recalled/cleared.

Press [ENTER] to recall a marker. Or press [CLEAR] to clear a marker.
Play resumes from the point corresponding to the selected marker, or the

selected marker is cleared.

2

1 - - - - - - - -

Searching VCD with a track or track time

Storing markers in memory to be viewed (listened to) again

39

Confirming the current PLAY mode on screen

While in playing, press [DISPLAY] button.

It shows the current disc mode.
If you want to change the mode, select the item with up/down (…†) cursor and enter
the new settings with [number], [œ] or [√] button. After completing the enteries, press
[ENTER] button.
To exit from Display mode, press [DISPLAY] button again.

➟ current title / total title
➟ current chapter / total chapter
➟ time elapsed
➟ subtitle selected / current subtitle / total subtitle
➟ audio language selected / current / total audio language
➟ repeat playback mode
➟ current angle / total angle

001/003

001/023

00:01:03

ENG 01/01

ENG 01/03

OFF

01/01

0-9

Confirming the current DVD disc mode

DVD Operation

40

Confirming the current PLAY mode on screen

While in playing, press [DISPLAY] button.

It shows the current disc mode.
If you want to change the mode, select the item with up/down (…†) cursor and enter
the new settings with [number], [œ] or [√] button. After completing the enteries, press
[ENTER] button.
To exit from Display mode, press [DISPLAY] button again.

It shows the current disc mode.
If you want to change the mode, select the item with up/down (…†) cursor and enter
the new settings with [number], [œ] or [√] button. After completing the enteries, press
[ENTER] button.

➟ current track / total track number
➟ time elapsed
➟ repeat playback mode
➟ PBC mode

001/003

00:01:03

OFF

ON

➟ disc mode / current playback file name
➟ current track / total track number,

time elapsed / total time, repeat playback mode

MUSIC

■ 000/000 0:00:00 / 0:00:00

\

PROGRAMLIST

max 6
SKY
winamp

_ _ _ _
_ _ _
_ _ _ _ _
_ _ _
_ _ _ _ _

0-9

Confirming the current VCD disc mode

Confirming the current CD, MP3, JPG, MPG disc mode

MUSIC file select

JPG file select

MPG file select

➟
➟
➟

➟ current cursor file name

* For more information, refer to 43-46p.

41

Selecting an AUDIO language,
SUBTITLE language and 3D AUDIO

■ The user may select an audio language and subtitle language if a disc includes Multi-language.

Keep pressing [AUDIO] button till the user’s preferred language appears in
playback mode.

If DVD disc includes audio information, every time the user presses [AUDIO] button,
English (ENG), French (FRE), Spanish (SPA) and others appear sequentially.

Keep pressing [SUBTITLE] button till the user’s preferred language appears in
playback mode.

If a DVD disc includes subtitle information, every time the user presses [SUBTITLE]
button, English (ENG), French (FRE), Spanish (SPA), ... and OFF appear sequentially.

A certain disc
may not support audio
select or subtitle select.

ENG 01/03

ENG 01/01

Press [3D].

Every time you press [3D], the 3D sound toggles
between 3D ON › 3D OFF.

■ You can enjoy a virtual 3D sound effect from 2-channel sources.

ON

OFF

Selecting an audio language

Selecting a subtitle language

Selecting 3D Audio

DVD Operation

42

Selecting ZOOM and Multi Angle

■ The user can enlarge the current screen about 2 or 4 times.

Keep pressing [ZOOM] button till the preferred zoom appears.

Every time the user presses [ZOOM] button, the zoom magnification changes 2 times
(X2)

➝

4 times (X4) ➝OFF ➝2 times (X2) ➝... in sequence.
A base area to be enlarged is centralised and the area can be changed with the operation
of the [

œ √…†

] buttons.

■ If a disc includes multi angle information, the user can watch a screen in multi angles. The function is limited

to a DVD disc supporting multi angle information.

Keep pressing [ANGLE] button till the preferred
angle appears.

Every time the user presses [ANGLE] button, the
angle changes by degrees in consecutive order.

• During zoom mode,
subtitle language
can’t be seen.

01/01

Using a zoom function

Different Angle

x2 x4

43

About MP3, CDDA, JPG and MPG discs

This unit will play MP3 or CDDA files recorded on CD-R and CD-RW discs.

Turn on your television and select the channel assigned to this DVD player.

Press the DVD open [OPEN/CLOSE] button, the disc tray opens.

Put a MP3 or CDDA disc on the disc tray with the label side up.

Press the DVD open [OPEN/CLOSE] button, the disc tray closes.

The unit will take a short while to load the disc and display the directory structure.

1

The figure shown below appears.

2

Select the file to listen to (or view).

Move the cursor to file which you want to
listen to (or view) by pressing [

œ √…†

]

button

Press [PLAY] or [ENTER] to start playback.

The selected file will play.

Press [■ ] to stop playback.

4

MUSIC

■ 000/000 0:00:00 / 0:00:00

\

PROGRAMLIST

max 6
SKY
winamp

_ _ _ _
_ _ _
_ _ _ _ _
_ _ _
_ _ _ _ _

Select the folder.

Move the cursor to desired folder by
pressing [

œ √…†

] button and press

[ENTER] button to confirm.

3

MUSIC

■ 000/000 0:00:00 / 0:00:00

\

PROGRAMLIST

max 6
SKY
winamp

_ _ _ _
_ _ _
_ _ _ _ _
_ _ _
_ _ _ _ _

MUSIC > MP3
√ 001/018 0:00:34 / 0:03:59

\max 6\01(musicfamily.i.am) Smooth-

PROGRAMLIST

_ _

1. 01(musicfamily.i

2. 02(musicfamily.i

3. 03(musicfamily.i

4. 04(musicfamily.i

5. 05(musicfamily.i

6. 06(musicfamily.i

7. 07(musicfamily.i

Playing a disc containing MP3 or CDDA files

mp3

mp3
mp3
mp3
mp3
mp3
mp3

* Only MP3 or CDDA file is listed.

DVD Operation

44

About MP3, JPG and MPG discs

You can programme playback.

Select the file to programme. Then press
[PROGRAM].

The selected file will go into PROGRAM
folder.

Press [PLAY] or [ENTER] in PROGRAM
folder.

If you want to delete all the files in the
PROGRAM folder, select by pressing [

√

†

] and press [ENTER].

If you want to delete one file, press
[CLEAR] button.

6

The ability of this unit to read MP3 discs is dependent on the followings:

• The Bit Rate must be within 64-256 kbps.

• The maximum number of directories should not exceed 32.

• The maximum depth level of directories should not exceed 4.

•

In the case that the file is recorded with a variable bit rate (VBR) in one file (Example: 54-256kbps) sound
breakup sound breaking may occur during playback.

• File names should be named using 8 or fewer letters and/or numbers, and must incorporate the
“MP3” file extension. EXAMPLE:

********

. MP3 where each *is a letter or number.

• Use only letters and/ or numbers in file names. If you use special characters, the file and/ or folder
names may not be displayed correctly on the on-screen display.

Caution

• Try to avoid the use of the CD-RW(Rewritable) disc if possible because it can not be played back
according to the recording format.

• A CD-R must be recorded with the standard format because it can not be played back according to
any other recording format.

• A CD-R should be written using the ‘disc at once’ method.

• A disc which is made according to the ISO 9660 format can be played back.

Repeat playback mode.

Every time you press [REPEAT], repeat
playback mode changes as follows: Repeat
one ➝ Repeat all ➝ Random ➝ OFF ➝ ...

Or select by pressing [à] and press
[ENTER].

The selected file or folder will playback
repeatedly.

5

MUSIC > MP3
√ 001/018 0:00:34 / 0:03:59 Repeat one

\max 6\01(musicfamily.i.am) Smooth-

PROGRAM

LIST
_ _

1. 01(musicfamily.i

2. 02(musicfamily.i

3. 03(musicfamily.i

4. 04(musicfamily.i

5. 05(musicfamily.i

6. 06(musicfamily.i

7. 07(musicfamily.i

MUSIC > MP3
√ 001/018 0:00:34 / 0:03:59 REPEAT FILE

\max 6\02(musicfamily.i.am) Lager T

LIST
_ _

1. 01(musicfamily.i

2. 02(musicfamily.i

3. 03(musicfamily.i

4. 04(musicfamily.i

5. 05(musicfamily.i

6. 06(musicfamily.i

7. 07(musicfamily.i

PROGRAM

6. 06(musicfamily.i

2. 02(musicfamily.i

5. 05(musicfamily.i

mp3

mp3
mp3
mp3
mp3
mp3
mp3

mp3
mp3
mp3
mp3
mp3

mp3
mp3

mp3
mp3

mp3

45

About MP3, JPG and MPG discs

This unit will play JPG files recorded on CD-R and CD-RW discs.

Select the desired folder.

Move the cursor to the desired
folder by pressing […†] and
press [ENTER] to confirm.

1

Slideshow Delay Time set.

Select “ Slideshow &Delay
Time” function. Then press
[ENTER] to adjust the slideshow
delay time from 0FF to 10 seconds.

* Only JPG file is listed.

2

Start the slideshow of file.

If you press [PLAY] or [ENTER]
when a JPG image is selected, a
slideshow will begin automatically
starting from the selected image.

• To stop the slideshow, press
[STOP].

To turn left, press [œ ].
To turn right, press [√].

3

Combination Play set.

Select “ Combination Play”
function.

Then press [ENTER] or [PLAY]
to enter into the playback of total
files.

A combination play will begin.

4

12/134 œ 90° √ 90°■œœ √√■√/

■■

■ DISPLAY

■ ■ ■ ■ ■

To skip to next screen (or file), press [

√√❚

].

To skip to previous screen (or file), press [

❚œœ

].

PICTURE > JPG

■ 000/000 0:00:00 / 0:00:00

\

LIST

DESKTOP
TEMPORAR
TRASH

PREVIEW

PICTURE > JPG

■ 000/000 0:00:00 / 0:00:00


LIST
__

1. BAK001

2. BAK002

3. BAK003

4. BAK004

5. BAK005

6. BAK006

7. BAK007

PREVIEW

PICTURE > JPG

■ 000/000 0:00:00 / 0:00:00


LIST
__

1. BAK001

2. BAK002

3. BAK003

4. BAK004

5. BAK005

6. BAK006

7. BAK007

PREVIEW

Playing a disc containing JPG (PHOTO) files

jpg
jpg
jpg
jpg
jpg
jpg
jpg

jpg
jpg

jpg
jpg
jpg
jpg
jpg

DVD Operation

46

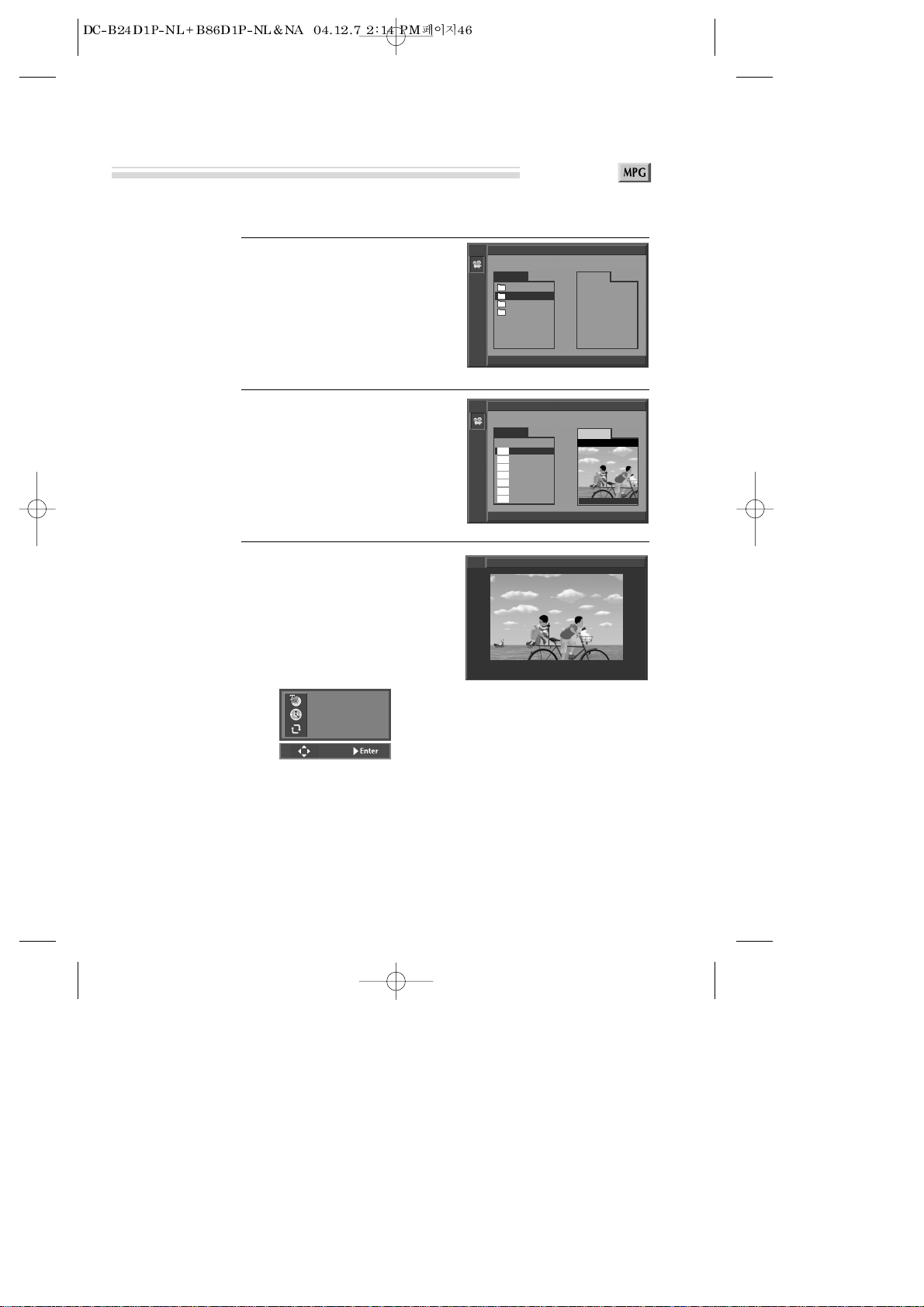

About MP3, JPG and MPG discs

This unit will play MPG files recorded on CD-R and CD-RW discs.

Select the desired folder.

Move the cursor to the desired
folder by pressing […†] and
press [ENTER] to confirm.

1

Select the desired MPG file.

Move the cursor to the desired
MPG file. Then press [ENTER] or
[PLAY] button to playback.

* Only MPG file is listed.

2

Start the playback of MPG file.

If you press [ENTER] or [PLAY]
button, selected MPG file starts
playback.

3

MOVIE

■ 0/00 0:00:00 / 0:00:00

\

LIST

DESKTOP
MOVIE
TEMPORAR
TRASH

PREVIEW

MOVIE

■ 0/00 0:00:00 / 0:00:00

\MOVIE\320\BAK001.MPG

LIST
__

1. BAK001

2. BAK002

3. BAK003

4. BAK004

5. BAK005

6. BAK006

7. BAK007

PREVIEW

Playing a disc containing MPG (MOVIE) files

mpg
mpg
mpg
mpg
mpg
mpg
mpg

■ ■ ■ ■ ■

➟ current track / total track number
➟ time elapsed
➟ repeat playback mode

001/003

00:01:03

OFF

0-9

• To stop the playback, press [STOP].

• To skip to next movie (or file), press [

√√❚].

• To skip to previous movie (or file), press [❚œœ

].

• To view fast forward playback, press [√√].

• To view fast reverse playback, press [œœ].

If you press [DISPLAY] button,

it

shows the current disc mode.

47

■ If a disc includes menus, the user may display them.

Press [MENU] button.

• In the case of a DVD disc, it shows the menus on the disc. Also they are
different according to the discs.

• If it is a VCD2.0, select PBC ON mode by pressing [TITLE/PBC] button.

* CD and VCD1.1 do not support the function.

1

If it is a DVD disc, move the cursor to the relevant item with the arrow buttons
[

œ √…†

] and select one with [ENTER] button or [PLAY] button.

2

To display menus on a disc

Displaying menus on a disc

DVD Operation

48

Language Setup

While in STOP or RESUME STOP mode, press
[SETUP] button.

1

Selecting an OSD language.

Select an OSD language to be displayed on DVD
menus with [ENTER].

2

Selecting Audio language.

Set your preferred audio language with
[ENTER]. If the audio language is set and
recorded on the DISC, it is automatically played
back in the set language every time it is played.

OTHERS - - - - : Another language can be
selected. You can input a 4-digit language code.

Refer to the language codes on next page. Press [CLEAR] if an
incorrect language code is entered.

3

Selecting Subtitle language.

Set your preferred subtitle with [ENTER]. If the
subtitle language is set and recorded on the
DISC, it is automatically played back in the set
language every time it is played.

OTHERS - - - - : Another language can be
selected. You can input a 4-digit language code.

Refer to the language codes on next page. Press [CLEAR]
if an incorrect language code is entered.

4

■ A user can set OSD language, Audio, Subtitle and Disc Menu.

In case a disc

does not include
setting languages
information, the
selected language does
not appear.

“OSD” means
“On Screen Display”.

OSD
AUDIO
SUBTITLE
DISC MENU

ENGLISH
AUTO
OFF
AUTO

OSD
AUDIO
SUBTITLE
DISC MENU

ENGLISH ✓
FRENCH
SPANISH
GERMAN
ITALIAN
PORTUGUESE
SWEDISH
DUTCH

OSD
AUDIO
SUBTITLE
DISC MENU

FRENCH
SPANISH
GERMAN
ITALIAN
PORTUGUESE
SWEDISH
DUTCH
AUTO ✓

OSD
AUDIO
SUBTITLE
DISC MENU

SPANISH
GERMAN
ITALIAN
PORTUGUESE
SWEDISH
DUTCH
AUTO ✓
OTHERS - - - -

OSD
AUDIO
SUBTITLE
DISC MENU

FRENCH
SPANISH
GERMAN
ITALIAN
PORTUGUESE
SWEDISH
DUTCH
OFF ✓

OSD
AUDIO
SUBTITLE
DISC MENU

SPANISH
GERMAN
ITALIAN
PORTUGUESE
SWEDISH
DUTCH
OFF ✓
OTHERS - - - -

49

Selecting Disc Menu language.

Set your preferred DISC MENU language with
[ENTER]. If the DISC MENU language is set and
recorded on the DISC, it is automatically played
back in the set language every time it is played.

OTHERS - - - - : Another language can be
selected. You can input a 4-digit language code.

Refer to the language codes. Press [CLEAR] if an
incorrect language code is entered.

5

Language Setup

OSD
AUDIO
SUBTITLE
DISC MENU

FRENCH
SPANISH
GERMAN
ITALIAN
PORTUGUESE
SWEDISH
DUTCH
AUTO ✓

OSD
AUDIO
SUBTITLE
DISC MENU

SPANISH
GERMAN
ITALIAN
PORTUGUESE
SWEDISH
DUTCH
AUTO ✓
OTHERS - - - -

Enter the appropriate code number for the initial settings “AUDIO”, “SUBTITLE”
and/or “DISC MENU”.

Code Language Code Language Code Language Code Language Code Language

6565 Afar 6983 Spanish 7473 Yiddish 7789 Burmese 8385 Sundanese
6566 Abkhazian 6984 Estonian 7487 Javanese 7865 Nauru 8386 Swedish
6570 Afrikaans 6985 Basque 7565 Georgian 7869 Nepali 8387 Swahili
6577 Ameharic 7065 Persian 7575 Kazakh 7876 Dutch 8465 Tamil
6582 Arabic 7073 Finnish 7576 Greenlandic 7879 Norwegian 8469 Telugu
6583 Assamese 7074 Fiji 7577 Cambodian 7982 Oriya 8471 Tajik
6588 Aymara 7079 Faroese 7578 Kannada 8065 Panjabi 8472 Thai
6590 Azerbaijani 7082 French 7579 Korean 8076 Polish 8473 Tigrinya
6665 Bashkir 7089 Frisian 7583 Kashmiri 8083 Pashto, Pushto 8475 Turkmen
6669 Byelorussian 7165 Irish 7585 Kurdish 8084 Portuguese 8476 Tagalog
6671 Bulgarian 7168 Scots Gaelic 7589 Kirghiz 8185 Quechua 8479 Tonga
6672 Bihari 7176 Galician 7665 Latin 8277 Rhaeto-Romance 8482 Turkish
6678 Bengali;Bangla 7178 Guarani 7678 Lingala 8279 Romanian 8484 Tatar
6679 Tibetan 7185 Gujarati 7679 Laothian 8285 Russian 8487 Twi
6682 Breton 7265 Hausa 7684 Lithuanian 8365 Sansrit 8575 Ukrainian
6765 Catalan 7273 Hindi 7686 Latvian, Lettish 8368 Sindhi 8582 Urdu
6779 Corsican 7282 Croatian 7771 Malagasy 8372 Serbo-Croatian 8590 Uzbek
6783 Czech 7285 Hungarian 7773 Maori 8373 Singhalese 8673 Vietnamese
6789 Welsh 7289 Armenian 7775 Macedonian 8375 Slovak 8679 Volapük
6865 Danish 7365 Interlingua 7776 Malayalam 8376 Slovenian 8779 Wolof
6869 German 7378 Indonesian 7778 Mongolian 8377 Samoan 8872 Xhosa
6890 Bhutani 7383 Icelandic 7779 Moldavian 8378 Shona 8979 Yoruba
6976 Greek 7384 Italian 7782 Marathi 8379 Somali 9072 Chinese
6978 English 7387 Hebrew 7783 Malay 8381 Albanian 9085 Zulu
6979 Esperanto 7465 Japanese 7784 Maltese 8382 Serbian

Table of language and Their Abbreviations

Setup

50

Video Setup

While in STOP or RESUME STOP mode,
press [SETUP] button.

Selecting TV Aspect.

Set your preferred TV ASPECT ratio with
[ENTER] button.

2

1

■ A user can set up a connected TV and screen size condition.

If a user selects “4:3 PS”, the user can watch
only a centre of the original scene of “16:9”. If a
user selects “4:3 LB”, the user can watch the
original scene of “16:9”, but the top and bottom
of the screen look black color.
If a disc size is originally recorded in 4:3, the
user cannot watch it in the wide screen format
even though the user has set it to “16:9 Wide”.

TV ASPECT 4:3 LB

TV ASPECT 4:3 LB

✓

4:3 PS
16:9 WIDE

51

Audio Setup

Select a Digital Output.

Set audio output to coaxial or optical. You
can set the outgoing digital signal to
BITSTREAM or LPCM:

2

Select a Dynamic Range.

You can set the Dynamic Range as follows:

• Off : You can hear the sound as it was
originally recorded on the disc.

• Full : You can hear loud sounds softer
and soft sounds louder.

3

■ A user may select an audio menu according to the speaker set being used.

While in STOP or RESUME STOP mode,
press [SETUP] button.

1

• BITSTREAM : The raw audio signal
recorded on the disc goes to the digital
audio output.

• LPCM : The decoded audio signal goes
to the digital audio output.

DIGITAL OUT
DYNAMIC RANGE

BITSTREAM
OFF

DIGITAL OUT
DYNAMIC RANGE

BITSTREAM

✓

LPCM

DIGITAL OUT
DYNAMIC RANGE

FULL
OFF

✓

Setup

52

Other Setup

Select character display window.

Select "On" to make the OSD (On Screen Display)
language appear on screen.

2

Select screensaver.

If bright scenes continue to be displayed on
screen, the TV can be damaged. If the screen
saver is set to “ON” and the resume stop, stop, or
open status is maintained for about 5 minutes, the
screensaver will function automatically causing
the DVD logo to move continuously.

3

Restoring DEFAULTS.

If you press [ENTER] when the cursor
highlights RESET, an “Are you sure?”
message will appear. Confirm with [OK].

This feature resets every function to its
original Factory Defaults except the Parental
Control settings.

4

Select Parental.

Press [√] button when the cursor is
highlighting PARENTAL.

When “INPUT PASSWORD” appears on the
screen, input the password.

Change Parental Rating level.

Once you have entered the correct
password, you can change the PARENTAL
rating by pressing […†]. And confirm it
with [ENTER].

These 8 levels of parental control, protect
children from watching violence, sexual
scenes and other objectionable material.

5

While in STOP or RESUME STOP mode, press
[SETUP] button.

1

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

ON
ON
RESET
8 ADULT

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

ON

✓

OFF

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

ON

✓

OFF

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

RESET

Are you sure?

OK CANCEL

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

1 KIDS
2 G
3 PG
4 PG-13
5 PG-R
6 R
7 NC-17
8 ADULT

✓

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

1 KIDS
2 G
3 PG
4 PG-13
5 PG-R
6 R
7 NC-17
8 ADULT

✓

53

Changing a password.

To change your password, move the cursor
to “PASSWORD” and press [√].

Enter your current password.

Then enter a new password and press
[ENTER].

Confirm the new password.

Now your password is changed.

6

Other Setup

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

INPUT PASSWORD

- - - -

OK CANCEL

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

INPUT PASSWORD

- - - -

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

CONFIRM PASSWORD

- - - -

OSD
SCREEN SAVER
DEFAULTS
PARENTAL
PASSWORD

CHANGE OK

“Parental Lock” activates only if you set a password and the unit goes into Lock status. When the
disc has no parental function even if the disc is for adults only, the Parental Lock doesn’t activate.

The initial password is 3308. In case you forget the newly-entered password, you can use 3308 as a
password.

Setup

54

About DVD

• DVD, Video CD(Version 1.1, 2.0), S-VCD and Audio CD

Disc type Playable Restriction

DVD Possible Region number 2 or Region number All

Video CD Possible Version 1.0/1.1/2.0, SVCD

CD Possible PCM or dts

CD-ROM Possible MP3 File

CD-R Possible Video-CD/CD/CD-ROM (MP3 File)
CD-RW Possible Video-CD/CD/CD-ROM (MP3 File)
DVD-R Possible DVD Video

DVD-RW Possible DVD Video

DVD+RW Possible DVD Video

DVD-ROM Impossible

DVD-RAM Impossible

Photo CD Possible except KODAC CD

REGION MANAGEMENT INFORMATION

This unit is designed and manufactured to respond to the Region Management information that is
recorded on a DVD disc. The region number of this player is “2”. If the region number described on the
DVD discs does not correspond to the Region number of this player, the player will not play this disc.
This player will play DVD discs made for “ALL” regions. Therefore, this player will play DVD discs
marked with labels containing the region number “2” or “ALL”.

(Region 2) (Region ALL)

2

ALL

Playable Discs

55

About DVD

DVD A DVD (abbreviation of Digital Versatile Disc or Digital Video Disc) can include 135 minutes of video

information. And for audio, it can hold up to 8 kinds of languages and 32 kinds of subtitle languages. By
using MPEG-2 video compression and digital 3D surround sound, DVD realizes high-definition video
and quality sound like a movie theatre.

CDDA A CDDA (abbreviation of Compact disc digital audio) is a music disc that is currently used.

MP3 Audio compression format that enables audio files to be stored and transferred on a computer with a

relatively small file size. It enables you to enjoy CD quality music. (Short for MPEG-1 Layer 3)

PBC This is recorded on a Video CD 2.0, Video CD 3.0 and SVCD. The scenes or information to be viewed (or

listened to) can be selected interactively with the TV monitor by looking at the menu shown on the TV
monitor. It stands for PlayBack Control.

CHAPTER A title in a DVD is divided into many tracks, or chapters. A chapter is an area on the DVD to

which you can navigate using the remote control to locate special electronic markers. The DVD
player can then locate any particular scene and skip directly to it.

TITLE This is the information recorded on a DVD. A DVD can be divided into many titles.

TRACK In a video CD and audio CD. A disc consists of many tracks. The user can search for these tracks.

dts Digital Theatre System is a 5.1 -channel surround sound system, which is widely used in movie

theatres around the world. It enables the bit rate to be increased to provide good sound quality.
“DTS” and “DTS Digital Out” are trademarks of Digital Theatre Systems, Inc.

Multi Angle Some DVD discs contain various scenes that have been simultaneously shot from a number of

different angles.

PCM Linear PCM is a signal-recording format used in a CD, while CD is recorded in 44.1kHz/16bit, a

DVD is recorded in 48KHz/16bit up to 96KHz/24bit.

Dolby DigitalDolby Digital enables the delivery of mono through 5.1-channel audio at data rates from 32 kbps

to 640 kbps, thus offering flexibility and economical performance as well as uncompromised
sound quality.

Bitstream Digital audio data that is decoded into an analogue signal for subsequent output to speakers.

Lt/Rt It indicates L/R of Dolby Digital 2CH Downmix output.

Downmix DOWNMIX is reproducing the proper audio when audio format recorded on a disc differs from

the output audio channel configuration. For example, with just one stereo speaker system you can
hear full 5.1 channel audio.

RGB This stands for red, green and blue. It means the video signal separated into its three primary

colour components ready to drive the picture tube almost directly. Two signalling connections are
needed to make the television accept the synchronisation and RGB signals. All this is in the
SCART connector. Not all televisions have RGB inputs.

SCART An acronym (Syndicat des Constructeurs d'Appareils Radiorécepteurs et Téléviseurs) for a

connector used with many kinds of audio-visual equipment. It is also called Peritel and Euro­connector.

Terms related to DVD

The others

56

About DVD

• Keep the disc clean and in good condition. Handle with care.

• Do not put sticky paper or tape on it.

• Do not expose a disc to direct sunlight or other forms of heating.

• After using the disc, please replace it in its case.

• Before using the disc, please wipe it from its centre outwards, using a clean, soft cloth.

• Do not use any type of solvent such as thinner, benzol (benzene), commercial cleaning
goods or antistatic spray.

Handling Disc

Cleaning Disc

57

• In the case of an old or contaminated videotape, playback picture may not be clear due to the contamination
of the VCR heads. Please remove contaminants using a head-cleaner. (See below!)

1 Insert a head-cleaner into VCR
2 Press “PLAY” for 5 seconds, and then press “FF” for about 10 seconds.

3 Eject the head-cleaner from VCR

• Should the playback picture still be poor or not viewable repeat the headcleaning process 2 or 3 times.

Otherwise contact your Authorised Service Agent

PLAY (5secs)

FF (10secs)

Basic information about VCR and Videotape

• If a VCR is moved from a cool place to a warm and damp place or to a place facing direct cool wind from say
an air-conditioner...the change in, temperature results in condensation occurring on the head drum of the
VCR.

If dew condensation occurs,

1 First, turn it on for one or two hours before using it.

2 Do not use it because it may cause problems to the VCR or videotape.

AFT Automatic fine tuning, a circuit that automatically adjusts TV reception for optimum

reception/picture.

CABLE Cable television.

Index Search A feature of this VCR that automatically records an index mark each time recording begins. It

helps you locate a particular segment of the tape quickly and easily.

LP Long Play, an intermediate tape recording speed that combines most of the picture/audio quality

obtainable at the standard recording speed with some of the tape economy of Extended Play (EP).

OSD On-screen display of information pertinent to the features of the VCR.

OTR One-touch recording, a feature that allows you to record the program you’re watching by

pressing the REC key. Each press of the key increases the recording time by 30 minutes, up to 10
hours.

RF Radio frequency, the composite audio/video signal supplied to a TV receiver (or other video

component) by an antenna or cable system.

Safety tab The plastic tab at the back of a video tape cassette which, when removed, prevents accidental

erasure of a recording.

SP Standard play, the recording speed to use when the best picture quality is of prime importance

(and when total recording time is not).

Terms related with VCR

How to use a head cleaner

Dew/ Condensation

The others

58

Trouble Shooting guide (VCR)

• “Power On” does not work.

• It does not work even in “Power On”.

• A videotape is not recognised.

• On inserting a videotape, the tape is
re-ejected.

• The videotape is not ejected.

• A picture on the video channel and a
playback image do not appear.

• Not receiving an off-air signal but
displays playback images.

• No picture on VCR channel.

• Noise appears on screen after
playback of recording.

• While in play, noise appears.
Picture poor/noisy in play

• Sound and playback image are poor.

• Sound presents but picture does not
appear.

• Picture is irregular and stripes appear.

•

"Error" message is displayed on screen.

• When playing back a recording, the
top of picture waves about.

• Picture is not clear.

• Picture on pause is unstable or slow
motion is not clear.

Checks

Symptom

➤ Please check whether the power plug is inserted in to the mains

socket .

➤ Please check whether a videotape is inserted in.
➤ Switch off and reinsert plug into mains socket.

➤

Please check whether the power plug is inserted in to the mains socket.

➤ Please check whether a videotape was inserted.
➤ Please check whether a videotape is inserted the correct way up!

(The side of transparent window should be on the upside)

➤ Have you tried to re-insert a videotape just after the tape was

ejected? Please try again after fully ejecting.

➤ This is a safety mode to protect the videotape and is operated

automatically. Please pull out the tape and put it in again.

➤

If the product has not been used for a long time, the cassette may not
eject because the videotape has stretched. In this case, please pull out
the power plug for about 10mins and then press “EJECT” button.

➤ Please check your antenna’s interconnections.
➤ TV channel should be tuned to the unit on a vacant programme

number video channel.

➤

Please check your antenna’s signal it may be weak. If signal is weak
contact aerial specialist.

➤

Press “TV/VCR” and then ensure “VCR” is displayed on the display panel.

➤ Is VCR turned on?
➤ Select TV by pressing [TV/VCR] button on remote control.

➤ Whilst playing a videotape, there may be some noise experienced in

the beginning of the videotape or when resuming “PAUSE”. This
NOT

a fault

➤ Please press “TRACKING” for improved picture. Videotape may be

worn. Try to change it for another one.

➤ Please use a head-cleaner to clean VCR heads. VCR heads may be

contaminated.

➤ Since VCR Play signals are not as stable as TV signals, the playback

image may appear unstable or distorted. To fix the problem, ensure
you are tuned in to the ‘VCR’ programme channel no. alternatively
connect via scart lead+select A/V or TV.

➤ If the videotape signal was recorded by another/incompatible

product or old faulty unit, horizontal noise bars may appear on the
screen.

➤ Try to adjust the screen by [TRACKING+/-] button
➤ Try to use a head-cleaner.

➤ Try to use a head-cleaner.
➤ Try to adjust the screen by [TRACKING+/-] button.
➤ If 2 head machine then this symptom is not a fault!

59

Trouble Shooting guide (VCR)

• Recording a TV program is
impossible.

• After pressing “REC”, the videotape
is ejected automatically.

• Timer recording of Cable TV does
not work.

• In spite of pressing “CHANNEL”, a
channel can not be set.

• When duplicating/ copying, picture
is poor anddistorted.

• remote control does not work.

• Buttons on remote control do not
work.

• VISS index search does not work.

• Cable broadcasting can not be
selected.

Checks

Symptom

➤ For recording, you should use videotape with a tab. Ensure tab is

NOT

removed

➤ Ensure there is no RF clash if so change RF output.
➤ Please check whether the timer recording info is right.
➤ Are RF cables input/antenna inputs connected correctly?

➤ Please check whether the clock is right.
➤ Does the display on your video show “

”

(Ready for timer

recording)? Please check!

➤ Please check whether the timer recording info is right.
➤ Please check that the record protect tab on the cassette is intact. (If the

tab is missing, cover the hole with a piece of scotch tape.)

➤ Was a cable data output code connected correctly?
➤ Did you turn off your player? (Please turn it on.)

➤ You may have not memorised channels.
➤ Please check your channel setting or press a number button.

➤ Some tapes or discs distributed in the rental market for hire are

copyright protected to prevent copying. These tapes cannot be
duplicated.

➤ Battery may be weak or exhausted.
➤ The receiver of remote control may be of an incompatible frequency to

sender frequency.

➤ During index search when videotape is positioned towards the

beginning, “VISS REW” and “REW” do not work.

➤ If videotape is at the end, “FF”, “VISS FF”, “PLAY” and “REC” will

not work.

➤ Are you playing a tape that was not recorded on this machine? (Try

to re-record it using this recorder.)

➤ You may start recording it in “REC-PAUSE”. Otherwise start

recording from stop condition.

➤ Please select “CABLE” programme number from the “CHANNEL

SETTING”.

The others

60

Trouble Shooting guide (DVD)

• The recorder does not play.

• No sound comes through.

• A disc is playing but a picture does
not appear or a poor picture appears.

• Sound is irregular

• REMOTE does not work.

• Dolby Digital sound does not work

• “AUDIO” or “SUBTITLE” button
does not work.

• “ANGLE” button does not work
while a DVD is playing.

• “MENU” does not appear while a
DVD is playing.

• The file name of MP3 (CD-R) appears
with strange letters.

• Any MP3 (CD-R) file isn’t displayed.

Checks

Symptom

➤ If a DVD is from overseas, it may not be played. Please check a

DVD’s region code whether it has the relative region code 2 or All.

➤

Please check whether a DVD is inserted in an upright direction (Label up)

.

➤ If it is a CD-ROM for PC or DVD-ROM, it will not work.
➤ During play mode if “SLOW” or “PAUSE” selected. (There will be

no sound output.)

➤ Are all connections correct?
➤ Please check the operative condition of TV or amplifier.
➤ From SETUP, please check “AUDIO” menu.

➤ Did you turn on your TV set?
➤ Are all connections correct?
➤ Play may be in “PAUSE” mode.
➤ A disc may have some contaminants or be damaged.
➤ A disc may be faulty.

➤ Please check the connection with Dolby Digital amplifier.
➤ Please check the plugs are connected properly.
➤ Check all contacts and connections.

➤

Please check the angle of operation of the remote control, the distance
and any obstacles that may be interrupting the signal.

➤ Battery may be weak or exhausted.
➤ When you operate DVD, use it by pressing [DVD] button.

➤

Dolby Digital sound can be reproduced via a Dolby Digital amplifier only.

➤ Please check “Dolby Digital ” mark on your DVD.
➤ If playing it through the digital output, while pressing “STOP”,

please check whether “Digital Output” is “Bitstream” by pressing
“SETUP” on menu.

➤ Please check that the connection is correct.
➤ If a DVD does not include language information, these functions are

not supported.

➤

“ANGLE” is supported only by a DVD that contains multi angle scenes.
The “ANGLE” mark on screen will confirm that to the user this feature
is supported.

➤

Please check the angle of operation of the remote control, the distance
and any obstacles that may be interrupting the signal.

➤ Please check that the battery in the remote control is not exhausted.
➤ DVD may not contain menu information.

➤ The file name of MP3 only recognises the Alphabet (A~Z, a~z),

numbers (0~9) and a special symbols on keyboard (~, !, @, #, $ ....)

10 letters can be displayed at maximum.

➤ The letters above will be displayed as follows “----”.
➤ If the surface of the disc is marked, the file display and playback will

not be possible.

61

Specifications

Disc type

DVD VIDEO-CD CD

Analogue Audio output 48/96KHz sampling 44.1KHz sampling 44.1KHz sampling
Digital Audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling
Optical digital audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling

Output

Supply Voltage 200-240V~, 50/60Hz

Power Consumption HiFi :22W, Mono:20W

Weight 4.6kg

Dimension (W x H x D)

435mmx93mmx255mm (without foot), 435mmx98mmx255mm (with foot)

Operating temperature +5°C~40°C

Installation condition Horizontal / Relative humidity under 80%

Laser output 5mW (continuous wave max.)

Wave length 635nm (DVD), 730nm (CD)

Signal type PAL COLOR

Antenna Input/output U/V-mixed: 75Ω unbalanced

VIDEO input 1.0Vp-p (unbalanced, RCA JACK)

AUDIO input -8.8dBm, RCA JACK

VIDEO output

(common use of DVD and VCR)

VIDEO output terminal, 1.0 Vp-p unbalanced, RCA JACK, SCART JACK

VIDEO output (DVD only) RGB output (75Ω In load R: 0.7Vp-p, G:0.7Vp-p, B:0.7Vp-p)

AUDIO output

(common use of DVD and VCR) Audio output terminal (2 kinds): -5.8dBm (VCR), 2Vrms(DVD), RCA JACK

AUDIO output (DVD only) Analogue AUDIO output : 2.0Vrms

Digital audio output (OPTICAL, COAXIAL)

Playable tape Very high density tapes with VHS marks

Playable disc DVD, VIDEO-CD, CD (12cm), CD (8cm), MP3, CD-R, CD-RW

Tape speed SP: 23.39mm/s, LP: 11.70mm/s

Playing time SP: 3hrs, LP: 6hrs (use of E180tape)

Clock display 24 hrs

Time Recording 8 programs a month

Power failure back-up period 1min

VIDEO S/N (VCR) Over 43dB(Standard recording)

Resolution VCR Over 240 lines (Standard recording)

DVD Over 400 lines (Playback DVD)

AUDIO (VCR) Over 65dB

AUDIO (DVD) 90dB

AUDIO dynamic range 90dB

DVD Audio output standards

The others

62

QUICK START GUIDE FOR SORTING CHANNELS ON THE DVD COMBO

Once the ‘Auto Set’ function has been completed the On Screen Display will show a list of the
channels which it has found, displayed in the order it found them.

It is unlikely, that they will be in the correct oder ie. BBC1 as PR01, BBC2 as PR02, ITV as PR03,
Channel4 as PR04 and Channel 5 as PR05.

Therefore, it will be necessary to Sort the channels displayed, into the correct order.

Please follow the following procedure.

1

Press the [VCR] button to select the VCR mode.

2

Press the [SETUP] button.

3

Select the ‘PR PRESET’ using

[ ……/

††

]

buttons and press the [OK/ENTER]

button.

4

Select the ‘PR ALIGN’ using

[ ……/

††

]

buttons and press the [OK/ENTER]

button.

5

Select the channel that needs to be moved and press the [OK/ENTER]

button.

6

Press the [OK/ENTER] button in order to select the ‘PR’ number which

you want to place the current selected channel using

[

……/††

]

buttons.

ie. PR01 BBC1. And press the [OK/ENTER] button to confirm.

Repeat above 5-6 steps to align the other channels.

STOP SP PR01 P-01

SETUP

TIMER PROGRAM
PR PRESET
VCR SETUP
TAPE CONTROL

PR+/-:SELECT
OK:CONFIRM SETUP:END

PR PRESET

AUTO SET
MANUAL SET
PR ERASE
PR ALIGN

PR+/-:SELECT
OK:CONFIRM SETUP:END

PR ALIGN

PR+/-:ALIGN

:PR VIEW

OK:CONFIRM SETUP:END

PR ALIGN

PR+/-:ALIGN

:PR VIEW

OK:CONFIRM SETUP:END

PR01 P-01 PR08 P-08
PR02 BBC2 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 MTV PR12 ---­PR06 BBC1 PR13 ---­PR07 P-07 PR14 ----

PR01 BBC1 PR08 P-08
PR02 P-01 PR09 P-09
PR03 BBC2 PR10 P-10
PR04 P-03 PR11 P-11

PR05 P-04 PR12 ---­PR06 MTV PR13 ---­PR07 P-07 PR14 ----

➝

➝

GUARANTEE REGISTRATION

IMPORTANT

TEAR

OFF HERE

AND RETURN

TODAY

REGISTERING YOUR NEW DAEWOO PRODUCT

To register you product for its 12 month guarantee please complete and return the section below.

MR

MRS

MS

SURNAME

NUMBER/HOUSE NAME/STREET

COUNTRY

MODEL No.

PRODUCT DESCRIPTION

NAME OF RETAILER

SERIAL No.

TOWN

INITIALS

POSTCODE

DATE OF PURCHASE

PRODUCT VALUE

MODEL No.

SERIAL No.

DATE OF PURCHASE

PRODUCT DETAILS

Y

OUR

1

ST

Y

EAR

M

ANUFACTURER

’

S

G

UARANTEE

Please keep this with your purchase receipt, which will

be required if service is needed on this product during

the guarantee period.

KEEP THIS SECTION FOR FUTURE REFERENCE
