Daewoo FS-59T90 User Manual

MODEL No.

FS-59T90
FS-68T90

Instruction Manual

Colour Television

Contents

Important safeguards 1
Before Operation 2
Connecting external equipment 3
Identification of Controls 5
Daily use 7
Menus 9
Teletext 15
Specifications 18

Important safeguards

WATER AND MOISTURE

Never install the set in the following places : In a
wet basement, bathroom. Do not place any
container with liquid on the set.

HEA T

Never place the set near heat sources.

VENTILA TION

Do not cover the ventilation openings in the
cabinet and never place the set in a confined
space such as a bookcase or built-in unless proper
ventilation is provided.
Leave a minumum 10cm gap all around the unit.

OBJECT ENTRY

Do not insert foreign objects, such as needles and
coins, in the ventilation openings.

LIGHTNING STRIKING

You should disconnect the set from the mains and
the aerial system during thunderstorms.

CLEANING

Unplug the set from the mains during cleaning.

AFTER MOVING THE SET

If the set is moved in a different direction, the
MAIN POWER button must be switched off for at
least 15 minutes in order to take out a colour strain
on the screen.

1

-The appliance is not intended for use by young children or infirm persons without supervision;

-Young children should be supervised to ensure that they do not play with the appliance.

Before Operation

INSERTING BA TTERIES INT O THE REMOTE
CONTROL UNIT

Insert the batteries (two 1.5V, type AA)

MAINS CONNECTION

Plug the mains cable into the power socket with 240V/50Hz AC.

AERIAL CONNECTION

When using an outdoor aerial, it is usually connected to the set
by means of 75 ohm.

SWITCHING ON AND OFF

Switching on

Switch the set on with the MAIN POWER button(ON/OFF),
and then CH UP or DOWN button on the front of the set.
Or OPERATE button or the CH UP/DOWN button or one of the
NUMBER buttons on the remote control.

NOTE : When switching power on, full picture and sound shall
appear in 6-8 seconds. This is to ensure optimum picure
stabilisation. This is indicated by a blinking LED indicator.

Switching off

Press OPERATE button( ), on the remote control to
return the set to its stand by mode.
If you don't use the set for an extended period of time, turn
it off with MAIN POWER button on the set.

2

CH

CH

OPERATE

MENU

SLEEP

VOL

CH-CALL

PICTURE/OK

TV/VIDEO

?

VOL

Battery options

Connecting external equipment

TV AND AV

RF OUTPUT (RCA JACK)

Use the TV/VIDEO button on the remote control or on the front of the set to select one of
the three options. Whenever the TV/VIDEO button is pressed, the on-screen display will
be changed as shown: AV1 AV2 S-VHS TV

This always provides the RF signal output of the selected channel. This is used to connect
a VCR for recording or a monitor device for displaying.

Connecting to a Mono VCR

When connecting a Mono VCR, you can achieve sound from both speakers if you connect the white
cable (left audio) to the “Audio Out” of the VCR. Press the MODE button several times(on TV remote
control) until “L -input” is displayed on the TV screen.

(Note) If you choose “R -input” mode, there will be no sound. If you choose “Stereo” mode, there

will be only one speaker operating.

INPUT1 (SCART JACK)

This is used to connect a VCR, a Camcorder, a S-VHS VCR.
You can also receive the S-VHS singal with SCART JACK by selecting S-VHS mode with
TV/VIDEO button.

✳ OPTION : You can also use the SCART to RCA/S-VHS connector for the reception of the S-

VHS signal.

3

TV

VCR

OUTPUT

R

AUDIO

L

VIDEO L AUDIO R S-VHS

INPUT1(S-VIDEO)

VIDEO

INPUT2 (RCA JACK)

Connect the AV (Audio/Video) socket with an appropriate
cable to the corresponding socket of the external equipment.
Select AV mode by pressing the TV/VIDEO button.
Press the TV/VIDEO button to return to the TV mode.

4

HEADPHONE JACK

Insert the headphone plug(3,5mm) into the
headphone socket.
The sound from the speaker will be cut off.

OR

CAMCORDER

VIDEO GAME

FRONT CONTROL

Front

Back

5

Identification of Controls

MAIN

POWER

BUTTON

VIDEO
INPUT

Aerial Terminal

RCA Socket

Scart Socket

AUDIO

INPUT

HEAD

PHONE

REMOTE
SENSOR

STAND-BY

INDICATOR

TV/VIDEO

BUTTON

VOLUME
DOWN/UP
BUTTONS

CHANNEL
DOWN/UP
BUTTONS

FS-68T90

FS-59T90

OUTPUT

R

AUDIO

L

VIDEO

INPUT1(S-VIDEO)

REMOTE CONTROL

6

X

CH

CH

OPERATE

MENU

SLEEP

VOL

CH-CALL

PICTURE/OK

SKIP

TV/VIDEO

MOVE

DELETE

MODE

?

VOL

TELETEXT mode

1 OPERATE
2 NUMBER 0-9
3 INDEX
4 MIX
5 PAGE UP
6 SUBPAGE
7 MENU
8 PAGE DOWN
9 HOLD
10 MUTE
11 REVEAL
12 SIZE
13 CANCEL
14 Green Key
15 Red Key
16 TV/TEXT
17 Yellow Key
18 Cyan Key

TV mode

1 OPERATE
2 NUMBER 0-9
3 PICTURE/OK
4 TV/VIDEO
5 CH (CURSOR)UP
6 VOLUME UP (CURSOR RIGHT)
7 MENU
8 CH(CURSOR) DOWN
9 VOLUME DOWN(CURSOR LEFT)
10 MUTE
11 RECALL
12 SLEEP
13 Not Used
14 MOVE(Edit mode only)
15 SKIP(Edit mode only)
16 TV/TEXT
17 DELETE(Edit mode only)
18 MODE(Sound Mode Change)

5

10

7
9

12

2

4

16
15

14

1

6

11

8

3

13
18

17

Direct selection

Use remote control NUMBER 0…9 buttons.
For two digits programme numbers, press the
button for the second digit within 2.5 seconds.

Up/Down moves

Use CH UP/DOWN buttons of the remote
control unit or on the front of the set.

DAILY USE

PROGRAMME SELECTION

Volume adjustment

Use VOLUME UP/DOWN buttons of the remote
control unit or on the front of the set.

Mute

Get sound off pressing remote control
MUTE ( ) button. Then, logo ( ) is
displayed.
Sound returns pressing the same button once
more.

Mono forcing, Bilingual language

If you are unable to get a good sound on a
channel due to a poor stereo broadcasting
signal, you can change from stereo to mono
transmission by pressing remote control MODE
button. Then the programme status concerning
this programme indicates "Mono" (in red colour).

On the other hand, during a bilingual
programme, MODE button allows you to hear
the second language. To return to initial state,
press MODE button once more. For other
adjustments (bass, treble, balance and sound
effect) see sound menu page 10.

SOUND CONTROL

7

CH

VOL

VOL

CH

VOL

CH

CH

MODE

VOL

8

You can choose between three picture settings,
using repeatedly remote control PICTURE button :

Normal I (standard hard picture)
Normal II (standard soft picture)
Favourite (you can adjust picture setting as you
want, using Picture menu).

For other adjustments : Brightness, contrast,
colour, sharpness, see Picture menu. (page 10)

PICTURE CONTROL

The sleep function will switch the television to
stand-by after a set period of time.

Pressing repetitively the remote control SLEEP
button, you can enter one of the following
settings :
OFF >30 min > 60 min > 90 min >120 min >OFF

The remaining time before TV turn-off is
displayed on programme status.

01

Programme number.

-----

Channel name.

NICAM STEREO

Sound transmission mode : Displayed in red color only if
forced to mono by MODE button.

11:11

Clock.

SLEEP 60

Remaining time (minutes)
before TV set turns off.
Only when sleep function is activated.

SLEEP FUNCTION

PROGRAMME STATUS DISPLAY

PICTURE/OK

SLEEP

01 -----

NICAM STEREO

11:11

SLEEP 60

Menus

9

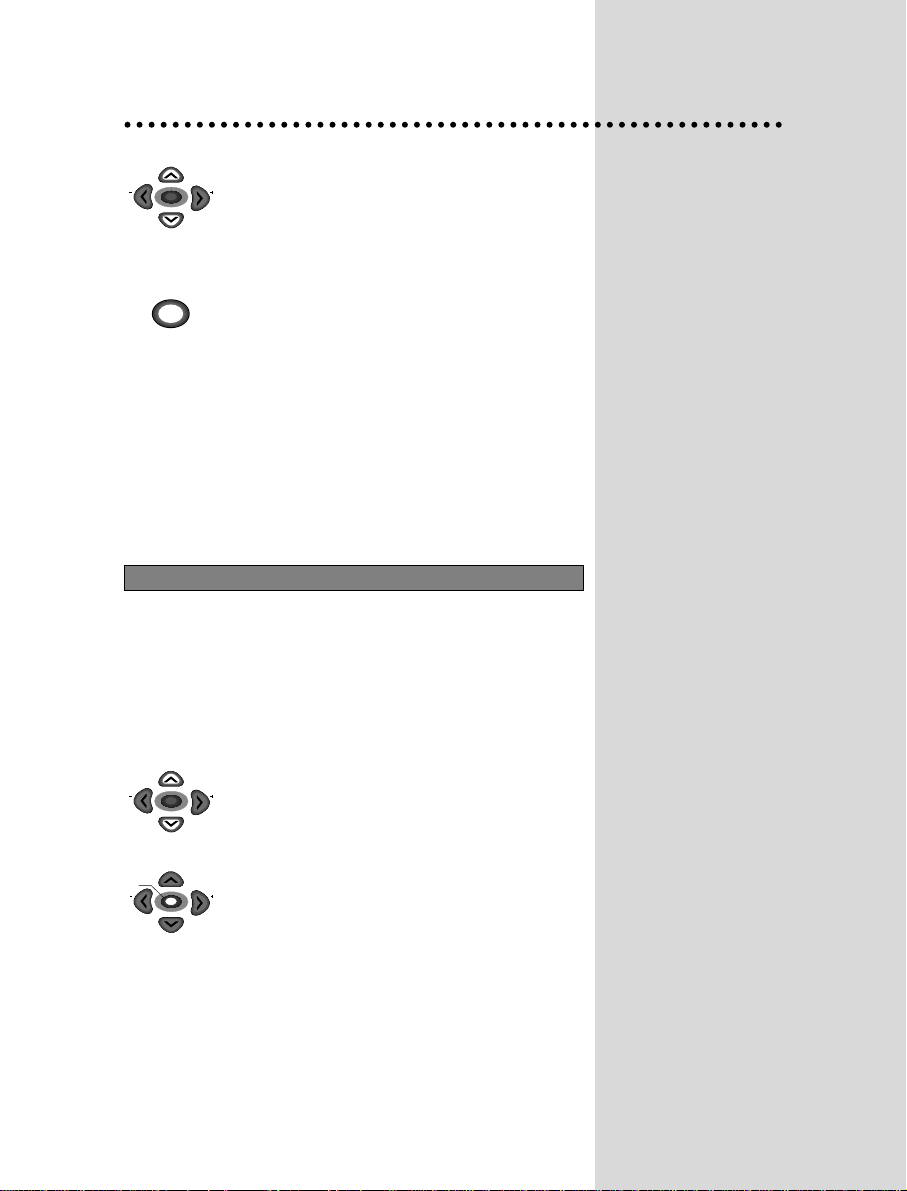

Direct selection

Press remote control MENU button to display
main menu.
Then, you have the choice between several sub­menus .

If you want to cancel immediately main menu,
press MENU button once more.
To select one of the sub-menus, use remote
control CURSOR buttons UP, DOWN, LEFT,
RIGHT.

To enter the selected sub-menu, press remote
control PICTURE/OK button .

MAIN MENU

✳ The following is applied to all of the sub-menus.

Select the function you want to change using
Remote control CURSOR UP or DOWN buttons.

Adjust the function using
Remote control CURSOR LEFT or RIGHT
button.

Confirm (if needed) by pressing Remote control
PICTURE/OK button .

Then Return to main menu pressing MENU
button .

HOW TO USE SUB MENUS

All menus are removed within 25 seconds if you don’t press any button.

PICTURE/OK

MENU

VOL

MENU

VOL

VOL

CH

CH

VOL

CH

CH

CH

VOL

VOL

VOL

PICTURE OK

VOL

CH

CH

VOL

CH

CH

VOL

CH

PICTURE SOUND

FEATURES INSTALL

CH

MENU

VOL

VOL

CH

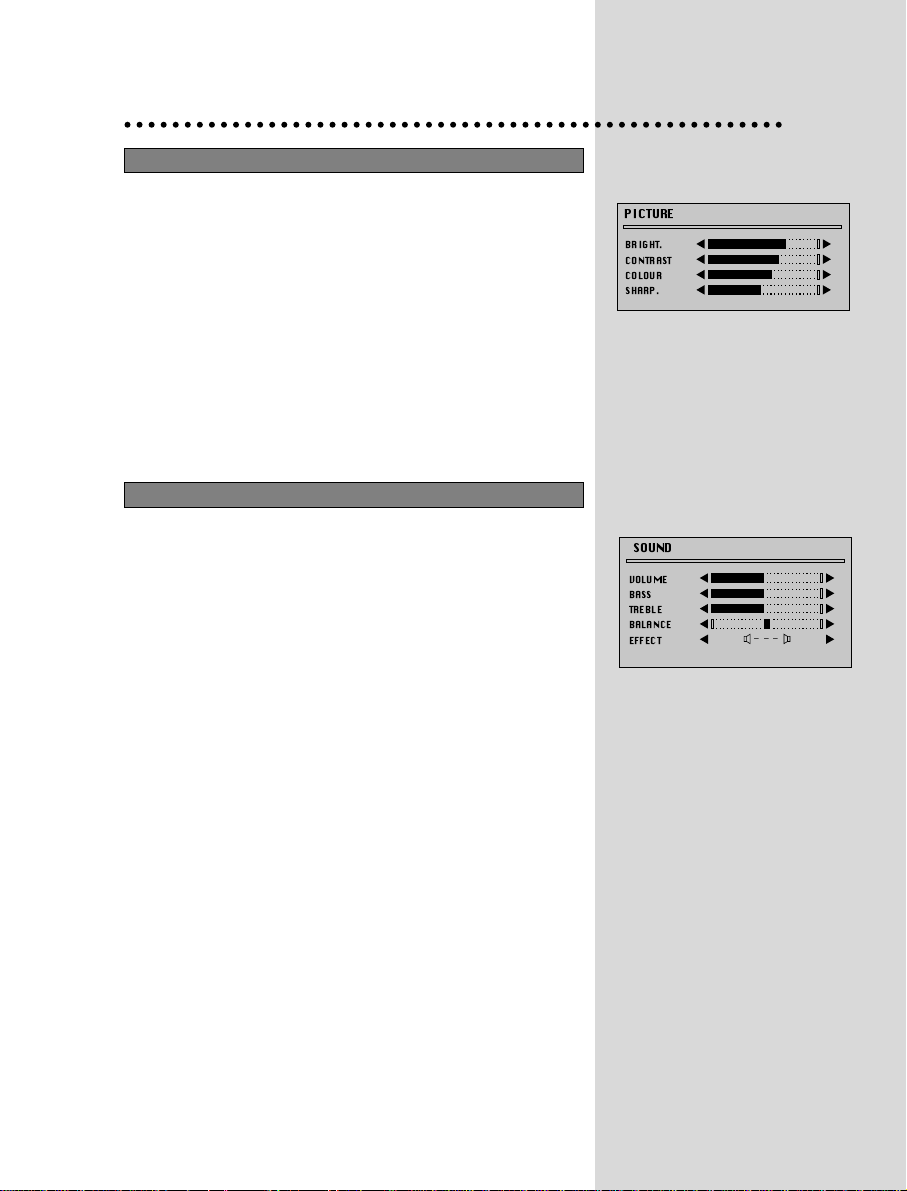

Select and adjust the level of each function :

BRIGHT.
CONTRAST
COLOUR
SHARP.

PICTURE MENU

Select and adjust the level of each function :

VOLUME
BASS
TREBLE
BALANCE
EFFECT

✳ Adjusted values are automatically stored in the favourite mode.

SOUND MENU

10


BRIGHT.
CONTRAST
COLOUR
SHARP.

SOUND

VOLUME
BASS
TREBLE
BALANCE
EFFECT

___

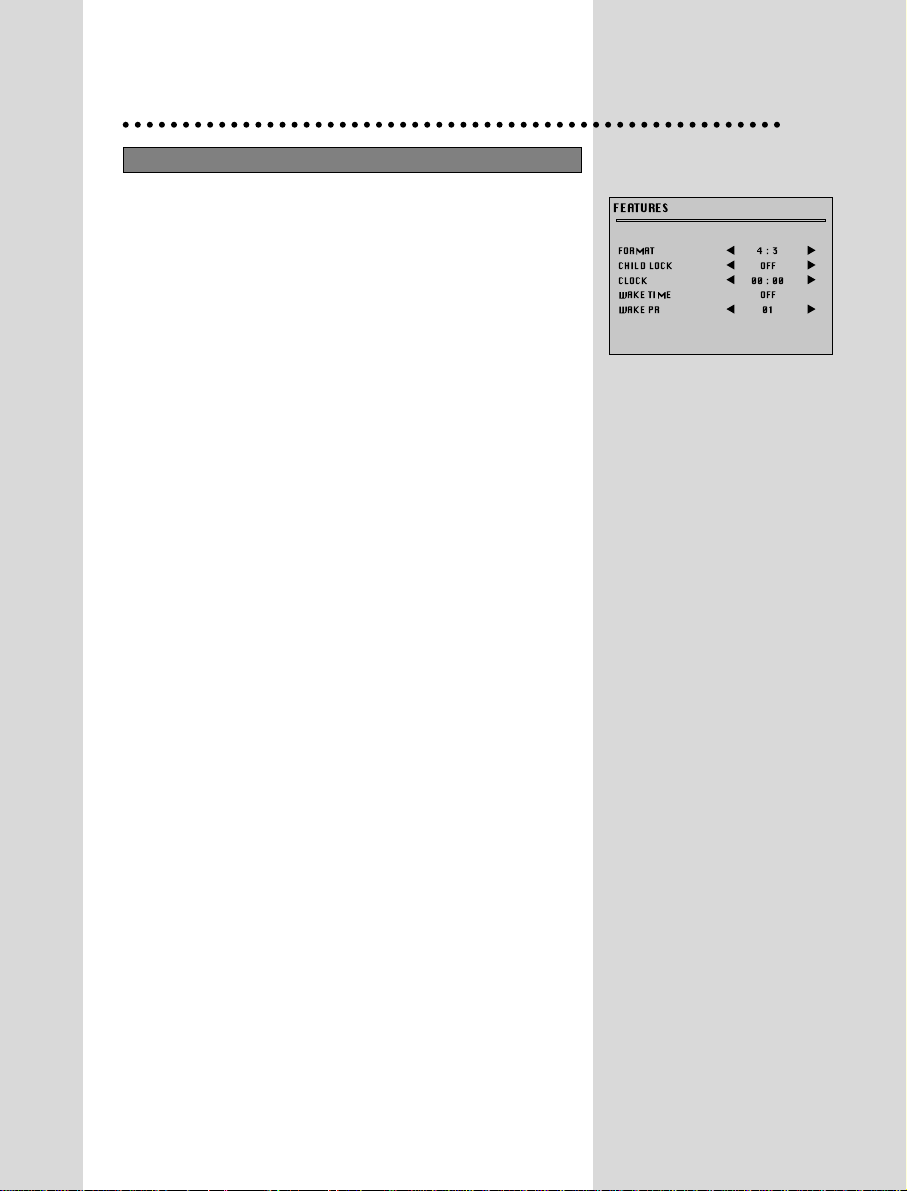

FORMAT

Picture format selection.
Select picture format between :

- 4/3: normal size

- 16/9: 16/9 size

- Zoom : expanded picture.

CHILD LOCK

Child lock prevent the use of the TV set without remote control unit.
Select this value ON or OFF:

- When switched ON: the stand-by indicator is orange lighted, child
lock is operating.

- The set can only be switched ON with the remote control unit.

CLOCK

TV clock setting.

- Note that if you turn off the set with the MAIN POWER button, the
clock setting is lost and must be reset if necessary. The clock is set
automatically if programme NO. 7 is selected for at least 6 seconds
and programme NO. 7 has teletext data.

- Set TV clock with remote control 0…9 NUMBER buttons, then
clock starts.

WAKE TIME

Wake up function.

- The TV set turns on at the time and with the programme chosen by
the customer. This function is only available when clock is set and
when TV set is switched to stand -by mode.

- Switch "wake up" function ON/OFF withremote control CURSOR
LEFT or RIGHT button.

- Enter wake up time with remote control 0...9 NUMBER buttons.

WAKE PR

Select TV turn-on programme number.

FEATURES MENU

11

FEATURES

FORMAT
CHILD LOCK
CLOCK
WAKE TIME
WAKE PR

4:3

OFF

00:00

OFF

01

AUTO SETUP

Automatic Tuning system.

EDIT

Programme list edition.

CHANNEL

Channel number.

FREQ

Channel Frequency.

NAME

Channel name.

PROGRAM

Programme number.

STORE TO

Programme storage number.

PR

Programme number.

NAME

Station name.

CH

Channel number.

Skip

: programme skipped.

12

INSTALL MENU

EDIT MENU

INSTALL

AUTO SETUP
EDIT
CHANNEL
FREQ
NAME
PROGRAM
STORE TO

EDIT

PR NAME CH SKIP

05

CH 5

04

CH 4

03

-----

02

-----

01

-----

99

-----

98

-----

C12
C22
C06
C08
C02
C10
C04

C49

720,01

-----
01
01

13

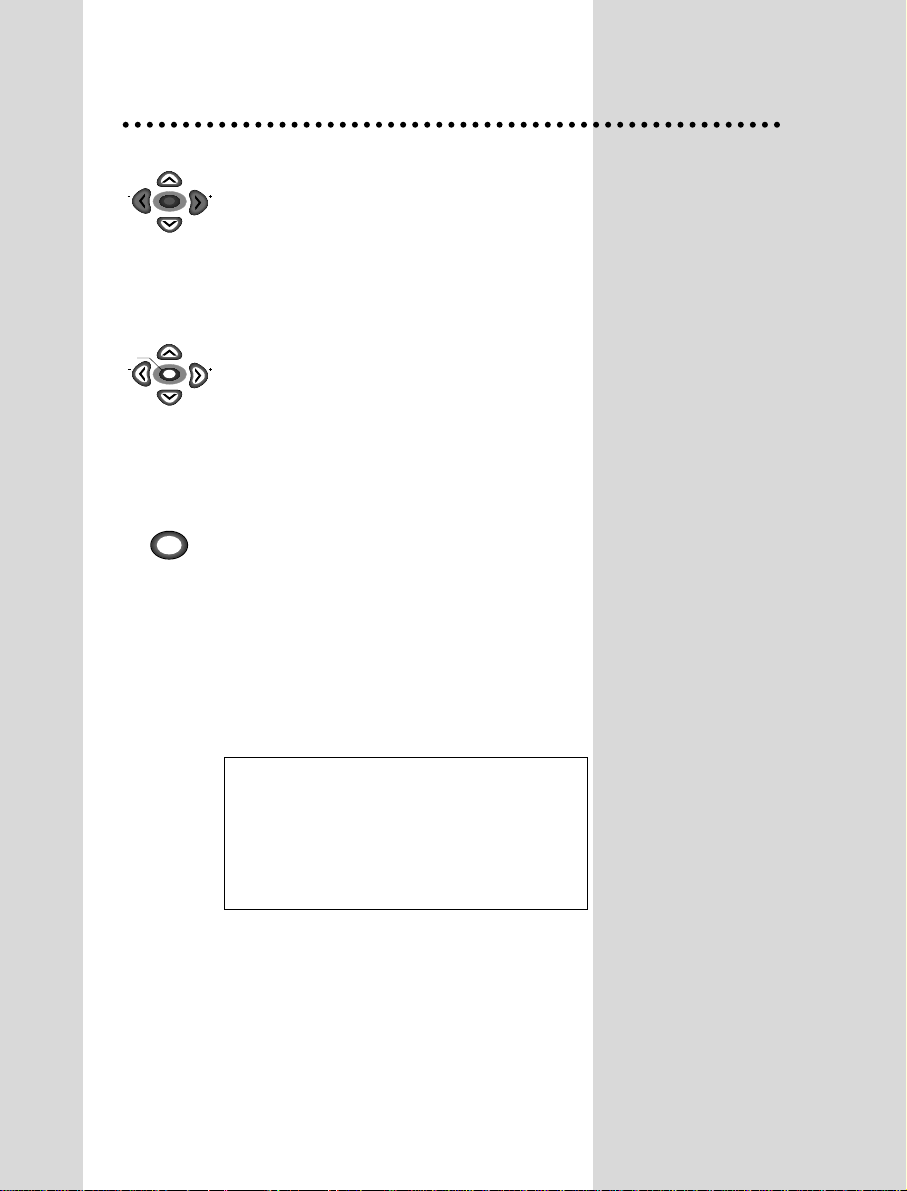

Using the Edit Menu, you can easily modify the
programme listing. Please do not refer
programmes as “existing recorded
programmes”. Please call them existing
programmes.

Select "EDIT" function and confirm with the
remote control “PICTURE/OK" button :
Edit menu appears and shows existing
recorded programmes.
The recorded programmes can be modified as
follows :

Channel skipping

You can select skip "YES" or "NO" using the
remote control SKIP button .
A programme with skip " " doesn't appear
on screen when changing programmes with
CH UP/ DOWN buttons.

Channel deleting

Select the programme to delete using remote
control CURSOR UP/ DOWN buttons.
Press the remote control DELETE button .
The deleted programme is moved to the
programme number 99 with skip " ".
The existing 99 programme is moved to
programme number 98 and so on.

AUTOMATIC TUNING SYSTEM

Automatic Tuning System

Select "AUTO SETUP" function.
Press remote control button "PICTURE/OK"
button for more than 3 seconds to start the
automatic tuning.
When automatic tuning is finished, recorded
programmes are displayed on screen.

PROGRAMME LIST EDITION

PICTURE/OK

PICTURE/OK

SKIP

CH

VOL

CH

CH

VOL

CH

DELETE

VOL

VOL

14

Channels order changing

Select the programme to move using remote
control CURSOR UP/ DOWN buttons.
Press the remote control

PICTURE/OK

button :
the programme appears on red and can be
moved to another place using remote control
CURSOR UP/ DOWN buttons.
When required position is reached, confirm this
new position pressing the remote control
PICTURE/OK

button. Then, the programme

appears again on green.

Station name entering - copying a programme
to another programme number

Use Install menu "NAME" and " STORE TO"
functions as explained in manual channel tuning
paragraph.

MANUAL CHANNEL SETTINGS

Choose starting point

Select with "PROGRAM" function the programme
from which you want to start manual tuning.Then,
the channel number, the frequency, the name and
the programme number of this programme are
displayed in the install menu.

Channel searching

Select "FREQ." function.
Press the remote control CURSOR RIGHT / LEFT
buttons for more than 3 seconds to start (up / down)
manual tuning.
After searching, tuning will stop automatically to the
next channel. (To stop searching press the remote
control MENU button)

Note: If you know channel number or frequency of

channels you want to search, you can tune
directly to these channels, entering these
data directly into "CHANNEL" or "FREQ."
function.

CH

CH

VOL

VOL

CH

CH

VOL

VOL

CH

CH

MENU

VOL

VOL

PICTURE/OK

15

Fine Tuning

If you are unable to get a good picture or sound
because of a poor broadcasting signal, it is
possible to fine tune a signal.
Select channel frequency ("FREQ.") function.
Press and release the remote control CURSOR
RIGHT/LEFT buttons to fine tune a signal.

Enter station name

Select "NAME" function.
Use the CURSOR RIGHT/LEFT buttons to
select the character (letter) you want to modify.
To modify this letter press the CURSOR
UP/DOWN buttons until the desired letter is
displayed.

Store programme in memory

Select "STORE TO" function
Adjust the programme number you want to store
and confirm by pressing the remote control
"

PICTURE/OK

" button.

Remarks: This function can be also used if you

want to copy a programme already
memorised to another programme
number.

CH

CH

VOL

VOL

CH

CH

MENU

VOL

VOL

PICTURE/OK

Warning: This television has been factory

pretuned to channels 2, 7, 9, 10 and

28. If the auto search function is
activated, these preset channels will
be deleted and new channels tuned
to 1, 2, 3 ETC..

16

Teletext

SWITCHING TELETEXT ON/OFF

Select the channel which is broadcasting the teletext
programme you want to watch.

Press the remote control TELETEXT ( ) button to select
teletext mode.
The overview station page or the last page viewed (in case
you already watched teletext at this channe previously)
appears.

If you need to return to TV mode, press again the remote
control TELETEXT ( ) button .

PAGE SELECTION

You can enter directly desired page number with the remote
control NUMBER 0...9 buttons .
You can sequentially select page number pressing remote
control PAGE UP / DOWN buttons.

On TOP / FLOF teletext, you can enter directly a page number
displayed at the bottom of the screen using remote control
corresponding coloured buttons.

USEFUL FUNCTIONS WHILE WATCHING TELETEXT PAGES

INDEX ( ) button : Allows to return directly to the overview

page of the station you are viewing.
SUBPAGE ( ) button : Allows to enter subpage directly :

Press SUBPAGE button.
Enter directly the subpage number you want with the remote
control NUMBER 0...9 buttons :
for example to enter the 2nd page, sequence 0002 .

PAGE HOLD ( ) button : Any teletext page or subpage can
be held on the screen by pressing the PAGE HOLD ( )
button.
Press the button again to cancel the hold mode.

REVEAL ( ) button : Press this button to reveal on certain
pages hidden information such as the answer to a quiz. Press
the button again to hide the information.

17

TELETEXT FORMAT, PICTURE, SOUND CONTROL
Doubling character size

Repeatedly pressing the SIZE ( ) button doubles the
character size in the following order :
Upper half of the pages > Lower half of the page > Return to
normal size.

Volume and brightness control in teletext mode

Pressing the MENU button in teletext mode, the volume and
brightness control menu will be displayed
at the bottom of the screen.
You can adjust volume and brightness using the
corresponding colour on the remote control unit.

OTHER FUNCTIONS AVAILABLE
Superimpose teletext broadcasting to the current TV
program using MIX button

Press MIX ( ) button again to return to the normal teletext
display.

Watch one TV programme and keep informed at the same
time if some teletext pages are updated

To do this, press CANCEL ( ) button . Then, TV
programme appears on screen and the teletext symbol
appears at the top of the screen.
When teletext programme will be updated, concerned page
number appears on screen. Note that TV programme cannot
be changed with CANCEL button activated.

Pressing the CANCEL button again, the teletext page
appears with the updated information.

SPECIFICATIONS

TV Standard PAL/SECAM-B/G,H, NTSC(AV ONLY)
Main Voltage 240V~, 50Hz

Power Consumption FS-59T90 : 113W

FS-68T90 : 118W

Sound Ouput Power 5W+5W(60% MOD. at 1KHz THD. 10%)
Dimensions(WxHxD) FS-59T90 : 729 x 532 x 459mm, 26.5Kg

&Weigt

FS-68T90 :

807 x 604.8 x 500mm, 36.8Kg

18

NEC Australia Pty. Ltd.

ABN 14 004 803 490

Home Electronics Group

NEC Australia Pty. Ltd.

Home Electronics Group

244 Becroft Road EPPING 2121

Tel:131 642

Fax:[phone]

NEC Service Centres

New South Wales

Sydney 184 Milperra Rd, Revesby 2212 (02)9780 8688
Newcastle 120 Parry Street, Newcastle West 2302 (02)4926 2466

Victoria

Melbourne 480 Princes Highway, Noble Park 3174 [phone]

Queensland

Brisbane 54-56 Brookes Street, Bowen Hills 4006 (07)3361 5858
Southport Shop 1, 48 Ferry Road, Southport 4215 (07)5591 3670

South Adelaide

Adelaide 58 Deeds Road, North Plympton 5037 [phone]

Western Australia

Perth 45 Sarich Court, Osborne Park 6017 [phone]

For Service in outer areas, please contact your NEC retailer for the address of the nearest Authorised
NEC Service Centre

P/N : 48586785E102-R1
