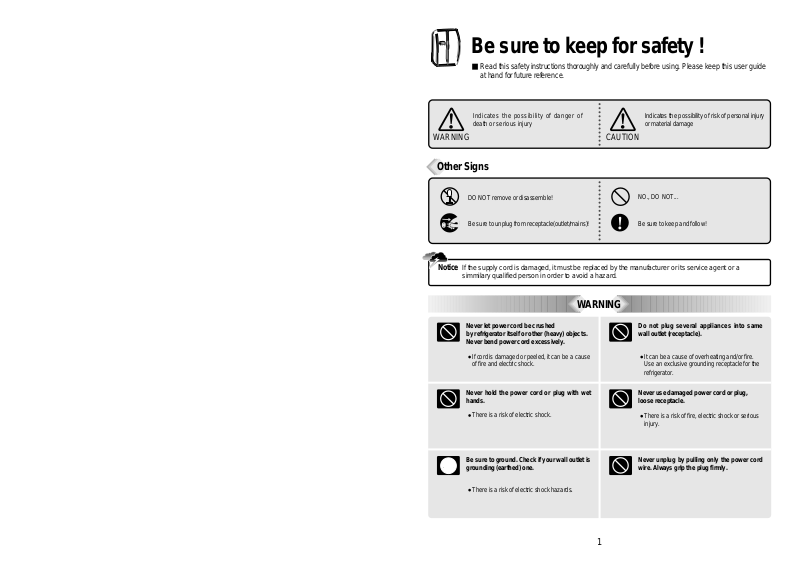

Be sure to keep for safety !
Read this safety instructions thoroughly and carefully before using. Please keep this user guide at hand for future reference.
Indicates the possibility of danger of |
Indicates the possibility of risk of personal injury |
|
or material damage |
CAUTION
Other Signs
DO NOT remove or disassemble! |
NO., DO NOT... |
Be sure to unplug from receptacle(outlet/mains)! |
Be sure to keep and follow! |
Notice If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a simmilary qualified person in order to avoid a hazard.
WARNING
Never let power cord be crushed |
Do not plug several appliances into same |
by refrigerator itself or other (heavy) objects. |
wall outlet (receptacle). |
Never bend power cord excessively. |
|
If cord is damaged or peeled, it can be a cause |
It can be a cause of overheating and/or fire. |
of fire and electric shock. |
Use an exclusive grounding receptacle for the |
|
refrigerator. |
Never hold the power cord or plug with wet |
Never use damaged power cord or plug, |
hands. |
loose receptacle. |
There is a risk of electric shock. |
There is a risk of fire, electric shock or serious |
|
injury. |
Be sure to ground. Check if your wall outlet is |
Never unplug by pulling only the power cord |
grounding (earthed) one. |
wire. Always grip the plug firmly. |
There is a risk of electric shock hazards.
1
|
|
WARNING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Let the cord from the plug |
|
|
|
wet floor or in |
|
|
|
directed Downwards. |
|
|
|
moisture. |
|
|
|
If it directed up, the cord near the plug |
|
Electric insulation gets weakened, resulting in |
|
|||
|
bent and can be damaged, which can |
|
a risk of electric shock hazards. |
|
|||
|
electric shock or fire. |
|
|
|
|
|
|
|
Never let the power cord touch or |
|
|
|
wall outlet. |
|
|
|
heating appliances. |
|
|
|
|
resulting in |
|
|
Power cord can be damaged, resulting |
|
|
|
|
|
|
|
|
a risk of electric shock hazards. |
|
||||
|
of electric shock hazards. |
|
|
|
|
|
|
|
Never pour or spray water into the |
|
|
|
|
|
|
|
refrigerator (both interior and exterior) |
|
|
|
|
|
|
|
|
|
Water can be poured into the refrigerator and |
|
|||
|
Electric insulation gets weakened, |
|
can cause electric shock hazards or damage. |
|
|||
|
a risk of electric shock hazards. |
|
|
|
|
|
|
|
Do not let children hang on the |
|
|
move or remove compartment |
|
||
|
doors. |
|
shelves/pockets while foods and containers |
|
|||
|
|
|
|
them. |
|
||
|
Refrigerator can fall and do harm to |
|
Hard container (of glass, metal etc.) can fall to |
|
|||
|
|
|
hurt you and can break shelf glass and interior |
|
|||
|
|
|
parts. |
|
|||
|
Never repair or disassemble or amend |
|
Never store any flammable gas or liquid |
|
|||
|
refrigerator on your own |
|
in the refrigerator. |
|
|||
|
There is a risk of personal injury or |
|
|
|
|
|
|
|
the refrigerator. It is recommanded |
|
|
|
|
|
|
|
service be carried out by a qualified |
|
|
|
|
|
|
|
Never use flammable |
|
If a gas leak found near the refrigerator or in |
|
|||
|
gasoline, spray etc |
|
the kitchen, ventilate it immediately without |
|
|||
|
|
|
touching power plug or refrigerator. |
|
There is a risk of fire, explosion and injury or damage.
|
|
WARNING |
|
|
|
|
|
|
|
|
Do not store medicine, |
Never insert fingers or hands into the bottom |
|
|
|
samples which require |
of refrigerator, especially into the bottom back. |
|
|
|
control in the refrigerator |
You can be hurt by sharp metal edges or can |
|
|
|
|
|
|
|
|
|
|
receive an electric shock. |
|
|
Do not change fuse or light bulb on your |
When you find the power cord damaged or |
|
|
|
own. Call the service agent to change them. |
cut, call the service agent immediately. |
|
|
|
When you get rid of your old refrigerator, be |
|
|
|
|
sure to remove the door packings first. |
|
|
|
|
Children can be entrapped and suffocated in an |
|
|
|
|
abandoned refrigerator. |
|
|
|
|
Leave it just a few days! is very dangerous. |
|
|
CAUTION
Be sure to unplug |
is not |
Never touch foods and containers especially |
|
used for a long time |
|
of metal with wet hands in the freezer |
|
|
|
compartment. |
|
|
|
You can be hurt by chilblains or cold bum. |
|
Never eat any |
food at all. |
Never place bottles and containers of glass in |
|
|
|
the freezer compartment. |
|
Foods stored too long in the refrigerator can be |
Glass containers and bottles can be broken so |
||
decayed or deteriorated . |
|
||
|
can hurt you. |
||
|
|
||
When moving the refrigerator (layed or tilted), |
Be sure to turn up the wheel first before |
||
more than 2 persons are required to hold it. |
moving the refrigerator. |
||
( One to hold top back handles, the other, |
The wheels can damage or scratch the floor. |
||
bottom holder. ) |
|
||
If other parts gripped, it is very dangerous and |
If you move it a long distance, never forget to |
||
fasten the interior parts tightly with tapes. |
|||
likely to slip. |
|
||
|
|
||
|
|
The parts can shake to break each other. |
3
Installation Guide
Read these safety instructions carefully before use and follow precautions for your safety.
use and
Accessories
Egg case |
Egg cradle |
User guide |
Control Panel
Optical Sensor
Optical Sensor in the top center of the panel senses the amount of light surrounding the refrigerator.
When it decides that it is dark (night), Silence Mode starts. Refrigerator works on in minimum operation condition, so it makes little or
less working noise.
[Notice] Do not let the Optical Sensor be covered by memo sheet (Post-it) etc.
It shows that the digital control system is working the refrigerator. (The icon is always on while the refrigerator is working.)
As long as the refrigerator is working deodorization is always on.
Children may push any button on the panel for fun, resulting in disorder of temperature and function of refrigerator. Press this button to lock out this case and to keep temperature and function setting.
Push Lock button again for more than a second to stop it.
If you fill the refrigerator with much foods or in case of frequent door openings, Speed Mode starts automatically to maintain optimal condition of temperature.
If you need total silence from the refrigerator just push sleep button.
This mode works for maximum 12 hours and then it returns to the previously set mode. When you want to stop the mode, just push the button again and it also returns to the previously set mode
turn off when the doors are open for more than 10 minutes.
door is open for more than a minute, door alarm rings for 5 minutes with
LCD Background Light
The LCD light turns on in the following case to help you control the panel easily ;
When the refrigerator is pluged in
When you push a button (The background light turns on first, then button mode is activated.)
When you open the door
If you push a button when the backlight is off, only the backlight turns on and it does not affect any other button mode.
The LCD light turns off in the following case to save energy consumption ;
1 minute after power plug in
10 seconds after the door is closed
No other button is pushed for more than 1 minute after button selection
When you look at LCD display from side or down, not from front, the display (letters, icons and signs) can look faded or dim.
4 |
5 |
Temperature Control
When this refrigerator is first plugged in, the temperature mode is set to [Middle].
Optical Sensor
Freezer Compartment |
Refrigerator Compartment |
Push the FREEZER SET. button and the setting |
Push the REFRIGERATOR SET. button and the |
temperature changes as the figure shows. |
setting temperature changes as the figure shows. |
>>> Sequential Temperature Change <<< |
>>> Sequential Temperature Change <<< |
Faster Freezing... |
Faster Cooling or |
|
Refrigeration |
||
|
||
When you want faster freezing, push the SUPER |
When you want faster refrigerating, push the |
|
FREEZER. button, then QUICK icon turns on and |
SUPER REFRIGERATOR. button, then QUICK |
|
the mode starts. Just push the button once again |
icon turns on and the mode starts. Just push the |
|
when you want to stop the mode. |
button once again when you want to stop the mode. |
The inside temperature can varies according to door |
The inside temperature can varies according to door |
|
openings, amount of foods, surrounding temperature |
||
openings, amount of foods, surrounding temperature |
||
etc. |
||
etc. |
||
The mode ends automatically and it returns to the |
||
The mode ends automatically and it returns to the |
||
previously set mode. |
||
|
previously set mode. |
For example) The refrigerator is working on [LOW Mode]. |
|
For example) The refrigerator is working on [LOW Mode]. --> |
||
--> [SUPER REFRIGERATOR.] starts and |
||
[SUPER FREEZER.] starts and ends. --> |
||
ends. --> Returns to [LOW Mode] again. |
||
Returns to [LOW Mode] again. |
||
|
||
Notice |
Foods in the refrigerator can be frozen if the ambient |
|
|
temperature of refrigerator is below 5 . |
How to use interior parts
Vegetable Case & Chilled Case
The first case or drawer of the refrigerator compartment can be used either as a vegetable case or as a chilled case for your convenience.
The temperature in the chilled case is somewhat lower than the vegetable one, so you can keep food more fresh.
|
|
|
|
|
|
|
|
|
|
|
|
Chilled Case |
Be sure to check the handle bar direction |
If you store vegetables and fruits in the chilled room mode, they can be frozen.
If you store fish in the chilled room mode for a long time, it can deteriorate. Store it in the freezer compartment. Do not place foods close to the cold air spout, for it can weaken cold air circulation.
Ice Cubes Maker
Pull out ice cubes maker and fill with pure water.
When ice cubes are ready, turn the handle clockwise to separate.
Do not use ice cubes case to make big ice block, for it can be broken.
Pull out the case, clean and dry it if not used (for a long time).
Do not pour water too much, for |
If ice cubes are not to fall easily, turn |
|
the ice cubes made get sticky and |
it to the end several times. |
|
do not to separate easily. |
Do not turn the separation handle if |
|
|
||
Keep in mind not to go beyond the |
the ice cubes are not ready, for they |
|
gets sticky on the ice tray and case. |
||
water line with an arrow mark |
||
|
||
when filling with water. |
|
