Daewoo frs20 User Manual

Refrigerator

S/M No: RNU20IB001

FRN-U20DB

FRN-U20IB*
FRS-U20IB*

FRU-577I~ FRU-547D/E~ FRU-547F/G~

FRN-U20EB
FRS-U20DB
FRS-U20EB

*
*
*

*

FRN-U20FB

FRN-U20GB

FRS-U20FB

FRS-U20GB

*

*
*
*

✔

Caution

: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center

- May, 2006

C O N T E N T S

1. WARNINGS AND PRECAUTIONS FOR SAFETY ----------------------------2

2. EXTERNAL VIEW

2-1. External Size ---------------------------------------------------3
2-2. Name of Each Parts ------------------------------------------6
2-3. Cold Air Circulation ----------------------------------------------8

3. SPECIFICATION --------------------------------------------------9

4. OPERATION AND FUNCTIONS --------------------------------------11

5. CIRCUIT OPERATION

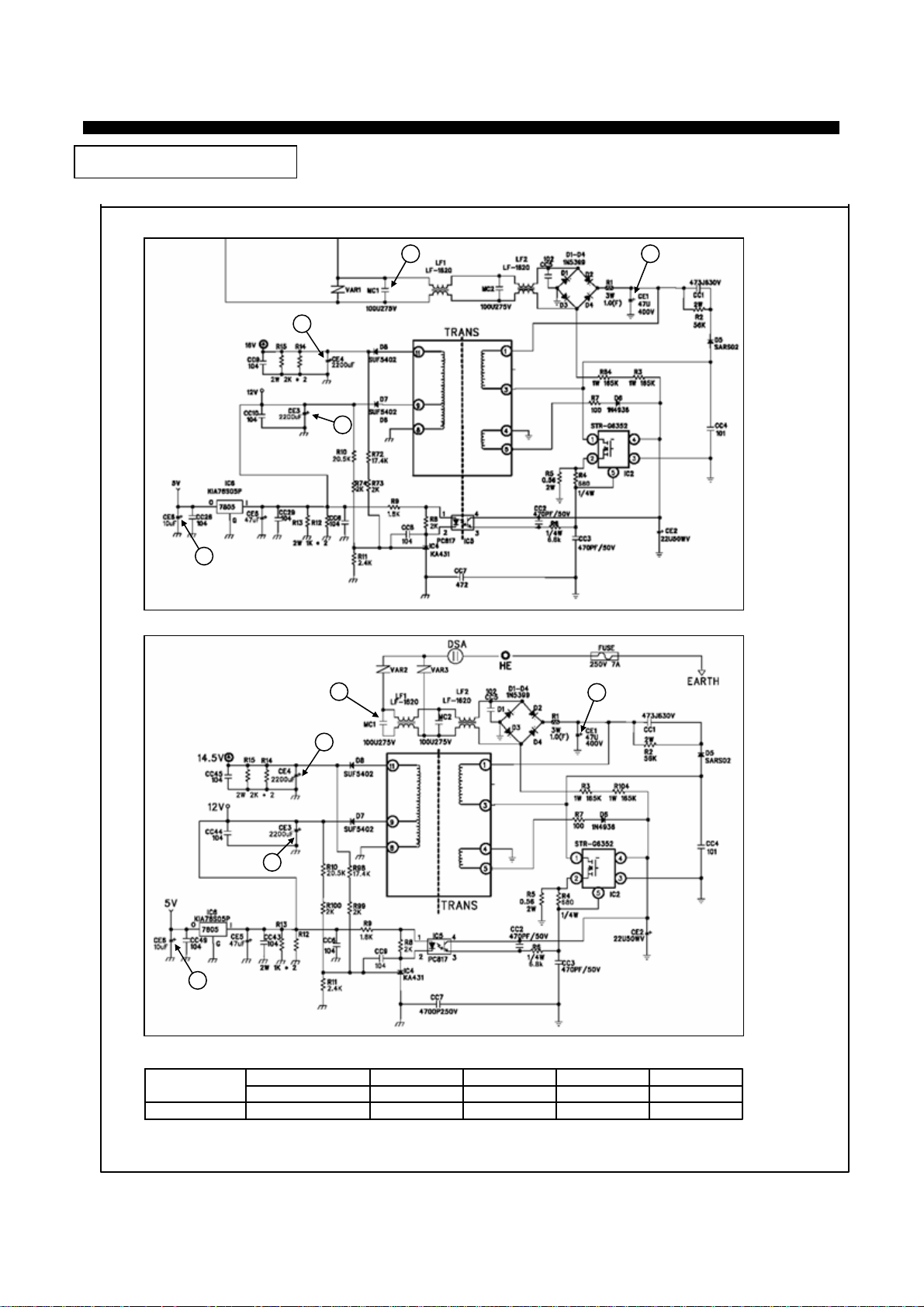

5-1. Power Circuit Diagram --------------------------------------------31

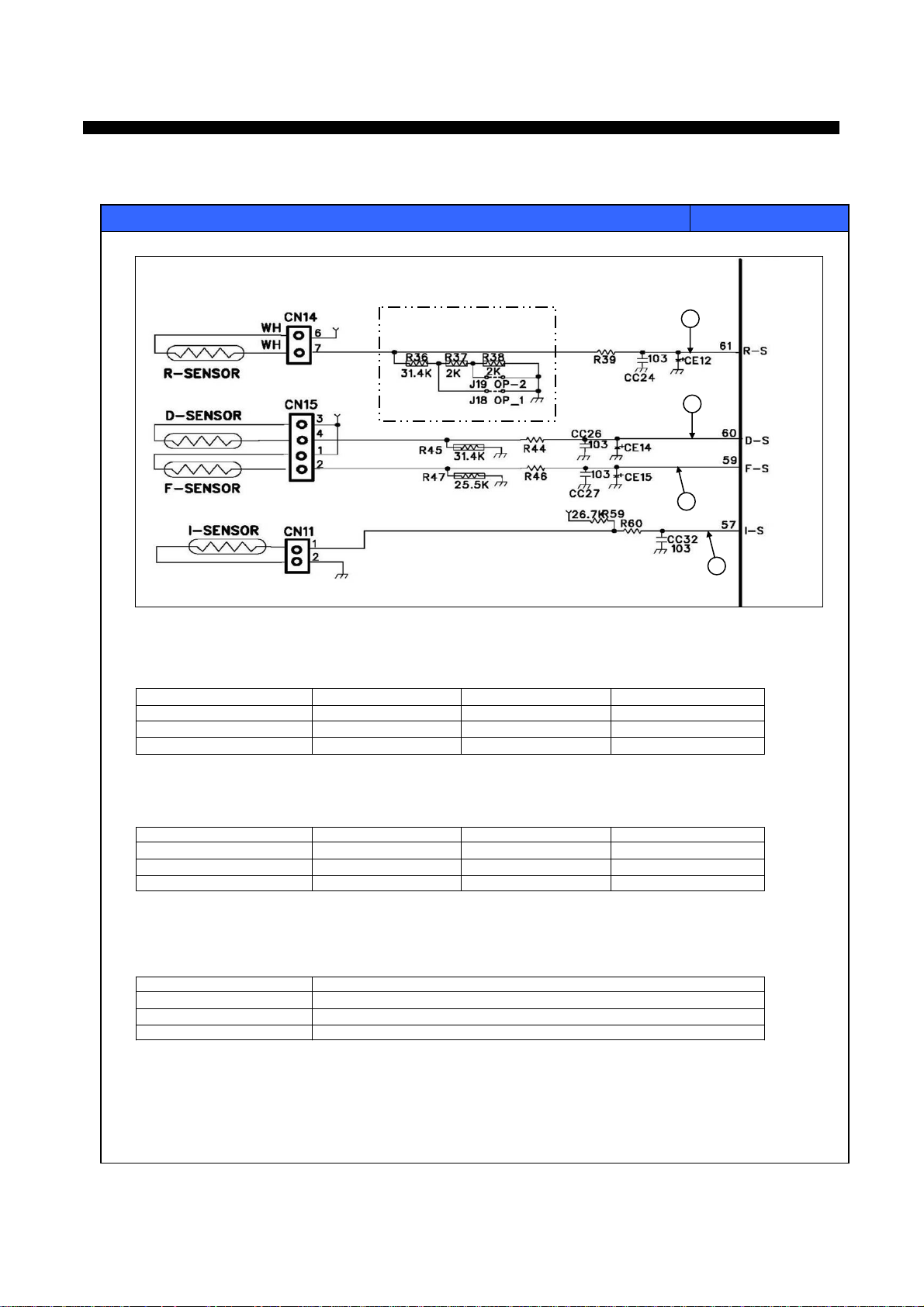

5-2. Function of Each Sensor ------------------------------------------32

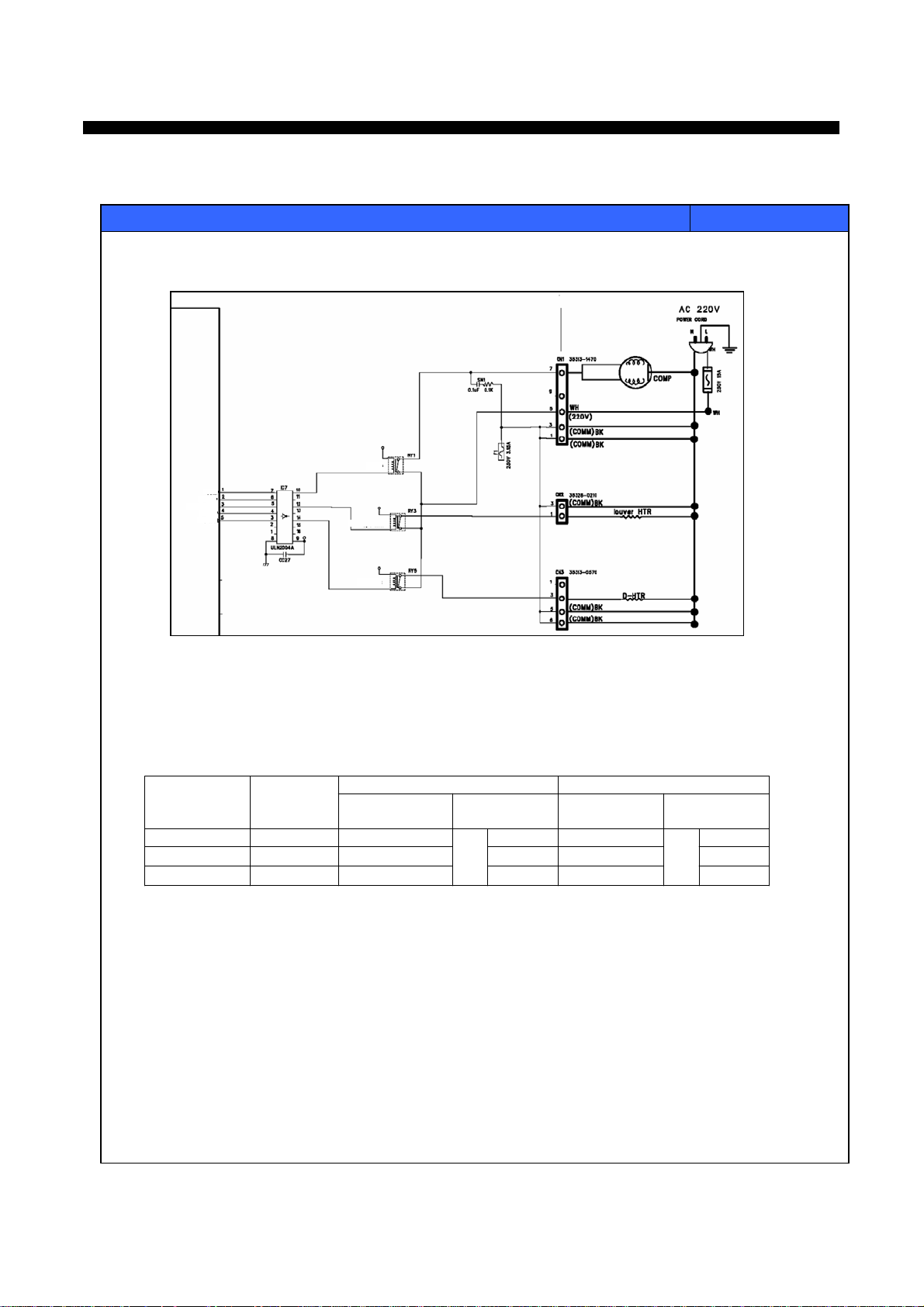

5-3. Relay Function --------------------------------------------------34

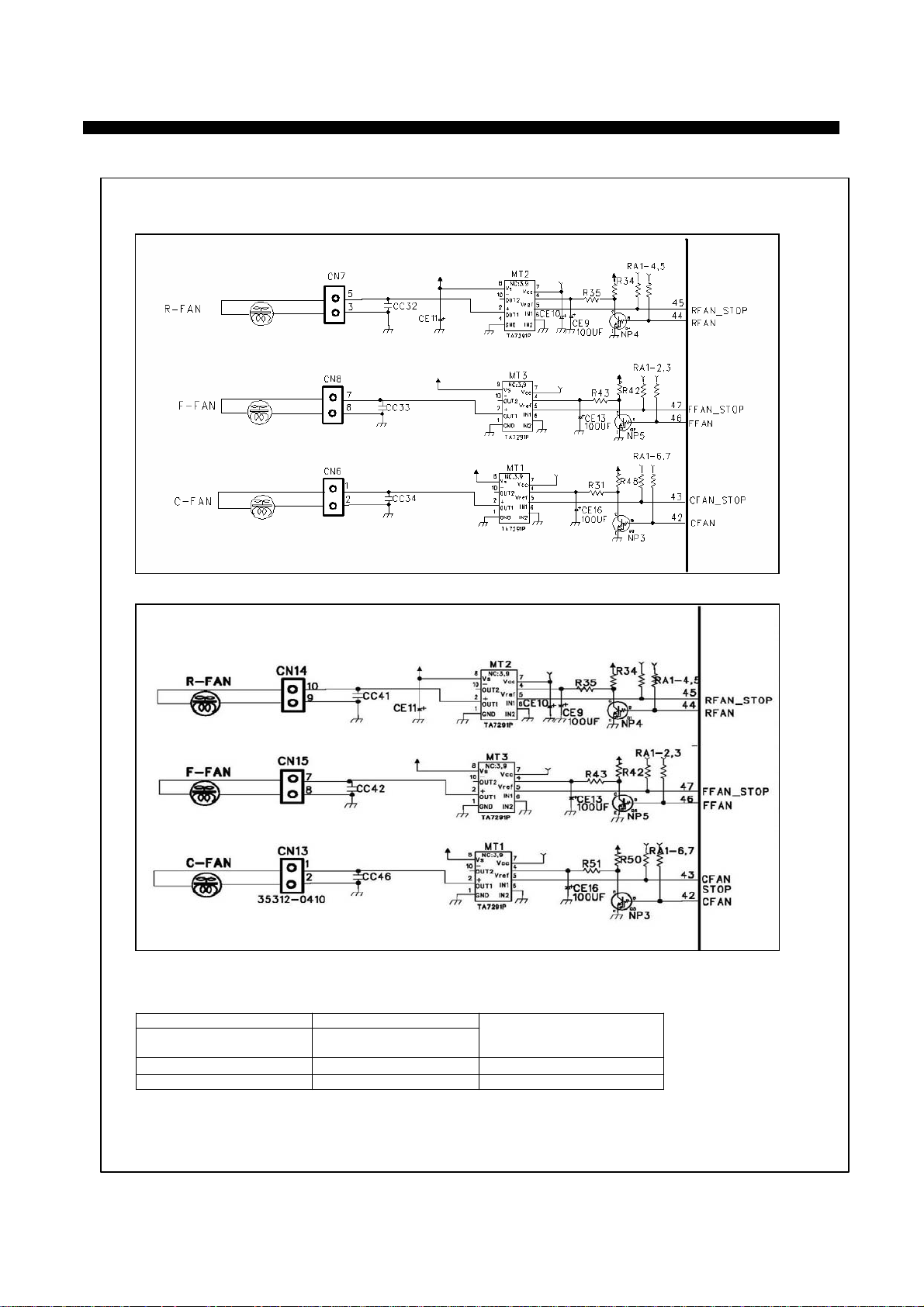

5-4. Fan Function ---------------------------------------------------36

6. DIAGRAM

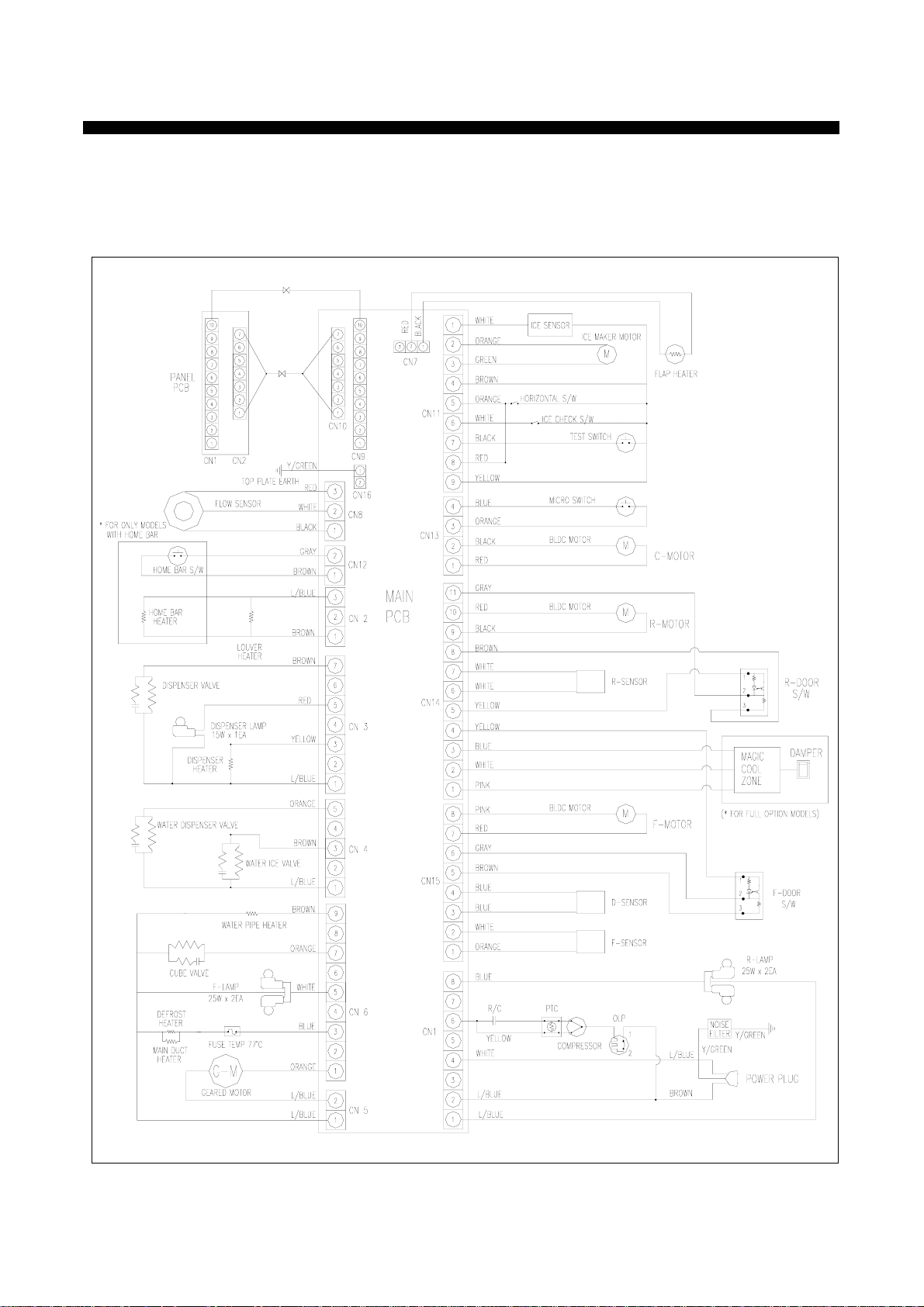

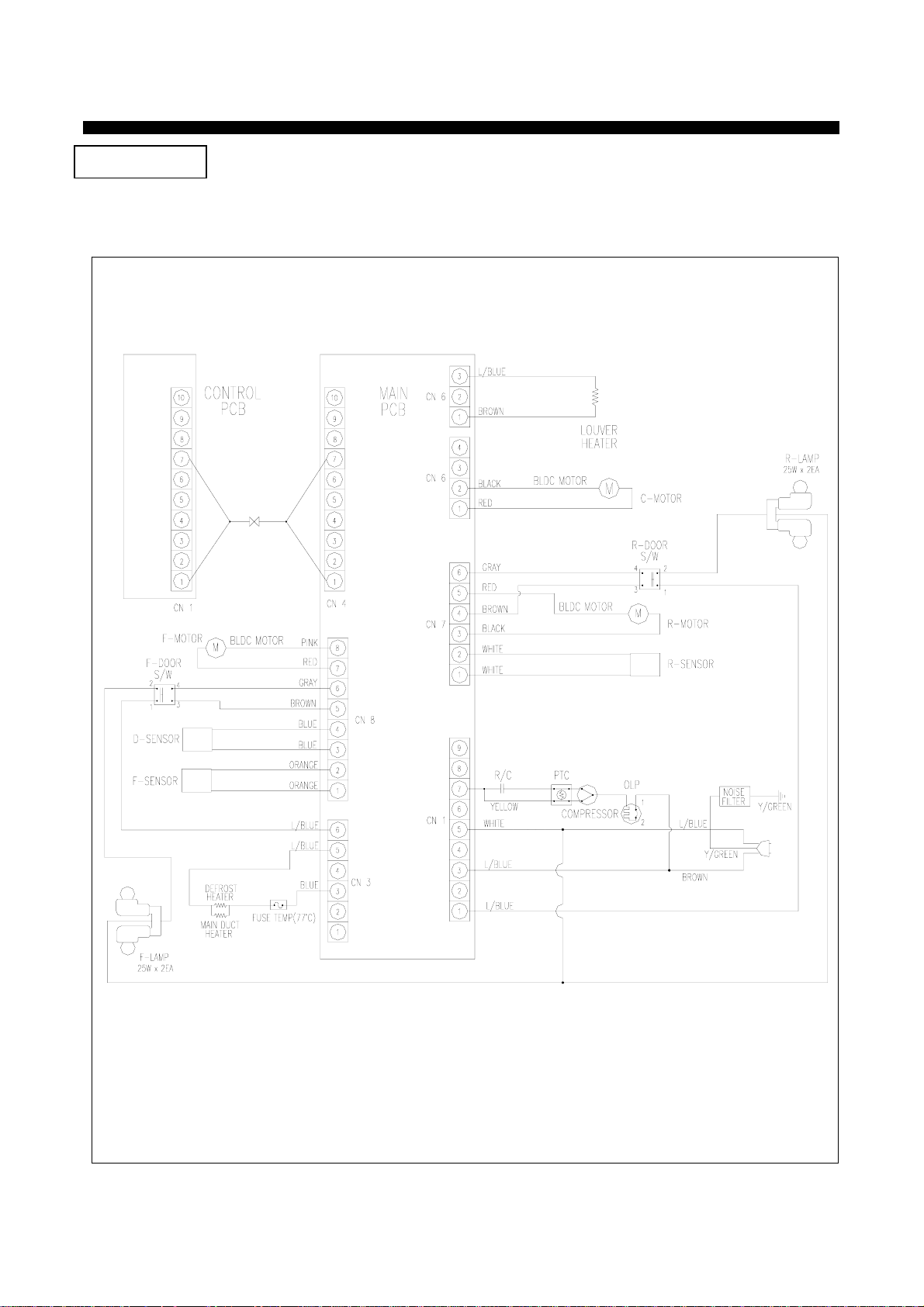

6-1. Wiring Diagram --------------------------------------------------37

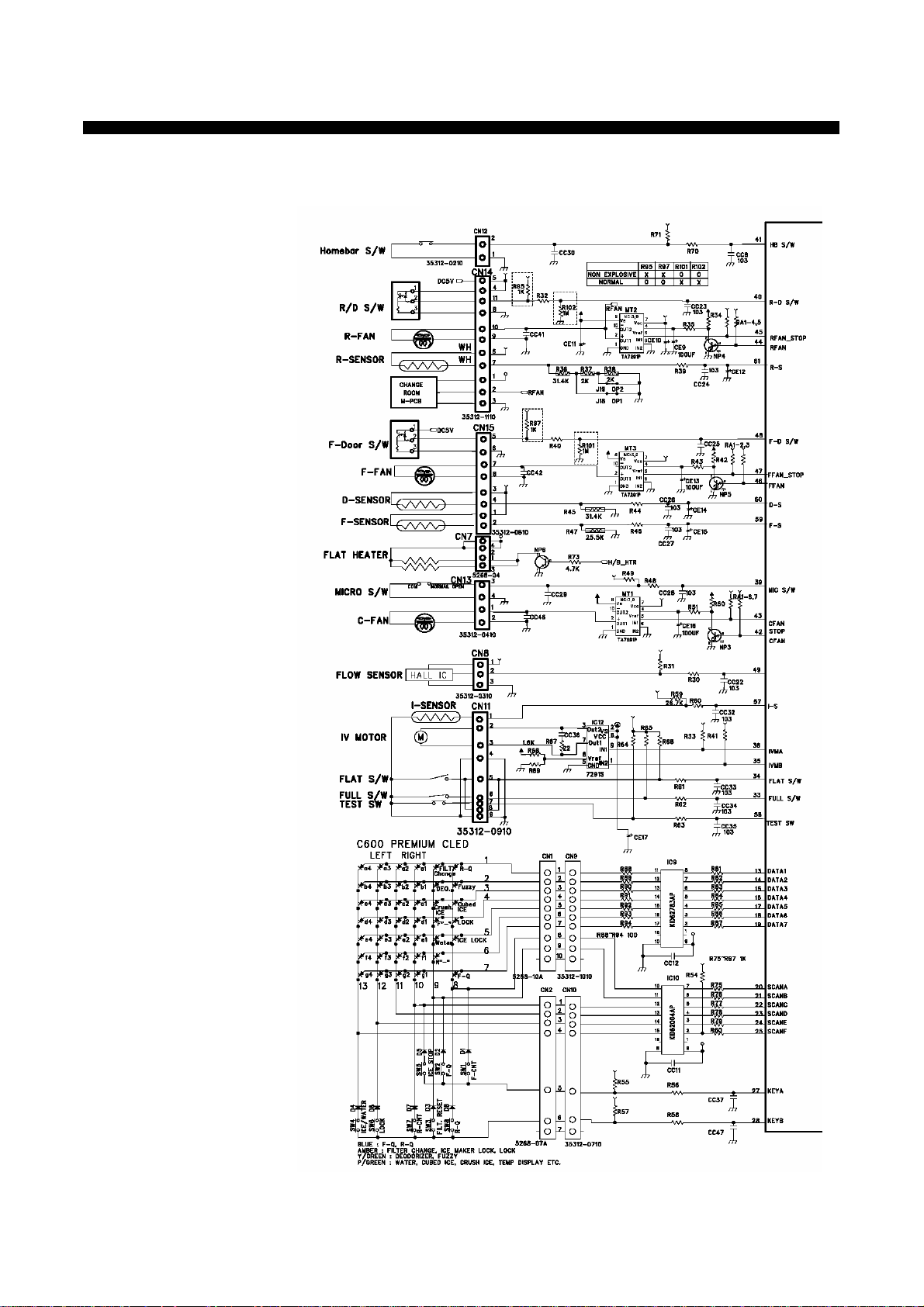

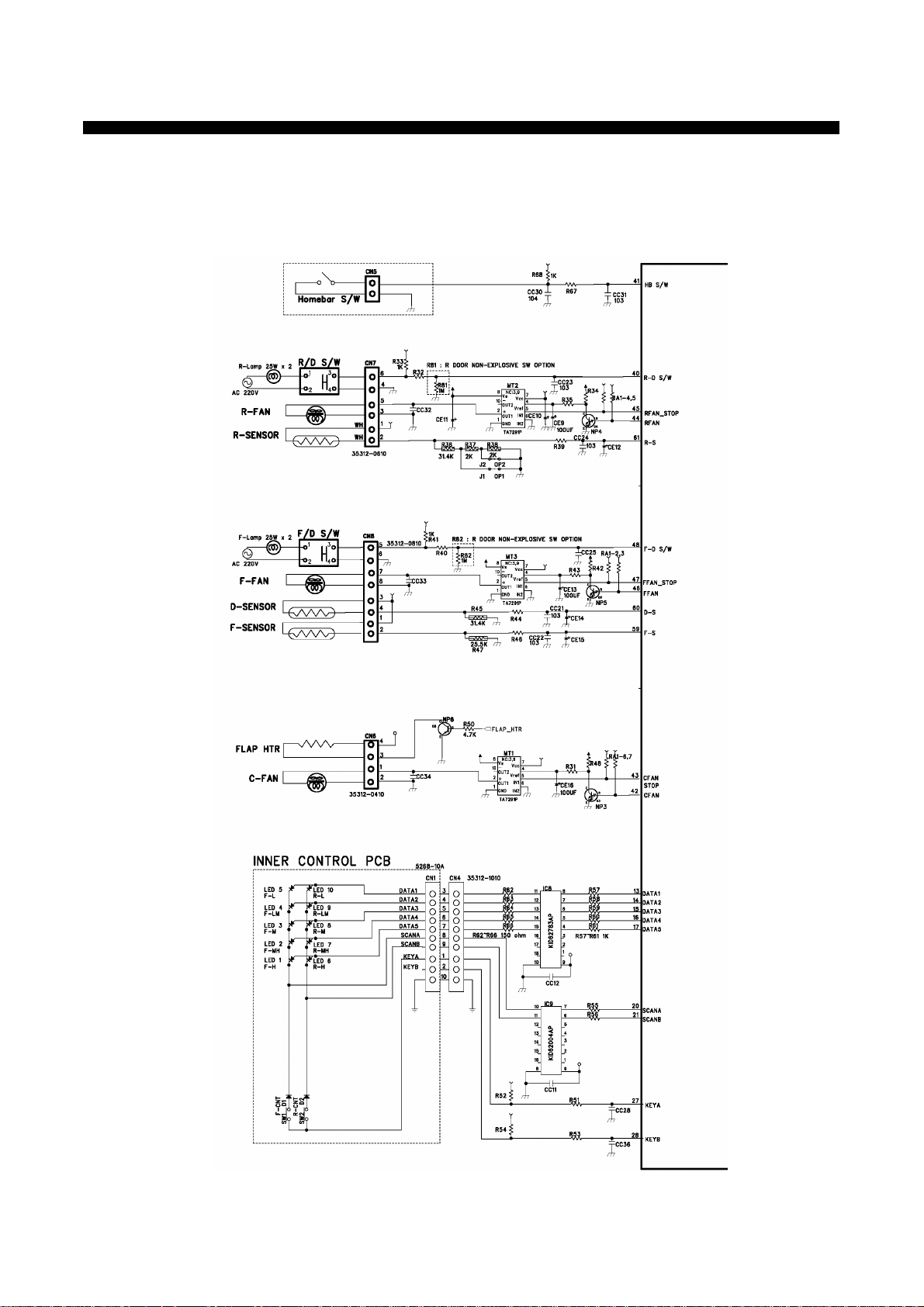

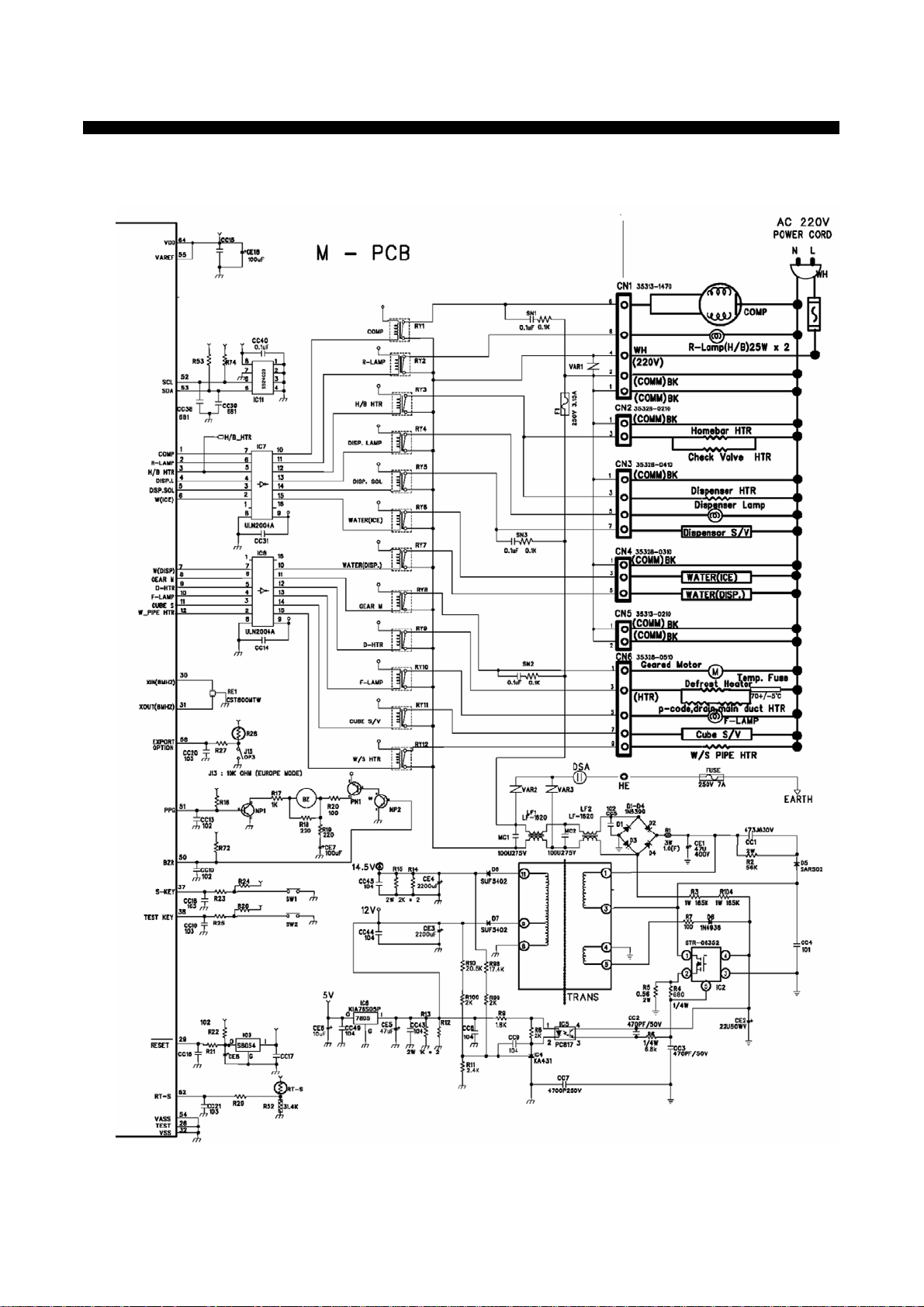

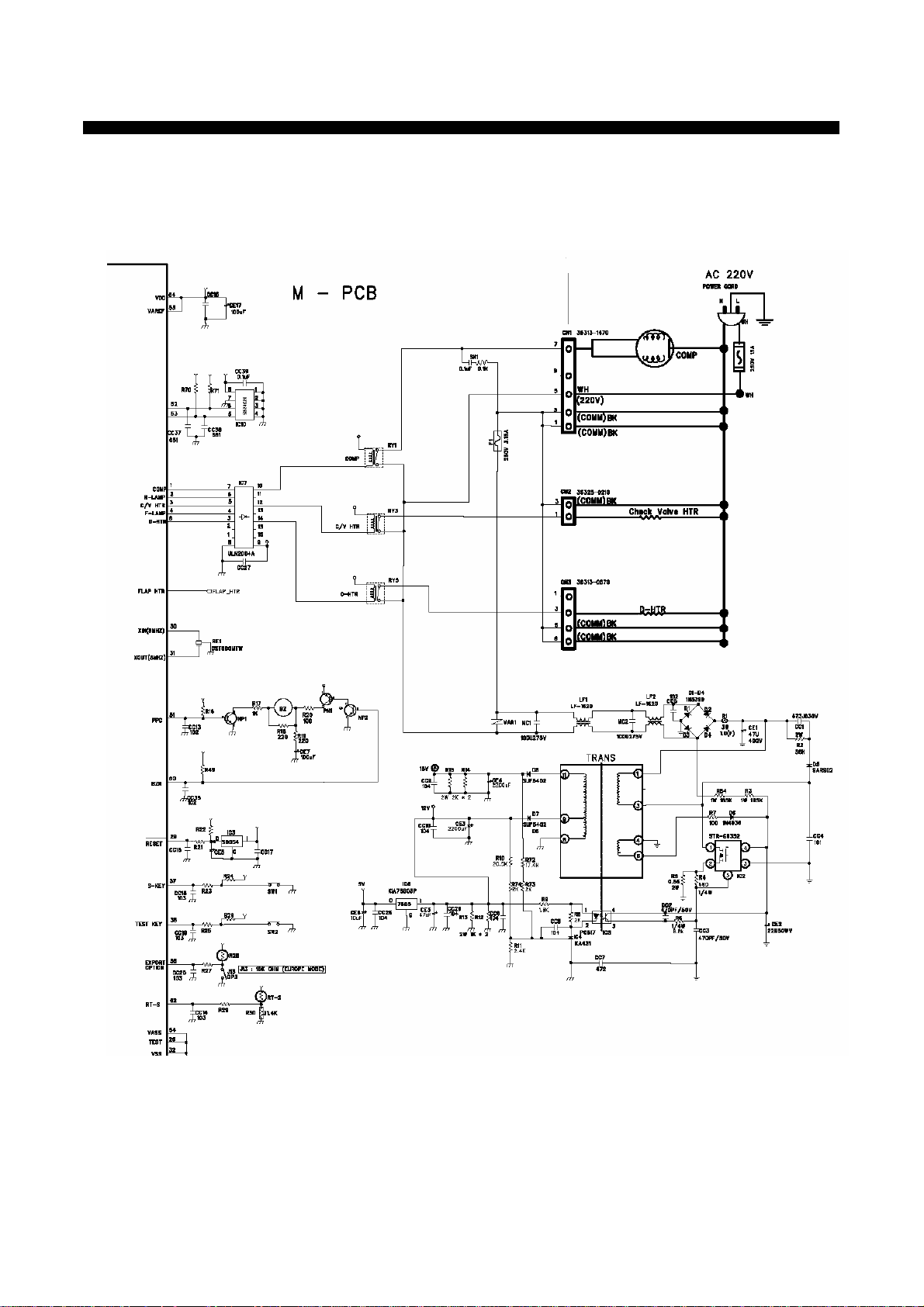

6-2. Circuit Diagram of Main PCB ---------------------------------------39

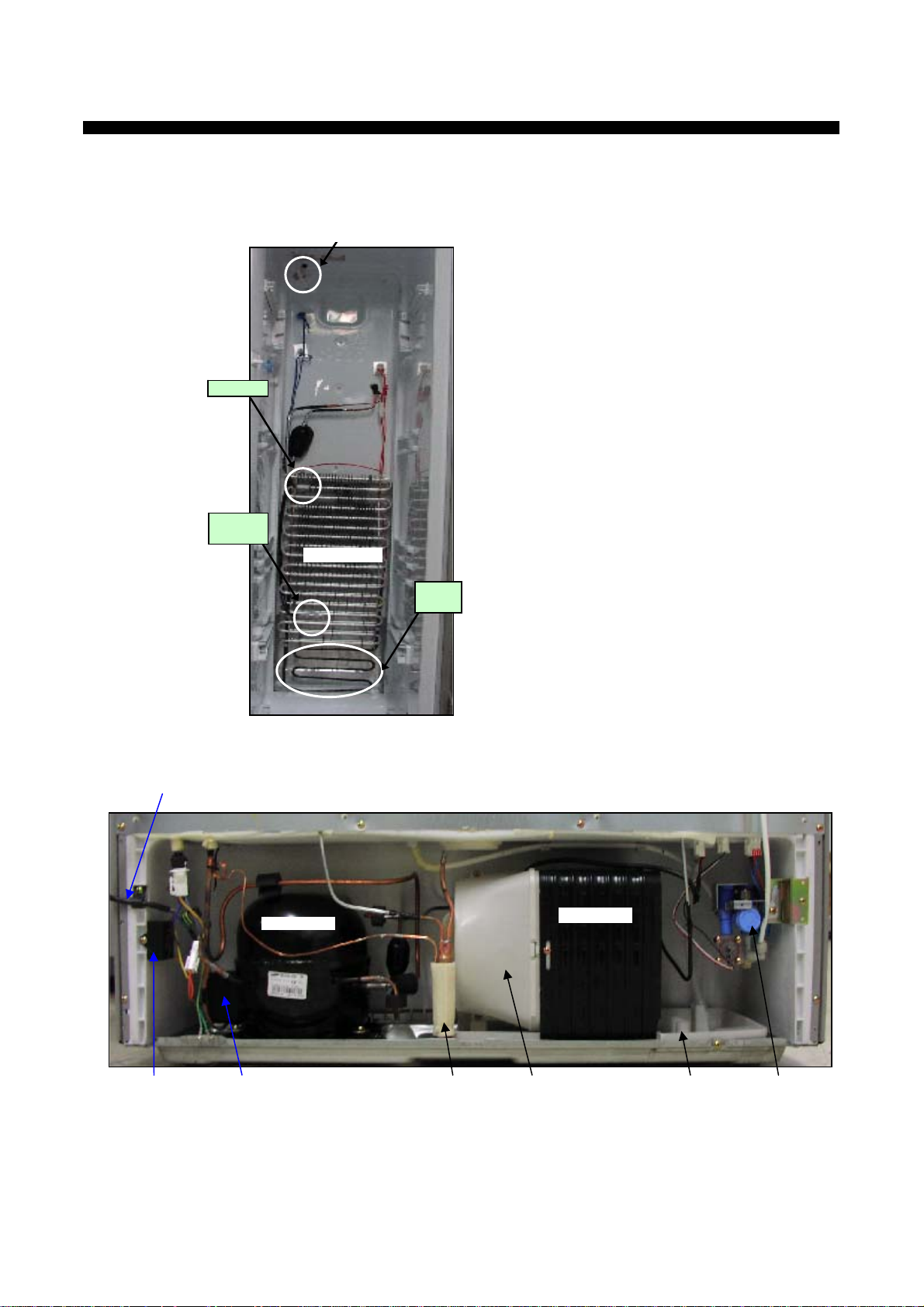

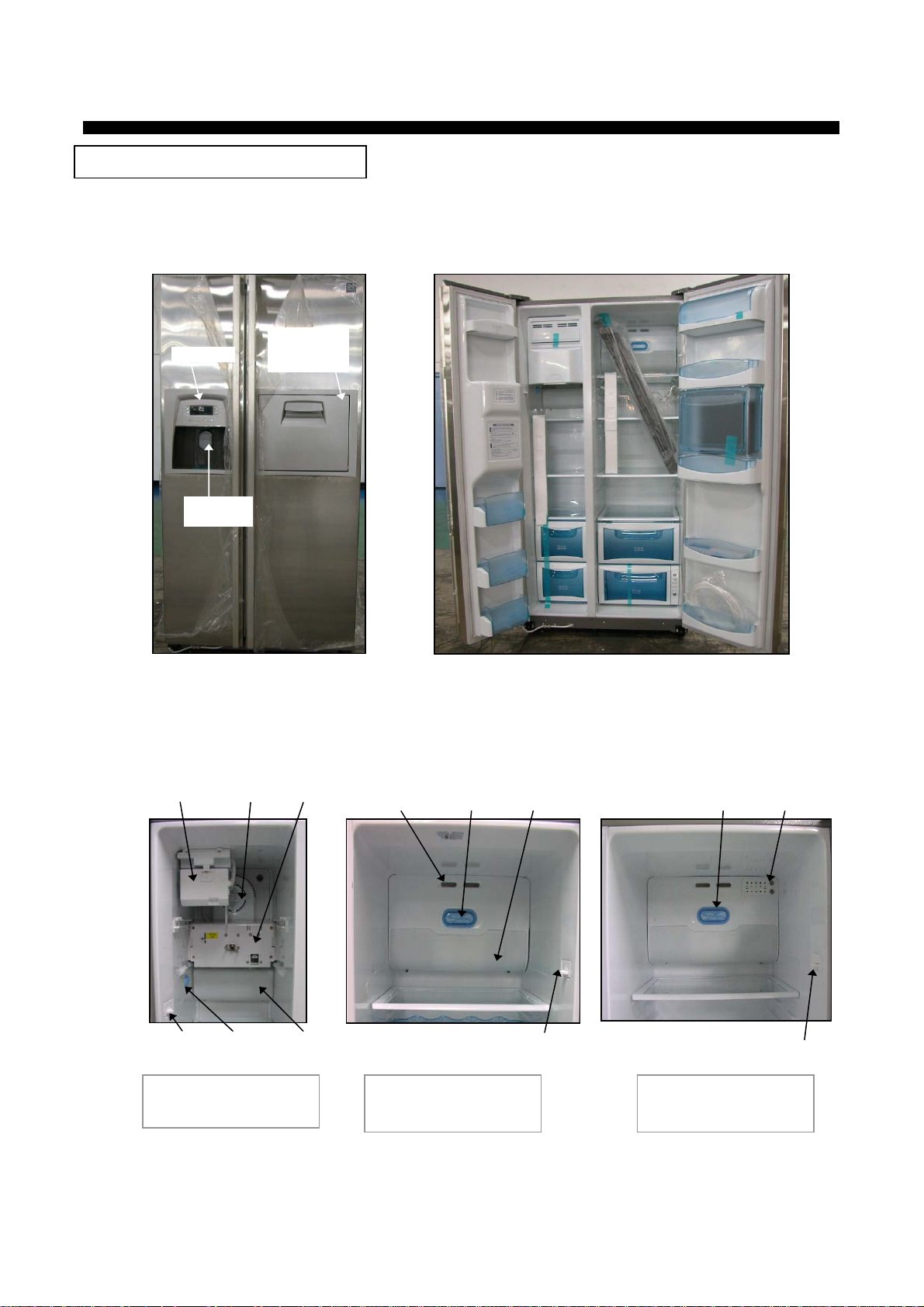

7. COMPONENT LOCATE VIEW -----------------------------------------43

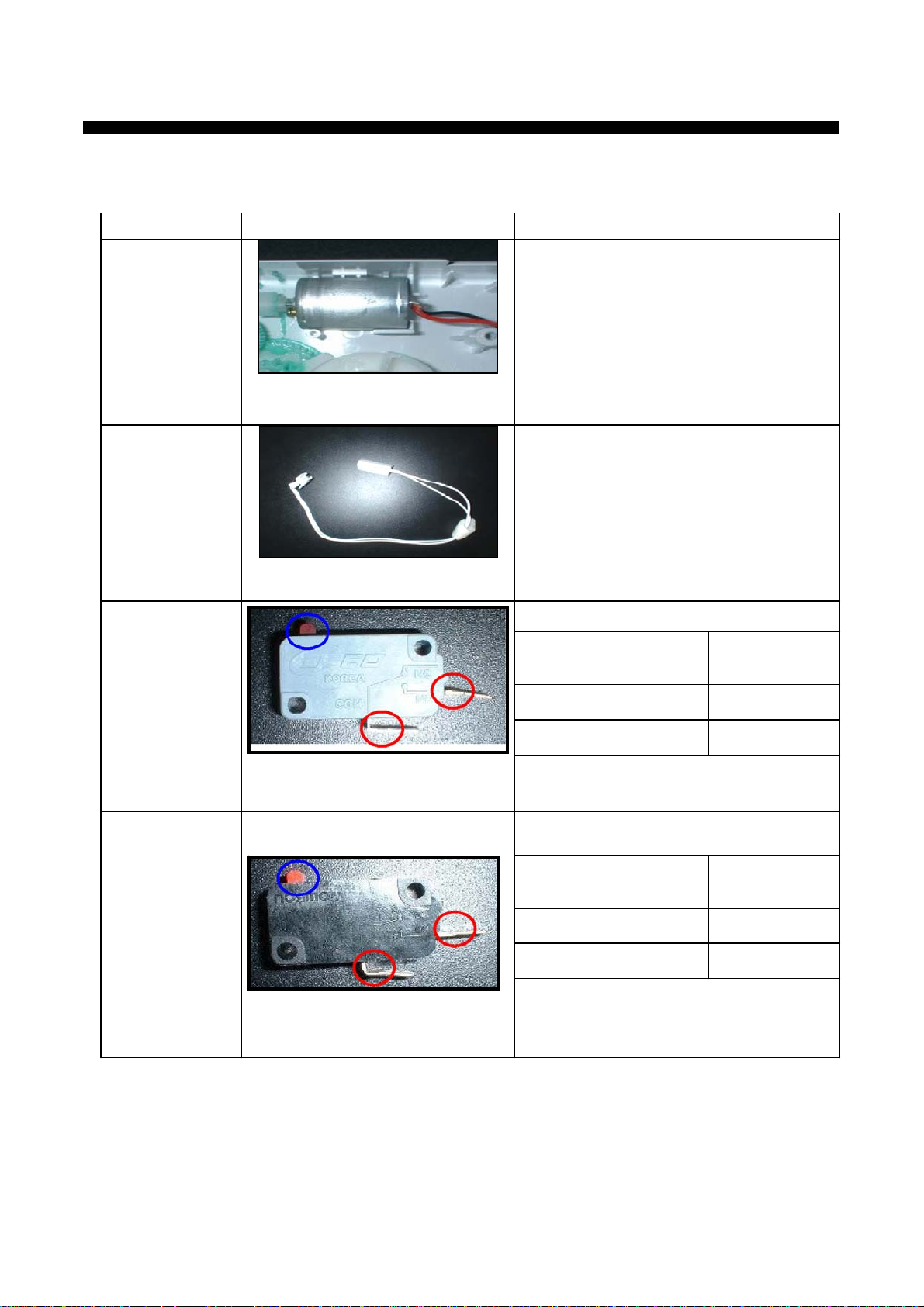

8. HOW TO CHECK EACH PARTS

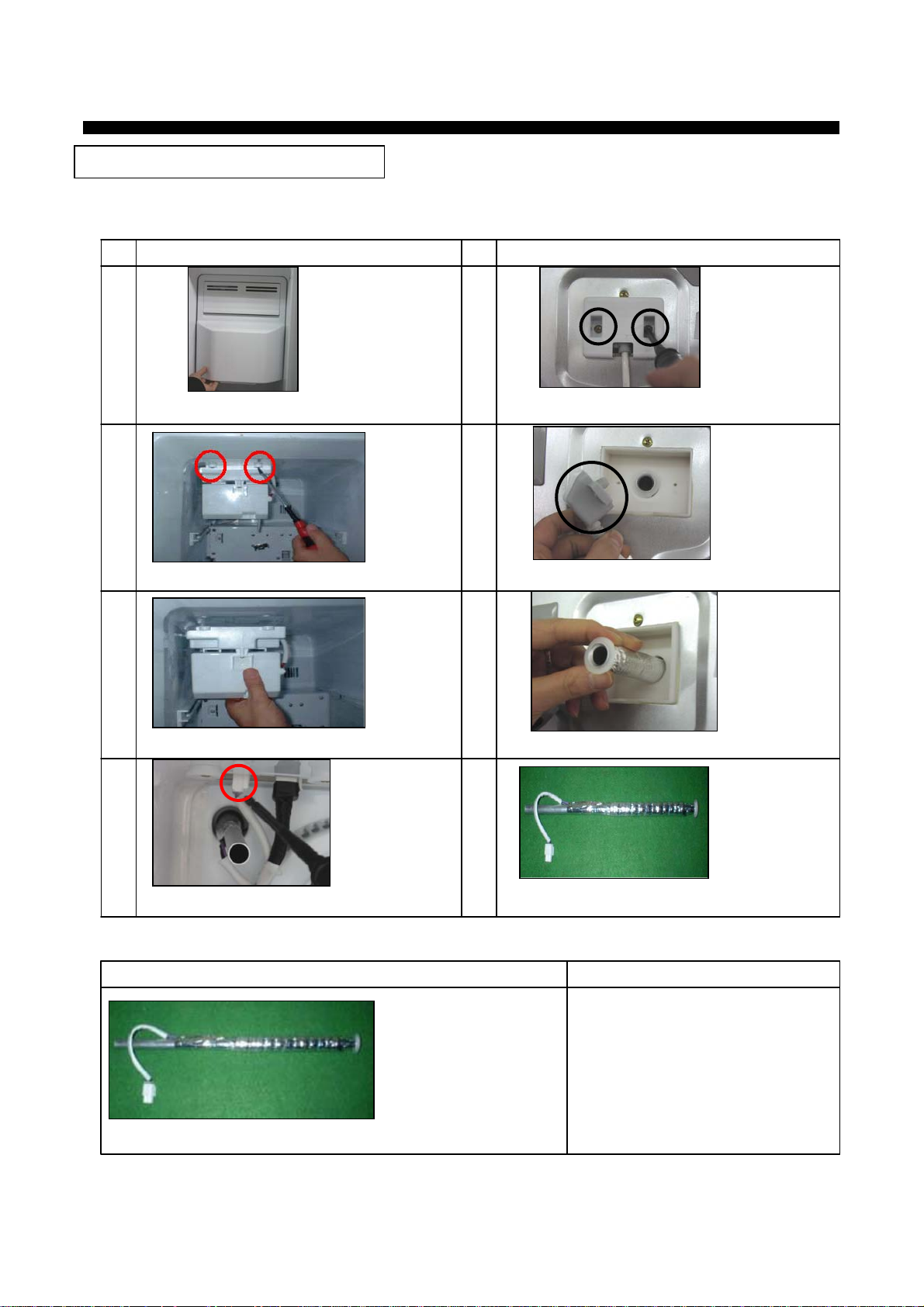

8-1. Hose Ice Maker Tube ---------------------------------------------45
8-2. Bracket Geared Motor ---------------------------------------------46

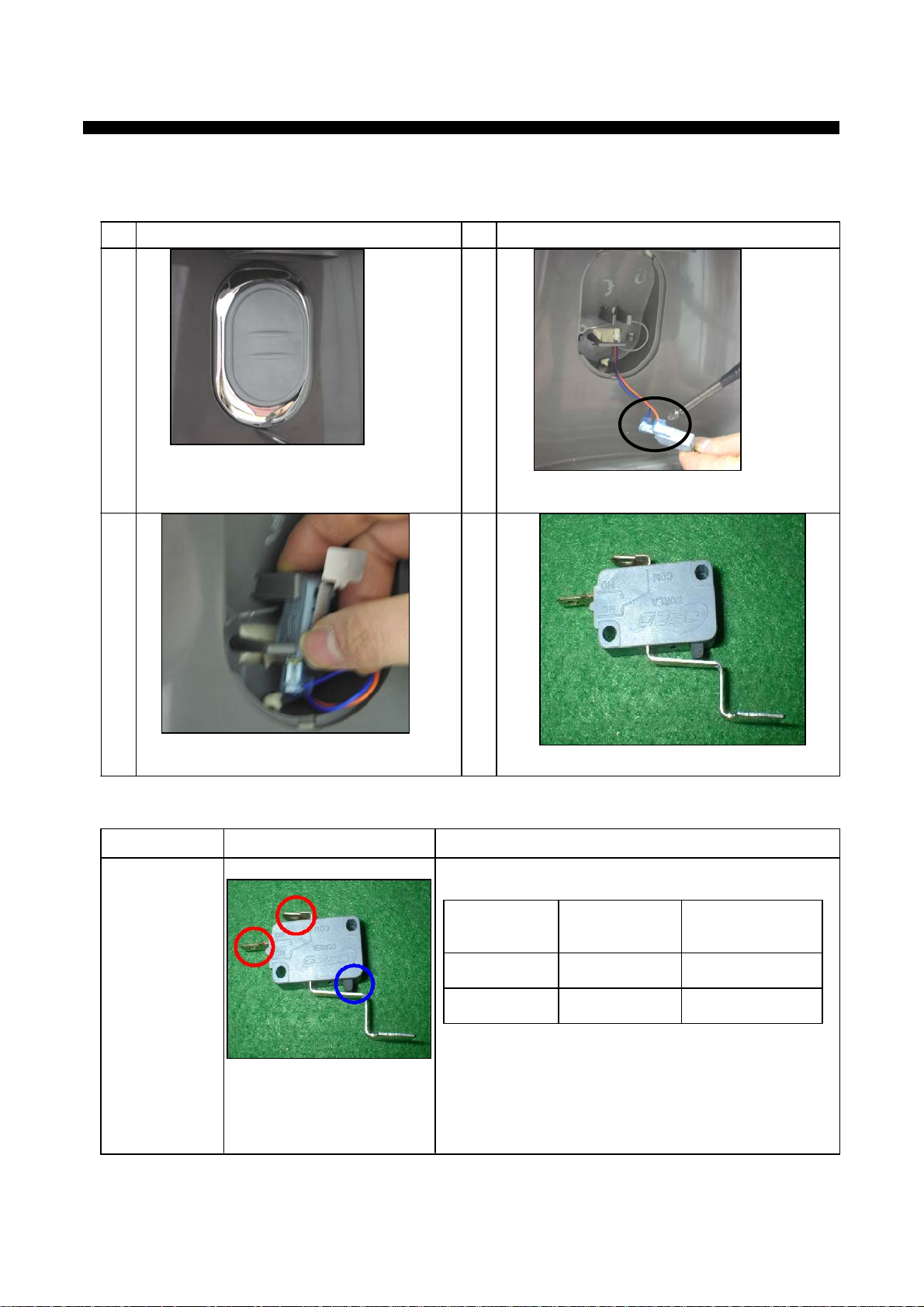

8-3. Dispenser Micro Switch --------------------------------------------47
8-4. Dispenser Solenoid Valve ------------------------------------------48

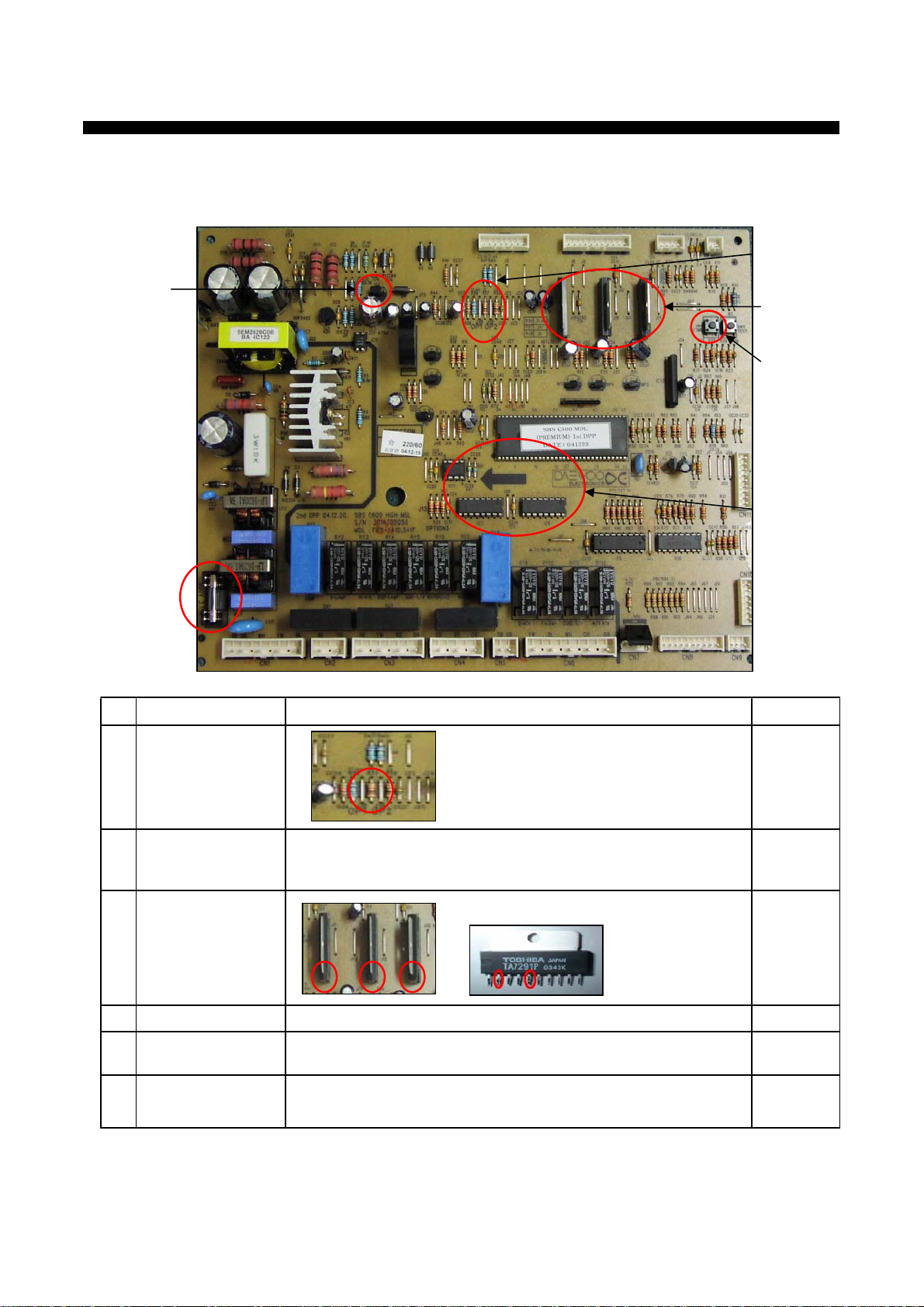

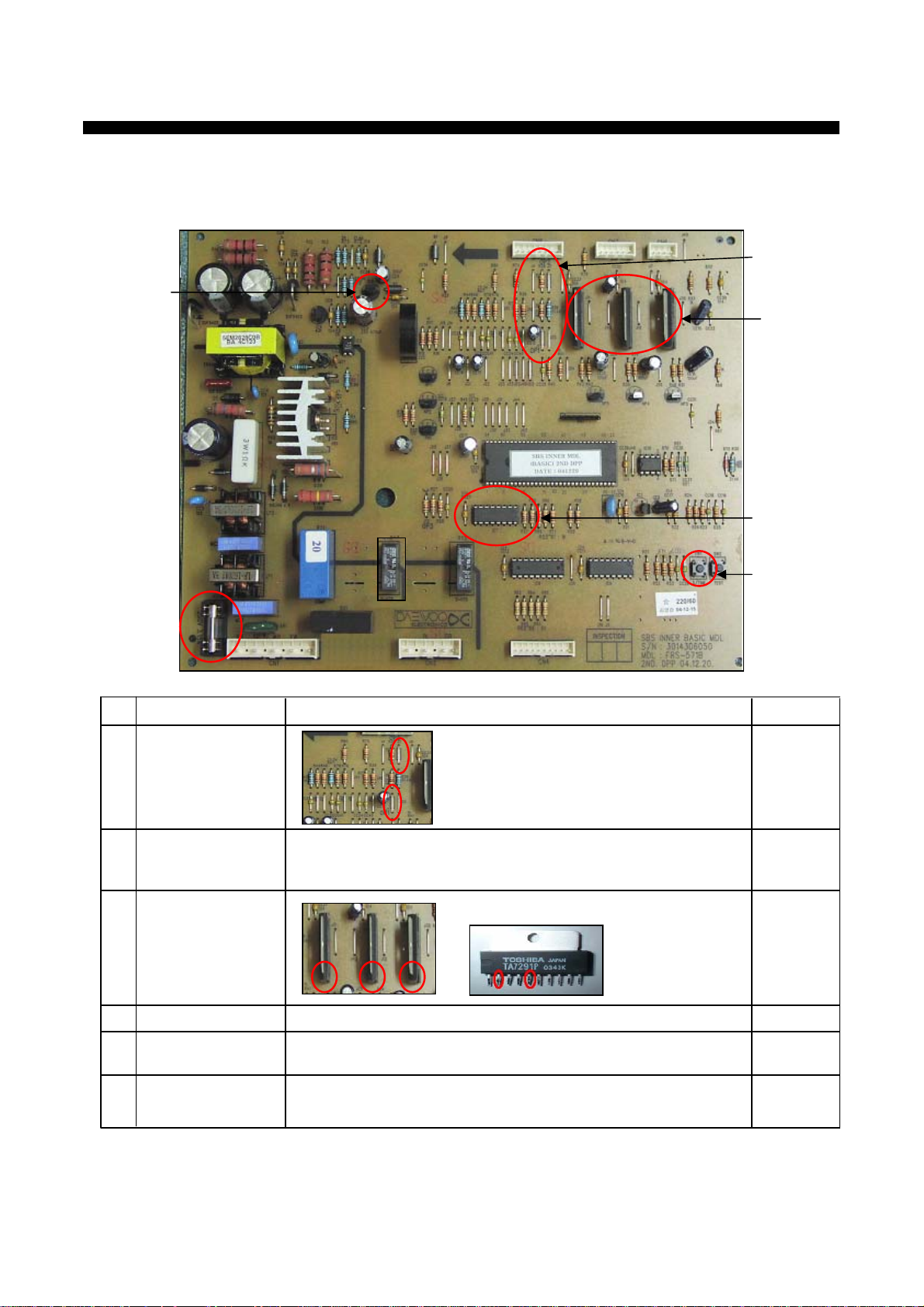

8-5. Main PCB ------------------------------------------------------49

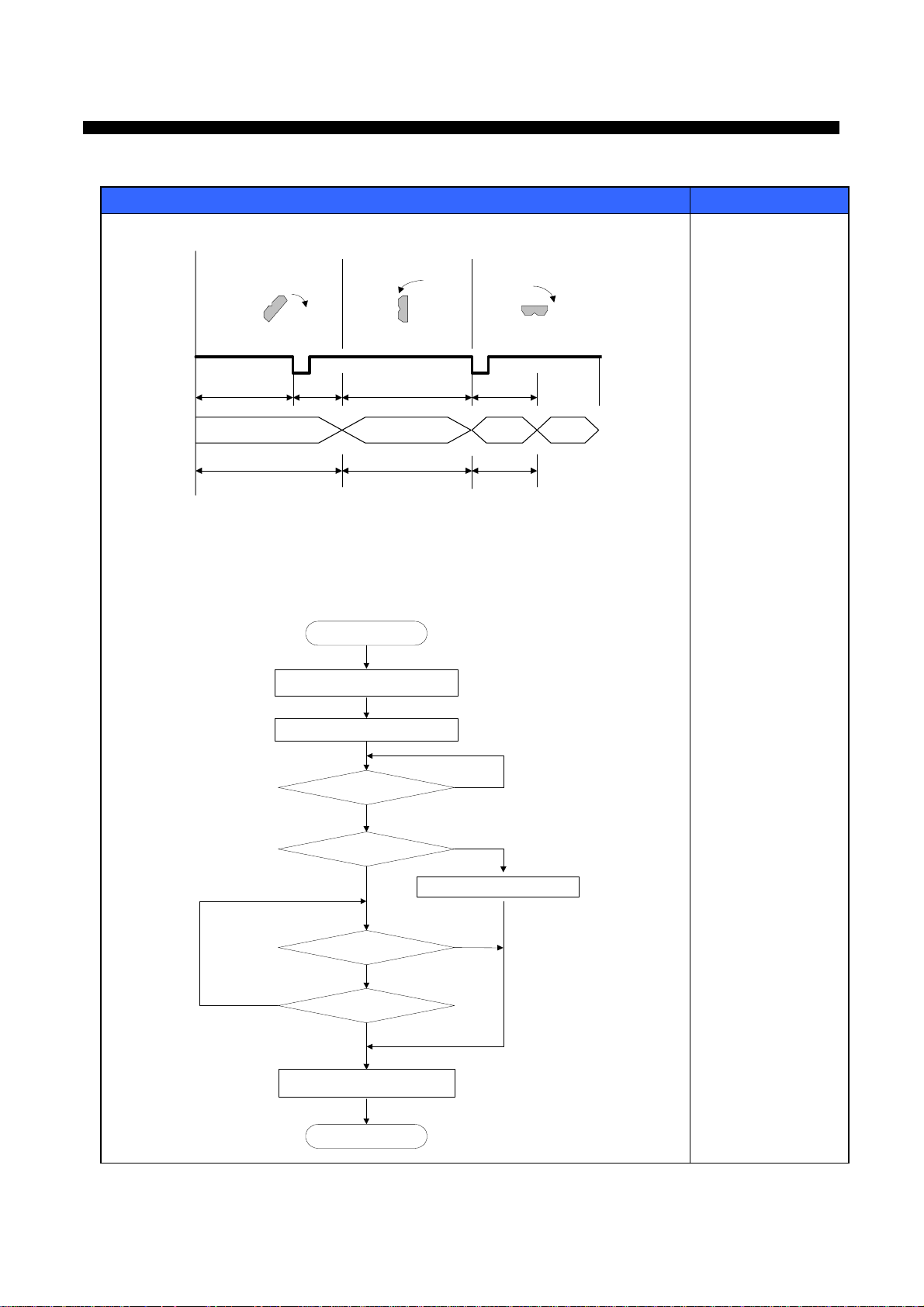

8-6. Ice Maker ------------------------------------------------------51

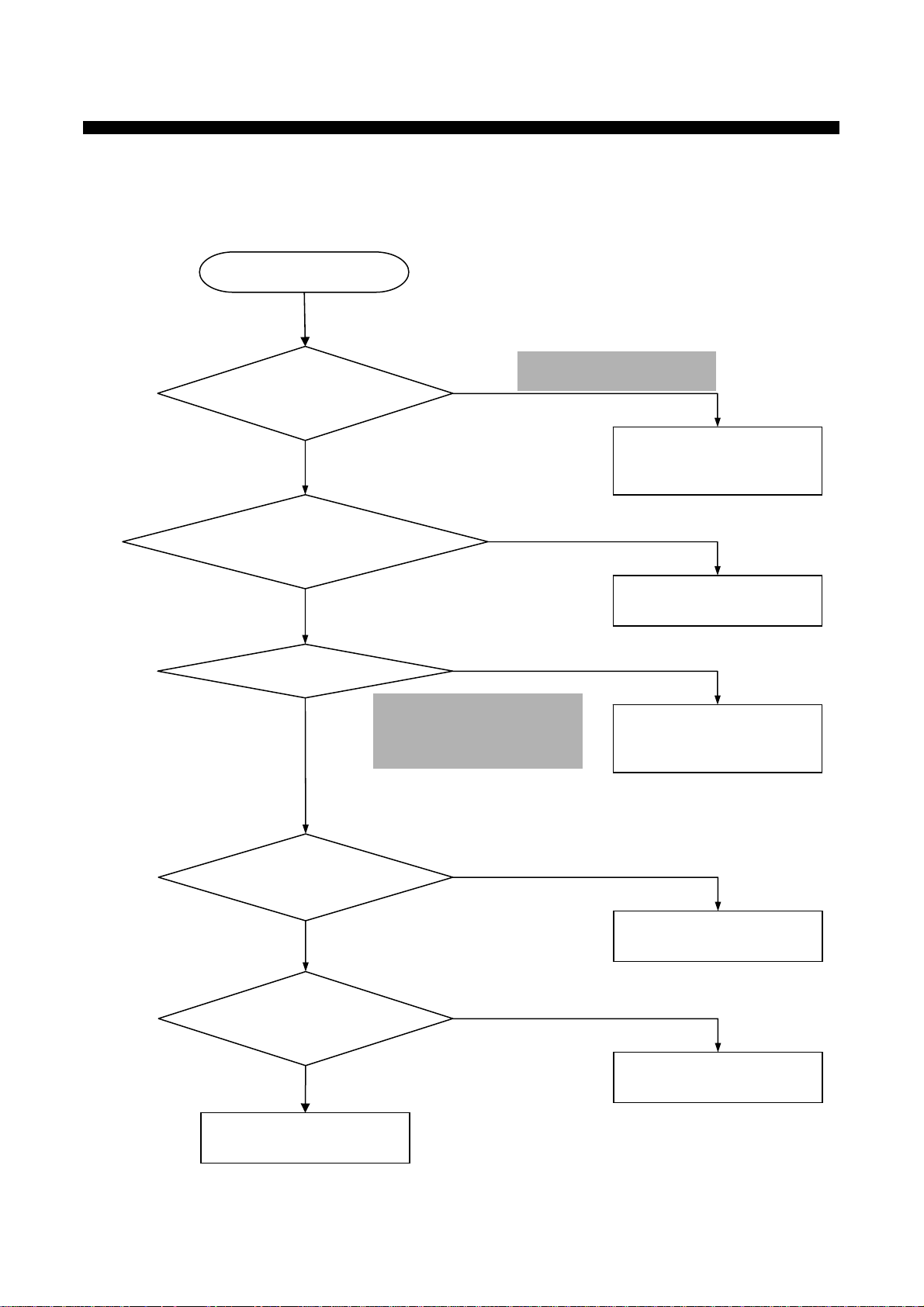

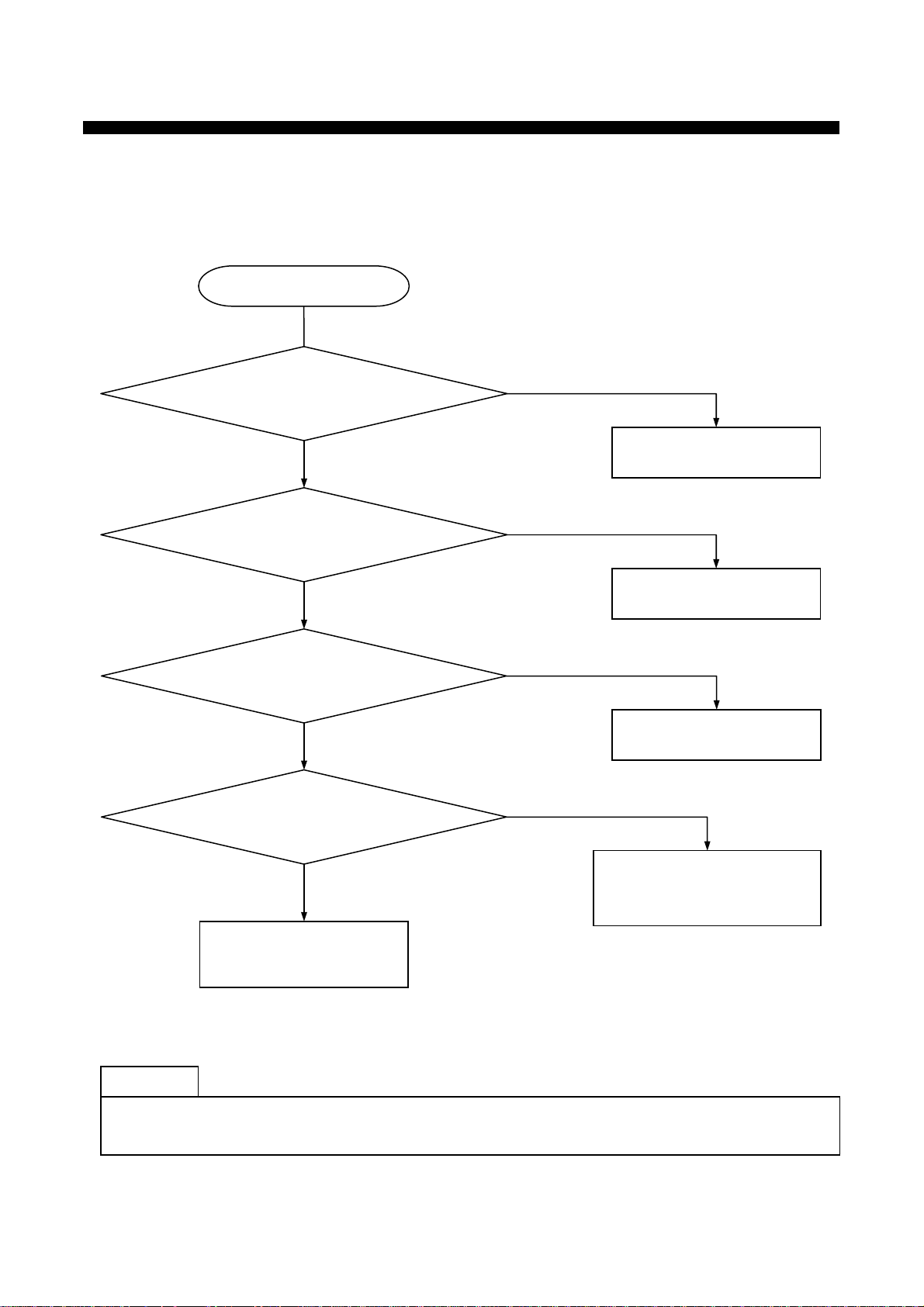

9. TROUBLE DIAGNOSIS

9-1. Power Failure ----------------------------------------------------53
9-2. Freezer Compartment ---------------------------------------------54
9-3. Refrigerator Compartment ------------------------------------------60
9-4. Operation Noise of Refrigerator --------------------------------------65
9-5. Door -----------------------------------------------------------71

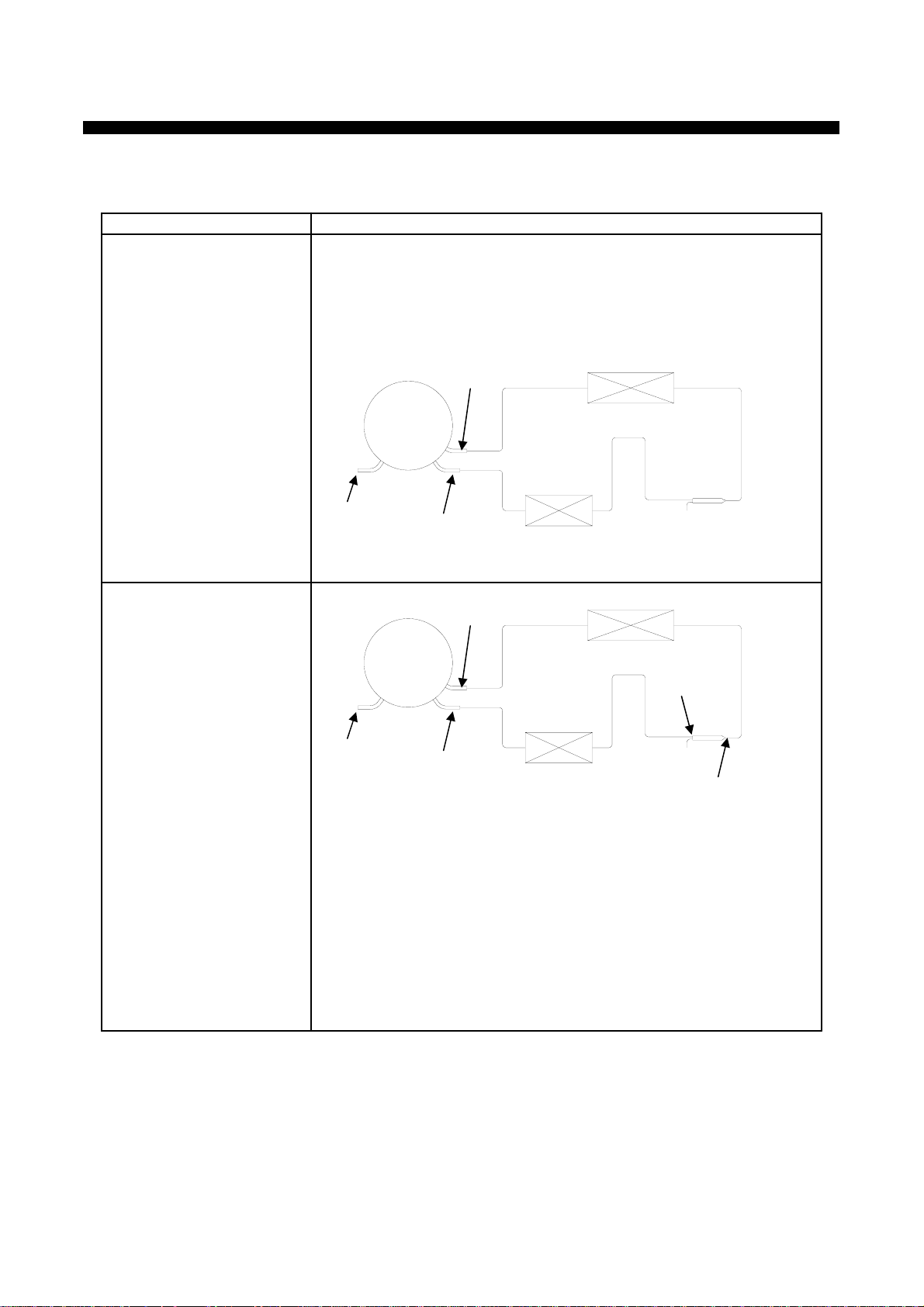

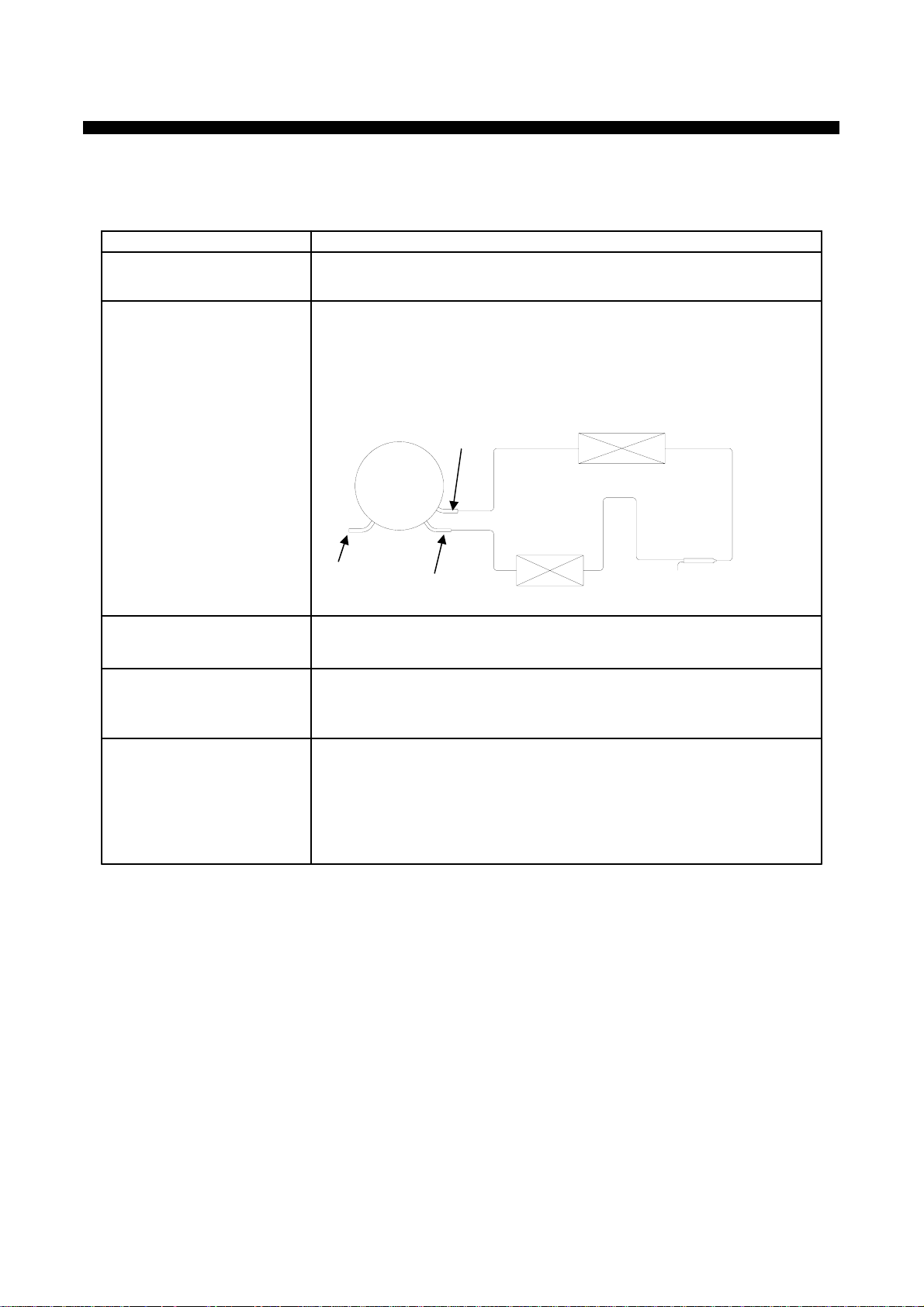

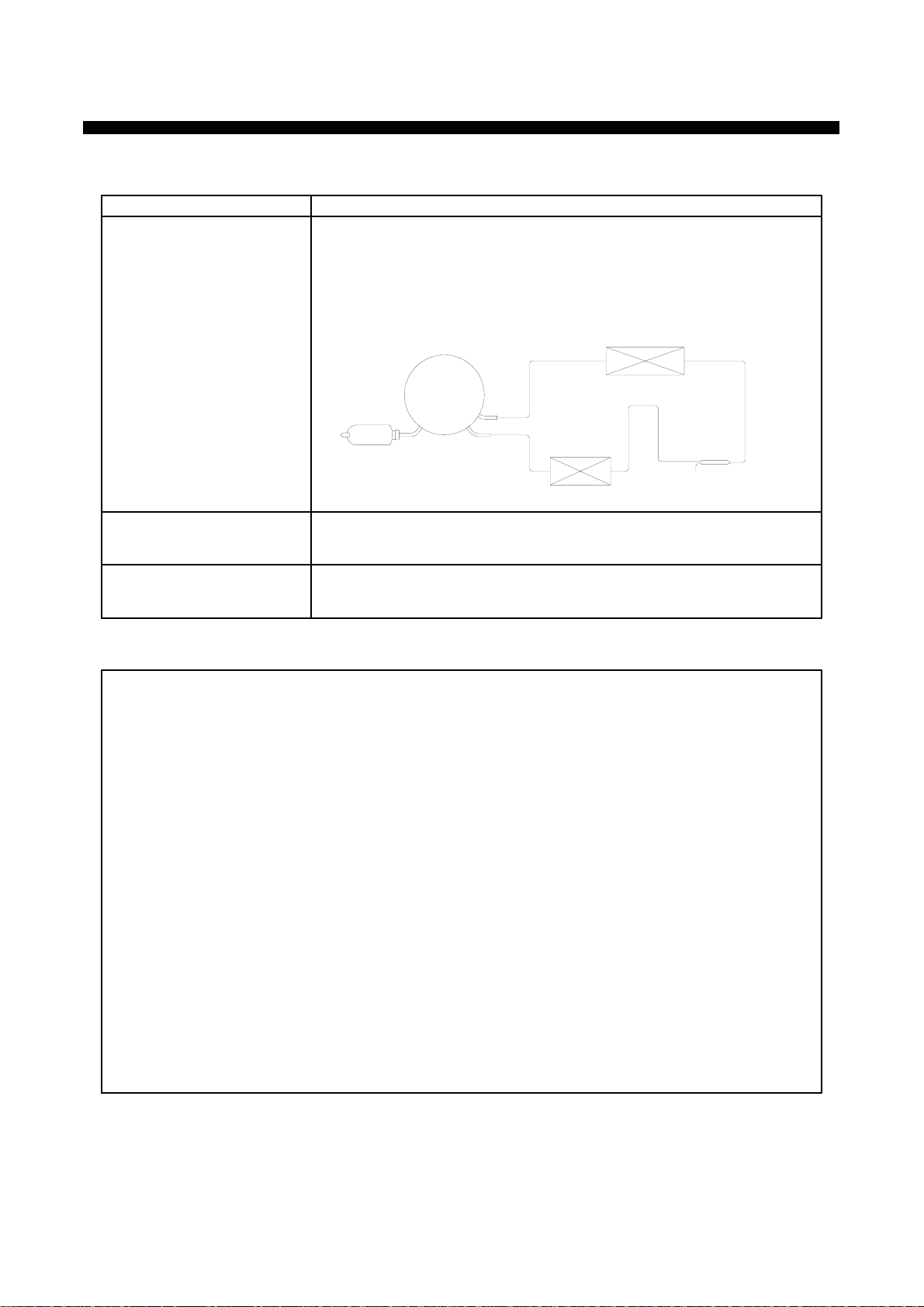

10. COOLING CYCLE HEAVY REPAIR

10-1. Summary of Heavy Repair ------------------------------------------72
10-2. Precaution during Heavy Repair --------------------------------------73

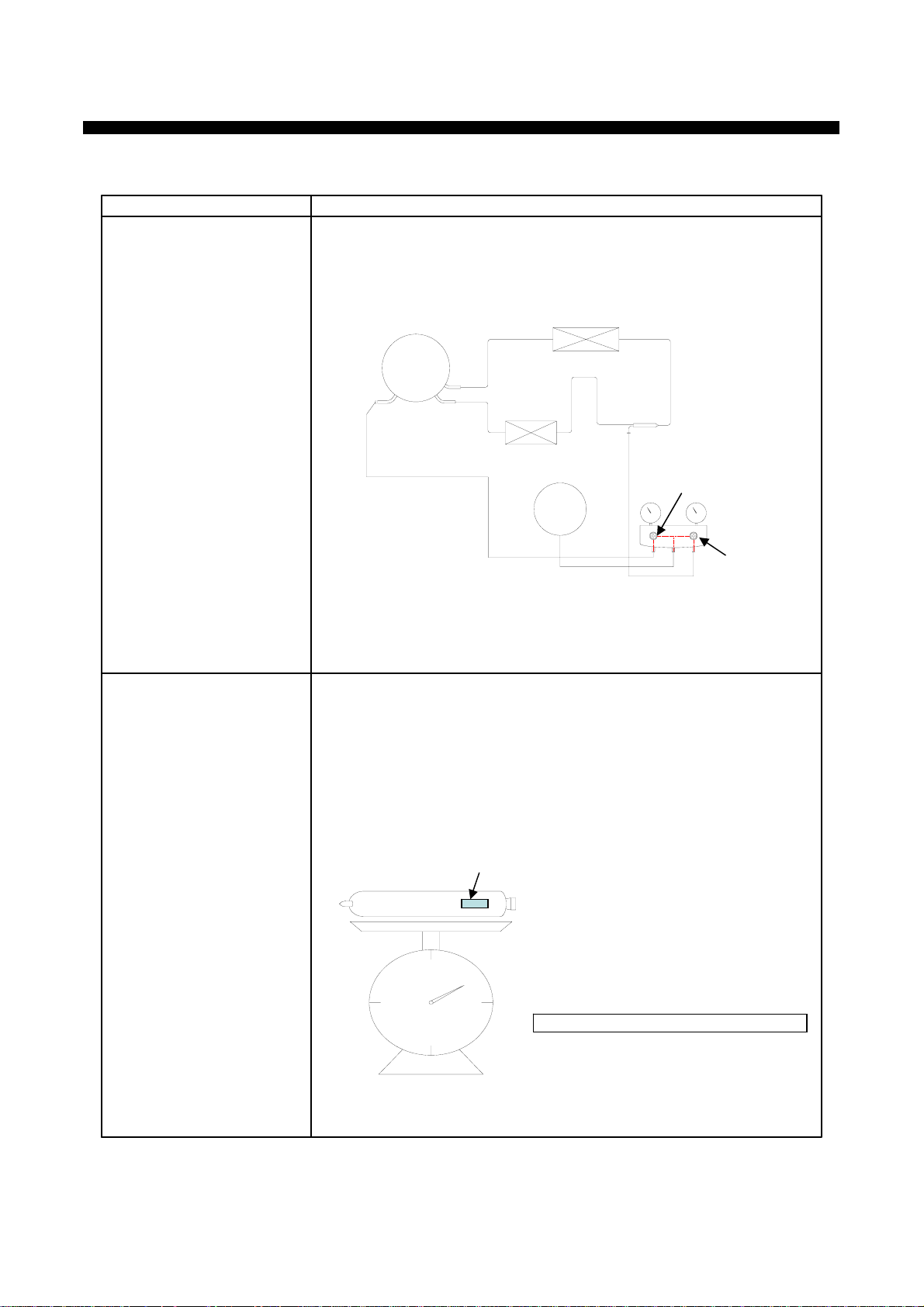

10-3. Practical Work for Heavy Repair --------------------------------------74
10-4. Standard Regulations for Heavy Repair --------------------------------76
10-5. Brazing Reference Drawing -----------------------------------------77

11. INSTALLATION GUIDE

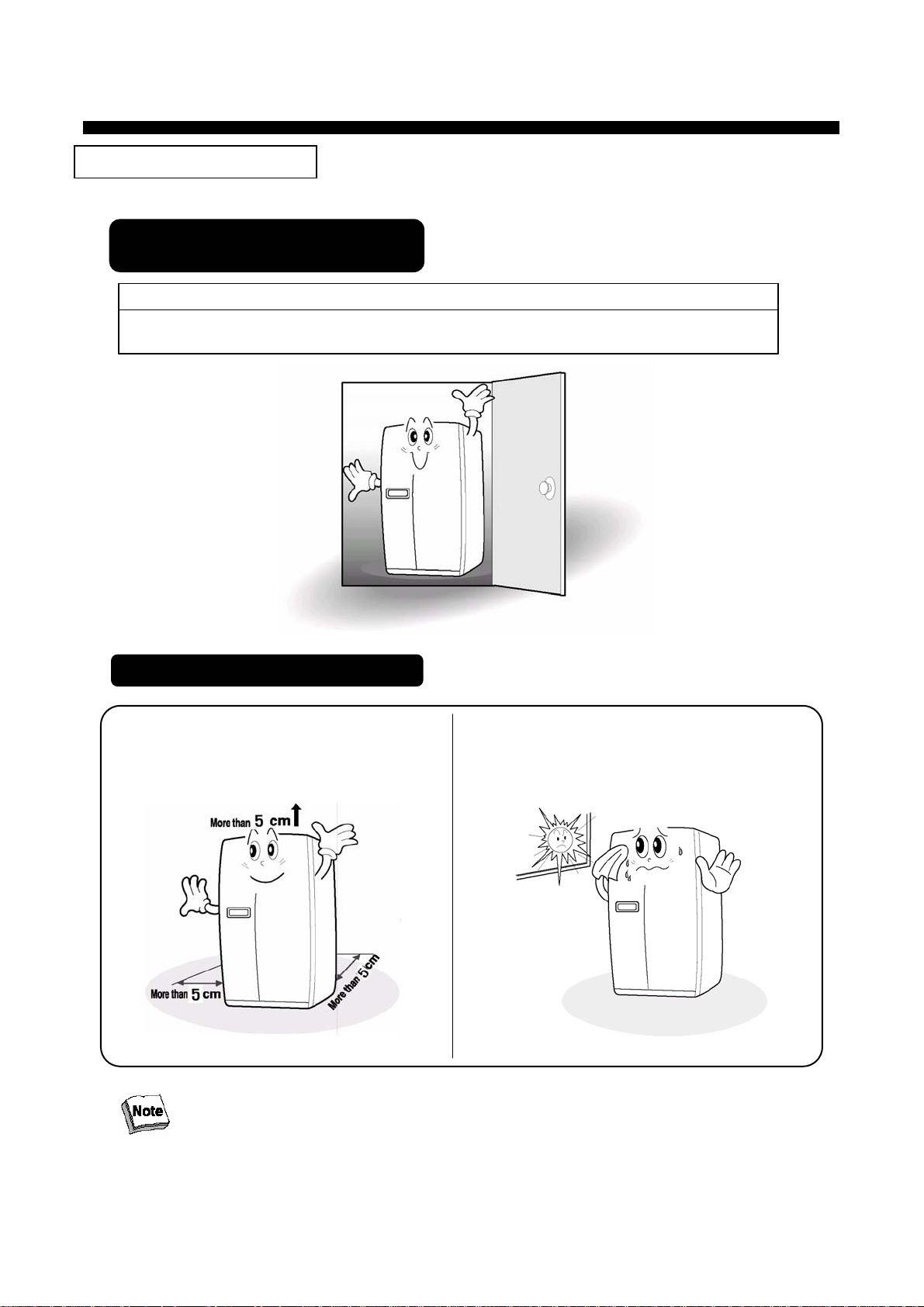

11-1. Installation Preparation -------------------------------------------- 78

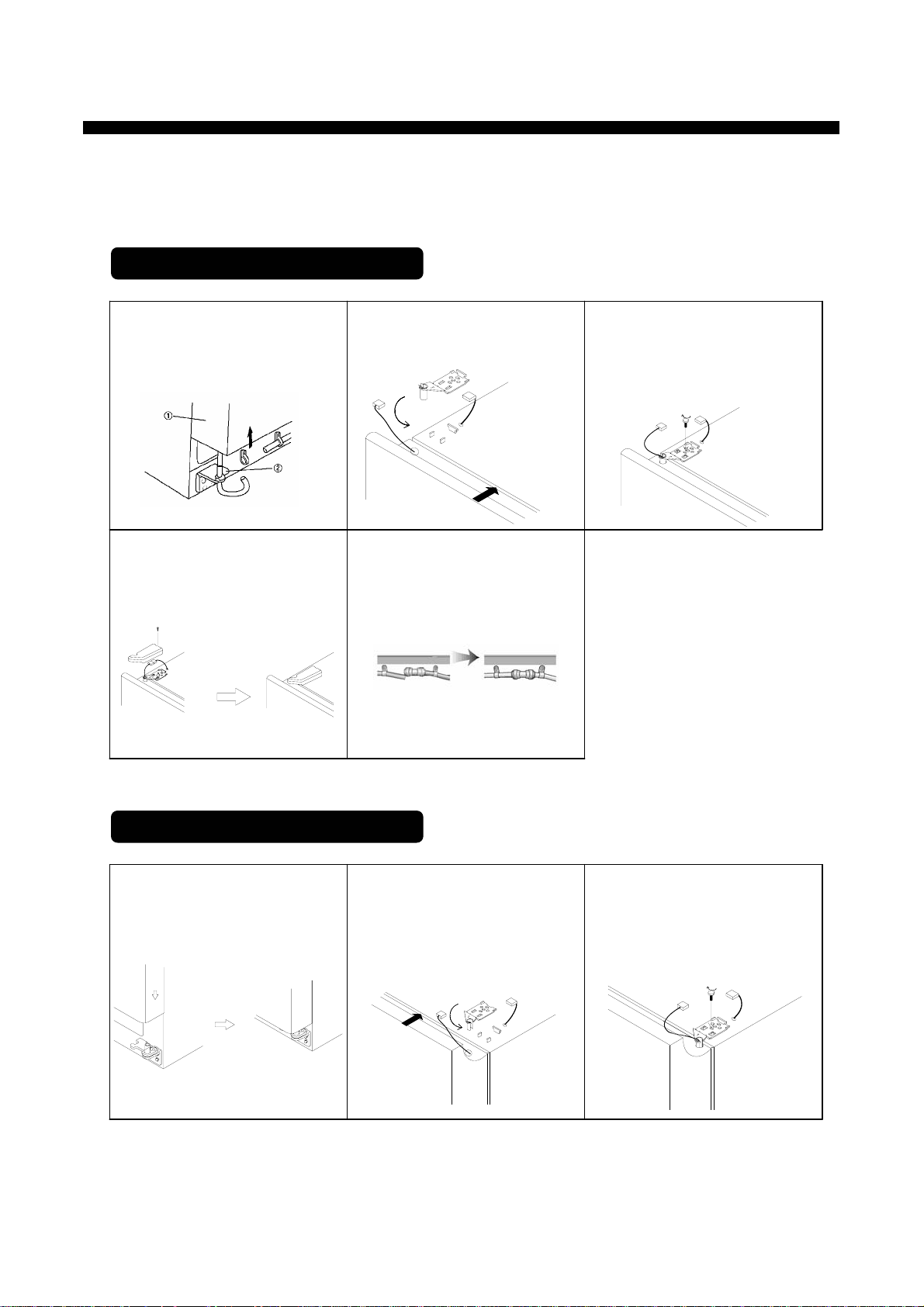

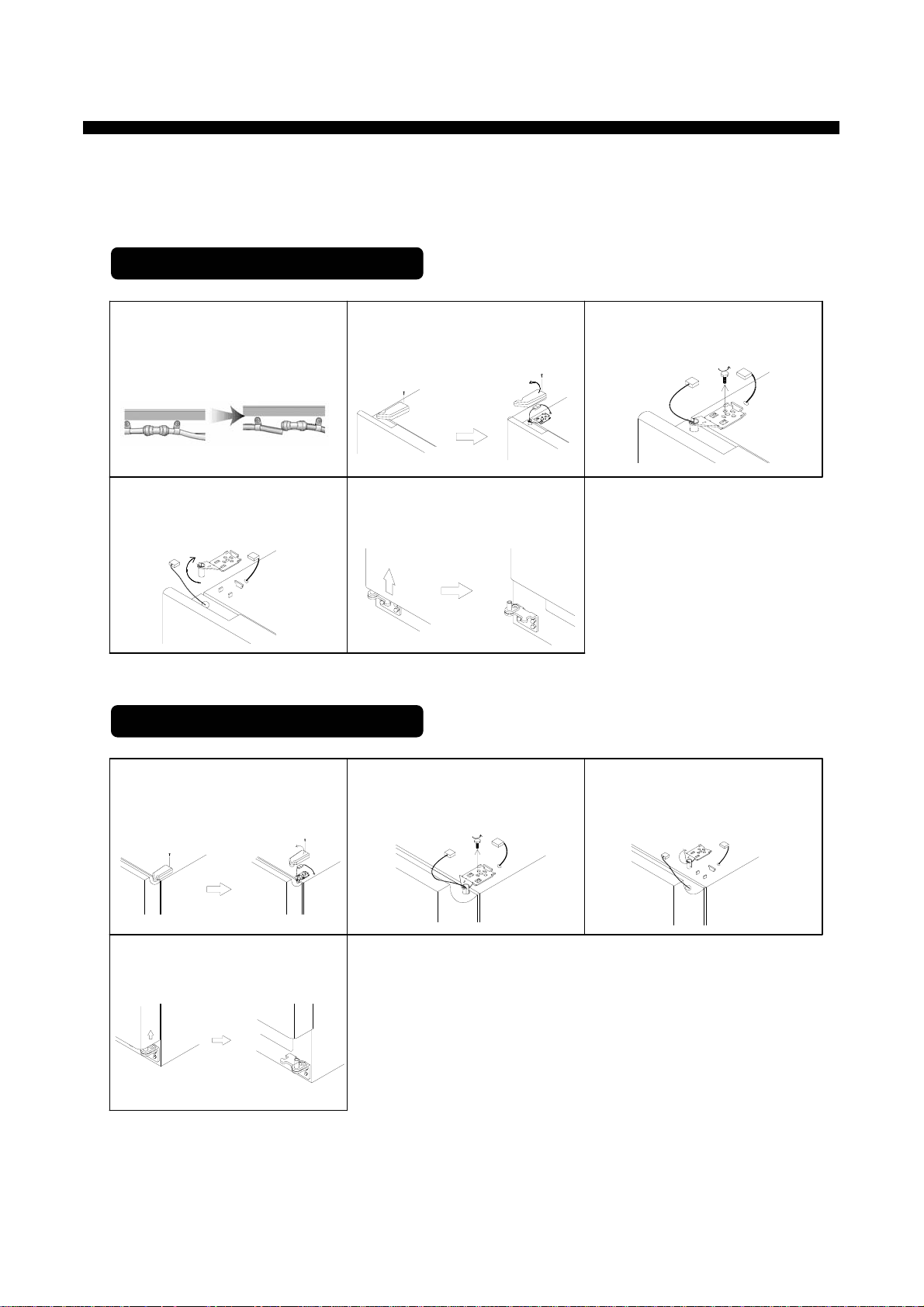

11-2. If the Refrigerator can not enter the Door ------------------------------ 79
11-3. Refrigerator Leveling & Door Adjustment -------------------------------80

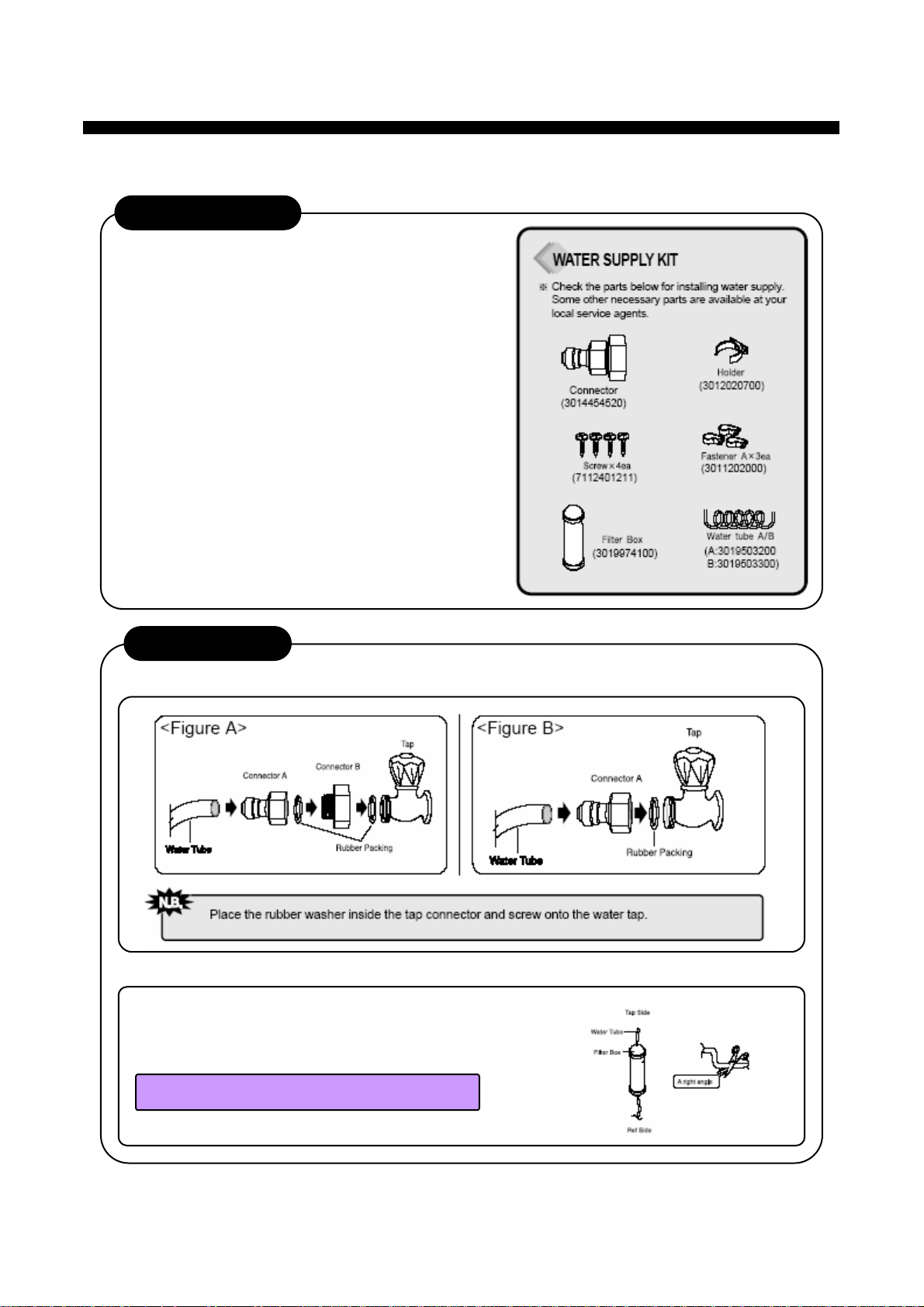

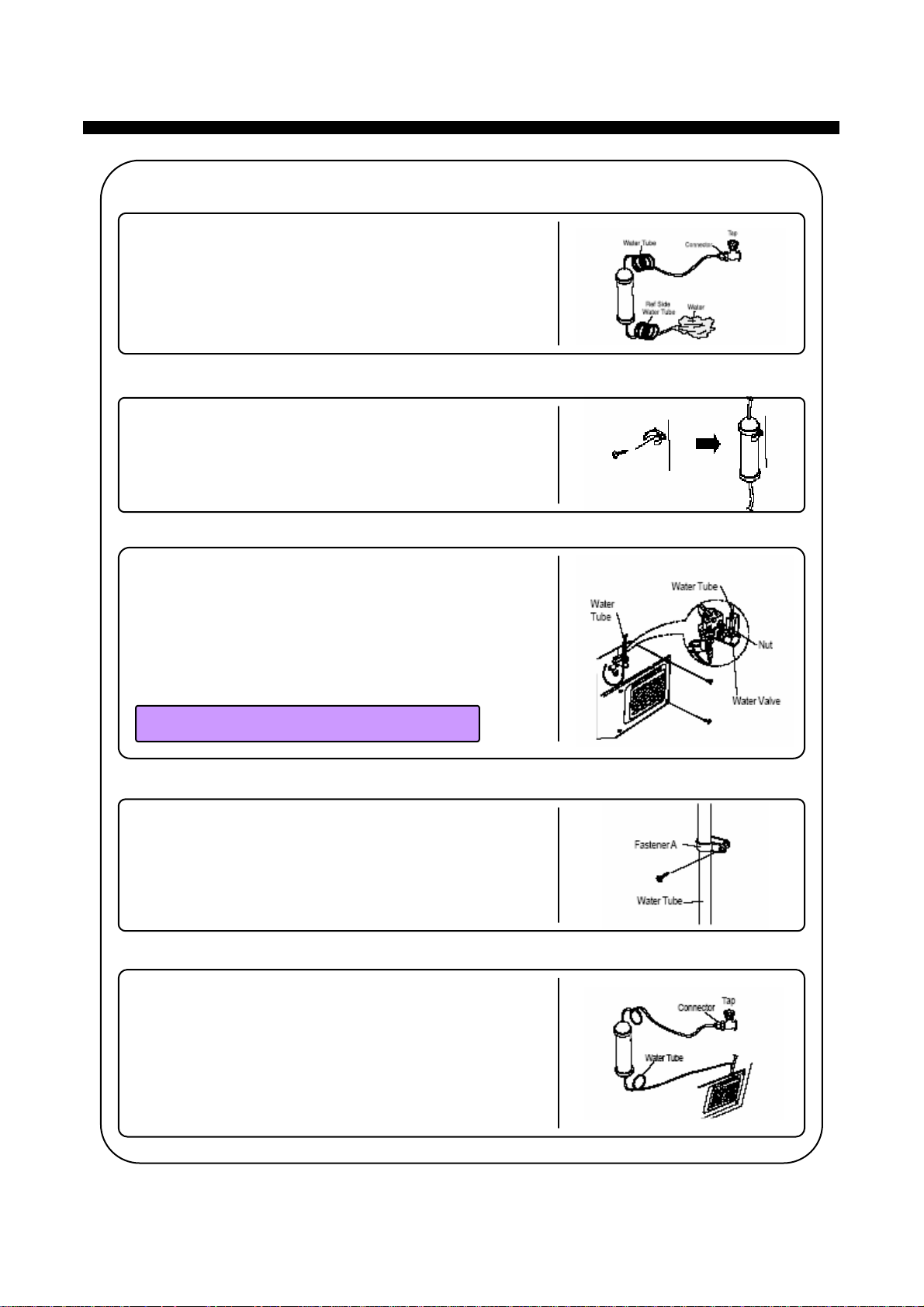

11-4. Water Line Installation --------------------------------------------- 82

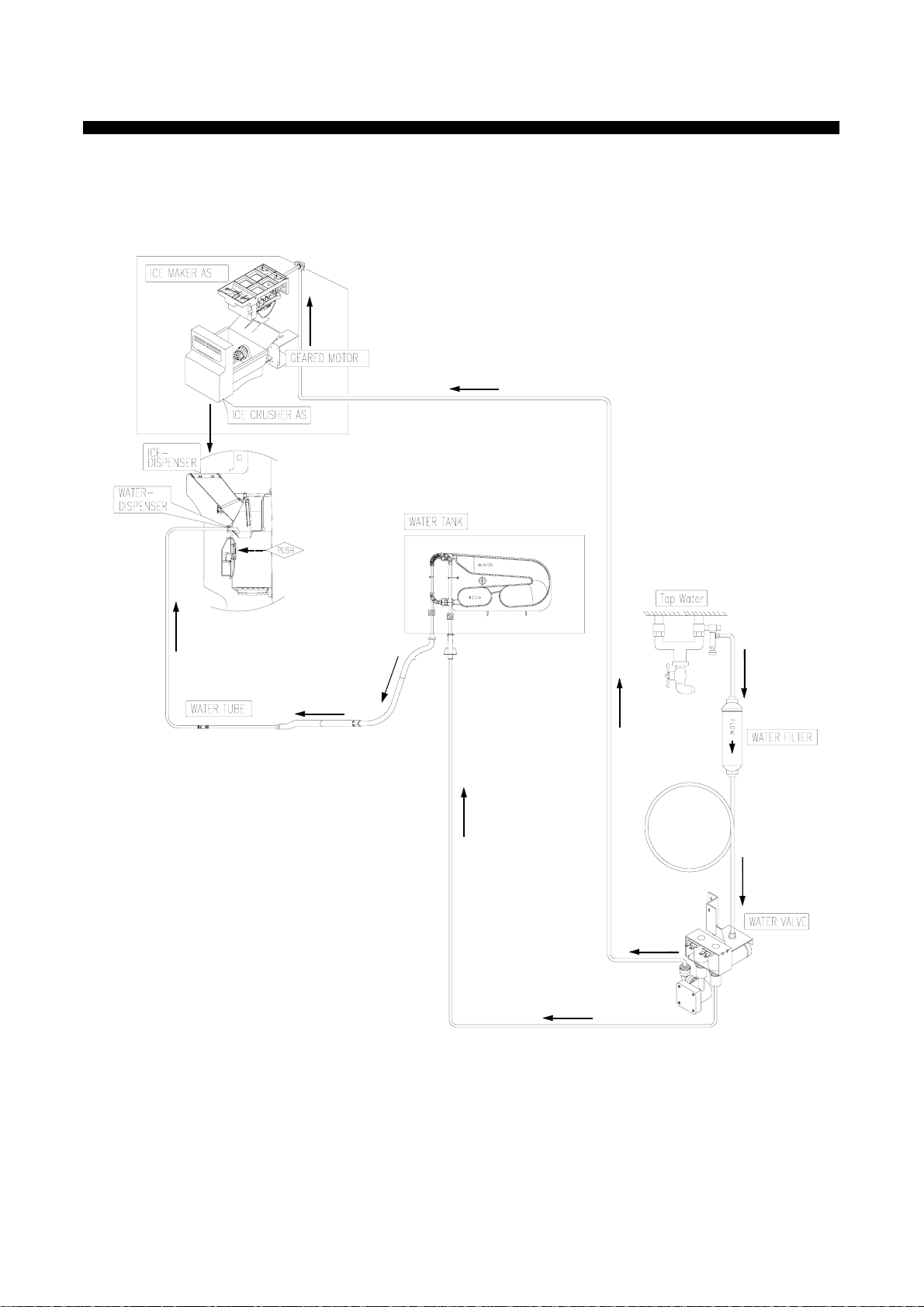

11-5. Dispenser Water Flow --------------------------------------------- 84

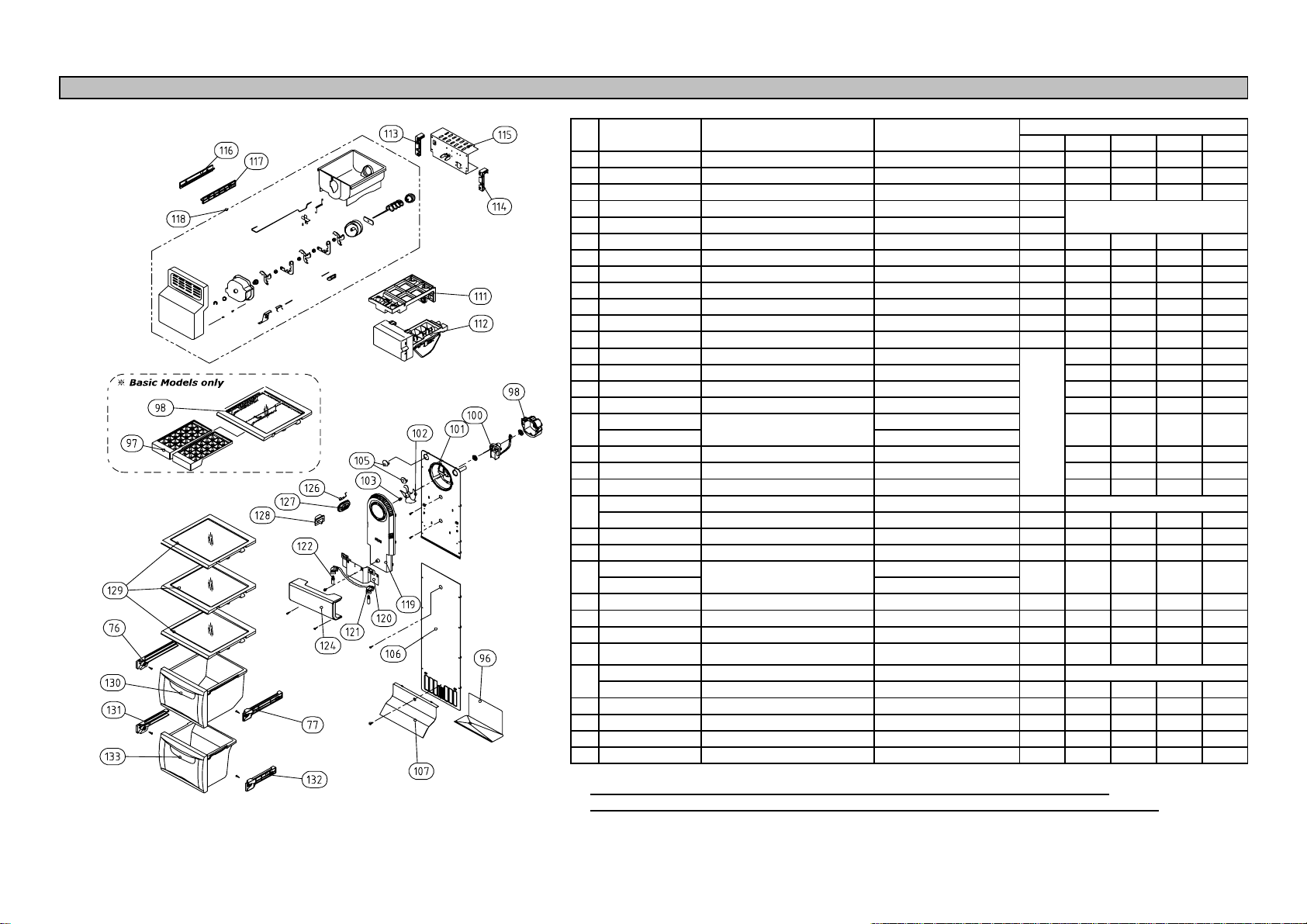

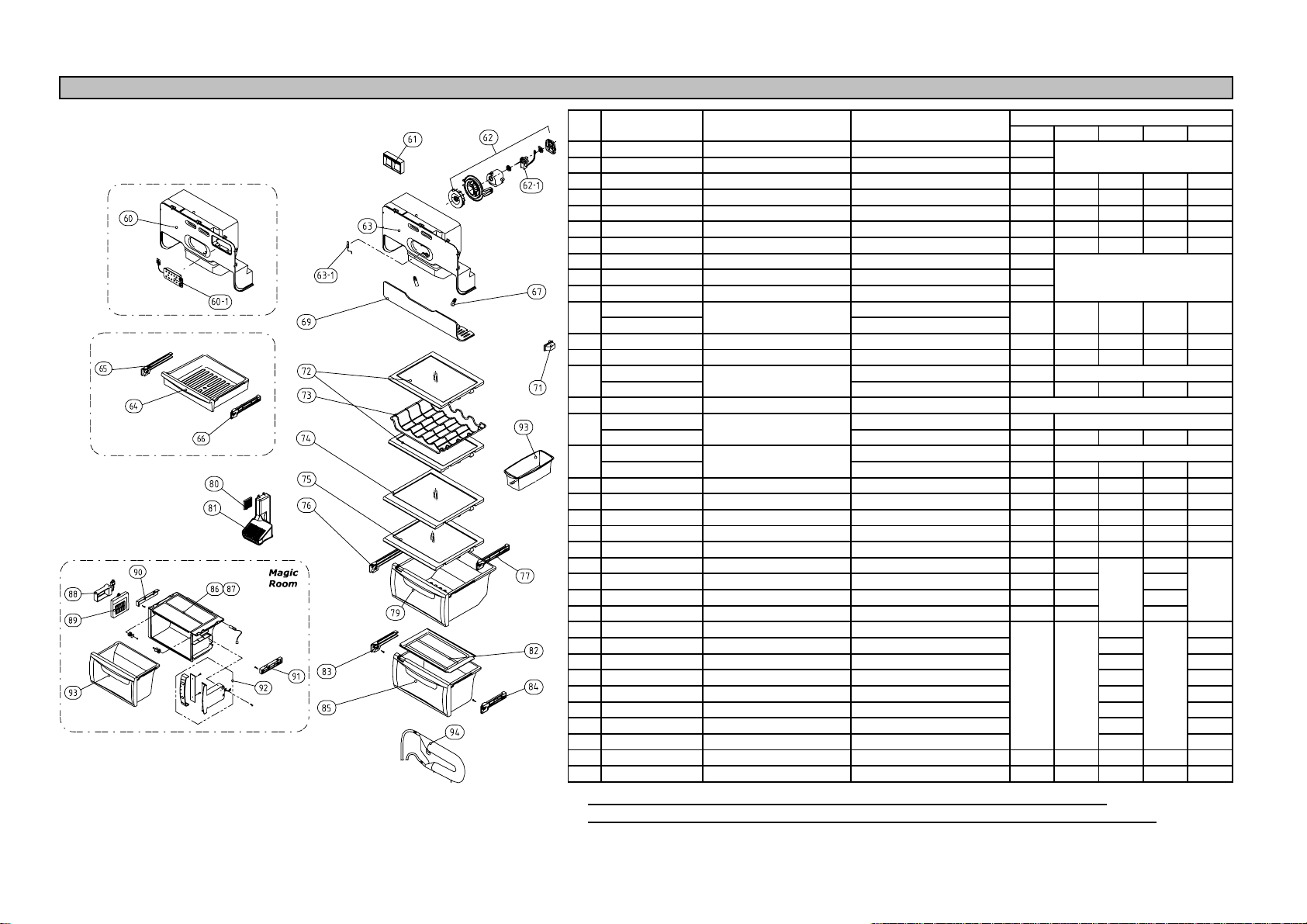

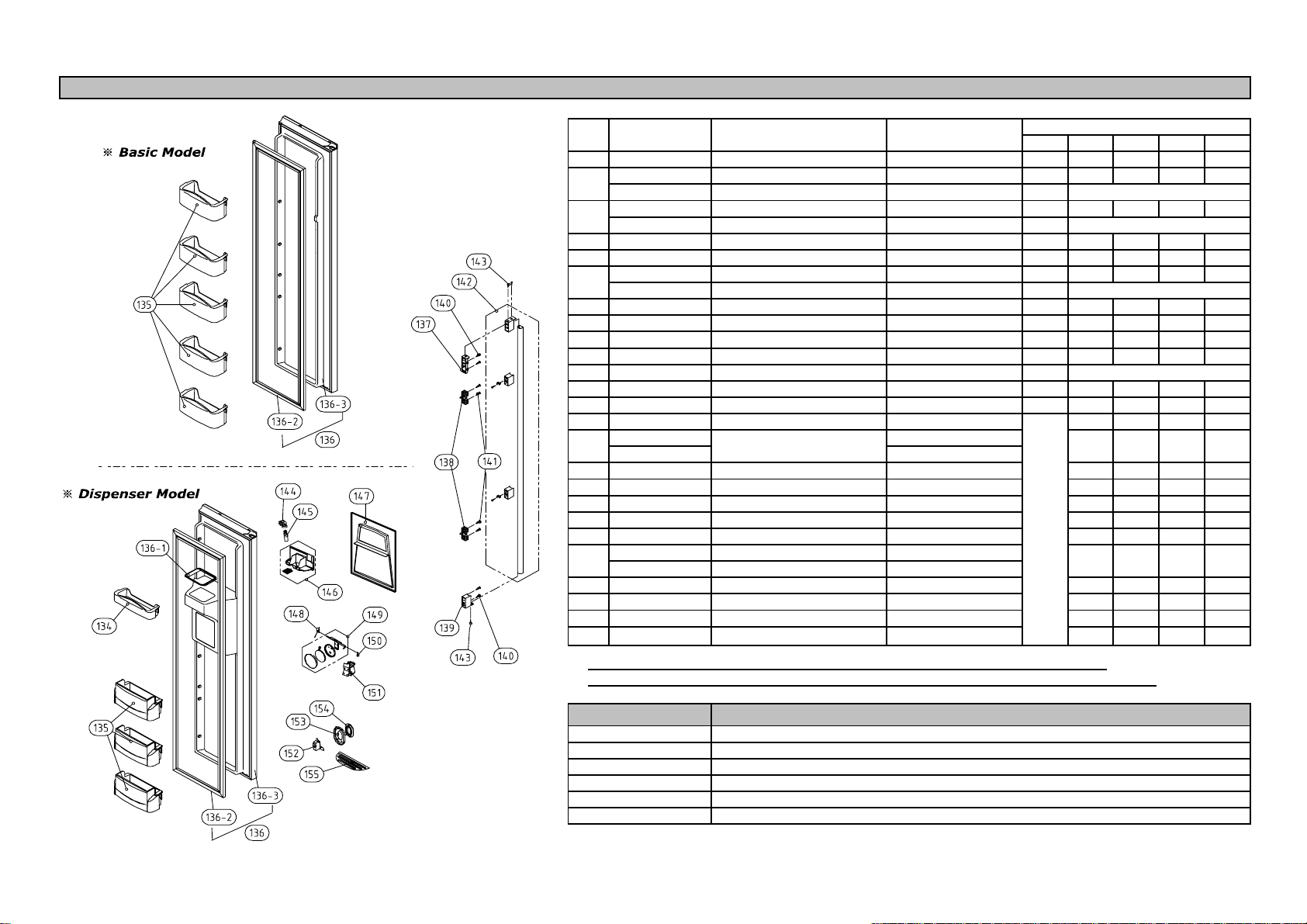

12. EXPLODED VIEW & PARTS LIST

-------------------------------------85

1

1. WARNINGS AND PRECAUTIONS FOR SAFETY

Please observe the following safety precautions in order to use safely and correctly the refrigerator

and to prevent accident and danger during repair.

1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than
three minutes before replacing PCB parts.

Shut off the power whenever replacing and repairing electric components.

2. When connecting power cord, please wait for more than five minutes after power cord was
disconnected from the wall outlet.

3. Please check if the power plug is pressed down by the refrigerator against the wall.

If the power plug was damaged, it may cause fire or electric shock.

4. If the wall outlet is over loaded, it may cause fire.

Please use its own individual electrical outlet for the refrigerator.

5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

6. Use standard electrical components when replacing them.

7. Make sure the hook is correctly engaged.

Remove dust and foreign materials from the housing and connecting parts.

8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

9. Please check the evidence of moisture intrusion in the electrical components.

Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.

10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.

11. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.

It may cause accident, electric shock, or fire.

12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or

medicine in the refrigerator.

13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water

on the top of the refrigerator.

14. Do not put glass bottles with full of water into the freezer.
The contents shall freeze and break the glass bottles.

15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

where children are not accessible.

2

2. EXTERNAL VIEWS

2-1. External Size

- FRS(N)-U20IB

3

- FRS(N)-U20DB / EB

4

- FRS(N)-U20FB / GB

5

2-2. Name of Each Parts

- Basic Model

1

2

6

7

3

4

5

8

9

10

11

12

- Wine Rack is option

Refrigerator CompartmentFreezer Compartment

6. Dairy pocket1. Freezer light

7. Refrigerator light2. Freezer pocket

8. Chilled case3. Ice tray

9. Movable Egg case4. Freezer shelf

10. Refrigerator shelf 5. Freezer case

11. Refrigerator pocket

12. Refrigerator case

6

- Full option Model

1
2

3

4

5

6

7

8
9

10

11

12

13

-Full option Model illustrated.

-Features are model depe ndent.

Refrigerator CompartmentFreezer Compartment

7. Dairy pocket1. Ice cubes storage case

8. Refrigerator light2. Freezer light

9. Wine Rack3. Water/Ice Dispenser

10. Movable Egg case4. Freezer shelf

11. Refrigerator shelf5. Freezer pocket

12. Refrigerator pocket6. Freezer case

13. Magic room (option)

7

2-3. Cold Air Circulation

Freezer

Compartment

Refrigerator

Compartment

8

3. SPECIFICATION

3-1. Specification

SpecificationItem

ISO Gross

Volume

(Li)

ISO Storage

Volume

(Li)

(Width x Depth x Height)

C
Y
C
L
E

Model Name

Weight

External Dimension

FRS(N)-

U20IB

537 Li
198 Li
339 Li

104kg

FRS(N)-

U20DB

541 Li
184 Li
357 Li
504 Li
170 Li
334 Li

903 mm x 734.5mm x 1790 mm

FRS(N)-

U20EB

525 Li570 LiTotal
178 Li209 LiFreezer
337 Li361 LiRefrigerator
504 LiTotal
170 LiFreezer
334 LiRefrigerator

Fin TypeEvaporator

Fan Cooling SystemCondenser

Molecular Sieve XH-9Dryer

IDΦ0.7 × T0.55 × L2200Capillary Tube

FRS(N)-

U20FB

541Li
184 Li
357 Li
504 Li
170 Li
334 Li

FRS(N)-

U20GB

536 Li
184 Li
352 Li
500 Li
170 Li
330 Li

117kg115kg113kg 115kg

MK183Q-L2UHPL30YG-5Description

Compressor

SWITCH

P RELAY AS

Description

Part Code

308NHB, S330

3018129810

※ ( ) is the specification for the model which use R-600a(refrigerant)

9

MK4A5Q-R1U

39561452503956183D50395S130R50Part Code

R-600a (76g)R-134a (190g)R-134a (190g)Refrigerant ( g )

265RHB, S330

3011402100

Specification ( 220~240V Models only )Item

Basic ModelModel Name

D
E

D-Sensor

PBN-43

Dispenser Model

F

O

PBN-38F-Sensor

R
E
S

R-Sensor

PBN-43

T

AC220V / 192WDefrost Heater

H

AC220V / 7WMain Duct Heater

E
A
T

AC220V / 8WLouver Heater

E
R

AC220V / 5W-Dispenser Heater

AC220V / 5W-Water Pipe Heater

AC250V 15AMain Fuse (Power cord)

E
L

AC250V , 10A , 77℃Fuse Temp (Defrost)

E
C
T

DC13V / 2050±100 rpmF-Fan Motor

R

I

DC13V / 1950

±100 rpmR-Fan Motor

C
A
L

Condenser

Fan Motor

DC13V / 1100±100 rpm

P
A

F-Lamp

AC230~240V / 25W (2EA)

R
T

R-Lamp

AC230~240V / 25W (2EA)

S

Door Switch , F / R

10

SP201R-7DL / SP201R-7DR

(SPF101B-2D / SPF101B-1D)

4. OPERATION AND FUNCTIONS

4-1. Display

4-1-1. Basic Model

INPUT CONTROL OBJECT

FRZ.TEMP, REF.TEMP Inner Control (Lamp-LED)

CONTENTS REMARKS

1. “FRZ.TEMP” Button

1) Temperature control of Freezer compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “3”
※Whenever pressing button, setting is repeated in the order of

Medium(3) → Medium Max(4) → Max(5) → Min(1) → Medium Min(2).

Temperature adjustment butt o n
for freezer compartment.

Temperature adjustment butt o n
for refrigerator compartment.

MinTemperature Chang

2. “REF.TEMP” button.

1) Temperature control of Refrig erator compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “3”

※Whenever pressing button, setting is repeated in the order of

Medium(3) → Medium Max(4) → Max(5) → Min(1) → Medium Min(2).

MinTemperature Change

※ The actual inner temperature varies depending on the food status, as the indicated setting

temperature is a target temperature, not actual temperature within refrigerator.

※ Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum2~3 days.

Medium

Min

Medium

Min

Mid

Mid

Medium

Max

Medium

Max

Max

Max

54321Temp indication

54321Temp indication

11

4-1-2. Dispenser Model

Front PCB button
FREEZER SET, REFRIGERATOR SET
SUPER FREEZER, SUPER REFRIGERATOR
RESET FILTER, WATER / ICE, ICE MAKER LOCK
,LOCK

Super freezer
Temperature adjustment butt o n

for freezer compartment.

INPUT CONTROL OBJECT

FCP C-LED

CONTENTS REMARKS

Lock buttonWater filter reset Dispenser select button Ice maker lock button

Super Refrigerator

Temperature adjustment butt o n

for refrigerator compartment.

1. Display control

ControlFCP-LED

88 DISPLAY (SET TEMP.)

SUPER FREEZER,SUPER

REFRIGERATOR ICON

2. “FREEZER SET” Button

1) Temperature control of freezer compartment

2) 7 step mode of successive temperature mode.

3) Initial mode by power input : “Medium(-19℃)”
※Whenever pressing button, setting is repeated in the order of

Medium (-19℃) → Medium Max 1 (-20℃) → Medium Max 2 (-21 ℃) → Max (-22℃)

→ Min (-16℃) → Medium Min 2 (-17℃) → Medium Min 2 (-18℃).

Letters are indicated on 88 Display LED

Temperature

Change

Temp

indication

Min

Medium

Min 1

Medium

Initial mode : Freezer & Refrigerator set→

Min 2

-18℃

Medium

Medium (-19℃/4℃)

After six month, LED ONFILTER CHANGE ICON

-19℃

Dial

Always ONFUZZY, DEODORIZER ICON

DialWATER / CUBED ICE/ CRUSHED ICE ICON
DialLOCK ICON
DialICE MAKER LOCK ICON

Medium

Max 1

-20℃-17℃-16℃

Medium

Max 2

-21℃

Max

-22℃

3. “SUPER FREEZER” Button
When this mode is chosen, the icon (FREEZER QUICK) is ON.

12

CONTENTS REMARKS

4. “REFRIGERATOR SET” button.

1) Temperature control of Refrig erator compartment

2) 5 step mode of successive temperature mode.

3) Initial mode by power input : “Medium (4℃)”
※Whenever pressing button, setting is repeated in the order of

Medium (4℃) → Medium Max (3℃) → Max (2℃) → Min (6℃) → Medium Min (5℃).

Letters are indicated on 88 Display LED

MinTemperature Change

5. “SUPER REFRIGERATOR” button.
When this mode is chosen, the icon (REFRIGERATOR QUICK) is ON.

6. “WATER / ICE”button

1) Select Water / Cubed Ice / Crushed Ice.

2) Icon lights up to show your selection is on.
Initial mode by power input : “Water” mode.

3) The mode of Cubed Ice or Crushed Ice continues for 1 hour and then changes
to Water. (Water icon turns ON)

7. “ICE MAKER LOCK” button

1) Start by pushing “ICE MAKER LOCK” button

① “ICE MAKER LOCK” icon is on
② “WATER” icon is always on

2) Stop by pushing “ICE MAKER LOCK” button again

① “ICE MAKER LOCK” icon is off
② “WATER”icon is on

8. “RESET WATER FILTER” button

1) The normal (ICON OFF) is on for 6 month after are first power input.

2) After sic months, icon is ON.

3) How to reset Filter information
① Push the “RESET WATER FILTER”button for 3 seconds after change.

Medium

Min

Mid

4℃5℃6℃Temp indication

Medium

Max

Max

2℃3℃

REFERENCE : Please wait
for 2-3 seconds in order
to take final ice or drops
of water when taking out
cup from the pressing
switches after taking ice
or water.

9. “LOCK” button

1) This button stops operation of different button.

① “LOCK”icon is on
② Press this button to lock out this case and to keep temperature and

function setting.

2) Push “LOCK” button again for more than a second to stop it.

※ The actual inner temperature varies depending on the food status, as the indicated setting

temperature is a target temperature, not actual temperature within refrigerator.

※ Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum2~3 days.

13

4-2. Defrost Mode

1. Defrost Mode

INPUT CONTROL OBJECT

1. Comp

1. Defrosting Cycle

2. F-Fan

3. R-Fan

4. D-Heater

CONTENTS REMARKS

Pre-Cool

Heater

Defrosting

Pause

Fan-Delay

2.The defrost mode start with the following conditions

Pre-Cool

1) Time : 50 minutes

2) Comp , F-fan : ON
R-fan : Control

D-HTR : OFF

3) If F-sensor ≤ -27℃, then Pre-Cool becomes. OFF

Heater
Defrosting

1) Comp, F-fan, R-fan : OFF

D-HTR : ON

2) Time limit

30 seconds : Heater is ON regardless of D-sensor

temperature right after defrosting start
30 minutes : in case of D1- Error
80 minutes : in normal control state

3) If D-sensor ≥13℃, Heater Defrosting is OFF

Pause

Time : 7 minutes
Comp, F-fan, R-fan, Heater etc. : OFF

Fan-Delay

1) Time : 5 minutes
Comp : ON and F-fan, R-fan, Heater : OFF

1) Total operation time of comp. becomes : 6,8,10,……… 24 hours.

① Comp. operating rate : more 85%
② Total door open time : 2 minutes

(Any door, F or R open time is over 2 minutes.)

③ Any error mode : R1, F1, D1, F3, RT/S, Door-switch etc.)

2) Defrosting mode starts unconditionally as long as total comp. work time is
24 hours, even if the above conditions 1) are not satisfied.

3) Defrosting mode starts immediately as long as total time of [comp. ON +
comp. OFF] is over 60 hours, even if the above 1) and 2) conditions are not
satisfied.

3. In providing initial power (or returning power failure)
If D-sensor temp. ≤ 3.5℃, defrosting mode starts .

14

4. Flow Chart of Defrosting Start

CONTENTS REMARKS

Start

YES

YES

YES

Comp. operating time

is over 2 hours?

YES

Total time is

over 60 hours?

NO

Comp. operating time

is over 24 hours?

NO

Comp. operating time

is over 6 hours?

YES

Comp. operating rate

is more 85%?

NO

NO

NO

YES

YES

Any error ?

NO

Total door open

time is over 2 min?

NO

EndDefrosting start

15

4-3. (Forced Defrosting) Mode

INPUT CONTROL OBJECT

1. Defrosting Cycle

CONTENTS REMARKS

1. A/S Defrosting Mode (Heater defrost → Pause → Fan Delay)

1. Comp

2. F-Fan

3. R-Fan

4. D-Heater

Heater

Defrosting

Pause

Fan-Delay

2. How to start

1) Push “REF.TEMP”button 5 times while pushing “FRZ.TEMP” button simultaneously.

--------- FRS-U20IA

2) In “LOCK” mode, push “REFRIGERATOR SET” button 5 times while pushing “FREEZER SET”
button simultaneously. ------ FRS(N)-U20DA

3. How to proceed

1) Delete Pre-cool mode. (Others are same as normal defrosting)

2) Heater is ON regardless of D-sensor temp. at first 30 seconds.

(Check of defrosting current)

Heater
Defrosting

1) Comp, F-fan, R-fan : OFF
D-HTR : ON

2) Time limit

30 seconds : Heater is ON regardless of D-sensor

temperature right after defrosting start

30 minutes : in case of D1-Error
80 minutes : in normal control state

3) If D-sensor ≥13℃, Heater Defrosting is OFF

Pause

Time : 7 minutes
Comp, F-fan, R-fan, Heater etc. : OFF

Fan-Delay

1) Time : 5 minutes
Comp : ON
F-fan, R-fan, Heater : OFF

4-4. Fan Voltage of Control Mode

INPUT CONTROL OBJECT

1. F-Sensor

2. R-Sensor

1. Fan voltage of control mode

※ Refer to the 5-4. (Fan Function )

1. F-FAN, R-FAN, C-FAN

CONTENTS REMARKS

C-FANR-FANF-FANFAN

13 V13 V13 VVoltage

16

4-5. Louver Heater Control

INPUT CONTROL OBJECT

1. Comp

CONTENTS REMARKS

It is linked with comp.

4-6. Buzzer or Alarm Control

INPUT CONTROL OBJECT

1. Control (Inner or F-PCB) buttons

2. Door Switch

3. Initial Power Input

CONTENTS REMARKS

1. Buzzer sounds if any button of Inner Control is pushed.

2. Buzzer sounds 4 times 3 seconds after initial power input.

3. Buzzer sounds for 3 or 1 times in case of A/S forced defrosting and short (pull down)
operation or explanation mode.

4. If door is open, buzzer sounds after every 1 minutes for 5 minutes (Door open alarm)

Louver Heater

Buzzer

4-7. Control of Interior Lights (FRS(N)-U20DA)

INPUT CONTROL OBJECT

1. Refrigerator door switch

2. Freezer door switch

3. Home bar door switch

4. Dispenser switch

CONTENTS REMARKS

1. Control refrigerator compartment lights
R-Lights turn ON/OFF by R-door switch ON/OFF

(※ For 10 minutes after sensing door open, the lights turn off automatically

through door close is not sensed.)

2. Control of freezer compartment lights.
F-Light turn ON/OFF by F-door switch ON/OFF

(※ For 10 minutes after sensing door open, the lights turn off automatically

through door close is not sensed.)

3. R-lights ON/OFF by home bar door switch ON/OFF. ( for only model with home bar )
R-lights turn ON for 10 minutes after sensing home bar door switchopen.

4. Dispenser lamp control ( for only model with water/ice dispenser )
Dispenser lamp turns ON/OFF by Dispenser switch.
Dispenser lamp turns ON for 4 seconds after sensing switch close.

Lamp

17

4-8. Demonstration

4-8-1. Basic Model

INPUT CONTROL OBJECT

1. FRZ. TEMP

2. Door Switch

CONTENTS REMARKS

1. Start
Open and close “Freezer door switch” 5 times while pushing “FRZ. TEMP” button
simultaneously.

2. Control

1) All other electrical components are OFF except for F-fan / R-fan

2) Fan Control
Door open → Fan ON / Door close → Fan OFF.

3) Display control

“FRZ. LED” and “REF. LED” are ON in good order

3. Stop

1) During Demo mode, push “Freezer door switch” open and close 5 times while pushing
“FRZ. TEMP” button simultaneously.

2) Power in again

4-8-2. Dispenser Model

INPUT CONTROL OBJECT

1. “FREEZER SET, WATER/ICE” Button , Door switch

CONTENTS REMARKS

Comp
F/R-Fan
Heater

Comp
F/R-Fan
Heater

1. Start
Push “ICE/WATER”button 5 times while pushing “FREEZER SET” button
simultaneously.

2. Control

1) All other electrical components are OFF except for F-fan / R-fan

2) Fan Control
Door OPEN → Fan ON / Door close → Fan OFF.

3. Stop or termination

1) During Demo mode, push “ICE/WATER” button 5 times while pushing “FREEZER

SET” button simultaneously.

2) Power in again

18

4-9. Compensation of R-sensor ON/OFF Point

INPUT CONTROL OBJECT

Main PCB

CONTENTS REMARKS

Compensation of R-sensor ON/OFF temp. (down)
In case temperature of refrigerator compartment is weak or insufficient,

take the following action.

FRS(N)-U20IA FRS(N)-U20DA

R-SENSOR

R36

R37

R38

J2

J1

R36

R37

R38

Resistance of R-sensor Mid ON/OFF Point

R-SENSOR

J19

J18

※ Refer to the 5-2.

(Function of each sensor)

J1

J18,19

J2

R36 : R-SENSOR standard resistance in normal mode (31.4K)
R37 : In case of weak ref., cut J1 (or J18) to down the standard resistance by 1.5deg(2K)
R38 : In case of weak ref., cut J2 (or J19) to down the standard resistance by 1.5deg(2K)

FRS(N)

-U20IA

FRS(N)

-U20DA

Temperature

compensation

Temperature

compensation

0

℃

0

℃

-1.5

-1.5

℃

℃

cutcut-J1
cut--J2

3

℃

cutcut-J18
cut--J19

3

℃

19

4-10. Error Display

4-10-1. Basic Model (LED Display of Inner Control)

INPUT CONTROL OBJECT

Temperature Control Buttons Lamp LED of Inner control

CONTENTS REMARKS

1. How to start

1) Press “FRZ.TEMP”button 5 times while pressing
“REF.TEMP” button at the same time.

2. How to stop

1) Push “FRZ.TEMP” button 1 time.

2) It stops automatically in 4 minutes from the start.

3. All the error codes are reset if they turn to be normal.

4. Error display

DisplayCONTENTS
FRZ. LED “5” is on and off F-sensor : open (“Lo”), short (“Hi”)
FRZ. LED “4” is on and offR-sensor : open (“Lo”), short (“Hi”)
FRZ. LED “3” is on and offRT-sensor : open (“Lo”), short (“Hi”)
FRZ. LED “2” is on and offD-sensor : open (“Lo”), short (“Hi”)
FRZ. LED “1” is on and offR-Door Switch : defective
REF. LED “5” is on and offF-Door Switch : defective
REF. LED “3” is on and offCycle : defective
REF. LED “2” is on and offReturn after defrosting : defective
REF. LED “1” is on and offEEPROM : defective
REF. LED “1” is onFull Down mode
REF. LED “1” is on and off (twice)Forced defrost mode for A/S

(Full down mode and forced defrost mode are displayed while pressing
“REF.TEMP” b u tt o n a t t h e err or displa y mod e)

20

CONTENTS REMARKS

5. Control way of Errors (if any)

1) “F-sensor” error
Cause : F-sensor open or short
Control : Condition of ambient temperature
How to reset : If F-sensor is normal, the error is terminal temperature.

2) “R-sensor” error
Cause : R-sensor open or short
Control : Condition of ambient temperature
How to reset : If R-sensor is normal, the error is terminal temperature.

3) “RT-sensor” error
Cause : RT-sensor open or short (full down)
Control : Normal operation, deletion of control by RT-sensor

If RT-sensor is normal, the error is terminated automatically.

Over 41℃~ 41℃~ 31℃~ 21℃~ 15℃~ 9℃RT-S

35 / 2035 / 2026 / 2227 / 4516 / 4114 / 50ON/OFF (min)

Over 41℃~ 41℃~ 31℃~ 21℃~ 15℃~ 9℃RT-S

6 / 44 / 63 / 72 / 103 / 50OFFON/OFF (min)

4) “D-sensor” error
Cause : D-sensor open or short (full down)
Control : Time limit (30 min) of defrosting return

5) “Door” error
Cause : in case it senses that door is open for more than 1hour.
Control : Deletion of function related door switch sensing

6) “Cycle” error
Cause : in case comp. works for over 3 hours when D-sensor temp. is over -5℃
Control : normal operation

7) “Return after defrosting” error
Cause : in case defrosting return is done by time limit of 80 min
Control : Deletion of Pre-cool mode in defrosting mode

8) A/S forced defrosting mode
Push “REFRIGERATOR SET” button 5 times while pushing “FREEZER SET” bu t t o n
Simultaneously.
Control : A/S forced defrosting control (Pre-cool is deleted)
If D-sensor temp. is over 10℃, the mode is terminated automatically.
When all error code is normal, the Refrigerator reset

If D-sensor is normal, the error is terminated automatically.

If door switch (open & close) is sensed, the error is terminated automatically.

When D-sensor temp. is below -5℃ in comp. off it is terminated.

If defrosting return is done by D-sensor, it is terminated.

21

4-10-2. Dispenser Model (CLED Display of Front PCB)

INPUT CONTROL OBJECT

Temperature Control Buttons 88 Display CLED

CONTENTS REMARKS

1. How to start

1) Under “LOCK” mode, press “SUPER FREEZER” button 5 times while pressing
“FREEZER SET” button at the same time.

2) The front CLED displays as the right diagram shows
( [Ex.] Time Display of 0003 signifies 3 minutes of power on time.)

3) Press “FREEZER SET” button and the following value is displayed successively.

① Time
② F-Sensor temperature
③ D-Sensor temperature
④ R-Sensor temperature
⑤ RT-Sensor temperature
⑥ P Factor display (Refer to water supply mode of automatic icemaker)
⑦ Filter remaining time until change (First check ; 4,320Hr)

Refer to Filter Information Reset of CLED of front control panel.

4) Error is displayed only if there is any ; it is skipped if no error.

2. How to stop

1) Push “LOCK”button 1 time.

2) It stops automatically in 4 minutes from the start.

3. All the error Codes are reset if they turn to be normal.

4. Error code

CONTENTSERROR CODE
F-sensor : disconnection (“Lo”), short (“Hi”)F1
R-sensor : disconnection (“Lo”), short (“Hi”)r1
RT-sensor : disconnection (“Lo”), short (“Hi”)rt
D-sensor : disconnection (“Lo”), short (“Hi”)d1
R-Door Switch : defectivedr
F-Door Switch : defectivedF
Home bar Door Switch : defectivedH
I-sensor : disconnection (“Lo”), short (“Hi”)EI
Flow sensor : defectiveEF
Horizontal switch : errorEt
Water supply : errorEg
Micro switch : errorES
Drop the ice while EtEA
Full ice switch : errorEu
Cycle : abnormal or defectiveC1
Return after defrosting : abnormal or defectiveF3
Display Full Down modeCo
Display forced defrost mode for A/SD2

22

CONTENTS REMARKS

5. Control way of Error (if any)

1) “F1” error
Cause : F-sensor disconnection or shor t

Check point : Measure the resistance between both terminals after separating CN8 (or CN15)

If F-sensor is disconnected or shorted , change the F-sensor in the freezer compartment.

How to reset : If F-sensor is normal, the error is terminal temperature.

2) “R1” error

Cause : R-sensor disconnection or short
Check point : Measure the resistance between both terminals after separating CN7 (or CN14)

If R-sensor is disconnected or shorted , change the F-sensor in the refrigerator compartment.
How to reset : If R-sensor is normal, the error is terminal temperature.

3) “rt” error

Cause : RT-sensor disconnection or short (full down)
Check point : Measure the voltage of “A”part on the Main PCB.

If the voltage is 0.5V~4.5V, it is normal.
If the voltage is 0V (short) or 5V (disconnected), change the RT-sensor on the Main PCB

How to reset : If RT-sensor is normal, the error is terminated automatically.

of the Main PCB. (Refer to the 5-2.)

of the Main PCB. (Refer to the 5-2.)

A

< Basic Model >

4) “d1” error

Cause : D-sensor disconnection or short (full down)
Check point : Measure the resistance between both terminals after separating CN8 (or CN15)

of the Main PCB. (Refer to the 5-2.)

If D-sensor is disconnected or shorted , change the D-sensor on the evaporator.

How to reset : If D-sensor is normal, the error is terminated automatically.

5) Door error (“dF” “dR” “dH” on display)

Cause : in case it senses that door is open for more than 1 hour.
Check point : F/R door is opened or not.

6) “C1” error

Cause : in case comp. works for over 3 hours when D-sensor temp. is over -5℃
Check point : Refrigerant leakage.

7) “F3” error

Cause : in case defrosting return is done by time limit of 80 min
Check point : Measure the resistance between both terminals of the defrost heater.

(Assembled with evapora t or)

If the resistance is ∞Ω (disconnected) or 0Ω (short) change the

< Dispenser Model >

A

8) “d2” mode (A/S forced defrosting mode)

Push “REFRIGERATOR SET”button 5 times while pushing “FREEZER SET” button

simultaneously.
Control : A/S forced defrosting control (Pre-cool is deleted)
If D-sensor temp. is over 10℃, the mode is terminated automatically.
Refer to the 4-3. .

23

CONTENTS REMARKS

9) “EI”ERROR
Cause : I-SENSOR disconnection / short

Check point : Measure the resistance between both terminals after separating CN11

If F-sensor is disconnected or shorted , change the I-sensor in the automatic ice maker.

10) “EF” ERROR
Cause : When Flow-sensor ERROR (There is no Pulse during some time)

Check point : Water supply line

11) “Eg” ERROR
Cause : I-sensor temp (5min after water supply) doesn’t go up.
Check the I-sensor or water supply line.

12) “ES” error (MICRO switch error)
Cause : When it senses 1min continuously
Check the MICRO switch of the dispenser.

13) “Ea” error
Cause : Malfunction of ice drop motor.
Check the motor by pushing test switch.

of the Main PCB. (Refer to the 5-2.)

The number of pulse signal is below 10 by 1 sec during water supply.

14) “Eu” error
Cause : Switch (which senses if the ice is full or not) is in error.
Control : When dropping the ice, the motor just rotates 90 degree.
Termination : When the switch is in normal.

15)“EA“ ERROR
Cause : When sensing Ice dropping by time 3 times in level sensor SW Error.
Control : Stop of Ice Maker
Termination : With normal level switch.
Re-input of power or push if icemaker test switch.

16)“Et” ERROR
Cause : Level switch error (No pulse is sensed for some time)
Control : By time (Supply mode is skipped)
Termination : Normal condition.

* When all ERROR CODE is normal, the Refrigerator reset

24

4-11. Summary of Function

4-11-1. Basic Model (Inner Control)

INPUT CONTROL OBJECT

Each button

Element A/S Function

“REF.TEMP”+ “FRZ.DOOR” OPEN/CLOSE 5 timesPull Down
“FRZ.TEMP”+ “FRZ.DOOR” OPEN/CLOSE 5 timesDemo function

4-11-2. Dispenser Model (Front PCB)

INPUT CONTROL OBJECT

Each button

Resistance of R-sensor Mid ON/OFF Point

CONTENTS REMARKS

“FRZ.TEMP” + “REF.TEMP” 5 timesForced Defrosting

“REF.TEMP”+ “FRZ.TEMP” 5 timesError display

Resistance of R-sensor Mid ON/OFF Point

CONTENTS REMARKS

1. All the modes are started “LOCK”mode (except “FILTER RESET”mode)

2. Element A/S Function

“FREEZER SET” + “REFRIGERATOR SET” 5 timesForced Defrosting

Push “RESET WATER FILTER” for 3 secondsReset water filter

“REFRIGERATOR SET” + “WATER/ICE” 5 timesDemo function

“REFRIGERATOR SET”+ “FREEZER SET”+ “WATER/ICE”5 timesPull Down

“FREEZER SET”+ “SUPER FREEZER” 5 timesError display

“WATER/ICE”+ “RESET WATER FILTER” 5timesEEPROM clear

“WATER/ICE” + “ICE MAKER LOCK” 5 timesIce maker test

25

4-12. Back up Function (Basic Model)

INPUT CONTROL OBJECT

None

CONTENTS REMARKS

1. Filter Exchange Information : Record as a real-time from the point of
power input

2. P Factor (Information about Ice Maker)

4-13. Automatic Icemaker ( Dispenser Model)

INPUT CONTROL OBJECT

Full ice sensing switch
Ice Maker Lock
Sensors

CONTENTS REMARKS

1. Flow of ice making

START

Ice making mode

Ice is being made

▶

1. F-FAN, R-FAN, C-FAN

Ice separating motor

(water supply stand by)

Ice separating mode

Water supply mode

Ice tray is twisted to separate

▶

Water is supplied to ice tray

▶

ice cubes

Water supply

Check is water is supplied OK.

check mode

▶

RETURN

1) Press TEST switch under the Icemaker for more than 1 second and test starts.
* Test mode starts from ice separating mode.
* In case test switch has an error of short, test is done only once.

26

CONTENTS REMARKS

2) With the initial power input, Ice tray turns to be horizontal and ice making
mode starts.

3) Control of water hose heater
* Heater is always ON if RT-sensor has an error or RT is below 15 degree.
* Heater is always ON for 60 minutes (max. Limit time) if Flow-sensor has

an error

4) Water supply stand-by

Condition : if ice is sensed full
Operation : proceeds to Ice making mode (Ice separating and water supply Modes stop)

5) Crusher Function

It stops operation when freezer door is open
It operates if freezer door is closed.

2 Ice making mode

START

NO

130 min passed?

I-S＜－12.5℃

Ice saparating mode

YES

YES

NO

I-S＜-9.5℃

YES

15 min passed?

YES

NO

NO

1) Ice making stops if ice-sensor is below -12.5℃ after 130 minutes.

2) Ice making also stops if ice-sensor is below -9.5℃ for 15 minutes, though
ice-sensor is not below -12.5℃ after 130 minutes.

3) In case of ice sensor, ice making stops after 4.8 hours.

27

3. Ice separating (drop) mode

status of

ice tray

CONTENTS REMARKS

Ice separation start

level SW

normal

level SW

motor

revolution

level SW

error

8~11sec

MAX1.1sec 8.5~12.2sec 0.2sec

CW

CCW CW STOP

1) Time of each zone used to verify level switch error

2) The rotation of motor is sensed at each zone

3) In case of level switch error, ice separation is done by time.

4) If ice separating motor has error, the mode stop.

4. Water supply mode

START

Water supply valve ON

Water flow Pulse Cou nt = 0

1sec passed after

water valve ON ?

Y

Water flow Pulse > 10

Horizontal position

1.1 sec11 sec10 sec

N

N

Water flow Pulse spe c

N

water supply time 〉time spec

water supply va lve OFF

Y

〉Pulse spec

N

Y

END

Flow-Sensor Error mode operation

Y

28

CONTENTS REMARKS

1) Water supply valve is open when water supply mode starts after separation of ices.

2) Water is supplied by time in case sensor has error.

3) Factor valve is variable which can be useful in AS action
① Water flow pulse is set to 238 if flow sensor is in normal condition.

(If water is supplied by time, maximum water supply time 165 seconds)

② In case water flow sensor has error, water time is 5.5 seconds.

5. Water supply check mode
5 minutes after water supply the status can be checked by RT-sensor and increase
of temp. Ice sensor.

4-14. Dispenser Control Function

INPUT CONTROL OBJECT

Dispenser switch
WATER/ICE Button
ICE MAKER LOCK Button
Freezer Door Switch

41℃↑~41℃~31℃~21℃~15℃9℃↓RT-S

-5℃-6℃-7℃-8℃-9℃-10℃I-S

Dispenser Lamp
Crusher Motor
Flap Solenoid
Crusher Solenoid
Dispenser Water Valve

CONTENTS REMARKS

1) Initial mode : water
(Mode change : Water → Cubed ice → Crushed ice)

- Selected icon LED turns ON and others are OFF.

2) ICE MAKER LOCK Button
Icemaker Lock function and its ICON Turn ON/OFF by pressing the button.

3) Display

① Water ICON turns ON as default mode
② The ICON of each mode turns ON by pressing its button.

(If display switch makes error during operation of a mode, its ICON turns OFF)

③ When Icemaker Lock ICON turns ON.

- ICE MAKER LOCK ICON turns ON

- If it is in the mode of Cubed Ice or Crushed Ice, the mode is changed to

Water and Water ICON turns ON

- If there is no button input for 1 hour after selecting Cubed Ice or Crushed

Ice the mode turns to Water (default)

29

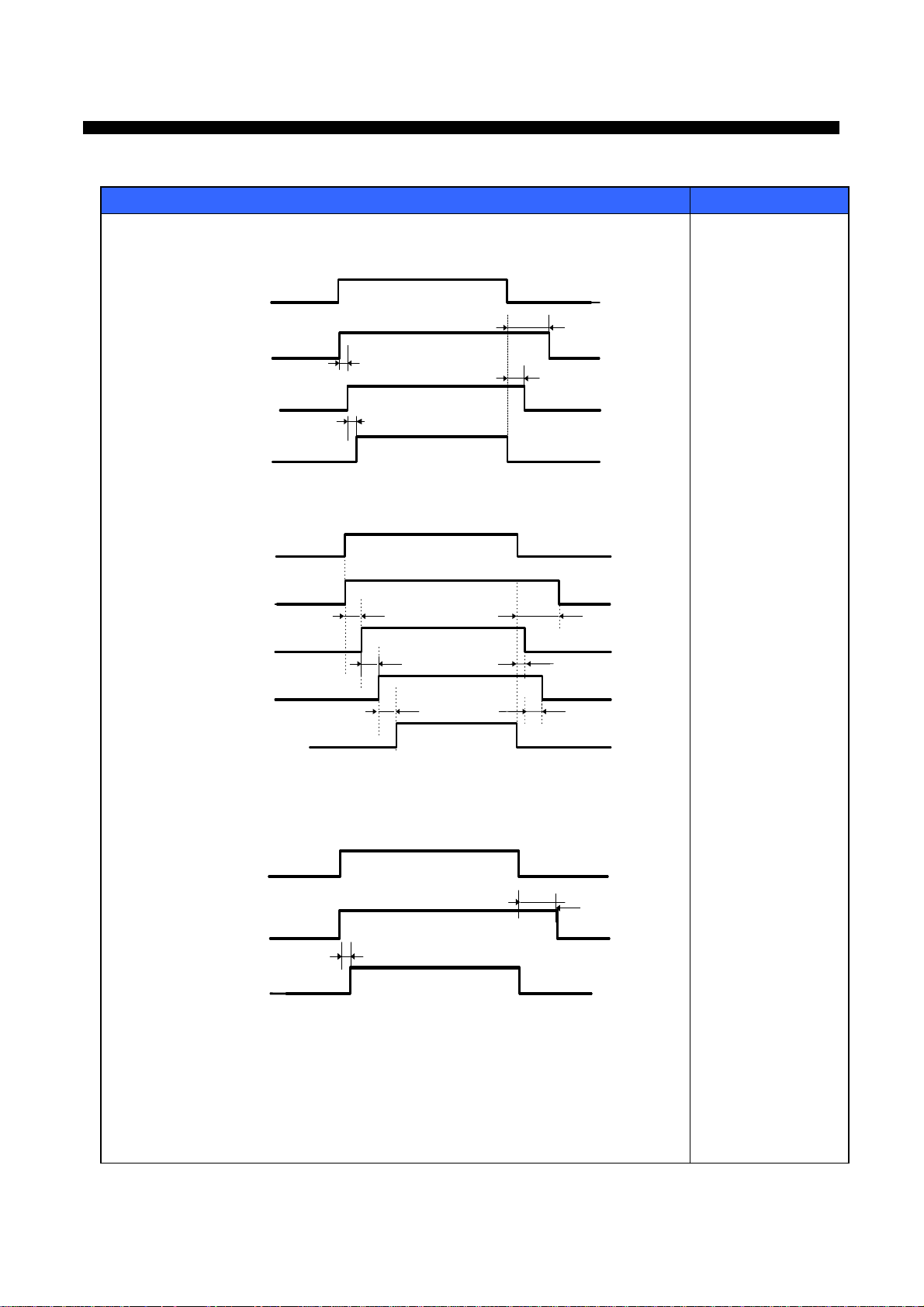

4) Control Flow & Timing Chart

① Crushed Ice

D.P SW

CONTENTS REMARKS

D

② Cubed Ice

D.P SW

Cube S/V

D.P S/V
(Flap)

Gear Motor

D.P Lamp

D.P S/V

(Flap)

Gear Motor

D.P Lamp

A

A

A

A

A

C

D

B

C

③ Water

D.P SW

D.P Lamp

Water S/V

Delay time : A = 500ms, B = 500ms, C = 2.0s, D = 5.0s

A

D

30

5. CIRCUIT OPERATION

5-1. Power Circuit Diagram

- Basic Model

E

- Dispenser Model

A

D

C

A

B

B

D

C

E

※ Voltage of every part

Parts

※ Caution : Since high voltage (DC310V) is maintained at the power terminal,please take a measure after more

than 3minutes have passed after removing power cords in the abnormal operation of a circuit.

31

EDCBA

CE6CE4CE3CE1MC1

5Vdc14.5Vdc12Vdc310Vac230VdcVoltage

5-2. Function of Each Sensor

- Dispenser Model

CONTENTS REMARKS

Compensation of

R-sensor ON/OFF temp.

[F-sensor]

1) It senses the temperature of freezer compartment and control Comp., F-fan ON/OFF

2) How it works;
Low ON

≒9.32㏀

≒3.24V

IC1

B

C

A

High OFFMid OFFWorking Point

-19℃-16℃-11℃Working Temp.

≒15.58㏀≒15.19㏀Resistance

≒2.73V≒2.93VSensing Voltage

(MICOM)

[R-sensor]

1) It senses the temperature of refriger a t or comp ar tme nt a n d co n tro l R-fan ON / OFF

2) How it works;
Low ON

≒23.33㏀

≒2.96V

[D-sensor]

1) It senses return point of defrosting h e at er.

2) How it works;

Working Point

Resistance

Sensing Voltage

* In case temperature of refrigerator compartment is weak or insufficient though comp.

and R-fan operate in normal way;

1) Cut J1 on the M-PCB, then temp. is lowered 1.5℃ than [Mid OFF point]

2) Cut J1 and J2 on the M-PCB, then the temp, is lowered 3℃.

Return point of defrosting heater

13℃Working Temp.

≒22.56㏀

≒3.08V

32

High OFFMid OFFWorking Point

3.2℃5.2℃7.7℃Working Temp.

≒24.76㏀≒24.05㏀Resistance

≒2.72V≒2.83VSensing Voltage

- Dispenser Model

CONTENTS REMARKS

Compensation of

R-sensor ON/OFF temp.

[F-sensor (A)]

1) It senses the temperature of freezer compartment and control Comp., F-fan ON/OFF

2) How it works;
Low ON

≒9.32㏀

≒3.24V

IC1

B

C

A

High OFFMid OFFWorking Point

-19℃-16℃-11℃Working Temp.

≒15.58㏀≒15.19㏀Resistance

≒2.73V≒2.93VSensing Voltage

(MICOM)

D

[R-sensor (B)]

1) It senses the temper ature of refrigerator comp artment and control R-fan ON/OFF

2) How it works;
Low ON

≒23.33㏀

≒2.96V

[D-sensor (C)]

1) It senses return point of defrosting heater.

2) How it works;

Working Point

Resistance

Sensing Voltage

* In case temperature of refrigerator compartment is weak or insufficient,

though comp. and R-fan operate in normal way;

1) Cut J18 on the M-PCB, then temp. is lowered 1.5℃ than [Mid OFF point]

2) Cut J18 and J19 on the M-PCB, then the temp, is lowered 3 ℃

Return point of defrosting heater

13℃Working Temp.

≒22.56㏀

≒3.08V

33

High OFFMid OFFWorking Point

3.2℃5.2℃7.7℃Working Temp.

≒24.76㏀≒24.05㏀Resistance

≒2.72V≒2.83VSensing Voltage

5-3. Relay Function

- Basic Model

1. Circuit Diagram

IC1

(MICOM)

Comp

R-Lamp

Louver Heater

F-Lamp

D-Heater

CONTENTS REMARKS

Comp

Louver Heater

D-Heater

2. How it works;

Control

Comp

Control Mode

Method

Relay 1

MICOM Port

#1≒5.0V

IC7

34

IC ULN2004

Output pin

#10≒0.7V
#12≒0.7V
#14≒0.7V

OFF ConditionON Condition

MICOM Port

#1≒0V
#3≒0V#3≒5.0VRelay 3Louver Heater
#5≒0V#5≒5.0VRelay 5D-Heater

IC ULN2004

Output pin

#10≒12V
#12≒12V

IC7

#14≒12V

- Dispenser Model

1. Circuit Diagram

IC1

(MICOM)

Comp

R-Lamp

Louver Heater

F-Lamp

D-Heater

CONTENTS REMARKS

2. How it works;

Control

Comp

R-Lamp

Water Pipe Heater

Control Mode

Method
Relay 1

Relay 2

Relay 12

MICOM Port

#1≒5.0V
#2≒5.0V

#7≒5.0VRelay 7Water (Dispenser)

#12≒5.0V

35

IC ULN2004

Output pin

#10≒0.7V
#11≒0.7V

#12≒0.7V

IC7

#13≒0.7V
#14≒0.7V
#15≒0.7V
#10≒0.7V
#11≒0.7V
#12≒0.7V

IC8

#13≒0.7V
#14≒0.7V
#15≒0.7V

OFF ConditionON Condition

MICOM Port

#1≒0V
#2≒0V

#3≒0V#3≒5.0VRelay 3H/B Heater
#4≒0V#4≒5.0VRelay 4Dispenser-Lamp

≒0V#5≒5.0VRelay 5Dispenser-Solenoid

#5
#6≒0V#6≒5.0VRelay 6Water (Ice)
#7≒0V
#8≒0V#8≒5.0VRelay 8Geared-Motor

#9≒0V#9≒5.0VRelay 9D-Heater
#10≒0V#10≒5.0VRelay 10F-Lamp
#11≒0V#11≒5.0VRelay 11Cube-Solenoid
#12≒0V

IC ULN2004

Output pin

#10≒12V
#11≒12V

#12≒12V

IC7

#13≒12V
#14≒12V
#15≒12V
#10≒12V
#11≒12V
#12≒12V

IC8

#13≒12V
#14≒12V
#15≒12V

5-4. Fan Function

1. Circuit Diagram

- Basic Model

- Dispenser Model

2. Explanation for the operation
* TA7291P is the drive IC for the only DC motor, and used for control of the fan motor
* One input and output is used for the control of the fan motor

Input

Motor IC No.5 Pin

(R:MT2/F:MT3/C:MT1)

- Vref is the reference voltage for the adjustment of the output voltage by the voltage
distribution of Vs (Maximum output voltage), and the output voltage applied to the fan
is determined by the PWM control using the software.

Output

Motor IC No.2 Pin

(R:MT2/F:MT3/C:MT1)

High

Low

36

Remark

13VHigh

StopLow

6. DIAGRAM

6-1. Wiring Diagram

- Basic Model

37

- Dispenser Model

38

6-2. Circuit Diagram of Main PCB

- Basic Model

39

40

- Dispenser Model

41

42

7. COMPONENT LOCATE WIEW

7-1. Front View ( Dispenser + Home bar Model )

Home bar

Front PCB

Dispenser

Button

Door

(Option)

7-2. Inner View

Automatic

Ice Maker

F-Door
Switch

Freezer Compartment

(Dispenser Model)

F-Fan
Motor

F-Sensor

Geared

Motor

F-Lamp

R-Fan

Motor

R-Sensor

Refrigerator

Compartment

(Dispenser Model)

R-Lamp

R-Door
Switch

R-Sensor

Controller

Refrigerator
Compartment
(Basic Model)

Inner

R-Door
Switch

43

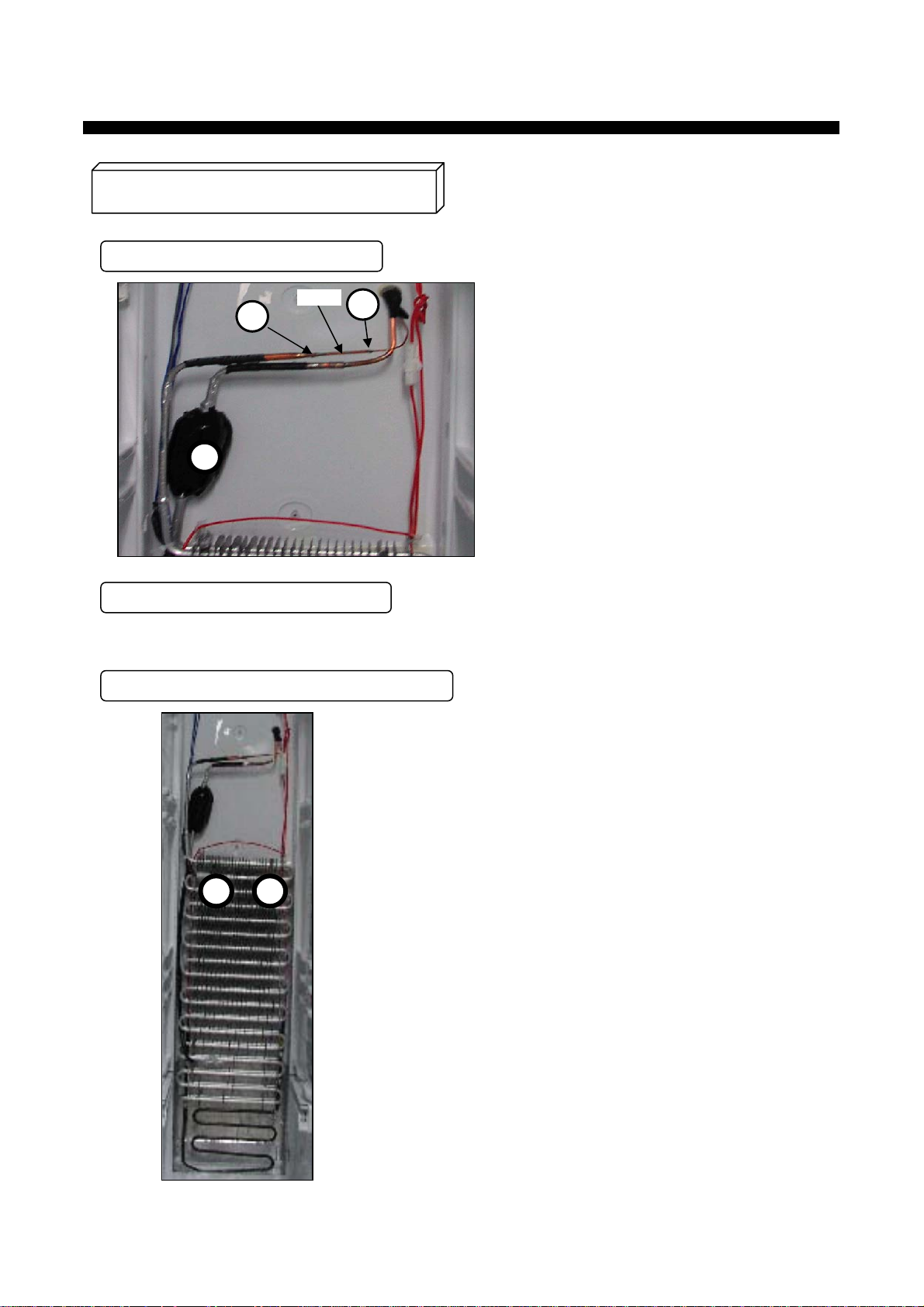

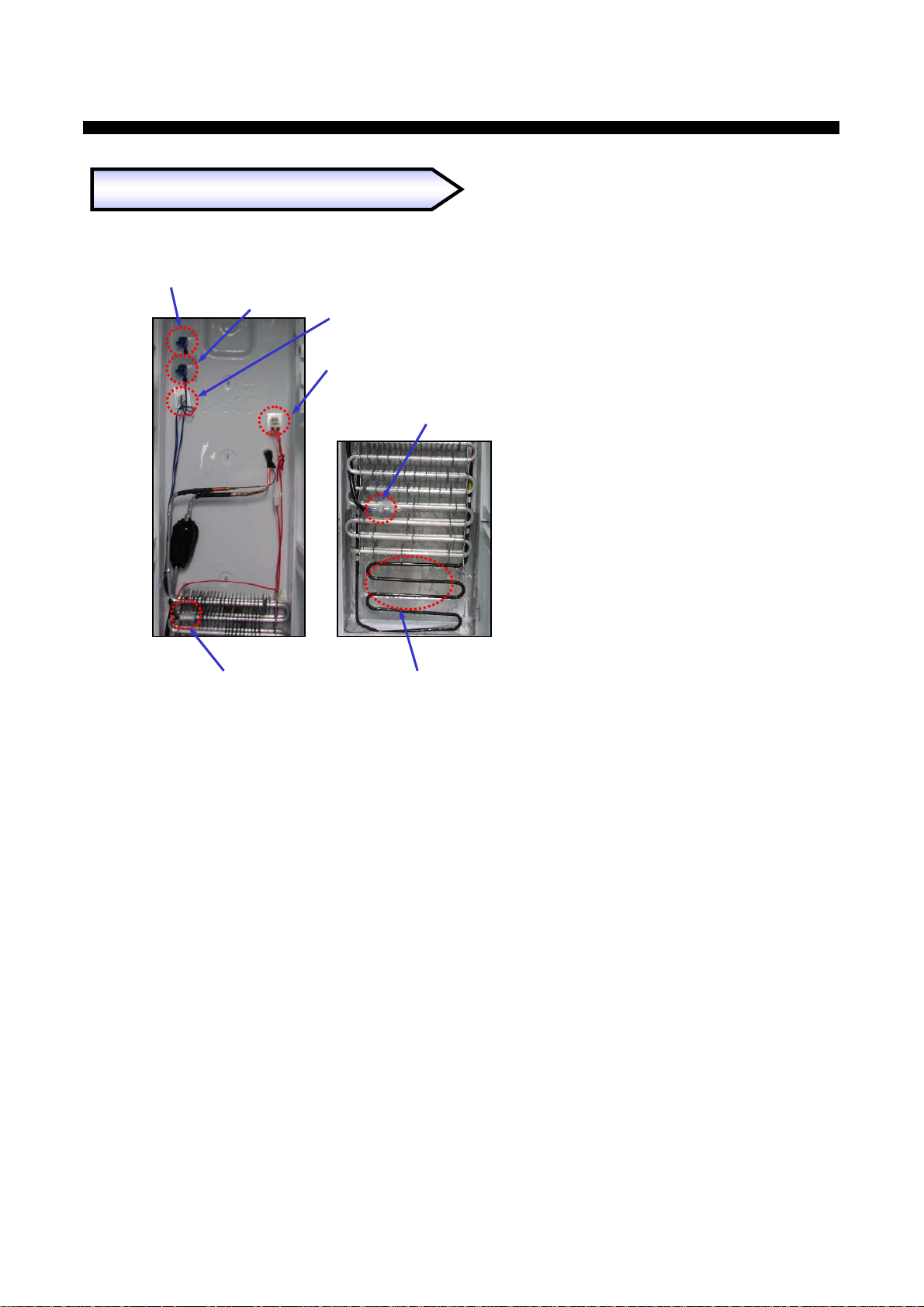

7-3. Evaporator

Water Pipe

D-Sensor

Temp

Fuse

Evaporator

Defrost

Heater

7-4. Machine Compartment

Power cord

Compressor

Capacitor

OLP

& PTC

DryerRunning

44

Condenser

Fan-Motor

Condenser

Tray Drip

Water
Valve

8. HOW TO CHECK EACH PARTS

8-1. Hose Ice Maker Tube Assembly

1) Disassembling Procedure

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

15

▷Pull forward Ice Storage Case

26

▷Remove 2 screws. ▷Disassemble Cover Guide Cab W/Tube A

37

▷Pull forward Ice Maker. ▷Pull forward Hose Ice Maker Tube As.

48

▷Remove 2 screws at the Cove

Guide Cab W/Tube A.

▷Remove Water Hose Heater's 2P housing.

2) How to check Hose Ice Maker Tube As.

How to check CRITERION

▷Check Hose Ice Maker Tube As.

▷Measure the resistance

of two wire

45

▷Good: 9680Ω(±8%)

(8900 ~ 10456Ω)

▷If defective, change

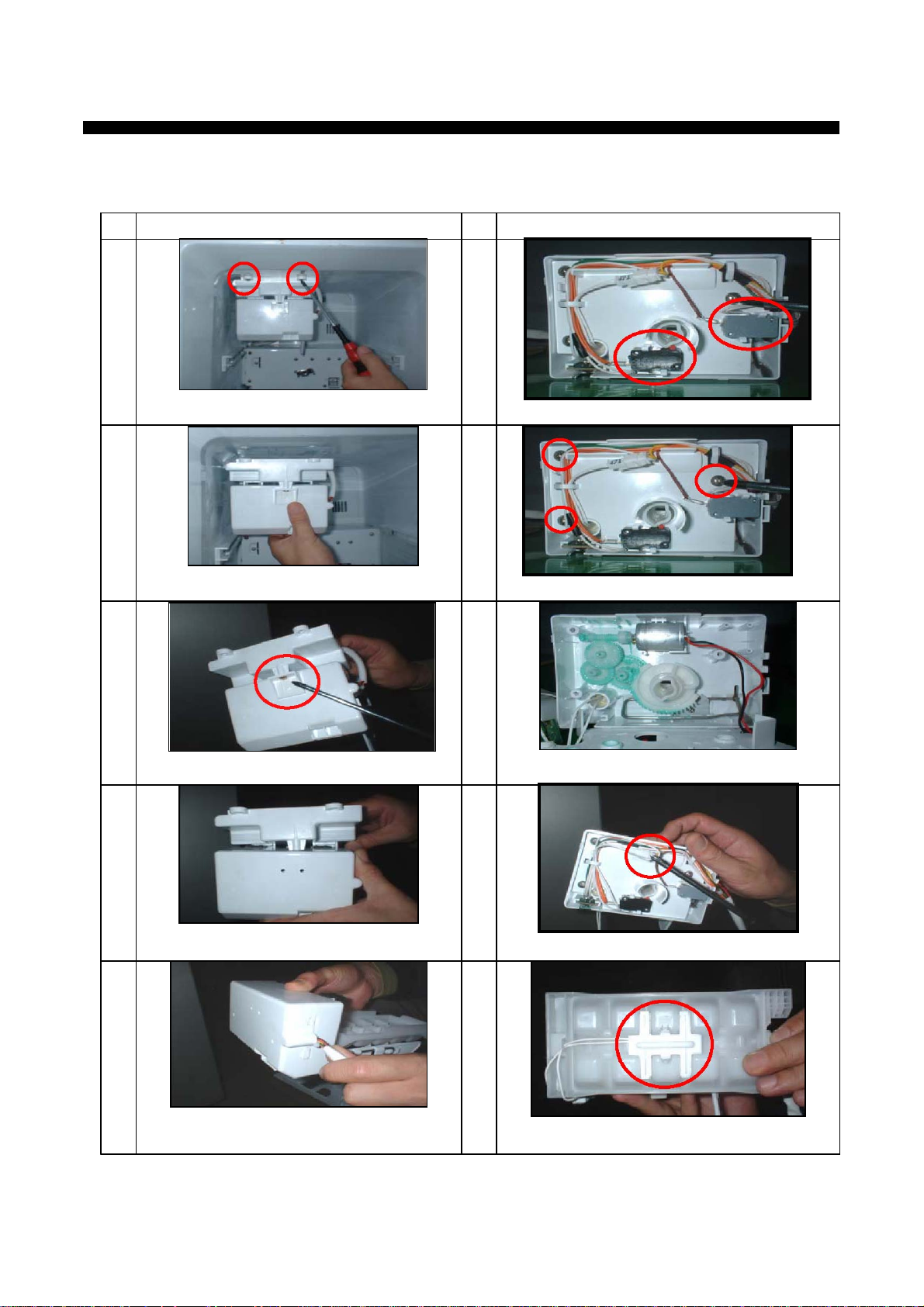

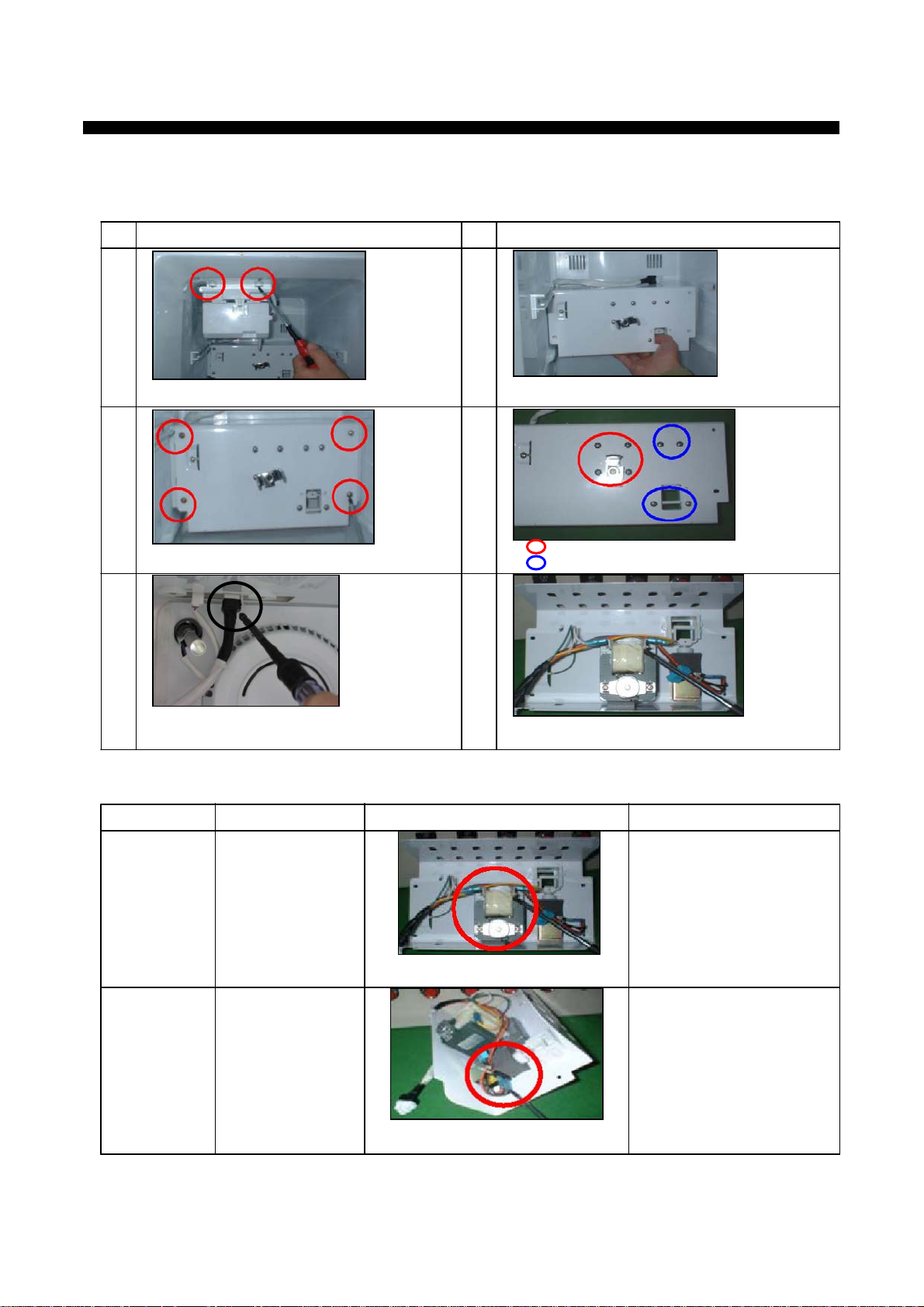

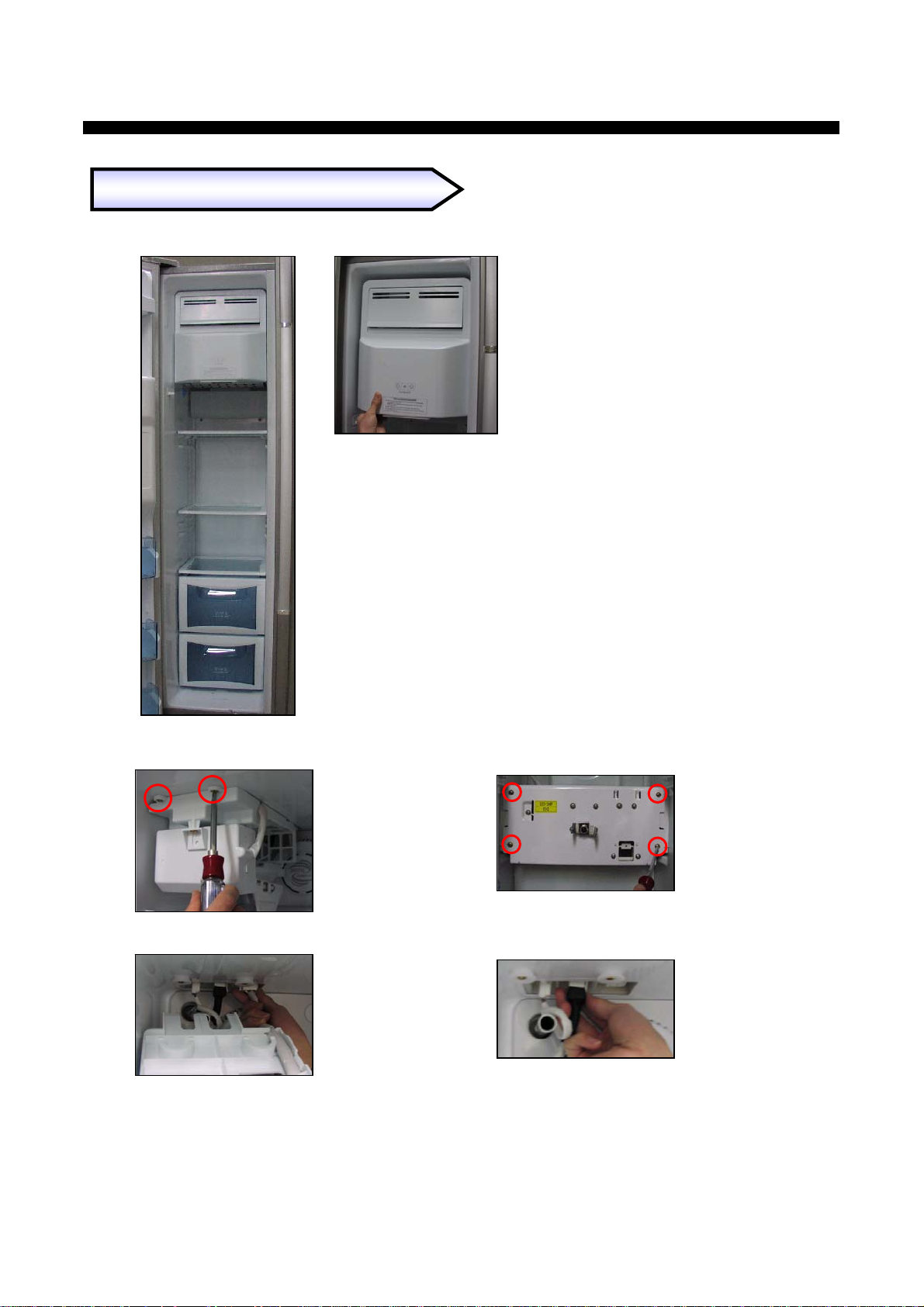

8-2. Bracket Geared Motor Assembly

1) Disassembling Procedure

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

14

▷Remove 2 screws.

25

▷Unscrew (4 points).

36

▷Separate 6 pin housing of Bracket
Geared Motor from the top connector.

▷Pull forward Bracket Geared Motor.

Unscrew (red 4 screws).
Unscrew (blue 4 screws).

▷Check Solenoid Valve and Geared Motor.

2) How to Check Hose Ice Maker Tube Assembly

PARTS HOW TO CHECK

SPEC. CRITERION

Geared Motor

Cube Sol Valve

▷SPEC. NAME

:DAG-6502DEC

▷VOLTAGE

:220/240V,50Hz

▷SPEC. NAME

:Cube SN8

▷VOLTAGE

:220/240V,50Hz

▷GOOD : 11.3Ω(±10%)

(10.8 ~ 12.7Ω)

▷DEFECTIVE ;

Change the Geared Motor.

▷Check resistance value of

2 terminals with a Multi Tester.

▷GOOD : 145Ω(±8%)

(133 ~ 156Ω)

▷DEFECTIVE ;

Change the Cube Sol Valve.

▷Check resistance value of

2 terminals with a Multi Tester.

46

8-3. Dispenser Micro Switch

1) Disassembling Procedure

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

13

▷ Insert (-) screw driver into bottom hole of

Dispenser Button Guide.
Pull up forward to remove the guide.
(Be careful not to damage guide surface.)

▷Separate wire connectors

from Micro Switch.

2

▷ Remove Micro switch.

2) How to Check Micro Switch

PARTS HOW TO CHECK

SPEC. NAME
: VP333A-OD-8

4

▷Check Micro Switch.

CRITERION

▷GOOD :

Tact Switch

(Blue Circle)

ON (Close) Connected Some Value

Terminals

(Red circle)

Tester Result

(Resistance Mode)

VOLTAGE
:125V,3A

▷Check both terminals

(red circle) with a Multi Tester

(Tester Mode : Resistance (Ω).

OFF (Open) Disconnected No value (0)

▷DEFECTIVE :

Change Micro Switch.

47

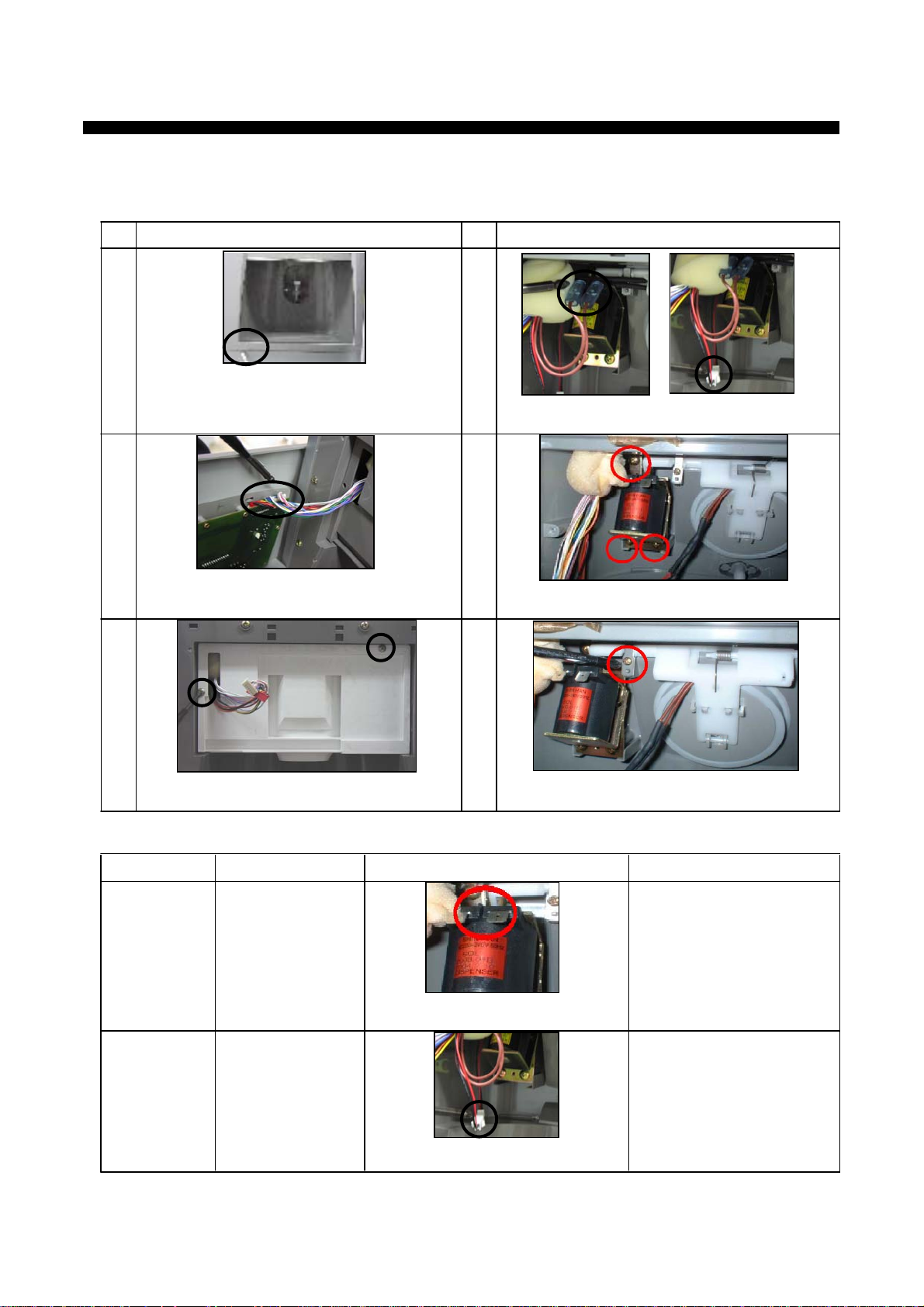

8-4. Dispenser Solenoid Valve

1) Disassembling Procedure

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

14

▷ Insert (-) screw driver into bottom left groove

of Cover Dispenser Box. Pull forward with a
snap.(Be careful not to damage cover and
door surface.)

25

▷ Separate 2 housings of 10P / 7P
from Front PCB.
(Do not hold only wires to pull out.)

▷Separate 2 terminals from Sol Valve and
2P Housings from Cover Ice Flap.

▷Unscrew (3 points) to remove Sol Valve.

36

▷Unscrew (2 points) to remove Box
Dispenser Shut.

▷Unscrew (1 point) to remove Cover Ice Flap.

2) How to Check Micro Switch

PARTS HOW TO CHECK

Dispenser

Sol Valve

Flap Heater

Assembly

SPEC. CRITERION

▷SPEC. NAME

:SOL2003-01B

▷VOLTAGE

:220/240V,50Hz

▷Check resistance value of

both terminals with a tester.

▷VOLTAGE

:DC 12V,1.5W

▷Check resistance value of

both terminals with a tester.

48

▷ Good : 215Ω(±10%)

(193 ~ 236Ω)

▷DEFECTIVE : 0

Change Sol Valve.

▷GOOD : 96Ω(±8%)

(88 ~ 104Ω)

▷DEFECTIVE ;

Change Flap Heater AS.

8-5. Main PCB

- Basic Model

6

1
3

2
5

4

ITEM REMARKNO CHECK POINT

1

Compensation of
Weak Refrigeration
→Making R-temp

cooler

Relay Power

2

Controller

Fan Power

3

Controller

* To check normal voltage of each electrical devices

to & from Mi-com.

▷Check input & output voltage of MICOM and IC7

J1

J2

F R C

Electric Current Fuse

4 * To check when each device does not work (250V,3.15A)

Time Shortening

5 * To shorten time in PCB checkup

Switch

(Pressing 1 time is regarded as 1 minute has passed.)

* Used when making R-temp. down

to compensate for weak refrigeration
without changing FCP temp. setting.

▷Cutting of J1 ; down by 1.5℃
▷Cutting of J1, J2 ; down by 3℃

* To check input & output voltage of Fan

▷#2 : Input
▷#5 : Output

Regulator IC(5V)6 * To check voltage of MICOM and IC

Voltage check of IC#6 (Input :12V,Output : 5V)

49

- Dispenser Model

6

4

1
3

5

2

ITEM REMARKNO CHECK POINT

1

Compensation of
Weak Refrigeration
→Making R-temp

cooler

Relay Power

2 * To check normal voltage of each electrical devices

Controller

▷Check input & output voltage of MICOM and IC7, 8.

Fan Power

3

Controller

J18,19

to & from Mi-com.

F R C

Electric Current Fuse

4 * To check when each device does not work (250V,3.15A)

Time Shortening

5 * To shorten time in PCB checkup

Switch
Regurator IC(5V)

6 * To check voltage of MICOM and IC

(Pressing 1 time is regarded as 1 minute has passed.)

Voltage check of IC#6 (Input :12V,Output : 5V)

* Used when making R-temp. down

to compensate for weak refrigeration
without changing FCP temp. setting.

▷Cutting of J18 ; down by 1.5 ℃
▷Cutting of J18, J19 ; down by 3℃

* To check input & output voltage of Fan

▷#2 : Input
▷#5 : Output

50

8-6. Ice Maker

1) Disassembling Procedure

NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE

16

▷ Remove 2 screws on top front of ice maker.

27

▷ Pull forward ice maker. ▷Unscrew (3 points) Plate Gear Fixture.

38

▷Unscrew Fixture of Frame Ice Maker.

49

▷Remove full ice sensing switch and level switch.

▷ Check if ice dropping motor is normal (OK).

▷Separate Ice Maker Assembly from

Frame Ice Maker.

510

▷ Separate Cover I/M (A) from Cover I/M (B)

with a (-) screw driver.

* Follow the reverse order when assembling.

51

▷Remove 2 pin housing from Plate Gear Fixture.

▷ Remove I-sensor (ice sensor) from

Case Icing As.

2) How to Check Ice Maker

PARTS HOW TO CHECK CRITERION

Ice Dropping Motor

I-Sensor
(Ice Sensor)

Full Ice
Sensing Switch

▷ Check resistance value of 2 wires

with a Multi Tester.

▷ Check resistance value of 2 wires

with a Multi Tester.

▷ GOOD : RS-360RH-14250

: 6 ~ 14Ω

▷ DEFECTIVE :

Change the motor.

▷ GOOD : 4.4 ~ 50kΩ

(It depends on surround temp.)

▷ DEFECTIVE :

Change the sensor.

▷ GOOD :

Tact Switch

(Blue Circle)

ON (Close) Connected Some Value

Terminals

(Red circle)

Tester Result

(Resistance Mode)

Level Switch

▷ Check resistance value of 2 terminals

with a Multi Tester.

▷ Check resistance value of 2 terminals

with a Multi Tester.

52

OFF (Open) Disconnected No value (0)

▷ DEFECTIVE :

Change the switch.

▷ GOOD :

Tact Switch

(Blue Circle)

ON (Close) Connected Some Value

OFF (Open) Disconnected No value (0)

▷ DEFECTIVE :

Change the switch.

Terminals

(Red circle)

Tester Result

(Resistance Mode)

9. TROUBLE DIAGNOSIS

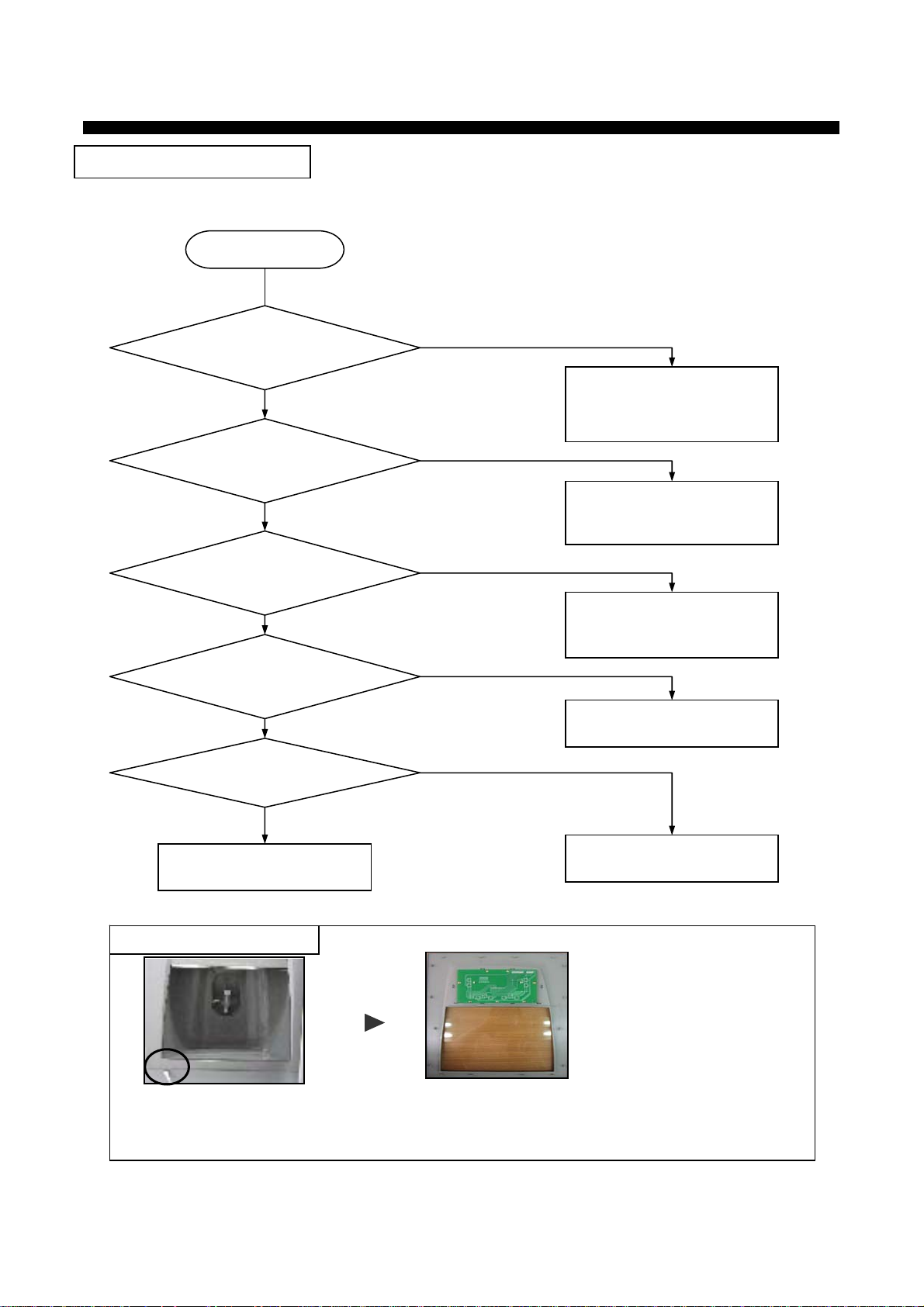

9-1. Faulty Start (F/R lights OFF , F-PCB Power OFF)

Start

Power cord or Fuse

is disconnected ?

N

1’st power of SMPS

is on?

Y

Main PCB Fuse is

disconnected?

N

Voltage

(DC12V/14.5V/5V) on

Main PCB is OK?

Y

Wire connection

of F-PCB is OK?

Y

N

Y

N

※ Refer to the 5-1.

(Power circuit diagram)

Y

Change the Main Fuse

(AC250V 15A)

(In the left side of

machine compartment)

Check power Cord connection

from machine compartment and

to CN1 of M-PCB.

Change the Fuse

(AC250V 3.15A)

(on the Main PCB)

Change Main PCB

N

Checkup and connect

F-PCB wires.

Change F-PCB AS.

※ How to replace Front PCB

1) Insert a flat tip driver into the left down groove of panel frame and snap it out smoothly.

2) Separate 2 housings of 10P / 7P from Front PCB. (Do not hold only wires to pull out.)

3) Unscrew (7 points) to remove Front PCB.
* Follow the reverse order when assembling.

53

9-2. Freezer Compartment

9-2-1. Freezing failure . (Foods are not frozen / cold.)

Start

Any Error code

on F-PCB?

N

Does Comp.

work?

Y

F/C-Motor

works OK?

Y

Temp. Fuse

Is OK?

Y

Refer to error display

in operation and function

※ Refer to the 4-10.

(Error Display)

N

OLP/PTC

is OK?

N

Change OLP/PTC

N

F/C-Motor

is OK?

N

Y

Change the

Comp.

Change F/C-Motor

Y

Y

Wiring connection

Is OK?

Change M-PCB

N

Check lead wire

N

Y

Defrost Heater

Is Ok?

Y

Ice formation on Eva.

Is OK?

Y

N

Defrost Heater : 192W (252 Ω)

N

54

Change Fuse. Temp

※ Left-lower side of Evaporator

th

(4

pipe from buttom)

Change the

Defrost Heater

Check ice formation on Eva.

And if refrigerant leak

is found, repair it.

Removing and replacing Freezer parts

(1)

1) Remove foods.

2) Remove Ice Bucket,
shelves and cases in
Freezer compartment.

(2)

(3)

* Remove 2 screws

of Ice Maker.

* Remove the Housing

of Ice Maker AS.
(Right side)

55

(4)

(5)

* Remove 4 screws

of Geared Motor.

* Remove the Housing

of Geared Motor AS.
(Center)

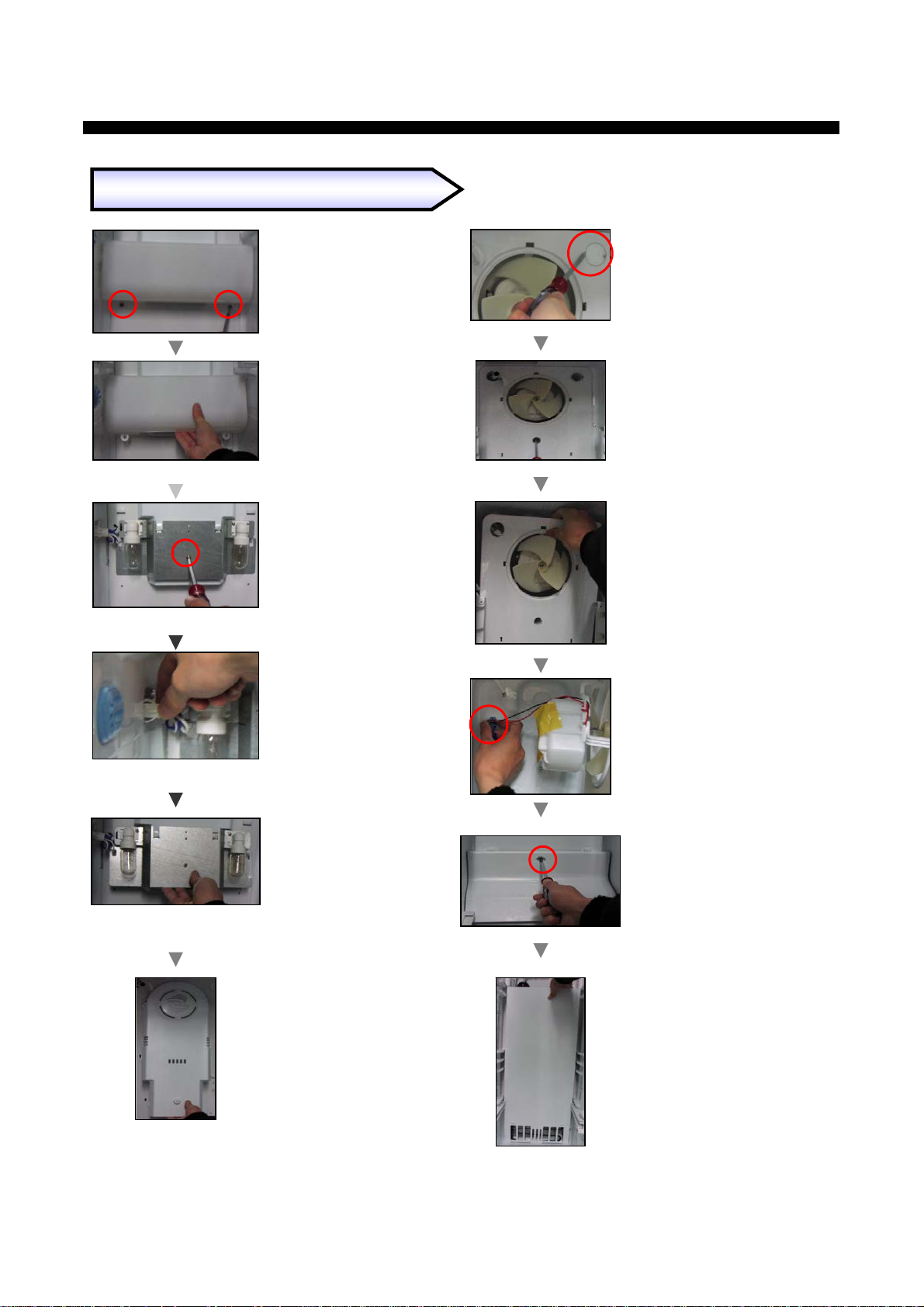

Removing and replacing Freezer parts

(6)

(7)

(8)

(9)

* Remove light cover screws.

* Pull down smoothly the

bottom of light cover to
remove.

* Remove the screw of

bracket F-Lamp.

* Remove the left housing.

(12)

* Remove the screw cap on

the F-Louver A with a flat
tip driver.

(13)

* Remove 3 screws of

F-Louver A.

(14)

* Hold the end of F-Louver A

and pull forward slowly.

(15)

(10)

(11)

* Pull out smoothly the

bracket F-Lamp AS.
to remove.

* Hold the end of F-Fan cover

and pull forward slowly.

* Remove the housing.

(16)

* Remove the screw of

F-Return cover
and pull out cover.

(17

* Hold the end of F-Louver B

and pull forward slowly.

56

Removing and replacing Freezer parts

D-Sensor Housing

F-Louver B Heater Housing

Temp. Fuse Housing

1st : F-Louver B Heater Housing
2nd : None.
3rd : Defrost Heater Housing.

Temp. Fuse

Defrost Heater

D-Sensor Defrost Heater

57

9-2-2. Ice Formation on F-Louver

Start

Dews are formed on the

gasket surface inside F

compartment ?

N

Door is open and closed

too frequently ?

N

Heat appliances are too

close to the refrigerator ?

N

Y

Gasket has a gap

between cabinet ?

Y

Remove the gap.

N

Y

Door is hanged

down ?

Reassemble the door.

N

Y

Explain not to open

doors too frequently.

Y

Make enough distance

between heat appliances

and refrigerator.

Watery or hot foods are

stored in refrigerator

compartment ?

N

Louver heater is

disconnected ?

N

Y

Wipe out dews on the

louver surface and run

the refrigerator again.

Y

Change the louver assembly.

58

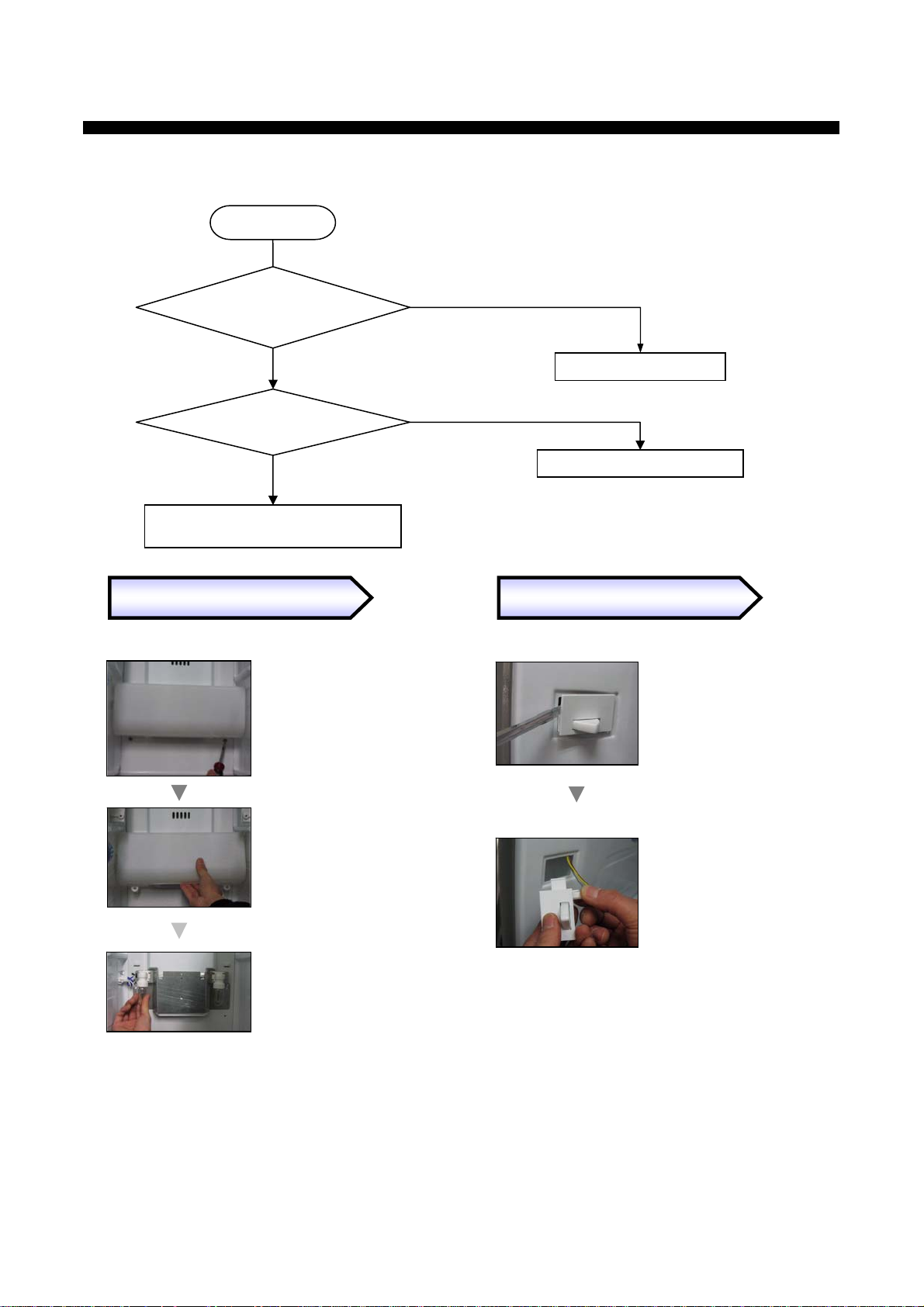

9-2-3. Disconnection / breaking of Freezer Lights Wires

Start

Freezer light filament is

disconnected or breaking ?

N

Connection of F door

switch is OK ?

Y

Check the F door switch

connection and F-light socket.

Y

Change the light bulb.

N

Repair the F-door switch.

Change of F Lights Change of F Door Switch

①

* Remove 2 screws

of light cover.

①

* Insert a flat tip screw

driver Into a gap of door
switch to pull forward.

②

③

※ Follow the reverse order

of disassembling after
changing the light.

* Hold the bottom of light

cover and pull forward
to remove.

* Change the light bulb.

(AC240V 25W)

59

②

* Disconnect the housing

and change the switch
for a new one.

※ Be careful when changing

the switch. F and R door
switch are different in type
and shape.

※ Follow the reverse order

of disassembling after
changing the switch.

9-3. Refrigerator Compartment

9-3-1. Refrigeration failure (Foods does not get cool or cold soon.)

Start

Any error mode

on F-PCB?

Y

※ Refer to the 4-10.

(Error Display)

N

N

R-Motor works OK ? R-Motor is OK ?

Y

R-Sensor is OK

(normal) ?

Wiring connection

N

Y

Is OK ?

N

Y

Freezer compartment

Is OK ?

N

Y

Refrigerator gasket

have gap ?

Y

Gasket have

any gap ?

N

N

Foods are placed just
close to R-Sensor ?

N

Y

Door is hanged down

to make gap between

cabinet ?

Solve error code

problem, if any.

N

Y

Change the Main PCB.

Change the R-Sensor
and check connector.

Y

Y

Change

the R-Motor.

Check the wirings.

Refer to “Freezing

does not work.”

Repair to eliminate

the gap of gasket.

Reassemble doors.

N

Refrigerator door

openings are too often ?

N

Explain not to place foods close to

R-sensor or cold air spout.

Y

* Advise to use in “HIGH” mode
* Jumper cutting of Main PCB to

→ Option 1 : cut J18 to down 1.5℃.

60

→ Option 2 : cut J19 to down 1.5℃.

Explain not to open doors

unnecessarily or frequently.

prevent weak refrigeration ;

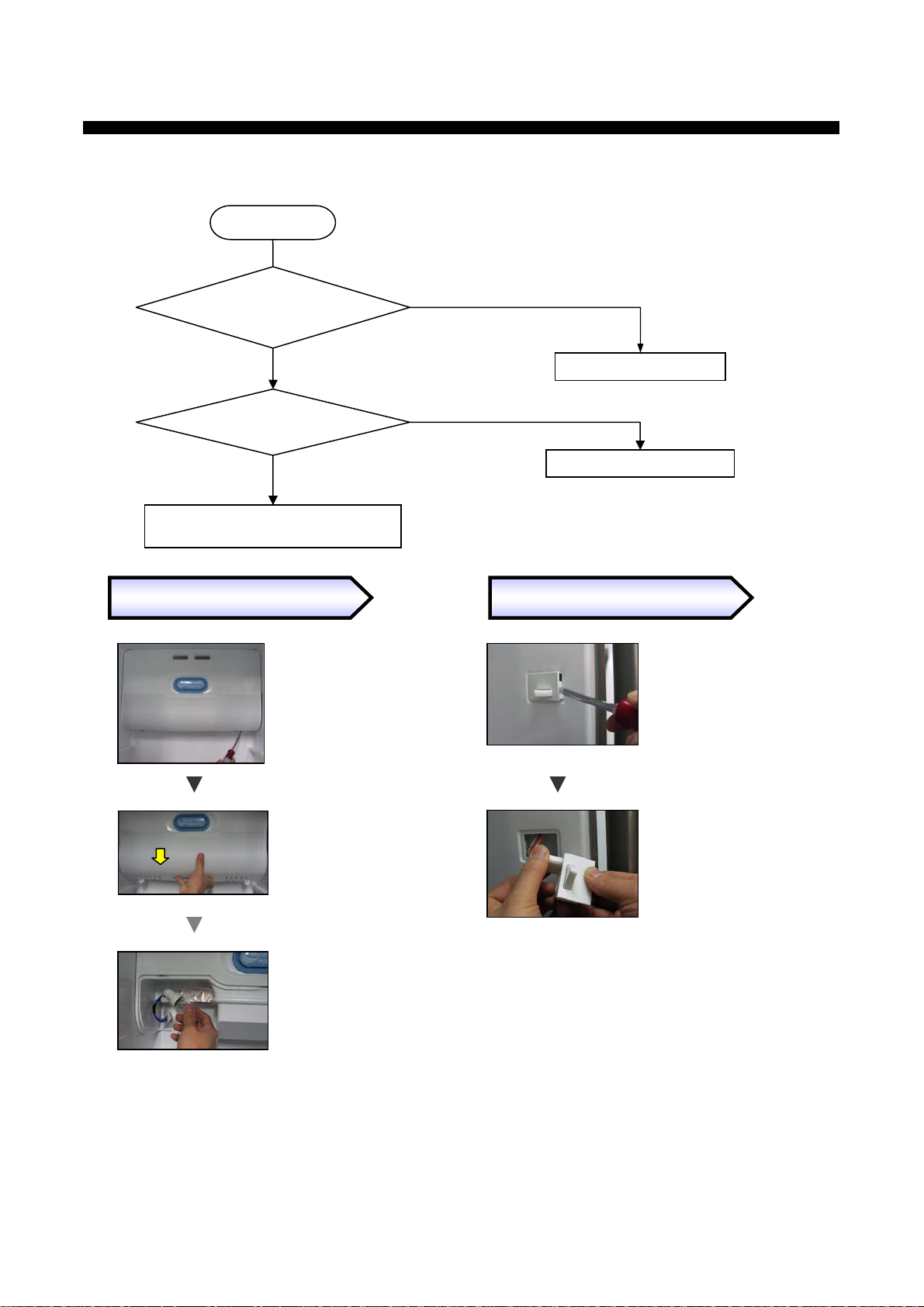

9-3-2. Disconnection / Breaking of Refrigerator Lights Wires

Start

Freezer light filament is

disconnected or breaking ?

N

Connection of R door

switch is OK ?

Y

Check the R-door switch

connection and R-light socket.

Y

Change the light bulb.

N

Repair the R-door switch.

Change of R Lights Change of F Door Switch

①

* Remove screws

of light cover.

①

* Insert a flat tip screw

driver into a gap of door
switch to pull forward.

②

③

* Hold the bottom

of cover and pull
forward to remove.

* Change the light

bulbs.
(AC240V 25W)

※ Follow the reverse order

of disassembling after
changing the light.

61

②

※ Follow the reverse order

of disassembling after
changing the switch.

* Disconnect the housing

and change the switch
for a new one.

※ Be careful when changing

the switch. F and R door
switch are different in type
and shape.

9-3-3. Dews on Refrigerator Compartment

Start

Dews are formed

on the gasket inside

R-compartment?

N

Door is open too long ?

N

Door is open and closed

too frequently ?

N

Y

Gasket has

Any gap ?

Y

Repair to eliminate the gap.

N

N

Door is

hanged down ?

Y

Reassemble the doors.

Y

Explain not to open doors

too long.

Y

Explain not to open

doors unnecessarily.

Heat appliances are

used near the refrigerator ?

N

Watery or hot foods are

stored in the R-compartment?

N

R-fan works OK ?

Y

Y

Make enough distance between

the appliances and refrigerator.

Y

Advise to cool down foods, wrap

or cover foods with much water

before storing in the compartment.

N

Repair and change R-motor.

62

9-3-4. Excessive Refrigeration of Vegetable Case

Start

Refrigerator temp.

mode is “HIGH” ?

N

R-check valve

Works OK ?

Y

Is there any

R-sensor error code ?

Y

Explain the temperature modes.

Advise to set the temp. to

“Middle” or “LOW” mode.

N

Repair and/or Change

the R-check valve.

※ Refer to “Repair /Change

of Check Valve”.

N

R-sensor is OK ?

N

Change the R-sensor.

Y

Y

Check the R-sensor connection.

(Check the connector to Main PCB.)

63

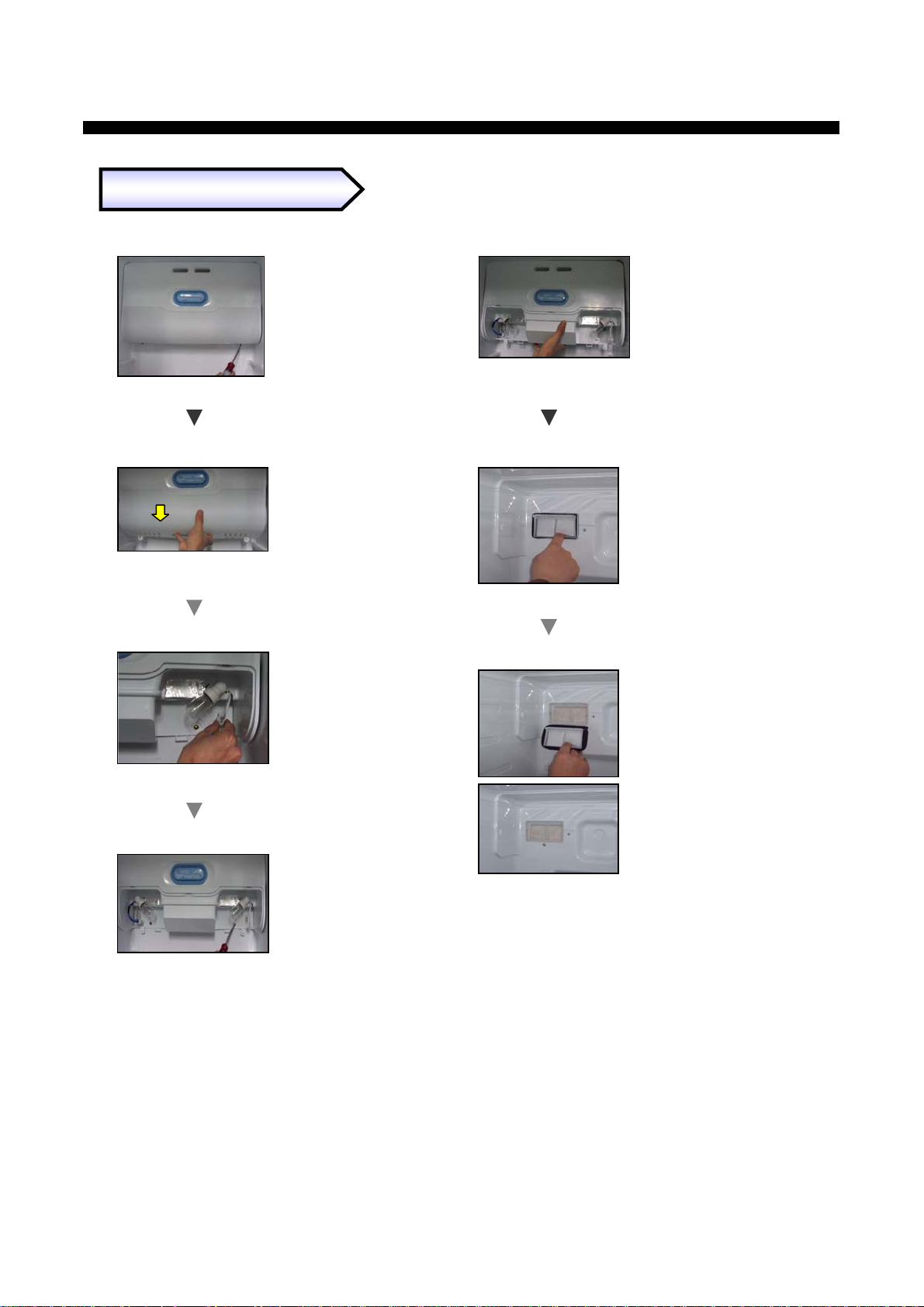

Removing of Check Valve

①

②

③

* Remove screws

of light cover.

* Hold the bottom

of cover and pull
forward to remove.

* Disconnect light

housing.

⑤

⑥

⑦

* Hold the bottom and

right of damper to pull
down to remove.

* Lift up a piece of Check Valve

Flap and insert a finger to the
valve frame to hold out.

④

⑧

* Remove screws with a

(+)screw driver.

64

9-4. Operation Noise of Refrigerator

9-4-1. Comp. operation Noise

Start

Refrigerator is leveled ?

Y

Front cover or door gasket

is assembled wrong ?

N

Rubber absorber comp

is distorted or aged ?

N

Sound from Comp itself

or Vibration ?

N

Level the refrigerator by

adjusting wheels.

☞ Refer to User’s Guide

and SVC Manual.

Y

Set it right.

Y

Change the Rubber absorber.

N

Y

Change the compressor.

Remarks

● Compressor sound is somewhat normal because it works like a heart to circulate the refrigerant in
the pipes during the refrigerator operation.

● Rattling or metallic touch sound of motor, piston of comp. can be heard when it starts or stops.

65

Attach a restrainer on the comp.

head to reduce vibration and

high frequency noise.

9-4-2. Refrigerant Flow Sound

Start

Water flowing or hiss sounds

from the refrigerator ?

N

Refrigerant sound of hiss or

sizzling sound when comp. starts ?

N

Refrigerant sound of hiss or
sizzling when comp. stops ?

N

Any shaking sound from

F-compartment

when comp. works ?

Y

Attach an absorber gum

on the capillary tube.

Y

Apply a gum on the

accumulator.

Y

Apply a gum on the

accumulator.

Y

N

Fasten the evaporator in F-

compartment tightly against

touching (liner) surfaces.

Explain refrigerator work

mechanism and sound to the

users or customers.

Remarks

● Water flowing sound, hiss or sizzling sound can make while refrigerant in the pipes is changing from

liquid to gas state when comp. starts or stops.
It is normal to the refrigerator.

66

Troubleshooting of Evaporator Sound

1. Hiss Sound from Capillary Tube

“I” tube

1

2

3

2. Sizzling Sound from Accumulator

Attach a absorber on point ③ (accumulator).

3. Shaking or trembling Sound of Evaporator

1) “I” tube is used to connect the
capillary tube and evaporator.
(2 welding points : ①, ②)

2) When such a sound is made,
attach a absorber on the tube
including 2 welding points.

1 2

1) Check whether evaporator is fastened tight
with the fasteners of ①, ②.

2) Insert a soft spacer (EPS) between left and right wall.
Evaporator not to be shaken or trembled during
refrigerator operation.

67

9-4-3. Fan Noise

Start

Fan is damaged
or transformed ?

N

Fan is touching

the surround ?

N

Fan-motor assembly

is moving or shaking ?

N

Motor has its own noise

or vibration when working ?

Y

Change the fan.

Y

Set it right not to touch.

Y

Set it right not to move.

Y

N

Explain to the customers

how fan is working to

circulate cold air in the

compartments.

Remarks

● The fan is sending out cold air to circulate it through the compartments.
When the air is touching the surface of louver or liner wall, such sound can make.

68

Change the motor

assembly.

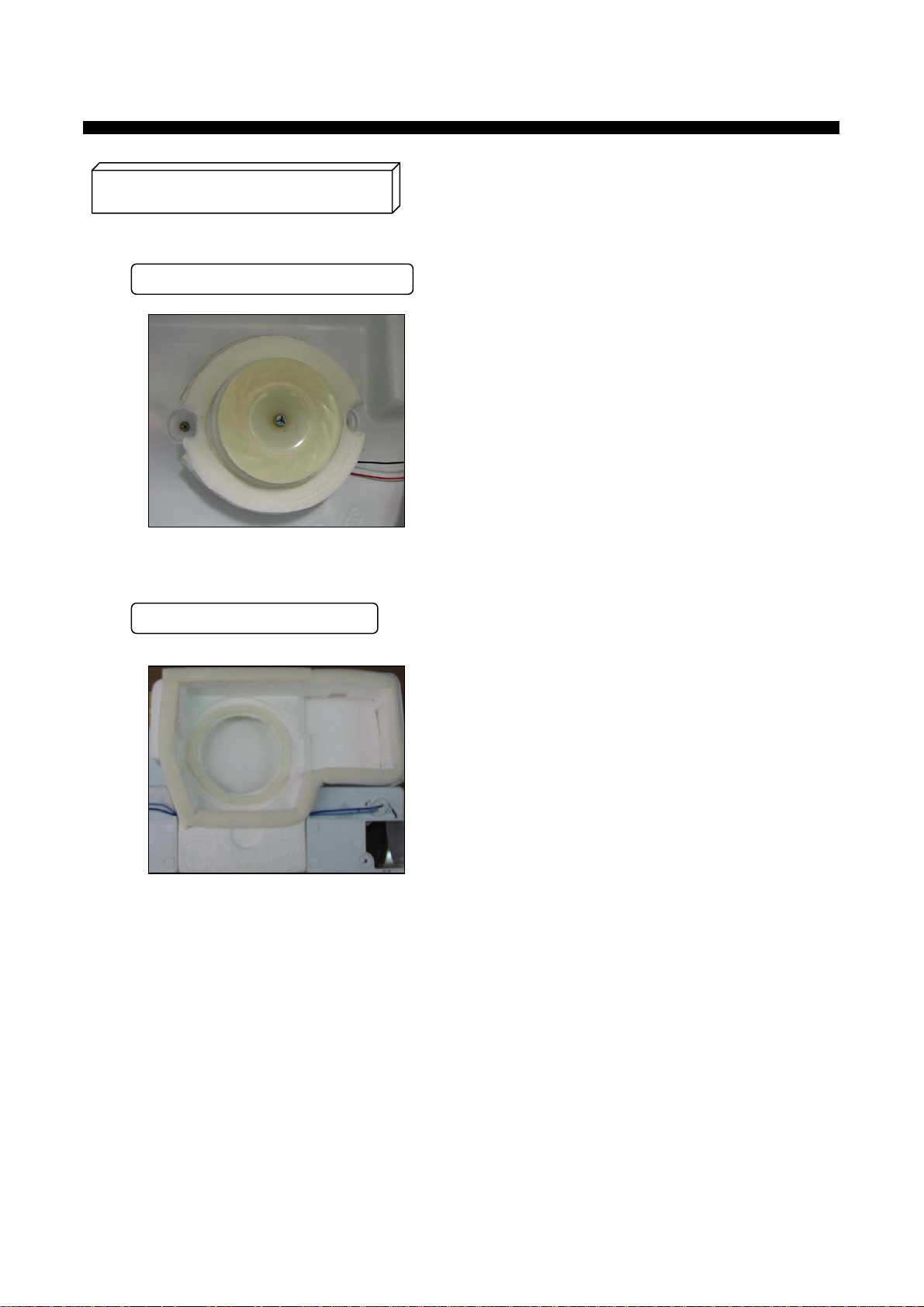

Troubleshooting of Fan Noise

1. Fixing or Fastening of Fan Motor

2. Any Touch Sound from Fan

1) Check if fan motor frame of the assembly is
fastened tightly with screws to the liner wall.
Unless it is tight, vibration of shaking can make.

2) Check if fan motor and fan are hanged down.
Fan working sound can be louder if they are
not set right.

1) Check if sealing sponge on the insulator
touches the fan.
If so, set it again not to touch it.

2) If any damage on the insulator around the fan
rotation is found, set the fan motor assembly right
not to touch it.

69

9-4-4. Pipe Noise

Start

Pipes are touching

in the machine compartment ?

N

Tray drip makes

noise by Condenser shaking ?

N

Pipe itself is

shaking much ?

N

Compressor itself

is shaking much ?

Y

Separate the touching

pipes, if any.

Y

Apply cushion material between

Comp. base and Tray drip.

Y

Move or change the points of

vibration absorber rubbers on

the pipes to reduce the shaking.

Y

Attach a absorber

N

on the comp. head.

Explanation to the users.

Remarks

● Refrigerant is erupting rapidly from the compressor to circulate pipes, so pipe shaking noise
can make to some degree.

● In case compressor vibration is sent to a pipe directly, apply vibration absorber rubbers to welding
points of the pipe and comp. or to a much bent point on the pipe.

70

9-5. Door

9-5-1. Door Opening Alarm Continues though the door is closed.

Start

Door switch is pushed

well ?

Y

Door switch is soaked with

water or there is water in

the switch ?

N

PCB input is OK ?

N

Check #5,6 of CN8 (F-Door)
→ Open : 5V, Close : 0V

N

Y

and #4,6 of CN7 (F-Door).

Check if interior light is ON.

Y

Attach a thin pad on the
door liner or change the

door assembly.

Change the door switch.

Repair any disconnection

of wires and defective

Door switch.

Connector insertion to

Main PCB is OK ?

N

Door switch itself is

OK ?

N

Check it up.

Y

Repair the defective

connection.

Y

Change the switch.

71

10. COOLING CYCLE HEAVY REPAIR

10-1. Summary of Heavy Repair

Remove

refrigerant

Residuals

Parts

replacement

and welding

* Cut charging pipe ends (Comp. & Dryer) and

discharge refrigerant from drier and compressor.

* Confirm refrigerant (R-134a or R-600a) and oil for

compressor and drier.

* Confirm N2 sealing and packing conditions before use.

Use good one for welding and assembly.
* Weld under nitrogen gas atmosphere.
* Repair in a clean and dry place.

ToolsContentsProcess

* Nipper, side cutters

* Pipe Cutter, Gas welder,

N2 gas

Vacuum

Refrigerant

charging and

charging

inlet welding

Check

refrigerant leak

and cooling

capacity

Compressor

compartment

and tools

arrangement

* Evacuate for more than forty minutes after connecting

manifold gauge hose and vacuum pump to high (drier)

and low (compressor) pressure sides.

* Weigh and control the bombe in a vacuum conditions

with electronic scales and charge through compressor

inlet (Process tube).
* Charge while refrigerator operates).
* Weld carefully after inlet pinching.

* Check leak at weld joints.

Note :Do not use soapy water for check.

* Check cooling capacity

Check condenser manually to see if warm.

→

Check hot pipe manually to see if warm.

→

Check frost formation on the whole surface of the

→

evaporator.

* Remove flux from the silver weld joints with soft

brusher wet rag. (Flux may be the cause of corrosion

and leaks.)
*Clean tools and store them in a clean tool box

or in their place.

* Vacuum pump

, Manifold gauge.

* Bombe (mass cylinder),

refrigerant manifold gauge,
electronic scales, punching
off flier, gas welding machine

* Electronic Leak Detector,

Driver.

* Copper brush, Rag, Tool box

Transportation

and

installation

* Installation should be conducted in accordance with

the standard installation procedure. (Leave space of

more than 5 cm from the wall for compressor

compartment cooling fan mounted model.)

72

10-2. Precautions During Heavy Repair

1) Use special parts and tools for R-134a or R-600aUse of tools.

1) Remove retained refrigerant more than 5 minutes after turning off

Removal of retained

refrigerant.

a refrigerator. (If not, oil will leak inside.)

2) Remove retained refrigerant by cutting first high pressure side
(drier part) with a nipper and then cut low pressure side.
(If the order is not observed, oil leak will happen.)

Suction tube

PrecautionsItems

Low pressure

side

Evaporator

Replacement of drier.

Nitrogen blowing

welding.

Others.

Hot Pipe

Dryer

High Pressure side

Process tube

Compressor

Discharge tube

Condenser

1) Be sure to replace drier when repairing pipes
and injecting refrigerant.

1) Weld under nitrogen atmosphere in order to prevent oxidation
inside a pipe. (Nitrogen pressure : 0.1~0.2 kg/cm2.)

1) Nitrogen only should be used when cleaning inside of cycle pipes

inside and sealing.

2) Check leakage with an electronic leakage tester.

3) Be sure to use a pipe cutter when cutting pipes.

4) Be careful not the water let intrude into the inside of the cycle.

73

10-3. Practical Work for Heavy Repair

1. Removal of residual
refrigerant.

PrecautionsItems

1) Remove residual refrigerant more than 5 minutes later after
turning off the refrigerator. ( If not, compressor oil may leak inside.)

2) Remove retained refrigerant slowly by cutting first high pressure
side (drier part) with a nipper and then cut low pressure side.

Evaporator

Suction tube

Low pressure

side

2. Nitrogen blowing
welding.

Hot Pipe

Dryer

High Pressure side

Evaporator

Hot Pipe

Process tube

Compressor

Discharge tube

Compressor

①

Condenser

Low pressure

side

④

Dryer

Process tube

②

Condenser

High Pressure side

③

* When replacing a drier:

Weld ①and② parts by blowing nitrogen (0.1~0.2kg/cm2) to high

pressure side after assembling a drier.

* When replacing a compressor:

Weld ③and④ parts by blowing nitrogen to the low pressure side.
Note) For other parts, nitrogen blowing is not necessary because it
does not produce oxidized scales inside pipe because of its short
welding time.

※ KEYPOINTING

Welding without nitrogen blowing produces oxidized scales inside
a pipe, Which affect on performance and reliability of a product.

74

3.Vacuum degassing.

PrecautionsItems

* Pipe Connection

Connect a red hose to the high pressure side and a blue hose
to the low pressure side.

* Vacuum Sequence

Open ①,② valves and evacuate for 40 minutes.
Close valve ①.

Evaporator

4.Refrigerant charging.

Compressor

Low

Pressure

Hot Pipe

DryerCondenser

High

Pressure

①

Vaccum

Pump

※ KEYPOINTING

Blue

Yellow

Red

②

1) If power is applied during vacuum degassing, vacuum degassing
shall be more effective.

2) Operate compressor while charging refrigerant. (It is easier and
more certain to do like this.)

* Charging sequence

1) Check the amount of refrigerant supplied to each model after
completing vacuum degassing.

2) Evacuate bombe with a vacuum pump.

3) Measure the amount of refrigerant charged.

- Measure the weight of an evacuated bombe with an electronic scale.

- Charge refrigerant into a bombe and measure the weight. Calculate

the weight of refrigerant charged into the bombe by subtracting the
weight of an evacuated bombe.

Indicate the weight of

an evacuated bombe

75

※ KEYPOINTING

1) Be sure to charge
the refrigerant at
around 25°C.

2) Be sure to keep

-5g in the winter
and +5g in summer.

Calculation of amount of refrigerant charged

the amount of refrigerant charged

= a weight after charging

- a weight before charging
(a weight of an evacuated cylinder)

PrecautionsItems

4.Refrigerant charging.

4) Refrigerant Charging
Charge refrigerant while operating a compressor as shown above.

5) Pinch a charging pipe with a pinch-off plier after completion of charging.

6) Braze the end of a pinched charging pipe with copper brazer and take
a gas leakage test on the welded parts.

Bombe

5. Gas-leakage test

6. Pipe arrangement
in each cycle

* Take a leakage test on the welded or suspicious area with an

electronic leakage tester.

* Check each pipe is placed in its original place before closing

a cover back-M/C after completion of work.

10-4. Standard Regulations for Heavy Repair

Compressor

Condenser

Evaporator

Hot Pipe

Dryer

1) Observe the safety precautions for gas handling.

2) Use JIG (or wet towel) in order to prevent electric wires from burning during welding.
(In order to prevent insulation break and accident.)

3) The inner case shall be melted and insulation material (polyurethane) shall be burnt
if not cared during welding inner case parts.

4) The copper pipe shall be oxidized by overheating if not cared during welding.

5) Not allow the aluminum pipes to contact to copper pipes. (In order to prevent corrosion.)

6) Make sure that the inner diameter should not be distorted while cutting a capillary tube.

7) Be sure that a suction pipe and a filling tube should not be substituted each other during welding.
( High efficiency pump.)

76

10-5. Brazing Reference Drawings.

Accumulator

Hot Pipe

R

I-Pipe

Suction Pipe

F

Evaporator

Pipe Suc Conn

Condenser

Dryer

Pipe Conn B

Capi-Tube

▶ Welding Point

●

■

▶ Flow of Refrigeration Cycle

High Low

Compressor

Copper Welding (Ag 5%) 7 Points
Silver Welding (Ag 35%)

Pipe Conn. B

Pipe Suction Conn

Wire-Con. Pipe

Compressor

Hot Pipe

Suction Pipe

3 Points

Dryer

Accumulator

Capillary Tube

Evaporator

77

11. INSTALLATION GUIDE

11-1. Installation Preparation

Check if the refrigerator can pass

a doorway or enter a door first.

(Width*Depth*Height) 903mm X 734.5mm X 1790mm

Dimensions( including Door Handles)

Find a suitable place to install

Sufficient space from refrigerator back to the
※wall for free air ventilation

Once the installation place is ready follow the installation instructions.
If surround temperature of refrigerator is low (below 10℃)),
foods can be frozen or the refrigerator can work in abnormal way.

※Avoid direct sunlight.

78

11-2. If the refrigerator can not enter the door

Removing Freezer Door

Remove front bottom cover first,

1

Pull out the left collar of the

coupling first, then hold the
coupling and pull out the left
water tube.

Lift up the front of hinge to remove.

4

( After the hinge is removed the

door can fall down forward.
Be careful !)

※Remove front bottom cover first, if it is attached.

Unscrew top hinge cover with a

2

screw driver.

Remove the hinge cover.

Be careful not to damage the

5

water line when removing the
door.

Turn top hinge bolt

3

counterclockwise .

Disconnect the harness wires.

Removing Refrigerator Door

Unscrew top hinge cover with a

1

screw driver.

Remove the hinge cover.

Lift the door straight up to remove.

4

Turn top hinge fastener

2

counterclockwise.

Disconnect harness wires.

Lift up the front of hinge to remove.

3

(After the hinge is removed the
door can fall down forward.
Be careful !)

79

Replacing Freezer Door

Insert the water tube into the hole

1

Of the bottom hinge pin first, then
Insert the bottom of freezer door
Into the bottom hinge pin.

Turn the hinge fastener tightly to

4

The end.
Connect harness wire and screw
ground wire.

Insert the bottom hole of freezer

2

door straight to the bottom hinge
pin.

Insert the water tube far into the

5

coupling.

Let the top of door close to the

3

cabinet and insert the top hinge
pin to the top hole of freezer door.
( Insert the back of hinge to the
groove of protrusion first, then
front to the top hole of door.)

Replacing Refrigerator Door

Insert the bottom hole of

1

refrigerator door straight to the
bottom hinge pin.

Let the top of door close to the

2

cabinet and insert the top hinge
pin to the top hole of refrigerator
door.
( Insert the back of hinge to the
groove of protrusion first, then
front to the top hole of door.)

80

Turn the hinge fastener tightly to

3

the end.
Connect harness wirings and
screw ground wire.
Click and screw the top hinge
cover.

11-3. Refrigerator Leveling & Door Adjustment

※Refrigerator must be level in order to maintain optimal performance and desirable front appearance.

(If the floor beneath the refrigerator is uneven, freezer and refrigerator doors look unbalanced.)

In case freezer door is lower

than refrigerator door

Insert a screw driver (flat tip) into a groove of the

left wheel (bottom of freezer) and turn it clockwise
until the door is balanced.

(clockwise to raise freezer door ;
counterclockwise to lower)

Caution

The front of refrigerator needs to be higher just a little than the back for easy
door closing, but if the wheel is raised too much for door balance, i.e. front of
refrigerator is too higher than the back, it can be difficult to open the door.

In case refrigerator door is lower

than refrigerator door

Insert a screw driver (flat tip) into a groove of the

right wheel (bottom of refrigerator) and turn it
clockwise until the door is balanced.

(clockwise to raise refrigerator door ;
counterclockwise to lower)

81

11-4. Water Line Installation

How to install Water Line

1.The water pressure should be 3 kgf /cm2 or more t o run t h e
automatic icemaker.

※Checkup your tap water pressure ; if a cu p of 1 8 0cc is full

within 10 seconds, the pressure is OK.

2.When installing the water tubes, ensure they are not close to
Any hot surface.

3.The water filter only “filters” water ; it does not eliminate any
bacteria or microbes.

4.If the water pressure is not so high to run the icemaker, call the
local plumber to get an additional water pressure pump.

5.The filter life depends on the amount of use. We recommend
you replace the filter at least once every 6months.
※When attaching the filter, place it for easy access (removing

& replacing)

6.After installation of refrigerator and water line system, select
[WATER] on your control panel and press it for 2~3 minutes to
supply water into the water tank and dispense water.

7.Use sealing tape to every connection of pipes/tubes to ensure
there is no water leak.

8.The water tube should be connected to the cold water line.

Installation Procedure

1. Join connector to water tap

2. Get ready to install water line

1) Measure an approximate distance between the filter and the
Water Tube and cut the tube off filter vertically.

2) Connect the tubes to the filter as the figure shows.

Leave a sufficient distance when cutting the tubes.

82

3. Remove any substance from filter

1) Open the main tap water valve and check if water comes out of
the Water Tube.

2) Check if the Water Valve is open in case water does not come out.

3) Leave the valve open until clean water is coming out.
※Initial water may contain some substances ou t of filter

(manufacturing process).

4. Attach the filter box

1)Screw and fasten the filter holder to the left/right side of the back of
refrigerator.

※In case the holder is not fastened well, remove the back paper

of the tape on the filter holder and attach it.

2)Insert the filter box into the holder.

5. Connect water tube

1)Remove the rear cover at the b o tt om back of th e refrig era t or.

2)

Insert the fastening ring into the Water tube.

(Be careful to follow the direction of the nut.)

3)Insert the Water Tube into the top of Water Valve, turn the nut
clockwise to fasten it. (The Water valve is to the right of the motor.)

4)Check for any bent tubes or water leaks; if so, re-check installation
procedure.

5)Replace the rear cover. (The Water Tube should be placed
between the groove of the refrigerator back and motor cover.)

Set the tube upright as the figure shows.

6. Fasten water tube

1) Fasten the Water Tube with the [Fastener A] .

2) Check if the tube is bent or sqeezed. If so, set it right to

prevent any water leak.

7. After installation

1) Plug the refrigerator, press the [WATER] button on the control

panel for 2~3 minutes to remove any air (bubble) in the pipes
and drain out the initial water.

2) Check the water leak again through the water supply system

(tubes, connectors and pipes) Rearrange the tubes again
and do not move the refrigerator.

83

11-5. Dispenser Water Flow

84

Cabine

t

A

NO PART-CODE PART NAME SPEC.

1 ASSY CAB URT
2 3012924400 HINGE *T *R AS PO T3.0+PAINT
3 3012924300 HINGE *T *L AS PO T3.0+PAINT
4 3016042300 SPECIAL *T HI BOLT 6X13 SWCH18A
5 7051401065 SCREW MACHINE PAN 4X10 SW BSNI
6 3011446200 COVER *T HI *R PP
7 3011446100 COVER *T HI *L PP
8 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN
9 3010968400 CAP CAB COVER PP

10 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN

30143D6061 PCB MAIN AS FRU-571I (R-134a)

11

30143D5072 PCB MAIN AS FRU-541F (R-134a)
12 3011446000 COVER MAIN PCB BOX PP(V-235)
13 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN
14 3013224800 HOSE ICE MAKER TUBE AS FRU-541D
15 3012530200 GUIDE CAB W/TUBE A AS FRU-541D
16 3011444100 COVER GUIDE CAB W/T A HIPS
17 3011202000 CLAMP WATER TUBE A PA-66, 5N
18 3019974800 S/PAER FILTER WATER AS FR-S660CW
19 3012924000 HINGE *U *R AS P/O T5.0 + PAINT
20 3012923900 HINGE *U *L AS P/O T5.0 + PAINT
21 3016001240 SPECIAL BOLT *T 6X22 SWCH22A(YL)
22 3010657200 BRACKET ADJ FOOT SPCC T3.0
23 3012105100 FOOT ADJ AS PP
24 3016001240 SPECIAL BOLT *T 6X22 SWCH22A(YL)
25 3013064200 HOLDER TUBE A ACETAL
26 3012019500 FIXTURE TUBE FIT B PP
27 3011447200 COVER CAB BRKT PP
28 7142401511 SCREW TAPPING T2 TRS 4X16 MFZN

20IB 20DB 20EB 20FB 20GB

1111
1111
1111
2222
1111
1111
1111
2222
2222
2222
1

-111
1111
4444

-

1111
1111
6666
2222
2222
2222
1111
2222
1111
3333

Q'ty

111
111
111
222
111

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

1
1
1
2
1
1
1
2
2
2

-

1
1
4
1
1
1
2
1
1
1
6
2
2
2
1
2
1
3

Date

mendment Note

85

A

A

Machine Room / Eva Par

t

NO PART-CODE PART NAME SPEC.

29 3010340400 BASE COMP AS FRU-571I
30 3016003300 SPEICAL BOLT T2 M6.5X20
31 CORD POWER AS
32 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN
33 7051401065 SCREW MACHINE PAN 4X10 SW BSNI
34 CAPACITOR RUN Model dependent
35 COMP Model dependent
36 3016002500 SPECIAL WASHER SK-5, T0.8
37 3010101600 RUBBER ABSORBER COMP NBR
38 3010101480 ABSORBER COMP AS FRU-541D
39 SWITCH P RELAY AS Model dependent
40 COVER RELAY Model dependent
41 3011181300 CASE VAPORI AS PP
42 3013201710 HOSE DRN B PE FRB-5350NT

3015402800 110~127V 60Hz

43 VALVE WATER AS

3015402300 220~240V 50,60Hz

44 3014461510 PIPE WICON AS TSW OD4.76XT0.7
45 3012021700 FIXTURE MOTR PP
46 3015916100 MOTOR C FAN AS DC-2213DWCA-3
47 3018500300 M/BELL B PP
48 3018500200 M/BELL A PP
49 3011834700 FAN ABS OD3.17XD150
50 3011200500 CLAMP FAN SUS 304
51 3016808100 DRYER AS C1220T
52 3011497000 COVER MACH ROOM AS SBHG T0.35
53 7112401211 SCREW TAPPING T1 TRS 4X12 MFZN

Q'ty

20IB 20DB 20EB 20FB 20GB

1111
4444
1111
1111
1111
1111
1111
4444
2222
2222

1
4
1
1
1
1
1
4
2
2

11111
1111
1111
1111

-1

111

1111
1111
1111
1111
1111
1111
1111
1111
1111
7777

1
1
1

1
1
1
1
1
1
1
1
1
7

95 3017053500 EVA AS FRU-571I

3012818300 AC220V/ 192W

95-1

3012818400 AC115V/ 192W
95-2 3014806900 SENSOR D AS PBN-43
95-3 3012023600 FIXTURE D SENS PP
95-4 301720200 FUSE TEMP AS AC250V 10A 77C
95-5 4017Z90590 FIXTURE FUSE TEMP PP

HEATER SHEATH AS

1111
111
1111

1111
1111
1111

1

11

1
1
1
1

- Some parts can be chaged for improving their perfomance without notice.

-

bove parts number doesn't describe your own colour & printing. Please remind!

Date

mendment Note

86

Refrigerator Room

NO PART-CODE PART NAME SPEC.

60 3011492810 COVER DAMP AS FRU-571I

60-1 3014235200 PANEL CONTL *I AS

61 3012214100 FRAME CHECK VALVE AS FRU-571I
62 3012024200 FIXTURE MOTR AS

62-1 3015916000 MOTOR R FAN D4612AAA20

63 3011495100 COVER DAMP AS FRU-541D

63-1 3014807100 SENSOR R AS PBN-43B

64 3012514500 GUIDE CASE A *L AS ABS
65 3011185740 CASE CHILD GPPS(CRYSTAL)
66 3012514600 GUDIE CASE A *R AS ABS

3013602500 AC 240V 25W(S)

67 LAMP F/R

3013602800 AC 125V 25W

69 3015510800 WINDOW R LAMP MIPS
71 3018124000 SWITCH DR SP201R-7DR (R-134a)

3017842810 NUDE GLASS

72

3017842800 PRINTED GLASS - 2 2 2 2

73 3017844220 SHELF WINE FRU-54,57 SUS304

3017843300 NUDE GLASS

74

3017843310 PRINTED GLASS
3017842910 NUDE GLASS

75

3017842900 PRINTED GLASS
76 3012514500 GUIDE CASE A *L AS ABS 1 1 1 1 1
77 3012514600 GUDIE CASE A *R AS ABS 1 1 1 1 1
79 3011114630 CASE VEGETB B AS NANO 1 1 1 1 1
80 3018701800 DEO ANTI AS W40XT5XL40 1 1 1 1 1
81 3011445900 COVER RETURN DUCT PP 1 1 1 1 1
82 3011446700 COVER VEGETB CASE B GPPS 1 1 1
83 3012529700 GUIDE CASE C *L AS ABS 1 1 1
84 3012529800 GUIDE CASE C *R AS ABS 1 1 1
85 3011114730 CASE VEGETB C AS NANO 1 1 1
86 3011446800 COVER CHANGE RM GPPS 1 1
87 3010548200 BOX CHANGE RM HIPS 1 1
88 3016767100 DAMPER AS DU24-012 1 1
89 3011450901 COVER DUCT CH RM AS PP+SEAL 1 1
90 3012529500 GUDIE CHANGE RM *L ABS 1 1
91 3012529600 GUDIE CHANGE RM *R ABS 1 1
92 3010551000 BOX CONTL CH RM AS 1 1
93 3011115040 CASE CHANGE RM AS FRU-547E, CASE+FRAME 1 1
93 3011170050 CASE EGG AS CASE+TRAY+VINYL 1 1 1 1 1
94 3018201000 TANK WATER AS FRU-541D - 1 1 1 1

SHELF R A AS

SHELF R C AS

SHELF R B AS

20IB 20DB 20EB 20FB 20GB

1
1
1111
1111
1111

-111
1111
1
1
1

1111
1111
2

1

-111
1

-111

-- -

Q'ty

-

-

-

Option

-

-

--

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

1
1
1
1
1

22222

1
1

1

1

87

Freezer Room

NO PART-CODE PART NAME SPEC.

76 3012514500 GUIDE CASE A *L AS ABS
77 3012514600 GUDIE CASE A *R AS ABS
96 3012529000 GUIDE DRN GA
97 3017842700 SHELF F ICE AS NUDE GLASS

98 3011186300 CASE ICE PP
100 3015915900 MOTOR F FAN D4612AAA21
101 3018921300 LOUVER F A ABS
102 3011834500 FAN ABS OD3.17XD130
103 3011200510 CLAMP FAN SUS 304
105 3010968600 CAP F LOUVER B HIPS

106 3018921500 LOUVER F B AS HIPS
107 3011443200 COVER F RETURN HIPS

111 3012205600 FRAME ICE MAKER HIPS
112 3000025910 CASE I/MAKER AS FRU-541D

113 3012517800 GUIDE G/MOTR BRKT *L ABS
114 3012517900 GUIDE G/MOTR BRKT *R ABS

3010656500 120V/60Hz

115

3010658110 220~240/50Hz

116 3012520510 GUIDE ICE CRUSHER *L ABS
117 3012517710 GUIDE ICE CRUSHER *R ABS
118 3011115202 CASE I/CRUSHER AS FRU-541D

3001401701 COVER F FAN AS FRU-571I

119

3001401711 COVER F FAN AS FRU-541D
120 3014531900 PLATE F LAMP SGCC T0.8
121 3017906600 SOCKET F LAMP AS FRU-571I

3013602500 AC 240V 25W(S)

122

3013602800 AC 125V 25W

124 3015510700 WINDOW F LAMP MIPS
126 3014807000 SENSOR F AS PT-38
127 3011442600 COVER F SENS ABS

128 3018124010 SWITCH DR SP201R-7DL (R-134a)

3017842610 SHELF F AS NUDE GLASS

129

3017842600 SHELF F AS PRINTED GLASS

130 3011114800 CASE F A AS NANO
131 3012529700 GUIDE CASE C *L AS ABS
132 3012529800 GUIDE CASE C *R AS ABS
133 3011114900 CASE F B AS NANO

BRACKET GEARED MOTR AS

LAMP F/R

Q'ty

20IB 20DB 20EB 20FB 20GB

1111
1111
1111
1
1

-

1111
1111
1111
1111
2222

1
1
1

1
1
1
1
2

11111
1111

111
111

1
1
1

1111
1111

­1111

1111
1111
1111

1

-

-1111

11111
11111

222
1111

1111
1111

1111
3

-333

1111
1111
1111
1111

22

1
1
1

1

-

3
1
1
1
1

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

88

A

Freezer Doo

r

NO PART-CODE PART NAME SPEC.
134 3019026700 POCKET F *T HIPS

3019027401 POCKET F AS FRU-541D

135

3019026600 POCKET F FRU-571I
3000067600 ASSY F DR FRU-547E, SUS

136

3000067610 ASSY F DR FRU-577I, SUS
136-1 3010964600 CAP ICE PATH FRAME HIPS
136-2 3012318800 GASKET F DR AS PVC

136-3

3000057940 ASSY F DR URT FRU-547F

3000057930 ASSY F DR URT FRU-577I

137 3012027200 FIXTURE HNDL SUPORT *T HIPS
138 3012018700 FIXTURE HNDL SUPORT *M HIPS
139 3015311500 SUPPORTER HNDL *U ABS+SPRAY
140 7002401011 SCREW MACHINE TRS 4X10 MFZN
141 3016040100 SPECIAL SCREW HNDL M5X20
142 3012645300 HANDLE BAR AS FRU-577/547
143 3016040200 SPECIAL SCREW FRAME 4X14, S18C
144 3017903702 SOCKET DISP LAMP AS 250V 1A 14BASE

3013600020 240V/15W

145

3013600050 110V/15W

146 3010544000 BOX DISPNS ICE SHUT AS FRU-541D
147 3011494700 COVER DISPNS BOX AS FRU-541D
148 3015102200 SPRING ICE D/LEVER SUS
149 3011495300 COVER ICE FLAP AS FRU-541D
150 3012019700 FIXTURE ICE SHUT LVR SUS

3015404100 VALVE SOL DISP 110~115V/60Hz

151

3015403200 VALVE SOL DISP 230V/50Hz

152 3018125800 SWITCH MICRO VP333A-2D
153 3012213200 FRAME DISPNS BUTTON ABS
154 3016304600 BUTTON DISPNS SILICON
155 3012406900 GRILL DISPENSER ABS

LAMP AS

Q'ty

20IB 20DB 20EB 20FB 20GB

1111

-333

5

-

-111

1

-

-111

1111

-111

1

­1111
2222
1111
4444

1
3

1

1
1
1

1
2
1
4

44444
1111
2222

111

1
2
1

1111
111

111
111
111

­111

1
111

111
111
111

111

1
1
1
1
1

1
1
1
1

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

Date

mendment Note

89

Refrigerator Doo

r

A

NO PART-CODE PART NAME SPEC.

137 3012027200 FIXTURE HNDL SUPORT *T HIPS
138 3012018700 FIXTURE HNDL SUPORT *M HIPS
139 3015311500 SUPPORTER HNDL *U ABS+SPRAY
140 7002401011 SCREW MACHINE TRS 4X10 MFZN
141 3016040100 SPECIAL SCREW HNDL M5X20
142 3012645300 HANDLE BAR AS FRU-577/547
143 3016040200 SPECIAL SCREW FRAME 4X14, S18C
156 3019027500 POCKET DAIRY AS FRU-571I

3019027200 POCKET R *M AS FRU-541D

157

3019026800 POCKET R FRU-571I
158 3011187000 CASE H/BAR AS FRU-541F
159 3019027700 POCKET R H/BAR AS FRU-541F

3019027300 POCKET R *S AS FRU-541D
160

3019026900 POCKET R *S FRU-571I

3000067700 ASSY R DR FRU-547F, SUS

161

3000067710 ASSY R DR FRU-571I, SUS

161-1 3012318900 GASKET R DR AS PVC
161-2 3012319300 GASKET H/BAR B AS PVC

161-3
161-4 3015204500 STOPPER H/BAR DR *R PO T4.0

161-5 3015204400 STOPPER H/BAR DR *L PO T4.0
161-6 3012319400 GASKET H/BAR A AS PVC
161-7 3011765000 DOOR H/BAR URT AS FRU-541F
161-8 3011497200 COVER FRAME H/BAR ABS
161-9 3018125600 SWITCH H/BAR DR AS SP101B-2D1(T)

3000058050 ASSY R DR URT FRU-547F

3000058060 ASSY R DR URT FRU-577I

Q'ty

20IB 20DB 20EB 20FB 20GB

1111
2222
1111
4444

1
2
1
4

44444
1111
2222

1
2

11111

-2211

2

-

­11
11

-2222

2

-

111

­11

-

11111

-

111

11
11

­11
11

-

11
11
11
11

- Some parts can be chaged for improving their perfomance without notice.

- Above parts number doesn't describe your own colour & printing. Please remind!

Date

mendment Note

90

p

r

Reference

1. Electric Device

resso

Com

Specification Part Code Specification Part Code Specification Part Code

HPL30YG-5 395S130R50 400VAC/ 5㎌ 3016401920 308NHB, S330 3018129810
MK183Q-L2U 3956183D50 350VAC/ 5㎌ 3016401170 265RHB, S330 3018129600
MK183C-L2U 3956183D10 250VAC/ 12㎌ 3016405000 445PHB, 4R7M 3018129610
MK4A5Q-R1U 3956145250 350VAC/ 5㎌ 3016401170 265RHB, S330 3018129600

2. Power Cord

Shape Shape

Description Part Code Description Part Code

Capacitor Run Switch P Relay AS

Remark

220~240V/50Hz
220~240V/50Hz

110`115V/60Hz

220~240V/50Hz(R-600a)

CP-2PIN

CP-2PIN(Ferrite)

KP-30 3011348300

KP-211

SA16A

( South Africa)

BS-1363 (U.K) 3011347300

3011304100

3011346701

3011302170

KP-550 (China) 3011301070

KP-550 (Australia) 3011301080

MP5004

(SINGAPORE)

3011302870

91
