Service Manual
Auto Washer
Model : DWF-750/752/800/802
753/755/803/805
756/758/806/808
DAEWOO ELECTRONICS CO., LTD.
✔
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
WASHING MACHINE
CCoonntteennttss
1. SPECIFICA TIONS................................................................................................................... 2
2. STRUCTURE OF THE WASHING MACHINE....................................................................... 3
3. FUNCTIONS OF THE CONTROL P ANEL............................................................................. 4
4. DIRECTIONS FOR INST ALLATION AND USE
LOCATION OF WASHER ............................................................................................................... 6
DRAIN SYSTEM.............................................................................................................................. 6
HOW TO CONNECT THE INLET HOSE........................................................................................ 7
HOW TO CLEAN THE FILTER....................................................................................................... 8
5. FEA TURE AND TECHNICAL EXPLANATION
FEATURE OF THE WASHING MACHINE ..................................................................................... 9
WATER CURRENT TO ADJUST THE UNBALANCED LOAD...................................................... 9
AUTOMATIC WATER SUPPLY SYSTEM ..................................................................................... 9
AUTOMATIC DRAINING TIME ADJUSTMENT ........................................................................... 10
SOFTENER DISPENSER............................................................................................................. 11
AUTOMATIC UNBALANCE ADJUSTMENT ................................................................................ 12
CIRCULA TING-WATER................................................................................................................ 12
LINT FILTER.................................................................................................................................. 13
RESIDUAL TIME DISPLAY.......................................................................................................... .13
DRAIN MOTOR.............................................................................................................................13
GEAR MECHANISM ASS’Y ......................................................................................................... 14
PRINCIPLE OF BUBBLE GENERATOR...................................................................................... 14
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE................................................. 15
6. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
GEAR MECHANISM ASS’Y REPLACEMENT............................................................................. 16
MOTOR SYNCHRONOUS AND VALVE REPLACEMENT.......................................................... 18
BRAKE ADJUSTMENT............................................................................................................... ..18
7. THE REP AIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
THE STRUCTURE OF GEAR MECHANISM............................................................................... 19
HOW TO CHECK THE CLUTCH SPRING PROBLEM................................................................ 20
THE PROCESS OF DISASSEMBLE............................................................................................ 21
THE PROCESS OF ASSEMBLE.................................................................................................. 23
8. TROUBLE SHOOTING GUIDE
CONCERNING WATER SUPPLY..................................................................................................25
CONCERNING WASHING........................................................................................................... 26
CONCERNING DRAINING........................................................................................................... 27
CONCERNING SPINNING........................................................................................................... 28
CONCERNING OPERA TION....................................................................................................... 29
9. PRESENT ATION OF THE P.C.B ASS’Y .............................................................................. 30
APPENDIX
WIRING DIAGRAM....................................................................................................................... 31
PARTS DIAGRAM & PARTS LIST................................................................................................ 35
CIRCUIT DIAGRAM...................................................................................................................... 44
1. SPECIFICATIONS
2
SPECIFICATIONS
NO. ITEM
1 POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLT AGE
2
POWER
50Hz 320W
CONSUMPTION
60Hz 300W(110~127V) / 340W(220V)
3
MACHINE NET
WEIGHT
GROSS
4 DIMENSION (WXHXD)
5
MATERIAL OF INTERNAL TUB
PLASTIC ST AINLESS STEEL
6
WATER LEVEL SELECTOR
HIGH(55l), MID(45l), LOW(31l)
7
OPERATING W ATER PRESSURE
0.3kgf/cm2~8kgf/cm
2
(2.94 N/cm2~78.4N/cm2)
8
MAXIMUM MASS OF TEXTILE
5.5kg 6.0kg
REVOLUTION
WASH 125~145(50Hz), 130~150(60Hz)
9 SPIN 710~725(50Hz), 760~785(60Hz)
PER MINUTE
SUIT 50(50Hz), 60(60Hz)
10
WATER CONSUMPTION
APPROX. 130l/CYCLE
11
WATER LEVEL CONTROL
ELECTRONICAL SENSOR
12 ANTI NOISE PLATE OPTION
13
GEAR MECHANISM ASS’Y
SPUR GEAR
14 LINT FILTER O
15 SOFTENER INLET O
16 ALARM SIGNAL O
17 AUTO. WATER SUPPLY O
18
FUNCTION FOR BUBBLE
OPTION
19
AUTO RE-FEED WATER
O
20 AUTO POWER OFF O
DWF-750/753/756 DWF-752/755/758 DWF-800/803/806 DWF-802/805/808
525X858X535 525X948X535 525X858X535 525X948X535
28kg/28.5kg(pump)
31.5kg/32kg(pump)
28.5kg/29kg(pump)
32kg/32.5kg(pump)
2. STRUCTURE OF THE WASHING MACHINE
3
STRUCTURE
• GROUND WIRE
In case of 3-wire
power cord, ground
wire will not be
provided
• POWER CORD
• DRAIN HOSE
• LINT FILTER
• COLD WATER TAP
After using the washer,
close the water tap
• DETERGENT CASE
• ADJUSTABLE LEG
• SOFTENER INLET
• BLEACH INLET
• CONTROL PANEL
• POWER SWITCH
• PULSATOR
• HOT WATER TAP
After using the washer, close the water tap.
In case of the single valve model,
there is no hot water valve.
DRYTEN(OPTION) HOSE ADAPTER UNDER COVER(OPTION)
INLET HOSE(OPTION)
HOSE CONNECTOR(OPTION)
CONNECTOR INLET(OPTION)
Accessories
UP
The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
• The drawing in this book may vary from your washer model. They are designed to show the different features of all models covered by this book, Your model may not include all features.
• Page references are included next to same features.
Refer to those pages for more information about the features.
DRAIN HOSE
In case of screw shaped inlet hoses
water tap adapters will not be provided.
NON PUMP MODEL PUMP MODEL
3. FUNCTIONS OF THE CONTROL PANEL
4
CONTROL PANEL
• Press this switch to turn the power on or off.
• It can be used to choose water temperature to be supplied.
• As the button is pressed, water temperature will be repeated.
COLD → COLD+HOT → HOT
• In case of the single valve model, there is no wash temperature selector function.
• It can be used to adjust amount of water according to the size of the load to be washed.
• As the button is pressed, water level is selected by MID → HIGH → LOW
• It can be used to pre-engage time for wash.
• It is the button for the partial process or the combination of each process (wash, rinse,
spin)
• If you want to change wash time, rinse times, spin time, you must press this button after
selecting each process by the process button. Also, this button can be used to spin only.
• It can be used to select the full-automatic program.
• As the button is pressed, program will be selected by following order :
FUZZY → FUZZY+SOAK → HEAVY → HEAVY+SOAK → SPEEDY → SUIT(WOOL)
• Operation and temporary stop is repeated as it is pressed.
• When you want to change program in operating;
press the “ST ART/HOLD” button → Select the program that you want to change → press
the “ST ART/HOLD” button again.
Control panel has micom sensor.
As the buttons are pressed, the lamps indicating the selection of your desired washing program will light up.
1. DWF-750/752/800/802
2. DWF-753/755/803/805
RES.
CONTROL
PROGRAM
HOURS
RES.
CONTROL
PROGRAM
5
PROCEDURE
• Press this switch to turn the power on or off.
• It can be used to choose water temperature to be supplied.
• As the button is pressed, water temperature will be repeated.
COLD → COLD+HOT → HOT
• In case of the single valve model, there is no wash temperature selector function.
• It can be used to adjust amount of water according to the size of the load to be washed.
• As the button is pressed, water level is selected by MID → HIGH → LOW
• It can be used to cancel the full-automatic program.
• When the button is pressed, the display will light down.
If you want to wash, rinse or spin, you can press one of the buttons.
• It can be used to pre-engage time for wash.
• It can be used to select the full-automatic program.
• As the button is pressed, program will be selected by following order :
FUZZY → HEAVY → SUIT(WOOL) → BLANKET → SPEEDY
• It can be used to adjust washing time.
• As the button is pressed, it will repeat.
6 MIN → 9 → 12 → 15 → 18 → SOAK
• It can be used to adjust rinse times.
• As the button is pressed, it will repeat.
• 1 TIME → 2 → 3 → 4 → 5
• It can be used to adjust spin time.
• As the button is pressed, it will repeat. 1MIN → 3 → 5 → 7 → 9
• Operation and temporary stop is repeated as they are pressed.
• When you want to change program in operating;
press the “ST ART/HOLD” button → Select the program that you
want to change → press the “START/HOLD” button again.
3. DWF-756/758/806/808
6
4. DIRECTIONS FOR INSTALLATION AND USE
DIRECTIONS
The opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
§§
è
Location Of Washer
Check location where washer will be installed. Make sure you have everything necessary for correct installation.
Proper installation is your responsibility.
• Do not place or store your washer below 0˚C(32˚F) to avoid any damage from freezing.
• Install the washer on the horizontal sold foor.
NOTES
If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate and cause a malfunction.
If washer is not level, adjust the front leg(A) up or down for horizontal setting.
• Earthed electrical outlet(B) is required with 20cm of bottom back of
washer cabinet.
• Hot and cold water faucets (C) must be within 1M of the upper back of
the washer cabinet and provide water pressure 0.3kgf/cm
2
-
8kgf/cm
2
(2.94N/cm2-78.4N/cm2).
§§
è
Drain System
Never forget to install drain hose before operating your washer.
The packing box is opened, there are a drain hose.
• Conect the drain hose to the drain outlet at the back side of the washer.
Non-Pump Model Pump Model
1 In case that it goes over a door sill.
Don’t let the height of the drain
hose exceed 20cm from the bottom
of washer.
2 In case of extending the drain hose.
Don’t let the total length exceed 3m.
3 Be careful that the end of the drain
hose is not immersed in water.
Non-Pump Model
• Top of tub must be at
least 86cm (34inches)
high and no higher than
130cm from bottom of
washer (A)
• Needs a 3cm minimum diameter standpipe with minimum
carry away capacity of 30liters per minute.
• Top of tub must be at
least 86cm(34inches)
high and no higher than
130cm from bottom of
washer (B)
Pump Model
Laundry tub drain system Standpipe drain system
C
UP DOWN
B
A
Drain hose
Drain Outlet
Drain hose
20Cm
3m
A
B
7
CONNECTION
FOR ORDINARY TAP
6
Connect the inlet hose adapter
of the hose to the water inlet of
the washer by turning it clockwise to be fixed tightly.
• Please check the rubber packing
inside the inlet hose adapter of
the hose.
1
Pull down the collar
of the inlet hose to
separate it from the
water tap adapter.
2
Loosen the four
screws at the water
tap adapter, but don’t
loosen the screws until
they are separated from
the water tap adapter.
4
Remove the tape,
and screw connector
B into connect A tightly.
5
Connect the inlet
hose to the water tap
adapter by pulling down
the collar of the hose end.
3
Connect the water tap
adapter to the water tap and
tighten the four screws evenly
while pushing up the adapter
so that the rubber packing
can stick to the water tap
tightly.
§§
è
How to Connect the Inlet Hose
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : this could cause damage to couplings.
FOR SCREW-SHAPED T AP
3
Insert the inlet hose adapter
into the water inlet of washer
and turn it to be fixed.
• Assert the packing in the inlet
1
Connect the inlet
hose to the water tap
by screwing the connector D tightly.
Inlet Hose
Connector D
Rubber
Packing
Connector C
TAPE
Connector B
Connector A
¡ collar
2
Connect the connector-inlet supplied if
necessary.
Connector
Inlet
Rubber
Packing
Connector D
Connector C
Hose
8
CONVENIENCE
§§
è
How To Clean The Filter
4
Remove the dirt
from the inlet filter
with a brush.
1
Pull the
power plug
out before
cleaning it.
2
Turn of f the
water supply
to the washer
and separate
the inlet hose.
3
Pull the
inlet filter out.
CLEANING THE LINT FILTER
CLEANING THE WATER INLET FILTER
• Clean the filter when water leaks from the water inlet.
CLEANING THE DRAIN FILTER
• In case of “U” shaped drain hose, this filter’s equipped at the back side of washer.
• This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ..
• If the drain filter is not cleaned at proper time (every 10 times of use), drain problem could be caused.
3
Return the filter as it was, and
insert the filter frame into the
slot.
1
Pull the Filter frame
upward.
2
Turn the lint filter
inside out, wash the
lint off with water.
1
Put down the
remained water in the
hose. And put a container
under the filter to collect
water.
2
Turn the cap counterclockwise.
3
Pull out the filter assembly off
the case of the main body.
6
Turn the cap clockwise tightly.
4
Clean the drain filter
removing the foreign
stuffs.
5
Put in the filter along the
guiding prominence of the
case. Please note the left
position of the filter adjusting
the groove to the guide rib.
FILTER
CONTAINER
CAP
SLIT
CASE
FILTER
CAP
CAP
FILTER
CAP
FILTER
CASE
GUIDE
RIB
SLIT
CAP
Filter Frame
Lint Filter
9
5. FEATURE AND TECHNICAL EXPLANATION
EXPLANATION
WASH DRAIN SPIN FILL RINSE 1 DRAIN SPIN FILL RINSE 2 DRAIN •••
MOTOR C.W
SINGAL C.C.W
TIME(SEC.) 0.4 0.4 0.4 0.4 0.4 0.4 •••••••
40 SEC. (About 25 Times)
* When the water level is “HIGH”
Feature of the Washing Machine
1 The first air bubble washing system in the world.
2 Quiet washing through the innovational low-noise design.
3 The wash effectiveness is much more enhanced because of the air bubble washing system.
4 The laundry detergent dissolves well in water because of the air bubble washing system.
5 The adoption of the water currents to adjust the unbalanced load.
6 One-touch operation system.
Water Current to Adjust the Unbalanced Load
It is a function to prevent eccentricity of the clothes after wash by rotating pulsator C.W and C.C.W for 35
seconds.(But, the SUIT course have no operation of the water currents to adjust the unbalnced load.)
EFFECT
It reduces vibration and noise effectively while spinning.
WATER FLOW
Automatic Water Supply System
The water level would be lowered because the clothes absorbs water at the beginning of washing. Therefore, after
60 seconds, the operation is interrupted to check the water level, and then the water is supplied again until the selected water level is reached.
10
EXPLANATION
FUNCTIONAL PRINCIPLE
1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to
“OFF” point
2 In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 40
Residual drain time.
The time remembered by micom.
Draining
Good draining The washer begins spin process after drainage.
condition
Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than
Continue draining
10 minutes
More than
Program stops and gives the alarm with blinked on display lamp.
10 minutes
Automatic Drainning time Adjustment
This system adjusts the draining time automatically according to the draining condition.
11
EXPLANATION
This is the device to dispense the softener automatically by centrifugal force.
This is installed inside the auto-balancer.
FUNCTIONAL PRINCIPLE
1 Softener stays in room (A) when poured into softener inlet.
2 Softener moves from (A) to (B) by centrifugal force during intermittent spin process.
3 Softener flows from (B) to (C) during rinse process next to intermittent spin.
4 Softener moves from (C) to (D) by centrigfugal force during second intermittent spin.
After spin process is finished, the softener is added into the tub through softener outlet.
FLOW OF THE SOFTENER
FLOW OF THE SOFTENER INSIDE OF THE BALANCER
HOW TO CHECK MOVEMENT
Pour a reasonable amount of “MILK” into softener dispenser and operate the washer with no load. In final
rinse cycle, make sure that the milk is added into the
tub through softener outlet.
A
B
C
D
Wash Intermittent Hold Intermittent Rinse Spin
Spin Spin
Normal Centrifugal Flow in Centrifugal Flow in
force force
Program (A) (B) (C) (D)
Room inside
the balancer
Centrifugal force
Flowing by weight
Balancer
Softener
outlet
Softener inlet
Softener Dispenser
Softener moves into the next room when r.p.m of the tub is more than 100 r.p.m.
NOTES
A
B
C D
12
EXPLANATION
Automatic Unbalance Adjustment
Circulating-Water
The alarm finished when you close the lid after opening it. Check the unbalance of the wash load and the
installation condition.
NOTES
Filter
Tub
Outer tub
Water
channel
Pulsator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1 When the lid is closed, the safety switch contact is “ON” position.
2 In case that wash loads get uneven during spin, the outer tub hits the safety switch due to the serious vibration,
and the spin process is interrupted.
3 In case that P.C.B. ASS’Y gets “OFF” signal from the safety switch, spin process are stopped and rinse process is
started automatically by P.C.B. ASS’Y.
4 If the safety switch is operated due to the unbalance of the tub, the program is stopped and the alarm is given.
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the pulsator rotates during the washing
or rinsing process, the water below the pulsator vanes creates a water currents as shown
in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.
13
EXPLANATION
Much lint may be obtained according to the kind of
clothes to be washed and some of the lint may also
sticks to the clothes.
To minimize this possibility a lint filter is provided on
the upper part of the tub to filter the wash water as it
is discharged from the water channel. It is good to
use the lint filter during washing.
HOW TO REPLACE LINT FILTER
1 Pull the filter frame upward.
2 Turn the lint filter inside out, and wash the lint off with water.
3 Return the filter as it was, and fix the filter frame to the slot.
When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
STRUCTURE
FUNCTIONAL PRINCIPLE
1 When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and
revolves the pulley by gear assembly for reducing.
2 When the pulley is rotated, the pulley winds the wire to open the drain valve.
3 Therefore, rotation of pulley changed to the linear moving of wire.
4 The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.
5 After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the
lever.
6 When the power is turned off, the drain valve is closed because the wire returns to original position.
Bleach Inlet
Filter
Pulsator
Pull
Loosen
Pulley
Lever
Inductive ring
Magnet
Coil of motor
Magnet of motor
Lint Filter
Residual Time Display
Drain Motor
Bleach
Inlet
Filter
Pulsator
14
EXPLANATION
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small
sized clothes.
STRUCTURE
Pulsator shaft
One way clutch
bearing
Brake lever
Spin shaft
Gear unit as
Clutch spring
Clutch boss
Gear pulley
Planetary gear
Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1490 r.p.m
(50Hz)
Gear Unit as
Directly
Tub
720 r.p.m
Pulsator
138 r.p.m
Gear Pulley
720 r.p.m
Bobbin & coil
Magnet
Armature
Bellows
Air out hole
Protector A
Protector B
Air in hole
Air
Air
Trans core
Gear Mechanism Ass’y
Principle of Bubble Generator
15
EXPLANATION
PRINCIPLE OF INTAKE & OUTLET OF THE AIR
INT AKE : ARMATURE moves up, and BELLOWS inhales the air. At the same time, protector B is open and A is
close.
OUTLET : ARMATURE moves down, and BELLOWS exhausts the air. At the same time, protector B is close and A
is opend.
FUNCTIONAL PRINCIPLE OF TRANS & MAGNET
¡ The phase of A.C electric power changes to 60 cycle/second.
¡ The magnetic pole of trans core is changed by the change of the phase of A.C electric power.
¡ The core repeats push and pull (3600 times/min.) of the armature magnet.
ACROSS SECTION
FUNCTIONAL PRINCIPLE
Bubble generator supplies the air from the bottom of outer tub to the inner space of pulsator, the air is dispersed by
the rotation of pulsator. Air-bubble is created by the centrifugal force, and rises up.
N
S
S
N
NS NS
MAGNET
TRANS CORE
LEAF SPRING
A.C A.C
Air bubble
Tub
Outer tub
Pulsator
Functional Principle of Bubble Washing Machine
16
DIRECTIONS
6. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
¡ Raise the top plate on the outer cabinet.
¡ Remove outer tub cover from the tub ass’y.
¡ Remove the spinner shaft flange nut by using ‘T’
type box wrench.
¡ Loosen the pulsator mounting screw and remove
the pulsator.
¡ Remove the tub ass’y.
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCON-
NECT THE POWER CORD FROM THE ELECTRIC OUTLET .
W arning
To assemble the gear mechanism ass’y, reverse
the disassembly procedure.
NOTES
17
DIRECTIONS
¡ Lay the front of the washer on the floor.
¡
Remove four bolts mounting the plate-gear protect by
using a box wrench and remove plate-gear protect.
¡ Remove the V-belt.
¡ Remove four bolts mounting the gear mechanism
ass’y by using a box wrench.
¡ Pull out the gear mechanism assy.
18
DIRECTIONS
¡ Loosen the adjustment bolt and turn the adjust-
ment bolt until the end of the bolt touches to the
brake lever.
¡ Tighten the lock nut and apply a small amount of
paint-lock.
NOTES:
1. The brake adjustment has been made at the
factory, so that it is not re-adjust.
However, in case of insufficient brake operation,
problem the upper procedure.
2. Overtightening of the adjustment bolt will cause
poor brake performance.
3. Undertightening of the adjustment bolt will
cause continuous braking and thereby.
cause the problems of the motor during the
spingcycle.
Brake Adjustment
¡ Lay the front of the floor.
¡ Loosen two special screw and motor synchronous.
¡ T ake out the wire of motor synchonous from the
bracket.
¡ Separate the motor sycnchronous from the base.
Motor Synchronous And Valve Replacement(Non Pump Model)
¡ Turn the valve by using screw driver as shown in
picture.
¡ Remove the valve lid from the valve drain assy.
Adjustment bolt
Clutch lever
Gear mechanism ass'y
Brake lever
19
THE REPAIR
7. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
¡¡
‹
TOOL FOR REPLACING THE CLUTCH BOSS ASSEMBLE
¡¡
‹
Tool name Specification Q’ty
Fixing jig 1
Ratchet handle 1
Socket and extension bar socket : 10mm, 17mm per each
Some cotton yarn some
The Structure Of Gear Mechanism
Bearing
Clutch Boss
Clutch spring
Spring Washer
Pulley Shaft
Fastening Nut
Pulley
Coupling
Clutch Tip
Clutch Lever
Drum plate
Coupling
Pulley Shaft
Clutch Boss Ass’y
Pulley
Spring Washer
Fastening Nut
20
THE REPAIR
NO. P AR TS NAME SPECIFICATION CODE Q’TY
1 CLUTCH SPRING 1.5*1.5 36151 10000 1
2 CLUTCH BOSS PP 3619301300 1
3 GREASE beacon#325 3g
P ACKING PACKING THE CLUTCH BOSS ASS’Y 1
METHOD BY USING VINYL PACK
1) THE LAUNDARY IS IN THE SPIN TUB UNEVENLY WHEN JUST STARTING SPIN PROCESS.
2) THEREFORE, IT CAUSE THE SERIOUS NOISE AND VIBRATION WHEN WASHING AND SPINNING
PROCESS OR SUPPLING WATER IRREGULARY WHEN SPINNING PROCESS
AND CAUSE SHORT OF SPIN PERFORMANCE.
IN THIS CASE, YOU MUST EMPTY THE SPIN TUB FIRST.
1) TO CHECK THE REVOLUTION OF SPIN TUB. IF THE SPIN TUB DOES NOT REVOLVE AND ONL Y
THE PULSAT OR IS TURNING, THAT IS CLUTCH SPRING DEFECT.
2) TO CHECK THE SPIN SPEED(RPM) BETWEEN SPIN TUB AND PULSATOR.
IF YOU FIND THE DIFFERENT SPIN SPEED BETWEEN SPIN TUB AND PUSATOR, THIS IS ALSO
CLUTCH SPRING DEFECT.
IN THIS CASE, WE ARE GOING TO SUPPLY THE CLUTCH BOSS ASSEMBLY INSTEAD OF GEAR
MECHANISM ASSEMBLEY. PLEASE REFER TO FOLLOWING FIG.
PROBLEM
CHECKING METHOD
THE CLUTCH BOSS ASSEMBLY
CLUTCH BOSS ASS’Y P AR T CORD : 3610028000
How To Check The Clutch Spring Problem
21
THE REPAIR
No. Process Notice
Disassemble 1
1
2
3
4
Release screws marked 4-point
Remove the protector
Remove the v-belt
Loosen the fastening nut
Disassemble the spring washer
Use wrench or driver
- ratchet handle
- extension bar
- socket : 10mm
Use fixing jig for pulley as to
see fig 1.
and 17mm-socket for nut
Take out plain washer if it has
The Process Of Disassemble
22
THE REPAIR
No. Process Notice
Disassemble 2
5
6
7
8
Disassemble the pulley
Disassemble the clutch boss
assembly
Separate coupling from clutch
boss ass’y
Cleaning
Catch the boss and pull
upward with spiral rotate in the
clockwise direction
Clean the drum plate, coupling
surface and contact face
between drum plate and coupling
It is necessary to keep cotton
piece goods being dry and
clean
23
THE REPAIR
No. Process Notice
Assemble 1
1
2
3
4
Assemble the coupling
Assemble the new clutch boss
ass’y
Assemble the pulley
Assemble the spring washer
Check the uneven face of coupling is assembled upward
- Push in the clutch boss ass’y
with rotating on the clockwise
direction.
-
After assembling, rotate on the
clockwise more 2~3 teeth and
pull out the pulley shaft upward
If there was plain washer, you
have to assemble plain washer
the first and then assemble
spring washer
The Process Of Assemble
24
THE REPAIR
No. Process Notice
Assemble 2
5
6
7
8
Clutch Tip
Drain
V alve
Synchronous
Motor
3.5~4.5
keep distance 2~3mm
Assemble the fastening nut
Assemble the Belt
Assemble the protector
Final checking
- Use fixing jig and 17mm
socket wrench
as if disassembling,
as fastening torque about
100~200kgf-cm.
- Check the end-play, up and
downward and check the binding force, too much or not on
bi-direct of rotation.
Finally, check the distance
between brake lever and control bolt. (2~3mm)
Also, check the interferance
depth both clutch tip and clutch
boss(3.5~4.5mm)
8. TROUBLE SHOOTING GUIDE
25
TROUBLE SHOOTING
PROBLEM
WATER IS
NOT SUPPLIED.
CHECK POINT
Do you open the water
tap?
Is the filter of the water
inlet valve clogged with
dirt?
Is the water pressure
sufficient?
(0.3~8 kgf/cm
2
)
Does the water inlet
valve make operating
sound?
Is the connector or the
terminal connected
properly?
Is the output voltage of
the P.C.B normal?
CAUSE
Water inlet valve
is defective.
Improper connection of
the connector or the terminal.
P.C.B AS is defective.
Lead wire is defective.
SOLUTION
Change water inlet valve.
Open the water tap.
Clean the filter.
Increase the water pressure.
Connect the connector or
the terminal properly.
Change the P.C.B AS.
Change the lead wires.
NO
YES
NO
YES
NO
YES
YES
YES
YES
NO
NO
NO
NOTE : Open the water tap fully and measure
the flow rate.
From the upper results, you know that the flow rate more than
11.5l/min. is essential for water supply.
Flow
1 1.5 15.0 18.0 20.3 24.1 27.4
rate(l/min.)
Water pressure
0.3 0.4 0.5 0.6 0.8 1.0
(kgf/cm
2
)
1. When replace the P.C.B. ASS’Y do not scratch the surface of the P .C.B. ASS’Y.
2. Disconnect the power cord from the electric outlet.
NOTES
Concerning Water Supply
26
TROUBLE SHOOTING
PROBLEM
WATER SUPPL Y IS NOT
STOPPED.
CHECK POINT
Does the water supply
continue while the power
is turned off?
Does the water supply start
as soon as you press the
power switch?
Operate the washer after
setting the water level to
“HIGH”
Does the water supply
continue after the water
reaches to the “HIGH”
level?
Is the air tube of water
level switch kinked or
deformed?
CAUSE SOLUTION
Change the water inlet
valve.
The water inlet valve is
defective.
The triac of P.C.B is
defective.
Change the P.C.B ASS’Y.
Normal operation.
Change the air tube.Air tube is defective.
Change the pressure
switch.
Pressure switch is defective.
PROBLEM
THE PULSA T OR DOES
NOT ROTATE
EVEN IF THE
WATER IS
SUPPLED.
CHECK POINT
Does the motor operate after finishing water supply?
Does the motor make
operating sound?
Is the connection condition of capacitor terminal good?
Does pulsator rotate in
only one direction?
Is the motor coil disconnected?
Is the V-belt worn out?
The triac of P.C.B is
defective.
Motor is defective.
Improper connection
V-belt is defective.
Change the P.C.B
ASS’Y.
Normal
Change the motor.
Connect the terminal
properly.
Change the V-belt.
Change the motor.
CAUSE SOLUTION
YES
YES
YES
NO
NO
YES
YES
NO
YES
YES
YES
NO
YES
NO
NO
NO
NO
NO
YES
Concerning Washing
27
TROUBLE SHOOTING
PROBLEM
THE WASHER
DOES NOT
DRAIN.
CHECK POINT
Do you install the
drain hose properly?
Is the foreign matter
accumulated inside
the pump housing?
Is the output voltage of
the drain pump normal?
CAUSE SOLUTION
Install the drain hose
properly.
Remove the foreign matter from the pump housing
Change the Drain pump
Change the P.C.B ASS’Y.
Improper installation
Malfunction of drainage
by the foreign matter
Drain pump is defective
P.C.B ASS’Y is defective.
YES
NO
NO
NO
YES
YES
Concerning Draining
28
TROUBLE SHOOTING
PROBLEM
THE WASHER
DOES NOT
SPIN.
CHECK POINT
Is the lid open?
Does the safety switch
operate normally?
Does the pulsator rotate
while the tub does not
rotate?
Is the connector of
P.C.B ASS‘Y connected
properly?
Is the input
voltage of the drain
motor normal?
Is the V-belt worn out?
Is the input voltage of
motor normal?
Is the connection condition of capacitor terminal good?
CAUSE SOLUTION
Close the lid.
Change the safety
switch.
Connect the connector
properly.
Change P.C.B ASS’Y.
Change the drain motor.
Change the P.C.B ASS’Y.
Change the V-belt.
Change the motor.
Connect the terminal correctly.
Change the P.C.B ASS’Y.
Safety switch is defective.
Improper connection of
the connector.
P.C.B. ASS’Y is defective.
Drain motor is defective.
P.C.B ASS’Y is defective.
V-belt is defective.
Motor is defective.
Improper connection.
P.C.B ASS’Y is defective.
NO
YES
YES
NO
NO
YES
YES
YES
NO
NO
NO
NO
YES
YES
NO YES
Concerning Spinning
29
TROUBLE SHOOTING
NO
NO
PROBLEM
THE INDICATOR
LAMPS(L.E.D)
DO NOT LIGHT
UP WHEN THE
POWER BUTTON IS
PRESSED.
PROGRESS
LAMPS(LED)
DO NOT LIGHT
UP.
MOTOR
ROT ATES
WHEN
ST AR T/HOLD
BUTTON IS
NOT
PRESSED.
ABNORMAL
NOISE DURING WASH
PROCESS.
CHECK POINT
Is the plug connect-ed
to electric outlet?
Is the condition of
power button good?
Is the connector of the
P.C.B. ASS’Y connected properly?
Do you press
ST ART/HOLD button?
Does the pressure switch
operate normally?
Check the output voltage
of P.C.B ASS’Y
Is the strange noise generated when the pulsator
rotates in TEST MODE
of P.C.B ASS’Y?
Is the V-belt worn out?
CAUSE SOLUTION
Connect the plug.
Change P.C.B ASS’Y.
Change Fuse
Connect the connector
properly.
Change P.C.B ASS’Y.
Press START/HOLD button.
Replace P.C.B ASS’Y.
Change the pressure
switch.
Change P.C.B ASS’Y.
Remove the foreign matter.
Change the V-belt.
Power button is defective
Improper connection of
the connector.
P.C.B. ASS’Y is defective.
P.C.B ASS’Y is defective.
Pressure switch is defective.
P.C.B ASS’Y is defective
There is foreign matter
between pulsator and
tub.
V-belt is defective.
NO
YES
YES
YES
YES
NO
NO
YES
YES
Abnormal
YES
YES
NO
NO
Is Fuse opended?
Concerning Operation
9. PRESENTATION OF THE P.C.B ASS’Y
30

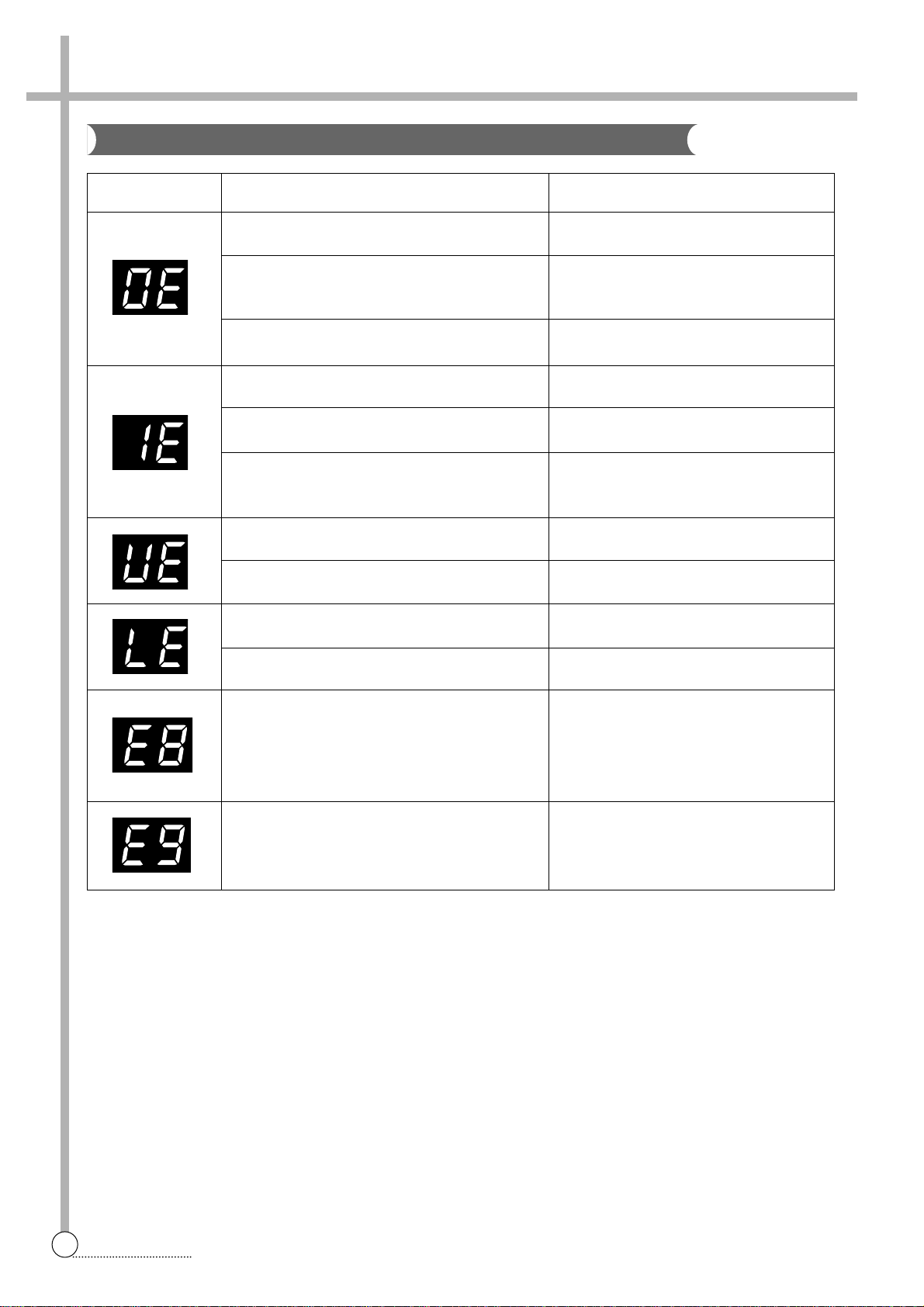

PCB ASS’Y
MESSAGE CAUSE SOLUTION
Improper installation of drain hose.
The drain hose is blocked up by foreign
matter.
Drain motor is inferior.
The water tap is closed.
The water inlet filter clogged.
It passes over the 30 minutes, yet it doesn’t
come to assigned water level.
Wash loads get uneven during spin.
Poor installation of the unit.
The lid is opened.
The safety switch is inferior.
The load sensing is inferior. After the load
sensing operates about 7 seconds, the
message is displayed during 1 second and
water level is always fixed ‘high’.
The water level sensing is inferior.
Install drain hose properly.
Remove foreign matter from drain hose.
Change drain motor.
Open the water tap.
Clean the water inlet filter.
Check whether or not is comes to the
assigned water level.
Re-set wash loads evenly.
Proper installation.
Close the lid.
Change the safety switch.
Change the P.C.B. ASS’Y.
Check the water level sensor and the
contact part of the connector.
Concerning Error Message
APPENDIX
31

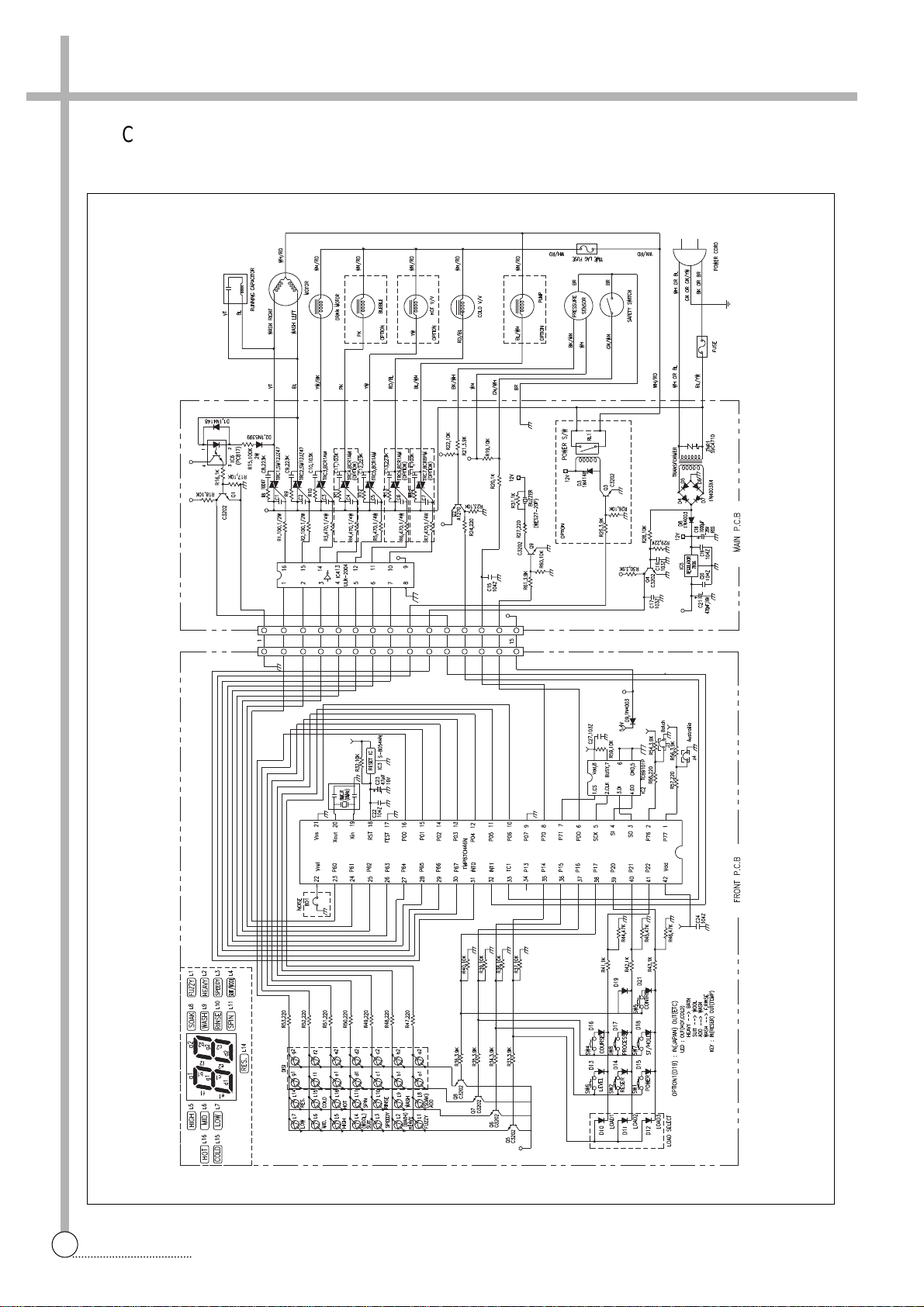

WIRING DIAGRAM
§§
è
Wiring Diagram [non-pump]
32
WIRING DIAGRAM
§§
è
[Non-Pump, Single Valve]
33
WIRING DIAGRAM
§§
è
[Pump]
34
WIRING DIAGRAM
§§
è
[pump, single valve]
35
PARTS DIAGRAM
§§
è
Parts Diagram
36
PARTS DIAGRAM
§§
è
Parts List
NO. PART NAME PART CODE SPECIFICA TION REMARK
A01 PLA TE T 3614521500 PP
A02 DOOR B AS 361 1797600 ABS OPTION :
A03 DOOR F AS 3611797700 ABS TRANSPARENT
A04 DOOR B 361 1797300 PP OPTION :
A05 DOOR F 3611797400 PP NOT TRANSPARENT
A06
SPRING PLA TE LEVER
36151 11800 SUS
A07 PLA TE LEVER 3614521400 PP
A08 SPRING DOOR 3615112100 SUS D1.4
A09 P ANEL B 3614233400 PP
A10 CAP WATER - PP
OPTION :
A1 1 CAP DRY - PP
UPWARD W ATER VALVE
A12 CONNECTOR HOSE 3619506600 PS
A13 P ACKING 3614004100 SILICON
A14 P ANEL B 3614233600 PP OPTION : BACKWARD
3614233500 ABS DWF-750/752/800/802
A15 P ANEL F 3614235610 ABS DWF-753/755/803/805
3614235600 ABS DWF-756/758/806/808
A16 CAP REAR 3610902600 CR
A17 NOZZLE DETERGENT 3618102600 PP
A18 CASE DETERGENT 361 1130700 PP
A19 LEVER SAFETY S/W 3613701800 POM
A20
SPRING LEVER SAFETY
36151 11700 SUS D1.0
A21 CLAMP 4507D08150 MFZN HOSE ID=7PIE
A22
SENSOR PRESSURE AS
3614801300 CDN-D6N
A23 SWITCH COVER AS 4507K44031 15A 220VAC 1006FD
3615403510 AC 110-130V/50,60Hz COLD
3615402010 AC 220V/60Hz COLD BACKWARD
A24 V ALVE INLET 3615403711 AC 220-240V/50Hz COLD
3615403530 AC 110-130V/50,60Hz COLD
UPWARD
3615402030 AC 220V/60Hz COLD
3615403630 AC 110-130V/50,60Hz HOT
A25 V ALVE INLET 3615402130 AC 220V/60Hz HOT BACKWARD
3615403831 AC 220-240V/50Hz HOT
3612787910 8A COLD NON-BUBBLE
3612787915 5A, COLD NON-BUBBLE SINGLE V ALVE
3612787920 8A COLD BUBBLE DWF-750/752/800/802
3612787925 5A COLD BUBBLE
3612787950 8A COLD NON-BUBBLE
SINGLE V ALVE
A26 HARNESS AS 3612787955 5A, COLD NON-BUBBLE
DWF-753/755/803/805
3612789600 8A COLD BUBBLE
DWF-756/758/806/808
3612787965 5A COLD BUBBLE
3612787930 8A COLD/HOT BUBBLE
3612787935 5A COLD/HOT BUBBLE DUAL V ALVE, PUMP
3612787940 8A COLD/HOT NON-BUBBLE
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
37
PARTS DIAGRAM
NO. PART NAME PART CODE SPECIFICA TION REMARK
3612787945 5A COLD/HOT NON-BUBBLE DUAL VALVE, PUMP
3612787970 8A COLD/HOT BUBBLE
A26 HARNESS AS 3612787975 5A COLD/HOT BUBBLE
DUAL V ALVE
3612787980 8A COLD/HOT NON-BUBBLE
3612787985 5A COLD/HOT NON-BUBBLE
361 1337000 F H05VV 3X0.75 1.9M WH CHILE
361 1337100 RVCTFK 2X0.75 1.9M GY JAP AN
361 1337200 N LFC-3R 3X0.75 1.9M GY AUSTRALIA
361 1337300 F H05VV 3X0.75 1.9M WH IT ALY
361 1337400 RW-300/500 3X0.75 1.9M PR. CHINA
361 1337500 VCTF 3X0.75 1.9M INDIA
361 1337600 U VCTF 3X0.75 1.9M GY SOUTH KOREA
A27 CORD POWER AS 3611337700 P VCTF 3X0.75 1.9M WH KUWAIT
361 1337800 VCTF 3X0.75 1.9M WH KUWAIT, OMAN
361 1337900 H05VV-F 3X0.75 1.9M WH MALAYSIA
361 1338000 H05VV-F 3X0.75 1.9M SINGAPORE
361 1338100 A-VCTFK 2X0.75 1.9M GY T AIWAN
361 1338200 F H05VV 3X0.75 1.9M BK EUROPEAN NATIONS
361 1338300 C SJT 3X18AWG 1.9M GY PANAMA, USA
361 1338400 H05VV-F 3X0.75 1.9M GY ARGENTINA
361 1338500 H05VV-F 3X0.75 1.9M GY SOUTH AFRICA
361 1338600 P VCTF 3X0.75 1.9M WH OMAN
A28 UNIT BUBBLE AS
3618946301 AC220-240V L=750 PAD
OPTION
3618906401 AC110-130V L=750 P AD
361891 1600 8.4µF 400VAC CAN-TYPE AC220-230V/50,60Hz
A29 UNIT CAP ACIT OR
361891 1900 30µF 200VAC CAN-TYPE AC120-127V/60Hz
3618912000 33.6µF 200VAC CAN-TYPE AC110V/60Hz
3618959700 7.5µF 400VAC CAN-TYPE AC240V/50Hz
PRPSSWU602 802WT(T8-V1F)
PRPSSWU603 752MN(T8-V2)
PRPSSWU701 750WTP(T8-V1)
DWF-750/752/800/802
PRPSSWU702 800WMP(T8-V2)
PRPSSWU704 750MNP(T8-V2F)
A30 PCB AS
PRPSSWU703 800WMP(T8-V2F, AUSTRAL IA)
PRPSSWU900 803MNP(T8-V2F)
PRPSSWU901 803MTC(T8-V1F)
PRPSSWU902 803MTP(T8-V1)
DWF-753/755/803/805
PRPSSWU903 803MNP(T8-V2)
PRPSSWU904 803MNP(T8-V2)
PRPSSWU905 803MNP(T8-V2, AUSTRALIA)
PRPSSWU800 806MNP(T10-V2)
PRPSSWU801 806MTC(T10-V1)
DWF-756/758/806/808
PRPSSWU802 806MNC(T10-V2)
PRPSSWU803 806MTP(T10-V1)
A31 UNIT FIL TER AS
3618961000 FILTER + COIL
OPTION
3618961010 FILTER + COIL, THERMAL TUBE
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
38
PARTS DIAGRAM
39
PARTS DIAGRAM
§§
è
Parts List
NO. PART NAME PART CODE SPECIFICA TION REMARK
B01 CABINET 3610809600 PAINTED STEEL SHEET 0.6T
B02 HANDLE CABINET 3612603300 PP
B03 PLA TE UPPER 3614521600 PP
B04 BASE U
3610389100 PP LOW H=45
DWF-750/753/756/800/803/806
3610389200 PP HIGH H=135
DWF-752/755/758/802/805/808
B05 LEG ADJUST AS 3617702100 DWF-1089W2
B06 LEG FIX 3612100310 SBR
B07 HOLDER SUPPORT F 3613044600 FRPP FRONT
B08 HOLDER SUPPORT B 3613044500 FRPP REAR
B09 COVER BACK 3611413600 SPG 0.4T
B10 COVER UNDER 361 1418500 PP OPTION
B1 1 HARNESS OUTER 3610068700 50/0.18GREEN ST710489-2 2-WIRE POWER CORD
B12 HOSE DRAIN O AS 3613213500 LDPE L=950 NON-PUMP
B13 HOSE DRAIN O AS 3613218800 LDPE/EVA L=1600 PUMP
PUMP
B14 GUIDE DRAIN HOSE 3612502300 PP
B15 FIL TER AS
361 1901530 DWF-800WNP E-TYPE ASKOLL PUMP
361 1904900 DWF-5590DPNE E-TYPE DMI PUMP
B16 COVER PUMP
361 1419100 VO ASKOLL 220-240V/50Hz
ASKOLL PUMP
361 1419200 HB 110V, 220V/60Hz
B17 COVER PUMP 3611405320 PP DMI PUMP
3618958900 AC 220-240V/50Hz
UNIT DRAIN PUMP 3618959000 AC 220V/60Hz ASKOLL PUMP
3618959100 AC 110-127V/60Hz
B18
3618957230 AC 220V/50Hz, L=1350, VSF
3618957200 AC 230~240V/50Hz, L=1350, VSF
UNIT DRAW PUMP
3618957260 AC 220V/60Hz, L=1350 DMI PUMP
3618957300 AC 110~127V/60Hz, L=1350, VSF
3918957330 AC 110~127V/60Hz, DIW, L=1350
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
40
PARTS DIAGRAM
41
PARTS DIAGRAM
§§
è
Parts List
NO. PART NAME PART CODE SPECIFICA TION REMARK
C01 BALANCER AS 3616104700 DWF-6010
C02 TUB I 3618808500 SUS 0.5T
C03 TUB U 3618808601 PP
ST AINLESS STEEL
C04 GUIDE FILTER 3612507000 DWF-6010NP
C05 SPECIAL SCREW 3616003700 SUS 5.5X16
C06 PULSATOR AS 3719706700 DWF-800WNP
C07 BALANCER AS 3616104500 DWF-5510PN
C08 TUB I 3618808100 PP
PLASTIC
C09 GUIDE FILTER 3612503900 PP
C10 PULSATOR AS 3619706600 DWF-750WTP
C1 1 FILTER AS 4505E82002 POLYESTER 90X120 INSERT
C12 SPECIAL SCREW 3616002901 SUS 304 NON-SILOCK
C13 SPECIAL NUT 4507D83080 SUS 304
C14 FLANGE TUB 3617201100 5KG 3-FOOT
C15 SPECIAL SCREW 3616007000 SCM24H, 6.5X24
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
42
PARTS DIAGRAM
43
PARTS DIAGRAM
§§
è
Parts List
NO. PART NAME PART CODE SPECIFICA TION REMARK
D01 COVER TUB O 3611414600 PP
D02 TUB O 3618817600 PP
D03 SUSPENSION AS F 3619804200 FRONT
D04 SUSPENSION AS B 3619804300 REAR
D05 VALVE DRAIN AS 3615408500 DWF-750M
NON-PUMP
D06 HOSE DRAIN I AS 3613227000 LDPE+EVA DWF-752MN
D07 HOSE DRAIN I AS 3613226900 LDPE+EVA DWF-800WNP PUMP
D08 CLAMP 4507D08150 MFZN HOSE ID=7PIE
OPTION : PUMP
D09 HOSE 4500D08210 ID=4.0
D10 CLAMP 4507D08150 MFZN HOSE ID=7PIE
OPTION : BUBBLE
D1 1 HOSE 4500D08210 ID=4.0
D12 BASE 3610302900 SECEN 1.2T
D13 SPECIAL SCREW 3616007000 SCM24H 6.5X24
D14
MOTOR SYNCHRONOUS
3966010410 220-240V/50,60Hz ST=23
3966320830 110-127V/60Hz ST=23
D15 GEAR MECHANISM 3617307310 GM-0600-KJ4P0
D16 BOLT HEX 7640802011 6B-1 8X20 SW MFZN
D17 PROTECTOR GEAR 3618303600 SGCC 1.2T
D18 SPECIAL WASHER 4505E34030 PP
3618959900 110-127V/60Hz W1D30CC004
D19 UNIT MOTOR AS 3618960100 220V/60Hz W1D0UC004
3608960200 220-240V/50Hz 30VC004
D20 BOLT HEX 7650802511 6B-1 8X25 HS MFZN
D21 PULLEY MOTOR AS
3618401420 DP=53.0 50Hz ALDC
3618402800 DP=48.5 60Hz ALDC
OPTION
D22 PULLEY MOTOR AS
3618431900 DP=53.0 50Hz PRESS
3618432000 DP=48.5 60Hz PRESS
D23 WASHER SPRING 7401008011 SW-8 MFZN
D24 NUT HEX 739280001 1 M8XP1.25 MFZN
D25 BELT V
4507D34020 M20 50Hz
4507B34020 M19.5 60Hz
D26
HARNESS EARTH INNER
3612757010 L=560
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
44
CIRCUIT DIAGRAM
§§
è
Circuit Diagram
1. DWF-750/752/803/805/753/755/803/805
45
2. DWF-756/758/806/808
S/M NO. : WF750SE001
DAEWOO ELECTRONICS CO., L TD.
686, AHYEON-DONG MAPO-GU SEOUL, KOREA
C.P.O. BOX 8003 SEOUL, KOREA
TELEX: DWELEC K28177-8
CABLE: “DAEWOOELEC”
FAX: 82-2-360-7877
TEL: 82-2-360-7114
http://www.dwe.co.kr
PRINTED DATE: JULY.2000
Loading...
