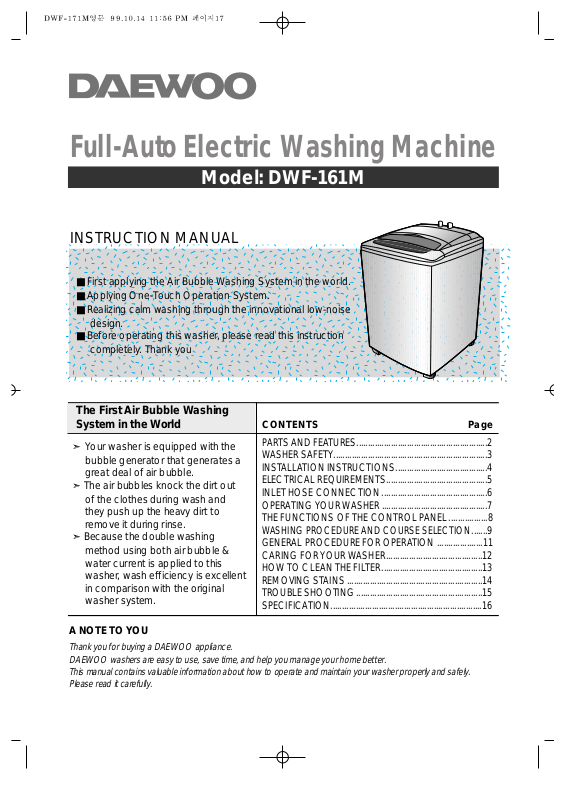

Daewoo DWF-161M User Manual

=

Full-Auto Electric Washing Machine

Model: DWF-161M

INSTRUCTION MANUAL

■First applying the Air Bubble Washing System in the world.

■Applying One-Touch Operation System.

■Realizing calm washing through the innovational low-noise

,,,,,,,







design.

■Before operating this washer, please read this instruction
completely. Thank you

,,,,,,,







The First Air Bubble Washing
System in the World

➣Your washer is equipped with the

bubble generator that generates a
great deal of air bubble.

➣The air bubbles knock the dirt out

of the clothes during wash and
they push up the heavy dirt to
remove it during rinse.

➣Because the double washing

method using both air bubble &
water current is applied to this
washer, wash efficiency is excellent
in comparison with the original
washer system.

A NOTE TO YOU

Thank you for buying a DAEWOO appliance.
DAEWOO washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer properly and safely.
Please read it carefully.

CONTENTS Page

PARTS AND FEATURES.........................................................2

WASHER SAFETY...................................................................3

INSTALLATION INSTRUCTIONS........................................4

ELECTRICAL REQUIREMENTS............................................5

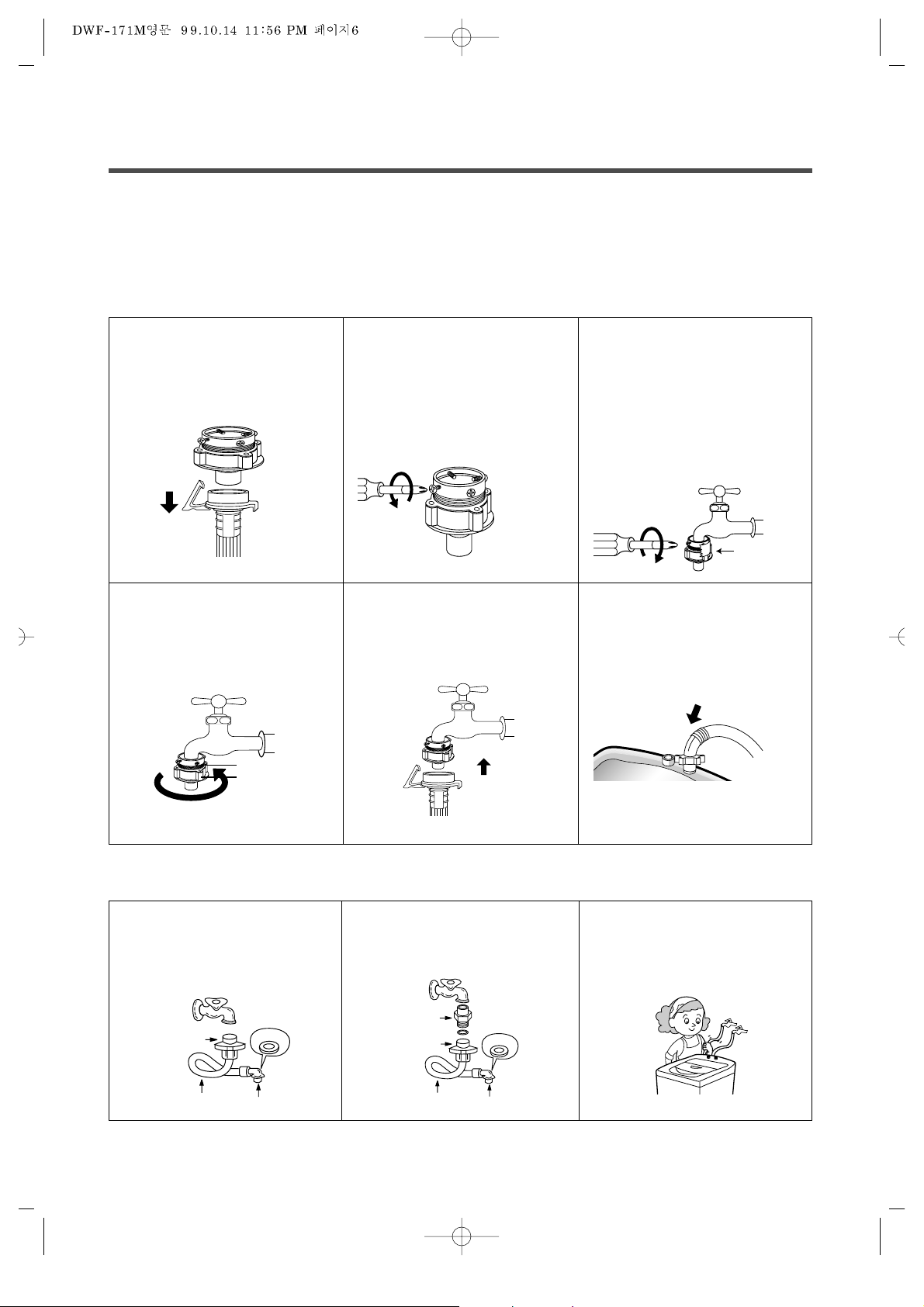

INLET HOSE CONNECTION..............................................6

OPERATING YOUR WASHER..............................................7

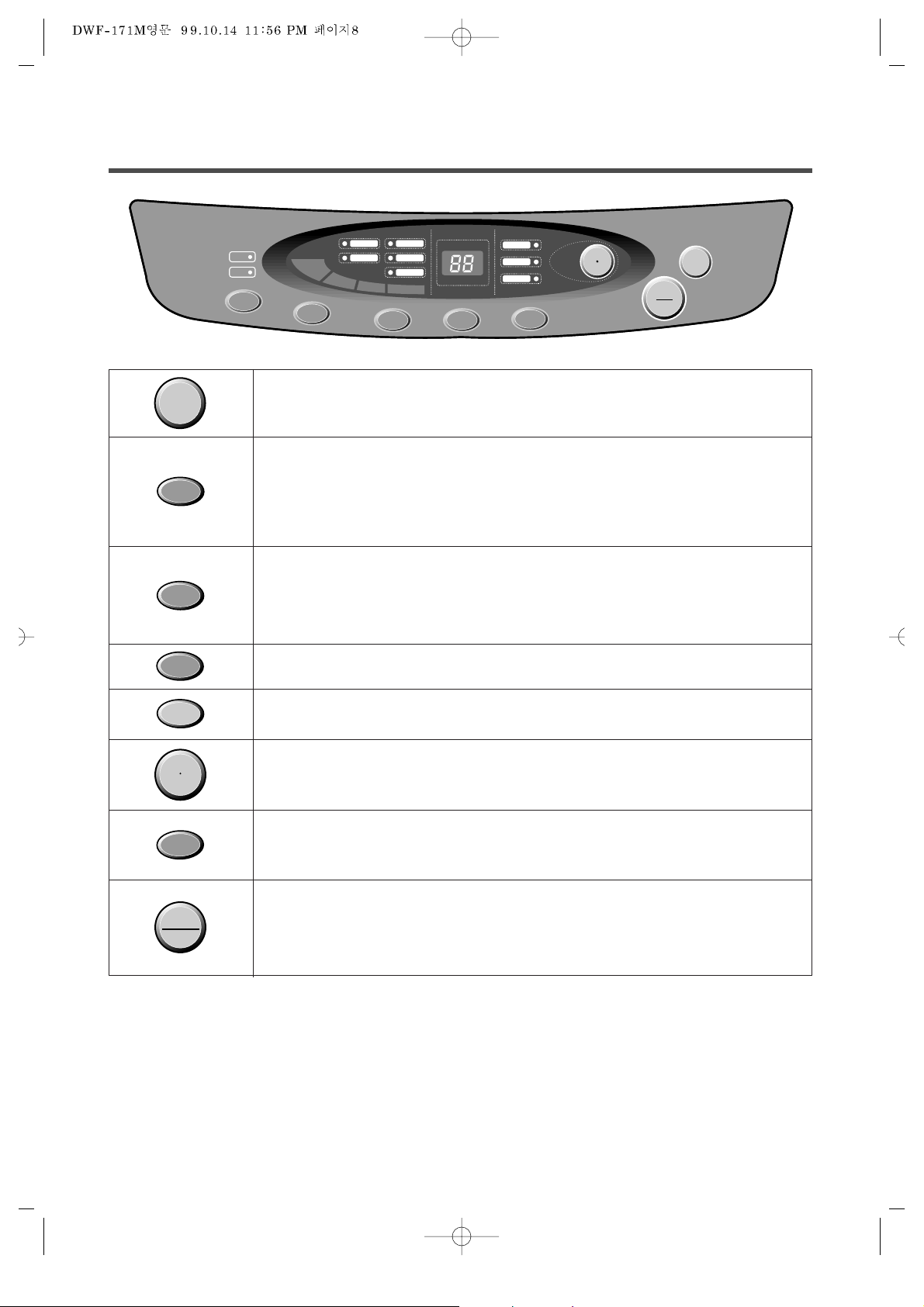

THE FUNCTIONS OF THE CONTROL PANEL.................8

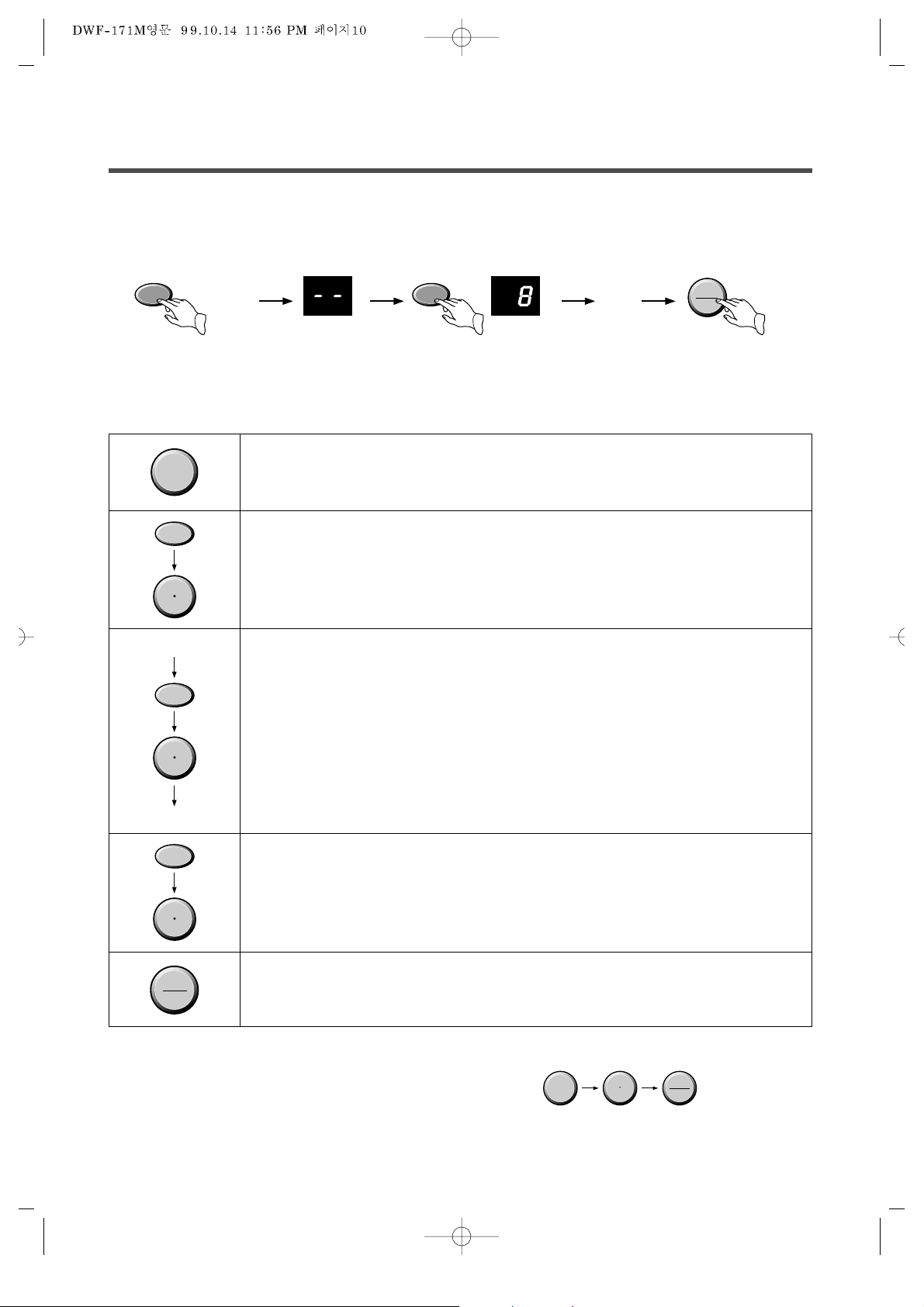

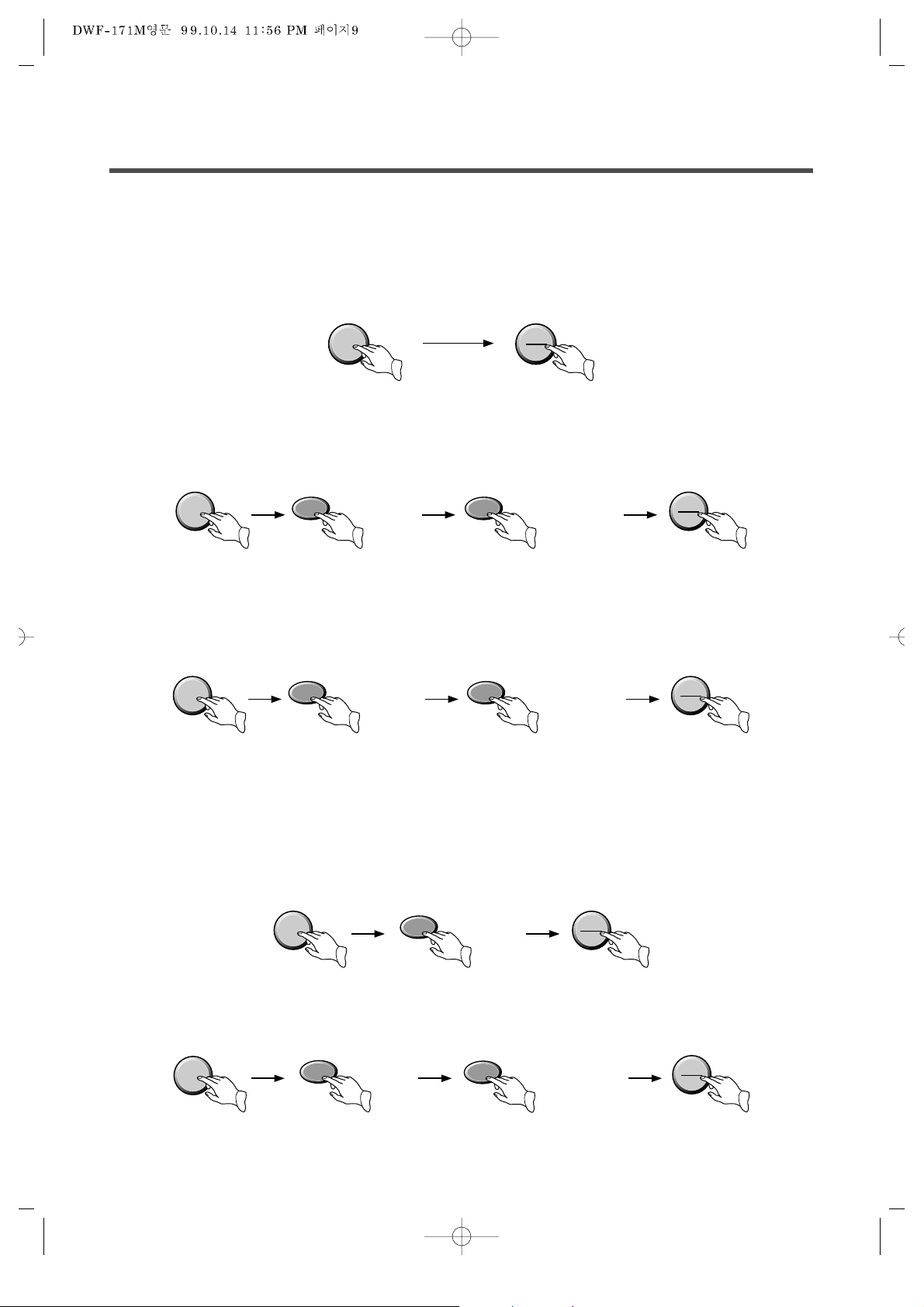

WASHING PROCEDURE AND COURSE SELECTION

.......9

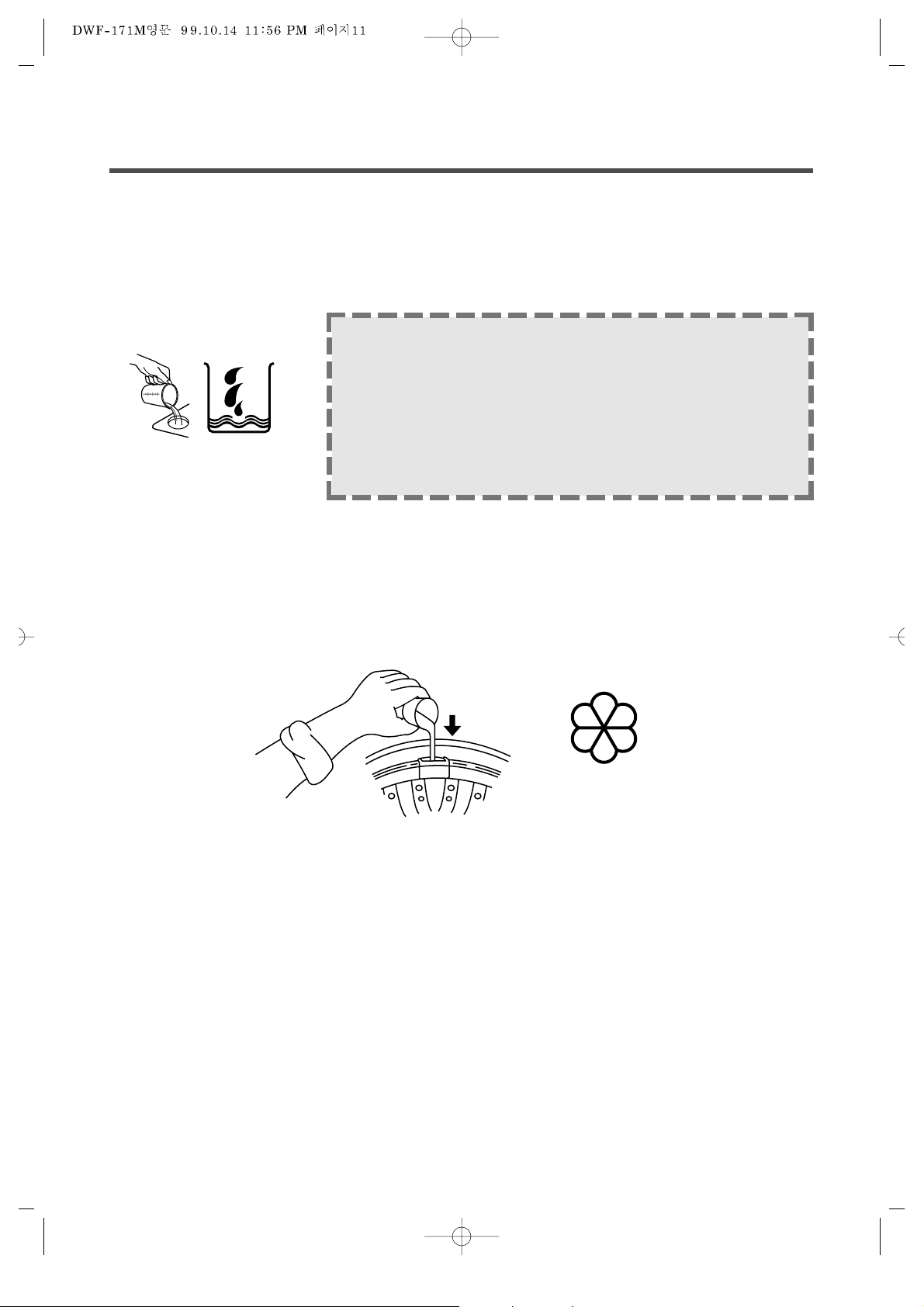

GENERAL PROCEDURE FOR OPERATION....................11

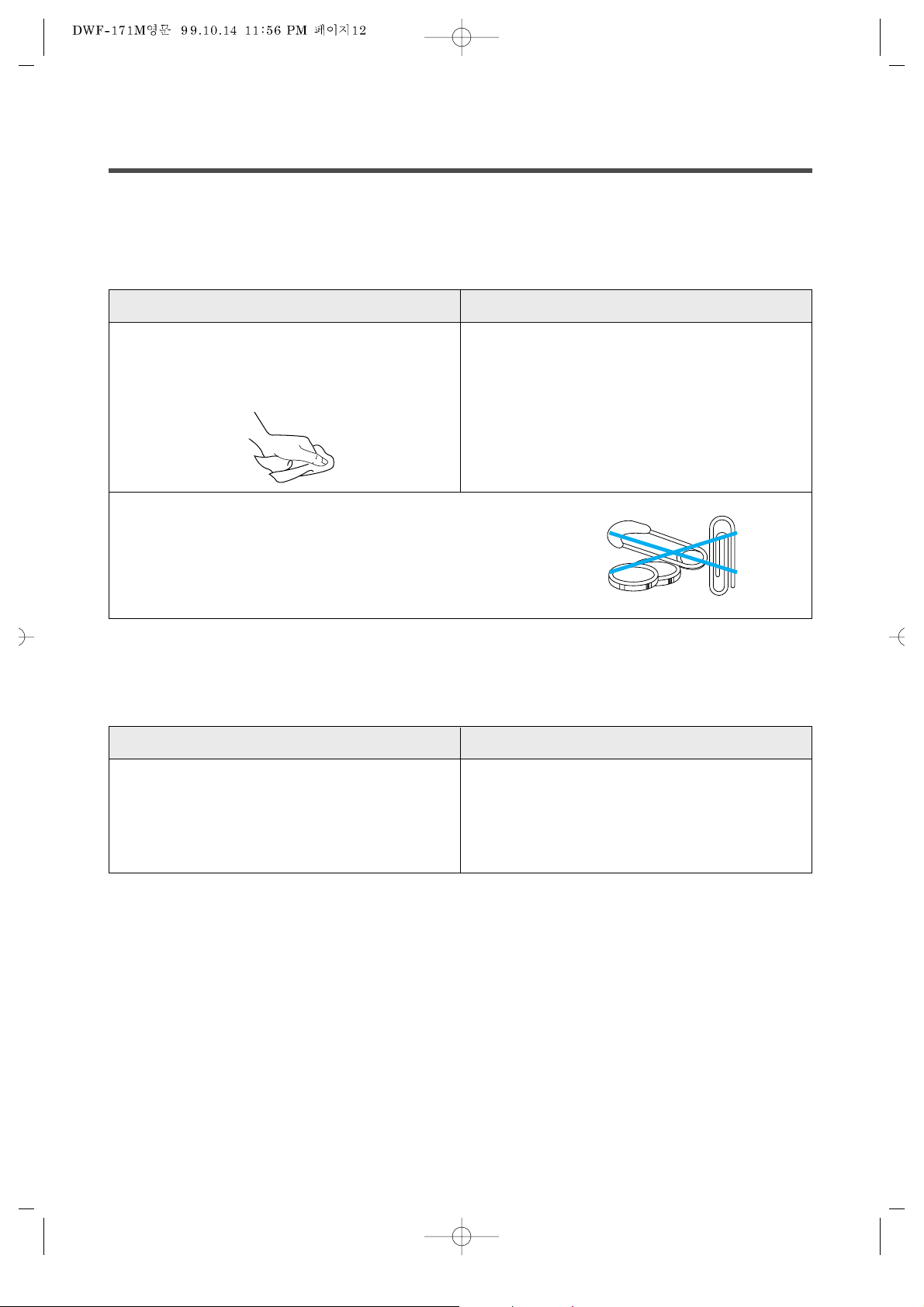

CARING FOR YOUR WASHER..........................................12

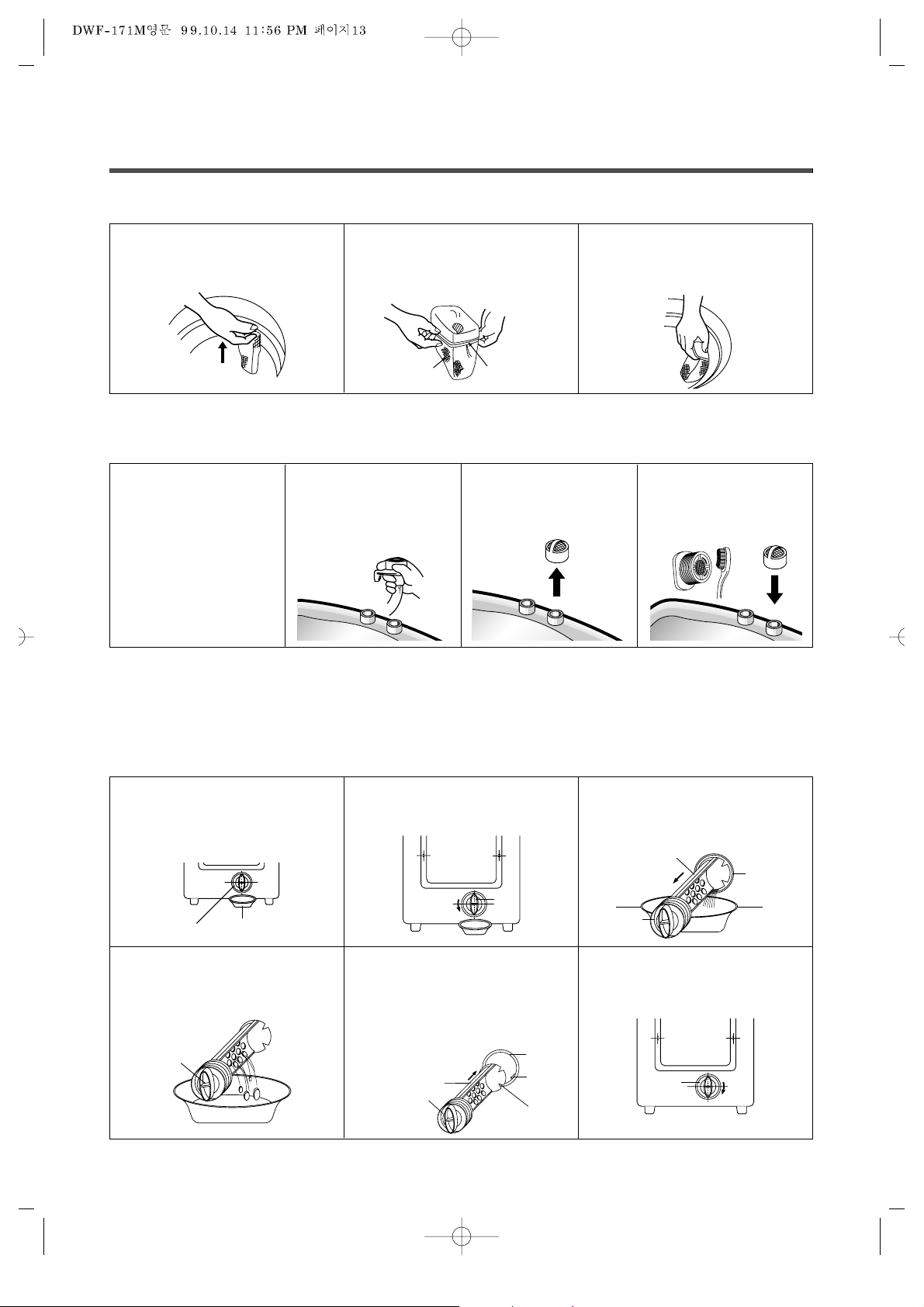

HOW TO CLEAN THE FILTER............................................13

REMOVING STAINS...........................................................14

TROUBLE SHOOTING.......................................................15

SPECIFICATION..................................................................16

• GROUND WIRE
In case of 3-wire

power cord, ground

wire will not be

provided

• POWER CORD

• HOSE DRAIN

• LINT FILTER

• COLD WATER TAP
After using the washer,

close the water tap

• DETERGENT CASE

• PULSATOR

• POWER SWITCH

• CONTROL PANEL

• BLEACH INLET

• HOT WATER TAP
After using the washer, close the water tap.

In case of the single valve model,
there is no hot water valve.

• ADJUSTABLE LEG

• SOFTENER INLET

2

P ARTS AND FEATURES

ACCESSORIES

DRYTEN (OPTION) COVER UNDER (OPTION) WATER TAP ADAPTER INLET HOSE

HOSE DRAIN (FOR PUMP) HOSE DRAIN CLAMP HOSE DRAIN (FOR NON- PUMP) CONNECTOR INLET(OPTION)

UP

DRYTEN

The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.

NOTE

•

The drawings in this book may vary from your washer model.
They are designed to show the different features of all models covered by this book,
Your model may not include all features.

Read all instructions before using your washer

Save these instructions

Your safety is important to us.
To reduce the risk of fire, electrical shock, or injury when using your washer, follow
basic precautions including the following:

Understanding your responsibilities

• Do not wash items that are soiled with vegetable or cooking oil.
These items may contain some oil after laundering.
Due to the remaining oil, the fabric may smoke or catch fire by itself.

• Do not use chlorine bleach and ammonia or acid (Such as vinegar or rust remover) in the
same wash. Hazardous fumes can form.

• Unplug power supply cord before attempting to service your washer .

• Do not wash fiberglass materials.
Small particles can stick to fabrics and cause skin irritation.

• Do not use hot water that temperature is over 50°C (120°F).
It can cause a deformation of plastic parts.

• Do not spray water on the control panel and back cover of the washer.
It can cause a fire or an electric shock.

• Flammable fluids (dry-cleaning solvents,
kerosene, gasoline, etc.) should not be
used or stored in or near your washer .
Do not add flammable fluids to your wash
water.These substances give of f vapors
that can create a fire hazard or explosion.

• Do not allow children to operate, play
with, or crawl on or inside your washer .
Supervise children closely when your
washer is used near them.

• After starting a cycle, do not reach into
the spin basket unless all motion stops.

• Do not tamper with the controls.

Please ...

• Have only a qualified person install, repair ,
or replace parts on washer.

• Maintain washer properly .

• Protect washer from the weather and
keep it where the temperature will not fall
below freezing.

• Do not install the washer at a place of
extremely high humidity . It could cause an
Electrical shock or a short circuit.

• Connect washer to the correct outlet,
electrical supply, water supply, and drain.

• Ground washer properly.

W ASHER SAFETY

3

Non-Pump Model Pump Model

Location of washer

Check location where washer will be installed. Make sure you have everything
necessary for correct installation.
Proper installation is your responsibility.

•Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

Drain system

Never forget to install drain hose before operating your washer.
The packing box is opened, there are a drain hose, and a hose clamp in the washer.

INST ALLATION INSTRUCTIONS

4

• Connect the drain hose to the drain outlet
at the back side of the washer , and fasten
it tightly with the clamp attached.

• Connect the drain hose to the drain outlet
at the back side of the washing machine,
and fasten it tightly with the clamp
supplied.

If the washer is installed on an unsuitable floor , it could
make considerable noise, vibrate and cause a malfunction.
If washer is not level, adjust the front leg(A) up or down for
horizontal setting.

•Earthed electrical outlet(B) is required with 20cm of
bottom back of washer cabinet.

•Hot and cold water faucets (C) must be within 1M of the
upper back of the washer cabinet and provide water
pressure 0.3kgf/cm

2

-8kgf/cm2 (2.94N/cm2-78.4cm2).

NOTES

• The opening must not be obstructed by carpeting when the washing machine is
installed on a carpeted floor.

C

B

UP DOWN

A

Hose clamp

Drain hose

Drain Outlet

Drain hose

Hose Clamp

Recommended earthing method

WARNING

Laundry tub drain system Standpipe drain system

Pump Model

Non-Pump Model

5

! In case that it goes over

a door sill.
Don't let the height of
the drain hose exceed
20cm from the bottom
of washer.

@ In case of extending the

drain hose.
Don't let the total length
exceed 3m.

# Be careful that the end

of the drain hose is not
immersed in water.

• T op of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (A)

• Needs a 3cm minimum diameter
standpipe with minimum carry away
capacity of 30liters per minute.

• T op of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (B)

20Cm

3m

A

B

C

B
A

ELECTRICAL REQUIREMENTS

For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord (A) having a
earthing plug (B). To minimize possible shock hazard, the cord must
be plugged into a mating earthing-type wall receptacle (C).
If a mating wall receptacle is not available, it is the personal
responsibility and obligation of the customer to have the proper
earthed wall receptacle installed by a qualified electrician.

• Electrical earth is required on this washer

• If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.

• Don't earth to a gas pipe

• Don't change the power supply cord plug.

• Check with a qualified electrician if you are not
sure the washer is properly earthed.

electrical shock hazard: failure to follow these instructions could result in

death or serious injury .
