DAEWOO DWD-F1011, DWD-F1012, DWD-F1013, DWD-F1021, DWD-F1031 Service manual

...

Service Manual

Washing Machine

Model: DWD-F101 1/F1012/F1013/F1211/F1212/F1213 DWD-F1021/F1022/F1023/F1221/F1222/F1223 DWD-F1031/F1032/F1033/F1231/F1232/F1233 DWD-F1041/F1042/F1043/F1241/F1242/F1243 NFL-1065/NFL-1265

DAEWOO ELECTRONICS CORP.

S/M No. : WDF1011002(r)

http : //svc.dwe.co.kr Apr. 2008

✔ Caution

: In this Manual, some parts can be changed for improving,

their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr).

WASHING MACHINE

Contents

1. SPECIFICATIONS....................................................................................................................2

2. INSTALLATION........................................................................................................................5

Removing transit bolts......................................................................................................5

Installation place requirement...........................................................................................6

BS Plug Safety Details (For U.K. User)............................................................................6

Connecting inlet hose.......................................................................................................7

Installation of drain hose...................................................................................................8

Level adjustment...............................................................................................................9

3. MAINTENANCE.....................................................................................................................10

Cleaning your washer.....................................................................................................10

Cold condition.................................................................................................................10

Cleaning the water inlet filter ..........................................................................................11

Cleaning the drain pump filter.........................................................................................11

Cleaning the detergent case...........................................................................................12

Cleaning the washing drum............................................................................................12

4. DIRECTION FOR DISASSEMBLY........................................................................................13

5. EXPLODE VIEW AND PARTS LIST .....................................................................................16

6. FUNCTIONS OF THE CONTROL PANEL............................................................................29

7. FUNCTIONS OF THE CONTROLLER..................................................................................37

8. FUNCTION OF THE CONVENIENT SERVICE.....................................................................39

9. TROUBLESHOOTING GUIDE..............................................................................................41

10. WIRING DIAGRAM..............................................................................................................45

1. SPECIFICATIONS

SPECIFICATIONS

ADJUSTABLE LEG

CONTROL PANEL

DOOR

DETERGENT CASE

INLET HOSE

HOT

(OPTION)

COLD

LOWER COVER

POWER CORD

HOSE DRAIN

■

DWD-F1X1X SERIES

■

DWD-F1X2X SERIES

HOT

(OPTION)

COLD

ADJUSTABLE LEG

CONTROL PANEL

DOOR

DETERGENT CASE

INLET HOSE

LOWER COVER

POWER CORD

HOSE DRAIN

SPECIFICATIONS

■

Accessories

Hose drain Inlet hose Spanner (Option) Manual Cap holder(3EA)

POWER SOURCE 220-240V, 50Hz DiMENSION (WXDXH) 595mm x 540mm x 850mm WEIGHT 64kg WATER CONSUMPTION 47~59 POWER CONSUMPTION 2200W MAXIMUM MASS WASH 6 / 6.5 / 7 kg OF TEXTILE SPIN 6 / 6.5 / 7 kg WASHER TYPE DRUM TYPE (FRONT LOADING WASHING MACHINE) OPERATING WATER PRESSURE 0.3 ~ 8kgf/cm2(29.4 ~ 784kPa)

DWD-F1011/F1012/F1013/F1211/F1212/F1213 DWD-F1021/F1022/F1023/F1221/F1222/F1223 DWD-F1031/F1032/F1033/F1231/F1232/F1233

NFL-1065/NFL-1265

MODEL

HOT

(OPTION)

COLD

■

DWD-F1X3X SERIES

ADJUSTABLE LEG

CONTROL PANEL

DOOR

DETERGENT CASE

INLET HOSE

LOWER COVER

POWER CORD

HOSE DRAIN

SPECIFICATIONS

HOT

(OPTION)

COLD

■

Accessories

■

DWD-FU1X4X SERIES

Hose drain Inlet hose Manual Cap holder(3EA)

POWER SOURCE 220-240V, 50/60Hz DiMENSION (WXDXH) 595mm x 540mm x 850mm WEIGHT 64 kg WATER CONSUMPTION 47~59 POWER CONSUMPTION 2200W MAXIMUM MASS WASH 6 / 6.5 / 7 kg OF TEXTILE SPIN 6 / 6.5 / 7 kg WASHER TYPE DRUM TYPE (FRONT LOADING WASHING MACHINE) OPERATING WATER PRESSURE 0.3 ~ 8kgf/cm2(29.4 ~ 784kPa)

DWD-FU1041/1042/1043/1241/1242/1243

MODEL

ADJUSTABLE LEG

CONTROL PANEL

DOOR

DETERGENT CASE

INLET HOSE

LOWER COVER

POWER CORD

HOSE DRAIN

2. INSTALLATION

INSTALLATION

■ Transit bolts

The appliance is fitted with transit bolts to prevent internal damage during transport.

■ Removing transit bolts

1. To prevent internal damage during transport, the special 3 bolts are locked. Before operating the washer, remove the bolts along with the rubber bungs.

• If they are not removed, it may cause heavy

vibration, noise and malfunction.

2. Unscrew the 3 bolts with the spanner supplied, and take out the 3 bolts with the rubber bungs.

Keep the 3 bolts and the spanner for future use.

• Whenever the appliance is transported, the

transit bolts must be refitted.

3. Close the holes with the caps supplied.

■ Transit bolts

The appliance is fitted with transit bolts to prevent internal damage during transport.

■ Removing transit bolts

INSTALLATION

■ Installation place requirement

■ BS Plug Safety Details (For U.K. User)

Level floor :

Allowable slope under entire washer is 1°

Power outlet :

Must be with 1.5 meters of entire side of location of washer. Do not overload the outlet with more than one appliance.

Additional Clearance :

For wall, door and floor modeling is required. (10cm : rear / 2cm : right & left side)

Do not place or store laundry products on top of washer at any times. They can damage the finish or controls.

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green or Green and Yellow. The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red. If a 13 amp (BS 1363) plug is used, fit a 13amp BS 1362 fuse.

IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

GREEN AND YELLOW : EARTH

BLUE : NEUTRAL

BRO WN : LIVE

This appliance must be earthed

INSTALLATION

FOR ORDINARY TAP

6 Connect the inlet hose

adapter of the hose to the water inlet of the washer by turning it clockwise to be fixed tightly.

• Please check the rubber packing present inside the inlet hose adapter of the hose.

1 Pull down the collar

of the inlet hose to separate it from the water tap adapter.

2 Loosen the four

screws properly in order to fit into

water tap.

4 Remove the tape,

and screw connector B into connect A tightly.

5 Conect the inlet hose

to the water tap adapter by pulling down the collar of the hose end.

3 Fit the water tap adapter into

the water tap and tighten the four screws evenly while push-

ing up the adapter so that the rubber packing can stick to the water tap tightly.

■ Connecting inlet hose

In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water inlet valve. Option : Be careful not to confuse hot water inlet and cold water inlet.

FOR SCREW-SHAPED TAP

Connect the inlet hose adapter

to the water inlet of the washer

and turn it to be fixed.

• Check the packing in the inlet.

1 Conect the inlet hose

to the water tap adapter by pulling down the collar of the hose end.

Conect the connectorinlet supplied if necessary.

Inlet Hose

Connector D

Rubber

Packing

Connector C

Connector

Inlet



Rubber Packing

Connector D

Connector C

Hose

TAPE

Connector B

Connector A

INSTALLATION

■ Installation of drain hose

• When installing the drain hose in sink, secure

it tightly with a string.

• Proper securing of the drain hose will protect the

floor from damage due to water leakage.

• The drain hose should not be placed higher than

100cm above the floor.

• Proper securing of the drain hose will protect the

floor from damage due to water leakage.

• When the drain hose is too long, do not force

back in to the washer. This will cause abnormal noise.

■ Installation of drain hose

INSTALLATION

■ Level adjustment

1. The level adjustment of the washing machine prevents excessive noise and vibration. Install the washing machine on a solid and even floor surface, if possible, in a corner of the room.

Note: the wooden floor may cause excessive

vibration.

2. If the floor is uneven, adjust the adjustable leg as

the following. (Do not insert pieces of wood etc. under legs.)

• Please check whether there is any gap between four adjustable legs and the floor.

• Turn adjustable legs by the enclosed spanner in order to adjust the level of the washing machine.

• Make it sure that there is no swaying of the washing machine and check that the washing machine is even completely. (use a spirit level)

• After the level adjustment is finished, turn fixing nuts up tightly so that the washing machine maintains the adjustment.

leg

Fixing Nut

❈ Diagonal Check

When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all. (Please, check both of two directions) If machine rocks when pushing the machine top plate diagonally, adjust legs again.

3. MAINTENANCE

MAINTENANCE

❈ Before cleaning the washer interior, unplug the electrical power cord avoid electrical shoc k hazar ds.

■ Cleaning your washer

1. Exterior

Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a neutral non abrasive household detergent. Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

• Do not use methylated spirits, diluents or similar products.

2. Interior

Dry around the washer door opening, flexible gasket and door glass. Run washer through a complete cycle using hot water. Repeat process if necessary.

• Remove hard water deposits using only cleaners labeled as washer safe.

■ Cold condition

If the washer is stored in an area where freezing may occur or moved in freezing temperature, follow these instructions to prevent damage to the washer.

1. Turn off water supply tap.

2. Disconnect hoses from water supply and drain water from hoses.

3. Plug electrical cord into a properly grounded electrical outlet.

4. Add 1gallon(3.8L) of nontoxic recreational vehicle(RV) antifreeze into empty wash drum. Close the door.

5. Set spin cycle and let washer spin for 1minute to drain out all water.

6. Unplug eletrical power cord, dry the drum interior, and close the door.

7. Remove detergent case and dry excessive water from the compartments.

8. Store washer in an upright position.

9. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent. Do not add wash load.

MAINTENANCE

■ Cleaning the water inlet filter

• "IE" error message will blink on the control panel when water does not enter the detergent drawer.

• If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged.

• It is therefore a good idea to clean it from time to time.

■ Cleaning the drain pump filter

• The drain filter collects threads and small objects left in the laundry.

• Check regularly that the filter is clean to ensure smooth running of your machine.

CAUTION Be careful when draining if the water is hot.

1. Turn off the water tap.

2. Unscrew the water inlet hose.

3. Clean the filter using a had bristle brush.

4. Tighten up the inlet hose.

1. Open the lower cover(1) by using a coin. Turn the cap

hose(2) to pull out the hose. Pull out the hose maximally.

(About 13~14cm.)

Unplug the cap hose(2), allowing the water to flow out. At this time use

a vessel to prevent water flowing on to the floor. When water does not flow any more, turn the pump filter(3) open to the left.

3. Remove any foreign material from the pump filter(3). After

cleaning, turn the pump filter clockwise and insert the cap hose(2) to the original place.

Close the lower cover.

100

about 13~14cm

about

13~14cm

■ Cleaning the water inlet filter

• "IE" error message will blink on the control panel when water does not enter the detergent drawer.

• If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged.

• It is therefore a good idea to clean it from time to time.

MAINTENANCE

■ Cleaning the detergent case

❈After a while detergents and fabric softeners leave a deposit in the detergent case.

• It should be cleaned from time to time with a jet of running water.

•If necessary it can be removed completely from the machine by pressing the catch downwards and by pulling it out.

• To facilitate cleanling, the upper part of the fabric softener compartment can be removed.

Inlet box recess

❈Detergent can also accumulate inside the recess which should be cleaned

occasionally with an old toothbrush.

• Once you have finished cleaning, replace the detergent case and run a rinse cycle without laundry.

MAX

max

MAX

max

■ Cleaning the washing drum

• If you live in a hard water area, limescale may continuously build up in places where it cannot be seen and thus not easily removed.

• Over time the build up of scale clogs appliances, and if it is not kept in check these may have to be replaced.

• Although the washing drum is made of stainless steel, specks of rust can be caused by small metal articles (paper

clips, safety pins) which have been left in the drum.

• The washing drum should be cleaned from time to time.

• If you use descaling agents, dyes or bleaches, make sure they are suitable for washing machine use.

❈Descaler may contain chemicals that may damage part of your washing machine. ❈Remove any spots with a stainless steel cleaning agent. ❈Never use steel wool.

■ Cleaning the detergent case

❈After a while detergents and fabric softeners leave a deposit in the detergent case.

• It should be cleaned from time to time with a jet of running water.

•If necessary it can be removed completely from the machine by pressing the catch downwards and by pulling it out.

• To facilitate cleanling, the upper part of the fabric softener compartment can be removed.

4. DIRECTION FOR DISASSEMBLY

DIRECTION FOR DISASSEMBLY

DOOR LOCK SWITCH

1) Open the door and remove the gasket clamp. 2) Remove the gasket from the front cabinet.

HEATER AND THERMISTOR

1) Remove four screws on the back cover, and remove the back cover.

2) Remove connectors and the earth terminal.

3) Remove two screws, and remove the door lock switch.

DIRECTION FOR DISASSEMBLY

3) Remove the nut by using a box wrench, and remove the earth terminal.

4) Loosen the nut by using a box wrench, and pull out the heater.

UNIVERSAL MOTOR

1) remove the belt from the pulley. 2) Lay the right side of the washer on the floor, and remove the connector.

3) Remove two bolts and two nuts mounting the motor

by using a box wrench.

4) Remove the motor from the tub.

DIRECTION FOR DISASSEMBLY

DRAIN PUMP

1) Lay the right side of the washer on the floor, and remove the lower panel by pressing six sanp fits.

2) Remove connectors.

3) Remove the screw, and remove the drain pump from the lower frame.

4) Remove the drain hose.

5) Remove the inner drain hose, and remove the drain pump.

5. EXPLODE VIEW AND P ARTS LIST

EXPLODE VIEW AND PARTS LIST

■ BOX INLET AS

No. PART NAME PART CODE SPECIFICA TION Q'TY REMARK

3612608700 ABS DWD-F1X11(2) 3612608710 ABS + SPRAY DWD-F1X13 3612608900 ABS DWD-F1X21(2)

A01 HANDLE CASE

3612608910 ABS + SPRAY

DWD-F1X23 3612609700 ABS DWD-F1X31(2) 3612609710 ABS + SPRAY DWD-F1X33 3611148000 ABS DWD-F1X41(2) 3611148010 ABS + SPRAY DWD-F1X43

A02 CASE DETERGENT 3611140300 PP 1 A03 CAP SOFTENER 3610916600 PP 1 A04 BOX INLET 3610526500 PP 1

A05 NOZZLE AS

3618103500

NOZZLE TOP + NOZZLE UNDER 1

COLD+HOT 3618103510 COLD ONLY

A06 SCREW TAPPING 7122402011 T2S TRS 4X20 MFZN 1 A07 CLAMP AS 3611203200 ID=60,WIRE+GUIDE+BOLT+NUT 1 A08 HOSE INLET 3613267200 EPDM U-TRAP 1 A09 CLAMP HOSE I 3611201400 HSW3, D2.6, MFZN, ID=38 1 A10 HOSE WATER SUPPLY 3613270900 EPDM,ID=9.5,OD=14.5,L=225 2(1) COLD(HOT) A11 CLAMP HOSE 3611205800 ID=13.8, W=10.0, T=0.9 4(2) COLD(HOT)

A12 VALVE INLET

3615414900 220~240V 2WAY PP VDE

1 COLD

3615414910 220~240V 2WAY NYLON VDE

A13 VALVE INLET 3615414800 220~240V,50/60Hz,1WAY 1 HOT A14 SCREW TAPTITE 7272400811 TT3 TRS 4X8 MFZN 2(2) COLD(HOT)

EXPLODE VIEW AND PARTS LIST

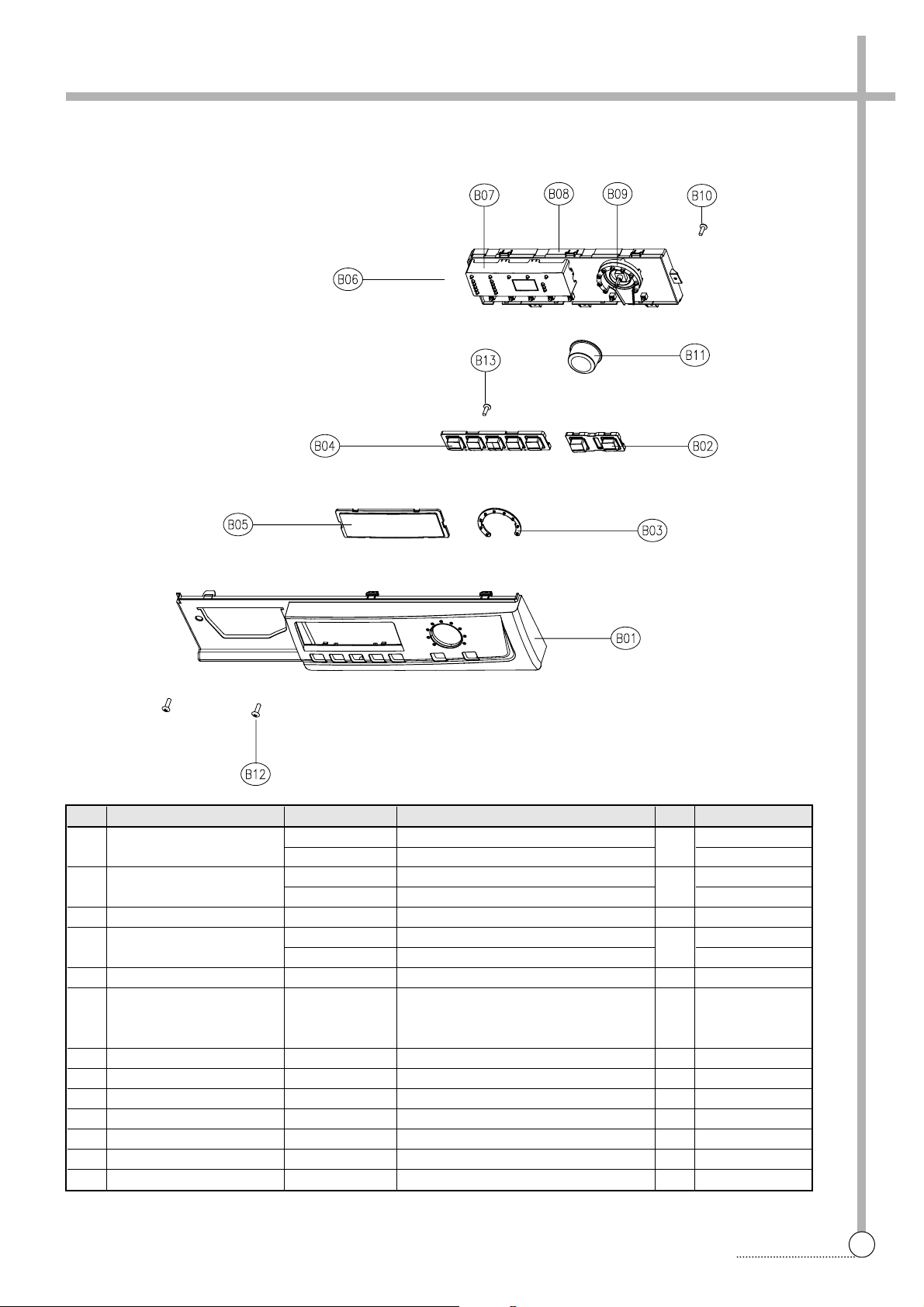

■ PANEL FRONT AS (DWD-F1X1X SERIES)

No. PART NAME PART CODE SPECIFICA TION Q'TY REMARK

B01 PANEL F

3614282700 ABS

3614282710 SILVER SPRAY DWD-F1X13

B02 BUTTON POWER

3616603600 ABS

DWD-F1X11/DWD-F1X14

3616603620 ABS+AL COATING

B03 WINDOW DIAL 3615503100 ABS 1 B04 BUTTON SELECT

3616603500 ABS 1

DWD-F1X11/DWD-F1X14

3616605320 ABS+AL COATING 1

B05 WINDOW LED 3615503000 ABS

Refer to

B06 PCB AS PRPSSWB1- DWD-F1XXX SERIES

Detailed Part Code

of PCB AS B07 HOLDER LED 3613049600 ABS 1 B08 CASE PCB 3611140200 HIPS 1 B09 HOLDER DIAL 3613049700 ABS 1 B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4

B11 KNOB DIAL AS

3613405000 ABS, AL COATING

3613405010 ABS+SILVER SPRAY, UV COATING DWD-F1X13 B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2 B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2

EXPLODE VIEW AND PARTS LIST

■ PANEL FRONT AS (DWD-F1X2X SERIES)

No. PART NAME PART CODE SPECIFICA TION Q'TY REMARK

B01 PANEL F

3614284500 ABS

3614284510 SILVER SPRAY DWD-F1X23

B02 BUTTON POWER

3616604200 ABS

DWD-F1X21

3616604210 ABS+AL COATING

B03 WINDOW DIAL 3615503400 ABS 1 B04 BUTTON SELECT

3616604100 ABS 1 DWD-F1X21 3616604110 ABS+AL COATING 1

B05 WINDOW LED 3615503300 ABS

Refer to

B06 PCB AS PRPSSWB1- DWD-F1XXX SERIES

Detailed Part Code

of PCB AS B07 HOLDER LED 3613050500 ABS 1 B08 CASE PCB 3611140200 HIPS 1 B09 HOLDER DIAL 3613050600 ABS 1 B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4 B11 KNOB DIAL 3613405110 ABS+SPRAY 1 B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2 B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2

EXPLODE VIEW AND PARTS LIST

■ PANEL FRONT AS (DWD-F1X3X SERIES)

No. PART NAME PART CODE SPECIFICA TION Q'TY REMARK

B01 PANEL F

3614285800 ABS 1 DWD-F1X31(2) 3614285810 ABS+SPRAY DWD-F1X33

B02 BUTTON POWER

3616635300 ABS 1 DWD-F1X31 3616635310 ABS+SPRAY DWD-F1X32(3)

B03 WINDOW DIAL 3615504200 ABS-TR 1 B04 BUTTON SELECT

3616635400 ABS 1 DWD-F1X31 3616635410 ABS+SPRAY DWD-F1X32(3)

B05 WINDOW DISPLAY 3615504300 ABS-TR 1

Refer to

B06 PCB AS PRPSSWB1- DWD-F1XXX SERIES 1

Detailed Part Code

of PCB AS B07 HOLDER DISPLAY 3613051700 HIPS 1 B08 CASE PCB 3611143200 HIPS 1 B09 HOLDER DIAL 3613051500 HIPS 1 B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4 B11 KNOB DIAL 3613405210 ABS+SPRAY 1 B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2 B13 SCREW TAPPING 7122401211 T2S TRS 4x12 MFZN 2

EXPLODE VIEW AND PARTS LIST

■ PANEL FRONT AS (DWD-FU1X4X SERIES)

No. PART NAME PART CODE SPECIFICA TION Q'TY REMARK

B01 PANEL F

36142T1500 ABS 1 DWD-F1X41(2) 36142T1510 ABS + SPRAY DWD-F1X43

B02 BUTTON POWER

3616639100 ABS 1 DWD-F1X41 3616639110 ABS + SPRAY DWD-F1X42(3)

B03 WINDOW COURSE 3615507000 ABS-TR 1 B04 BUTTON SELECTION

3616639000 ABS 1 DWD-F1X41

3616639010 ABS + SPRAY DWD-F1X42(3) B05 WINDOW DISPLAY 3615506800 ABS-TR 1 B06 PCB AS PRPSSWB2-- DWD-F1X4X SERIES 1

Refer to Detailed Part Code of PCB AS B07 HOLDER LED SELECTION 3613055300 HIPS 1 B08 CASE PCB 36111T1500 HIPS 1 B09 HOLDER DIAL 3613055500 HIPS 1 B10 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 4

B11 KNOB DIAL OUTER

3613406600 ABS 1 DWD-F1X41 3613406610 ABS + SPRAY DWD-F1X42(3)

B12 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2 B13 KNOB DIAL INNER

3613406700 ABS 1 DWD-F1X41

3613406710 ABS + SPRAY DWD-F1X42(3) B14 WINDOW SELECTION 3615506900 ABS-TR 1 B15 HOLDER LED COURSE 3613055400 HIPS 1 B16 DECORATOR WINDOW 3611689900 PC FILM 1

B03

B13

B11

B09

B15

B06

B08

B10

B16

B07

B05

B14

B04

B12

B01

B02

EXPLODE VIEW AND PARTS LIST

■ Detailed Part Code of PCB AS

No. PART NAME P AR T CODE SPECIFICA TION Q'TY REMARK

PRPSSWB100 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, BB PRPSSWB101 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB PRPSSWB102 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, BB PRPSSWB103 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, NON-BB PRPSSWB104 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, BB PRPSSWB105 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB PRPSSWB106 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, BB 1st PANEL PRPSSWB107 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, NON-BB PRPSSWB108 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, BB PRPSSWB109 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB PRPSSWB110 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, BB PRPSSWB111 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, NON-BB PRPSSWB112 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, BB PRPSSWB113 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB PRPSSWB114 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, BB PRPSSWB115 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, NON-BB PRPSSWB120 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, BB PRPSSWB121 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB PRPSSWB122 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, BB PRPSSWB123 DWD-F101, PANA MICOM, EC, 1000RPM, COLD V/V, NON-BB PRPSSWB124 DWD-F101, PANA MICOM, EC, 1200RPM, HOT V/V, BB PRPSSWB125 DWD-F101, PANA MICOM, EC, 1200RPM, HOT V/V, NON-BB PRPSSWB126 DWD-F101, PANA MICOM, EC, 1200RPM, COLD V/V, BB 2nd PANEL PRPSSWB127 DWD-F101, PANA MICOM, EC, 1200RPM, COLD V/V, NON-BB PRPSSWB128 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, BB

B06 PCB AS PRPSSWB129 DWD-F101, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB 1

PRPSSWB130 DWD-F102, PANA MICOM, NON-EC, 1000RPM, COLD V/V, BB PRPSSWB131

DWD-F102, PANA MICOM, NON-EC, 1000RPM, COLD V/V, NON-BB PRPSSWB132 DWD-F122, PANA MICOM, NON-EC, 1200RPM, HOT V/V, BB PRPSSWB133

DWD-F122, PANA MICOM, NON-EC, 1200RPM, HOT V/V, NON-BB PRPSSWB134 DWD-F122, PANA MICOM, NON-EC, 1200RPM, COLD V/V, BB PRPSSWB135

DWD-F122, PANA MICOM, NON-EC, 1200RPM, COLD V/V, NON-BB PRPSSWB136 D-FU102, AUSTRALIA, PANA, NON-EC, 1000RPM, C, B PRPSSWB137 D-FU122, AUSTRALIA, PANA, NON-EC, 1200RPM, C, B PRPSSWB140 DWD-F103, PANA MICOM, EC, 1000RPM, HOT V/V, BB PRPSSWB141 DWD-F103, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB PRPSSWB142 DWD-F103, PANA MICOM, EC, 1000RPM, COLD V/V, BB PRPSSWB143 DWD-F103, PANA MICOM, EC, 1000RPM, COLD V/V, NON-BB PRPSSWB144 DWD-F123, PANA MICOM, EC, 1200RPM, HOT V/V, BB PRPSSWB145 DWD-F123, PANA MICOM, EC, 1200RPM, HOT V/V, NON-BB PRPSSWB146 DWD-F123, PANA MICOM, EC, 1200RPM, COLD V/V, BB PRPSSWB147 DWD-F123, PANA MICOM, EC, 1200RPM, COLD V/V, NON-BB PRPSSWB148 DWD-F103, PANA MICOM, NON-EC, 1000RPM, HOT V/V, BB 3rd PANEL PRPSSWB149

DWD-F103, PANA MICOM, NON-EC, 1000RPM, HOT V/V, NON-BB PRPSSWB150 DWD-F103, PANA MICOM, NON-EC, 1000RPM, COLD V/V, BB PRPSSWB151

DWD-F103, PANA MICOM, NON-EC, 1000RPM, COLD V/V, NON-BB PRPSSWB152 DWD-F123, PANA MICOM, NON-EC, 1200RPM, HOT V/V, BB PRPSSWB153

DWD-F123, PANA MICOM, NON-EC, 1200RPM, HOT V/V, NON-BB PRPSSWB154 DWD-F123, PANA MICOM, NON-EC, 1200RPM, COLD V/V, BB PRPSSWB155

DWD-F123, PANA MICOM, NON-EC, 1200RPM, COLD V/V, NON-BB PRPSSWB156

D-FU103, AUSTRALIA, PANA MICOM, NON-EC, COLD V/V, NON-BB

EXPLODE VIEW AND PARTS LIST

■ Detailed Part Code of PCB AS

No. PART NAME P AR T CODE SPECIFICA TION Q'TY REMARK

PRPSSWB200 DWD-FU104, PANA MICOM, EC, 1000RPM, HOT V/V, BB PRPSSWB201

DWD-FU104, PANA MICOM, EC, 1000RPM, HOT V/V, NON-BB PRPSSWB202 DWD-FU104, PANA MICOM, EC, 1000RPM, COLD V/V, BB PRPSSWB203

DWD-FU104, PANA MICOM, EC, 1000RPM, COLD V/V, NON-BB PRPSSWB204 DWD-FU124, PANA MICOM, EC, 1200RPM, HOT V/V, BB PRPSSWB205

DWD-FU124, PANA MICOM, EC, 1200RPM, HOT V/V, NON-BB PRPSSWB206 DWD-FU124, PANA MICOM, EC, 1200RPM, COLD V/V, BB

B06 PCB AS PRPSSWB207

DWD-FU124, PANA MICOM, EC, 1200RPM, COLD V/V, NON-BB

1 4th PANEL

PRPSSWB208

DWD-FU104, PANA MICOM, NON-EC, 1000RPM, HOT V/V, BB PRPSSWB209

DWD-FU104, PANA MICOM, NON-EC, 1000RPM, HOT V/V, NON-BB PRPSSWB210

DWD-FU104, PANA MICOM, NON-EC, 1000RPM, COLD V/V, BB PRPSSWB211

DWD-FU104, PANA MICOM, NON-EC, 1000RPM, COLD V/V, NON-BB PRPSSWB212

DWD-FU124, PANA MICOM, NON-EC, 1200RPM, HOT V/V, BB PRPSSWB213

DWD-FU124, PANA MICOM, NON-EC, 1200RPM, HOT V/V, NON-BB PRPSSWB214

DWD-FU124, PANA MICOM, NON-EC, 1200RPM, COLD V/V, BB PRPSSWB215

DWD-FU124, PANA MICOM, NON-EC, 1200RPM, COLD V/V, NON-BB

EXPLODE VIEW AND PARTS LIST

■ CABINET FRONT AS

No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

C01 CABINET FRONT

3610811210 PCM, SGCC 0.8T, SILVER

DWD-F1XX3

3610811220 SECD 0.7T C02 SWITCH DOOR LOCK 3619046800 250V16A, ROLD, BI-METAL 1 C03 SCREW TAPPING 7122401208 T2S TRS 4X12 SUS 2 C04 PLATE HINGE SUPPORT 3614531900 SGCC T1.6 1 C05 HINGE DOOR 3612902800 ZNDC 1 C06 CAP HINGE DOOR 3610916500 POM 2 C07 SCREW TAPPING 3616030000 F/L BOLT(SE) 5*12 SUS 2 C08 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 6 C09 CLAMP DOOR AS 3611204800 HSWR D=1.4 1 C10 FRAME DOOR I 3612205200 PP 1 C11 HANDLE DOOR 3612608600 ABS 1 C12 PIN HANDLE 3618200200 SUS304, D3, L48 1 C13 SPRING HOOK 3615114600 SUS D1.4 1 C14 HOOK DOOR 3613100700 ZNDC 1 C15 DOOR GLASS 361A110700 GLASS PI300 1

3612205100 ABS DWD-F1XX1 C16 FRAME DOOR O 3612205120 CR3 1

3612205130 ABS+UV SPRAY DWD-F1X14 C17 SCREW TAPPING 7115402008 T1S FLT 4*20 SUS 6

EXPLODE VIEW AND PARTS LIST

■ TUB ASS’Y

EXPLODE VIEW AND PARTS LIST

No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

D01 BALANCER WEIGHT F L/R 3616106300 FRONT, 6.0kg 2 D02

SPECIAL SCREW(BALANCER)

3616029400 SWCH 8.5X30 8 D03 GASKET 3612321400 EPDM 1 D04 CLAMP GASKET AS 3611204500 HSWR D=1.8 1 D05 TUB FRONT 3618821001 FRPP FH7300GM 1 D06 SPECIAL SCREW(TUB) 3616029800 SWCH 6.5X30 14 D07 FIXTURE HEATER 3612007300 SUS 0.7T 440x45 1 D08 DRUM SUB AS 3617004001 SUS 0.5T 1

D09 LIFTER WASH

361A400400 PP

361A400410 NANO OPTION D10 SPIDER AS 361A300500 ALDC+SM45C 1 D11 SPECIAL SCREW(SPIDER) 3616029500 SUS430 8x25 3 D12 HOSE DRAIN 3613267300 EPDM 1 D13 CLAMP AS 3611203200 ID=60,WIRE+GUIDE+BOLT+NUT 1 D14 CLAMP HOSE I 3611201400 HSW3, D2.6, MFZN, D=38 1 D15 AIR TRAP 361A500101 PP 1 D16 CLAMP HOSE 3611204700 D27 1 D17 HOSE AIR 3613268600 ID=4, OD=8, L=700 1 D18 TUB REAR 3618821101 FRPP FH7300GM 1 D19 BEARING OUTER 3616303200 6205Z FAG 1 D20 BEARING HOUSING 3616303300 ALDC 1 D21 BEARING INNER 3616303100 6206Z FAG 1 D22 WATER SEAL 361A600100 NBR 1 D23 GASKET TUB 3612321600 EPDM L=1675 1 D24 UNIT MOTOR UNIVERSAL 36189L4H00 220VDC50HZ 2POLES PI340 1 D25 CUSHION MOTOR FIX(A) 3611563900 BUTYLE 2 D26 CUSHION MOTOR FIX(B) 3611564000 BUTYLE 2 D27 SPECIAL WASHER 3616030400 T=4.0 M6 2 D28 SPECIAL BOLT 3616030900 M6x43, SPRING+PLATE WASER 2 D29 DAMPER FRICTION 361A700120 120N, AKS, ST=170-160, DL=197.5 2 D30 DAMPER PIN 361A700200 AKS, D=14.5 2 D31 HOSE VENT 3613267100 EPDM 1 D32 CLAMP HOSE 3611204700 D27 1 D33 BALANCER WEIGHT T 3616106500 TOP, 6.0kg 1 D34

SPECIAL SCREW(BALANCER)

3616029400 SWCH 8.5x30 3 D35 PULLEY

3618433200 ALDC

3618433500 PA6+GF30%, KEP 1330GF

D36 SPECIAL BOLT AS 3616029600 SWCH M10xL30, F/L BOLT 1

D37 BELT V 3616591100

MEGADTNE 5RIB, POLYURETHANE

3612800800 220V 2KW 24.2Ω8.6W/SQ D38 HEATER WASH 3612801200 230V 2KW 26.45Ω8.6W/SQ 1

3612801500 240V 2KW 28.8Ω8.6W/SQ D39 UNIT BUBBLE PUMP 36189L4120 220-240V DBK-204DB 1 OPTION D40 SPRING SUSPENSION 3615114500 D3.2, L158 2

EXPLODE VIEW AND PARTS LIST

■ CABINET AS

EXPLODE VIEW AND PARTS LIST

No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

E01 CABINET 3610811100 SGCC, T0.8, PAINTING 1 E02 SPECIAL SCREW 3616029100 M4x12.5, MACHINE 2 E03 FRAME UPPER 3612205800 SGCC T1.2 55X580 1 E04 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4X8 4 E05 FRAME TOP-L 3612205600 SGCC T1.6 52x500 1 E06 FRAME TOP-R 3612205700 SGCC T1.6 52x500 1 E07 STOPPER SPRING 3615202200 POM 2 E08 COVER BACK AS 3611425510 SGCC 0.35T + EPDM 2T 1 E09 SENSOR PRESSURE 3614825300 5V DRUM DL-DW11 INLET 90 1 E10 FRAME LOWER 3612205500 SGCC T1.2 160X580 1 E11 BASE U-L 3610392200 SGCC T1.6 100x500 1 E12 BASE U-R 3610392300 SGCC T1.6 100x500 1

E13 UNIT DRAIN PUMP AS

36189L4F10 220-240V/50Hz B20-6 DRUM

36189L4E10 220V/60Hz B20-5 DRUM E14 CAP WATER REMAIN 3610916800 PP 1 E15 HOSE WATER REMAIN 3613267800 EPDM, ID8.5, L200 1 E16 LEG ADJUST AS 3617703810 MFZN M10x1.25 + BUTYLE 4 E17 EMI FILTER 3611908600 NOISE FILTER(TRIAC TYPE) 1 E18 CUFF DRAIN HOSE 3616802500 PP 1 E19 GUIDE DRAIN HOSE 3612510400 PP 1 E20 HOSE DRAIN I AS 3613268400 L=870 1 E21 CLAMP HOSE 3611204700 D27 1 E22 REACTOR AS 3615800100 1 OPTION

EXPLODE VIEW AND PARTS LIST

No. PART NAME PART CODE SPECIFICATION Q'TY REMARK

3614532900 HIPS, MFC, WH 1 DWD-F1X11(2) 3614532910 ABS+UV SPRAY, MFC, SILVER DWD-F1X13 3614532920 HIPS, MFC, WH DWD-F1X21(2)

F01 PLATE T AS

3614532930 ABS+UV SPRAY, MFC, SILVER DWD-F1X23 3614533300 HIPS, MFC, WH

DWD-F1X31(2) DWD-F1X41(2)

3614533310 ABS+UV SPRAY, MFC, SILVER

DWD-F1X33

DWD-F1X43 F02 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 2 F03 PANEL LOWER 3614282801 HIPS 1 F04 COVER PUMP FILTER 3611425801 HIPS 1

■ PLA TE T AS + PANEL LOWER AS

FUNCTIONS OF THE CONTROL PANEL

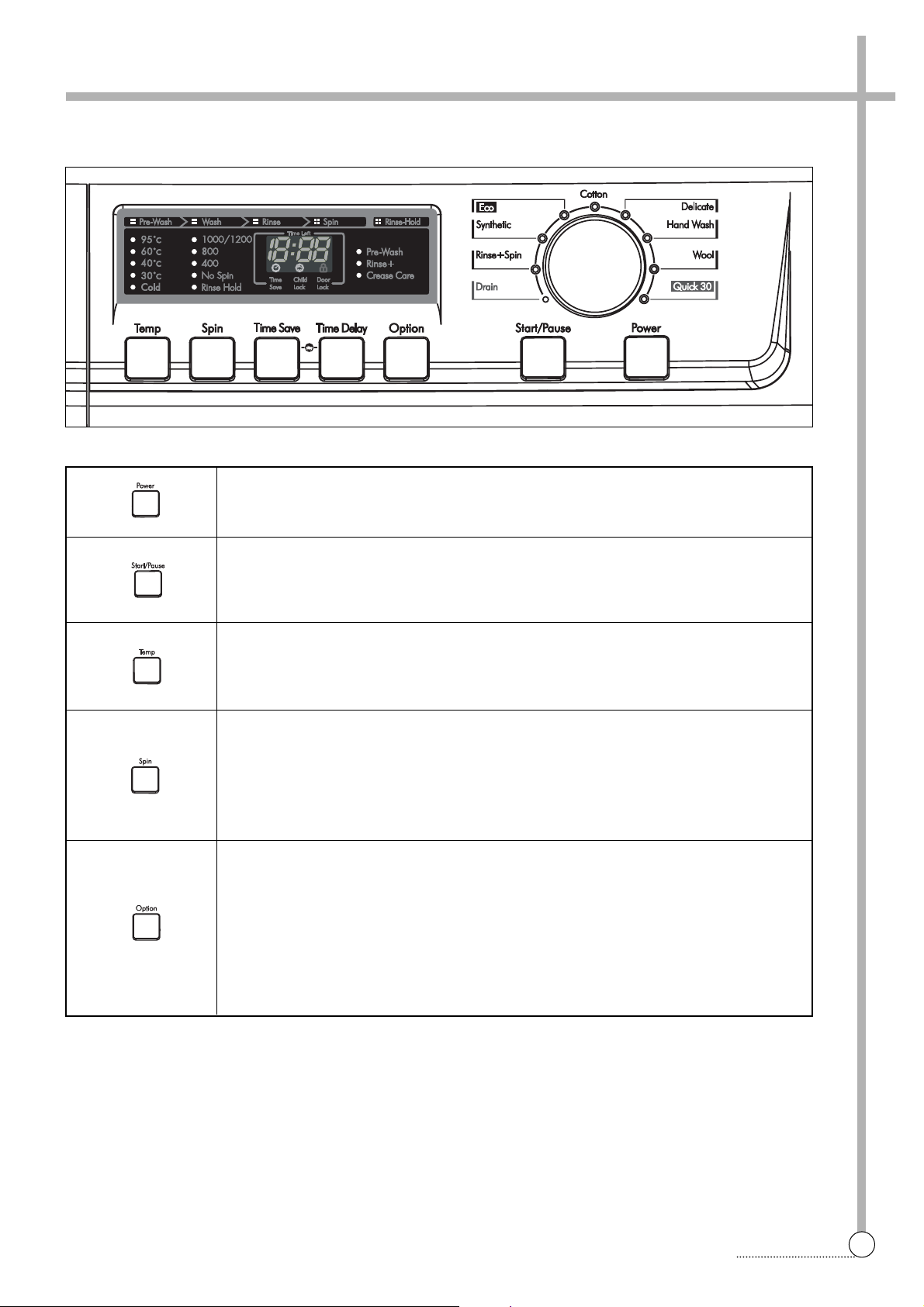

6. FUNCTIONS OF THE CONTROL PANEL

Power Button

Press this button to turn the power ON or OFF.

Start/Hold Button

This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button.

Temperature Button

This button can be used to adjust temperature of water according to types of the load to be washed.

Spin Speed Button

By pressing this button, the spin speed can be chosen. Rinse Hold This function leaves clothes in the machine suspended in the water

after a rinse without entering into spin.

Spin only If you want only spin, you can operate spin only.

Option Button

By pressing this button, all option functions may be selected. Pre-Wash If the laundry is heavily soiled, Pre-Wash course is effective.

Pre-Wash is available in Cotton and Synthetic.

Rinse+ By selecting Rinse+ function, the rinse time and the rinse water are

increased.

Crease Care If you want to prevent crease, select this button with spin speed.

■ DWD-F1X1X SERIES

FUNCTIONS OF THE CONTROL PANEL

Child Lock Button

If you want to protect any accident occuring from handling of washer by a child, use this function. Child Lock can be set by pressing "Time Save" and "Time Delay" buttons simultaneously during 2~3seconds.

*When Child Lock is set, no button functions except Power button.

To cancel Chid Lock, press "Time Save" and "Time Delay" buttons simultaneously again. To change to the desired program, while in child lock mode.

1. Press both "Time Save" and "Time Delay" buttons together once again.

2. Press the Start/Hold button.

3. Select the desired program and press the Start/Hold button again.

Time Save Button

By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic.

Time Delay Button

If you want to reserve the finishing time of washing, use this button. If the Time Delay button is pressed, "2:00" is displayed. The maximum delayed time is 12:00 hours and the minimum time is 2:00 hours. Each pressing of the button advances on time delay by one hour.

Program Dial

When Start/Hold button is pressed, the Cotton program is automatically selected. By turning the Program Dial, the program is selected in order of "Cotton↔Delicate ↔Hand Wash↔Wool↔Quick 30↔Drain↔Rinse+Spin↔Synthetic↔Eco"

Change the desired program

FUNCTIONS OF THE CONTROL PANEL

■ DWD-F1X2X SERIES

Power Button

Press this button to turn the power ON or OFF.

Start/Hold Button

This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button.

Temperature Button

This button can be used to adjust temperature of water according to types of the load to be washed.

Spin Speed Button

By pressing this button, the spin speed can be chosen. Rinse Hold This function leaves clothes in the machine suspended in the water

after a rinse without entering into spin.

Spin only If you want only spin, you can operate spin only.

Option Button

By pressing this button, all option functions may be selected. Pre-Wash If the laundry is heavily soiled, Pre-Wash course is effective.

Pre-Wash is available in Cotton and Synthetic.

Rinse+ By selecting Rinse+ function, the rinse time and the rinse water are

increased.

Crease Care If you want to prevent crease, select this button with spin speed.

FUNCTIONS OF THE CONTROL PANEL

Child Lock Button

*When Child Lock is set, no button functions except Power button.

To cancel Chid Lock, press "Time Save" and "Time Delay" buttons simultaneously again. To change to the desired program, while in child lock mode.

1. Press both "Time Save" and "Time Delay" buttons together once again.

2. Press the Start/Hold button.

3. Select the desired program and press the Start/Hold button again.

Time Save Button

By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic.

Time Delay Button

Program Dial

Change the desired program

FUNCTIONS OF THE CONTROL PANEL

Power Button

Press this button to turn the power ON or OFF.

Start/Hold Button

This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button.

Temperature Button

This button can be used to adjust temperature of water according to types of the load to be washed.

Spin Speed Button

By pressing this button, the spin speed can be chosen. Rinse Hold This function leaves clothes in the machine suspended in the water

after a rinse without entering into spin.

Spin only If you want only spin, you can operate spin only.

Option Button

By pressing this button, all option functions may be selected. Pre-Wash If the laundry is heavily soiled, Pre-Wash course is effective.

Pre-Wash is available in Cotton and Synthetic.

Rinse+ By selecting Rinse+ function, the rinse time and the rinse water are

increased.

Crease Care If you want to prevent crease, select this button with spin speed.

■ DWD-F1X3X SERIES

FUNCTIONS OF THE CONTROL PANEL

Child Lock Button

*When Child Lock is set, no button functions except Power button.

To cancel Chid Lock, press "Time Save" and "Time Delay" buttons simultaneously again. To change to the desired program, while in child lock mode.

1. Press both "Time Save" and "Time Delay" buttons together once again.

2. Press the Start/Hold button.

3. Select the desired program and press the Start/Hold button again.

Time Save Button

By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic.

Time Delay Button

Program Dial

Change the desired program

FUNCTIONS OF THE CONTROL PANEL

1000/1200

■ DWD-F1X4X SERIES

Power Button

Press this button to turn the power ON or OFF.

Start/Hold Button

This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button.

Temperature Button

This button can be used to adjust temperature of water according to types of the load to be washed.

Spin Speed Button

By pressing this button, the spin speed can be chosen. Rinse Hold This function leaves clothes in the machine suspended in the water

after a rinse without entering into spin.

Spin only If you want only spin, you can operate spin only.

Option Button

By pressing this button, all option functions may be selected. Pre-Wash If the laundry is heavily soiled, Pre-Wash course is effective.

Pre-Wash is available in Cotton and Synthetic.

Rinse+ By selecting Rinse+ function, the rinse time and the rinse water are

increased.

Crease Care If you want to prevent crease, select this button with spin speed.

FUNCTIONS OF THE CONTROL PANEL

Child Lock Button

*When Child Lock is set, no button functions except Power button.

To cancel Chid Lock, press "Time Save" and "Time Delay" buttons simultaneously again. To change to the desired program, while in child lock mode.

1. Press both "Time Save" and "Time Delay" buttons together once again.

2. Press the Start/Hold button.

3. Select the desired program and press the Start/Hold button again.

Time Save Button

By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic.

Time Delay Button

Program Dial

When Start/Hold button is pressed, the Cotton program is automatically selected. By turning right the Program Dial, the program is selected in order of "Cotton ↔ Drain ↔ Rinse+Spin ↔ Synthetic ↔ Eco ↔ Quick 30 ↔ Wool ↔ Hand Wash ↔ Delicate"

Change the desired program

7. FUNCTIONS OF THE CONTROLLER

FUNCTIONS OF THE CONTROLLER

■ SEQUENCE CHART

Division Progress Time

SLSLSL

Sensing 20sec.

Water Supply 2min.

Pre Wash

10min.

8min.

Drain 1min.

B-Spin 1min.

Middle Spin 3min.

Sensing 20sec.

■■■■■■

Water Supply 2min.

■■■■■■

70min. 60min.

Wash 1 35min.

(Heating) 30min.

20min. 15min. 10min. 83min.

Wash 2 63min.

23min.

■■■■■■

Drain 1min.

■■■■■■

B-Spin 1min.

■■■■■■

Middle Spin 4min.

■■■■■■

Water Supply 2min.

■■■■■■

Rinse 1 3min.

■■■■■■

Drain 1min.

■■■■■■

B-Spin 1min.

■■■■■■

Middle Spin 4min.

■■■■■■

Water Supply 2min.

■■■■■■

Rinse 2 3min.

■■■■■■

Drain 1min.

■■■■■■

B-Spin 1min.

■■■■■■

Middle Spin 4min.

■■■■■■

Water Supply 2min.

■■■■■■

Rinse 3 3min.

■■■■■■

Drain 1min.

■■■■■■

B-Spin 1min.

■■■■■■

Main Spin 8min.

■■■■■■

Untangle 2min.

■■■■■■

End 10sec.

■■■■■■

Remained Time Display 1:25 1:30 1:25 1:30 1:40 1:45

NOTE

M A

S E

S P

END

Cotton Synthetic Eco

• The washing time may vary by the amount of laundry, water pressure, water temperature and other washing conditions. If an unbalanced load is detected of if suds removing program operates, the washing time maybe extended. (Maximum increasing time is about 1hour.)

Wool Delicate Hand Wash Quick 30 Rinse+Spin

SSSSS

Soak 30min.

Water Supply

2min.

■■■

1min.

■

15min.

Wash 1

10min.

(Heating)

5min.

20min.

Wash 2 10min.

5min.

■

Drain 1min.

■■■■■

B-Spin 1min.

■■■ ■

Middle Spin 4min.

■■■ ■

Water Supply

2min.

■■■ ■

1min.

■

Rinse 1 3min.

■■■■■

Drain 1min.

■■■■

B-Spin 1min.

■■■

Middle Spin 4min.

■■■

Water Supply 2min.

■■■

1min.

■

Rinse 2 3min.

■■■■

Drain 1min.

■

B-Spin 1min.

■

Middle Spin 4min.

■

Water Supply

2min.

■

1min.

Rinse 3 3min.

■

Drain 1min.

■■■■■

B-Spin 1min.

■■■■■

Main Spin 8min.

■■■■■

Untangle 2min.

■■■■■

End 10sec.

■■■■■

Remained Time Display 56 56 57 33 23

NOTE

P R E

A S H

I N S E

S P

I N

END

Division Progress Time

FUNCTIONS OF THE CONTROLLER

8. FUNCTION OF THE CONVENIENT SERVICE

FUNCTION OF THE CONVENIENT SERVICE

■ The test mode of the operation

You can check the PCB AS and the operation of the washing machine simply.

• The method to test and operate

1 Press the Power button. 2 Press the Option button 3 times while press the Temp button.

At this time, the version is displayed on the Custom LED

3 Whenever the Time Delay button is pressed, the washing machine is operated as following.

L_C (Lock Switch Close) →run/OO (The number of running times)

→E5/OO → E6/OO → E7/OO → E8/OO (The number of the error occurrence) →H (Hot Valve) → C (Cold Valve) → P (Pre-Wash Valve) →bb (Bubble) → dr (Drain Pump) →C:H or C:-- (Cold & Hot Option) →nPC or PC or etc. (PCB Option)→ L_O (Lock Switch Open) →L_C →

...

(repetition)

■ The check mode of the water level frequency

You can check the water level frequency of the current state and the frequency by the variation of the water level.

• The method to test and operate

1 Press the Power button. 2 Press the Time Delay button 3 times while press the Temp button and the Spin button. 3 The water level frequency of the current state displays on “18:88 LED”.

At the same time, the cold valve is opened.

ex)

5 6 2 = 25.62kHz

: It display three number except the first number of 25.62kHz

4 Whenever the Temp button is pressed, the washing machine is operated as following.

Cold Valve Off (Initial state) → Cold Valve On

→Cold Valve Off → Drain Motor On →Drain Motor Off →Initial state → Cold Valve On →

...

(repetition)

FUNCTION OF THE CONVENIENT SERVICE

■ The spinning test mode

You can continually spin the washing machine with constant speed.

• The method to test and operate

1 Press the Power button. 2 Press the Time Save button 3 times while press Temp button. 3 “300” displays on “18:88 LED”. 300 means the spinning rpm.

You can adjust the spinning rpm by pressing Spin button. And this value increases by 50 up to 1300.

(300 →350 → 400 →

...

→1150 → 1300 → 300 → 350 →

...

)

4 When press Start button, the washing machine continually operates with given spinning rpm.

■ The durability test mode

You can repetitively operate the washing machine with one course.

• The method to test and operate

1 Press the Power button. 2 Press the Time Delay button 3 times while press Temp button. 3 “d3” displays on “18:88 LED”. You can select the course by using Program Dial,

Temp button, Spin button, Option and Time Save button.

4 When press Start button, the washing machine repetitively operates with selected course.

9. TROUBLESHOOTING GUIDE

TROUBLESHOOTING GUIDE

This wahing machine is equipped with automatic safety function which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not fuction at all, check the f ollowing points.

SYMPTOM

Rattling and clanking noise

Thumping sound

Vibrating noise

Water leaks.

Oversudsing

Water does not enter washer or it enters slowly.

Water in the washer does not drain or drains slowly.

CAUSE

Foreign objects such as coins or safety pins maybe in the drum or pump

Heavy wash loads may produce a thumping sound. This is usually normal.

Have all the transit bolts and packing been removed?

Are all the feet resting firmly on the ground?

Inlet hoses or drain hose are loose at tap or washer.

House drain pipes are clogged.

Water supply is not adequate in area. Water supply tap is not completely open. Water inlet hose is kinked. The filter of the water inlet is clogged. Drain hose is kinked or clogged. The drain filter is clogged.

SOLUTION

Stop washer and check drum and filter.

If sound continues, washer is probably out of balance. Stop and redistribute wash load.

If not removes during installation. Refer to Installation guide for removing transit bolts.

Wash load may be unevenly distributed in drum. Stop washer and rearrange wash load.

Check and tighten hose connections.

Unclog drain pipe. Contact plumber if necessary.

Too much detergent or unsuitable detergent may cause excessive foaming which may result in water leaks.

Check another tap in the inlet house. Fully open tap. Straighten hose. Check the filter of the water inlet. Clean and straighten drain hose. Clean the drain filter.

TROUBLESHOOTING GUIDE

SYMPTOM

Washer does not start.

Washer will not spin.

Door does not open.

Wash cycle time delayed

The washer will stop during spinning . Spinning is insufficient.

CAUSE

Electronical power cord may not be plugged in or connection may be loose.

House fuse blown, circuit breaker tripped, or a power outage has occurred.

Water supply tap is not turned on. Check that the door is firmly shut.

error due to much detergent and

unsuitable detergent

PFE

SOLUTION

Make sure plug fits tightly in wall outlet.

Reset circuit breaker or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected by a qualified electrician.

Turn on water supply tap. Close the door and press the

Start/Pause button. After pressing the Start/Pause button, it may take a few moments before the clothes washer begines to spin. The door must lock before spin can be achieved. "

Once started, the door can not be opened for safety reasons. Wait two minutes before opening the door to give the electric locking mechanism time to release.

The washing time may vary by the amount of laundry, water pressure, water temperature and other usage conditions. If the imbalance is detected, the wash time shall be increased.

If PFE error mode was displayed on the control part, in order to solve this problem, first turn off the power of the washing machine, second turn on the power pressing Power button, third press SPIN button and last press Start/Hold button.

TROUBLESHOOTING GUIDE

MESSAGE

ERROR CAUSE SOLUTION

The water tap is closed. Open the water tap. The filter of the valve inlet is clogged. Clean the filter of the valve inlet. The valve inlet is an inferior product or broke down. Change the valve inlet. The water level sensor (sensor pressure) is an inferior product Change the water level sensor or broke down. (sensor pressure). The drain motor works during water supply. Change the drain motor. The PCB ASS’Y does not check the water level. Change the PCB ASS’Y. The drain hose is kinked or clogged. Clean and straighten the drain hose. The drain motor is an inferior product. Change the drain motor. The valve inlet works during drain. Change the valve inlet The water level sensor is an inferior product. Change the water level sensor. The PCB ASS’Y does not check the water level. Change the PCB ASS’Y.

The laundry is concentrated to one side of the drum during spin. Rearrange the laundry. The Start/Hold button is pressed while the door is opened. Close the door.

The switch door lock is an inferior product. Change the switch door lock. The PCB ASS’Y does not check the door lock. Change the PCB ASS’Y. The water is supplied continuously due to an inferior valve inlet. Change the valve inlet. The valve inlet is normal, but the water level sensor Change the water level sensor (sensor pressure) is inferior. (sensor pressure). The drain motor does not work.

Change the drain motor.

(The drain motor is an inferior product or broke down.) Water leaks from the tub or the hose drain. Check the leak of the tub or the hose drain.

Then change the tub or the hose drain. The laundry is jammed between the gasket and the drum. Rearrange the laundry. The PCB ASS’Y is an inferior product. Change the PCB ASS’Y. The laundry is jammed between the gasket and the drum. Rearrange the laundry. The motor is an inferior product. Change the motor. The PCB ASS’Y is an inferior product. Change the PCB ASS’Y. The motor is not normally connected. Check the connector of the motor. The motor does not work.

Change the motor. (The motor is an inferior product or broke down.)

The water level sensor is an inferior product. Change the water level sensor. The thermistor wash is an inferior product or broke down. Change the thermistor wash.

The thermistor wash is not connected normally. Check the connector of the thermistor wash. The heater worked without the water in the tub. Check the water level.

The thermistor wash is an inferior product or broke down. Change the thermistor wash.

WATER INLET

ERROR

DRAIN

ERROR

UNBALANCE

ERROR

DOOR OPEN

ERROR

OVERFLOW

ERROR

LEAKAGE

ERROR

HIGH VOLTAGE

ERROR

EMG ERROR

MOTOR ERROR

SENSOR PRES-

SURE ERROR

THERMISTOR

WASH ERROR

THERMISTOR

WASH

OVERHEATING

ERROR

TROUBLESHOOTING GUIDE

MESSAGE

ERROR CAUSE SOLUTION

The water temp. is over 45°C in delicate & wool course. (The thermistor wash is an inferior product or broke down.)

Change the thermistor wash.

The heater wash dose not work. (The water temp. doesn't rise over 2°C during 15min.)

Change the heater wash.

The heater worked without the water in the tub. Check the water level and the heater wash.

The PCB ASS’Y is an inferior product. Change the PCB ASS’Y. The drain pump filter is clogged. Clean the drain pump filter.

The drain pump does not work during spin. Change the drain pump. The large amount of detergent was used. Use the proper amount of detergent. The drain hose is placed higher than 1m above the floor. Place the drain hose 1m below the floor

WATER TEMP.

ERROR

HEATER WASH

ERROR

IGBT

ERROR

PUMP FILTER

ERROR

HEATER

WASH

OVERHEATING

ERROR

PFE

10. WIRING DIAGRAM

WIRING DIAGRAM

S/M No. :

DAEWOO ELECTRONICS CORP.

686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX: DWELEC K28177-8 CABLE: “DAEWOOELEC”

PRINTED DATE: Apr. 2008

"# $%& ' ()*

+,-)*

-.-/01002/01032/01042/03002/03032/0304

-.-5/01302/01332/01342/03302/03332/0334

-.-5/01402/01432/01442/03402/03432/0344

-.-5/01602/01632/01642/03602/03632/0364 7/*5018927/*50389

:;<)= >?@ A2+!B8CDEFCD!GH>?@I

0J 19K4KL 8J 19K6K0

3J 19K4K01 FJ 18K6K8

MN 4J 19K4K00 OJ 18K6K0F

6J 19K4K0F LJ 18K6K0L

9J 19K4K40 01J

+)+,

VWX

YZAZ,7

" #

[\]

()*!^!13IF4151881

/_`!^!13IF4154FOO

VISION CREATIVE, INC.

ab cde fgh 8ij klmn 6o

ABOUT THIS MANUAL

19K4KL5pqrTs43tuDv 19K6K8536tE!39t5]N 19K6KO536t]N 19K6K04536E39]NBkwxI 19K8K3653E36E3LE415]NBkwxI 19KFK0953E3LEyj5]NBkwxI 18K6K95JzEFE3LE41B{kj|}IEpq{kji~]NBkwxI 18K6K0F5pq{kjs]NB4FtuDvI 18K6K0L53E4E09E08E0FE0OE0LE36E38E•yjs]N 18K6K31509E08E0FE0OE33E36E39s]N 11FFKK0011KK338855rrTT{{kkjj €€0011{{kkjj ••‚‚ ]]NN{{kkjj^^yyjj

B-.-5/01002/01032/01042/03002/03032/0304

-.-5/01302/01332/01342/03302/03332/0334

-.-5/01402/01432/01442/03402/03032/0344 7/*5018927/*50389!ƒ„…]NIE! JJzz 00††44EE!

0099EE!!00FF††3311EE!!3388††4400EE!!4466EE!!4499!!55]]NNBBrrTT00FFttII

11FFKK0011KK44115533EE3388EE33OOEE4411EE449955]]NN

1OK16K145pq]N 6Ft 1OK16K1F50E!3E!4E!6E!9E!8E!FE!OE!LE!01E!00E!03E!04E!06E!09E!08E!0OE!0LE!31E!30E!33E!34E!36E

39E!38E!3FE!3OE!3LE!41E!40E!43E!44E!46E!49E!48E!4FE!4LE!60E!63E!64!]Ns!rT 61t!

1OK16K01508E!3LE!40E!44E!49E!4L!]N s!rT 8t

DAEWOO DWD-F1011, DWD-F1012, DWD-F1013, DWD-F1021, DWD-F1031 Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
