DAEWOO DTD-29U9 Service Manual

✔

Caution

: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).

CONTENTS

Specification ......................................................................2

Block Diagram....................................................................3

Connection Diagram ............................................................4

Alignment Instruction............................................................5

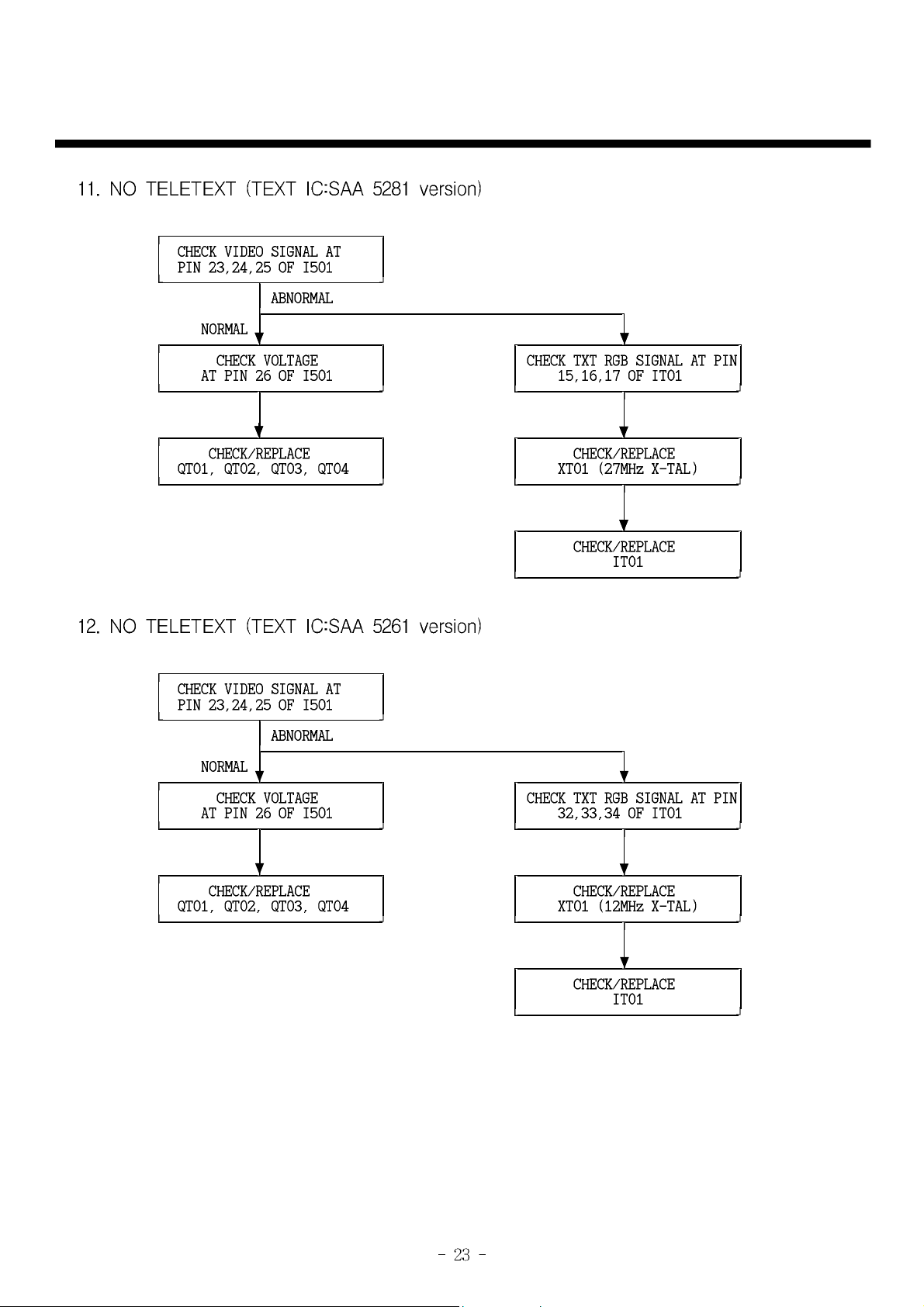

Trouble Shooting Charts .......................................................14

Part List ............................................................................24

Option Part List...................................................................48

Printed Circuit Boards ...........................................................50

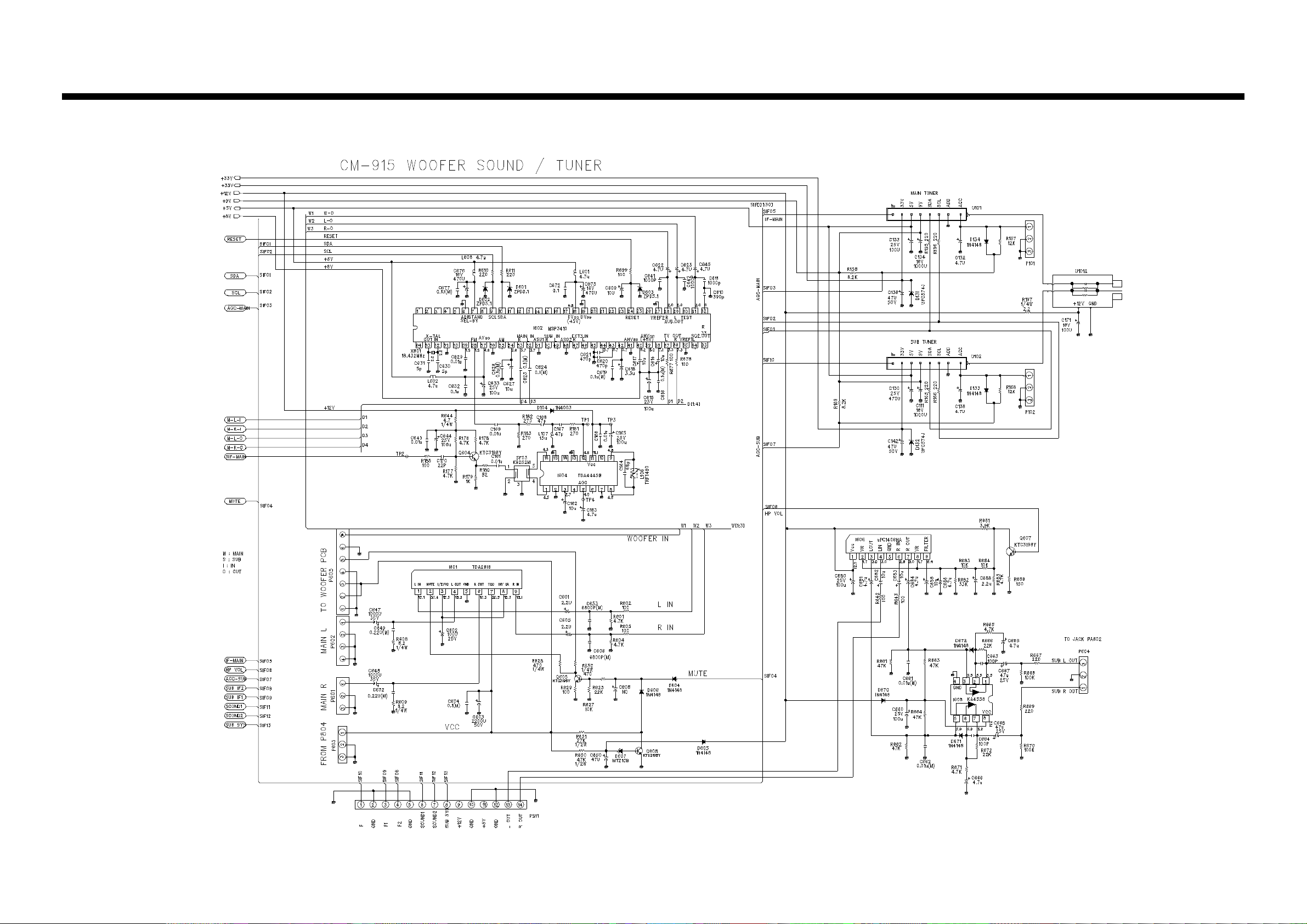

Circuit Schematics...............................................................55

Wave Form........................................................................63

Exploded View....................................................................64

- 1 -

Safety Instruction

NOTE

BEFORE SERVICING THIS CHASSIS READ THE “X-RAY RADIATION PRECAUTIONS”,
“SAFETY PRECAUTIONS” AND “PRODUCT SAFETY NOTICE” BELOW.

X-RAY RADIATION PRECAUTIONS

1. Excessive high voltage can produce potentially hazard­ous X-RAY RADIATION. To avoid such hazards, the
high voltage must not exceed the specified limit. The
nominal value of the high voltage of this receiver is
29kV(29”) at max beam current. The high voltage must
not, under any circumstances, exceed 30.5kV(29”).
Each time a receiver requires servicing, the high volt­age should be checked. It is recommended the reading

SAFETY PRECAUTIONS

1. Potentials of high voltage are present when this
receiver is operating. Operation of the receiver outside
the cabinet or with the back cover removed involves a
shock hazard from the receiver.

1) Servicing should not be attempted by anyone who is
not thoroughly familiar with the precautions necessary
when working on high voltage equipment.

2) Always discharge the picture tube to avoid the shock
harzard before removing the anode cap.

3) Discharge the high potential of the picture tube before
handling the tube. The picture tube is highly evacuated
and if broken, glass fragments will be violently expelled.

of the high voltage recorded as a part of the service
recorded as a part of the service records. It is important
to use an accurate and reliable high voltage meter.

2. The only source of X-RAY RADIATION in this TV
receiver is the picture tube. For continuous RADIATION
protection, the replacement tube must be exactly the
same type tube as specified in the “PART LIST”.

2. If any FUSE in this TV receiver is blown, replace it will
the FUSE specified in the “PART LIST”.

3. When replacing a high wattage resistor (oxide metal
film resistor) in circuit board, keep the resistor 10mm
away from circuit board.

4. Keep wires away from high voltage or high temperature
components.

5. This receiver must operate between AC100~240 volts,
50/60Hz. NEVER connect to DC supply or any other
power or frequency.

PRODUCT SAFETY

Many electrical and mechanical parts in this chassis have
special safety-related characteristics.
These characteristics are often passed unnoticed by a
visual inspection and the X-RAY RADIATION protection
afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, wattage,
etc.
Replacement parts which have these special safety char­acteristics are identified in this manual and its supple-

ments, electrical components having such features are
identified by designated symbol on the “PART LIST”.
Before replacing any of these components, read the “PART
LIST” in this manual carefully.
The use of substitute replacement part which do not have
the same safety characteristics as specified in the “PART
LIST” may created X-RAY RADIATION.

Specification

1. DTD-29U9WP(T)

TV Standard Color System PAL, SECAM, 4.43NTSC(AV), 3.58NTSC

Sound System B/G, D/K, I, M
Rated Voltage AC 110V~240V, 50/60Hz
Power Consumption(at AC 220V, 50Hz) 152W
Sound Output Power Main 15W32, Woofer 15W (at 80% MOD)
Channel Coverage HYPER + CHINA + IVORY COAST

VHF L : K1(43.25MHz) ~ S7(147.25MHz)
VHF H : S8(154.25MHz) ~S41(463.25MHz)

UHF : E21(471.25MHz) ~C57(863.25MHz)
Tuning System Frequency Synthesizer Tuning System
Channel Indication On-Screen Display
Programme Selection 100 Programmes
Aux. Terminal AV-input:1, 2, 3, 4 AV-output: Scart out, Monitor out
Remote Control Unit R-30F31(Required two 1.5V batteries type with AAM size)
Dimention 843(W)3504(H)3592(D)mm
Weight 51.5Kg
Picture tube 29" flat Type

2. DTD-29U9/FP-68T30

TV Standard Color System PAL, SECAM, 4.43NTSC(AV), 3.58NTSC

Sound System B/G, D/K, I, M
Rated Voltage AC 110V~240V, 50/60Hz
Power Consumption(at AC 220V, 50Hz) 152W
Sound Output Power Main 15W32, (at 80% MOD)
Channel Coverage HYPER + CHINA + IVORY COAST

VHF L : K1(43.25MHz) ~S7(147.25MHz)
VHF H : S8(154.25MHz)~S41(463.25MHz)

UHF : E21(471.25MHz) ~ C57(863.25MHz)
Tuning System Frequency Synthesizer Tuning System
Channel Indication On-Screen Display
Programme Selection 100 Programmes
Aux. Terminal AV-input: 1, 2, 3, AV-output: Monitor out
Remote Control Unit R-30F34(Required two 1.5V batteries type with AAM size)
Dimention 843(W)3504(H)3592(D)mm
Weight 49.1Kg
Picture tube 29" flat Type

- 2 -

Block Diagram

- 3 -

Alignment Instruction

1. MAIN ADJUSTMENTS

1-1. 2-CARRIER + NICAM(MSP3410D) SOUND DETECTOR ADJUSTMENT

At first, you must put off Main Power Cord.

1) Test Equipments
(1) VTVM or VOLTAGE METER
(2) DC Power Supply X 2
(3) PIF Sweep Marker Generator
(4) Oscilloscope

2) Connection

3) Preparation
(1) Connect H-output of PIF Sweep Marker Generator to X-axis of Scope, and connect V-output
to Y-axis.
(2) Connect Sweep Signal IF output to TP2.(Set attenuator to 0dB)
(3) After set Power Supply at 12V, connect this output to TP3.
(4) Oscilloscope Scaling
a. The Horizontal(X)-axis and the Vertical(Y)-axis must be located on DC level.
b. The Horizontal time display is located on X-Y axis.
c. Set the Horizontal(X)-axis scale at 1V/DIV, to check frequency and marker.
d. Set the Vertical(Y)-axis scale at 2V/DIV.
(5) Set Marker Frequency of PIF Sweep Marker Generator as follows.(MHz)

SYSTEM Fp(n+1) Fs Fc Fp-2 Fp Fs(n-1)

P/S/N-BG/,DK,I,M 31 32.5 33.57 36 38 39.5

4) SIF Adjustment
(1) Connect ’FROM TP’ of PIF Sweep Marker Generator to TP1(I604 #12).
(2) Turn the L106(SIF Coil) so that the P marker point is located on the reference level.

- 5 -

1-2. MAIN VIDEO OUTPUT ADJUSTMENT

At first, put on Main Power Cord

1) Pattern : PAL B/G Color Bar(RF level = above 60dB)

2) Adjust the R569 to make the Video signal of JA12(AV PCB RA16
Voltage) to be 1Vp-p.

3) Adjust the R579 to make the Video signal of TP5(Main PCB C508
Voltage) to be 1Vp-p.

1-3. COMB FILTER OUTPUT ADJUSTMENT

1) Pattern : PAL B/G Color Bar(RF level = above 60dB)

2) Adjust the R259 to make the Y(Luminance) signal of TP "Y"(AV PCB JA47 Voltage) to be 1Vp-p.

1-4. RF AGC ADJUSTMENT

1) Pattern : PAL B/G 10CH Color BAR(RF Level = 60dB)

2) Connect the probe of Oscillocope to P101(Left & Right) of Main PCB.

3) Set the switch of antenna splitter to be down.

4) Main RF AGC ADJUSTMENT
After press the ’S9’ key of Service Remocon to enter the "AGC" mode.

and adjust "AGC bar " to be MAX-8step.

5) Press the ’S11’ key of Service Remocon to set the "2-Picture" mode.

6) Connect the probe of Oscillocope to P102(Left & Right) of main PCB.

7) Sub RF AGC ADJUSTMENT
(1) Turn the RP01 of PIP PCB to be the maximum voltage.
(2) Turn the RP01 of PIP PCB the voltage to be dropt 1V~1.2Vdc blow its maximum voltage.

8) Press the ’S11’ key of Service Remocon to cancel the "2-Picture" mode.

- 6 -

2. SCREEN & FOCUS ADJUSTMENTS

2-1. SCREEN ADJUSTMENT

1) Pattern : PAL B/G Retma

2) Press the key to set the "STANDARD" mode.

3) Connect the probe of Oscilloscope J914 of B-input and check the
below measurement pulse.
(Time : 5msec/DIV, Voltage : DC 1V/DIV)

4) Adjust the SCREEN VOLUME on FBT so that the measurement pulse
voltage to be 3.1V.

Time : 5msec/DIV, Voltage : DC 1V/DIV

2-2. FOCUS ADJUSTMENT

1) Pattern : Cross Hatch

2) Adjust the FOCUS TOP VOLUME(" H " remark) on FBT

so that horizontal second line will be appeared clearly.[Dynamic focus adjustment]
Adjust the FOCUS BOTTOM VOLUME(" V " remark) on FBT
so that vertical second line will be appeared clearly.[Static focus adjustment]

2-3. WHITE BALANCE ADJUSTMENT

1) Press the key to set the "STANDARD" mode.

2) Press the ’S7’ key of Service Remocon to enter the "White Balance" mode.

3) Set each R, G, B level to be center(32step) using the ’VOLUME UP’, ’VOLUME DOWN’ keys.

4) Set the reference of MINOLTA(Chroma analyzer) to be "B".

5) At high beam, set each R, G, B level to be center using the ’VOLUME UP’,’VOLUME DOWN’ keys.

6) Adjust the reference to be X=0.288, Y=0.30

- 7 -

3. SIF PCB ADJUSTMENT

3-1. SIF PCB ADJUSTMENT

1) Pattern : PAL B/G Color BAR 400Hz Mono

2) Use the ’MENU’ key and check the Sound broadcast system is "AUTO".

3) Press the ’S11’ key of Service Remocon to set the "2-Picture" mode.

4) Connect the probe of Oscilloscope to PS602(Left & Right).

5) Adjust SIF coil(L105) to make the display of Oscilloscope be sine curve.

6) Press the ’S11’ key of Service Remocon twice to cancel the "2-Picture" mode.

4. GEOMETRIC ADJUSTMENTS

4-1. GEOMETRIC ADJUSTMENT : VERTICAL SERVICE REMOCON ’S4’
HORIZONTAL SERVICE REMOCON ’S5’
4-2. VERTICAL CENTER ADJUSTMENT

1) Pattern : PAL B/G Monoscope

2) Press the key to set the "STANDARD" mode.

3) Choose the "VSH" using the ’PR UP’, ’PR DOWN’ keys.

4) Adjust the horizontal line of picture to coincide with the

mechanical center marks of the CRT using the ’VOLUME UP’, ’VOLUME
DOWN’ keys.
* If the pattern is smaller than the screen, adjust the V-size to fit.

4-3. VERTICAL SIZE ADJUSTMENT

1) Pattern : PAL B/G Monoscope

2) Press the key to set the "STANDARD" mode.

3) Choose the "VA" using the ’PR UP’, ’PR DOWN’ keys.

4) Adjust the upper part of the picture using the ’VOLUME UP’,

’VOLUME DOWN’ keys.

4-4. VERTICAL SLOPE ADJUSTMENT

1) Pattern : PAL B/G Monoscope

2) Press the key to set the "STANDARD" mode.

3) Choose the "VS" using the ’PR UP’, ’PR DOWN’ keys.

4) Adjust the lower part of the picture using the ’VOLUME UP’, ’VOLUME DOWN’ keys.

- 8 -

4-5. S-CORRECTION ADJUSTMENT

1) Pattern : PAL B/G Crosshatch

2) Press the key to set the "STANDARD" mode.

3) Choose the "SC" using the ’PR UP’, ’PR DOWN’ keys.

4) Adjust each distance of horizontal line to be the same using the
’VOLUME UP’, ’VOLUME DOWN’ keys.

4-6. HORIZONTAL CENTER ADJUSTMENT

1) Pattern : PAL B/G Monoscope

2) Press the key to set the "STANDARD" mode.

3) Choose the "HSH" using the ’PR UP’, ’PR DOWN’ keys.

4) Adjust the vertical line of picture to coincide with the mechanical center marks of the CRT
using the ’VOLUME UP’, ’VOLUME DOWN’ keys.

4-7. WIDTH ADJUSTMENT

1) Pattern : PAL B/G Monoscope

2) Press the key to set the "STANDARD" mode.

3) Choose the "EW" using the ’PR UP’, ’PR DOWN’ keys.

4) Set each side over scan to be 10% using the ’VOLUME UP’, ’VOLUME DOWN’ keys.

4-8. PINCUSHION ADJUSTMENT

1) Pattern : PAL B/G Crosshatch

2) Press the key to set the "STANDARD" mode.

3) Choose the "PW" using the ’PR UP’, ’PR DOWN’ keys.
Adjust parabola width to fit on screen.

4) Choose the "CP" using the ’PR UP’, ’PR DOWN’ keys.
Adjust coner parabola to fit on screen.

5) Choose the "TC" using the ’PR UP’, ’PR DOWN’ keys.
Adjust trapezium to fit on screen.

Adjust

- 9 -

5. PICTURE ADJUSTMENTS

5-1. SUB-BRIGHTNESS ADJUSTMENT

1) Pattern : PAL B/G Retma

2) Press the key to set the "STANDARD" mode.

3) Choose the "DP" using the ’PR UP’, ’PR DOWN’ keys.

4) Check the Color 34step, the Tint 32step.

5) Maximize the Contrast.

6) Adjust the Brightness so that the second line of top appears , as follow.

2nd line

5-2. PIP SUB VIDEO LEVEL ADJUSTMENT

1) Pattern : PAL B/G Color Bar

2) Press the ’S11’ key of Service Remocon to set the "2-Picture" mode.

3) Press the ’SERVICE’ key of Service Remocon to cancel the "MENU" mode.

4) Connect the probe of Oscilloscope to PP01 of "Sub Video out".

5) Turn the RP14 of PIP PCB to make the voltage to be 1Vp-p.

6) Press the ’S11’ key of Service Remocon twice to cancel the "2-Picture" mode.

5-3. PIP Y, U, V LEVEL ADJUSTMENT"

1) Pattern : PAL B/G Color Bar

2) Press the ’S11’ key of Service Remocon to set "2-Picture" mode.

3) Press the ’SERVICE’ key of Service Remocon to cancel the "MENU" mode.

4) Connect the probe of Oscilloscope to "Y out" of PP02.

5) Adjust the RP11 to make the voltage of Main Y coincide with the Sub Y.

6) Connect the probe of Oscilloscope to of "U out" of PP02.

7) Adjust the RP13 to make the voltage of Main U coincide with the Sub U.

8) Connect the probe of Oscillocope to "V out" of PP02.

9) Adjust the RP12 to make the voltage of Main V coincide with the Sub V.

10) Press the ’S11’ key of Service Remocon twice to cancel the "2-Picture" mode.

- 10 -

5-4. 2-PICTURE CENTER ADJUSTMENT

1) Pattern : PAL B/G 10CH Color Bar 400Hz Mono

2) Press the ’S11’ key of Service Remocon twice to enter the "BG-H POSITION" menu of the

"2-Piture" mode.

3) Adjust the horizontal line of picture to coincide with the mechanical center marks of the CRT

using the ’VOLUME UP’, ’VOLUME DOWN’ keys.

4) Press the ’S11’ key of Service Remocon twice to cancel the "2-Picture" mode.

6. REMOCON

6-1SERVICE REMOCON 6-2. USER REMOCON 6-3. USER NEC REMOCON

- 11 -

6-3. ADJUSTMENT WITHOUT SERVICE REMOCON

1) Enter ’SERVICE MODE’ : Press keys of User Remocon, as follows.

’ENTER’, ’MUTE’, ’PR UP’, ’PR DOWN’,

2) Exit ’SERVICE MODE’ : ’ENTER’

3) Choice ’SERVICE MENU’ : ’PR UP’, ’PR DOWN’

4) Enter ’SERVICE SUB MENU’ : ’VOL UP’, ’VOL DOWN’

5) Adjust ’SERVICE MENU’ : ’VOL UP’, ’VOL DOWN’

SERVICE MENU SELECT 11

AGC ACTIVATE
WHITE BALANCE
VERTICAL
HORIZONTAL
BROADCAST-OFF YES
PAP
SOUND
CRT DRIVE 3

- 12 -

k The data of respective SETs may be different from below data.

1 . DP

CONTRAST 63

BRIGHT 27

COLOR 34
TINT 32

SHARP 32

3. VERTICAL(S4)

VSH 32
VA 40

VS 40
SC 22
VX 23

VSC 32

5. CRT DRIVE(S6)

7. BROADCAST OFF

3

YES

2. AGC(S9)

MAX - 8STEP

4. HORIZONTAL(S5)

HSH 35
EW 35
PW 40
CP 30
TC 22

6. WHITE BALANCE

R 46
G 43
B 32

8. PAP(S11)

P1 MD-H 14 P7 MA-V 4
P2 SD-H 92 P8 SA-V 28
P3 MD-V 5 PED.-U 0
P4 SD-V 5 PED.-V 0
P5 MA-H 8 BG-V 11
P6 SA-H 13 BG-H 3

9. EQUALIZER(EQU)

BAND1 15 16 7
BAND211 15 10 10
BAND3 11 11 11
BAND413 16 12 12
BAND5 14 16 13

MOVIE MUSIC NEWS

10. PRE VOLUME(PRE)

35

CM-916F Typical Service Data

- 13 -

Part List (DTD-29U9WPT)

✔ Caution:In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the

latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)

CAUTION

“ “ is safety component, so it must be used the same component.
“R ” is a recommendable part for stock.

Loc Part_Cd Part_Name Part_Desc REMARK

ZZ100 48B2830F31 TRANSMITTER REMOCON R-30F31
ZZ110 PTACPWD167 ACCESSORY AS DTC-29Z9WPT
100 4850Q00810 BATTERY R6P/LN
M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400
M861 48586910C1 MANUAL INSTRUCTION DTC-29X5FMP
ZZ120 PTBCSHD351 COVER BACK AS DTD-29U9WPT
M211 4852154901 COVER BACK HIPS BK
M781 4857817610 CLOTH BLACK FELT 300X20X0.7
M782 4857817630 CLOTH BLACK FELT 400X20X0.7
ZZ130 PTPKCPD351 PACKING AS DTD-29U9WPT
M641 6520010100 STAPLE PIN 18M/M J D O
M681 4856812400 BAND 18MM X 3M
M801 4858055400 BOX CARTON SW-4
M811 4858192300 PAD EPS 29U9
M821 4858218700 BAG P.E PE FOAM t0.5x1880x1380
ZZ131 58G0000094 COIL DEGAUSSING DC-2901
ZZ132 48519A4210 CRT GROUND NET 2901H-1015-2P
ZZ140 PTCACAD351 CABINET AS DTD-29U9WPT
M191 4851938500 DECO WOOFER AS 29340+59333+7122401612
M201A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M201B 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M201C 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M211C 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M211D 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M231B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M291A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M353 4853526600 HOLDER CORD NYLON6(DACB-183)
M353A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M481 4854855501 BUTTON POWER ABS BK
M491 4854944401 BUTTON CH ABS BK
M491A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M501 4855059201 DECO CTRL AL1050-H24
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV)
M551 4855539601 DECO SENSOR ABS
M561 48556174SD MARK BRAND SILVER DIA-CUTTING
M564 4856816300 CLAMP WIRE NYLON 6 (V0)
M591 4855934800 DECO PLATE AL T0.5
M592 4855933501 DECO A HIPS BK
M592A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M592B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M671 4856717900 SPRING SWPA T0.5
M672 4856812001 TIE CABLE NYLON66 DA100
SP01 48A8305800 WOOFER SYSTEM SS-130A02 15W 8 OHM
SP01A 4856016100 SCREW SPECIAL SWRM
SP02 48A8305600 SPEAKER SYSTEM SS-80A04 15W 8 OHM
SP02A 4856016100 SCREW SPECIAL SWRM
V901 4859632662 CRT A68QDL080X011(B) P38

Loc Part_Cd Part_Name Part_Desc REMARK

V901A 4856015820 SCREW CRT FIX SWRM+SK5 L=35
V901B 4856215402 WASHER RUBBER CR T2.0
ZZ200 PTFMSJD351 MASK FRONT AS DTD-29U9WPT
M201 4852072901 MASK FRONT HIPS BK
M251 4852539001 GRILL R PS SHEET
M252 4852539101 GRILL L PS SHEET
M371 4853748101 RETA HIPS
ZZ202 PTU2MSD351 PCB UNION-2 MANUAL A DTD-29U9WPT
DE01 DSD50RH51B LED SD50-RH51BGRW
DE02 DSV50B570T LED SV50-R32B570T
HP01 4859105240 JACK PHONO LGT1516-0100
IE01 1SR5HP---- IC PREAMP SR-5HP
JP05 4859105450 JACK PIN BOARD YSC03P-4120-9S
JP06 4859105340 JACK S-VHS YKF51-5359
M231 4852326001 PANEL AV HIPS BK
M231A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M593 4855933211 DECO AV PVC T0.2
P205A 4856812001 TIE CABLE NYLON66 DA100
P602A 4856812001 TIE CABLE NYLON66 DA100
PA204 4850705S12 CONNECTOR YH025-05+YST025+ULW=500
PA205 4850706S18 CONNECTOR YH025-06+YST025+USW=500
PA602 4850703S19 CONNECTOR YH025-03+YST025+ULW=300
PAF3 4850705S12 CONNECTOR YH025-05+YST025+ULW=500
PAF3A 4856812001 TIE CABLE NYLON66 DA100
PC11 4859236420 CONN WAFER YAW025-07
PC11A 4850707N08 CONNECTOR YH025-07+YST025+ULW=800
PC11B 4856812001 TIE CABLE NYLON66 DA100
PPS1 4850702S11 CONNECTOR BL102NG+MXH40058-02=600
PPS1A 4856812001 TIE CABLE NYLON66 DA100
SW801 5S40202142 SW POWER PUSH ME-7 (70063-072)
ZZ200 PTU2JRD351 PCB RADIAL AS DTD-29U9WPT
CE01 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
SWF2 5S50101Z90 SW TACT THVV502GDA
SWF3 5S50101Z90 SW TACT THVV502GDA
SWF4 5S50101Z90 SW TACT THVV502GDA
SWF5 5S50101Z90 SW TACT THVV502GDA
SWF6 5S50101Z90 SW TACT THVV502GDA
SWF7 5S50101Z90 SW TACT THVV502GDA
SWF8 5S50101Z90 SW TACT THVV502GDA
SWF9 5S50101Z90 SW TACT THVV502GDA
ZZ200 PTU2JAD351 PCB AXIAL AS DTD-29U9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859805960 PCB UNION 2 197X123(197X246/2) D1B
CE02 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
JF01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RE14 RD-4Z511J- R CARBON FILM 1/4 510 OHM J
RE15 RD-4Z241J- R CARBON FILM 1/4 240 OHM J
RE16 RD-4Z241J- R CARBON FILM 1/4 240 OHM J

- 24 -

Loc Part_Cd Part_Name Part_Desc REMARK

RF01 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RF02 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
RF03 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
RF04 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
RF05 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
RF16 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
ZZ290 PTMPMSD351 PCB MAIN MANUAL AS DTD-29U9WPT
C603 CEYF1H222V C ELECTRO 50V RSS 2200MF (18X35.5)
C721 CN4XB-101M C ARRAY 5P(4) 100PF M 50V 2.54MM
C797 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C798 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
I501 1TDA8844N2 IC VIDEO TDA8844/N2 R
I504 1KA393---- IC LOGIC KA393
I505 1TDA9176-- IC LTI TDA9176
I507 1AN5862K-- IC AN5862K
I601 PTC2SW3335 HEAT SINK ASS‘Y 1TDA2616-- + 7128301011 R
I601 1TDA2616-- IC TDA2616
I601A 4857023335 HEAT SINK AL EX T3.0
I601B 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
I602 1MSP3410D- IC AUDIO MSP3410D
I604 1TDA4445B- IC TDA4445B
I606 1UPC1406HA IC UPC 1406HA
I608 1KA4558--- IC AMP KA4558
I701 1DW270FAR2 IC MICOM DW37270MF-AR2(185SP) R
I702 1AT24C16PC IC AT24C16-10PC
I703 PTR2SW4900 HEAT SINK ASS‘Y 1K78R09--- + 7174300811
1 1K78R09--- IC REGULATOR KIA78R09PI
0000A 4857024900 HEAT SINK AL EX
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I704 1KA7805--- IC REGULATOR KA7805
I708 1KA7808--- IC REGULATOR KA7808
L105 58C5580019 COIL CHOKE TRF-9225 (0.55UH)
L106 58M38R9006 COIL DET TRF-1490
L511 58Q0000090 COIL DELAY LINE G286LAIS-K5367
M351 4853529901 HOLDER CORD HIPS BK
M351A 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
M361A 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
M361B 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M381 4853812800 FRAME MAIN PCB FR HIPS BK
M381A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M381B 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
P503 4859235320 CONN WAFER YW025-10
P707 4859249620 CONN WAFER YF254-10
P708 4859249920 CONN WAFER YF254-13
P709 4859249620 CONN WAFER YF254-10
PP01 4859281320 CONN WAFER TAC-L18X-A1
PP02 4859281320 CONN WAFER TAC-L18X-A1
PT11 4859249320 CONN WAFER YF254-07
PT21 4859249620 CONN WAFER YF254-10
R710 RA-85X103J R ARRAY 5P(4) 1/8 10K OHM J
R717 RA-85X103J R ARRAY 5P(4) 1/8 10K OHM J
R727 RA-86X103J R ARRAY 6P(5) 1/8 10K OHM J
R749 RA-86X103J R ARRAY 6P(5) 1/8 10K OHM J
SF01 5PK6266K-- FILTER SAW K6266K

Loc Part_Cd Part_Name Part_Desc REMARK

SF03 5PK9252M-- FILTER SAW K9252M
U101 4859715930 TUNER VARACTOR ENV59D15G3
U102 4859715930 TUNER VARACTOR ENV59D15G3
U102A 4859003750 PLUG PHONE AS PLUG+CABLE 1365AWG26=150B
U102B 4859003750 PLUG PHONE AS PLUG+CABLE 1365AWG26=150B
U103 4850M02510 MODULE RF ENPE797
X601 5XE18R432E CRYSTAL QUARTZ HC-49/U 18.43200MHZ 30PPM
ZZ200 PTMPJ0D351 PCB MAIN (RHU) AS DTD-29U9WPT
C111 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C130 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
C133 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
C134 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C647 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X25) TP
C648 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X25) TP
C675 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C701 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C715 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C763 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C764 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C767 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C769 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C771 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C772 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
ZZ200 PTMPJBD351 PCB MAIN M-10 AS DTD-29U9WPT
10 2TM18006BE TAPE MASKING 6.2X500
P102 485923162S CONN WAFER YW025-03 (STICK)
P501 485923192S CONN WAFER YW025-06 (STICK)
P502 485923162S CONN WAFER YW025-03 (STICK)
P601 485923172S CONN WAFER YW025-04 (STICK)
P602 485923162S CONN WAFER YW025-03 (STICK)
P603 485923162S CONN WAFER YW025-03 (STICK)
P604 485923162S CONN WAFER YW025-03 (STICK)
P605 485923202S CONN WAFER YW025-07 (STICK)
P701 485923202S CONN WAFER YW025-07 (STICK)
P702 485923202S CONN WAFER YW025-07 (STICK)
P703 485923182S CONN WAFER YW025-05 (STICK)
P712 485923202S CONN WAFER YW025-07 (STICK)
R763 RS02Z270J- R M-OXIDE FILM 2W 27 OHM J (TAPPING)
R764 RS02Z150JS R M-OXIDE FILM 2W 15 OHM J SMALL
ZZ200 PTMPJRD351 PCB MAIN RADIAL AS DTD-29U9WPT
C132 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C136 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
C138 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C142 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
C162 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C163 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C164 CXCH1H680J C CERA 50V CH 68PF J (TAPPING)
C165 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C171 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C502 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C503 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C504 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C506 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C508 CMXM2A473J C MYLAR 100V 0.047MF J (TP)

- 25 -

Loc Part_Cd Part_Name Part_Desc REMARK

C509 CMXM2A224J C MYLAR 100V 0.22MF J
C510 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C511 CMXM2A223J C MYLAR 100V 0.022MF J TP
C512 CMXM2A223J C MYLAR 100V 0.022MF J TP
C513 CMXM2A223J C MYLAR 100V 0.022MF J TP
C514 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C515 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C518 CMXM2A332J C MYLAR 100V 3300PF J (TP)
C519 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C520 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C521 CMXM2A223J C MYLAR 100V 0.022MF J TP
C522 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C523 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C524 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C525 CMXM2A222J C MYLAR 100V 2200PF J (TP)
C526 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)
C527 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)
C530 CMXL2E104K C MYLAR 250V MEU 0.1MF K
C531 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C532 CMXM2A223J C MYLAR 100V 0.022MF J TP
C533 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C542 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C551 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C553 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C554 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C555 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C558 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C560 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C561 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C562 CCXB2H221K C CERA 500V B 220PF K (TAPPING)
C563 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)
C571 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C572 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C573 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C575 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C588 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C590 CMXM2A102J C MYLAR 100V 1000PF J (TP)
C591 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
C592 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C595 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C596 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C601 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C602 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C604 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C605 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C606 CMXM2A682J C MYLAR 100V 6800PF J (TP)
C608 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C609 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C614 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C615 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C616 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C617 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C618 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
C619 CMXM2A104J C MYLAR 100V 0.1MF J (TP)

Loc Part_Cd Part_Name Part_Desc REMARK

C622 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C623 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C624 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C625 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C626 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C627 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C630 CXCH1H509D C CERA 50V CH 5PF D (TAPPING)
C631 CXCH1H509D C CERA 50V CH 5PF D (TAPPING)
C633 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C643 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
C644 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C645 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C649 CMXM2A224J C MYLAR 100V 0.22MF J
C650 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
C652 CMXM2A224J C MYLAR 100V 0.22MF J
C653 CMXM2A682J C MYLAR 100V 6800PF J (TP)
C660 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C661 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C662 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C665 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C666 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C667 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C668 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C676 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C677 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C680 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C681 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C682 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C683 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C684 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C685 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C686 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C688 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C703 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C710 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C716 CXCH1H120J C CERA 50V CH 12PF J (TAPPING)
C717 CXCH1H160J C CERA 50V CH 16PF J (TAPPING)
C731 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C768 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)
C770 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)
C780 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)
D131 1UPC574J-- IC UPC574J
D132 1UPC574J-- IC UPC574J
I706 1K1A7042AP IC REGULATOR KIA7042AP
L705 5CPX220J-- COIL PEAKING 22UH J (RADIAL)
Q102 TKTC3197-- TR KTC3197 (TP)
Q103 TKTC3198Y- TR KTC3198Y
Q501 TKTC3198Y- TR KTC3198Y
Q502 TKTC3198Y- TR KTC3198Y
Q503 TKTA1266Y- TR KTA1266Y (TP)
Q504 TKTA1266Y- TR KTA1266Y (TP)
Q505 TKTA1266Y- TR KTA1266Y (TP)
Q571 TKTC3198Y- TR KTC3198Y
Q573 TKTC3198Y- TR KTC3198Y

- 26 -

Loc Part_Cd Part_Name Part_Desc REMARK

Q575 TKTC3198Y- TR KTC3198Y
Q576 TKTA1266Y- TR KTA1266Y (TP)
Q577 TKTC3198Y- TR KTC3198Y
Q578 TKTC3198Y- TR KTC3198Y
Q579 TKTC3198Y- TR KTC3198Y
Q580 TKTC3198Y- TR KTC3198Y
Q590 TKTC3198Y- TR KTC3198Y
Q591 TKTC3198Y- TR KTC3198Y
Q592 TKTC3198Y- TR KTC3198Y
Q596 TKTA1266Y- TR KTA1266Y (TP)
Q604 TKTC3198Y- TR KTC3198Y
Q605 TKTC3198Y- TR KTC3198Y
Q607 TKTC3198Y- TR KTC3198Y
Q608 TKTC3198Y- TR KTC3198Y
Q701 TKTC3198Y- TR KTC3198Y
Q702 TKTC3198Y- TR KTC3198Y
Q771 TKTC3198Y- TR KTC3198Y
Q772 TKTC3198Y- TR KTC3198Y
Q773 TKTC3198Y- TR KTC3198Y
R569 RV5426501P R SEMI FIXED EVN-DJAA03 500 OHM
R579 RV5426102P R SEMI FIXED EVN-DJAA03B13 1K OHM B
X501 5XEX4R436C CRYSTAL QUARTZ HC-49U 4.433619M 20PP TA
X502 5XEX3R579C CRYSTAL QUARTZ HC-49U 3.579545M (TP)
X701 5XEX8R000E CRYSTAL QUARTZ HC-49U 8.000MHZ 30PPM TP
ZZ200 PTMPJAD351 PCB MAIN AXIAL AS DTD-29U9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
A001 4859803296 PCB MAIN 246X330 D1B
C120 CCZF1H103Z C CERA 50V F 0.01MF Z
C121 CCZF1H103Z C CERA 50V F 0.01MF Z
C122 CCZF1H103Z C CERA 50V F 0.01MF Z
C124 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
C161 CCZF1H103Z C CERA 50V F 0.01MF Z
C166 CCZF1H103Z C CERA 50V F 0.01MF Z
C167 CZSL1H470J C CERA 50V SL 47PF J (AXIAL)
C168 CZSL1H470J C CERA 50V SL 47PF J (AXIAL)
C169 CCZF1H103Z C CERA 50V F 0.01MF Z
C170 CZCH1H220J C CERA 50V CH 22PF J (AXIAL)
C174 CCZF1H103Z C CERA 50V F 0.01MF Z
C505 CCZF1H223Z C CERA 50V F 0.022MF Z
C507 CCZF1H223Z C CERA 50V F 0.022MF Z
C516 CZCH1H130J C CERA 50V CH 13PF J
C517 CZCH1H150J C CERA 50V CH 15PF J (AXIAL)
C552 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C556 CCZF1H103Z C CERA 50V F 0.01MF Z
C557 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C559 CBZR1C152M C CERA 16V Y5R 1500PF M (AXIAL)
C574 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C589 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C594 CCZB1H561K C CERA 50V B 560PF K
C610 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
C611 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C620 CCZB1H471K C CERA 50V B 470PF K (AXIAL)
C621 CCZB1H471K C CERA 50V B 470PF K (AXIAL)
C629 CCZF1H103Z C CERA 50V F 0.01MF Z

Loc Part_Cd Part_Name Part_Desc REMARK

C632 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C641 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C642 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C663 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
C664 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
C672 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C702 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C705 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C706 CZCH1H120J C CERA 50V CH 12PF J (AXIAL)
C707 CZCH1H120J C CERA 50V CH 12PF J (AXIAL)
C711 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C714 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C720 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
C732 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C740 CCZF1H103Z C CERA 50V F 0.01MF Z
C762 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C766 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C773 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C799 CCZF1H103Z C CERA 50V F 0.01MF Z
D102 D1N4148--- DIODE 1N4148 (TAPPING)
D103 D1SS85TA-- DIODE 1SS85TA
D104 D1N4004S-- DIODE 1N4004S
D133 D1N4148--- DIODE 1N4148 (TAPPING)
D134 D1N4148--- DIODE 1N4148 (TAPPING)
D501 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
D502 DUZ8R2BM-- DIODE ZENER UZ-8.2B
D503 D1N4004S-- DIODE 1N4004S
D504 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
D505 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
D506 D1N4148--- DIODE 1N4148 (TAPPING)
D507 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
D509 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
D601 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
D602 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
D603 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
D604 D1N4148--- DIODE 1N4148 (TAPPING)
D605 D1N4148--- DIODE 1N4148 (TAPPING)
D606 D1N4148--- DIODE 1N4148 (TAPPING)
D607 DUZ10BM--- DIODE ZENER UZ-10BM
D670 D1N4148--- DIODE 1N4148 (TAPPING)
D671 D1N4148--- DIODE 1N4148 (TAPPING)
D672 D1N4148--- DIODE 1N4148 (TAPPING)
D701 DUZ5R6BM-- DIODE ZENER UZ-5.6BM
D703 D1N4148--- DIODE 1N4148 (TAPPING)
D705 RD-AZ824J- R CARBON FILM 1/6 820K OHM J
D706 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
D707 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
D710 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
D711 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
D719 D1N4148--- DIODE 1N4148 (TAPPING)
D721 DUZ5R6BM-- DIODE ZENER UZ-5.6BM
D798 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
D799 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

- 27 -

Loc Part_Cd Part_Name Part_Desc REMARK

J002 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J004 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J006 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J007 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J008 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J009 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J010 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J011 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J012 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J013 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J014 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J016 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J017 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J018 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J019 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J020 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J021 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J024 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J026 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J027 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J028 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J029 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J030 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J031 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J032 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J033 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J034 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J035 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J036 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J037 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J038 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J039 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J040 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J041 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J042 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J043 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J044 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J045 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J046 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J047 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J048 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J049 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J051 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J052 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J053 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J054 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J055 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J056 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J057 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J058 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J059 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J060 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

Loc Part_Cd Part_Name Part_Desc REMARK

J061 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J062 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J063 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J064 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J065 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J067 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J069 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J071 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J072 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J073 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J074 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J075 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J076 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J077 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J078 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J079 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J080 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J081 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J082 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J083 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J084 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J085 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J086 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J087 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J088 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J089 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J090 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J091 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J092 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J093 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J094 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J095 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J098 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J100 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J102 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J103 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J104 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J105 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J106 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J107 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J108 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J109 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J112 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J113 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J114 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J115 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J116 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J117 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J118 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J119 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J120 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J121 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J122 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J123 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

- 28 -

Loc Part_Cd Part_Name Part_Desc REMARK

J124 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J127 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J128 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J129 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J130 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J131 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J132 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J133 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J134 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J135 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J136 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J137 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J139 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J140 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J141 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J142 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J143 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J144 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J145 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J146 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J147 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J148 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J149 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J150 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J151 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J152 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J153 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J154 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J155 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J156 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J157 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J158 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J159 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J160 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J161 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J162 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J163 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J164 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J165 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J166 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J167 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J168 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J169 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J170 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J172 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J173 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J174 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J175 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J177 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J178 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J180 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J181 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J182 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J185 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

Loc Part_Cd Part_Name Part_Desc REMARK

J186 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J187 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J188 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J190 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J191 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J192 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J193 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J194 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J195 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J196 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J197 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J198 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J199 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J200 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J201 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J202 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J203 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J204 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J205 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J206 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J207 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J208 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J209 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J210 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J211 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J212 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J213 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J214 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J215 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J216 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J217 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J218 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J219 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J220 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J221 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J222 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J223 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J224 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J225 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J226 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J227 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J228 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J229 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J231 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J232 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J233 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J234 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J235 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J236 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J237 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J238 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J239 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J240 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J241 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

- 29 -

Loc Part_Cd Part_Name Part_Desc REMARK

J242 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J243 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J244 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J245 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J246 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J247 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J248 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J249 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J250 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J251 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J252 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J253 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J254 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J255 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J256 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J257 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J258 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J259 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J260 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J261 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J262 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J263 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J264 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J265 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J266 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J267 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J268 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J269 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J270 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J271 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J272 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J273 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J276 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J277 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J278 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J279 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J280 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J281 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J282 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J283 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J284 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J285 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J286 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J287 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J288 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J289 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J290 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J291 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J292 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J293 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J294 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J295 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J296 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J297 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

Loc Part_Cd Part_Name Part_Desc REMARK

J298 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
L107 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM)
L502 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
L503 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
L504 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
L590 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
L601 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
L602 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
L608 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
L701 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
L702 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
R104 RD-AZ910J- R CARBON FILM 1/6 91 OHM J
R106 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R121 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R123 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R124 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R125 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R127 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R128 RD-AZ270J- R CARBON FILM 1/6 27 OHM J
R129 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R130 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R138 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R157 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R158 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J
R165 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R166 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R168 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R169 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J
R176 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R177 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R178 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R179 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R180 RD-AZ820J- R CARBON FILM 1/6 82 OHM J
R181 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
R182 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
R183 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
R185 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R195 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R196 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R197 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
R500 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R501 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
R502 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R503 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R504 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R505 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
R506 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R507 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R508 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R510 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R511 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R512 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R513 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R514 RD-AZ102J- R CARBON FILM 1/6 1K OHM J

- 30 -

Loc Part_Cd Part_Name Part_Desc REMARK

R515 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R516 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R517 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R518 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R520 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R521 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R522 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R524 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R525 RN-AZ3902F R METAL FILM 1/6 39K OHM F
R526 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R527 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R528 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R529 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R530 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R531 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R532 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R533 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R535 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R536 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R537 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R538 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R539 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R540 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R541 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R542 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R544 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R545 RD-4Z432J- R CARBON FILM 1/4 4.3K OHM J
R546 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R547 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R548 RD-AZ913J- R CARBON FILM 1/6 91K OHM J
R549 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
R550 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R551 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R552 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R553 RD-AZ202J- R CARBON FILM 1/6 2K OHM J
R554 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R555 RD-AZ202J- R CARBON FILM 1/6 2K OHM J
R556 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R557 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R558 RD-AZ302J- R CARBON FILM 1/6 3K OHM J
R559 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R560 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R561 RD-AZ433J- R CARBON FILM 1/6 43K OHM J
R562 RD-AZ433J- R CARBON FILM 1/6 43K OHM J
R563 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R564 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R565 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R566 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R567 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R568 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R570 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R572 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R573 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R574 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J

Loc Part_Cd Part_Name Part_Desc REMARK

R575 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R576 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
R577 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R578 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
R581 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R582 RD-AZ105J- R CARBON FILM 1/6 1M OHM J
R583 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R584 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R585 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R586 RD-AZ330J- R CARBON FILM 1/6 33 OHM J
R587 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R588 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R589 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R590 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R591 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R592 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R593 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R594 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
R595 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R596 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R597 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R598 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R599 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
R601 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R602 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R604 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R605 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R608 RD-4Z829J- R CARBON FILM 1/4 8.2 OHM J
R609 RD-4Z829J- R CARBON FILM 1/4 8.2 OHM J
R610 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R611 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R625 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R627 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R628 RD-4Z471J- R CARBON FILM 1/4 470 OHM J
R629 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R630 RD-4Z471J- R CARBON FILM 1/4 470 OHM J
R642 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R643 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R644 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
R650 RD-2Z473J- R CARBON FILM 1/2 47K OHM J
R651 RD-2Z273J- R CARBON FILM 1/2 27K OHM J
R661 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R662 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R663 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R664 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R665 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R666 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R667 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R668 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R669 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R670 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R671 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R672 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R677 RD-AZ101J- R CARBON FILM 1/6 100 OHM J

- 31 -

Loc Part_Cd Part_Name Part_Desc REMARK

R678 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R681 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R682 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R683 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R684 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R685 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R686 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R699 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R701 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R702 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R703 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R704 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R705 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R707 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R708 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R711 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R712 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R714 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R715 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R716 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R719 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
R720 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R724 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R725 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R726 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R729 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R730 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R732 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R733 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R735 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R736 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R737 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R738 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R739 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R740 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R741 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R743 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R744 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R745 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R748 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R750 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R751 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R752 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R753 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R754 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R755 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R759 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R761 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R778 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R779 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R783 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R791 RD-4Z103J- R CARBON FILM 1/4 10K OHM J
R792 RD-4Z103J- R CARBON FILM 1/4 10K OHM J
R793 RD-AZ103J- R CARBON FILM 1/6 10K OHM J

Loc Part_Cd Part_Name Part_Desc REMARK

R794 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R795 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R799 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
ZZ300 PTCPMSD351 PCB CRT MANUAL AS DTD-29U9WPT
20 2193011101 SOLDER WIRE RS 60-1.2 1.6A
30 2291050615 FLUX SOLDER DF-2012U
40 2291050301 FLUX SOLVENT IM-1000
50 2291140501 WAX COVER
C915 CEXF2C470V C ELECTRO 160V RSS 47MF (13X25) TP
C916 CEXF2C100V C ELECTRO 160V RSS 10MF (10X16) TP
C917 CEXF2C100V C ELECTRO 160V RSS 10MF (10X16) TP
C920 CEXF2C470V C ELECTRO 160V RSS 47MF (13X25) TP
C923 CMYL2G104J C MYLAR 400V MEU 0.1MF J
C924 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP
C927 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C932 CMYL2G104J C MYLAR 400V MEU 0.1MF J
C940 CMYL2G104J C MYLAR 400V MEU 0.1MF J
C942 CEXF2E220V C ELECTRO 250V RSS 22MF (13X20) TP
C946 4SG0D00103 SPARK GAP S-23 900V-1.5KV
C947 4SG0D00103 SPARK GAP S-23 900V-1.5KV
C948 4SG0D00103 SPARK GAP S-23 900V-1.5KV
C949 CCYB3D472K C CERA 2KV B 4700PF K
I901 1TDA6101Q- IC VIDEO AMP TDA6101Q
I902 1TDA6101Q- IC VIDEO AMP TDA6101Q
I903 1TDA6101Q- IC VIDEO AMP TDA6101Q
M900 4856812001 TIE CABLE NYLON66 DA100
P904 4859205620 CONN WAFER LW-0640-03
P906 4859238620 CONN WAFER YPW500-02
PA901 4850706S18 CONNECTOR YH025-06+YST025+USW=500
PA902 4850705S04 CONNECTOR YH025-05+YST025+ULW=400
PA903 4850703S44 CONNECTOR YH025-03+YST025+ULW=500
PA905 4850704S04 CONNECTOR YH025-04+YST025+ULW=400
Q907 PTE2SW6901 HEAT SINK ASS‘Y TKTA1659Y- + 7174300811
1 TKTA1659AY TR KTA1659AY
0000A 4857026901 HEAT SINK AL EX BK
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
Q908 PTB2SW6900 HEAT SINK ASS‘Y TKTC4370Y- + 7174300811
0000A 4857026900 HEAT SINK AL EX
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
001-- TKTC4370AY TR KTC4370AY
R901 RF-4Y229J- R FUSIBLE 1/4W 2.2 OHM J
R925 RS01Y471J- R M-OXIDE FILM 1W 470 OHM J
R946 RS02Y221J- R M-OXIDE FILM 2W 220 OHM J
SCT1 4859303730 SOCKET CRT ISD-07S
ZZ200 PTCPJRD351 PCB CRT RADIAL AS DTD-29U9WPT
C901 CXCH1H240J C CERA 50V CH 24PF J (TAPPING)
C903 CXCH1H240J C CERA 50V CH 24PF J (TAPPING)
C904 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C905 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
C906 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
C907 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
C908 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)
C909 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C910 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP

- 32 -

Loc Part_Cd Part_Name Part_Desc REMARK

C911 CXCH1H101J C CERA 50V CH 100PF J (TAPPING)
C912 CXCH1H101J C CERA 50V CH 100PF J (TAPPING)
C913 CCXB2H101K C CERA 500V B 100PF K (TAPPING)
C914 CCXE2H472P C CERA 500V E 4700PF P (TAPPING)
C918 CCXE2H472P C CERA 500V E 4700PF P (TAPPING)
C922 CCXB2H471K C CERA 500V B 470PF K (TAPPING)
C925 CEXF2E229V C ELECTRO 250V RSS 2.2MF (8X11.5)TP
C928 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C929 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C930 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C935 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C936 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C937 CCXB2H471K C CERA 500V B 470PF K (TAPPING)
C938 CMXM2A104K C MYLAR 100V 0.1MF K (TP)
C939 CMXM2A104K C MYLAR 100V 0.1MF K (TP)
C941 CCXB2H471K C CERA 500V B 470PF K (TAPPING)
C950 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
L901 5CPX470J-- COIL PEAKING 47UH J (RADIAL)
Q901 TKTC3198Y- TR KTC3198Y
Q902 TKTC3198Y- TR KTC3198Y
Q903 TKTC3198Y- TR KTC3198Y
Q904 TKTC3198Y- TR KTC3198Y
Q905 TKTA1266Y- TR KTA1266Y (TP)
Q906 TKTC3198Y- TR KTC3198Y
Q909 TKTC3198Y- TR KTC3198Y
Q910 TKTC3198Y- TR KTC3198Y
R932 RN01B101JS R METAL FILM 1W 100 OHM J SMALL
ZZ200 PTCPJAD351 PCB CRT AXIAL AS DTD-29U9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859827613 PCB CRT 154X109(330X246/4X1) D1B
C951 CZCH1H130J C CERA 50V CH 13PF J
C952 CZCH1H130J C CERA 50V CH 13PF J
C953 CZCH1H130J C CERA 50V CH 13PF J
D901 D1N4148--- DIODE 1N4148 (TAPPING)
D902 D1N4148--- DIODE 1N4148 (TAPPING)
D903 D1N4148--- DIODE 1N4148 (TAPPING)
D904 D1N4148--- DIODE 1N4148 (TAPPING)
D905 D1N4004S-- DIODE 1N4004S
D906 D1N4004S-- DIODE 1N4004S
D920 D1N4937G-- DIODE 1N4937G (TAPPING)
D921 D1N4937G-- DIODE 1N4937G (TAPPING)
D923 D1N4937G-- DIODE 1N4937G (TAPPING)
D924 D1N4937G-- DIODE 1N4937G (TAPPING)
D925 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
D926 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
D927 DUZ9R1BM-- DIODE ZENER UZ-9.1BM
D928 D1N4148--- DIODE 1N4148 (TAPPING)
D929 D1N4148--- DIODE 1N4148 (TAPPING)
D930 D1N4148--- DIODE 1N4148 (TAPPING)
D932 D1N4937G-- DIODE 1N4937G (TAPPING)
D936 DUZ6R2BM-- DIODE ZENER UZ-6.2BM
J904 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J913 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

Loc Part_Cd Part_Name Part_Desc REMARK

J914 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J916 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J917 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J921 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J923 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J924 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J926 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J928 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J930 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J931 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
L902 5MC0000100 COIL BEAD HC-3550
L903 5MC0000100 COIL BEAD HC-3550
L904 5MC0000100 COIL BEAD HC-3550
R902 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R903 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R904 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R905 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R906 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R907 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R908 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R909 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R910 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R911 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R912 RD-4Z470J- R CARBON FILM 1/4 47 OHM J
R913 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R914 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R915 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R916 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R917 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R918 RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R919 RD-AZ820J- R CARBON FILM 1/6 82 OHM J
R920 RD-AZ820J- R CARBON FILM 1/6 82 OHM J
R921 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R922 RD-AZ683J- R CARBON FILM 1/6 68K OHM J
R923 RD-AZ683J- R CARBON FILM 1/6 68K OHM J
R924 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R926 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R927 RD-4Z123J- R CARBON FILM 1/4 12K OHM J
R928 RD-2Z680J- R CARBON FILM 1/2 68 OHM J
R929 RD-2Z279J- R CARBON FILM 1/2 2.7 OHM J
R930 RD-2Z680J- R CARBON FILM 1/2 68 OHM J
R931 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R933 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F
R934 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F
R935 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F
R936 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F
R937 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F
R938 RN-AZ2001F R METAL FILM 1/6 2.0K OHM F
R939 RN-2Z2003F R METAL FILM 1/2 200.0K OHM F
R940 RN-2Z2003F R METAL FILM 1/2 200.0K OHM F
R941 RN-2Z2003F R METAL FILM 1/2 200.0K OHM F
R942 RC-2Z102K- R CARBON COMP 1/2 1K OHM K
R943 RC-2Z102K- R CARBON COMP 1/2 1K OHM K
R944 RC-2Z102K- R CARBON COMP 1/2 1K OHM K

- 33 -

Loc Part_Cd Part_Name Part_Desc REMARK

R945 RD-2Z279J- R CARBON FILM 1/2 2.7 OHM J
R951 RD-2Z102J- R CARBON FILM 1/2 1K OHM J
R952 RD-4Z105J- R CARBON FILM 1/4 1M OHM J
R955 RN-AZ6800F R METAL FILM 1/6 680 OHM F
R956 RN-AZ1301F R METAL FILM 1/6 1.3K OHM F
R965 RC-2Z102K- R CARBON COMP 1/2 1K OHM K
R967 RN-2Z2003F R METAL FILM 1/2 200.0K OHM F
R969 RN-2Z2003F R METAL FILM 1/2 200.0K OHM F
R971 RN-2Z2003F R METAL FILM 1/2 200.0K OHM F
R972 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R973 RD-4Z100J- R CARBON FILM 1/4 10 OHM J
R974 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R975 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R976 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
ZZ400 PTPWMSD351 PCB POWER MANUAL AS DTD-29U9WPT
10 2193100710 SOLDER POWER BAR S62S-PB37-SB1
20 2193011101 SOLDER WIRE RS 60-1.2 1.6A
30 2291050615 FLUX SOLDER DF-2012U
40 2291050301 FLUX SOLVENT IM-1000
50 2291140501 WAX COVER
C401 CEYD1H689V C ELECTRO 50V RUB 6.8MF (16*35.5)
C404 CCYB2H103K C CERA 500V B 0.01MF K
C405 CMYH3D722J C MYLAR 2KV BUP 7200PF J
C406 CMYH3C702J C MYLAR 1.6KV BUP 7000PF J
C407 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)
C408 CEYF2A221V C ELECTRO 100V RSS 220MF (16X25)
C411 CEXF2E220V C ELECTRO 250V RSS 22MF (13X20) TP
C416 CMYE2G394J C MYLAR 400V PU 0.39MF J
C801 CL1JB3104M C LINE ACROSS AC250V 0.1MF M ECQ-UV WRL
C802 CL1JB3474K C LINE ACROSS AC250V 0.47MF U/C/SNDF/SV
C803 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V
C813 CMYH3C222J C MYLAR 1.6KV BUP 2200PF J
C819 CEYN2D221T C ELECTRO 200V FWS 220MF (22X30)
C840 CMXM2A334J C MYLAR 100V 0.33MF J BULK
C848 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V
C882 CMYH3C122J C MYLAR 1.6KV BUP 1200PF J
C886 CMYE2D103J C MYLAR 200V PU 0.01MF J
C893 CEYN2W471P C ELECTRO 450V LHS 470MF (35X50)
CF401 CMYH3C912J C MYLAR 1.6KV BUP 9100PF J
CF411 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)
D401 DRGP30J--- DIODE RGP30J
D402 DRGP30J--- DIODE RGP30J
D406 DRGP30J--- DIODE RGP30J
D801 PTH2SW7701 HEAT SINK ASS‘Y DGBJ606--- + 7174301211 R
1 DGBJ606--- DIODE BRIDGE GBJ606
0000A 4857027701 HEAT SINK AL EX
0000B 7174301211 SCREW TAPPTITE TT2 RND 3X12 MFZN
D803 DEGP50D--- DIODE EGP50D (TAPPING)
D813 DRGP30J--- DIODE RGP30J
D824 PTS2SW6900 HEAT SINK ASS‘Y DFMLG16S-- + 7128301011
1 DFMLG16S-- DIODE FML-G16S
0000A 4857026900 HEAT SINK AL EX
0000B 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
D831 DDG3------ DIODE DG3

Loc Part_Cd Part_Name Part_Desc REMARK

F801 5F3GB6322L FUSE GLASS TUBE V/S TL 6.3A 250V MF51 R
I301 PTA2SW7501 HEAT SINK ASS‘Y 1TDA8351-- + 7174301011 R
I301 1TDA8351-- IC VERTICAL TDA8351
I301A 4857027501 HEAT SINK AL EX
I301B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
I801 PTB2SW7525 HEAT SINK ASS‘Y 1STRS6709- + 7174301211
I801 1STRS6709- IC POWER STR-S6709
I801A 4857027525 HEAT SINK AL EX
I801B 7174301211 SCREW TAPPTITE TT2 RND 3X12 MFZN
I802 1LTV817C-- IC PHOTO COUPLER LTV-817C
I804 PTS2SW7800 HEAT SINK ASS‘Y 1K78R09--- + 7174300811
1 1K78R09--- IC REGULATOR KIA78R09PI
0000A 4857027800 HEAT SINK AL EX
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I805 1SE130N--- IC SE130N
I806 PT52SW6900 HEAT SINK ASS‘Y 1K78R05--- + 7174301011
1 1K78R05--- IC REGULATOR KIA78R05PI
0000A 4857026900 HEAT SINK AL EX
0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
I807 PTT2SW7800 HEAT SINK ASS‘Y 1K78R12--- + 7174300811
1 1K78R12--- IC REGULATOR KIA78R12PI
0000A 4857027800 HEAT SINK AL EX
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
IF401 1KA4558--- IC AMP KA4558
L403 58H0000064 COIL H-LINEARITY TRL-350B
L404 58W0000020 COIL WIDTH TRW-400(60908061)
L801 5PLF35A1-- FILTER LINE LF-35A1
L802 5PLF3143G- FILTER LINE LF-3143 G
L807 58C4500079 COIL CHOKE L-45
LF401 58C0000119 COIL CHOKE CH-402U
M352 4853535500 HOLDER CORD NYROLN 66
M681 4856812001 TIE CABLE NYLON66 DA100
P801 4850707S10 CONNECTOR YH025-07+YST025+ULW=100
P802 4850707S10 CONNECTOR YH025-07+YST025+ULW=100
P803 4850710V02 CONNECTOR YH025-10+YBNH250+ULW=100
P804 4850703S20 CONNECTOR YH025-03+YST025+ULW=400
PW801 PTWASW2910 CORD POWER ASS‘Y 4859901111+ HOUSING
PW000 4859901111 CORD POWER KKP-419C KLCE-2F (2.1ME)
Q302 PTA2SW7607 HEAT SINK ASS‘Y T2SB546L-- + 7174301011
Q302 T2SB546L-- TR 2SB546-L
Q302A 4857027607 HEAT SINK AL EX
Q302B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
Q401 T2SC1569-- TR 2SC1569
Q402 PTF2SW8200 HEAT SINK ASS‘Y T2SD2553--- + 7174301011 R
Q402 T2SD2553-- TR 2SD2553
Q402A 4857028200 HEAT SINK AL EX BK
Q402B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
Q801 TKTD1414-- TR KTD1414
Q802 TKTA940--- TR KTA940
Q807 TKTA968AY- TR KTA968AY
QF402 T4636LSRB- TR 2SC4636LS-RB
R403 RX10T512J- R CEMENT 10W 5.1K OHM J TRIPOD
R801 DEC140M290 POSISTOR ECPCC140M290
R805 RX10T100J- R CEMENT 10W 10 OHM J TRIPOD R

- 34 -

Loc Part_Cd Part_Name Part_Desc REMARK

R813 RM02Y158J- R METAL FLAT 2W 0.15 OHM J
R844 RW02Z418F- R WIRE WOUND 2W 0.41 OHM F
T401 5TD0000018 TRANS DRIVE THD-120
T402 50H0000213 FBT FFA65029L
T402A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
T402B 4856812001 TIE CABLE NYLON66 DA100
T402M 4857246400 SHIELD PLATE SPCC T0.2
T801 50M0000096 TRANS SMPS TSM-5315
TF401 50D28A1--- TRANS DRIVE TD-28A1
Y801 5SC0101003 SW RELAY DG12D1-0(M)-II 1C-1P
Y802 5SC0101003 SW RELAY DG12D1-0(M)-II 1C-1P
Z801 DSVC471D14 VARISTOR SVC471D14A
ZZ200 PTPWJ0D351 PCB POWER ODD SHAPE DTD-29U9WPT
C306 CEXF2A331V C ELECTRO 100V RSS 330MF (16X25) TP
C409 CEXF2E330V C ELECTRO 250V RSS 33MF (13X25) TP
C410 CEXF2E330V C ELECTRO 250V RSS 33MF (13X25) TP
C415 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C805 CEXF1C222V C ELECTRO 16V RSS 2200MF (13X25) TP
C806 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP
C807 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP
C808 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP
C809 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP
C811 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C814 CEXF1V331C C ELECTRO 35V RUS 330MF (10X20) TP
C815 CEXF1V331V C ELECTRO 35V RSS 330MF 10X16
C816 CEXF2C100V C ELECTRO 160V RSS 10MF (10X16) TP
C820 CCXB3D471K C CERA 2KV B 470PF K (TAPPING)
C821 CEXF2C100C C ELECTRO 160V RUS 10MF (10X16)TP
C826 CEXF1C222V C ELECTRO 16V RSS 2200MF (13X25) TP
C828 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C829 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C837 CCXB3D102K C CERA 2KV B 1000PF K (TAPPING)
C838 CEXF1H471V C ELECTRO 50V RSS 470MF (13X20) TP
C839 CEXF1H471V C ELECTRO 50V RSS 470MF (13X20) TP
C842 CEXF1E222V C ELECTRO 25V RSS 2200MF (16X25) TP
C843 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
C845 CEXF1C222V C ELECTRO 16V RSS 2200MF (13X25) TP
C851 CCXB3D102K C CERA 2KV B 1000PF K (TAPPING)
C857 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C858 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C859 CEXF1H471V C ELECTRO 50V RSS 470MF (13X20) TP
CF408 CEXF1V221C C ELECTRO 35V RUS 220MF (10X12.5)TP
CF410 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)
CF412 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)
CF416 CMXE2J333J C MYLAR 630V PU 0.033MF J (TP)
ZZ200 PTPWJBD351 PCB POWER M-10 AS DTD-29U9WPT
10 2TM18006BE TAPE MASKING 6.2X500
E005 4856310300 EYE LET BSR T0.2 (R1.6)
E006 4856310300 EYE LET BSR T0.2 (R1.6)
E007 4856310300 EYE LET BSR T0.2 (R1.6)
E008 4856310300 EYE LET BSR T0.2 (R1.6)
E018 4856310300 EYE LET BSR T0.2 (R1.6)
E019 4856310300 EYE LET BSR T0.2 (R1.6)
E022 4856310300 EYE LET BSR T0.2 (R1.6)

Loc Part_Cd Part_Name Part_Desc REMARK

E023 4856310300 EYE LET BSR T0.2 (R1.6)
E026 4856310300 EYE LET BSR T0.2 (R1.6)
E028 4856310300 EYE LET BSR T0.2 (R1.6)
E029 4856310300 EYE LET BSR T0.2 (R1.6)
E030 4856310300 EYE LET BSR T0.2 (R1.6)
E031 4856310300 EYE LET BSR T0.2 (R1.6)
E038 4856310300 EYE LET BSR T0.2 (R1.6)
E039 4856310300 EYE LET BSR T0.2 (R1.6)
E040 4856310600 EYE LET BSR T0.2 (R2.3)
E041 4856310600 EYE LET BSR T0.2 (R2.3)
E042 4856310600 EYE LET BSR T0.2 (R2.3)
E043 4856310600 EYE LET BSR T0.2 (R2.3)
E044 4856310600 EYE LET BSR T0.2 (R2.3)
E045 4856310600 EYE LET BSR T0.2 (R2.3)
E046 4856310600 EYE LET BSR T0.2 (R2.3)
E047 4856310600 EYE LET BSR T0.2 (R2.3)
E048 4856310600 EYE LET BSR T0.2 (R2.3)
E049 4856310600 EYE LET BSR T0.2 (R2.3)
E050 4856310600 EYE LET BSR T0.2 (R2.3)
E051 4856310600 EYE LET BSR T0.2 (R2.3)
E052 4856310300 EYE LET BSR T0.2 (R1.6)
E056 4856310600 EYE LET BSR T0.2 (R2.3)
E057 4856310600 EYE LET BSR T0.2 (R2.3)
E058 4856310600 EYE LET BSR T0.2 (R2.3)
E059 4856310600 EYE LET BSR T0.2 (R2.3)
E060 4856310600 EYE LET BSR T0.2 (R2.3)
E061 4856310600 EYE LET BSR T0.2 (R2.3)
E062 4856310600 EYE LET BSR T0.2 (R2.3)
E063 4856310600 EYE LET BSR T0.2 (R2.3)
E064 4856310600 EYE LET BSR T0.2 (R2.3)
E065 4856310600 EYE LET BSR T0.2 (R2.3)
E070 4856310600 EYE LET BSR T0.2 (R2.3)
E071 4856310600 EYE LET BSR T0.2 (R2.3)
E072 4856310600 EYE LET BSR T0.2 (R2.3)
E073 4856310600 EYE LET BSR T0.2 (R2.3)
E074 4856310600 EYE LET BSR T0.2 (R2.3)
E075 4856310600 EYE LET BSR T0.2 (R2.3)
E076 4856310600 EYE LET BSR T0.2 (R2.3)
E077 4856310600 EYE LET BSR T0.2 (R2.3)
E078 4856310600 EYE LET BSR T0.2 (R2.3)
E079 4856310600 EYE LET BSR T0.2 (R2.3)
E082 4856310300 EYE LET BSR T0.2 (R1.6)
E083 4856310300 EYE LET BSR T0.2 (R1.6)
E089 4856310600 EYE LET BSR T0.2 (R2.3)
E090 4856310600 EYE LET BSR T0.2 (R2.3)
E095 4856310600 EYE LET BSR T0.2 (R2.3)
E096 4856310600 EYE LET BSR T0.2 (R2.3)
E097 4856310300 EYE LET BSR T0.2 (R1.6)
E098 4856310300 EYE LET BSR T0.2 (R1.6)
E099 4856310300 EYE LET BSR T0.2 (R1.6)
E100 4856310300 EYE LET BSR T0.2 (R1.6)
E101 4856310300 EYE LET BSR T0.2 (R1.6)
E102 4856310300 EYE LET BSR T0.2 (R1.6)
E103 4856310300 EYE LET BSR T0.2 (R1.6)

- 35 -

Loc Part_Cd Part_Name Part_Desc REMARK

E104 4856310300 EYE LET BSR T0.2 (R1.6)
E105 4856310300 EYE LET BSR T0.2 (R1.6)
E106 4856310300 EYE LET BSR T0.2 (R1.6)
E107 4856310300 EYE LET BSR T0.2 (R1.6)
E108 4856310300 EYE LET BSR T0.2 (R1.6)
E109 4856310300 EYE LET BSR T0.2 (R1.6)
E110 4856310300 EYE LET BSR T0.2 (R1.6)
E111 4856310300 EYE LET BSR T0.2 (R1.6)
E112 4856310300 EYE LET BSR T0.2 (R1.6)
E113 4856310300 EYE LET BSR T0.2 (R1.6)
E114 4856310600 EYE LET BSR T0.2 (R2.3)
E115 4856310600 EYE LET BSR T0.2 (R2.3)
E116 4856310300 EYE LET BSR T0.2 (R1.6)
E117 4856310300 EYE LET BSR T0.2 (R1.6)
E118 4856310300 EYE LET BSR T0.2 (R1.6)
E119 4856310300 EYE LET BSR T0.2 (R1.6)
E120 4856310300 EYE LET BSR T0.2 (R1.6)
E121 4856310600 EYE LET BSR T0.2 (R2.3)
E122 4856310600 EYE LET BSR T0.2 (R2.3)
E123 4856310300 EYE LET BSR T0.2 (R1.6)
E124 4856310300 EYE LET BSR T0.2 (R1.6)
E125 4856310300 EYE LET BSR T0.2 (R1.6)
E126 4856310600 EYE LET BSR T0.2 (R2.3)
E127 4856310600 EYE LET BSR T0.2 (R2.3)
E128 4856310300 EYE LET BSR T0.2 (R1.6)
E129 4856310600 EYE LET BSR T0.2 (R2.3)
E130 4856310300 EYE LET BSR T0.2 (R1.6)
E131 4856310300 EYE LET BSR T0.2 (R1.6)
E132 4856310300 EYE LET BSR T0.2 (R1.6)
E133 4856310300 EYE LET BSR T0.2 (R1.6)
E134 4856310300 EYE LET BSR T0.2 (R1.6)
E135 4856310300 EYE LET BSR T0.2 (R1.6)
E136 4856310300 EYE LET BSR T0.2 (R1.6)
E137 4856310300 EYE LET BSR T0.2 (R1.6)
E138 4856310300 EYE LET BSR T0.2 (R1.6)
E139 4856310300 EYE LET BSR T0.2 (R1.6)
E140 4856310300 EYE LET BSR T0.2 (R1.6)
E141 4856310300 EYE LET BSR T0.2 (R1.6)
E142 4856310300 EYE LET BSR T0.2 (R1.6)
E143 4856310300 EYE LET BSR T0.2 (R1.6)
E144 4856310300 EYE LET BSR T0.2 (R1.6)
N003 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N004 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N005 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N006 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N007 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N008 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N009 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N010 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N011 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N012 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
P401 485923172S CONN WAFER YW025-04 (STICK)
P402 485923182S CONN WAFER YW025-05 (STICK)
R311 RS02Z220JS R M-OXIDE FILM 2W 22 0HM J SMALL

Loc Part_Cd Part_Name Part_Desc REMARK

R402 RS01Z472J- R M-OXIDE FILM 1W 4.7K OHM J (TAPPING)
R408 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
R410 RS02Z519J- R M-OXIDE FILM 2W 5.1 OHM J (TAPPING)
R416 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
R419 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
R482 RS01Z229J- R M-OXIDE FILM 1W 2.2 OHM J (TAPPING)
R803 RS02Z180JS R M-OXIDE FILM 2W 18 OHM J SMALL
R809 RS01Z103J- R M-OXIDE FILM 1W 10K OHM J (TAPPING)
R814 RS02Z180JS R M-OXIDE FILM 2W 18 OHM J SMALL
R815 RS02Z153JS R M-OXIDE FILM 2W 15K OHM J SMALL
R816 RS02Z153JS R M-OXIDE FILM 2W 15K OHM J SMALL
R819 RS02Z912JS R M-OXIDE FILM 2W 9.1K OHM J SMALL
R826 RS02Z220JS R M-OXIDE FILM 2W 22 0HM J SMALL
R837 RS01Z220J- R M-OXIDE FILM 1W 22 OHM J (TAPPING)
R848 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
R849 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
R851 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
R852 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
R881 RS02Z912JS R M-OXIDE FILM 2W 9.1K OHM J SMALL
RF401 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
RF402 RS02Z473JS R M-OXIDE FILM 2W 47K OHM J SMALL
RF425 RF01Z278K- R FUSIBLE 1W 0.27 OHM K (TP)
RF427 RF02Z478K- R FUSIBLE 2W 0.47 OHM K (TAPPING)
ZZ200 PTPWJRD351 PCB POWER RADIAL AS DTD-29U9WPT
C301 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C302 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C303 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C304 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C305 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C307 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C309 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C402 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
C413 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP
C414 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
C421 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C422 CCXB2H471K C CERA 500V B 470PF K (TAPPING)
C481 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C817 CMXM2A102J C MYLAR 100V 1000PF J (TP)
C818 CCXB3A471K C CERA 1KV B 470PF K (T)
C825 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C835 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C841 CCXB2H102K C CERA 500V B 1000PF K (TAPPING)
C844 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C846 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C847 CEXD1H109F C ELECTRO 50V RND 1MF (5X11) TP
C850 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C852 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C853 CMXM2A103J C MYLAR 100V 0.01MF J (TP)
C854 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C855 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C870 CCXB3A471K C CERA 1KV B 470PF K (T)
C881 CMXM2A222J C MYLAR 100V 2200PF J (TP)
C883 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)
C885 CBXF1H104Z C CERA SEMI 50V F 0.1MF Z (TAPPING)

- 36 -

Loc Part_Cd Part_Name Part_Desc REMARK

C887 CEXF2E229V C ELECTRO 250V RSS 2.2MF (8X11.5)TP
CF403 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
CF404 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
CF405 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CF406 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
CF407 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
CF413 CEXF1C330V C ELECTRO 16V RSS 33MF (6.3X7) TP
F801A 4857415001 CLIP FUSE PFC5000-0702
F801B 4857415001 CLIP FUSE PFC5000-0702
L402 58C0000096 COIL CHOKE 610G0233(470K)
L808 58C0000096 COIL CHOKE 610G0233(470K)
L810 58C0000096 COIL CHOKE 610G0233(470K)
L811 58C0000096 COIL CHOKE 610G0233(470K)
Q301 TKTC3198Y- TR KTC3198Y
Q483 TKTC3198Y- TR KTC3198Y
Q484 TKTC3198Y- TR KTC3198Y
Q803 TKTC3207-- TR KTC3207 (TP)
Q804 TKTC3203Y- TR KTC3203-Y
Q805 TKTC3203Y- TR KTC3203-Y
Q806 TKTC3207-- TR KTC3207 (TP)
Q812 TKTC3198Y- TR KTC3198Y
QF401 TKTA1266Y- TR KTA1266Y (TP)
QF403 TKTA1266Y- TR KTA1266Y (TP)
QF404 TKTC3198Y- TR KTC3198Y
R303 RN02B181JS R METAL FILM 2W 180 OHM J SMALL
R306 RN02B100JS R METAL FILM 2W 10 OHM J SMALL
R309 RN01B330JS R METAL FILM 1W 33 OHM J SMALL
R401 RN01B151JS R METAL FILM 1W 150 OHM J SMALL
R407 RN02B102JS R METAL FILM 2W 1K OHM J SMALL
R409 RN01B152JS R METAL FILM 1W 1.5K OHM J SMALL
R802 RN02B180JS R METAL FILM 2W 18 OHM J SMALL
R804 RN01B184JS R METAL FILM 1W 180K OHM J SMALL
R807 RN01B184JS R METAL FILM 1W 180K OHM J SMALL
R824 RN02B109JS R METAL FILM 2W 1 OHM J SMALL
R825 RN02B109JS R METAL FILM 2W 1 OHM J SMALL
R833 RN01B910JS R METAL FILM 1W 91 OHM J SMALL
R841 RN02B109JS R METAL FILM 2W 1 OHM J SMALL
R863 RN02B912JS R METAL FILM 2W 9.1K OHM J SMALL
R897 RN02B473JS R METAL FILM 2W 47K OHM J SMALL
R899 RN02B912JS R METAL FILM 2W 9.1K OHM J SMALL
RF420 RN01B431JS R METAL FILM 1W 430 OHM J SMALL
RF422 RN02B333JS R METAL FILM 2W 33K OHM J SMALL
RF423 RN02B333JS R METAL FILM 2W 33K OHM J SMALL
RF424 RN02B333JS R METAL FILM 2W 33K OHM J SMALL
ZZ200 PTPWJAD351 PCB POWER AXIAL AS DTD-29U9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859813311 PCB POWER 330X246 D1B
C884 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
D301 DUZ15BM--- DIODE ZENER UZ-15BM
D403 D1N4937G-- DIODE 1N4937G (TAPPING)
D404 D1N4937G-- DIODE 1N4937G (TAPPING)
D405 D1N4937G-- DIODE 1N4937G (TAPPING)
D481 D1N4148--- DIODE 1N4148 (TAPPING)

Loc Part_Cd Part_Name Part_Desc REMARK

D802 DUZ15BM--- DIODE ZENER UZ-15BM
D804 D1N4937G-- DIODE 1N4937G (TAPPING)
D805 D1N4937G-- DIODE 1N4937G (TAPPING)
D806 D1N4937G-- DIODE 1N4937G (TAPPING)
D807 DUZ7R5BM-- DIODE ZENER UZ-7.5BM
D808 DUZ15BM--- DIODE ZENER UZ-15BM
D809 D1N4148--- DIODE 1N4148 (TAPPING)
D811 D1N4937G-- DIODE 1N4937G (TAPPING)
D815 D1N4004S-- DIODE 1N4004S
D816 D1N4004S-- DIODE 1N4004S
D819 DRGP15J--- DIODE RGP15J
D821 D1N4148--- DIODE 1N4148 (TAPPING)
D822 D1N4148--- DIODE 1N4148 (TAPPING)
D825 DRGP15J--- DIODE RGP15J
D828 DLT2A05G-- DIODE LT2A05G (TP)
D842 NRD11JSB3- DIODE ZENER RD11JSB3
D843 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
D881 D1N4148--- DIODE 1N4148 (TAPPING)
D894 DUZ30BL--- DIODE ZENER UZ-30BL
D895 D1N4148--- DIODE 1N4148 (TAPPING)
D896 D1N4148--- DIODE 1N4148 (TAPPING)
D897 D1N4937G-- DIODE 1N4937G (TAPPING)
D899 D1N4148--- DIODE 1N4148 (TAPPING)
DF401 D1N4937G-- DIODE 1N4937G (TAPPING)
DF402 D1N4937G-- DIODE 1N4937G (TAPPING)
DF403 D1N4937G-- DIODE 1N4937G (TAPPING)
DF404 D1N4937G-- DIODE 1N4937G (TAPPING)
J410 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J802 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J804 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J805 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J808 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J809 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J810 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J811 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J812 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J813 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J814 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J815 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J816 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J817 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J818 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J819 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J821 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J822 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J823 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J826 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J827 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J828 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J829 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J830 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J831 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J832 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J833 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

- 37 -

Loc Part_Cd Part_Name Part_Desc REMARK

J834 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J836 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J839 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J840 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J844 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J848 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J850 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J851 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J854 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J855 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J856 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J857 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J858 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J860 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J861 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J862 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J863 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J864 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J865 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J866 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J867 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J868 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J869 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J870 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J872 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J873 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JF406 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JF407 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
L406 58C0000026 COIL BEAD HC-4035
L407 58C0000026 COIL BEAD HC-4035
L803 5MC0000100 COIL BEAD HC-3550
L804 58C0000026 COIL BEAD HC-4035
L805 5MC0000100 COIL BEAD HC-3550
L806 5MC0000100 COIL BEAD HC-3550
L830 5MC0000100 COIL BEAD HC-3550
L837 58C0000026 COIL BEAD HC-4035
L839 58C0000026 COIL BEAD HC-4035
L842 58C0000026 COIL BEAD HC-4035
L843 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R301 RN-4Z2401F R METAL FILM 1/4 2.40K OHM F
R302 RD-2Z223J- R CARBON FILM 1/2 22K OHM J
R305 RD-2Z471J- R CARBON FILM 1/2 470 OHM J
R307 RD-4Z242J- R CARBON FILM 1/4 2.4K OHM J
R308 RD-4Z272J- R CARBON FILM 1/4 2.7K OHM J
R310 RD-4Z683J- R CARBON FILM 1/4 68K OHM J
R412 RD-4Z562J- R CARBON FILM 1/4 5.6K OHM J
R413 RN-4Z2402F R METAL FILM 1/4 24K OHM F
R414 RN-4Z2402F R METAL FILM 1/4 24K OHM F
R415 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
R421 RD-4Z561J- R CARBON FILM 1/4 560 OHM J
R451 RD-4Z151J- R CARBON FILM 1/4 150 OHM J
R452 RD-4Z561J- R CARBON FILM 1/4 560 OHM J
R471 RD-4Z330J- R CARBON FILM 1/4 33 OHM J
R481 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J

Loc Part_Cd Part_Name Part_Desc REMARK

R485 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
R806 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
R811 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J
R812 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
R817 RD-4Z202J- R CARBON FILM 1/4 2K OHM J
R820 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
R821 RD-4Z473J- R CARBON FILM 1/4 47K OHM J
R822 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
R823 RD-4Z563J- R CARBON FILM 1/4 56K OHM J
R827 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R828 RD-4Z432J- R CARBON FILM 1/4 4.3K OHM J
R829 RD-4Z223J- R CARBON FILM 1/4 22K OHM J
R830 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
R831 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K
R834 RD-4Z102J- R CARBON FILM 1/4 1K OHM J
R835 RD-4Z432J- R CARBON FILM 1/4 4.3K OHM J
R836 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R838 RD-4Z623J- R CARBON FILM 1/4 62K OHM J
R839 RD-4Z223J- R CARBON FILM 1/4 22K OHM J
R840 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J
R842 RN-4Z2701F R METAL FILM 1/4 2.70K OHM F
R843 RN-4Z6202F R METAL FILM 1/4 62.0K OHM F
R846 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
R853 RD-4Z204J- R CARBON FILM 1/4 200K OHM J
R859 RD-2Z159J- R CARBON FILM 1/2 1.5 OHM J
R860 RD-2Z129J- R CARBON FILM 1/2 1.2 OHM J
R871 RD-2Z820J- R CARBON FILM 1/2 82 OHM J
R890 RD-4Z153J- R CARBON FILM 1/4 15K OHM J
R891 RD-2Z562J- R CARBON FILM 1/2 5.6K OHM J
R892 RD-2Z103J- R CARBON FILM 1/2 10K OHM J
R893 RD-2Z473J- R CARBON FILM 1/2 47K OHM J
R894 RD-2Z153J- R CARBON FILM 1/2 15K OHM J
RF403 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RF404 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RF405 RD-AZ911J- R CARBON FILM 1/6 910 OHM J
RF406 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
RF407 RD-4Z111J- R CARBON FILM 1/4 110 OHM J
RF408 RD-AZ163J- R CARBON FILM 1/6 16K OHM J
RF409 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RF410 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
RF411 RD-AZ361J- R CARBON FILM 1/6 360 OHM J
RF412 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RF413 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RF414 RD-4Z104J- R CARBON FILM 1/4 100K OHM J
RF415 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
RF416 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RF417 RD-4Z123J- R CARBON FILM 1/4 12K OHM J
RF418 RD-4Z242J- R CARBON FILM 1/4 2.4K OHM J
RF419 RD-4Z561J- R CARBON FILM 1/4 560 OHM J
RF421 RD-4Z182J- R CARBON FILM 1/4 1.8K OHM J
ZZ500 PTPMMSD167 PCB PIP MANUAL AS DTC-29Z9WPT
10 2193100710 SOLDER POWER BAR S62S-PB37-SB1
20 2193011101 SOLDER WIRE RS 60-1.2 1.6A
30 2291050615 FLUX SOLDER DF-2012U

- 38 -

Loc Part_Cd Part_Name Part_Desc REMARK

40 2291050301 FLUX SOLVENT IM-1000
50 2291140501 WAX COVER
B001 4853946000 BRKT JUMPER A SECC T1.0 (VCR-63DB)
B002 4853946000 BRKT JUMPER A SECC T1.0 (VCR-63DB)
CP143 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
IP03 1TDA8310-- IC PIP TDA8310
IP04 1TDA4665V4 IC DELAY TDA4665/V4
IP05 1TDA8395-- IC TDA8395
LP13 58C5580019 COIL CHOKE TRF-9225 (0.55UH)
M681 4856818400 CLAMP SUPPORT NYLON 66
M721 4857233500 SHIELD COVER SPTE-C T0.5 1ZF
M722 4857232700 SHIELD COVER SPTE-C T0.3
M723 4857233900 SHIELD PLATE SPTE-C T0.3 1ZF
PP01 4859279820 CONN WAFER TAC-L18P-A1 (ANGLE)
PP02 4859279820 CONN WAFER TAC-L18P-A1 (ANGLE)
RP01 RV5221103- R SEMI FIXED EVN D2A A03 10K OHM B
SFP1 5PK6266K-- FILTER SAW K6266K
ZP01 5PYXT4R5MB FILTER CERA XT 4.5MB
ZP02 5PYXT5R5MB FILTER CERA XT 5.5MB
ZP03 5PYXT6R0MB FILTER CERA XT 6.0MB
ZP04 5PYXT6R5MB FILTER CERA XT 6.5MB
ZZ200 PTPMJ1D167 PCB PIP CHIP A AS DTC-29Z9WPT
A001 4859807424 PCB PIP 123X150(246X197/2)H2V
IP01 1SAB9077HQ IC CHIP PIP SAB9077H
IP02 1BA7655AFP IC CHIP CONTROLLER BA7655AF
IP06 1BA7655AFP IC CHIP CONTROLLER BA7655AF
IP07 1M5482627Q IC CHIP MEMORY MSM548262-70JS
IP08 1KA393D--C IC CHIP LOGIC KA393/D
IP09 1KA393D--C IC CHIP LOGIC KA393/D
RP04 HRTS4E101J R CHIP ARRAY 1/16W 4P 100 OHM J 3216
RP05 HRTS4E101J R CHIP ARRAY 1/16W 4P 100 OHM J 3216
RP06 HRTS4E101J R CHIP ARRAY 1/16W 4P 100 OHM J 3216
RP07 HRTS4E101J R CHIP ARRAY 1/16W 4P 100 OHM J 3216
RP08 HRTS4E101J R CHIP ARRAY 1/16W 4P 100 OHM J 3216
RP09 HRTS4E101J R CHIP ARRAY 1/16W 4P 100 OHM J 3216
RP10 HRTS4E101J R CHIP ARRAY 1/16W 4P 100 OHM J 3216
ZZ200 PTPMJ2D167 PCB PIP CHIP B AS DTC-29Z9WPT
CCP01 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP02 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP03 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP04 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP05 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP06 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP07 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP08 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP09 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP10 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP11 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP12 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP13 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP14 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP15 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP16 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP17 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012

Loc Part_Cd Part_Name Part_Desc REMARK

CCP18 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP19 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP20 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP21 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP22 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP23 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP24 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP25 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP26 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP27 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP28 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP29 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP30 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP31 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP32 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP33 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP34 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP35 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP36 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP37 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP38 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
CCP39 HCQK130JCA C CHIP CERA 50V CH 13PF J 2012
CCP40 HCQK130JCA C CHIP CERA 50V CH 13PF J 2012
CCP41 HCBK472KCA C CHIP CERA 50V X7R 4700PF K 2012
CCP42 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP43 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP44 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP45 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCP46 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCP47 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCP48 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012
CCP49 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP51 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP52 HRFT000-CA R CHIP 1/10 0 OHM 2012
CCP53 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP54 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP56 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP57 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP58 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP59 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CCP60 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CCP61 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP62 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP63 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP64 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP65 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP66 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP67 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP68 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP69 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP70 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP71 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP72 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP73 HCBK223KCA C CHIP CERA 50V X7R 0.022MF K 2012

- 39 -

Loc Part_Cd Part_Name Part_Desc REMARK

CCP74 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP75 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP76 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012
CCP77 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP78 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP79 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP80 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP81 HCFK105ZCA C CHIP CERA 50V Y5V 1MF Z 2012
CCP82 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
CCP83 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
CCP84 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
CCP85 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
CCP86 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
CCP87 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
CCP88 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP89 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP90 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP91 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP92 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP93 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CCP94 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012
CCP95 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP96 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP97 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP98 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCP99 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA1 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA2 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA3 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA4 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA5 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA6 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA7 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCPA8 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
QCP01 T2SA1037KB TR CHIP 2SA1037AKT146-R
QCP02 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP03 T2SA1037KB TR CHIP 2SA1037AKT146-R
QCP04 T2SA1037KB TR CHIP 2SA1037AKT146-R
QCP05 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP06 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP07 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP08 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP09 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP10 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP11 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP12 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP13 T2SC27592B TR CHIP 2SC2759-T2B
QCP14 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP15 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP16 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP17 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP18 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP19 T2SA1037KB TR CHIP 2SA1037AKT146-R
QCP20 T2SA1037KB TR CHIP 2SA1037AKT146-R

Loc Part_Cd Part_Name Part_Desc REMARK

QCP21 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP22 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP23 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP24 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP25 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP26 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCP27 T2SC2412KB TR CHIP 2SC2412K-T146-BR
RCP01 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCP02 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCP04 HRFT202JCA R CHIP 1/10 2K OHM J 2012
RCP05 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCP06 HRFT202JCA R CHIP 1/10 2K OHM J 2012
RCP07 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCP08 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCP09 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP10 HRFT104JCA R CHIP 1/10 100K OHM J 2012
RCP11 HRFT822JCA R CHIP 1/10 8.2K OHM J 2012
RCP12 HRFT822JCA R CHIP 1/10 8.2K OHM J 2012
RCP13 HRFT123JCA R CHIP 1/10 12K OHM J 2012
RCP14 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
RCP15 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP16 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCP17 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCP18 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP19 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP20 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP21 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP22 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP23 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCP24 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCP25 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RCP27 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCP28 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCP29 HRFT511JCA R CHIP 1/10 510 OHM J 2012
RCP30 HRFT561JCA R CHIP 1/10 560 OHM J 2012
RCP31 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP32 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP33 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP34 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP35 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP36 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP37 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP38 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP39 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP40 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP41 HRFT151JCA R CHIP 1/10 150 OHM J 2012
RCP45 HRFT202JCA R CHIP 1/10 2K OHM J 2012
RCP46 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP47 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RCP48 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RCP49 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RCP50 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RCP51 HRFT392JCA R CHIP 1/10 3.9K OHM J 2012
RCP52 HRFT123JCA R CHIP 1/10 12K OHM J 2012

- 40 -

Loc Part_Cd Part_Name Part_Desc REMARK

RCP53 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
RCP54 HRFT333JCA R CHIP 1/10 33K OHM J 2012
RCP55 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP56 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP57 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP58 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP59 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RCP60 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCP61 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCP62 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP63 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCP64 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP65 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012
RCP66 HRFT512JCA R CHIP 1/10 5.1K OHM J 2012
RCP67 HRFT151JCA R CHIP 1/10 150 OHM J 2012
RCP68 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCP69 HRFT151JCA R CHIP 1/10 150 OHM J 2012
RCP70 HRFT151JCA R CHIP 1/10 150 OHM J 2012
RCP71 HRFT151JCA R CHIP 1/10 150 OHM J 2012
RCP72 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCP77 HRFT512JCA R CHIP 1/10 5.1K OHM J 2012
RCP81 HRFT202JCA R CHIP 1/10 2K OHM J 2012
RCP84 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP89 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP93 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP97 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCP98 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCP99 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCPA3 HRFT302JCA R CHIP 1/10 3K OHM J 2012
RCPA4 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCPA5 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCPA6 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPA8 HRFT000-CA R CHIP 1/10 0 OHM 2012
RCPB1 HRFT332JCA R CHIP 1/10 3.3K OHM J 2012
RCPB2 HRFT821JCA R CHIP 1/10 820 OHM J 2012
RCPB3 HRFT821JCA R CHIP 1/10 820 OHM J 2012
RCPB4 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
RCPB5 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPB6 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPB7 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPB8 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPB9 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCPC0 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPC1 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPC2 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPC3 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
RCPC4 HRFT106JCA R CHIP 1/10 10M OHM J 2012
RCPC6 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPC7 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPC8 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPC9 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPD0 HRFT106JCA R CHIP 1/10 10M OHM J 2012
RCPD2 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPD3 HRFT100JCA R CHIP 1/10 10 OHM J 2012

Loc Part_Cd Part_Name Part_Desc REMARK

RCPD4 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPD5 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPD6 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPD7 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPD8 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPD9 HRFT100JCA R CHIP 1/10 10 OHM J 2012
RCPE0 HRFT682JCA R CHIP 1/10 6.8K OHM J 2012
RCPE1 HRFT203JCA R CHIP 1/10 20K OHM J 2012
RCPE2 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCPE3 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
RCPE4 HRFT182JCA R CHIP 1/10 1.8K OHM J 2012
RCPE5 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPE6 HRFT361JCA R CHIP 1/10 360 OHM J 2012
RCPE7 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RCPE8 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCPE9 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPF0 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCPF1 HRFT241JCA R CHIP 1/10 240 OHM J 2012
RCPF5 HRFT000-CA R CHIP 1/10 0 OHM 2012
RCPF6 HRFT000-CA R CHIP 1/10 0 OHM 2012
RCPF7 HRFT000-CA R CHIP 1/10 0 OHM 2012
RCPF8 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPF9 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPG0 HRFT202JCA R CHIP 1/10 2K OHM J 2012
RCPG1 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCPG2 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPG3 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCPG4 HRFT202JCA R CHIP 1/10 2K OHM J 2012
RCPG5 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCPG6 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPG7 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCPG8 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCPK1 HRFT910JCA R CHIP 1/10 91 OHM J 2012
RCPK2 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
RCPK3 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RCPK4 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
RCPK5 HRFT221JCA R CHIP 1/10 220 OHM J 2012
RCPK6 HRFT563JCA R CHIP 1/10 56K OHM J 2012
RCPK7 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
RCPK8 HRFT270JCA R CHIP 1/10 27 OHM J 2012
RCPK9 HRFT391JCA R CHIP 1/10 390 OHM J 2012
RCPN1 HRFT562JCA R CHIP 1/10 5.6K OHM J 2012
RCPN2 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPN3 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RCPN4 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPN5 HRFT681JCA R CHIP 1/10 680 OHM J 2012
RCPN6 HRFT101JCA R CHIP 1/10 100 OHM J 2012
RCPN7 HRFT102JCA R CHIP 1/10 1K OHM J 2012
ZZ200 PTPMJRD167 PCB PIP RADIAL AS DTC-29Z9WPT
CP120 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP121 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP122 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP123 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP124 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

- 41 -

Loc Part_Cd Part_Name Part_Desc REMARK

CP125 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP126 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP128 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CP129 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CP130 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CP131 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CP133 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP134 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CP135 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CP136 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CP138 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP139 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CP140 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CP141 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CP142 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CP144 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CP145 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CP146 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CP150 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
CP152 CMXM2A223J C MYLAR 100V 0.022MF J TP
CP153 CMXM2A224J C MYLAR 100V 0.22MF J
CP154 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
CP155 CMXM2A223J C MYLAR 100V 0.022MF J TP
RP11 RV5426103P R SEMI FIXED ENV-DJAA03B14 10K OHM B
RP12 RV5426103P R SEMI FIXED ENV-DJAA03B14 10K OHM B
RP13 RV5426103P R SEMI FIXED ENV-DJAA03B14 10K OHM B
RP14 RV5426501P R SEMI FIXED EVN-DJAA03 500 OHM
XP01 5XEX3R579C CRYSTAL QUARTZ HC-49U 3.579545M (TP)
XP02 5XEX4R436C CRYSTAL QUARTZ HC-49U 4.433619M 20PP TA
ZP06 5PD91F223Z FILTER EMI DSS306-91F223Z16 (TP)
ZP12 5PD91F223Z FILTER EMI DSS306-91F223Z16 (TP)
ZZ200 PTPMJAD167 PCB PIP AXIAL AS DTC-29Z9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
DP02 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
DP03 D1N4148--- DIODE 1N4148 (TAPPING)
DP04 D1N4148--- DIODE 1N4148 (TAPPING)
DP06 DUZ6R8BL-- DIODE ZENER UZ-6.8BL
DP07 D1N4148--- DIODE 1N4148 (TAPPING)
DP08 D1N4148--- DIODE 1N4148 (TAPPING)
DP09 D1N4148--- DIODE 1N4148 (TAPPING)
DP10 D1N4148--- DIODE 1N4148 (TAPPING)
DP11 D1SS85TA-- DIODE 1SS85TA
DP12 D1N4148--- DIODE 1N4148 (TAPPING)
DP13 D1N4148--- DIODE 1N4148 (TAPPING)
DP14 D1N4148--- DIODE 1N4148 (TAPPING)
DP15 D1N4148--- DIODE 1N4148 (TAPPING)
DP16 D1N4148--- DIODE 1N4148 (TAPPING)
LP01 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP02 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP03 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP04 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP05 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)

Loc Part_Cd Part_Name Part_Desc REMARK

LP06 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP07 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP08 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP09 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP10 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
LP11 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
LP12 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
LP14 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP15 5CPZ229M02 COIL PEAKING 2.2UH M (AXIAL 3.5MM)
LP17 5CPZ470K02 COIL PEAKING 47UH K (AXIAL 3.5MM)
LP18 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
LP19 5CPZ829K02 COIL PEAKING 8.2UH K (AXIAL 3.5MM)
LP20 5MC0000100 COIL BEAD HC-3550
ZZ600 PTSBSWD167 PCB SUB AS DTC-29Z9WPT
IS603 1TDA9820-- IC AUDIO TDA9820
IS605 1TDA4445B- IC TDA4445B
LS105 58M38R9006 COIL DET TRF-1490
PS601 4859253720 CONN WAFER YFAW025-510
PS602 4859253120 CONN WAFER YFAW025-504
SFS5 5PK9252M-- FILTER SAW K9252M
ZZ200 PTSBJRD167 PCB SUB RADIAL AS DTC-29Z9WPT
CS125 CMXM2A223J C MYLAR 100V 0.022MF J TP
CS149 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CS150 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CS151 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CS152 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CS153 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CS155 CXCH1H680J C CERA 50V CH 68PF J (TAPPING)
CS156 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CS157 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CS193 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
QS131 TKTC3198Y- TR KTC3198Y
QS134 TKTC3198Y- TR KTC3198Y
QS135 TKTC3198Y- TR KTC3198Y
QS136 TKTC3198Y- TR KTC3198Y
ZS101 5PXLT5R5MH FILTER CERA LT 5.5MH
ZS102 5PXLT6R5MH FILTER CERA LT 6.5MH
ZS104 5PXLT4R5MH FILTER CERA LT 4.5MH
ZS105 5PXLT6R0MH FILTER CERA LT 6.0MH
ZZ200 PTSBJAD167 PCB SUB AXIAL AS DTC-29Z9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859808324 PCB SUB SOUND 75X72(246X246/9)D1B
CS147 CCZF1H103Z C CERA 50V F 0.01MF Z
CS148 CCZF1H103Z C CERA 50V F 0.01MF Z
CS154 CCZF1H103Z C CERA 50V F 0.01MF Z
CS158 CZSL1H470J C CERA 50V SL 47PF J (AXIAL)
CS159 CZSL1H470J C CERA 50V SL 47PF J (AXIAL)
CS160 CCZF1H103Z C CERA 50V F 0.01MF Z
CS191 CCZF1H103Z C CERA 50V F 0.01MF Z
CS192 CCZF1H103Z C CERA 50V F 0.01MF Z
JS01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JS02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

- 42 -

Loc Part_Cd Part_Name Part_Desc REMARK

JS03 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JS04 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
LS134 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM)
RS121 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RS122 RD-AZ112J- R CARBON FILM 1/6 1.1K OHM J
RS123 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
RS126 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RS127 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RS128 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RS129 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RS130 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
RS131 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
RS132 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
RS133 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RS134 RD-AZ820J- R CARBON FILM 1/6 82 OHM J
RS135 RD-AZ621J- R CARBON FILM 1/6 620 OHM J
RS136 RD-AZ621J- R CARBON FILM 1/6 620 OHM J
RS137 RD-AZ621J- R CARBON FILM 1/6 620 OHM J
RS138 RD-AZ621J- R CARBON FILM 1/6 620 OHM J
RS141 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
RS142 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
RS172 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
RS173 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
RS174 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
RS195 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RS196 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
ZZ700 PTU1MSD167 PCB UNION1 MANUAL AS DTC-29Z9WPT
CA27 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
CA38 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
CA83 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
CW01 CEYF1H222V C ELECTRO 50V RSS 2200MF (18X35.5)
CW07 CEYF1H222V C ELECTRO 50V RSS 2200MF (18X35.5)
CW08 CMXM2A224J C MYLAR 100V 0.22MF J
CW10 CMXM2A224J C MYLAR 100V 0.22MF J
I201 1TC9090AN- IC Y/C TC9090AN
I270 1AN78N05-- IC REGULATOR AN78N05
IA01 1TA8851CN- IC SWITCHING TA8851CN
IW01 PTB2SW3332 HEAT SINK ASS‘Y 1TDA2616-- + 7128301011
IW01 1TDA2616-- IC TDA2616
IW01A 4857023332 HEAT SINK AL EX
IW01B 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
JP01 4859106950 JACK PIN BOARD PH-JB-9511
JP04 4859106440 JACK S-VHS PH-SJ-9503
M381 4853816900 FRAME SUB PCB FR HIPS BK
M381A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
P606 4859231620 CONN WAFER YW025-03
PA06 4859235220 CONN WAFER YW025-09
PA07 4859231920 CONN WAFER YW025-06
PA08 4859231820 CONN WAFER YW025-05
PA12 4859231910 CONN HOUSING BH254-10
PA22 4859232210 CONN HOUSING BH254-13
PA32 4859231910 CONN HOUSING BH254-10
PA605 4850707S10 CONNECTOR YH025-07+YST025+ULW=100
RA56 RS01Y109J- R M-OXIDE FILM 1W 1 OHM J

Loc Part_Cd Part_Name Part_Desc REMARK

ZA01 5PYXT4R5MB FILTER CERA XT 4.5MB
ZA02 5PYXT6R5MB FILTER CERA XT 6.5MB
ZA03 5PYXT6R0MB FILTER CERA XT 6.0MB
ZA04 5PYXT5R5MB FILTER CERA XT 5.5MB
ZZ200 PTU1JRD167 PCB UNION1 RADIAL AS DTC-29Z9WPT
C251 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C253 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C255 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C256 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C257 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C258 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C259 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C260 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C263 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C264 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C270 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CA01 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA02 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA03 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA04 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA07 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA08 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA12 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA15 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA25 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA28 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CA29 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA32 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA34 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA37 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CA39 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CA40 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA41 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA51 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA52 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA56 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA57 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA58 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA62 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA63 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA73 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CA75 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA77 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CA80 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA82 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CA84 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CA85 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CA86 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CW02 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CW03 CMXM2A223J C MYLAR 100V 0.022MF J TP
CW04 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
CW06 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CW09 CMXM2A823J C MYLAR 100V 0.082MF J (TP)
Q201 TKTC3198Y- TR KTC3198Y

- 43 -

Loc Part_Cd Part_Name Part_Desc REMARK

Q204 TKTC3198Y- TR KTC3198Y
Q205 TKTC3198Y- TR KTC3198Y
Q207 TKTC3198Y- TR KTC3198Y
Q208 TKTA1266Y- TR KTA1266Y (TP)
Q209 TKTC3198Y- TR KTC3198Y
Q210 TKTC3198Y- TR KTC3198Y
Q211 TKTC3198Y- TR KTC3198Y
Q212 TKTA1266Y- TR KTA1266Y (TP)
Q213 TKTC3198Y- TR KTC3198Y
Q216 TKTC3198Y- TR KTC3198Y
QA09 TKTA1266Y- TR KTA1266Y (TP)
QA10 TKTC3198Y- TR KTC3198Y
QA11 TKTC3198Y- TR KTC3198Y
QA13 TKTC3198Y- TR KTC3198Y
QA14 TKTC3198Y- TR KTC3198Y
QA15 TKTA1266Y- TR KTA1266Y (TP)
QA16 TKTC3198Y- TR KTC3198Y
QA17 TKTC3198Y- TR KTC3198Y
QA81 TKTA1266Y- TR KTA1266Y (TP)
QA82 TKTC3198Y- TR KTC3198Y
QA83 TKTC3198Y- TR KTC3198Y
R259 RV5426202P R SEMI FIXED EVN-DJAA03B 2K OHM
ZZ200 PTU1JAD167 PCB UNION1 AXIAL AS DTC-29Z9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859804960 PCB UNION 1 200X199(246X246/2)D1B
C201 CCZF1H103Z C CERA 50V F 0.01MF Z
C202 CCZF1H103Z C CERA 50V F 0.01MF Z
C203 CCZF1H103Z C CERA 50V F 0.01MF Z
C204 CCZF1H103Z C CERA 50V F 0.01MF Z
C206 CZSL1H220J C CERA 50V SL 22PF J (AXIAL)
C207 CZSL1H100J C CERA 50V SL 10PF J (AXIAL)
C209 CCZF1H103Z C CERA 50V F 0.01MF Z
C210 CCZB1H181K C CERA 50V B 180PF K (AXIAL)
C211 CCZF1H103Z C CERA 50V F 0.01MF Z
C212 CCZB1H121K C CERA 50V B 120PF K (AXIAL)
C213 CCZF1H103Z C CERA 50V F 0.01MF Z
C214 CCZF1H103Z C CERA 50V F 0.01MF Z
C216 CZSL1H560J C CERA 50V SL 56PF J (AXIAL)
C218 CCZF1H103Z C CERA 50V F 0.01MF Z
C219 CCZF1H103Z C CERA 50V F 0.01MF Z
C220 CCZF1H103Z C CERA 50V F 0.01MF Z
C221 CCZF1H103Z C CERA 50V F 0.01MF Z
C222 CCZF1H103Z C CERA 50V F 0.01MF Z
C223 CCZF1H103Z C CERA 50V F 0.01MF Z
C224 CZSL1H560J C CERA 50V SL 56PF J (AXIAL)
C225 CZSL1H330J C CERA 50V SL 33PF J (AXIAL)
C226 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C227 CCZF1H103Z C CERA 50V F 0.01MF Z
C228 CZCH1H220J C CERA 50V CH 22PF J (AXIAL)
C229 CZSL1H560J C CERA 50V SL 56PF J (AXIAL)
C230 CZCH1H220J C CERA 50V CH 22PF J (AXIAL)
C233 CCZF1H103Z C CERA 50V F 0.01MF Z
CA05 CCZB1H391K C CERA 50V B 390PF K (AXIAL)

Loc Part_Cd Part_Name Part_Desc REMARK

CA06 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CA09 CCZF1H103Z C CERA 50V F 0.01MF Z
CA10 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
CA11 CCZF1H103Z C CERA 50V F 0.01MF Z
CA13 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
CA14 CCZF1H103Z C CERA 50V F 0.01MF Z
CA22 CCZF1H103Z C CERA 50V F 0.01MF Z
CA33 CCZF1H103Z C CERA 50V F 0.01MF Z
CA46 CCZF1H103Z C CERA 50V F 0.01MF Z
CA48 CCZF1H103Z C CERA 50V F 0.01MF Z
CA49 CCZF1H103Z C CERA 50V F 0.01MF Z
CA50 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
CA54 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
CA55 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
CA59 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
CA60 CCZB1H391K C CERA 50V B 390PF K (AXIAL)
CA78 CCZF1H103Z C CERA 50V F 0.01MF Z
CA79 CCZF1H103Z C CERA 50V F 0.01MF Z
CA81 CCZF1H103Z C CERA 50V F 0.01MF Z
DA01 DUZ10BM--- DIODE ZENER UZ-10BM
DA02 DUZ10BM--- DIODE ZENER UZ-10BM
DA03 DUZ10BM--- DIODE ZENER UZ-10BM
DA04 DUZ10BM--- DIODE ZENER UZ-10BM
DA07 DUZ10BM--- DIODE ZENER UZ-10BM
DA08 DUZ10BM--- DIODE ZENER UZ-10BM
DA09 DUZ10BM--- DIODE ZENER UZ-10BM
DA17 DUZ10BM--- DIODE ZENER UZ-10BM
DA21 D1N4148--- DIODE 1N4148 (TAPPING)
DA22 D1N4148--- DIODE 1N4148 (TAPPING)
DA23 D1N4148--- DIODE 1N4148 (TAPPING)
DA24 D1N4148--- DIODE 1N4148 (TAPPING)
DA25 DUZ10BM--- DIODE ZENER UZ-10BM
DA26 DUZ10BM--- DIODE ZENER UZ-10BM
DA38 DUZ10BM--- DIODE ZENER UZ-10BM
DA39 DUZ10BM--- DIODE ZENER UZ-10BM
DA40 DUZ10BM--- DIODE ZENER UZ-10BM
DA41 DUZ5R1B--- DIODE ZENER UZ-5.1B
DA47 DUZ10BM--- DIODE ZENER UZ-10BM
DA48 DUZ10BM--- DIODE ZENER UZ-10BM
DA49 DUZ10BM--- DIODE ZENER UZ-10BM
JA01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA03 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA04 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA05 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA06 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA07 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA08 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA09 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA10 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA11 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA12 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA13 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA14 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

- 44 -

Loc Part_Cd Part_Name Part_Desc REMARK

JA15 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA16 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA17 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA18 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA19 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA20 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA21 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA22 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA23 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA24 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA25 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA26 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA27 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA28 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA29 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA30 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA31 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA32 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA33 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA34 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA35 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA36 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA37 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA38 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA39 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA40 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA41 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA42 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA43 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA44 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA45 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA46 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA47 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA49 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA50 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA51 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JA53 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JW01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JW02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
JW03 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
L201 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
L203 5CPZ270K02 COIL PEAKING 27UH K (AXIAL 3.5MM)
L204 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
L205 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
L206 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
L207 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
L208 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
L209 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
L210 5CPZ330K02 COIL PEAKING 33UH K (AXIAL 3.5MM)
L211 5CPZ560K02 COIL PEAKING 56UH K (AXIAL 3.5MM)
L212 5CPZ470K02 COIL PEAKING 47UH K (AXIAL 3.5MM)
L213 5CPZ470K02 COIL PEAKING 47UH K (AXIAL 3.5MM)
L214 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM)
LA02 5CPZ120K02 COIL PEAKING 12UH K (AXIAL 3.5MM)

Loc Part_Cd Part_Name Part_Desc REMARK

LA05 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM)
LA06 5CPZ829K02 COIL PEAKING 8.2UH K (AXIAL 3.5MM)
R201 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R202 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R203 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R204 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R209 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R211 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R212 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
R213 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R214 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R215 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
R216 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R217 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R220 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R221 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J
R222 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
R223 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R224 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R225 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R226 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R227 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R228 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R229 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R230 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R231 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
R232 RD-AZ431J- R CARBON FILM 1/6 430 OHM J
R233 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R234 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R235 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R236 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R237 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R238 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R239 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R240 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R241 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
R257 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R260 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R261 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R272 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
R273 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA01 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA02 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA03 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA04 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA05 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA06 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA07 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA08 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA09 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA10 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA100 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
RA101 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
RA102 RD-AZ104J- R CARBON FILM 1/6 100K OHM J

- 45 -

Loc Part_Cd Part_Name Part_Desc REMARK

RA103 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA104 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA11 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA12 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA13 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
RA14 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA15 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA16 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA17 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA18 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA19 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA20 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA21 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA22 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA23 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
RA24 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RA25 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RA26 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA27 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA28 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA29 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA30 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
RA31 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
RA32 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA33 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
RA34 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA35 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA36 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RA37 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
RA38 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA39 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA40 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA41 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA42 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA43 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA44 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA45 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
RA46 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA47 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA48 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA49 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA50 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA51 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RA52 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA53 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA54 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA55 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA57 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA58 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
RA59 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
RA60 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA61 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RA62 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
RA63 RD-AZ680J- R CARBON FILM 1/6 68 OHM J

Loc Part_Cd Part_Name Part_Desc REMARK

RA64 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
RA65 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
RA66 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
RA67 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA68 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA69 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
RA70 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
RA71 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
RA72 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA73 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA74 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
RA75 RD-AZ181J- R CARBON FILM 1/6 180 OHM J
RA76 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
RA77 RD-AZ151J- R CARBON FILM 1/6 150 OHM J
RA78 RD-AZ242J- R CARBON FILM 1/6 2.4K OHM J
RA79 RD-AZ242J- R CARBON FILM 1/6 2.4K OHM J
RA80 RD-AZ361J- R CARBON FILM 1/6 360 OHM J
RA81 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RA82 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
RA83 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
RA84 RD-AZ201J- R CARBON FILM 1/6 200 OHM J
RA85 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA86 RD-AZ680J- R CARBON FILM 1/6 68 OHM J
RA87 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RA88 RD-AZ201J- R CARBON FILM 1/6 200 OHM J
RA89 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA90 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
RA91 RD-AZ201J- R CARBON FILM 1/6 200 OHM J
RA92 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA93 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
RA94 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
RA95 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA96 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA97 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RA98 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RA99 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RW01 RD-4Z829J- R CARBON FILM 1/4 8.2 OHM J
RW03 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
RW04 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
ZZ800 PTTLMSD167 PCB TELETEXT MANUAL DTC-29Z9WPT
IT01 1SAA5281PR IC TEXT SAA5281P/R
WT01 4859231610 CONN HOUSING BH254-07
WT02 4859231910 CONN HOUSING BH254-10
XT01 5XE27R000E CRYSTAL QUARTZ HC-49/U 27.0MHZ 30PPM
ZZ200 PTTLJRD167 PCB TELETEXT RADIAL DTC-29Z9WPT
CT02 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CT06 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
CT07 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
CT08 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
CT09 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CT10 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
QT01 TKTC3198Y- TR KTC3198Y
QT02 TKTA1266Y- TR KTA1266Y (TP)
QT03 TKTA1266Y- TR KTA1266Y (TP)

- 46 -

Loc Part_Cd Part_Name Part_Desc REMARK

QT04 TKTC3198Y- TR KTC3198Y
ZZ200 PTTLJAD167 PCB TELETEXT AXIAL A DTC-29Z9WPT
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859804918 PCB TELETEXT 67X75(246X246/9)D1B
CT01 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
CT03 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CT04 CZCH1H150J C CERA 50V CH 15PF J (AXIAL)
CT05 CZSL1H560J C CERA 50V SL 56PF J (AXIAL)
CT12 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
DT01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
DT02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
DT03 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
DT04 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
LT01 5CPZ109M02 COIL PEAKING 1UH M (AXIAL 3.5MM)
LT02 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
RT01 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
RT02 RD-AZ431J- R CARBON FILM 1/6 430 OHM J
RT03 RD-AZ431J- R CARBON FILM 1/6 430 OHM J
RT04 RD-AZ431J- R CARBON FILM 1/6 430 OHM J
RT05 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RT06 RD-AZ221J- R CARBON FILM 1/6 220 OHM J

Loc Part_Cd Part_Name Part_Desc REMARK

RT07 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RT08 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
RT09 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RT10 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RT11 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
RT12 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
RT13 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RT14 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
RT15 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RT16 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
RT17 RD-4Z332J- R CARBON FILM 1/4 3.3K OHM J
RT18 RD-AZ131J- R CARBON FILM 1/6 130 OHM J
RT19 RD-AZ131J- R CARBON FILM 1/6 130 OHM J
RT20 RD-AZ131J- R CARBON FILM 1/6 130 OHM J
RT38 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
ZZ900 PTSEMSD167 PCB SCART AS DTC-29Z9WPT
A001 4859807224 PCB SCART 123X49(246X197/8)D1B
JV01 4859201501 SOCKET RGB SR-21S2 (STRAIGHT TYPE)
M361 4853630120 TERMINAL FR HIPS BK
M361C 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
PS01 4850709S03 CONNECTOR YH025-09+YST025+ULW=400
PS01A 4856812001 TIE CABLE NYLON66 DA100

- 47 -

Option Part List (Default : DTD-29U9WPT)

FP-68T30 DIFFERENT PART LIST

Changed Contents

D(delete) M191 4851938500 DECO WOOFER AS 29340+59333+7122401612 PTCACAD351

D SP01A 4856016100 SCREW SPECIAL SWRM PTCACAD351
D C111 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP PTMPJ0D351
D C130 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP PTMPJ0D351
D D133 D1N4148--- DIODE 1N4148 (TAPPING) PTMPJAD351
D J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
D J004 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
D J064 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
D J122 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
D R165 RD-AZ221J- R CARBON FILM 1/6 220 OHM J PTMPJAD351
D R166 RD-AZ221J- R CARBON FILM 1/6 220 OHM J PTMPJAD351
D R168 RD-AZ123J- R CARBON FILM 1/6 12K OHM J PTMPJAD351
D R169 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J PTMPJAD351
D C138 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP PTMPJRD351
D C142 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP PTMPJRD351
D D132 1UPC574J-- IC UPC574J PTMPJRD351
D U102 4859715930 TUNER VARACTOR ENV59D15G3 PTMPMSD351
D U102B 4859003750 PLUG PHONE AS PLUG+CABLE 1365AWG26=150B PTMPMSD351
D ZZ500 PTPMMSD167 PCB PIP MANUAL AS DTC-29Z9WPT PTMPMSD351
D ZZ600 PTSBSWD167 PCB SUB AS DTC-29Z9WPT PTMPMSD351
D ZZ900 PTSEMSD167 PCB SCART AS DTC-29Z9WPT PTMPMSD351
D R881 RS02Z912JS R M-OXIDE FILM 2W 9.1K OHM J SMALL PTPWJBD351
D R899 RN02B912JS R METAL FILM 2W 9.1K OHM J SMALL PTPWJRD351
D JW01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTU1JAD167
D JW02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTU1JAD167
D JW03 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTU1JAD167
D RW01 RD-4Z829J- R CARBON FILM 1/4 8.2 OHM J PTU1JAD167
D RW03 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J PTU1JAD167
D RW04 RD-AZ101J- R CARBON FILM 1/6 100 OHM J PTU1JAD167
D CW02 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP PTU1JRD167
D CW03 CMXM2A223J C MYLAR 100V 0.022MF J TP PTU1JRD167
D CW04 CMXM2A104J C MYLAR 100V 0.1MF J (TP) PTU1JRD167
D CW06 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP PTU1JRD167
D CW09 CMXM2A823J C MYLAR 100V 0.082MF J (TP) PTU1JRD167
D CW01 CEYF1H222V C ELECTRO 50V RSS 2200MF (18X35.5) PTU1MSD167
D CW07 CEYF1H222V C ELECTRO 50V RSS 2200MF (18X35.5) PTU1MSD167
D CW08 CMXM2A224J C MYLAR 100V 0.22MF J PTU1MSD167
D CW10 CMXM2A224J C MYLAR 100V 0.22MF J PTU1MSD167
D IW01 PTB2SW3332 HEAT SINK ASS‘Y 1TDA2616-- + 7128301011 PTU1MSD167
D P606 4859231620 CONN WAFER YW025-03 PTU1MSD167
D PA06 4859235220 CONN WAFER YW025-09 PTU1MSD167

A(add) J003 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351

A J005 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
A J183 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
A J184 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
A J189 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
A R721 RD-AZ101J- R CARBON FILM 1/6 100 OHM J PTMPJAD351

C(Change) M361 4853630120 TERMINAL FR HIPS BK PTSEMSD167

Loc Part_Cd Part_Name Part_Desc Assy_Cd

4853630110 PTSEMSD167

- 48 -

DTD-29U9WP DIFFERENT PARTSLIST

Changed Contents

D ZZ800 PTTLMSD167 PCB TELETEXT MANUAL DTC-29Z9WPT PTMPMSD351
D ZZ900 PTSEMSD167 PCB SCART AS DTC-29Z9WPT PTMPMSD351
D J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
D J232 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING PTMPJAD351
A J005 RD-AZ101J- R CARBON FILM 1/6 100 OHM J PTMPJAD351
A J015 RD-AZ101J- R CARBON FILM 1/6 100 OHM J PTMPJAD351
A C534 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z PTMPJAD351
A C535 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z PTMPJAD351
A C536 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z PTMPJAD351

C(Change) M361 4853630120 TERMINAL FR HIPS BK PTSEMSD167

Loc Part_Cd Part_Name Part_Desc Assy_Cd

4853630110 PTSEMSD167

- 49 -

Printed Circuit Boards

1. CM-916F MAIN PCB

- 50 -

2. CM-916F POWER PCB

- 51 -

3. CM-916F AV / WOOPER PCB

- 52 -

4. CM-916F PIP PCB

- 53 -

5. CM-916F ETC

CRT SUB SOUND

SCART

CONTROL TEXT

- 54 -

Circuit Schematics

1. CM-916F u-COM

- 55 -

2. CM-916F MAIN

- 56 -

3. CM-916F POWER

- 57 -

4. CM-915 AV / COMB

915av.sch-1 - Wed Sep 27 11:02:24 2000

- 58 -

5. CM-915 WOOFER SOUND / TUNER

915sound.sch-1 - Wed Sep 27 11:06:49 2000

- 59 -

6. CM-915 PIP

915pip.sch-1 - Wed Sep 27 11:03:24 2000

- 60 -

7. CM-916F CRT

- 61 -

8. CM-916F TEXT

- 61-1 -

9. CM-916F ETC

- 62 -

Wave Form

- 63 -

PAL - Color Bar

Exploded View(DTD-29U9/FP-68T30)

- 64 -

DTD-29U9WP(T)

- 65 -
