Daewoo DSB-F183L User Manual

MODEL #:

DSB-F183L

OWNER'S MANUAL

S1

S/N : 3113909900

1

This air conditioner meets strict safety and operating standards. The
installer of this unit must install or service this unit so it operates safe­ly and efficiently.

The lightning flash with arrowhead symbol, within
an equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock
to persons.

The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.

Contact Installer if Necessary:
The installation instructions are for a experienced installer. If you are
not an experienced installer, contact a local installer for help. If you
require help with service, contact your certified dealer or Daewoo
Electronics for additional instructions.

If Unit is Installed Improperly:
The manufacturer shall in no way be responsible for improper instal­lation or maintenance service, including failure to follow the instruc­tions in this manual.

Precautions When Wiring:

• Do not plug in the unit until all connections (tubing, drain hose,
mounting, etc.) have been made and double-checked.

• High voltages are present in this unit and are very dangerous.
Please refer to these instructions and diagrams when wiring.
Improper connections or inadequate grounding can cause acciden­tal injury.

• This unit must be grounded in accordance with local electrical
codes.

• Connect wires and pipes securely and tightly as loose connec­tions/wiring may cause overheating at connections and a possible
fire hazard.

Precautions When Transporting:

• When transporting the unit, be very careful and get help as the
units are very heavy. Be careful of sharp edges on the units also.

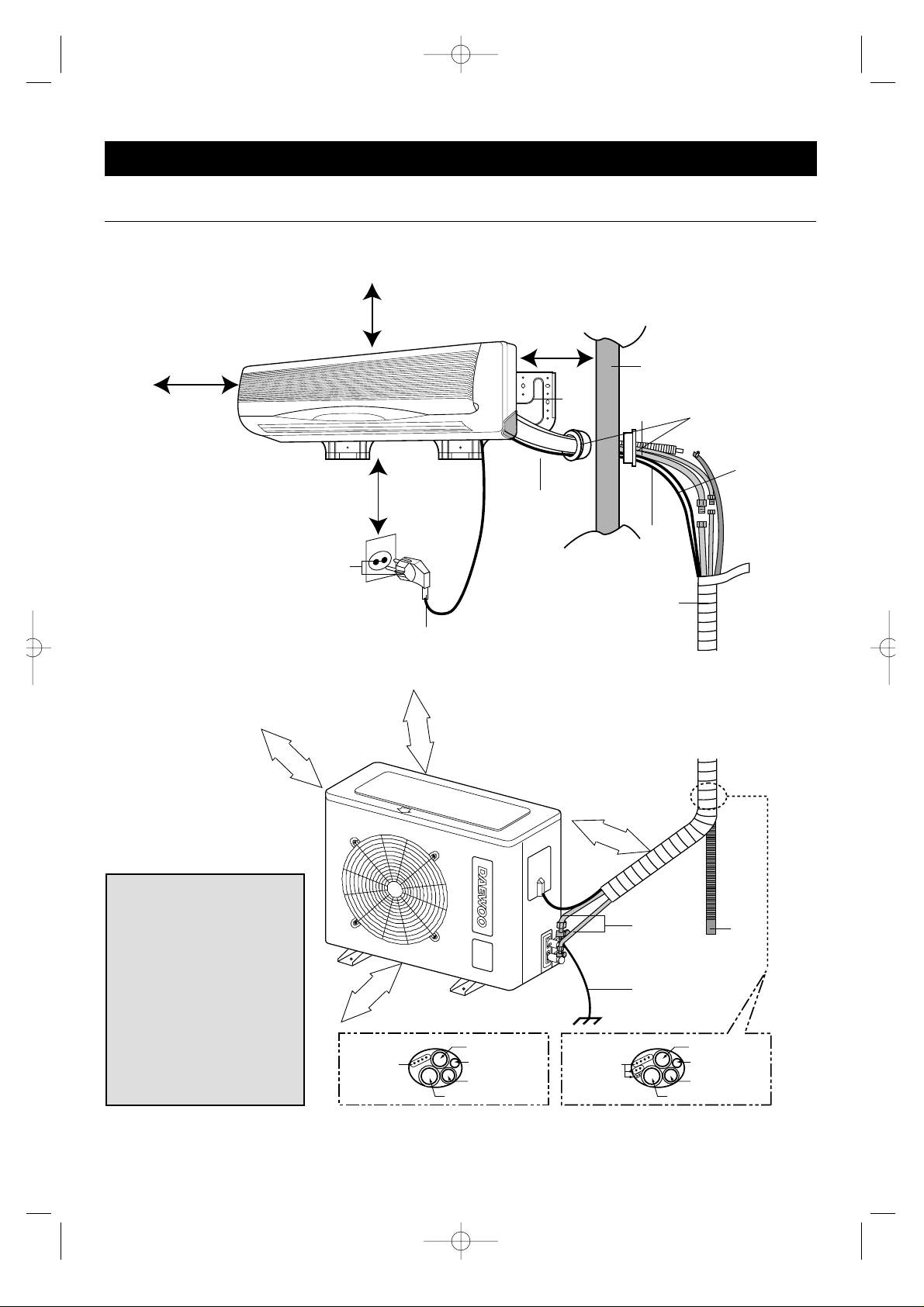

Precautions When Installing:

• When installing in a ceiling or wall, make sure the ceiling/wall is

strong enough to hold the unit’s weight. A frame may be necessary
for added support.

• When installing in a room, make sure the tubes are well insulat­ed to protect the walls and furniture from sweating of the tubes.

• When installing in moist or uneven locations, make sure to use
a raised level concrete pad or concrete blocks to provide a level,
solid foundation for the outdoor unit; this prevents water damage
and vibration.

• When installing in an area of high winds, make sure to securely
anchor the outdoor unit down with bolts and a metal frame.

When Connecting Refrigerant Tubing:

• Keep all tubing as short as possible.

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the flare and
union tubes before connecting them, then tighten , making sure not
to overtighten.

• Check the tubes carefully for leaks before starting the test run.

When Servicing:

• Make sure the power is off and the unit is unplugged before open­ing the unit to troubleshoot or repair electrical parts and wiring.

• Keep your fingers and clothing away from any moving parts.

• Clean up the sight after you finish, making sure no metal scraps
and wiring are left in the unit.

• The Air conditioner shall be installed in accordance with the

nationed wiring regulation.

• The equipment fulfills the requirements in EN 61 000-3-11 and is

subject to conditional connection to the mains.

• It may be connected in consultation with the supply authority.

• The equipment may only be connected to a mains supply with a

system impedance of less than 0.3 ohm.

• The system impedance in the interface point may be obtained
from the supply authority.

• If the mains supply has a higher system impedance, short voltage

dips may appear when the equipment is started or during opera­tion.

• This may influence or disturb the operation of other apparatuses, e.

g. flickering lamps, especially those connected to the same supply
mains.

SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE
INSTALLING AND OPERATING THE UNIT:

IMPORTANT NOTES

• Adhere to all safety instructions and warnings throughout this
manual.

• Read this manual carefully before installing or operating this
unit to become familiar with its features and obtain the perfor­mance that will bring you continued enjoyment for many
years.

• Follow each installation or repair step exactly as shown in the
manual.

• Observe all local, state and national electric codes. Contact
your local government for more information on electrical
codes.

WARNING:

• ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL
INJURY OR DEATH. ONLY A QUALIFIED, EXPERIENCED
ELECTRICIAN/INSTALLER SHOULD ATTEMPT TO WIRE THIS
SYSTEM.

• THE APPLIANCE IS NOT INTENDED FOR USE BY CHIL­DRENOR INFIRM PERSONS WITHOUT SUPERVISION.

• YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE
THAT DO NOT PLAY WITH THE APPLIANCE

2

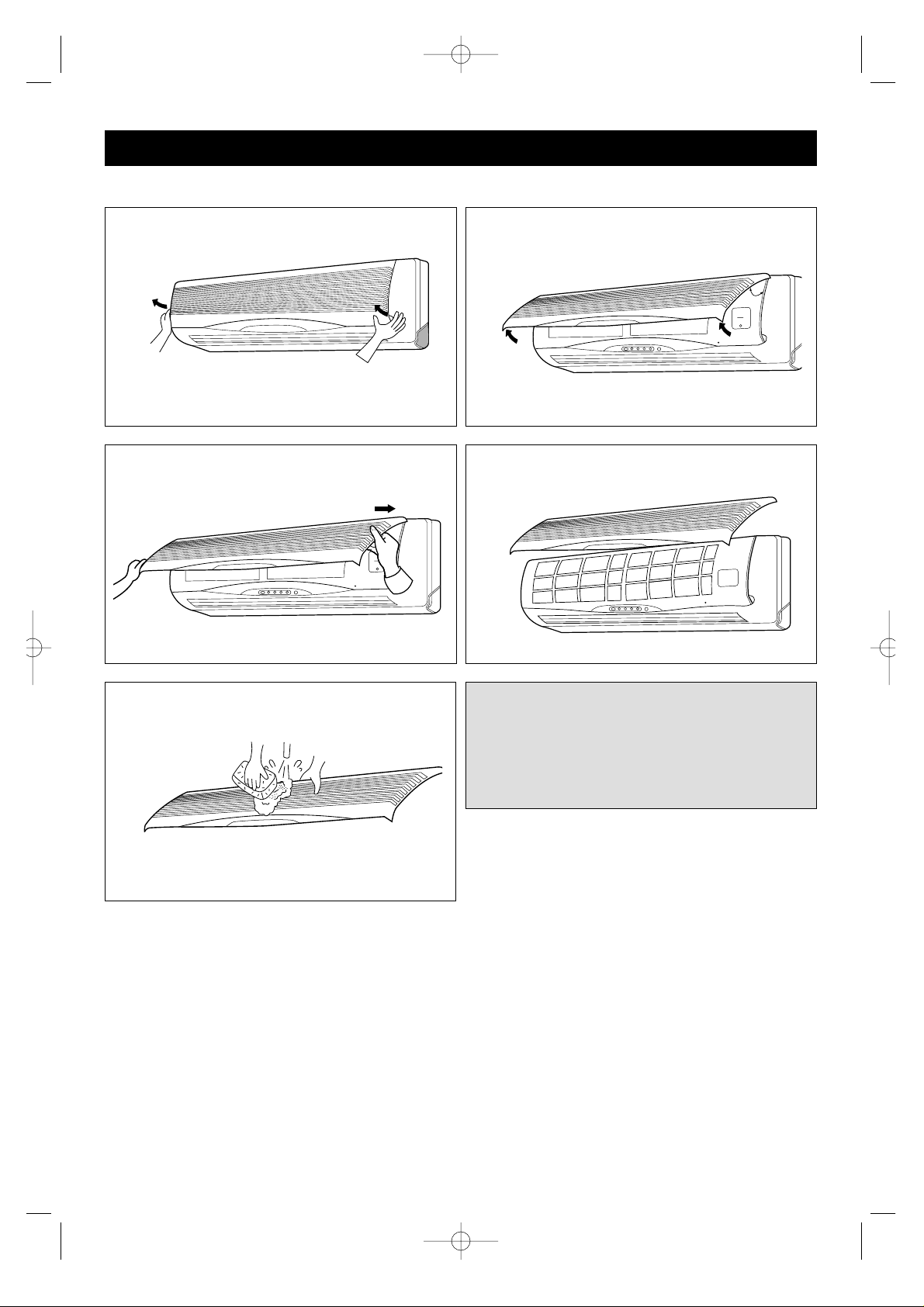

Indoor Cover

Electric Dust Collector
(Air clean Plasma)

Removes small dust and
generates (-) ions.

Deodorizing Filter

Removes bad
smells from the air.

Emergency/Remote Switch

Indicators

Indicate the
AC setting.

Remote
Sensor

Power Plug

Sensor Wire

LCD Remote
Controller

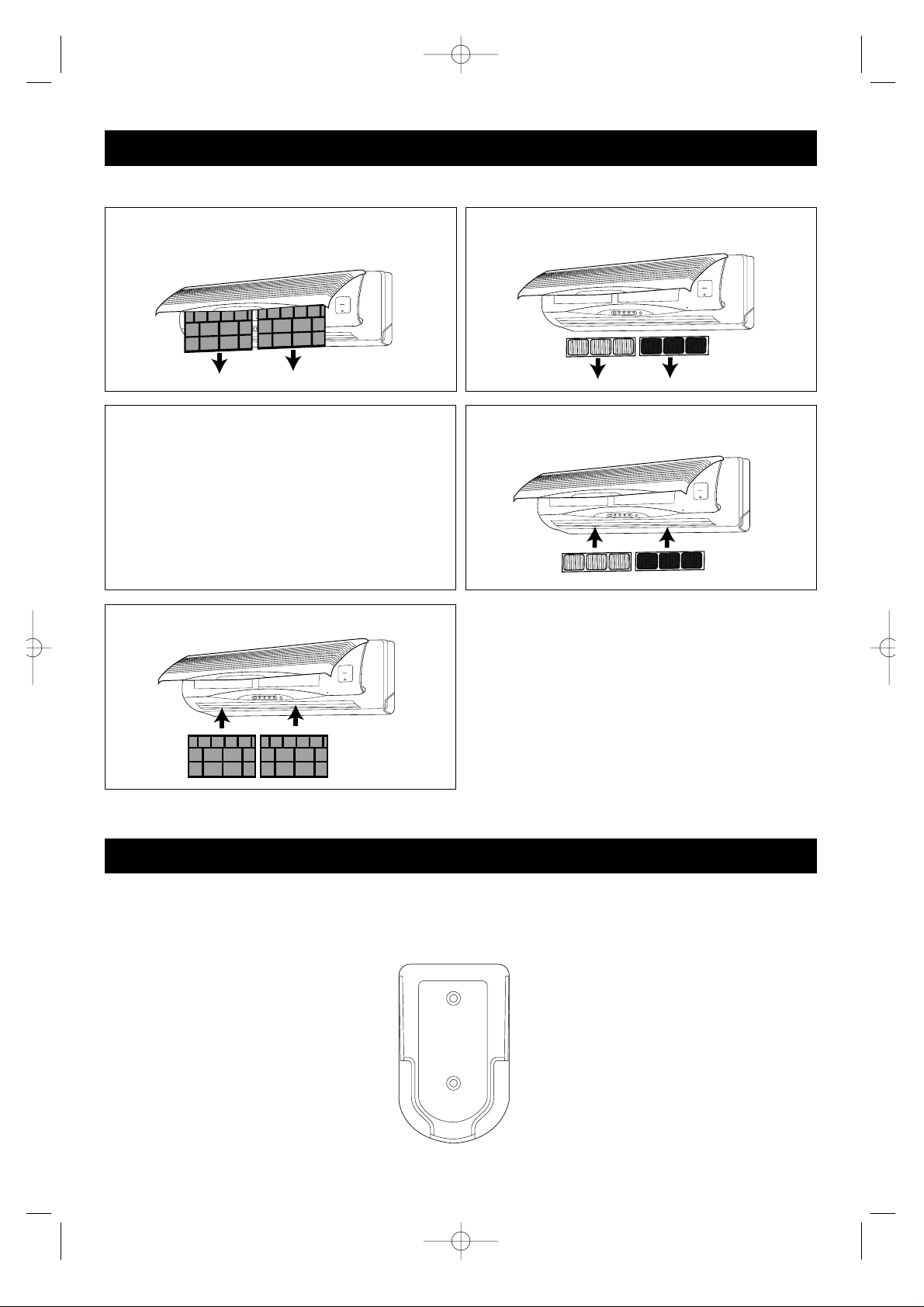

Air Cleaning Filters

Removes dust and
prohibits germs.

AIR OUT

AIR IN

Fan Direction

(Up/Down)

Fan Direction

(Left/Right)

M

O

D

E

S

L

E

E

P

O

N

/

O

F

F

T

I

M

E

R

E

N

T

E

R

/

C

A

N

C

E

L

F

A

N

S

P

E

E

D

T

U

R

B

O

/

M

I

L

D

F

A

N

D

I

R

.

LOCATION OF CONTROLS

OPERATING SECTION

INDOOR UNIT

OUTDOOR UNIT

Connection Cover

Remove cover to access the AC connection
from this unit to the indoor unit.

Service Valves

The indoor and outdoor units
are connected by copper tubes
which are connected here.

AIR IN

AIR OUT

3

INDOOR UNIT DISPLAY

■Remote Control Signal Receiver

This place is the part to receive the signal if it
receives the signal, you can hear the signal “beep.
beep”.

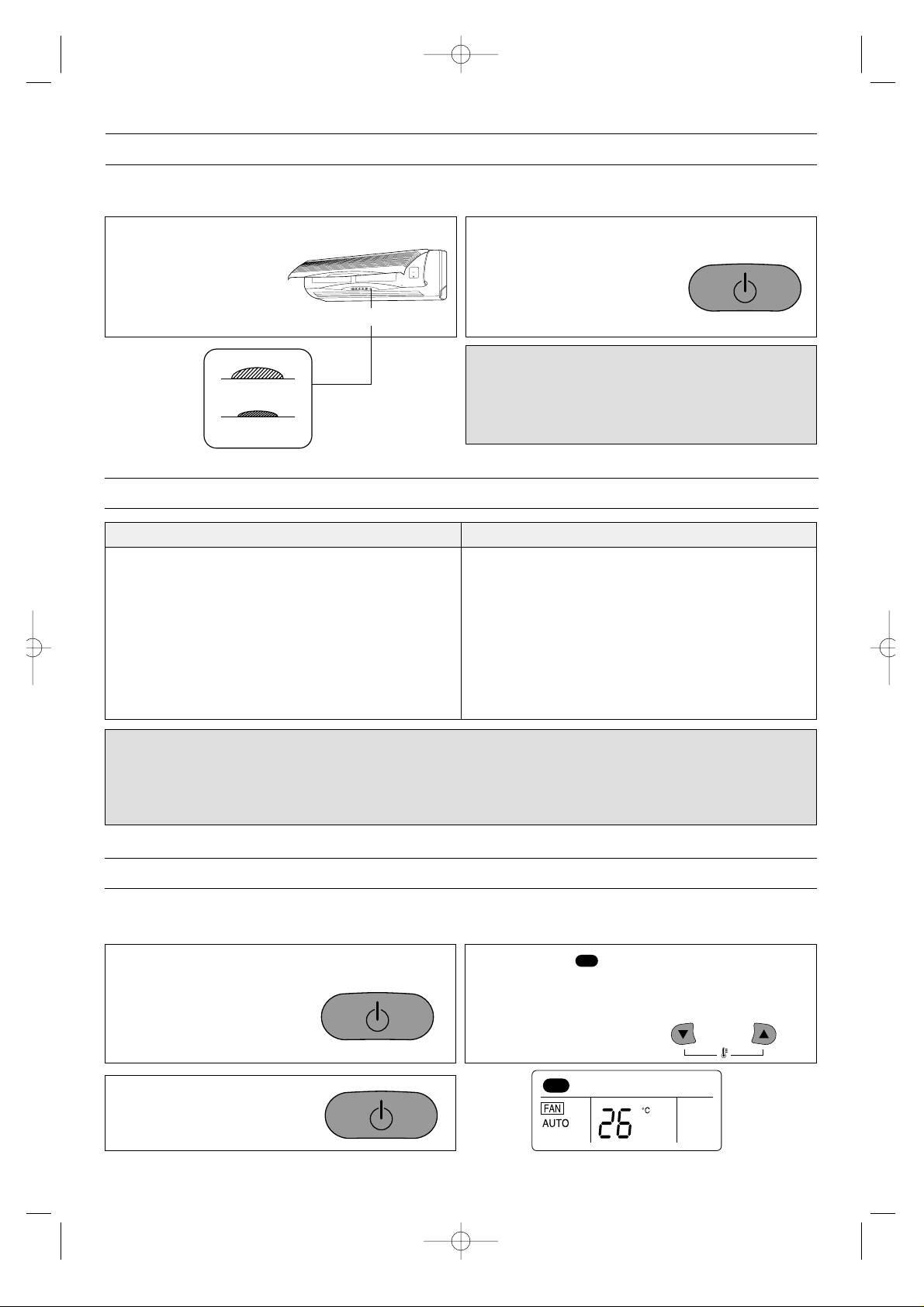

■There is a switch panel at inside of Front Panel.

At the time of operating, open the Front Panel.

Emergency switch can be used when the remote
controller is lost or Testing.

Remote switch is usually used by remote controller.

Indoor Unit Display Switch Panel

ON (Red)

Lights when the

operation is going on.

Air clean

(Green)

Timer (Yellow)

Lights during the time
reservation mode.

Quick (Red)

Lights during the
time Quick
Mode.

EMERGENCY

REMOCON

REMOCON

EMERGENCY

4

MODE

SLEEP

ON/OFF

TIMER

ENTER/
CANCEL

FAN SPEED

TURBO/MILD

Display

Displays information
pertaining to unit.

TURBO/MILD

Press to select super power
operation (Turbo) mode

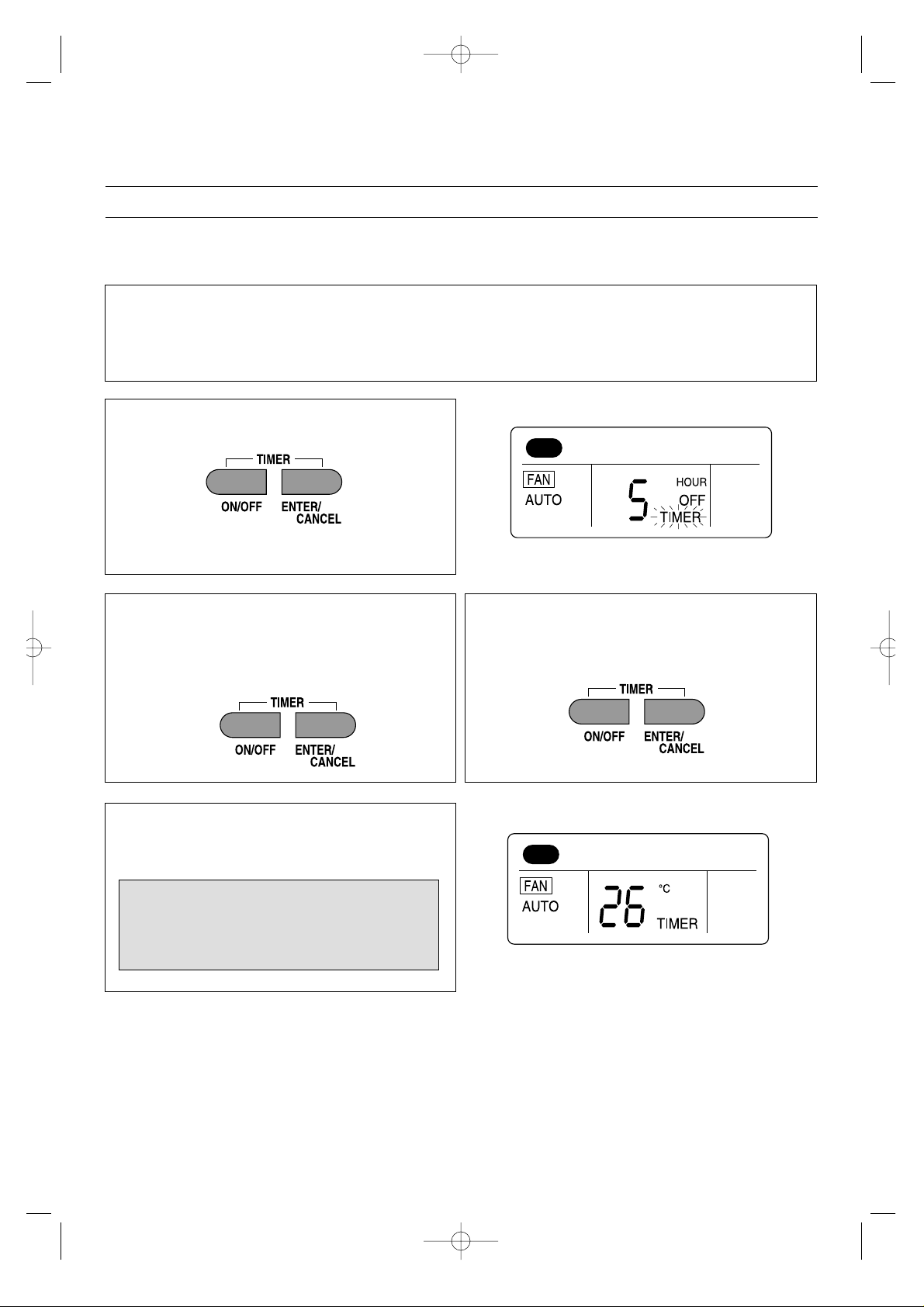

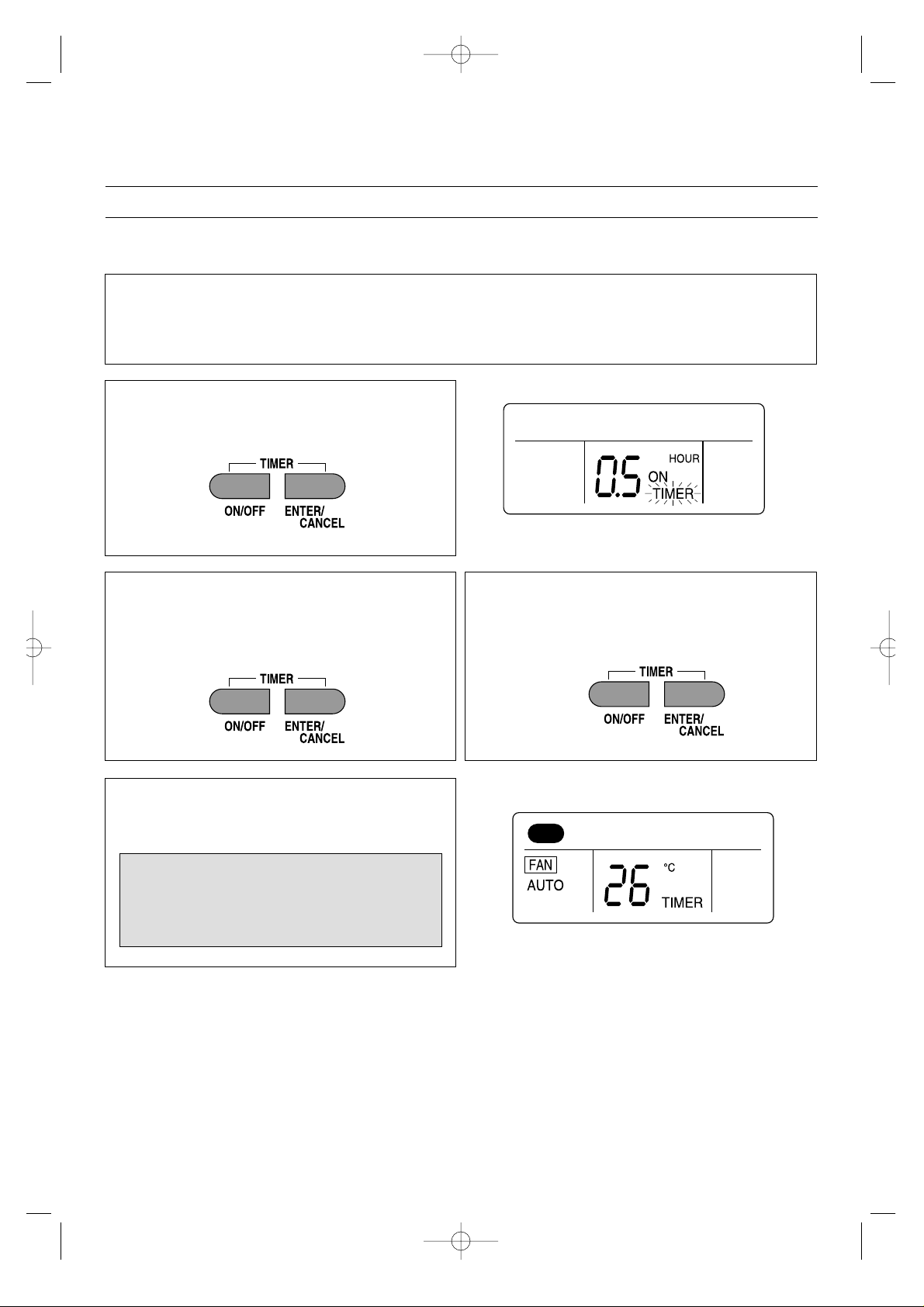

TIMER ENTER/CANCEL Button

Press to enter a timer setting or
to cancel timer setting

TIMER ON/OFF Button

Press to set the unit off or on time.
(0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10, 12, 16, 20, 24hr)

MODE Button

Press to cycle through the modes
(Auto/Quick/Cool/Fan/Dehumidifier)

SLEEP Button

Press to set the unit for
the sleep mode.

FAN DIR.

FAN DIR. Button

Press to select up/down
direction for fan.

ON/OFF Button (Blue)

Press to turn the unit
on or off.

TEMPERATURE Buttons

Press to raise or lower
the desired temperature.

FAN SPEED Button

Press to select the fan speed
(High " ", Middle " ", Low " ").

COVER

Slide down to access most
of the remote buttons.
Slide down further to
access the battery
compartment.

AUTO

REMOTE CONTR OLLER

MODE Indicators (Auto/Quick/Cool/Fan/Dehumidifier)

Lights to indicate the mode selected.

TIMER Indicators (Include sleep)

Lights to indicate the timer function mode.

TEMPERATURE & RESERVATION TIME lndicat

Lights to indicate the temperature or time.

FAN DIRECTION Indicators

Lights to indicate the
fan direction.

NATURAL Indicator

Lights to indicate the
speeds simulating a breeze.

FAN Indicators

Lights to indicate
the fan speed.

AUTO

REMOTE DISPLAY

DSB-F183L

5

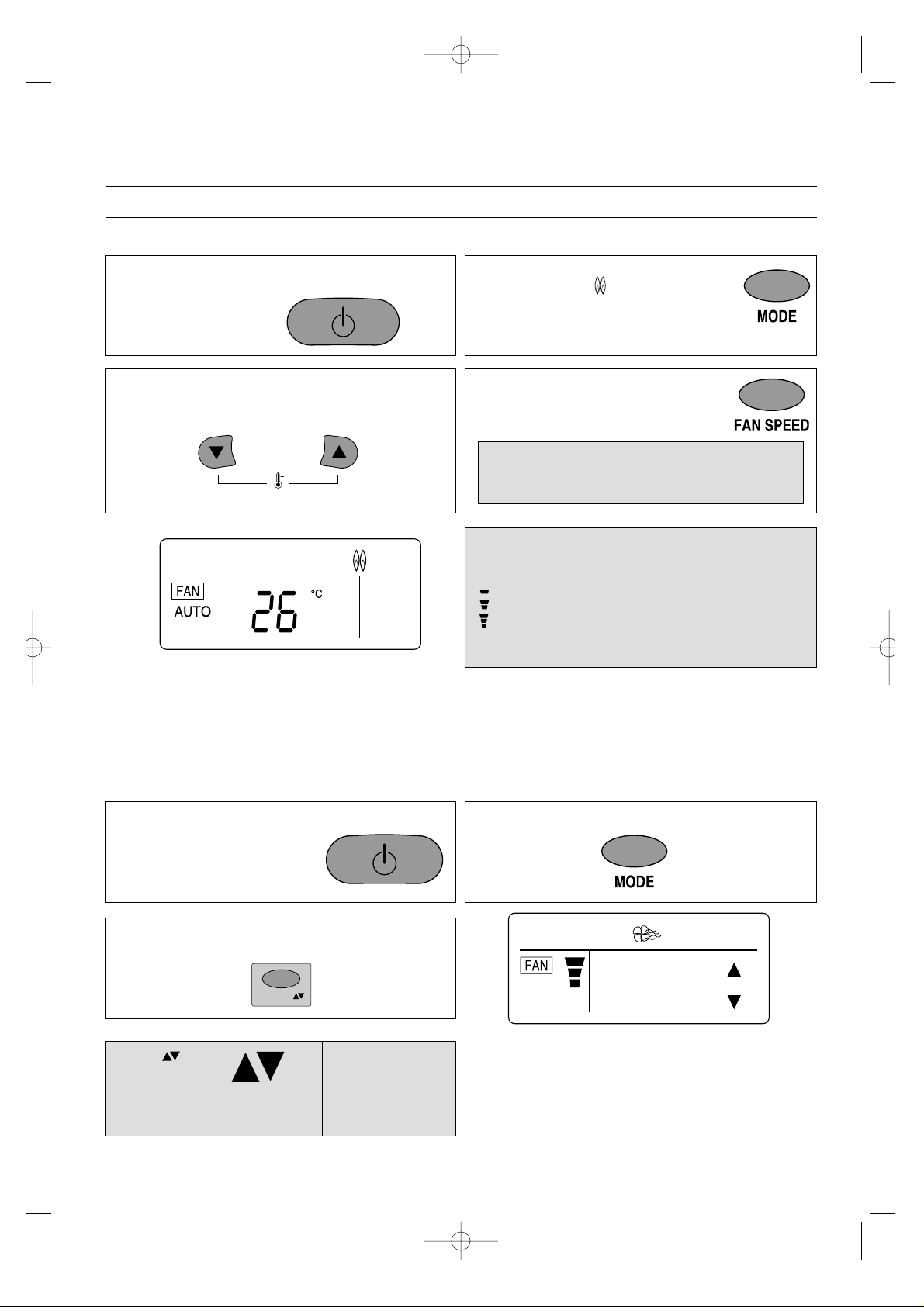

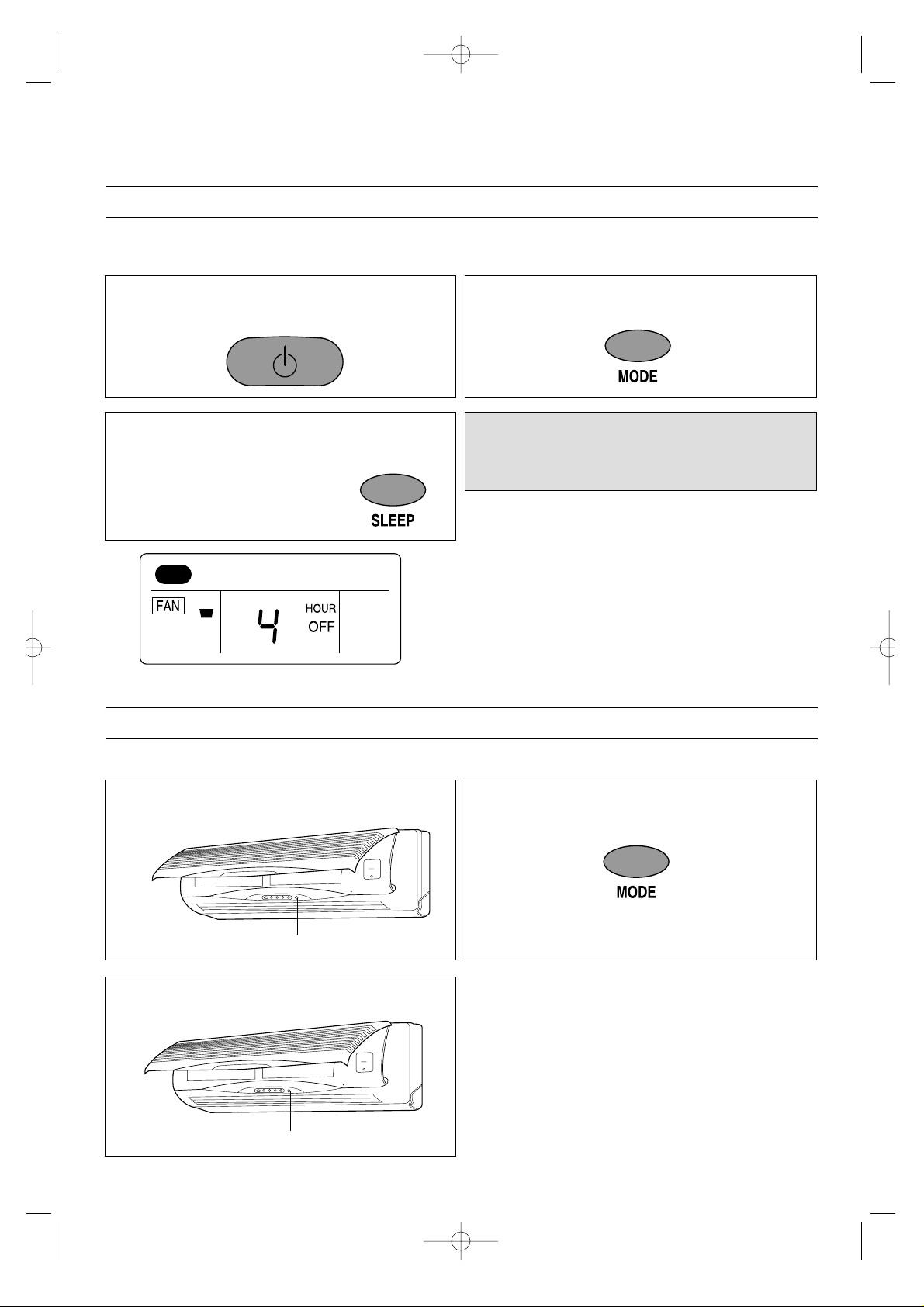

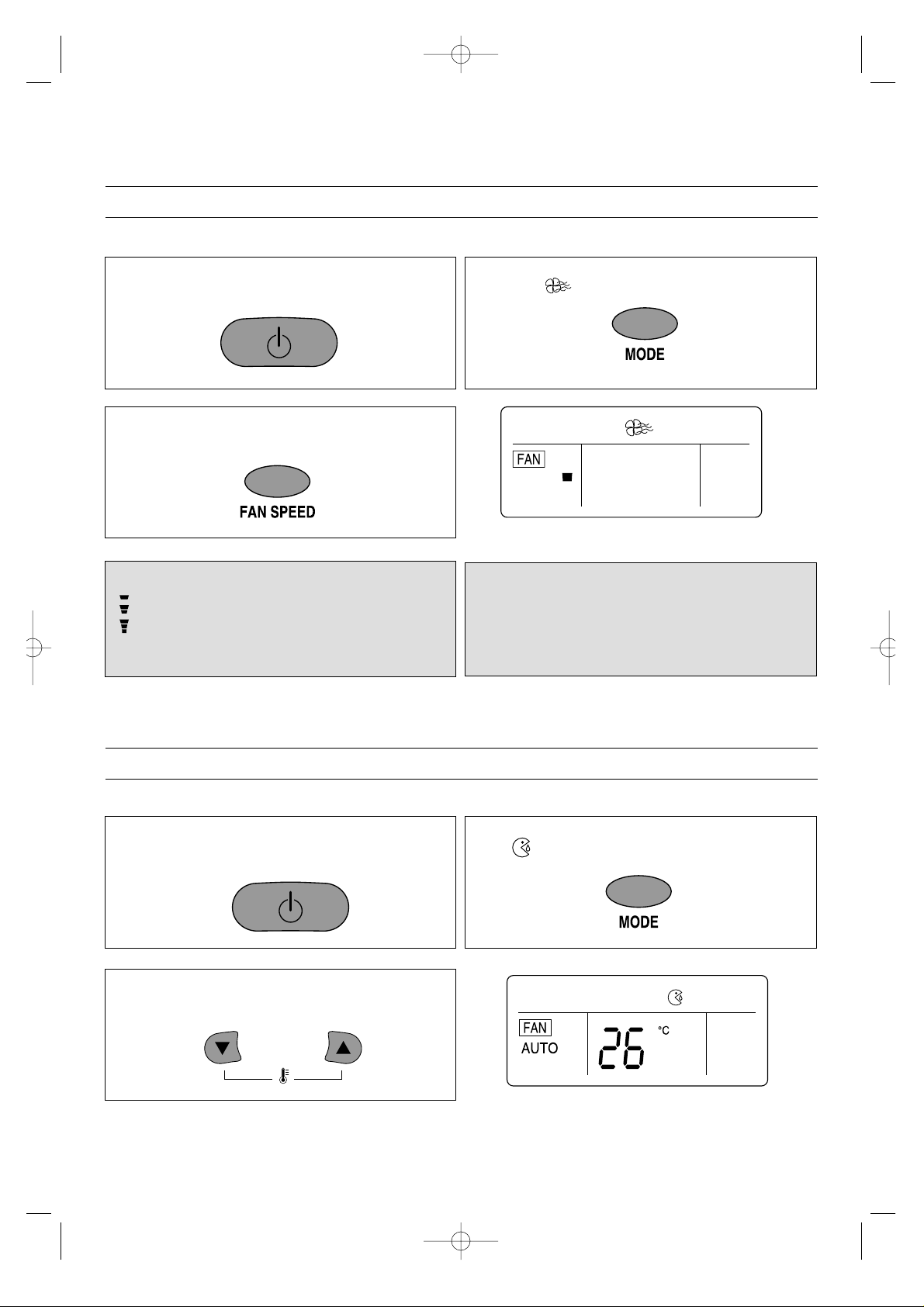

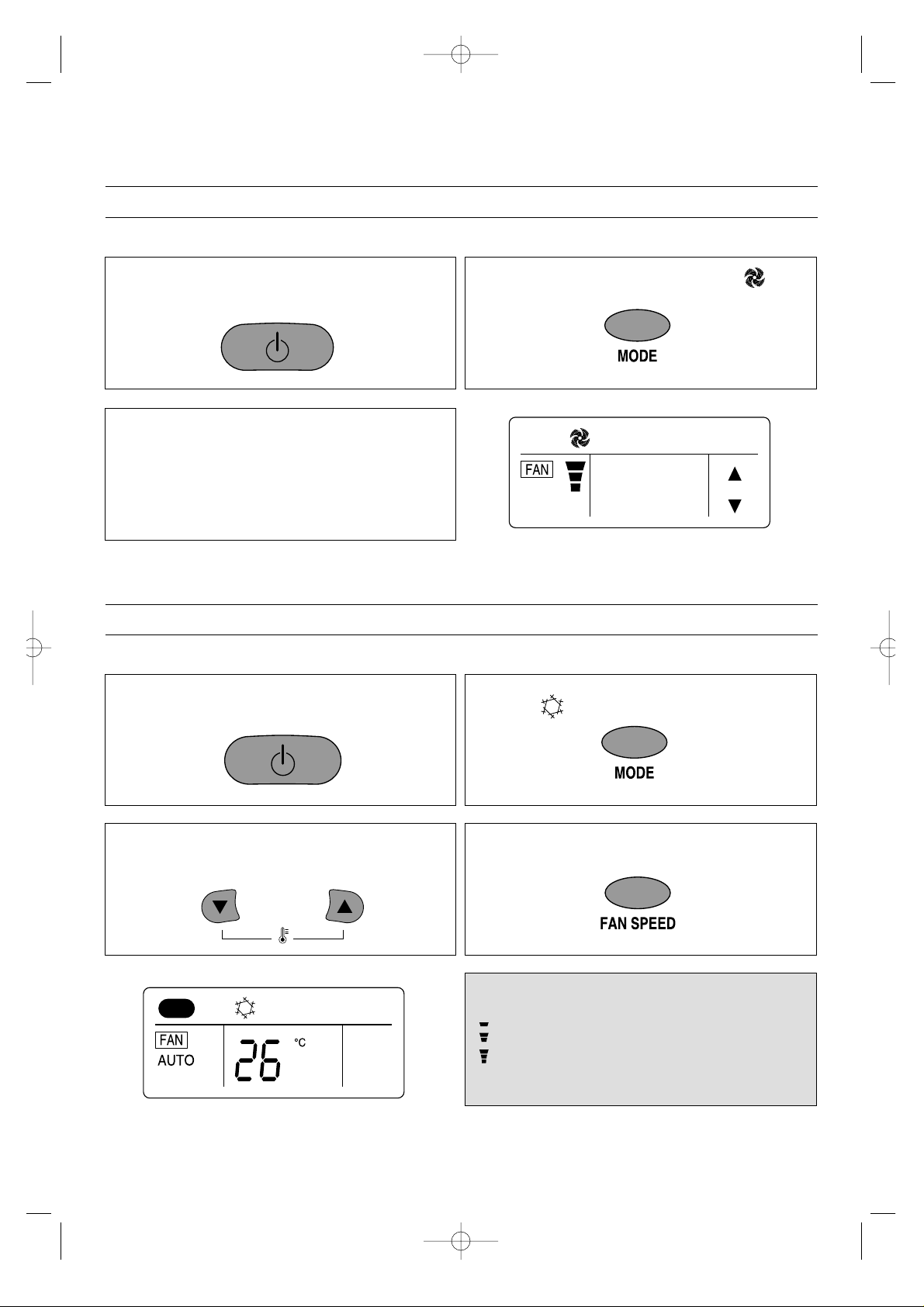

OPERATION

1. Insert the attached AC

plug into a 2-pronged
Only 220V or
220V~240V AC outlet.

NOTES:

• Never connect the AC line cord plug to other than the speci­fied voltage (

Only 220V or 220V~240V

).

• Use the attached power cord only.

• If the outlet is a 3-pronged type or other, have an electrician

install a new outlet.

• The new air conditioner system should be on it’s own 220V
circuit. Contact your local electrical installer for installation.

CONNECTING THE AC CORD

The outdoor unit is connected to the indoor unit through the AC connecting wire or connection cord. To connect the
indoor unit to AC, follow the procedures below:

BATTERY PRECAUTIONS

The precautions below should be followed when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from pos­sible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manu­facturer’s directions).

HOW TO INSTALL BATTERIES

To install the batteries, follow the procedures below:

1. Slide down the cover to access
most of the remote buttons.
Slide down further to access the
battery compartment.

2 . Insert two “AAA” size

Alkaline batteries following
the polarity diagram below.

SLEEP

Plug into Only 220V or 220V~240V AC Outlet.

INFORMATION:

1. The plug shall be connected to a ground socket outlet, and the interconnection cord shall be connected by an authorized
electrician or specialist.

2. Information for interconnection cable:

3. Contact service man for the installation shall be in accordance with national wiring regulation

Items Specifications

Under 12K class AC 250V, 16A, H05VV-Fx1.0m

2

Above 12K class AC 250V, 16A, H05VV-Fx1.5m

2

AC Outlet
and Plug

Plug into 220V AC Outlet

TIMER

ON/OFF

ENTER/

TURBO/MILD

CANCEL

+–

+–
