Daewoo SL-300V, DLV-42C7LMB, DLV-37C7LMB, DLV-32C7SMB Service Manual

Caution

: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.

Service Manual

LCD TV

CHASSIS :

Model :

S/M NO. : TSL300VEF1

DLV-32C7SMB
DLV-37C7LMB
DLV-42C7LMB

MAR. 2007

SL-300V

Contents

1. Safety Precaution 3

2. Preliminary Troubleshooting 4

3. Product Specification 5

1) Standard of Product 5

2) Available Input Signal 6

3) Available PIP Mode 6

4. Service Remote Controller 7

1) Key Arrangement 7

2) EEPROM Data 8

5. Block Diagram 11

6. Hardware Troubleshooting : Digital Board 12

7. Hardware Troubleshooting : SMPS 16

1) FEL-3237A : DLV-32C7SMB, DLV-37C7LMB 16

2) FEL-42C1 : DLV-42C7LMB 18

8. Bill Of Materials 20

1) DLV-32C7SMB 20

2) Differental Materials Besides Mechanical Parts 29

9. How to S/W Upgrade Tools 30

1) Requirements 30

2) Outline of the S/W upgrade tool, which is DTV_Updater.exe 30

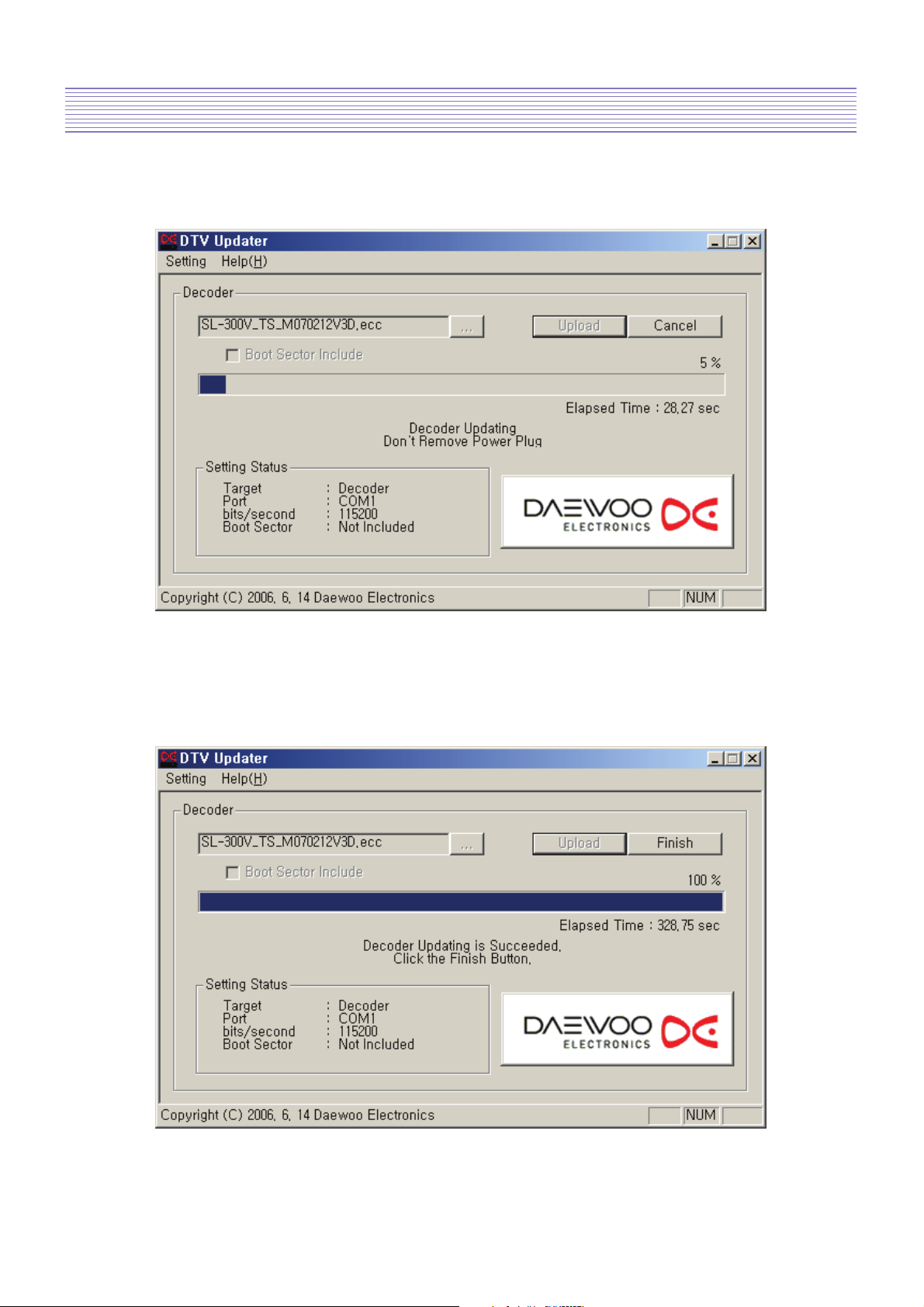

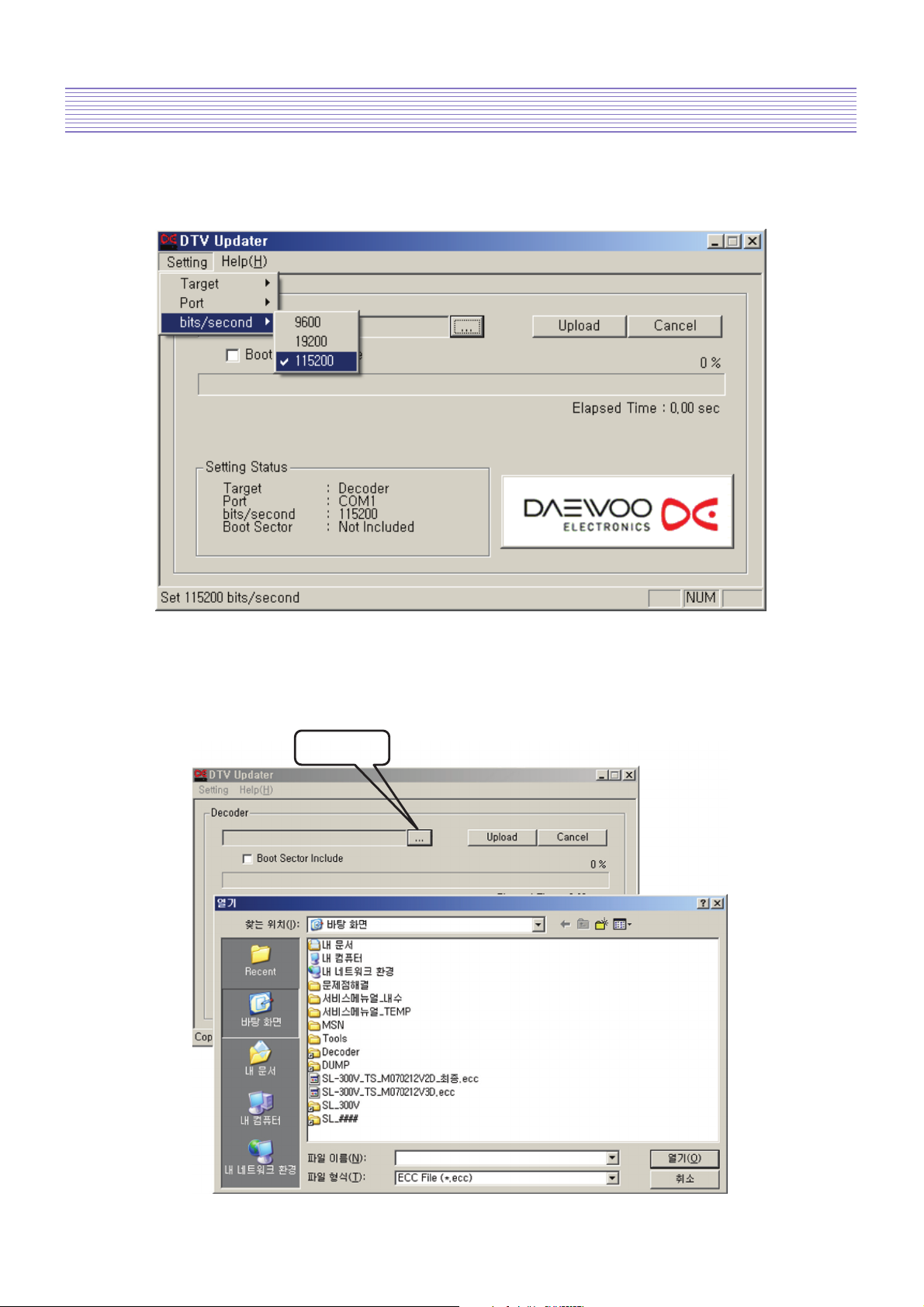

3) How to upgrade decoder of LCD TV 31

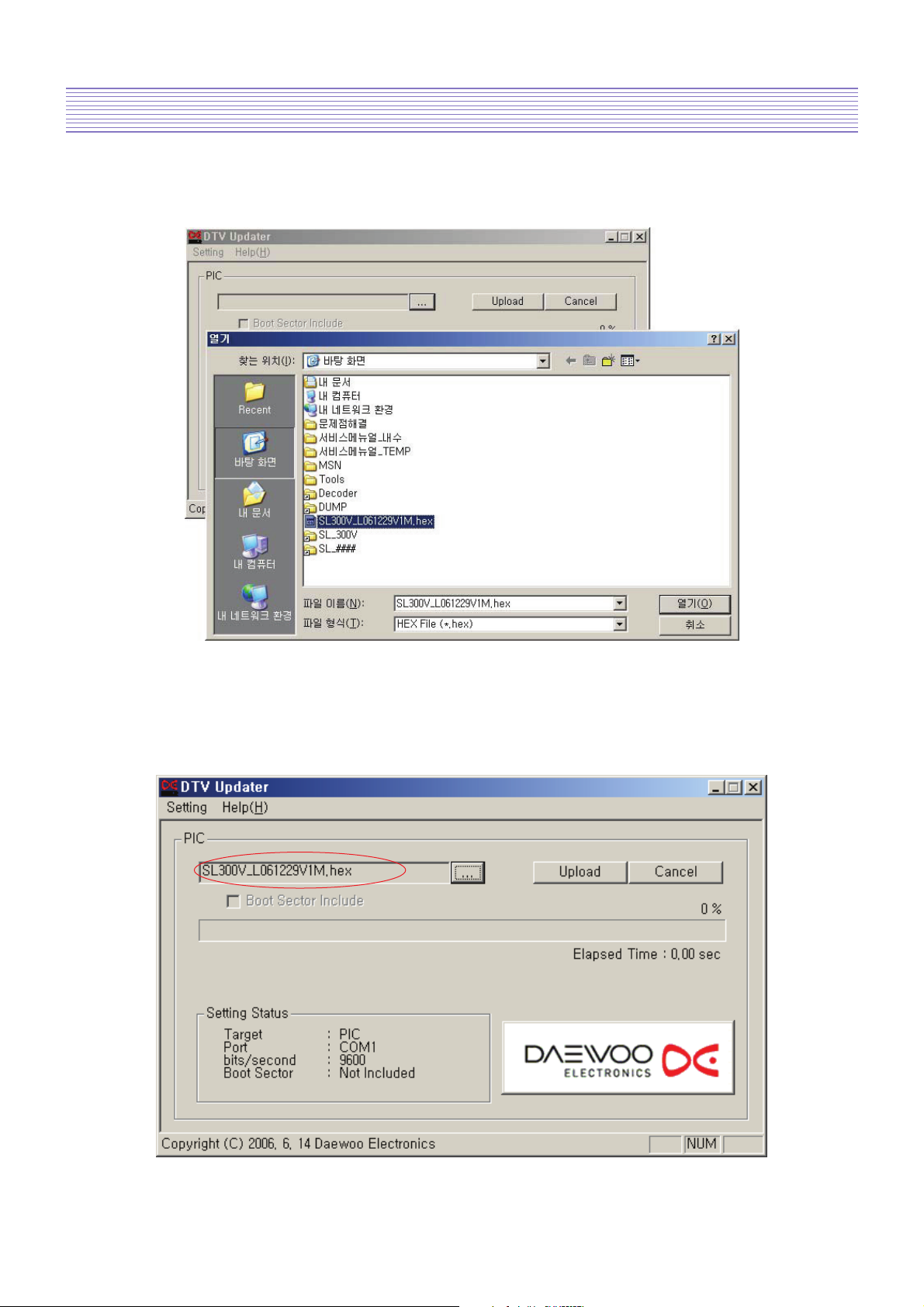

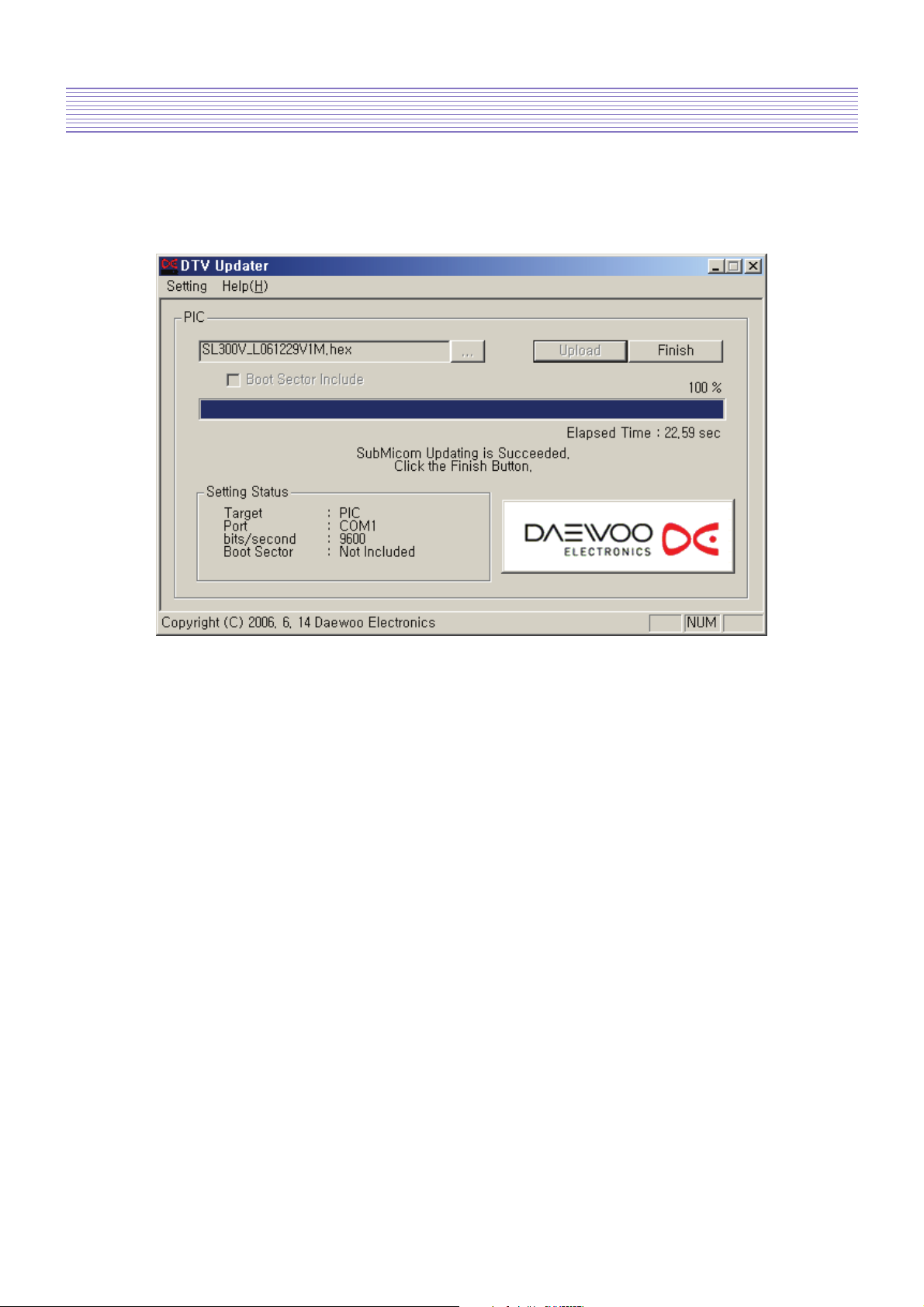

4) How to upgrade PIC micom of LCD TV 35

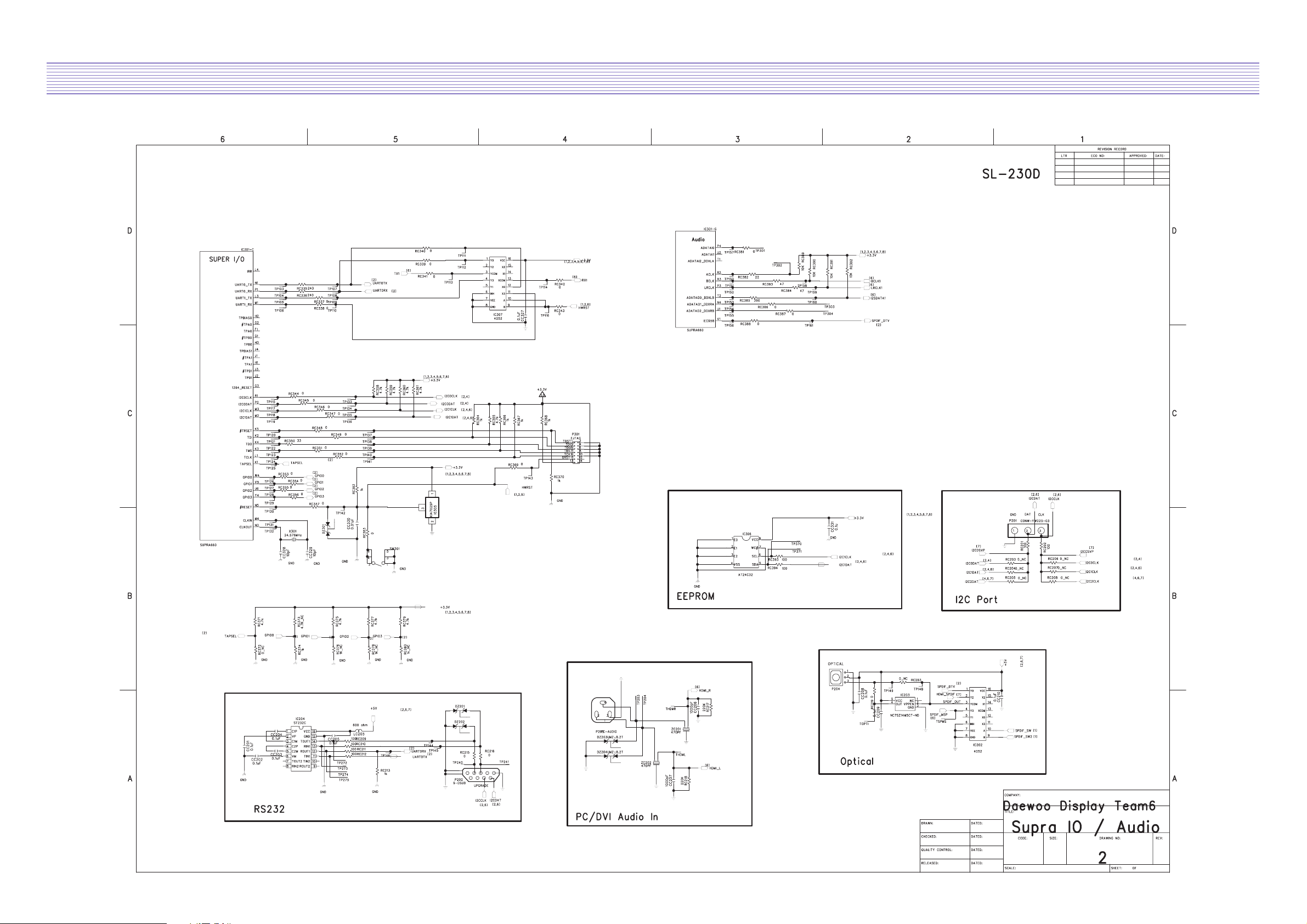

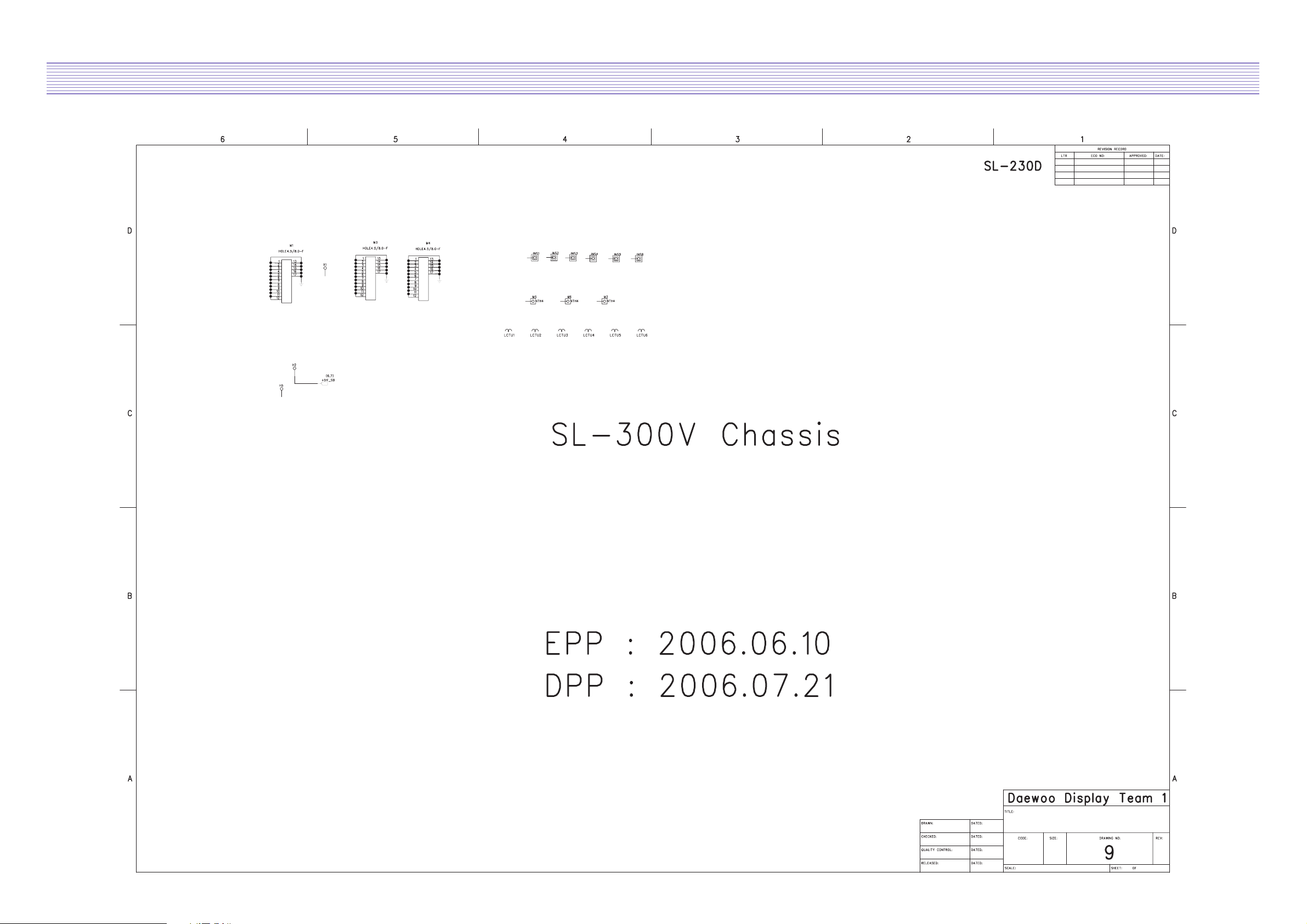

10. Schematics : Digital Board 40

11. Schematics : SMPS 49

1) FEL-3237A : DLV-32C7SMB, DLV-37C7LMB 49

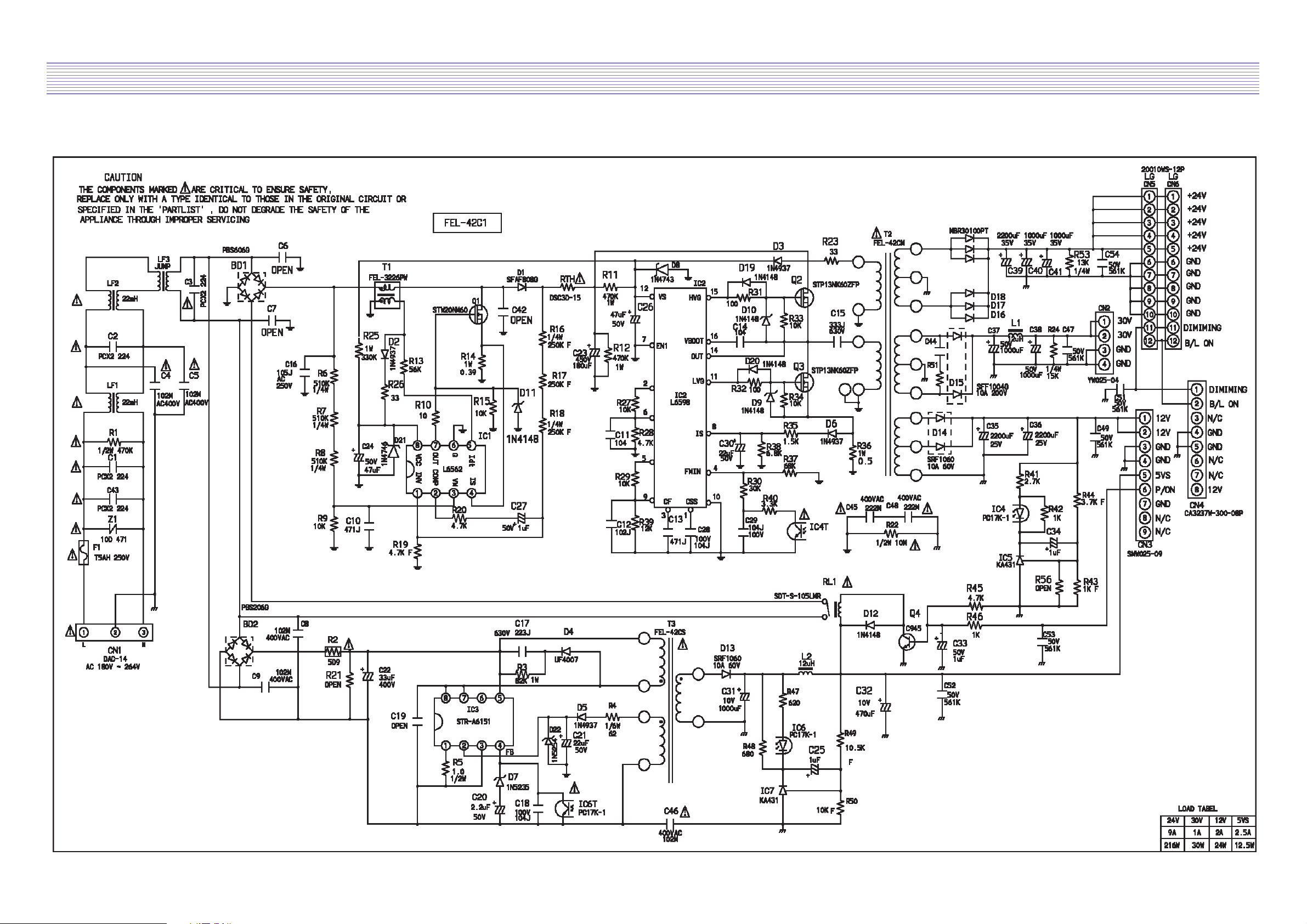

2) FEL-42C1 : DLV-42C7LMB 50

12. Mechanical Development Figure 51

1) DLV-32C7SMB 51

2) DLV-37C7LMB 52

3) DLV-42C7LMB 53

-2-

1. Safety Precaution

-3-

(1) When moving or laying down a LCD Set, at least two people must work together. Avoid any

impact towards the LCD Set.

(2) Do not leave a broken LCD Set on for a long time. To prevent any further damages, after

checking the condition of the broken Set, make sure to turn the power (AC) off.

(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric

shock.

(4) When loosening screws, check the position and type of the screw. Sort out the screws and

store them separately for reassembling. Because screws holding PCBs are working as
electric circuit grounding, make sure to check if any screw is missing when assembling /
reassembling. Do not leave any screws inside the set.

(5) A LCD Set contains different kinds of connector cables. When connecting or disconnecting

cables, check the direction and position of the cable beforehand.

(6) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC

cables. Do not connect or disconnect connectors instantaneously with force, and handle
them carefully for reassembling.

(7) Connectors are designed so that if the number of pins or the direction does not match,

connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.

2. Preliminary Troubleshooting

-4-

1) LCD TV does not response or remote controller does not work.

- Check the power cord to be plugged.

- Check the battery of the remote controller.

2) Sound is discontinuous or broken sometimes.

- Check if [SOUND] -> [AVC] is [ON].

- Set the sound effect into 'F Mono'.

- Set the [SOUND] -> [DTV Volume] into proper value.

- [DTV Volume] is enabled only in digital program.

3) Picture of digital program is sometimes broken and sound is discontinuous.

- Digital program has a little problem because of signal receiving status.

- Check if the RF cable is correctly connected.

- Ask for the broadcasting station if the RF cable connection has no problem.

4) Picture of analog program is noisy.

- Check the RF cable connection.

- Check if [Picture] -> [Noise Reduction] is ON.

- Change the [Install] -> [Programme Setup] -> [Fine] value.

5) Sound is not generated in HDMI mode.

- Reconnect HDMI jack.

- DVI signal has no sound. Check the output signal of device to be connected to LCD TV.

- If you want to use DVI-HDMI cable, you should also connect audio cable into the LCD TV.

6) In spite of 'Auto Setup', picture size is not completely adapted to the screen.

- Check if the input signal is available.

- Ensure that the desktop has no black area.

- Some errors (picture position problem) will be occurred according to certain video card.
In this case, you should adjust 'Frequency' control.

7) In spite of 'Auto Setup', picture is not clear.

- Adjust 'Phase' control.

3. Product Specification

-5-

1) Standard of Product

Owing to our policy of continuous improvement, specifications may change.

Features DLV-32C7SMB DLV-37C7LMB DLV-42C7LMB

LCD Panel Panel Model LTA320WT-LF2 LC370WX1-SL01 LC420WX5-SLA1

Screen Size 81 cm 93 cm 106 cm

Aspect Ratio 16 : 9 16 : 9 16 : 9

Resolution 1366 X 768 1366 X 768 1366 X 768

(WXGA) (WXGA) (WXGA)

Pixel Pitch 0.51075 mm 0.60000 mm 0.68100 mm

Contrast Ratio 5000 : 1 (MAX) 5000 : 1 (MAX) 5000 : 1 (MAX)

Brightness 550 cd/m

2

500 cd/m

2

500 cd/m

2

TV System Receiving DVB-T DVB-T DVB-T

System PAL-B/G PAL-B/G PAL-B/G

PAL-B/H PAL-B/H PAL-B/H

NTSC (AV) NTSC (AV) NTSC (AV)

LVDS Cable FI-E30S FL-X30SSL-HF FL-X30SSL-HF

LVDS B+ +5V +12V +12V

Input Connector RF 50 Ohm Coaxial 50 Ohm Coaxial 50 Ohm Coaxial

S-Video / Video 2 2 2

Component RCA X 2 RCA X 2 RCA X 2

PC RGB D-Sub X 1 D-Sub X 1 D-Sub X 1

PC Audio 3.5 mm Mini - Jack 3.5 mm Mini - Jack 3.5 mm Mini - Jack

HDMI 1 1 1

Output SPDIF Optical - Jack Optical - Jack Optical - Jack

Connector Headphone X X X

Monitor - out 1 1 1

Sound Output Max. 10W 10W 10W

Power Module Model FEL-3237A FEL-3237A FEL-42C1

Power Max. 155W 195W 198W

Consumption Power Source 220-240V~ 220-240V~ 220-240V~

50-60Hz 50-60Hz 50-60Hz

Dimension Set Dimension

806 x 628.5 x 240 mm 940 x 720 x 328.7 mm 1037 x 788.7 x 328.7 mm

(W x H x D) (with stand)

Set Dimension

806 x 574.5 x 114 mm 940 x 655 x 130 mm 1037 x 723.8 x 124.9 mm

(without stand)

Wall Mount Dimension

315 x 235 x 50 mm 315 x 235 x 50 mm 698 x 460 x 46.6 mm

Hall Size

100 x 200 screw ø 4mm 100 x 200 screw ø 4 mm 400 x 600 screw ø 6 mm

Product Specification

-6-

2) Available Input Signal

INTERFACE SOURCE VF INTERFACE SOURCE VF

RF PAL-B/G, B/H 50Hz HDMI 640x480 60Hz

DVB-T 50Hz 640x480 75Hz

VIDEO PAL-B/G, B/H 50Hz 800x600 60Hz

PAL-60 60Hz 800x600 72Hz

NTSC-M 60Hz 800x600 75Hz

NTSC-443 60Hz 1024x768 60Hz

S-VIDEO PAL-B/G, B/H 50Hz 1024x768 70Hz

PAL-60 60Hz 1024x768 75Hz

NTSC-M 60Hz 1280x1024 60Hz

NTSC-443 60Hz 1360x768 60Hz

COMPONENT 480i 60Hz 480p 60Hz

480p 60Hz 576p 50Hz

576i 50Hz 720p 50Hz

576p 50Hz 720p 60Hz

720p 50Hz 1080i 50Hz

720p 60Hz 1080i 60Hz

1080i 50Hz

1080i 60Hz

PC 640x480 60Hz

640x480 75Hz

800x600 60Hz

800x600 72Hz

800x600 75Hz

1024x768 60Hz

1024x768 70Hz

1024x768 75Hz

1280x1024 60Hz

1360x768 60Hz

3) Available PIP Mode

MODE Analog RF Digital RF VIDEO 1 VIDEO 2 COMP 1 COMP 2 HDMI PC

ATV X X X X OOXX

DTV X X OOOOXX

VIDEO 1 X O XXXXXX

VIDEO 2 X O XXXXXX

COMP 1 OOXXXXXX

COMP 2 OOXXXXXX

HDMI X XXXXXXX

PC XXXXXXXX

4. Service Remote Controller

-7-

1) Key Arrangement



ChSet

Recall

HEAT-RUN

SVPPX

MPEG

Pattern

MISC

Volume

PQ

Hotel Lock

W/B

PreScale

Reset

Service Remote Controller

-8-

2) EEPROM Data

Key Content Default Value Description

S2 ChSet Panel Model SS32 Current LCD Panel

EDID & Ch Set 0 EDID & CH Update

S3 Volume Volume Test 0 Don't Care

S4 SVPPX PAL Sub Brt 0x20 ATV Bright Control

PAL Sub Cont 0x80 ATV Contrast Control

AV Sub Brt 0x20 Video Bright Control

AV Sub Cont 0x80 Video Contrast Control

Video Sub Cb Sat 0x80 Video Cb Color

Video Sub Cr Sat 0x80 Video Cr Color

Video Sub Hue 0x0 Video Hue

Video YC Delay 0x0 Video YC Delay

Pedestal ON Pedestal Level ON/OFF

Chroma AGC 0x8A Sub Carrier AGC

CVBS AGC ON CVBS AGC

Anti-alias OFF Anti-alias ON/OFF

PC G Clamp 0x44 PC G Clamp Level Control

PC B Clamp 0x44 PC B Clamp Level Control

PC R Clamp 0x44 PC R Clamp Level Control

PC G Gain 0x50 PC G Gain Control

PC B Gain 0x50 PC B Gain Control

PC R Gain 0x50 PC R Gain Control

Com 480i Y Clamp 0x30 480i Y Clamp Level Control

Com 480i Pb Clamp 0x200 480i Pb Clamp Level Control

Com 480i Pr Clamp 0x200 480i Pr Clamp Level Control

Com 480i Y Gain 0x50 480i Y Gain Control

Com 480i Pb Gain 0x50 480i Pb Gain Control

Com 480i Pr Gain 0x50 480i Pr Gain Control

Com HD Y Clamp 0x30 480p~ Y Clamp

Com HD Pb Clamp 0x200 480p~ Pb Clamp

Com HD Pr Clamp 0x200 480p~ Pr Clamp

Com HD Y Gain 0x50 480p~ Y Clamp

Com HD Pb Gain 0x50 480p~ Pb Clamp

Com HD Pr Gain 0x50 480p~ Pr Clamp

Sync Threshold 0x0 Component Sync Slicing Level Control

S5 PQ Dp B/L Cont 0 Black & White Contrast

Main CVBS Cont 128 Main Picture CVBS Contrast

Main CVBS Bright 128 Main Picture CVBS Brightness

Main DTV Cont 128 Main Picture DTV Contrast

Main DTV Bright 112 Main Picture DTV Brightness

Main HDMI Cont 128 Main Picture HDMI Contrast

Main HDMI Bright 128 Main Picture HDMI Brightness

Main Comp PC Cont 130 Main Picture COMP & PC Contrast

Service Remote Controller

-9-

Key Content Default Value Description

Main Comp PC Bright

120 Main Picture COMP & PC Brightness

PIP CVBS Cont 128 Sub Picture CVBS Contrast

PIP CVBS Bright 138 Sub Picture CVBS Bright

PIP DTV Cont 138 Sub Picture DTV Contrast

PIP DTV Bright 128 Sub Picture DTV Brightness

PIP COMP Cont 128 Sub Picture COMP Contrast

PIP COMP Bright 128 Sub Picture COMP Brightness

Dp Hue 64 Main Picture Tint Control

Main V Delay 8 Main Picture Cr Delay

Main U Delay 8 Main Picture Cb Delay

Sub V Delay 8 Sub Picture Cr Delay

Sub U Delay 8 Sub Picture Cb Delay

Peaking 38 Peaking Control

APL Enable ON APL Enable

APL Luma Factor 192 APL Luma Factor

APL Gain 128 APL Gain

Filter 0 Band Pass Filter

Gamma Enable ON Gamma Enable

S6

Hotel Lock

CH Preset Lock OFF Auto Programme function ON/OFF

Volume Max 100 Max Volume

AV Lock OFF AV Lock ON/OFF

Child Lock OFF Child Lock ON/OFF

RF Auto YES Auto shutdown without signal at RF

S7 MPEG DTV V Size 100 Don't Care

DTV H Size 93 Don't Care

DIAHighThreshold Y

0Don't Care

DIAHighThreshold C

0Don't Care

DIALowThreshold Y

0Don't Care

DIALowThreshold Y

0Don't Care

S8 WB Bias R 31 R Bias

Bias G 31 G Bias

Bias B 34 B Bias

Gain R 22 R Gain

Gain G 32 G Gain

Gain B 30 B Gain

Sub Brt 31 Don't Care

Sub Cont 0 Don't Care

Contrast-R 1.039 Don't Care

Contrast-G 1.078 Don't Care

Contrast-B 1.070 Don't Care

S9

PreScale

SC Pscale 22 Don't Care

FM Pscale 24 Don't Care

Service Remote Controller

-10-

Key Content Default Value Description

Stereo ID 10 Don't Care

Dimming(LCD) 255 Don't Care

SSC Enable ON Spread Spectrum ON/OFF

SSC Delta 0 Don't Care

SSC posi 0 Don't Care

SSC nega 0 Don't Care

BBE Level 48 BBE Level

MVOICE Level 96 MVOICE Level

Sound Delay(ms) 40 Sound Delay

S10 MISC Panel Model SS32 Current LCD Panel

EDID Update OFF EDID Update

Model SL-300V Chassis

S/W Version SL-300V_##_####_L######V#DP Decoder S/W Version

Micom Version SL-300V_L######V##M PIC Micom S/W Version

Micom Update OFF Micom Update Mode

OS_DbgPrintf OFF Debugging Mode

Digital Signal Status OFF Digital Signal Status

Digital Index Status OFF Don't Care

RF Software Update OFF RF S/W Update Mode

S1 HeatRun Enable OFF HeatRun Enable Mode

Digital Index level 0 Don't Care

S11 Pattern Test Pattern 0 Don't Care

S12 Reset Factory Reset 0 Factory Reset

Eeprom Reset 0 EEPROM Reset

• [S12] -> [Reset] -> [Eeprom Reset] : EEPROM has default value.

• [S10] -> [MISC] -> [Panel Model] : This data should be set according to each model

: DLV-32C7SMB -> SS32
: DLV-37C7LMB -> LG37
: DLV-42C7LMB -> LG42

• [S5] -> [PQ] -> [Brightness & Contrast] : This data can be changed only in each mode.
: For example, [Main DTV Cont] value can be

changed only in DTV mode.

• [S6] -> [Hotel Lock] -> [CH Preset Lock] :

ON means [Auto Programme] can not be functioning.

• [S6] -> [Hotel Lock] -> [Volume Max] : This value will be max volume of user control.

• [S6] -> [Hotel Lock] -> [AV Lock] : ON means the unit will be locked at AV1.

• [S6] -> [Hotel Lock] -> [Child Lock] : ON means the side buttons will not be functioning.

• [S6] -> [Hotel Lock] -> [RF Auto] : ON means the unit will be turned off automatically

after 30 minutes without signal at RF mode.

5. Block Diagram

-11-

Signal Block Diagram : ZORAN

6. Hardware Troubleshooting : Digital Board

-12-

1) In spite of sound output, the screen is black.

1.1 In case of ATV, DTV, VIDEO and COMPONENT mode.

START

Check the SMPS

and input voltage

IC501 Problem.

Replace the Main PCB

IC501 Problem.

Replace the Main PCB

1) TV mode : Check the path from Pin 8 of TU101 to Pin Y4

of IC501

2) Component mode : Check the path from input jack to Pin

V6, W9, Y8(Comp 1) and W6, Y9, W8(Comp 2) of IC501

3) Video mode : Check the path from input jack to Pin

Y10(Video 1) and V8(Video 2) of IC201

Perhaps Connector and Cable

Problem.

Replace the Main PCB

Check

the input power of

IC501 is correct

Yes

No

Check

the LVDS connector and cable

is correct

Is the input signal of IC501 normal?

Check

the LVDS signal output of IC501 is correct

(Pin A14, B14, A15, B15, A16, B16, A17,

B17, A18, B18, A19, B19)

No

Yes

No

Yes

No

Yes

Hardware Troubleshooting : Digital Board

-13-

1.2 In case of PC and HDMI mode

START

Check the input resolution

of external device

IC501 Problem.

Replace the Main PCB

IC501 Problem.

Replace the Main PCB

1) PC mode : Check the path from Jack to Pin Y7, W10 and

U8

2) HDMI mode : Check the path from input jack to Pin M2,

M1, N2, N1, P2, L2, L1, U11 and T1 of IC501

Perhaps Connector and Cable

Problem.

Replace the Main PCB

Check

PC/HDMI resolution to

available resolution in

LCD TV

Yes

No

Check

the LVDS connector and cable

is correct

Is the input signal of IC501 normal?

Check

the LVDS signal output of IC501 is correct

(Pin A14, B14, A15, B15, A16, B16, A17,

B17, A18, B18, A19, B19)

No

Yes

No

Check the SMPS and

input voltage

Check

the input power of

IC501 is correct

Yes

No

Yes

No

Yes

Hardware Troubleshooting : Digital Board

-14-

1.3 In case of DTV mode

START

Select Air/Cable in Ant. Set correctly

Check the SMPS and input voltage

IC501 Problem.

Replace the Main PCB

Check the path from

TU101 to IC101

Check

1. The SNR is over 15dB

2. “Get 1SecSer” is “0”

The signal quality is poor.

1. Check the ANT or its connection is correct

2. Consult a local installer.

Perhaps Connector and Cable

Problem.

Replace the Main PCB

Check

the “Ant. Set” is correct

in Menu

Yes

No

Check

the LVDS connector and cable

is correct

Check

the LVDS signal output of IC501 is correct

(Pin A14, B14, A15, B15, A16, B16, A17,

B17, A18, B18, A19, B19)

Yes

No

No

Yes

Check

the input power of

IC501 is correct

No

No

Is “Lock status” “1(LOCK)”

when “Digital signal status” is

“on” in Service mode S10?

Yes

Check the path from IC301 to IC501

Yes

Does

digital signal input from IC301

to IC501

No

Check the path from IC301 to IC501

Yes

Does

TS signal input from IC101

to IC301

No

Yes

No

Hardware Troubleshooting : Digital Board

-15-

2) In spite of picture display, the sound is not generated.

START

1. Confrim AC connection

2. Confrim Power S/W on

3. Check Video or other PCBs

Check the connection of jack

Does screen appear?

Yes

No

Yes

Is the Sound input Jack

correctly connected?

No

Check the connection of speaker

Yes

Is the speaker correctly

connected?

No

Check the SMPS and input voltage

Yes

Check

the input power of IC602 is normal

(Pin 4, 7, 12, 15)

No

Check the path from IC602 to Speaker

No

Check

the signal output of IC602 is normal

(Pin 8, 9, 16, 17)

Yes

Perhaps IC602 problem.

Replace main PCB

No

No

Check

the signal output of IC601 is normal

(Pin 31, 33)

Yes

Perhaps IC601 problem.

Replace main PCB

Digital TV mode : Check the path from Pin 7

of IC601 to Pin T2 of IC301

HDMI mode : Check the path from Pin 21

of IC601 to Pin V12 of IC501

Analog TV mode : Check the path from Pin 55

of IC601 to Pin 10 of TU101

Video, Component mode : Check the path from

each Pin of IC601 to each jack

Check

the input signal of IC601is

normal

Yes

7. Hardware Troubleshooting : SMPS

-16-

1) FEL-3237A : DLV-32C7SMB, DLV-37C7LMB

'CHECKING FLOW ABOUT INFERIOR SMPS' (MODEL NAME : FEL-3237A)

PAGE : 1/2

1. Stand-by 5V is working out.

A. Can you check In-put voltage(DC) of the capacitor(Location No. : C22)?

2. MAIN Out-put voltage is working out but Stand-by 5V is working.

A. Can you check that it is working normal at Power On after dischanging for 1 minute from Power Off?

YES : It's protection due to out-put short of the moment through worker's carelessness.

NO : Checking 2.1 item.

A. Is Power On signal(3.3V) supplied to Base of Q4?

YES

YES 1.1 Checking open and short of Out-put side wire cable.

NO

1.2. Checking open and short of the around parts that was connected IC3(STR-A6151).
(Location No. : R4, R5, D4, D5, D7)

1.3. Checking open and short of IC3's each pins.

1.4. Checking open and short of 5V's Out-put diode.
(Location No. : D13)

NO

1.5. Can you check the Fuse(F1) condition(open and short)?

YES : Checking 1.2 item after changing FUSE. NO : Checking 1.6 item.

1.6. Checking open and short of BD1, BD2.

YES : Changing BD1, BD2.
NO : Checking open and short of Z1, LF1, LF2, C1, C2.

A. Can you check that Vcc voltage of IC3 was supplied from DC15V to DC27V?

YES

NO

2.1. Can you check the D4's condition(open and short)?

YES : Changing D4. NO : Checking 2.2 item.

2.2. Is Relay connected?

YES : Checking 2.3 item. NO : Changing Relay.

2.3. Can check the voltage(AC 400V) of AC rectifying side C23?

YES : Checking 2.5 item.
NO : Checking 2.5 item after checking the conditions(open and short) of the around

parts that was connected IC1. (Location No. : R14, R65, Q1, D1, D23, D12, IC1)

YES 2.4. changing Q4.

NO

B. Can you check the Q4's condition(open and short)?

C. Can you check that Vcc voltage of IC2's No.12pin was supplied from DC10V to DC12V?

NO

2.5. Can you see the square wave(400mV, 32kH) of Q2's source side when DC 13V
was supplied to IC2's No.12pin from DC POWER SUPPLY?

(CAUTION : Test do it after AC Power Off)

YES : Checking 2.1 item after checking diode's condition(open and short) of Main Out-put side.

(Location No. : D17, D18, D19, D16, D15, D14)

NO : Checking open and short of the around parts that was connected IC2.

(Location No. : Q2, Q3, D25, D26, D24, R31, R32, R35, R36, R38, D9, D10, C17)

YES 2.6. Checking open and short of MAIN BOARD.

2.7. Checking open and short of MAIN BOARD.

Hardware Troubleshooting : SMPS

-17-

'CHECKING FLOW ABOUT INFERIOR SMPS' (MODEL NAME : FEL-3237A)

PAGE : 2/2

3. 5V's Out-put voltage is measured too high or low.

A. Checking open and short of IC7.

B. Checking open and short of R24, R25.

C. Checking open and short of IC6.

4. 5V's Out-put voltage is work with intermittent mode.

A. Is R5's condition good from open and short?

YES : changing R5. NO : Checking 1.3 and 1.4 items.

(Checking open and short of MAIN BOARD if that 1, 3 and 1.4 items are no problem.)

5. Out-put voltage(DC12v, 24v, 30v) is measured too high.

A. Checking open and short of IC5.

B. Checking open and short of R44, R43.

C. Checking open and short of IC4.

6. Out-put voltage(DC12v, 24v, 30v) is measured too low.

A. Checking open and short of IC5.

B. Checking open and short of R44, R43.

C. Checking 2.3 item.

Hardware Troubleshooting : SMPS

-18-

2) FEL-42C1 : DLV-42C7LMB

'CHECKING FLOW ABOUT INFERIOR SMPS' (MODEL NAME : FEL-42C1)

PAGE : 1/2

1. Stand-by 5V is working out.

A. Can you check In-put voltage(DC) of the capacitor(Location No. : C22)?

2. MAIN Out-put voltage is working out but Stand-by 5V is working.

A. Can you check that it is working normal at Power On after dischanging for 1 minute from Power Off?

YES : It's protection due to out-put short of the moment through worker's carelessness.

NO : Checking 2.1 item.

A. Is Power On signal(3.3V) supplied to Base of Q4?

YES

YES 1.1 Checking open and short of Out-put side wire cable.

NO

1.2. Checking open and short of the around parts that was connected IC3(STR-A6151).
(Location No. : R4, R5, D4, D5, D7)

1.3. Checking open and short of IC3's each pins.

1.4. Checking open and short of 5V's Out-put diode.
(Location No. : D13)

NO

1.5. Can you check the Fuse(F1) condition(open and short)?

YES : Checking 1.2 item after changing FUSE. NO : Checking 1.6 item.

1.6. Checking open and short of BD1, BD2.

YES : Changing BD1, BD2.
NO : Checking open and short of Z1, LF1, LF2, LF3, C1, C2.

A. Can you check that Vcc voltage of IC3 was supplied from DC15V to DC27V?

YES

NO

2.1. Can you check the D4's condition(open and short)?

YES : Changing D4. NO : Checking 2.2 item.

2.2. Is Relay connected?

YES : Checking 2.3 item. NO : Changing Relay.

2.3. Can check the voltage(AC 400V) of AC rectifying side C23?

YES : Checking 2.5 item.
NO : Checking 2.5 item after checking the conditions(open and short) of the around

parts that was connected IC1. (Location No. : R14, R65, Q1, D1, D23, D12, IC1)

YES 2.4. changing Q4.

NO

B. Can you check the Q4's condition(open and short)?

C. Can you check that Vcc voltage of IC2's No.12pin was supplied from DC10V to DC12V?

NO

2.5. Can you see the square wave(400mV, 38kH) of Q2's source side when DC 13V
was supplied to IC2's No.12pin from DC POWER SUPPLY?

(CAUTION : Test do it after AC Power Off)

YES : Checking 2.1 item after checking diode's condition(open and short) of Main Out-put side.

(Location No. : D17, D18, D19, D16, D15, D14)

NO : Checking open and short of the around parts that was connected IC2.

(Location No. : Q2, Q3, D19, D20, D8, R31, R32, R35, R36, R38, D9, D10, C15)

YES 2.6. Checking open and short of MAIN BOARD.

2.7. Checking open and short of MAIN BOARD.

Hardware Troubleshooting : SMPS

-19-

'CHECKING FLOW ABOUT INFERIOR SMPS' (MODEL NAME : FEL-42C1)

PAGE : 2/2

3. 5V's Out-put voltage is measured too high or low.

A. Checking open and short of IC7.

B. Checking open and short of R24, R25.

C. Checking open and short of IC6.

4. 5V's Out-put voltage is work with intermittent mode.

A. Is R5's condition good from open and short?

YES : changing R5. NO : Checking 1.3 and 1.4 items.

(Checking open and short of MAIN BOARD if that 1, 3 and 1.4 items are no problem.)

5. Out-put voltage(DC12v, 24v, 30v) is measured too high.

A. Checking open and short of IC5.

B. Checking open and short of R44, R43.

C. Checking open and short of IC4.

6. Out-put voltage(DC12v, 24v, 30v) is measured too low.

A. Checking open and short of IC5.

B. Checking open and short of R44, R43.

C. Checking 2.3 item.

8. Bill Of Materials

-20-

ZZ100 48B5655B02 TRANSMITTER REMOCON R-55B02 (AAA)
ZZ110 PTACPWG207 ACCESSORY AS DLV-32C3SMBS
60 4850Q01210 BATTERY LR03 AAA ALKALINE
M212 4852176101 COVER BOTTOM ABS BK
M681 4856819300 CLAMP WIRE NYLON 66
M821 4858213803 BAG INSTRUCTION L.D.P.E TO.05X250X400(+20)
M861 48586210E1 MANUAL INSTRUCTION ENGLISH
P801A 48599HM001 CORD POWER AS SAA LP-23A LS-13 2.0M (LF)
ZZ120 PTBCSHG207 COVER BACK AS DLV-32C3SMBS
M211 4852177003 COVER BACK FR HIPS BK (NON-DECA)
M211A 4857818702 CLOTH BLACK FELT T0.7 L=350 W=15
M384 4853829200 FRAME WALL KIT SECC T=2.0
M384A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M593 4855945500 DECO SIDE AV PVC 0.3T
ZZ130 PTPKCPG281 PACKING AS DLV-32C7SMB
M681 4856812400 BAND PP AUTO T1.1XW17MMXL770M
M801 4858071300 BOX CARTON DW-3
M811 485819DB00 PAD EPS
M822 4858219201 BAG P.E P.E FOAM T0.5X1100X950
ZZ140 PTCACAG281 CABINET AS DLV-32C7SMB
M124 485A110570 SHIELDRON 40X100X10(T)
M125 485A109670 SHIELDRON 10X7X1.0T
M126 485A109670 SHIELDRON 10X7X1.0T
M191 4851957403 SHIELD CASE AS 7255702+5944603
M201B 7173301052 SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR
M201C 7173301052 SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR
M201D 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M201E 7003400651 SCREW MACHINE BIN 4X6 MFZN 3CR
M201F 4856815910 CLAMP WIRE EGI T0.4+TUBE+PIE 4.2
M211A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M211B 7172401652 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR
M211C 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M211E 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M321 4853296800 BRKT STAND SECC T1.6
M321A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M322 4853296900 BRKT STAND BOX SECC T1.0
M322A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M322B 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M382 4853829100 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL)
M382A 7003400651 SCREW MACHINE BIN 4X6 MFZN 3CR
M382B 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M491B 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M541 4855421200 SPEC PLATE P.E 149X59
M721A 7178300852 SCREW TAPPTITE TT2 WAS 3X8 MFZN BK 3CR
M723 4857255902 SHIELD JACK AL 1100 T=1.0 (A-3 : SL-230D)
M723A 7178300852 SCREW TAPPTITE TT2 WAS 3X8 MFZN BK 3CR
M723B 7178300852 SCREW TAPPTITE TT2 WAS 3X8 MFZN BK 3CR
MAK4A 4850K01400 CORE FERRITE BNF-12
MK202 4850K01700 CORE FERRITE BNF-1130
MK401 4850K01700 CORE FERRITE BNF-1130
MK501 4850K01900 CORE FERRITE BNF-1730
MK601 4850K01700 CORE FERRITE BNF-1130
MK602 4850K01700 CORE FERRITE BNF-1130
MK703 4850K01900 CORE FERRITE BNF-1730
MK704 4850K01700 CORE FERRITE BNF-1130
MK705 4850K01700 CORE FERRITE BNF-1130
MK803 4850K01000 CORE FERRITE BNF-18
MK804 4850K01400 CORE FERRITE BNF-12
P501A 4859004160 CABLE LVDS 1001-31FC-N+FH10002-30+3212APSB=300
P803A 4850714S04 CONNECTOR 20022HS-14+20022HS+ULW=300
V901 485LD13320 LCD PANEL LTA320WT-LF2
ZZ200 PTFMSJG281 MASK FRONT AS DLV-32C7SMB
M201 4852094903 MASK FRONT FR HIPS BK
M551 4855557201 DECO SENSOR GPPS
M561 4855626000 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=85,P=30
M591 4855945901 DECO PLATE ACRYL T2.0
ZZ210 PTSPPWG207 SPEAKER AS DLV-32C3SMBS
P601A 4850703N44 CONNECTOR SMH250-03+YRT205+YRT110+USW=600

LOC PART CODE PART NAME DESCRIPTION

P602A 4850704S80 CONNECTOR SMH250-04+YRT205+YRT110+USW=500
SP01 4858318510 SPEAKER SP-45165F01C
SP01A 4856017800 SCREW SPKR FIX SWRM+SECC 3CR
SP02 4858318510 SPEAKER SP-45165F01C
SP02A 4856017800 SCREW SPKR FIX SWRM+SECC 3CR
ZZ230 PTUNSWG281 PCB UNION AS DLV-32C7SMB
100 2193110012 SOLDER WIRE SAC3000 Ø3.0MM (LFA3C0-W3.0)
200 2193110024 SOLDER WIRE SAC3005 Ø1.6MM (LFA3-107-W1.6)
300 2291050623 FLUX SOLDER LF SV-PBF-304P(0.823)
400 2291050312 FLUX SOLVENT S-3000
IC290 1TS0P34838 IC PREAMP TSOP34838SJ
JP201 4859105340 JACK S-VHS DSW-10 (STRAIGHT)
JP202 4859112850 JACK PIN DPSS-0173(3P ST)
LED1 DSPR39MVW- LED SPR-39MVW (DUAL)
M232 4852333201 PANEL CTRL HIPS BK
M491 4854964311 BUTTON CH ABS GY
M491A 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
M551 4855557201 DECO SENSOR GPPS
P201A 4850705N28 CONNECTOR 12505HS-05+12505TS+ULW=900
P202A 4850706S42 CONNECTOR 12505HS-06+12505HS-06+ULW=700
P203A 4850710N33 CONNECTOR 12505HS-10+12505HS-10+ULW=800
ZZ200 PTUNJ2G281 PCB UNION CHIP AS DLV-32C7SMB
CC12 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC201 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CC202 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CC293 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608
LC01 HLC479K02B L CHIP COIL 4.7UH MLF 1608
LC02 HLC479K02B L CHIP COIL 4.7UH MLF 1608
RC20 HRFT432JBA R CHIP 1/10 4.3K OHM J 1608
RC21 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
RC22 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
RC23 HRFT432JBA R CHIP 1/10 4.3K OHM J 1608
RC24 HRFT113JBA R CHIP 1/10 11K OHM J 1608
ZZ200 PTUNJRG281 PCB UNION RADIAL AS DLV-32C7SMB
SW201 5S50101Z90 SW TACT THVV502GDA
SW202 5S50101Z90 SW TACT THVV502GDA
SW203 5S50101Z90 SW TACT THVV502GDA
SW204 5S50101Z90 SW TACT THVV502GDA
SW205 5S50101Z90 SW TACT THVV502GDA
SW206 5S50101Z90 SW TACT THVV502GDA
SW207 5S50101Z90 SW TACT THVV502GDA
ZZ200 PTUNJ1G281 PCB UNION CHIP A AS DLV-32C7SMB
110 2193220010 SOLDER CREAM(PB-FREE) LST309-M(SN+3.0AG/0.5CU)
A001 4859833614 PCB UNION 189X189
PW201 49590009S0 CONN WAFER 12505WR-05A00
PW202 49590001S0 CONN WAFER 12505WR-06A00
PW203 4859297920 CONN WAFER 12505WR-10A00
ZZ250 PTSNSWG207 STAND AS DLV-32C3SMBS
M213 4852177301 COVER STAND BASE HIPS BK
M383 4853831001 FRAME STAND ABS BK
M383A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR
M521 4855219100 PLATE BASE STAND SECC T2.0
M521A 7115401051 SCREW TAPPING FLT 4X10 MFZN 3CR
M521C 4852937500 RUBBER BOTTOM CR60 BK PHI 18.0 X T 3.0
ZZ290 PTMPMSG207 PCB MAIN MANUAL AS DLV-32C3SMBS
100 2193110012 SOLDER WIRE SAC3000 Ø3.0MM (LFA3C0-W3.0)
200 2193110024 SOLDER WIRE SAC3005 Ø1.6MM (LFA3-107-W1.6)
300 2291050623 FLUX SOLDER LF SV-PBF-304P(0.823)
400 2291050312 FLUX SOLVENT S-3000
CE607 CEXF1H331V C ELECTRO 50V RSS 330MF (10X20) TP
CE611 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP
HS301 4857032501 HEAT SINK AL EX BK L=26
HS501 4857032501 HEAT SINK AL EX BK L=26
IC701 1PC18LF452 IC MICOM PIC18LF452-I/P
JK250 4859118050 JACK PIN DPSE-9926S
JK270 4859105340 JACK S-VHS DSW-10 (STRAIGHT)
L605 58C0000157 COIL CHOKE CH-470X
L606 58C0000157 COIL CHOKE CH-470X

LOC PART CODE PART NAME DESCRIPTION

1) DLV-32C7SMB

Bill Of Materials

-21-

M121 485A110370 SHIELDRON 5X198X10(T)
M122 485A110470 SHIELDRON 5X115X10(T)
M123 485A110670 SHIELDRON 10X10X2(T)
M127 485A110770 SHIELDRON 5X70X12(T)
M128 485A110870 SHIELDRON 5X45X12(T)
M325 4853294100 BRKT POWER SW SECC 1T
M325A 7172401252 SCREW TAPPTITE TT2 TRS 4X12 MFZN BK 3CR
M381 4853829001 FRAME MAIN PCB SECC T=1.2 (A-2 : 32C1/32C3)
M381A 7178300852 SCREW TAPPTITE TT2 WAS 3X8 MFZN BK 3CR
M381B 7008300851 SCREW MACHINE WAS 3X8 MFZN 3CR
M381C 4956800200 CLAMP WIRE WS-A-2-19
M381D 4853748800 RETA PCB NYLON 66
M381E 4856815900 CLAMP WIRE EGI T0.4+TUBE+PIE 3.2
MK705 4850K01700 CORE FERRITE BNF-1130
P201 485923162S CONN WAFER YW025-03 (STICK)
P202 4859201460 CONN D-SUB 9P SHRA0209011
P203 4959102340 JACK PHONE YKB21-5157
P204 4859201170 CONN OPTICAL SENSOR OJ107A-T050-SHS
P205 4859117950 JACK PIN DPSE-0415S
P206 4859113650 JACK PIN YSC02P-1200-10S (2P ST)
P207 4859113650 JACK PIN YSC02P-1200-10S (2P ST)
P208 4959200160 CONN D-SUB SHF-015-B111-22/BR2-J0.6
P401 4859284920 CONN WAFER SMW250-08
P601 4859284420 CONN WAFER SMW250-03
P602 4859284520 CONN WAFER SMW250-04
P703 4859231720 CONN WAFER YW025-04
P703A 4850704S82 CONNECTOR YH025-04+YH025-04+ULW=300
P705 4859285020 CONN WAFER SMW250-09
P705A 4850709N12 CONNECTOR SMH250-09+SMH250-09+ULW=300
PM100 4850M13310 MODULE POWER FEL-3237A
TU101 4859731030 TUNER VARACTOR FE6631
W001 WP-0BK5005 WIRE LEAD 1007 AWG22 7/0.26 BK 5-50-5
W001 8P-07026BK WIRE LEAD AWG22 7/0.26 BK 1007
W002 WP-0BK1815 WIRE LEAD 1007 AWG22 7/0.26 BK 5-180-5
X301 5XJ24R576E CRYSTAL QUARTZ HC-49/S 24.576MHZ 30PPM
X501 5XJ28R32GE CRYSTAL QUARTZ HC-49/S 28.322MHZ 30PPM 16PF
X601 5XE18R432E CRYSTAL QUARTZ HC-49/U 18.43200MHZ 30PPM
X701 5XE20R000E CRYSTAL QUARTZ HC-49/U 20.000MHZ 30PPM
ZZ200 PTMPJ2G207 PCB MAIN CHIP B AS DLV-32C3SMBS
CC101 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC102 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC103 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC104 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC178 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC179 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC180 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC181 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC182 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC183 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
CC184 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC185 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC186 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC187 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
CC188 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC189 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
CC190 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
CC191 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
CC194 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
CC195 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
CC201 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC202 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC203 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC204 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC205 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC206 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC207 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC209 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC210 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION

CC211 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC212 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC213 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC214 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC215 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC217 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC219 HCBK221KBA C CHIP CERA 50V X7R 220PF K 1608
CC241 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC242 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC251 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CC252 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CC253 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC254 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC271 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC301 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC302 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC303 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC304 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC305 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC306 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC307 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC308 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC309 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC310 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC311 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC312 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC313 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC314 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC315 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC316 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC317 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC318 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC319 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC320 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC321 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC322 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC323 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC324 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC325 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC326 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC327 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC328 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
CC329 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608
CC331 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC401 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC402 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC403 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC404 HCFD105ZBA C CHIP CERA Y5V 10V 1MF Z 1608
CC405 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC406 HCFD105ZBA C CHIP CERA Y5V 10V 1MF Z 1608
CC407 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC408 HCFD105ZBA C CHIP CERA Y5V 10V 1MF Z 1608
CC409 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC410 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC411 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC412 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC413 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC414 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC415 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC416 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC417 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC418 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC419 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC420 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC421 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC422 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC423 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC424 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-22-

CC425 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC426 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC427 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC428 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC429 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC430 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC431 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC432 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC433 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC434 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC435 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC436 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC437 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC438 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC439 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC440 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC441 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC442 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC443 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC444 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC445 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC449 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC450 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC451 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC500 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC501 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC502 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC503 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC504 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC505 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC506 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC507 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC508 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC509 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC510 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC511 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC512 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC513 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608
CC514 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC515 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608
CC516 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC517 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC518 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC519 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC520 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC521 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC522 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC523 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC524 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC525 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC526 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC527 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC528 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC529 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC530 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC531 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC532 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC533 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC535 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC536 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC539 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC544 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC545 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC546 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
CC547 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
CC548 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
CC549 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC550 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608

LOC PART CODE PART NAME DESCRIPTION

CC551 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC552 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC553 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC556 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC557 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC558 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC559 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC560 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC572 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC576 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC577 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC583 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
CC584 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
CC585 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC586 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC587 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC588 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC589 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC590 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC591 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC592 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC593 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC594 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC595 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC596 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC597 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC598 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC599 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC600 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC601 HCBK221KBA C CHIP CERA 50V X7R 220PF K 1608
CC602 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
CC603 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
CC604 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC605 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC606 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC607 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC613 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC615 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC617 HCQK509CBA C CHIP CERA 50V CH 5PF C 1608
CC618 HCQK509CBA C CHIP CERA 50V CH 5PF C 1608
CC635 HCQK560JBA C CHIP CERA 50V CH 56PF J 1608
CC636 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CC637 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CC649 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC650 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC651 HCBK221KBA C CHIP CERA 50V X7R 220PF K 1608
CC652 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
CC653 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
CC654 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC655 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC701 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC702 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC703 HCQK160JBA C CHIP CERA 50V CH 16PF J 1608
CC704 HCQK160JBA C CHIP CERA 50V CH 16PF J 1608
CC705 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC706 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
CC707 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC708 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC709 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC710 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC711 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC712 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC713 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC714 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC716 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC717 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC719 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC737 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-23-

CC738 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
CC739 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC740 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC741 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC742 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC743 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC744 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC745 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
LC101 HLC100K02A L CHIP COIL 10UH MLF 2012
LC103 HLC100K02A L CHIP COIL 10UH MLF 2012
LC201 HFF221B00A F CHIP FERRITE BEAD 220 OHM GBK 1608
LC402 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC403 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC404 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC407 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC408 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC409 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC501 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC502 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC506 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC507 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC508 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC509 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC510 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC512 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC513 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC515 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC516 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC518 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC519 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC540 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC541 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC752 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC761 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC762 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
RC104 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC105 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC106 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC107 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC110 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC112 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC113 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC116 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC120 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC163 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC164 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC165 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC166 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC176 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC179 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC181 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC182 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC183 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC184 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC190 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC214 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC215 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC216 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC217 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC218 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC219 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC220 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC221 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC224 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC225 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC230 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC231 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC232 HRFT224JBA R CHIP 1/10 220K OHM J 1608

LOC PART CODE PART NAME DESCRIPTION

RC233 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC234 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC235 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC236 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC237 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC238 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC239 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC240 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC241 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC242 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
RC251 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC255 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC256 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC259 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC260 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC261 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC271 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC272 HRFT153JBA R CHIP 1/10 15K OHM J 1608
RC273 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC274 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC275 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC276 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC2A2 HRFT153JBA R CHIP 1/10 15K OHM J 1608
RC2A3 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC2A5 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC2A7 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC2A9 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC2B1 HRFT224JBA R CHIP 1/10 220K OHM J 1608
RC303 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC309 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC311 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC312 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC316 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC318 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC319 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC322 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC325 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC331 HRFT150JBA R CHIP 1/10 15 OHM J 1608
RC332 HRFT150JBA R CHIP 1/10 15 OHM J 1608
RC333 HRFT202FBA R CHIP 1/10 2K OHM F 1608
RC334 HRFT222FBA R CHIP 1/10 2.2K OHM F 1608
RC402 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC535 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC536 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC541 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC543 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC551 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC562 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC564 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC578 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC579 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC580 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC583 HRFT330JBA R CHIP 1/10 33 OHM J 1608
RC588 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC590 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC592 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC610 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC622 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
RC627 HRFT569JBA R CHIP 1/10 5.6 OHM J 1608
RC641 HRF4272JEA R CHIP 1/4W 2.7K OHM J 3216
RC642 HRF4272JEA R CHIP 1/4W 2.7K OHM J 3216
RC643 HRF4272JEA R CHIP 1/4W 2.7K OHM J 3216
RC644 HRF4272JEA R CHIP 1/4W 2.7K OHM J 3216
RC656 HRFT569JBA R CHIP 1/10 5.6 OHM J 1608
RC701 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC705 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC706 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC707 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-24-

RC712 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC713 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC717 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC718 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC719 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC721 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC722 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC723 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC729 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC739 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC740 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC741 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
RC763 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
VC201 DV150RFG-B VARACTOR CHIP CT0603V150RFG
VC202 DV150RFG-B VARACTOR CHIP CT0603V150RFG
VC203 DV150RFG-B VARACTOR CHIP CT0603V150RFG
VC204 DV150RFG-B VARACTOR CHIP CT0603V150RFG
VC205 DV150RFG-B VARACTOR CHIP CT0603V150RFG
VC206 DV150RFG-B VARACTOR CHIP CT0603V150RFG
VC207 DV150RFG-B VARACTOR CHIP CT0603V150RFG
VC208 DV150RFG-B VARACTOR CHIP CT0603V150RFG
ZZ200 PTMPJ0G207 PCB MAIN (RHU) AS DLV-32C3SMBS
CE101 CEXE1A222E C ELECTRO 10V RM 2200MF (10X20) TP
CE113 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
CE116 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
CE534 CEXE1A222E C ELECTRO 10V RM 2200MF (10X20) TP
CE612 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP
CE613 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP
CE614 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP
CE708 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
CE709 CEXE1A222E C ELECTRO 10V RM 2200MF (10X20) TP
CE710 CEXE1A102B C ELECTRO 10V RFX 1000MF (10X16) TP
CE711 CEXE1A102B C ELECTRO 10V RFX 1000MF (10X16) TP
CE712 CEXE1A102B C ELECTRO 10V RFX 1000MF (10X16) TP
CE713 CEXE1A102B C ELECTRO 10V RFX 1000MF (10X16) TP
CE760 CEXE1A102B C ELECTRO 10V RFX 1000MF (10X16) TP
ZZ200 PTMPJRG207 PCB MAIN RADIAL AS DLV-32C3SMBS
CE102 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE103 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE104 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE105 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE106 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE198 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE251 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP
CE401 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
CE402 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
CE403 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP
CE404 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE405 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE406 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE407 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE408 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE409 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE410 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE411 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE412 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE413 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE501 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE502 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE503 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE504 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE505 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE506 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE507 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE508 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE509 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE510 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE511 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7

LOC PART CODE PART NAME DESCRIPTION

CE512 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE513 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE514 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE515 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE516 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE517 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE518 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE519 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE520 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7
CE521 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE522 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE523 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE524 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE525 CEXF1C220V C ELECTRO RSS 16V 22MF 5*11
CE526 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE540 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE541 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE542 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE543 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE560 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE601 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE602 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE603 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE604 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE608 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE703 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE704 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE705 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP
CE707 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP
CE714 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE715 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CM619 CMXL1J474J C MYLAR 63V MEU 0.47MF J
CM620 CMXL1J474J C MYLAR 63V MEU 0.47MF J
CM706 CMXL1J104J C MYLAR 63V MEU 0.1MF J
IC305 1K1A7025AP IC RESET KIA7025AP
IC603 1K1A7025AP IC RESET KIA7025AP
IC702 1K1A7025AP IC RESET KIA7025AP
IC703 1K1A7025AP IC RESET KIA7025AP
L602 5CPX150J-- COIL PEAKING 15UH J (RADIAL)
Q102 TKTC3198Y- TR KTC3198Y
Q251 TKTA1266Y- TR KTA1266Y (TP)
Q601 TKSR1004-- TR KSR-1004 (TAPPING)
Q602 TKTC3198Y- TR KTC3198Y
Q701 TKTC3198Y- TR KTC3198Y
Q702 TKTC3198Y- TR KTC3198Y
Q703 TKTC3198Y- TR KTC3198Y
Q704 TKTA1266Y- TR KTA1266Y (TP)
Q760 TKTC3198Y- TR KTC3198Y
SW301 5S50101Z90 SW TACT THVV502GDA
X102 5XEX4R000C CRYSTAL QUARTZ HC-49/U 4.000MHZ 20PPM TP
ZZ200 PTMPJ1G207 PCB MAIN CHIP A AS DLV-32C3SMBS
110 2193220010 SOLDER CREAM(PB-FREE) LST309-M(SN+3.0AG/0.5CU)
A001 4859817692 PCB MAIN 288X234 K4V
CC105 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC166 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC192 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC193 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC196 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
CC197 HRFT471JBA R CHIP 1/10 470 OHM J 1608
CC198 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC199 HCFD105ZBA C CHIP CERA Y5V 10V 1MF Z 1608
CC208 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC216 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC218 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC243 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC281 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC330 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC446 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-25-

CC447 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC448 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC453 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC498 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC499 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC534 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC537 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC538 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC540 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC541 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC542 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC554 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC555 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC561 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC562 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC563 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC564 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC565 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC566 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC567 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC568 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC569 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC570 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC571 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC573 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC574 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC578 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC580 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC581 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC582 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC608 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC609 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC610 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC611 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC612 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC614 HCBK560KBA C CHIP CERA 50V X7R 56PF K 1608
CC616 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC619 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC620 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC621 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC622 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608
CC633 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
CC634 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608
CC638 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC639 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC640 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC641 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC642 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC643 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC644 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
CC648 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
CC662 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC715 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC718 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC720 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC721 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC722 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CC723 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC724 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC725 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC726 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CC727 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC728 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC729 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC730 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CC731 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC732 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC733 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION

CC734 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CC735 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC736 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC751 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC752 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC753 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC754 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC760 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC761 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC762 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CC763 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC770 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC771 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CC773 HCQK102JBA C CHIP CERA 50V CH 1000PF J 1608
CC774 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
DC280 DMMBD1204B DIODE CHIP MMBD1204
DC701 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
DC702 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
DC703 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
DC704 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
DC705 DMMBD1203B DIODE CHIP MMBD1203
DC760 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
DZ201 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ202 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ203 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ204 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ205 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ206 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ207 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ208 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ209 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ212 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ213 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ214 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ215 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ216 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ217 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ218 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ219 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ220 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ221 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ222 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ223 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ224 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ225 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ226 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ227 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ282 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ301 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
DZ501 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING)
IC102 1X3975DB1Q IC CHIP TV DECODER DRX3975D B1
IC201 1M74HC14TC IC CHIP LOGIC M74HC14TTR
IC202 1CD74HC52D IC CHIP LOGIC CD74HC4052M SOIC 16 REEL
IC203 174LV1G14B IC CHIP INVERTER SN74LVC1G14DBVR
IC204 1ST232CD-Q IC CHIP DRIVE ST232CD
IC281 124LC22A-C IC CHIP EEPROM 24LC22AT-ISN SOIC8 REEL
IC301 1ZR39661-Q IC CHIP MPEG DECODER ZR39661BGCG-B1
IC302 129LV320BQ IC CHIP FLASH MEMORY EN29LV320B-70TCP
IC303 142A16846Q IC CHIP DDR SDRAM EM42AM1684RTA-6F(256MB 16X16)
IC304 142A16846Q IC CHIP DDR SDRAM EM42AM1684RTA-6F(256MB 16X16)
IC306 1CAT24WC-E IC CHIP EEPROM CAT24WC32J
IC307 1CD74HC52D IC CHIP LOGIC CD74HC4052M SOIC 16 REEL
IC501 1SVPPX66-Q IC CHIP VIDEO PROCESSOR SVP-PX66(7266-LF)
IC502 1D263238FQ IC CHIP DDR SDRAM K4D263238F-UC50
IC503 1LM810---D IC CHIP RESET LM810 M3-2.63
IC601 1MSP4610KQ IC CHIP SOUND MSP4610K-QA-D6-000
IC602 1STA515W-D IC CHIP AUDIO AMP STA515W
IC704 1AZ117H33C IC CHIP REGULATOR AZ1117H-3.3TREI 3.3V SOT-223

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-26-

IC705 1MP1583--D IC CHIP CONVERTER MP1583DN
IC706 1MP1583--D IC CHIP CONVERTER MP1583DN
IC707 1MP1583--D IC CHIP CONVERTER MP1583DN
IC708 1MP1583--D IC CHIP CONVERTER MP1583DN
IC709 T1RF7233-- FET CHIP IRF7233
IC710 1MP1583--D IC CHIP CONVERTER MP1583DN
JK281 4859201360 CONN HDMI 51V019S-36WT-A1R
LC202 HFF221B00A F CHIP FERRITE BEAD 220 OHM GBK 1608
LC203 HFF221B00A F CHIP FERRITE BEAD 220 OHM GBK 1608
LC204 HFF221B00A F CHIP FERRITE BEAD 220 OHM GBK 1608
LC205 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC281 HFEACM201A F CHIP EMI 90 OHM ACM 2012
LC282 HFEACM201A F CHIP EMI 90 OHM ACM 2012
LC283 HFEACM201A F CHIP EMI 90 OHM ACM 2012
LC284 HFEACM201A F CHIP EMI 90 OHM ACM 2012
LC410 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC503 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC504 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC505 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC511 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC514 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC517 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
LC520 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC521 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC522 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC523 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC524 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC525 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC526 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC543 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608
LC601 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC602 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC701 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC702 HLC151K01E L CHIP COIL 150UH K 120120
LC703 HLC151K01E L CHIP COIL 150UH K 120120
LC704 HLC151K01E L CHIP COIL 150UH K 120120
LC705 HLC151K01E L CHIP COIL 150UH K 120120
LC751 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
LC760 HLC151K01E L CHIP COIL 150UH K 120120
LCTU1 HLC339K02A L CHIP COIL 3.3UH MLF 2012
LCTU2 HLC339K02A L CHIP COIL 3.3UH MLF 2012
LCTU3 HLC339K02A L CHIP COIL 3.3UH MLF 2012
LCTU4 HLC339K02A L CHIP COIL 3.3UH MLF 2012
LCTU5 HLC339K02A L CHIP COIL 3.3UH MLF 2012
LCTU6 HLC339K02A L CHIP COIL 3.3UH MLF 2012
P240 4859297820 CONN WAFER 12505WS-10A00
P501 4859293820 CONN WAFER GT121-31P-TD-A 31P ST
P701 4859295120 CONN WAFER 12505WS-05A00
P702 4859295220 CONN WAFER 12505WS-06A00
P704 4859299520 CONN WAFER 12505WS-07P
QC282 TUPA672T-B TR CHIP UPA672T
QC283 TBSS138--A TR CHIP BSS138
QC284 TBSS138--A TR CHIP BSS138
QC601 TBSS138--A TR CHIP BSS138
QC602 TBSS138--A TR CHIP BSS138
RA301 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA302 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA303 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA304 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA305 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA306 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA307 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA308 HRTS8E000J R CHIP ARRAY 1/16 8P 0 OHM J 3216
RA309 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA310 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA311 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA312 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA313 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216

LOC PART CODE PART NAME DESCRIPTION

RA314 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA315 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA316 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA317 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA318 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA319 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA320 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA321 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA322 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA323 HRTS8E150J R CHIP ARRAY 1/16 8P 15 OHM 3216
RA501 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA502 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA503 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA504 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA505 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA506 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA507 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA508 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA509 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA510 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA511 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA512 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA513 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RA514 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216
RC111 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC114 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC115 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
RC117 HRFT132JBA R CHIP 1/10 1.3K OHM J 1608
RC118 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC133 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC134 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC135 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC136 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC137 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC138 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC139 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
RC156 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC157 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC158 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
RC159 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
RC160 HFF331C00B F CHIP FERRITE BEAD 330 OHM PBY 2012
RC161 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
RC162 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC167 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC168 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC169 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC170 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC171 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC172 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC173 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC174 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC175 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC177 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC178 HRFT330JBA R CHIP 1/10 33 OHM J 1608
RC180 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC187 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC188 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC189 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC191 HRFT681JBA R CHIP 1/10 680 OHM J 1608
RC192 HRFT151JBA R CHIP 1/10 150 OHM J 1608
RC193 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC194 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC195 HRFT183JBA R CHIP 1/10 18K OHM J 1608
RC196 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC197 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC198 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC201 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC202 HRFT101JBA R CHIP 1/10 100 OHM J 1608

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-27-

RC209 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC210 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC211 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC212 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC213 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC222 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC223 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC226 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC227 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC228 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC229 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC243 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
RC247 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
RC248 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC249 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC250 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC252 HRF4430JEA R CHIP 1/4 43 OHM J 3216
RC253 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC254 HRFT221JBA R CHIP 1/10 220 OHM J 1608
RC257 HRFT221JBA R CHIP 1/10 220 OHM J 1608
RC258 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC262 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC263 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC264 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
RC265 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC282 HRFT474JBA R CHIP 1/10 470K OHM J 1608
RC283 HRFT474JBA R CHIP 1/10 470K OHM J 1608
RC284 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC285 HRFT474JBA R CHIP 1/10 470K OHM J 1608
RC286 HRFT474JBA R CHIP 1/10 470K OHM J 1608
RC287 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC288 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC294 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC295 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC296 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC297 HRFT433JBA R CHIP 1/10 43K OHM J 1608
RC2A1 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC2A4 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC2A6 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC2A8 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC2B0 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC2B2 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC301 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC302 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC304 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC305 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC306 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC306 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC307 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC308 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC310 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC313 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC314 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC315 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC317 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC323 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC327 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC330 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC335 HRFT241JBA R CHIP 1/10 240 OHM J 1608
RC336 HRFT241JBA R CHIP 1/10 240 OHM J 1608
RC337 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC338 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC339 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC340 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC341 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC342 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC343 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC344 HRFT000-BA R CHIP 1/10 0 OHM 1608

LOC PART CODE PART NAME DESCRIPTION

RC345 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC346 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC347 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC348 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC349 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC350 HRFT330JBA R CHIP 1/10 33 OHM J 1608
RC351 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC352 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC353 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC354 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC355 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC356 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC357 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC358 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC359 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC360 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC361 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC362 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC363 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC364 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC365 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC366 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC367 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC368 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC369 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC370 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC371 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC374 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC375 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC377 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC379 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC381 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC382 HRFT220JBA R CHIP 1/10 22 OHM J 1608
RC383 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC384 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC385 HRFT391JBA R CHIP 1/10 390 OHM J 1608
RC386 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC387 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC388 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC389 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC390 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC391 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC392 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC393 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC394 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC398 HRFT220JBA R CHIP 1/10 22 OHM J 1608
RC400 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC409 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC410 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC501 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC502 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC503 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC504 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC505 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC506 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC507 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC508 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC511 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC512 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC519 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC521 HRFT000JBA R CHIP 1/10 0 OHM J 1608
RC522 HRFT000JBA R CHIP 1/10 0 OHM J 1608
RC531 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC532 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC533 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC542 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC544 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC545 HRFT000-BA R CHIP 1/10 0 OHM 1608

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-28-

RC546 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC547 HRFT104JBA R CHIP 1/10 100K OHM J 1608
RC549 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC550 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC552 HFF601C00B F CHIP FERRITE BEAD 600 OHM SBK 2012
RC554 HRFT470JBA R CHIP 1/10 47 OHM J 1608
RC557 HRFT102FBA R CHIP 1/10 1K OHM F 1608
RC558 HRFT102FBA R CHIP 1/10 1K OHM F 1608
RC559 HRFT471JBA R CHIP 1/10 470 OHM J 1608
RC560 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC561 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC563 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC565 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC566 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC568 HRFT105JBA R CHIP 1/10 1M OHM J 1608
RC569 HRFT330JBA R CHIP 1/10 33 OHM J 1608
RC581 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC582 HRFT330JBA R CHIP 1/10 33 OHM J 1608
RC584 HRFT391JBA R CHIP 1/10 390 OHM J 1608
RC585 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC586 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC596 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC597 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC601 HRFT102JBA R CHIP 1/10 1K OHM J 1608
RC602 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC603 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC606 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC608 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC609 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC611 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC612 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC613 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC614 HRFT201JBA R CHIP 1/10 200 OHM J 1608
RC615 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC616 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC617 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC618 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC620 HRFT302JBA R CHIP 1/10 3K OHM J 1608
RC621 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC623 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC625 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC628 HRFT162JBA R CHIP 1/10 1.6K OHM J 1608
RC631 HRF4220JEA R CHIP 1/4W 22 OHM J 3216
RC634 HRF4220JEA R CHIP 1/4W 22 OHM J 3216
RC640 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC650 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RC652 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
RC704 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC708 HRFT390JBA R CHIP 1/10 39 OHM J 1608
RC709 HRFT750JBA R CHIP 1/10 75 OHM J 1608
RC710 HRFT132JBA R CHIP 1/10 1.3K OHM J 1608
RC711 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
RC714 HRFT561JBA R CHIP 1/10 560 OHM J 1608
RC715 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC720 HRFT221JBA R CHIP 1/10 220 OHM J 1608
RC724 HRFT183JBA R CHIP 1/10 18K OHM J 1608
RC725 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC726 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC727 HRFT113JBA R CHIP 1/10 11K OHM J 1608
RC730 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC731 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC732 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608
RC733 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC734 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC735 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
RC737 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC738 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC743 HRFT000-BA R CHIP 1/10 0 OHM 1608

LOC PART CODE PART NAME DESCRIPTION

RC747 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC752 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC753 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC760 HRFT333JBA R CHIP 1/10 33K OHM J 1608
RC761 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC762 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RC764 HRFT101JBA R CHIP 1/10 100 OHM J 1608
RC771 HRFT000-BA R CHIP 1/10 0 OHM 1608
RC772 HRFT000-BA R CHIP 1/10 0 OHM 1608
RCA48 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
ZC201 HFZACF471C F CHIP LC ACF321825-471
ZC202 HFZACF471C F CHIP LC ACF321825-471
ZC203 HFZACF471C F CHIP LC ACF321825-471
ZC204 HFZACF471C F CHIP LC ACF321825-471
ZC205 HFZACF471C F CHIP LC ACF321825-471
ZC206 HFZACF471C F CHIP LC ACF321825-471
ZC261 HFZACF471C F CHIP LC ACF321825-471
ZC262 HFZACF471C F CHIP LC ACF321825-471
ZC263 HFZACF471C F CHIP LC ACF321825-471
ZC264 HFZACF471C F CHIP LC ACF321825-471

LOC PART CODE PART NAME DESCRIPTION

Bill Of Materials

-29-

2) Differental Materials Besides Mechanical Parts

Digital Board IC401 T1RF7233-- FET CHIP IRF7233 x o o

LC525 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608 o x x
LC526 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608 o x x
LC527 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608 x o o
LC528 HFF300B00A F CHIP FERRITE BEAD 30 OHM PBY 1608 x o o
Q401 TH2N7000-- FET H2N7000 x o o
Q760 TKTC3198Y- TR KTC3198Y o x x
RC559 HRFT471JBA R CHIP 1/10 470 OHM J 1608 o x x

CABLE P202A 4850706S42 CONNECTOR 12505HS-06+12505HS-06+ULW=700 o x x

& P202A 4850706S36 CONNECTOR 12505HS-06+12505HS-06+ULW=900 x o o

CONNECTOR P501A 4859005560 CABLE LVDS LPL:FMW1214A-31A+FH10001-30+42C1LMR=450 x o o

P501A 4859004160 CABLE LVDS 1001-31FC-N+FH10002-30+3212APSB=300 o x x
P601A 4850703N44 CONNECTOR SMH250-03+YRT205+YRT110+USW=600 o x x
P602A 4850704S80 CONNECTOR SMH250-04+YRT205+YRT110+USW=500 o x x
P803A 4850714S04 CONNECTOR 20022HS-14+20022HS+ULW=300 o x x
P803B 4850712S11 CONNECTOR 20022HS-12S+20022HS-12S+ULW=800 x o o
P803C 4850712S09 CONNECTOR 20022HS-12S+20022HS-12S+ULW=300 x o x
P803C 4850714S06 CONNECTOR 20022HS-14S+20022HS-12S+ULW=300 x x o

SPEAKER SP01 48A8319000 SPEAKER SYSTEM SS-57165F02CR x o o

SP01 4858318510 SPEAKER SP-45165F01C o x x
SP02 48A8320000 SPEAKER SYSTEM SS-57165F02CL x o o
SP02 4858318510 SPEAKER SP-45165F01C o x x

LCD PANEL V901 485LD13320 LCD PANEL LTA320WT-LF2 o x x

V901 485LD00370 LCD PANEL LC370WX1-SL01 x o x
V901 485LD00421 LCD PANEL LC420WX5-SLA1 x x o

SMPS PM100 4850M13310 MODULE POWER FEL-3237A o o x

PM100 4850M11310 MODULE POWER FEL-42C1 x x o

LOC PART CODE PART NAME DESCRIPTION DLV-32C7SMB DLV-37C7LMB DLV-42C7LMB

-30-

File Open

Setting Menu

File Name

Progress Bar

Progress Status

Setting Status

Progress Rate

Elapsed Time

Upload Button Cancel Button

1) Requirements

1.1 You need followings to upgrade LCD TV.

- Decoder S/W, *.ecc to be uploaded

- PIC micom S/W, *.hex to be uploaded

- RS232 cable

- S/W upgrade tool

- Service remote controller

1.2 Your computer has 9-pin serial port and the port should not be conflicted with other S/W.

1.3 While upgrading, the power cord should not be unpluged.

2) Outline of the S/W upgrade tool, which is DTV_Updater.exe.

9. How to S/W Upgrade Tools

How to S/W Upgrade Tools

-31-

3) How to upgrade decoder of LCD TV.

3.1 Execute S/W upgrade tool, which is DTV_Updater.exe.

3.2 Select [Setting] -> [Target] -> [Decoder] in the menu.

3.3 Select available serial port in [Setting] -> [Port].(Default port is COM1.)

How to S/W Upgrade Tools

-32-

3.4 Select bitrate, which is [Setting] -> [bits/second] -> [115200] in the menu.

File Open

3.5 Open the file, *.ecc to be uploaded in the decoder.

How to S/W Upgrade Tools

-33-

3.6 If the file is correctly selected, the file name is displayed as followings.

Do not check the option [Boot Sector include].

3.7 Click the [Upload] button. Turn off/on the LCD TV as following message.

How to S/W Upgrade Tools

-34-

3.9 Click the [Finish] button if the decoder upgrade has been finished as below.

And then turn off/on LCD TV with the power cord.

3.8 Decoder is being upgraded as below.

How to S/W Upgrade Tools

-35-

4) How to upgrade PIC micom of LCD TV.

4.1 Execute S/W upgrade tool, which is DTV_Updater.exe.

4.2 Press S10 key on the service remote controller.
Move to [Micom Update] with CH UP/DOWN key.
And set the option into ON with VOL UP/DOWN key as below.

4.3 Select [Setting] -> [Target] -> [PIC] in the menu.

How to S/W Upgrade Tools

-36-

4.4 Select available serial port in [Setting] -> [Port].(Default port is COM1.)

4.5 Select bitrate, which is [Setting] -> [bits/second] -> [9600] in the menu.

How to S/W Upgrade Tools

-37-

4.7 If the file is correctly selected, the file name is displayed as followings.

Do not check the option [Boot Sector include].

4.6 Open the file, *.hex to be uploaded in the PIC.

How to S/W Upgrade Tools

-38-

4.8 Click the [Upload] button.

Execute the AC off/on as following message.

4.9 PIC is being upgraded as below.

How to S/W Upgrade Tools

-39-

4.10 Click the [Finish] button if the PIC upgrade has been finished as below.

LCD TV will be automatically turned on.

10. Schematics : Digital Board

-40-

Schematics : Digital Board

-41-

Schematics : Digital Board

-42-

Schematics : Digital Board

-43-

Schematics : Digital Board

-44-

Schematics : Digital Board

-45-

Schematics : Digital Board

-46-

Schematics : Digital Board

-47-

Schematics : Digital Board

-48-

11. Schematics : SMPS

-49-

1) FEL-3237A : DLV-32C7SMB, DLV-37C7LMB

Schematics : SMPS

-50-

2) FEL-42C1 : DLV-42C7LMB

12. Mechanical Development Figure

-51-

1) DLV-32C7SMB

Mechanical Development Figure

-52-

2) DLV-37C7LMB

Mechanical Development Figure

-53-

3) DLV-42C7LMB

DAEWOO ELECTRONICS CORP.

686, AHYEON-DONG, MAPO-GU,
SEOUL, KOREA.

C.P.O. BOX 8003 SEOUL KOREA

PRINTED DATE : Dec. 2006
