DAEWOO CP-185L, CP-185G Service Manual
http : e.co.kr
Color Television
CHASSIS : CP-185L and CP-185G
Specification
S/M No. : TCP185LGF0
Version Pal multi system
TV Standard PAL-SECAM B/G, D/K, H, I/I (NTSC : AV Only)
Sound system Mono
* 1 Speaker
Power consumption
14":49W / 20":60W / 21" 68W
* 2Speaker
14":57W / 20":64W / 21":74W
Speaker 3W 8 Ohm o 7.5W 8 Ohm
Teletext system Option
Aerial Input 75 Ohm unbalanced
Channel coverage off-air channels, S-cable channels and hyperband
Tuning system Ferquency synthesiser tuning system
14":34cm
Visual screen size 20’:48cm
21":51cm
Channel indication On screen display
Program selection 100 Programmes
RCA jack : Audio input and Vidio input
ERUO SCART Jack : Audio/Video and R/G/B input.
Auxiliary Outpup Terminal
Sloe and fast swtching, SVHsin
Audio - Video jack on front of cabinet in common
connection with EURO-SCART
Headphone jack on front of cabinet
R-40A10 (None teletext)
AAA Battery type
Remote control R-40A01(With teletext) AAA Battery type
R-44C05(With teletext) AA Battery type
Jul. 2003
SAFETY INSTRUCTION 2
SPECIFICATIONS 3
21 Pin EURO-SCART
3
CIRCUIT BLOCK DIAGRAM 4
ALIGNMENT INSTRUCTIONS 5
1. Service mode
5
2. Microcontroller configuration
5
3. TV SET Alignment
5~6
SCHEMATIC DIAGRAM 7
EXPLODED VIEW 8~10
PRINTED CIRCUIT BOARD 11
SERVICE PARTS LIST 12~24
The different parts list
25~27
FUNCTIONAL DESCRIPTION 1~6
IC DESCRIPTION 7~42
1
TABLE OF CONTENTS
APPENDIX (Appendix is provide only by internet [http://svc.dwe.co.kr])
2
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high
voltage must not exceed the specified limit. The nominal value of the high voltage of this receiver is 22-23 kV (14")or
24-26 kV (20"-21")at max beam current. The high voltage must not, under any circumstances, exceed 27.5 kV (14",
20"), 29KV (21"). Each time a receiver requires servicing, the high voltage should be checked. It is important to use an
accurate and reliable high voltage meter.).
2. The only source of X-RAY Radiation in this TV receiver is the picture tube. For continued X-RAY RADIATION
protection, the replacement tube must be exactly the same type tube as specified in the parts list.
SAFETY PRECAUTION
1. Potentials of high voltage are present when this receiver is operating. Operation of the receiver outside the cabinet or
with the back cover removed involves a shock hazard from the receiver.
1) Servicing should not be attempted by anyone who is not thoroughly familiar with the precautions necessary when
working on high voltage equipment.
2) Discharge the high potential of the picture tube before handling the tube. The picture tube is highly evacuated and if
broken, glass fragments will be violently expelled.
2. If any Fuse in this TV receiver is blown, replace it with the FUSE specified in the Replacement Parts List.
3. When replacing a high wattage resistor (oxide metal film resistor) in circuit board, keep the resistor body 10 mm away
from the circuit board.
4. Keep wires away from high voltage or high temperature components.
5. This receiver must operate under AC 230 volts, 5O Hz. NEVER connect to a DC supply of any other voltage or
frequency.
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this equipment have special safety-related characteristics. These characteristics
are often passed unnoticed by a visual inspection and the X-RAY RADIATION protection afforded by them cannot
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts
which have these spe- cial safety characteristics are identified in this manual and its supplements, electrical components
having such features are identified by designated symbol on the parts list. Before replacing any of these components,
read the parts list in this manual carefully. The use of substitutes replacement parts which do not have the same safety
characteristics as specified in the parts list may create X-RAY Radiation.
SAFETY INSTRUCTION
WARNING : Only competent service personnel may carry out work involving the testing or repair of this equipment
3
PIN SIGNAL DESCRIPTION MATCHING VALUE
1 Audio Output Right 0.5 Vrms, Impedance < 1k‰, (RF 54% Mod)
2 Audio Input Right 0.5Vrms, Impedance > 10k‰
3 Audio Output Left 0.5 Vrms, Impedance < 1k‰, (RF 54% Mod)
4 Audio Earth
5 Blue Earth
6 Audio Input Left 0.5Vrms, Impedance > 10k‰
7 Blue Input 0.7Vpp + 0.1V, Inpedance 75‰
8 Slow Switching TV : 0 to 2V, AV : 4.5 to 12V, Impedance > 10k‰
9 Green Earth
10 N.C
11 Green Input 0.7Vpp + 0.1V, Impedance 75‰
12 N.C
13 Red Earth
14 Blanking Earth
15 Red Input 0.7Vpp
0.1V, Impedance 75‰
Chroma Input 3dB for a luminance signal of 1 Vpp
16 Fast Switching 0 to 0.4V : Logic :"0", 1 to 3V : Logic "1", Impedance 75‰
17 Video Out Earth
18 Video In Earth
19 Video Output 1 Vpp 3dB, Impedance 75‰
20 Video Input 1 Vpp 3dB, Impedance 75‰
21 Common Earth
21Pin EURO-SCART
SPECIFICATIONS
4
CIRCUIT BLOCK DIAGRAM
5
Microcontroller configuration : Service mode
To switch the TV set into service mode please see instruction below.
1 - Select pr. number 91
2 - Adjust sharpness to minimum and exit all menu.
3 - Quickly press the key sequence : RED - GREEN - menu
To exit SERVICE menu press menu key or Std By key.
In Service Mode press "OK" to the microcontroller i.e. the I2C bus is free and the set can be controlled by external
equipment.
Press "OK" again to allow the microcontroller to control the set again
Microcontroller configuration :
Tuner Option
TV set Alignment
1 - G2 alignment
- Set TV in NORMAL I mode
- TV in AV mode without video signal ? Black screen.
- TV preset with WP Red, WP Green and WP Blue equal to 32.
- TV preset with Black R, Black G equal to 8.
- Adjust screen volume ( on FBT ) such that the highest cathode cut-off voltage measured on CRT board, is Vcutoff 5V
2 - White balance
- Select a dark picture and adjust Black G and Black R to the desired colour temperature.
- Select a bright picture and adjust WP Red, WP Green, WP Blue to the desired colour temperature.
ALIGNMENT INSTRUCTIONS
Option Tuner maker
DW DAEWOO / SAMSUNG
PHI LIPS (tuner internal AGC )
PH2 PHILIPS ( Video processor AGC )
Screen size Vcut-off
14" 115V
20" & 21" 125V
6
3 - Focus
- Adjust the Focus volume ( on FBT ) to have the best resolution on screen.
4 - Vertical geometry
- Adjust the Vertical Amplitude, Shift, S-Correction and Slope
to compensate for vertical distortion
5 - Horizontal picture centering
- Adjust H Shift to have the picture in the center of the screen.
7 - AGC
- Adjust the antenna signal level to 68dB V
2 for Daewoo tuner (63dB V 1 for Philips tuner)
- Set RF AGC to 0.
- Increase RF AGC level and stop when the level on pin 6 of I501 goes below 2.5 Vdc
ALIGNMENT INSTRUCTIONS
7
8
8
1. 14V3
EXPLODED VIEW
9
9
2. 20V3
EXPLODED VIEW
10
10
3. 21V3
EXPLODED VIEW
11
12
LOC PART CODE PART NAME DESCRIPTION REMARK
12
ZZ100 48B3740A01 TRANSMITTER REMOCON R-40A01 R
ZZ110 PTACPWD434 ACCESSORY AS DTA-20V1MZ
00100 4850Q00910 BATTERY R03/NN
00200 48586002E2 MANUAL INSTRUCTION ENGLISH,ARABIC
M821 4858213801 BAG INSTRUCTION L.D.P.E T0.05X250X400
ZZ120 PTBCSHD753 COVER BACK AS DTB-21D4T
M211 4852156721 COVER BACK HIPS(CORE A2,B1)
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV)
M781 4857817610 CLOTH BLACK FELT 300X20X0.7
ZZ130 PTPKCPD753 PACKING AS DTB-21D4T
10 6520010100 STAPLE PIN AUTO W65
M801 4858057500 BOX CARTON DW-3
M811 4858194100 PAD EPS
M821 4858211801 BAG P.E L.D.P.E T0.03X1300X1100
ZZ131 48519A5310 CRT GROUND NET 2101S-1015-1P
ZZ132 58G0000147 COIL DEGAUSSING DC-21SF !
ZZ140 PTCACAD753 CABINET AS DTB-21D4T
M201A 4856013300 SCREW CRT FIXING 30X80 BK
M201B 4856215402 WASHER RUBBER CR T2.0
M201C 4856013302 SCREW CRT FIXING 30X190 BK
M211A 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
M211B 4855930901 DECO TERM PVC CL T0.2
M211D 7172401412 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK
M591 4855933901 DECO WOOFER HIPS GY
M591A 7172401212 SCREW TAPPTITE TT2 TRS 4X12 MFZNBK
M681 4856812001 TIE CABLE NYLON66 DA100
SP01A 7172401212 SCREW TAPPTITE TT2 TRS 4X12 MFZNBK
SP02A 7172401212 SCREW TAPPTITE TT2 TRS 4X12 MFZNBK
V901 PSRTPWD002 CRT AS A51EHW135X01(PHILIPS) R !
ZRT10 4859637160 CRT A51EHW135X01
ZZ200 PTFMSJD753 MASK FRONT AS DTB-21D4T
M191 4854946301 BUTTON ABS BK
M191A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
M201 4852074601 MASK FRONT HIPS BK
M231 4851114411 PANEL CONTROL ASSY 2326711+4857101+6717900
M251 4852540801 GRILL R EGI T0.8
M252 4852540701 GRILL L EGI T0.8
M531 4855313201 DECO COVER HIPS GY
M531A 7178300811 SCREW TAPPTITE TT2 WAS 3X8 MFZN
M561 4855617500 MARK BRAND CU AU+ABS BK
ZZ210 PTSPPWD753 SPEAKER AS DTB-21D4T
ELECTRICAL PARTS LIST
is a recommendable part for stock.
is safety component, so it must be used the same component.
In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Prats Price List) in Service information Center (http://svc.dwe.co.kr)
Caution
Caution
13
13
ELECTRICAL PARTS LIST
LOC PART CODE PART NAME DESCRIPTION REMARK
P602A 4850704S31 CONNECTOR YH025-04+YRT205+ULW800400
SP01 4858310810 SPEAKER SP-58126F01 R
SP02 4858310810 SPEAKER SP-58126F01 R
ZZ290 PTMPMSD753 PCB MAIN MANUAL AS DTB-21D4T
10 2193102005 SOLDER BAR SN:PB=63:47 S63S-1320
30 2291050616 FLUX SOLDER JS-64T3
40 2291050301 FLUX SOLVENT IM-1000
C404 CMYH3C822J C MYLAR 1.6KV BUP 8200PF J
C408 CMYE2D624J C MYLAR 200V PU 0.62MF J
C801 CL1UC3474M C LINE ACROSS 0.47MF 1J(UCVSNDF/SV)+Q/O
C804 CEYN2W151P C ELECTRO 450V LHS 150MF (25X40) R
C808 CH1BFE222M C CERA AC U/C/V AC400V 2200PF R !
C824 CH1HFE102M C CERA AC 4.0KV 1000PF E DG R !
D707 4858900002 HOLDER LED ASSY LH-3P
D807 DRGP30J - DIODE RGP30J
I301 PTD2SW7100 HEAT SINK ASS‘Y 1LA78041 + 7174300811

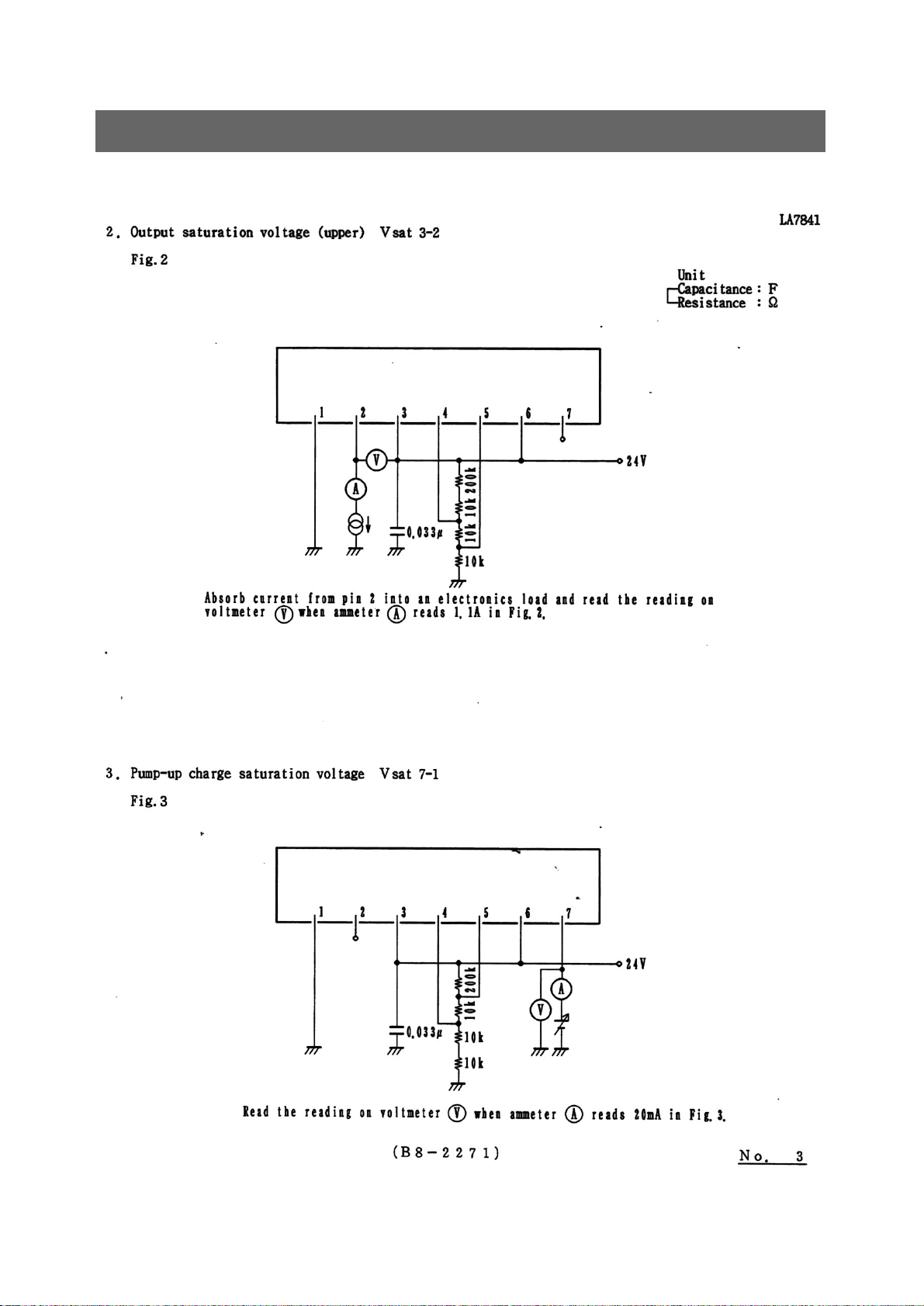

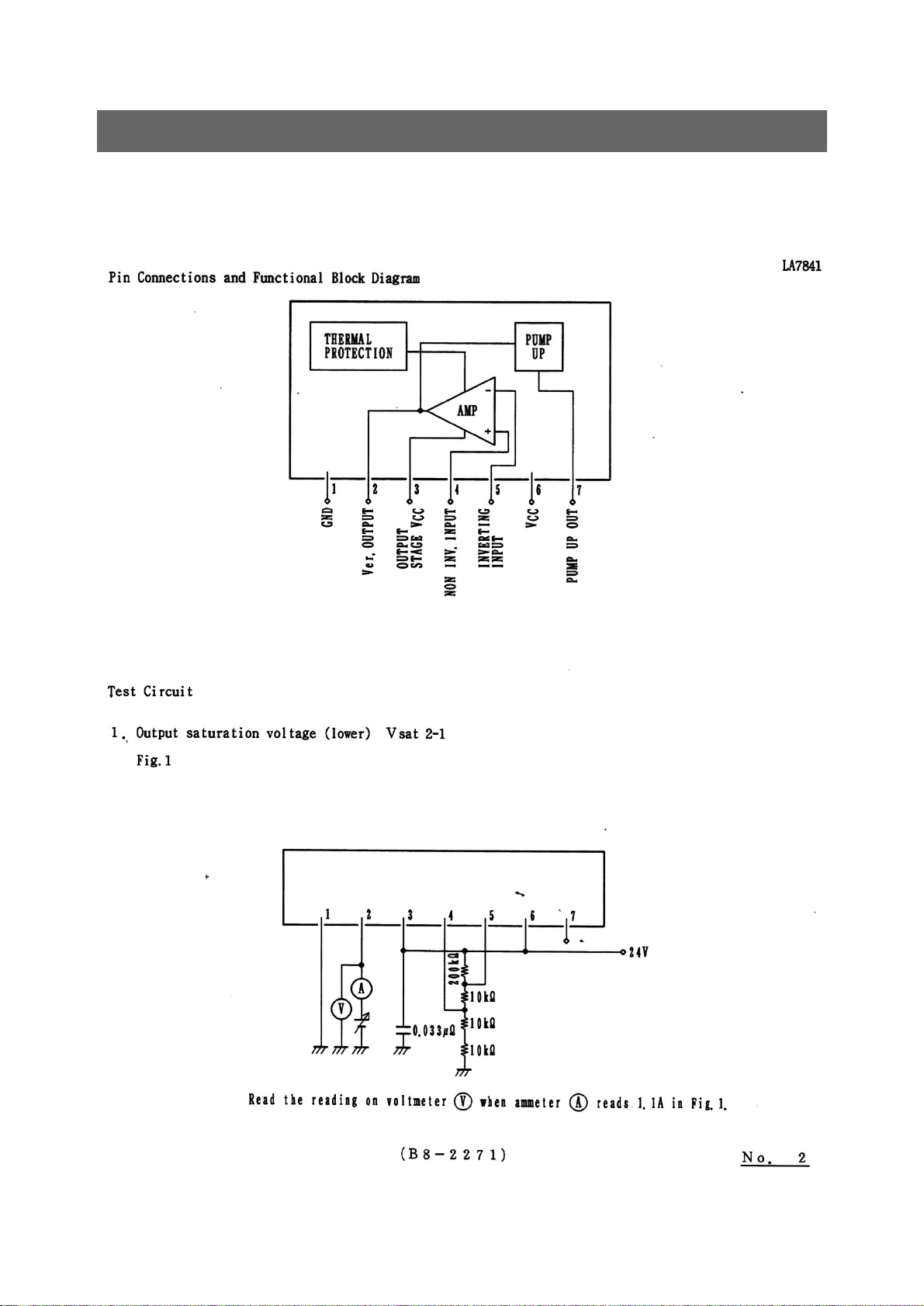

00001 1LA78041 IC VERTICAL LA78041
0000A 4857027100 HEAT SINK SPCC T1.0+SN
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I501 1DW3613EB6 IC MICOM DW9361/N2/3-EB6 R

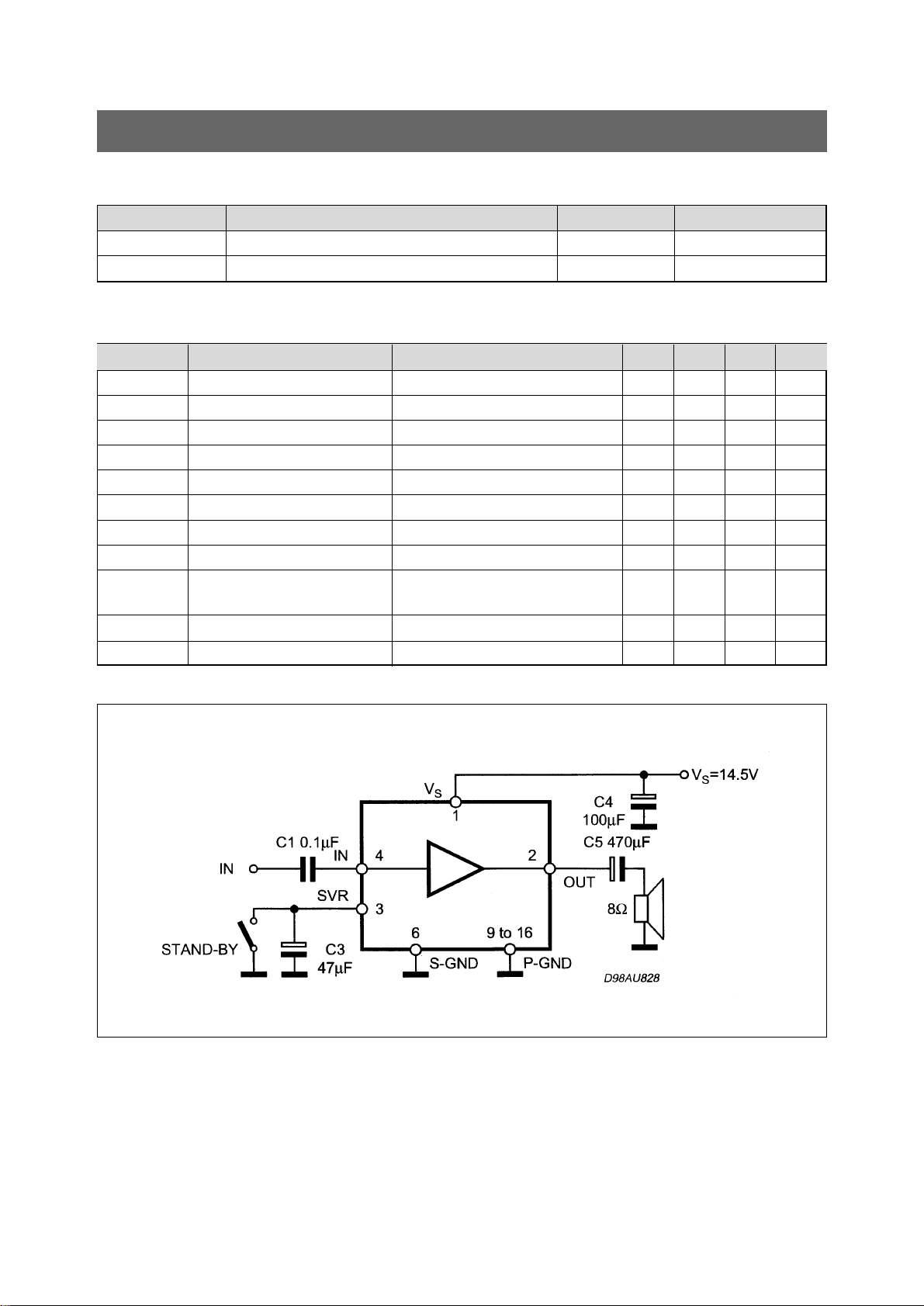

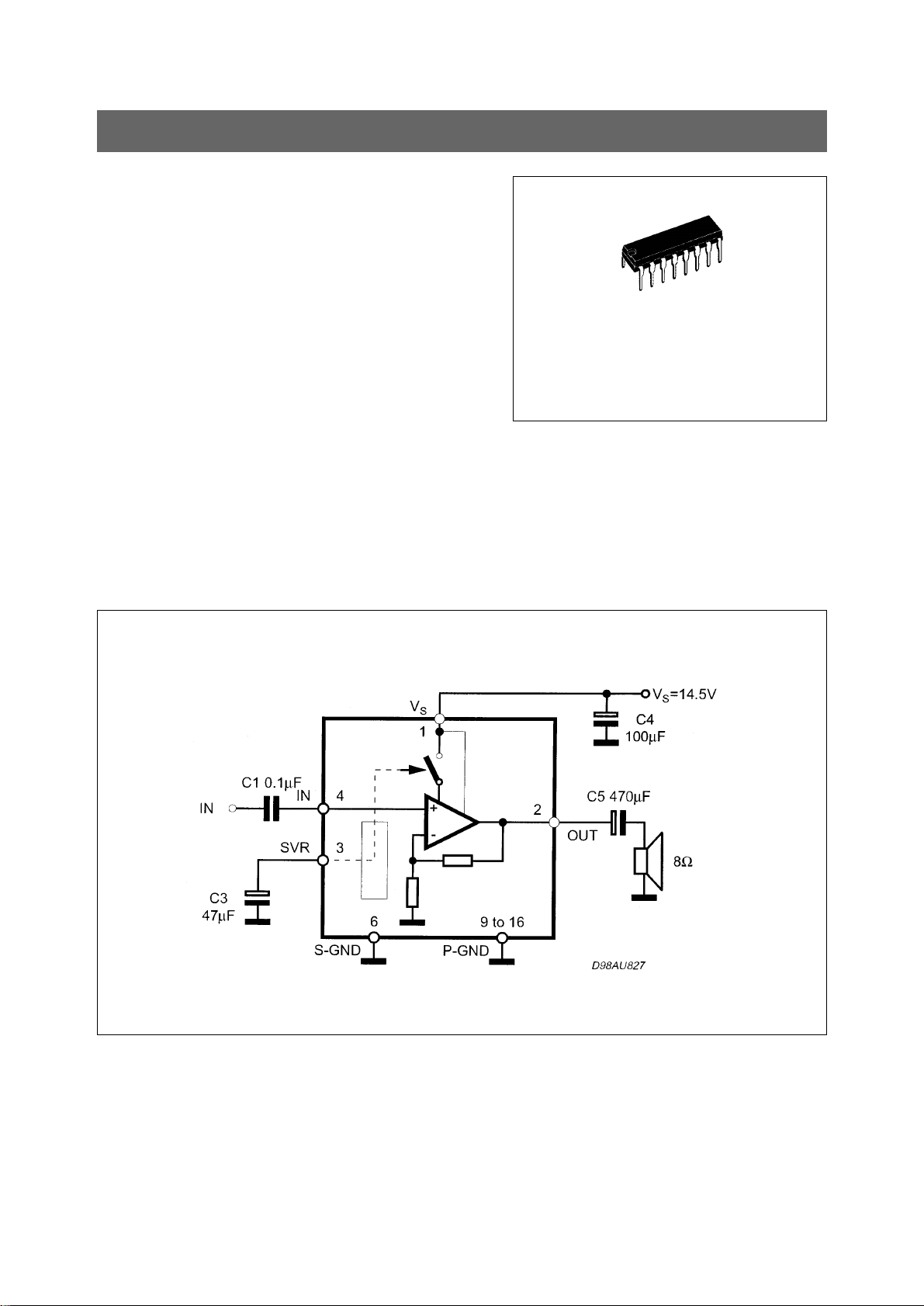

I601 1TDA7267A- IC AMP TDA7267A R
I602 1TDA7267A- IC AMP TDA7267A R
I702 1AT24C08PC IC AT24C08-10PC R
I703 1TS0P1238W IC PREAMP TS0P1238WI1
I801 PTM2SW4600 HEAT SINK ASS‘Y 1STRW6753- + 7174300811

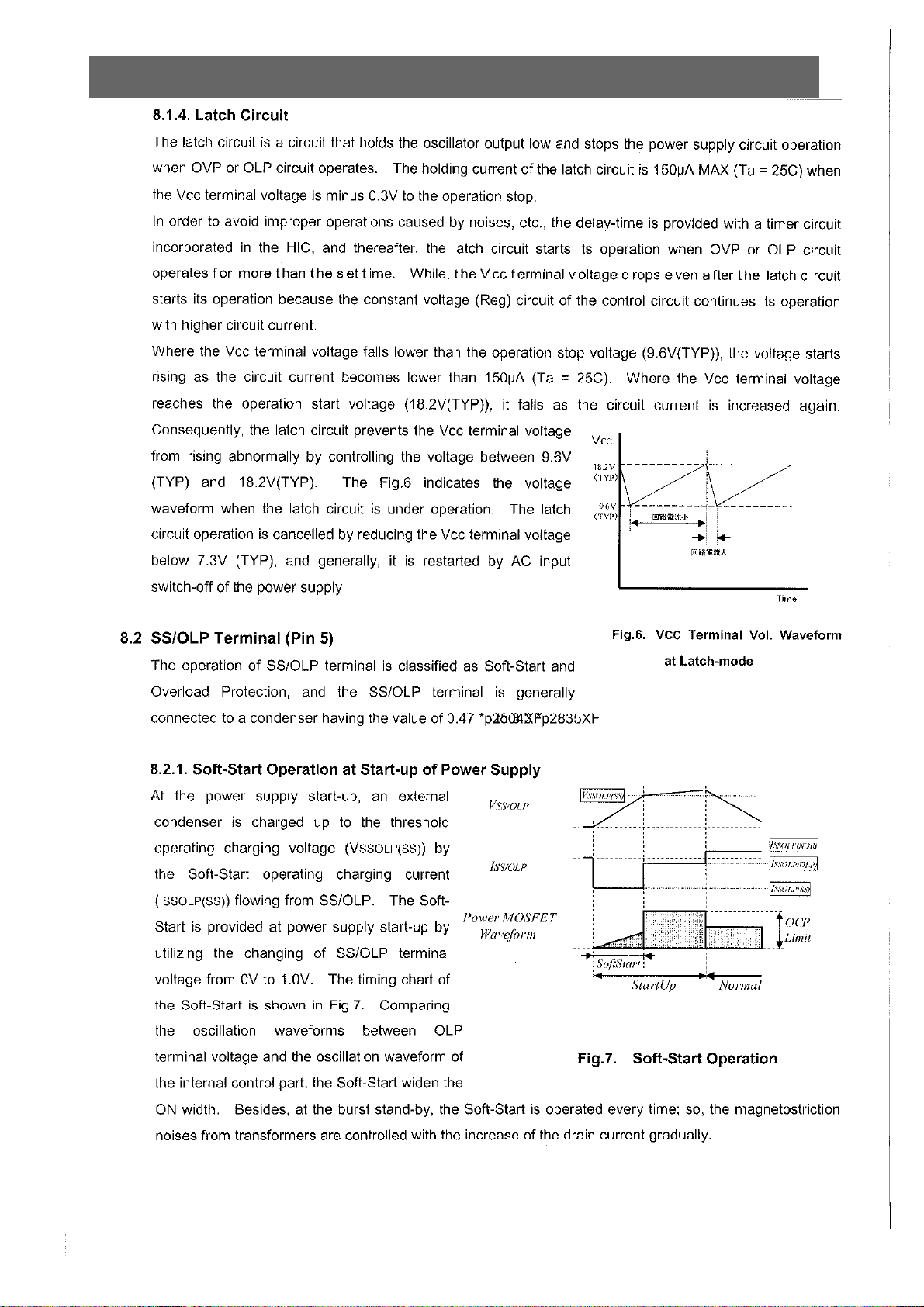

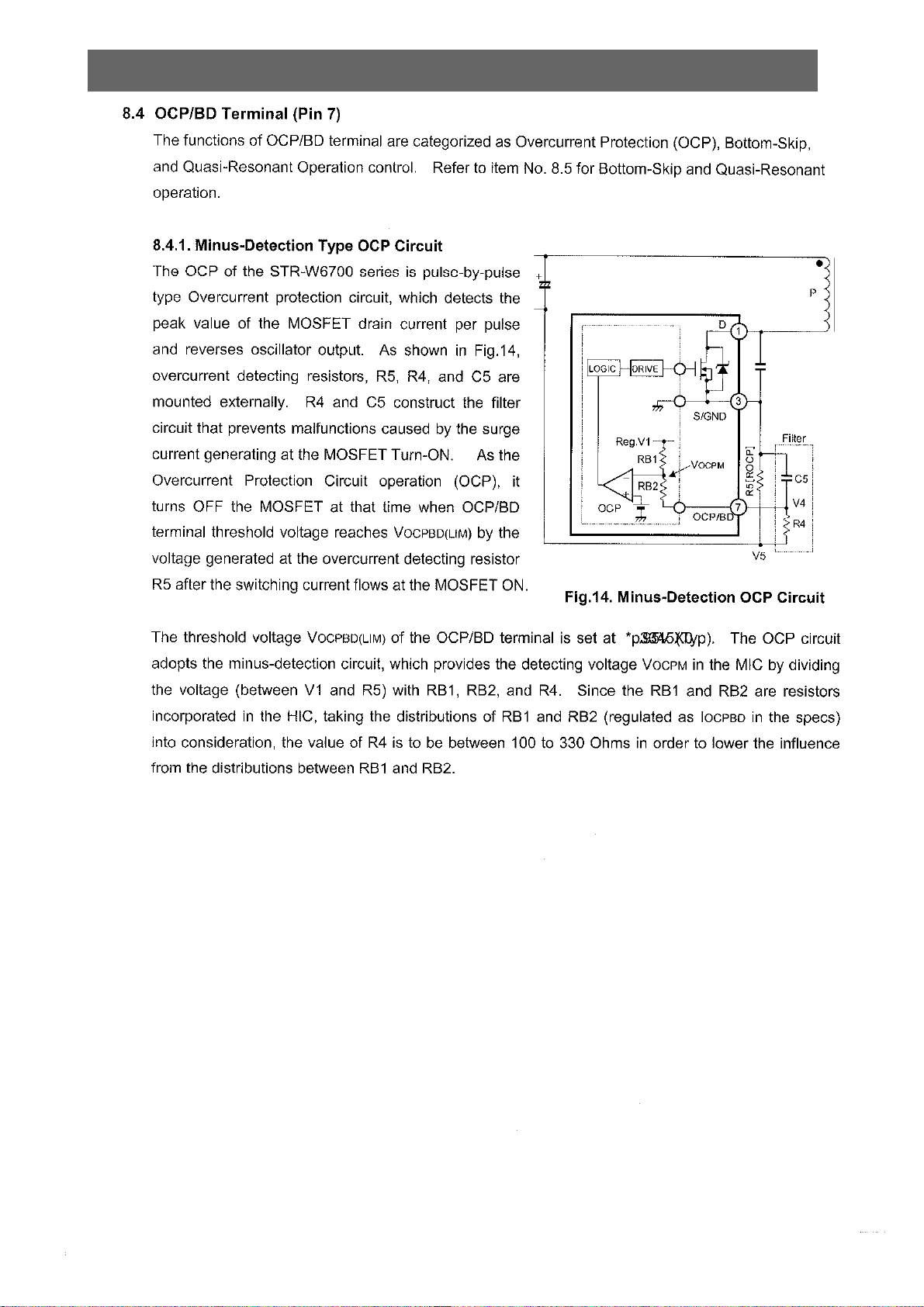

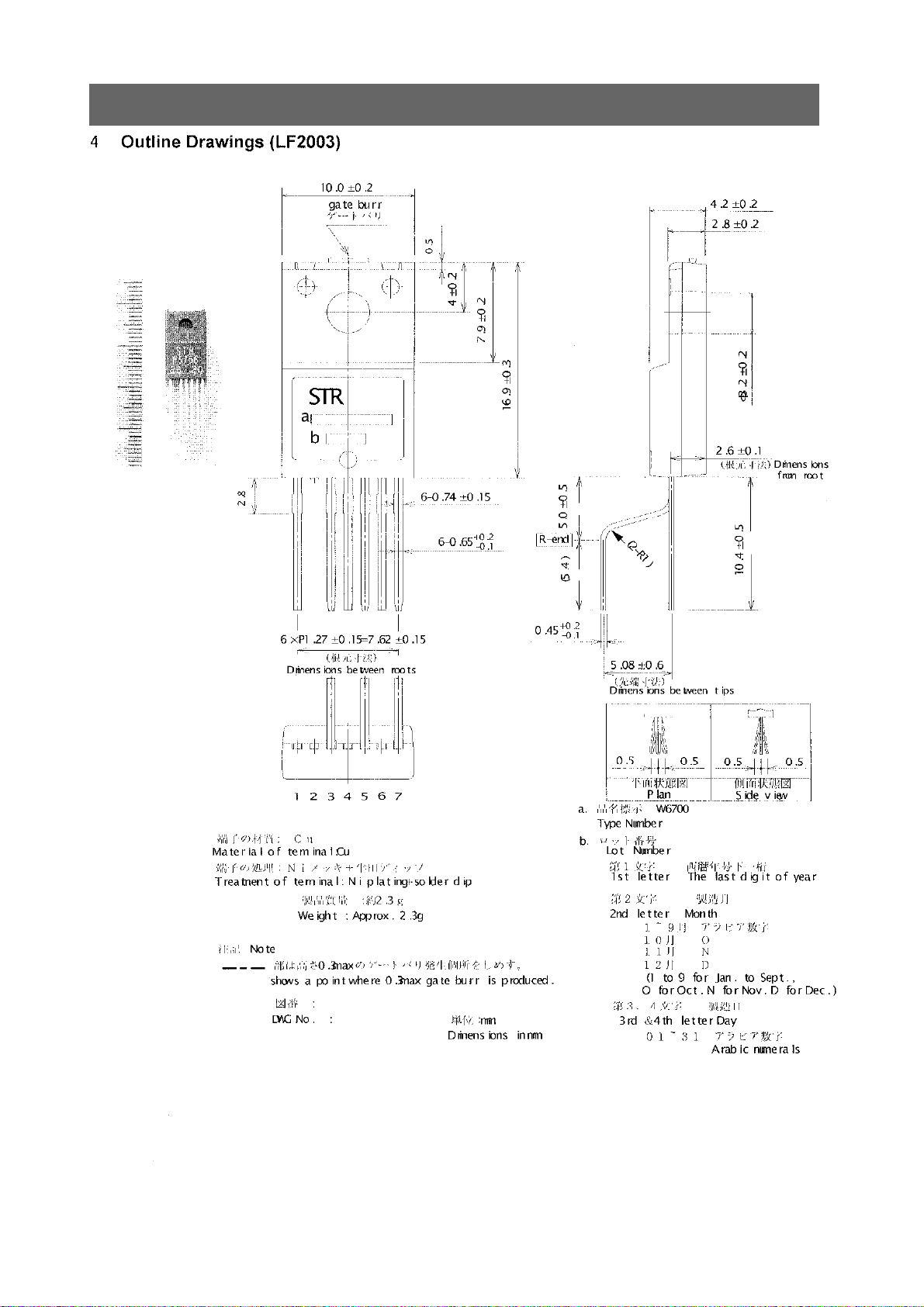

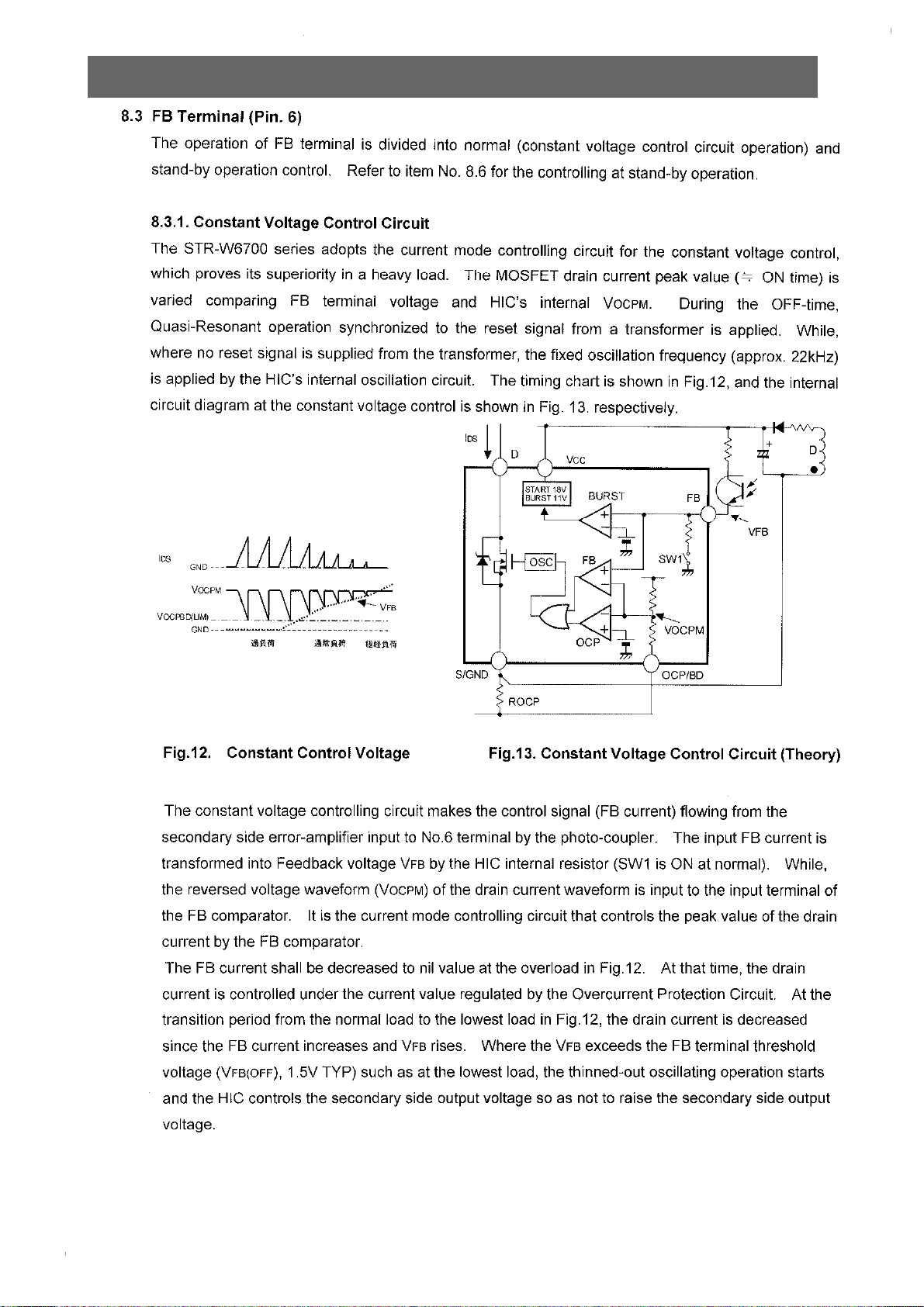

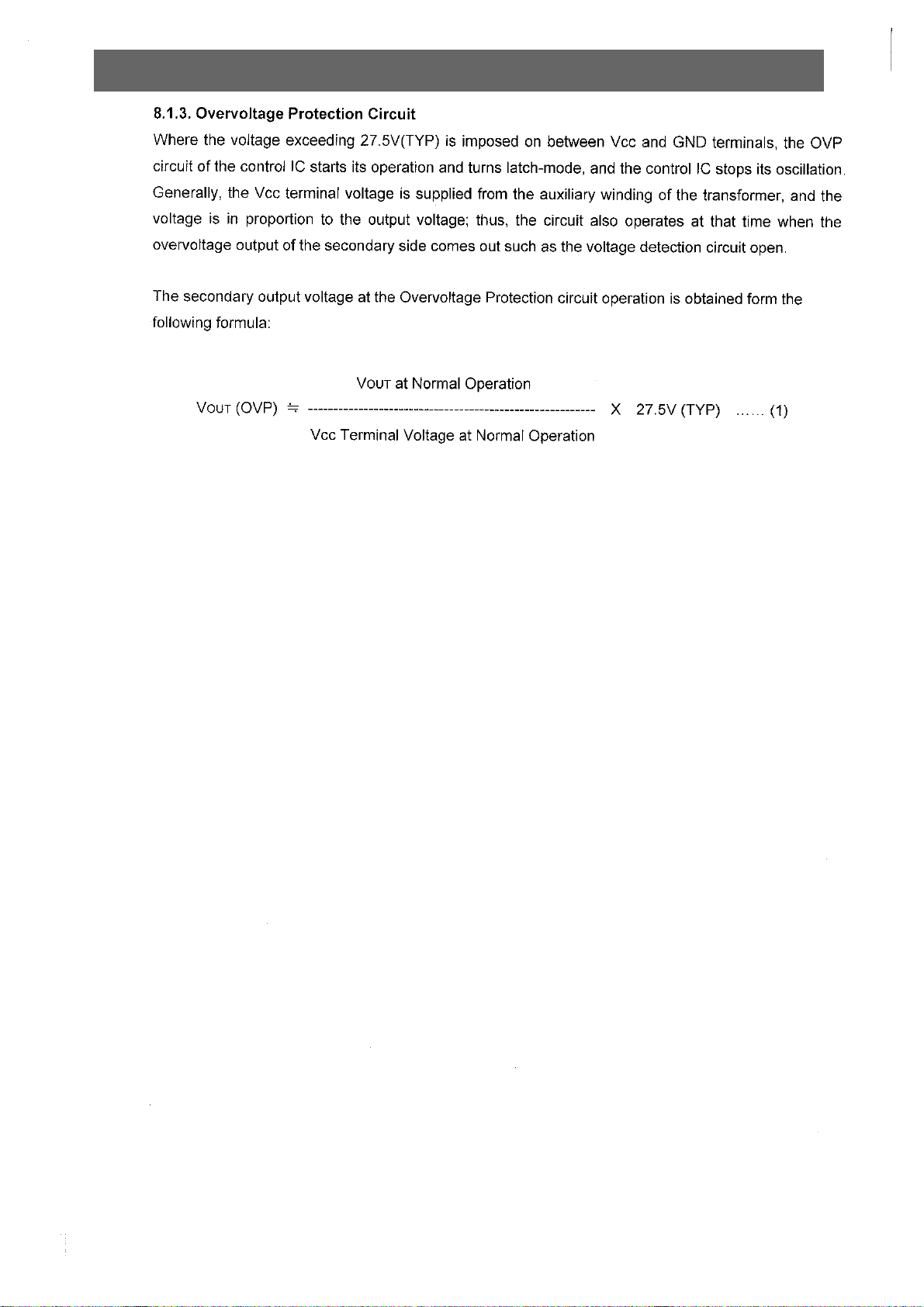

00001 1STRW6753- IC POWER STR-W6753 R
0000A 4857024600 HEAT SINK AL EX B/K
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I802 1LT V 817C IC PHOTO COUPLER LTV-817C
I805 1KA7805 - IC REGULATOR KA7805
I901 PTC3SW1100 HEAT SINK ASS‘Y 1TDA6107Q- + 7174300811

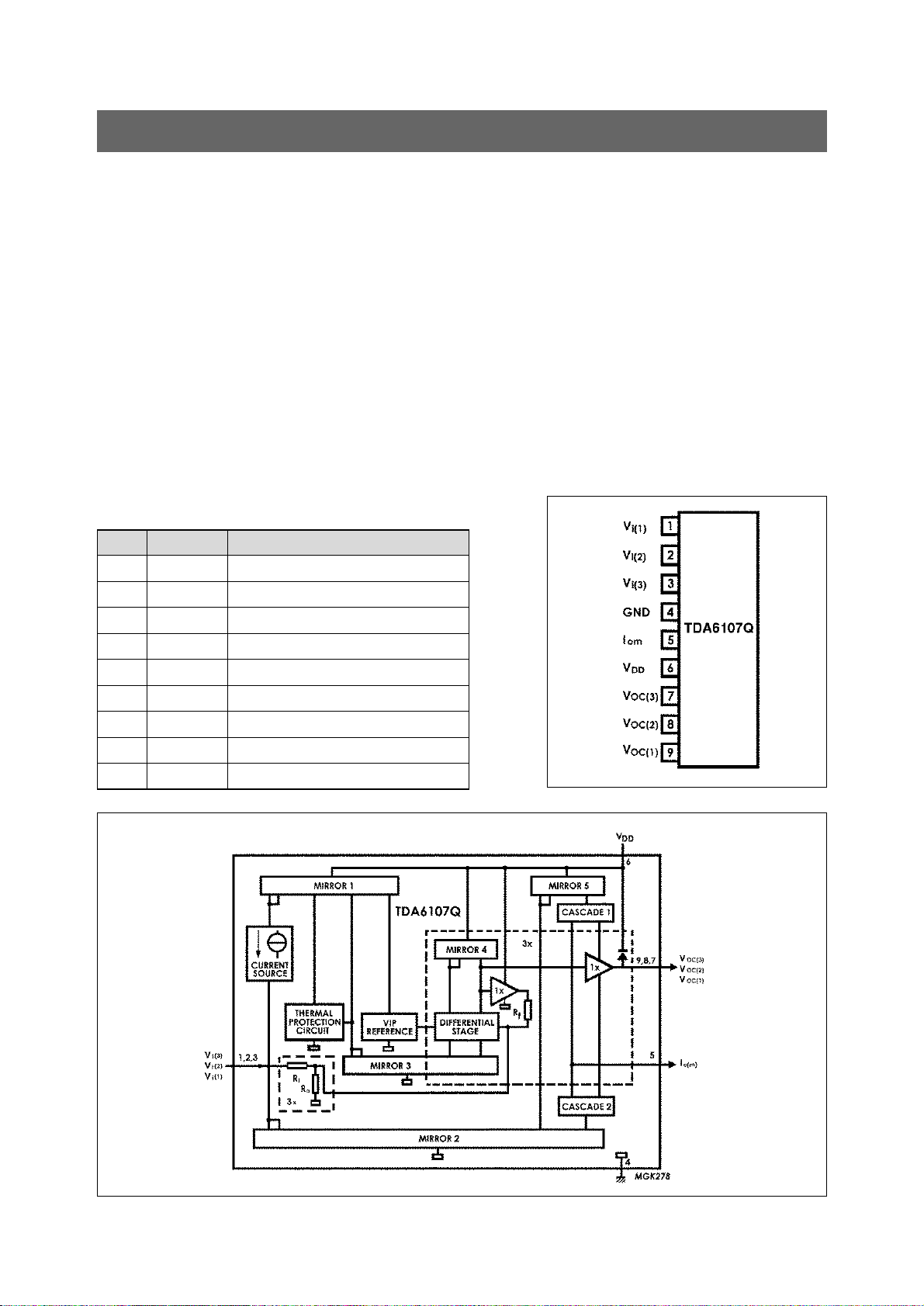

00001 1TDA6107Q- IC VIDEO AMP TDA6107Q R
0000A 4857031100 HEAT SINK A1050P-H24 T2.0
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
JPA01 4859200401 SOCKET RGB YRS21-R1
JPA02 4859109950 JACK PIN BOARD PH-JB-9710A
L401 58H0000020 COIL H-LINEARITY L-76(76.5UH)
LF801 5PLF24A1 FILTER LINE LF-24A1 R !
M682 4856812001 TIE CABLE NYLON66 DA100
P401 4859240120 CONN WAFER YFW500-06
P501 4850708N08 CONNECTOR BIC-08T-25T+C-20T+ULW=400
P801 4859903110 CORD POWER AS KKP-419J-H03VVH2+H0U=2200
A000 4859903511 CORD POWER CW4232 H03VVH2-F=2250
Q401 PTJ2SW7200 HEAT SINK ASS‘Y TST1803DH- + 7174301011
00001 TST1803DH- TR HORI ST1803DHI R
14
14
LOC PART CODE PART NAME DESCRIPTION REMARK
0000A 4857027200 HEAT SINK AL T1.0
0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN
R801 DDC7R0M290 POSISTOR ECPCD7R0M290 R !
R802 RX07B339JP R CEMENT 7W 3.3 OHM J BEN 15MM 4P
SCT1 4859303530 SOCKET CRT PCS629-03C R !
SF01 5P K 2960M FILTER SAW K2960M
SW801 5S40101143 SW POWER PUSH PS3-22SP (P.C.B)
T401 50D10A3 - TRANS DRIVE TD-10A3
T402 50H0000256 FBT FFA69023M R !
T801 50M3541B6- TRANS SMPS TSM-3541B6 R !
U100 4859721530 TUNER VARACTOR DT5-BF18D N
ZZ200 PTMPJ0D753 PCB MAIN (RHU) AS DTB-21D4T
C305 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
C315 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
C415 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP
C600 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C805 CBXB3D471K C CERA SEMI 2KV BL(N) 470PF K (T)
C810 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP
C811 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP
C813 CEXF1C222V C ELECTRO 16V RSS 2200MF (16X31.5) TP
C814 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
C817 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP
C818 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP
C820 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C903 CCXB3D102K C CERA 2KV B 1000PF K (TAPPING)
F802 5FWML4022L FUSE WIDE TL 250V 4A CASE R !
ZZ200 PTMPJBD753 PCB MAIN M-10 AS DTB-21D4T
10 2TM18006BE TAPE MASKING 6.2X500
E001 4856310300 EYE LET BSR T0.2 (R1.6)
E002 4856310300 EYE LET BSR T0.2 (R1.6)
E003 4856310300 EYE LET BSR T0.2 (R1.6)
E004 4856310300 EYE LET BSR T0.2 (R1.6)
E005 4856310300 EYE LET BSR T0.2 (R1.6)
E006 4856310300 EYE LET BSR T0.2 (R1.6)
E007 4856310300 EYE LET BSR T0.2 (R1.6)
E008 4856310300 EYE LET BSR T0.2 (R1.6)
E009 4856310300 EYE LET BSR T0.2 (R1.6)
E010 4856310300 EYE LET BSR T0.2 (R1.6)
E011 4856310300 EYE LET BSR T0.2 (R1.6)
E012 4856310300 EYE LET BSR T0.2 (R1.6)
E013 4856310300 EYE LET BSR T0.2 (R1.6)
E014 4856310300 EYE LET BSR T0.2 (R1.6)
E015 4856310300 EYE LET BSR T0.2 (R1.6)
E016 4856310300 EYE LET BSR T0.2 (R1.6)
E017 4856310300 EYE LET BSR T0.2 (R1.6)
ELECTRICAL PARTS LIST
15
15
LOC PART CODE PART NAME DESCRIPTION REMARK
E018 4856310300 EYE LET BSR T0.2 (R1.6)
E019 4856310300 EYE LET BSR T0.2 (R1.6)
E020 4856310300 EYE LET BSR T0.2 (R1.6)
E100 4856310600 EYE LET BSR T0.2 (R2.3)
E101 4856310600 EYE LET BSR T0.2 (R2.3)
E104 4856310600 EYE LET BSR T0.2 (R2.3)
E105 4856310600 EYE LET BSR T0.2 (R2.3)
E106 4856310600 EYE LET BSR T0.2 (R2.3)
E107 4856310600 EYE LET BSR T0.2 (R2.3)
E108 4856310600 EYE LET BSR T0.2 (R2.3)
E109 4856310600 EYE LET BSR T0.2 (R2.3)
N001 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N002 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N003 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
N004 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)
P602 485923172S CONN WAFER YW025-04 (STICK)
R304 RS01Z109J- R M-OXIDE FILM 1W 1 OHM J (TAPPING)
R306 RS01Z109J- R M-OXIDE FILM 1W 1 OHM J (TAPPING)
R402 RS01Z249J- R M-OXIDE FILM 1W 2.4 OHM J (TAPPING)
R415 RS02Z102JS R M-OXIDE FILM 2W 1K OHM J SMALL
R804 RS02Z278JS R M-OXIDE FILM 2W 0.27 OHM J SMALL
R821 RS02Z100JS R M-OXIDE FILM 2W 10 OHM J SMALL
R822 RS02Z151JS R M-OXIDE FILM 2W 150 0HM J SMALL
R824 RS02Z101JS R M-OXIDE FILM 2W 100 OHM J SMALL
R835 RS02Z151JS R M-OXIDE FILM 2W 150 0HM J SMALL
ZZ200 PTMPJRD753 PCB MAIN RADIAL AS DTB-21D4T
C102 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C106 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C121 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C320 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
C355 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C412 CEXF2C229V C ELECTRO 160V RSS 2.2MF (8X11.5)TP
C414 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C417 CXSL2H470J C CERA 500V SL 47PF J (TAPPING)
C418 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C420 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)
C423 CCXB2H561K C CERA 500V B 560PF K (TAPPING)
C502 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C504 CMXM2A332J C MYLAR 100V 3300PF J (TP)
C509 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C511 CMXL1J104J C MYLAR 63V MEU 0.1MF J
C512 CMXL1J104J C MYLAR 63V MEU 0.1MF J
C514 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C517 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C519 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
ELECTRICAL PARTS LIST
16
16
LOC PART CODE PART NAME DESCRIPTION REMARK
C522 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
C523 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
C524 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C525 CCXB1H102K C CERA 50V B 1000PF K (TAPPING)
C526 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C528 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C530 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C532 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C551 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C555 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C564 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C570 CCXB1H472K C CERA 50V B 4700PF K (TAPPING)
C593 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C599 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
C601 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP
C602 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
C603 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C604 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP
C605 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
C650 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C770 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C802 CCXF3A472Z C CERA 1KV F 4700PF Z (T)
C803 CCXF3A472Z C CERA 1KV F 4700PF Z (T)
C806 CCXB1H821K C CERA 50V B 820PF K (TAPPING)
C809 CCXB3A271K C CERA 1KV B 270PF K (TAPPING)
C812 CEXF2A100V C ELECTRO 100V RSS 10MF (6.3X11) TP
C815 CMXL2E104K C MYLAR 250V MEU 0.1MF K
C816 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
C819 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
C822 CMXM2A104J C MYLAR 100V 0.1MF J (TP)
C832 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
C833 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C834 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
C835 CCXB2H471K C CERA 500V B 470PF K (TAPPING)
C901 CMXL2E104K C MYLAR 250V MEU 0.1MF K
C902 CCXB1H561K C CERA 50V B 560PF K (TAPPING)
CA04 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP
CA10 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING)
G901 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP
G902 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP
G903 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP
G904 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP
I803 1KA431L - IC KA431L
L802 58CX430599 COIL CHOKE AZ-9004Y 940K TP
Q101 TKTC3198Y- TR KTC3198Y
ELECTRICAL PARTS LIST
17
17
LOC PART CODE PART NAME DESCRIPTION REMARK
Q402 T K TC3207 TR KTC3207 (TP)
Q403 TKTC3198Y- TR KTC3198Y
Q501 TKTA1266Y- TR KTA1266Y (TP)
Q502 TKTC3198Y- TR KTC3198Y
Q503 TKTC3198Y- TR KTC3198Y
Q520 TKTC3198Y- TR KTC3198Y
Q531 TKTA1266Y- TR KTA1266Y (TP)
Q805 TKTC3205Y- TR KTC3205Y (TP)
Q807 TKTA1281Y- TR KTA1281Y
Q808 TKTC3198Y- TR KTC3198Y
Q809 TKTC3198Y- TR KTC3198Y
Q810 TKTC3198Y- TR KTC3198Y
Q811 TKTA1266Y- TR KTA1266Y (TP)
Q812 TKTC3198Y- TR KTC3198Y
Q851 TKTC3198Y- TR KTC3198Y
Q852 TKTC3198Y- TR KTC3198Y
R907 RN01B102JS R METAL FILM 1W 1K OHM J SMALL
SW701 5S50101090 SW TACT THVH472GCA
SW702 5S50101090 SW TACT THVH472GCA
SW703 5S50101090 SW TACT THVH472GCA
SW704 5S50101090 SW TACT THVH472GCA
SW705 5S50101090 SW TACT THVH472GCA
SW706 5S50101090 SW TACT THVH472GCA
X502 5XEX12R00E CRYSTAL QUARTZ HC-49/U 12.000MHZ 30PPM TP
Z501 5PXXT5R5MB FILTER CERA XT 5.5MB-TP
Z502 5PXXT6R5MB FILTER CERA XT 6.5MB-TP
Z503 5PXXT6R0MB FILTER CERA XT 6.0MB-TP
ZZ200 PTMPJAD753 PCB MAIN AXIAL AS DTB-21D4T
10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M
20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M
A001 4859807793 PCB MAIN 246X330
C353 CZCH1H100J C CERA 50V CH 10PF J
C403 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C501 CCZF1H103Z C CERA 50V F 0.01MF Z
C515 CBZR1C222M C CERA 16V Y5R 2200PF M (AXIAL)
C516 CBZR1C472M C CERA 16V Y5R 4700PF M (AXIAL)
C518 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
C520 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
C521 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
C527 CCZF1H473Z C CERA 50V F 0.047MF Z
C531 CCZF1H473Z C CERA 50V F 0.047MF Z
C533 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C534 CCZF1H223Z C CERA 50V F 0.022MF Z
C535 CCZF1H223Z C CERA 50V F 0.022MF Z
C536 CCZF1H223Z C CERA 50V F 0.022MF Z
ELECTRICAL PARTS LIST
18
18
LOC PART CODE PART NAME DESCRIPTION REMARK
C571 CCZB1H821K C CERA 50V B 820PF K AXIAL
C585 CBZR1C222M C CERA 16V Y5R 2200PF M (AXIAL)
C590 CZCH1H270J C CERA CH 50V 27PF J AXL 52MM
C591 CZCH1H270J C CERA CH 50V 27PF J AXL 52MM
C606 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z
CA01 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
CA02 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
CA03 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
CA05 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CA06 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CA07 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
CA08 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
D101 D1N4148 - DIODE 1N4148 (TAPPING)
D120 DUZ33B DIODE ZENER UZ-33B
D313 D1 N 4 0 0 4 S DIODE 1N4004S
D405 D1N4937G DIODE 1N4937G (TAPPING)
D407 D1N4937G DIODE 1N4937G (TAPPING)
D408 D1N4937G DIODE 1N4937G (TAPPING)
D450 D1N4937G DIODE 1N4937G (TAPPING)
D520 D1N4148 - DIODE 1N4148 (TAPPING)
D521 D1N4148 - DIODE 1N4148 (TAPPING)
D531 D1N4148 - DIODE 1N4148 (TAPPING)
D532 D1N4148 - DIODE 1N4148 (TAPPING)
D533 D1N4148 - DIODE 1N4148 (TAPPING)
D534 D1N4148 - DIODE 1N4148 (TAPPING)
D701 DUZ5R6BM DIODE ZENER UZ-5.6BM
D702 DUZ5R6BM DIODE ZENER UZ-5.6BM
D710 DUZ5R1B - DIODE ZENER UZ-5.1B
D711 DUZ5R6BM DIODE ZENER UZ-5.6BM
D801 DLT2A05G DIODE LT2A05G (TP)
D802 DLT2A05G DIODE LT2A05G (TP)
D803 DLT2A05G DIODE LT2A05G (TP)
D804 DLT2A05G DIODE LT2A05G (TP)
D805 D1N4937G DIODE 1N4937G (TAPPING)
D806 DUZ5R6BM DIODE ZENER UZ-5.6BM
D808 D1N4937G DIODE 1N4937G (TAPPING)
D809 DRGP15J - DIODE RGP15J
D810 D1N4937G DIODE 1N4937G (TAPPING)
D812 DUZ8R2BM DIODE ZENER UZ-8.2BM
D813 D1N4148 - DIODE 1N4148 (TAPPING)
D814 D1N4937G DIODE 1N4937G (TAPPING)
D815 D1N4937G DIODE 1N4937G (TAPPING)
D817 DUZ6R2BM DIODE ZENER UZ-6.2BM
D820 DUZ2R7B - DIODE ZENER UZ-2.7B
DA02 DUZ5R6BM DIODE ZENER UZ-5.6BM
ELECTRICAL PARTS LIST
19
19
LOC PART CODE PART NAME DESCRIPTION REMARK
DA03 DUZ5R1B - DIODE ZENER UZ-5.1B
DA04 CCZB1H271K C CERA 50V B 270PF K
DA05 DUZ5R6BM DIODE ZENER UZ-5.6BM
DA06 DUZ5R6BM DIODE ZENER UZ-5.6BM
DA08 DUZ5R6BM DIODE ZENER UZ-5.6BM
DA09 DUZ5R6BM DIODE ZENER UZ-5.6BM
DA10 DUZ5R6BM DIODE ZENER UZ-5.6BM
DA11 DUZ5R6BM DIODE ZENER UZ-5.6BM
DA13 CCZB1H271K C CERA 50V B 270PF K
DA27 DUZ5R6BM DIODE ZENER UZ-5.6BM
J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J002 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J003 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J004 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J005 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J006 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J008 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J010 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J012 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J013 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J014 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J016 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J017 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J018 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J019 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J020 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J021 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J022 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J023 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J024 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J026 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J027 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J028 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J029 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J030 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J034 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J035 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J036 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J037 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J038 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J040 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J041 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J042 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J043 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J044 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
ELECTRICAL PARTS LIST
20
20
LOC PART CODE PART NAME DESCRIPTION REMARK
J045 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J052 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J053 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J054 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J055 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J056 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J057 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J059 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J060 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J061 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J062 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J065 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J067 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J068 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J069 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J070 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J071 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J072 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J073 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J074 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J075 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J076 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J077 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J078 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J079 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J080 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J081 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J082 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J083 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J084 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J085 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J086 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J087 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J088 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J089 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J090 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J092 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J094 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J095 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J096 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J097 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J098 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J099 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
J100 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING
ELECTRICAL PARTS LIST
Loading...
