Installation Instructions
Discovery Wall Oven
For use with models: EO, MO and PO
Part No. 65433 Rev. G
Preliminary - For Review Only
No Scheduled Release Date
Page 2
All specifications are subject to change without notice. Dacor
© 2007 Dacor, all rights reserved.
®
assumes no liability for changes to specifications.
Page 3
Table of Contents
Before You Begin... ...........................................................1
Important Safety Instructions
Important Information About Safety Instructions .............. 1
Safety Symbols and Labels .............................................1
General Safety Precautions ............................................. 2
Customer Service Information
If You Need Help...
Appliance Data Plate ....................................................... 3
Product Specifications .....................................................4
Product Dimensions ......................................................... 4
...........................................................3
..........................................1
.........................................3
Planning the Installation ...................................................6
Selecting the Location ......................................................6
Cabinet Cut-Out
Cabinet Cut-Out (continued) ............................................ 8
Electrical Specifications ...................................................9
Installation Instructions ....................................................9
Parts List
Electrical Service Installation
Final Installation ............................................................. 12
Verify Proper Operation .................................................14
Installation Checklist ......................................................15
Notes.................................................................................16
..........................................................................9
...............................................................6
......................................... 10
Before You Begin...
Important:
Installer:• In the interest of safety and to minimize problems, read these installation instructions completely and care-
fully before you begin the installation process. Leave these installation instructions with the customer.
Customer:• Keep these installation instructions for future reference and the local electrical inspector’s use.
Important Safety Instructions
Important Information About
Safety Instructions
The • Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or operating this or any other appliance.
Always contact the Dacor•
about problems and conditions that you don’t understand. See Customer Service Information.
IMPORtANt: Do not store or use combustible, flammable, or explosive vapors and liquids (such as gasoline)
inside or in the vicinity of this or any other appliance. Also
keep items that could explode, such as aerosol cans,
away from the oven. Do not store flammable or explosive
materials in adjacent cabinets or areas.
Do not install or use this product near water or outdoors,
for example, near a kitchen sink, in a wet basement or
near a swimming pool.
Customer Service Team
DANGER
WARNING
Safety Symbols and Labels
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
CAUtION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.
WARNING
WARNING – NEVER use this appliance as a space heat-
er to heat or warm the room. Doing so may result in carbon monoxide poisoning or overheating of the appliance.
WARNING
WARNING – NEVER cover any slots, holes or passages
in the oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow through
the oven and may cause carbon monoxide poisoning.
1
Page 4
Important Safety Instructions
General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following:
WARNING
Read the accompanying use and care manual 1.
before operating this appliance.
2.
Keep packaging materials away from children.
Plastic sheets and bags can cause suffocation.
If you receive a damaged product, immediately 3.
contact your dealer or builder. Do not install or use
a damaged appliance. Do not install or use the
appliance if the conduit is damaged.
4.
This oven must be properly installed and
grounded by a qualified installer according to
these installation instructions prior to use. The
installer must show the customer the location of
the circuit breaker panel or fuse box so that they
know where and how to turn off electric power
to the oven. Dacor is not responsible for service
required to correct a faulty installation. The owner is
responsible to make sure this appliance is properly
installed.
5.
Do not lift or move the oven door by the handle(s).
A minimum of two people are required to safely 6.
install this appliance.
To avoid an electric shock hazard, do not install this 7.
appliance outside or near water. Do not install or
use this appliance if it has been exposed to water.
Do not install, repair or replace any part of the oven 8.
unless specifically recommended in the literature
accompanying it. A qualified service technician
must perform all other service.
9.
Before performing any type of service or
installation, make sure that the electric power to the
oven is turned off at the circuit breaker or fuse box.
Only use the oven for cooking tasks expected 10.
of a home appliance as outlined in the literature
accompanying it. This oven is not intended for
commercial use.
11.
Do not climb on any part of the appliance.
Do not leave children or pets alone or unattended 12.
in the area around the oven. Do not allow children
to play with the controls, pull on the handle or touch
other parts of the oven.
13.
Do not store items of interest to children above the
oven. Children could be burned or injured while
climbing on the appliance.
Do not tamper with the controls. Do not adjust 14.
or alter any part of the oven unless specifically
instructed to do so in this manual.
WARNING
To prevent injury due to the unit tipping forward, 15.
secure the oven to the cabinet using the supplied
mounting screws.
16.
Keep flammable items, such as paper, cardboard,
plastic and cloth away from hot surfaces. Do not put
such items in the oven. Do not allow pot holders to
touch hot surfaces.
17.
Do not wear loose or hanging apparel while using
the oven. Do not allow clothing to come into contact
with the interior of the oven and the surrounding
areas during and immediately after use.
18.
Do not use the oven for storage.
Do not touch the interior surfaces of the oven during 19.
use. After use, make sure these surfaces have had
sufficient time to cool before touching them.
20.
Do not touch the outside surfaces of the oven
during the self-clean cycle. They will be hot. Venting
from the oven may cause the trim to become hot.
21.
For your safety, do not use the oven to cook without
the convection filter installed. When the filter is not
installed, the spinning fan blades at the back of the
oven are exposed.
22.
Non-stick coatings, when heated, can be harmful to
birds. Remove birds to a separate, well-ventilated
room during cooking.
To prevent damage, remove the meat probe from 23.
the oven when it is not being used.
Do not line the oven with aluminum foil or other 24.
materials. These items can melt or burn up during
self-cleaning and cause permanent damage to the
oven.
Do not leave metal objects, such as aluminum foil, 25.
the meat probe, cookie sheets, etc. on the bottom
of the oven. Objects left on the bottom of the oven
could damage the bake element. In addition, the
objects themselves could be damaged.
26.
Do not allow heating elements in the top and
bottom of the oven chamber to become covered
up by cookie sheets, aluminum foil, pots, pans, etc.
Covering the heating elements could cause them to
over-heat, damaging the oven.
27.
Always ensure that the light fixture lens covers
are in place when using the oven. The lens covers
protect the light bulbs from breakage caused by
high oven temperatures or mechanical shock.
2
Page 5
Tab
Data
Plate
Customer Service Information
If You Need Help...
If you have questions or problems with installation, con-•
tact your Dacor dealer or the Dacor Customer Service
Team. When you call, have the model and serial number of the appliance ready. The model and serial num-
ber are printed on the appliance data plate.
Dacor Customer Service team
Phone: (800) 793-0093.
E-mail: customerservice@Dacor.com
Web site: www.Dacor.com
Appliance Data Plate
The appliance data plate contains the model and serial •
number information and the electrical and gas supply
requirements.
It is located inside the oven door, in the slot above the •
left hinge (inside the lower door on a double oven.) To
read the information on the data plate:
1.
Push the data plate tab.
Pull the data plate up.2.
Model Identification
EO230xxx
ABC
D
A = MODEL tYPE
Epicure Oven = EO
Millennia Oven (vert. trim) = MOV
Millennia Oven (horiz. trim) = MOH
Preference Oven = PO
B = CONFIGURAtION
Single Oven = 1
Double Oven = 2
C = SIZE
27 Inch = 27
30 Inch = 30
IMPORtANt
Push the appliance data plate back into place before
closing the door.
D = FINISH
Finish Options
Epicure:
Stainless Steel, Black Chrome Trim = SBC
Stainless Steel, Chrome Trim = SCH
Stainless Steel, Brass Trim = SBR
Stainless Steel, Copper Trim = SCP
Millennia:
Stainless Steel = S
Preference:
Glass, Anthracite Gray = AG
Glass, Black = BK
Glass, Blue Water = BU
Glass, Slate Green = GN
Glass, Sterling Gray = SG
Glass, Titanium Silver = TS
3
Page 6
Product Specifications
EPICURE
® ®
MILLENNIA
TM
PREFERENCE
3 11/16”
(94mm)
1 1/4”
(32mm)
1 1/4”
(32mm)
1 1/4”
(32mm)
3 5/16”
(84mm)
2 5/16”
(59mm)
22 11/16”
(576mm)

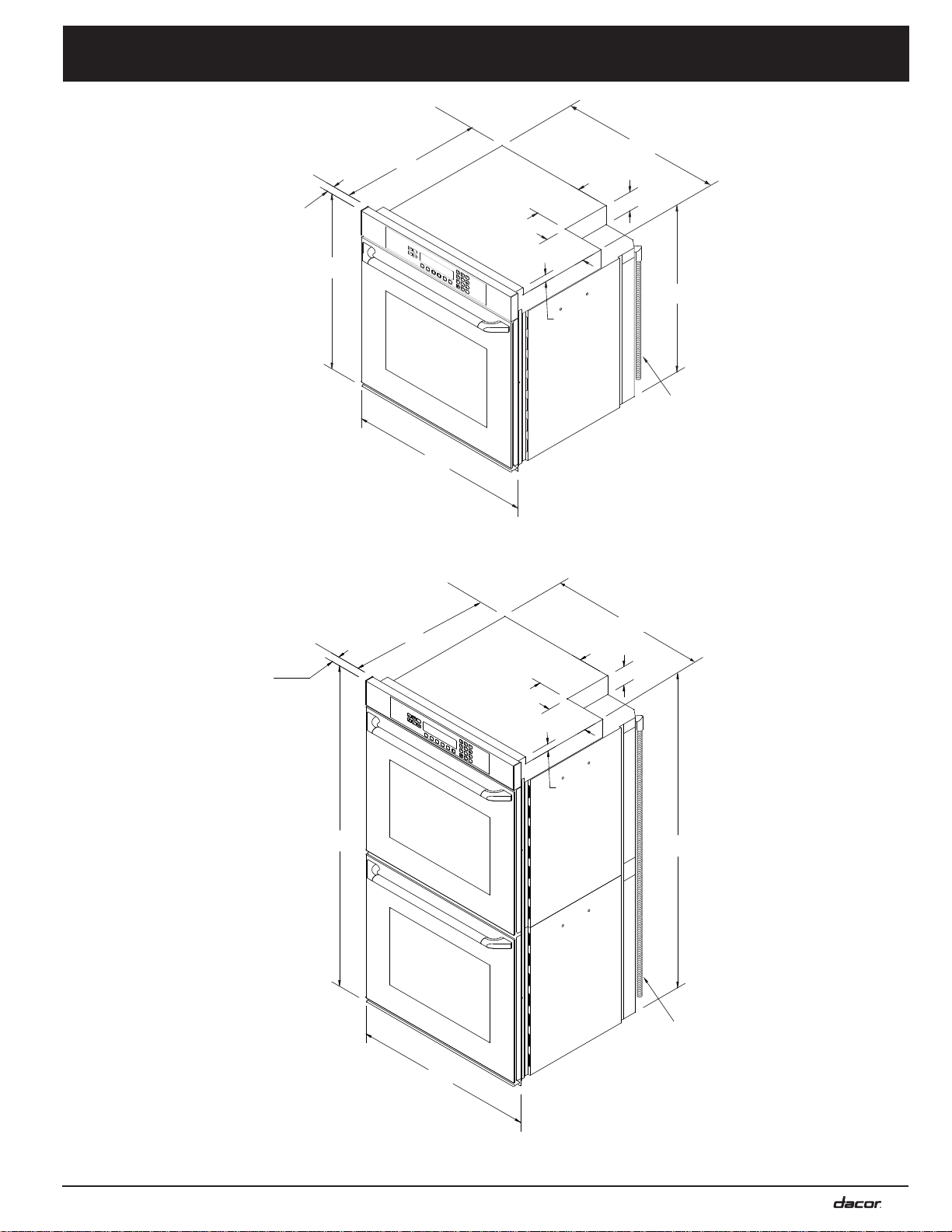

Product Dimensions
All tolerances are 1/16”, -0 (1.6 mm, -0)
Model
Number
EO127
PO127
MOV127
MOH127
EO130
PO130
MOV130
MOV130
EO227
PO227
MOV227
MOH227
EO230
PO230
MOV230
MOH230
K L M N P Q R S
27”
(686mm)
27 15/16”
(710mm)
26 3/8”
(670mm)
30”
(762mm)
23 3/8”
(594mm)
2 5/16”
(59mm)
7 3/8”
(187mm)
6 3/8”
(162mm)
27”
(686mm)
51 3/32”
(1298mm)
49 1/2”
(1257mm)
30”
(762mm)
25 3/8”
(644mm)
28 3/8”
(721mm)
25 3/8”
(644mm)
28 3/8”
(721mm)
4
Handle Dimensions - All Models (Side View)
Door Dimension - All Models
Page 7
Product Specifications
“R”
“N”
“P”
“Q”
“M”
1 1/16”
(27mm)
66”
(1676mm)
Flexible Conduit
“K”
“L”
1 1/4”
(32mm)
“S”
“M”
“L”
1 1/4”
(32mm)
“P”
“N”
1 1/16”
(27mm)
“R”
66”
(1676mm)
Flexible Conduit
“K”
“Q”
“S”
Single Wall Oven Dimension
Double Wall Oven Dimension
5
Page 8
“C”
9 5/8” (244mm)
Recommended
(May be altered)
1 ¾“ (45mm)
Clear to Top
of Drawer for
Heat Exhaust
“B”
“A”
4“ Typical Toe Kick (Shown)
Recommended
Electrical
Location
3/4” (19mm)
Support Platform
1“ (25mm)
Clear to Top
of Drawer for
Heat Exhaust
“C”
“A”
“B”
31 1/4” (794mm)
Recommended
(May be Altered)
1 ¾“ (45mm) Min.
Clear to Top of
Door for Heat
Exhaust
4“ Typical Toe Kick (Shown)
Recommended
Electrical
Location
Alternate
Electrical
Location
3/4” (19mm)
Support Platform
1“ (25mm) Min.
Clear to Top of
Door for Heat
Exhaust
Planning the Installation
Selecting the Location
Carefully check the location where the oven is to be •
installed. The oven should be placed for convenient
access, but away from drafts that may be caused
by doors, windows, and heating, ventilation and air
conditioning outlets.
Make certain that electrical power can be provided •
in the selected location. Be certain that proper
clearance is provided for the oven door when it is in
the open position.

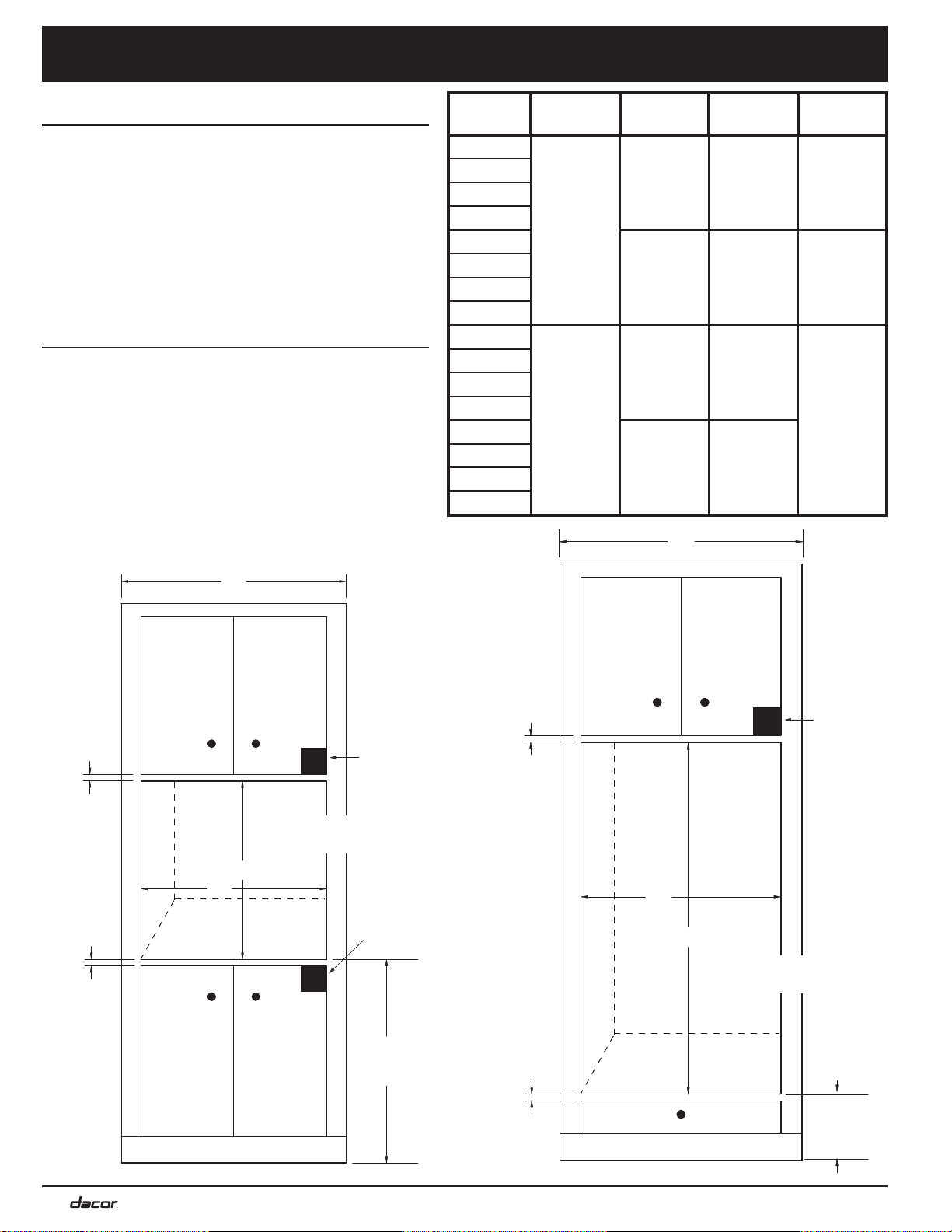

Cabinet Cut-Out
Plan the installation so that all minimum clearances •
are met or exceeded. Cutout dimensions shown
provide minimum clearances, unless otherwise
noted.
The specified minimum cabinet depth and width •
must be provided. The cabinet depth and width
must completely enclose the recessed portion of
the oven.
Cabinet cutout dimensions must be used as indi-•
cated.
Model
Number
EO127
PO127
MOV127
MOH127
EO130
PO130
MOV130
MOV130
EO227
PO227
MOV227
MOH227
EO230
PO230
MOV230
MOH230
A B C D
25 1/2”
(648mm)
27”
(686mm)
27 7/16”
(697mm)
28 1/2”
(724mm)
25 1/2”
(648mm)
30”
(762mm)
27”
(686mm)
50 9/16”
(1284mm)
28 1/2”
(724mm)
30”
(762mm)
56 1/2”
(1435mm)
62 1/2”
(1588mm)
NA
Single Wall
Oven Cutout
Double Wall
Oven Cutout
6
Page 9

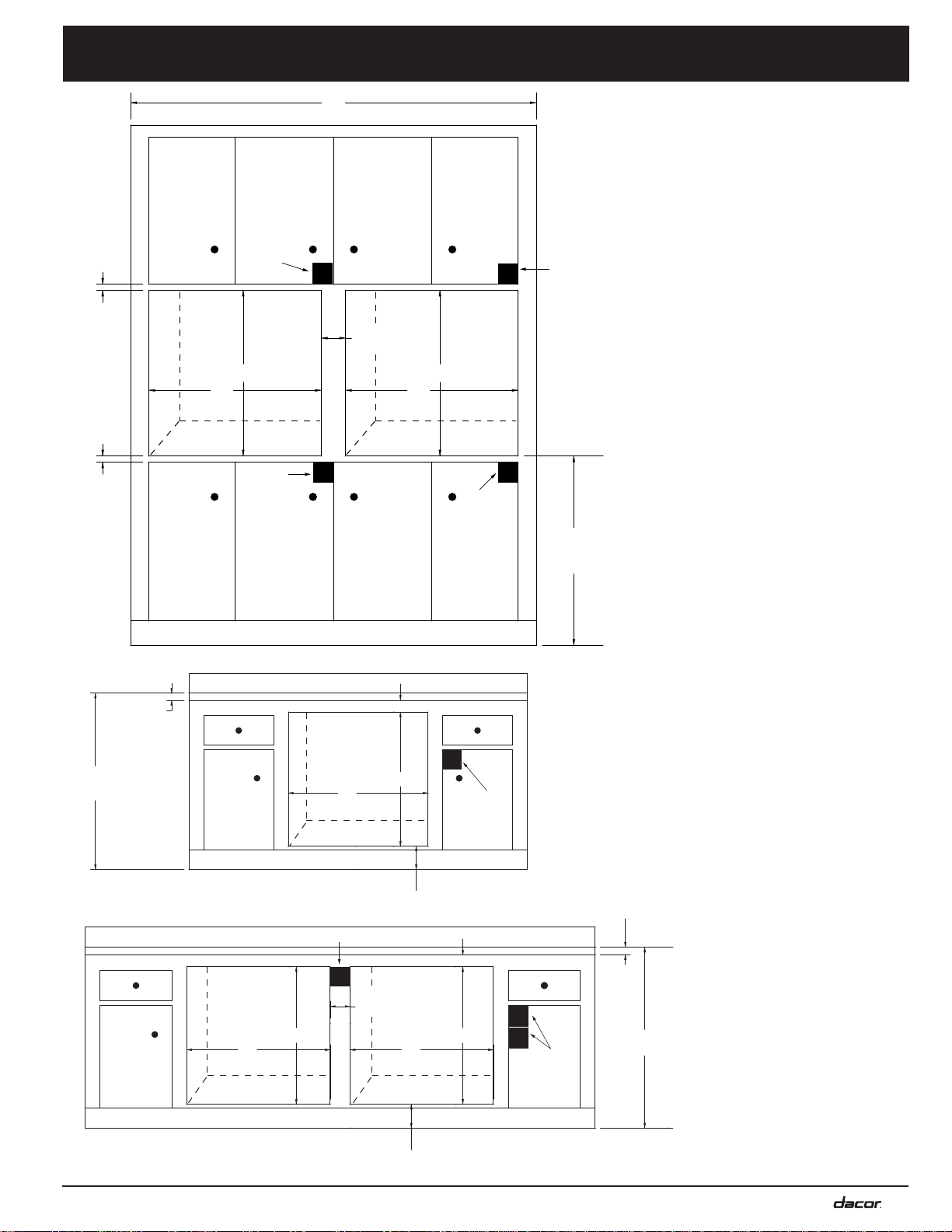

1 ¾” (45mm) Min.
to Combustible Floor
“A”
“B”
“A”
“B”
1 1/2” (38mm)
Typical Counter
4“ Typical Toe Kick (Shown)
Alternate
Electrical
Locations
3/4” (19mm)
Support Platform
4“ (102mm) Min.
Between Cutout
3/4” (19mm)
Support Platform
Recommended Electrical Location
1“ (25mm) Min. to Combustibles
36” (914mm)
Typical
Planning the Installation
“A”
“B”
“A”
“B”
“D”
1 ¾“ (45mm)
Min. to Top of
Door for Heat
Exhaust
31 1/4” (794mm)
Recommended
(May be Altered)
4“ Typical Toe Kick (Shown)
3/4” (19mm)
Support Platform
3/4” (19mm)
Support Platform
4“ (102mm) Min.
Between Cutout
Recommended
Electrical
Location
Recommended
Electrical
Location
Alternate
Electrical
Location
Alternate
Electrical
Location
1“ (25mm) Min.
to Bottom of
Door
36” Typical
(914mm)
1 1/2”
(38mm)
Typical Counter
“A”
“B”
1 ¾“ (45mm) Min.
to Combustible Floor
4“ Typical Toe Kick (Shown)
Recommended
Electrical
Location
3/4” (19mm)
Support Platform
1“ (25mm) Min. to Combustibles
NOtES:
All tolerances are 1/16”, -0 (1.6 mm, -0)•
24” minimum cutout depth•
3/4” support platform must be flush with •
front of cutout. See page 8.
Duel Single Wall Oven Cutout
Single Wall Oven Under
Counter Cutout
Duel Single Wall Oven
Under Counter Cutout
7
Page 10
Planning the Installation

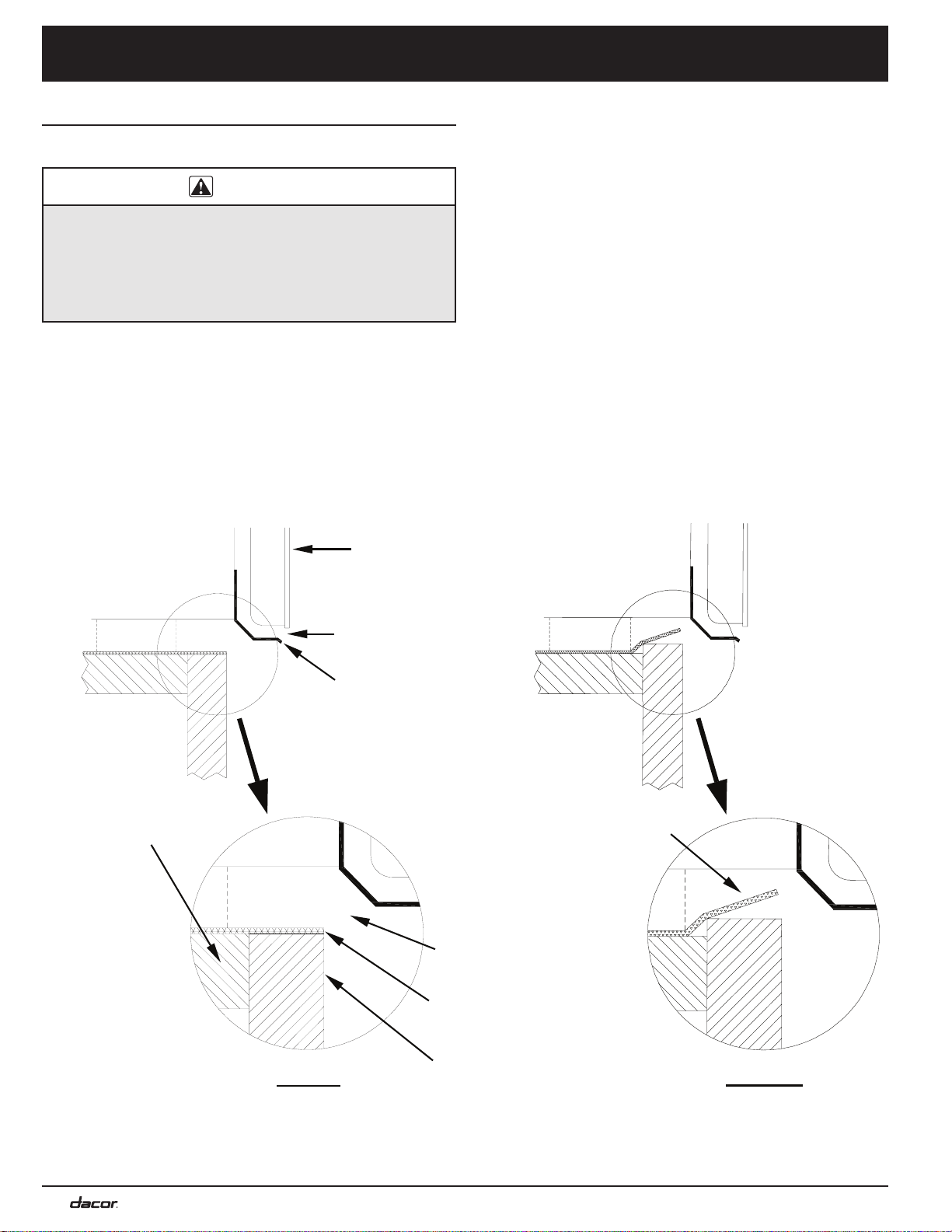

Support Platform
WRONG
Cabinet Front
or Wall
Exhaust Vent
do not block
Oven Doo
r
Deformed Sheet Metal
Blocking Vent
Cool Air Intake
(do not block)
Exhaust Deflector
(
do not bend
)
RIGHT
Sheet Metal on
Bottom of Oven
Cabinet Cut-Out (continued)
Support Platform
WARNING
The top surface of the support platform must be installed
flush with the cutout in the front of the cabinet or wall
and any trim. Failure to install the platform properly
may cause the exhaust vent to deform and/or become
obstructed. An obstructed exhaust area may cause the
oven to malfunction. See below.
Provide a platform within the cabinet to support the oven.
A properly supported piece of 3/4” (19mm) thick plywood is
recommended.
All contact surfaces between the appliance and the cabinet, including the support platform, must be sturdy, straight
and level. The oven cannot be leveled after it has been
installed.
8
Page 11
Planning the Installation
Electrical Specifications
IMPORtANt
Preheat times and cavity temperature recovery times •
will be increased slightly if operating on less than a
240 Vac circuit.
This appliance is provided with electrical connec-•
tion leads in a flexible metal conduit. These leads
may be a smaller gage than the standard household
wiring of the dedicated supply circuit, but they are
suitable for connection to these circuits under the
jurisdiction of the National Electric Code, and/or the
local inspection authority.
Locate the junction box so that the wiring may be •
disconnected without removing the oven from the
wall.
It is the owner’s responsibility to ensure that a qualified
electrician performs the electrical connection of this appliance. The electrical installation, including minimum supply
wire size, must comply with the National Electric Code
ANSI/NFPA 70 (latest revision) and local codes and ordinances.
*A copy of this standard may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct voltage, frequency and amperage must be supplied to the appliance from a dedicated, grounded, single
phase circuit that is protected by a properly sized circuit
breaker or time-delay fuse. If a time-delay fuse is utilized,
fuse both sides of the line (L1and L2).
Model type
Single 27” 240 Vac, 60 Hz
Single 30”
Double 27” 240 Vac, 60 Hz
Double 30”
Dedicated Circuit
Required
4 wire 30 Amp
Dedicated
4 wire 50 Amp
Dedicated
4.6 kW (19.5 Amp)
9.25 kW (38.9 Amp)
total
Connected Load
Installation Instructions
Parts List
Exhaust deflector with three (3) screws•
Mounting screws, four (4) for single ovens, six (6) for •
double ovens, two (2) different sizes may be included.
Standard oven racks two (2) for a single oven, five (5) •
for a double oven
GlideRack™ oven rack, one (1)•
Broiler grill and pan•
Meat probe, one (1)•
Ceran cleaning kit•
Stainless steel cleaner (stainless steel models only)•
Light lens pry stick•
Ease form•
Quick start guide•
Installation instructions•
Use and care manual•
The above electrical ratings are for reference only. For the
exact ratings see the appliance data plate. See page 3 for
location.
Verify that all the parts are included. If any item is missing
or damaged, please contact your dealer immediately.
Make certain that you have all tools and parts necessary to
ensure a proper installation before proceeding. If replacements parts are required, contact your Dacor dealer.
9
Page 12

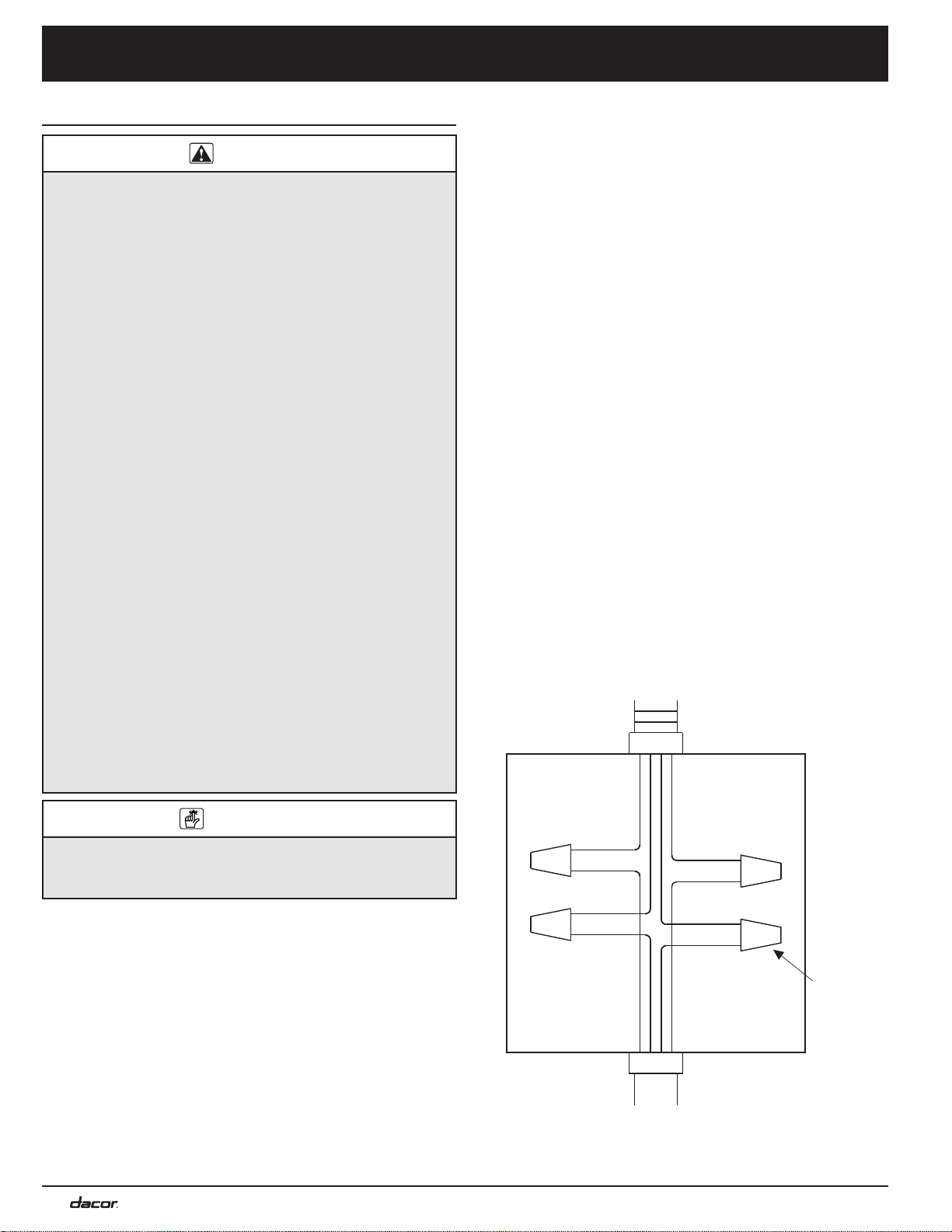

Installation Instructions

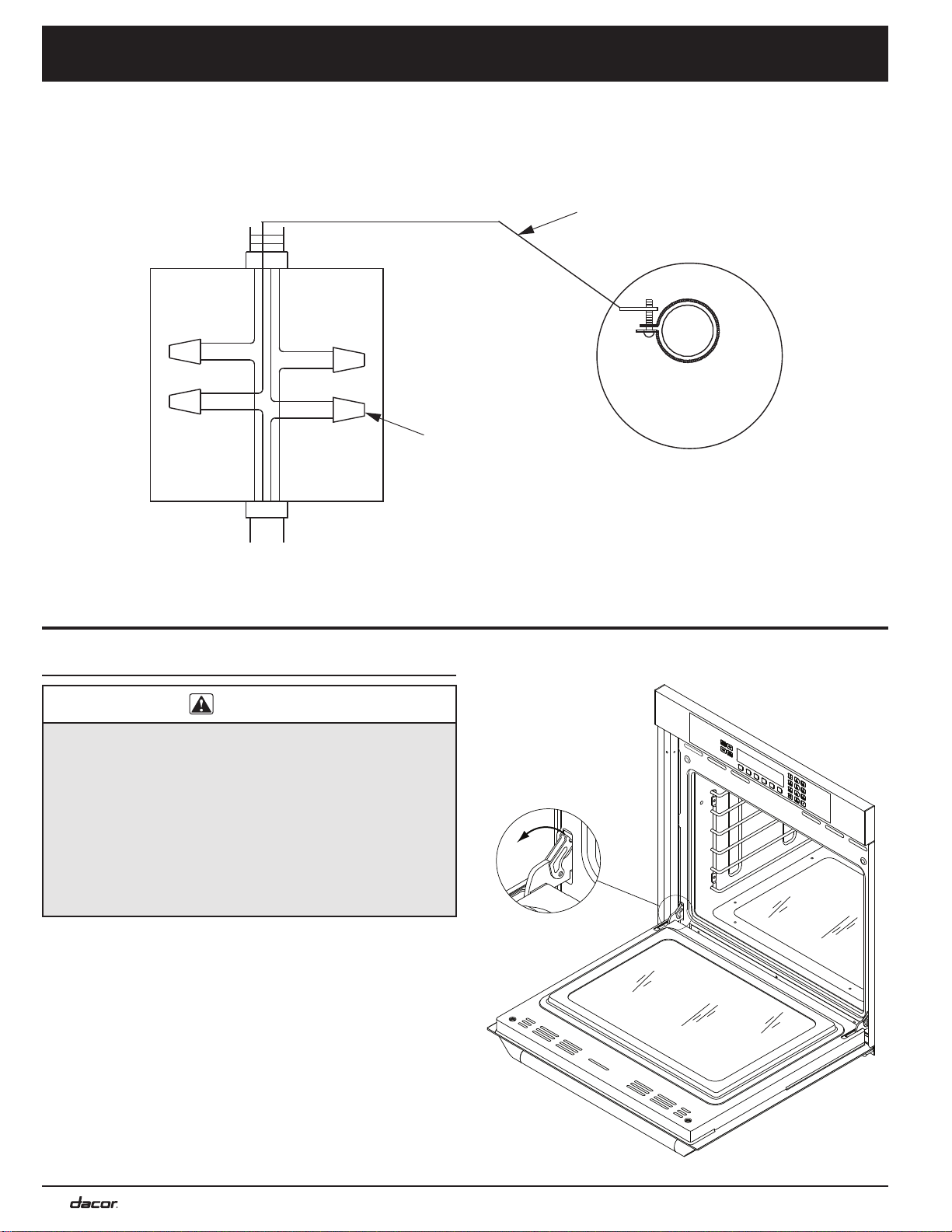

Conduit from
appliance
Cable from
power supply
Wire nut
(4 places)
Junction
box
RED
RED
GREEN
GREEN
WHITE
WHITE
BLACK
BLACK
Electrical Service Installation
WARNING
Wire the oven only in compliance with local ordi-•
nances.
If the electrical service provided does not meet •
the product specifications, do not proceed with the
installation. Call a licensed electrician to install the
required wiring.
To prevent an electric shock or fire hazard, turn off •
power to the circuit at the circuit breaker or fuse box
prior to connecting the wiring to the oven.
Improper connection of the electrical wiring can •
cause an electric shock hazard and damage the
appliance. Dacor is not responsible for damages
resulting from improper installation.
Connect the ground terminal (or lead) on the appli-•
ance to a grounded, metallic, permanent wiring system or grounding conductor.
Do not use an extension cord with this appliance. •
Such use may result in fire, electric shock or other
personal injury.
Do not install a fuse in the neutral or ground circuit. •
A fuse in the neutral or ground circuit may result in
an electric shock hazard.
The appliance must be connected to the power sup-•
ply with copper wire only. The use of aluminum wire
may result in unsatisfactory connections.
Flexible armored or non-metallic, sheathed copper •
cable (with grounding wire) should be used to connect the appliance to the junction box. An UL-listed
connector must be used to directly connect the cable
to the junction box.
Before proceeding, turn off power to the circuit to which 1.
the oven will be connected at the circuit breaker or fuse
box.
2.
Position the oven directly in front of the cabinet cutout.
Feed the appliance conduit into the electrical junction 3.
box and attach it using a UL approved strain relief.
4.
Depending upon local codes, utilize one of three methods to connect the appliance to the electrical power:
Connect to a four wire electrical system◊
Connect to a three wire electrical system, where ◊
local codes permit
Connect to a three wire electrical system with ◊
external ground, according to local codes.
Connecting to a Four Wire Electrical
System
Separate the wires coming out of the appliance conduit.1.
Connect the white wire from the appliance conduit to 2.
the white (neutral) supply wire in the junction box.
Connect the black wire from the appliance conduit to 3.
the black (L1) supply wire in the junction box.
4.
Connect the red wire from the appliance conduit to the
red (L2) supply wire in the junction box.
Connect the green wire from the appliance conduit to 5.
the green (ground) wire in the junction box.
IMPORtANt
Make sure that the conduit is long enough to allow the
oven to be pulled out for service without disconnecting it
from power.
10
4 Wire Junction Box Connection
Page 13

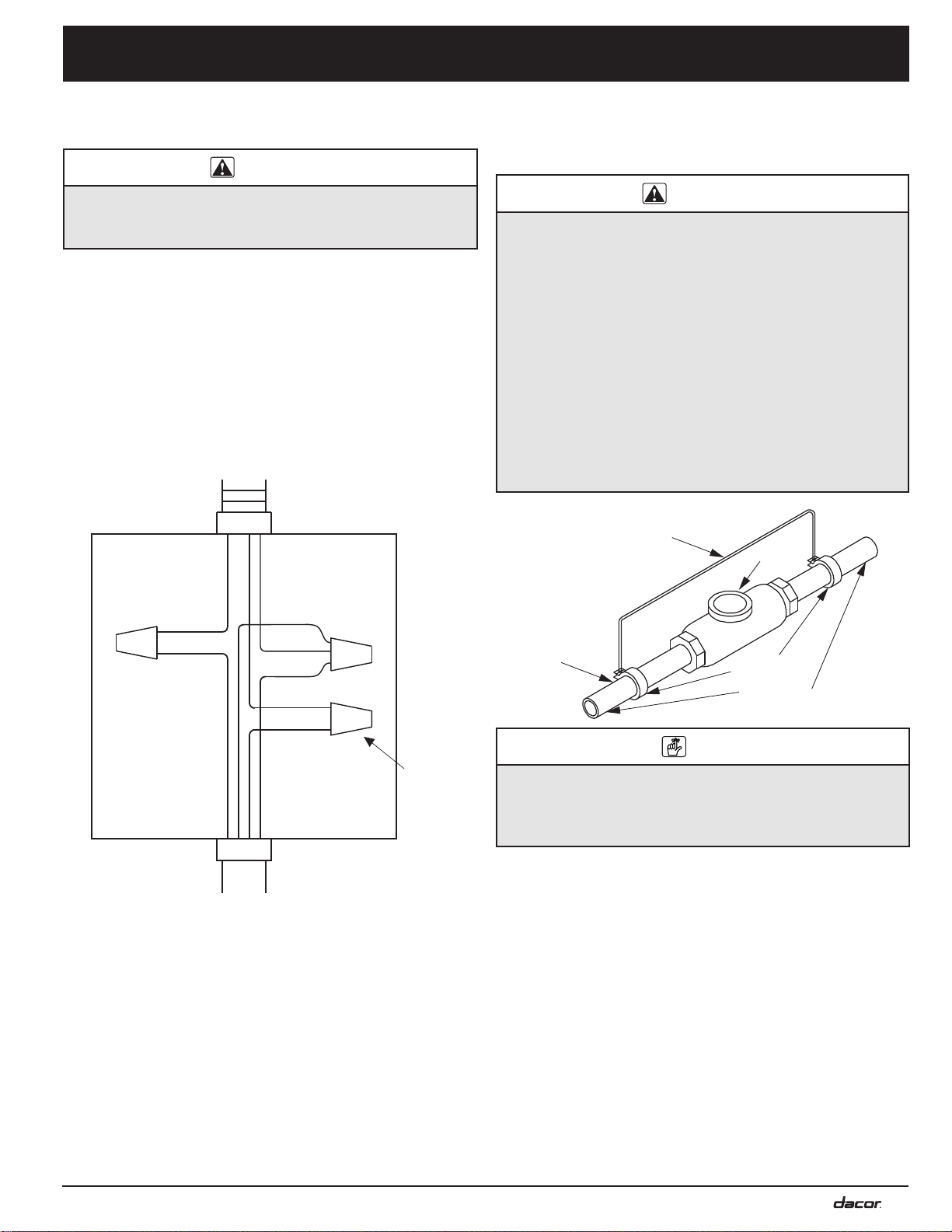

Installation Instructions
Conduit from
appliance
Cable from
power supply
Wire nut
(3 places)
Junction
box
RED
RED
GREEN
WHITE
WHITE
BLACK
BLACK
No. 4
copper wire
Metal
water pipe
Clamps
Bare metal
Meter
Connecting to a Three Wire Electrical
System - Where Local Codes Permit
WARNING
Do not connect the green appliance conduit wire to the
neutral (white) junction box wire unless local building
codes permit.
1.
Separate the wires coming out of the appliance conduit.
Connect the green and white wires from the appliance 2.
conduit to the white (neutral) supply wire in the junction
box.
Connect the black wire from the appliance conduit to 3.
the black (L1) supply wire in the junction box.
4.
Connect the red wire from the appliance conduit to the
red (L2) supply wire in the junction box.
Connecting to a Three Wire Electrical
System with External Ground - Where Local
Codes Permit
WARNING
Do not connect the green appliance wire to the junc-•
tion box or to a cold water pipe unless local building
codes permit.
Do not ground the appliance to a gas supply pipe or •
hot water pipe.
If connecting the ground wire to a grounded cold •
water pipe, connect using a separate copper
grounding wire (No. 10 minimum) and a clamp with
an external grounding screw. The grounded cold
water pipe must have metal continuity to electrical
ground and must not be interrupted by insulating
materials. Any insulating materials must be jumped,
with a minimum, 4 AWG wire to establish continuity
to ground.
NOtE
If the junction box has been properly grounded by a
licensed electrician, the green (ground) wire from the
appliance conduit may be connected to the junction box
using a loop terminal.
See the diagram on the following page. To connect the
green appliance conduit wire to a grounded cold water
pipe:
1.
Separate the wires coming out of the appliance conduit.
Connect the white wire from the appliance conduit to 2.
the white (neutral) supply wire in the junction box.
3.
Connect the black wire from the appliance conduit to
the black (L1) supply wire in the junction box.
Connect the red wire from the appliance conduit to the 4.
red (L2) supply wire in the junction box.
5.
Connect the green wire from the appliance conduit to a
grounded cold water pipe as shown. Jumper any insulating materials as shown above with a length of No. 4
copper wire. Securely clamp the wire to bare metal at
both ends.
11
Page 14
Installation Instructions
Conduit from
appliance
Cable from
power supply
Wire nut
(4 places)
Junction
box
RED
RED
GREEN
GREEN
WHITE
WHITE
BLACK
BLACK
Separate No. 10 (minimum)
copper grounding wire
Clamp must be
tight on pipe
No. 4
copper wire
Metal
water pipe
Clamps
Bare metal
Meter
Connecting to a Three Wire Electrical
System with External Ground - Where Local
Codes Permit (continued)
Final Installation
WARNING
A minimum of two people are required to safely •
install this appliance.
Do not attempt to disengage the hinge catches with •
the door removed from the oven. The hinge springs
could release, causing personal injury.
Do not lift or carry the oven door by the door handle.•
On double ovens: Remove the lower door first. •
Otherwise, damage to the top of the lower door may
occur when the upper door is removed.
Remove the oven door(s)
Due to the weight of this appliance, remove the door(s) to
reduce the lifting load. Removing the door(s) will also provide a place to grip the oven when lifting it into place.
1.
Open the oven door completely.
Pull the hinge locks forward on both hinges, until they 2.
stop.
12
Page 15

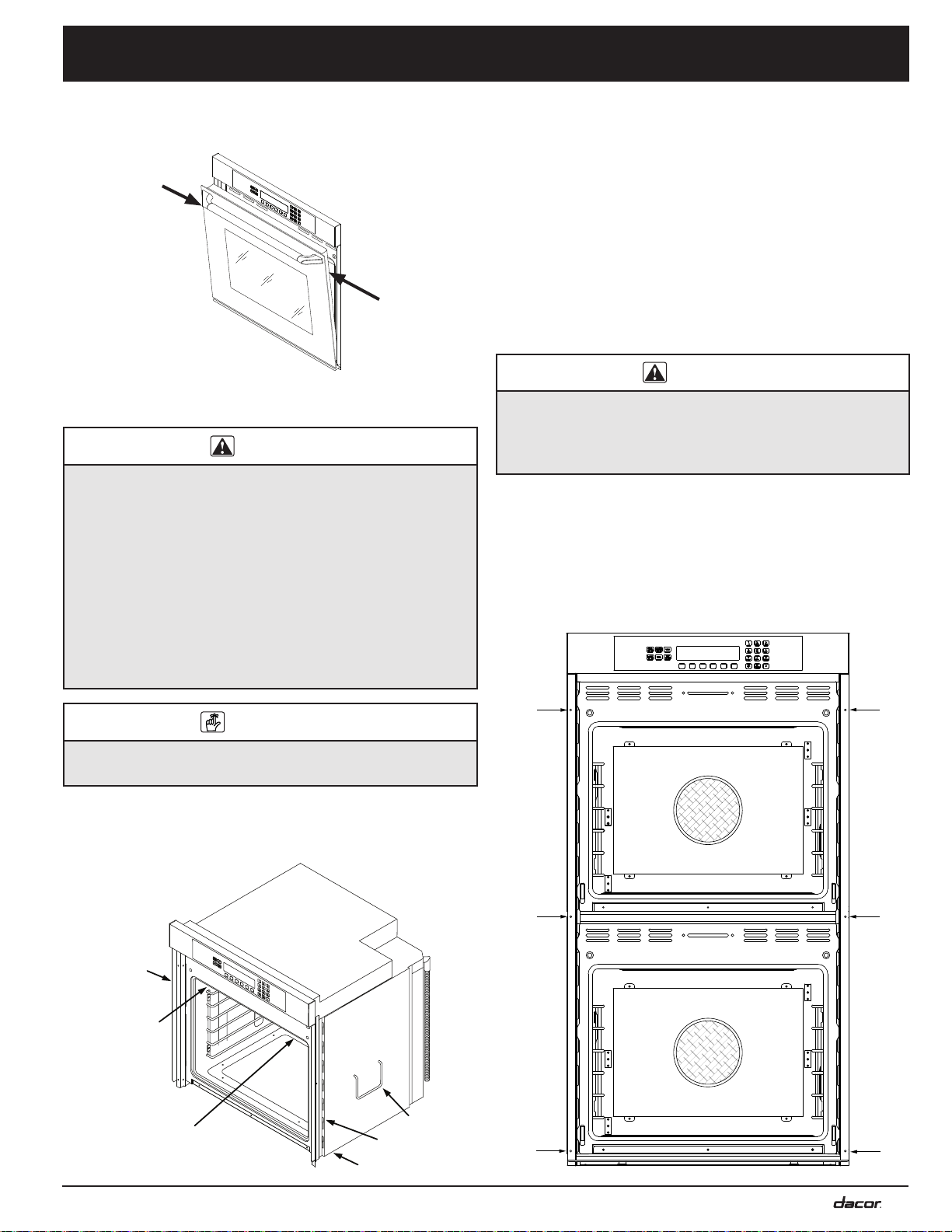

Installation Instructions
Trim Post
Trim Post
Gripping Point
Gripping Point
Gripping Point
Handle
Raise the door so that it is at a 15° angle from the front 3.
of the oven. Hold the door with one hand on each side.
Lift the door up and out.
Door Gripping
Points
Install the Oven in the Cabinet
WARNING
Use an appliance dolly to move the appliance when •
installing it or removing it from the wall for service.
Use of an appliance dolly will minimize the risk of
personal injury as a result of the oven tipping.
Failure to install the mounting screws may result in •
movement or tipping of the oven during use, or personal injury.
Do not block the oven air exhaust and intake located •
at the bottom of the oven door(s). Blocking the airflow may cause cabinet damage and poor baking
performance.
Support the oven at all times until it is secured into the 2.
cabinet. Be certain to take all necessary safety precautions.
3.
Resting the oven on the cabinet support platform, slide
the oven into the recessed area until the rear edge of
the oven trim post is flush with the cabinet face and
the oven is centered within the cutout. Ensure that
the electrical conduit slides through the opening in the
cabinet platform or coils above the oven chassis as the
oven is slid into place. Do not trap the appliance cable
between the oven case back and the rear wall.
4.
Make sure the oven is resting level. Shim it if necessary.
WARNING
When installing the mounting screws into composite
cabinets, install them into the sides of the cabinet only.
Mounting screws installed into the front of composite
cabinets will have a tendency to pull loose.
5.
Find the mounting hole locations in the front and side
of the oven trim posts. Drill 1/16” pilot holes in the cabinet through the front or side of the trim posts. Single
oven models require four (4) holes, while double oven
models require six (6).
6.
Install the #6 x 3/4” screws provided in the instructions
envelope. Do not over-tighten.
An oven that is not level may provide poor or inconsistent
baking results.
1.
IMPORtANt
Lift the oven up to the cabinet cutout using the handles
and gripping points shown. Use extreme caution when
lifting the appliance, because it is heavy.
13
Page 16
Installation Instructions

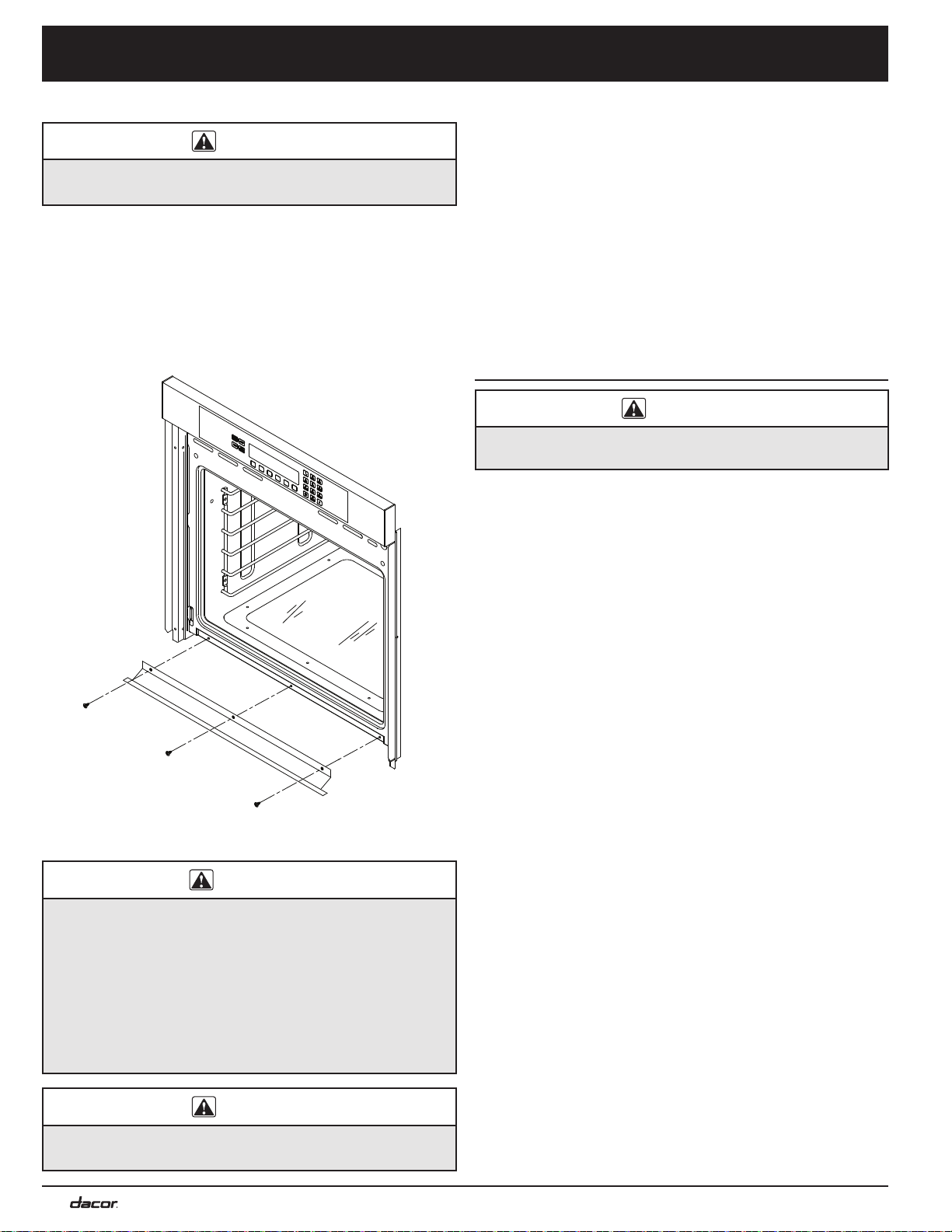

Install Exhaust Deflector
CAUtION
Install the exhaust deflector before installing the oven
door(s).
Attach the exhaust deflector to the front of the oven. It
attaches to the oven just below the oven chamber in the
door jam. On a double oven, the exhaust deflector is
mounted below the bottom oven chamber.
Line up the mounting holes on the exhaust deflector
1.
with the screw holes on the front of the oven.
Secure it using the three (3) screws provided.2.

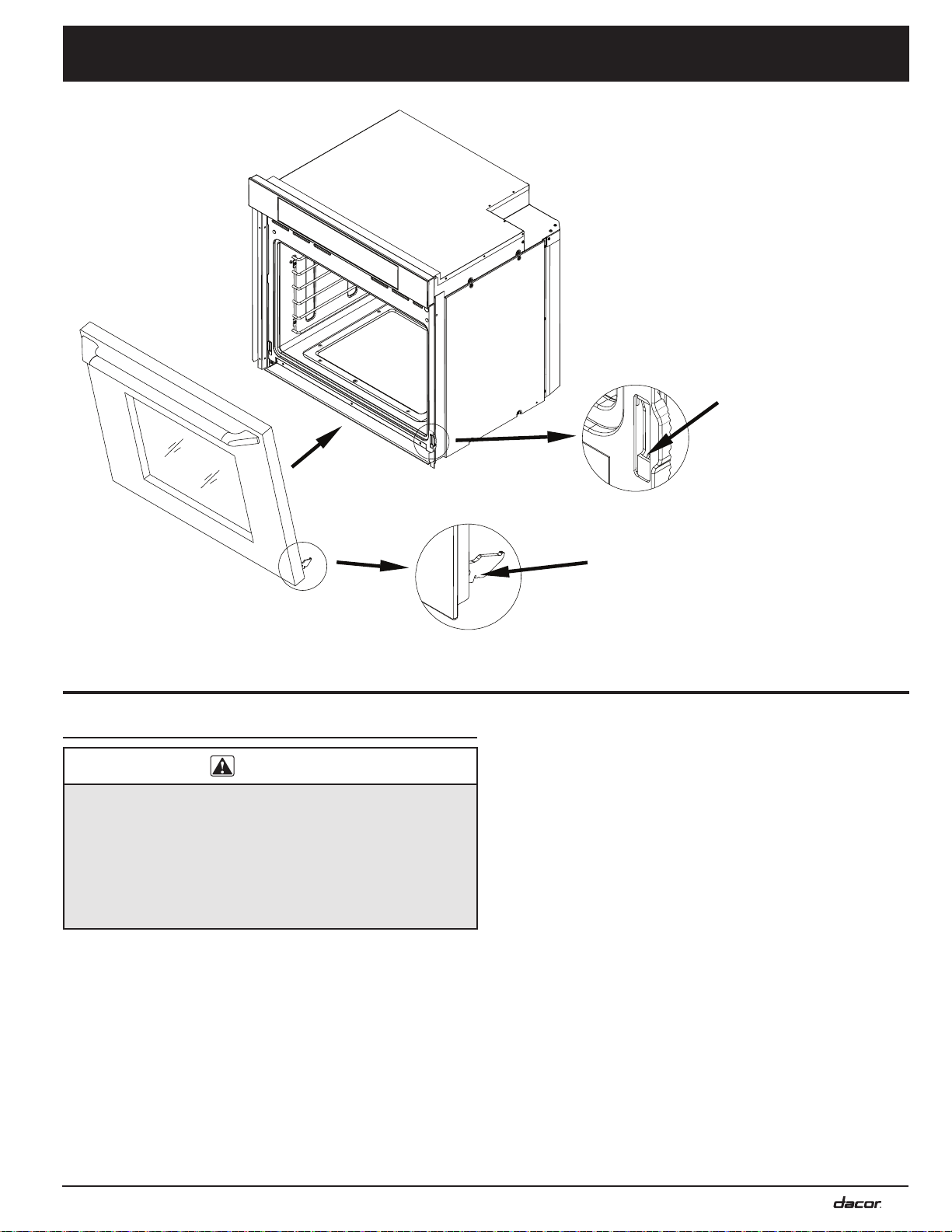

Reinstall the Oven Door(s)
WARNING
To avoid damage to the door or personal injury from it
falling off its hinges:
Grasp the oven door on opposite sides and hold it at a 1.
15° angle from the front of the oven. See facing page.
Slide the hinges into the hinge openings, resting the 2.
bottom of the hinge arms on the hinge receptacles.
3.
Continue to hold the door at a 15° angle with one hand
while pushing in on each of the bottom corners of the
door. Push until the notch on the bottom of each hinge
slips over the lower lip of each hinge receptacle.
4.
Lower the door to the fully opened position.
Rotate the two hinge locks toward the oven. Slowly and 5.
carefully open and close the door completely to make
sure that it is properly installed.
Verify Proper Operation
WARNING
Read the accompanying use and care manual completely
before using the oven.
Remove any packaging from inside the oven(s).
1.
On some models there is protective plastic coating over 2.
the stainless steel surfaces. Peel them off before use.
3.
Slide the oven racks onto the support racks in the oven
chamber(s) as instructed in the use and care manual.
Turn on the power to the oven at the circuit breaker or 4.
fuse box. Set the clock as instructed int the use and
care manual.
5.
Set the oven to bake mode as instructed in the use and
care manual.
NOtES: If the oven does not operate properly, follow these
troubleshooting steps:
Verify that power is supplied to the oven.•
Check for proper electrical connection.•
Repeat the above bake test.•
If the appliance still does not work, contact the Dacor •
Customer Service Team at (800) 793-0093.
Do not attempt to repair the appliance yourself. Dacor
is not responsible for service required to correct a faulty
installation.
Make sure that the notch on the bottom of each •
hinge rests on top of the lower lip of each hinge
receptacle before attempting to open the oven door.
Rotate the hinge locks toward the front of the oven •
immediately and completely after installation of the
door.
CAUtION
On double ovens: Install the upper door first to prevent
damage to the lower door.
14
Page 17
Installation Instructions
Lower lip of
hinge receptacle
Notch on bottom of hin
g
e
Installation Checklist
WARNING
To ensure a safe and proper installation, the follow-•
ing checklist should be completed by the installer
to ensure that no part of the installation has been
overlooked.
Proper installation is the responsibility of the hom-•
eowner. The importance of proper installation of your
Dacor oven cannot be overemphasized.
Oven is wired to all applicable codes and Dacor specifi-
□
cations. See pages 9 and 10.
Oven is level. See page 13 □
Oven is secured into cabinet with included screws. See □
page 13
□
Exhaust deflector has been installed. See page 14.
Door Installation
□
Plastic coating, if applicable, has been removed from
outside of oven.
All packaging materials have been removed from inside □
the oven.
Power is turned on at circuit breaker or fuse box. □
Proper oven operation has been verified. See page 14. □
Problems have been noted on the warranty card or dur- □
ing the on-line activation. Warranty has been activated
on-line or the warranty card has been filled out completely and mailed.
Oven door(s) have been properly re-installed. See □
page 14.
15
Page 18
Notes
16
Page 19
Page 20
Dacor ● 1440 Bridge Gate Drive, Diamond Bar, CA 91765 ● Tel: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com
Loading...
