1. Introduction
1.1. Overview....................................................................
sensorCUE is a temperature and daylight sensor in one small enclosure. The temperature sensor can
be used for temperature monitoring and heating control. The daylight sensor enables the controller to
automatically dim lights when available daylight is high, or brighten lights when daylight is low in order
to maintain a specific light level in the space. It may be calibrated for daylight sensitivity by
programming the controller. The unit is fully compatible with CUE controllers and the connection is
provided via standard CUEwire system bus.
1.2. Models........................................................................
This User Manual describes products itemized in the table below.
Model Product code Description
sensorCUE CS0265 Temperature and daylight sensor in one small enclosure.
1.3. Features .....................................................................
• Temperature measurement range -55°C to +125°C
• Integrated daylight sensor
• Metal enclosure
• Fully compatible with ipCUE controllers
• Small size
• Easy installation
• System connection by CUEwire
1.4. Programming .............................................................
The sensorCUE is programmed using Cue Director XPL programming tool.
User Manual sensorCUE
www.cuesystem.com
Page 4 of 14
2. Description

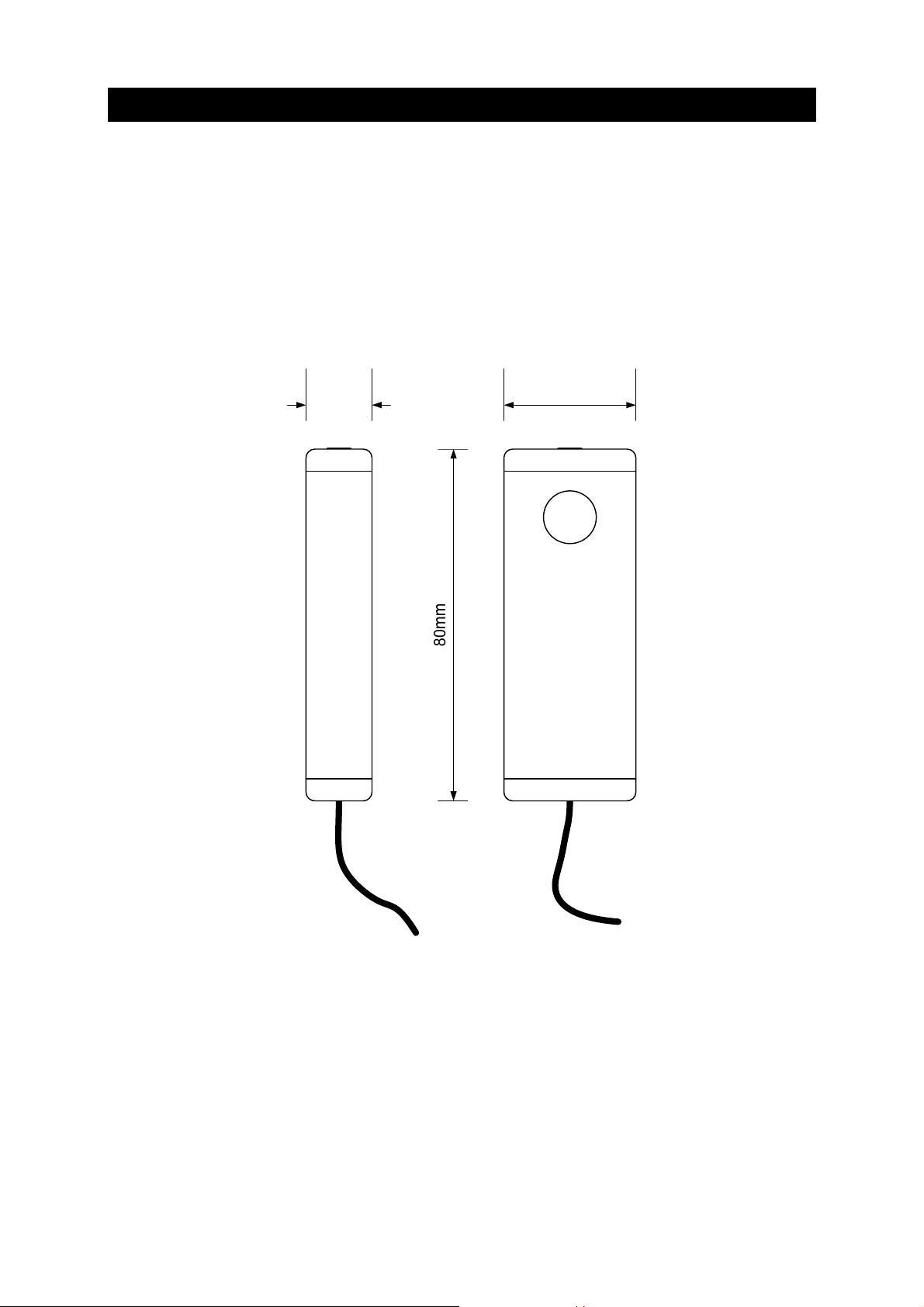

The enclosure of sensorCUE is a small metal box (80 x 30 x 15 mm) which allows simple installation
into the environment, for example using double-sided adhesive tape. The temperature and daylight
sensors must not be covered so that the functionality of sensorCUE is ensured. The standard

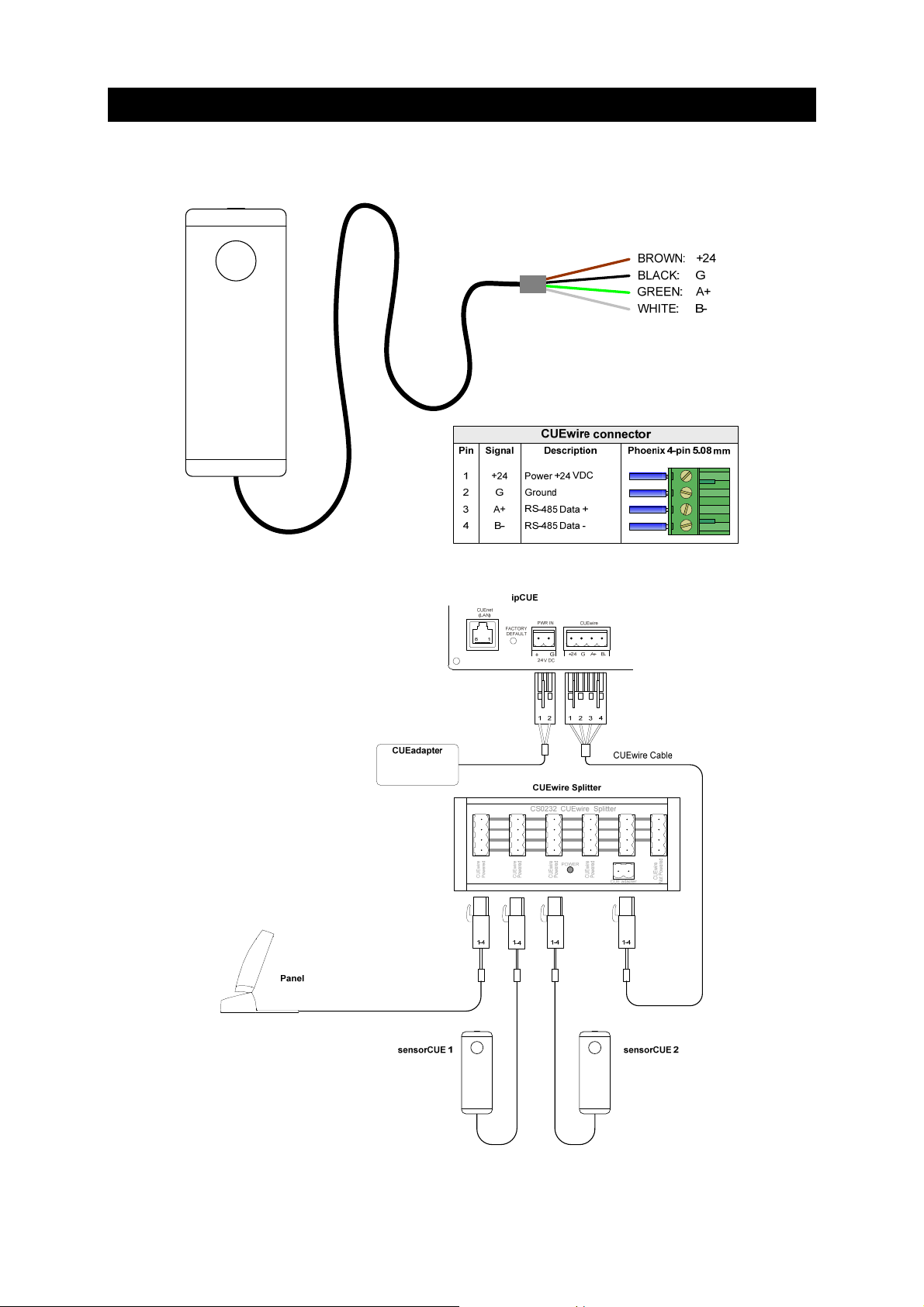

CUEwire is connected via 4-conductor cable, containing the 24 VDC power supply and RS-485 data.
Temperature sensor
Daylight sensor
CUEwire
