CUE keypadCUE-8 User Manual
User Manual
keypadCUE-8-L
keypadCUE-8-E
Version 01
CUE, a.s., K Nouzovu 6, 143 00 Praha 4, Czech Republic
phone: +420 241 091 240
fax: +420 241 432 446
www.cuesystem.com
mail: info@cuesystem.com
User Manual keypadCUE-8
UM037_01, 21.05.2008
Copyright © CUE, a.s., Praha, Czech Republic 1990 - 2008.
All rights reserved. Specifications are subject to change without prior notice.
Table of Contents
1.
Introduction.................................................................................................................................... 4
1.1. Overview .......................................................................................................................................................................4
1.2. Models...........................................................................................................................................................................4
1.3. Features........................................................................................................................................................................4
1.4. Programming.................................................................................................................................................................4
2. Front Panel..................................................................................................................................... 5
3. Button Labels................................................................................................................................. 6
3.1. Button labels for keypadCUE-8-E .................................................................................................................................6
3.2. Button labels for keypadCUE-8-L..................................................................................................................................8
3.2.1. Using temporary paper button labels...................................................................................................................8
3.2.2. Using the final engraved button labels.................................................................................................................9
4. Addressing................................................................................................................................... 10

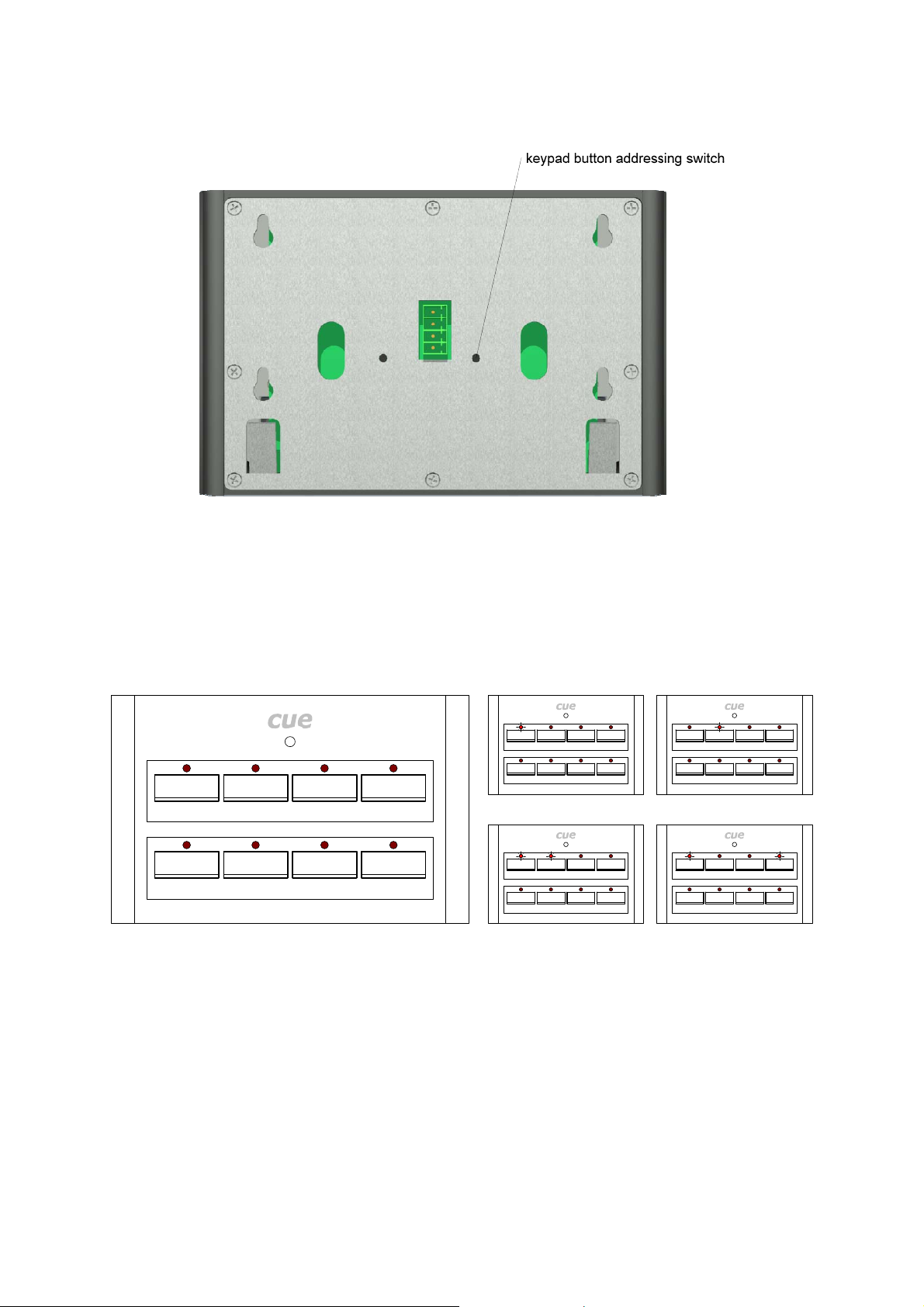

4.1. Addressing buttons of keypadCUE-8..........................................................................................................................10
4.1.1. Addressing rules................................................................................................................................................10
4.1.2. Setting-up keypad buttons ADDRESS...............................................................................................................11
4
.1.3. Troubleshooting.................................................................................................................................................11
4.2.
Addressing the built-in IR receiver in keypadCUE-8...................................................................................................12
4.2.1. Addressing rules................................................................................................................................................12
4.2.2. Setting up IR receiver ADDRESS......................................................................................................................13

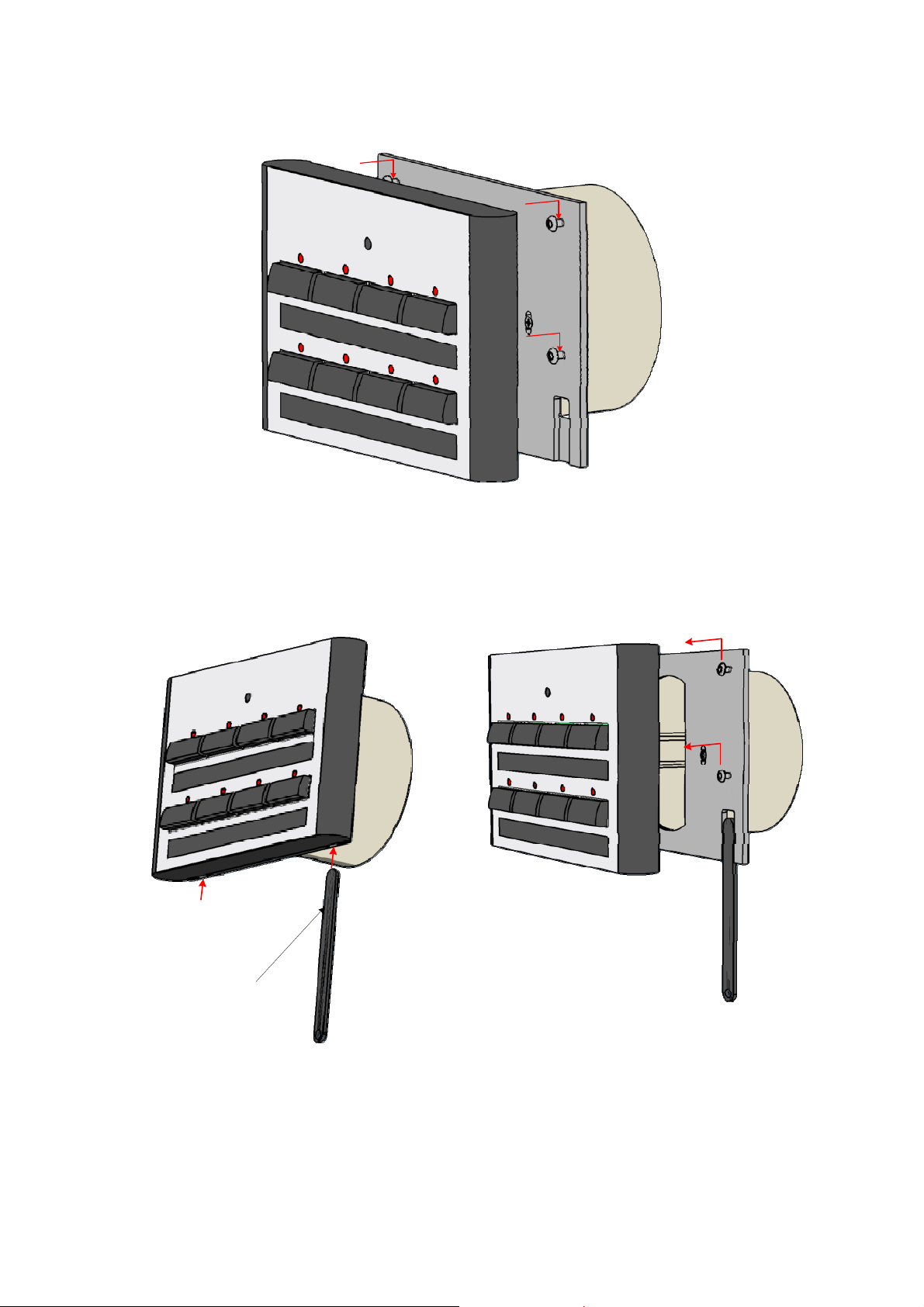

5. Mounting.......................................................................................................................................14
6. Connecting................................................................................................................................... 16
7. Specifications and Mechanical Drawings................................................................................. 17
8. Software and Firmware License................................................................................................. 18
User Manual keypadCUE-8
www.cuesystem.com
Page 3 of 20
1. Introduction
1.1. Overview....................................................................
Featuring a beautiful stainless steel architectural finish, these keypads are elegant and powerful wall
mounted control panels designed to be built into standard European electrical wall boxes. Each
keypad provides 8 buttons and programmable indication. Button labels can be engraved upon the
plastic strips on the front panel. keypadCUE-8-L makes it possible to use temporary printed or handwritten labels for the trial operation. The full function console keypad may be used as a dedicated
wired control panel for audio, video and operating environment functions. Thanks to the built-in IR
receiver, it is possible to use the irCUE panel in the room where keypadCUE-8 is installed, without
necessity to install a separate IR receiver. keypadCUE-8-L and keypadCUE-8-E differ only in the way
custom labels are made. They are identical from the programming point of view. Where the description
is relevant for both models, we use the name keypadCUE-8 without the distinguishing letters E and L.
1.2. Models........................................................................
Model Product code Description
keypadCUE-8-E CS0288 On-wall keyboard, (8) buttons, engravable labels
keypadCUE-8-L CS0287 On-wall keyboard, (8) buttons, engravable labels, temporary paper labels for the
trial period
1.3. Features .....................................................................
• 8 buttons
• Programmable LED indication for each button
• Front panel plastic strips for custom engraved button labels for final installation
• Labels for hand-written button names for trial operation (only keypadCUE-8-L)
• Built-in IR sensor for irCUE link
• Stainless steel + plastic or wood enclosure
• On-wall installation
• Compatible with standard European wall boxes
• System connection by CUEwire
1.4. Programming .............................................................
All keyboards are programmed using the Cue Director programming tool. Control commands are
described in the Programming Manual CPL References, chapter Keyboards.
User Manual keypadCUE-8
www.cuesystem.com
Page 4 of 20
2. Front Panel

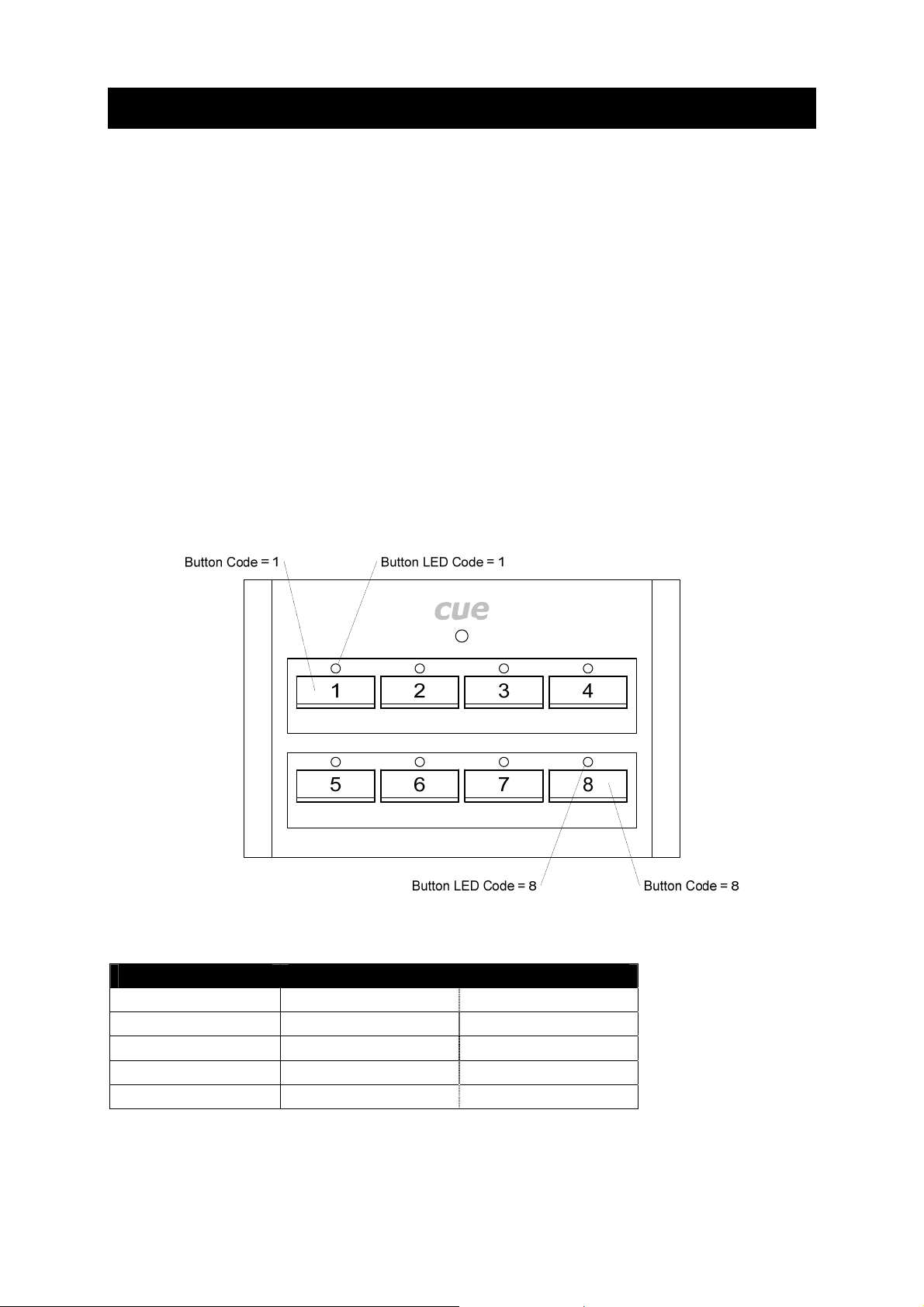

The front panel is equipped with 8 buttons and 8 indication LEDs - see picture.
Button LEDs and their ON or OFF state are controlled by special programming commands from
the controller.
Brightness of indication LEDs and backlight can be set by special programming commands from
the controller.
In the upper part of the front panel, there is the sensor of the built-in IR receiver. It makes it possible to
use the irCUE panel in the room where keypadCUE-8 is installed, without necessity to install
a separate IR receiver.
User Manual keypadCUE-8
www.cuesystem.com
Page 5 of 20
3. Button Labels
3.1. Button labels for keypadCUE-8-E
keypadCUE-8-E uses the separate plastic stripe on the front panel for customized engraved labels for
all buttons.
Steps:

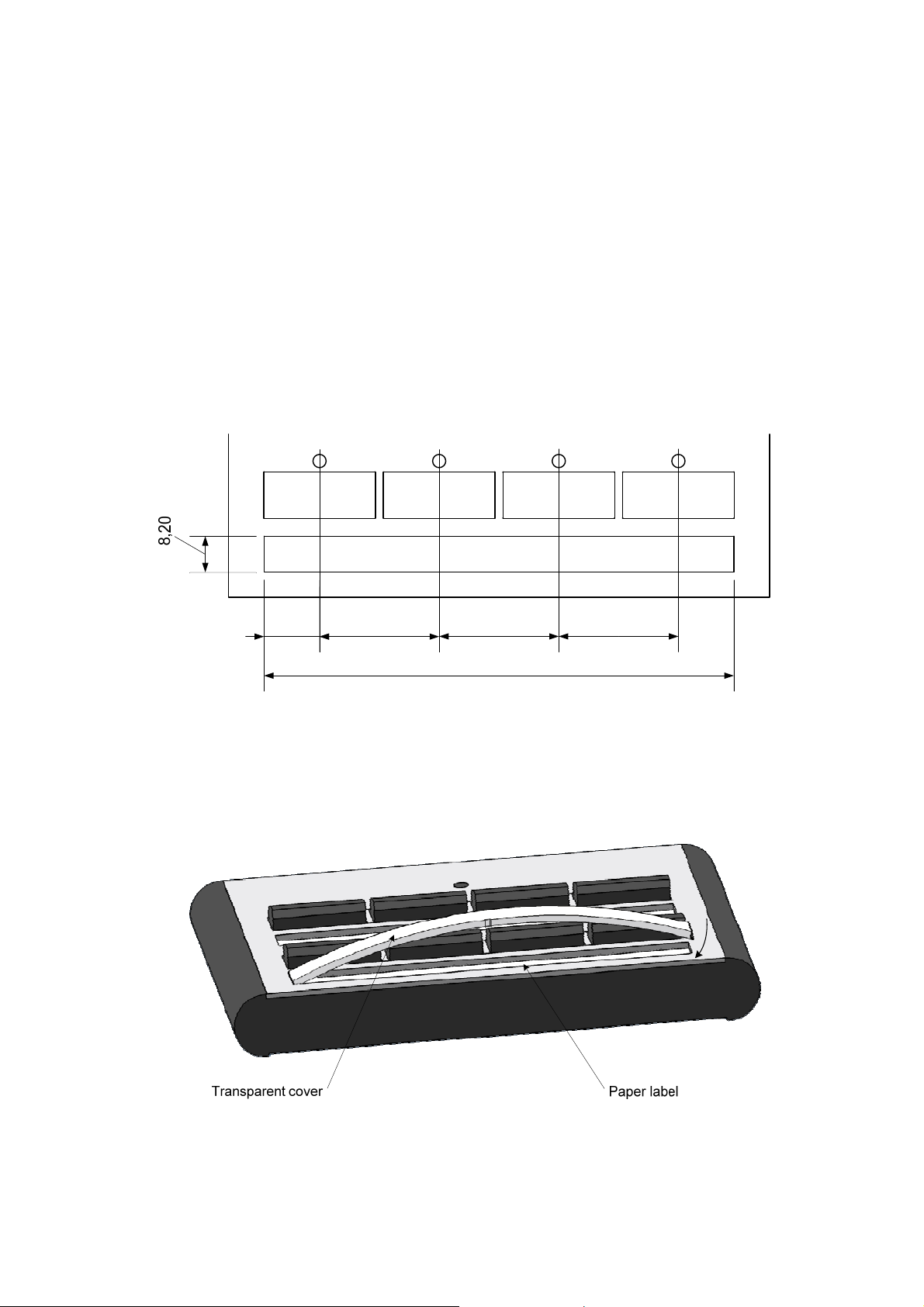

1. Have the labels engraved on the rear surface of the plastic stripes on the front panel. Labels
must be engraved specularly. Recommended fonts are Nimbus, Trebuchet, Verdana or Arial,
size 9 points, bold.
Matt front surface Glossy rear surface
Label 1 Label 2 Label 3 Label 4
8,25 10,60
Plastic engravable strip
5,20
15,50
Transparent organic glass Engravable layer
27,20
27,20 27,20
112,60
All dimensions are in mm
23,90
User Manual keypadCUE-8
www.cuesystem.com
Page 6 of 20
