1. Introduction
1.1. Overview....................................................................
The elegant and innovative wired keyboardCUE-S is a tabletop programmable control panel that is
available in varieties of solid wood finishes with stainless steel trim. The keyboardCUE-S provides 8
buttons supported with backlighting and user changeable button labels that can be directly printed on
a laser printer and inserted into the switch caps. The full-function console keyboard may be used as a
dedicated wired controller for audio, video and environmental functions.
The wired keyboardCUE-S /w is a programmable control panel device designed to be built into a table.
Available in a metal enclosure, the keyboardCUE-S /w provides 8 buttons supported with backlighting.
User changeable button labels can be directly printed on a laser printer and inserted into the switch
caps. The full-function console keyboard may be used as dedicated wired controller for audio, video
and environmental functions.
1.2. Models........................................................................
Model Product code Description
keyboardCUE-S CS0174 Tabletop keyboard, (8) buttons
keyboardCUE-S /w CS0146 Built-in keyboard, (8) buttons
1.3. Features .....................................................................
• Backlight buttons
• Programmable feedback indication (tabletop model only)
• User changeable button labels
• Stainless steel front panel and wooden enclosure (tabletop model)
• Tabletop or built-in installation
• System connection by CUEwire
1.4. Programming .............................................................
All keyboards are programmed using Cue Director programming tool. Control commands are
described in the Programming Manual CPL References, chapter Keyboards.
User Manual Small Keyboards
www.cuesystem.com
Page 4 of 18

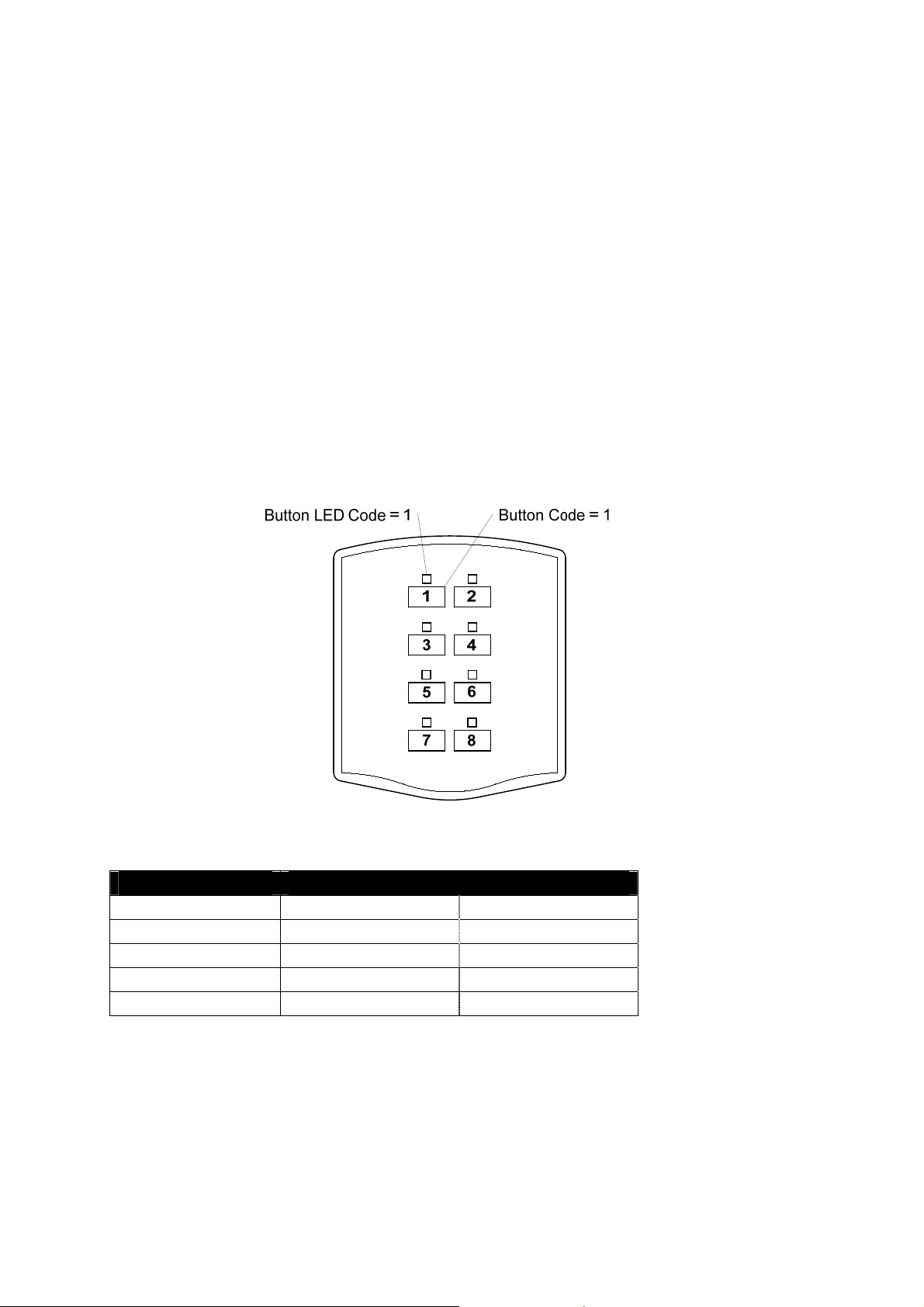

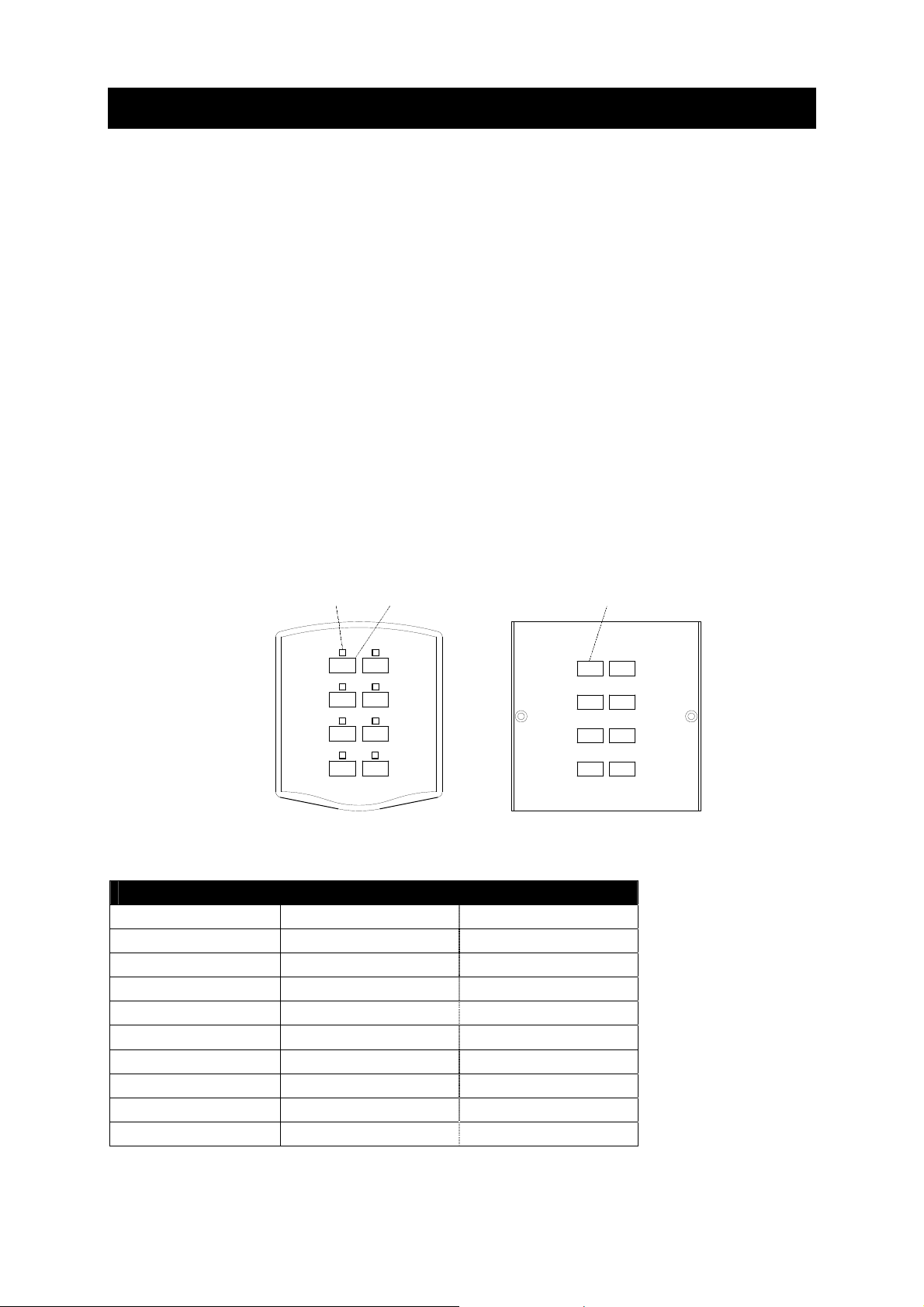

2. Front Panel
The front panel is equipped with (8) buttons and (8) indication LEDs (tabletop model only) - see
picture.
(8) button LEDs
(8) buttons
Button LEDs are controlled by special programming commands from a control unit.
(8) buttons
User Manual Small Keyboards
www.cuesystem.com
Page 5 of 18
3. Button Labels
The separate labels for each button can be printed on a transparency foil using laser or inkjet printer.
Dimension of the label are
• 6.5 mm x 12 mm for normal button
• 6.5 mm x 29 mm for double button.
It is necessary to disassembly the control panel to change a label.
Steps are
1. Put the control panel on a table face down.
2. Unscrew the screws.
3. Dismount the bottom of the control panel with electronic board.
4. Install new label.
5. Assembly the control panel.
