Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
Op e r a t O r ’s Ma n u a l
Yard Vacuum/Chipper/Shredder with Vacuum/Hose
Model CSV 050
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Form No. 769-05182
(July 8, 2009)
To The Owner
Thank You
Thank you for purchasing a Chipper/Shredder Vacuum
manufactured by Cub Cadet LLC. It was carefully engineered
to provide excellent performance when properly operated and
maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
Table of Contents
1
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. Cub Cadet
LLC reserves the right to change product specifications, designs
and equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local Cub Cadet dealer or contact us directly. Cub
Cadet’s Customer Support telephone numbers, web site address
and mailing address can be found on this page. We want to
ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 7
Controls & Features ................................................10
Operation ................................................................11
Maintenance & Adjustment..................................13
Troubleshooting .....................................................17
Engine Operation ...................................................18
Engine Maintenance ............................................. 20
Illustrated Parts List .............................................. 24
Warranty ................................................................ 32
Service .....................................................................15
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator’s position and looking
down at the rear of the deck. This information will be necessary,
should you seek technical support via our web site or with your
local Cub Cadet dealer.
MO d e l nu M b e r
se r i a l nu M b e r
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.cubcadet.com◊
Locate your nearest Cub Cadet Dealer at (877) 282-8684◊
Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊
2
Important Safe Operation Practices
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol - HEED ITS WARNING!
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing debris. Failure to observe the following safety instructions could
result in serious injury or death.
2
Training
Read, understand, and follow all instructions on the 1.
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
Be familiar with all controls and their proper operation. 2.
Know how to stop the machine and disengage them
quickly.
Never allow children under 16 years of age to operate this 3.
machine. Children 16 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.
Never allow adults to operate this machine without proper 4.
instruction.
Keep bystanders, pets, and children at least 75 feet from 5.
the machine while it is in operation. Stop machine if
anyone enters the area.
Never run an engine indoors or in a poorly ventilated area. 6.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
Do not put hands and feet near rotating parts or in the 7.
feeding chambers and discharge opening. Contact with
the rotating impeller can amputate fingers, hands, and
feet.
Never attempt to unclog either the feed intake or discharge 8.
opening, remove or empty bag, or inspect and repair the
machine while the engine is running. Shut the engine off
and wait until all moving parts have come to a complete
stop. Disconnect the spark plug wire and ground it against
the engine.
Preparation
Thoroughly inspect the area where the equipment is to 1.
be used. Remove all rocks, bottles, cans, or other foreign
objects which could be picked up or thrown and cause
personal injury or damage to the machine.
Always wear safety glasses or safety goggles during 2.
operation and while performing an adjustment or repair,
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
Wear sturdy, rough-soled work shoes and close-fitting 3.
slacks and shirts. Loose fitting clothes or jewelry can be
caught in movable parts. Never operate this machine
in bare feet or sandals. Wear leather work gloves when
feeding material in the chipper chute.
Before starting, check all bolts and screws for proper 4.
tightness to be sure the machine is in safe working
condition. Also, visually inspect machine for any damage at
frequent intervals.
Maintain or replace safety and instructions labels, as 5.
necessar y.
3
Safe Handling of Gasoline:
To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
Use only an approved gasoline container.1.
Never fill containers inside a vehicle or on a truck or trailer 2.
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
When practical, remove gas-powered equipment from 3.
the truck or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer with a
portable container, rather than from a gasoline dispenser
nozzle.
Keep the nozzle in contact with the rim of the fuel tank or 4.
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other sources of 5.
ignition.
Never fuel machine indoors.6.
Never remove gas cap or add fuel while the engine is hot or 7.
running. Allow engine to cool at least two minutes before
refueling.
Never over fill fuel tank. Fill tank to no more than ½ 8.
inch below bottom of filler neck to allow space for fuel
expansion.
Replace gasoline cap and tighten securely.9.
If gasoline is spilled, wipe it off the engine and equipment. 10.
Move unit to another area. Wait 5 minutes before starting
the engine.
To reduce fire hazards, keep machine free of grass, leaves, 11.
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
Never store the machine or fuel container inside where 12.
there is an open flame, spark or pilot light as on a water
heater, space heater, furnace, clothes dryer or other gas
appliances.
Operation
Do not put hands and feet near rotating parts or in the 1.
feeding chambers and discharge opening. Contact with
the rotating impeller can amputate fingers, hands, and
feet.
Before starting the machine, make sure the chipper chute, 2.
feed intake, and cutting chamber are empty and free of all
debris.
Thoroughly inspect all material to be shredded and remove 3.
any metal, rocks, bottles, cans, or other foreign objects
which could cause personal injury or damage to the
machine.
If the impeller strikes a foreign object or if your machine 4.
should start making an unusual noise or vibration,
immediately shut the engine off. Allow the impeller to
come to a complete stop. Disconnect the spark plug wire,
ground it against the engine and perform the following
steps:
Inspect for damage.a.
Repair or replace any damaged parts.b.
Check for any loose parts and tighten to assure c.
continued safe operation.
Do not allow an accumulation of processed material to 5.
build up in the discharge area. This can prevent proper
discharge and result in kickback of material through the
feed opening.
Do not attempt to shred or chip material larger than 6.
specified on the machine or in this manual. Personal injury
or machine damage could result.
Never attempt to unclog either the feed intake or discharge 7.
opening while the engine is running. Shut the engine off,
wait until all moving parts have stopped, disconnect the
spark plug wire and ground it against the engine before
clearing debris.
Never operate without vacuum bag and discharge chute 8.
properly attached to the machine. Never empty or change
vacuum bag while the engine is running. Vacuum bag must
be kept closed at all times during operation.
Never operate without either the inlet nozzle or optional 9.
hose attachment (if applicable) properly attached to
the machine. Never attempt to attach or change either
attachment while the engine is running.
Keep all guards, deflectors and safety devices in place and 10.
operating properly.
Keep your face and body back and to the side of the 11.
chipper chute while feeding material into the machine to
avoid accidental kickback injuries.
Never operate this machine without good visibility or light. 12.
Always be sure of your footing and keep a firm hold on the
handles.
Do not operate this machine on a paved, gravel or non-13.
level surface.
Do not operate this machine while under the influence of 14.
alcohol or drugs.
Muffler and engine become hot and can cause a burn. Do 15.
not touch.
Never pick up or carry machine while the engine is running.16.
If situations occur which are not covered in this manual, use 17.
care and good judgement. Contact Customer Support for
assistance and the name of the nearest service dealer.
4 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Maintenance & Storage
Never tamper with safety devices. Check their proper 1.
operation regularly.
Check bolts and screws for proper tightness at frequent 2.
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage and repair,
if needed.
Before cleaning, repairing, or inspecting, stop the engine 3.
and make certain the impeller and all moving parts have
stopped. Disconnect the spark plug wire and ground it
against the engine to prevent unintended starting.
Do not change the engine governor settings or overspeed 4.
the engine. The governor controls the maximum safe
operating speed of the engine.
Maintain or replace safety and instruction labels, as 5.
necessar y.
Follow this manual for safe loading, unloading, 6.
transporting, and storage of this machine.
Never store the machine or fuel container inside where 7.
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer, etc.
Allow machine to cool at least 5 minutes before storing.8.
Always refer to the operator’s manual for proper 9.
instructions on off-season storage.
If the fuel tank has to be drained, do this outdoors.10.
Observe proper disposal laws and regulations for gas, oil, 11.
etc. to protect the environment.
According to the Consumer Products Safety Commission 12.
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years,
or 60 hours of operation. At the end of the Average Useful
Life have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING: This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered,
brushcovered or grass-covered land unless the
engine’s exhaust system is equipped with a spark
arrester meeting applicable local or state laws (if
any).
If a spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark arrester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running. There are rotating
blades inside
BY STA ND ERS
Keep bystanders, pets, and children at least 75 feet from the machine while it is in operation.
Stop machine if anyone enters the area.
WARNING— THROWN OBJECTS
This machine may pick up and throw and objects which can ricochet.
EYE PROTECTION
Always wear safety glasses or safety goggles when operating this machine.
WARNING— GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
WARNING: Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
6 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
SAVE THESE INSTRUCTIONS!
Assembly & Set-Up
A
B
A
B
Contents of Carton
One Chipper/Shredder Vacuum• One Operator’s Manual• One Bag•
One Upper and Lower Handle• One Hose Assembly• One Safety Glasses•
One Bottle of Oil•
3
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your chipper shredder vacuum.
Handle
Remove the hairpin clips from the handle brackets and the 1.
carriage screws and wing nuts from the lower handle.
Place the bottom holes in lower handle over the pins a.
on the handle brackets and secure with hairpin clips.
See Fig. 3-1.
Unfold the upper handle until it aligns with lower handle. 2.
Make sure the rope guide is on the right side of upper
handle. See Fig. 3-2A.
Figure 3-2
Secure the two handles by tightening the star knobs 3.
(carriage bolts must be seated properly into the handle).
See Fig. 3-2B.
Figure 3-1
Insert carriage screws through upper hole in lower b.
handle from the inside and secure with wing nuts.
See Fig. 3-1.
7
Loosen the wing nut that secures the rope guide to the 4.
A
B
A
B
Align Pin with
this Hole
C
A
B
right side of upper handle.
Slowly pull starter rope out of engine.a.
Slip the starter rope into the rope guide. Tighten the b.
wing nut. See Fig. 3-3.
Figure 3-3
Hose Assembly
Slide hose adapter of hose assembly into the base adapter 1.
located on the left front of the Chipper shredder Vacuum.
See Fig. 3-4A.
Pull spring loaded pin out on the base and align pin with 2.
the first hole (closest to the end of the tube) in the hose
adapter. See Fig. 3-4B.
Release the pin to lock the hose in place.3.
Lay hose tubing in curved end of hose handle next to 4.
chipper chute and into hose cradle. See Fig. 3-5A & B.
Figure 3-5
Snap the hose handle first into the upper hose handle 5.
bracket and then into the lower hose handle bracket. See
Fig. 3-5C.
Figure 3-4
8 se c t i O n 3 — as s e M b l y & se t -up
Bag
1
2
3
4
3
1
2
Grasp bag handle with one hand and slide locking rod on 1.
mounting bracket with other hand toward engine. Use
the end of mounting bracket as leverage when sliding the
locking rod. See Fig. 3-6.
Figure 3-6
Adjustments
Nozzle Height
The nozzle can be adjusted to any six positions, ranging from
5/8” to 4 1/8” ground clearance. The nozzle height has to be
adjusted according to chipper shredder conditions.
Depress nozzle height adjustment lever towards wheel. 1.
See Fig. 3-7.
Slip bag over the rim of the discharge opening and release 2.
locking rod to secure bag in place.
Snap bag clip to the top of the lower handle.3.
Place the lower straps on the bag over the top of lower 4.
handle, hooking them on the studs. See Fig. 3-6.
NOTE: The bag/chute switch button attached to the
mounting bracket must be fully depressed by the tip of
front tab on bag handle when securing the bag or engine
will not start.
Figure 3-7
Move the height adjustment lever forward or backward to 2.
adjust the nozzle upwards or downwards. Make sure both
levers are in the same position.
Release lever towards deck. See Fig. 3-7.3.
NOTE: In general, raise the nozzle height to vacuum a
thick layer of leaves. Lower the nozzle height for smoother
surfaces.
Se t-Up
Gas and Oil Fill-Up
Refer to the Engine Operation section in this manual for
additional engine information.
Add oil provided before starting unit for the first time out 1.
of the box.
Service the engine with gasoline as instructed in the 2.
Engine Operation section of this manual.
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
WARNING: Never fill fuel tank indoors with engine
running or until the engine has been allowed to cool
for at least two minutes after running.
9se c t i O n 3 — as s e M b l y & se t -up
Controls and Features
Nozzle Height
Adjustment Lever
Chipper Chute
Hose Handle
Recoil Starter
Bag
Nozzle
Hose Assembly
Nozzle/Hose
Vac Lever
4
WARNING: The operation of any chipper shredder
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely. Always
wear the safety glasses provided with this unit or
eye shields while operating or while performing any
adjustments or repairs.
Chipper Chute
Allows twigs and small branches up to 1-1/2” in diameter to be
fed into the impeller for chipping. See Fig. 4-1.
Nozzle Height Adjustment Lever
Used to adjust the nozzle ground clearance ranging
approximately 5/8” to 4 1/8”.
Nozzle
Yard waste such as leaves or pine needles can be vacuumed up
through the nozzle for shredding.
Hose Assembly
Used as an alternative to the nozzle to vacuum yard waste such
as leaves or pine needles in hard to reach places. See Fig. 4-1.
Figure 4-1
Nozzle/ Hose Vac Lever
The nozzle/hose vac handle is located on top of the nozzle. Use
it to switch vacuum suction between the nozzle and the hose
assembly.
Hose Handle
Used to guide hose assembly when vacuuming.
Engine Switch
The engine switch is located on the engine. Turn it on when
starting the engine and use it to turn off the engine.
Choke
The choke is located on the engine and when activated, closes
the choke plate on the carburetor and aids in starting the engine.
Recoil Starter
The recoil starter is attached to the right upper handle. Stand
behind unit and pull the recoil starter to start engine.
10
Operation
1
2
3
4
Bag/Chute
Switch Button
1
3
2
5
Starting Engine
Pull out the choke knob located on the engine. See Fig. 5-1 1.
inset.
NOTE: Use of the choke may not be necessary if the engine
is warm or the air temperature is high.
Stopping Engine
Turn off the engine switch.1.
Disconnect spark plug wire and ground against the engine 2.
to prevent unintended starting.
To Empty Bag
Unhook bag straps from the lower handle.1.
Unsnap bag clip from the top of lower handle. See Fig. 5-2.2.
Figure 5-1
Turn the engine switch to on. See Fig. 5-1 inset.2.
Make certain the bag/chute switch button is fully 3.
depressed. Pull the starter grip lightly until resistance is
felt, then pull rapidly to overcome compression, prevent
kickback and start the engine. See Fig. 5-1 . If engine does
not start after ten seconds of repeated pulls, wait a few
minutes and repeat.
NOTE: Do not allow the starter grip to snap back against
the rope guide. Return it gently to prevent damage to the
star ter.
NOTE: The unit will not start if the bag/chute switch is not
fully depressed.
When the engine warms up, push in the choke knob.4.
WARNING: Never run the engine indoors or in a
poorly ventilated area. Engine exhaust contains
carbon monoxide, an odorless and deadly gas.
Figure 5-2
Grasp bag handle with one hand and pull lock rod on 3.
mounting bracket with other hand toward engine to
release.
Lift bag off back of unit.4.
Twist the two buttons on the back of the bag to unlock and 5.
empty contents. See Fig. 5-3. Hold bag handle and bag clip
while emptying the contents.
Compress bag opening and fold inner flap over opening.6.
Fold outer flap over inner flap and insert buttons on the bag 7.
through metal outlets. See Fig. 5-3.
11
Outer Flap
Buttons
Inner
Flap
A
B
Figure 5-3 Figure 5-4
Twist the buttons to lock bag. Place bag back onto unit as 8.
instructed in Assembly & Set-Up.
WARNING: Do not at any time make any
adjustments without first stopping engine and
disconnecting spark plug wire.
Using The Nozzle Vacuum
Yard waste such as leaves and pine needles can be vacuumed
up through the nozzle for shredding. After material has been
shredded by the flail blades on the impeller assembly, it will be
discharged into catcher bag. Do not attempt to shred or chip
any material other than vegetation found in a normal yard (i.e.
branches, leaves, twigs, etc.) Avoid fibrous plants such as tomato
vines until they are thoroughly dried out. Materials such as stalks
or heavy branches up to 1 1/2” in diameter may be fed into the
chipper chute.
Place nozzle/hose vac lever in the top position on the 1.
nozzle to vacuum through nozzle. See Fig. 5-4.
The spring loaded pin must be in the first hole (closest to 2.
the end of the tube) of the hose adapter to operate the
nozzle vac. See Fig. 5-4.
Place both hands on top of upper handle to push unit over 3.
yard waste.
WARNING: Do not attempt to shred, chip, or
vacuum any material larger than specified on the
machine or in this manual. Personal injury or
IMPORTANT: The flail screen is located inside the housing in
the discharge area. If the flail screen becomes clogged, remove
and clean as instructed in Maintenance & Adjustments. For best
performance, it is also important to keep the chipper blade
sharp.
damage to the machine could result.
Using The Hose Assembly
Place nozzle/hose vac lever in the bottom position on the 1.
nozzle to redirect vacuum to the hose assembly. See Fig.
5-5A.
Figure 5-5
The spring loaded pin must be in the second hole of the 2.
hose adapter to operate the hose assembly. See Fig. 5-5B.
Unhook the hose from upper and lower hose handle brackets 3.
and grasp the hose handle to guide the hose while
vacuuming yard waste such as leaves or pine needles in
hard to reach places.
12 se c t i O n 5— Op e r a t i O n
Maintenance & Adjustments
6
Maintenance
General Recommendations
Always observe safety rules when performing any •
maintenance.
The warranty on this chipper/shredder vacuum does not •
cover items that have been subjected to operator abuse or
negligence. To receive full value from warranty, operator
must maintain the equipment as instructed here.
Changing of engine-governed speed will void engine •
warranty.
All adjustments should be checked at least once each •
season.
Periodically check all fasteners and make sure these are •
tight.
WARNING: Always stop engine, disconnect spark
plug, and ground against engine before performing
any type of maintenance on your machine.
Lubrication
Lubricate each wheel shoulder screw (rear wheel) and pivot 1.
arm axle (front wheel) once a season with light oil.
Lubricate the pivot points of the nozzle height adjustment 2.
levers once a season with light oil.
Lubricate the locking rod with light oil to ease the 3.
application of attaching on or removing bag.
Lubricate the nozzle/hose vac lever on top of the nozzle 4.
once a season with light oil. See Fig. 6-1.
Equipment Care
Clean the chipper/shredder vacuum thoroughly after each •
use.
Wash bag periodically with water. Allow to dry thoroughly •
in shade.
If the flail screen becomes clogged, remove and clean as •
instructed below.
NOTE: Cleaning with a forceful spray of water is not
recommended as it could contaminate the fuel system.
Engine Care
NOTE: Refer to the engine operation and maintenance sections
in this manual for detailed instructions.
Maintain oil level.•
Service air cleaner every 100 hours or once a season under •
normal conditions. Clean more frequently under extremely
dusty conditions.
Clean spark plug and reset the gap every 25 hours or once •
a season.
Clean engine regularly with a cloth or brush. Keep the area •
around the top of the engine clean to permit proper air
circulation. Remove all grass, dirt, and combustible debris
from muffler area.
Figure 6-1
Follow the separate engine manual packed with your unit 5.
for lubrication instructions.
13
WARNING: Before performing any type of
maintenance on the machine, wait for all parts to
stop moving and disconnect the spark plug wire.
Failure to follow this instruction could result in
personal injury or property damage.
Removing the Flail Screen
If the discharge area becomes clogged, remove the flail screen
and clean area as follows:
Stop the engine. Make certain the chipper/shredder 1.
vacuum has come to a complete stop.
Before unclogging the discharge chute, disconnect and 2.
ground the spark plug wire to retaining post.
Remove the vacuum bag from the unit as instructed in the 3.
OPERATION section to obtain access to flail screen.
Remove self tapping screw on right side of unit that 4.
attaches to the flail screen. See Fig. 6-2.
Remove and clean the screen by scraping or washing with 6.
water. See Fig. 6-3.
Figure 6-3
Reinstall the screen.7.
Figure 6-2
Remove hex screw on top of rear housing near mounting 5.
bracket and the flange lock nut that secures flail screen.
See Fig. 6-2.
14 se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
Service
Wave
Washer
Wheel
Lock Nut
Shoulder
Screw
Thrust
Washer
Bell
Washer
Pivot Arm
Assembly
Front Support Brace/
Lock Nut
Blade Care
WARNING: Before performing any type of
maintenance on the machine, wait for all parts to
stop moving and disconnect the spark plug wire.
Failure to follow this instruction could result in
personal injury or property damage.
NOTE: When tipping the unit, empty the oil and fuel tank and
keep engine spark plug side up.
Disconnect and ground the spark plug wire to retaining 1.
post.
Remove bag assembly or blower chute.2.

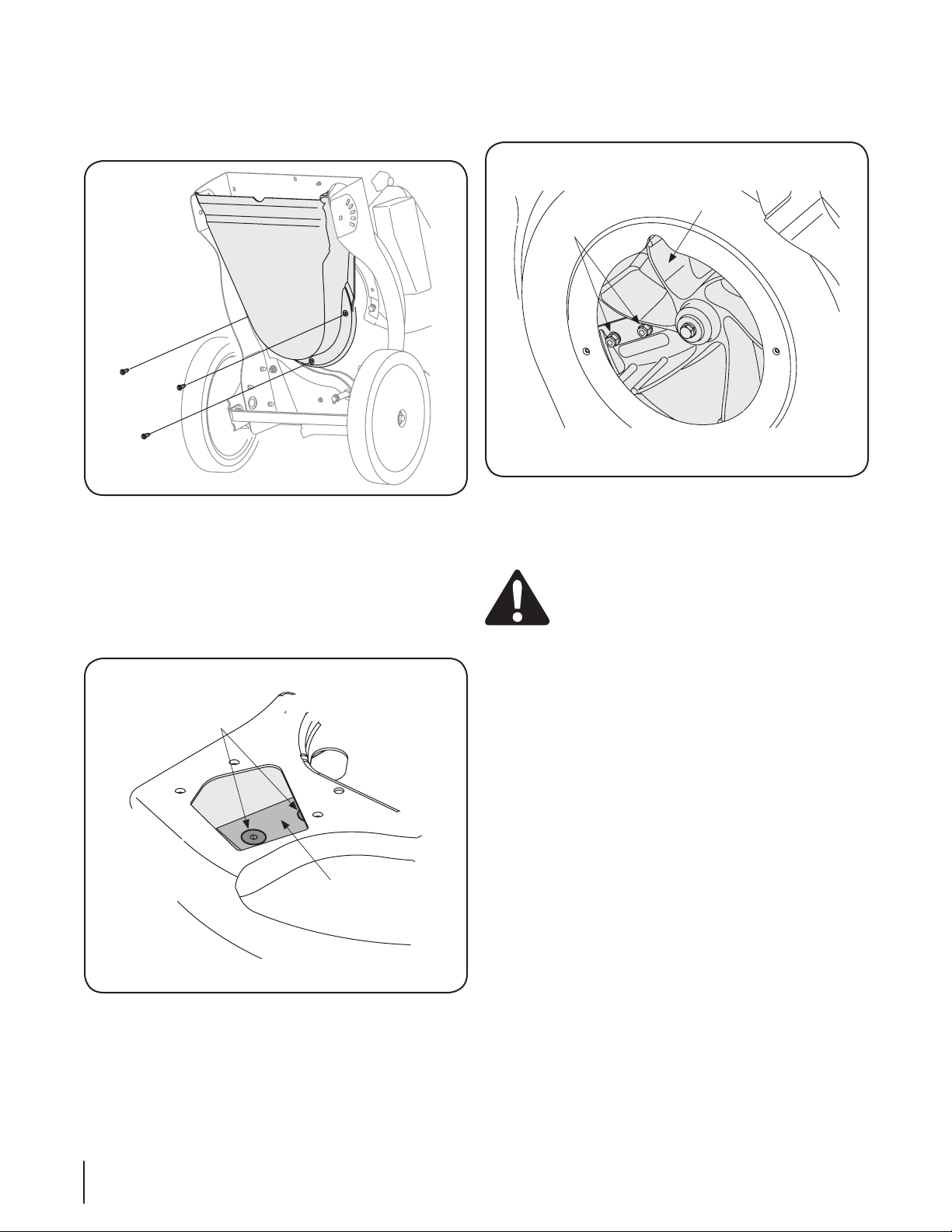

Remove the three hex cap screws holding the chipper 3.
chute to the upper housing. See Fig. 7-1.
7
Figure 7-2
Remove the shoulder screws, thrust washers, and bell 5.
washers that go through the pivot arms to the front
support brace. The front support brace and lock nut can be
removed at this time as well.
Remove the four screws on the upper housing that secure 6.
the nozzle cover. See Fig. 7-3.
Figure 7-1

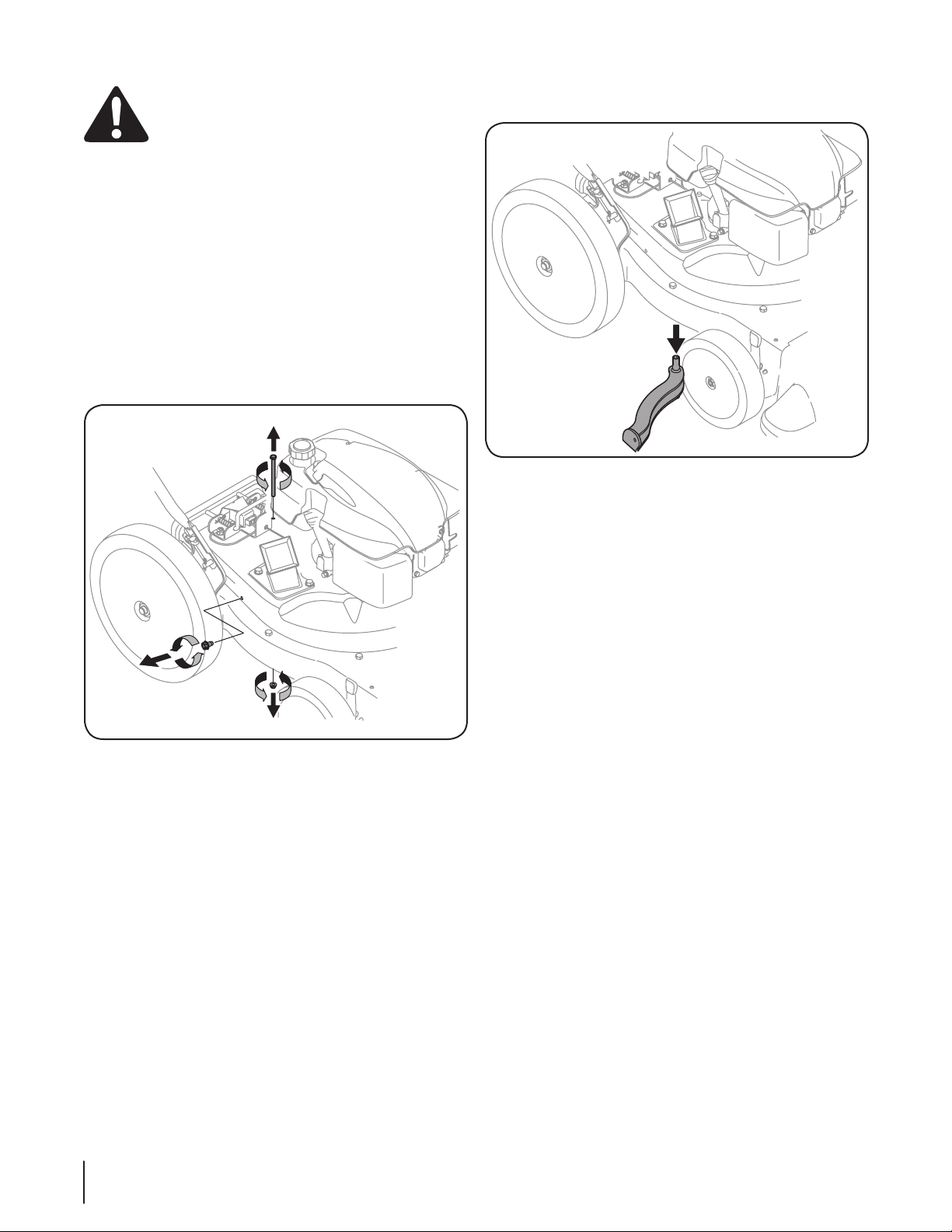

Remove the flange lock nuts, front wheels, and wave 4.
washers that attach to the pivot arm assemblies. See Fig.
7-2.
Figure 7-3
15
Carefully tilt and support the unit up to provide access 7.
Chipper
Blade
Flat Head
Cap Screws
Nuts
Impeller
underneath to the nozzle mounting hardware and impeller.
Remove the three shoulder bolts securing the black plastic
lower flail housing to the lower housing. Refer to Fig. 7-4.
Figure 7-4
Tilt top of black plastic lower flail housing toward the 8.
engine to remove.
Using a 3/16” allen wrench, remove the flat head cap 9.
screws that hold the chipper blade to the impeller. These
screws are accessible through the opening created when
the chipper chute was removed earlier. See Fig. 7-5.
The nuts on the flat head cap screws can be reached 10.
from underneath using a 1/2-inch socket, universal, and
extension. See Fig. 7-6.
Figure 7-6
Replace or sharpen chipper blade. The blade can be 11 .
sharpened with a file or on a grinding wheel.
WARNING: The chipper blade is sharp. When
sharpening blade, wear leather work gloves to
protect your hands and follow the original angle of
grind.
Reassemble by performing the previous steps in the 12.
opposite order and manner of removal.
NOTE: Tighten blade screws to 210 - 250 in-lbs. Make
certain chipper blade is reassembled with the sharp edge
facing upward.
16 se c t i O n 7— se r v i c e
Off-Season Storage
When storing the chipper/shredder vacuum in an •
unventilated or metal storage shed, care should be taken
to rustproof the non-painted surfaces. Using a light oil
or silicone, coat the equipment, especially any springs,
bearings, and cables.
Remove all dirt from exterior of engine and equipment.•
Follow lubrication recommendations.•
Refer to engine maintenance section for correct engine •
storage instructions.
Store equipment in a clean, dry area. Do not store in an •
area where equipment is present that may use a pilot light
or has a component that can create a spark.
Figure 7-5
Troubleshooting
Problem Cause Remedy
8
Engine Fails to start Throttle lever (if equipped) not in correct 1.
Engine runs erratic Spark plug boot loose.1.
starting position.
Engine switch (if equipped) in OFF position.2.
Spark plug wire disconnected.3.
Choke not in CHOKE position (if equipped).4.
Fuel tank empty or stale fuel.5.
Engine not primed (if equipped).6.
Faulty spark plug.7.
Bag/chute switch button is not fully 8.
depressed.
Unit running on CHOKE (if equipped).2.
Blocked fuel line or stale fuel. 3.
Low engine RPM. 4.
Water or dirt in fuel system.5.
Dirty air cleaner.6.
Carburetor out of adjustment.7.
Move throttle lever to FAST or START 1.
position.
Move engine switch to ON position.2.
Connect wire to spark plug.3.
Move choke lever to CHOKE position.4.
Fill tank with clean, fresh gasoline.5.
Prime engine as instructed in Engine Manual.6.
Clean, adjust gap, or replace.7.
Make certain the bag is correctly secured, 8.
and the bag/chute switch button is fully
depressed.
Connect and tighten spark plug boot.1.
Move choke lever to OFF position.2.
Clean fuel line; fill tank with clean, fresh 3.
gasoline.
Always run engine at full throttle (if 4.
equipped).
Drain fuel tank. Refill with fresh fuel.5.
Refer to engine manual.6.
See authorized service dealer.7.
Engine overheats Engine oil level low.1.
Dirty air cleaner.2.
Occasional skips
(hesitates) at
high speed
Excessive Vibration Loose parts or damaged impeller.1. See authorized service dealer.2.
Unit does not discharge Discharge area clogged. 1.
Rate of discharge slows
considerably or composition
of discharged material
changes
Spark plug gap too close.1.
Carburetor idle mixture adjustment 2.
improperly set.
Foreign object lodged in impeller. 2.
Low engine RPM.3.
Vacuum bag is full.4.
Low engine RPM.1.
Chipper blade dull.2.
Fill crankcase with proper oil.1.
Refer to engine manual.2.
Remove spark plug and adjust gap to .030”.1.
See authorized service dealer.2.
Stop engine immediately and disconnect 1.
spark plug wire. Clean flail screen and inside
of discharge opening.
Stop engine and disconnect spark plug wire. 2.
Remove lodged object.
Always run engine at full throttle.3.
Empty bag.4.
Always run engine at full throttle.1.
Replace chipper blade or see your authorized 2.
service dealer.
17
Engine Operation
-30º -20º
10w
20w
20
30
40
20w40, 20w50
15w40, 15w50
10w40
10w30
-10º 0º
0º 20º 40º 60º 80º 100º
10º 20º 30º 40º
-20º
(ºC)
(ºF)
1
2
Fuel Cap
Air Cleaner
Spark Plug
Oil Fill
Cap
Starter
Grip
9
Pre-Operation Check
Oil Recommendations
NOTE: This engine is shipped without gasoline or oil in the
engine. Running the engine with insufficient oil can cause
serious engine damage and void the engine warranty.
Use a 4-stroke, or an equivalent high detergent, premium
quality motor oil certified to meet or exceed U.S. automobile
manufacturer’s requirements for service classification SG/SF.
Motor oils classified SG/SF will show this designation on the
container.
SAE 10W-30 is recommended for general, all temperature use. If
single viscosity oil is used, select the appropriate viscosity for the
average temperature in your area from the chart to the right.
Before starting engine, fill with oil. Do not over-fill. Oil •
capacity is about 20 oz.
Figure 9-1
Ambient Temperature
Single Viscosity1.
Multi Viscosity2.
NOTE: Using non detergent oil or 2-stroke engine oil could
shorten the engine’s service life.
18
1
3
2
Check Oil Level
Oil Fill Cap/
Dipstick
Upper Level
NOTE: Be sure to check the engine on a level surface with the
engine stopped.
Remove the oil filler cap and wipe the dipstick clean. See 1.
Fig. 9-2.
Check Fuel Level
Clean around fuel fill before removing cap to fuel.1.
Fill tank to approximately 1-inch below lowest portion of 2.
neck to allow for fuel expansion. Be careful not to overfill.
NOTE: Before refueling, allow engine to cool 2 minutes.
Starting The Engine
WARNING: Always keep hands and feet clear of
equipment moving parts. Do not use a pressurized
starting fluid. Vapors are flammable.
Pull out the choke knob located on the engine. See Figure 1.
9-3 inset.
Figure 9-2
Insert the dipstick into the oil filler neck, but do not screw it 2.
in. Refer to Fig. 10-1B on page 21.
If the level is low, slowly add oil to the upper limit on the 3.
dipstick. See Fig. 9-2 inset.
Tighten dipstick firmly before starting engine.4.
NOTE: Do not overfill. Overfilling with oil may cause
smoking, hard starting, spark plug fouling, or oil saturation
of air cleaner.
Fuel Recommendations
Use automotive gasoline (unleaded or low leaded to minimize
combustion chamber deposits) with a minimum of 87 octane.
Gasoline with up to 10% ethanol or 15% MTBE (Methyl Tertiary
Butyl Ether) can be used. Never use an oil/gasoline mixture, dirty
gasoline, or gasoline over 30 days old. Avoid getting dirt, dust, or
water in the fuel tank. DO NOT USE E85 GASOLINE.
WARNING: Gasoline is extremely flammable and is
explosive under certain conditions. Refuel in a wellventilated area with the engine stopped. Do not
smoke or allow flames or sparks in the area where
the engine is refueled or where gasoline is stored.
Avoid repeated or prolonged contact with skin or
breathing of vapor.
WARNING: Do not overfill the fuel tank (there
should be no fuel in the filler neck). After refueling,
make sure the tank cap is closed properly and
securely. Be careful not to spill fuel when refueling.
Spilled fuel or fuel vapor may ignite. If any fuel is
spilled, make sure the area is dry before starting the
engine.
Figure 9-3
NOTE: Use of the choke may not be necessary if the engine
is warm or the air temperature is high.
Turn engine switch to on.2.
Pull the starter grip lightly until resistance is felt, then pull 3.
rapidly to overcome compression, prevent kickback and
start engine. See Figure 9-3. If engine does not start after
ten seconds of repeated pulls, wait a few minutes and
repeat.
IMPORTANT: Do not allow the starter grip to snap back
against the rope guide. Return it gently to prevent damage
to the starter.
When engine warms up, push in the choke knob.4.
Stopping The Engine
Turn off the engine switch.1.
19se c t i O n 9 — Op e r a t i O n
Engine Maintenance
10
WARNING: Shut off the engine before performing
any maintenance. To prevent accidental start-up,
disconnect the spark plug boot.
IMPORTANT: If engine must be tipped to transport equipment
or to inspect or remove grass, keep spark plug side of engine
up. Transporting or tipping engine spark plug down may cause
smoking, hard starting, spark plug fouling, or oil saturation of air
cleaner.
Maintenance Schedule
Each Use or
Every 5 Hrs.
Check Engine Oil Level
Change Engine Oil ††
Check Air Cleaner
Service Air Cleaner †
First 5 Hours
P P
Periodic inspection and adjustment of the engine is essential
if high level performance is to be maintained. Regular
maintenance will also ensure a long service life. The required
service intervals and the kind of maintenance to be performed
are described in the table below. Follow the hourly or calendar
intervals, whichever occur first. More frequent service is required
when operating in adverse conditions.
WARNING: If the engine has been running, the
muffler will be very hot. Be careful not to touch the
muffler.
Every Season
or 25 Hours
Every Season
or 50 Hours
Every Season
or 100 Hours
Service
Dates
P
P
P
Check Spark Plug
Replace Spark Plug
Clean Engine Shroud
Clean around muer
Replace Fuel Filter
† Service more frequently when used in dusty areas.
†† Every season or 25 hours if operating under heavy load or high ambient temperature.
P
P
P
P
P
20
Oil Service
A
B
Oil Fill Cap
Level
Paper Element
Foam Element
Check oil level regularly.•
Be sure correct oil level is maintained. Check every five •
hours or daily before starting engine. See oil checking
procedure in the Operation section.
Oil Change
IMPORTANT: Be sure to check engine on a level surface with the
engine stopped. Drain the oil while the engine is still warm to
assure rapid and complete draining.
Remove all fuel from tank by running engine until it stops 1.
from lack of fuel.
Remove vacuum hose assembly.2.
Remove oil fill cap. See Fig. 10-1A.3.
Air Cleaner Service
Paper filters cannot be cleaned and must be replaced once a year
or every 100 operating hours; more often if used in extremely
dusty conditions.
WARNING: Never use gasoline or low flash point
solvents for cleaning the air cleaner element. A fire
or explosion could result.
IMPORTANT: Never run the engine without the air cleaner. Rapid
engine wear will result.
Remove the wing bolt and the air cleaner cover. Remove 1.
the elements and separate them. See Fig. 10-2. Replace
paper element when dirty or damaged. Clean foam
element or replace when damaged.
Figure 10-1
Tip unit to the right and allow oil to drain out of oil filler 4.
tube into a suitable pan or container.
WARNING: Before tipping engine or equipment to
drain oil, drain fuel from tank by running engine
until fuel tank is empty.
Refill with the recommended oil (see Operation section) 5.
and check the oil level. See Fig. 10-1B.
Reinstall the oil fill cap securely.6.
Reinstall vacuum hose assembly.7.
IMPORTANT: Used motor oil may cause skin cancer if repeatedly
left in contact with the skin for prolonged periods. Although this
is unlikely unless you handle used oil on a daily basis, it is still
advisable to thoroughly wash your hands with soap and water as
soon as possible after handling used oil.
NOTE: Please dispose of used motor oil in a manner that is
compatible with the environment. We suggest you take it in a
sealed container to your local service station for reclamation. Do
not throw it in the trash or pour it on the ground.
Figure 10-2
To clean foam element, separate it from the paper element 2.
and wash in liquid detergent and water. Allow to dry
thoroughly before using. Do not oil the foam element.
21se c t i O n 10 — en g i n e Ma i n t e n a n c e
Electrode
0.030 in.
Spark Plug Service
Spark Plug
Spark Plug Boot
WARNING: DO NOT check for spark with spark
plug removed. DO NOT crank engine with spark
plug removed.
To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.
Remove the spark plug boot and use a spark plug wrench 1.
to remove the plug. See Fig. 10-3.
Figure 10-3
WARNING: If the engine has been running, the
muffler will be very hot. Be careful not to touch the
muffler.
2. Visually inspect the spark plug. Discard the spark plug
if there is apparent wear, or if the insulator is cracked or
chipped. Clean the spark plug with a wire brush if it is to be
reused.
3. Measure the plug gap with a feeler gauge. Correct as
necessary by bending side electrode. See Fig. 10-4. The gap
should be set to 0.030 in.
Figure 10-4
4. Check that the spark plug washer is in good condition
and thread the spark plug in by hand to prevent crossthreading.
5. After the spark plug is seated, tighten with a spark plug
wrench to compress the washer.
NOTE: When installing a new spark plug, tighten 1/2 turn
after the spark plug seats to compress the washer. When
reinstalling a used spark plug, tighten 1/8-1/4 turn after the
spark plug seats to compress the washer.
IMPORTANT: The spark plug must be securely tightened.
An improperly tightened spark plug can become very hot
and may damage the engine.
22 se c t i O n 10— en g i n e Ma i n t e n a n c e
Fuel Filter Service
The fuel filter cannot be cleaned and must be replaced once a
year or every 100 operating hours; more often if run with old
gasoline.
Remove all fuel from tank by running engine until it stops 1.
from lack of fuel.
Remove c-clamp from fuel line and remove fuel line from 2.
tank outlet. See Fig. 10-5.
Figure 10-5
Pull out old fuel filter from tank outlet. Replace when dirty 3.
or damaged.
Grasp new fuel filter from shouldered end and insert it 4.
completely to the shoulder into the tank outlet. See Fig.
10-5 inset.
Replace fuel line and c-clamp.5.
Clean Engine
If the engine has been running, allow it to cool for at least half
an hour before cleaning. Periodically remove dirt build-up from
engine. Clean finger guard and around muffler. Clean with a
brush or compressed air.
IMPORTANT: Do not spray engine with water to clean because
water could contaminate fuel. Using a garden hose or pressure
washing equipment can also force water into the air cleaner or
muffler opening. Water in the air cleaner will soak the paper
element, and water that passes through the element or muffler
can enter the cylinder, causing damage.
Storage
Engines stored between 30 and 90 days need to be treated with
a gasoline stabilizer and engines stored over 90 days need to be
drained of fuel to prevent deterioration and gum from forming
in fuel system or on essential carburetor parts. If the gasoline in
your engine deteriorates during storage, you may need to have
the carburetor, and other fuel system components, serviced or
replaced.
Remove all fuel from tank by running engine until it stops 1.
from lack of fuel.
WARNING: Never leave engine unattended while
running.
Change oil. See Oil Change section.2.
Remove spark plug and pour about 1/2 an ounce of engine 3.
oil into cylinder. Replace spark plug and crank slowly to
distribute oil.
Clean debris from around engine, under finger guard, and 4.
under, around and behind muffler. Touch up any damaged
paint, and coat other areas that may rust with a light film
of oil.
Store in a clean, dry and well ventilated area away from any 5.
appliance that operates with a flame or pilot light, such
as a furnace, water heater, or clothes dryer. Also avoid any
area with a spark producing electric motor, or where power
tools are operated.
If possible, also avoid storage areas with high humidity, 6.
because that promotes rust and corrosion.
Keep the engine level in storage. Tilting can cause fuel or 7.
oil leakage.
Removing From Storage
Check your engine as described in the Pre-Operation Check 1.
section of this manual.
If the fuel was drained during storage preparation, fill the 2.
tank with fresh gasoline. If you keep a container of gasoline
for refueling, make certain it contains only fresh fuel.
Gasoline oxidizes and deteriorates over time, causing hard
starting.
If the cylinder was coated with oil during storage 3.
preparation, the engine will smoke briefly at startup. This
is normal.
WARNING: Accumulation of debris around muffler
could cause a fire. Inspect and clean before every
use.
23se c t i O n 10 — en g i n e Ma i n t e n a n c e
Model CSV 050
2
54
8
34
6
3
34
20
15
27
20
26
28
24
33
25
5
9
11
10
12
50
14
13
38
7
55
57
56
41
39
52
29
50
37
51
49
53
7
22
23
19
18
17
36
40
21
44
46
42
43
45
47
1
48
4
20
16
50
35
24
30
31
28
32
Model CSV 050
Ref
No.
1 93 6- 0314 Thrust Washer.375 ID x.70 OD
2 749-04172-0637 Upper Handle
3 720-0279 Knob
4 710-059 9 Screw, 1/4-20 x.500
5 710 -12 05 Eye Bolt
6 781 -1056 -06 37 Upper Handle Bracket
7 710-0726 Hex Cap Screw 5/16-12 x.750
8 720-04072A Star Knob
9 71 0 -11 74 Carriage Bolt
10 73 1- 0 4 9 11 Nozzle Handle Clip
11 749-04165-0637 Lower Handle
12 7 11-1 29 3 Studs
13 710-0703 Carriage Screw 1/4-20 x.75
14 912- 0 397 Wing Nut 1/4-20
15 710-0751 Hex Cap Screw 1/4-20 x.620
16 681- 0195 Hose Base Adapter Assembly
17 916 -010 4 E Ring.500 Dia
18 932-3035 Compression Spring
19 711-1571 Clevis Pin
20 936-3020 Flat Washer.271 ID x.630 OD
21 7 81-0422 3-4021 Upper Flail Housing
22 681-04088-4021 Chipper Chute Assembly
23 747-04985 Hose Cradle
24 7 12- 04 06 4 Flange Lock Nut, 1/4-20
25 748 - 04 57 Spacer
26 731-2478 Hose Nozzle
27 710 -3288 Hex Cap Screw 1/4-20 x 2.625
28 723- 0295 Adjustment Clamp
29 749 -127 0A Nozzle Handle
Part Number Description
(Incl. Ref.# 17-19)
Ref
No.
30 764-0648A Vacuum Hose
31 720-0369 Handle Plug
32 731-06469 Hose Adapter
33 912 - 04 42 Cap Lock Nut, 1/4-20
34 71 0 -1 611B TT Screw, 5/16-18 x .750
35 781-04082-0637 Front Wheel Support Brace
36 781-04 081-0637 Rear Wheel Support Brace
37 981-0156A-4021 Handle Bracket Ass’y RH
38 914 -010 4 Cotter Pin
39 726-0299 Push Cap
40 711 - 0 49 0 8 Axle
41 710-04 482 HHg, 3/8-16 x .875
42 741-04242 Height Adjustment Bearing
43 687-02342 Pivot Arm Assembly
44 720- 0426 Height Adjustment Knob
45 732-1026 Spring Lever
46 987- 02051 Height Lever Assembly
47 7 36 -0 741 Bell Washer.760 ID x.25 OD
48 73 8 -11 72 Shoulder Screw,.750 x.500
49 634-04347 Front Wheel
50 712 -0 4 065 Flange Lock Nut, 3/8-16
51 936-0232 Washer, Wave, .531 x .781 x .013
52 634- 04367 Rear Wheel
53 931- 0423 2A Engine Shroud
54 710 - 0474 4 Screw, #12-16 x 1.00
55 741- 0 4108 Brg. Flg, Hex
56 748 - 0190 Spacer
57 936-0369 Washer, Flat, .508ID x 1.00 OD
Part Number Description
981-0155A-4021 Handle Brkt Ass’y LH
(Incl. Ref.# 44-45)
25
Model CSV 050
37
36
1
39
41
34
35
30
40
38
42
28
10
48
44
29
4
3
9
7
5
6
8
11
15
13
44
B
2
B
45
43
31
33
32
44
49
11
30
47
19
46
16
18
26
23
24
22
25
20
A
A
14
12
21
27
17
26
Model CSV 050
Ref
No.
Part Number Description
1 664-04040 Bag Assembly
2 681-0154-0637 Screen Assembly
3 710 -105 4 Hex Screw 5/16-24 x 1.0
4 981- 0490 Chipper Blade
5 781- 0735 Pin Clip
6 719 -0 329 Flail
7 715 -0 166 Spiral Pin
8 711 -1 4 01 Clevis Pin
9 91 2- 0 4 11 Lock Nut, 5/16-24
10 9 36 - 0 119 Lock Washer, 5/16
11 98 1-0 152 Impeller Assembly
(Incl. Ref.# 3 – 10)
12 710 -1650 Shoulder Screw, #12-24 x.30 x.46
13 781-0721B -4021 Lower Flail Housing
14 712 -0 4 06 3 Flange Lock Nut 5/16-18
15 710 -0607 Screw, 5/16-18 x.500
16 747-0 4297 Hinge Pin
17 9 81-0 4031 Nozzle
18 781 -106 4 Base Adapter Door
19 7 32 -11 56 Torsion Spring
20 926- 0106 Cap Speed Nut 1/4
21 711-1551 Pivot Rod
22 731-2485A Nozzle Door Lever
23 710 -125 6 Hex Screw, #8-18 x 1.25
24 750 -12 94 Shoulder Spacer
25 73 2- 311 8 Extension Spring
Ref
No.
Part Number Description
26 73 2 -115 1A Nozzle Door Torsion Spring
27 731-2 294A Nozzle Door
28 664-04040 Bag
29 631- 008 3 Chute Assembly
30 710- 0726 Hex Index Screw, 5/16-12 x.750
31 736 -0247 Flat Washer.375 ID x 1.25 OD
32 93 6- 0 217 Lock Washer 3/8
33 710-0818 Hex Cap Screw 3/8-24 x 2.0
34 925-1700 Switch Cover
35 92 5-316 6 Safety Switch
36 931 -1613 Safety Switch Cover
37 910 -02 24 Hex Washer Screw #10-16 x.50
38 629-0920A Wire Harness
39 914 -010 4 Cotter Pin
40 732-0962 Compression Spring
41 781-0778A-0637 Mounting Bracket
42 74 7-1153 Lock Rod
43 71 0-319 5 Hex Cap Screw 5/16-18 x 4.5
44 710 -302 5 Hex Cap Screw 5/16-18 x.625
45 710 -0654A Hex Washer Screw 3/8-16 x 1.00
46 7 10 -122 0 Screw, #12-16 x.750
47 710-0351 Screw #10 - 16 x.500
48 736-0607 External L-Washer 5/16
49 7 26 -013 9 Speed Nut
— 723-0400 Safety Glasses (Not Shown)
27

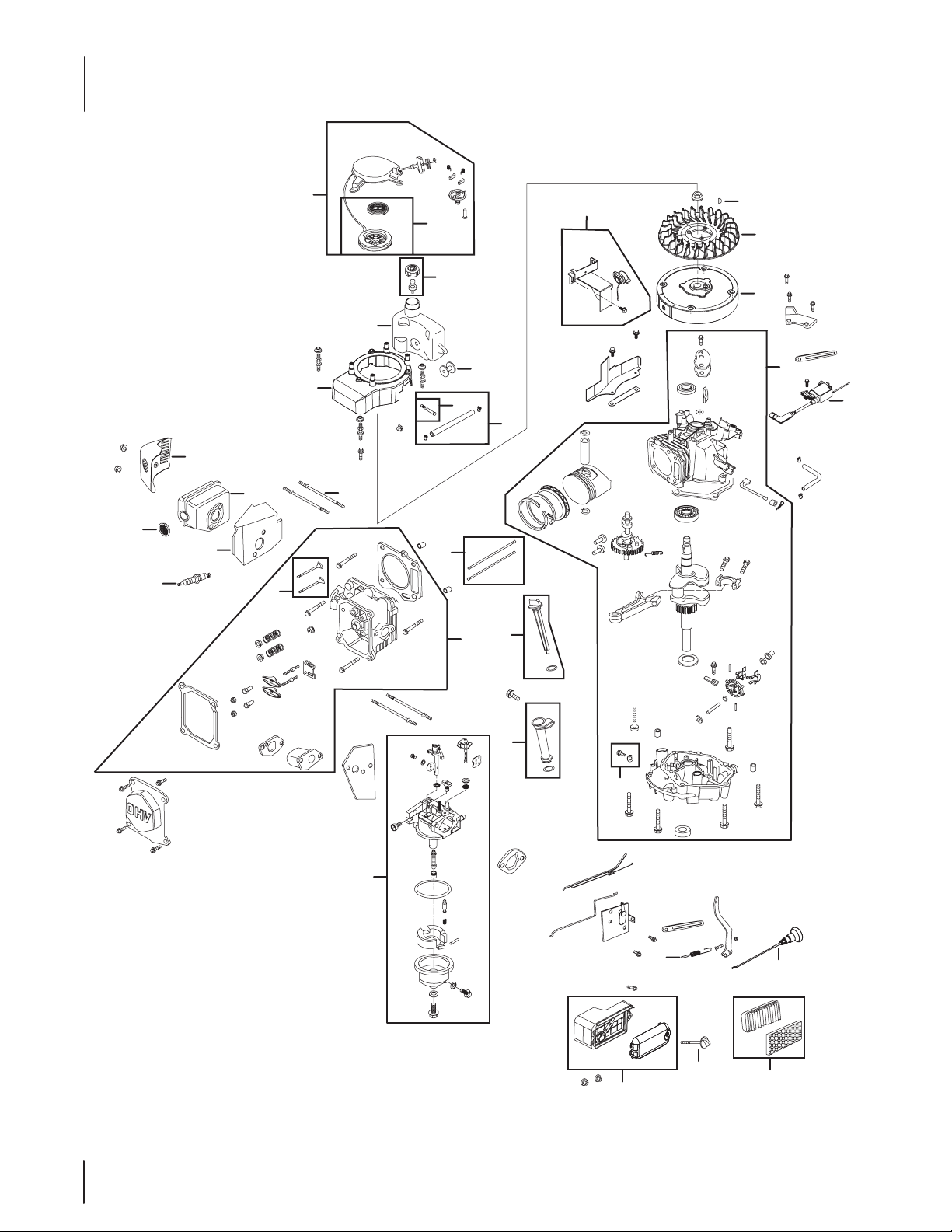

Engine Model - 1P70C0
31
29
28
24
26
25
11
21
9
20
1
3
2
19
18
17
10
5
6
8
15
29
30
7
13
28
14
4
12
27
23
16
32
22
Engine Model - 1P70C0
Ref
No.
1. 951 -1036 8 Fuel Tank
2. 9 51-103 69 Flywheel Shroud
3. 951 -10335 Rubber Fuel Tank Mounting Washer
4. 9 51-103 34 Oil Filler Tube Assembly
5. 951 -1085 2 Dipstick Assembly
6. 9 51-10 413 Cylinder Head Complete
7. 951-109 32 Short Block Assembly
8. 9 51-109 36 On/O Switch and Bracket Assembly
9. 9 51-10319 Recoil Spring and Pulley Assembly
10. 7 51-103 44 Push Rod Kit
11. 9 51-103 45 Valve Kit
12 . 951 -10370 Oil Drain Plug and Washer Assembly
13. 951-10 931 Ignition Coil
14. 951-10 929 Carburetor Assembly
15. 951-10 307 Flywheel Key
16. 95 1-10 412A Air Cleaner Housing Assembly Complete
17. 9 51-103 42 Muer Stud Assembly
18. 951 -1036 4 Fuel Line Kit – Inc. hoses, clamps & lter
19. 951-10 358 Fuel Filter
20. 951-10 30 0 Fuel Cap Assembly
21. 9 51-102 99 Recoil Starter Assembly
22. 951-10 298 Air Cleaner Kit
23. 951-10 297 Air Cleaner Thumb Screw
24. 9 51 -1 0 411 Muer Guard
25. 951-10 40 3 Muer
26. 951-1 0402 Muer Gasket /Heat Shield
27. 9 51-103 87 Governor Return Spring
28. 951-10292 Spark Plug
29. 951-10934 Cooling Fan
30. 951-10 935 Flywheel
31. 951-10351 Spark Arrestor
32. 951-10 933 Choke Control Knob
– 952Z1P70C0 Engine – Complete
– 951-10 930 Carburetor Kit – Major
– 951-10 859 Cylinder Head Service Kit
– 951-10 416 Gasket Kit – Complete
– 9 51-10 417 Gasket Kit – External
Part Number Description
NOTE: Illustrated parts without a numeric call-out are not servicable components.
29
Cub Cadet LLC (Cub Cadet), the California Air Resources Board (CARB)
and the United States Environment Protection Agency (U. S. EPA)
Emission Control System Warranty Statement
(Owner’s Defect Warranty Rights and Obligations)
EMISSION CONTROL SYSTEM COVERAGE IS APPLICABLE TO CERTIFIED ENGINES PURCHASED IN CALIFORNIA IN 2005 AND THEREAFTER, WHICH ARE USED IN CALIFORNIA, AND TO CERTIFIED MODEL YEAR 2005 AND LATER ENGINES WHICH ARE PURCHASED AND
USED ELSEWHERE IN THE UNITED STATES.
California and elsewhere in the United States Emission Control Defects Warranty Coverage
The California Air Resources Board (CARB), U. S. EPA and Cub Cadet LLC are pleased to explain the emissions control system warranty on your
model year 2006 and later small off-road engine. In California, new small off-road engines must be designed, built and equipped to meet the States
anti-smog standards. Elsewhere in the United States, new non-road, spark-ignition engines certified for model 2005 and later, must meet similar
standards set forth by the U. S. EPA. Cub Cadet LLC must warranty the emission control system on your engine for the period of time listed below,
provided there has been no abuse, neglect or improper maintenance of your small off-road engine.
Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system, and catalytic converter, fuel
tanks, fuel lines, fuel caps, valves, canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components.
Where a warrantable condition exists, Cub Cadet LLC will repair your small off-road engine at no cost to your including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This emissions control system is warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or
replaced by Cub Cadet LLC.
OWNER’S WARRANTY RESPONSIBILITIES:
As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Owner’s Manual. Cub Cadet
LLC recommends that you retain all your receipts covering maintenances on your small off-road engine, but Cub Cadet LLC can not deny warranty
solely for the lack of receipts or for your failure to ensure the performance to all scheduled maintenance.
As the small off-road engine owner, you should however be aware that Cub Cadet LLC may deny your warranty coverage if your small off-road
engine or part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine to an Authorized Cub Cadet LLC Service Dealer as soon as a problem exists. The
warranted repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact a Cub Cadet LLC Service Representative
at (877) 282-8684 and address is Cub Cadet LLC, P.O. Box 361131, Cleveland OH, 44136-0019.
DEFECTS WARRANTY REqUIREMENTS FOR 1995 AND LATER SMALL OFF-ROAD ENGINES:
This section applies to 1995 and later small off-road engines. The warranty period begins on the date the engine or equipment is delivered to an
ultimate purchaser.
(a) General Emissions Warranty Coverage
Cub Cadet LLC must warrant to the ultimate purchaser and each subsequent purchaser that the engine is:
(1) Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board pursuant to its authority in
Chapters 1 and 2,Part 5, Division 26 of the Health and Safety Code; and
(2) Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects to the part as
described in the engine manufacturer’s application for certification for a period of two years.
(b) The warranty on emissions-related parts will be interpreted as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in the written instructions required by Subsection (c)
must be warranted for the warranty period defined in Subsection (a)(2). If any such part fails during the period of warranty coverage, it must
be repaired or replaced by Cub Cadet LLC according to Subsection (4) below. Any such part repaired or replaced under the warranty must be
warranted for the remaining warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the written instructions required by Subsection (c) must be warranted for
the warranty period defined in Subsection (a)(2). A statement in such written instructions to the effect of “repair or replace as necessary” will
not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty
period.
(3) Any warranted part that which is scheduled for replacement as required maintenance in the written instructions required by Subsection (c)
must be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part must be repaired or replaced by Cub Cadet LLC according to Subsection (4) below. Any such part repaired or replaced
under warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty provisions of this article must be performed at no charge to the owner at a
warranty station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at all Cub Cadet LLC distribution
centers that are franchised to service the subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that
such diagnostic work is performed at a warranty station.
(7) The engine manufacturer is liable for damages to other engine components proximately caused by a failure under warranty of any warranted
part.
(8) Throughout the engine’s warranty period defined in Subsection (a)(2), Cub Cadet LLC will maintain a supply of warranted parts sufficient to
meet the expected demand for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the
owner. Such use will not reduce the warranty obligations of Cub Cadet LLC.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or
modified parts shall be grounds for disallowing a warranty claim made in accordance with this article. The engine manufacturer shall not be
liable under this article to warrant failures of warranted parts caused by the use of non-exempted add-on or modified part.
(c) Cub Cadet LLC will include a copy of the following emission warranty parts list with each new engine, using those portions of the list
applicable to the engine.
(1) Fuel Metering System
•Coldstartenrichmentsystem(softchoke)
•Carburetorandinternalparts
•FuelPump
•FuelTank
(2) Air Induction System
•Aircleaner
•Intakemanifold
(3) Ignition System
•Sparkplug(s)
•MagnetoIgnitionSystem
(4) Exhaust System
•Catalyticconverter
•SAI(Reedvalve)
(5) Miscellaneous Items Used in Above System
•Vacuum,temperature,position,timesensitivevalvesandswitches
•Connectorsandassemblies
(6) Evaporative control
•FuelHosecertifiedforARBevaporativeemissionof2006.
•FuelHoseClamps
•Tetheredfuelcap
•Carboncanister
•Vaporlines
GDOC-100170 Rev. A
CUB CADET LLC
MANUFACTURER’S LIMITED WARRANTY FOR
CHIPPER-SHREDDERS & CHIPPER-SHREDDER VACUUMS
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased and used in the United States,
its possessions and territories, and by MTD Products Limited with
respect to new merchandise purchased and used in Canada and/or its
territories and possessions.
“Cub Cadet” warrants this product (excluding its Normal Wear Parts
as described below) against defects in material and workmanship
for a period of two (2) years commencing on the date of original
purchase and will, at its option, repair or replace, free of charge, any
part found to be defective in materials or workmanship. This limited
warranty shall only apply if this product has been operated and
maintained in accordance with the Operator’s Manual furnished with
the product, and has not been subject to misuse, abuse, commercial
use, neglect, accident, improper maintenance, alteration, vandalism,
theft, fire, water, or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any part, accessory
or attachment not approved by Cub Cadet for use with the product(s)
covered by this manual will void your warranty as to any resulting
damage.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: belts, blades, debris collection bags, wheels and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service
dealer. To locate the dealer in your area:
In the U.S. A.
To locate the dealer in your area, check your Yellow Pages, or contact
Cub Cadet LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019,
call 1-877-282-8684, or log on to our Web site at www.cubcadet.
com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1,
call 1-800-668-1238 or log on to our Web site at www.
mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a. Log splitter pumps, valves, and cylinders have a separate one year
warranty.
b. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
c. Cub Cadet does not extend any warranty for products sold or
exported outside of the United States and /or Canada, and their
respective possessions and territories, except those sold through
Cub Cadet’s authorized channels of expor t distribution.
d. Replacement parts that are not genuine Cub Cadet parts.
e. Service completed by someone other than an authorized service
dealer.
f. Transportation charges and service calls.
g. Cub Cadet does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind Cub Cadet. During the period of the warranty, the exclusive
remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. Cub Cadet shall not be
liable for incidental or consequential loss or damage including,
without limitation, expenses incurred for substitute or replacement
lawn care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW STATE LAW RELATES TO THIS WARRANT Y: This limited
warranty gives you specific legal rights, and you may also have other
rights that vary in different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to
obtain warranty coverage.
GD OC-10 0181
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-877-282-8684
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238
Loading...
