OPERATOR’S AND SERVICE MANUAL
60” & 72” Fabricated Deck
Digital Fuel Injection,
Liquid Cooled
2
TABLE OF CONTENTS
Foreword. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Safety Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
A.Danger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B.Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C.Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
A.General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B.Related to Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
C.When Mowing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
A.General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
B.Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C.Initial Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
D.Zero Turn Break-In and Operating Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 4
A.Mower Deck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
B.Hydraulic Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
C.Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
D.Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
E.Brakes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
F.
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
G.Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Performance Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
A.High Speed Tracking Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
B.Engine RPM Check and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
C.Deck Corner Ball Wheel Roller Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
D.Deck Center Anti-Scalp Roller Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
E Lap Bar Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
F Deck Leveling Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

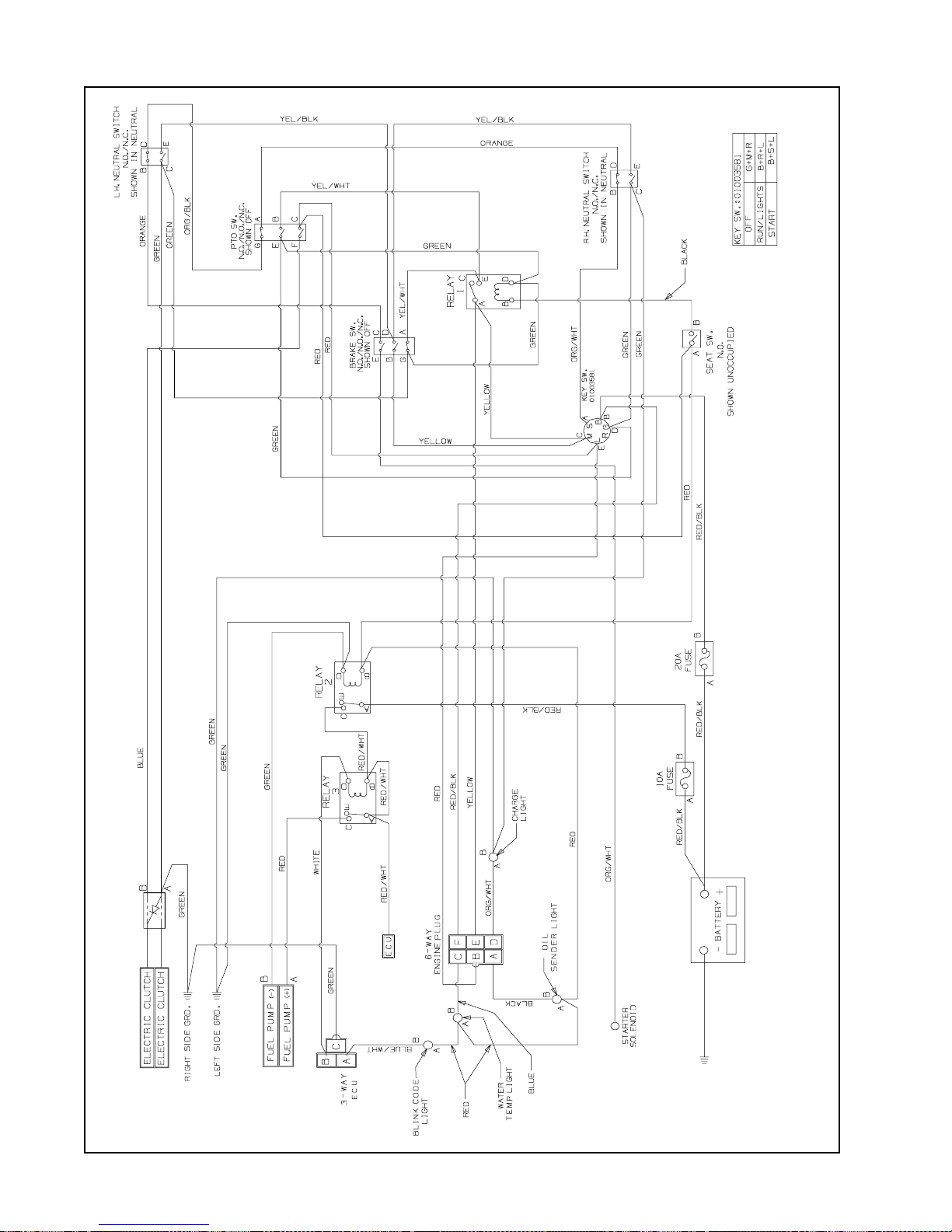

Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warranty
This product may be covered by one or more of the following patents:
D409,208; 5,946, 894; 6,070,690; 6,662,538; Pending
3
FORWARD
The Tank Hydrostatic Zero-Turn Commercial Riding Mower provides superb maneuverability,
mid-mount cutting capability for professional landscapers, commercial lawn service companies, professi onal tu rf manage rs and golf course s uperi nten dents. Th e machine i ncor po rates
many safety features that should be studied by all operators and maintenance personnel
before use. The list of safety precautions shoul d receive particular attention.
This manual pr esents all of the operating and maintenance instructions necessar y to keep
your mower at peak efficiency. If operated and maintained properly, your mower will give
dependable service.
CAUTION:
Only thoroughly trained persons should operate and maintain this
mower. This machine can cause serious injury to anyone who misuses it and does not understand its operation. For their personal
safety, all operators and maintenance personnel are required to
read this entire manual before operating the mower.
Hazard control and accident prevention are partially dependent
upon the design and configuration of the equipment. Not withstanding, these factors are also dependent upon the awareness, concern,
prudence and proper training of the personnel involved in the operation, transport, maintenance and storage of the equipment.
NOTE:
The engine manufacturer is responsible for all engine-related issues with
regards to performance, power-rating, specifications, warranty and
service. Please refer to the engine manufacturer’s owner’s/operator’s
manual, packed seperately with your unit, for more information.
WARNING
• The engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals
known to the State of California to cause cancer, birth defects or other reproductive harm.
• This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered, or grass-covered land unless the engine’s exhaust system is
equipped with a spark a rrester meeting applicabl e local or state laws (if an y). If a spark arrester is used, it
should be maintained in effective working order by the operator.
• In the State of California, the above is required by law (Section 4442 of the California Public Resources
Code). Other States may ha ve similar laws. Federal laws apply to federal lands. A spark arrester muffler
may be available.
MODELS LISTED IN THIS MANUAL
29HP Tank, 29HP Tank,
53BB5GFX750 53AB5GFZ750

4
GENERAL SAFETY
OPERATIONS
A. DANGER
1. Do not operate machine in con fined areas
where exhaust gases can acc umulate.
2. Do not operate machine without mower c hut e
deflector in place and operational.
3. Do not carry pas se ngers.
B. WARNING
1. Do not operate machines under the influence
of alcoh ol or drugs.
2. Do not operate machines wi th out all guards
and safety devices in place and functional.
3. Do not start machines if there are fuel or oil
leaks or spillage — clean it up.
4. Do not operate machines near spilled or leaking fuels .
5. Do not stop or park machine ov er dry leaves,
grass, debris, etc. that could be comb ust i ble.
6. Use extreme care wh en backing up.
7. Do not operate machine on slo pes greater
than 15 de gr ees ( 27 %), and alw a y s go a cros s
slopes , not up and down.
8. Do not operate machines on slopes when
tractio n i s reduced (wet gr ass, ice, sof t
ground , l o ose grou nd , l eaves , pi n e needle s ,
debris, etc.).
9. Avoid turning dow nhill if possible, go slowly
and use extra care when turning downhill.
10. Do not operate machines durin g reduce visibility (low light, fog, rain, etc.).
11. Do not operate machines wi th non-approv ed
attachments.
12. Do not operate machines that are dam-
aged... .. have mach i ne repaired.
13. Do not operate machines that have not been
properly maintained.
14. Use onl y repla cem ent p arts that a re th e sam e
or equiv alent to the original eq ui pment.
15. Do not mod ify m ach i nes or any of their c omponents, especially the engine gov ernor!
16. Do not oper ate ma chine f or mor e than 2 hours
without hearing protection.
C. CA UTION
1. Use proper protective equip m ent when operating machine (gloves, boots, and hearing
protect ion are recommended).
2. Read entire machine Operator’s Manual.
3. Make sur e operators are full y trained in the
safe use of the machine.
4. Follow all safety instructions when using the
machine.
5. Keep all s afety signs legible and properly
installed.
6. Do not check for hydraulic l eak s with any pa rt
of the body.
7. Do not add f uel to a mac hine when the en gine
is running and/ or t he exhaust syst em i s hot.
8. Keep m achine c lean and f ree o f de bris , g r ass ,
leaves, oil, grease, etc.
9. Place lap bars in neutral/start position, set
park brake, disengage P.T.O., turn engine off,
and remove ignition k ey before you dismount
from machine.
10. Use machines laterally or diagonally across
slopes, avoid going downhill when possible.
11. Go slowly and use extra care when descending slopes .
12. Disengage P.T.O. when crossing surfaces
such as asphal t, co ncrete, loose ground,
sand, gravel, etc .
13. Use extra care when loading and unloading
machines from trucks or trailers.
SAFETY PRECAUTIONS
A. General
1. Read this Operator’ s Manual before starting
the mower. Study the controls and learn the
proper sequence of operation.
2. Do not allow anyone to op erate or maintai n
this ma c h ine who has not re ad this ma nu al .
Never pe rmit children to operate this machine.
3. Never carry passengers.
4. Do not remo ve any shields, guard s or safety
devices. If a shield, guard or safety device is
damaged or doe s not function, repai r or
replace it be fore opera ting the mower.
5. Always wear saf ety glasses and safety shoes
when oper atin g or ma intai ning this mo wer. Do
not wear loose-fitting cloth i ng.
6. Disconnect the spark plug wi res and remove
the key from th e igniti on to prevent th e engi ne
from accident al l y st arting before perf orming
any maint enance on this mower.
7. Never run the engine indoors without adequat e ve ntilation. E xhaus t f um es are de a dl y.
8. To avoid serious burns, do not touch the
engine, exhaust pipe or muffler while the
engine is running or until it has cooled after it
has been shut off.
9. The liquid in the battery is dilute sulfuric acid.
Alway s wear saf ety glas ses and rub ber glo ves
when working on the battery. Do not overfill
the battery.
10. Lead-acid batteries generate hydrogen and
oxygen gases which form an explosive mix-
5
ture. Keep sparks and f lam es awa y at all
times.
11. When looking for oil leaks, never run your
hand over hydraulic hoses, lines or fittings.
Ne v er tighten or adju st hydraulic hoses, lines
or fittings while the system is under pressu re.
If high-pre ss ure oil penet rate s the s kin , the oil
must be rem oved withi n a few hours by a doctor familiar with this form of injury or serious
complications may result.
B. Related to Fuel
1. Fuel is hig hly f l am m able and its vapors can
expl ode if ignited. Plea se respect it.
2. Do not smoke or permit others to sm ok e
while handli ng fuel.
3. Always use appro ved contai ners for fuel and
fill slowly to decrease the chance of static
electricity buildup and spillage.
4. Store fuel in well ventilated and unoccupied
buildi ngs away from sparks and flames.
5. Wh e n di spen si ng gaso l i ne into approved containers, place the contai ner on the ground
when refueling to av oi d a possible static el ec tricity ignition of fuel vapors.
6. Do not fill c ontainers whil e it i s inside a vehicle, trunk, the bed of a pickup or f l oor of a
trailer .
7. Always shut off the en gi ne and permit it to
cool before removing the fuel tank cap.
8. Always fill the fuel tank outdoors.
9. If the fuel container spout w ill n ot fit inside the
fuel tank op eni ng, use a funnel.
10. When filling the fuel t ank, s t op when the fuel
reaches on e inc h from t he top. This space i s
necessary for tank expansion.
Do not overfill
.
11. Wipe up any spilled fuel.
C. When Mowing
1. Keep adults, chil dren and pets aw ay from the
area to be mowed.
2. When oper ating this mower in the fo rward
direct ion, DO NOT allo w t he st eerin g levers to
return to the neut ral position on their own.
Always maintai n a firm gri p on t he l evers,
opera te them smooth l y and avoid any sudden
movements of the levers when starting or
stopping.
3. If the mower is equipped for side discharge,
nev er us e the m ow e r with out the di scha rge
chute insta lled and plac ed in the do w n posit ion .
4. Always rem ove debris an d ot her objects from
the area to be mo we d.(
Note
: debris and l oose
grass will reduce traction.)
5. Mow only in daylight.
6. Watch for holes, sprinkler heads and ot her
hidden haza rds.
7. Avoid driving too close to trees, creeks,
ditches, sand traps and other obstacles.
8. Before backing up, check behind you and
watch where you’re going.
9. Always reduce speed when making a turn,
and when grass is wet.
10. Always mo w across slopes , never up and
down the slope. Do not oper ate on steep
slopes and slow down before turning.
11. Be careful when c rossing gra vel paths or
roadways. Always turn off the blade clutch
switch and wait until the b lades stop rotati ng
and raise the c utting deck to the transport
position. Always allo w other vehic l es t o have
the right-of-way.
12. If you hit a solid object while mo wi ng, turn off
the bl ade c lutc h s witc h, pla ce the le ft and ri ght
steering levers in the neutral, opened-out
position, move the throttle to slow, set the
parking bra k e, shut off the engine and take
the key fr om t he i gnition swit ch. Inspect fo r
damage. Repair any damage. Make sure the
blades ar e in good condition and t hat the
blade bolt s are tight before restarting the
engine.
13. Never leave the mower unat tended without :
turning off th e blade clutch switch; placing the
left and right st eeri ng levers in the neutral
opened-ou t po sition; moving t he t hrottle to
slow; setting the parking brake; shutting off
the engi ne an d tak ing the k e y f rom th e ig niti on
switch.
14. Never walk or st and on the dis charge s ide of a
mower with the engine running. Turn off the
blade clut c h switch if anot her person
approaches while you are op erating the
mower .
15. Never attempt to operate the traction un it
without the mowing deck attached.
16. Keep the mower and especially the engine
and hydraulic components clean and free of
grease, grass and lea ves to reduce the
chance of fire and to permit proper cooling.
6
SAFETY DECALS AND LABELS
WARNING
SHIELD MISSING
DO NOT OPERATE
! WARNING
Serious bodily injury may result from failure to follow safe
operating procedures.
Read the Operator's Manual before operating this machine.
Clear area of debris and other objects before mowing.
Do not operate the machine when children and others are
around.
Do not operate machine without guards, shields and safety
devices in place and working.
Slow down and use caution on slopes.
Part Number: 00030635 Part Number: 01009619
Do not put hands or feet
under or into mower when
engine is running.
ROTATING BLADE
DANGER
Part Number: 00030633
Part Number: 01003450
Part Number: 02000163
KEEP HANDS and FEET AWAY
DANGER
TO REDUCE THE RISK OF INJURY,
DO NOT OPERATE MOWER UNLESS
DISCHARGE CHUTE COVER OR GRASS
CATCHER IS IN ITS PROPER PLACE.
Part Number: 01002166
Part Number: 01003859
Part Number: 01003452
Part Number: 01003451
7
SPECIFICATIONS
Engine: 29HP, Digital Fuel Injection, Liquid-Cooled, OHV, Kawasaki
Type: Horizontal Crankshaft, V-Twin
Air Cleaner: Dual Element, Canister Type
Lube System: Pressurized with oil filter
Starter: 12-volt electric
Traction Drive: V ariab le-spe ed h ydrostatic p umps and h ydr aulic w heel motor s fo r
each drive wheel
Hydraulic Tank: 4 quart capacity, One quart filter
Cutter Deck;Drive: Belt Driven
Clutch: Electric blade brake clutch
Deck Lift: Hand lever w/pin lock for height adjustment & foot pedal assist
Cutting Height: 1-1/2" to 5"
No. of Blades 3, attach to spindle with 3/4” bolts
Deck Spindles: 1-1/4” diameter tapered-roller bearings, aluminum housing
Controls: Engine ignition and start switch; throttle; left and right steering
levers; electric blade clutch switch; parking brake; mower deck lift
Parking Brake: Mechanical linkage attached to the brake handle and drum
brakes
Front Caster Wheels: 13 x 6.50 x 6
Tire Pressure: 8-10 psi Rear, 20-25 psi front caster
Drive Wheels: 60" & 72” deck, 24x12 - 12
Frame: 2" Steel square tube and plate, all welded construction
Seat: Adjustable seat with armrests. 5" Adjustment fore & aft
Fuel Tank: Two 6.5 gallon w/ shutoff valv es
Ground Speed: 0-10 + MPH forward. 0-4 MPH reverse
Instrumentation Hourmeter, Tachometer, Maintenance-minder
Net Weight: 1170 lbs. w/60" deck, & 1325 lbs. w/72” deck
8
OPE RATIN G IN ST R U CT ION S
A.General
1. When Mo wi n g:
a. Keep adults, children, and pets away from
the area to be mowed.
b. When operating this mower, in the forward
direction, do not allow the steering levers
to return to Neutral on their own. Always
maintain a firm grip on the levers , operate
them smoothly and avoid any sudden
movements of the lev ers when s tarting and
stopping.
c. If the mower is equipped for side dis-
charge, never use the mower without the
discharge chute installed and placed in the
down position.
d. Always remove debris and other objects
from the area to be mowed (Note: debris
and loose grass will reduce traction).
e. Mow only in daylight.
f. Wat ch f or holes, sprinkler heads, and other
hidden hazards.
g. Avoid driving too close to trees, creeks,
ditches, sand traps, and other obstacles.
h. Before backing up, check behind and
watch where you are going.
i. Always reduce speed when making a turn,
and when grass is wet.
j. Always mow across slopes, never up and
down the slope. Do not operate on steep
slopes and slow down before turning.
Avoid tur ning downhill if possible, start at
the bottom and work up to the top. Use
extra care and go slowly when turning
downhill. Control the speed and direction
of the zero turn machine “primarily” with
the speed/directional control (lap bar) of
the down hill s id e o f the machine...I .E . ,
maintain the uphill side lap bar “essentially” in a fixed position.
k. Be careful when crossing gravel paths or
roadways. Always turn off the blade clutch
switch and wait until the blades stop rotating and raise the cutting deck to the transport position. Always allow other vehicles
to have the right of way.
l. If you hit a solid object while mowing, turn
off the blade clutch switch, place the steering levers in the neutral, opened-out position, move the throttle to slow, set the
parking brake, shut off the engine, and
take the key from the ignition switch.
Inspect for damage. Repair the damage.
Make sure the blades are in good condition
and that the blade bolts are tight before
restarting the engine.
m. Nev er leave t he mower unattended without
observing the following: turn off the blade
clutch switch, placing the steering levers i n
the neutral open-out position, moving the
throttle to slow, setting the parking brake,
shutting off the engine and taking the key
from the ignition switch.
n. Never walk or stand on the discharge side
of the mower when the engine is running.
Tur n off the blade clutch switch if another
person approaches while you are operating the mower.
o. Never attempt to operate the traction unit
without having the mowing deck attached.
p. Keep the mower and especially the engine
and hydraulic components clean and free
of grease, grass, and leaves to reduce the
chance of fire and permit proper cooling.
2. Safety Awareness when Mowing
a. Do not operate on steep slopes, those
above 15 degrees (27% slope).
Figure. 1 Figure. 2
Ignition Switch
Electric Blade
Clutch Switch
Tach and
Hour Meter
Engi ne thro ttle
9
b. Av oid turning downhill if possible, if not use
extra care and go slowly.
c. Avoid turning when going downhill, traction
is at a minimum going downhill.
d. Do not operate with discharge side of the
mowe r toward st reets, buildings, p l ay-
grounds, parking lots, other machines, ani-
mals, and other people.
e. Avoid operation or use extreme care if the
traction surface is wet, unstable, or slip-
pery.
f. Use extra care when grass clippings,
leaves, pine needles, or debris are present
as traction can be reduced.
g. Slow-down before turn ing and come to a
complete stop before any zero t urn maneu-
ver.
h. Do not stop machine or park machine over
combustible materials such as dry grass,
leaves, debris, etc.
3. To Mow Grass and Produce a Striped P attern
a. Pick a point on the opposite side of the
area to be mowed (post, tree, shrub, etc.).
b. If on an hillside, star t at the bottom so that
the turns are uphill rather than downhill.
c. Align the mower so as to head directly
toward the object on the far side.
d. Slowly increase the speed of the machine
to match cutting conditions, terrain, and
operator familiarity with the controls and
keep the machine headed directly toward
the alignment object. Do not go fast as to
reduce cut quality or to be uncomfortable
in controlling the speed and direction of the
machine.
e. When approaching the other end of a strip,
slow down or stop before turning. A U-turn
is recommended unless a zero turn is
required. The speed of a U-turn that will
allow for machine controllability and minimal turf defacement will be dependent on
several factors including: the speed of the
turn, the radius of the turn, the tire tread
pattern, the traction coefficient of the tire to
the traction surface, the slope of the traction surface.
f. Remem ber, a zero turn requires that the
forward or reverse travel of the machine be
stopped prior to the initiation of the turn or
severe turf defacement can occur.
g. To prevent rutting or grooving of the turf,
change the direction that the strips are
mowed by approximately 45 degrees the
next and each subsequent time that the
area is mowed.
B.Controls
1.
Engine Ignition and Start Switch:
(See Figure 1.) Located on the instrument housing
below the rig ht side of the operator’s seat.
When the key is inserted and turned clockwise, 45 deg ree s, the ign itio n ci rcuit is cl osed.
Turning the switch further against spring pressure starts the engine. The engine will only
start if the blade clut ch switch is in th e “off”
position, the parking brake is engaged and
the left and right steeri ng lever s are in the
neutral, opened-out position. The ke y sh ould
always be re m oved from the swit ch if the
operator l eaves the mower’s seat.
2.
Engine Throttle Control:
(See Figure 2.)
Located on th e left side of the mow er next to
the operat or’s seat. Moving the t hrot tle c ontro l
from the rear to the front will increase the
engine spee d fr om slow to fast.
3.
Left and Right Steering Levers:
(See Fi gure
3.) These hinged le ve rs ope n out to the sid e in
the neutral position to permit the operator to
be seated or to leave the mower’s seat. The
operator, when seated, can pull th e levers up
to the operating position, a comfortable forearm’s length away. These levers control all of
the movements of the mower. Pushing both
lev ers forward causes the mower to move forward. Pulling both lev ers bac k causes the
mower to move bac k ward. Pushing one lever
ahead of the ot her lever cau ses the traction
wheel on the side where the lever is ahe ad t o
rotate f aster than the other traction wheel,
making the mo we r tu rn tow ard t he side w here
the le ver is behind. When on e l ever is pushed
forward and the other l ever pulled back the
same amount, one traction wheel will turn in
reverse a nd the mower will turn within its own
length.
In order to start the engine, both steering
lev ers must be opened out to the side in the
neutral position; the parking brake must be
engaged; and the blad e clu tch s w itch m us t be
“off”. However, once the engine starts, the
parking bra k e must be release d before the
operator pl aces the steering levers into the
operating position or the engine will
automatically shut off.
Note:
The Steering Le ver will return tow ard
neutral when released, but they should be
placed in neutral b y the driver. If the Drive
Handles are not placed in neutral, the tractor
may creep.
