Cub Cadet 2146 User Manual

Parts Manual

2000

TRACTOR

Model 2146

CUB CADET P.O. BOX 368023 CLEVELAND, OHIO 44136-9723

PRINTED IN U.S.A. FORM NO. 770-10281A

(9/99)

NOTES

-1-

MODEL 2146

TABLE OF CONTENTS

DESCRIPTION PAGE

Axle, Front ....................................................... 38

Battery ............................................................. 14,15

Brakes .............................................................. 2,3

Bulkhead .......................................................... 13

Controls

Engine ..........................................................

Pedal ...........................................................

Transmission ...............................................

Dash Panel ...................................................... 13

Drawbar ........................................................... 16

Drive Line ......................................................... 7

Electrical

Switches .......................................................

Wiring ...........................................................

Engine

Air Cylinder Housing .....................................

Air Filter ........................................................

Blower Housing ............................................

Blower Wheel ...............................................

Camshaft ......................................................

Carburetor ....................................................

Crankshaft ....................................................

Cylinder Block ...............................................

Cylinder Head ...............................................

Fuel Pump ....................................................

Gearcase ......................................................

Governor .......................................................

Piston ............................................................

Starter ...........................................................

13

2,3

6

14,15

14,15

31
28
26
25
21
28
20
19
24
30
23
27
22
32

DESCRIPTION PAGE

Engine Mounting .............................................. 18

Fender ............................................................. 36,37

Frame .............................................................. 16

Fuel Tank ......................................................... 17

Grille ................................................................ 34,35

Hood ................................................................ 34,35

Hydraulic Filter ................................................. 12

Hydraulic Linkage ............................................ 12

Hydrostatic Pump, Model BDU-10L-221 .......... 10,11

Implement Lift Handle ...................................... 39

Implement Lift Hanger ..................................... 40

Mower Deck, 38” .............................................. 42-45

Muffler .............................................................. 18

PTO Clutch ...................................................... 17

Running Board ................................................. 36,37

Seat ................................................................. 33

Side Panels ..................................................... 34,3351

Steering ........................................................... 4,5

Transmission, Hydro ........................................ 8-12

Wheels, Front & Rear ...................................... 41

NOTE: For painted parts, please refer
to the list of color codes below. Please
add the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part,
numbered 700-xxxx, is painted Cub
Yellow, the part number to order would
be 700-xxxx-0498.

Cub Yellow: 0498

Cub Beige: 0499

Powder Black: 0637

-2-

BRAKE AND CONTROL PEDALS

47

55

37

29

31

39

48

46

11

51

28

32

20

54

15

18

21

34

10

23

14

30

38

5

26

31

44

45

31

35

1

50

22

12

21

27

40

13

18

50

30

30

52

30

52

27

30

8

20

1

41

48

31

16

1

33

3

3

31

48

30

49

7

43

17

6

42

17

54

8

27

4

25

36

24

50

61

63

60

56

9

62

57

30

59

58

2

5

6

8

1

4

49

19

6

BRAKE AND CONTROL PEDALS

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0321A Shaft Assy, Brake 1
2 603-0412 Pedal Assy, Reverse 1
3 603-0697 Shaft Assy, Forward/Reverse 1
4 603-0419 Cam Assy, Control 1
5 603-0421 Plate Assy, Disengagement 1
6 703-2570A Pedal, Forward 1
7 703-2573A Pedal, Brake 1
8 703-2804 Plate, Bearing Mounting 2

9 703-2938 Bracket, Reverse Pivot 1
10 703-2941 Bracket, Cruise 1
11 703-2942 Plate, Rod Adjustment 1
12 703-2962 Lever, Cruise 1
13 703-2963 Lever, Brake Lock 1
14 703-2965 Actuator, Reverse Switch 1
15 710-0106 Screw, Hex Cap, 1/4-20 x 1.25 1
16 710-0599 Screw, Hex Wash Hd Tapp 1/4-20 x .5 1
17 710-0623 Screw, Hex Wash Hd Tapp 3/8-16x .75 2
18 710-0642 Screw, Hex Wash Hd Tapp 1/4-20x .75 6
19 710-0796 Screw, Truss Mach, #12 x 1.5 1
20 710-0216 Screw, Hex Cap, 3/8-16 x .75 GR5 2
21 710-3009 Screw, Phil Hd Pan, #10-24 x .75 2
22 711-0415 Pin, Clevis, 3/8 x 1.62 1
23 711-0736 Ferrule, Adjustment, 1/4-20 Thrd 1
24 711-1138 Stud, Actuator 1
25 711-3295 Pin, Clevis, .25 x 2.38 Lg 1
26 712-0271 Nut, Hex Sems, 1/4-20 1
27 712-0431 Nut, Hex Flange Lock, 3/8-16 3
28 712-3004A Nut, Hex Flange Lock, 5/16-18 1
29 712-3027 Nut, Hex Flange Lock, 1/4-20 1
30 714-0104 Pin, Internal Cotter, 5/16 Dia x 1.12 Lg 9
31 714-0145 Pin, Internal Cotter, 3/8 Dia x 1.62 6
32 715-0114 Pin, Spiral Spring, 1/4 x 1.5 1

-3-

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

33 731-3205 Pedal, Reverse 1
34 731-3206 Knob, Cruise 1
35 731-3207 Knob, Brake Lock 1
36 732-0418 Spring, Extension, .38 OD x 2.1 1
37 732-0463 Spring, Extension 1
38 732-0756A Spring, Torsion 1
39 732-0824 Spring, Extension, .437 OD x 1.32 1
40 732-3099 Spring, Compression, .50 x 2.23 1
41 732-3117 Spring, Switch Actuator 1
42 735-3048 Pad, Forward Foot Control 1
43 735-3049 Pad, Brake Foot 1
44 736-0174 Washer, Wave, .625 x .885 x .015 1
45 736-0349 Washer, Flat, .635 x 1.0 x .020 1
46 736-0463 Washer, Flat, 1/4 x .63 x .051 1
47 738-0145 Shoulder Bolt, .50 OD x .840 1
48 741-3065A Bearing, Hex Flange Split 4
49 741-3073 Bearing, Flange, .375 x .58 x .25 2
50 741-3074 Bearing, Flange, .626 x .93 x .344 3
51 747-3216 Rod, Brake 1
52 747-3219 Rod, Parking Brake 1
54 747-3307 Rod, Cruise 1
55 748-3060 Latch, Cruise 1
56 618-3060 Plate, Brake 1
57 703-2191 Arm, Brake 1
58 710-3262 Screw, Low Hd Cap, 3/8-16 x .75 1
59 732-0152 Spring, Compression 1
60 732-3077 Spring, Brake 1
61 761-3019 Drum, Brake 1
62 761-3020 Shoe, Brake 1
63 761-3028 Actuator, Brake Shoe 1
64 747-3341A Rod, Rear Connecting 1
65 747-3344A Rod, Front Connecting 1

-4-

STEERING

18

7

4

DASH PANEL

17

-5-

STEERING

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0250 Segment Assy, 18T Steering 1
2 603-0064 Arm Assy, Lower Steering 1
3 603-0236A Housing Assy, (Incl.Ref #25, 29-30) 1
4 631-3209 Wheel, Steering, Soft Grip 1
5 710-0751 Screw, Hex Cap, 1/4 - 20 x .62, GR5 2
6 710-0376 Screw, Hex Hd Cap, 5/16 - 18 x 1.0 GR5 4
7 712-0237 Nut, Hex Center Lock, 5/16-18 5
8 712-3001 Nut, Hex Jam, 3/8-24 GR5 4

9 712-3012 Nut, Hex Slotted, 1/2-20 GR5 1
10 712-3027 Nut, Hex Flange Lock, 1/4-20 2
11 712-3054 Nut, Hex Lock, 3/8-24 GR5 4
12 714-0115 Pin, Cotter, 1/8 Dia x 1 1
13 714-3004 Pin, Cotter, 3/32 Dia x 1.25 1
14 717-3382 Pinion, Steering 1
15 722-3019 Gasket, Steering 1
16 723-0156 Joint, Ball, 3/8-24 4
17 731-3210 Insert, Steering Wheel Cover 1
18 736-0242 Washer, Bell, .340 x .88 x .06 Thk 1
19 736-0272 Washer, Flat, .510 x 1 x .06 Thk 1
20 796-0351 Washer, Flat, .760 x 1.5 x .03 Thk 1
21 736-0355 Washer, Flat, .56 x 1 x .04 Thk 1
22 736-0921 Washer, Lock, 1/2 1
23 736-3013 Washer, Flat, .531 x 1 x .027 Thk 2
24 736-3132 Wshr, Rubber Flat, .50x1.12x.125 Thk 1
25 737-3000 Fitting, Grease, 3/16 Drive Type 2
26 738-3105 Shaft, Steering 1
27 741-3025 Bearing, Flange 1
28 747-3171 Rod, Tie 2
29 748-0108 Bearing, Flange, .503 ID 1
30 748-3007A Bearing, Bronze Flange, .75 ID 2

-6-

TRANSMISSION CONTROLS

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0272 Pivot Assembly 1
2 710-0599 Screw, Hex Wsh Hd Tapp, 1/4-20 x .5 2
3 710-3170 Screw, Ball, 5/16-18 x.56 1
4 712-0271 Nut, Hex Sems, 1/4-20 1
5 712-3004A Nut, Hex Flange Lock, 5/16-18 GR5 1
6 712-3027 Nut, Hex Flange Lock, 1/4-20 1
7 714-0104 Pin, Internal Cotter 2
8 727-3090 Cylinder, Damper 1

9 732-3094 Spring, Compression, .63 ID x 2 1
10 732-3118 Spring, Extension, 3/8 OD x 1.44 1
11 736-3092 Washer, Flat, .265 x 1 x .030 1
12 738-0560 Bolt, Shoulder, .374 Dia x 1.375 1
13 747-3304 Rod, Front Control 1
14 747-3309 Rod, Rear Hydro Control 1
15 748-3070 Plate, Cruise 1
16 750-0434 Spacer, Split Tubing, .375 ID x 1.04 1

-7-

DRIVE LINE

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0179 Shaft Assembly, Drive, 29.06 Lg 1

759-3764 Kit, Drive Barrel 2
2 618-3085A Transmission Assembly, Hydro 1
3 618-3088 Pinion Assembly, Input 1
4 618-3111 Pump, Hydrostatic 1
5 703-2568 Arm, Hydro Dump 1
6 710-1260 Screw, Hex Wsh Tap, 5/16-18 x .75 2
7 710-0642 Screw, Hex Wsh Tap, 1/4-20 x .75 1
8 710-3180 Screw, Hex Cap, 5/16-18 x 1.75 GR5 2
9 710-3195 Screw, Hex Cap, 5/16-18 x 4.5 GR5 2

10 748-3037 Nut, Fan, 1/4-20 4
11 710-3288 Screw, Hex Patch, 1/4-20 x 1.62 GR5 8
12 710-3290 Screw, Hex Wsh Tap, 3/8-16 x 1.25 5
13 712-0262 Nut, Hex Center Lock Jam, 3/8-24 1

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

14 714-0104 Pin, Internal Cotter, 5/16 Dia x 1.12 1
15 748-3099 Adapter, Pump 1
16 721-0261 O-Ring, 2.75 x .103 1
17 725-0157 Tie, Self-Clinch Cable 1
18 726-0205 Clamp, Hose 1
19 731-3297 Fan, 10 Blade Cooling 1
20 736-0105 Washer, Bell, .380 x .88 x .063 1
21 736-0119 Washer, Lock, 5/16 4
22 736-0270 Washer, Bell, .265 x .75 x .062 1
23 759-3330 Line, Fuel, 7in (10ft Bulk) 1
24 736-3099 Washer, Wave, 1.96 x 2.44 x .06 1
25 737-0296 Vent 1
26 737-0299 Fitting, Elbow 1
27 747-3228 Rod, Hydro Disengagement 1

-8-

HYDRO TRANSMISSION

HYDRO TRANSMISSION

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 611-3008 Axle Assy, LH, 11.9" Lg 1
2 716-3015 Ring, Inverted Retainer 2
3 721-3020A Seal, Oil 2
4 741-3033A Bearing 2
5 716-3018 Ring, External Retaining 2
6 619-3025 Housing, LH Axle 1
7 710-1008 Screw, Hex L-Wash Tap, 3/8-16 x 1.88 16
8 727-3085 Dipstick, OIl 1

9 715-3045 Bushing, Dowel 4
10 619-3037B Housing, LH Differential 1
11 710-0606 Screw, Hex Cap, 1/4-20 x 1.5 2
12 736-0463 Washer, Flat, .25 x .62 x .052 4
13 710-0788 Screw, Hex Wash Hd Tap, 1/4-20 x 1.0 15
14 710-1346 Screw, Plug, M14 x 1.5 x .827 1
15 715-3045 Bushing, Dowel 2
16 741-0361 Bearing, Ball 3
17 750-3133 Spacer, .757 ID x 1.0 OD x 1.46 1
18 717-3388 Gear, 27T Drive 1
19 717-3374 Shaft, Drive 1
20 717-3347 Gear, 36T Bevel 1
21 717-3391 Gear, 16T Spur 1
22 750-3134 Spacer, .885 ID x 1.125 OD x 1.4 1
23 717-3387 Gear, 18T Shift 1
24 718-3039 Collar, Drive 1
25 732-3113 Spring, Compression, 1.015 ID x 1.6 1
26 711-3379A Shaft, Shifter 1
27 741-3057 Bearing, Ball, .787 x 1.85 x .551 3
28 717-3392 Gear, 42T Spur 1
29 717-3346 Shaft, 9T Output 1
30 741-3037 Bearing, Ball 2

-9-

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

31 710-0151 Screw, Hex Cap, 3/8-24 x 2.0 4
32 619-3013 Cover,Differential 2
33 736-0423 Washer, Flat, 1.0 x 1.56 x .010 Thk AR
34 736-0431 Washer, Flat, 1.0 x 1.56 x .015 Thk AR
35 736-0424 Washer, Flat, 1.0 x 1.56 x .020 Thk AR
36 736-0420 Washer, Flat, 1.0 x 1.56 x .040 Thk AR
37 717-1159 Gear, 60T Bull 1
38 717-1119 Gear, 14T Differential Side 2
39 717-1190 Block, Differential Thrust 4
40 717-1120 Gear, 10T Differential Pinion 4
41 717-1178 Shaft, Cross 2
42 717-1173 Shaft, Cross, .50 OD x 3.485 Lg 1
43 712-3054 Nut, Hex Lock, 3/8-24 4
44 721-3008 O-Ring, 3/8 ID x 1/2 OD 1
45 618-3084 Yoke Assy, Shift (Incl. Ref #44) 1
46 619-3036A Housing, RH Differential 1
47 712-0291 Nut, Hex Center Lock, 1/4-20 2
48 721-3029 Seal, Shift Shaft 1
49 761-3019 Drum, Brake 1
50 732-3077 Spring, Brake 1
51 761-3020 Shoe, Brake 2
52 732-0152 Spring, Compression 1
53 703-2191 Arm, Brake 1
54 618-3060 Plate, Brake 1
55 761-3028 Actuator, Brake Shoe 1
56 710-3262 Screw, Low Hd Cap, 3/8-16 x .75 1
57 611-3009 Axle Assy, RH, 15.6 Lg 1
58 619-3024 Housing, Axle, RH 1
59 717-1180 Block, Differential Pinion 1

Model No. BDU-10L-221

A

-10-

HYDROSTATIC PUMP

C

C

C

E

B

D

-11-

HYDROSTATIC PUMP

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

A HG-2510050 Kit, Check Valve 1
B HG-2510034 Kit, Orificed Check Valve 1
C HG-2513009 Kit, Cylinder Block 2
D HG-2510011 Kit, Charge Relief Valve 1
E HG-2513027 Kit, Charge Pump 1

1 HG-50185 Shaft, Pump 1
2 HG-2003016* Ring, Retaining 2
3 HG-2003043 Bearing, Ball 1
4 HG-2003018* Spacer 1
5 HG-9008000-0128* Seal, Lip 1
6 HG-2003052* Ring, Retaining 1
7 HG-2513036 Housing Assy (Incl. Ref #8, 14, & 18) 1
8 HG-2003009 Bearing, Journal 1

9 HG-9008000-0126* Seal, Lip 1
10 HG-2003005 Arm, Trunnion 1
11 HG-2000015 Guide, Slot 1
12 HG-2003087 Swashplate 1
13 HG-2003023 Bearing, Cradle 2
14 HG-9004820-2536 Pin, Leveler 1
15 HG-2003091 Leveler, Swashplate 1
16 HG-2003092 Spring, Leveler 1
17 HG-2003044 Bearing, Thrust 2
18 HG-2003071 Bearing, Journal 1
19 HG-9005110-4400 Plug 1
20 HG-9004800-2506 Pin 2
21 HG-9005110-8700 Plug 1
22 HG-2003034 Shaft, Motor 1
23 HG-2003060* Gasket, Center Section 1
24 HG-2513037 Center Section Assy (Incl. Ref #25, 26) 1
25 HG-2003071 Bearing, Journal 1
26 HG-2003045 Bearing, Needle 1
27 HG-9005001-0600 Plug, Pipe 1
28 HG-9004201-3700* O-Ring 3
29 HG-9007314-0808 Screw, Socket Hd 8
30 HG-9005110-5600 Plug w/Ring 2
31 HG-9004101-1340* O-Ring 1
32 HG-J1041008 Gerotor Assy 1
33 HG-9007375-0038 Screw, Socket Hd 2
34 Not Used In This Application

* HG-2513013 Kit, Overhaul Seal 1

* Indicates Parts In Overhaul Seal Kit

-12-

NEUTRAL LINKAGE, HYDRAULIC PICKUP AND RETURN TUBES

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0160 Arm Assembly, Control 1
2 703-2440 Bracket, Hydro Neutral 1
3 703-2441 Arm, Neutral 2
4 710-0106 Screw, Hex Cap, 1/4-20 x 1.25 1
5 710-0788 Screw, Hex Wash TT-Tap, 1/4-20 x 1 2
6 710-3242 Screw w/Patch, Set 1
7 712-0324 Nut, Hex Top Lock, 1/4-20 1
8 716-0111 Ring, Snap, .875 Shaft 1
9 723-3014 Filter, Oil 1

10 727-3002 Connector, Tube 37 Deg. w/O-Ring 1

721-3001 O-Ring, 3/8 OD Tube 1

11 727-3086 Elbow, Adjustable w/O-Ring 1

721-3002 O-Ring, 1/4 OD Tube 1
12 727-3088 Tube, Pickup 1
13 732-3119 Spring, Extension, .5 OD x 1.97 Lg 1
14 736-0176 Washer, Flat, .25 x .93 x .120 Thk 2
15 737-3022 Nipple, Oil Filter 1
16 750-0918 Spacer, Centering 1

-13-

BULKHEAD, DASH PANEL AND ENGINE CONTROLS

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 703-2557 Screen, Intake Dash 1
2 703-3108A Bulkhead, Lower 1
3 710-0751 Screw, Hex Cap, 1/4-20 x .625 2
4 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 4
5 710-3217 Screw, Cross Rec Trus, #8-32 x .38 3
6 712-0142 Nut, #8-32 1
7 712-0397 Nut, Wing w/Bell Washer 1/4-20 2
8 720-3024 Seal, Push On Trim 1

9 723-3042 Bushing, Snap, 7/8 ID 1
10 726-3048 Nut, U-Type Speed, 1/4-20 2
11 726-3054 Nut, U-Clip, 1/4-20 4
12 731-3137A Panel, Dash 1

777I20306 Graphic, Ignition Switch 1

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

13 731-3161 Knob, Throttle 1
14 723-3317 Boot, Intake 1
15 736-3128 Washer, Flat, .285 x 1.75 x .10 4
16 746-3049 Control, Throttle 1
17 746-3050A Control, Choke 1
18 747-3226 Rod, RH Mounting 1
19 747-3227 Rod, LH Mounting 1
20 777I20312 Label, Dash 1
21 710-0136 Screw, Hex Cap,1/4-20 x 1.75 GR5 1
22 736-0342 Washer, Flat, .283 x .75 x .030 1
23 731-3232 Roller, Hood Latch 1
24 712-0271 Nut, Hex Sems, 1/4-20 1

-14-

BATTERY, ELECTRICAL COMPONENTS AND SWITCHES

14

9

12

17

3

11

18

1

13

2

22

25

21

14

25

15

7

8

20

19

16

6

26

6

10

To Headlights

1

23

Red to
Starter

Red to

Starter
To PTO
Adapter

5

Black to

Engine

4

Ground

24

To Engine

27

From PTO
to Harness

-15-

BATTERY, ELECTRICAL COMPONENTS AND SWITCHES

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 629-3068 Wire Harness, Main 1

725-0157 Tie, Self-Clinch Cable 4
726-0154 Tie, Pushmount 5

726-3055 Clip, Cable 9
2 732-0696 Hook, Wire Rectangular 1
3 710-0936 Screw, Truss Hd Tapp, #6 x .62 2
4 711-1094 Stud, Ground 1
5 712-0267 Nut, Hex, 5/16-18 1
6 Battery Cable Hardware

710-3015 Screw 2

712-0271 Sems Nut 2
7 721-0342 Gasket, Silicone 1
8 723-0445 Strap, Battery Retainer 1
9 759-3476A Key, Ignition (Set of 2) 1

10 725-0340 Cover, Terminal Black 1
11 725-1346 Nut, Ignition Switch 1
12 725-1347 Cap, Ignition Switch 1
13 725-1365 Bulb, Indicator 1
14 725-1381 Fuse, 20 Amp 2
15 725-1648 Relay 1
16 725-3007A Cover, Terminal Red 1
17 725-3159 Hour Meter 1
18 725-3163 Switch, Ignition 1
19 725-3164A Switch, Interlock (Brake) 1
20 725-3166 Switch, Snap Mount - Normally Closed 1
21 725-3233 Switch, PTO 1
22 725-3234 Switch, Seat 1
23 725-3237 Cover, Terminal Red 1
24 736-0607 Washer, External Lock, 5/16 1
25 729-0357 Holder, Fuse w/Mounting Clip 2
26 725-1706 Battery 1
27 725-3242 Adapter, PTO Harness 1

-16-

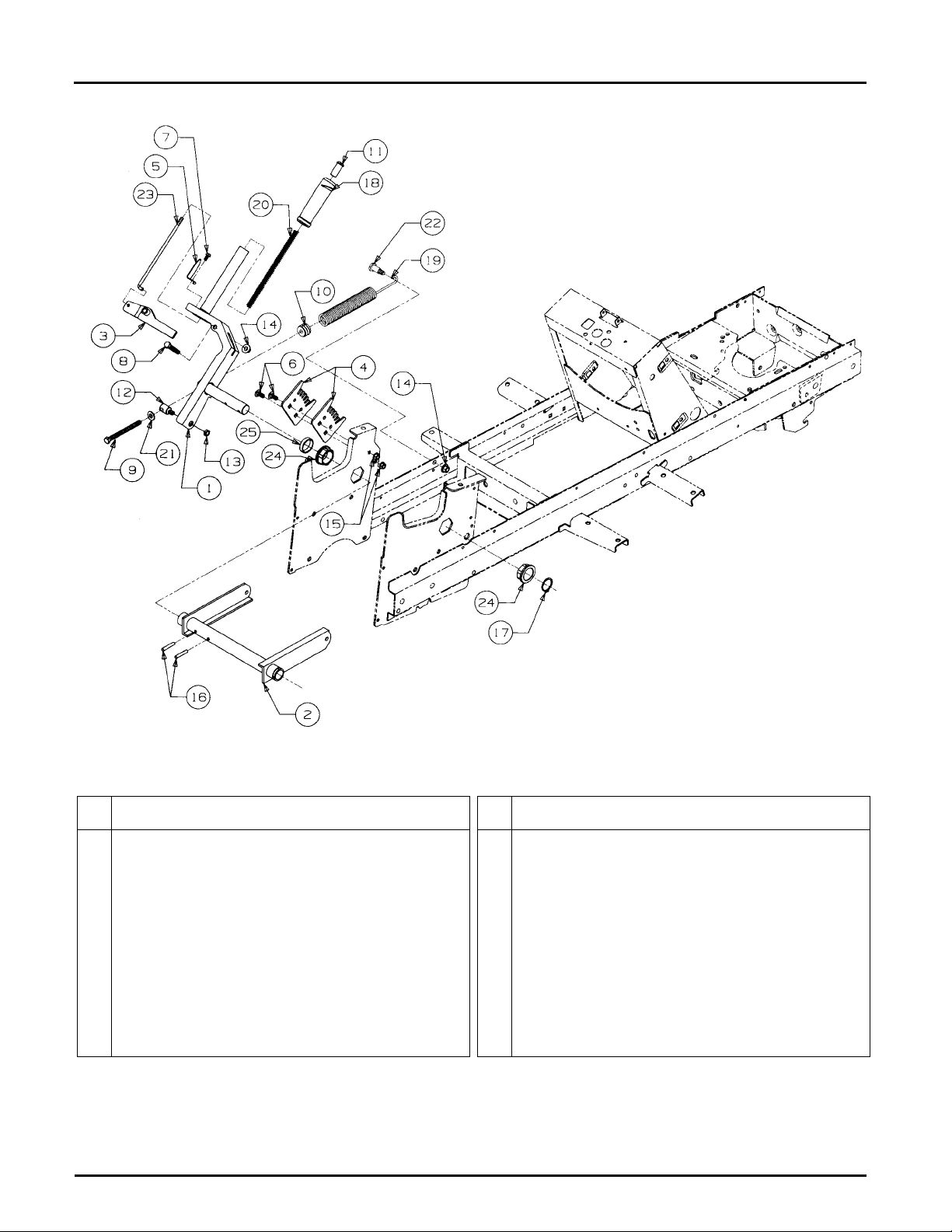

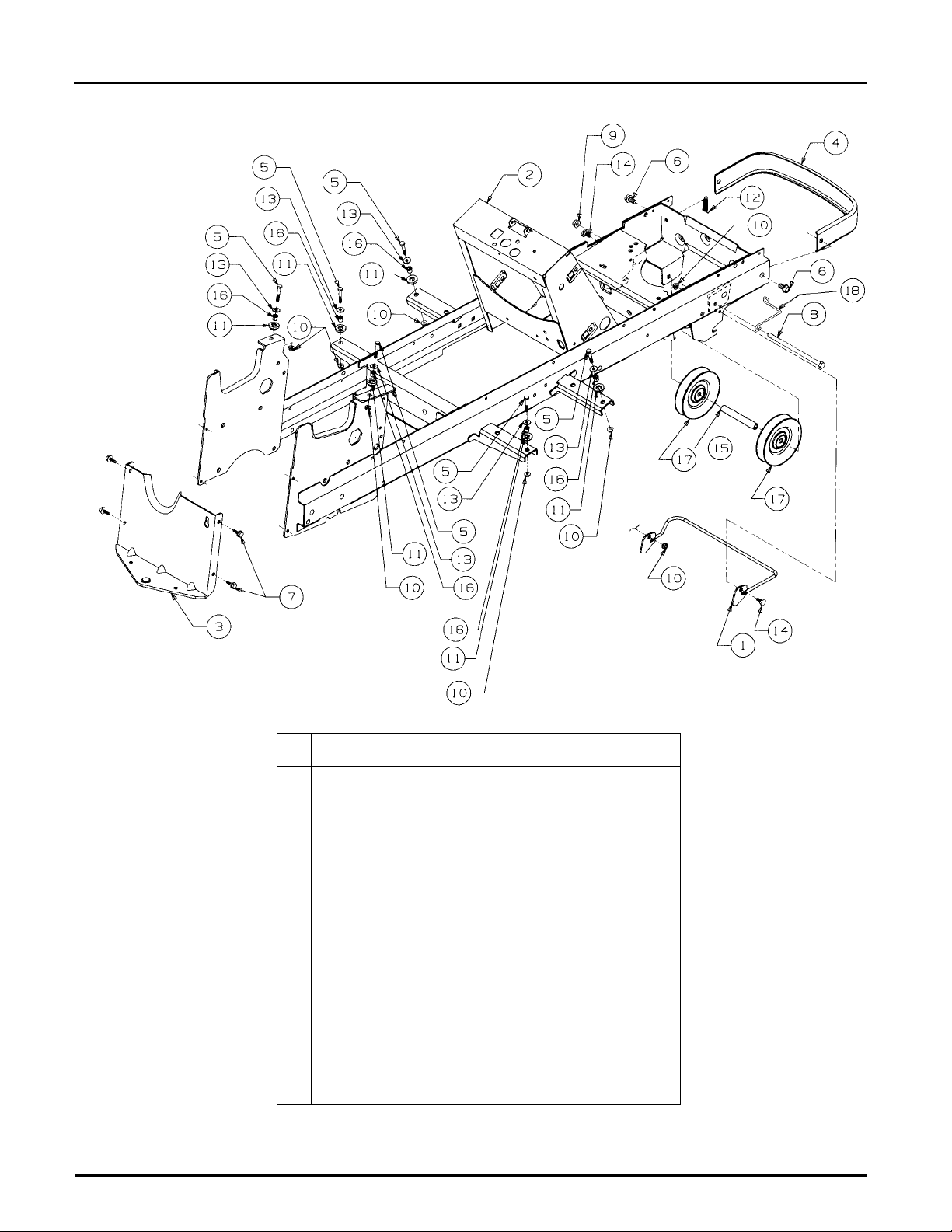

FRAME AND DRAWBAR

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0132 Rod, Quick Attach 1
2 603-0328A Frame 1
3 703-2257 Drawbar 1

777I20296 Graphic, Transmission Release Lever 1
4 703-2577 Bumper 1
5 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 6
6 710-0623 Screw, Hex Wsh Hd Tapp 3/8-16 x .75 2
7 710-1260A Screw, Hex Wsh Hd Tap 5/16-18 x .75 4
8 710-3261 Screw, Hex Cap, 3/8-16 x 7.0 1
9 712-0431 Nut, Hex Flange Lock, 3/8-16 1

10 712-3027 Nut, Hex Flange Lock, 1/4-20 8
11 722-0258 Grommet, Insulator 6
12 732-3002 Spring, Latch 1
13 736-3090 Washer, Flat, .255 x .72 x .60 6
14 738-0255 Bolt, Shoulder 2
15 750-3114A Spacer, Idler, .407 x .720 x 4.38 1
16 750-3169 Spacer, .28 x .40 x .42 Lg 6
17 756-3045 Pulley, Idler 2
18 732-0970 Belt Guide 1

-17-

PTO CLUTCH

1

3

5

4

2

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 710-0757 Screw, Hex Cap, 7/16-20 x 1.5 GR5 1
2 711-0640 Stud, Clutch Stop 1
3 736-0171 Washer, Lock, 3/8 1
4 717-3403 Clutch Assy, PTO 1
5 736-3082A Washer, Flat, .445 x 1.5 x 1.72 Hdn 1

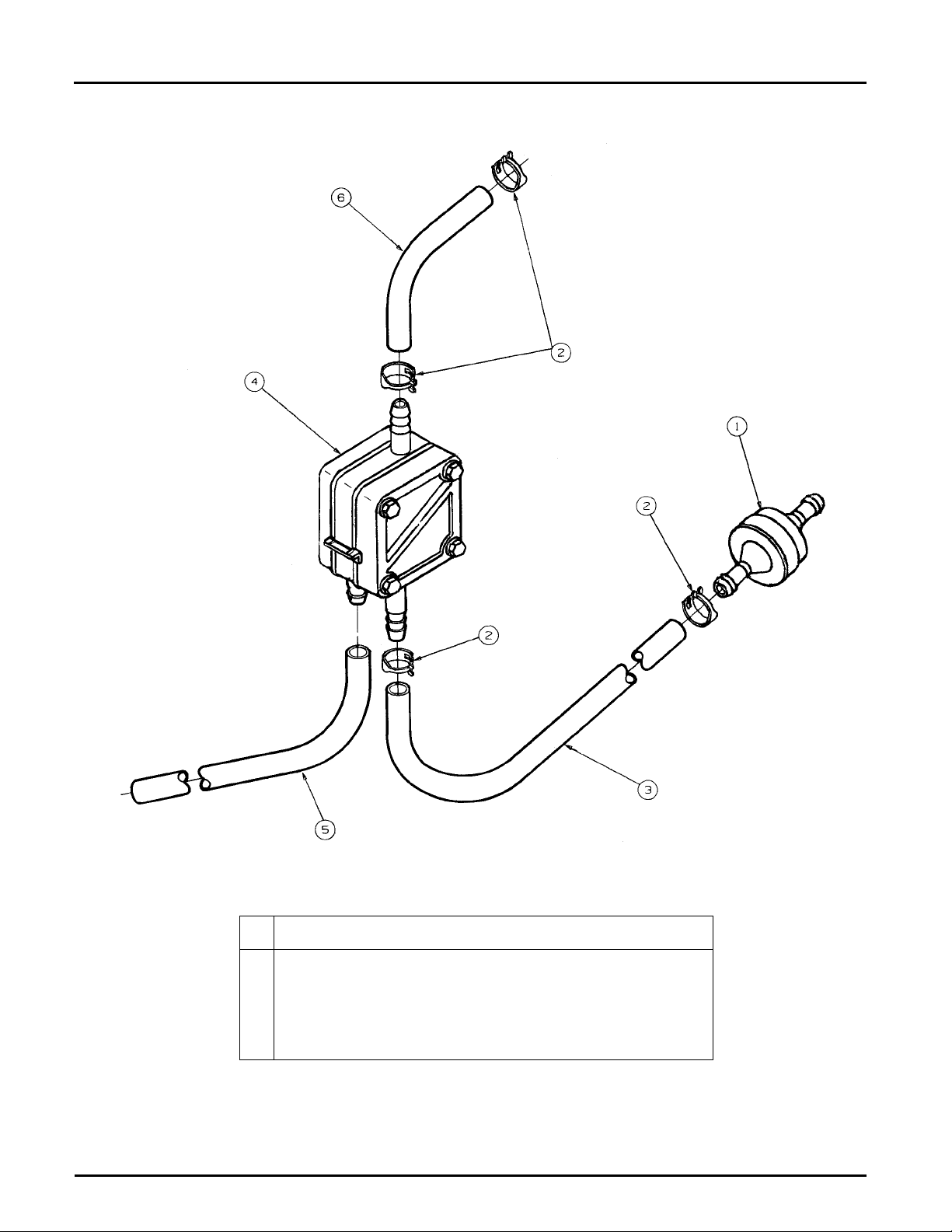

FUEL TANK

TO FUEL
FILTER

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 722-3020 Foam, 1.25 Sq x .62 Thk AR
2 722-3022 Tape, Foam, .625 Wide x .25 Thk AR
3 726-0205 Clamp, Hose 2
4 759-3330 Line,Fuel, 72” (Shipped In 10ft Length) 1
5 751-3112 Tank, Fuel 1
6 751-3124B Cap, Fuel 1
† 723-3066 Insulator, Foam Fuel LIne 1

† Not Shown

-18-

ENGINE MOUNTING AND MUFFLER

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 651-3001 Muffler Assembly 1
2 703-3099 Sheild, Muffler Tube 1
3 736-0119 Washer, Lock, 5/16 2
4 710-1268 Screw, Hex Wsh Hd Tap, #10-16 x .38 2
5 710-0539 Bolt, Eng Mount, 3/8-24 x 1.75 GR5 4
6 710-3175 Screw, Hex Hd Cap, M8 x 1.25 x 14 2
7 712-3004A Nut, Hex Flange Lock, 5/16-18 3
8 712-3054 Nut, Hex Lock, 3/8-24 4

9 736-0105 Washer, Bell, .380 x .88 x .062 4
10 751-0806 Tube, Exhaust 1
11 759-3744 Arrestor, Spark 1
12 ME-155-2378 Gasket, Exhaust 1

-19-

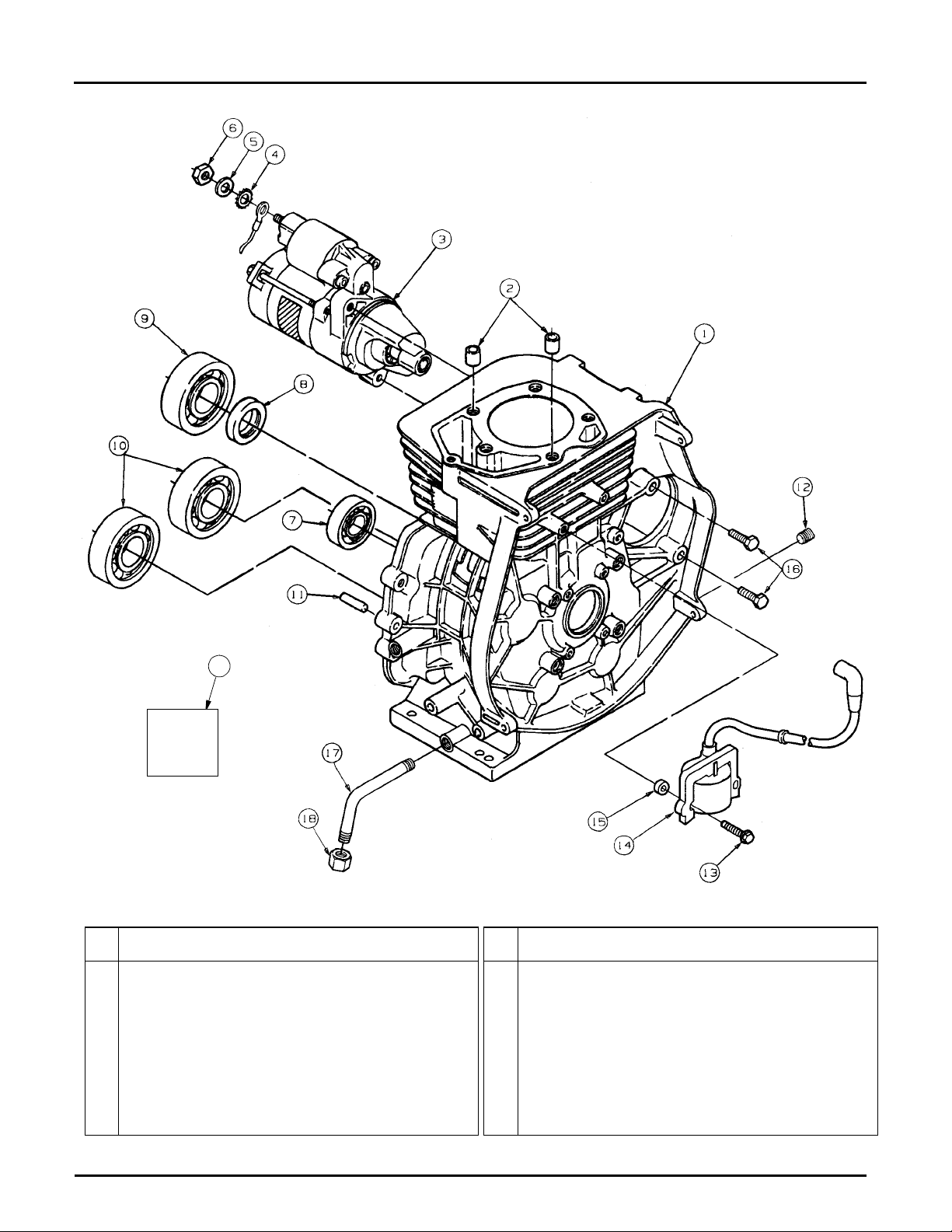

CYLINDER BLOCK

19

Engine

Gasket

Set

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-ZX390/11317D Engine, Complete 1
2 ME-110-3892 Pin, Hollow Dowel 2
3 ME-191-2107 Starter 1
4 ME-853-0016 Washer, ET Lock, 5/16 1
5 ME-526-0115 Washer, Flat, 5/16 1
6 ME-860-2008 Nut, Hex, M8 x 1.25 1
7 ME-510-0162 Bearing, Camshaft 1
8 ME- 509-0258 Seal, Crankshaft Oil 1
9 ME-510-0160 Bearing, Crankshaft 1

10 ME-510-0163 Bearing, Balancer Shaft 2

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

11 ME-775-0074 Pin, Alignment 2
12 ME-505-0180 Plug, 1/4 NPT Countersunk Hd 2
13 ME-823-0003-07 Screw, Pan Head, M6 x 1 x 30 2
14 ME-166-0832 Coil, Ignition 1
15 ME-166-0837 Spacer, Ignition Coil, M6 x 30 2
16 ME-718-1040 Screw, Hex Hd, M8 x 1.25 x 40 2
17 751-3132 Pipe, Oil Drain 1
18 751-3129 Cap, Oil Drain 1
19 ME-102-1441 Gasket Set, Engine 1

-20-

CRANKSHAFT

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-104-1925-04 Crankshaft Assy (Incl Ref #2-5) 1
2 ME-104-1718 Plug, Expansion 1
3 ME-515-0310 Key, Crankshaft Gear 1
4 ME-104-1856 Gear, Crankshaft 1
5 ME-104-1855 Gear, Balancer 1
6 ME-104-1721-01 Shim, Crankshaft, .2mm AR

ME-104-1721-02 Shim, Crankshaft, .3mm AR
ME-104-1721-03 Shim, Crankshaft, .4mm AR
ME-104-1721-05 Shim, Crankshaft, .5mm AR
ME-104-1721-07 Shim, Crankshaft, .6mm AR
ME-104-1721-08 Shim, Crankshaft, .7mm AR

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

7 ME-104-1816-04 Shaft Assy, Balancer (Incl Gear) 1
8 ME-104-1816-03 Shaft Assy, Balancer (Incl Gear) 1
9 ME-104-1809-01 Shim, Balancer Shaft, .5mm AR

ME-104-1809-02 Shim, Balancer Shaft, .6mm AR
ME-104-1809-03 Shim, Balancer Shaft, .7mm AR
ME-104-1809-04 Shim, Balancer Shaft, .8mm AR
ME-104-1809-05 Shim, Balancer Shaft, .9mm AR
ME-104-1809-06 Shim, Balancer Shaft, 1.0mm AR
ME-104-1809-07 Shim, Balancer Shaft, 1.2mm AR

-21-

CAMSHAFT

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-105-0649-01 Shim, Camshaft, .5mm AR

ME-105-0649-02 Shim, Camshaft, .6mm AR
ME-105-0649-03 Shim, Camshaft, .8mm AR
ME-105-0649-04 Shim, Camshaft, .9mm AR
ME-105-0649-05 Shim, Camshaft, 1.0mm AR
ME-105-0649-06 Shim, Camshaft, 1.2mm AR

2 ME-6000-0115 Camshaft Assy (Includes Camgear) 1

-22-

PISTON

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-113-0330 Ring Set, Piston, Std 1

ME-113-0330-01 Ring Set, Piston, .25 OS 1
ME-113-0330-02 Ring Set, Piston, .50 OS 1

2 ME-112-0276 Piston, Std (Incl Ref # 1, 3-4) 1

ME-112-0276-01 Piston, .25 OS 1

ME-112-0276-02 Piston, .50 OS 1
3 ME-112-0244 Pin, Piston 1
4 ME-112-0245 Ring, Retaining 2
5 ME-114-0357 Rod, Connecting (Includes Bolts) 1

ME-114-0357-01 Rod, Connecting, .25 Under 1

ME-114-0357-02 Rod, Connecting, .50 Under 1
6 ME-114-0356 Washer, Connecting Rod 2
7 ME-114-0355 Bolt, Connecting Rod 2

-23-

GEARCASE

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-103-0825-03 Gearcase 1
2 ME-815-0829-03 Screw, Hex Hd, TT, M8x1.25x 70 1
3 ME-815-0829-01 Screw, Hex Hd, TT, M8x1.25x 35 1
4 ME-120-1313 Oil Pump 1
5 ME-509-0253 O-Ring 1
6 ME-120-1299-02 Cover, Oil Pump 1
7 ME-823-0003-05 Screw, Torx Pan Hd, M6 x 1 x 14 3
8 ME-502-0313 Elbow, 90° Hose 1

9 ME-815-0829-02 Screw, Hex Hd TT, M8 x 1.25x 50 7
10 ME-122-0737-02 Filter, Oil 1
11 ME-122-0475 Adapter, Oil Filter 1
12 ME-309-0615 Switch, Oil Pressure 1
13 ME-775-0069 Shaft, Governor 1

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

14 ME-526-2078 Washer, Flat, Special 1
15 ME-150-2272 Gear, Gov(Incl Shafts & Weights) 1
16 ME-150-2547 Retainer, Governor Gear 1
17 ME-150-2754 Sleeve, Governor 1
18 ME-510-0160 Bearing, Crankshaft 1
19 ME-509-0258 Seal, Crankshaft Oil 1
20 ME-110-3833 Gasket, Gearcase 1
21 ME-518-0560 Ring, Retaining 1
22 ME-120-0140 Spring, Relief Valve 1
23 ME-510-0195 Ball, Steel, 7.5mm OD 1
24 ME-823-0003-02 Screw, Torx Pan Hd, M6 x 1 x 14 2
25 ME-120-1295 Tube, Oil Pickup 1
26 ME-120-1298 Screen, Oil Pickup 1

-24-

CYLINDER HEAD

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-110-3912 Head Assy, Cyl (Incl Ref 2, 4-17) 1
2 ME-110-3911 Head, Cylinder (Incl Ref 6-10) 1
3 ME-110-3591 Gasket, Cylinder Head 1
4 ME-110-3578 Valve, Intake 1
5 ME-110-3579 Valve, Exhaust 1
6 ME-167-0763-03 Spark Plug 1
7 ME-155-2378 Gasket, Exhaust 1
8 ME-110-3693 Guide, Intake Valve 1

9 ME-110-3694 Guide, Exhaust Valve 1
10 ME-110-3580 Ring, Valve Guide 2
11 ME-110-3587 Washer, Valve Spring 2
12 ME-110-0289 Seal, Intake Valve Stem 1

ME-509-0330 Seal, Exhaust Valve Stem 1
13 ME-110-3822 Spring, Valve 2
14 ME-110-3825 Retainer, Intake Valve Spring 1
15 ME-110-3826 Retainer, Exhaust Valve Spring 1
16 ME-110-3827 Lock, Intake Valve 2
17 ME-110-2752 Lock, Exhaust Valve 2
18 ME-800-3026 Screw, Hex Flange, M6 x 1 x 25 7

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

19 ME-110-3863-04 Cover, Valve 1
20 ME-110-3595 Bolt, Cyl. Head, M10 x 1.5 x 125 1
21 ME-518-0566 Clip, Retainer 2
22 ME-115-0473 Washer, Rocker Arm 2
23 ME-115-0424 Rod, Push 2
24 ME-115-0423 Tappet 2
25 ME-115-0426 Arm Assy, Rocker (Incl Ref 26-27) 2
26 ME-115-0428 Nut, Lash Adjusting, M7 x .75 2
27 ME-115-0427 Screw, Lash Adj, M7 x .75 x 18 2
28 ME-115-0429 Shaft, Rocker Arm 1
29 ME-516-2004 Pin, Dowel 1
30 ME-110-3892 Pin, Hollow Dowel 1
31 ME-123-2030 Connector, Breather Tube 1
32 ME-110-3594 Bolt, Cyl Head, M10 x 1.5 x 86 2
33 ME-110-3596 Bolt, Cyl Head, M8 x 1.25 x 50 1
34 ME-740-1008 Washer, Flat, M10 1
35 ME-123-2014 Breather 1
36 ME-110-3593 Bolt, Cyl Head, M10 x 1.5 x 66 2
37 ME-110-3830-01 Gasket, Valve Cover 1

-25-

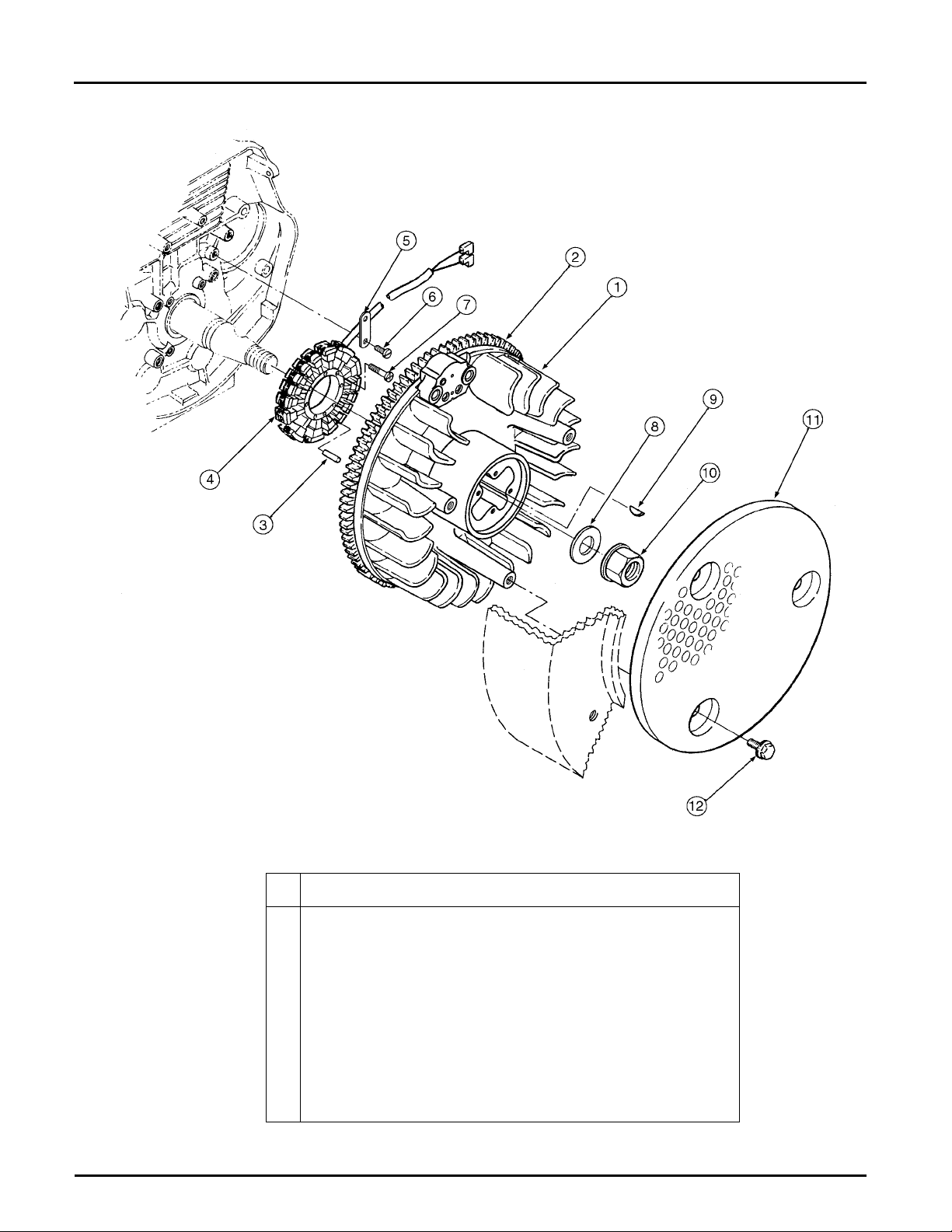

BLOWER WHEEL

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-134-5005-02 Wheel Assy, Blower (Incl Ref 2 & Magnets) 1
2 ME-134-4773 Gear, Ring 1
3 ME-775-0061 Pin, Alignment 2
4 ME-191-1456-04 Stator 1
5 ME-191-1967 Clamp, Cord 1
6 ME-823-0003-02 Screw, Pan Head 2
7 ME-815-0638-01 Screw, Button Head Machine, M6 x 1 x 20 2
8 ME-526-0405 Washer, Flat, M18 1

9 ME-515-0295 Key 1
10 ME-870-2060 Nut, Flange, M18 x 1.5 1
11 ME-134-5006-02 Screen, Chaff 1
12 ME-718-1017 Screw, Hex Hd Cap, M6 x 1 x 10 1

-26-

BLOWER HOUSING

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-134-5024-03 Housing, BLower 1
2 ME-821-2033 Screw, Hex Washer Lock, M6 x 1 x 16 3
3 ME-815-0753 Bolt, Hex Hd Cap, M6 x 14 1
4 ME-191-2207 Regulator, Voltage (VR1) 1
5 ME-815-0474 Screw, Hx Hd Sheet Metal, 1/4-14 x .5 2
6 ME-823-0002-04 Screw, Pan Hd Torx, M4 x .7 x 12 1
7 ME-338-3177 Harness, Engine (Incl Ref #8-10) 1
8 ME-323-1216 Housing, Receptacle 1
9 ME-323-1604 Connector 1

10 ME-323-1585 Body, Connector 1

-27-

GOVERNOR

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

ME-150-2660-02 Lever, Governor

1

ME-152-0343 Clip, Link

2

ME-150-2542 Spring, Governor

3

ME-152-0332 Link, Throttle

4

ME-518-0576 Circlip

5

ME-152-0346-03 Lever, Control

6

ME-851-0042 Washer, Wave Spring, M5

7

ME-145-0697 Pivot, Lever

8

ME-153-0663-03 Lever, Choke

9

ME-815-0793-07 Screw, Hex Flange, M5 x .8 x 30

10

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1
2
1
1
4
1
2
2
1
1

ME-815-0793-02 Screw, Hex Flange, M5 x .8 x 10

11

ME-152-0345-03 Bracket, Throttle Stop

12

ME-815-0793-04 Screw, Hex Flange, M5 x .8 x 16

13

ME-152-0344-03 Bracket, Throttle Lever

14

ME-153-0633-01 Clamp, Cable

15

ME-815-0359 Screw, Hx Hd TT #10-32 x 7/8

16

ME-150-2529 Shaft, Governor Lever

17

ME-509-0255 Seal, Governor Shaft Lever

18

ME-740-1006 Washer, Flat, M8

19

ME-870-0506 Nut, Nylon Lock

20

1
1
1
1
1
1
1
1
1
1

-28-

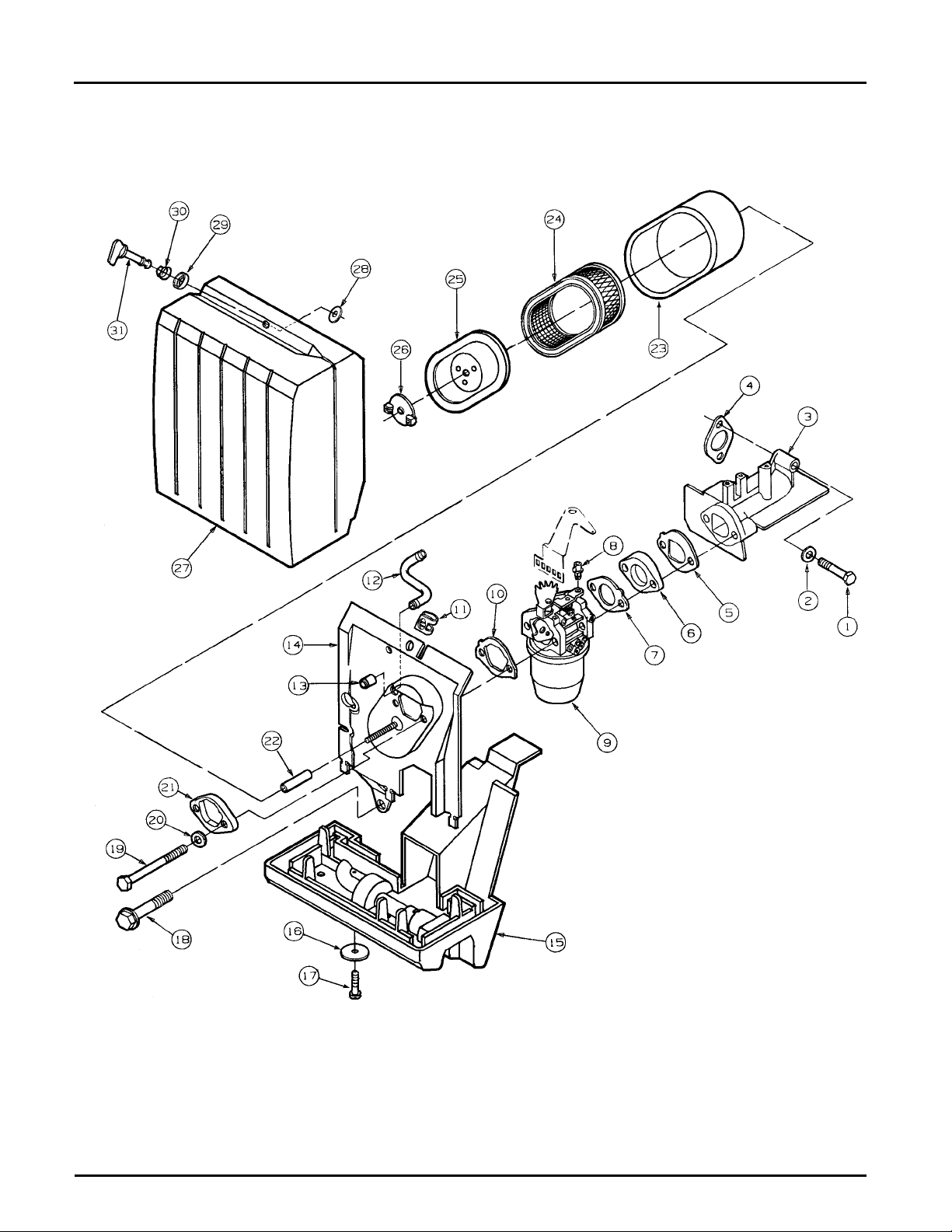

CARBURETOR

-29-

CARBURETOR

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

ME-800-2063 Screw, Hx Hd Cap, M8 x 1.25 x 50

1

ME-526-0115 Washer, Flat, M8

2

ME-154-2871 Elbow, Intake

3

ME-146-0584-01 Gasket, Intake

4

ME-146-0599 Gasket, Insulator

5

ME-146-0532 Insulator, Carburetor

6

ME-146-0600 Gasket, Insulator

7

ME-152-0343 Clip, Link

8

ME-146-0701 Carburetor, (Incl Ref #7 & 10)

9

ME-140-2771 Gasket, Air Cleaner

10

ME-406-0747 Receptacle, Fastener

11

ME-123-2031 Tube, Breather

12

ME-508-1094 Grommet

13

ME-140-2765-02 Pan Assembly, Air Cleaner

14

ME-140-2999 Duck, Air Inlet

15

ME-526-0408 Washer, Fender

16

ME-815-0527 Screw, Pan Hd TT, #10-16 x .5

17

ME-815-0829-04 Screw, Hx Hd TT, M8 x 1.25 x 16

18

ME-815-0816-01 Screw, Hx Hd TT, M6 x 1 x 90

19

ME-740-1004 Washer, Flat, M6

20

ME-745-0694 Support, Carburetor

21

ME-140-2536-05 Seal, Air Cleaner Spacer, .625

22

ME-140-2748-01 Wrapper, Air Filter

23

ME-140-3010 Filter, Air

24

ME-140-2674-01 Cover, Air Filter

25

ME-865-0029 Nut, Wing, 1/4-20

26

ME-140-2749 Cover, Air Cleaner

27

ME-406-0749 Washer, Nylon

28

ME-406-0750 Retainer

29

ME-406-0751 Spring

30

ME-406-0748 Fastener, 1/4 Turn

31

2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1

-30-

FUEL PUMP

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-149-2356 Filter, Fuel 1
2 ME-503-0731 Clamp, Hose 4
3 ME-503-1418 Hose, Bulk Fuel (1/4 x 230mm) 1
4 ME-149-2387 Pump, Fuel 1
5 ME-503-1418 Hose, Bulk Fuel, Pulse Line, 1/4 x 116mm 1
6 ME-503-1418 Hose, Bulk Fuel, Outlet, 1/4 x 54mm 1

-31-

AIR CYLINDER HOUSING

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 ME-134-4991-02 Housing, Air Cylinder 1
2 ME-815-0829-04 Screw, Hx Hd TT, M8 x 1.25 x 16 4
3 ME-509-0324 O-Ring, Lower 1
4 ME-123-1970 Tube, Oil Fill 1
5 ME-509-0304 O-Ring, Upper 1
6 ME-123-1972-01 Indicator and Cap Ass’y. 1
7 ME-821-2033 Screw, Hx Flange Lock, M6 x 1 x 16 1
8 ME-403-3632-02 Bracket, Lift 1

-32-

STARTER COMPONENTS

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

ME-185-2659 Frame, Starter

1

ME-185-2661 Holder, Brush

2

ME-185-2662 Spring, Brush

3

ME-185-2664 Insulator

4

ME-185-2965 Hose, Drain

5

ME-185-263 Bearing, Oilless

6

ME-185-6383 Frame Assy, End (Incl. Ref #6)

7

ME-185-2660 Bolt, Through

8

ME-185-2367 Nut

9

ME-870-0465 Nut

10

ME-185-2381 Washer, Spring

11

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1
1
4
1
1
1
1
2
1
1
1

ME-185-6381 Armature, Starter

12

ME-185-2658 Switch, Magnetic

13

ME-185-6382 Clutch

14

ME-185-6385 Nut, Pinion Stop

15

ME-185-6386 Ring, Snap

16

ME-185-2334 Nut

17

ME-185-6387 Washer, Plate

18

ME-185-2656 Lever, Starter Drive

19

ME-185-2706 Housing, Starter

20

ME-185-6384 Bearing, Oilless

21

ME-191-2107 Starter Assembly

1
1
1
2
1
2
1
1
1
1
1

-33-

SEAT AND SUPPORT

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 703-2394 Bracket, RH Seat Pivot 1
2 703-2395 Seat, Base 1
3 703-2477 Bracket, LH Seat Pivot 1
4 710-0451 Bolt, Carriage, 5/16-18 x .75 6
5 710-1260 Screw, Hex Wsh Hd Tap, 5-16-18 x .75 4
6 712-3004A Nut, Hex Flange Lock, 5/16-18 8
7 720-0190 Knob, Seat Adjuster 1
8 731-3154 Slide, Seat 4

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

9 732-3080 Spring, Compression, 1.9 OD x 2.4 Lg 2
10 732-3098 Adjuster, Seat 1
11 738-0140 Bolt, Shoulder 2
12 738-0372 Spacer, Shoulder 4
13 757-3003 Seat, Medium Back 1
14 777D03267 Graphic, Seat Back 1
15 777I20310 Graphic, Seat Adjuster 1
16 777D01782 Graphic, Made in USA 1

-34-

GRILLE, HOOD AND SIDE PANELS

-35-

GRILLE, HOOD AND SIDE PANELS

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0211 Bracket, Grille LH 1
2 603-0212 Bracket, Grille RH 1
3 603-0583 Bracket, Upper Hood 1
4 703-2396 Panel, RH Side 1
5 703-2397 Panel, LH Side 1
6 703-2398 Grille 1
7 703-2465 Link, Short Hood 2
8 703-2466A Link, Long Hood 2

9 703-2495 Screen, LH Panel 1
10 703-2496 Screen, RH Panel 1
12 710-0351 Screw, Truss Mach Tapp, #10 x .50 8
13 710-0599 Screw, Hex Wash Hd Tapp, 1/4 x .50 6
14 712-3027 Nut, Hex Flange Lock, 1/4-20 8
15 712-3087 Nut, Wing, 1/4-20 2
16 723-3059 Seal, Heat Baffle 1
17 726-0139 Nut, U-Type Speed, #10 2
19 625-0053 Headlight Assy (Includes Lamp and Socket) 1

725-0963 Lamp, 12V 2

725-1649 Socket, Lamp 2
20 777I20314 Graphic, Warning HOT 1
21 732-0334 Spring, Compression, .50 OD x .50 Lg 4
22 732-0855 Spring, Hood Latch 1
23 736-0175 Washer, Spring, .265 x .562 x .025 8
24 736-0400 Washer, Flat, .218 x .62 x .063 2
25 738-3141 Bolt, Shoulder, .31 Dia x .75 Lg 2
26 748-3055 Bushing, Tapered 4
27 759-3747 Hood, Series 2000 1
28 777D03263 Graphic, Hood RH 1

777D03264 Graphic, Hood LH 1
29 777D03291 Graphic, 2164 2
30 777X40079 Strip, Protective 2

-36-

FENDER AND RUNNING BOARD

-37-

FENDER AND RUNNING BOARD

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 731-3212 Cup Holder 1
2 631-3002 Cover, Implement Lift 1
3 703-2278B Fender 1
4 710-0751 Screw, Hex Cap, 1/4-20 x .62 6
5 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 6
6 710-1268 Screw, Hex Tapp, #10 x .38 Lg 6
7 712-3027 Nut, Hex Flange Lock, 1/4-20 12
8 722-0258 Grommet, Insolater 6

9 723-3042 Bushing, Snap, 7/8 ID 1
10 735-3046A Pad, RH Foot 1
11 735-3047 Pad, LH Foot 1
12 736-3090 Washer, Flat, .255 x .72 x .06 6
13 750-3169 Spacer, .28 ID x .40 OD x .42 Lg 6
14 759-3737 Running Board w/Graphic 1

777S30170 Graphic, Warning 1
15 777D00430 Graphic, Rear Fender 1
16 703-2628 Bracket, Fender Reinforcement 2

-38-

FRONT AXLE AND CONNECTIONS

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0066 Knuckle Assembly, Steering 2
2 710-3066 Screw, Hex Cap, 3/8-16 x 2.75 GR8 2
3 710-3103 Screw, Hex Cap, 5/16-18 x 2 GR5 2
4 712-3054 Nut, Hex Lock, 3/8-24 GR5 2
5 712-0431 Nut, Hex Flanged Lock, 3/8-16 2
6 712-3001 Nut, Hex Jam, 3/8-24 GR5 4
7 712-3004A Nut, Hex Flange Top Lock, 5/16-18 2
8 712-3083 Nut, Hex Top Nylon Lock, 1/2-13 1

9 719-3095 Axle, Front Pivot 1
10 723-0156 Joint, Ball, 3/8-24 4
11 736-0188 Washer, Flat, .760 x 1.49 x .06 Thk. 2
12 737-3000 Fitting, Lube, 3/16 Drive Type 3
13 738-3110 Bolt, Pivot Shoulder, 3/4 Dia x 2.23 1
14 747-3171 Rod, Tie 2
15 748-3049 Arm, Steering 2

-39-

IMPLEMENT LIFT HANDLE

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0057A Handle Assembly, Lift 1
2 603-0059 Shaft Assembly, Lift 1
3 603-0136 Fork, Lift 1
4 703-2239 Bracket, Lift Index 2
5 703-2558 Indicator, Lift Height 1
6 710-0451 Bolt, Carriage, 5/16-18 x .75 2
7 710-0599 Screw, Hex Wash Tapp, 1/4 x .5 1
8 710-3144 Screw, Hex Cap, 3/8-16 x 2 GR5 1

9 710-3279 Screw, Hex Cap, 3/8-16 x 4.25 GR5 1
10 711-0635 Inser, Spring 1
11 711-0642A Button, Handle 1
12 711-3350 Ferrule, Adjustment 1
13 712-0262 Nut, Hex Center Lock, Jam, 3/8-24 1

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

14 712-0431 Nut, Hex Flanged Lock, 3/8-16 2
15 712-3004A Nut, Hex Flanged Top Lock, 5/16-18 2
16 715-0114A Pin, Spiral Spring, 1/4 Dia x 1.5 2
17 716-0116 Ring, Snap, 1.25 Dia Shaft 1
18 731-3158 Grip, Lift Handle 1
19 732-3093 Spring, Extension 1
20 732-3097 Spring, Compression 1
21 736-0267 Washer, Flat, .385 x .87 x .06 1
22 738-0145 Bolt, Shoulder 1
23 747-3175 Rod, Index 1
24 748-3051 Bearing, Hex Flange, 1.25 ID 2
25 750-3131 Spacer, 1.28 ID x 1.5 OD x .335 Lg 1

-40-

IMPLEMENT LIFT HANGER

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0058 Bracket, RH Hanger 1
2 703-2234 Bracket, LH Hanger 1
3 703-2804 Plate, Bearing Mounting 2
4 703-2832 Link, RH Lift 1
5 703-2833 Link, LH Lift 1
6 710-3000 Screw, Hex Cap, 3/8-16 x .75 GR5 2
7 711-3319 Ferrule, Adjustment 1
8 712-0431 Nut, Hex Flange Lock, 3/8-16 7

9 712-3048 Nut, Hex Jam, 1/2-13 GR5 1
10 712-3083 Nut, Hex Insert Lock, 1/2-13 1
11 714-0145 Pin, Internal Cotter 1
12 736-0326 Washer, Flat, .5 x 1.5 x .15 3
13 736-3069 Washer, Flat, .531 x .875 x .15 2
14 738-0430 Bolt, Shoulder 2
15 738-0507B Bolt, Shoulder 3

-41-

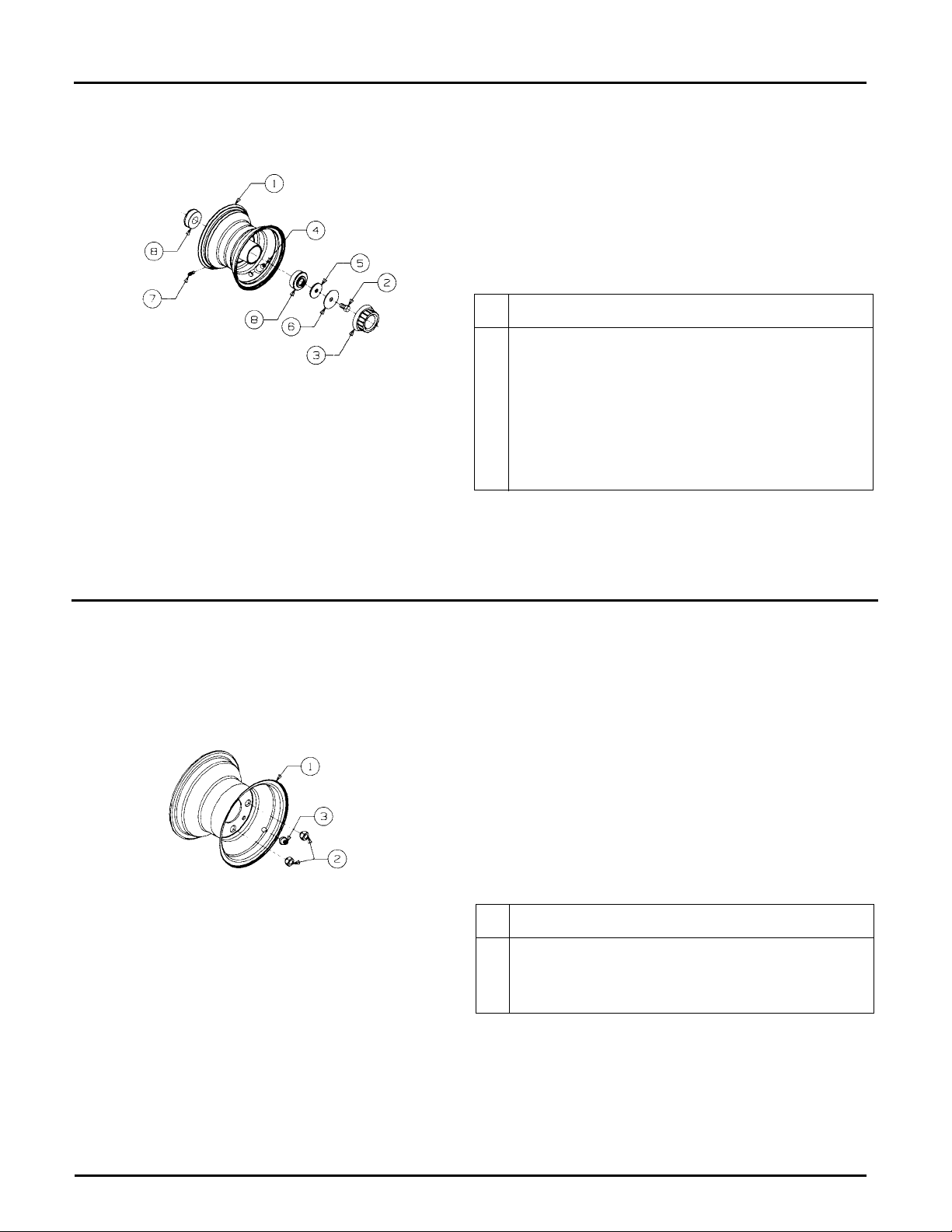

FRONT WHEEL

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

734-3186 Tire, Cub Tread, 15 x 6 x 6 2
1 634-3015 Rim Assy, Front 2
2 710-3119 Bolt, Hex Patch, 3/8-16 x .75 GR5 2
3 731-3020 Cap, Hub 2
4 734-0255 Valve, Tubeless Air 2
5 736-3039 Washer, Flat, .406 x 1.5 x .110 2
6 736-3040 Washer, Flat, .406 x 1.92 x .06 2
7 737-0224 Fitting, Grease 2
8 741-3032 Bearing, Ball 4

REAR WHEEL

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

734-3189 Tire, Cub Tread, 20x 9 x 8 2

1 634-3005 Rim Assy, Rear 2
2 712-3050 Nut, Lug, 7/16-14 8
3 734-0255 Valve, Tubeless Air 2

33

-42-

38” DECK ASSEMBLY

34

3

19

15

6

2

16

16

8

32

18

19

34

32

18

37

35

31

13

38

30

29

29

21

A

31

10

16

16

38

7

35

B

9

20

24

14

42

44

43

4

40

41

15

15

36

15

10

11

30

17

15

25

36

16

28

27

21

28

1

15

30

17

15

12

17

22

10

12

B

A

5

26

23

39

-43-

38” DECK ASSEMBLY

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0181A Plate Assembly, Mounting 1
2 603-0199 Handle, Tension 1
3 603-0200 Bracket, Front Lift 1
4 603-0408A Deck Assembly, 38” 1

777S30010 Graphic, Danger Top/RH Deck 1
777S30014 Graphic, Tension Lever 1
777S30018 Graphic, Safety Top/LH Deck 1

777S30012 Graphic, Assembly Chute 1
5 703-1693 Bracket, Hinge Mounting 1
6 703-2559 Bracket, Handle Stop 1
7 703-3237 Shield, RH Pulley 1
8 703-2945 Shield, LH Pulley 1
9 710-0751 Screw, Hex Cap, 1/4-20 x .62 GR5 2

10 710-1260A Screw, Hx Wsh Hd Tapp, 5/16-18 x .75 3
11 710-3008 Screw, Hex Cap, 5/16-18 x .75 GR5 2
12 710-3178 Bolt, Carriage, 3/8-16 x .75 3
13 711-0792 Pin, Hinge, .25 Dia x 6.75 Lg 1
14 711-3314 Pin, Roller, 1/2 Dia x 7.31 Lg 1
15 712-0431 Nut, Hex Flange Lock, 3/8-16 10
16 712-3004A Nut, Hex Flange Lock, 5/16-18 GR5 5
17 712-3006 Nut, Hex, 1/4-20 4
18 712-3048 Nut, Hex Jam, 1/2-13 GR5 2
19 712-3083 Nut, Hex Insert Lock, 1/2-13 2
20 714-3004 Pin, Cotter, 3/32 x 1.25 1
21 715-3003 Pin, Spirol Spring, 3/16 x .75 2
22 726-0106 Cap, Speed Nut 1
23 731-1032 Deflector Assy, (Incl. Ref #5, 13, 22, 26) 1
24 731-3005 Roller 1
25 732-0262 Spring, Extension, .88 OD x 6.12 1
26 732-0602 Spring, Torsion 1
27 732-3115 Spring, Extension, 1.25 OD x 8.15 1
28 732-3127 Spring, Compression 2
29 734-0973 Wheel, Deck, 5 in. Dia 2
30 736-0270 Washer, Bell, .265 x .75 x .062 4
31 736-0272 Washer, Flat, .510 x 1.0 x .060 4
32 736-0921 Washer, Lock, 1/2 2
33 738-0143 Bolt, Shoulder, .498 Dia x .340 Lg 1
34 738-507B Bolt, Shoulder, .50 Dia x .434 Lg 2
35 738-0533 Bolt, Shoulder, .498 Dia x 1.64 Lg 2
36 738-0572 Bolt, Shoulder, .375 Dia x 1.16 Lg 2
37 747-3172 Rod, Front Lift 1
38 747-3188 Pin, Mower Support 2
39 777S30145 Graphic, Danger 1
40 703-1890 Wheel, Deck w/Fitting 2

737-0280 Lube Fitting 2

41 738-3056 Bolt, Shoulder, 1/2 x 2.5 2
42 736-0105 Washer, Bell, .401 x .870 x .063 2

31

-44-

38” SPINDLE ASSEMBLY

5

18

21

27

12

33

15

20

17

26

20

16

6

1

10

32

19

2

9

3

4

14

25

25

12

21

36

34

19

8

30

25

25

40

13

22

23

29

28

24

23

22

13

36

35

7

11

39

41

37

7

38

-45-

38” SPINDLE ASSEMBLY

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 603-0172 Pivot Arm, Double Pulley 1
2 603-0181A Plate Assembly, Mounting 1
3 703-2463 Arm, Idler 1
4 710-0520 Screw, Hex Cap, 3/8-16 x 1.5 GR5 1
5 710-0923 Screw, Hex Cap, 5/8-18 x 3.0 GR5 1
6 710-1010 Screw, Hex Cap, 1/2-20 x 3.0 GR8 1
7 710-1260 Screw, Hx Wsh Hd Tapp, 5/16-18 x .75 8
8 710-1336 Bolt, Spindle, 3/4-16 x 4.25 2

9 712-0239 Nut, Hex Center Lock, 1/2-20 1
10 712-0431 Nut, Hex Flange Lock, 3/8-16 1
11 712-3078 Nut, Hex Flange, 3/4-16 2
12 716-3020 Snap Ring, Internal 2
13 721-3018 Seal, Oil, 1.25 x 1.874 x .25 4
14 732-0262 Spring, Extension, .88 x 6.12 1
15 732-3115 Spring, Extension, 1.25 x 8.15 1
16 736-0100 Washer, Flat, .531 x 1.25 x .036 1
17 736-0179 Washer, Flat, .531 x 1.25 x .100 1
18 736-0290 Washer, Flat, .63 x 1.0 x .063 Hdn 1
19 737-3000 Fitting, 3/16 Drive Lube 3
20 741-0338 Bearing, Flange, 3/4 ID x .53 Lg 2
21 741-0524 Bearing, Ball, .62 ID x 1.57 OD 2
22 741-3028 Cone, Bearing 4
23 741-3029 Cup, Bearing 4
24 741-3031 Spacer, Bearing 2
25 748-3065 Spacer, Deck Spindle 4
26 750-0656 Spacer, Idlr Brkt .50 ID x .75 OD x 2.25 1
27 750-3132 Spacer, Pulley, .635 ID x .88 OD x 1.25 1
28 750-3190 Spacer, Bearing, .780 x .963 x .7777 2
29 750-3191 Spacer, Bearing, 1.615 x 1.86 x .8427 2
30 754-3029 Belt, Spindle, A-Section x 59 Lg 1
31 754-3055A Belt, PTO, B-Section x 112.4 Lg 1
32 756-0627 Pulley, Flat Idler, 3.5 OD 1
33 756-3070 Pulley, Double 1
34 756-3089 V-Pulley, 4.0 Dia 2
35 759-3829 Blade, 3 In One, 19.38 Lg 2
36 918-3129 Spindle Assy, (Incl. Ref #13, 22- 24, 28-29) 2
37 731-1643A Plug, Mulch 1
38 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 GR5 1
39 712-3006 Nut, Hex, 1/4-20 1
40 712-3087 Nut, Wing, 1/4-20 1
41 736-0173 Washer, Flat, .28 x .74 x .063 1
