OperatOr’s Manual

Twin Rear Bagger - Model No. 19C70020100

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Printed In USA

FORM NO. 769-09947A

August 21, 2014

To The Owner

Thank You

Thank you for purchasing a bagging attachment manufactured
by Cub Cadet. It was carefully engineered to provide excellent
performance when properly operated and maintained.

Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your equipment. Please be sure that you, and any
other persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.

All information in this manual is relative to the most recent
product information available at the time of printing. Review this
manual frequently to familiarize yourself with the equipment,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. Cub Cadet
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.

Table of Contents

Safe Operation Practices ........................................ 3

Carton Contents & Hardware Packs ...................... 6

Assembly & Installation .......................................... 8

1

If you have any problems or questions concerning this
equipment, phone your local Cub Cadet dealer or contact us
directly. Cub Cadet’s Customer Support telephone numbers,
website address and mailing address can be found on this page.
We want to ensure your complete satisfaction at all times.

Throughout this manual, all references to right and left side of the
machine are observed from the operating position.

Operation ................................................................15

Parts List ..................................................................18

Warranty ..................................................Back Cover

Record Product Information

Before setting up and operating your new equipment, please
locate the model plate and record the information in the area
provided to the right. You can locate the model plate by looking
on the outside of the bagger cover. The model plate contains
the unit’s model and serial numbers. This information will be
necessary, should you seek technical support via our web site,
Customer Support Department, or with a local authorized service
dealer.

Model NuMber

Serial NuMber

Customer Support

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:

◊ Visit us on the web at www.cubcadet.com

See How-to Maintenance and Parts Installation Videos at www.cubcadet.com/tutorials

◊ Call a Customer Support Representative at (800) 965-4CUB

◊ Locate your nearest Cub Cadet Dealer at [phone]

◊ Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019

2

Important Safe Operation Practices

WARNING! This symbol points out important safety instructions which, if not followed,

could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!

DANGER! This attachment was built to be used according to the safe operation practices in
this manual. Carelessness or error on the part of the operator can result in serious injury.
Mowers are capable of amputating hands and feet and throwing objects. Failure to observe
the following safety instructions as well as the instructions provided with your mower, could
result in serious injury or death.

2

General Operation

1. Read, understand, and follow all instructions on your
equipment and in their manuals before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.

2. To help avoid blade contact or a thrown object injury, keep
bystanders, helpers, children and pets at least 75 feet from
the mower while it is in operation. Stop machine if anyone
enters the area.

3. Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.

4. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.

5. Do not operate the mower without the discharge cover
or entire grass catcher in its proper place. A missing
or damaged discharge cover or grass bag attachment
component may result in thrown objects or blade contact
injuries.

6. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade(s) can amputate
hands and feet.

7. Shut off mower’s engine and wait for blades to come to
a complete stop before unclogging mower’s discharge
opening or bagger parts.

8. Slow down before turning. Operate the machine smoothly.
Avoid erratic operation and excessive speed. Be aware
that a grass catcher attachment can affect the handling
characteristics of your mower.

9. Disengage blade(s), set parking brake, stop engine and wait
until the blade(s) come to a complete stop before opening
bagger attachment’s top cover, removing grass catcher,
emptying grass, unclogging chute, removing any grass or
debris, or making any adjustments.

10. Never leave a running machine unattended. Always turn
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.

11. Your machine is designed to cut normal residential grass of
a height no more than 10”. Do not attempt to mow through
unusually tall, dry grass (e.g., pasture) or piles of dry leaves.
Dry grass or leaves may contact the engine exhaust and/
or build up on the mower deck presenting a potential fire
hazard.

12. If situations occur which are not covered in this manual, use
care and good judgment. Contact your customer service
representative for assistance.

Slope Operation

Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. Attachments
can also affect the stability of the machine. All slopes require
extra caution.

For your safety, use the slope gauge included as part of this
manual to estimate the angle of slopes before operating this
machine on a sloped or hilly area. If the slope is greater than 10
degrees as shown on the slope gauge, do not operate the mower
with the grass bag attachment installed on that area or serious
injury could result.

Do:

1. Mow up and down slopes, not across. Exercise extreme
caution when changing direction on slopes.

2. Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.

3

3. Use slow speed. Choose a low enough speed setting so
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear
when going down slopes to take advantage of engine
braking action.

4. Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability.

5. Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which could
cause serious injury.

6. Avoid starting or stopping on a slope. If tires lose traction,
disengage the blade(s) and proceed slowly straight down
the slope.

Do Not:

1. Do not turn on slopes unless necessary; then, turn slowly
and gradually downhill, if possible.

2. Do not mow near drop-offs, ditches or embankments. The
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.

3. Do not try to stabilize the machine by putting your foot on
the ground.

4. Do not use a grass catcher on steep slopes.

5. Do not mow on wet grass. Reduced traction could cause
sliding.

General Service

1. Before cleaning, repairing, or inspecting, make certain the
blade(s) and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.

2. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.

3. Never tamper with your mower’s safety interlock system
or other safety devices. Check their proper operation
regularly.

4. Never attempt to make adjustments or repairs while the
mower’s engine is running.

5. Grass catcher components and the discharge cover are
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!

6. Maintain or replace safety and instruction labels, as
necessar y.

Safety Symbols

This table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.

Symbol Description

READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate

STOP
Turn off the engine before opening the bagger cover.

WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and

follow the warnings and instructions in this manual and on the machine.

SAVE THESE INSTRUCTIONS!

4 Section 2 — impo rtant Safe operation practiceS

To check the slope, proceed as follows:

1. Remove this page and fold along the dashed line.

2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.)

3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ).

4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2).

5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).

WARNING! Slopes are a major factor related to tip-over and roll-over accidents which can result in severe injury or death.

Do not operate machine on slopes in excess of 10 degrees. All slopes require extra caution. If you cannot back up the slope

or if you feel uneasy on it, do not mow it. Always mow up and down slopes, never across the face of slopes.

(OK) (TOO STEEP)

IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!

USE THIS SLOPE GAUGE TO DETERMINE

10° dashed line

10° Slope

Slope Gauge

Figure 2Figure 1

10° Slope

5Section 2 — impo rtant Safe operation practiceS

Contents of Carton

3

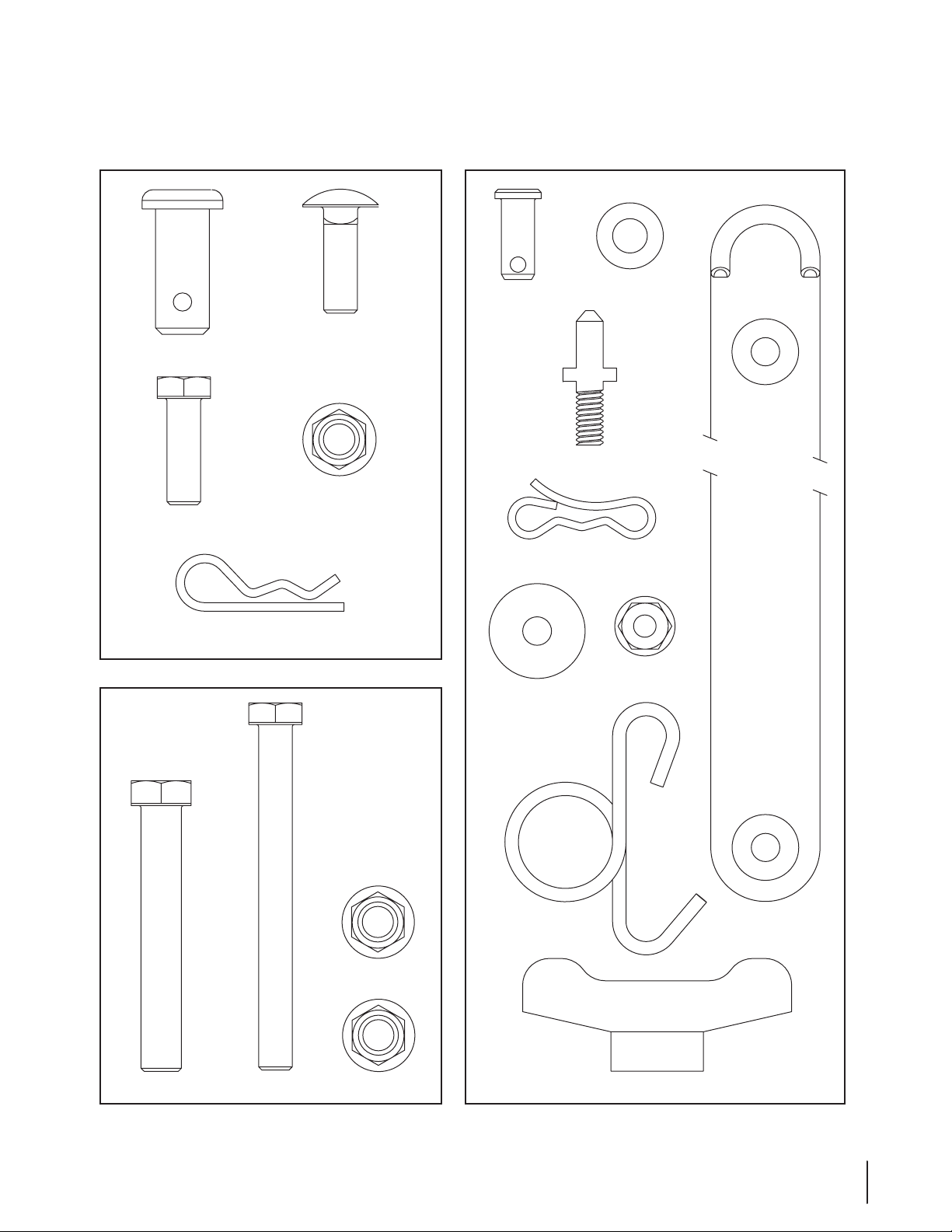

Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Fig. 3-1. Three hardware packs are included in this kit and are detailed on the following page.

• Hitch Bracket Kit (5 Pcs.)

• Discharge Chute Elbow

• Grass Catcher Cover

• Two Grass Bag Assemblies

• Upper Chute Tube

• Self-Adhesive Foam Strip

• Upper Chute Support

• Hinge Cover Pin

• Vertical Support Bracket

• Bag Support Assembly

• Bagger Weight

• Three Hardware Packs (De tailed & illustrated on nex t page)

Figure 3-1

6

CONTENTS OF HARDWARE PACK

This grass collector kit is shipped with three loose hardware packs enclosed and one set of hardware included in the mounting
bracket kit. Please check your hardware packs against the illustrations below. The quantities for each item is listed in parenthesis.

Hardware Pack 689-00320 Hardware Pack 689-00318A

911-0310

710-0376

(2)

(1)

914-04023

710-0276

712-04063

(2)

(5)

(6)

711-05063

(1)

711-05049

714-04040

(2)

(1)(1)

736-0204

(1)

(1)

(1)

710-0859

Hardware Pack 689-00325

(2)

(2)

710-3056

712-04063

712-04065

(2)

(2)

936-0176

732-04510A

912-3027

(1)

723-04008A

(1)

720-04122

7Section 3 — contentS o f carton

Assembly & Installation

4

NOTE: References to left, right, front and rear of the tractor are
from the operator’s position, unless otherwise stated.

• Before assembly, place the tractor on a firm, level surface,
disengage the PTO, stop the tractor engine and set the
parking brake.

• For convenience, pivot the seat forward and leave it in
that position until the grass collector is fully mounted and
assembled.

Assemble Mounting Brackets

To assemble the bagger mounting assembly, locate the
mounting assembly parts, as shown in Figure 4-1 in the previous
section, and follow these steps:

1. Attach the two hitch side brackets to the rear attachment
bracket using four 710-0276 carriage bolts and 712-04063
flange lock nuts from hardware pack 689-00320. See
Figure 4-1.

Mount Assembly on Tractor

Install mounting assembly on tractor as follows:

Note: Remove the rear bumper if equipped.

1. Slide the mounting bracket assembly along the frame rails
of the tractor until the hooks in the mounting brackets
align under the shoulder bolts on your tractor, as shown in
Figure 4-2.

Figure 4-1

Note: When assembling this mounting assembly, it is best to
not fully tighten the bracket at this time. This will facilitate the
mounting process in later steps, which will then require fully
tightening this mounting assembly.

Figure 4-2

2. Secure the mounting bracket assembly to the tractor using
two 911-0310 clevis pins and 914-04023 cotter pins from
hardware pack 689-00320. See Figure 4-3.

Figure 4-3

Note: Tighten all of the hardware on the mounting
assembly at this time.

8

1

2

3. Install the upright support bracket onto the mounting

42-inch Deck 46-inch Deck

1

2

2

3

4

assembly on the tractor by hooking it over the mounting
assembly between the two tabs as indicated in (1) Figure 4-4.

4. Secure the upright support bracket to the mounting
assembly in the proper mounting hole based on deck size,
with a 710-0376 hex bolt and 712-04063 flange lock nut
from hardware pack 689-00320. See (2) Figure 4-4.

Assembling Remaining Bagger Components

Now that the mounting brackets are assembled and are in place
on the tractor, follow these steps to assemble the remaining
bagger components.

1. Snap the plastic upper chute support in place by first
clipping the side portion onto the bagger support rail (1)
with the edge of the snap feature aligned with the line on
the label, as shown in the inset of Figure 4-6.

2. Snap the front side of the chute support to the rail (2), as
shown in Figure 4-6.

Figure 4-4

5. Install and secure the hanger assembly onto the upright
support bracket (3 in Figure 4-5) using a 710-0276 carriage
bolt and 712-04063 flange nut (4 in Figure 4-5) from
hardware pack 689-00320.

Figure 4-5

Note: The carriage bolt (710-0276), from hardware pack
689-00320, goes in the top hole with the nut facing the
engine. The hex bolt (710-0376), from the same hardware
pack, goes in the bottom hole.

3. If not already installed by the factory, install the
bagger screen into the bagger cover by first inserting one
end into the corresponding cutout mounting hole, as in
Figure 4-7. Make sure to feed the screen under the lip, as in
Figure 4-8.

Figure 4-6

Figure 4-7

9Section 4 — ASSemb ly & inStAllAtion

1

2

Make sure screen sits under the cover’s lip

Figure 4-8

4. Install the bagger cover onto the bag support assembly,
as shown in Figure 4-9. The plastic cover goes inside of the
two mounting tabs.

Figure 4-9

5. Slide the hinge pin into the hole located on the mounting
tab, as in Figure 4-10. Use the cut-out window (See inset in
Figure 4-10) to line up the hinge pin on the other side and
push pin all the way in until it reaches the end-stop. At this
point the pin clips into place and is secured by a tab in the
bagger cover. See Figure 4-11.

Figure 4-10

Figure 4-11

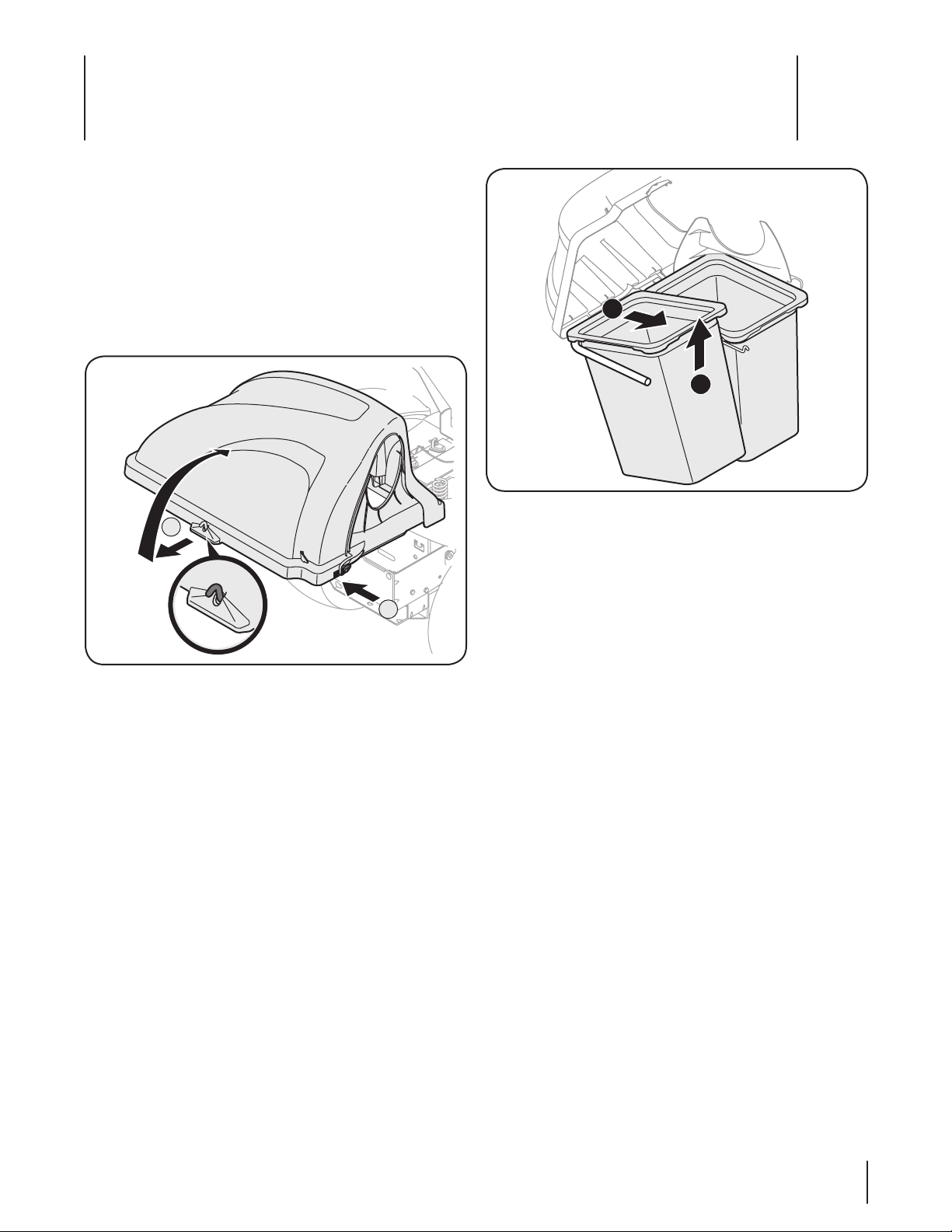

6. Open Hood by pushing in on the rear, right-side tab with your
right hand, as shown in 1 of Figure 4-12, and lifting the cover
with your left hand in the center rear of the bagger cover, 2.

10 Section 4 — ASSemb ly & inStAllAtion

Figure 4-12

7. Install both bag assemblies onto the bag support brackets

1

2

2

1

3

by inserting the front edge in first, as shown in 1 of Figure
4-13, and setting the back edge down until it fits into the
assembly (2).

4. Secure the chute elbow to the deck using the wing knob
720-04122 from hardware pack 689-00318A. See Figure
4-15.

Figure 4-13

Install the Deck Chute Elbow

Determine if your deck is a newer model, or an older model.
Refer to (1) in Figure 4-14. If your deck has a mounting stud
present, then you have a newer deck model and you should
refer to the instructions that follow. If no stud is present,
refer to the instructions titled On Tractors With Older Deck
Configurations later in this section.

1. Place deck into the lowest cutting position.

2. If present, remove the protective cap off of the mounting
stud on the mowing deck as shown in (1) of Figure 4-14.

3. With the tractor’s discharge chute raised up and held open (2),
install the chute elbow by placing the chute elbow mounting
pin into the hole provided (3), as shown in Figure 4-14.

Figure 4-15

IMPORTANT: Be certain that the bottom of the discharge

chute is positioned inside of the lip of the deck opening, as
shown in Figure 4-16.

Figure 4-16

Figure 4-14

11Section 4 — ASSemb ly & inStAllAtion

1

2

3

Tractors With Older Deck Configurations

Remove the Boot Mounting Rod

1. Install one of the rubber chute straps onto the chute
elbow using one of the supplied clevis pins (711-05063),
washer (736-0204) and Bow-tie cotter pins (714-04040) from
hardware pack 689-00318A. See Figure 4-17. Secure the end
of the strap utilizing the hole furthest from the end, insert the
smaller hook end of the torsion spring hook (732-04510A) into
the other end.

Note: On decks with front deck wheels, the boot mount
rod must be removed in order to install this discharge chute
elbow onto the tractor. See Figure 4-17.

Figure 4-18

Note: On decks without deck wheels, hook the retainer
strap into the hole provided in the flange on the front-side
of the cutting deck. See Figure 4-19.

Figure 4-17

2. Install the deck mounting pin (711-05049) up into the chute
elbow using two flat washers (936-0176) from hardware pack
689-00318A and secure with a flange lock nut (912-3027), as
shown in Figure 4-17.

3. Remove the boot mounting rod and hardware at indicated
in Figure 4-17.

4. With the tractor’s discharge chute raised up and held open,
install the chute elbow over the chute opening by placing
the deck mounting pin in the hole provided, as shown in
the upper inset of Figure 4-19, then secure the elbow to the
deck by hooking the retainer strap torsion spring hook over
the deck wheel mounting bracket as shown in Figure 4-18.

Figure 4-19

Note: When assembling this bagging unit on an older
deck, an extra wing knob, which is only needed on
installations on new decks, will be left over.

IMPORTANT: Be certain that the bottom of the discharge

chute is positioned inside of the lip of the deck opening, as
shown in Figure 4-16.

12 Sectio n 4 — ASSembly & inStAllAtion

Installing the Deck Chute

Flange

1. Peel the backing off of the self-adhesive foam strip
(721-04388) that has been included within your Carton of
Contents. Apply it to the upper chute, flush against the
flange as shown in Figure 4-20.

Figure 4-20

2. With the grass catcher cover open, install the upper
discharge chute through the discharge chute opening, as
shown in Figure 4-21.

3. With the ability now to wiggle the discharge chute tube
back and forth, slide it over the chute elbow mounted on
the cutting deck, as shown in Figure 4-22.

Figure 4-22

4. Continue to work the discharge chute down over the chute
elbow until the groove on the discharge chute aligns with
the upper chute support, as shown in the inset of Figure
4-23.

Figure 4-21

Figure 4-23

5. Close grass catcher cover.

6. Raise the deck back up into the desired cutting position.

13Sec tion 4 — ASSembly & inStAllAtion

Install The Counter Weight

The front weight kit is designed for use with all RZT-L (Lap
Bar) Residential Zero-turn models. The front weight kit is NOT
designed nor required for use with all RZT-S (Steering Wheel)
Residential Zero-turn models.

WARNING: This front-weight kit is required when

operating any compatible lap bar RZT-L models
equipped with a grass collector. Failure to install this
kit may result in serious injury or death.

WARNING: Before beginning installation, place

the RZT-L on a firm and level surface, set the parking
brake, place the PTO in the disengaged (OFF)
position, stop the motor and remove the ignition
key to prevent unintended starting.

Note: The front weight kit is not utilized on the RZT-S (Steering
Wheel) Residential Zero Turn units. Do not attempt to mount it
on RZT-S models, as it will not fit.

RZT models are available with two different front-end styles.
Identify your RZT using the images in the following instructions
and follow the applicable steps.

RZT Models with a Pivoting Front Axle

Note: Having a second person assist you by holding the weight
bar in place will ease in completing the following steps.

1. Insert the two 3 1⁄4-inch (710-3056) screws from hardware
pack 689-00325, into the weight bar.

2. Position the weight bar onto the foot rest and secure it in
place with two 3⁄” flange nuts (712-04065) from the same
hardware pack. See Figure 4-24.

Note: To hold and retain nut for tightening, it may
be necessary to insert the nut into the box end of a
combination wrench and slide up through the opening in
the floorboard.

RZT Models with a Fixed Front Axle

1. Attach the left mounting bracket and the right mounting
bracket to the weight bar using two 2⁄-inch screws (710-

0859), and ⁄” flange nuts (712-04065) from hardware pack
689-00325. See Figure 4-25.

Figure 4-25

2. Attach the weight bar assembly to the front axle with a 3
1⁄4-inch (710-3056) screw and (712-04063) flange nut from
hardware pack 689-00325 on the left side. Repeat on the
right side. Do not fully tighten at this time. See Figure 4-26.

Figure 4-24

14 Sectio n 4 — ASSembly & inStAllAtion

Figure 4-26

3. Visually center the weight bar assembly on the tractor
and tighten the hardware installed in step 2 to secure the
brackets to the front axle.

Operation

1

2

1

2

Bagger Usage

NOTE: When both grass bags are full, place the tractor on a firm,
level surface, disengage the PTO, turn the tractor engine off and
set the parking brake.

1. Pivot the seat forward.

2. Open the grass catcher hood by pushing in on the rear,
right-side tab with your right hand, as seen in 1 of Figure
5-1, and lifting the cover with your left hand in the center
rear of the bagger cover, 2.

4

Figure 5-2

5. Empty the grass clippings at a proper disposal site, use the
handle at the bottom of each grass bag. Holding the bag
firmly, empty the contents

6. Replace grass bags, close lid, flip down seat, restart your
tractor, release parking brake and resume cutting your
grass.

Figure 5-1

3. Do not remove the chute tube assembly from the tractor.

4. Remove the grass bags by lifting these up (1) and moving
the bags away from the bag support assembly (2). See
Figure 5-2.

15

Notes

16

17Notes

19C70020100 Parts List

2

16

17

11

7

35

15

5

12

12

22

15

34

13

5

30

36

29

9

12

3

8

4

27

7

18

6

25

14

1

28

23

18

26

26

31

10

12

20

19

24

21

33

32

Ref. Part Number Description

1. 603-05204 Upper Chute Assembly

2. 931-04292 Twin Bagger Cover Assembly

3. 731- 06497 Upper Chute Support

4. 731-06504 Bagger Cover Screen

5. 710 -0276 Carriage Screw, 5/16-18 x 1.00”

6. 710 - 0376 Hex Head Screw, 5/16-18 x 1.00”

7. 911 - 0310 Clevis Pin, .50” Dia. x 1.18

8. 964-04090A Grass-bag Assembly

9. 683-04461A-0637 Twin Bag Support Assembly

10. 683-04519B-0637 Vertical Support Bracket

11. 711 - 049 8 8 Cover Hinge Pin

12. 712-0 4 0 63 Flange Lock Nut, 5/16-18

13. 735-0246A End Plug

14. 731-09329A Discharge Chute Elbow

15. 689-00204A

16. 783-06168-0637 Universal Cross Bracket

17. 712-0 4 065 Flange Lock Nut, 3/8-16

18. 711-05063 Clevis Pin 5/16 x 3/4

19. 714-04040 Bow-Tie Cotter Pin

20. 736-0204 Flat Washer, .344 x .62 x .033

21. 732- 04510A Torsion Spring Hook

22. 914-04023 Cotter Pin, .080 x 1.5625 Internal

23. 711-05049 Grass-catcher Pin

24. 723-04008A Chute Strap

25. 912-3 027 Flange Lock Nut, 1/4-20

26. 936 -0176 Flat Washer

27. 721- 04388 Foam Strip

28. 72 0 -0 412 2 Wing Knob,

29. 710-3056 Hex Head Screw, 5/16-18 x 3.25

30. 719-04271A RZT Bagger Weight

31. 712- 0 406 4 Flange Lock Nut

32. 738-05040 Screw 1/4-20 x .750

33. 747-0 60 43 Rod, Lower Chute

34. 703 - 09193 Wt. Mount Bracket, RH

35. 703- 09197 Wt. Mount Bracket, LH

36. 710-0859 Hex Head Screw, 3/8-16 x 2.50

RZT Hitch Bracket Kit
(Incl. Ref. 15, 16, 34 & 35)

Parts List

19

CUB CADET LLC

MANUFACTURER’S LIMITED WARRANTY

FOR SEPARATELY SOLD ATTACHMENTS AND ACCESSORIES

IMPORTANT: To obtain warranty coverage owner may be required

to present an original proof of purchase and applicable maintenance
records to the servicing dealer. Please see the operator’s manual for
information on required maintenance and service intervals.

The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased or leased and used in the
United States and/or its territories and possessions, and by MTD
Products Limited with respect to new merchandise purchased or
leased and used in Canada and/or its territories and possessions
(either entity respectively, “Cub Cadet”).

Cub Cadet warrants this product (excluding its Normal Wear Parts, as
described below) against defects in material and workmanship for
a period of two (2) years commencing on the date of original retail
purchase or lease and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.

Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
original purchase or lease. Normal wear parts include, but are not
limited to items such as: belts, blades, blade adapters, grass bags,
rider deck wheels, seats, and tires.

This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s
Manual furnished with the product, and has not been subject to
misuse, abuse, neglect, accident, improper maintenance, alteration,
vandalism, theft, fire, water, or damage because of other peril or
natural disaster. Damage resulting from the installation or use of any
part, accessory or attachment not approved by Cub Cadet for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage. In addition, Cub Cadet may deny warranty
coverage if the hour meter, or any part thereof, is altered, modified,
disconnected or otherwise tampered with.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE AND APPLICABLE MAINTENANCE RECORDS,
through your local authorized service dealer. To locate the dealer in
your area:

In the U.S.A.
Check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, call 1-877-282- 8684
or log on to our website at www.cubcadet.com.

In Canada

Contact MTD Products Limited, Kitchener, ON N2G 4J1, call 1-800­668-1238 or log on to our website at www.mtdcanada.com.

Without limiting the foregoing, this limited warranty does not provide
coverage in the following cases:

a. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior
finish due to use or exposure.

b. Service completed by someone other than an authorized

service dealer.

c. Cub Cadet does not extend any warranty for products sold

or exported outside of the United States and/or Canada, and
their respective possessions and territories, except those sold
through Cub Cadet’s authorized channels of export distribution.

d. Replacement parts and\or accessories that are not genuine Cub

Cadet parts.

e. Transportation charges and service calls.

f. Commercial or Institutional Use.

There are no implied warranties, including without limitation
any implied warranty of merchantability or fitness for a
particular purpose. No warranties shall apply after the
applicable period of express written warranty above. No other
express warranties beyond those mentioned above, given by
any person or entity, including a dealer or retailer, with respect
to any product, shall bind Cub Cadet. The exclusive remedy is
repair or replacement of the product as set forth above.

The terms of this warranty provide the sole and exclusive
remedy arising from the sale and/or lease of the products
covered hereby. Cub Cadet shall not be liable for any incidental
or consequential loss or damage including, without limitation,
expenses incurred for substitute or replacement lawn care
services or for rental expenses to temporarily replace a
warranted product.

Some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how long an
implied warranty lasts, so the above exclusions or limitations may not
apply to you.

In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features
of the product shall void this warranty. You assume the risk and
liability for loss, damage, or injury to you and your property and/or to
others and their property arising out of the misuse or inability to use
the product.

This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.

HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights that vary in different jurisdictions.

GDOC-100177 REV. A

Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019, Phone: [phone]

MTD Products Limited, Kitchener, ON N2G 4J1, Phone: [phone]
