45” Snow Thrower Attachment — Model 190-353-100
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Form No. 769-06265
(July 23, 2010)
To The Owner
Thank You
Thank you for purchasing a Cub Cadet snow thrower attachment.
It was carefully engineered to provide excellent performance
when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve
the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local Cub Cadet dealer or contact us directly. Cub
Cadet’s Customer Support telephone numbers, website address
and mailing address can be found on this page. We want to
ensure your complete satisfaction at all times.
The Cub Cadet 45-inch Snow Thrower Attachment, Model Number
190-353, is designed for use on Cub Cadet Series 3000 Tractors.
Contained in this manual are instructions for the installation and
use of the snow thrower assembly with these tractors.
1
Please keep this manual. The instructions in this manual explain
the minor assembly required; installation and seasonal removal;
and the adjustment, operating and maintenance procedures
for the snow thrower assembly. Read this manual carefully to
familiarize yourself with the equipment before you install and
operate the snow thrower.
The Front Hitch System, Model 190-343-100, MUST be installed
on the tractor to allow installation of the Snow Thrower
Attachment. The Hydraulic Angling Kit accessory, Model 190-288100, for the Front Hitch System SHOULD NOT be used with the
Snow Thrower Attachment. Accidental activation of the angling
system could cause damage to both the snow thrower and
tractor.
WARNING! To increase traction and stability of the
tractor when using the snow thrower attachment, it
is recommended that rear wheel weights, or the rear
weight bracket with a minimum of three suitcase
weights, be installed on the tractor. The Rear Wheel
Weight Kit is available through your Cub Cadet
dealer by ordering kit number 190-412. The Rear Weight Bracket
Kit is available as kit number 190-413, which includes only the
bracket and mounting hardware. The individual suitcase weights
can be ordered under part number 759-3389.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
Table of Contents
Safe Operation Practices ........................................ 3
Contents of Carton .................................................. 6
Set-Up & Assembly ................................................. 8
Installation & Removal ..........................................12
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. This information
will be necessary, should you seek technical support via our web
site or with your local Cub Cadet dealer.
Adjustments & Operation ......................................15
Maintenance .........................................................18
Warranty ..................................................Back Cover
MO d e l nu M b e r
se r i a l nu M b e r
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.cubcadet.com◊
Locate your nearest Cub Cadet Dealer at (877) 282-8684◊
Write to Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊
2
Important Safe Operation Practices
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
CALIFORNIA PROPOSITION 65
WARNING! Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing foreign objects. Failure to observe the following safety
instructions could result in serious injury or death.
2
Training
Read, understand, and follow all instructions on the 1.
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
Be familiar with all controls and their proper operation. 2.
Know how to stop the machine and disengage them
quick ly.
Never allow children under 14 years old to operate this 3.
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
Never allow adults to operate this machine without proper 4.
instruction.
Thrown objects can cause serious personal injury. Plan 5.
your snow throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
Keep bystanders, pets and children at least 75 feet from the 6.
machine while it is in operation. Stop machine if anyone
enters the area.
Exercise caution while operating tractor with this 7.
attachment, especially when traveling in reverse.
Preparation
Thoroughly inspect the area where the equipment is to be 1.
used. Remove all door mats, newspapers, sleds, boards, wires
and other foreign objects which could be thrown by the
auger/impeller.
Always wear safety glasses or eye shields during operation and 2.
while performing an adjustment or repair to protect your eyes.
Thrown objects which ricochet can cause serious injury to the
eyes.
Do not operate without wearing adequate winter outer 3.
garments. Do not wear jewelry, long scarves or other loose
clothing which could become entangled in moving parts. Wear
footwear which will improve footing on slippery surfaces.
Adjust collector housing height to clear gravel or crushed rock 4.
surfaces.
Disengage all clutches and shift into neutral before starting the 5.
engine.
Never attempt to make any adjustments while engine is 6.
running, except where specifically recommended in the
operator’s manual(s).
Let tractor engine and attachment adjust to outdoor 7.
temperature before starting to clear snow.
3
To avoid personal injury or property damage use extreme care 8.
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
Use only an approved gasoline container.a.
Never fill containers inside a vehicle or on a truck or b.
trailer bed with a plastic liner. Always place containers on
the ground, away from your vehicle, before filling.
When practical, remove gas-powered equipment from c.
the truck or trailer and refuel it on the ground. If this is
not possible, then refuel such equipment on a trailer
with a portable container, rather than from a gasoline
dispenser nozzle.
Keep the nozzle in contact with the rim of the fuel d.
tank or container opening at all times, until refueling is
complete. Do not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other sources e.
of ignition.
Never fuel machine indoors. f.
Never remove gas cap or add fuel while the engine is hot g.
or running.
Allow engine to cool at least two minutes before h.
refueling.
Never over fill fuel tank. Fill tank to no more than ½ inch i.
below bottom of filler neck to provide space for fuel
expansion.
Replace gasoline cap and tighten securely.j.
If gasoline is spilled, wipe it off the engine and k.
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
Never store the machine or fuel container inside where l.
there is an open flame, spark or pilot light (e.g. furnace,
water heater, space heater, clothes dryer etc.).
Allow machine to cool at least 5 minutes before storing.m.
Operation
Do not put hands or feet near rotating parts, in the auger/1.
impeller housing or discharge chute. Contact with the
rotating parts can amputate hands and feet.
Never operate with a missing or damaged discharge chute. 2.
Keep all safety devices in place and working.
When cleaning, repairing or inspecting the snow thrower, 3.
make certain the collector/impeller and all moving
parts have stopped. Disconnect the spark plug wire and
keep the wire away from the plug to prevent someone
from accidentally starting the machine. Do not run the
engine indoors, except when starting the engine and for
transporting the snow thrower in or out of the building.
Open the outside doors; exhaust fumes are dangerous.
Do not operate machine while under the influence of 4.
alcohol or drugs.
Muffler and engine become hot and can cause a burn. Do 5.
not touch.
Exercise extreme caution when operating on or crossing 6.
gravel surfaces. Stay alert for hidden hazards or traffic. Do
not carry passengers.
Exercise caution when changing direction and while 7.
operating on slopes.
Do not clear snow across the face of slopes; go up and 8.
down. Exercise extreme caution when operating on slopes.
Do not attempt to clear steep slopes.
Plan your snow throwing pattern to avoid discharge 9.
towards windows, walls, cars etc. To avoid property
damage or personal injury caused by a ricochet.
Never direct discharge at children, bystanders and pets or 10.
allow anyone in front of the machine.
Do not overload machine capacity by attempting to clear 11.
snow at too fast of a rate.
Never operate this machine without good visibility or light.12.
Disengage power to the auger/impeller when transporting 13.
or not in use.
Never operate machine at high transport speeds on 14.
slippery surfaces. Look down and behind and use care
when in reverse.
If the machine should start to vibrate abnormally, stop 15.
the engine, disengage the power take-off, lower the
attachment and set the parking brake. Inspect thoroughly
for damage. Repair any damage before starting and
operating.
After striking a foreign object, stop the engine (motor), 16.
remove the wire from the spark plug, thoroughly inspect
the snow thrower for any damage, and repair the damage
before restarting and operating the snow thrower.
Disengage the power take-off, lower attachment, set 17.
the parking brake and stop engine before you leave the
operating position. Wait until the auger/impeller comes to
a complete stop before unclogging the discharge chute,
making any adjustments, or inspections.
Do not carry passengers.18.
Use only attachments and accessories approved by the 19.
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
If situations occur which are not covered in this manual, 20.
use care and good judgment. Contact your dealer or
telephone 1-800-800-7310 for assistance and the name of
your nearest servicing dealer.
4 se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Clearing A Clogged Discharge Chute
Hand contact with the rotating impeller inside the discharge
chute is the most common cause of injury associated with snow
throwers. Never use your hand to clean out the discharge chute.
To clear the chute:
SHUT THE ENGINE OFF!1.
Wait 10 seconds to be sure the impeller blades have 2.
stopped rotating.
Always use a clean-out tool, not your hands3.
Maintenance And Storage
Never tamper with safety devices. Check their proper 1.
operation regularly.
Disengage power take-off, lower the attachment, set the 2.
parking brake, stop engine and remove key to prevent
unintended starting. Wait until the auger/impeller comes to a
complete stop before cleaning, repairing, or inspecting.
Check bolts, and screws for proper tightness at frequent 3.
intervals to keep the machine in safe working condition. Also,
visually inspect machine for any damage.
Do not change the engine governor setting or over-speed the 4.
engine. The governor controls the maximum safe operating
speed of the engine.
Snow thrower shave plates and skid shoes are subject to 5.
wear and damage. For your safety protection, frequently
check all components and replace with original equipment
manufacturer’s (O.E.M.) parts only. “Use of parts which do
not meet the original equipment specifications may lead to
improper performance and compromise safety!”
Check clutch controls periodically to verify they engage and 6.
disengage properly and adjust, if necessary. Refer to the PTO
and safety interlock system in your tractor’s operator’s manual
for instructions.
Maintain or replace safety and instruction labels, as necessary.7.
Observe proper disposal laws and regulations for gas, oil, etc. 8.
to protect the environment.
Prior to storing, run machine a few minutes to clear snow from 9.
machine and prevent freeze up of auger/impeller.
Never store the machine or fuel container inside where there 10 .
is an open flame, spark or pilot light such as a water heater,
furnace ,clothes dryer etc.
Always refer to the operator’s manual for proper instructions 11.
on off-season storage.
Safety Symbols
The safety symbols below may appear on this product. Read, understand, and follow all instructions on the machine before
attempting to assemble and operate.
Symbol Description
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running. There are rotating
blades inside
WARNING— ROTATING AUGER
Do not put hands or feet near rotating parts, in the auger/impeller housing or chute
assembly. Contact with the rotating parts can amputate hands and feet.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Contents of Carton
A
B
C
D
E
F
3
This section will help you to become familiar with the components of the 45” Snow Thrower Attachment, Model 190-353.
Select a firm level surface that is large enough to accommodate both the snow thrower assembly and the tractor with front hitch
assembly. After removing the upper crating material, remove the hardware pack and carefully roll the snow thrower assembly
rearward so that it rests on its bottom. When repositioning the snow thrower, use care not to pinch or bind the chute crank support
tube (D, Figure 1). Cut the tie strap(s) and remove any packaging material from the chute crank rod/tilt handle/support tube assembly
(C thru E, Figure 1), then position to the left side of the snow thrower assembly.
Refer to Figures 3-1 and 3-2 to confirm that all parts are present and to acquaint yourself with the part descriptions. Throughout the
instructions in this manual the parts shown in Figures 3-1 and 3-2 will be identified by name, followed by either their call-out letter or
number in parenthesis.
Figure 3-1
REF. DESCRIPTION QUANTITY
A Snow Thrower Assembly 1
B Discharge Chute Assembly 1
C Chute Tilt Handle Assembly 1
D Chute Crank Support Tube Assembly 1
E Chute Crank Rod Assembly 1
F Chute Crank/Mounting Bracket Assembly 1
6
1
2
3
7
4
5
6
8

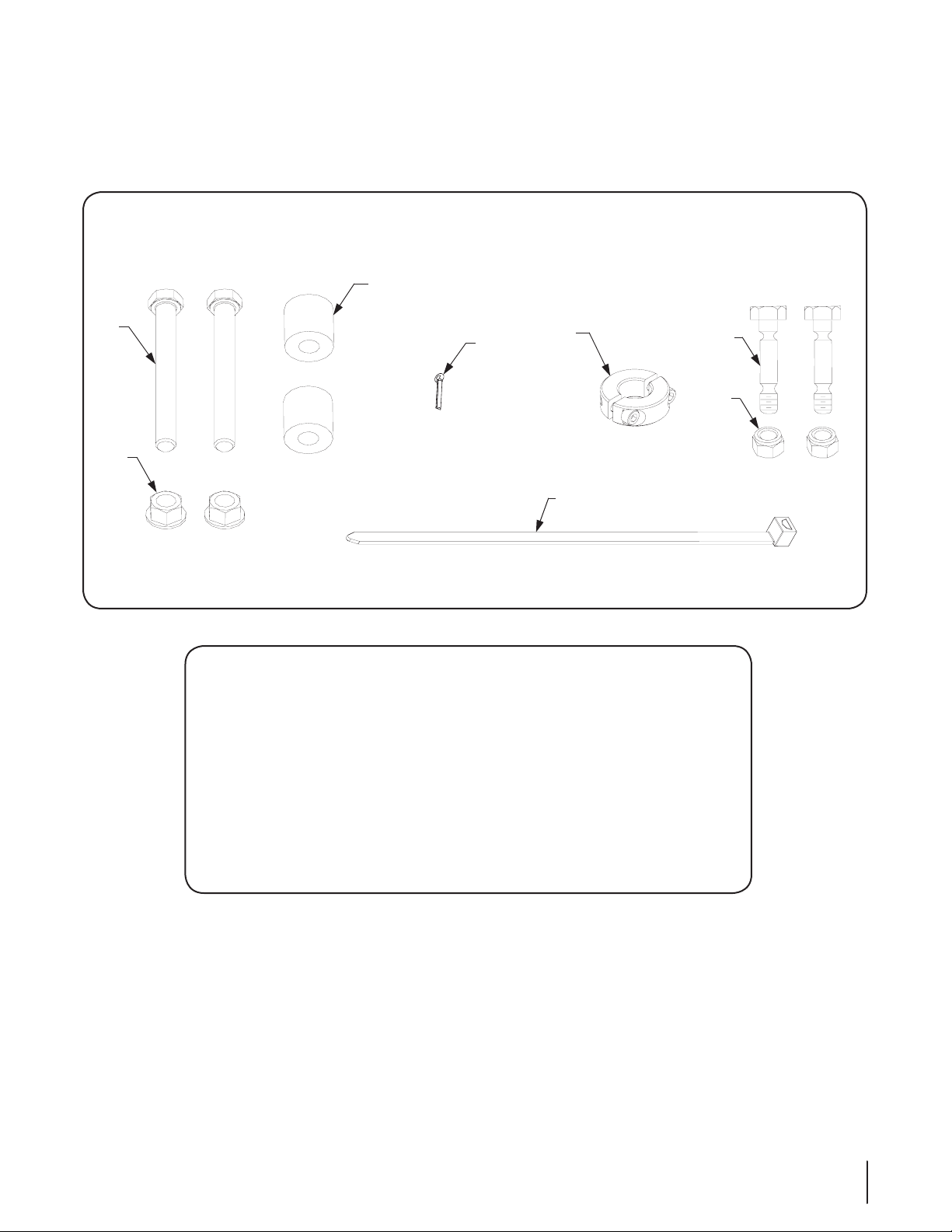

Contents of Hardware Pack
Figure 3-2
REF. PART # DESCRIPTION QUANTITY
1 710-3022 Hex Cap Screw, 3/8-16 X 2.75 Lg GR5 2
2 712-0431 Hex Flange Lock Nut, 3/8-16 2
3 750-0748 Spacer, 3/8 ID x 1.0 OD x 1.25 Lg 2
4 714-0507 Cotter Pin, 3/32 X 3/4 Lg 1
5 725-0157 Cable Tie 1
6 711-1351 Split Locking Collar Assembly 1
7 710-0891 Shear Bolt, 5/16-18 X 1-3/4 Lg (Extra) 2
8 712-0429 Hex Insert Lock Nut, 5/16-18 (Extra) 2
7se c t i O n 3 — cO n t e n t s O f ca r t O n
Assembly, Installation & Removal
HEX FLANGE
LOCK NUTS
HEX CAP
SCREWS
SUPPORT
TUBE
MNTG. BRKT.
SPACERS
HOUSING
MNTG. BRKT.
CHUTE
CRANK
SUPPORT
CABLE TIE
TILT HANDLE
CABLES
SUPPORT
TUBE
BUSHING
EYE BOLT
COTTER PIN
JOINT
BLOCK
CHUTE
CRANK
ROD
4
This section contains instructions for final assembly of the 45”
Snow Thrower, and the quick attachment steps for installation
and removal of the snow thrower. Before beginning, select a firm
and level surface large enough to accommodate both the snow
thrower attachment and tractor.
The mower deck and its front lift bracket assembly should be
removed from the tractor before installing the snow thrower.
Refer to the mower deck Operator’s Manual for deck removal
instructions. To remove (or install) the front lift bracket assembly
while the Front Hitch Kit Assembly is installed, proceed as
follows:
WARNING! If the tractor has been recently
operated, the muffler, exhaust pipe, and
surrounding areas will be HOT. Allow the tractor to
cool before beginning installation.
Loosen the hex lock nut (or wing-nut knob) securing the •
pivot pin on the left side of front hitch.
Remove the hex lock nut (or wing-nut knob) and pivot pin •
from the right side of the front hitch. Lower the right side of
the hitch pivot plate assembly.
Push downward on the tractor’s quick attach rod and •
remove the deck front lift bracket assembly.
Reposition the hitch pivot plate and install the RH pivot pin •
and hex lock nut (wing nut). Tighten the left hex lock nut.
Refer to the Front Hitch Operator’s Manual if necessary.
Position the chute crank support tube (D) to insert the 2.
screws (1, Figure 3-2) into the holes of the support tube
mounting bracket and the housing mounting bracket on
the left rear of the snow thrower housing. Secure with the
hex flange lock nuts (2 , Figure 3-2). Refer to Figure 4-1.
Secure the tilt handle cables (C , Figure 3-1) to the inside 3.
of the support tube (D , Figure 3-1) with the cable tie (5 ,
Figure 3-2). See Figure 4-2. Cut excess length from the cable
tie.
ASSEMBLY
Insert the two hex cap screws (1 , Figure 3-2) through 1.
the holes at the forward end of the chute crank support
assembly (D , Figure 3-1), then slide a spacer (3 , Figure 3-2)
onto each cap screw (1 , Figure 3-2).

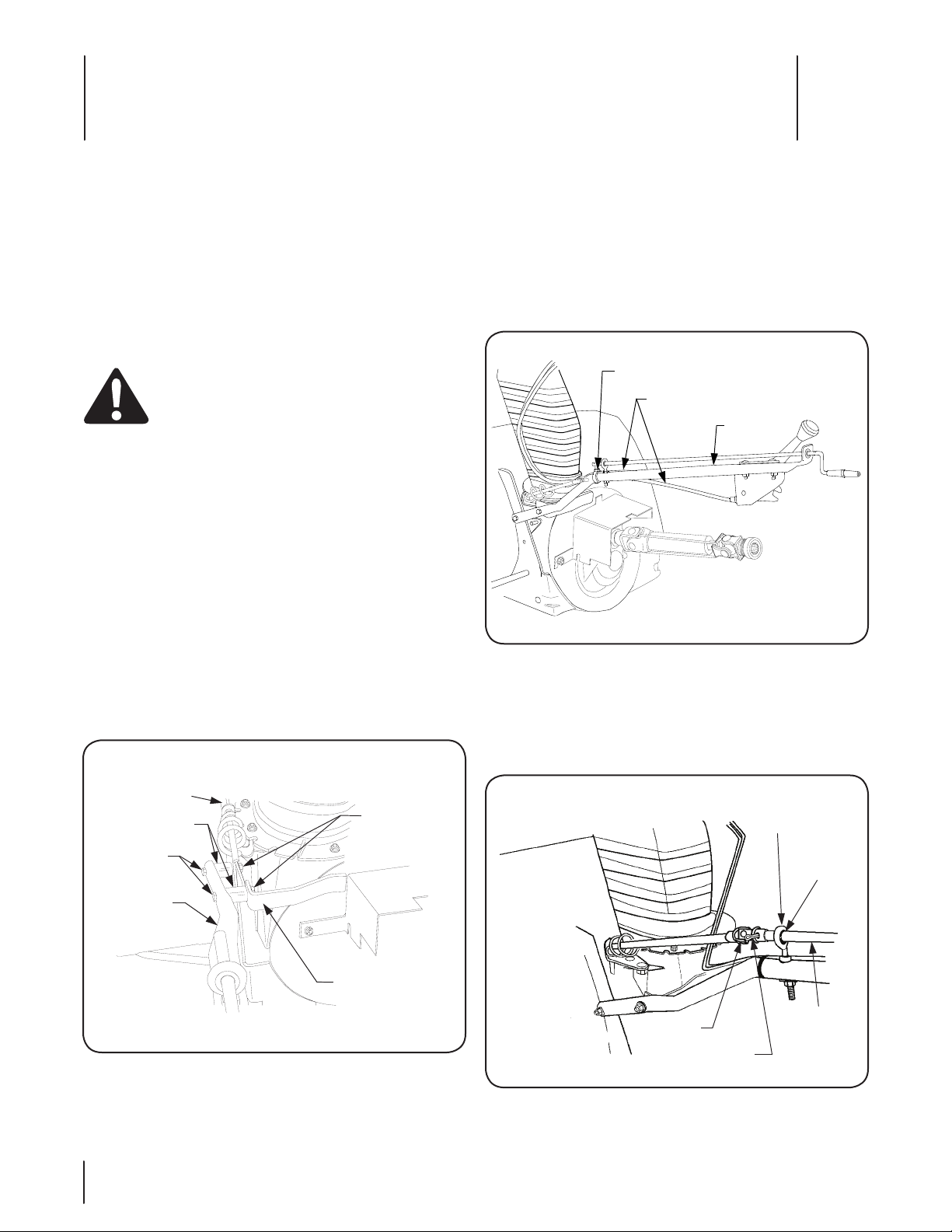

Figure 4-1
Figure 4-2
After making sure the chute crank rod is routed through 4.
the eye bolt, insert the rod (E, Figure 3-1) into the sleeve of
the joint block on the chute crank assembly (F , Figure 3-1).
Align the holes and secure the rod with the cotter pin (4 ,
Figure 3-2). See Figure 4-3.
Figure 4-3
8
Remove the two socket head screws from the split locking 5.
HITCH LIFT
CYLINDER
CYLINDER
PISTON
SPLIT LOCKING
COLLAR
SOCKET HEAD
SCREWS
FEMALE
HALF
SHAFT
COVER
CABLE TIE
MALE
HALF
SHAFT
SLOT
SHAFT
COVER
ENGAGED
POSITION
DISENGAGED
FRONT
HITCH
YOKE
LH HITCH
SUPPORT
PIN
POSITION
STANDARD FRONT
HITCH STRUT
(FIXED LENGTH)
collar assembly (6, Figure 3-2) and install the collar onto the
bottom of the piston of the front hitch lift cylinder. Secure
with the two socket head screws (See Figure 4-4).
NOTE: If necessary, use the tractor hydraulic system to
slightly extend the cylinder piston.
Figure 4-4
Figure 4-5
Make certain the support pins at the bottom of the front 4.
hitch yoke are in the engaged position (through holes in
yoke). See Figure 4-6.
INSTALLATION
NOTE: Whenever the snow thrower is installed, it is
recommended that the angling cylinder be removed and
replaced by either the standard front hitch strut (See Figure 8)
or the manual angling kit (190-171), set in the center position.
The following step 1 applies ONLY to units equipped with the
hydraulic angling kit.
WARNING! If the Hydraulic Angling Kit (190-288-
100) is installed on the front hitch, accidental
actuation of the angling system could result in
damage to the snow thrower and/or tractor.
Remove the angling cylinder as follows: 1.
Compress the locking collars of the female fittings •
to disconnect the angling cylinder hoses from the
coupling assemblies on the left side of the tractor.
Remove the hoses from the hose support rod. •
Remove the internal cotter pins and clevis pins •
fastening the angling cylinder to the pivot plate
Cut the cable tie holding the two halves of the drive shaft 2.
together and slide the male half from the female half (See
Figure 4-5).
Pivot the female half shaft to the right and place in the slot 3.
in the right side of the shaft cover (See Figure 4-5).
and the front hitch yoke.
Install the front hitch strut (or manual angler set in •
center position) with the clevis pins and internal
cotter pins. Refer to the Angling Kit Operator’s
Manual if necessary.
Figure 4-6
Start the tractor and align the front hitch yoke with the 5.
attachment brackets on each side of the rear blower
housing (Refer to Figure 9).
Lower the front hitch yoke to clear the bottom of the 6.
attachment bracket pins and carefully drive the tractor
forward to align the bracket pins with the slots in the hitch
yoke (See Figure 4-7).
Using the tractor hydraulic system to raise the front 7.
hitch yoke, slowly lift the snow thrower until the hitch
support pins snap into the holes of the LH and RH housing
mounting brackets (See Figure 4-7).
9se c t i O n 4 — as s e M b l y , in s t a l l a t i O n & re M O v a l
FRONT HITCH
RH ATTACHMENT
BRACKET
W/PIN
YOKE
SLOT
HITCH
SUPPORT PIN
RH HOUSING
MTG. BRACKET
YOKE
TRACTOR
PTO SHAFT
AUTO-LOK
COLLAR
DRIVE SHAFT
ASSEMBLY
C
O
M
P
R
E
SS
Figure 4-7
Stop the tractor engine and engage the parking brake. 8.
Check that support pins are fully engaged in the housing
mounting brackets holes (See Figure 4-7).
WARNING! If the tractor has been recently
operated, the muffler, exhaust pipe, and
surrounding areas will be HOT. Allow the tractor to
cool before beginning installation
Pivot the female half shaft out of the cover slot and 9.
position so that it points rearward between the tractor
frame. Refer to Figure 4-8.
Slide the male half shaft into the female half 10.
Compress the auto-lock collar on the snow thrower drive 11.
shaft; then slide the shaft fully onto the PTO shaft of the
tractor and release the auto-lock collar (See Figure 4-8).
The drive shaft will lock onto the PTO shaft if properly
connected.
NOTE: It may be necessary to slightly rotate the drive shaft
to align the splines of the shafts.
REMOVAL
1. Move the snow thrower to its storage location.
2. Compress the auto-lock collar of the snow thrower drive
shaft and disconnect the shaft from the tractor PTO shaft.
Refer to Figure 4-8.
3. Pull the hitch support pins outward and rotate to lock in
the disengaged position. Refer to Figure 8.
4. Using the tractor hydraulic system, lower the front hitch
yoke to disengage the snow thrower attachment bracket
pins from the slots of the hitch yoke (Refer to Figure 4-7).
5. Back the tractor away from the snow thrower.
Figure 4-8
10 se c t i O n 4 — as s e M b l y , in s t a l l a t i O n & re M O v a l

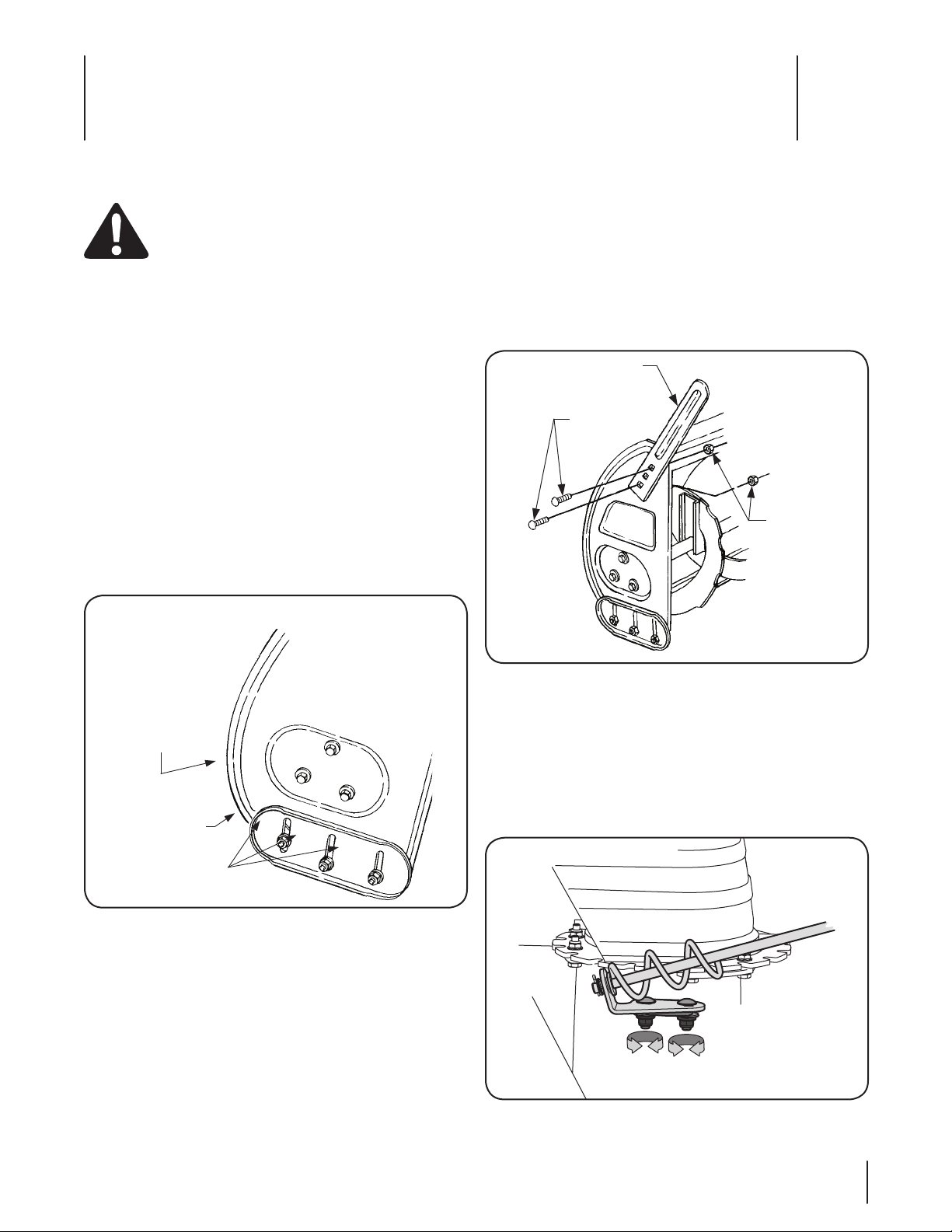

Adjustments, Controls & Operation
AUGER
HOUSING
SKID SHOE
HEX INSERT LOCK NUTS
AND BELL WASHERS
CARRIAGE
BOLT
DRIFT CUTTER
HEX
INSERT
LOCK NUT
5
ADJUSTMENTS
WARNING! If the snow thrower is to be used on
gravel surfaces, use extreme caution to avoid
picking up gravel with the shave plate or auger.
Loose gravel can damage the auger or housing, and
could be thrown at high speed by the impeller—
causing possible injury to bystanders or damage to
surrounding objects.
Skid Shoe Adjustment
The skid shoes are mounted on each side of the auger housing.
They determine the distance the shave plate is raised above the
plowing surface. The shave plate should be high for a gravel
driveway or other uneven surfaces and low for paved surfaces.
Adjust the skid shoes as follows:
Raise the snow thrower assembly off the ground and a.
place a block under each end of the shave plate.
Loosen the hex insert lock nuts and bell washers b.
securing the skid shoes to the housing.
Move the skid shoes up or down to the desired c.
position and securely tighten the lock nuts. Adjust
both skid shoes to the same height. Refer to Figure
5-1. Remove the blocks.
Drift Cutters
Drift cutters on both sides of the auger housing can be adjusted
to the up position for a higher cut. Refer to Figure 5-2 and
proceed as follows:
Remove each drift cutter by removing the two a.
carriage bolts and hex insert lock nuts.
Turn the drift cutters to the up position and secure b.
with the carriage bolts and lock nuts as shown in
Figure 5-2.
Figure 5-1
Figure 5-2
Chute Bracket Adjustment
If the spiral at the bottom of the chute directional control is not
fully engaging with the chute assembly, the chute bracket can be
adjusted. To do so:
Loosen the two nuts which secure the chute bracket and 1.
reposition it slightly. See Figure 5-3.
Retighten the nuts.2.
Figure 5-3
11
CONTROLS
UPPER CHUTE
DISCHARGE
CHUTE
CHUTE TILT
HANDLE
CHUTE
CRANK
ROD
The thrower controls are conveniently located to be operated
from the operator’s position on the tractor.
Lift Lever: 1. The tractor hydraulics and front hitch system
are used to raise or lower the snow thrower. If installed as
recommended, the inner lift handle should control the
front hitch system. Pull the lift handle upward (rearward)
to raise the snow thrower. Push the lift lever downward
(forward) to lower the snow thrower to the ground.
Front Power Take-Off (PTO): 2. The tractor front PTO switch
controls engagement of the snow thrower. To engage the
auger, pull the PTO switch handle upward. Push the PTO
switch handle downward to disengage the PTO and stop
the snow thrower auger.
Discharge Chute Control Crank: 3. The discharge chute
control crank is located on the left hand side of the snow
thrower. The chute crank controls the direction in which
the snow is thrown. The discharge radius is 190 degrees.
Turn the crank clockwise to rotate the discharge chute
opening toward the left, and counterclockwise to rotate
toward the right. Refer to Figure 5-4.
OPERATION
The following steps describe methods for safe and proper
operation of this snow thrower. Refer to “SAFE OPERATION
PRACTICES” on page 3 of this manual for additional safe
operating practices.
The snow thrower is capable of handling heavy snow 1.
conditions. Become fully familiar with all aspects of both
the tractor and snow thrower prior to its usage. DO NOT
remove any guards or covers while operating the tractor
and snow thrower.
WARNING! Whenever the snow thrower is installed
on the front of the tractor, usage of rear weights on
the tractor is recommended to counterbalance the
weight of the snow thrower and provide stability to
the tractor. See the Table of Contents page for more
information.
Before placing the snow thrower into operation:2.
a. Check all nuts and bolts for proper tightness. Be sure
that all parts are properly assembled.
b. Test all controls for smooth and proper operation.
Tractor lift handle and front hitch system •
PTO switch•
Discharge chute control crank assembly•
Discharge chute tilt control•
c. Inspect the tractor and snow thrower to make certain
both are in good operating condition.
Figure 5-4
Chute Tilt Handle: 4. The chute tilt handle assembly is
also located on the left hand side of the snow thrower
assembly. The upper chute of the discharge chute assembly
pivots downward when the tilt handle is pushed forward,
decreasing the distance snow is thrown. Pulling the handle
backwards pivots the upper chute upward, increasing the
distance snow is thrown. Refer to Figure 5-4.
12 se c t i O n 5 — ad j u s t M e n t s , cO n t r O l s & Op e r a t i O n
d. Fill the tractor’s fuel tank outdoors. Avoid spilling
fuel onto the engine or any other source of heat or
combustion. Do not fill the tank while the engine is
running. Wipe up any spilled fuel before starting the
engine.
The auger speed is directly related to the engine speed. For 3.
optimal snow removal and discharge, maintain high engine
R.P.M. (full throttle). Control the tractor’s ground speed
using the forward control pedal (and cruise control feature,
if desired). It is recommended that the tractor be operated
at a slow ground speed for safer handling and efficient
snow removal.
Snow removal conditions vary greatly from light fluffy 4.
snowfall to wet heavy snow. Therefore, operating
instructions must be flexible to fit the conditions
encountered. The operator must adapt the tractor and
snow thrower to the depth of snow, wind direction,
temperature and surface conditions.
In deep, drifted or banked snow, it will be necessary to 5.
use full throttle and a slow ground speed. Drive the auger
into the snow, stop and allow the auger to clear the snow.
Repeat this method until a path is cleared. On the second
pass (and each succeeding pass), overlap the preceding
pass enough to allow the auger to handle the volume of
snow without having to stop the tractor.
In extremely deep snow, the snow thrower may be raised 6.
to the transport position, then slowly driven into the deep
snow to remove the top layers first. However, do not drive
the tractor into a snow bank where the snow has not been
cleared to the ground level. Stop the tractor’s forward
movement and allow the auger to clear the snow. Reverse
the tractor and lower the snow thrower to the ground to
clear the remaining snow. Working with repeated passes
into and out of drifts, even the deepest snow piles can be
cleared.
SPECIAL PRECAUTIONS
WARNING! If the snow thrower becomes plugged
with snow or jammed due to hitting a foreign
object, immediately disengage the PTO to stop the
snow thrower, then stop the tractor engine. If
plugged, SAFELY (see below) clear the chute before
resuming operation.
WARNING! Never place your hand into the
discharge chute to remove plugged snow. Use a
wooden dowel rod, or similar object, to unclog the
chute. Never use your hand to remove any object
jamming the auger or impeller. The auger or
impeller could move when the obstruction is
dislodged. Use an appropriate tool (dowel rod, bar,
etc.) to remove the obstruction.
WARNING! If the auger is jammed or bent from
hitting a foreign object, disengage the PTO and stop
the tractor engine. Remove the spark plug wires
from the spark plugs and then remove the foreign
object from the auger. If damage is noted, repair or
replace damaged components prior to continuing
operation. Reconnect the spark plug wires and
resume operation.
OPERATING TIPS
Whenever possible, discharge snow down wind.•
DO NOT attempt to clear ice or hard packed frozen snow.•
Always overlap each pass slightly to assure complete snow •
removal.
A frozen or stuck auger or chute must be broken loose or •
thawed with care. When attempting to loosen a frozen or
jammed auger, shut off the tractor engine and disconnect
the spark plug wire(s). Never attempt to clear the snow
thrower at any time with the tractor engine running.
NOTE: When the snow thrower and tractor are not in use,
lower the snow thrower to the ground to eliminate the
excess weight from the lift system and the front tires.
WARNING! When making any adjustments,
disengage the PTO and turn the tractor engine off.
13se c t i O n 5 — ad j u s t M e n t s , cO n t r O l s & Op e r a t i O n
Maintenance
DRIVE SHAFT
SPROCKET BOX
ASSEMBLY
(BELOW COVER)
SKID SHOE
SHEAR BOLT AND HEX
INSERT LOCK NUT
SHAVE PLATE
(Six total)
CHUTE CRANK
SPIRAL GEAR
6
During Seasonal Usage
This section describes maintenance procedures designed to keep
your snow thrower in good operating condition.
Shave Plate And Skid Shoes
The shave plate and skid shoes on the bottom of the snow
thrower housing are subject to wear. They should be periodically
checked for wear and replaced when necessary. Failure to do so
will result in damage to the housing. Refer to Figure 7-1.
Replace the shave plate as follows:
Remove the all of the carriage bolts and hex flange a.
lock nuts that secure the shave plate to the bottom
of the housing.
Remove the rear most carriage bolt, bell washer and b.
hex insert lock nut securing the back end of each
skid shoe to the sides of the housing.
NOTE: If necessary to ease sliding the shave plate out of
position on the housing, loosen the four remaining hex
insert lock nuts which secure the skid shoes to the housing.
Slide the shave plate out of the off-set slot of the c.
housing, and from between the skid shoes and side
panels of the housing.
With the mounting holes toward the back, slide the d.
new shave plate into position and secure with the
fasteners removed previously.
The skid shoes are reversible for longer life. Remove the carriage
bolts, bell washers and hex insert lock nuts fastening the skid
shoes to the housing. Turn the shoes over and/or reverse sides to
ensure even wear and extend their service life.
Augers
The augers are secured to the auger shaft with two shear 1.
bolts and hex insert lock nuts. Refer to Figure 7-1. If the
auger is suddenly jammed by a foreign object or ice chunk,
the bolts are designed to shear — minimizing potential
damage to the gear boxes.
If the augers will not turn, check the bolts to see if they 2.
have sheared. Two replacement shear bolts (7) and hex
insert lock nuts (8) have been provided with the snow
thrower. For future use, order part number 710-0891 for
replacement shear bolts and 712-0429 for the lock nuts.
14
Figure 7-1
Lubrication
The auger gear box is lubricated with grease at the factory 1.
and is neither externally serviceable, nor requires checking.
If disassembled for any reason, lubricate with 2 ounces (by
weight) of Shell Alvania grease, part number 737-0168A.
Before reassembling, remove all old sealant and apply
Loctite Ultra Grey (759-3746) sealant, or equivalent, to the
housing halves.
The sprocket box assembly is also neither externally 2.
serviceable, nor requires checking. If disassembled for any
reason, lubricate with 5.0 ounces (by weight) of Benalene
grease, part number 737-0300A. Before reassembling,
remove old sealant and apply Loctite Ultra Grey (759-3746)
sealant or equivalent.
The right angle gear box is not serviceable and should not 3.
be disassembled.
Apply penetrating oil to the cables of the chute tilt handle 4.
assembly at least once a season.
Apply a good grade of spray lubricant to the universal 5.
joints of the chute crank, and to the pivot of the chute tilt
handle at least once a season.
Lubricate the chute crank spiral gear with a multi-purpose 6.
automotive grease once a year.
Lubricate the telescoping square spindle of the drive shaft 7.
(rear half) using 251H EP grease or an equivalent No. 2
multi-purpose lithium grease once a year.
Lubricate the bearings at each end of the auger shaft with 8.
oil or spray lubricant at least once a season.
Although not necessary, it is advisable to remove the auger 9.
shear pins at least once a season and spray penetrating oil
between the auger tubes and auger shaft.
Off-Season Storage
At the end of the snow season the following steps are
recommended:
Remove the snow thrower assembly from the tractor.1.
Wash off any salt deposits which may have dried on the 2.
snow thrower housing. Paint, or cover with a light coat of
oil, any exposed metal surfaces.
Lubricate bearings and pivot points with a good grade of 3.
spray lubricant.
Store the snow thrower in a dry place.4.
15se c t i O n 7— Ma i n t e n a n c e
CUB CADET LLC
MANUFACTURER’S LIMITED WARRANTY FOR
SERIES 3000 TRACTORS
IMPORTANT: To obtain warranty coverage owner must present an
original proof of purchase and applicable maintenance records to the
servicing dealer. Please see the operator’s manual for information on
required maintenance and service intervals.
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased or leased and used in the United
States and/or its territories and possessions, and by MTD Products
Limited with respect to new merchandise purchased or leased and
used in Canada and /or its territories and possessions (either entity
respectively, “Cub Cadet”).
Cub Cadet warrants this product (excluding its Normal Wear Parts,
Batteries, Frame, Front Axle and Drive Shaft and Attachments as described
below) against defects in material and workmanship for a period of
three (3) years or one hundred eighty (180) operation hours, whichever
comes first, commencing on the date of original retail purchase or lease
and will, at its option, repair or replace, free of charge, any part found to
be defective in materials or workmanship.
Normal Wear Parts are warranted to be free from defects in material and
workmanship for a period of thirty (30) days from the date of original
purchase or lease. Normal wear parts include, but are not limited to
items such as: belts, blades, blade adapters, grass bags, rider deck
wheels, seats, and tires.
Batteries have a one-year prorated limited warranty against defects in
material and workmanship, with 100% replacement during the first three
months. After three months, the batter y replacement credit is based on
the months remaining in the twelve (12) month period dating back to the
original date of original sale or lease. Any replacement battery will be
warranted only for the remainder of the original warranty period.
Frame, Front Axle and Drive Shaft — Cub Cadet warrants the frame, front
cast iron pivot axle and drive shaft against defects in material and
workmanship for a period of five (5) years or 500 hours, whichever
occurs first, commencing on the date of original purchase or lease.
Attachments — Cub Cadet warrants attachments for this product against
defects in material and workmanship for a period of two (2) years,
commencing on the date of the attachment’s original purchase or
lease. Attachments include, but are not limited to items such as: grass
collectors and mulch kits.
This limited warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual furnished
with the product, and has not been subject to misuse, abuse, neglect,
accident, improper maintenance, alteration, vandalism, theft, fire, water,
or damage because of other peril or natural disaster. Damage resulting
from the installation or use of any par t, accessor y or attachment not
approved by Cub Cadet for use with the product(s) covered by this
manual will void your warranty as to any resulting damage. In addition,
Cub Cadet may deny warranty coverage if the hour meter, or any part
thereof, is altered, modified, disconnected or otherwise tampered with.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF
OF PURCHASE AND APPLICABLE MAINTENANCE RECORDS, through
your local authorized service dealer. To locate the dealer in your area:
In the U.S. A. :
Check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, call 1-877-282- 8684
or log on to our website at www.cubcadet.com.
In Canada :
Contact MTD Products Limited, Kitchener, ON N2G 4J1, call 1-800-6681238 or log on to our website at www.mtdcanada.com.
Without limiting the foregoing, this limited warranty does not provide
coverage in the following cases:
a. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments, deck
adjustments, and normal deterioration of the exterior finish due to
use or exposure.
b. Service completed by someone other than an authorized service
dealer.
c. Cub Cadet does not extend any warranty for products sold or
exported outside of the United States and/or Canada, and their
respective possessions and territories, except those sold through
Cub Cadet’s authorized channels of export distribution.
d. Replacement parts and\or accessories that are not genuine Cub
Cadet parts.
e. Transportation charges and service calls.
There are no implied warranties, including without limitation any
implied warranty of merchantability or fitness for a particular
purpose. No warranties shall apply after the applicable period of
express written warranty above. No other express warranties beyond
those mentioned above, given by any person or entity, including a
dealer or retailer, with respect to any product, shall bind Cub Cadet.
The exclusive remedy is repair or replacement of the product as
set forth above. The terms of this warranty provide the sole and
exclusive remedy arising from the sale and/or lease of the products
covered hereby. Cub Cadet shall not be liable for any incidental or
consequential loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply to
you.
In no event shall recovery of any kind be greater than the amount of the
purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for
loss, damage, or injury to you and your property and/or to others and
their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original
purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty
gives you specific legal rights, and you may also have other rights that
vary in different jurisdictions.
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019, Phone: 1-877-282-8684
GDOC-100092 REV. A
MTD Products Limited, Kitchener, ON N2G 4J1, Phone: 1-800-668-1238
Loading...
