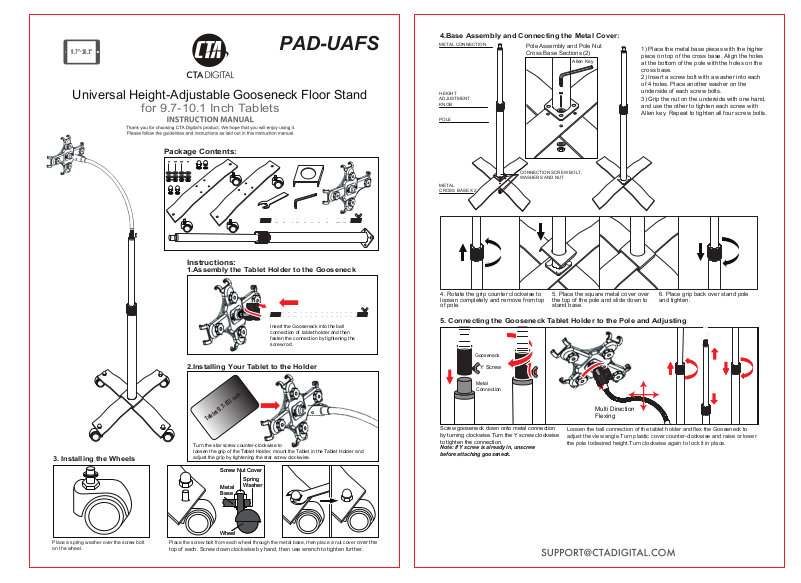

Cta Pad-uafs User Manual
9.7 10.1
PAD-UAFS
Universal Height-Adjustable Gooseneck Floor Stand
for 9.7-10.1 Inch Tablets
Package Contents:
4.Base Assembly and Connecting the Metal Cover:
METAL CONNECTION
HEIGHT
ADJUSTMENT
KNOB
POLE
METAL
CROSS BASE X 2
Pole Assembly and Pole Nut
Cross Base Sections (2)
Allen Key
CONNECTION SCREW BOLT,
WASHERS AND NUT
1) Place the metal base pieces with the higher
piece on top of the cross base. Align the holes
at the bottom of the pole with the holes on the
cross base.
2) Insert a screw bolt with a washer into each
of 4 holes. Place another washer on the
underside of each screw bolts.
3) Grip the nut on the underside with one hand,
and use the other to tighten each screw with
Allen key. Repeat to tighten all four screw bolts.
3. Installing the Wheels
Instructions:
1.Assembly the Tablet Holder to the Gooseneck
Insert the Gooseneck into the ball
connection of tablet holder and then
fasten the connection by tightening the
screw rod.
2.Installing Your Tablet to the Holder
Tablet 9.7-10.1 inch
Turn the star screw counter-clockwise to
loosen the grip of the Tablet Holder, mount the Tablet in the Tablet Holder and
adjust the grip by tightening the star screw clockwise.
4. Rotate the grip counter clockwise to
loosen completely and remove from top
of pole.
5. Place the square metal cover over
the top of the pole and slide down to
stand base.
6. Place grip back over stand pole
and tighten.
5. Connecting the Gooseneck Tablet Holder to the Pole and Adjusting
Gooseneck
Y Screw
Metal
Connection
Multi Direction
Flexing
Screw gooseneck down onto metal connection
by turning clockwise.Turn the Y screw clockwise
to tighten the connection.
Note: if Y screw is already in, unscrew
before attaching gooseneck.
Loosen the ball connection of the tablet holder and flex the Gooseneck to
adjust the view angle.Turn plastic cover counter-clockwise and raise or lower
the pole todesired height.Turn clockwise again to lock it in place.
Place a spring washer over the screw bolt
on the wheel.
Screw Nut Cover
Screw Nut Cover
Spring
Spring
Washer
Metal
Metal
Base
Base
Wheel
Wheel
Place the screw bolt from each wheel through the metal base, then place a nut cover
top of each. Screw down clockwise by hand, then use wrench to tighten further.
Washer
over the
