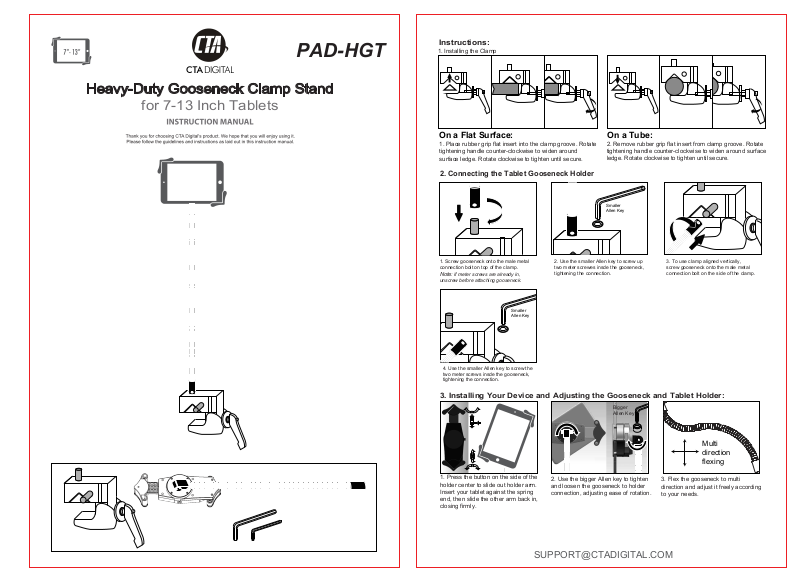

Cta Pad-hgt User Manual
PAD-HGT
Heavy-Duty Gooseneck Clamp Stand
for 7-13 Inch Tablets
Instructions:
1. Installing the Clamp
On a Flat Surface:
1. Place rubber grip flat insert into the clamp groove. Rotate
tightening handle counter-clockwise to widen around
surface ledge. Rotate clockwise to tighten until secure.
2. Connecting the Tablet Gooseneck Holder
1. Screw gooseneck onto the male metal
connection bolt on top of the clamp.
Note
: if meter screws are already in,
unscrew before attaching gooseneck.
Smaller
Allen Key
2. Use the smaller Allen key to screw up
two meter screwes insde the gooseneck,
tightening the connection.
On a Tube:
2. Remove rubber grip flat insert from clamp groove. Rotate
tightening handle counter-clockwise to widen around surface
ledge. Rotate clockwise to tighten until secure.
Smaller
Allen Key
3. To use clamp aligned vertically,
screw gooseneck onto the male metal
connection bolt on the side of the clamp.
4. Use the smaller Allen key to screw the
two meter screws insde the gooseneck,
tightening the connection.
3. Installing Your Device and Adjusting the Gooseneck and Tablet Holder:
Bigger
Allen Key
1. Press the button on the side of the
holder center to slide out holder arm.
Insert your tablet against the spring
end, then slide the other arm back in,
closing firmly.
2. Use the bigger Allen key to tighten
and loosen the gooseneck to holder
connection, adjusting ease of rotation.
3. Flex the gooseneck to multi
direction and adjust it freely according
to your needs.
Multi
direction
flexing
