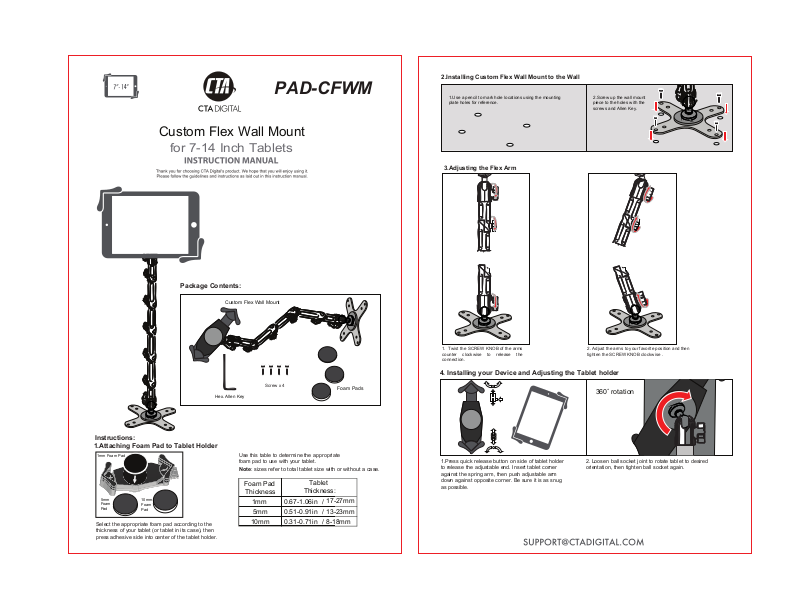

Cta Pad-cfwm User Manual

2.Installing Custom Flex Wall Mount to the Wall

Tablet

4

PAD-CFWM

1.Use a pencil to mark hole locations using the mounting
plate holes for reference.

2.Screw up the wall mount
piece to the holes with the
screws and Allen Key.

Custom Flex Wall Mount

for 7-14 Inch Tablets

3.Adjusting the Flex Arm

Package Contents:

Instructions:

1.Attaching Foam Pad to Tablet Holder

1mm Foam Pad

5mm
Foam
Pad

10mm
Foam
Pad

Custom Flex Wall Mount

Hex. Allen Key

Use this table to determine the appropriate
foam pad to use with your tablet.

Note: sizes refer to total tablet size with or without a case.

Foam Pad

Thickness

1mm 0.67-1.06in

5mm 0.51-0.91in

Screw x 4

Thickness:

17-27mm

/

13-23mm

/

Foam Pads

1.

Twist the SCREW KNOB of the arms

counter clockwise to release the

connection.

2. Adjust the arms to your favorite position and then
tighten the SCREW KNOB clockwise .

4. Installing your Device and Adjusting the Tablet holder

360 rotation˚

1.Press quick release button on side of tablet holder
to release the adjustable end. Insert tablet corner
against the spring arm, then push adjustable arm
down against opposite corner. Be sure it is as snug
as possible.

2. Loosen ball socket joint to rotate tablet to desired
orientation, then tighten ball socket again.

Select the appropriate foam pad according to the
thickness of your tablet (or tablet in its case), then
press adhesive side into center of the tablet holder.

10mm 0.31-0.71in

8-18mm

/
