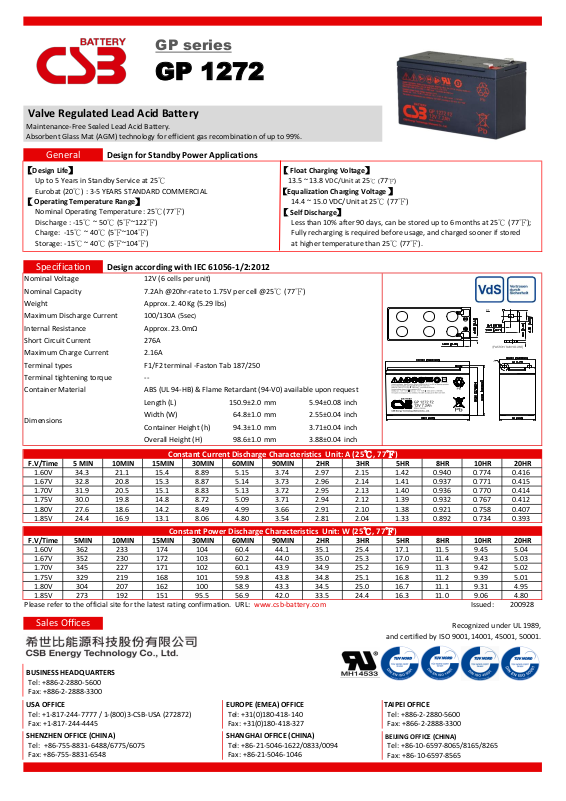

Maintenance-Free Sealed Lead Acid Battery.
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Standby Power Applications
【Design Life】 【 Float Charging Voltage】
Up to 5 Years in Standby Service at 25℃
13.5 ~ 13.8 VDC/Unit at 25℃ (77℉)
Eurobat (20℃) : 3-5 YEARS STANDARD COMMERCIAL 【Equalization Charging Voltage 】
【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)
【 Self Discharge】
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);
Fully recharging is required before usage, and charged sooner if stored
Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).
Design according with IEC 61056-1/2:2012
Nominal Capacity
Length (L) 150.9±2.0 mm 5.94±0.08 inch
Width (W) 64.8±1.0 mm 2.55±0.04 inch
Container Height (h) 94.3±1.0 mm 3.71±0.04 inch
Overall Height (H) 98.6±1.0 mm 3.88±0.04 inch
F.V/Time 5 MIN 10MIN 15MIN 30MIN 60MIN 90MIN 2HR 3HR 5HR 8HR 10HR 20HR
1.60V 34.3 21.1 15.4 8.89 5.15 3.74 2.97 2.15 1.42 0.940 0.774 0.416
1.67V 32.8 20.8 15.3 8.87 5.14 3.73 2.96 2.14 1.41 0.937 0.771 0.415
1.70V 31.9 20.5 15.1 8.83 5.13 3.72 2.95 2.13 1.40 0.936 0.770 0.414
1.75V 30.0 19.8 14.8 8.72 5.09 3.71 2.94 2.12 1.39 0.932 0.767 0.412
1.80V 27.6 18.6 14.2 8.49 4.99 3.66 2.91 2.10 1.38 0.921 0.758 0.407
1.85V 24.4 16.9 13.1 8.06 4.80 3.54 2.81 2.04 1.33 0.892 0.734 0.393
F.V/Time 5MIN 10MIN 15MIN 30MIN 60MIN 90MIN 2HR 3HR 5HR 8HR 10HR 20HR
1.60V 362 233 174 104 60.4 44.1 35.1 25.4 17.1 11.5 9.45 5.04
1.67V 352 230 172 103 60.2 44.0 35.0 25.3 17.0 11.4 9.43 5.03
1.70V 345 227 171 102 60.1 43.9 34.9 25.2 16.9 11.3 9.42 5.02
1.75V 329 219 168 101 59.8 43.8 34.8 25.1 16.8 11.2 9.39 5.01
1.80V 304 207 162 100 58.9 43.3 34.5 25.0 16.7 11.1 9.31 4.95
1.85V 273 192 151 95.5 56.9 42.0 33.5 24.4 16.3 11.0 9.06 4.80
Please refer to the official site for the latest rating confirmation. URL: www.csb-battery.com
Issued: 200928
Tel: +31(0)180-418-140 Tel: +886-2-2880-5600
Fax: +31(0)180-418-327
Fax: +866-2-2888-3300
Tel: +86-755-8831-6488/6775/6075 Tel: +86-10-6597-8065/8165/8265
Fax: +86-10-6597-8565
Fax: +86-755-8831-6548
Fax: +86-21-5046-1046
GP 1272
276A
F1/F2 terminal -Faston Tab 187/250
--
Fax: +1-817-244-4445
SHENZHEN OFFICE (CHINA)
SHANGHAI OFFICE (CHINA)
BEIJING OFFICE (CHINA)
Tel: +86-21-5046-1622/0833/0094
Tel: +886-2-2880-5600
Fax: +886-2-2888-3300
USA OFFICE
EUROPE (EMEA) OFFICE
TAIPEI OFFICE
Tel: +1-817-244-7777 / 1-(800)3-CSB-USA (272872)
Constant Power Discharge Characteristics Unit: W (25℃, 77℉)
Sales Offices
BUSINESS HEADQUARTERS
Recognized under UL 1989,
and certified by ISO 9001, 14001, 45001, 50001.
Constant Current Discharge Characteristics Unit: A (25℃, 77℉)
Short Circuit Current
Maximum Charge Current
2.16A
Terminal types
Terminal tightening torque
Container Material
ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Dimensions
Weight
Approx. 2.40 Kg (5.29 lbs)
Maximum Discharge Current
100/130A (5sec)
Internal Resistance
Approx. 23.0mΩ
7.2Ah @20hr-rate to 1.75V per cell @25℃ (77℉)
GP series
Valve Regulated Lead Acid Battery
General
Nominal Operating Temperature : 25℃(77℉)
Discharge : -15℃ ~ 50℃ (5℉~122℉)
Charge: -15℃ ~ 40℃ (5℉~104℉)
Specification
Nominal Voltage
12V (6 cells per unit)
