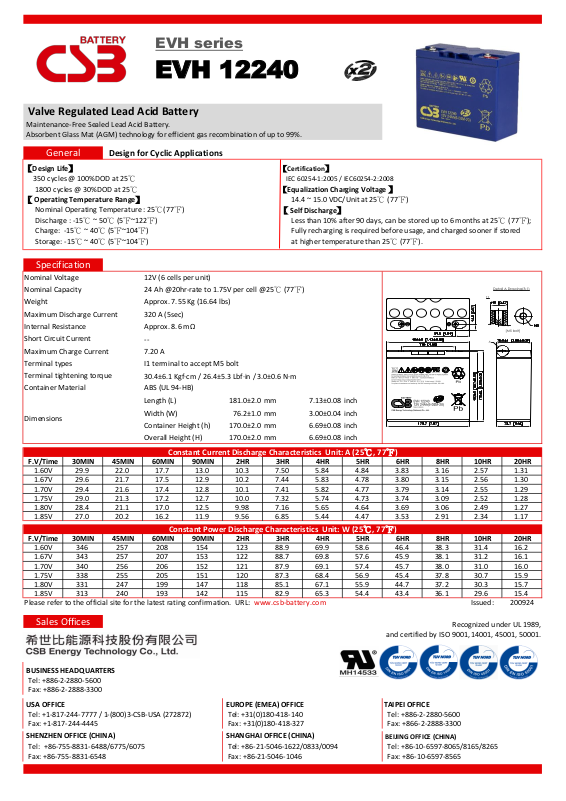

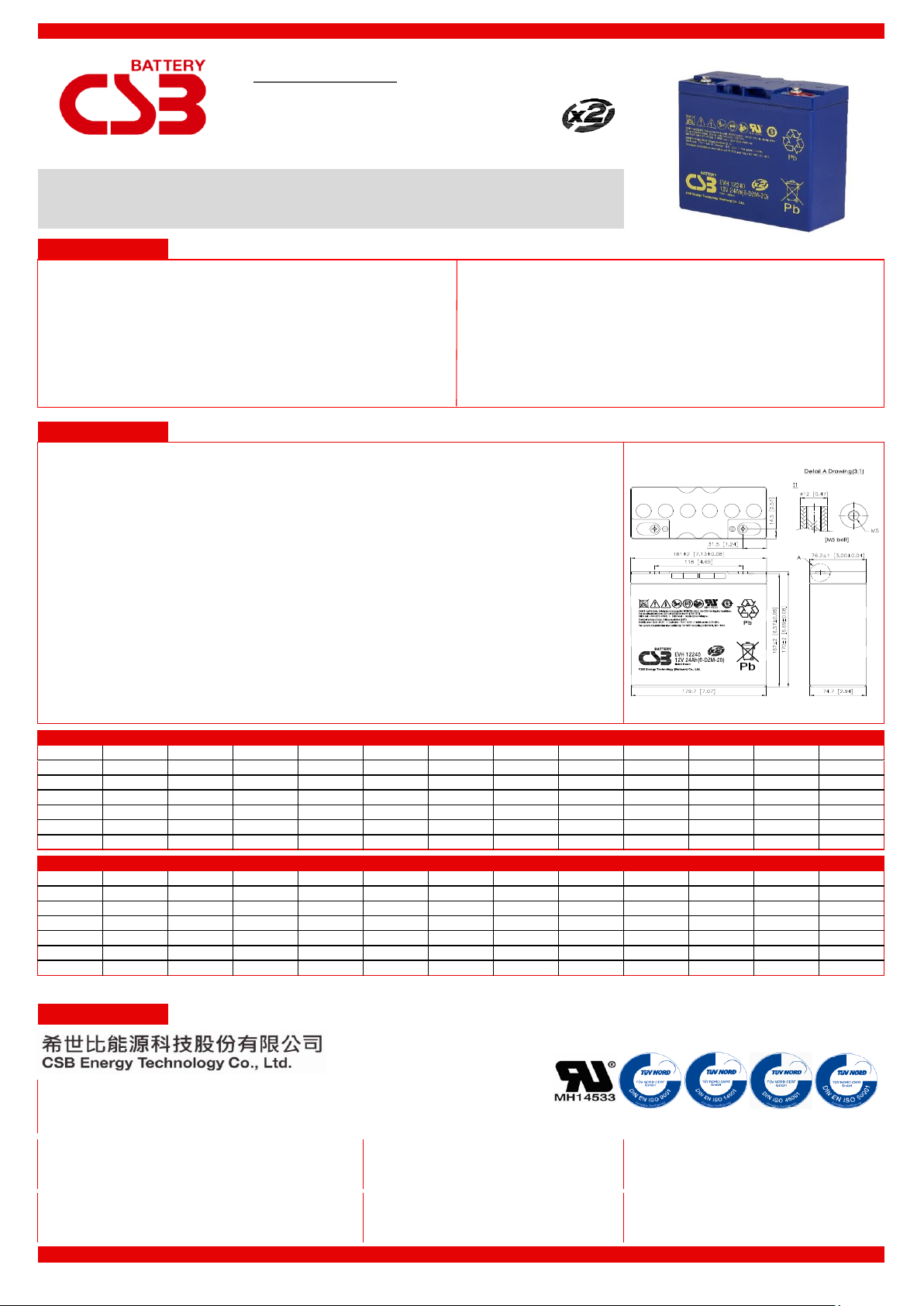

CSB CSB EVH12240 Datasheet

Maintenance-Free Sealed Lead Acid Battery.

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.

Design for Cyclic Applications

【Design Life】

【Certification】

350 cycles @ 100%DOD at 25℃

IEC 60254-1:2005 / IEC60254-2:2008

1800 cycles @ 30%DOD at 25℃ 【Equalization Charging Voltage 】

【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)

【 Self Discharge】

Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);

Fully recharging is required before usage, and charged sooner if stored

Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).

Nominal Capacity

--

7.20 A

30.4±6.1 Kgf·cm / 26.4±5.3 Lbf·in / 3.0±0.6 N·m

Length (L) 181.0±2.0 mm 7.13±0.08 inch
Width (W) 76.2±1.0 mm 3.00±0.04 inch
Container Height (h) 170.0±2.0 mm 6.69±0.08 inch
Overall Height (H) 170.0±2.0 mm 6.69±0.08 inch

F.V/Time 30MIN 45MIN 60MIN 90MIN 2HR 3HR 4HR 5HR 6HR 8HR 10HR 20HR

1.60V 29.9 22.0 17.7 13.0 10.3 7.50 5.84 4.84 3.83 3.16 2.57 1.31

1.67V 29.6 21.7 17.5 12.9 10.2 7.44 5.83 4.78 3.80 3.15 2.56 1.30

1.70V 29.4 21.6 17.4 12.8 10.1 7.41 5.82 4.77 3.79 3.14 2.55 1.29

1.75V 29.0 21.3 17.2 12.7 10.0 7.32 5.74 4.73 3.74 3.09 2.52 1.28

1.80V 28.4 21.1 17.0 12.5 9.98 7.16 5.65 4.64 3.69 3.06 2.49 1.27

1.85V 27.0 20.2 16.2 11.9 9.56 6.85 5.44 4.47 3.53 2.91 2.34 1.17

F.V/Time 30MIN 45MIN 60MIN 90MIN 2HR 3HR 4HR 5HR 6HR 8HR 10HR 20HR

1.60V 346 257 208 154 123 88.9 69.9 58.6 46.4 38.3 31.4 16.2

1.67V 343 257 207 153 122 88.7 69.8 57.6 45.9 38.1 31.2 16.1

1.70V 340 256 206 152 121 87.9 69.1 57.4 45.7 38.0 31.0 16.0

1.75V 338 255 205 151 120 87.3 68.4 56.9 45.4 37.8 30.7 15.9

1.80V 331 247 199 147 118 85.1 67.1 55.9 44.7 37.2 30.3 15.7

1.85V 313 240 193 142 115 82.9 65.3 54.4 43.4 36.1 29.6 15.4

Please refer to the official site for the latest rating confirmation. URL: www.csb-battery.com

Issued: 200924

Tel: [phone] Tel: [phone]

Fax: [phone]

Fax: [phone]

Tel: [phone]

Fax: [phone]

24 Ah @20hr-rate to 1.75V per cell @25℃ (77℉)

EVH series

EVH 12240

Valve Regulated Lead Acid Battery

General

Nominal Operating Temperature : 25℃(77℉)

Discharge : -15℃ ~ 50℃ (5℉~122℉)

Charge: -15℃ ~ 40℃ (5℉~104℉)

Specification

Nominal Voltage

12V (6 cells per unit)

Weight

Approx. 7.55 Kg (16.64 lbs)

Maximum Discharge Current

320 A (5sec)

Internal Resistance

Approx. 8.6 mΩ

Recognized under UL 1989,

and certified by ISO 9001, 14001, 45001, 50001.

Sales Offices

Short Circuit Current

Maximum Charge Current

Terminal types

I1 terminal to accept M5 bolt

Terminal tightening torque

Container Material

ABS (UL 94-HB)

Dimensions

Constant Current Discharge Characteristics Unit: A (25℃, 77℉)

Constant Power Discharge Characteristics Unit: W (25℃, 77℉)
