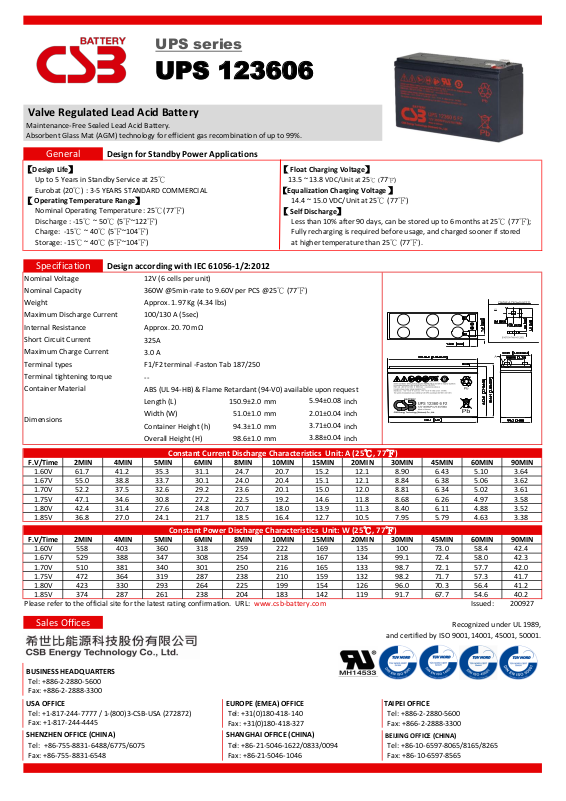

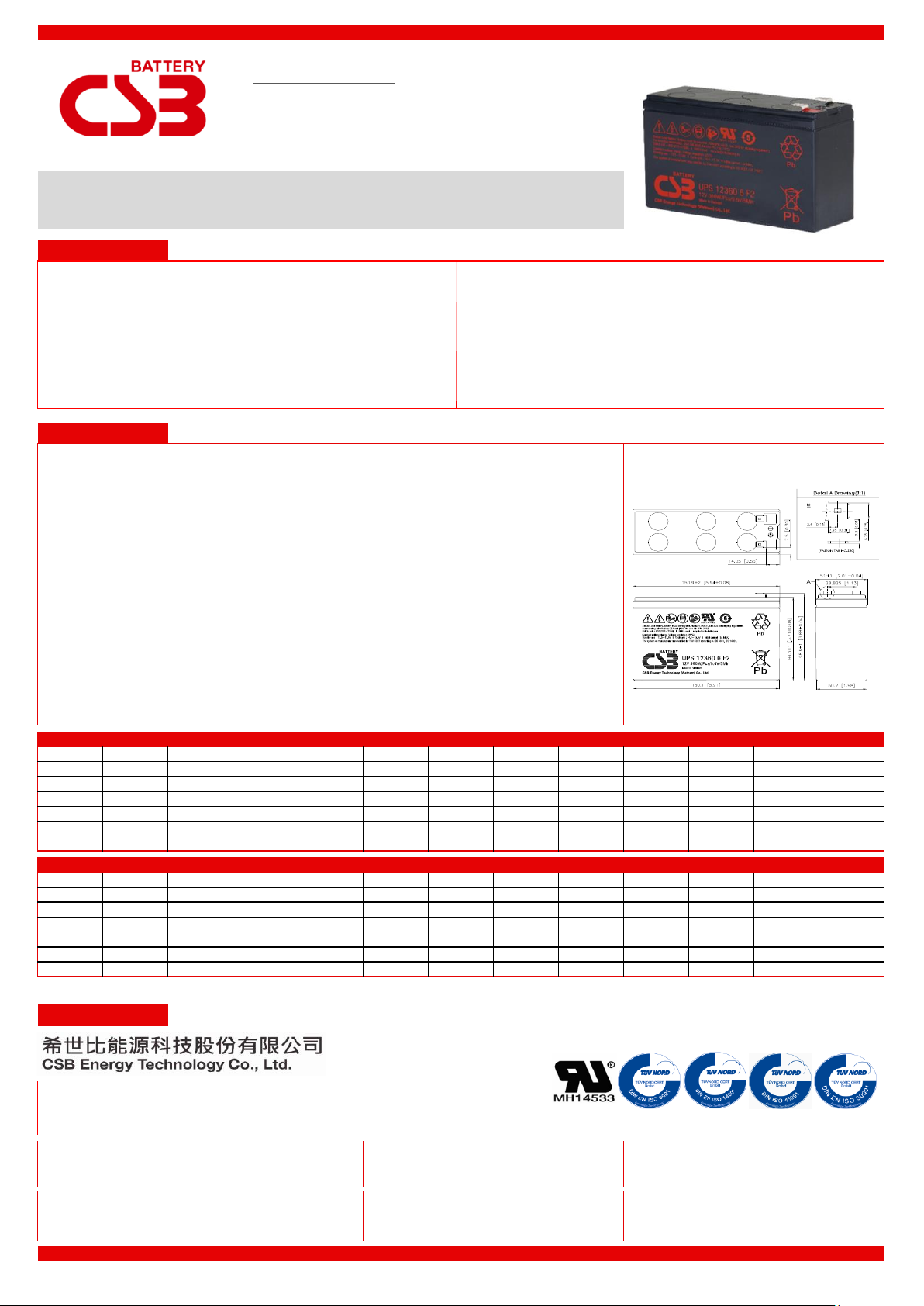

CSB CSB UPS123606 Datasheet

Maintenance-Free Sealed Lead Acid Battery.

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.

Design for Standby Power Applications

【Design Life】 【 Float Charging Voltage】

Up to 5 Years in Standby Service at 25℃

13.5 ~ 13.8 VDC/Unit at 25℃ (77℉)

Eurobat (20℃) : 3-5 YEARS STANDARD COMMERCIAL 【Equalization Charging Voltage 】

【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)

【 Self Discharge】

Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);

Fully recharging is required before usage, and charged sooner if stored

Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).

Design according with IEC 61056-1/2:2012

Nominal Capacity

325A

3.0 A

-­ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Length (L) 150.9±2.0 mm

5.94±0.08

inch

Width (W) 51.0±1.0 mm

2.01±0.04

inch

Container Height (h) 94.3±1.0 mm

3.71±0.04

inch

Overall Height (H) 98.6±1.0 mm

3.88±0.04

inch

F.V/Time 2MIN 4MIN 5MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 45MIN 60MIN 90MIN

1.60V 61.7 41.2 35.3 31.1 24.7 20.7 15.2 12.1 8.90 6.43 5.10 3.64

1.67V 55.0 38.8 33.7 30.1 24.0 20.4 15.1 12.1 8.84 6.38 5.06 3.62

1.70V 52.2 37.5 32.6 29.2 23.6 20.1 15.0 12.0 8.81 6.34 5.02 3.61

1.75V 47.1 34.6 30.8 27.2 22.5 19.2 14.6 11.8 8.68 6.26 4.97 3.58

1.80V 42.4 31.4 27.6 24.8 20.7 18.0 13.9 11.3 8.40 6.11 4.88 3.52

1.85V 36.8 27.0 24.1 21.7 18.5 16.4 12.7 10.5 7.95 5.79 4.63 3.38

F.V/Time 2MIN 4MIN 5MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 45MIN 60MIN 90MIN

1.60V 558 403 360 318 259 222 169 135 100 73.0 58.4 42.4

1.67V 529 388 347 308 254 218 167 134 99.1 72.4 58.0 42.3

1.70V 510 381 340 301 250 216 165 133 98.7 72.1 57.7 42.0

1.75V 472 364 319 287 238 210 159 132 98.2 71.7 57.3 41.7

1.80V 423 330 293 264 225 199 154 126 96.0 70.3 56.4 41.2

1.85V 374 287 261 238 204 183 142 119 91.7 67.7 54.6 40.2

Please refer to the official site for the latest rating confirmation. URL: www.csb-battery.com

Issued: 200927

Tel: [phone] Tel: [phone]

Fax: [phone]

Fax: [phone]

Tel: [phone]

Fax: [phone]

360W @5min-rate to 9.60V per PCS @25℃ (77℉)

UPS series

UPS 123606

Valve Regulated Lead Acid Battery

General

Nominal Operating Temperature : 25℃(77℉)

Discharge : -15℃ ~ 50℃ (5℉~122℉)

Charge: -15℃ ~ 40℃ (5℉~104℉)

Specification

Nominal Voltage

12V (6 cells per unit)

Weight

Approx. 1.97 Kg (4.34 lbs)

Maximum Discharge Current

100/130 A (5sec)

Internal Resistance

Approx. 20.70 mΩ

Sales Offices

Short Circuit Current

Maximum Charge Current

Terminal types

F1/F2 terminal -Faston Tab 187/250

Terminal tightening torque

Container Material

Dimensions

Constant Current Discharge Characteristics Unit: A (25℃, 77℉)

Constant Power Discharge Characteristics Unit: W (25℃, 77℉)

Recognized under UL 1989,

and certified by ISO 9001, 14001, 45001, 50001.
