Maintenance-Free Sealed Lead Acid Battery.
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Cyclic Applications
【Design Life】
400 cycles @ 100%DOD at 25℃
1800 cycles @ 30%DOD at 25℃ 【Equalization Charging Voltage 】
【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)
【 Self Discharge】
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);
Fully recharging is required before usage, and charged sooner if stored
Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).
Nominal Capacity
--
2.16A
--
Length (L) 150.9±2.0 mm 5.94±0.08 inch
Width (W) 64.8±1.0 mm 2.55±0.04 inch
Container Height (h) 94.3±1.0 mm 3.71±0.04 inch
Overall Height (H) 98.6±1.0 mm 3.88±0.06 inch
F.V/Time 30MIN 45MIN 60MIN 90MIN 2HR 3HR 4HR 5HR 6HR 8HR 10HR 20HR
1.60V 7.01 5.19 4.19 3.08 2.49 1.79 1.44 1.20 1.04 0.82 0.68 0.40
1.67V 6.79 5.01 4.04 2.98 2.40 1.73 1.39 1.16 1.00 0.79 0.65 0.38
1.70V 6.57 4.85 3.91 2.89 2.34 1.68 1.36 1.13 0.97 0.77 0.64 0.38
1.75V 6.38 4.71 3.80 2.81 2.27 1.63 1.32 1.10 0.95 0.75 0.62 0.36
1.80V 6.20 4.58 3.70 2.73 2.19 1.58 1.28 1.07 0.92 0.72 0.60 0.35
1.85V 6.00 4.44 3.58 2.65 2.13 1.53 1.24 1.04 0.89 0.70 0.58 0.33
F.V/Time 30MIN 45MIN 60MIN 90MIN 2HR 3HR 4HR 5HR 6HR 8HR 10HR 20HR
1.60V 84.1 62.3 50.3 37.0 29.6 21.5 17.3 14.4 12.4 9.81 8.20 4.53
1.67V 81.4 60.3 48.8 35.8 28.8 20.9 16.8 14.0 12.0 9.50 7.86 4.35
1.70V 79.2 58.6 47.3 34.8 27.9 20.2 16.3 13.6 11.7 9.24 7.72 4.27
1.75V 76.8 56.8 45.9 33.8 27.1 19.6 15.8 13.2 11.4 8.96 7.49 4.14
1.80V 74.4 55.0 44.4 32.7 26.2 19.0 15.3 12.8 11.0 8.67 7.25 4.00
1.85V 72.0 53.3 43.0 31.7 25.4 18.4 14.8 12.4 10.7 8.39 7.02 3.87
Please refer to the official site for the latest rating confirmation. URL: www.csb-battery.com
Issued: 200930
Tel: +31(0)180-418-140 Tel: +886-2-2880-5600
Fax: +31(0)180-418-327
Fax: +866-2-2888-3300
Tel: +86-10-6597-8065/8165/8265
Fax: +86-10-6597-8565
Fax: +86-755-8831-6548
Fax: +86-21-5046-1046
Tel: +1-817-244-7777 / 1-(800)3-CSB-USA (272872)
Fax: +1-817-244-4445
SHENZHEN OFFICE (CHINA)
SHANGHAI OFFICE (CHINA)
BEIJING OFFICE (CHINA)
Tel: +86-755-8831-6488/6775/6075
Tel: +86-21-5046-1622/0833/0094
BUSINESS HEADQUARTERS
Tel: +886-2-2880-5600
Fax: +886-2-2888-3300
USA OFFICE
EUROPE (EMEA) OFFICE
TAIPEI OFFICE
Dimensions
Constant Current Discharge Characteristics Unit: A (25℃, 77℉)
Constant Power Discharge Characteristics Unit: W (25℃, 77℉)
Recognized under UL 1989,
and certified by ISO 9001, 14001, 45001, 50001.
Sales Offices
Short Circuit Current
Maximum Charge Current
Terminal types
F1/F2-Faston Tab187/250
Terminal tightening torque
Container Material
ABS (UL 94-HB)
Weight
Approx. 2.55 Kg (5.62 lbs)
Maximum Discharge Current
100/130A (5sec)
Internal Resistance
Approx. 23.9 mΩ
Discharge : -15℃ ~ 50℃ (5℉~122℉)
Charge: -15℃ ~ 40℃ (5℉~104℉)
Specification
Nominal Voltage
12V (6 cells per unit)
7.2 AH @20HR-rate to 1.75V per cell @25℃ (77℉)

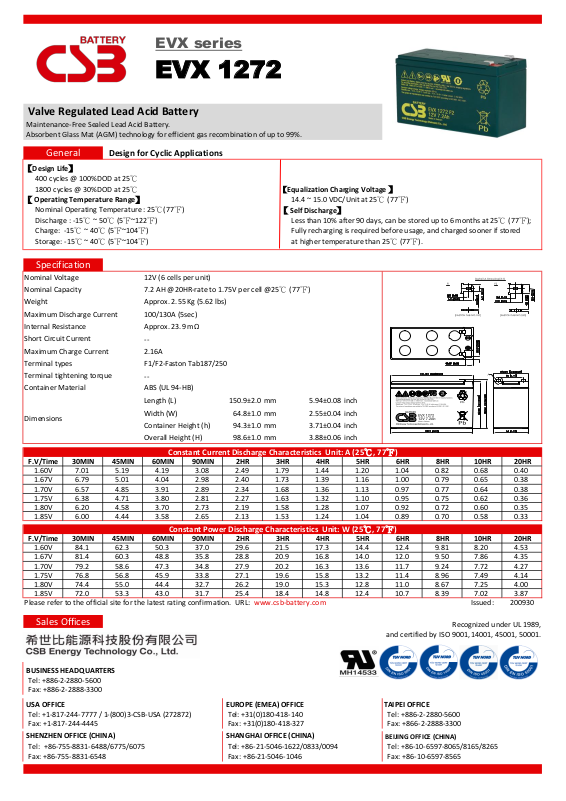

EVX series
EVX 1272
Valve Regulated Lead Acid Battery
General
Nominal Operating Temperature : 25℃(77℉)
