Crestron MMK-6L, WMKM-6L Operating Manual

Crestron MMK-6L & WMKM-6L
Mud Mount Kits
Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

©2007 Crestron Electronics, Inc.

Crestron TMK-6L & WMKT-6L Trim Ring Mount Kits

Contents

Mud Mount Kits: MMK-6L & WMKM-6L 1

Description.................................................................................................................................1

Setup .......................................................................................................................................... 2

Supplied Hardware......................................................................................................2

Installation...................................................................................................................4

Contact Information and Updates............................................................................................12

Further Inquiries........................................................................................................12

Future Updates ..........................................................................................................12

Return and Warranty Policies..................................................................................................13

Merchandise Returns / Repair Service ......................................................................13

CRESTRON Limited Warranty.................................................................................13

Installation Guide – DOC. 6554A Contents • i

Crestron MMK-6L & WMKM-6L Mud Mount Kits

Mud Mount Kits:
MMK-6L & WMKM-6L

Description

Mud Mount Kits are the preferred mounting option for the Crestron Isys®
TPS-6L wall mounted touchpanel when the cutout made in the drywall for
touchpanel installation is too large. These kits provide support for additional
plastering that can be applied to hide large irregularities in the touchpanel cutout.

NOTE: If mounting into another material (other than drywall – for example, wood
lectern, concrete, or rock) use the cutout template, available in the post-construction
kit WMKM-6L. For concrete and rock mounting material, allow for proper
ventilation before mounting the touchpanel.

There are two Mud Mount Kits. The MMK-6L is a pre-construction accessory.
Pre-construction refers to framed walls prior to hanging drywall. This accessory
must be used with either the Pre-Construction Mount Kit (PMK-6L) or Back Box Kit
(BB-6L).

The WMKM-6L is a post-construction kit. Post-construction refers to framed walls
with drywall hung. This accessory is designed with a mounting plate so that it can be
placed anywhere on a wall without the support of a stud.

NOTE: If necessary, consult the latest revision of the TPS-6L Operations Guide
(Doc. 6564) for a complete list of mounting options. The document is available from
the Crestron website (www.crestron.com/manuals).

Installation Guide – DOC. 6553A Mud Mount Kits: MMK-6L & WMKM-6L • 1

Mud Mount Kits Crestron MMK-6L & WMKM-6L

Setup

Supplied Hardware

The MMK-6L consists of three parts. These parts produce an assembly that attaches
to the PMK-6L or BB-6L. The WMKM-6L consists of five parts–three of which
make up the MMK-6L–as well as one mounting plate and one cutout template set.
The mounting plate provides the necessary support for post-construction
applications. Two overlay cutout templates (4504079) are supplied. One is in the
shape of the required opening; the other is similar to a frame, with the inner area of
the frame the shape of the required opening. (Refer to the diagrams on pages 3 and

4.) Use the template that is most convenient.

Supplied Hardware of the MMK-6L and WMKM-6L

DESCRIPTION PART NUMBER QUANTITY

Metal Plate, Mounting Rear
(WMKM-6L Only)

Metal Plate, Mud Ring 2016978 1

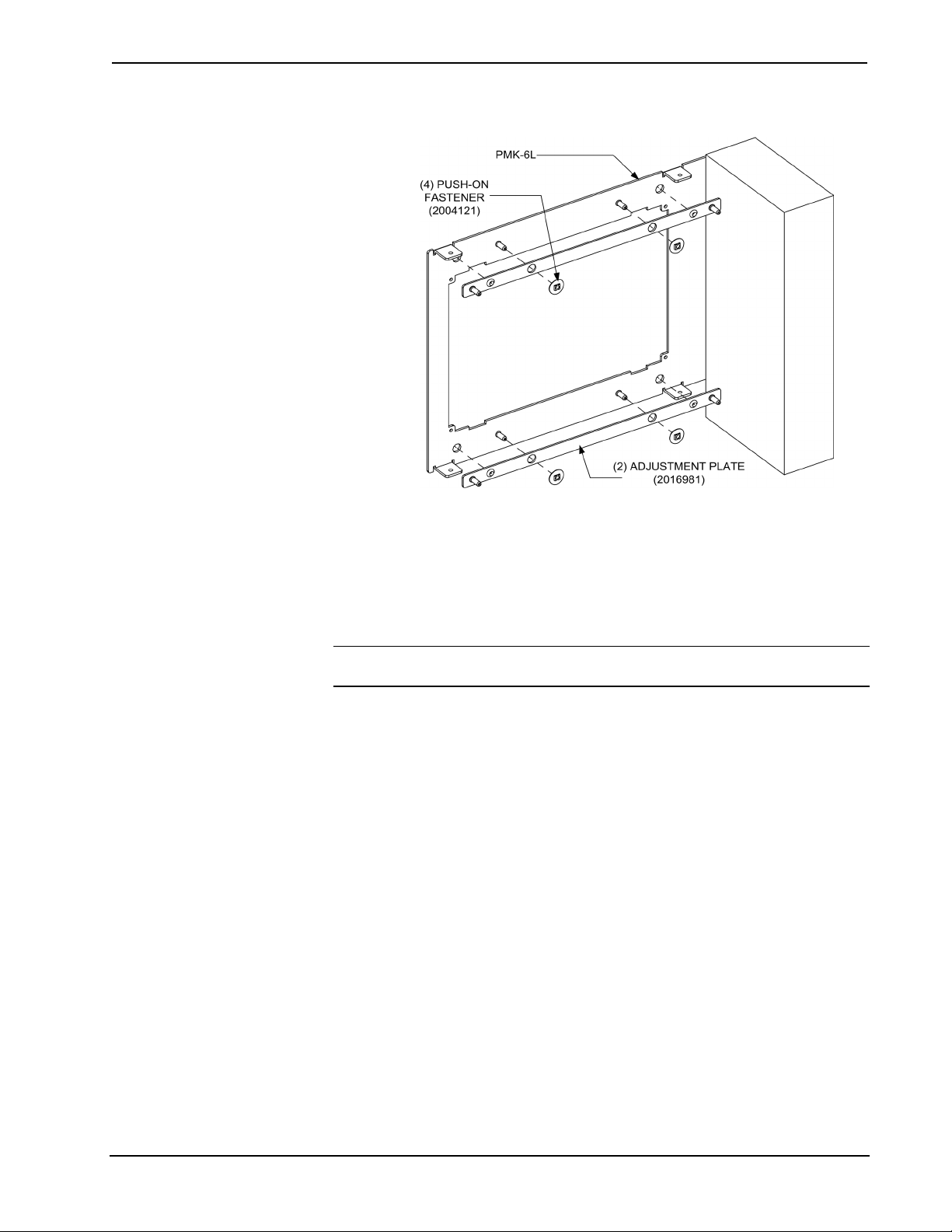

Metal Plate, Adjustment 2016981 2

Overlay Template, Cutout
(WMKM-6L Only)

Hardware, Push-on Fastener 2004121 4

Overall Dimensions – Mud Ring Plate

2016980 1

4504079 1

Overall Dimensions – Adjustment Plate

2 • Mud Mount Kits: MMK-6L & WMKM-6L Installation Guide – DOC. 6553A
