CONNECT
User’s Guide
Sound Blaster® Wireless Transmitter
Congratulations!
Sound Blaster® Wireless Transmitter is capable of streaming high-quality
music wirelessly to Sound Blaster Wireless receivers wherever you are in your
home and controlling them using the software provided. For a list of supported
devices, visit www.soundblaster.com.
System Requirements
Minimum Requirements
•Microsoft® Windows® 7 32bit or 64-bit, Windows Vista® 32-bit or 64-bit with
Service Pack 1 (SP1), Windows XP Professional x64 Edition, Windows XP
Service Pack 2 (SP2) or Service Pack 3 (SP3), Windows XP Media Center Edition
(MCE) 2004 or later; Mac OS
®
X version 10.4.4 or later
• Intel® Pentium
®
M, Intel CoreTM, AMD TurionTM series or equivalent mobile
processor 1.66 GHz, or faster
•Intel, AMD
®
or 100% compatible motherboard chipset
• For Windows 7 or Windows Vista: 1 GB RAM
For Windows XP: 512 MB RAM
• 600 MB of free hard disk space
•Available USB port
• CD or DVD drive, OR a broadband internet connection (required for software
installation)
NOTE
The terms “audio device” and “transmitter” used throughout this
User’s Guide refer to Sound Blaster Wireless Transmitter.
“Transmitter” is used when the audio device is functioning as a
wireless transmitter.
About Your Audio Device 2
About Your Audio Device
CONNECT
90
o
90
o
90
o
2
1
3
4
5
6
7
1 USB connector
2Power LED
Lights up blue when connected
to the computer’s USB port and
computer is turned on.
3Link LED
Lights up green when wireless
streaming is enabled and ready.
Flashes green when the
Connect button is pressed to
indicate pairing with a wireless
receiver or other supported
device.
4 Connect button
5 Microphone/Line In jack
6 Headphone/Line Out
jack
7 Adjustable antenna
Setting Up Your Audio Device 3
Setting Up Your Audio Device
Step 1: Connect to your computer’s USB port
NOTE
The USB extension cradle allows you to:
• Connect the audio device to your computer if it is not physically
possible to connect directly to the USB port due to obstruction of
neighboring USB devices.
• Extend or move the audio device away from other wireless devices
to optimize transmission range.
OR
Installing Software 4
Step 2: Installing Software
Your audio device is operational without any software installation. However to
enjoy all the features, install the drivers and applications provided on the
installation CD.
For all supported Windows OS
1 If prompted for the audio drivers, click the Cancel button.
2 Insert the Installation CD into your CD or DVD drive. Your CD should start
automatically. If it does not, follow the steps below:
i. Click Start -> My Computer.
ii. Right-click the CD or DVD drive icon, and then click Open Autoplay or
Autoplay.
3 If you have downloaded the software, double-click the downloaded .exe file.
4 To complete the installation, follow the instructions on the screen.
5 When prompted, restart your computer.
For Mac OS
1 Insert the Installation CD into your CD or DVD drive.
2 Double-click the <SB_INSTALL> icon.
3 Double-click the <Install> icon.
4 To complete the installation, follow the instructions on the screen.
5 Go to System Preferences, then click the Sound icon. For both the Output and Input
tabs, select SB Wireless.
6 Launch Creative Audio Console from the System Preferences Pane.
NOTE
You can also download the software from www.creative.com/
support. Simply select your audio device from the list of products
shown on the support page.
Connecting Speakers and Headphones 5
Connecting Speakers and Headphones
NOTE
You will be prompted to select the device type when you connect a
device to the input or output jacks. If you have selected the Do not
show this message again check box and subsequently require to
change the input/output device type, launch Sound Blaster Wireless
Control Panel and click the Restore Defaults button.
L
1
2 3 4
5
1 Headset
2 Microphone
3 Headphones
4 Powered stereo or 2.1
speakers
5 Stereo cable
(available separately)
IMPORTANT
Do not listen to audio on your
headphones or headset at high
volumes for prolonged periods
of time as hearing loss might
result.
Using Your Audio Device 6
Using Your Audio Device
Communicating with Voice over Internet Protocol (VoIP)
Use a headphones and microphone combination, or a headset with your audio
device to enjoy outstanding acoustic performance for your VoIP applications
like Skype®, or instant messaging applications like Yahoo!® Messenger. Refer
to the diagram on page 5 for connecting these peripherals.
Streaming Music Wirelessly
Your audio device is capable of streaming music wirelessly to supported
devices. For example, you can pair up one or more Sound Blaster Wireless
Receivers* and control playback using the Broadcast and Zone features in the
Sound Blaster Wireless Control Panel to enjoy music throughout your house.
The Broadcast feature enables you to stream music to any number of wireless
receivers and/or supported devices. It can be used without manual pairing.
B
A
S
S
T
R
E
B
L
E
O
F
F
A
U
X
I
N
M
A
X
V
O
L
U
M
E
Using Your Audio Device 7
The Zone feature enables you to stream music to a maximum of four selected
wireless receivers and/or supported devices. It requires manual pairing and
each device is assigned to an available zone. You can also rename the four
zones.
For more information on using the broadcasting and zone control features, see
“Using the Wireless Features” on page 11.
NOTE
* Available separately or may be bundled with your audio device.
Expand your wireless system by adding on other Sound Blaster
Wireless devices. For a list of Sound Blaster Wireless devices that
work with your audio device, visit www.soundblaster.com.
Using Your Audio Device 8

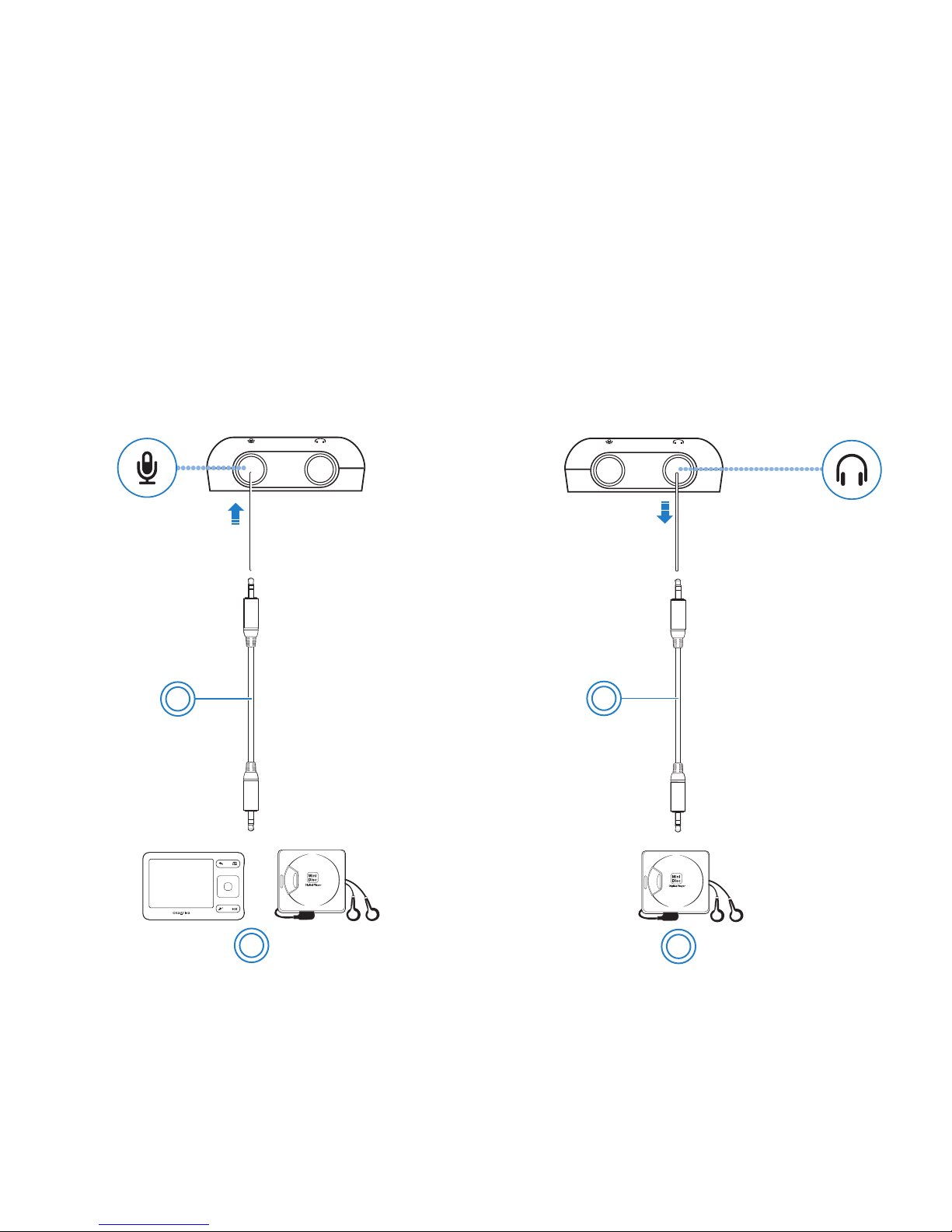

Playing / Recording Music
You can play music from, and/or record music to external devices (for example,
MP3 players, Digital Audio Tape players/recorders and MiniDisc players/
recorders) by connecting them to your audio device.
2
1
1 Stereo cable
(available separately)
2MP3 players, MD
players
3 MD recorder
3
1
Playing Music from external devices
Recording Music to external devices
Using Your Audio Device 9

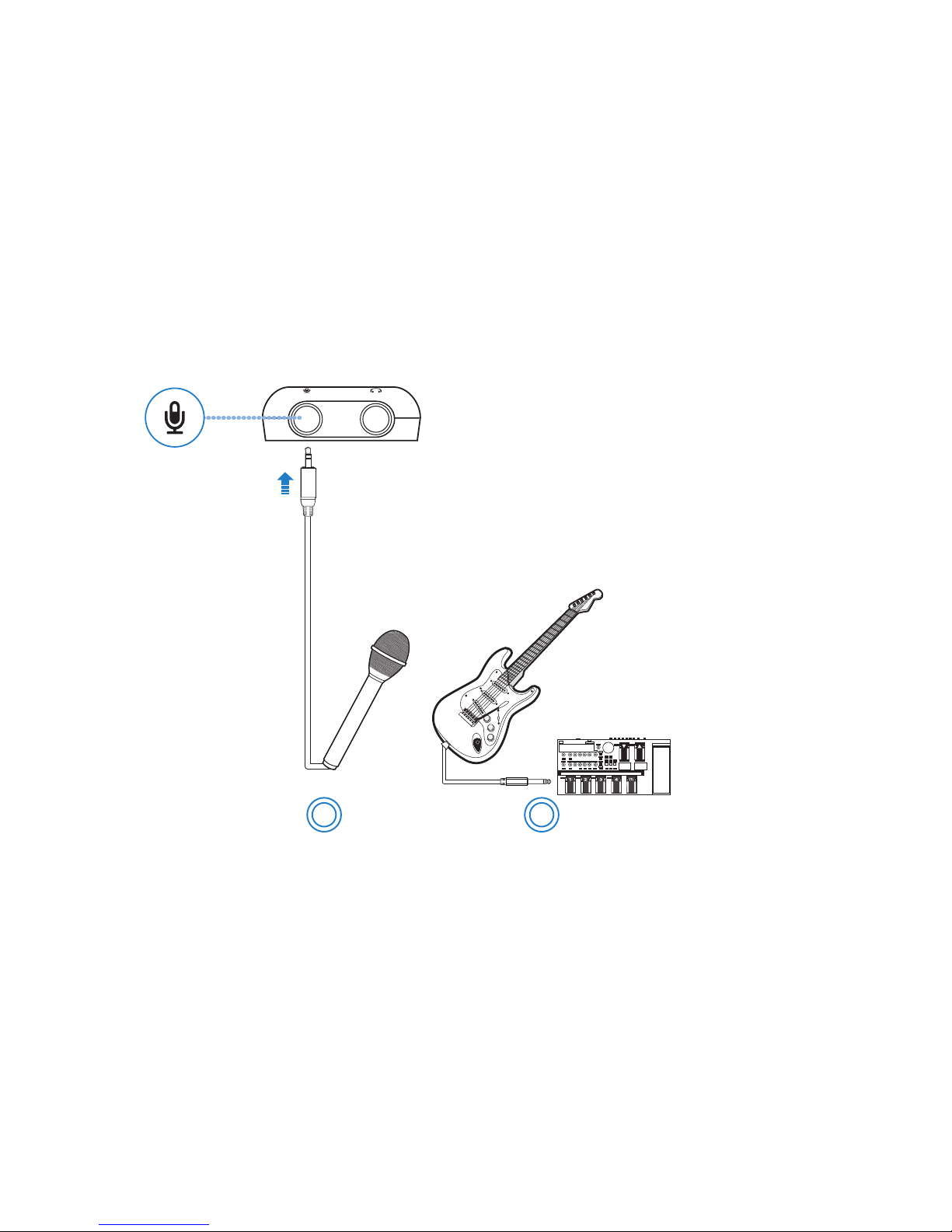

Creating Music
Put together your own productions consisting of multiple music tracks from a
MIDI Synthesizer or an electric guitar. Alternatively, connect your electric
guitar using a Pre-amp Box to the Microphone/Line In jack. Use a convertor if
your Pre-amp Box comes with a larger connector.
NOTE
Your audio device only supports dynamic and low-powered electret
microphones.
1 2
1Microphone
2 Electric guitar with
pre-amp
Creative Software 10
Creative Software
The included software is designed for you to access the basic as well as the
advanced features of your audio device.
For PC:
• Sound Blaster Wireless Control Panel
For Mac:
• Creative Audio Console (in System Preferences Pane)
NOTE
• The applications included with your audio device may differ from
those listed here. Your audio device may also come with third
party applications.
• Some applications are available for certain operating systems
only.
Using the Wireless Features 11
Using the Wireless Features
Your audio device’s wireless features are enabled by default and the device’s
Link LED should light up green. If not, do the following:

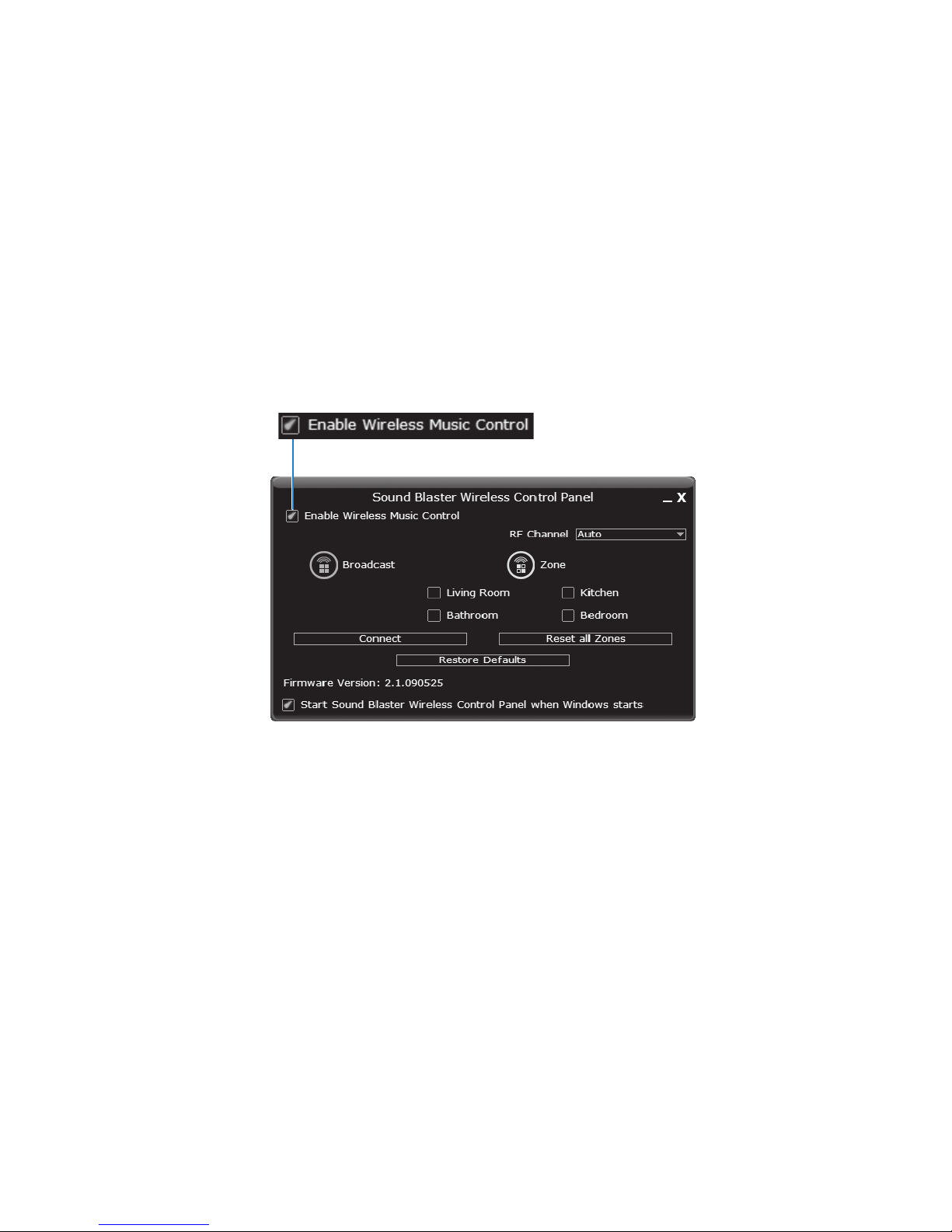

1 Launch Sound Blaster Wireless Control Panel (for PC) or Creative Audio Console (for
Mac).
2 Select the Enable Wireless Music Control check box.
Placing Your Receiver
You can auto or manual pair (connect wirelessly) your transmitter and receiver
before positioning your receiver. Once paired, place your receiver up to 30
meters away from your transmitter.
NOTE
Signal quality between the transmitter and receiver may be
affected by any object or structure (for example, multiple walls)
that is between the units. Experiment with different positions if
necessary.
Using the Wireless Features 12
Auto Pairing

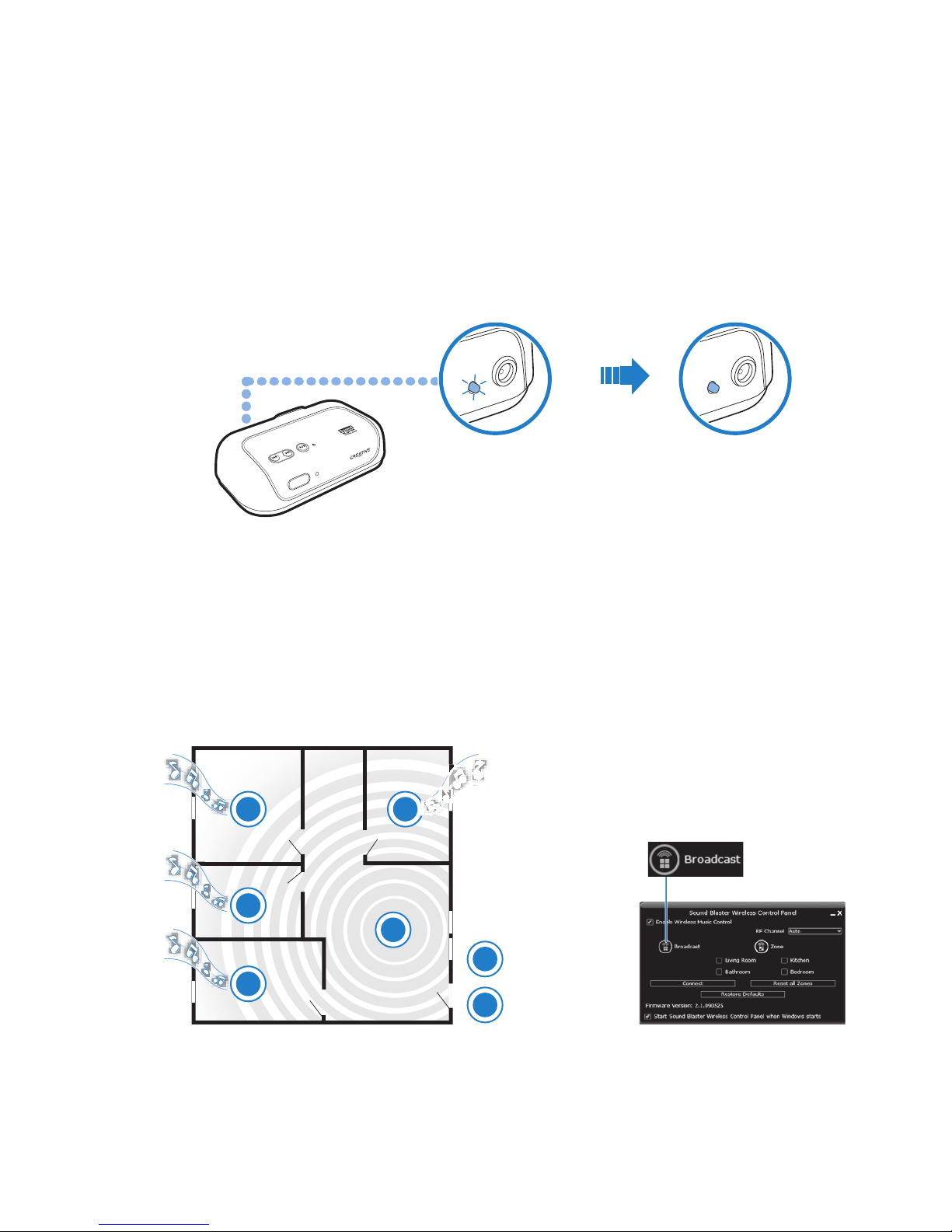

Your transmitter and receiver pair automatically when turned on. The Link LED
lights up green when pairing is successful.
Broadcasting

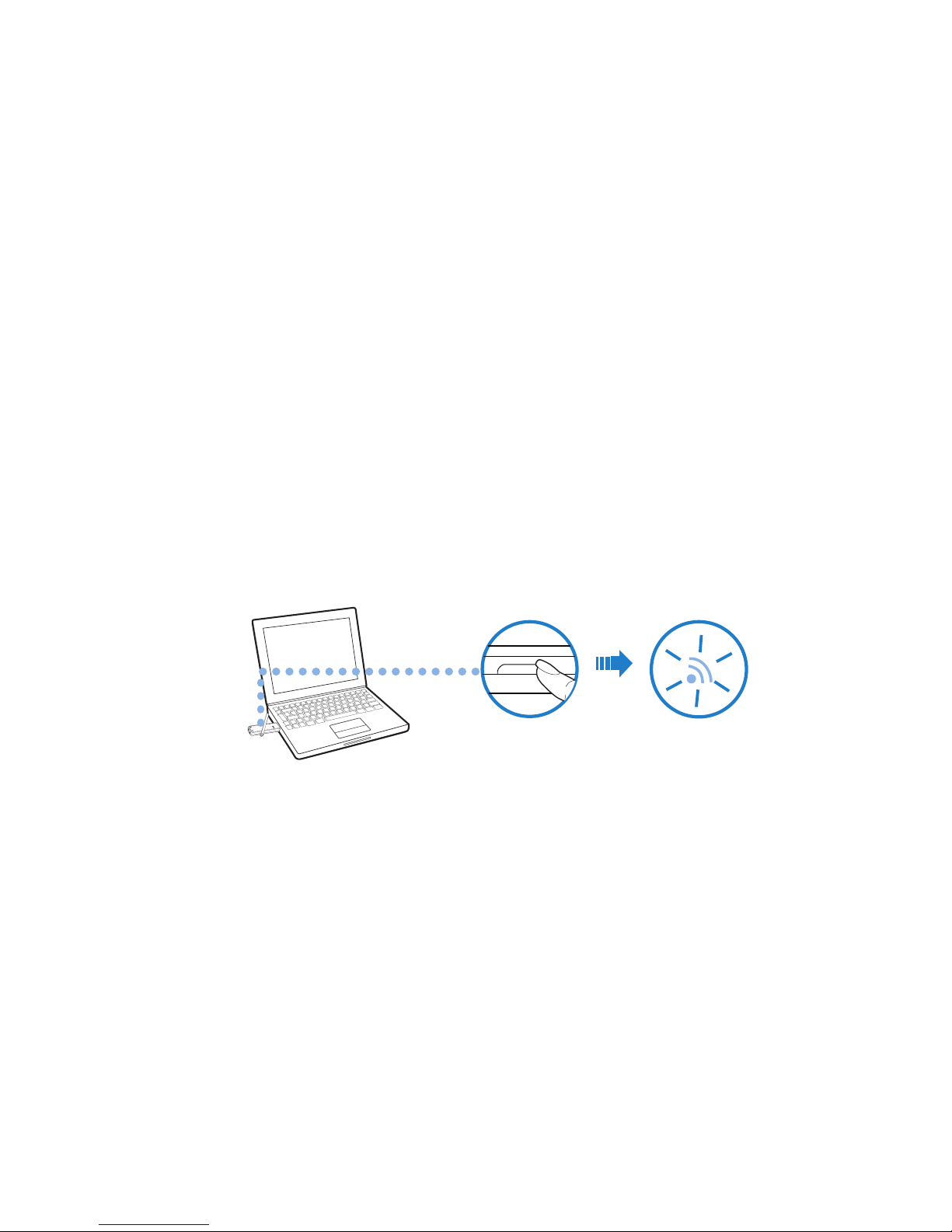

To activate or deactivate all your receivers at the same time, click the
Broadcast icon in the Sound Blaster Wireless Control Panel.
NOTE
If your transmitter and receiver do not pair, simply reset them. On
one unit at a time, press and hold the Connect button for five
seconds.
5V DC
LINK /
CONNECT
5V DC
LINK /
CONNECT
R R
T
R
R
T
R
Transmitter
Receiver
Press the Connect button on your transmitter 13
Manual Pairing
This section shows you how to pair your transmitter manually with two to four
receivers. If you wish to use Zone control, you must pair your units manually.
Only the first four manually paired receivers will be assigned to a wireless
zone. Each manually paired receiver will be assigned to the next available zone.
Each receiver or zone is controlled by the corresponding Zone control icon in
the Sound Blaster Wireless Control Panel.

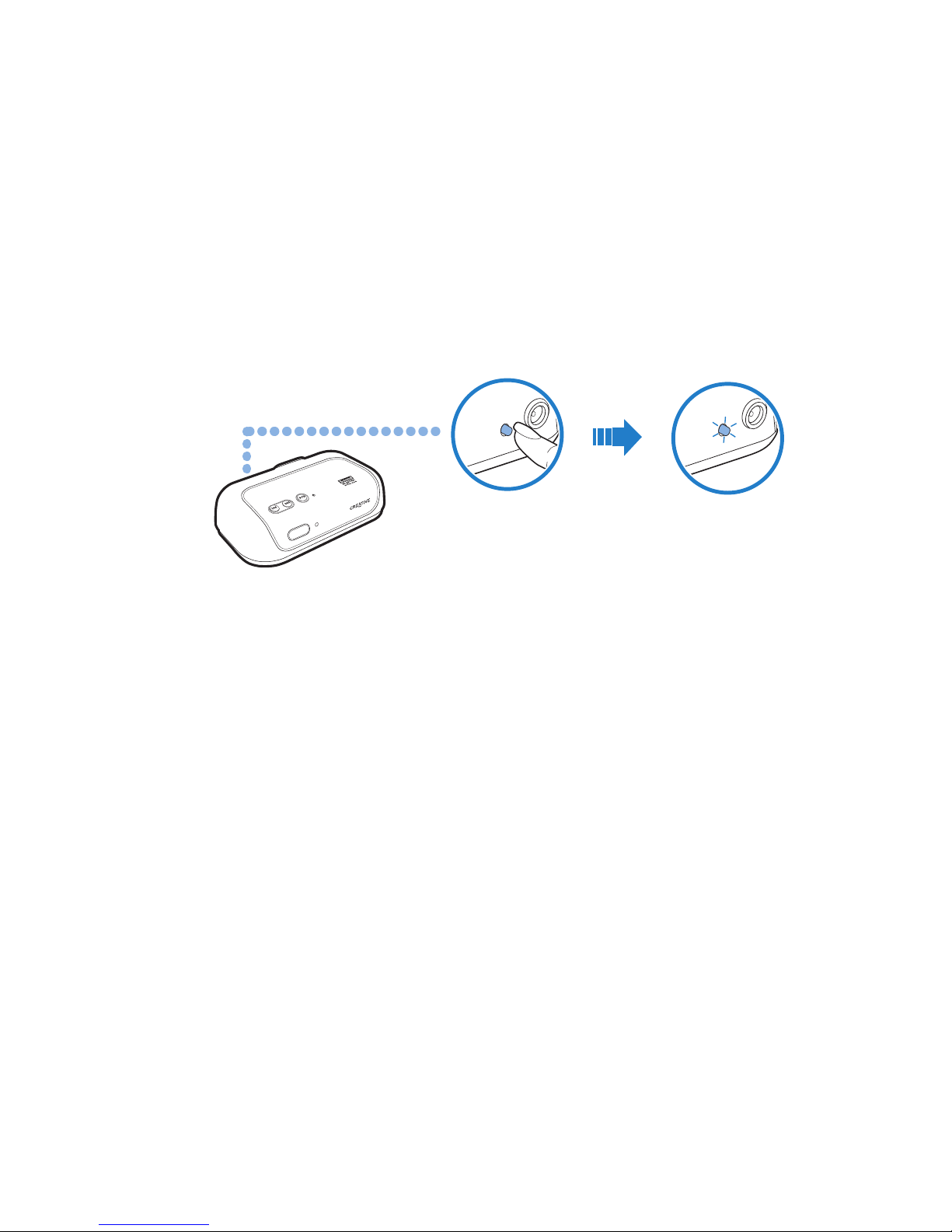

Step 1: Press the Connect button on your transmitter
Press and release the Connect button on your transmitter. Alternatively, click
the Connect button in the Sound Blaster Wireless Control Panel. The
transmitter’s Link LED flashes.
CONNECT
Press the Connect button on your first receiver 14
Step 2: Press the Connect button on your first receiver
This must be done within three minutes after pressing the Connect button on
the transmitter (Step 1). Once the transmitter and receiver are paired
successfully, the Link LED on both units light up green and remain on. The first
receiver to be paired will be assigned to Zone 1.
Step 3: Press the Connect button on your transmitter again
The transmitter’s Link LED flashes. Refer to the diagram in Step 1.
Step 4: Press the Connect button on your second receiver
Refer to the diagram in Step 2. Once the transmitter and receiver are paired
successfully, the Link LED on both units light up green and remain on. Repeat
the steps to pair your third and fourth receivers (if applicable) manually.
IMPORTANT
DO NOT press the Connect button repeatedly on your transmitter
or receiver before a pairing process is complete or else you may
not be able to perform the correct zone assignment for your
receivers.
5V DC
LINK /
CONNECT
5V DC
LINK /
CONNECT
Press the Connect button on your second receiver 15

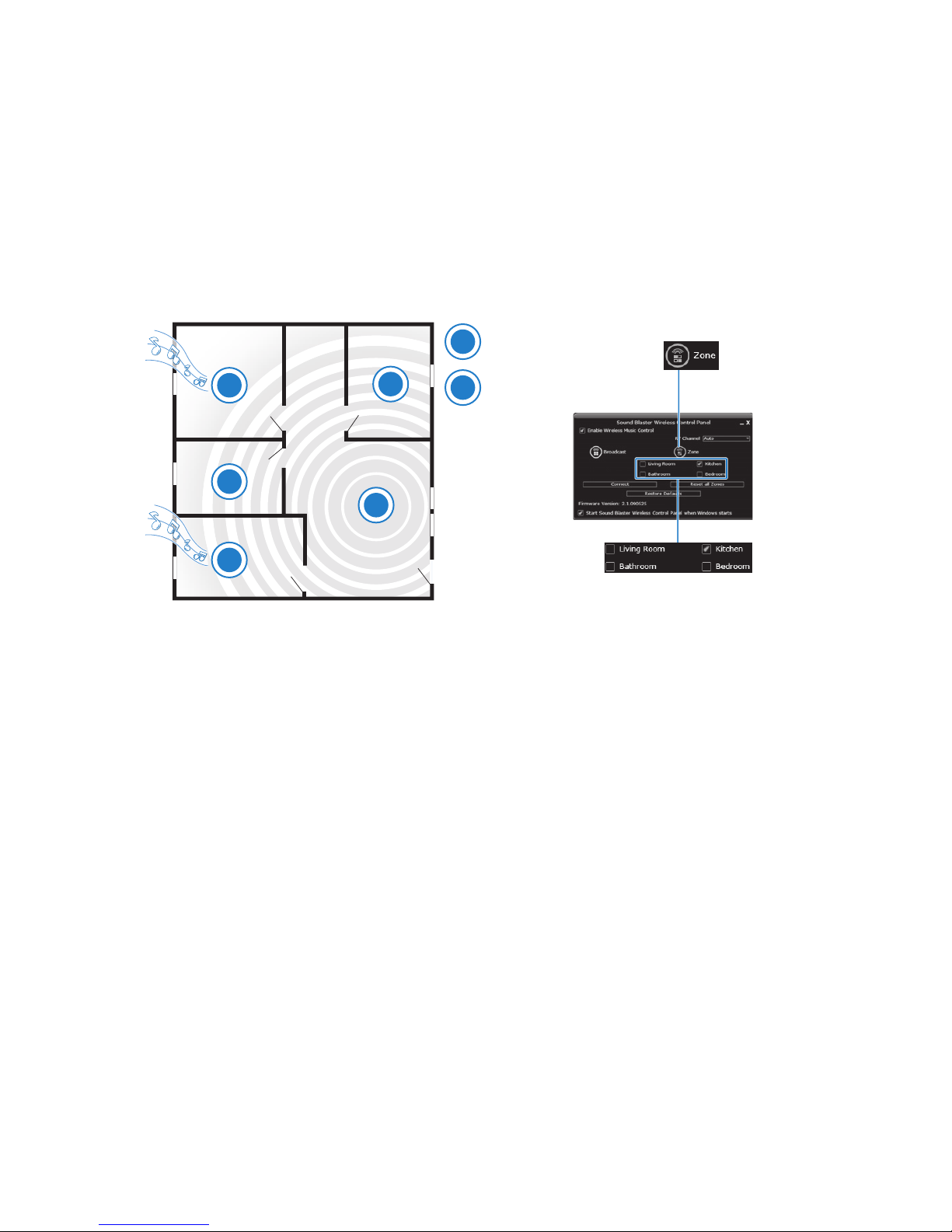

Zone Control
To activate selected receivers, click the Zone icon, and then click the Zones
(assigned to the receivers) you want to activate or deactivate.
Resetting your wireless system
In case of configuration issues, you can fully reset your wireless system by
clicking Reset all Zones button in the Sound Blaster Wireless Control Panel.
This will “unpair” all paired receivers and clear all user-given receiver/zone
names. You can then manually pair your receivers again.
NOTE
• Clicking the Restore Defaults button in the Sound Blaster
Wireless Control Panel restores the default audio settings, sets
the RF channel to Auto and enables the Wireless Music Control.
• Refer to your receiver’s documentation for additional
information.
R1
R2
R3
R4
T
T
R
Transmitter
Receiver
Troubleshooting 16
Troubleshooting
Problems with Multiple Audio Devices
The onboard audio chipset seems to be in conflict with Sound Blaster
Wireless Transmitter.
Disable your notebook's onboard audio chipset. See your notebook's
motherboard documentation for details
Problems with Sound
No sound from the headphones.
Check that the headphones are connected to the Headphone/Line Out jack.
No audio output when playing digital files such as .WAV, MIDI files or
AVI clips.
Check the following:
• The powered speakers or external amplifier are turned on and connected to
the audio device’s Headphone jack.
• The speakers' volume control knob, if any, is set at mid-range.
• There is no hardware conflict between the card and a peripheral device.
Problems with Wireless Features
The wireless connection does not seem to work.
Do the following:
• Check that your transmitter and your paired devices are turned on, and your
transmitter’s wireless features are enabled. If not, see “Using the Wireless
Features” on page 11.
• In case of configuration issues, you can fully reset your wireless system by
clicking the Reset all Zones button in the Sound Blaster Wireless Control
Panel, and then manually pair your receivers again.
Troubleshooting 17
The receivers seem to be picking up extra noise, or there are
intermittent pauses.
The position of your Sound Blaster Wireless devices as well as signals from
other wireless routers or Bluetooth equipment may affect the quality of the
transmissions.
Try the following:
• In the Sound Blaster Wireless Control Panel, change the RF Channel from
Auto to either Ch 1, 2 or 3.
• Place your transmitter and receivers closer to each other. Use the extension
cradle for more flexibility in placing your transmitter.
• Place your transmitter away from other devices that transmit wireless
signals, and away from large metal surfaces.
• Reposition your devices so that there are fewer objects (for example,
multiple walls or large metal structures) between them.
• Set your wireless LAN router's channel to Auto, 1 or 11. To do this, refer to
your router's user documentation.
• Refrain from doing large file transfers via the wireless internet or Bluetooth
connection while you are streaming music. Alternatively, stop streaming
music during intensive file transfers.
NOTE
Refer to your receiver’s documentation for more tips on
troubleshooting wireless features.
General Specifications 18
General Specifications
Connectivity
• One 3.5 mm (1/8”) stereo jack for Analog Line In or Microphone In
• One 3.5 mm (1/8”) stereo jack for Analog Line Out or Headphone Out
Interfaces
• Sound Blaster Wireless technology transmitter to connect with
supported wireless devices.
Radio Frequency (RF)
• Operating RF range: 2400 - 2483.5 MHz
• Number of RF channels: 3
• RF transmitter power output: 16 dBm (typical)
NOTE
You cannot tune the RF channels.
Safety Information 19
Safety Information
Refer to the following information to use your product safely, and to reduce the chance of
electric shock, short-circuiting, damage, fire, hearing impairment or other hazards.
Improper handling may void the warranty for your product. For more information, read
the warranty available with your product.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install the product in accordance with the
instructions.
• Do not install near heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
• Do not expose your product to temperatures outside the range of 0°C to 40°C
(32°F to 104°F).
• Do not pierce, crush or set fire to your product.
• Keep your product away from strong magnetic objects.
• Do not subject your product to excessive force or impact.
• Do not defeat the purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods
of time.
• Do not dismantle or attempt to repair your product.
Refer all servicing to authorized and qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally,or has been dropped.
Safety Information 20
• WARNING: To reduce the risk of fire or electric shock, do not expose your
product to water or moisture. If your product is moisture-resistant, take care
not to immerse your product in water or expose it to rain.
Earphones
•
When a conductive apparatus, such as earphones, is used in close proximity
with a CRT television or CRT monitor, the latter may emit an electrostatic
discharge. The electrostatic discharge can be felt as a static shock. While this
static shock is usually harmless, it is good practice to avoid close contact with
CRT devices when using earphones.
• Do not listen to audio on your earbuds or headphones at high volume for
prolonged periods of time as hearing loss may result. For users in the United
States, go to www.hei.org for more information.
• Do not listen to your audio device at high volume when driving, cycling or
crossing the road, especially in heavy traffic, or in any other traffic condition
where such use will hinder safe travel on the roads. We recommend that
consumers be extremely cautious when using this device on the road.
Embedded Battery
• Do not attempt to remove the embedded battery.
The product must be disposed of according to local environmental regulations.
To replace the battery, return your product to your regional support office. For
product service information, go to www.creative.com.
Removable Battery
• The battery must be recycled or disposed of properly. Contact local agencies for
recycling and disposal information.
• Do not allow metal objects to touch the terminals of your battery.
• If there is leakage, an offensive odor, discoloration or deformation during
charging or use, remove the battery and do not use it again. Clean your hands
well before touching food or sensitive areas, for example, your eyes.
Wireless Device
• Switch off the device where it is prohibited, or when its use may cause danger
or interference such as inside an aircraft, hospitals, or near refuelling points.
Declaration of Conformity 21
Declaration of Conformity
According to the FCC96 208 and ET95-19
Manufacturer/Importer's Name: Creative Labs, Inc.
Manufacturer/Importer's Address: 1901 McCarthy Boulevard
Milpitas, CA. 95035
United States
Tel: (408) 428-6600
declares under its sole responsibility that the product
Trade Name: Creative Labs
Model Numbers: SB1170
has been tested according to the FCC / CISPR22/97 requirement for Class B devices and found
compliant with the following standards:
EMI/EMC: ANSI C63.4 2003, FCC Part 15 Subpart B & C
Complies with Canadian ICES-003 Class B, RSS-GEN & RSS-210
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesirable operation.
Ce matériel est conforme à la section 15 des régles FCC.
Son Fonctionnement est soumis aux deux conditions suivantes:
(1) Le matériel ne peut étre source D'interférences et
(2) Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un
fonctionnement indésirable.
Compliance Manager
Creative Labs, Inc.
March 18th, 2010
Regulatory Information 22
Regulatory Information
Notice for the USA
FCC Part 15: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the
FCC Rules, this device must be installed with computer equipment certified to comply with
Class B limits.
All cables used to connect to the computer and peripherals must be shielded and
grounded. Operation with non-certified computers or non-shielded cables may results in
interference to radio or television reception.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of
this device could void the user’s authority to operate the device.
WARNING: To satisfy FCC RF exposure requirements for mobile transmitting
devices, a separation distance of 20 cm or more should be maintained between
the antenna of this device and persons during device operation.
Regulatory Information 23
To ensure compliance, operations at closer than this distance is not recommended. The
antenna used for this transmitter must not be co-located in conjunction with any other
antenna or transmitter.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. For body operation, Sound Blaster Wireless Transmitter has
been tested and meets the FCC RF exposure guidelines when used directly against the
body. Specific Absorption Rate, or SAR is a measurement of radio frequency energy. The
FCC permits a maximum SAR value of 1.6 mW/g. The highest SAR value for this product
when used on the body, as described in this user guide, is 1.070 mW/g.
California Proposition 65 Statement
WARNING: Handling this product may expose you to chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
Explanatory Note: California Safe Drinking Water and Toxic Enforcement Act of 1986
(Proposition 65) requires special product labeling for products containing certain
chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm. Creative has chosen to provide a warning based on its knowledge
about the presence of one or more listed chemicals without attempting to evaluate the
level of exposure. With Creative's products, the exposure may be below the Proposition 65
level of concern, or could even be zero. However, out of an abundance of caution, Creative
has elected to place the Proposition 65 warning on its products.
Déclaration de la Proposition 65 de la Californie
AVERTISSEMENT: La manipulation de ce produit peut vous exposer à des produits
chimiques qui sont reconnus par l'État de la Californie comme pouvant provoquer le
cancer, des anomalies congénitales ou d'autres effets nuisibles à la reproduction.
Veuillez vous laver les mains après l'avoir manipuler.
Note explicative: La Proposition 65 (California Safe Drinking Water and Toxic Enforcement
Act of 1986) de la Californie sur les matières dangereuses et l'eau potable exige un
étiquetage spécial pour les produits contenant certains produits chimiques qui sont
Regulatory Information 24
reconnus par l'État de la Californie comme pouvant provoquer le cancer, des anomalies
congénitales ou d'autres effets nuisibles à la reproduction. Creative a choisi d'inclure une
mise en garde s'appuyant sur sa connaissance de la présence d'un ou de plusieurs de ces
produits chimiques sans essayer d'en évaluer le niveau d'exposition. Pour les produits de
Creative, le niveau d'exposition peut être inférieur au niveau critique établi par la
Proposition 65 ou même être nul. Néanmoins, par souci extrême de prudence, Creative a
choisi de placer l'avertissement de la Proposition 65 sur ses produits.
Notice for Canada
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may
cause undesired operation.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CANADIAN CLASS B STATEMENT: This digital device does not exceed the Class B limits
for radio noise emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of
Communications.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux
appareils numeriques de Class B prescrites dans la norme sur le materiel brouilleur.
“Appareils Numeriques,” NMB-003 edictee par le ministre des Communications.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of
this device could void the user’s authority to operate the device.
Toute modification non approuvé explicitement par le fournisseur de licence de l’appareil
peut entraîner l’annulation du droit de l’utilisateur à utiliser l’appareil.
Regulatory Information 25
European Compliance
This product conforms to the following:
EMC Directive 2004/108/EC.
Mains operated products for the European market comply with Low Voltage Directive 2006/
95/EC.
Communication / RF wireless products for the European market comply with R&TTE
Directive 1999/5/EC.
CAUTION: To comply with the Europe CE requirement, this device must be installed with
CE certified computer equipment which meet with Class B limits.
All cables used to connect this device must be shielded, grounded and no longer than 3m
in length. Operation with non-certified computers or incorrect cables may result in
interference to other devices or undesired effects to the product.
MODIFICATION: Any changes or modifications not expressly approved by Creative
Technology Limited or one of its affiliated companies could void the user’s warranty and
guarantee rights.
Information in this document is subject to change without notice and does not represent a commitment
on the part of Creative Technology Ltd. No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying and recording, for any purpose
without the written permission of Creative Technology Ltd.
Copyright © 2010 Creative Technology Ltd. All rights reserved. The Creative logo and Sound Blaster are
trademarks or registered trademarks of Creative Technology Ltd. in the United States and/or other
countries. Mac and iTunes are registered trademarks of Apple Inc., registered in the U.S. and other
countries.
Version 2.0
May 2010
The use of the WEEE Symbol indicates that this product may not be
treated as household waste. By ensuring this product is disposed of
correctly, you will help protect the environment. For more detailed
information about the recycling of this product, please contact your
local authority, your household waste disposal service provider or
the shop where you purchased the product.
Loading...
