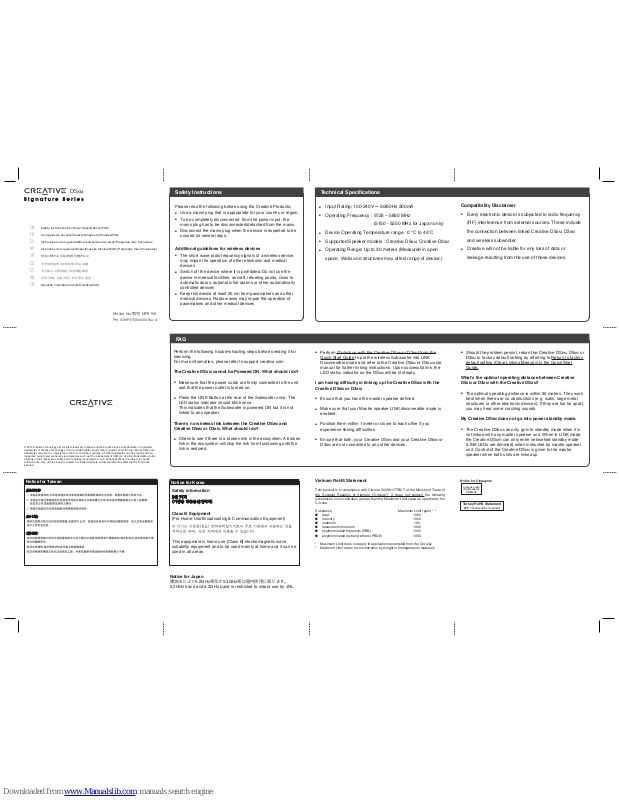

Creative DSxm User Manual

PN: 03MF815000000 Rev A

Model No.型号 MF8150

●

Input Rating: 100-240V

~ 50/60Hz 300mA

●

Operating Frequency : 5725 – 5850 MHz

(5150 - 5250 MHz for Japan only)

●

Device Operating Temperature range : 0 °C to 45°C

●

Supported Speaker models : Creative D5x

M, Creative D3xM

●

Operating Range: Up to 30 meters (Measured in open

space. Walls and structures may affect range of device.)

Please read the following before using the Creative Products:

●

Use a mains plug that is appropriate for your country or region.

●

To be completely disconnected from the power input, the
mains plug has to be disconnected/detached from the mains.

●

Disconnect the mains plug when the device is expected to be
unused for several days.

Additional guidelines for wireless devices

●

The short wave radio frequency signals of a wireless device
may impair the operation of other electronic and medical
devices

●

Switch off the device where it is prohibited. Do not use the
device in medical facilities, aircraft, refueling points, close to
automatic doors, automatic fire alarms or other automatically
controlled devices

●

Keep this device at least 20 cm from pacemakers and other
medical devices. Radio waves may impair the operation of
pacemakers and other medical devices

Safety Instructions

FAQ

Technical Specifications

© 2012 Creative Technology Ltd. All rights reserved. Creative and the Creative logo are trademarks or registered
trademarks of Creative Technology Ltd in the United States and/or other countries. iPod, iPhone, iPad and Mac are
trademarks of Apple, Inc., registered in the U.S. and other countries. All other trademarks are the property of their
respective owners and are hereby recognized as such. aptX is a trademark of CSR plc. All other trademarks are the
property of their respective owners and are hereby recognized as such. All specifications are subject to change
without notice. Use of this product is subject to a limited warranty. Actual contents may differ slightly from those
pictured.

FAQ

Turkey RoHS Statement

EEE Yönetmeligine Uygundur

Complies with
IDA Standards

DB00148

Notice for Singapore

Notice for Taiwan

Notice for Korea

Vietnam RoHS Statement

This product is in compliance with Circular 30/2011/TTBCT of the Ministry of Trade of
the Socialist Republic of Vietnam (“Circular”), it does not contain the following
substances in concentration greater than the Maximum Limit value as specified in the
Circular.

Substance Maximum Limit (ppm)

1, 2

● lead 1000

● mercury 1000

● cadmium 100

● hexavalent chromium 1000

● polybrominated biphenyls (PBB) 1000

● polybrominated diphenyl ethers (PBDE) 1000

1

Maximum Limit does not apply to applications exempted from the Circular.

2

Maximum Limit refers to concentration by weight in homogeneous materials.

Safety Instructions/Technical Specifications/FAQ

CS.

ES.
BP.

FR.

EN.

JP.

Consignes de sécurité/Caractéristiques techniques/FAQ

Instrucciones de seguridad/Especificaciones técnicas/Preguntas más frecuentes

安全使用说明/技术规格/常见问题

安全に関する注記/技術仕様/FAQ

Instruções de segurança/Especificações técnicas/FAQ (Perguntas mais frequentes)

TR.

CT.
KO.

Güvenlik Talimatları/Teknik Özellikler/SSS

안전 지침/기술 사양/자주 묻는 질문

安全指示/技術規格/常見問題解答

Perform the following trouble-shooting steps before sending it for
servicing.
For more information, please refer to support.creative.com

The Creative DSxM cannot be Powered ON. What should I do?

●

Make sure that the power cords are firmly connected to the unit
and that the power outlet is turned on.

●

Press the LINK Button at the rear of the Subwoofer once. The
LED status indicator should blink once.

This indicates that the Subwoofer is powered ON but it is not

linked to any speaker.

There’s no wireless link between the Creative DSxM and
Creative D5xM or D3xM. What should I do?

●

Check to see if there is a broken link in the ecosystem. A broken
link in the ecosystem will stop the link from functioning until the
link is restored.

●

Perform (To link up with the Creative D5xM or D3xM) from the
Quick Start Guide to put the wireless Subwoofer into LINK
Discoverable mode and refer to the Creative D5xM or D3xM user
manual for further linking instructions. Upon successful link, the
LED status indicator on the DSxM will be lit steady.

I am having difficulty in linking up the Creative DSxM with the
Creative D5xM or D3xM.

●

Ensure that you have the master speaker defined.

●

Make sure that your Master speaker LINK discoverable mode is
enabled.

●

Position them within 1 meter or closer to each other if you
experience linking difficulties.

●

Ensure that both, your Creative DSxM and your Creative D5xM or
D3xM are not connected to any other devices.

●

Should the problem persist, return the Creative DSxM, D5xM or
D3xM to factory default setting by referring to Return to factory
default setting (Clear Linking Memory) in the Quick Start
Guide..

What’s the optimal operating distance between Creative
D5xM or D3xM with the Creative DSxM?

●

The optimal operating distance is within 30 meters. They work
best when there are no obstructions (e.g. walls, large metal
structures or other electronic devices). If they are too far apart,
you may hear some cracking sounds.

My Creative DSxM does not go into power standby mode.

●

The Creative DSxM can only go into standby mode when it is
not linked with any master speaker unit. When in LINK mode,
the Creative DSxm can only enter networked standby mode
(LINK LEDs are dimmed) when instructed by master speaker
unit. Control of the Creative DSxM is given to the master
speaker when both units are linked up.

Compatibility Disclaimer

●

Every electronic device is subjected to radio frequency

(RF) interference from external sources. These include

the connection between linked Creative D5x

M, D3xM

and wireless subwoofer.

●

Creative will not be liable for any loss of data or

leakage resulting from the use of these devices.

Signature Series S i g n a t u r e S e r i e s

DS

Safety information

Class B Equipment

(For Home Use Broadcasting & Communication Equipment)

This equipment is home use [Class B] electromagnetic wave
suitability equipment and to be used mainly at home and it can be
used in all areas.

Notice for Japan

電波法により5.2GHz帯及び5.3GHz帯は屋内使用に限ります。

5.2GHz band and 5.3GHz band is restricted to indoor use by JRL.
