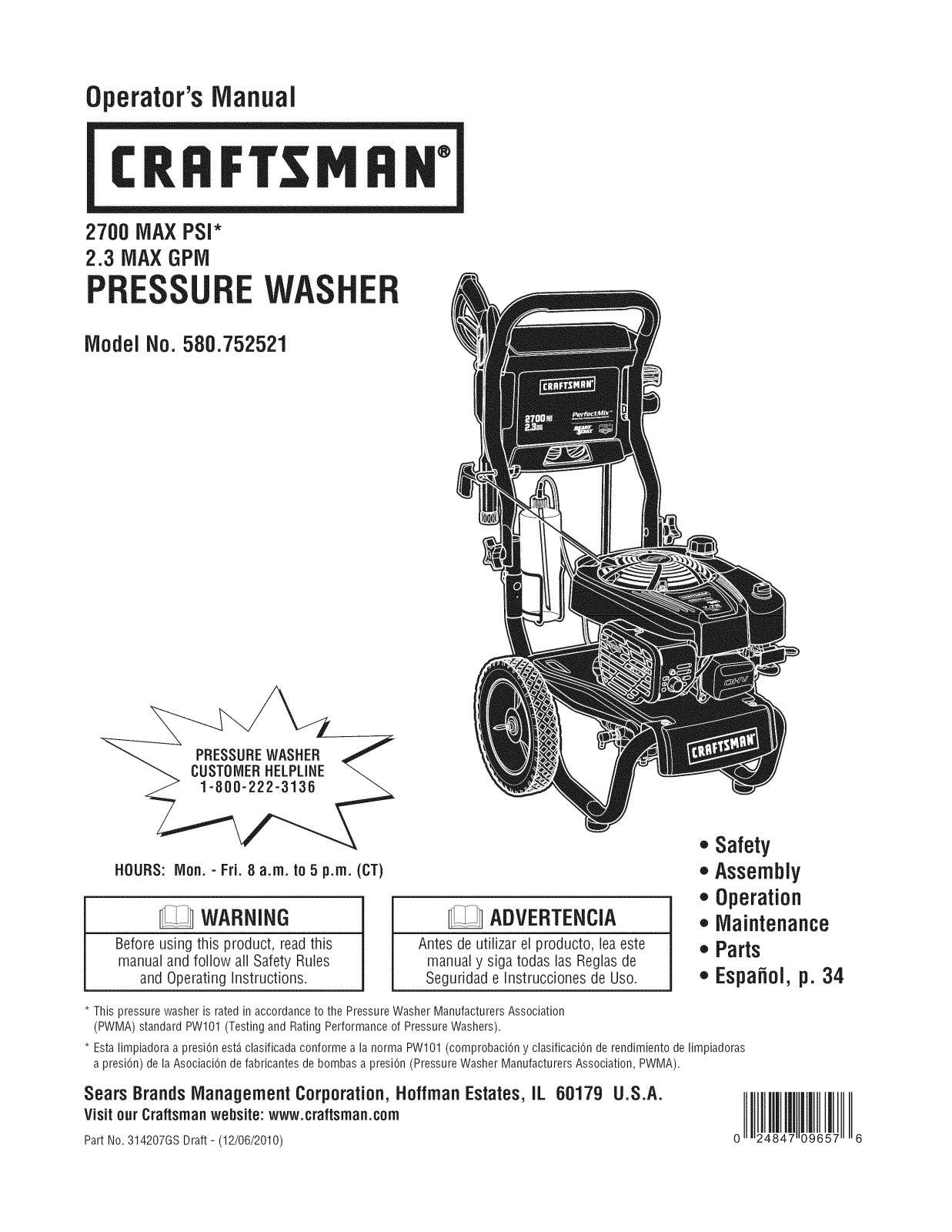

Craftsman 580.752521 User Manual

Operator'sIVianual

2700 MAX PSi*

2.3 MAXGPiVi

iViodelNo. 580.752521

®

,, Safety

HOURS: IVlon.- Fri. 8 a.m. to 5 p.m. (CT)

,, Assembly
,, Operation

WARNING

Beforeusing this product, readthis

manualand follow all Safety Rules

and Operatinginstructions.

* This pressure washer is rated in accordanceto the PressureWasher Manufacturers Association

(PWMA) standard PWI01 (Testing and Rating Performance of Pressure Washers).

* Esta limpiadora a presiOnest_ clasificada conforme a la norma PWl01 (comprobaciOn y clasificaciOn de rendimiento de limpiadoras

a presiOn)de laAsociaciOn defabricantes de bombas a presiOn(Pressure WasherManufacturers Association, PWMA).

SearsBrands ManagementCorporation,HoffrnanEstates,IL 60179 U.S.A.

Visit our Craftsman website: www.craftsman.com

Part No. 314207GS Draft - (12/06/2010)

Antes de utilizar el producto, leaeste

manualy siga todas las Reglasde

Seguridad e Instrucciones de Uso.

ADVERTENCIA

,,Maintenance

,, Parts

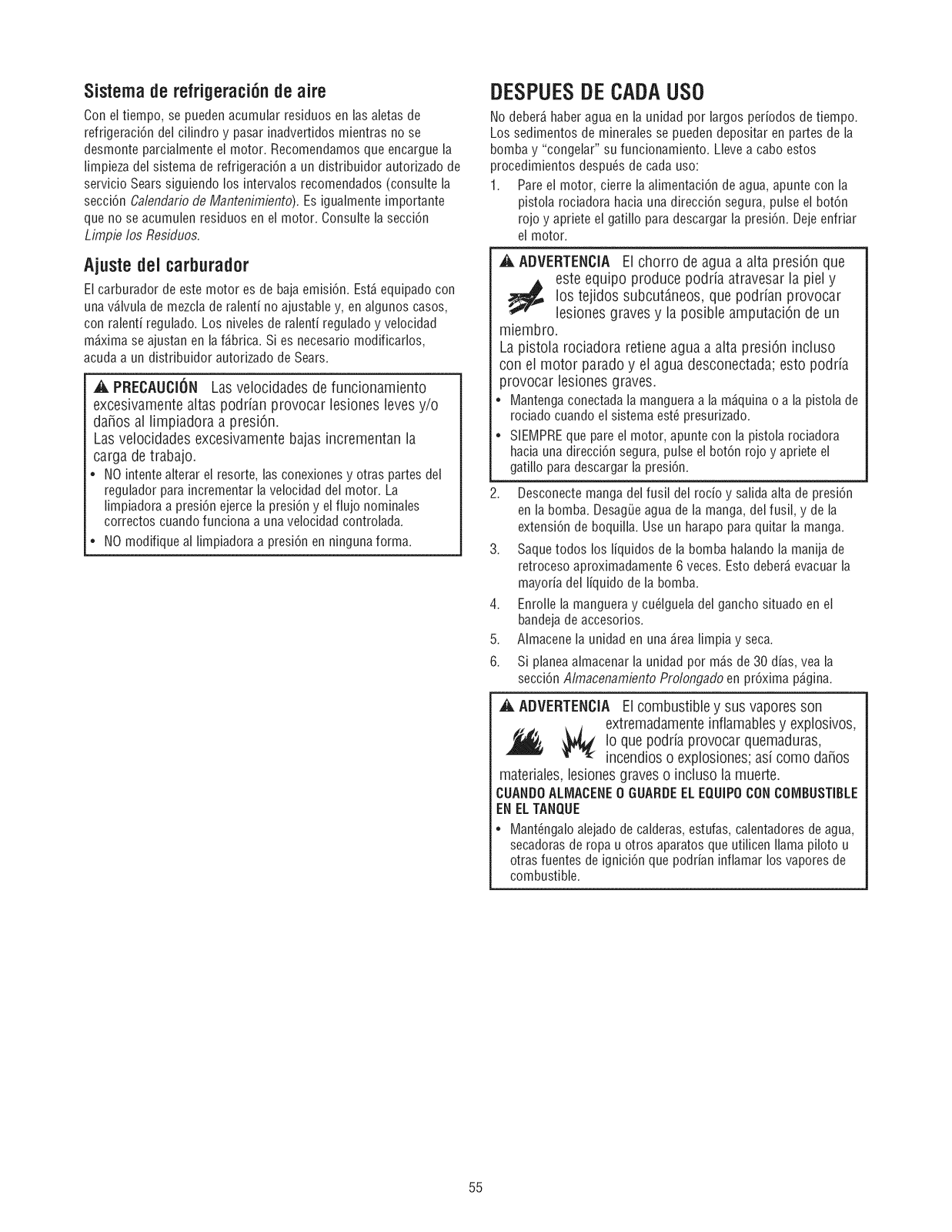

,, Espafiol, p. 34

6

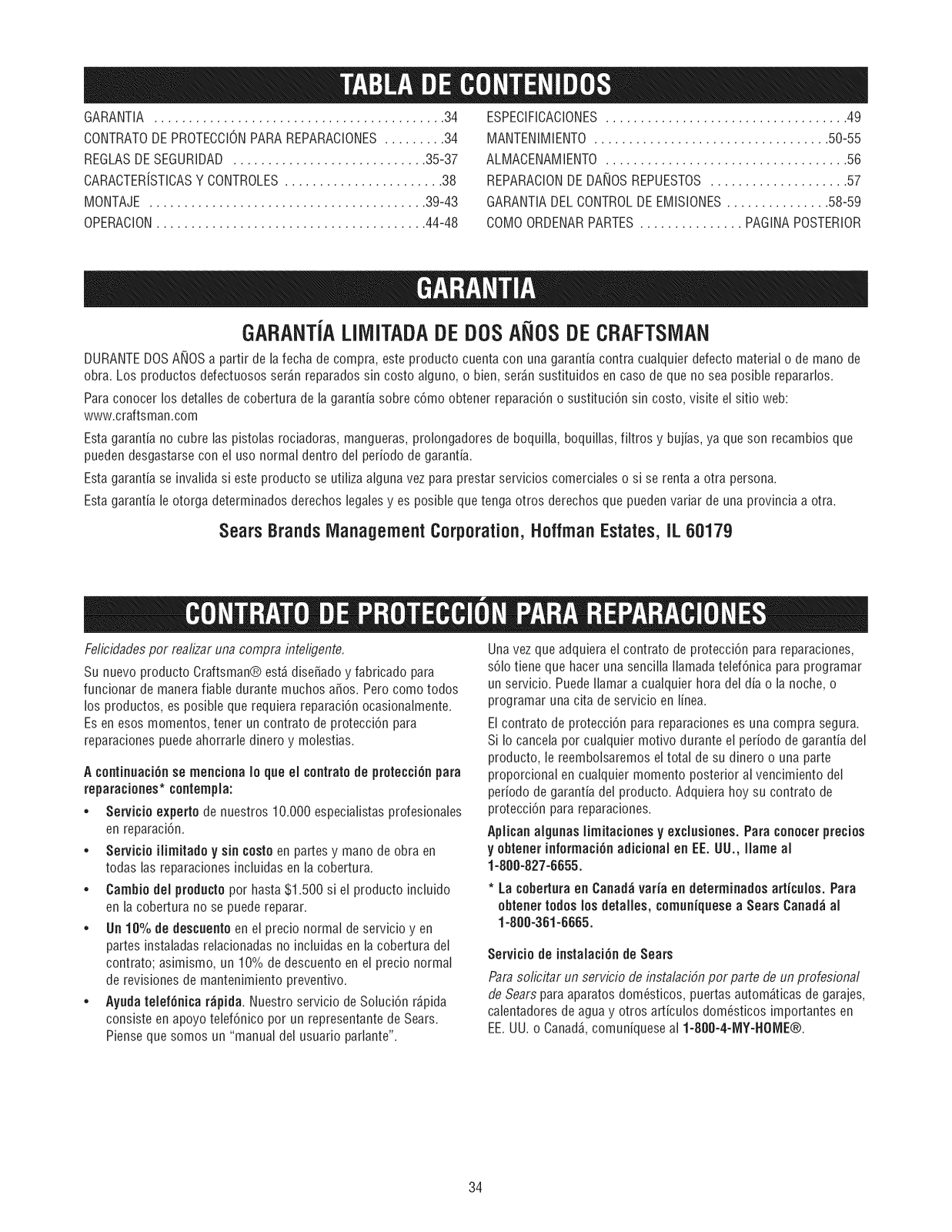

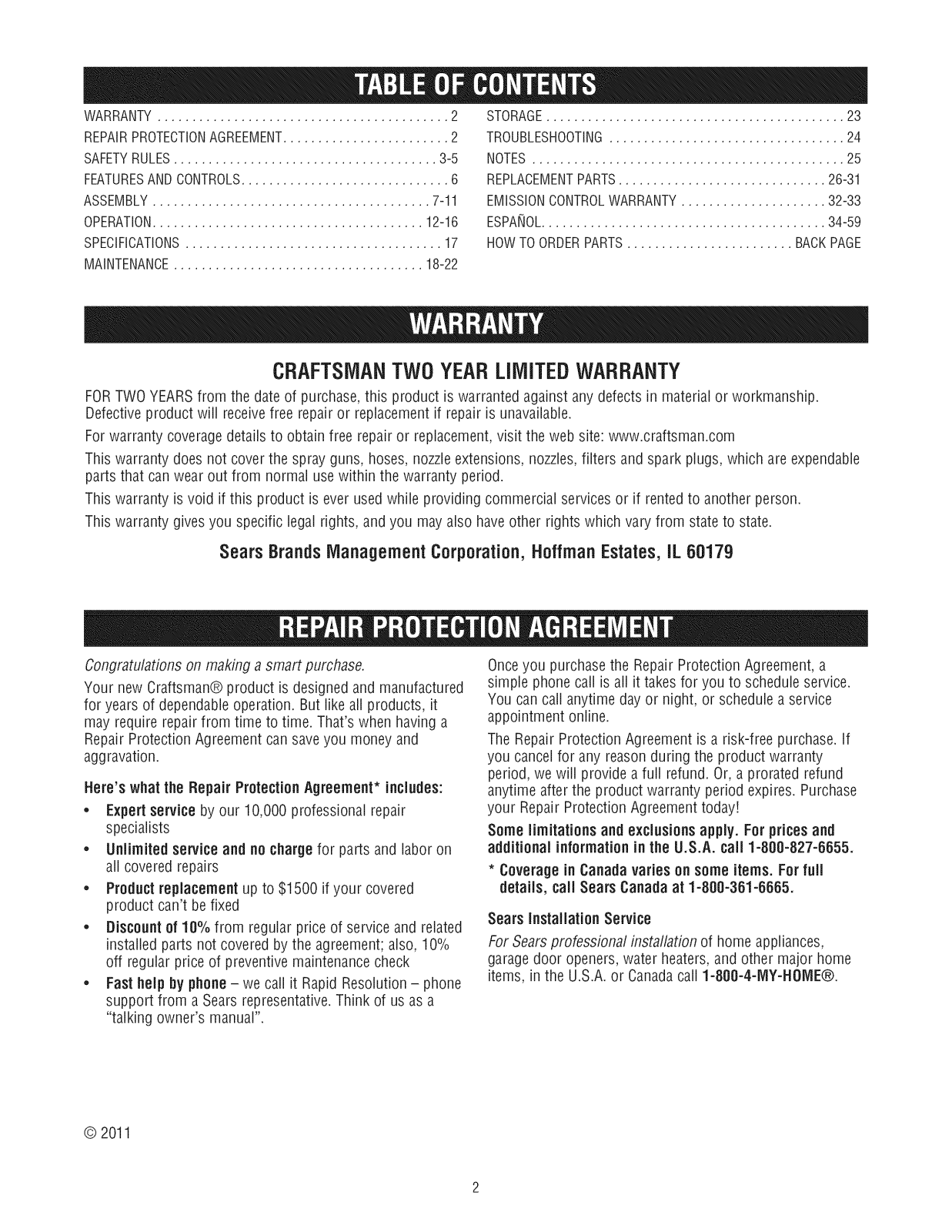

WARRANTY .......................................... 2

REPAIRPROTECTIONAGREEMENT........................ 2

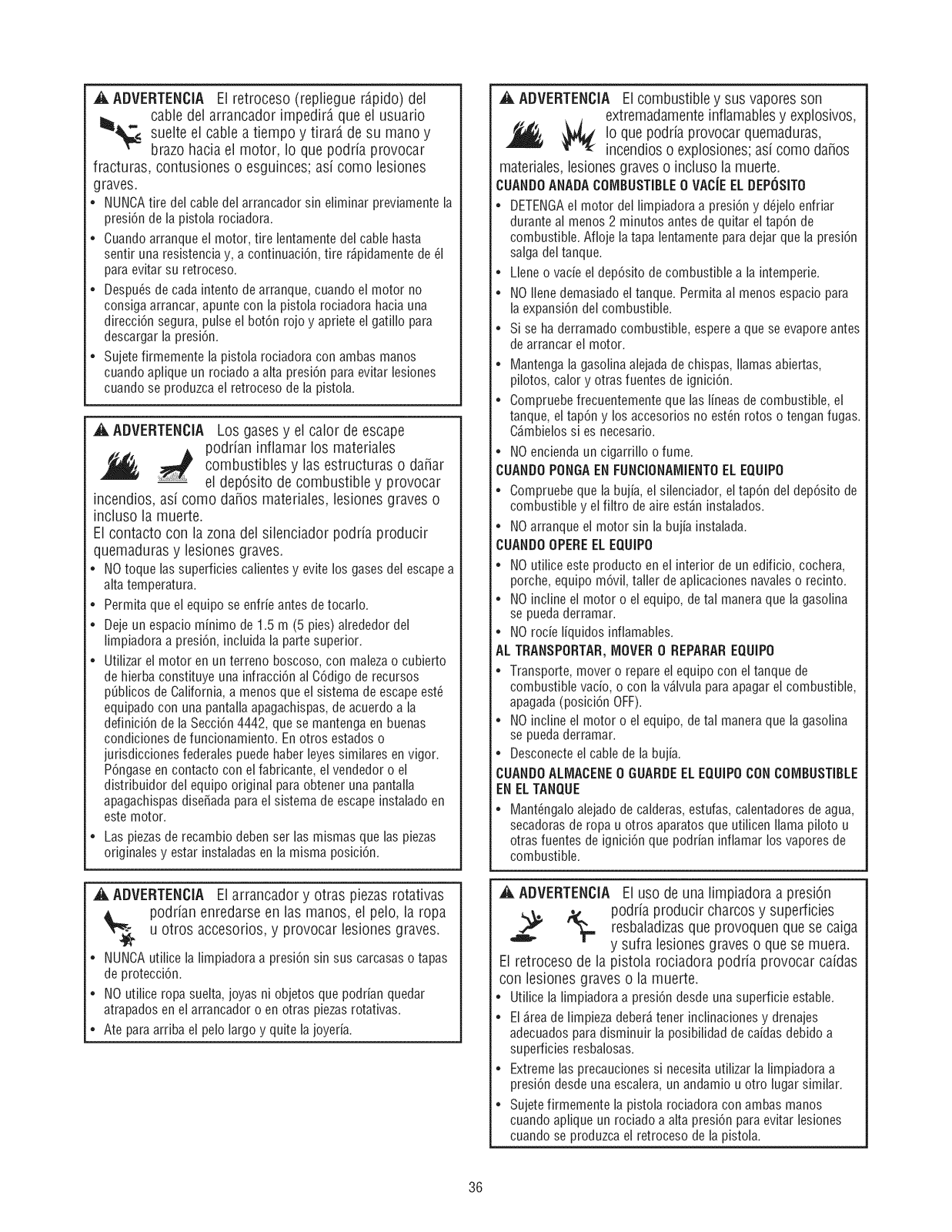

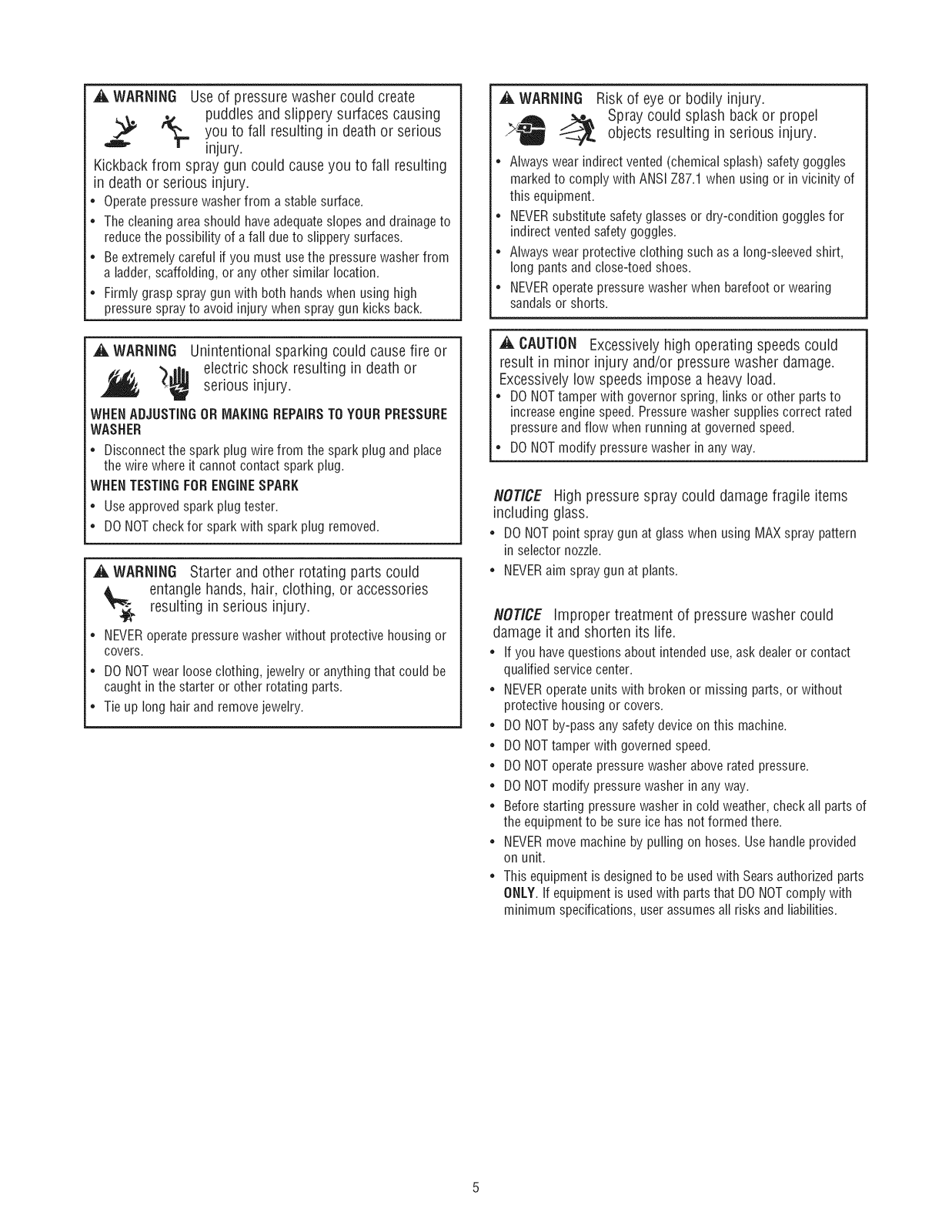

SAFETYRULES...................................... 3-5

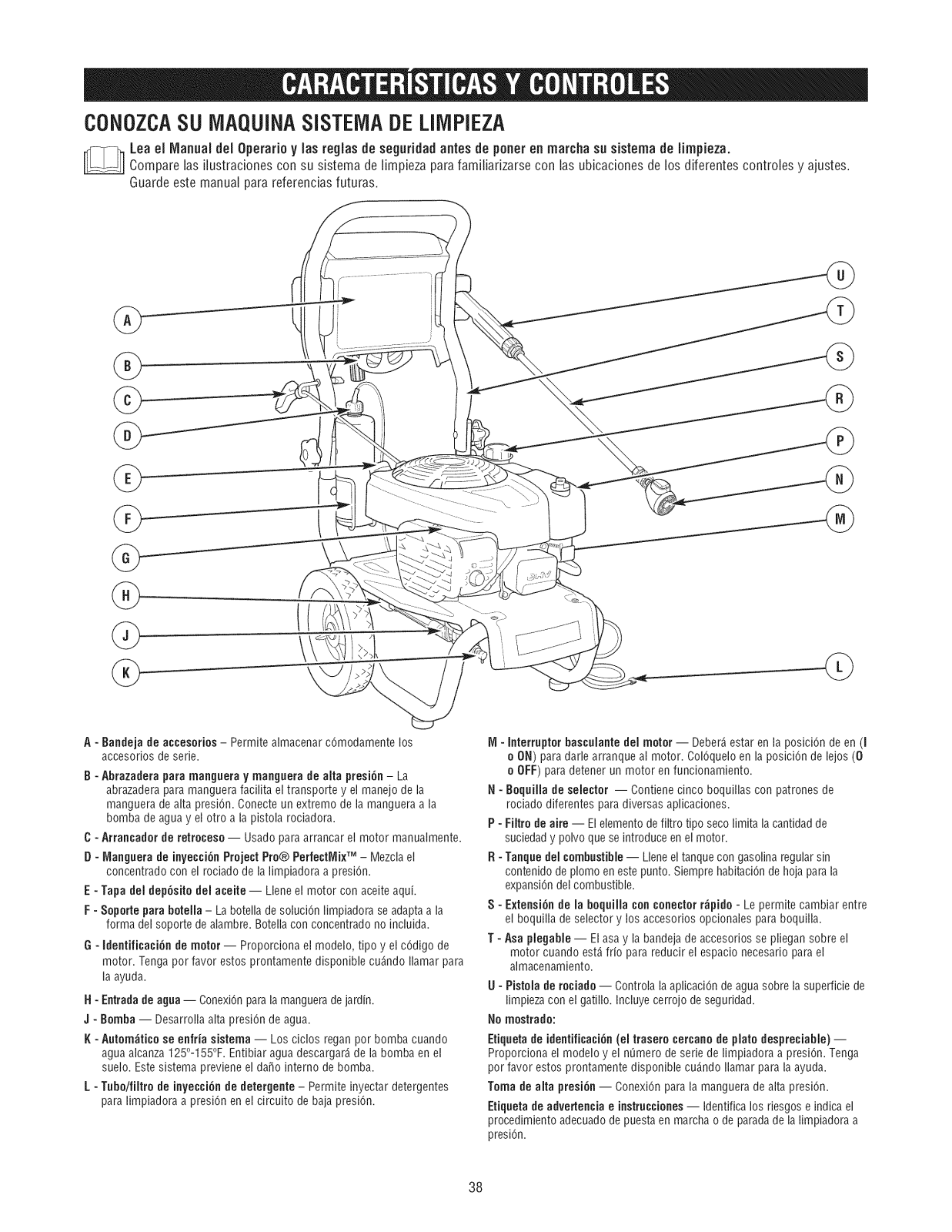

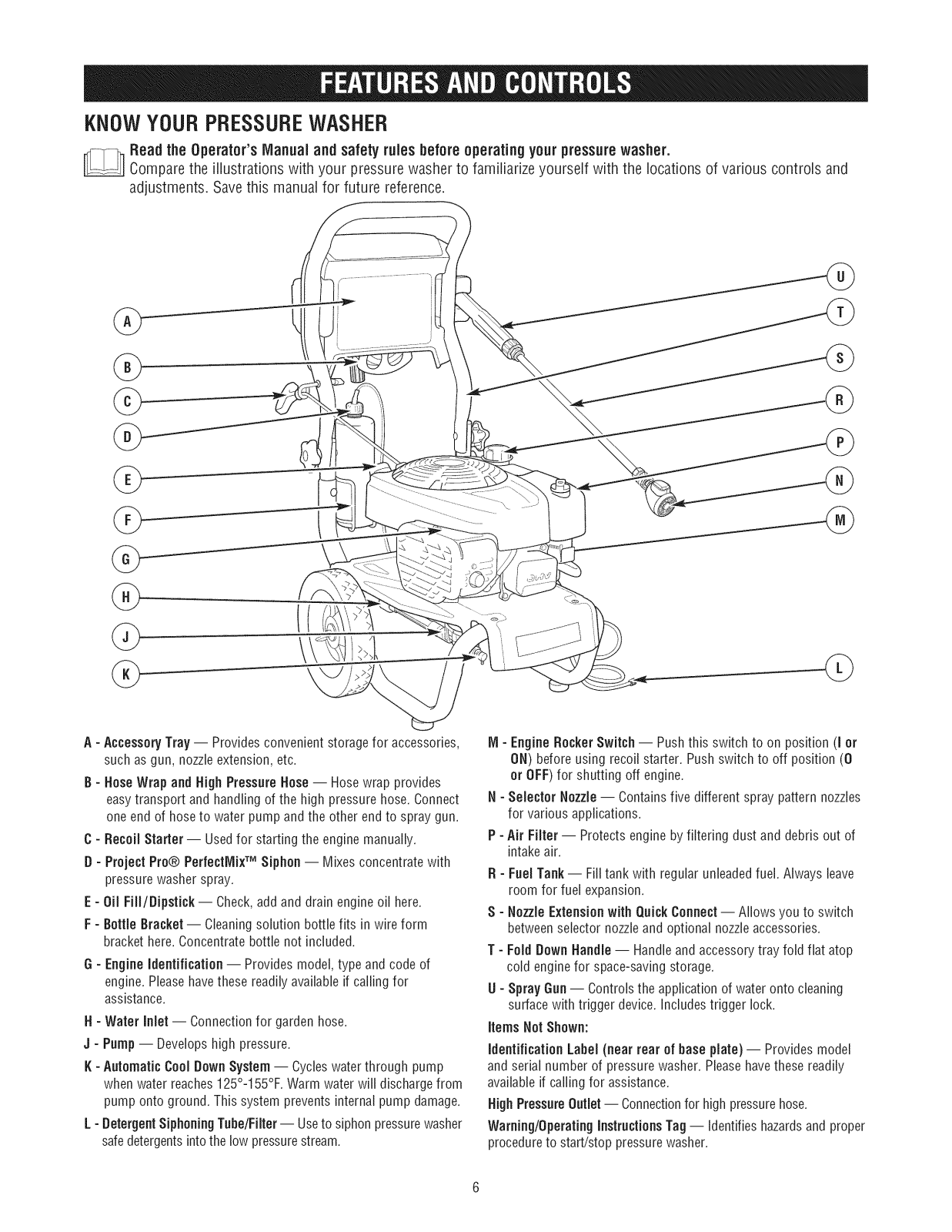

FEATURESAND CONTROLS.............................. 6

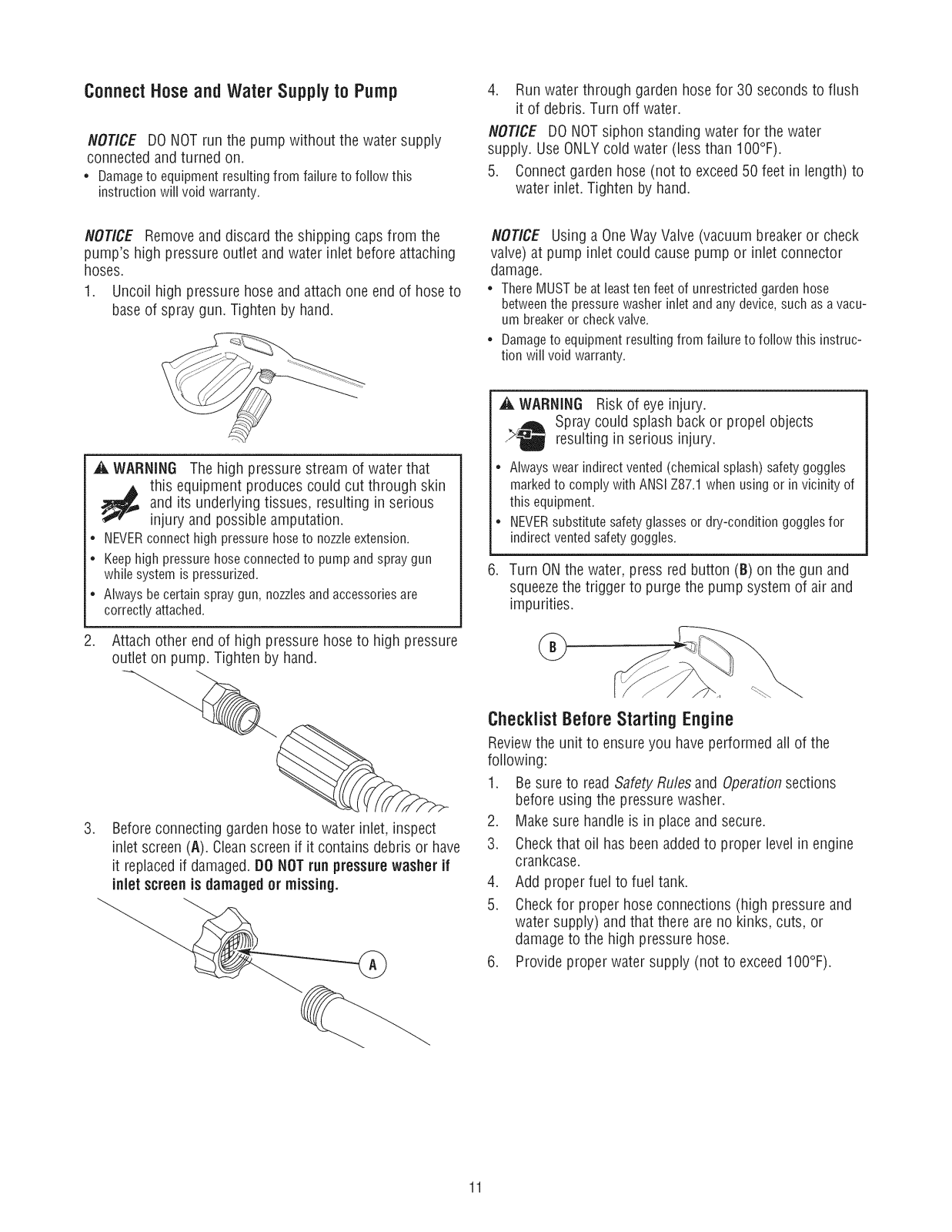

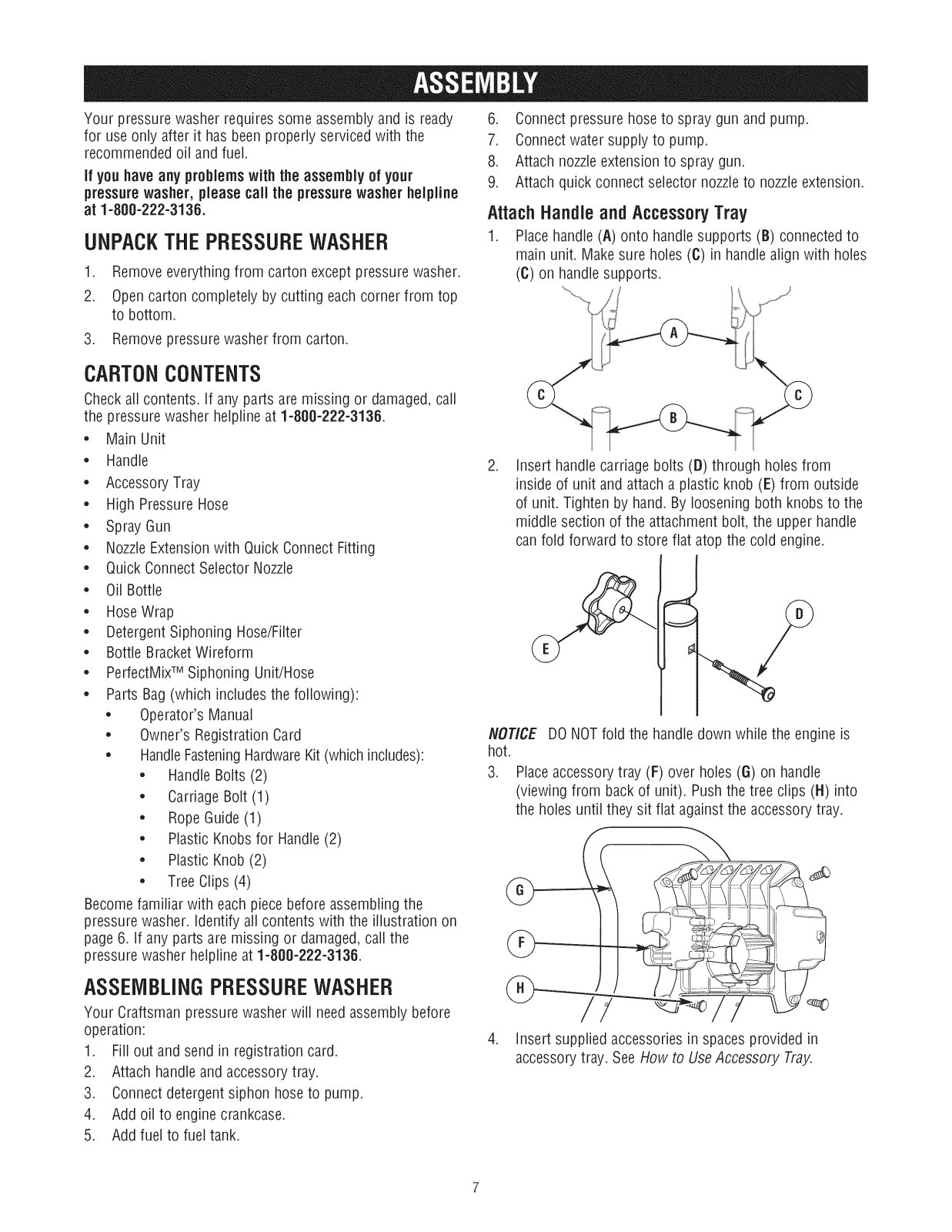

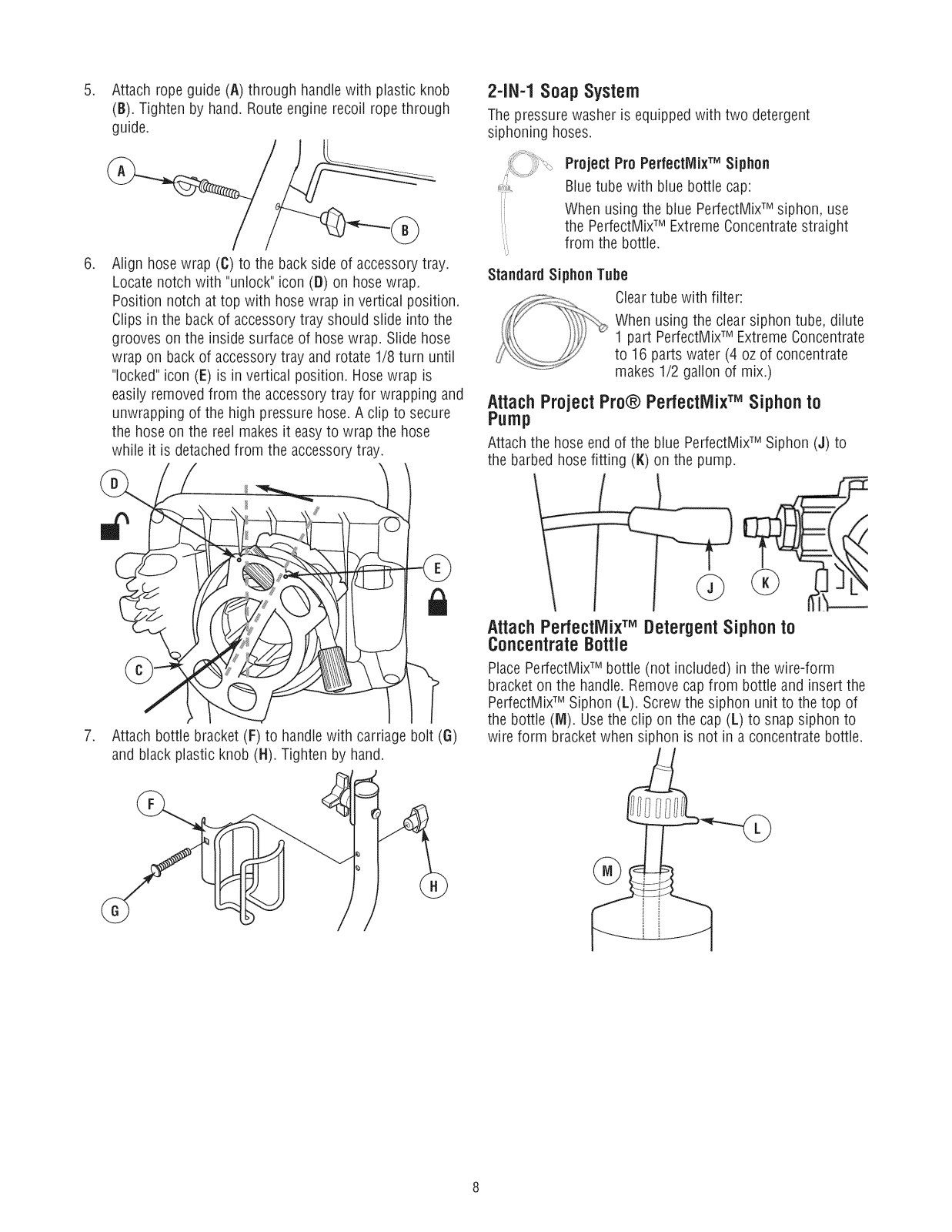

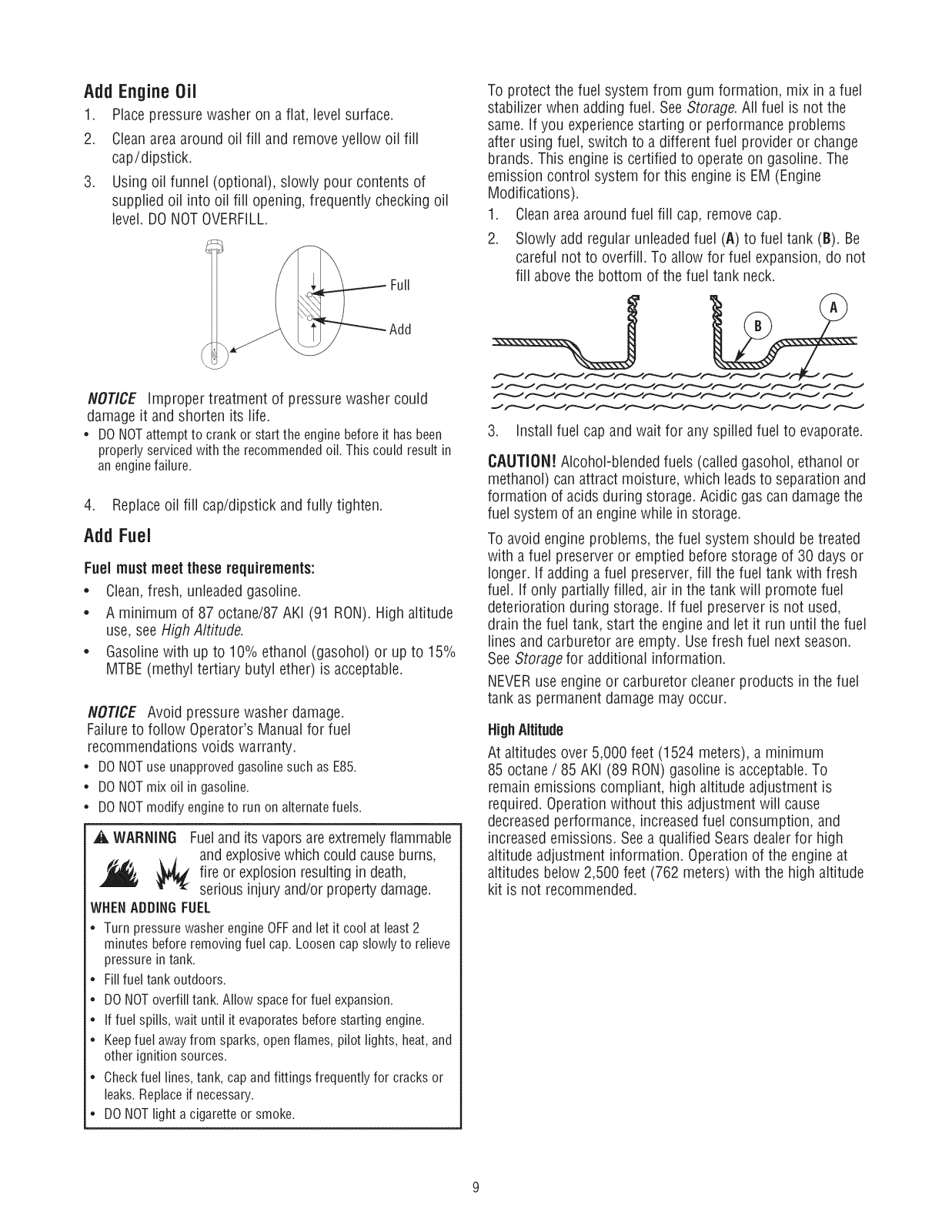

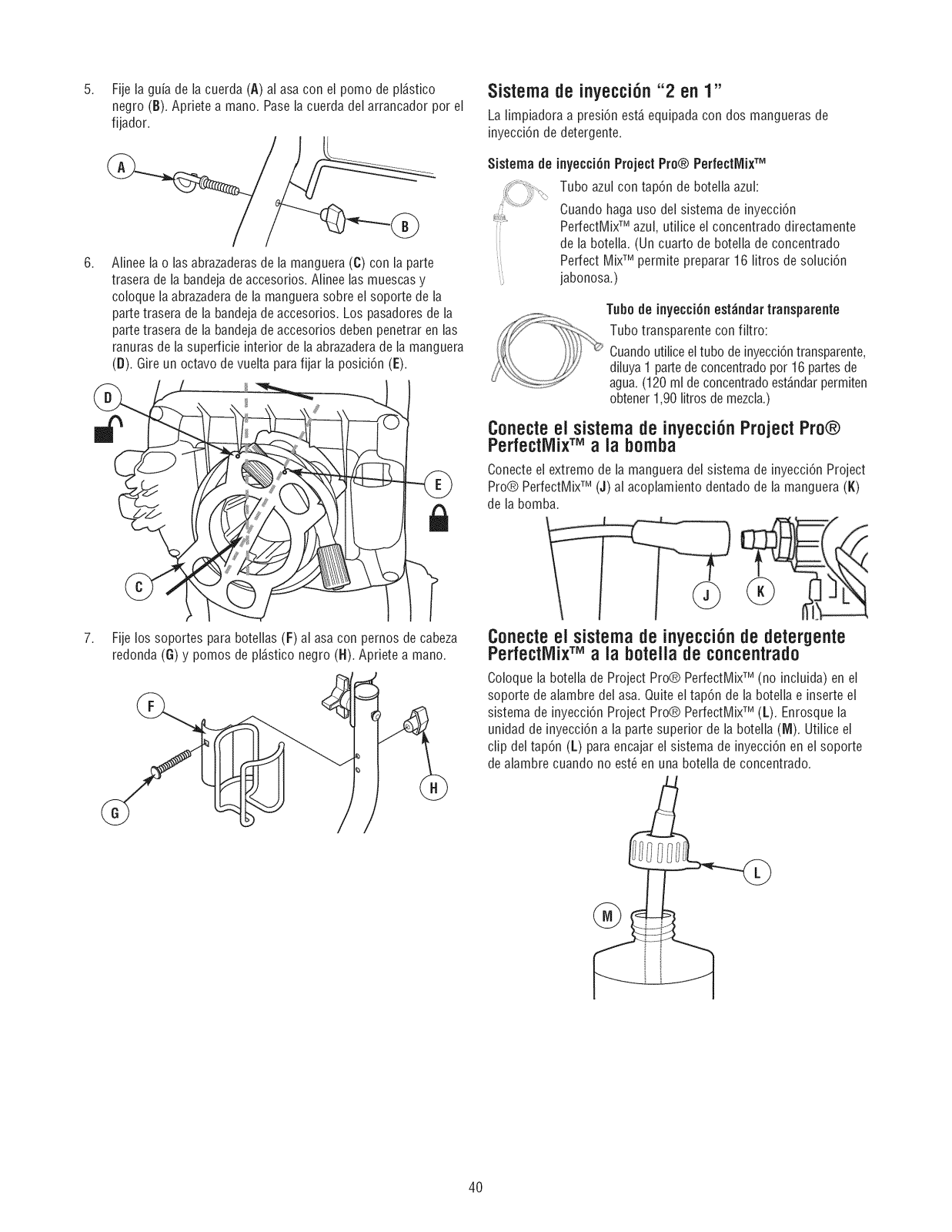

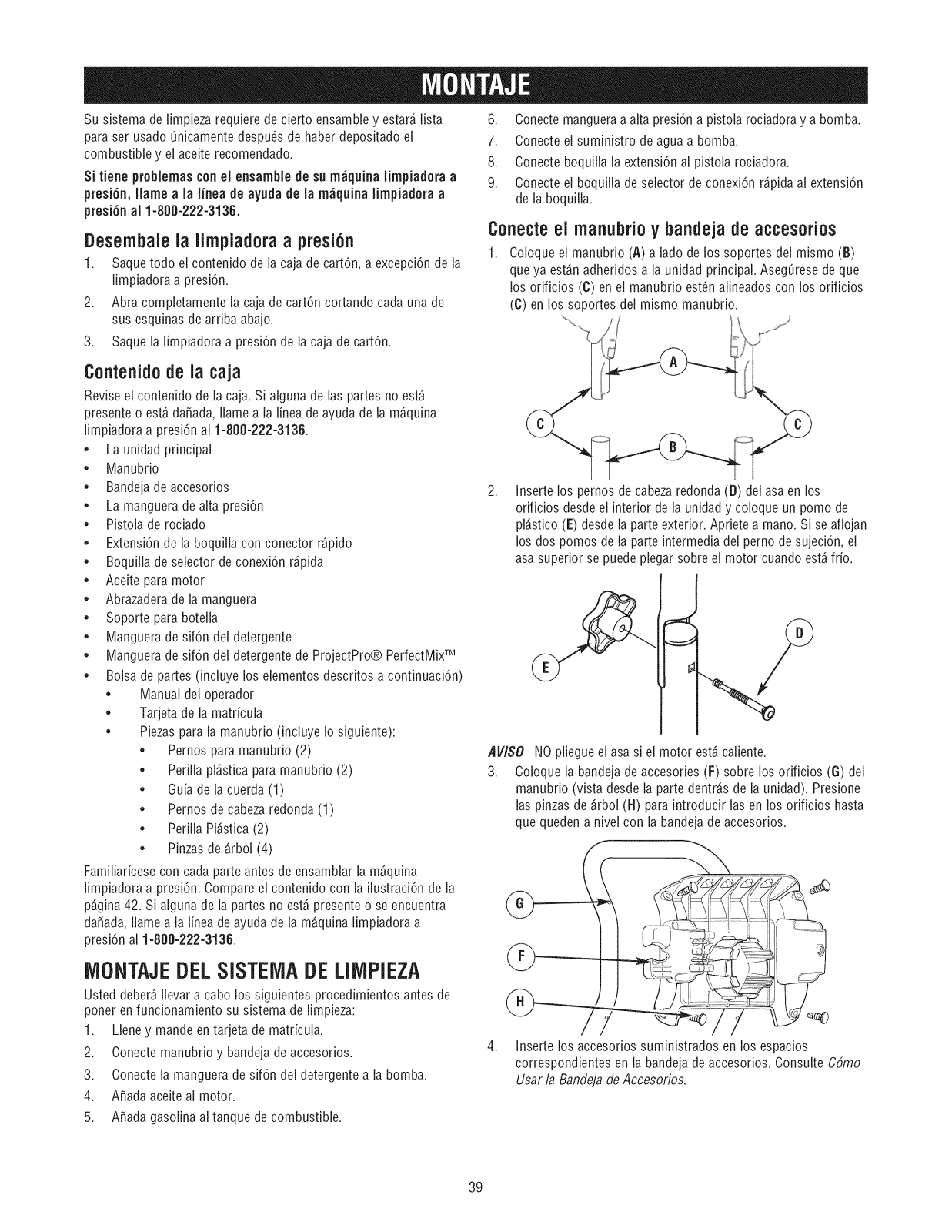

ASSEMBLY........................................ 7-11

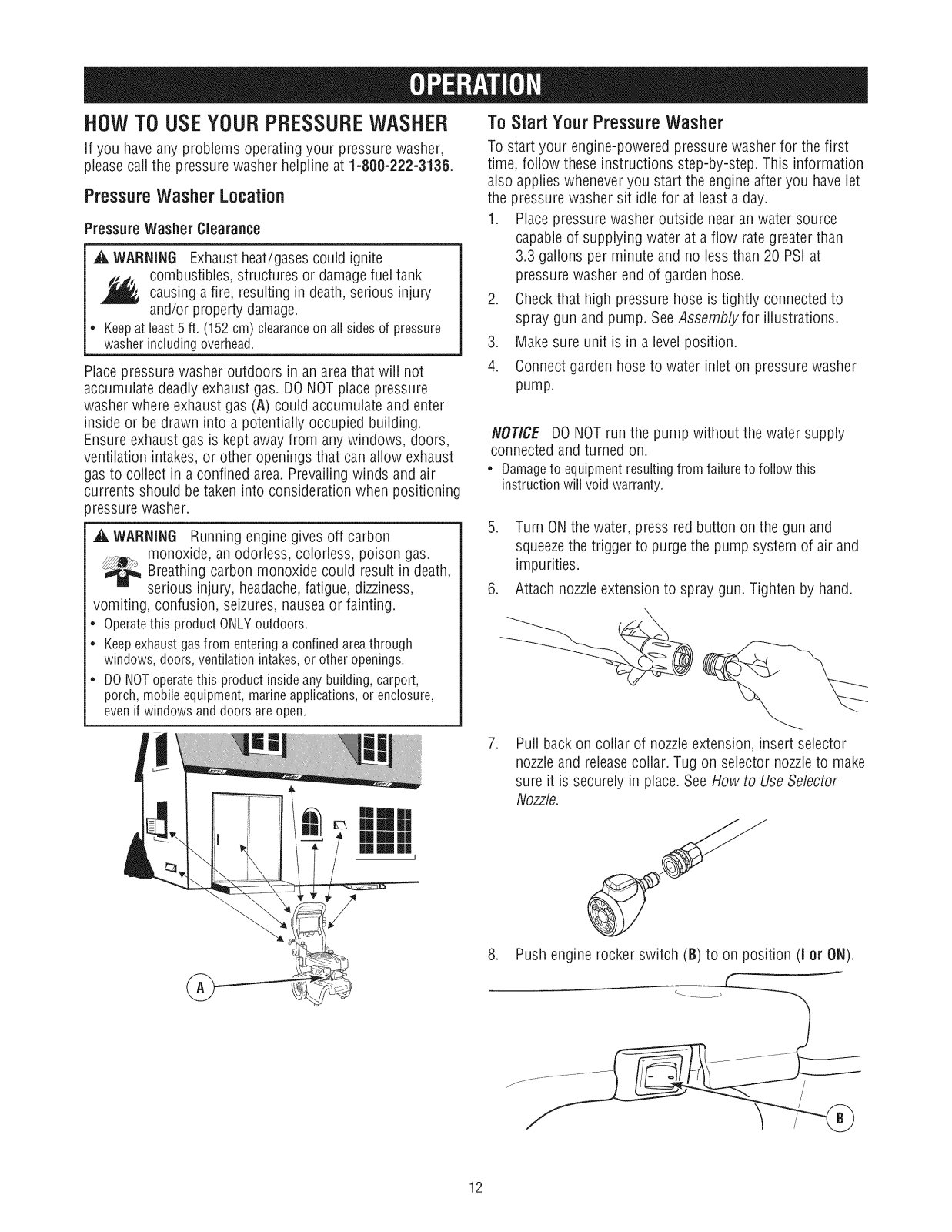

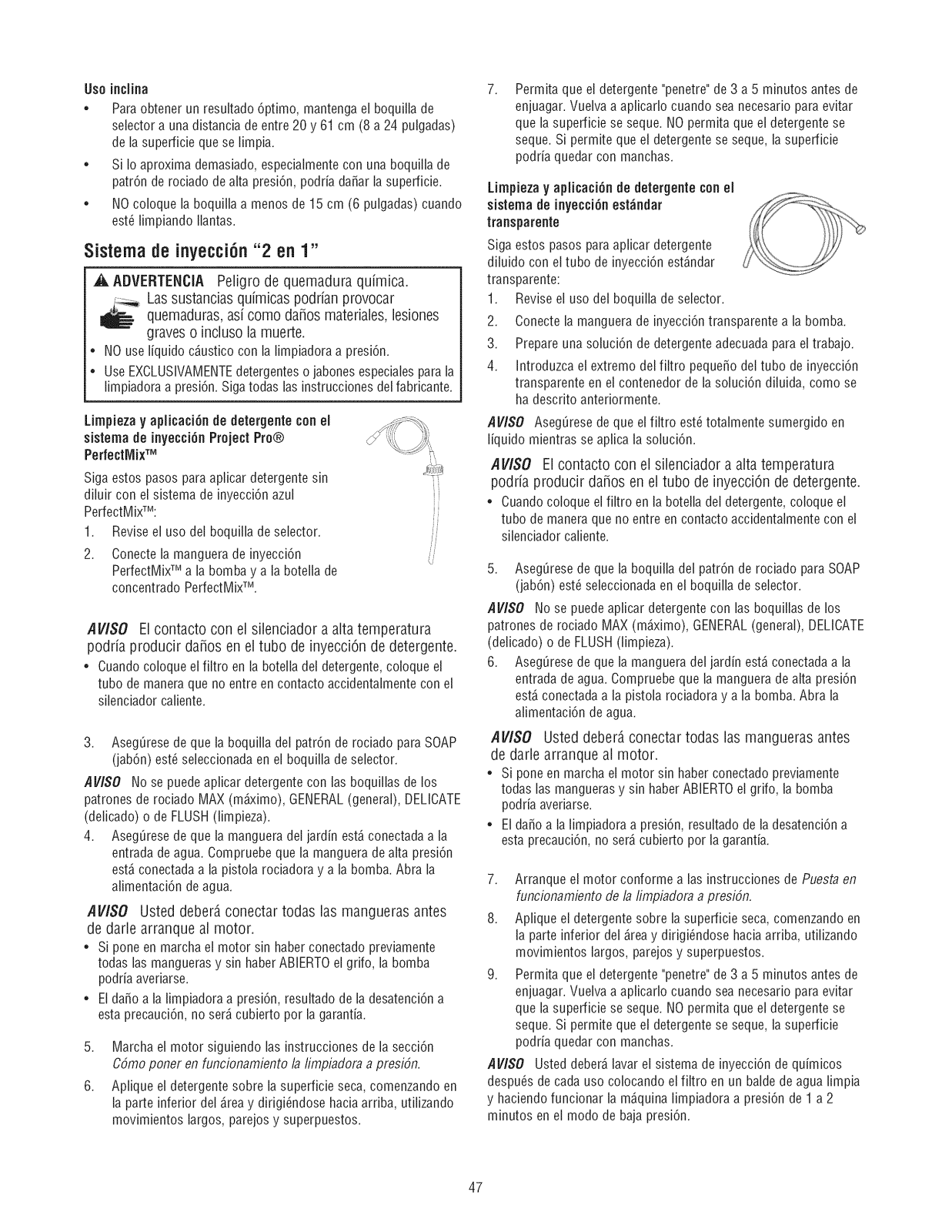

OPERATION....................................... 12-16

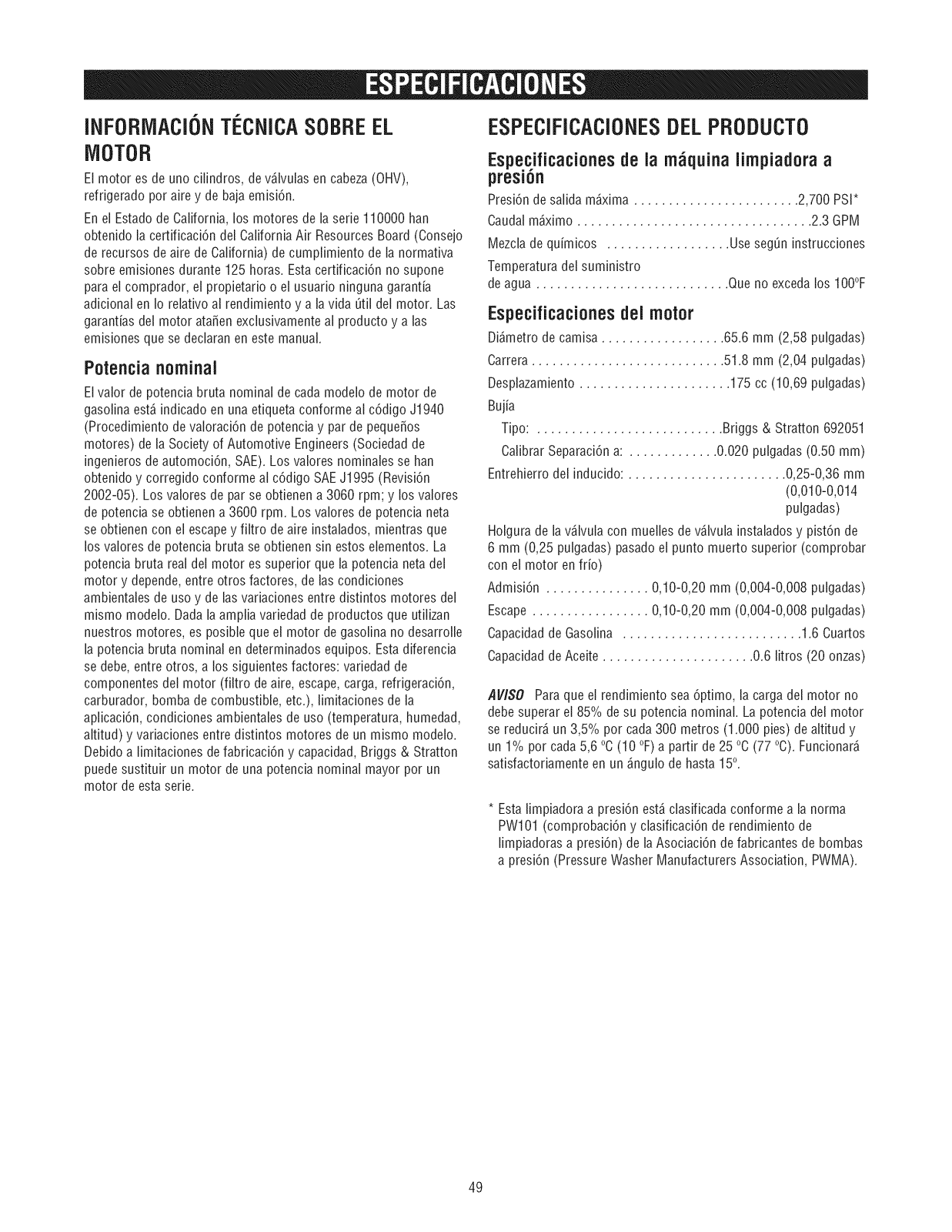

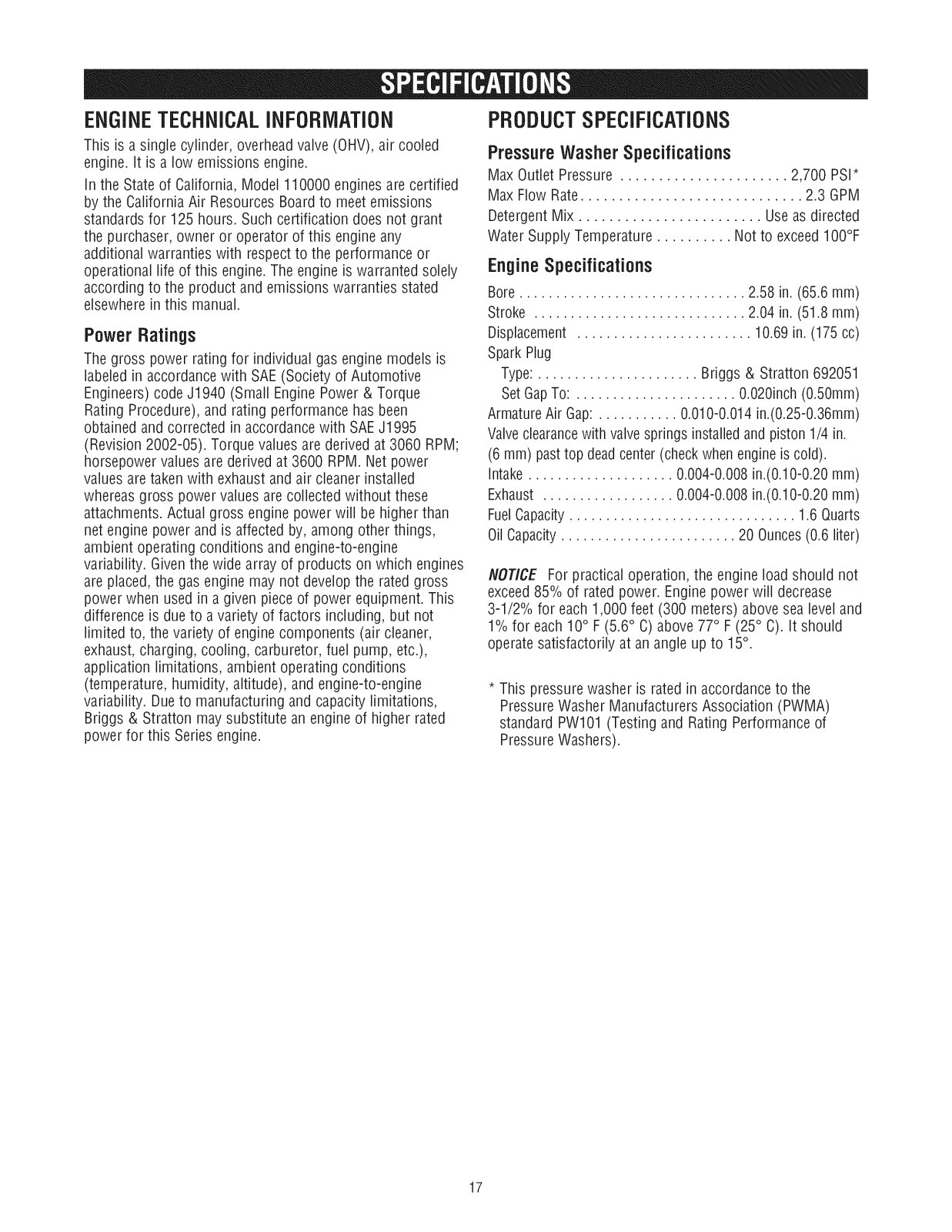

SPECIFICATIONS..................................... 17

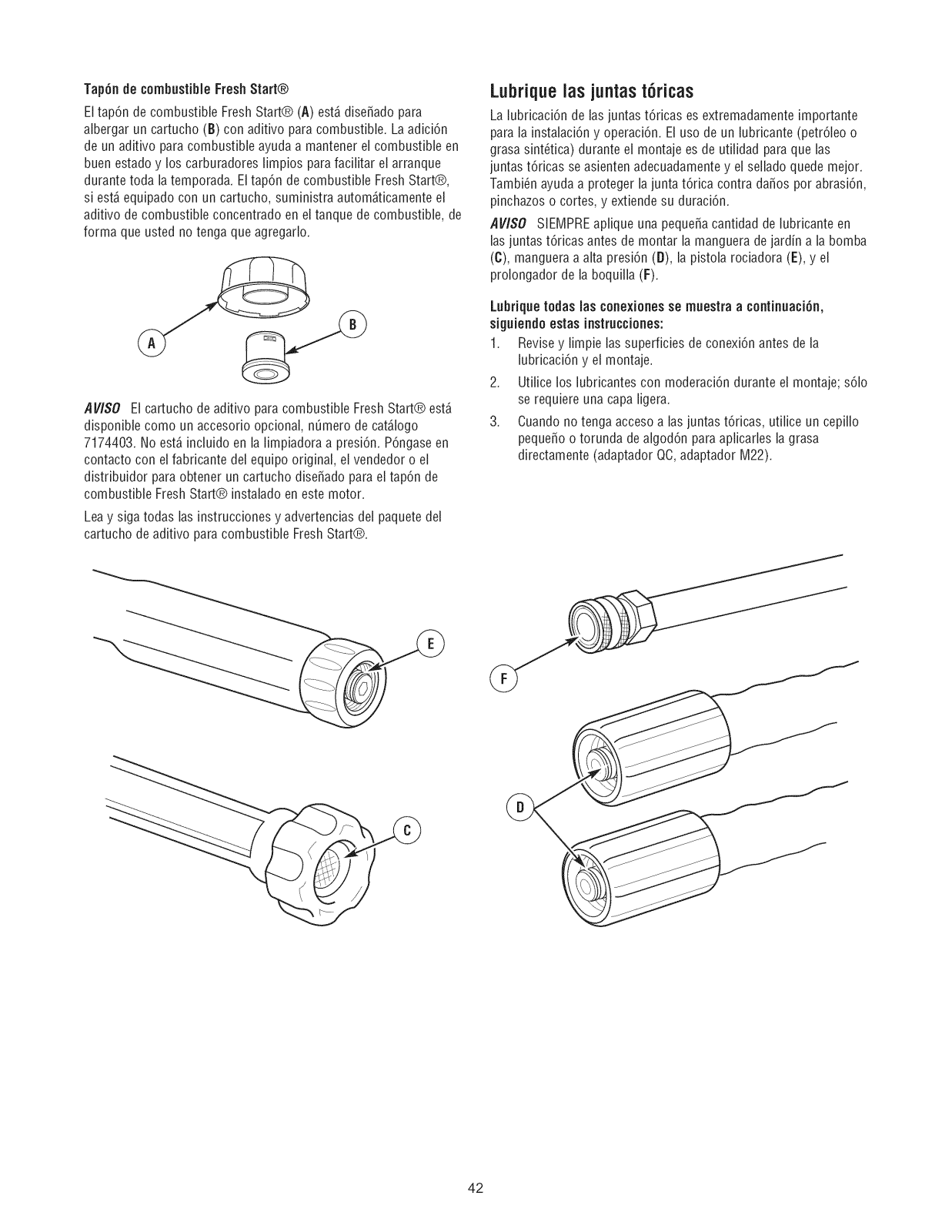

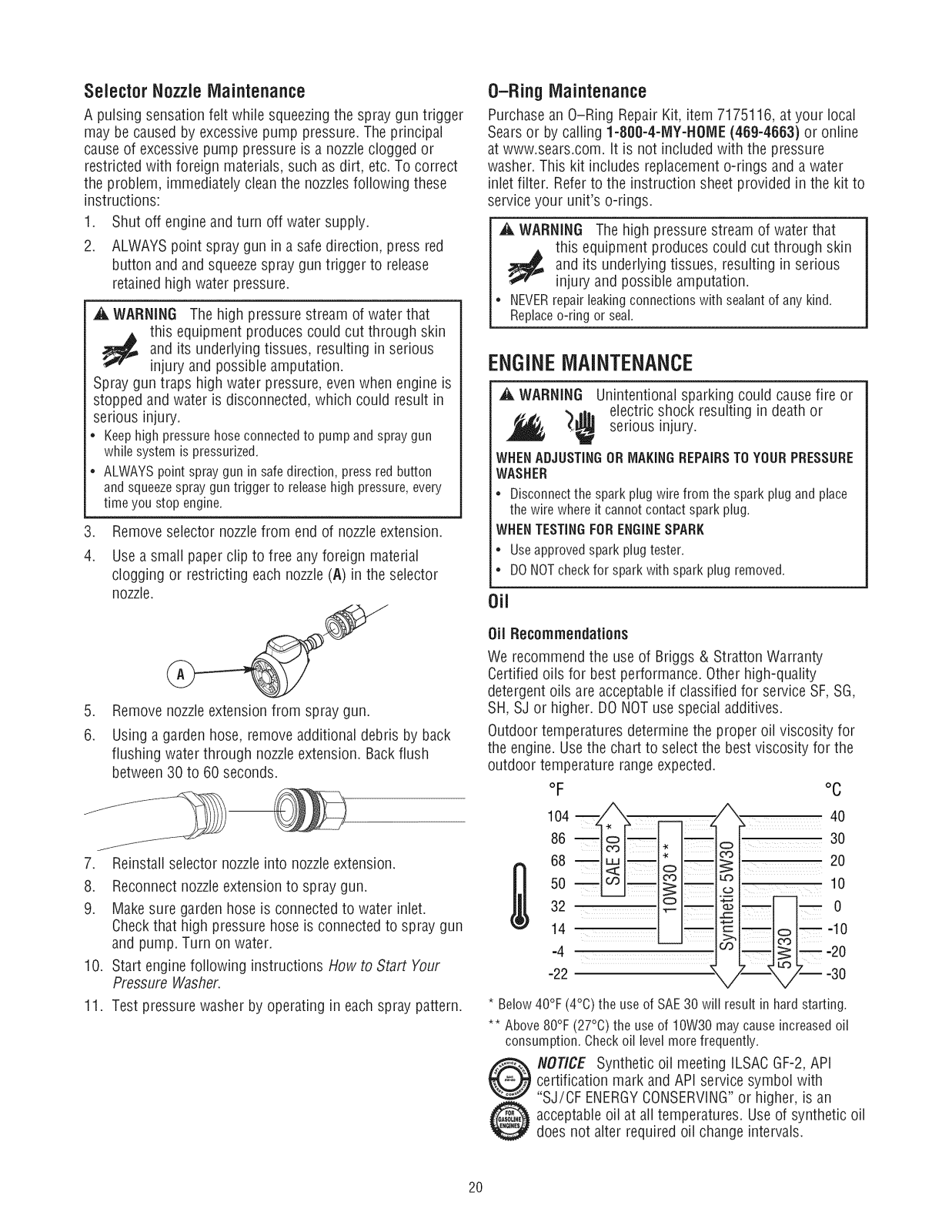

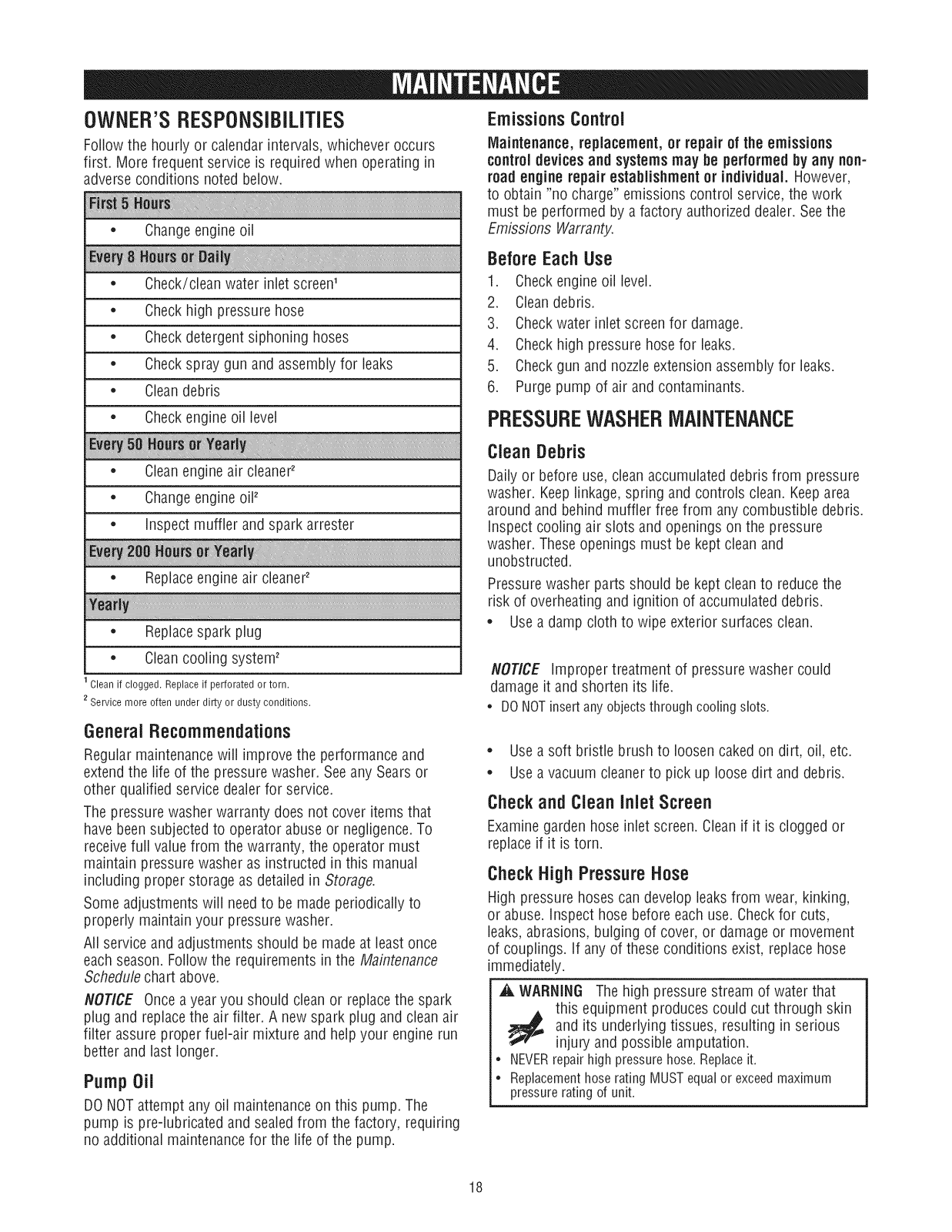

MAINTENANCE.................................... 18-22

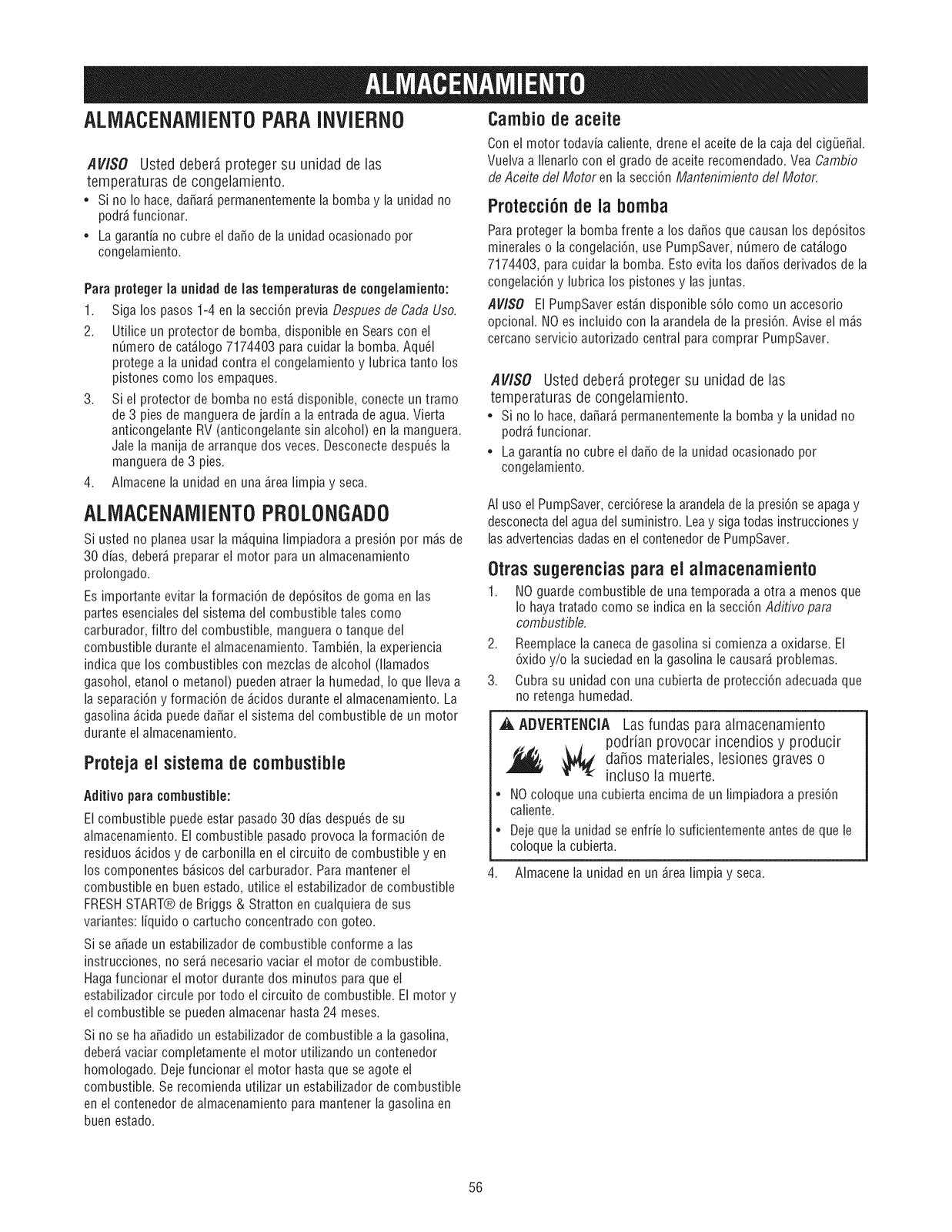

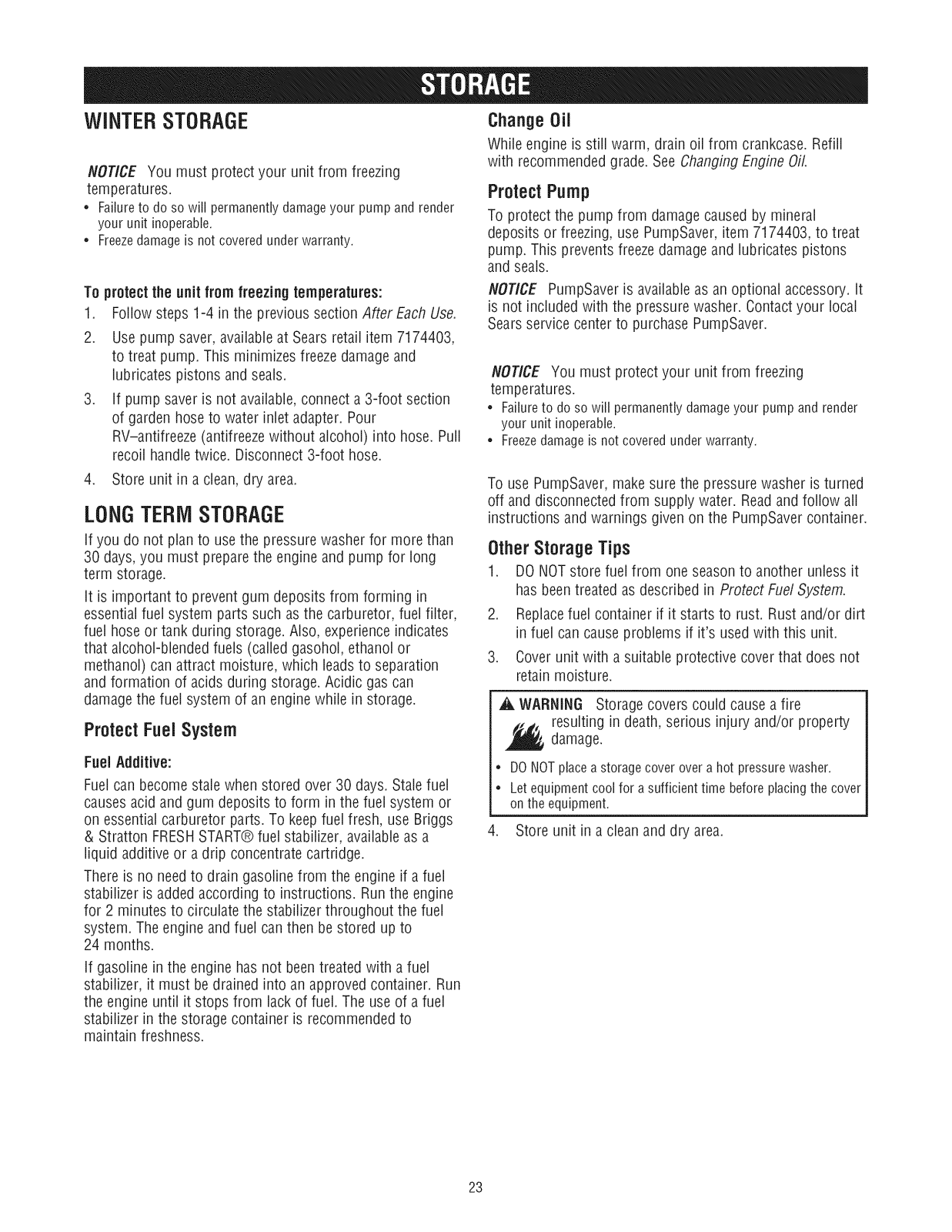

STORAGE........................................... 23

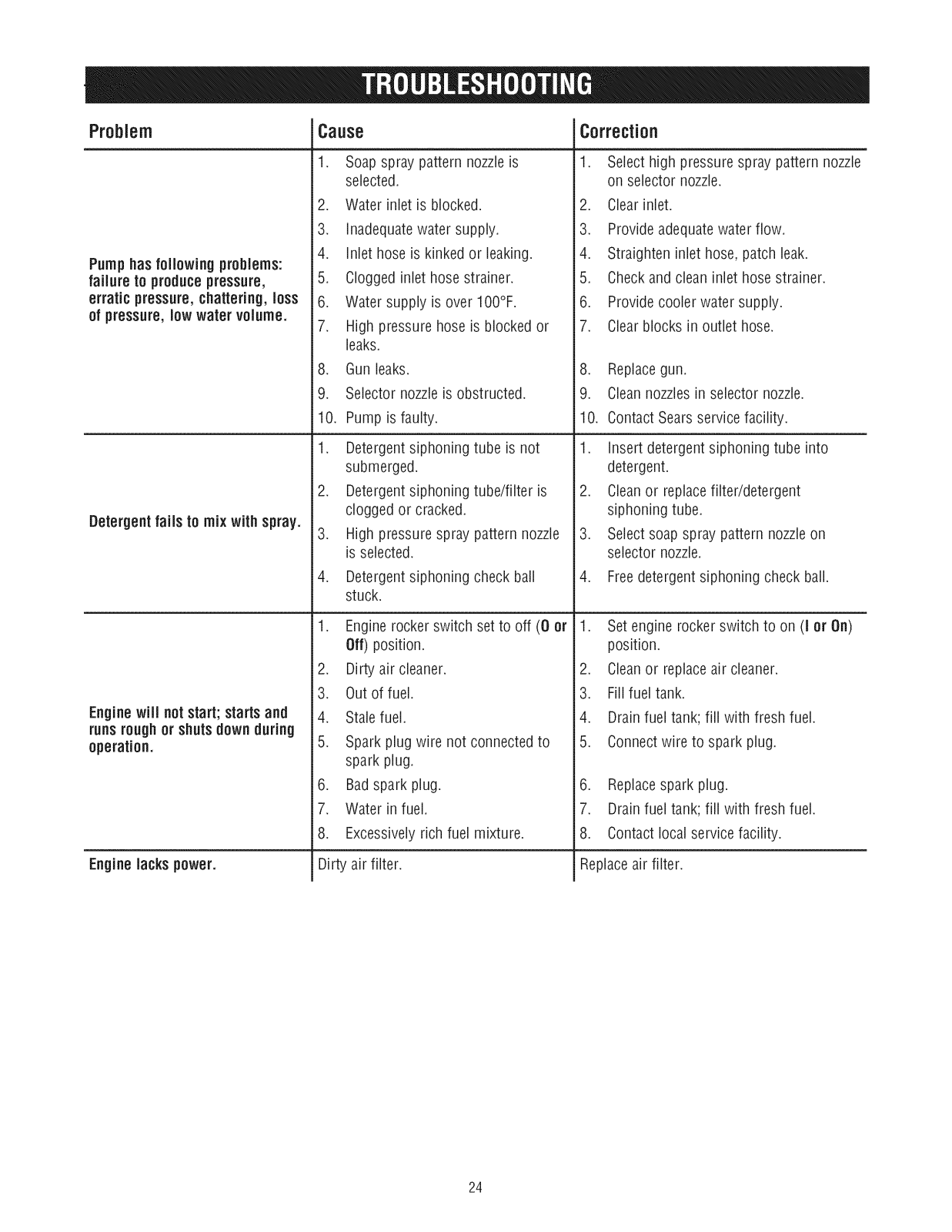

TROUBLESHOOTING.................................. 24

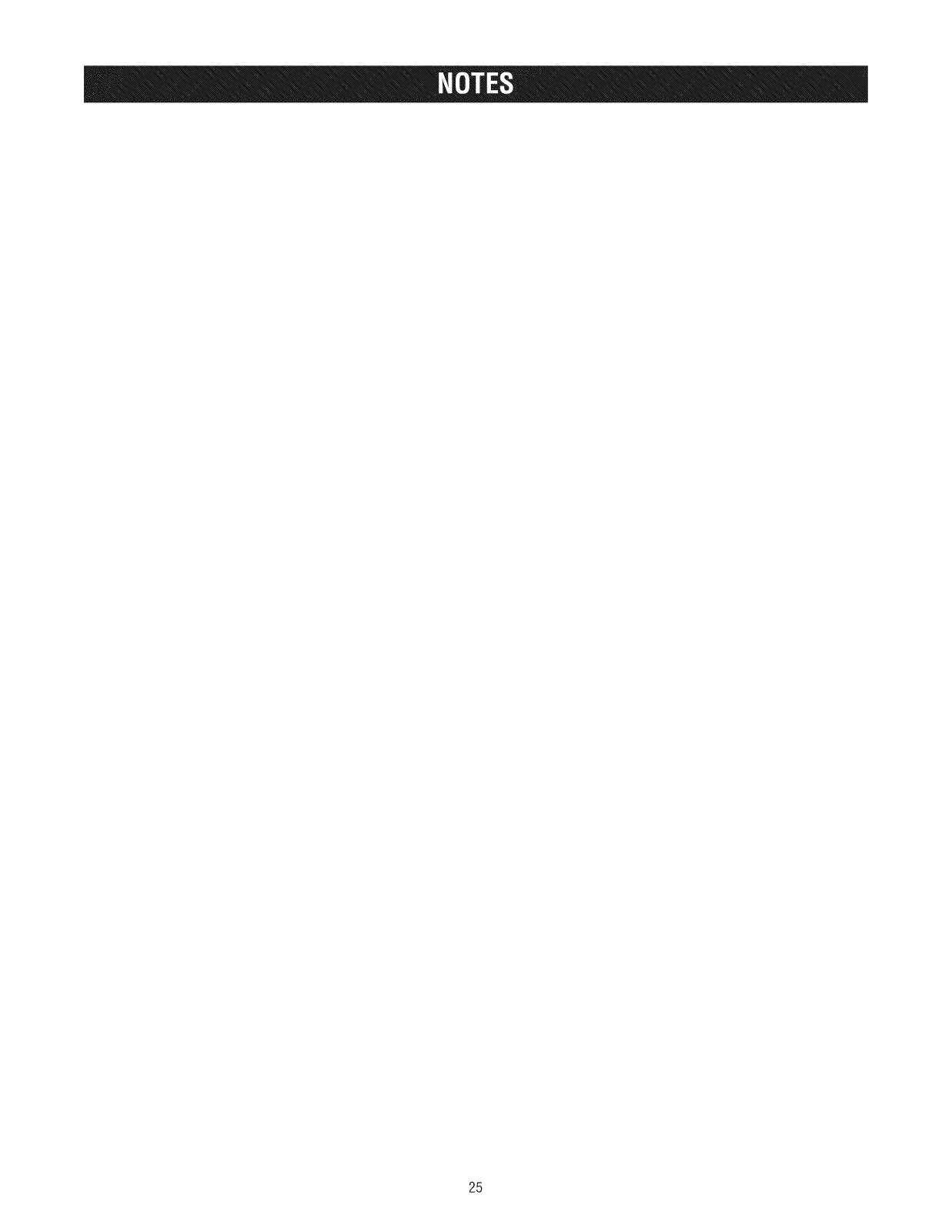

NOTES............................................. 25

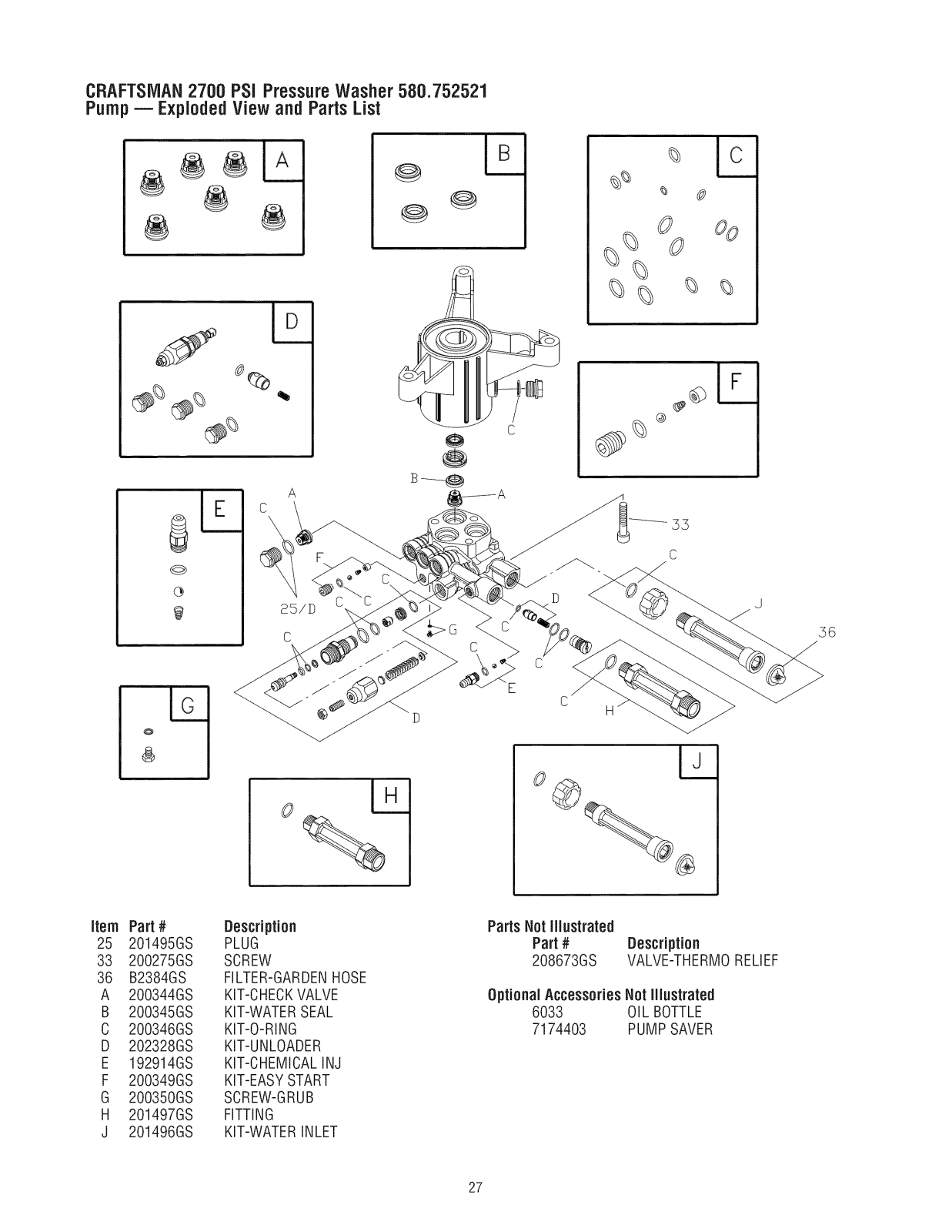

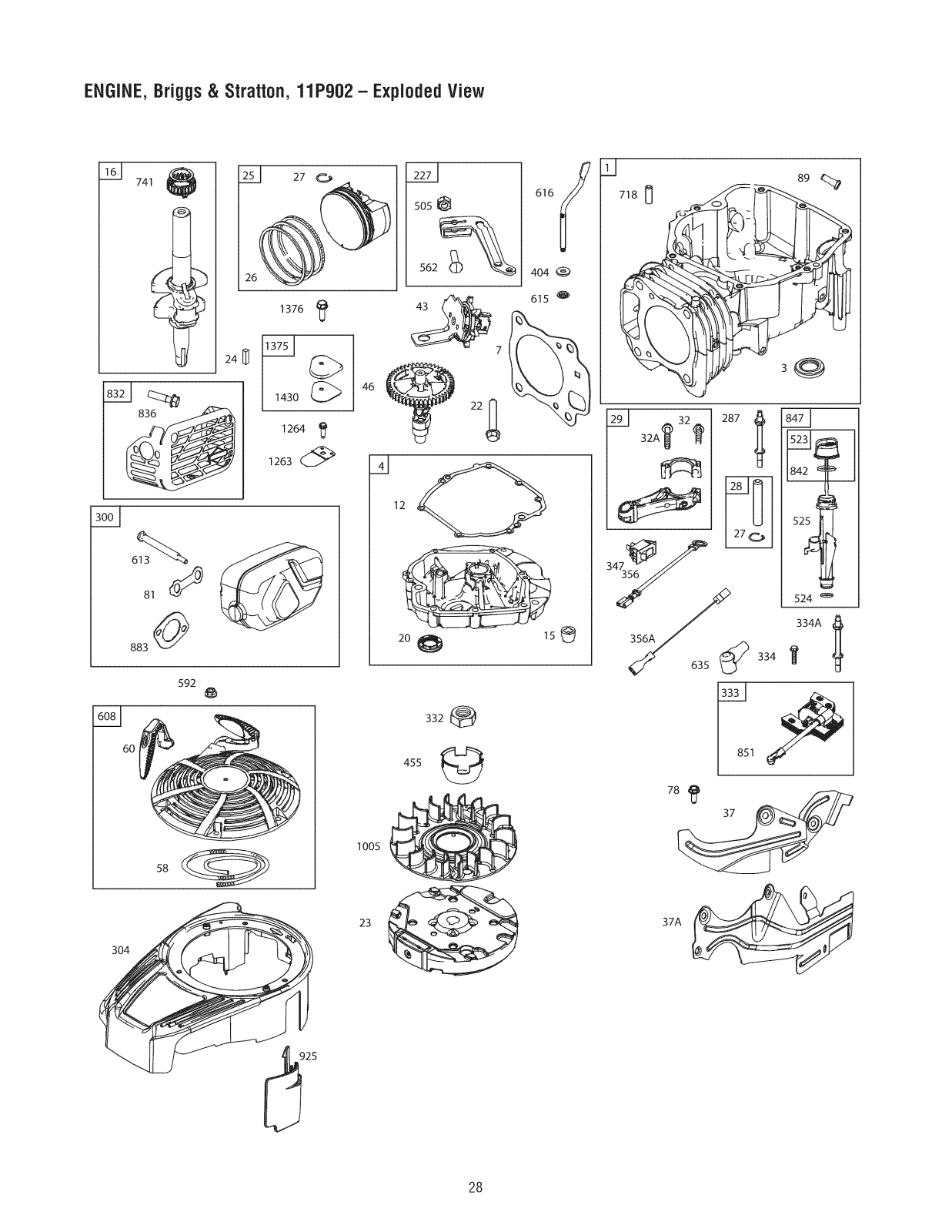

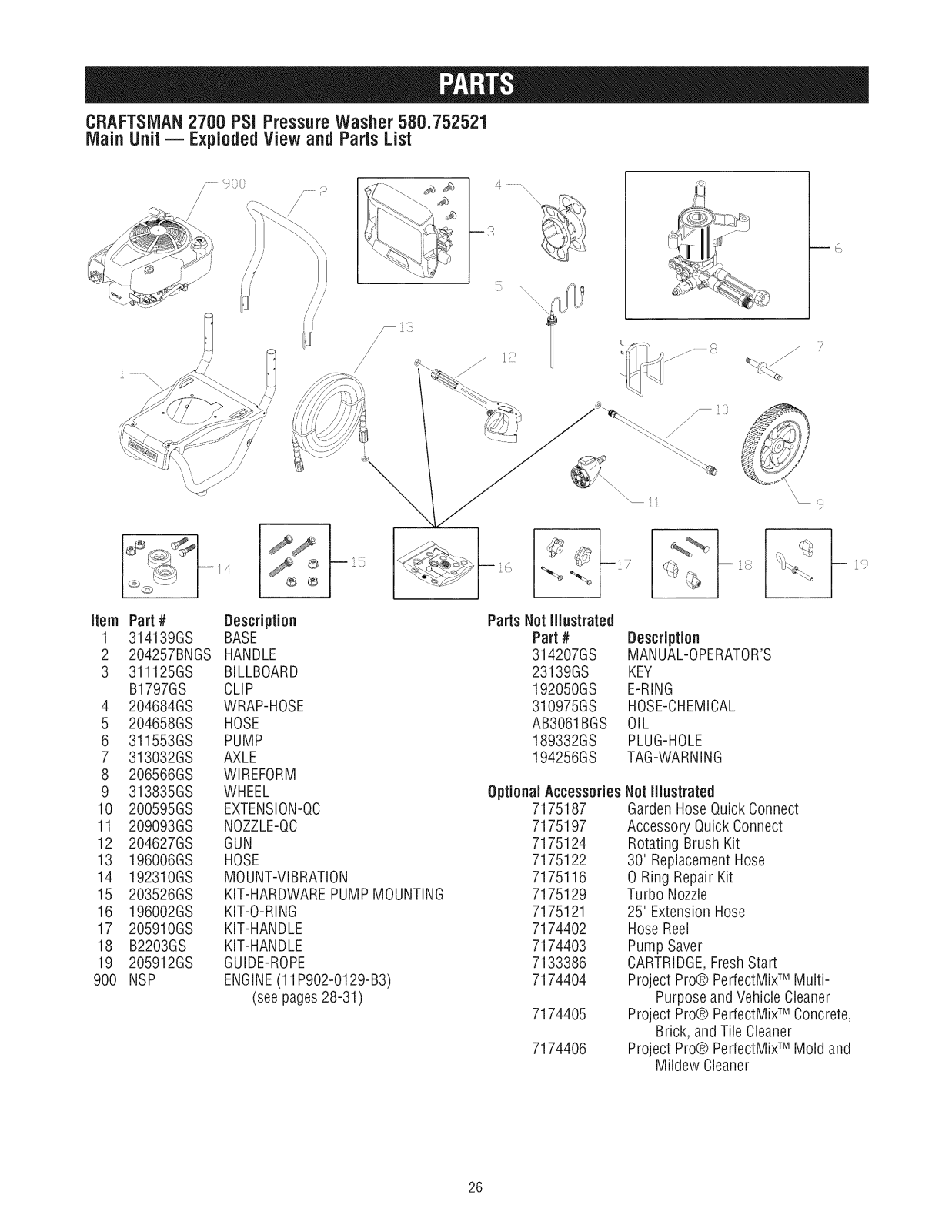

REPLACEMENTPARTS.............................. 26-31

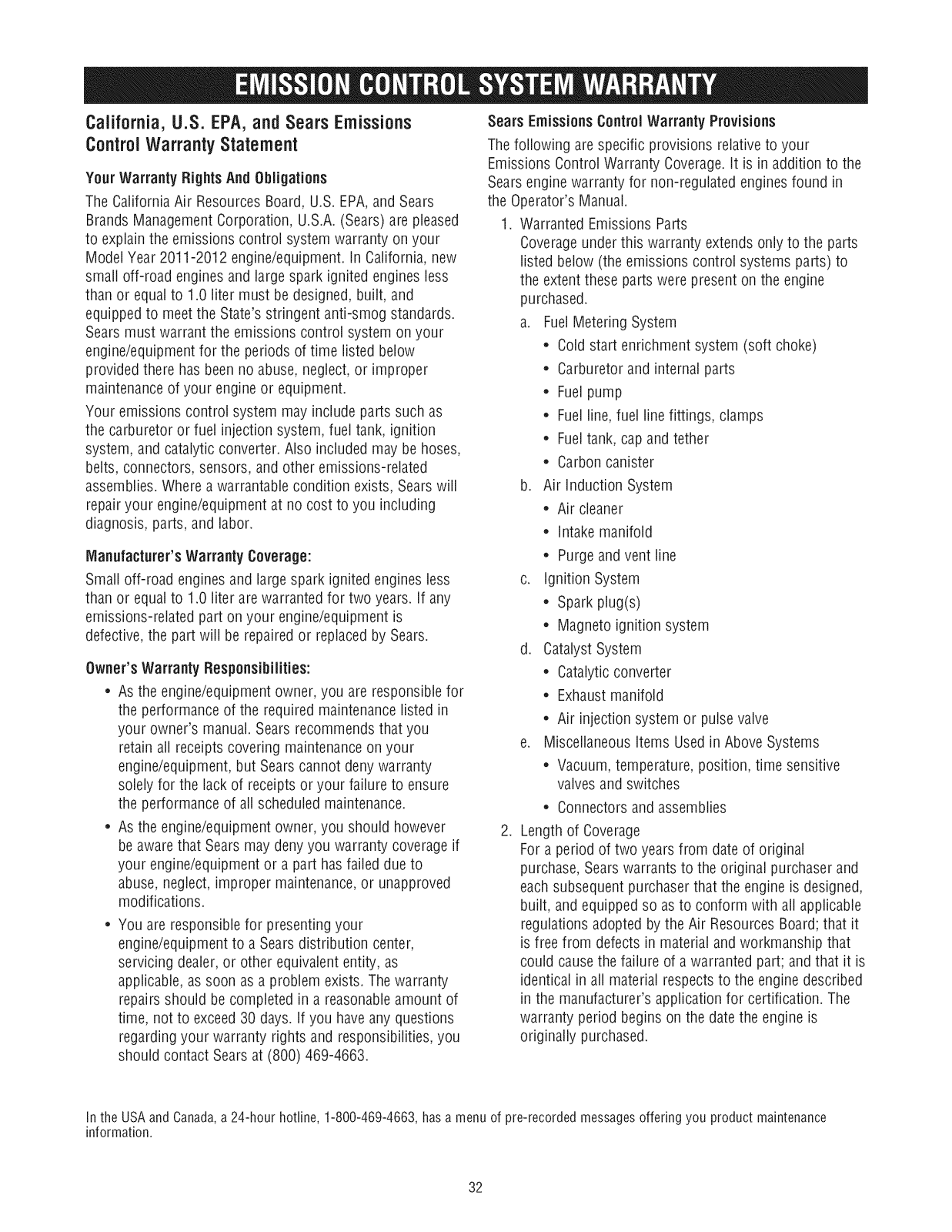

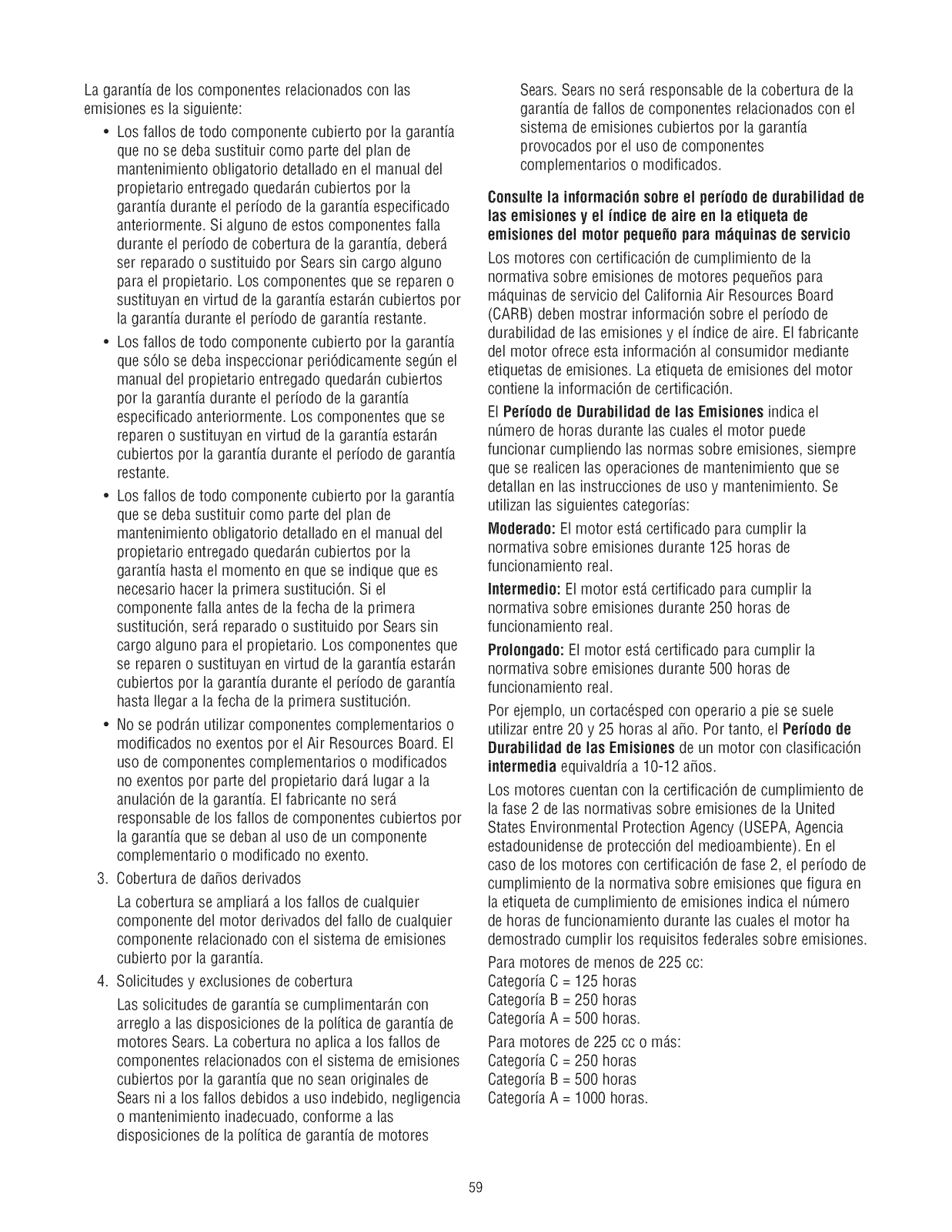

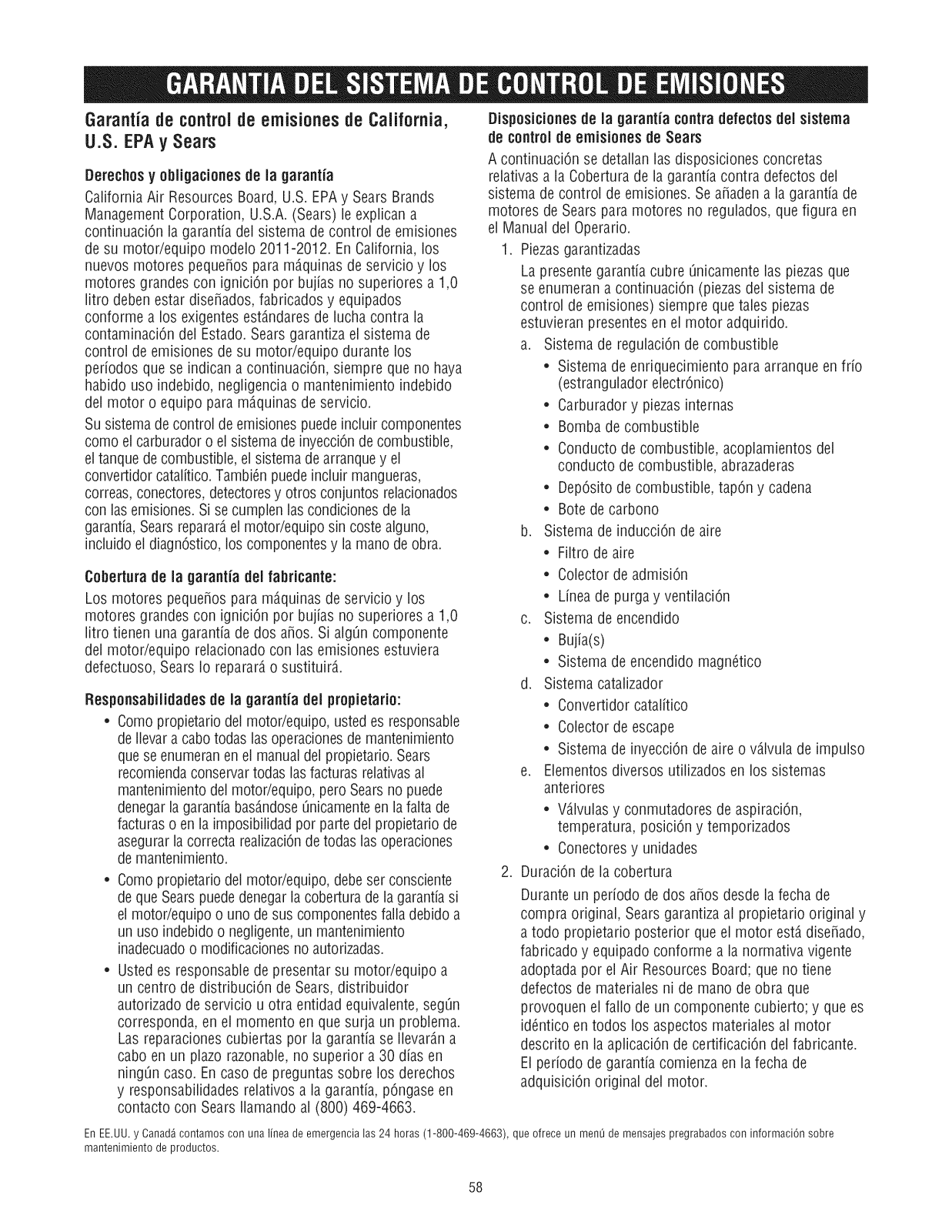

EMISSIONCONTROLWARRANTY ..................... 32-33

ESPANOL......................................... 34-59

HOWTO ORDERPARTS ........................ BACKPAGE

CRAFTSMANTWOYEARLIMITEDWARRANTY

FORTWOYEARSfrom the date of purchase,this product is warranted againstanydefects in material or workmanship.
Defectiveproduct will receivefree repair or replacement if repair is unavailable.

Forwarranty coveragedetails to obtainfree repair or replacement,visit the web site: www.craftsman.com

This warranty does not cover the spray guns, hoses, nozzleextensions,nozzles,filters and spark plugs, which are expendable

parts that can wearout from normal usewithin the warranty period.

This warranty isvoid if this product is ever usedwhile providing commercial services or if rentedto another person.
This warranty gives you specific legalrights, andyou may also haveother rights which vary from state to state.

SearsBrandsManagementCorporation,HoffmanEstates,IL 60179

Congratulations on making a smart purchase.

Your new Craftsman® product is designed and manufactured
for years of dependableoperation. But likeall products, it

may requirerepair from time to time. That's when having a
Repair Protection Agreement can saveyou money and
aggravation.

Here's whatthe Repair Protection Agreement* includes:
* Expert service by our 10,000 professional repair

specialists

* Unlimited serviceand no chargefor parts and labor on

all coveredrepairs

* Product replacementupto $1500 if your covered

product can't be fixed

* Discountof 10% from regular priceof serviceand related

installed parts not covered by the agreement;also, 10%
off regular price of preventivemaintenancecheck

* Fasthelp byphone-we caii it Rapid Resolution- phone

support from a Sears representative.Think of us as a
"talking owner's manual".

Onceyou purchasethe Repair Protection Agreement,a
simple phonecarlis all it takes for you to schedule service.

You cancall anytimeday or night, or schedulea service

appointment online.

The Repair ProtectionAgreement is a risk-free purchase. If
you cancelfor any reasonduring the product warranty

period,we will provide a full refund.Or, a prorated refund
anytime after the product warranty period expires. Purchase

your RepairProtectionAgreement today!

Some limitations and exclusions apply. Forpricesand
additional informationin the U.S.A. call 1-800-827-6655.

* Coverage in Canada varies on someitems. Forfull

details, call Sears Canadaat 1-800-361-6665.

Sears Installation Service
ForSears professional installation of home appliances,

garagedoor openers,water heaters,and other major home
items, inthe U.S.A.or Canadacall 1-800-4-1VlY-HOIVlE®.

© 2011

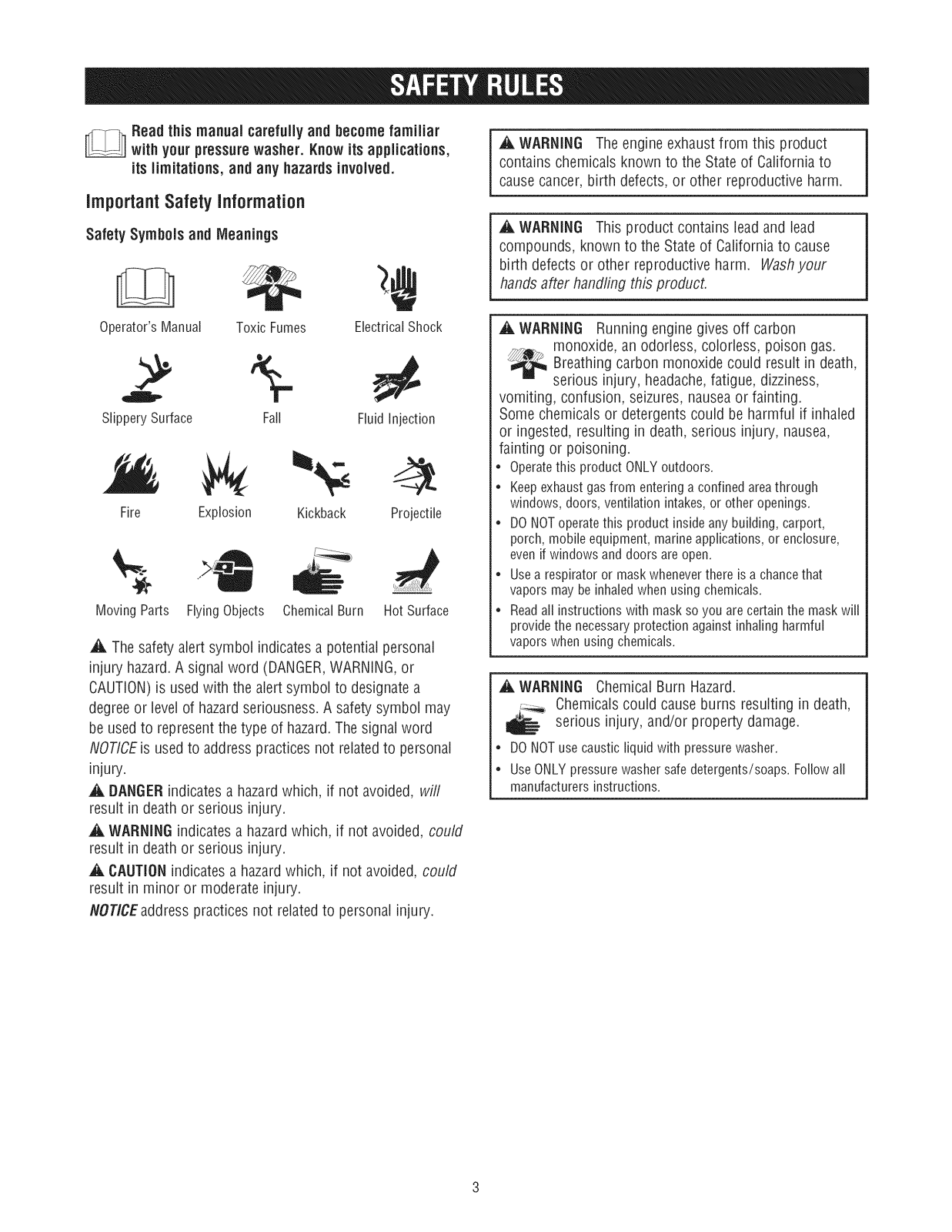

Readthis manualcarefully and becomefamiliar

with yourpressurewasher. Knowitsapplications,

itslimitations, and any hazardsinvolved.

importantSafetyinformation

Safety Symbols and Meanings

WARNING The engine exhaustfrom this product

contains chemicals known to the Stateof California to
cause cancer,birth defects,or other reproductive harm.

A WARNING This product contains leadand lead
compounds, known to the Stateof Californiato cause
birth defects or other reproductive harm. Washyour

handsafter handling this product.

Operator'sManual ToxicFumes

ElectricalShock

2 5-

SlipperySurface Fail

Fire

MovingParts Flying Objects Hot Surface

,A. Thesafetyalertsymbol indicatesa potential personal
injury hazard.A signalword (DANGER,WARNING,or

CAUTION)is usedwith the alertsymbol to designatea
degreeor levelof hazardseriousness. A safety symbol may
be usedto representthe typeof hazard.The signalword

NOTICEis usedto address practices not relatedto personal

injury.
_iLBANGERindicatesa hazardwhich, if not avoided, will

result in deathor serious injury.

_iLWARNINGindicates a hazardwhich, if not avoided, could

result in deathor serious injury.

A. CAUTIONindicates ahazardwhich, if not avoided, could

result in minor or moderate injury.

NOTICEaddress practices not relatedto personal injury.

Explosion Kickback Projectile

ChemicalBurn

FluidInjection

,A. WARNING Running engine gives off carbon

monoxide, an odorless, colorless, poison gas.

_ reathing carbon monoxide could result in death,

serious injury, headache, fatigue, dizziness,
vomiting, confusion, seizures, nausea or fainting.
Some chemicals or detergents could be harmful if inhaled
or ingested, resulting in death, serious injury, nausea,
fainting or poisoning.

• Operatethis product ONLY outdoors.

• Keepexhaustgas from enteringa confined areathrough
windows, doors, ventilationintakes,or other openings.

• DO NOToperatethis product inside any building, carport,
porch, mobile equipment, marineapplications, or enclosure,

evenif windows and doors areopen.

• Usea respirator or maskwheneverthere is a chancethat
vapors may be inhaledwhen using chemicals.

• Readall instructions with mask so you arecertain the mask will
provide the necessaryprotection against inhaling harmful

vapors when using chemicals.

,A. WARNING ChemicalBurn Hazard.

Chemicalscould causeburns resulting in death,

_ serious injury, property damage.

• DONOTusecausticliquidwithpressurewasher.

• UseONLYpressurewashersafedetergents/soaps.Followall
manufacturersinstructions.

and/or

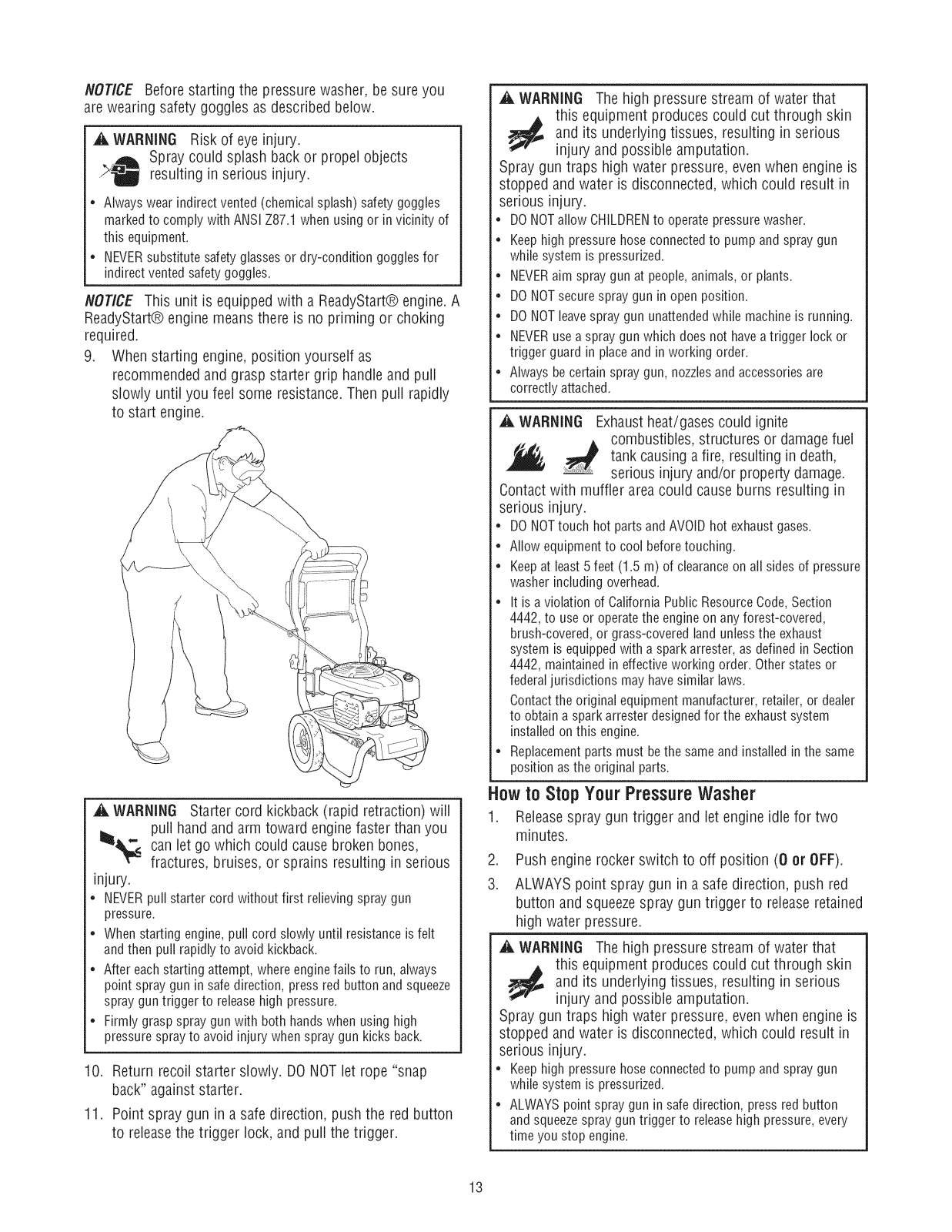

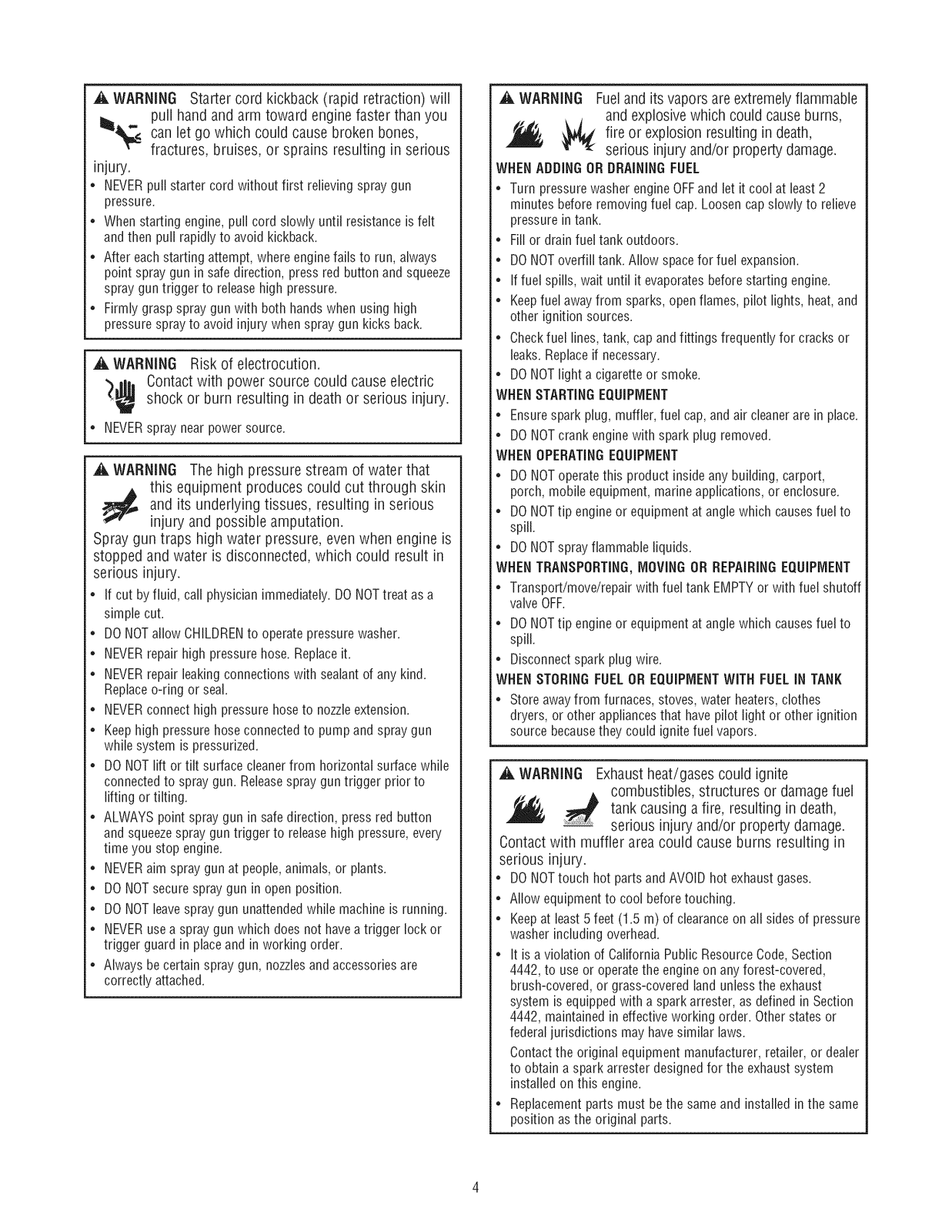

,&. WARNING Starter cord kickback (rapid retraction) will

pull hand and arm toward engine faster than you

,_can let go which could cause broken bones,

fractures, bruises, or sprains resulting in serious

injury.

• NEVERpull starter cord without first relieving spraygun
pressure.

• When starting engine, pull cord slowly until resistance isfelt
andthen pull rapidly to avoid kickback.

• After each starting attempt, where enginefails to run, always
point spray gun insafe direction, press red button and squeeze
spray gun trigger to releasehigh pressure.

• Firmly grasp spray gun with both hands when using high
pressure sprayto avoid injury when spraygun kicks back.

_i_WARNING Risk of electrocution.

'_.ml Contactwith power sourcecould causeelectric

shock or burn resulting in death or serious injury.

• NEVERspraynearpowersource.

_i_WARNING The high pressure stream of water that

and its underlying tissues, resulting in serious

this equipment produces could cut through skin

injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.

• If cut byfluid, call physician immediately. DONOTtreat as a
simple cut.

• DONOTallow CHILDRENto operatepressure washer.

• NEVERrepair high pressure hose.Replaceit.

• NEVERrepair leaking connections with sealantof any kind.
Replaceo-ring or seal.

• NEVERconnect highpressure hose to nozzleextension.

• Keephigh pressure hose connectedto pump and spraygun
while system is pressurized.

• DO NOTlift or tilt surface cleanerfrom horizontalsurface while
connectedto spray gun. Releasespray gun trigger prior to
lifting or tilting.

• ALWAYS pointspray gun in safedirection, pressred button
andsqueezespray guntrigger to releasehigh pressure, every

time you stop engine.

• NEVERaim spray gun at people,animals, or plants.

• DO NOTsecure spray gun in open position.

• DO NOTleavespray gun unattendedwhile machine is running.

• NEVERuseaspray gun which does nothave a trigger lock or

trigger guard in placeand in working order.

• Always be certain spray gun, nozzlesand accessoriesare
correctly attached.

,A WARNING Fuel and its vapors are extremely flammable

and explosive which could cause burns,

fire or explosion resulting in death,

serious injury and/or property damage.

WHENADDING OR DRAININGFUEL

• Turn pressurewasher engineOFFand let it cool at least2
minutes before removingfuel cap. Loosen cap slowly to relieve
pressure in tank.

• Fill or drain fuel tank outdoors.

• DONOToverfill tank. Allow spacefor fuel expansion.

• If fuel spills, wait until it evaporatesbefore starting engine.

• Keepfuel away from sparks, open flames, pilot lights, heat,and
other ignition sources.

• Checkfuel lines, tank, capandfittings frequently for cracks or
leaks. Replaceif necessary.

• DONOTlight a cigaretteor smoke.

WHENSTARTINGEQUIPMENT

• Ensurespark plug, muffler,fuel cap,and air cleanerarein place.

• DO NOTcrank enginewith spark plug removed.

WHENOPERATINGEQUIPMENT

• DO NOToperatethis product insideany building, carport,

porch, mobile equipment, marineapplications, or enclosure.

• DONOTtip engine or equipmentat angle which causes fuel to
spill.

• DONOTspray flammable liquids.

WHENTRANSPORTING,MOVINGOR REPAIRINGEQUIPMENT

• Transport/move/repair with fuel tank EMPTYor with fuel shutoff
valveOFF.

• DONOTtip engine or equipmentat angle which causes fuel to
spill.

• Disconnectspark plug wire.

WHENSTORINGFUELOR EQUIPMENTWITH FUELiN TANK

• Store awayfrom furnaces, stoves,water heaters,clothes

dryers, or other appliancesthat have pilot light or other ignition
source becausethey could ignitefuel vapors.

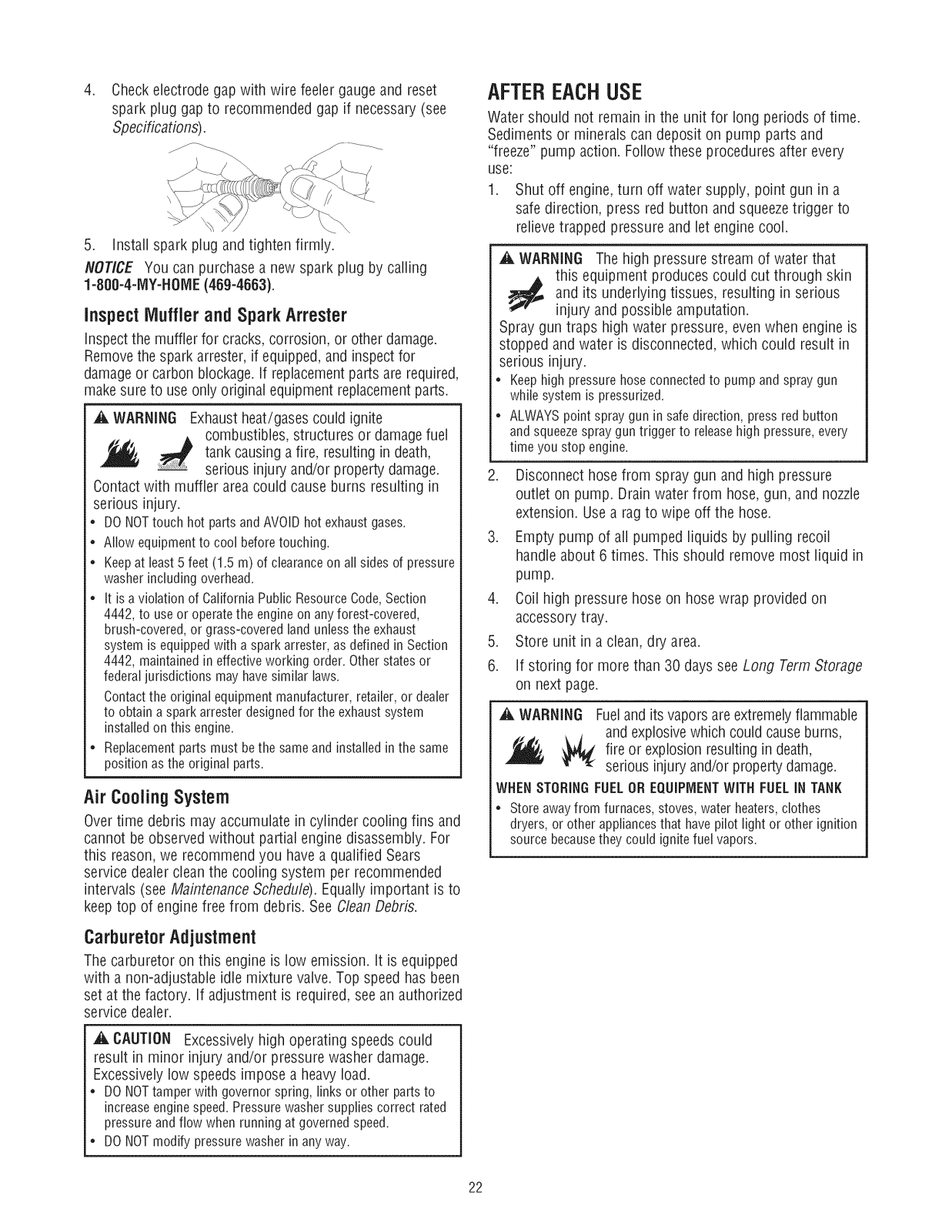

,A. WARNING Exhaust heat/gases could ignite

combustibles, structures or damage fuel
tank in

causing a fire, resulting death,

serious injury and/or property damage.
Contact with muffler area could cause burns resulting in
serious injury.

• DO NOTtouch hot parts and AVOIDhot exhaust gases.

• Allow equipmentto cool beforetouching.

• Keepat least5 feet (1.5 m) of clearanceon all sides of pressure
washer including overhead.

• it is a violation of CaliforniaPublic ResourceCode, Section
4442, to use oroperate the engine on anyforest-covered,
brush-covered, orgrass-covered landunlessthe exhaust
system is equippedwith a spark arrester,as definedin Section
4442, maintained in effective working order. Otherstates or
federaljurisdictions may havesimilar laws.

Contactthe original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaust system
installed onthis engine.

• Replacement parts must bethe same and installed in the same
position as the original parts.

_1_WARNING Use of pressure washer could create

Ll=

Kickback from spray gun could cause you to fall resulting
in death or serious injury.

• Operatepressurewasher from a stablesurface.

• Thecleaning areashould haveadequateslopes and drainageto
reducethe possibility of a fall due to slippery surfaces.

• Beextremely carefulif you must usethe pressurewasher from
a ladder,scaffolding, orany other similar location.

• Firmly grasp spray gun with both hands when using high
pressure sprayto avoid injury when spraygun kicks back.

puddles and slippery surfaces causing

_ you to fall resulting in death or serious
1- injury.

,& WARNING Riskof eyeor bodily injury.

Spraycould splash back or propel

objects resulting in serious injury.

• Always wear indirect vented (chemical splash) safety goggles
markedto comply with ANSIZ87.1 when usingor in vicinity of
this equipment.

• NEVERsubstitute safety glasses or dry-condition goggles for
indirect vented safety goggles.

• Always wear protectiveclothing such as a long-sleevedshirt,
long pantsand close-toed shoes.

• NEVERoperatepressure washer when barefootor wearing
sandalsor shorts.

_1_WARNING Unintentionalsparking could causefire or

'_,dh electric shock resulting in death or

serious injury.

WHENADJUSTINGORMAKINGREPAIRSTOYOURPRESSURE
WASHER

* Disconnectthesparkplugwirefromthe sparkplugandplace

thewirewhereit cannotcontactsparkplug.

WHENTESTINGFORENGINESPARK

* Useapprovedsparkplugtester.
* DONOTcheckfor sparkwith sparkplugremoved.

_i_WARNING Starter and other rotating parts could

resulting in serious injury.

entangle hands, hair, clothing, or accessories

* NEVERoperate pressure washer without protective housing or

covers.

. DO NOTwear looseclothing, jewelry or anything that could be

caught in the starter or other rotating parts.

. Tieup long hairand removejewelry.

,& CAUTION Excessively high operating speeds could

result in minor injury and/or pressure washer damage.

Excessively low speeds impose a heavy load.

• DO NOTtamper with governor spring, links or other partsto
increase enginespeed. Pressurewasher supplies correct rated
pressure and flow when running at governed speed.

• DO NOTmodify pressure washer in any way.

NOTICE High pressurespray could damagefragile items
including glass.

• DONOTpointspraygunat glasswhenusingMAXspraypattern
in selectornozzle.

= NEVERaim spray gun at plants.

NOTICE improper treatment of pressure washer could
damage it and shorten its life.

• If you havequestions about intended use,ask dealeror contact
qualified service center.

• NEVERoperateunits with broken or missing parts, or without
protective housing or covers.

• DO NOTby-pass any safetydevice on this machine.

• DONOTtamper with governedspeed.

• DONOToperate pressurewasher above ratedpressure.

• DONOTmodify pressurewasher in any way.

• Beforestarting pressure washer in cold weather,check all parts of
the equipment to be sure icehas notformed there.

• NEVERmove machine by pulling on hoses.Use handleprovided
on unit.

• This equipment is designedto be used with Searsauthorized parts
ONLY.If equipmentis used with parts that DONOTcomply with
minimum specifications, user assumesall risksand liabilities.

KNOWYOURPRESSUREWASHER

Readthe Operator'sManual and safetyrules before operating your pressure washer.

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and

adjustments. Save this manual for future reference.

A- AccessoryTray-- Provides convenient storage for accessories,

such as gun, nozzleextension, etc.

B- HoseWrap and High PressureHose-- Hosewrap provides

easytransport and handling of the high pressure hose.Connect

one endof hose to water pump and the other end to spray gun.
C- Recoil Starter-- Usedfor starting the engine manually.
D - ProjectPro@ PerfectMWMSiphon -- Mixes concentrate with

pressure washer spray.
E- Oil Fill/Dipstick -- Check,addand drain engine oil here.

F - Bottle Bracket -- Cleaning solution bottle fits in wire form

bracket here. Concentratebottle not included.

G - EngineIdentiDcation-- Provides model, type and code of

engine. Pleasehavethese readilyavailable if calling for
assistance.

H - Water Inlet -- Connection for garden hose.
J - Pump-- Developshigh pressure.

K- AutomaticCool DownSystem -- Cycleswaterthrough pump

when water reaches125°-155°F. Warm water will dischargefrom

pump onto ground. This system preventsinternalpump damage.

L - DetergentSiphoning Tube/Filter-- Useto siphonpressurewasher

safedetergentsintothe low pressurestream.

IVi- EngineRockerSwitch -- Pushthis switch to on position (I or

ON) before using recoil starter. Push switch to off position (0
or OFF)for shutting off engine.

N - Selector Nozzle -- Contains five different spray pattern nozzles

for various applications.

P - Air Filter -- Protects engineby filtering dust and debris out of

intakeair.

R - Fuel Tank-- Fill tank with regular unleadedfuel. Always leave

room for fuel expansion.

S - NozzleExtensionwith QuickConnect-- Allows you to switch

betweenselector nozzleand optional nozzleaccessories.

T - Fold DownHandle-- Handleand accessorytray fold fiat atop

cold engine for space-saving storage.

U- Spray Gun-- Controls the application of water onto cleaning

surface with trigger device,includes trigger lock.

items Not Shown:
identificationLabel (near rear of base plate) -- Provides model

and serial number of pressurewasher. Pleasehavethese readily
available if calling for assistance.

HighPressure Outlet-- Connectionfor high pressurehose.

Warning/Operating instructionsTag-- Identifieshazardsand proper

procedureto start/stop pressurewasher.

Your pressurewasher requires someassembly and is ready
for useonly after it has been properly servicedwith the

recommendedoil andfuel.
If you haveany problemswith theassemblyof your

pressurewasher, pleasecall the pressurewasher helpline
at 1=800-222-3136.

UNPACKTHEPRESSUREWASHER

1. Removeeverythingfrom carton except pressurewasher.

2. Opencarton completely by cutting eachcorner from top

to bottom.

3. Removepressure washer from carton.

CARTONCONTENTS

Checkall contents. If anyparts are missing or damaged,call
the pressure washer helplineat 1-800-222-3136.

• Main Unit

• Handle

• AccessoryTray

• High PressureHose

• Spray Gun

• NozzleExtensionwith QuickConnect Fitting

• Quick Connect Selector Nozzle

• Oil Bottle

• HoseWrap

• DetergentSiphoning Hose/Filter

• Bottle Bracket Wireform

• PerfectMWMSiphoning Unit/Hose

• Parts Bag(which includesthe following):

• Operator's Manual

• Owner's Registration Card

• HandleFasteningHardwareKit (whichincludes):

• HandleBolts (2)

• CarriageBolt (1)

• Rope Guide(1)

• Plastic Knobs for Handle(2)

• Plastic Knob (2)

• TreeClips (4)

Becomefamiliar with eachpiece beforeassembling the
pressure washer, identify all contents with the illustration on
page 6. if any parts are missing or damaged, call the
pressure washer helpline at1-800-222-3136.

6. Connectpressure hose to spray gun and pump.

7. Connectwater supply to pump.

8. Attach nozzleextension to spraygun.

9. Attach quick connect selector nozzleto nozzleextension.

Attach Handleand AccessoryTray

1. Placehandle(A) onto handle supports (B) connectedto
main unit. Make sure holes (C) in handlealign with holes
(C) on handlesupports.

.

insert handlecarriagebolts (D) through holes from
inside of unit and attach a plastic knob (E) from outside
of unit. Tighten by hand. By loosening both knobs to the
middle section of the attachmentbolt, the upper handle
canfold forward to store fiat atop the cold engine.

NOTICE DONOTfold the handledown while the engine is
hot.

3. Placeaccessory tray (F) over holes (6) on handle
(viewing from backof unit). Pushthe tree clips (H) into

the holes until they sit fiat against the accessorytray.

ASSEMBLINGPRESSUREWASHER

Your Craftsmanpressure washer will needassembly before
operation:

1. Fill outand sendin registration card.

2. Attach handle andaccessory tray.

3. Connectdetergent siphon hoseto pump.

4. Add oil to engine crankcase.

5. Add fuel to fuel tank.

/

.

insert supplied accessories in spacesprovided in
accessorytray. See How to UseAccessory Tray.

.

Attach rope guide (A)through handlewith plastic knob
(B). Tighten by hand. Route enginerecoil rope through
guide.

.

Align hosewrap (C)to the backside of accessorytray.
Locate notch with "unlock"icon (B) on hosewrap.
Position notch at top with hosewrap in vertical position.
Clips in the backof accessorytray should slide into the
grooves on the inside surface of hosewrap. Slide hose
wrap on back of accessorytray and rotate 1/8 turn until
"locked"icon (E) is in vertical position. Hosewrap is
easily removed from the accessorytray for wrapping and
unwrapping of the high pressurehose.A clip to secure
the hose on the reel makesit easyto wrap the hose
while it is detachedfrom the accessorytray.

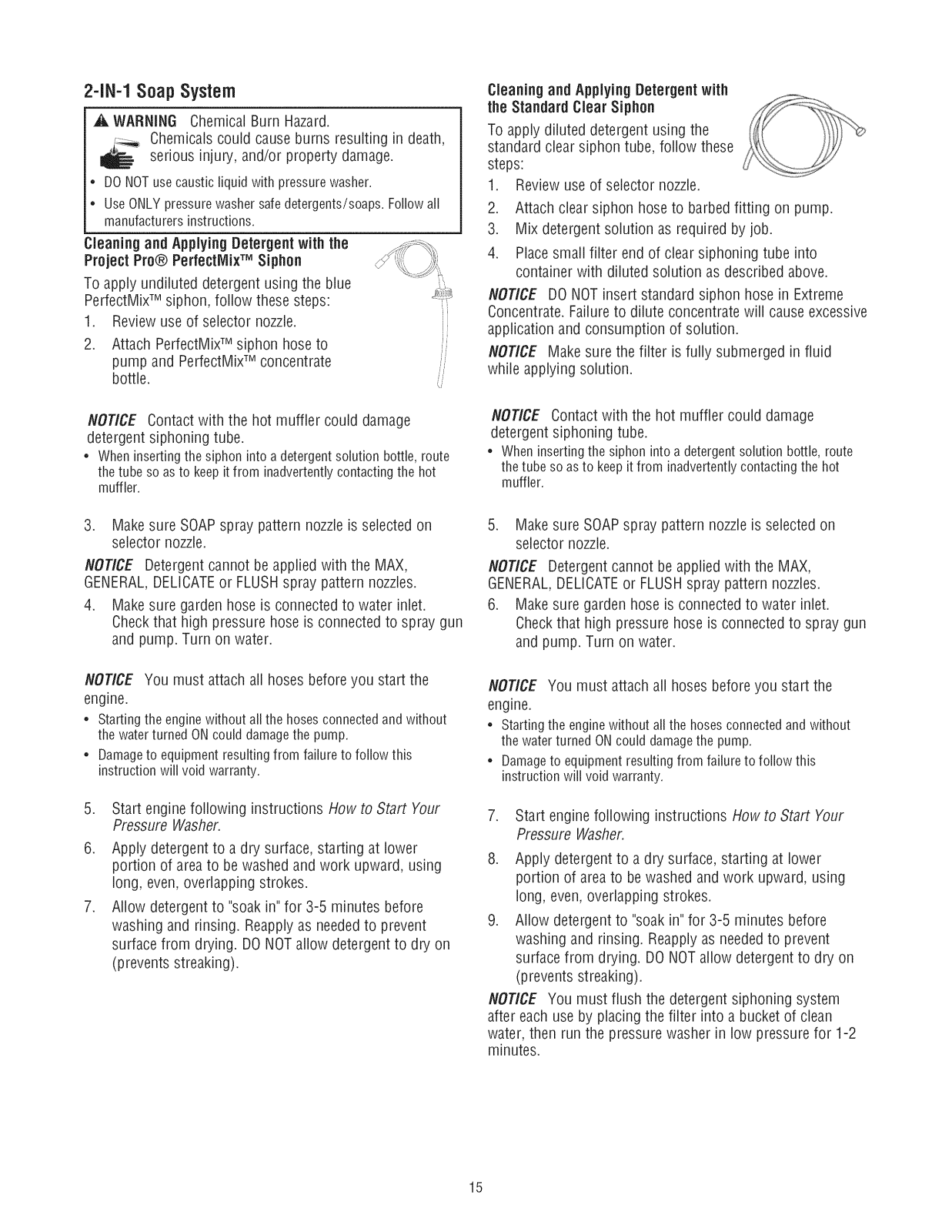

2-1N-1SoapSystem

The pressure washeris equipped with two detergent

siphoning hoses.

Project Pro PerfectMW MSiphon
Bluetube with bluebottle cap:

When using the blue PerfectMixTMsiphon, use
the PerfectMixTMExtreme Concentratestraight

from the bottle.

Standard Siphon Tube

Cleartube with filter:
Whenusing the clearsiphon tube, dilute

1 part PerfectlViixTMExtremeConcentrate

to 16 parts water (4 oz of concentrate

makes1/2 gallon of mix.)

Attach Project Pro® PerfectiVIWMSiphon to

Pump

Attach the hose endof the blue PerfectMixTMSiphon (J) to
the barbed hose fitting (l{) on the pump.

.

Attach bottle bracket (F) to handle with carriage bolt (6)
and blackplastic knob (N). Tighten by hand.

Attach PerfectiVlixTMDetergentSiphon to

ConcentrateBottle

PlacePerfectMixTMbottle (not included) in the wire-form
bracketon the handle. Removecap from bottleand insertthe

PerfectMixTMSiphon (L). Screwthe siphon unit to the top of
the bottle (M). Usethe clip on the cap (L) to snapsiphon to
wire form bracket when siphon is not in a concentrate bottle.

®

Add EngineOil

1. Placepressure washer on aflat, levelsurface.

2. Cleanarea around oil fill and remove yellow oil fill
cap/dipstick.

3. Using oil funnel (optional), slowly pour contents of
supplied oil into oil fill opening, frequently checking oil

level. DONOTOVERFILL.

Full

NOTICE Improper treatment of pressure washer could
damage it and shorten its life.

• DO NOTattempt to crank or start the engine beforeit has been

properly servicedwith the recommendedoil. This could result in
an enginefailure.

4. Replaceoil fill cap/dipstick and fully tighten.

AddFuel

Fuel must meet theserequirements:

• Clean,fresh, unleadedgasoline.

• A minimum of 87 octane/87 AKi (91 RON).High altitude

use, see HighAltitude.

• Gasolinewith up to 10% ethanol (gasohol) or up to 15%

MTBE (methyl tertiary butyl ether) is acceptable.

NOTICE Avoid pressurewasher damage.
Failureto follow Operator's Manualfor fuel

recommendations voids warranty.

• DONOTuseunapprovedgasolinesuchasE85.

• DONOTmixoil in gasoline.

• DONOTmodifyengineto runonalternatefuels.

A WARNING Fuelandits vapors areextremelyflammable

and explosivewhich could causeburns,
fire or explosionresulting indeath,

serious injury and/orproperty damage.

WHENADDINGFUEL

• Turn pressurewasher engine OFFand let it cool at least2
minutes beforeremoving fuel cap. Loosen cap slowly to relieve
pressure in tank.

• Fill fuel tank outdoors.

• DONOToverfill tank. Allow spacefor fuel expansion.

• If fuel spills,wait until it evaporatesbefore starting engine.

• Keepfuel away from sparks, open flames, pilot lights, heat,and
other ignition sources.

• Checkfuel lines, tank, capandfittings frequently for cracks or
leaks. Replaceif necessary.

• DONOTlight a cigarette orsmoke.

To protect the fuel system from gum formation, mix in a fuel

stabilizerwhen addingfuel. See Storage.All fuel is not the
same.If you experiencestarting or performance problems

after using fuel, switch to a different fuel provider or change
brands. This engine is certified to operateon gasoline.The
emission control system for this engine is EM(Engine
Modifications).

1. Cleanareaaround fuel fill cap, removecap.

2. Slowly add regular unleadedfuel (A) to fuel tank (B). Be
careful not to overfill. To allow for fuel expansion,do not

fill abovethe bottom of the fuel tank neck.

"J" N NNNNNNNNNN N

N NNNNNNNNNN N

,-J N NNNNNNNNNN N

3. Install fuel cap andwait for any spilledfuel to evaporate.

CAUTION! Alcohol-blended fuels (called gasohol, ethanol or

methanol) canattract moisture, which leadsto separation and
formation of acids during storage.Acidic gascandamagethe
fuel system of an enginewhile in storage.

To avoidengine problems, the fuel system shouldbe treated
with a fuel preserveror emptied beforestorage of 30 daysor

longer. If adding a fuel preserver,fill the fuel tank with fresh
fuel. If only partially filled, air in the tank will promote fuel

deterioration during storage. Iffuel preserver is not used,

drain the fuel tank, start the engineand let it run until the fuel

lines andcarburetor are empty. Usefresh fuel next season.

SeeStoragefor additional information.

NEVERuse engineor carburetor cleaner products in the fuel
tank as permanent damagemay occur.

HighAltitude
At altitudes over 5,000 feet(1524 meters), a minimum

85 octane / 85 AKi (89 RON)gasolineis acceptable.To

remainemissions compliant, high altitude adjustment is

required. Operationwithout this adjustmentwiii cause

decreasedperformance, increasedfuel consumption, and

increasedemissions. Seea qualified Searsdealerfor high

altitude adjustment information. Operationof the engine at

altitudes below 2,500 feet(762 meters) with the high altitude

kit is not recommended.

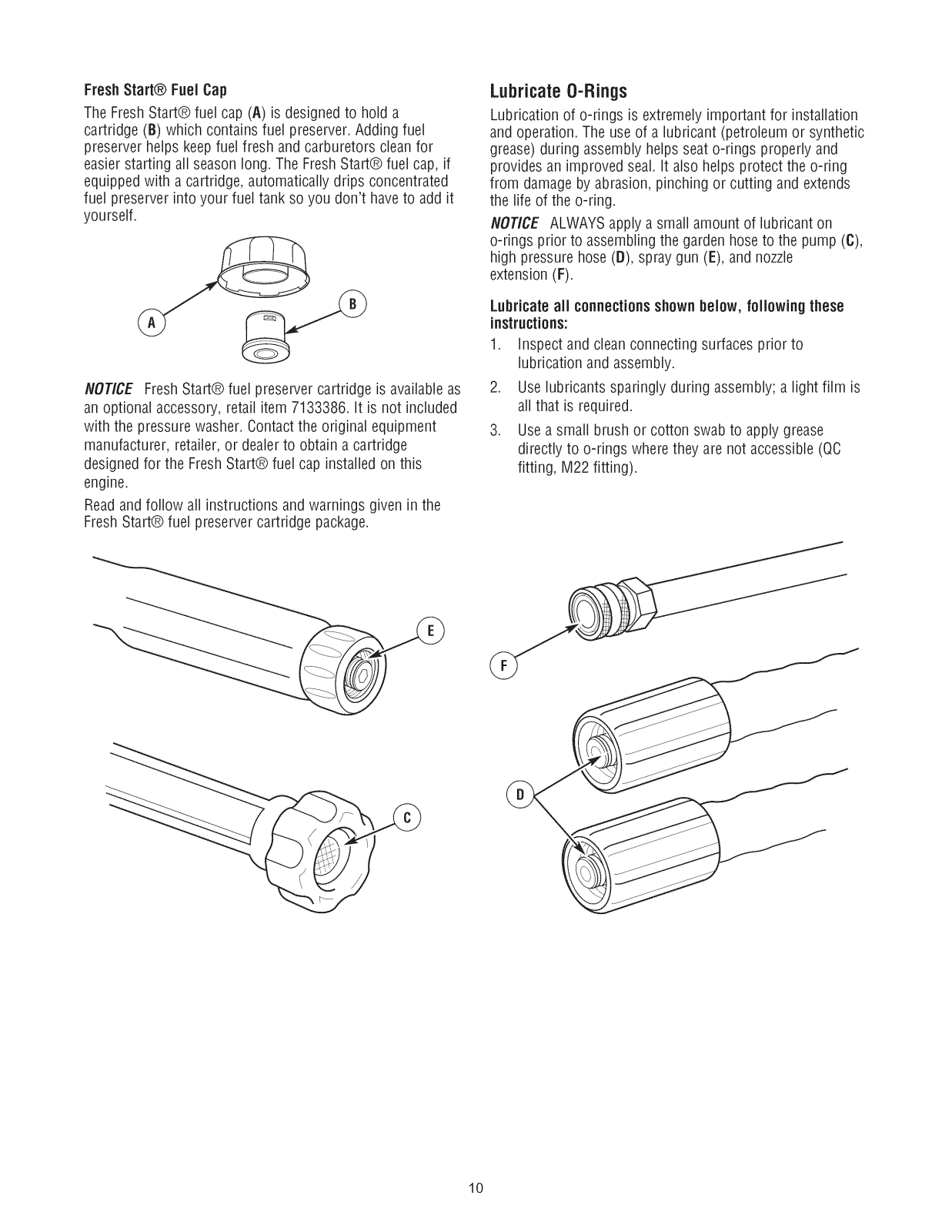

FreshStart@ Fuel Cap
The FreshStart@fuel cap (A) is designed to hold a

cartridge (B) which containsfuel preserver. Adding fuel
preserver helps keepfuel fresh and carburetors cleanfor
easierstarting aii season long. The FreshStart@fuel cap, if
equipped with a cartridge, automatically drips concentrated
fuel preserverinto your fuel tank so you don't haveto add it
yourself.

NOTICE FreshStart@ fuel preservercartridge is availableas
an optional accessory, retail item 7133386. it is not included

with the pressurewasher. Contactthe original equipment
manufacturer, retailer,or dealerto obtain acartridge

designedfor the FreshStart@ fuel cap installed on this
engine.

Readand follow all instructions andwarnings given inthe
FreshStart@fuel preservercartridge package.

Lubricate O-Rings

Lubrication of o-rings is extremely important for installation

and operation. The useof a lubricant (petroleum or synthetic
grease)during assembly helpsseat o-rings properly and

provides animproved seal. It also helps protect the o-ring
from damageby abrasion, pinching or cutting and extends
the life of the o-ring.

NOTICE ALWAYSapply a small amount of lubricant on
o-rings prior to assemblingthe gardenhose to the pump (C),
high pressurehose(D), spray gun (E), and nozzle
extension(F).

Lubricateall connectionsshownbelow, following these
instructions:

1. inspect and clean connecting surfacesprior to
lubrication and assembly.

2. Use lubricants sparingly during assembly; a light film is
all that is required.

3. Use a small brush or cotton swab to apply grease
directly to o-rings wherethey are not accessible(QC
fitting, M22 fitting).

10

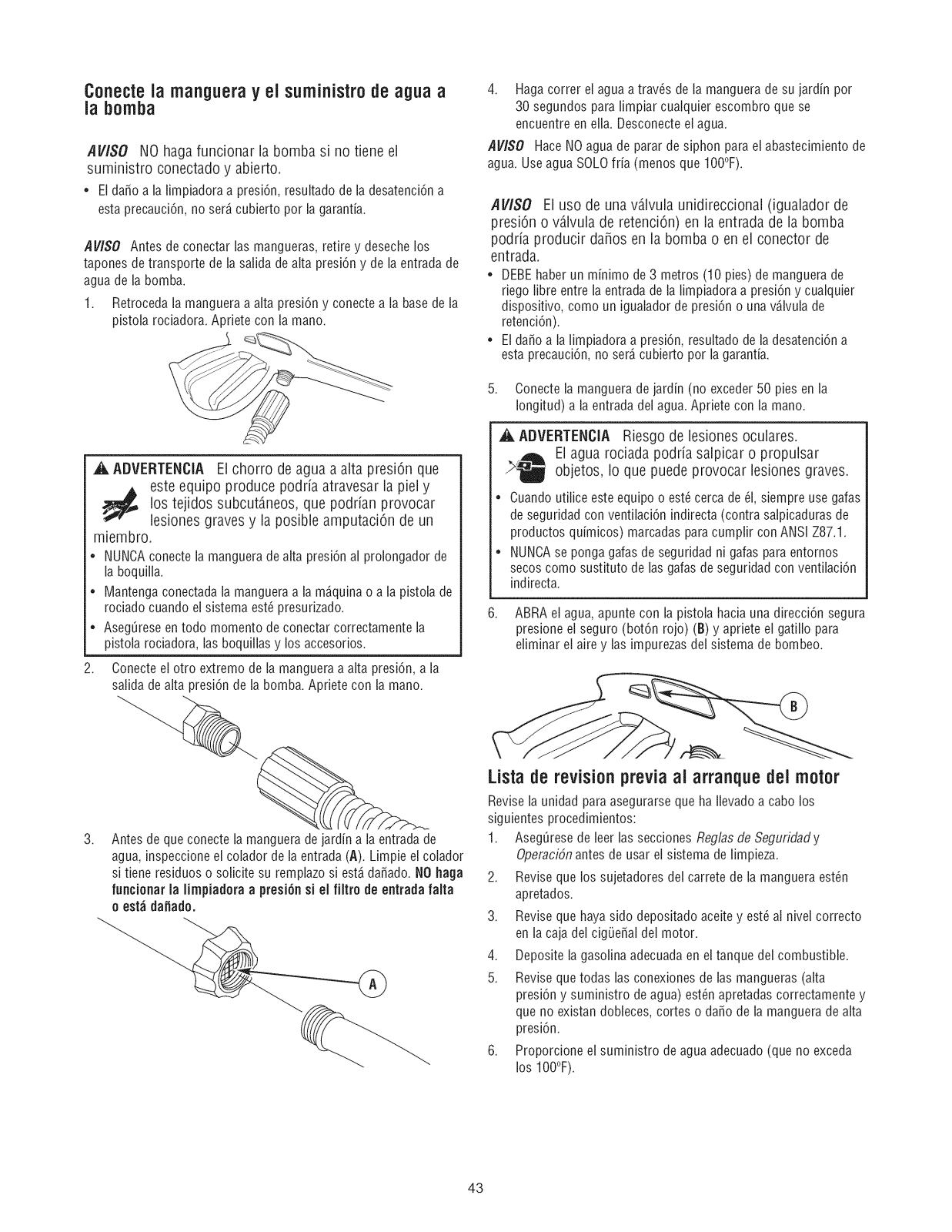

ConnectHoseandWater Supply to Pump

NOTICE DONOTrun the pump without the water supply
connectedand turned on.

= Damagetoequipmentresultingfrom failuretofollowthis

instructionwillvoidwarranty.

4. Runwater through garden hosefor 30 secondsto flush
it of debris.Turn off water.

NOTICE DONOTsiphon standing water for the water
supply. Use ONLYcold water (less than 100°F).

5. Connectgarden hose(not to exceed50 feet in length) to
water inlet. Tightenby hand.

NOTICE Removeand discardthe shipping capsfrom the
pump's high pressure outlet and water inlet before attaching

hoses.

1. Uncoil high pressurehose and attachone end of hoseto
baseof spray gun. Tighten by hand.

,& WARNRNG The high pressure stream of water that

and its underlying tissues, resulting in serious

this equipment produces could cut through skin

injury and possible amputation.

= NEVERconnect high pressure hoseto nozzleextension.
= Keep high pressure hoseconnectedto pump and spraygun

while system is pressurized.

= Always be certain spray gun, nozzlesand accessoriesare

correctly attached.

2. Attach other end of high pressure hoseto high pressure
outlet on pump. Tightenby hand.

NOTICE Using a OneWay Valve (vacuumbreaker or check

valve) at pump inlet could cause pump or inlet connector

damage.

= ThereMUSTbeat leasttenfeetofunrestrictedgardenhose

betweenthepressurewasherinletandanydevice,suchasavacu-
umbreakeror checkvalve.

• Damageto equipment resultingfrom failure to follow this instruc-
tion will void warranty.

,& WARNING Riskof eyeinjury.

Spray could splash back or propel objects

resulting in serious injury.

• Always wear indirect vented (chemical splash) safety goggles
markedto comply with ANSIZ87.1 when usingor in vicinity of
this equipment.

• NEVERsubstitute safety glasses or dry-condition goggles for
indirect vented safety goggles.

.

Turn ONthe water, press red button (B) on the gun and

squeezethe trigger to purge the pumpsystem of air and
impurities.

.

Beforeconnecting garden hoseto water inlet, inspect
inlet screen (A). Cleanscreenif it contains debris or have
it replacedif damaged.DO NOTrunpressurewasher if
inlet screenis damaged or missing.

Checklist BeforeStarting Engine

Reviewthe unit to ensureyou haveperformedall of the

following:

1. Besure to readSafetyRules and Operationsections
before using the pressurewasher.

2. Makesure handleis in placeand secure.

3. Checkthat oil has beenaddedto proper levelin engine
crankcase.

4. Add properfuel to fuel tank.

5. Checkfor proper hoseconnections (high pressureand
water supply) andthat there are no kinks, cuts, or
damageto the high pressurehose.

6. Provide properwater supply (not to exceed100%).

11

HOWTO USEYOURPRESSUREWASHER

If you haveanyproblems operating your pressure washer,
pleasecall the pressure washerhelpline at 1-800-222-3136.

PressureWasherLocation

PressureWasher Clearance

_1_WARNING Exhaust heat/gasescould ignite

combustibles, structuresor damagefuel tank
causing afire, resultingin death,serious injury

and/or property damage.

= Keepat least5 ft. (152cm)clearanceonallsidesofpressure

washerincludingoverhead.

Placepressure washer outdoors in an areathat will not
accumulate deadlyexhaust gas. DONOTplacepressure
washer where exhaustgas (A) could accumulate and enter
inside or be drawn into a potentially occupiedbuilding.
Ensureexhaust gas is kept awayfrom anywindows, doors,
ventilation intakes, or other openingsthat can allow exhaust
gasto collect in aconfined area. Prevailingwinds and air
currents should betaken into consideration when positioning

_ressurewasher.

_1_WARNING Running engine gives off carbon

monoxide, an odorless, colorless, poison gas.

_ Breathing carbon monoxide could result in death,

serious injury, headache, fatigue, dizziness,

vomiting, confusion, seizures, nausea or fainting.

• Operatethis product ONLY outdoors.
= Keep exhaustgas from entering a confined areathrough

windows, doors, ventilation intakes,or other openings.

• DO NOToperatethis product insideany building, carport,
porch, mobile equipment, marineapplications, or enclosure,
evenif windows and doors areopen.

To StartYour Pressure Washer

To startyour engine-powered pressurewasherfor the first
time, follow these instructions step-by-step. This information

alsoapplies wheneveryou start the engineafteryou havelet

the pressure washer sit idle for at leasta day.

1. Placepressurewasher outside nearan water source
capableof supplying water at aflow rate greaterthan

3.3 gallons per minute and no less than 20 PSi at
pressurewasher endof garden hose.

2. Checkthat high pressure hose is tightly connectedto
spray gun and pump. SeeAssembly for illustrations.

3. Makesure unit is in a levelposition.

4. Connectgarden hoseto water inlet on pressurewasher
pump.

NOTICE DONOTrun the pump without the watersupply
connectedand turned on.

= Damageto equipmentresultingfromfailureto followthis

instructionwill voidwarranty.

5. Turn ONthe water, pressred button on the gun and
squeezethe trigger to purge the pump system of air and
impurities.

6. Attach nozzleextension to spraygun. Tighten by hand.

12

.

Pull backon collar of nozzleextension, insert selector
nozzleand releasecollar. Tug on selector nozzleto make

sure it is securelyin place. See How to UseSelector

Nozzle.

.

Pushengine rocker switch (!) to on position (I or ON).

NOTICE Beforestarting the pressurewasher, be sureyou
are wearing safetygoggles asdescribed below.

A WARNING Risk of eye injury.

Spraycould splash back or propelobjects
resulting in serious injury.

* Always wear indirect vented(chemical splash) safetygoggles

markedto comply with ANSIZ87.1 when usingor in vicinity of

this equipment.

* NEVERsubstitute safety glasses or dry-condition goggles for

indirect vented safety goggles.

NOTICE This unit is equipped with a ReadyStart® engine.A
ReadyStart® engine meansthere is no priming or choking
required.

9. Whenstarting engine, position yourself as
recommendedand grasp starter grip handle and pull
slowly until you feel someresistance. Then pull rapidly
to start engine.

A WARNING The high pressure stream of water that

and its underlying tissues, resulting in serious

this equipment produces could cut through skin

injury and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which could result in
serious injury.

* DONOTallow CHILDRENto operatepressure washer.
* Keephigh pressure hoseconnectedto pump and spraygun

while system is pressurized.

* NEVERaim spray gun at people,animals, or plants.
* DO NOTsecure spray gunin open position.
* DO NOTleavespray gun unattendedwhile machineis running.
* NEVERuse aspray gun which doesnot have atrigger lock or

trigger guard inplace and in working order.

* Alwaysbe certainspray gun, nozzlesand accessoriesare

correctly attached.

A WARNING Exhaust heat/gases could ignite

A WARNING Starter cord kickback (rapid retraction) will

puii hand and arm toward engine faster than you

_< can let go which could cause broken bones,

fractures, bruises, or sprains resulting in serious

injury.

* NEVERpull starter cord without first relieving spraygun

pressure.

* When starting engine,pull cord slowly until resistance isfelt

andthen pull rapidly to avoid kickback.

* After eachstarting attempt, where enginefails to run, always

point spray gun insafe direction, press red button and squeeze
spray gun trigger to releasehigh pressure.

* Firmly grasp spray gunwith both hands when using high

pressure sprayto avoid injury when spraygun kicks back.

10. Return recoil starter slowly. DONOT let rope"snap
back" againststarter.

11. Point spray gun ina safedirection, push the red button
to releasethe trigger lock, and pullthe trigger.

._ combustibles, structures or damage fuel

Contact with muffler area could cause burns resulting in
serious injury.

* DO NOTtouch hot parts andAVOIDhot exhaust gases.
* Allow equipmentto cool beforetouching.
* Keepat least5 feet (1.5 m) of clearanceon all sidesof pressure

washer including overhead.

* It is a violation of California PuNic ResourceCode, Section

4442, to use oroperate the engine on anyforest-covered,
brush-covered, orgrass-covered landunlessthe exhaust
system is equippedwith a spark arrester,as definedin Section
4442, maintained in effective working order. Otherstates or
federaljurisdictions may havesimilar laws.

Contactthe original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaustsystem
installed onthis engine.

* Replacementparts must bethe same andinstalled inthe same

position as the original parts.

tank causing a fire, resulting in death,
serious injury and/or property damage.

Howto Stop YourPressureWasher

1. Release spray gun trigger and let engine idle for two
minutes.

2. Pushengine rocker switch to off position (0 or OFF).

3. ALWAYSpoint spray gun in a safe direction, push red
button andsqueezespray gun trigger to releaseretained
high water pressure.

A WARNING The high pressure stream of water that

this equipment produces could cut through skin
and its underlying tissues, resulting in serious

injury and possible amputation.

Spray gun traps high water pressure, evenwhen engine is
stopped and water is disconnected, which could result in

serious injury.

* Keephighpressurehoseconnectedto pumpandspraygun

whilesystemispressurized.

* ALWAYSpointsprayguninsafedirection,pressredbutton

andsqueezesprayguntriggerto releasehighpressure,every
timeyoustopengine.

13

How to Use Accessory Tray

The unit is equippedwith an accessorytray with places to
store your spray gun and nozzleextension. Thereis also a

detachablehosewrap atthe back of the accessory tray to
hold your high pressurehose.

1. Placenozzleextension and selector nozzlethrough hole
on accessorytray on left side of unit.

/ / ..................... \" \ _" ',

i zj\', i

2. Placespray gun through hole on accessorytray on right
side of unit.

flOTICE You may also usethe spray gun holder on the
accessorytray to store your spray gun, nozzleextensionand

selector nozzleas shown in Featuresand Controls section.

3. Wrap high pressure hoseon hosewrap then attach hose
wrap to backof accessory tray.

4. Hook providedon back of accessorytrayfor safely
storing safety goggles.

Howto Use Selector Nozzle

Theselector nozzleallows you to switch betweenfive
different spray pattern nozzles.Spray patterns can be
changedwhile pressurewasher is running once spray gun
trigger safety lock is engaged.The spraypatterns vary as

shown below.

A WARNING The high pressurestream of water that

Followthese instructionsto changenozzle patterns:

1. Select desiredspray pattern:
* MAX- For stubborn or hard to reach surfacesuch

assecond story surfaces, paint removal,oil stains,
rust removalor other stubborn substances (tar,
gum, grease,wax, etc.).

GENERAl_- For most all purposecleaning such as
home siding, brick patios, wood decks, driveways

and sidewalks, garagefloors, etc..
DELICATE- Forgentle cleaningof cars/trucks,

boats, RV's, patiofurniture, lawn equipment, etc..
FLUSH- Forquick high flow clean up and long

reachcleaning of second story siding and windows.
SOAP- Forgeneralsoapapplications or to launch

soapto second story siding and windows.

2. Push button on selector nozzle,nozzledial will pop up.

3. Turndial untildesired spray pattern lines up with button

on selector nozzle.

4. Push dial in untilit locks into place.

Usage Tips

* For most effective cleaning,keep selector nozzlefrom

8 to 24 inches (20 to 61 cm) away from cleaning surface.

If you get selector nozzletoo close, especiallyusing a
high pressurespray pattern nozzle,you may damage
surface being cleaned.

DONOTget closer than 6 inches (15 cm) when cleaning
tires.

and its underlying tissues, resulting in serious

this equipment produces could cut through skin

injury and possible amputation.

• NEVERchangespraypatternswithoutthetriggerlockedonthe
spraygun.

• DONOTtwist selectornozzlewhilespraying.

14

2-1N-1SoapSystem

AWARNING Chemical Burn Hazard.

j:_ Chemicalscould cause burns resulting indeath,

serious injury,and/or property damage.

• DONOTusecausticliquidwithpressurewasher.

• UseONLYpressurewashersafedetergents/soaps.Followall
manufacturersinstructions.

Cleaning and Applying Detergentwiththe
Project Pro(E)PerfectMW MSiphon

To applyundiluted detergentusing the blue
PerfectMixTM siphon,follow these steps:

1. Reviewuse of selector nozzle.

2. Attach PerfectMWMsiphon hoseto
pump and PerfectMixTM concentrate

bottle. //

Cleaning and Applying Detergentwith

the StandardClear Siphon
To applydiluted detergent using the

standard clearsiphon tube, follow these
steps:

1. Reviewuse of selector nozzle.

2. Attach clear siphon hoseto barbedfitting on pump.

3. Mix detergentsolution as required by job.

4. Placesmall filter end of clear siphoning tube into
container with diluted solution as describedabove.

NOTICE DONOTinsert standard siphon hose in Extreme
Concentrate.Failure to dilute concentratewill causeexcessive

application and consumption of solution.
NOTICE Makesure the filter is fully submerged in fluid

while applying solution.

NOTICE Contact with the hot muffler could damage
detergent siphoning tube.

• When inserting the siphon into adetergent solution bottle, route
the tube so asto keep it from inadvertently contactingthe hot

muffler.

3. Make sure SOAPspray pattern nozzleis selectedon

selector nozzle.

NOTICE Detergentcannot beapplied with the MAX,
GENERAL,DELICATEor FLUSHspray pattern nozzles.

4. Make sure gardenhose is connected to water inlet.

Checkthat high pressurehose is connected to spray gun
and pump.Turn on water.

NOTICE You must attach all hoses before you start the
engine.

• Starting theengine without all the hoses connected and without
the waterturned ON could damagethe pump.

• Damageto equipment resulting from failure to follow this
instruction will void warranty.

5. Start enginefollowing instructions How to Start Your

Pressure Washer.

6. Apply detergent to a dry surface,starting at lower

portion of areato be washedand work upward, using
long, even,overlapping strokes.

7. Allow detergent to "soakin"for 3-5 minutes before

washing andrinsing. Reapplyas neededto prevent
surfacefrom drying. DO NOTallow detergentto dry on

(prevents streaking).

NOTICE Contact with the hot muffler could damage
detergent siphoning tube.

• When inserting the siphon into a detergentsolution bottle, route
the tube so asto keep it from inadvertently contacting the hot

muffler.

5. Makesure SOAPspray pattern nozzleis selectedon
selector nozzle.

NOTICE Detergentcannot be applied with the MAX,
GENERAL,DELICATEor FLUSHspraypattern nozzles.

6. Makesure garden hose is connectedto water inlet.
Checkthat high pressure hose is connected to spray gun
and pump. Turn onwater.

NOTICE You must attach all hoses before you start the
engine.

• Startingthe enginewithout all the hoses connectedand without
the waterturned ONcould damagethe pump.

• Damageto equipment resultingfrom failure to follow this

instruction will void warranty.

7. Start engine following instructions How to Start Your

Pressure Washer.

8. Apply detergentto a dry surface,starting at lower
portion of areato be washed and work upward, using
long, even, overlappingstrokes.

9. Allow detergent to "soakin"for 3-5 minutes before

washing and rinsing. Reapplyas neededto prevent

surfacefrom drying. DONOTallow detergentto dry on
(prevents streaking).

NOTICE You must flush the detergentsiphoning system
after eachuse by placing the filter into a bucketof clean

water, then run the pressurewasher in low pressurefor 1-2

minutes.

15

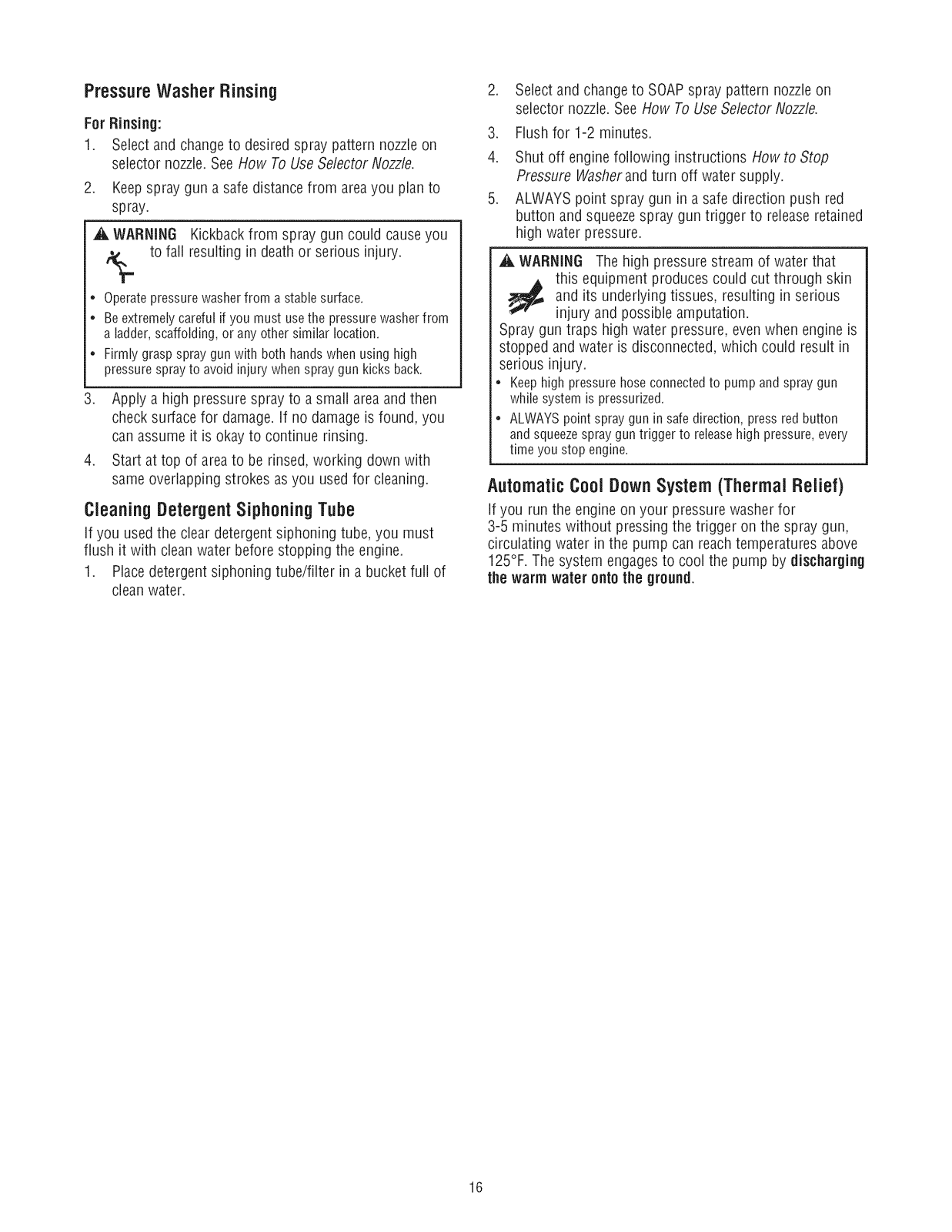

PressureWasherRinsing

ForRinsing:

1. Select and changeto desired spray pattern nozzleon
selector nozzle. SeeHow To UseSelector Nozzle.

2. Keepspray guna safedistance from areayou plan to
spray.

A WARNING Kickbackfrom spray gun could causeyou

to fall resulting in deathor seriousinjury.

• Operatepressurewasherfroma stablesurface.

• Beextremelycarefulif youmustusethepressurewasherfrom
a ladder,scaffolding,orany othersimilarlocation.

• Firmlygraspspraygunwithbothhandswhenusinghigh
pressuresprayto avoidinjurywhenspraygunkicksback.

3. Apply a high pressurespray to asmall areaand then
checksurface for damage, if no damageis found, you
can assume it is okayto continue rinsing.

4. Start attop of areato be rinsed, working down with
same overlapping strokesas you used for cleaning.

Cleaning Detergent SiphoningTube

If you usedthe clear detergent siphoning tube,you must
flush it with cleanwater before stopping the engine.

1. Placedetergent siphoning tube/filter in a bucket full of
cleanwater.

2. Select and changeto SOAPspray pattern nozzleon
selector nozzle.See How ToUseSelector Nozzle.

3. Flushfor 1-2 minutes.

4. Shut off engine following instructions How to Stop
Pressure Washerandturn off water supply.

5. ALWAYSpoint spray gun in a safe direction push red
button andsqueezespray gun trigger to releaseretained
high water pressure.

,A. WARNING The high pressure stream of water that

and its underlying tissues, resulting in serious

this equipment produces could cut through skin

injury and possible amputation.

Spray gun traps high water pressure, evenwhen engine is
stopped and water is disconnected, which could result in

serious injury.

• Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.

• ALWAYSpointspraygunin safedirection,pressredbutton
andsqueezesprayguntriggerto releasehighpressure,every
timeyoustopengine.

Automatic Cool Down System(ThermalRelief)

If you runthe engine onyour pressure washer for
3-5 minutes without pressing the trigger on the spraygun,
circulating water in the pump can reachtemperatures above
125°F.The systemengagesto cool the pump by discharging

the warm water onto the ground.

16

ENGINETECHNICALiNFORMATiON

This is a single cylinder, overheadvalve (OHV), air cooled
engine, it is alow emissions engine.

In the State of California, Model 110000engines are certified
by theCalifornia Air Resources Boardto meet emissions
standardsfor 125 hours. Such certification does not grant

the purchaser, owner or operator of this engine any
additional warranties with respectto the performanceor
operational life of this engine.Theengine is warranted solely

according to the product and emissionswarranties stated
elsewherein this manual.

PowerRatings

Thegross power rating for individual gas engine models is
labeled in accordancewith SAE(Society of Automotive
Engineers)code J1940 (Small Engine Power &Torque
Rating Procedure),and rating performance has been

obtained and corrected in accordancewith SAEJ1995
(Revision 2002-05). Torquevalues are derived at 3060 RPM;

horsepower values are derived at 3600 RPM. Net power
values aretaken with exhaust and air cleanerinstalled

whereas gross powervalues arecollected without these
attachments.Actual gross engine power will be higher than
net engine power and is affected by, among other things,
ambient operating conditions and engine-to-engine
variability. Giventhe wide array of products onwhich engines
are placed, the gasengine may not developthe rated gross
power when used in a given pieceof power equipment.This
difference is due to a variety of factors including, but not
limited to, the variety of engine components (air cleaner,
exhaust, charging, cooling, carburetor, fuel pump, etc.),
application limitations, ambient operating conditions
(temperature, humidity, altitude), and engine-to-engine
variability. Dueto manufacturing and capacity limitations,
Briggs & Stratton maysubstitute an engine of higher rated
power for this Seriesengine.

PRODUCTSPECiFiCATiONS

PressureWasherSpecifications

Max Outlet Pressure ...................... 2,700 PSI*

Max Flow Rate............................. 2.3 GPM

DetergentMix ........................ Use asdirected

Water SupplyTemperature .......... Notto exceed100°F

Engine Specifications

Bore............................... 2.58 in. (65.6mm)

Stroke ............................. 2.04 in. (51.8mm)

Displacement ........................ 10.69in. (175cc)

SparkPlug

Type:...................... Briggs & Stratton 692051

SetGapTo: ...................... 0.020inch (0.50mm)

ArmatureAir Gap:........... 0.010-0.014in.(0.25-0.36mm)

Valveclearancewithvalvesprings installedand piston1/4 in.

(6 mm) pasttop deadcenter(checkwhenengineis cold).

Intake.................... 0.004-0.008in.(0.10-0.20mm)

Exhaust .................. 0.004-0.008in.(0.10-0.20mm)

FuelCapacity............................... 1.6 Quarts

0il Capacity........................ 20 Ounces(0.6 liter)

NOTICE Forpractical operation, the engineload should not
exceed85% of rated power. Enginepower will decrease
3-1/2% for each1,000 feet (300 meters) above sealevel and
1% for each 10° F(5.6° C) above 77° F(25° C). It should
operatesatisfactorily at an angle up to 15°.

* This pressure washer is ratedin accordanceto the

PressureWasher ManufacturersAssociation (PWMA)

standard PW101(Testing and RatingPerformanceof

PressureWashers).

17

OWNER'SRESPONSiBiLiTiES

Follow the hourly or calendarintervals, whichever occurs
first. More frequentservice is required when operating in

adverseconditions noted below.

ii ii _ i iiii iiii ]i i;;iiii_ii_i{ii_i!_i!i}iiiii}}iiiiJii}iiiii_ i{__ii _!Ji}iiii_i_i}_ii iiH_iiiiii i]iiii iiii iiiiii ii ii iiiiii iiii iiii ii iiii iiiiii iiii iiiiii iiii iiiiii iiii iiiiii iiii iiHHHHHHHHH_

• Changeengineoil

EmissionsControl

Maintenance,replacement,or repairof the emissions

control devices and systemsmaybe performedby any non-

roadengine repair establishment or individual. However,

to obtain "no charge" emissions control service,the work

must beperformed by afactory authorizeddealer. Seethe

Emissions Warranty.

iiiiiiiiii,'_iiiiiiiiii;1; ; ;; ;;; ;;3 ;

• Check/clean water inlet screen'

• Checkhigh pressurehose

• Checkdetergent siphoning hoses

• Checkspray gun and assembly for leaks

• Cleandebris

• Checkengine oil level

!i{i;;iiiiiiiiiiii_iiiiiiiiiiiiiiiii]i/i;;iii iiii _} iii ii_ i{i iiiiiii i HH:::::__i_ii

• Cleanengineair cleaner_

• Changeengineoil_

• inspectmuffler and spark arrester

• Replaceengineair cleaner_

• Replacesparkplug

• Cleancooling system_

Clean if clogged. Replace if perforated or torn.

2Service more often under dirty or dusty conditions.

GeneralRecommendations

Regularmaintenance will improve the performanceand
extendthe life of the pressurewasher. Seeany Searsor
other qualified service dealerfor service.

Thepressure washerwarranty does not cover items that
havebeensubjected to operator abuseor negligence.To
receivefull valuefrom the warranty, the operator must

maintain pressurewasher as instructed in this manual
including proper storage as detailed in Storage.

Someadjustments will needto be made periodically to
properly maintain your pressurewasher.

All service andadjustments should be made at leastonce
eachseason. Follow the requirementsin the Maintenance

Schedulechart above.
NOTICE Oncea yearyou should cleanor replace the spark

plug andreplacethe air filter. A new spark plugand clean air
filter assureproper fuel-air mixture and helpyour engine run
better and last longer.

PumpOil

DONOTattempt any oil maintenanceon this pump.The
pump is pre-iubricatedand sealedfrom the factory, requiring
no additional maintenancefor the life of the pump.

BeforeEachUse

1. Checkengine oil level.

2. Cleandebris.

3. Checkwater inlet screenfor damage.

4. Checkhigh pressure hose for leaks.

5. Checkgun and nozzleextension assemblyfor leaks.

6. Purge pump of air and contaminants.

PRESSUREWASHERMAINTENANCE

CleanDebris

Daily or before use,clean accumulateddebris from pressure
washer. Keeplinkage, spring and controls clean. Keeparea
around andbehind muffler free from any combustible debris.

inspect cooling air slots and openings on the pressure
washer. Theseopenings must be kept clean and

unobstructed.

Pressurewasher parts should be kept cleanto reduce the

risk of overheating andignition of accumulated debris.

• Usea damp clothto wipe exterior surfacesclean.

NOTICE improper treatment of pressurewasher could

damageit and shorten its life.

• DONOTinsertanyobjectsthroughcoolingslots.

• Usea soft bristle brush to loosencaked on dirt, oil, etc.

• Usea vacuum cleanerto pick up loosedirt and debris.

CheckandClean Iniel Screen

Examinegarden hoseinlet screen. Cleanif it is clogged or

replaceif it is torn.

CheckHighPressure Hose

High pressurehoses can develop leaksfrom wear,kinking,
or abuse, inspect hose beforeeachuse. Checkfor cuts,

leaks,abrasions, bulging of cover, or damageor movement
of couplings. If anyof these conditions exist, replacehose

immediately.

,A WARNING The highpressure stream of water that

this equipment produces could cut through skin
and its underlying tissues, resulting in serious

injury and possible amputation.

, NEVERrepairhighpressurehose.Replaceit.

• ReplacementhoseratingMUSTequalor exceedmaximum
pressureratingofunit.

18
