12.5 Horsepower

33 Inch Dual Stage

120V. Electric Start SNOW THROWER

MODEL NO.

536.881120

Caution:

Read and follow all Safety Rules

and Operating Instructions before first use of this product.

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

F-001129J

WARRANTY STATEMENT ......

SAFETY RULES ...............

INTERNATIONAL SYMBOLS ....

ASSEMBLY ...................

OPERATION ..................

MAINTENANCE ...............

SERVICE AND ADJUSTMENT...

LIMITED TWO-YEAR WARRANTY ON CRAFTSMAN SNOW THROWER

For two years from the date of purchase, when this Craftsman Snow thrower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the owner's manual, Sears will repair, free of charge, any defect in material or workmanship.

If this Craftsman Snow thrower is used for commercial or rental purposes, this warranty ap- plies for only 90 days from the date of purchase.

This warranty does not cover the following:

• Items which become worn during normal use, such as sparkplugs, drive belts and shear pins.

• RepaiP'necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain the equipment according to the instructions contained in the

owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN SNOW THROWERTO THE NEAREST Sears SERVICE CENTER/DEPARTMENT IN THE

UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rightswhich may

vary from state to state.

Sears, Roebuck and Co., D817WA, Hoffrnan Estates. IL 60179

2 STORAGE .................... 31

2 TROUBLE SHOOTING CHART .. 32

4 REPAIR PARTS ................ 33

13 ENGINE REPAIR PARTS ........ 50

20 SPANISH (ESPAI_IOL) .......... 60

23 PARTS ORDERING/SERVICE • • 92

LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.

IT MEANS--- AT'rENTION!!! BECOME ALERTI!! YOUR SAFETY IS INVOLVED.

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit

chemicals known to the State of California to cause cancer and birth defects or other repro-

ductive harm. Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known to the State of California to cause cancer

and birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.

F-001129J 2

,_ WARNING: Always discon-

make contact with spark plug to

prevent accidental starting during: Preparation, Maintenance, or Stor-

age of your snow thrower.

IMPORTANT: Safety standards re- quire operator presence controls to

minimize the risk of injury. Your snow thrower is equipped with such controls. Do not attempt to defeat the function of

the operator presence control under any circumstances.

nect the spark plug wire and place it where it cannot

TRAINING

1. Read the operating and service instruction manual carefully. Be thoroughly familiar with the controls and the proper use of the

equipment. Know how to stop the unit and

disengage the controls quickly.

2. Never allow children to operate the equip-

ment. Never allow adults to operate the equipment without proper instruction.

3. Keep the area of operation clear of all per- sons, particularly small children and pets.

4. Exercise caution to avoid slipping or falling especially when operating in reverse.

PREPARATION

1. Thoroughly inspect the area where the equipment is to be used and remove all

doormats, sleds, boards, wires, and other

foreign objects.

2. Disengage all clutches before starting the engine (motor).

3. Do not operate the equipment without wearing adequate winter outer garments.

Wear footwear that will improve footing on slippery surfaces.

4. Handle fuel with care; it is highly flam- mable.

a. Use an approved fuel container. b. Never remove fuel tank cap or add fuel

to a running engine (motor) or hot en- gine (motor).

c. Fill fuel tank outdoors with extreme

care. Never fill fuel tank indoors.

d. Replace fuel cap securely and wipe up

spilled fuel.

e. Never store fuel or snow thrower with

fuel in the tank inside of a building

where fumes may reach an open flame or spark.

f. Check fuel supply before each use, al-

lowing space for expansion as the heat of the engine (motor) and/or sun can

cause fuel to expand.

For all units with electric starting motors use electric starting extension cords certi- fied CSA/UL. Use only with a receptacle

that has been installed in accordance with

local inspection authorities.

Adjust the snow thrower height to clear gravel or crushed rock surface.

Never attempt to make any adjustments while the engine (motor) is running (except

when specifically recommended by manu-

facturer).

Let engine (motor) and snow thrower ad-

just to outdoor temperatures before starting

to clear snow.

F-001129J

Always wear safety glasses or eye shields during operation or while performing an ad-

justment or repair to protect eyes from foreign objects that may be thrown from the

snow thrower.

OPERATION

1. Do not operate this machine it you are tak- ing drugs or other medication which can

cause drowsiness or affect your ability to operate this machine.

2. Do not use this machine if you are mentally or physically unable to operate this ma-

chine safely.

3. Do not put hands or feet near or under ro- tating parts. Keep clear of the discharge

opening at all times.

4. Exercise extreme caution when operating

on or crossing gravel drives, walks or roads. Stay alert for hidden hazards or traffic.

5. After striking a foreign object, stop the en- gine (motor), remove the wire from the spark plug, thoroughly inspect snow

thrower for any damage, and repair the damage before restarting and operating

the snow thrower.

6. If the unit should start to vibrate abnormal-

ly, stop the engine (motor) and check im- mediately for the cause. Vibration is

generally a warning of trouble.

7. Stop the engine (motor) whenever you

leave the operating position, before un- clegging the auger/impeller housing or dis-

charge chute and when making any repairs, adjustments, or inspections.

8. When cleaning, repaidng, or inspecting, make certain the auger/impeller and all

moving parts have stopped and all controls are disengaged. Disconnect the spark plug

wire and keep the wire away from the spark

plug to prevent accidental starting.

9. Take all possible precautions when leaving the snow thrower unattended. Disengage

the auger/impeller, stop engine (motor),

and remove key.

10. Do net run the engine (motor) indoors, ex- cept when starting the engine (motor) and for transporting the snow thrower in or out

of the building. Open the outside doors; ex- haust fumes are dangerous (containing CARBON MONOXIDE, an ODORLESS and DEADLY GAS).

11. Do not clear snow across the face of slopes. Exercise extreme caution when

changing direction on slopes. Do not at- tempt to clear steep slopes.

12. Never operate the snow thrower without proper guards, plates or other safety pro-

tective devices in place.

13. Never operate the snow thrower near en-

closures, automobiles, window wells, drop-offs, and the like without proper ad-

justment of the snow discharge angle.

Keep children and pets away.

14. Do not overload the machine capacity by

attempting to clear snow at too fast a rate.

15. Never operate the machine at high trans- port speeds on slippery surfaces. Look be-

hind and use care when backing up.

16. Never direct discharge at bystanders or allow anyone in front of the unit.

17. Disengage power to the collectodimpeller when snow thrower is transported or not in

use.

18. Use only attachments and accessories ap- proved by the manufacturer of the snow thrower (such as tire chains, electric start

kits, ect.).

19.

Never operate the snow thrower without good visibility or light. Always be sure of

your footing and keep a firm hold on the handle_. Walk;never run.

20.

Do not over-reach. Keep proper footing

and balance at all times.

21.

Do not attempt to use snow thrower on a roof.

MAINTENANCE AND STORAGE

1. Check shear belts and other belts at fre- quent intervals for proper tightness to be

sure the equipment is in safe working condition.

2. Never store the snow thrower with fuel in

the tank inside a building where ignition sources are present such as hot water and

space heaters, clothesdryers, and the like. Allow the engine (motor) to cool before storing in any enclosure.

3. Always refer to operator's guide instruc- tions for important details if the snow

thrower is to be stored for an extended period.

4. Maintain or replace safety and instruction labels, as necessary.

5. Run the snowthrowera few minutes after throwing snow to prevent freeze-up of the

auger/impeller.

,_ WARNING: This snow thrower is

Caution should be exercised while using on steep sloping surfaces, DO NOT USE

SNOW THROWER ON SURFACES ABOVE GROUND LEVEL such as roofs of resi- dences, garages, porches or other such

structures or buildings.

for use on sidewalks, driveways and other ground level surfaces.

IMPORTANT: Many of the following symbols are located on your unit or on literature sup- plied with the product. Before you operate the unit, learn and understand the purpose for

each symbol.

Control And Operating Symbols

Slow Fast Electric Start Engine Start Engine Run

Engine Off Engine Stop On Choke Off Choke On Neutral

®@

Throttle Primer Button Ignition Key

Ignition Off Ignition On

F-001129J 4

Drive Clutch Forward Reverse Auger Clutch Auger Collector Engage

l÷61

Push To Engage Fuel

Electric Starter

Discharge DOWN Discharge UP Discharge LEFT

Weight Transfer Weight Transfer

Lift Handle To Depress Pedal

Engage To Disengage

Oil Fuel Oil Mixture

Transmission

SafetyWarningSymbols

Discharge RIGHT

Ignition Key

Insert To Run,

Pull Out To Stop.

DANGER

Thrown Objects.

Keep Bystanders Away.

IMPORTANT

Read Owner's Manual

Before Operating

This Machine.

WARNING

Hot Surface

F-001129J 5

Keep Bystanders Away.

DANGER

Thrown Objects.

DANGER

Avoid Injury From

Rotating Auger, Keep

Hands, Feet And

Clothing Away.

WARNING

DANGER

Stop The Engine

Before Unclogging

Discharge Chute!

STOP

Contents of Parts Bag (actual size) 1 - Owner's Manual (not shown)

1 - Packet of Fuel Stabilizer (not shown) 1 - Warranty Card (not shown)

2 - Parts bags (not shown)

*Non-Assembly Parts, found in toolbox located on belt cover

1- Screw, 3/8"-16 x 2"

71007

*2- Shear Pins

760878

1-Split Lockwasher

71062

2- Nut, 3/6"

71044

2-Flatwasher 3/8"

71072

1 - Remote Chute Knob

(not actual size)

1- Starter Cord (not actual size)

1 - Shift Lever Knob

(not actual size)

1 - Hex Jam Nut 1/4"

71034

1 - Flatwasher 3/8"

71071

Parts packed separately in carton (not shown full size)

2- Ignition Keys "_^ ._

(Attached to engine in plastic bag)

F-OO1129J 6

1 - Cotter Pin

71081

Read and follow the assembly and ad-

justment instructions for your snow

thrower. All fasteners are in the parts bag. Do not discard any parts or materi-

al until the unit is assembled.

,_ WARNING: Before doing any

assembly or maintenance to the snow thrower, remove the

wire from the spark plug.

,_ WARNING: Always wear

safety glasses or eye shields while assembling

snow thrower.

NOTE: In this instruction book, left and right describe the location of a

part from the operator's position be- hind the unit.

Tools Required

1 Knife 1 Pliers

1 1/2 inch open end wrenches 1 9/16 inch open end wrenches

1 3/4 inch open end wrenches 1 Measuring tape or ruler

1 Screwdriver

Figure 1 shows the snow thrower in the shipping po"sition.

Clutch

Control Cable

Figure 1

Figure 2 shows the snow thrower com- pletely assembled.

Traction Drive

----'- Lever Remote

Chute

Crank

Lever

Chute

Deflector

Drift Cutter

Height Adjust

Skid

Figure 2

How To Remove The Snow

Thrower From The Carton

1. Locate all parts that are packed separately and remove from the

carton.

NOTE: Put fuel stabilizer in a safe

place until needed for storage.

F-001129J

Cut and discard the plastic ties that secure the crank assembly and the shift rod assembly to the pallet.

Cut down all four corners of the car- ton and lay the side panels flat.

Cut the metal bands that hold the snow thrower to the lower pallet.

Remove and discard all packing material from around the snow

thrower.

For shipping purposes, the height adjust skids are attached to the

pallet. Remove the screw that se- cures each height adjust skid to

the pallet. See Figure 3.

Hei(

Adjust Skid

Screw Figure 3

Loosen (,do not remove) the bolts

that fasten the upper and lower

handles. Raise the upper handle into the operating position.

NOTE: Make sure the cables are

not caught between the upper and lower handles.

8. Cut the ties that secure the clutch control cables to the lower handle.

See Figure 1. Move the cables away from the motor frame.

9. Make sure the clutch control cables are attached to the clutch

levers. See Figure 4.

10. Tighten the bolts that secure the

upper and lower handles.

Clutch Lever

Clutch Control Cable Figure 4

11. Hold onto the handle and pull the snow thrower off the carton.

CAUTION: DO NOT back over

cables.

How To Assemble The Handle And Crank Assembly

1. Loosen, but do not remove, the fas- teners in the upper holes of the lower handle. See Figure 5.

Loosen, Do'_

Not Remove I

r /

Crank

Assembly

Eyebolt

F-001129J

_l_ Lower Handle ,,_

Locknut Nut 3/8

Flatwasher ,_

. Install the screw, flatwasher, lock-

washer, and hex nut into the bot- tom hole on the right side of the

handles. DO NOT tighten until all

fasteners are in place.

Upper Handle

Lockwasher 318"/

Flatwasher 3/8"

Loosen, Do

_,# Not Remove

Flatwasher 3/8"

-_j Screw3/8" x 2'

Figure 5

3. Locate the crank assembly re- moved earlier. Remove the Iocknut

and flatwasher from the eye bolt

assembly.

4. Install the eye bolt through the low- er hole on the left side of the han-

dles.

5. Install the flatwasher and the lock- nut loosely on the eye bolt.

6. Carefully remove cotter pin, clevis pin, universal joint pin, and uni-

versal joint from the crank rod as- sembly. See Figure 6.

Cotter Pin

Clevis Pin

Crank Rod

Universal Joint Pin

Mount the universal joint intothe end of the worm gear. Make sure

the large holes are aligned.

8. Insert universal joint pin. Make sure opening in universal joint pin

is aligned with small opening in uni- versal joint.

9. Mount the yoke end of crank rod around the universal joint. Fasten

with clevis pin and cotter pin.

Spread ends of cotter pin to lock in place.

10. Tighten the Iocknut on the eye bolt. See Figure 5. Make sure eye belt is properly aligned and the crank can

freely rotate.

11. Tighten all handle fasteners.

Universal Joint

Worm Gear

Figure 6

How To Install The Knobs

Remote Chute Knob

1. Install the nut onto the lever. See Figure 7,

Lip _.... _

Remote

Knob

Chute

Nut

3/8"_...__ Lever

Make sure lip on the remote chute knob is pointed toward the engine.

Tighten the nut against the bottom of the remote chute knob.

Speed Select Knob

Install the speed select knob to the speed select lever. See Figure 8.

Speed Select

Knob

Figure 7

2. Assemble the remote chute knob

onto the lever until snug against the nut.

F-OO1129J

Speed Select

Lever

Figure 8

How To Install

The Speed Control Rod

1. Put the speed select lever into the sixth gear position.

2. Attach the speed control rod (end with 90 ° bend) to the speed select

bracket with washer and cotter pin. See Figure 9.

3. Put the speed select lever into the first gear position.

Attach the ball joint, located on the bottom end of the speed control

rod, to the shift yoke assembly. See Figure 10. The fasteners are attached to the ball joint at the factory.

The length ot the ball joint and speed

control rod have been pre-adjusted at the factory. _f an adjustment is required,

loosen the nut. Remove the fasteners

to disconnect the ball joint from the

shift yoke assembly. To lengthen or shorten the speed control rod, turn the adapter to obtain the correct length.

5. Make sure the speed select lever functions correctly. Move the speed

select lever through all speeds.

_Speed Select

Speed ][ Lever

Select

Bracket

Speed

Control

Rod

Speed Control Rod

Adapter _

Joint Fasteners

Washer 3/8"

Figure 9

Figure 10

How To Assemble

The Chute Deflector

1. Remove the carriage bolt. See Figure 11.

2. Raise the chute deflector into op-

erating position,

3. Fasten chute deflector to flange with carriage bolt. Make sure to

Chute Deft

Carriage

Bolt

F-001129J

Operating Po_

Flange W;

_Lsher Nut

install with head of the carriage bolt on the inside of the flange.

4. Fasten with washer and Iocknut.

5. Tighten Iocknut securely.

NOTE: Make sure all carriage bolts in flange are tight. DO NOT

OVERTIGHTEN.

6. Cut tie strap on chute deflector.

Tie Strap

Figure 11

Check The Cables

1. Check the traction drive cable and the auger drive cable. Ifthe bottom

of the cables have become discon-

nected, reinstall the cable springs. Make sure the long spring is at-

tached to the traction drive and the

short spring is attached to the au- ger drive. See Figure 12.

TractionAuger Drive Cable

Drive Cable Short

/ Spr,ng

Figure 12

2. If the top of the cables have be- come disconnected from the drive

levers, attach the cables to the "Z" fitting. See Figure 13.

"Z" Fitting Drive Lever

Cable Figure 13

How To Set The Skid Height

The snow thrower is equipped with

height adjustable skids mounted on

the outside of the auger housing. See

Figure 14. To adjust the height of the

skids, see "How To Adjust The Height

Of The Skids" in the Maintenance section.

How To Set The Length Of The Cables

The cables were adjusted at the factory and no adjustments should be neces-

sary. However, after the handles are put in the operating position, the cables can

be too tight or too loose. If an adjust- ment is necessary, see "How To Check

And Adjust The Cables" in the Service And Adjustment section.

Adj Skids Figure 14

F-001129,.I 11

How To Set The Drift Cutters

Drift cutters are used to cut a path

through snow deeper than the auger

housing.

1. Loosen the wingnuts that secure

the drift cutters to the auger hous- ing. See Figure 15.

2. Raise the drift cutters to the de- sired height.

3. Tighten the wingnuts.

_- CHECKLIST

Before you operate your new snow

thrower, to ensure that you receive the

best performance and satisfaction from

this quality product, please review the

following checklist:

Drift Cutter

Wingnul

Figure 15

e" Allassembly instructions have been

completed.

e_ The discharge chute rotates freely.

e" No remaining loose parts in carton. While learning how to use your snow

thrower, pay extra attention to the fol- lowing important items:

e" Engine oil is at proper level.

e_ Make sure gas tank is filled properly

with clean, fresh, unleaded gasoline.

e_ Become familiar with all controls-

their location and function. Operate

controls before starting engine.

F-OO1129J 12

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR SNOW THROWER. Compare the illustrations with your SNOW THROWER to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

Electric

Auger Drive Lever

Traction Drive Lever

Start Button

Primer

Ignition Button Key Switch

Box

Remote Chute Control Lever

Crank Assembly

Chute Deflector

Discharge Chute

Choke

Control Recoil

Throttle Starter Control Handle

Height Adjust

Skid

Auger Drive Lever - Starts and stops the auger and impeller (snow gathering

and throwing) Traction Drive Lever - Propels the

snow thrower forward and in reverse.

Speed Shifter Lever - Selects the speed of the snow thrower (6 speeds for- ward and 2 speeds reverse).

Crank Assembly - Changes the direction of snow throwingthrough the discharge chute.

Chute Deflector - Changes the distance

the snow is thrown.

Discharge Chute - Changes the height and direction the snow is thrown.

Height Adjust Skid - Adjusts the ground clearance of the auger housing.

Ignition Key - Must be inserted to start the engine.

Recoil Starter Handle - Starts the en- gine manually.

F-001129J 13

Shear Pin

Figure 16

Choke Control - Used to start a cold engine.

Primer Button - Injects fuel directly into the carburetor manifold for fast starts in

cold weather.

Remote Chute Control Lever - Push

forward to discharge snow high and far.

Pull remote lever back to discharge snow

down. Throttle Control - Controls the engine

speed. Electric Start Button - (if so equipped)

Usedto starttheengineusing the 120 V elec- tricstarter.

Shear Pin - Shear pins are designed to break (to protectthe machine) if an ob-

iect becomes lodged in the auger hous- =ng.

Toolbox - spare shear pins and spacers are located in toolbox.

Ddft Cutter -Cuts a path through snow higher than the auger housing.

Theoperationof any snowthrower can result in foreign objectsbeingthrown into the eyes,whichcan resultin se-

vere eye damage. Alwayswear safety

glassesor eyeshieldswhile operating

the snow thrower.

We recommendstandardsafety glassesor a widevisionsafety mask for over your glasses.

,_ WARNING: Read Owner's

charge toward bystanders. Stop the engine before unclogging discharge

chute or auger housing and before leaving the machine.

TO STOP YOUR SNOW THROWER

TO CONTROLSNOWDISCHARGE

1. Turn the crank assembly to set the

2. Push the remote chute lever for-

Manual before operating machine. Never direct dis-

To StOl_'throwing snow, release the auger drive lever. See Figure 17.

To stop the wheels, release the traction drive lever.

To stop the engine, push the

throttle control lever to off and pull out the ignition key.

TractionDriveLever

Auger DriveLever

Figure 17

direction of the snow throwing. See

Figure 18.

ward to discharge the snow high

and far. Pullthe remote chute le-

ver back to discharge the snow

down.

Chute Lever Assembly

Figure 18

HOW TO MOVE FORWARD AND

BACKWARD

1. To shift, release the traction drive lever (left hand) and move the

speed shift lever to the speed you desire. See Figure 17. Ground speed is determined by snow condi-

tions. Select the speed you desire by moving the speed shifter lever

left into the appropriate notches on the shift lever plate:

Speeds 1,2 - Wet, Heavy Speed 3 - Light

Speed 4 - Very Light Speed 5,6 - Transport only

2. Engage the traction drive lever (left hand). As the snow thrower starts

to move, maintain a firm hold on the

handles, and guide the snow throw- er along the clearing path. Do not

attempt to push the snow thrower.

3. To move the snow thrower back- ward, move the speed shifter lever

right into first or second reverse and

engage the traction drive lever (left

hand).

IMPORTANT: Do not move the speed

shifter lever while the traction lever

is down. TO THROW SNOW

1. Push down the auger driver lever

(right hand). See Figure 17.

2. Release to stop throwing snow.

F-001129J 14

HOW TO USE THE WHEEL LOCKOUT

The left wheel is secured to the axle with a lockout pin. See Figure 19. The

unit was shipped with the lockout pin in the locked position. For ease of maneu- verability in light snow conditions, dis-

connect the lockout pin as follows.

1. Pull the knob out to disengage the lockout pin.

2. To lock in the disengaged position, turn the knob 1/4 turn (90 degrees).

5. Check tire pressure (14-17

pounds). Do not exceed maximum amount of pressure.

CHECK THE OIL: NOTE: The engine was shipped from

the factory filled with oil. Check the level of the oil. Add oil as needed.

1. Make sure the unit is level. NOTE: Do not check the level of the

oil while the engine runs.

2. Remove the oil fill cap/dipstick. Check the oil.

3. If necessary, add oil until the oil reaches the FULL mark on the oil fill

cap/dipstick (see Figure 20). Do not add too much oil.

OII FillC_p/Dipstick

Knob

Wheel Lockout

Figure 19

BEFORE STARTING THE ENGINE

Before you service or start the en- gine, familiarize yourself with the snow thrower. Be sure you under-

stand the function and location of all controls.

2. Check the tension of clutch cable before starting the engine. See To

Adjust The Control Cable para- graph in the Service & Adjust-

ments section of this manual.

3. Be sure that all fasteners are tight.

4. Make sure the height adjust skids

are properly adjusted. See To Ad-

just Skid Height paragraph in the

Service & Adjustments section of this manual.

F-001129J

>{J_ _'_ NOTE: Oil level

_._ must be between

full and Add mark

Figure 20

4. Tighten the fill cap/dipstick securely each time you check the oil level.

NOTE: For extreme cold operating conditions of 0°F and below, use a

partial synthetic 0W30 motor oil for easier starting.

NOTE: S.A.E. 5W30 motor oil may

be used to make starting easier in

areas where temperature is consis- tently 20°1=. or lower.

FILL GAS:

NOTICE: ENGINES WHICH ARE CERTIFIED TO COMPLY WITH CAL-

IFORNIA AND US EPA EMISSION

REGULATIONS FOR ULGE ENGINES:

Are certified to operate on regular un- leaded gasoline. Include the following emission control system(s): EM, TWC

(if so equipped). Include any user ad- justable features-therefore no other ad- justments are needed.

WARNING: Experiences in-

,_ dicates that alcohol blended

fuels (called gasohol or

those using ethanol or methanol)

can attract moisture which leads to separation and formation of acids

during storage. Acidic gas can dam- age the fuel system of an engine while in storage.

NOTE: To avoid engine problems,

the fuel system must be emptied be- fore storage for 30 days or longer.

Start the engine and let it run until the fuel lines and carburetor are

empty. Use the carburetor bowl drain to empty residual gasoline

from the float chamber. Use fresh fuel next season. See the Storage

section in'this manual for additional

information.

Never use engine or carburetor cleaner products in the fuel tank or

permanent damage may occur.

Fill the fuel tank only with a fresh, clean, unleaded regular, unleaded

premium, or reformulated automo- tive gasoline. DO NOT use leaded

gasoline. Make sure that the con- tainer you pour the gasoline from is

clean and free from rust or other for- eign particles. Never use gasoline

that may be stale from long periods of storage in the container.

,_ WARNING: Gasoline is flam-

mable. Always use caution when handling or storing

gasoline. Do not fill fuel tank while snow

thrower is running, when it is hot, or

when snow thrower is in an en- closed area.

Keep away from open flame or an electrical spark and do not smoke while filling the fuel tank.

Never fill the tank completely. Fill

the tank to within 1/4"-1/2" from the top to provide space for expansion

of fuel. Always fill fuel tank outdoors and

use a funnel or spout to prevent spilling.

Make sure to wipe up any spilled fuel before stating the engine. Store gasoline in a clean, approved container and keep the cap in place

on the container.

TO STOP ENGINE

To stop engine, move the throttle con-

trol lever to "STOP" position and re-

move key. Keep the key in a safe

place. The engine will not start without

the key.

TO START ENGINE

(ELECTRIC STARTER, IF EQUIPPED) Be sure that the engine hassufficient oil. The snow throwerengine is equipped with a 120 volt A.C. electric

F--OO1129J 16

starter and recoil starter. Before start-

ing the engine, be certain that you have read the following information.

,_ WARNING: The starter is

designed to operate on 120 volt AC household current.It must be proper-

ly grounded at all times to avoid the possibility of electrical shock which

may be injurious to operator. Follow all instructions carefully as set forth in the "To Start Engine" section. De- termine that your house wiring is a

three-wire grounded system. Ask a licensed electrician if you are not sure. If your house wire system is

not a three-wire system, do not use

this electric starter under any condi- tions. If yeur system is grounded

and a three-hole receptacle is not available at the point your starter will

normally be used, one should be installed by a licensed electrician. when connecting 120 volt AC "Power

Cord", always connect the cord to the Switch Box" on the engine first,

then plug the other end into the three-hole grounded receptacle.

When disconnecting "Power cord",

always unplug the end in the three- hole grounded receptacle first.

equipped with a three-wire

power cord and plug and is

COLD START

1. Be sure auger drive and traction drive levers are in the disengaged (RELEASED) position.

2. Move throttle control to"FAST' posi- tion.

3. Remove the keys form the plastic

bag. Insert one key into ignition slot. Make sure it snaps into place. Do not turn key. Keep the second key in a safe place.

4. Rotate choke knob clockwise to the

choke ON position.

5. Connect the power cord to the switch box on the engine.

6. Plug other end of power cord into a three-hole, grounded 120 VOLT, AC

F-O01129J 17

receptacle. (See WARNING in this section).

7. Push the primer button while cov- ering the vent hole as follows: Re-

move finger from primer button between primes.

Do not prime if temperature above 50° F (10° C).

Push two time if temperature is 50° F (10 ° C) to 15°F (-10 ° C).

Push four times if temperature is below 15° F (-10 ° C).

8. Push down on the starter button until the engine starts. Do not crank

for more than 10 seconds at a time. This electric starter is thermally pro-

tected. If overheated it will stop au- tomatically and can be restarted

only when it has cooled to a safe

temperature (a wait of about 5 to 10

minutes is required).

9. When the engine starts, release the

starter button and move choke le- ver to "1/2 choke" position. When

engine runs smoothly, move choke lever to "No Choke" Position.

10. Disconnect power cord from recep- tacle, first, and then from switch box.

NOTE: Allow the engine to warm up for several minutes before

blowing snow in temperatures below 0°F.

11. Run engine at full throttle "FAST' when throwing snow.

WARM START

If restarting a warm engine after a short

shutdown, leave choke at "OFF" and do not push the primer button. If the en- gine fails to start, follow the Cold Start

instructions.

TO START ENGINE

(RECOIL STARTER)

Be sure that the engine has sufficient oil. The snow thrower engine is equipped with a recoil starter. Before

starting the engine, be certain that you have read the following information.

COLD START

Be sure auger drive and traction drive levers are in the disengaged (RELEASED) position.

Move throttle control to"FAST" posi- tion.

Remove the keys form the plastic bag. Insert one key into ignition slot. Make sure it snaps into place.

Do not turn key. Keep the second

key in a safe place.

4. Rotate choke knob clockwise to the choke ON position.

5. Push the primer button while cov- ering the vent hole as follows: Re-

move finger from primer button

between primes.

Do not prime if temperature above 50 ° F (10 ° C).

Push two time if temperature is 50 ° F (10 ° C) to 15°F (-10 ° C).

Push four times if temperature is

below 15° F (-10 ° C).

6. Pull the starter handle rapidly. Do not allow the handle to snap back,

but allow it to rewind slowly while keeping a firm hold on the starter

handle.

7. As the engine warms up, move choke lever to "1/2 choke" position.

When engine runs smoothly, move choke lever to "No Choke" Posi-

tion.

NOTE: Allow the engine to warm

up for several minutes before

blowing snow in temperatures below 0°F.

8. Run engine at full throttle "FAST" when throwing snow.

WARM START

If restarting a warm engine after a short

shutdown, leave choke at "OFF" and do

not push the primer button. If the en-

gine fails to start, follow the Cold Start instructions.

FROZEN STARTER

If the starter is frozen and will not turn engine:

1. Pull as much rope out of the starter as possible.

2. Release the starter handle and let it snap back against the starter.

If the engine still fails to start, repeat the

two previous steps until the engine

starts. Then continue with the direc- tions for cold start.

To help prevent possible freeze-up of recoil starter and engine controls, pro-

ceed as follows after each snow remov- al job.

1. With the engine running, pull the starter rope hard with a continuous full arm stroke three or four times.

Pulling of starter rope will produce a loud clattering sound. This is not

harmful to the engine or starter.

2. With the engine not running, wipe all

snow and moisture from the carbu-

retor cover in area of control levers. Also move throttle control, choke control, and starter handle several

times.

_ WARNING: Never run en-

gine indoors or in enclosed, poorly ventilated areas. En-

gine exhaust contains CARBON MONOXIDE, AN ODORLESS AND

DEADLY GAS. Keep hands, feet,

hair and loose clothing away from any moving parts on engine and

snow thrower.

The temperature of muffler and

nearby areas may exceed 150°F. Avoid these areas.

DO NOT allow children or young

teenagers to operate or be near

snow thrower while it is operating.

F-O01129.1 18

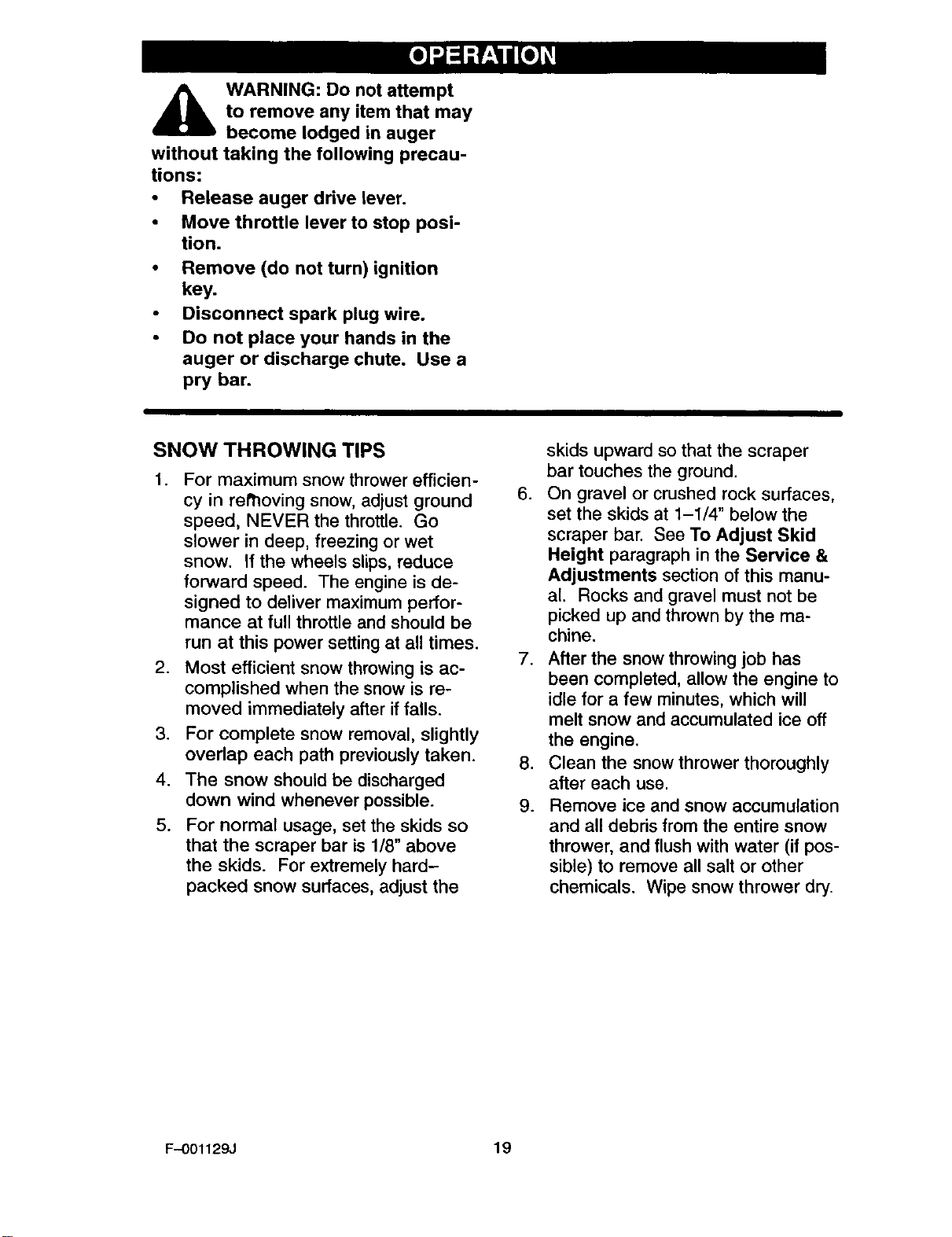

,_ WARNING: Do not attempt

to remove any item that may

become lodged in auger

without taking the following precau- tions:

• Release auger drive lever.

• Move throttle lever to stop posi-

tion.

• Remove (do not turn) ignition

key.

• Disconnect spark plug wire.

• Do not place your hands in the

auger or discharge chute. Use a

pry bar.

SNOW THROWING TIPS

1. For maximum snow thrower efficien- cy in rethoving snow, adjust ground

speed, NEVER the throttle. Go slower in deep, freezing or wet snow. If the wheels slips, reduce forward speed. The engine is de- signed to deliver maximum perfor-

mance at full throttle and should be run at this power setting at all times.

2. Most efficient snow throwing is ac-

complished when the snow is re-

moved immediately after if falls.

3. For complete snow removal, slightly overlap each path previously taken.

4. The snow should be discharged

down wind whenever possible.

5. For normal usage, set the skids so

that the scraper bar is 1/8" above the skids. For extremely hard- packed snow surfaces, adjust the

skids upward so that the scraper bar touches the ground.

On gravel or crushed rock surfaces,

set the skids at 1-1/4" below the

scraper bar. See To Adjust Skid Height paragraph in the Service &

Adjustments section of this manu- al. Rocks and gravel must not be picked up and thrown by the ma-

chine.

After the snow throwing job has been completed, allow the engine to

idle for a few minutes, which will

melt snow and accumulated ice off

the engine.

Clean the snow thrower thoroughly

after each use.

Remove ice and snow accumulation and all debris from the entire snow

thrower, and flush with water (if pos-

sible) to remove all salt or other chemicals. Wipe snow thrower dry.

F-OO1129J 19

CUSTOMER RESPONSIBILITIES

SERVICE RECORDS

Fill in dates as you

complete regular

service.

Before Every Every Every

Each 5 10 25 Each Before SERVICE

Use Often Hours Hours Hours Season Storage DATES

Check Engine Oil Level Change Engine Oil

33ghten All Screws and

Nuts Check Spark Plug

Lubricate All Pivot

Points Lubricate Disc Drive

Plate Zerk

(See Maintenance) Check Fuel

Drain Fuel Check Cable

Adjustment _.

(See Cable Adjustment)

Adjust Drive Belt -_

Lubricate Auger Shaft (See Shear Bolt Replacement)

GENERAL RECOMMENDATIONS The warranty on this snow thrower

does not cover items that have been subjected to operator abuse or negli-

gence. To receive full value from the warranty, the operator must maintain

the snow thrower as instructed in this

manual.

• If any parts are worn or damaged,

replace immediately.

LUBRICATION CHART

Some adjustments will need to be made periodically to properly maintain

your snow thrower. All adjustments in the Service and Ad-

justments section of this manual should be checked at least once each

season.

AFTER EACH USE

• Check for any loose or damaged parts.

• Tighten any loose fasteners.

• Check and maintain the auger.

• Check controls to make sure they are functioning properly.

F-001129J

PRODUCT SPECIFICATIONS

HORSEPOWER 12.5 HP

DISPLACEMENT 21.82 cu. in.

GASOLINE 4 quarts CAPACITY (unleaded)

OIL CAPACITY 5W30

20 oz capacity)

SPARK PLUG: Champion RJ19LM

(Gap .030 in.) or equivalent

VALVE CLEARANCE: Intake: .010 In.

Exhaust: .010 In.

SNOW THROWER

AS REQUIRED

The following adjustment should be preformed more than once each sea-

son.

Auger drive belt should be adjusted after the first 2 to 4 hours of use, again about mid-season and twice each season thereafter (See to Ad-

just Belts paragraph in the Ser- vice and Adjustment section),

LUBRICATION - EVERY 10 HOURS

Auger Shaft - Using a hand grease

gun, lubricate the auger shaft zerk

fittings (A) every ten (10) operating

hours. Each time a shear bolt is re- placed, the auger shaft MUST be

greased. See Figure 22. See To Replace Auger Shear Bolt in the

Service and Adjustment section.

Figure 22

LUBRICATION-EVERY 25 HOURS

Lubricate Disc Drive Plate every

twenty-five (25) hours and at the end of

the season and/or before storage. To Lubricate

1. Position speed selector lever in first gear.

2. Stand the snow thrower up on the auger housing end.

3. Remove the bottom panel.

4. Turn disc drive plate clockwise by

hand until grease zerk is clearly

visible at front center. See

Figure 23.

5. Place a coin or (a shim of equal thickness) between the rubber fric- tion wheel and disc drive plate to

prevent rubber friction wheel con- tacting the drive disc plate.

6. To grease zerk, use a hand grease

gun, lubricate with a Hi Temp EP

Moly grease. Fill zerk only until

grease becomes visible below bear-

ing assembly located under grease zerk. DO NOT over fill.

CAUTION: DO NOT allow grease to come in contract with the disc drive

plate or friction wheel or damage will result.

IMPORTANT: Remove coin and en- sure that a gap exists between friction

wheel and disc drive plate.

F-001129J 21

NOTE: Clean all excess grease found

on friction disc hub.

Sprockets

(Require No Lubrication

Hex Shaft and Sprockets

Friction

Disc

Drive Plate

Grease Zerk

• . Bearing

Fnct_on A ' I

r_ Wheel esemD y Point at which

Ili G-_in or Shim grease should

II J'_- be visible

Gap Between Friction Wheel

and Disc Drive Plate

Grease Zerk

Figure 23

LUBRICATION-NOT REQUIRED

1, Hex Shaft and Sprockets- Hex

shaft and sprockets require no lu- brication. All bearings and bushings

are lifetime lubricated and require no maintenance. See Figure 23.

NOTE: Any greasing or oiling of the above components can cause contami-

nation of the friction wheel. If the disc

drive plate or friction wheel come in

contact with grease or oil, damage to

the friction wheel will result.

Should grease or oil come in contact with the disc drive plate or friction

wheel, be sure to clean the plate and wheel thoroughly.

NOTE: For storage, the hex shaft and

sprockets should be wiped with 5W30

motor oil to prevent rusting.

2. Auger Gear Box - The auger gear box is lubricated at the factory and

should not require additional lubrica- tion. If for some reason the lubri-

cant should leak out, have auger gear case checked by a competent

repairman.

ENGINE

LUBRICATION

Check the crankcase oil level before starting the engine and after each five

(5) hours of continuous use. See Figure 24, Add S.A.E. 5W30 motor oil

as needed. "13ghten fill cap/dipstick se- curely each time you check the oil lev-

el.

Oil Fill Cap/Dipstick

Figure 24

F-001129J

Change the oil every twenty-five (25)

hours or at least once a year if the

snow thrower is not used for twenty- five (25) hours.

TO CHANGE ENGINE OIL

Position the snow thrower so that

the oil drain plug is at the lowest

point on the engine.

Remove the oil drain plug and the oil fill cap/dipstick, Drain the oil

into a suitable container.

NOTE: The oil will drain more freely

when the engine is warm.

After draining all the oil, reinstall the oil drain plug securely.

Fill the engine crankcase with

S.A.E. 5W30 motor oil, pouring slowly. DO NOT OVERFILL.

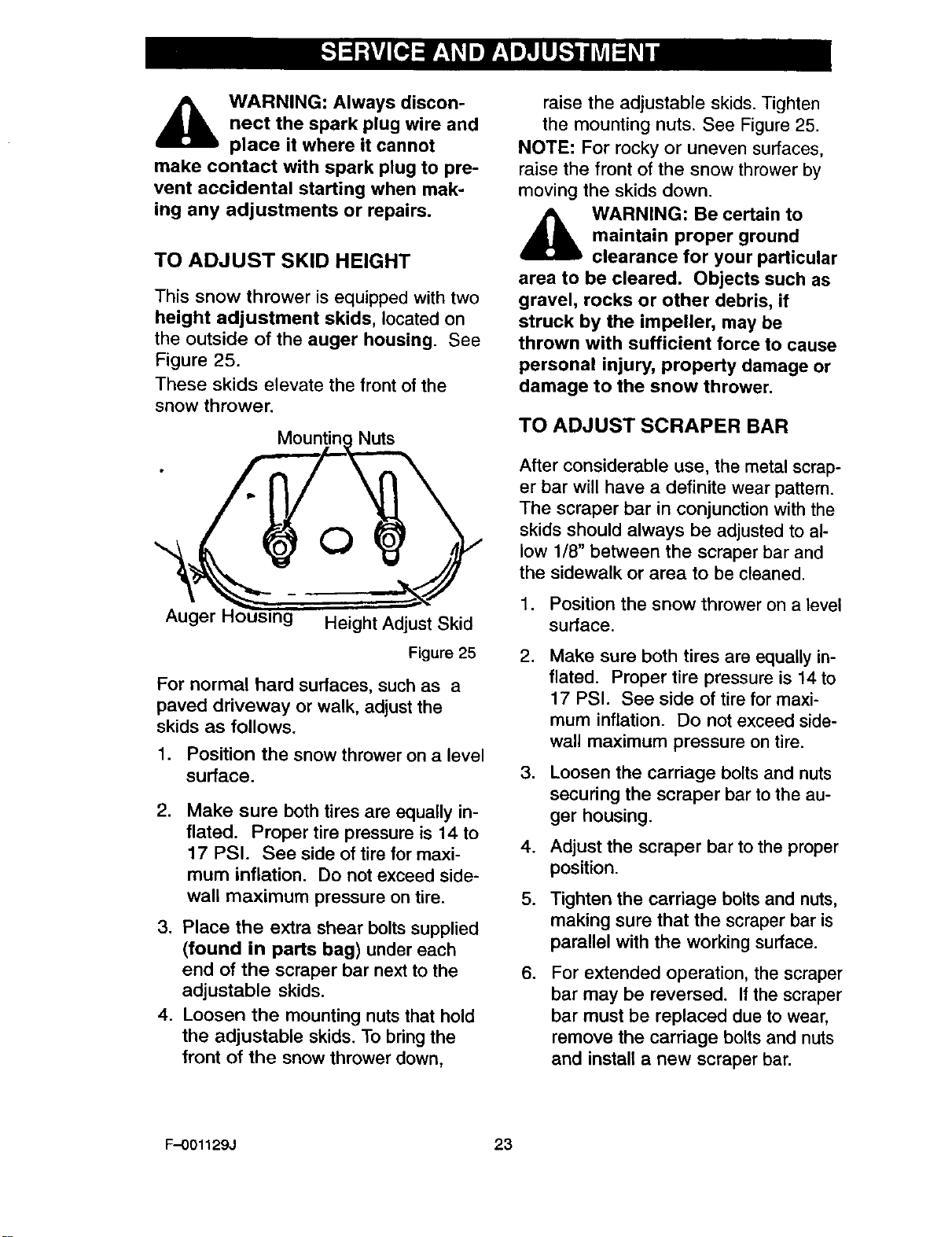

,_ WARNING: Always discon-

nect the spark plug wire and place it where it cannot

make contact with spark plug to pre-

vent accidental starting when mak-

ing any adjustments or repairs.

TO ADJUST SKID HEIGHT

This snow thrower is equipped with two height adjustment skids, located on

the outside of the auger housing. See

Figure 25.

These skids elevate the front of the

snow thrower.

Mountinc Nuts

,, O

raise the adjustable skids. Tighten

the mounting nuts. See Figure 25.

NOTE: For rocky or uneven surfaces,

raise the front of the snow thrower by

moving the skids down.

,_ WARNING: Be certain to

maintain proper ground clearance for your particular

area to be cleared. Objects such as gravel, rocks or other debris, if

struck by the impeller, may be thrown with sufficient force to cause

personal injury, property damage or damage to the snow thrower.

TO ADJUST SCRAPER BAR

After considerable use, the metal scrap- er bar will have a definite wear pattern.

The scraper bar in conjunction with the skids should always be adjusted to al-

low 1/8" between the scraper bar and the sidewalk or area to be cleaned.

Auger _g Height Adjust Skid

Figure 25

For normal hard surfaces, such as a

paved driveway or walk, adjust the skids as follows.

1. Position the snow thrower on a level surface.

Make sure both tires are equally in-

flated. Proper tire pressure is 14 to

17 PSI. See side of tire for maxi- mum inflation. Do not exceed side-

wall maximum pressure on tire.

3. Place the extra shear bolts supplied

(found in parts bag) under each

end of the scraper bar next to the adjustable skids.

4. Loosen the mounting nuts that hold

the adjustable skids. To bring the front of the snow thrower down,

1. Position the snow thrower on alevel surface.

Make sure both tires are equally in- flated. Proper tire pressure is 14 to

17 PSI. See side of tire for maxi-

mum inflation. Do not exceed side- wall maximum pressure on tire.

3. Loosen the carriage bolts and nuts securing the scraper bar to the au-

ger housing.

4. Adjust the scraper bar to the proper position.

5. Tighten the carriage bolts and nuts, making sure that the scraper bar is

parallel with the working surface.

For extended operation, the scraper

bar may be reversed. Ifthe scraper

bar must be replaced due to wear,

remove the carriage bolts and nuts

and install a new scraper bar.

F-001129J 23

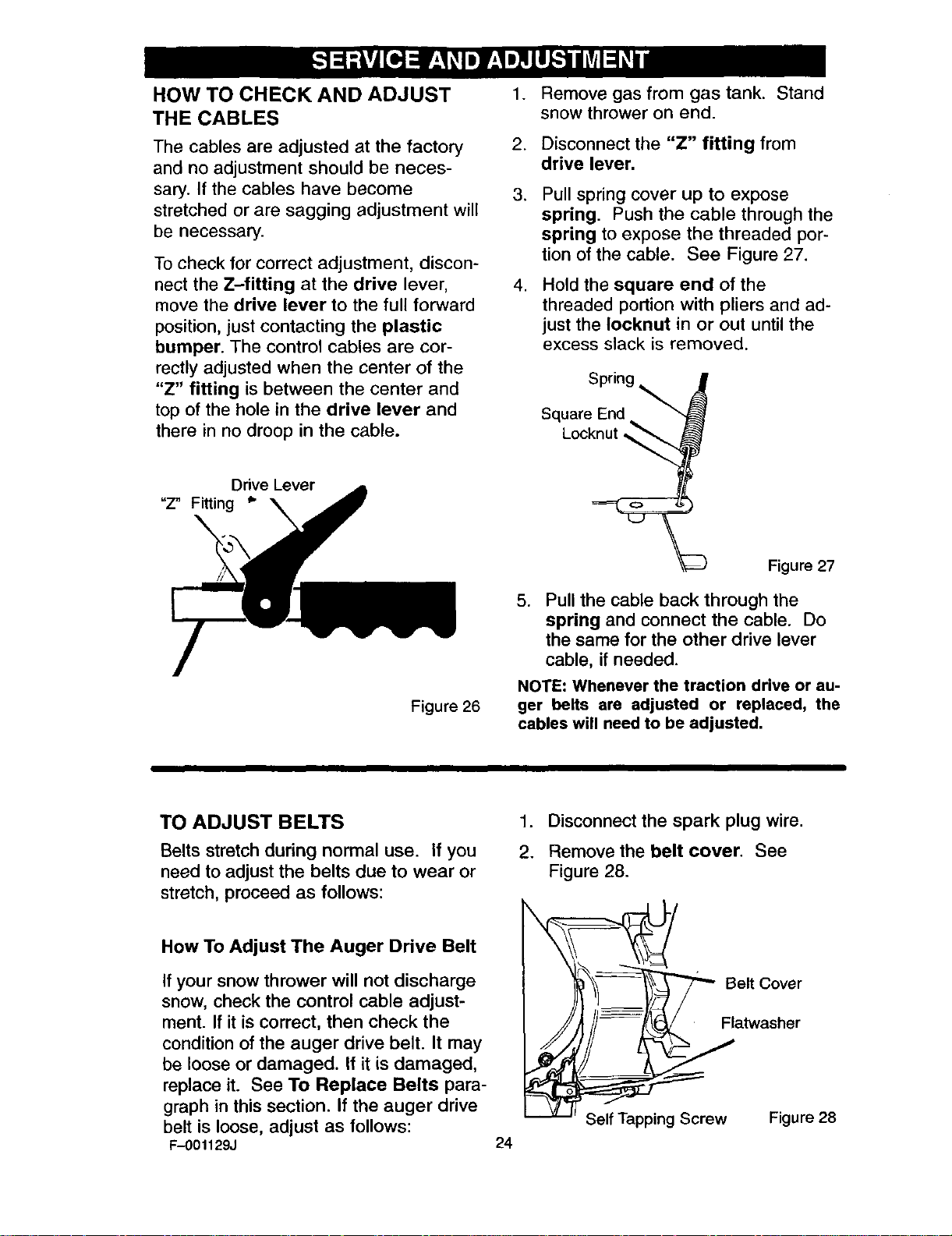

HOW TO CHECK AND ADJUST

THE CABLES

The cables are adjusted at the factory and no adjustment should be neces-

sary. If the cables have become stretched or are sagging adjustment will

be necessary. To check for correct adjustment, discon-

nect the Z-fitting at the drive lever, move the drive lever to the full forward

position, just contacting the plastic bumper. The control cables are cor-

rectly adjusted when the center of the "Z" fitting is between the center and

top of the hole in the drive lever and

there in no droop in the cable.

Drive Lever

"Z" Fitting _"

Remove gas from gas tank. Stand snow thrower on end.

Disconnect the "Z" fitting from

drive lever.

Pull spring cover up to expose

spring. Push the cable through the spring to expose the threaded por-

tion of the cable. See Figure 27.

Hold the square end of the

threaded portion with pliers and ad-

just the tocknut in or out until the

excess slack is removed.

Spring

Square End

Locknut.

Figure 26

TO ADJUST BELTS

Belts stretch during normal use. If you need to adjust the belts due to wear or

stretch, proceed as follows:

How To Adjust The Auger Drive Belt

If your snow thrower will not discharge snow, check the control cable adjust- ment. If it is correct, then check the

condition of the auger drive belt. It may be loose or damaged. If it is damaged,

replace it. See To Replace Belts para-

graph in this section. If the auger drive belt is loose, adjust as follows:

F---001129J

Figure 27

Pull the cable back through the spring and connect the cable. Do

the same for the other drive lever cable, if needed.

NOTE: Whenever the traction drive or au- ger belts are adjusted or replaced, the

cables will need to be adjusted,

1. Disconnect the spark plug wire.

2. Remove the belt cover. See

Figure 28.

_J'_ F- Flatwasher

Self Tapping Screw Figure 28

ractionDriveBelt

Auger Drive

Belt

Guide

Drive Pulley

Loosen

this nut

Figure 29

3. Loosen the nut on the idler pulley and move the pulley toward the belt

about 1/8". See Figure 29.

4. Tighten ,the nut.

Press the auger drive lever. Check

the tension on the belt (opposite au-

ger idler pulley). The belt should deflect about 1/2" with moderate

pressure (See Figure 30).

_ _rive

Pulley

Auger Idler :_ ;..\s_11/2 Inch PulleYEngaged----" =}) _'.._- Deflection

Figure 30

NOTE: If the adjustment is not correct, re- peat the adjustment.

6. Replace the belt cover.

7. Check the clutch control cable ad- justment.

8. Reconnect the spark plug wire.

Traction Drive Belt

The traction drive belt has constant spring pressure and does not require

adjustment. Replace the traction drive belt if it is slipping. See To Replace Belts paragraph in this section.

TO REPLACE BELTS

The drive belts on this snow thrower

are of special construction and should

be replaced with original equipment belts available from your nearest Sears

Store. A distributor's list is supplied in the parts manual.

You will need the assistance of a sec- ond person while replacing the belts.

How To Remove The Auger Drive Belt

if the auger drive belt is damaged, the snow thrower will not discharge snow. Replace the damaged belt as follows.

1. Remove the gas from the gas tank. Stand the snow thrower up on the

front end of the auger housing.

,_ WARNING: Drain the gasoline

outdoors, away from fire or flame.

2. Disconnect the spark plug wire.

3. Remove the screw from the belt cover. Remove the belt cover, See

Figure 28.

4. Remove the bolts on each side of

the motor mount frame. See

Figure 31.

5. Loosen the bolts on each side of the motor mount frame. The au-

ger housing and the motor mount

F-001129J 25

frame will separate, hinged by the bolts.

°o.o=

;, _ Panel

Motor _ v _ ._ V_._

Mount ._..._i _.-_ /

Frame I€_ _ [ / , Auger

=oo=no

Remov-' [M

bolt(each [ _ ....._'_7 \

How To Remove the Traction Drive Belt

If the snow thrower will not move for-

ward, check the traction drive belt for

wear or damage. If the traction drive

belt is worn or damaged, replace the belt as follows.

1. Remove the gas from the gas tank. Stand the snow thrower up on the

front end of the auger housing.

(Each Side) Figure 31

Loosen the belt guide. Pull the belt

guide away from the auger drive pulley. See Figure 29.

Loosen the nut on the idler pulley. Pull the idler pulley away from the

auger arive belt.

Remove the old auger drive belt. Replace the auger drive belt with

an original factory replacement belt available from an authorized service

center.

9. Install the new auger drive belt onto the auger drive pulley and

onto the drive pulley.

10. Adjust the auger drive belt. See "How To Adjust The Auger Drive

Belt" in the Service And Adjustment section.

,_ WARNING: Drain the gasoline

outdoors, away from fire or flame,

Disconnect the spark plug wire.

Remove the auger drive belt. See

"How To Remove The Auger Drive

Belt" in the Maintenance section.

4. Pull the traction drive idler pulley away from the traction drive belt.

See Figure 32.

Traction Drive Belt

Auger Drive

.=It

Traction Belt Guide

Drive Pulley

Auger

Drive Pulley

Traction

Drive Auger Idler Idler Pulley Pulley

11. Adjust the belt guide. See "How To Adjust The Belt Guide" in the Ser-

vice And Adjustment section.

12. Install the bolts on each side of the

motor mount frame. See Figure 31.

13. "lighten the bolts on each side of the motor mount frame.

14. Install the belt cover. Tighten the screw. See Figure 28.

15. Check the adjustment of the cables. See "How To Check And Adjust The Cables" in the Service And Adjust- ment section.

16, Connect the spark plug wire.

F-001129J

Engine Pulley Figure 32

Remove the old traction drive belt

from the traction drive pulley and from the engine pulley. Replace the

traction drive belt with an original

factory replacement belt available from an authorized service center.

6. Install the new traction drive belt onto the traction drive pulley and

onto the engine pulley.

7. Make sure the traction drive idler

pulley is properly aligned with the traction drive belt.

Install and adjust the auger drive

belt. See "How To Remove The Au-

ger DriveBelt" in the ServiceAnd Adjustmentsection.

9. Adjustthe beltguide.See "How To AdjustThe BeltGuide"in the Ser-

vice And Adjustmentsection.

. Measure the distance between the

belt guide and auger drive belt. The correct distance is 1/8 inch

(3.175 mm). See Figure 33.

10.Installthebolts on each side of the motormountframe.See Figure 31.

11.Tightentheboltson eachside of the

motormountframe.

12.Installthe belt cover.Tightenscrew.

See Figure28.

13.Checkthe adjustmentof the cables. See "HowToCheck And Adjust The Cables"in the ServiceAnd Adjust-

mentsection.

14.Connectthe sparkplugwire.

HOW TO ADJUST THE BELT GUIDE

1. Disconnect spark plug wire.

2. Remove the screw. Remove the

belt cover. See Figure 28.

3. Engage the auger drive lever.

_-_- o,/, Belt Guide

Ad_ger (_ _'_X\_" I/!ll_5hm)

I III0:!e_--_d_ ] Figure 33

If an adjustment is necessary, loos-

en the mounting bolt for the belt

guide. Move the belt guide to the

correct position. "13ghtenthe

mounting bolt for the belt guide,

Install the belt cover. Tighten the screw. See Figure 28.

Connect the spark plug wire.

HOW TO ADJUST OR REPLACE

THE FRICTION WHEEL

How To Check The Friction Wheel

If the snow thrower will not move for-

ward, check the traction drive belt, the traction drive cable or the friction wheel.

If the friction wheel is worn or damaged, it must be replaced. See "How To Re-

place the Friction Wheel" in this section.

If the friction wheel is not worn or dam-

aged, check as follows.

1. Remove the gas from the gas tank. Stand the snow thrower up on the

front end of the auger housing.

,_ WARNING: Drain the gasoline

2. Disconnect the spark plug wire.

F-001129J

outdoors, away from fire or flame.

3. Remove the bolts on each side of the bottom panel. See Figure 34.

4. Loosen the bolts on each side of

the bottom panel.

5. Remove the bottom panel.

Remove TopBolt

(each side)

,2 eo ettoLo,t; j

(Each Side) Figure 34

6. Position the shift speed lever in the first forward gear.

7. Note the position of the friction

wheel on the disc drive plate (See

Figure 35). In the correct position,

the right outer side of the disc drive

plate must be three inches (7.62cm.) from the center of the

friction wheel. If the friction wheel

is not in the correct position, adjust as follows.

Friction

, Wheel

Disc

Drive Plate

Figure 35

Speed

Control Rod

Nut

Yoke

Ball Joint

Assembly

Fasteners

Figure 36

How To Replace The Friction Wheel If the friction wheel is worn or damaged,

the snow thrower will not move forward.

The friction wheel must be replaced as

follows.

1. Remove the gas from the gas tank. Stand the snow thrower up on the front end of the auger housing.

How To Adjust The Friction Wheel

Loosen the nut on the speed con-

trol rod. See Figure 36.

Remove the fasteners to discon- nect the ball joint from the shift

yoke assembly. To lengthen or shorten the speed control rod, turn

the adapter to obtain the correct

friction wheel position.

Assemble the ball joint to the shift

yoke assembly with the fasteners.

Tighten nut on the speed control

rod.

Make sure the speed select lever functions correctly. Move the speed select lever through all speeds.

Install the bottom panel. See

Figure 34.

7. Tighten the bolts on each side of

the bottom panel.

8. Install the bolts on each side of the

bottom panel.

F-001129J

_ ARNING: Drain the gasoline

outdoors, away from fire or flame.

2. Disconnect the spark plug wire.

3. Remove the top bolts on each side

of the bottom panel. See

Figure 34.

4. Loosen the bottom bolts on each side of the bottom panel.

5. Remove the bottom panel.

6. Remove the speed control rod from the shift yoke assembly. See

Figure 36.

7. Remove the three fasteners that hold the friction wheel to the hub.

See Figure 37.

Friction

Hub

Hex Nut Shaft

Figure 37

Bolt

8. Remove the four bolts that hold the bearing plates on each side of the

hex shaft. See Figure 38. NOTE: Take special note of the

position of the washers and retain- ing ring on the hex shaft and the

sprocket assembly.

Friction Wheel Hex Shaft

Bearing Bearing Plate Plate

Figure 38

Remove the bearing plate from the right side. Do not remove the hex

shaft. Leave the hex shaft in posi- tion. Carefully raise hex shaft just enough to allow the friction wheel

to be removed.

10. Remove the friction wheel from the

hub. Slip the friction wheel toward

the right off the hex shaft. See

Figure 37.

11. Assemble the new friction wheel onto hub with the fasteners re-

moved earlier.

12. Install the bearing plate onto the

right side. Make sure the hex shaft is engaged with both bearing

plates and that the washers and re-

taining ring are installed in the origi-

nal position. See Figure 38.

13. Fasten the bearing plates using the four bolts removed earlier.

14. Make sure the hex shaft turns free-

ly.

15. Attach the speed control rod to the

shift yoke assembly. See Figure 36.

16. Check the adjustment of the friction wheel. See "How To Adjust The

Friction Wheel" in this section.

17. Make sure the friction wheel and the disc drive plate are free from grease

or oil.

18. Install the bottom panel. See

Figure 34.

19. Tighten the bottom bolts on each

side of the bottom panel.

20. Install the top bolts on each side of the bottom panel.

21. Connect the spark plug wire.

HOW TO REPLACE THE AUGER SHEAR BOLT

The augers are secured to the auger shaft

with special shear bolts. These shear bolts

are designed to break and protect the ma- chine if an object becomes lodged in the au- ger housing. Do not use a harder bolt as the

protection provided by the shear bolt will be lost.

,_ WARNING: For safety and to

protect the machine, use only original equipment shear bolts.

To replace a broken shear bolt, proceed

as follows. Extra shear bolts were pro- vided in the assembly parts bag.

F--O01129J 29

Move the throttle control to the stop position. Disengage all controls.

Disconnect the spark plug wire. Make sure all moving parts have stopped.

Align the hole in the auger with the

hole in the auger shaft. Install the new shear pin and spacer. See

Figure 39.

4. Connect the spark plug wire.

Sh_earPin

_Figure 39

TO ADJUST THE CARBURETOR

If you think your carburetor needs ad-

justing, see your nearest Sears Store.

Engine performance should not be af- fected at altitudes up to 7,000 feet. For

operation at higher elevations, contact your nearest,Sears Store.

IMPORTANT: Never tamper with the engine governor, which is factory set for

proper engine speed. Over-speeding the engine above the factory high

speed setting can be dangerous. If you think the engine-governed high speed

needs adjusting, contact your nearest Sears Store, which has the proper equipment and experience to make any necessary adjustments.

TO ADJUST OR REPLACE THE SPARK PLUG

NOTE: This spark ignition system meets

all requirements of the Canadian Interfer-

ence-Causing Equipment Regulations,

To adjust:

1. Clean spark plug by carefully scraping the electrodes (Do not

sand blast or use a wire brush).

2. Be sure spark plug is clean and free of foreign material. Check elec- trodes gap with a wire feeler gauge

and reset gap to 0.030" if neces- sary. See Figure 40.

To Replace:

1. If you need a new spark plug, use only the proper replacement spark

plug.

2. Set the gap to 0.030 inches.

3. Before installing the spark plug,

lightly coat the spark plug threads

with oil or grease to insure easy re-

moval.

Firmly tighten the spark plug in the

engine.

If a torque wrench is available,

torque the plug to 18 to 23 foot pounds.

Feeler Gauge

0.030"

If yOU have difficulty starting the snow

thrower, adjust or replace the spark plug. Replace the spark plug is the

electrodes are pitted or burned or if the porcelain is cracked. Follow the instruc-

tions below.

F-O01129.1 30

Spark Plug

Figure 40

_ ARNING: Never store your

lated area. If gasoline remains in the

tank, fumes may reach an open flame, spark or pilot light from a fur-

nace, water heater, clothes dryer, cigarette, etc.

NOTE: To prevent engine damage (if snow thrower is not used for more

than 30 days) follow the steps below.

snow thrower indoors or in

an enclosed, poorly venti-

SNOW THROWER

1. Thoroughly clean the snow thrower,

2. Lubricate all lubrication points. See the Maintenance section.

Be sure that all nuts, bolts and screws,are securely fastened. In-

spect all visible moving parts for damage, breakage and wear. Re-

place if necessary.

Touch up all rusted or chipped paint

surfaces; sand lightly before paint- ing.

5. Cover the bare metal parts of the blower housing auger and the im-

peller with rust preventative, such as a spray lubricant.

NOTE: A yearly checkup or tune-up by

a Sears service center is a good way of

ensuring that your snow thrower will provide maximum performance for the

next season.

ENGINE

,_ WARNING: Drain the gaso-

Gasoline must be removed or treated to prevent gum deposits from forming in

the fuel tank, filter, hose, and carburetor during storage. Also, during storage al- cohol blended gasoline that uses etha-

nol or methanol (sometimes called gasohol) attracts water. It acts on the gasoline to form acids which damage

the engine.

F-O01129J

line outdoors, away from

fire or flame,

To remove gasoline, run the engine

until the fuel tank is empty and the engine stops.

If you do not remove the gasoline,

use fuel stabilizer supplied with unit or purchase Craftsman Fuel Stabi-

lizer No. 3550. Add fuel stabilizer to any gasoline left in the tank to mini-

mize gum deposits and acids. If the

|uel tank is almost empty, mix stabi-

lizer with fresh gasoline in a sepa- rate container and add some to the fuel tank.

Always follow the instruction on the stabilizer container. After the stabi-

lizer is added to the fuel tank, run the engine at least ten minutes to

allow the mixture to reach the car-

buretor.

Change the engine oil.

Lubricate the piston/cylinder area.

First, remove the spark plug and

squirt a few drops of clean engine oil into the spark plug hole. Next,

cover the spark plug hole with a rag to absorb oil spray. Then, pull two or

three times on the recoil starter rope to rotate the engine. Finally, install

the spark plug and attach the spark plug wire.

OTHER

1. If possible, store your snow thrower indoors and cover it to give protec-

tion from dust and dirt.

2. If the machine must be stored out- doors, block up the snow thrower to

be sure the entire machine is off the ground.

3. Cover the snow thrower with a suit- able protective cover that does not

retain moisture. Do not use plastic. IMPORTANT: Never cover snow thrower while engine and exhaust areas

are still warm.

TROUBLE

CAUSE

CORRECTION

Difficult starting

Engine runs erratic

Engine stalls

Engine runs erratic; Loss of power

Excessive vibration

Unit fails to propel itself

Defective spark plug.

Water or dirt in fuel system.

Blocked fuel line, empty gas

tank, or stale gasoline

Unit running on CHOKE.

Water or dirt in fuel system.

Loose parts: damaged Impeller

Drive belt loose or damaged. Replace drive belt.

Incorrect adjustment of Adjust traction drive cable.

traction drive cable

Replace spark plug,

Use carburetor bowl drain to flush and refill with fresh fuel.

Clean fuel line; check fuel supply; add fresh gasoline

Set choke lever to RUN

)osition.

Use carburetor bowl drain to flush and refill with fresh fuel.

Stop engine immediately and disconnect spark plug wire.

Tighten all bolts and make all

necessary repairs. If vibration continues, have the

unit serviced by a Sears service repairman.

Unit fails to discharge snow

Worn or damaged friction Replace friction wheel. wheel.

!Auger drive belt loose or

damaged.

Auger control cable not Adjust auger control cable.

adjusted correctly.

Shear bolt broken Replace shear bolt

Discharge chute clogged. Stop engine immediately and

Foreign object lodged in

auger

Adjust auger drive belt; replace if damaged.

disconnect spark plug wire.

Clean discharge chute and inside of auger housing.

Stop engine immediately and disconnect spark plug wire.

Remove object from auger.

F-001129J 32

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

FRAME ASSEMBLY

ENGINE MOUNTS TO FRONT HOLES ON THE FRAME

53 59

F-OO1129J

319042

Key No. Description Part No.

10 MODEL 143.011201 ENGINE 12 SCREW, 5/16-18 710024

13 WASHER 71060

41 GUIDE, ROD BELT 3949 42 PLASTIC WASHER 6711

43 WASHER 71060 44 SCREW, 5/16-24X 1.00 910828

45 SPACER 762291 53 PULLEY, HALF 579854

54 WASHER, FLAT 579861 57 BELT, V 302707 58 FLATWASHER 712120 59 SPACER, SLEEVE 586251 60 PULLEY, ENGINE 586253 63 BELT, V 761788 67 WASHER, FLAT 50677 68 WASHER 71063 69 SCREW, 3/8-24X1.00 71015

-- OWNER'S MANUAL F-001129J 33

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

ELECTRIC START ASSEMBLY

Key No. Description Part No.

6 MOTOR, STARTER 762323

7 SCREW 6216

8 SCREW 6217

9 CORD, STARTER 6219

F-001129J 34

319051

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

FRAME ASSEMBLY

109

91 /

F-001129J

Key No.

91 103 105

106 108

109 110

111

140

141 145 146 148

149 160 161 162 163

109

145

Description

FRAME ASSY 761705-848

SCREW, 5/16-16X .50 780055

COVER, BOTTOM 583031-853

SCREW, 1/4-20X .63 310169 IDLER ASSEMBLY 762296

PIN, HAIR .38DIAX1.64LG 711682 PIN, KLIK 3/16" DIA 761761

ASSY., SPRING ATTACH 761766

BEARING, FL. 53703 BOLT, 3/8-16Xl .25 CARR. 585781

WASHER, FLAT 711617

LEVER, IDLER ARM TRACTION 761701 BOLT, .625X.135 HHSH 5/16-18 329989

IDLER SPRING TRACTION DRIVE 53704 SCREW, 3/8-16Xl .25 761760

PULLEY, IDLER 50793 NUT, 3/8-16 590 COVER, BELT 760478 SCREW, 1/4-20X .63 310169 WASHER, FLAT 71067 LID, BELT COVER 760539

148

Part No.

342362

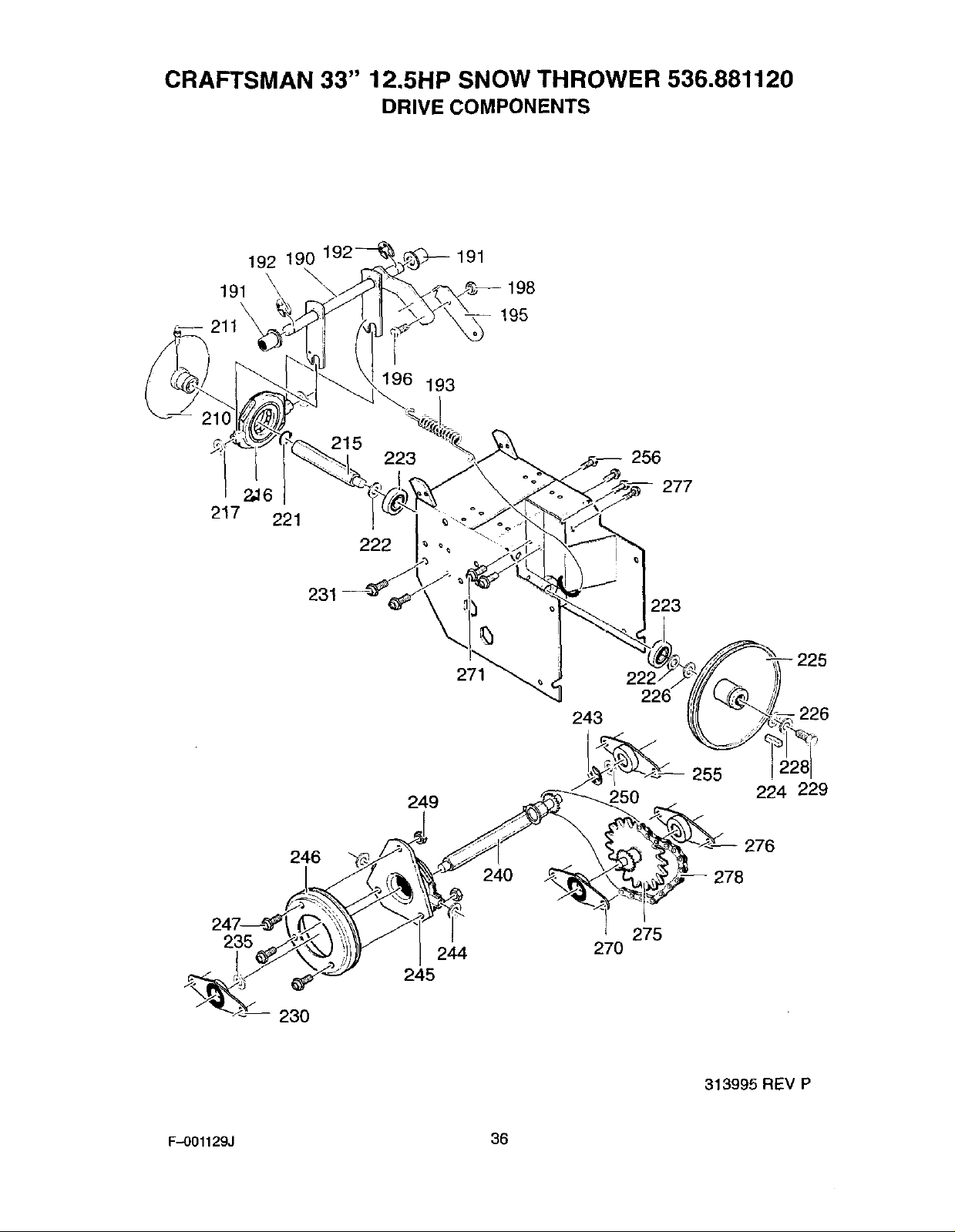

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

DRIVE COMPONENTS

192 190 191

191 198

211 \ _ 195

196 193

217

221

246

231

215

222

223

249

271

240

243

250

256

277

223

225

226

255

224 229

276

235

244

245

230

F-001129J 36

275

270

313995 REV P

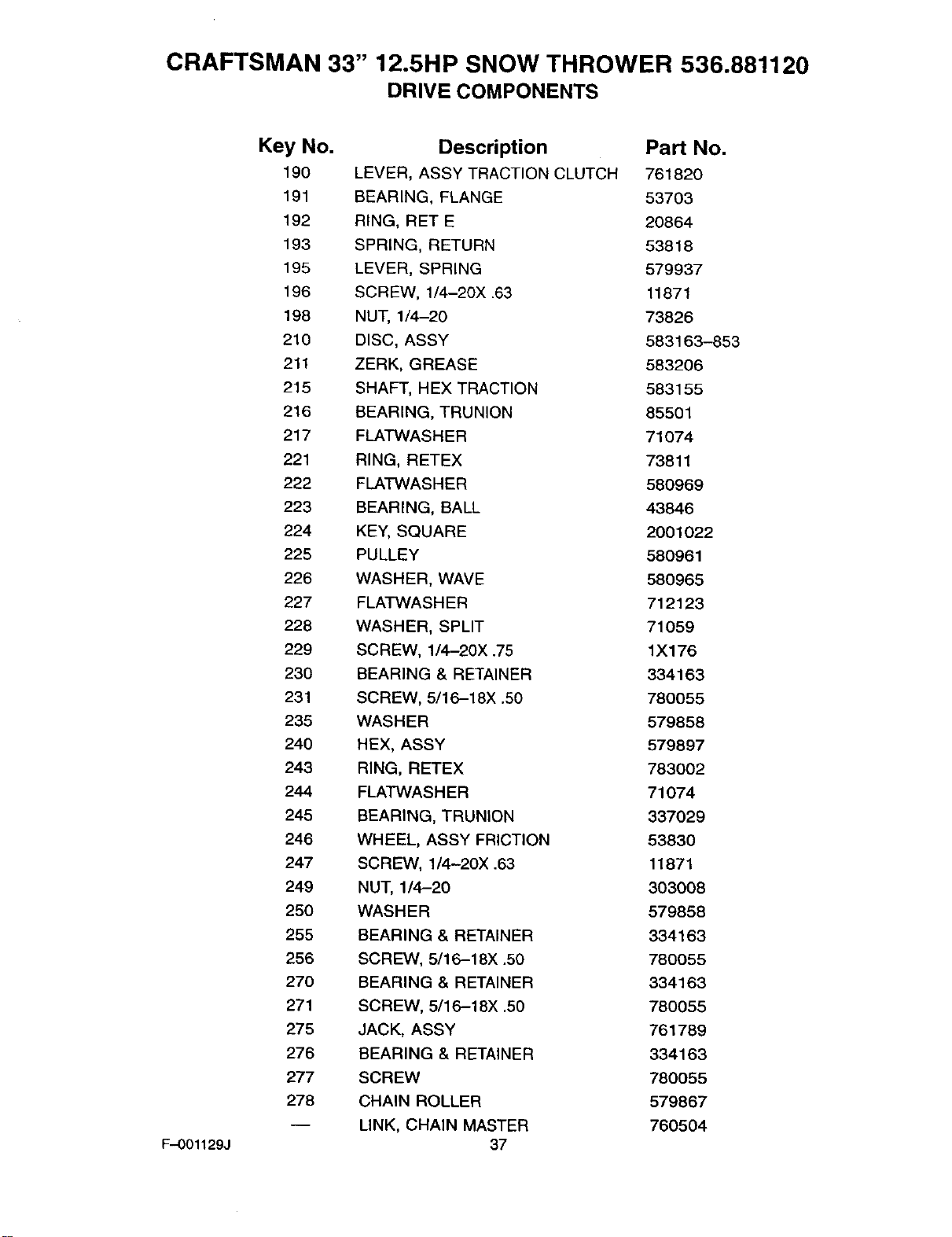

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

DRIVE COMPONENTS

F-001129J

Key No.

190 191

192 193 195

196

198 210

211

215

216

217

221

222 223

224

225

226

227 228

229

230 231 235 240

243 244 245 246 247 249

25O 255 256 270

271 275 276 277

278

Description Part No.

LEVER, ASSY TRACTION CLUTCH 761820

BEARING, FLANGE 53703 RING, RET E 20864 SPRING, RETURN 53818 LEVER, SPRING 579937

SCREW, 1/4-20X .63 11871

NUT, 1/4-20 73826 DISC, ASSY 583163-853

ZERK, GREASE 583206

SHAFT, HEX TRACTION 583155 BEARING, TRUNION 85501 FLA'I-WASH ER 71074

RING, RETEX 73811 FLATWASHER 580969

BEARING, BALL 43846 KEY, SQUARE 2001022 PULLEY 580961

WASHER, WAVE 580965

FLAFWASHER 712123

WASHER, SPLIT 71059 SCREW, 1/4-20X .75 1X176

BEARING & RETAINER 334163

SCREW, 5/16-18X .50 780055 WASHER 579858

HEX, ASSY 579897 RING, RETEX 783002 FLATWASHER 71074

BEARING, TRUNION 337029 WHEEL, ASSY FRICTION 53830 SCREW, 1/4-20X .63 11871 NUT, 1/4-20 303008

WASHER 579858 BEARING & RETAINER 334163

SCREW, 5/1 6-18X .50 780055

BEARING & RETAINER 334163 SCREW, 5/16-18X .50 780055 JACK, ASSY 761789

BEARING & RETAINER 334163

SCREW 780055

CHAIN ROLLER 579867

LINK, CHAIN MASTER 760504

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

AUGER HOUSING ASSEMBLY

480 49O

483

KEY# 500 IS A WELDMENT AND

INCLUOES _NO SIDE PANELS

5O0

Key

No. Description

480 PULLEY

482 KEY, SQUARE

483 WASHER, FLAT

484 NUT, 1/2-20

485 SPACER, SLEEVE

490 RETAINER, BRNG

491 BEARING, BALL

493 SCREW

499 NUT, 5/16-18

500 HOUSING, ABSY

-514

Part No. No.

583146 511

2001022 514

71074 520

712121 521

334514 522

582960 524

43846 525

313676 527

710026 536

761879-884 540

339975

Key

Description Part No.

BOLT, 5/16-18 X .75 340720

NUT, 5/1 6-18 710026

AUGER, ASSY, LH 760317-853

AUGER, ASSY, RH 760307-853

BOLT 578647

NUT, 5/16-18 71391

BEARING 53757

SCREW 70984

BOLT, 5/16-18X.75 340720

SKID 760192-853

5O9 PLUG

510 BLADE, SCRAPER

F-O01129J

760040 541

760666-853 544

BOLT, CARRIAGE 340720

NUT, 5/16-18 710026

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

GEAR CASE ASSEMBLY

- 357

306

340

321-

327

330

304

316

3OO

310

324820

Key Key

No. Description Part No. No. Description Part No.

300 CASE, GEAR, RH 896 323 BEARING, ROLL 50684 301 CASE, GEAR, LH 895 324 WASHER, FLAT 48275 303 SCREW 910828 326 KEY 50795

304 NUT, 5/16-24 71100 327 WORM GEAR 53732 306 PIPE PLUG 53749 330 BEARING, SLEEVE 53731 310 SEAL, OIL 780151 340 IMPELLER 761609-853

311 BEARING, SLEEVE 53743 350 BRACE 5524 312 WASHER, FLAT 53748 351 SCREW 1441 313 SHAFT, AUGER 760411 352 NUT, 5/16-24 71100

314 GASKET 897 355 SCREW 302636

315 WORM GEAR 53730 356 WASHER, FLAT 71071 316 KEY, WOODRUFF 73905 357 WASHER 71060

320 RING, QUAD 53737 358 NUT 71037

321 BEARING, FL 583126 10oz LUBRIPLATE 333431 322 WASHER, FLAT 48275

F-O01129J 39

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

DISCHARGE CHUTE ASSEMBLY

582

586

608

F-001129J 40

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

DISCHARGE CHUTE ASSEMBLY

Key No.

58O

582

564

585

586

587

6OO

601

602

603

Description Part No.

ASSY., UPPER CHUTE 761168-853

SCREW, 5/16-18X.75 578088

NUT, 5/16-18 HEX 71038

SC REW, 5/16-18X.75 578088

WASHER 6711

NUT, 5/16-18 HEX NYL 71038

LOWER CHUTE ASSEMBLY 761169-853

BOLT, 5/16-18X1.00 586280

FLATWASHER 71071

NUT, 5/16-18 71038

604

6O5

606

607

6O8

609

610

611

FLAP 762322

RIVET 760987

COLLAR, CHUTE 585214-853

SCREW, 1/4-20X .75 302628

FLATWASHER 71067

NUT, 1/4-20 HEX NYLOCK 780029

RETAINER, RING INNER 337227

RETAINER, RING OUTER 585193

F-OO1129J 41

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

HANDLEASSEMBLY

F-OO1129J 42

337139 J

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

HANDLE ASSEMBLY

Key Part Key Part

No. Description No. No. Description No.

720 ASSEMBLY, HANDLE 579264 775 SPACER 579183

723 SCREW, 3/8-16X2.00 71007 785 NUT, 1/4-20 HEX 71034

724 SCREW, 3/8-16X3.00 7288 787 KNOB, SHIFT 1/420 585522

725 WASHER, FLAT 71072 790 ROD, ASSY LH 578926

726 WASHER 71062 791 ROD, ASSY RH 578924

727 NUT, 3/8-16 REGHEX 71044 795 BRACKET, CAM 579002

728 STOP, PLASTIC 7289 796 SCREW, 5/16-18X.75 313676

729 GRIP, HANDLE 50792 797 WASHER, SPTLK 71060

739 BUMPER 4049 798 NUT, 5/16-!8 HEX 71037

740 CABLE, CLUTCH 1580 799 CAM LOCK 8417

741 CABLE, AUG CLUTCH 761591 800 PIN, SPRING PIVOT 584673

743 TENSION SPRING 579869 801 NUT, PUSH ON 73664

744 SPRING, CLUTCH 1673 802 PIN, COTTER 71081

745 NUT, 1/4-20 HEX 780029 803 FLATWASHER 71071

750 HANDLE, LOWER 5543-853 804 ROD, CONTROL 581079

751 SCREW, 5/16-18 X .75 70984 805 NUT, 5/16-24 HEX 71042

752 WASHER, SPTLK 71060 806 ADAPTOR, SPEED 6352

753 NUT, 5/16-18 71391 807 WASHER 71060

754 SCREW, 5/16-18 X .75 70984 808 JOINT, STEEL BALL 50782

770 BRACKET, SHIFT 581964 809 WASHER 71060

771 SCREW, 3/8-16X3.00 7288 810 NUT, 5/16-24 HEX 71042

772 SPRING 50786 811 BEARING, FL 579944

773 WASHER, FLAT 71072 812 ROD, YOKE 337436

774 NUT, 3/8-16 HEX 71046 813 NUT, 38-16 71111

F-001129J 43

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

WHEEL ASSEMBLY

673

671

655

650

678

676

Key No.

65O 652

653 654

655 656

671

673 675

676 677

678

680 681

682 683

684 685

686 687 688

689

673

671

675

677

Description

SHAFT, AXLE SPRKT & HUB

SCREW, 1/4-20X2.25

NUT, 1/4-20 HEX NYLOCK

BRNG, FL CHAIN, ROLLER

FLATWASHER BUSHING, WHEEL

TIRE & RIM, LEFT SCREW, 1/4-20Xl.75 NUT, 1/4-20 HEX NYLOCK

RING, RET TIRE & RIM, RIGHT

DISC,WHEEL SCREW

HUB, WHEEL LOCK SPRING, COMPRESSION

PIN, LOCK KNOB

SCREW

NUT

654

681 SD1021

Part No.

583017

583007

73839 780029

581730 583013

712120

585591

1501019

577015

780029

239

1501020

1501032-853

2001066

1501031-853 164X34

1501033 1501034 032X78

73839 780029

F--OO1129J 44

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

CONTROL PANEL ASSEMBLY

KEY# 741

REF. KEY# 791 --

F-OO1129J

Key No.

730 731 76O

761 765

766 767

768

792 794

REF. KEY# 790

Description

CLUTCH HANDLE LH 578992 CLUTCH HANDLE RH 578993 PANEL, CONTROL 579039

SCREW, 10 X .62 316042 BRACKET, PANEL 578866-853 SCREW, 5/16-18 X 1.75 302900

WASHER, HVSPTLK 71060 NUT, 5/1 6-18 71037

BOLT, 1/4--20 X .50 905531 NUT, 1/4--20 908913

Part No.

337139 J

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

CHUTE CONTROL ROD ASSEMBLY

856

855

854

867

" 866

855

862

850

860

863

864

874

334215

F-OO1129J

Key No.

850

854

855

856 860 861 862

863

864 865 866 867 870 871 872

873 874

875

Description

CRANK, ASSY CHUTE

HANDLE, CHUTE CRANK FLATWASHER

E RING EYE BOLT 3/8-16X6.00

GROMMET, EYE BOLT BOOT

NUT, 3/8-16 HEXJAM FLATWASHER

ADAPTER, BOOT TO HANDLE

FLATWASHER NUT, 3/8-16 HEXNYL

BRACKET, WORM MTG WORM, GEAR CHUTE ROTATION

BLOCK, UNIVERSAL PIVOT

CLEVIS PIN

PIN, UNIVERSAL JOINT COTTER PIN

Part No.

585426 307399 309312 578159 581618

148

308145

71045 71072 309344 71072 71046 585195

585196 578063

578309 578060 579493

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

HEADLIGHT

621

626

628

627

Key No.

621 622

625 626

627

628

F-OOI129J 47

LIGHT, HALOGEN HARNESS, HEADLIGHT TIE, CABLE

BRACKET

SCREW #8 X .50

WASHER, FLAT

Description

622

SD1029

Part No.

762343

1501036 57444

578921 901696

901736

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

REMOTE CHUTE CONTROL ASSEMBLY

F--O01129J 48

342858

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

REMOTE CHUTE CONTROL ASSEMBLY

Key No.

965

966

967

968

969

970

971

972

973

974

975

Description Part No.

SPRING, TENSION RETURN 318468

WASHER, FLAT 711666

BOLT, 5/16-18 310088

WASHER, FLAT 73787

NUT, 1/4-20 302635

SCREW, 5/1 6-18 X .75 313676

BRACKET, CABLE CHUTE 780066

NUT, 5/16-18 71391

TRIM 55021

TIE, CABLE 760113

CABLE, CHUTE CONTROL 761131

980

981

982

990

991

992

993

994

995

996

BOLT, 5/16-18 310088

WIRE FORM 780220

NUT, 1/4-10 302635

SCREW, 3/8-16Xl .75 4058

WASHER, FLAT 71072

WASHER, SPRING 4051

HANDLE ASSY, SPEED CONTROL 579040

NUT, 3/8-16 REGHEX 71044

HANDLE, 3/8-16 MOLDED 306689

NUT, 3/8-16 HEX 71046

F-OO1129J 49

CRAFTSMAN 33" 12.5HP SNOW THROWER 536.881120

DRIFT CUTTER ASSEMBLY

NOTE: TH{S UNIT IS USED FOR REFERENCE

PURPOSE ONLY,

F-OOl129J

SD1027

Key No. Description Part No_

280 BAR,DRIFTCUTTER 7623_-_53

281 8OLT, 5/16-18X0,75 340720 282 WASHER 12021

283 WINGNUT 711604

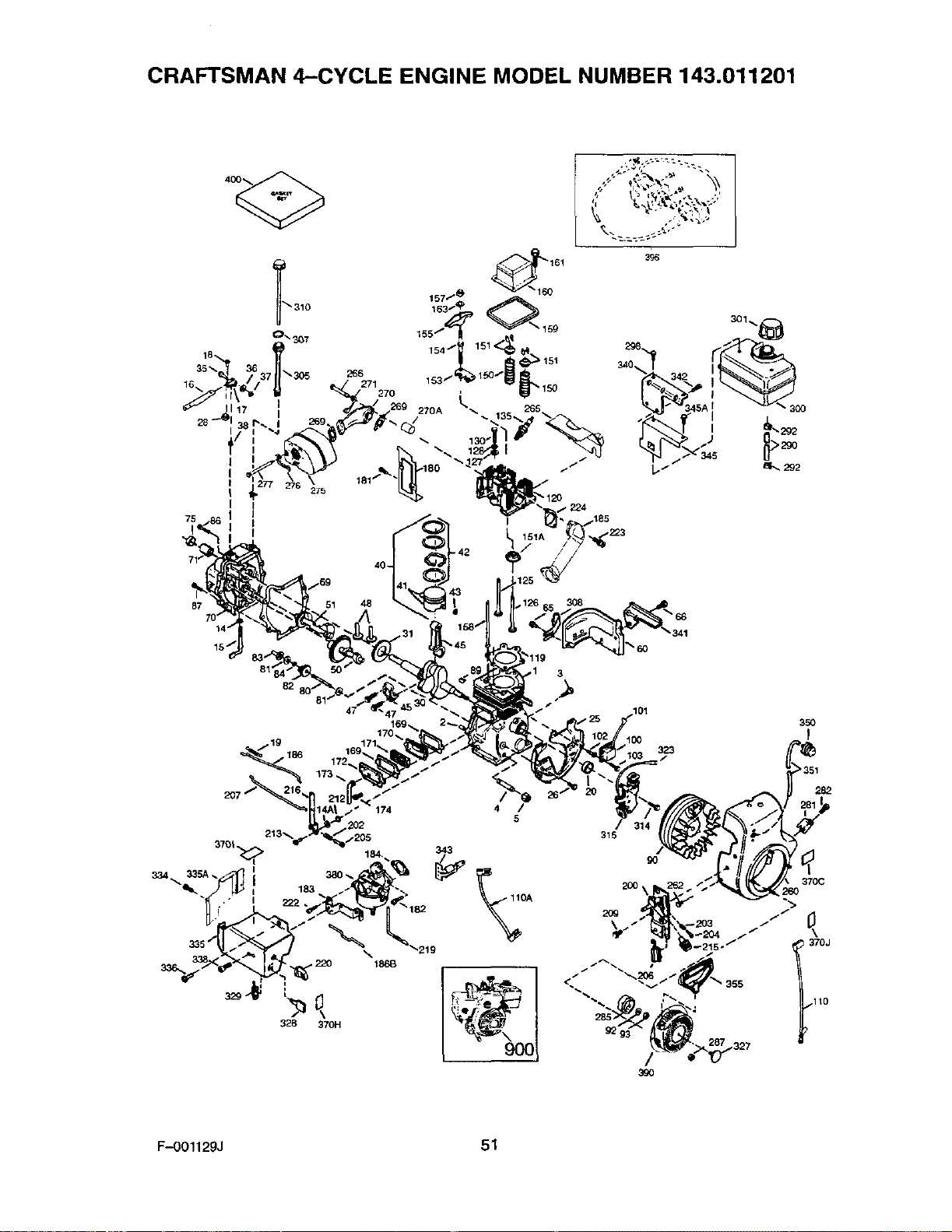

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

125

213-_. /205

_>351

282

4 /

315

F-OO1129J 51

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

0 RPM High 3550 to 3850 41 35775A Piston & Pin Ass'y 0 RPM Low 1850 to 2150

1 37083 Cylinder (Incl. 2, 20 & 80)

2 27652 Dowel Pin

3 650820 Screw, 1/4--20 x 1/2"

4 31857 Oil Drain Extension

5 30969 Extension Ca (Incl. 47)

14 28277 Washer 47 651033 Connecting Rod Bolt

14A 651057 Washer 48 35313 Valve Lifter

42 35779 Ring Set (Std.) 42 35780 Ring Set (.010" OS) 42 35781 Ring Set (.020" OS)

43 35772 Piston Pin Retaining Ring 45 36898 Connecting Rod Ass'y

(.020" OS) (Incl. 43)

15 35685 Governor Rod 50 35682A Camshaft (MCR)

16 35686 Governor Lever 17 2991b_ Governor Lever Clam

18 651028 Screw, Torx T-15 19 35688 Extension Spring

20 35319 Oil Seal

25 36460 Blower Housing Baffle (Incl. 14,15, 38, 71,75)

26 650561 Screw, 1/4-20 x 5/8" 71 35377 Crankshaft Bushing 28 30322 Lock Nut, 10-32 75 35319 Oil Seal

30 37240 Crankshaft 80 35751 Governor Shaft 31 35327 Counterbalance Gear 81 35479A Washer

35 29826 Screw, 10-32 x 3/4" 82 35321 Governor Gear Ass'y 36 29918 Lock Washer 83 35322 Governor Spool

37 29216 Lock Nut, 10-32 84 29193 Retaining Ring

38 29642 Retaining Ring 86 650833 Screw, 1/4-20 x 1-3/16"

(Incl. 14 & 38)

51 35315A Counterbalance Weight 60 35316A Blower Housing Extension

65 30200 Screw, 10-24 x 9/16" 66 650990 Screw, Torx "1--30 69 35683 Cylinder Cover Gasket 70 35684A Cylinder Cover

40 35776A Piston, Pin & Ring Set 87 650832 Screw, 1/4-20 x 1-11/16"

40 35777A Piston, Pin & Ring Set

40 35778A Piston, Pin & Ring Set 92 650880 Lock Washer

41 35773A Piston & Pin Ass'y (Std.)

41 35774A Piston & Pin Ass'y 101 610118 Spark Plug Cover

F-O01129J 52

(Std.)

89 32589 Flywheel Key

(.010" OS) 90 611093 Flywheel (W/Ring Gear)

(.02O" OS)

93 650881 Flywheel Nut

(Incl. 43) 100 35135 Solid State Ignition

(.010" OS) (Incl. 43)

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

102 651024 Solid State Mounting Stud 184 33263 Carburetor To Intake Pipe 103 651007 Screw, Torx T-15

185 37085 Intake Pipe

116 35187 Ground Wire

186 35691 Governor Link

110A 36874 Ground Wire

186B 36653 Choke Spring

119 36932 Cylinder Head Gasket

200 35702 Control Bracket

120 37491 Cyinder Head (Incl. 151A) (IncL 203, 204 & 206) 125 36934 Exhaust Valve (Std.) 202 36482 Compression Spring

125 36936 Exhaust Valve (1/32" OS) 203 31342 Compression Spring 126 36935 Intake Valve (Std.) 204 651029 Screw, Torx T-10

127 650691 Washer 205 651019 Screw, Torx T-10 128 650690 Belleville Washer 206 610973 Terminal

130 650697A Screw, 5/16-18 x 2-1/2" 207 35692 Throttle Link 135 34645 Spark Plug (RN4C) 209 650821 Screw, 10-32 x 1/2" 150 33507 Valve Spring 212 30773A Bushing

151 33508 Valve Spring Keeper 213 650930 Screw, 10-32 x 5/8"

151A 35862 Intake Valve Seal 215 35438 Control Knob

Gasket

153 35949 Push Rod Guide 216 35679 R.P.M. Adjusting Lever 154 650945 Rocker Arm Stud 219 35689 Choke Rod

155 35950 Rocker Arm 220 35440 Choke Knob 157 650947 Jam Nut 222 28820 Screw, 10-32 x 1/2"

158 35466 Push Rod 223 650971 Screw, Torx T-30 159 35952 Rocker Arm Cover Gasket 224 33515A Intake Pipe Gasket 160 35953A Rocker Arm Housing 260 35694 Blower Housing

161 30063 Screw, Torx T-30 262 29747B Screw, Torx T-40 163 650890 Lock Washer 265 37086 Cylinder Head Cover

169 27896A Valve Cover Gasket 266 650876 Screw, 5/16-18 x 1-1/4" 170 28423 Breather Body 269 35762 Exhaust Gasket

171 28424 Breather Element 270 35870 Manifold 172 28425 Valve Cover 270A 35829A Exhaust Port Liner

173 35350 Breather Tube 271 35293 Locking Plate (Manifold) 174 650128 Screw, 10-24 x 1/2" 275 36542 Muffler

180 35954 Blower Housing Extension 276 35348 Locking Plate 181 30200 Lock Nut, 10-32 277 650877 Screw, 5/16-18 x 4-1/2"

182 650517 Screw, Torx T-30 281 33013 Starter Bubble Cover 183 34583A Choke Bracket

F-001129J 53

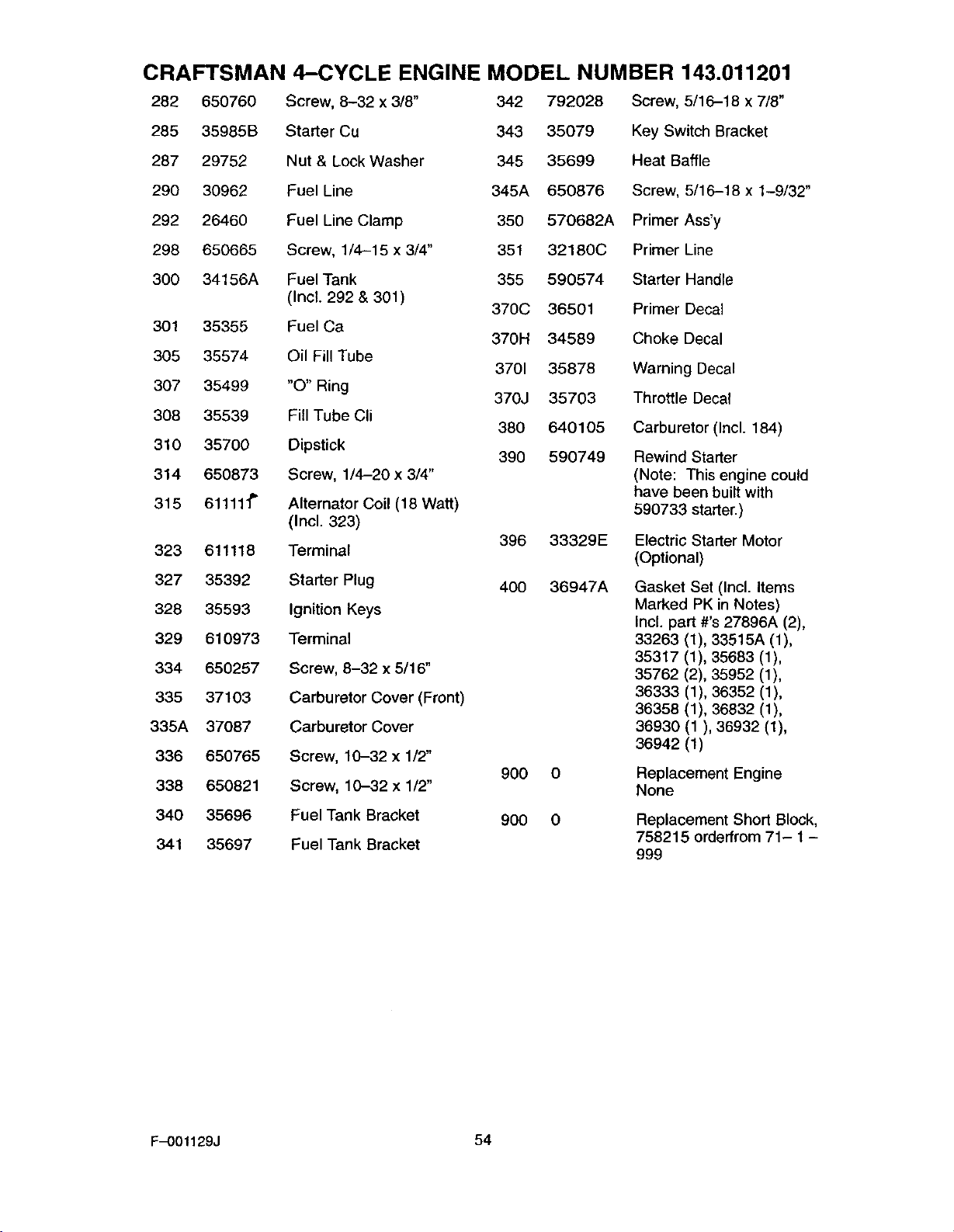

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

282 650760 Screw, 8-32 x 3/8" 342 792028 Screw, 5/16-18 x 7/8" 285 35985B Starter Cu 343 35079 Key Switch Bracket

287 29752 Nut & Lock Washer 345 35699 Heat Baffle 290 30962 Fuel Line 345A 650876 Screw, 5/16-18 x 1-9/32" 292 26460 Fuel Line Clamp 350 570682A Primer Ass'y

298 650665 Screw, 1/4-15 x 3/4" 351 32180C Primer Line 300 34156A Fuel Tank 355 590574 Starter Handle

(Incl. 292 & 301)

301 35355 Fuel Ca 305 35574 Oil Fill Tube

307 35499 "O" Ring 308 35539 Fill Tube Cli

310 35700 Dipstick 314 650873 Screw, 1/4--20 x 3/4" (Note: This engine could 315 611111_ Alternator Coil (18 Watt) 590733 starter.)

(Incl. 323)

323 611118 Terminal (Optional)

370C 36501 Primer Decal 370H 34589 Choke Decal

3701 35878 Warning Decal 370J 35703 Throttle Decal

380 640105 Carburetor (Incl. 184)

390 590749 Rewind Starter

have been built with

396 33329E Electric Starter Motor

327 35392 Starter Plug 400 36947A Gasket Set (Incl. Items 328 35593 Ignition Keys Marked PK in Notes)

329 610973 Terminal 33263 (1), 33515A (1), 334 650257 Screw, 8-32 x 5/16" 35762 (2), 35952 (1),

335 37103 Carburetor Cover (Front) 36333 (1), 36352 (1),

335A 37087 Carburetor Cover 36930 (1), 36932 (1),

336 650765 Screw, 10-32 x 1/2"

900 O Replacement Engine

338 650821 Screw, 10-32 x 1/2" None 340 35696 Fuel Tank Bracket 900 0 Replacement Short Block,

341 35697 Fuel Tank Bracket 758215 ordeffrom 71- 1 -

Incl. part #'s 27896A (2), 35317 (1), 35683 (1),

36358 (1), 36832 (1),

36942 (1)

999

F-O01129J 54

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

F-OOl129J 55

Qm37

33t_25

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

KEY PART

NO. NO.

0 640105

Carburetor (Incl. 184 of Engine Parts List)

DESCRIPTION

1 632787

1A 36288

2 631970 6 640107 7 650506

10 632513 14 632429A

15 630735 16 632527

17 651025 18 630766

20 640016

20A 640053

25 632594A

Throttle Shaft & Lever Assembly

Bushing

Throttle Return Spring Throttle Shutter

Shutter Screw

Choke Shaft & Lever Assembly Choke Shutter

Choke Positioning Spring

Fuel Fitting

Throttle Crack Screw/Idle Speed Screw Tension Spring

Idle Restrictor Screw Idle Restrictor Screw Cap Float Bowl Assembly (Incl. 32 & 33)

27 631024

28 632019 29 631028

30 631021 31 631022

32 27136 33 27554 36 640005 37 632547

40 640106 44 27110A 47 630748

48 631027

60 632760

Float Shaft Float

Float Bowl "O" Ring

Inlet Needle, Seat, & Clip (Incl. 31)

Spring Clip

Bowl Drain Assembly Drain Plunger Gasket

Main Nozzle Tube

O Ring, Main Nozzle Tube

High Speed Bowl Nut Bowl Nut Washer

Welch Plug, Idle Mixture Well Welch Plug, Atmospheric Vent Repair kit (Incl. Items Marked PK in Notes)

F_)01129J 56

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

31----"-_

F-OO1129J 57

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

KEY PART

NO. NO.

DESCRIPTION

0 37105

1 33451 2 33842

3 33430 4 33431

5A 37050

6 35449 7 35450 8 35915

9 35451B

10 35452A

11 35911 13 590500

14 33441

Electric Starter (110 Volt) Dust Cover

Retainer Ring Spring Retainer

Anti-drift Spring Gear & Nut (Incl. 2)

Drive End Cap Ass'y. (Incl. 7)

"O" Ring

Armature

Housing Ass'y. Brush Card Ass'y.

Thrust Washer Thrust Washer

Ground Screw 15 35453 16 35454

22 35455 23 35456 26 650819 26 651032

29 32450B

30 30063 31 650820

F-O01129J 58

Commutator End Cap Ass'y. (Incl. 7)

Switch Box Ass'y.

Case Bolt

Ground Screw

Screw, 6-32 X 2-1/2"

Screw, 12-16 x 5/8" Extension Cord (10'6")

Screw, Torx T-30, 1/4--20 X 1/2" Screw, 1/4-20 X 112"

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.011201

12 13

(_3

_\2

KEY PART

NO. NO. DESCRIPTION

0 590749 Rewind Starter 1 590599A Spring Pin

2 590600 Washer 3 590679 Retainer

4 590601 Washer 5 590678 Brake Spring

6 590680 Starter Dog 7 590412 Dog Spring 8 590682 Pulley & Rewind Spring Assy.

11 590750 Starter Housing Ass'y.

12 590535 Starter Rope (Length 98" x 9164"dia.)

13 590574 Mitten Grip Handle (Not included with starter)

F-001129J 59

For the repair or replacement parts you need delivered directly to your home Call 7am-7pm, 7days a week

1-800-366-PART

(1-800-366-7278)

Para ordenar piezas con entrega

a domicilio - 1-800-659-7084

For in-house major brand repair service

Call 24 hours a day, 7days a week

1-800-4-REPAIR

(1-800-473-7247)

Para pedir servicio de reparaci6n a

domicilio- 1-800-676-5811

_SB_CB

For the location of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7days a week

1-800-488-1222

For information on purchasing a Sears Maintenance agreement or to inquire

about an existing Agreement

Call 9am-5pm, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following infor- mation:

• Product Type • Part Number

• Model Number • Part Description

mmmmmm

81AR8

America'sRepairSpecialists Printed in U.S.A.

Craftsman 536.881120 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
