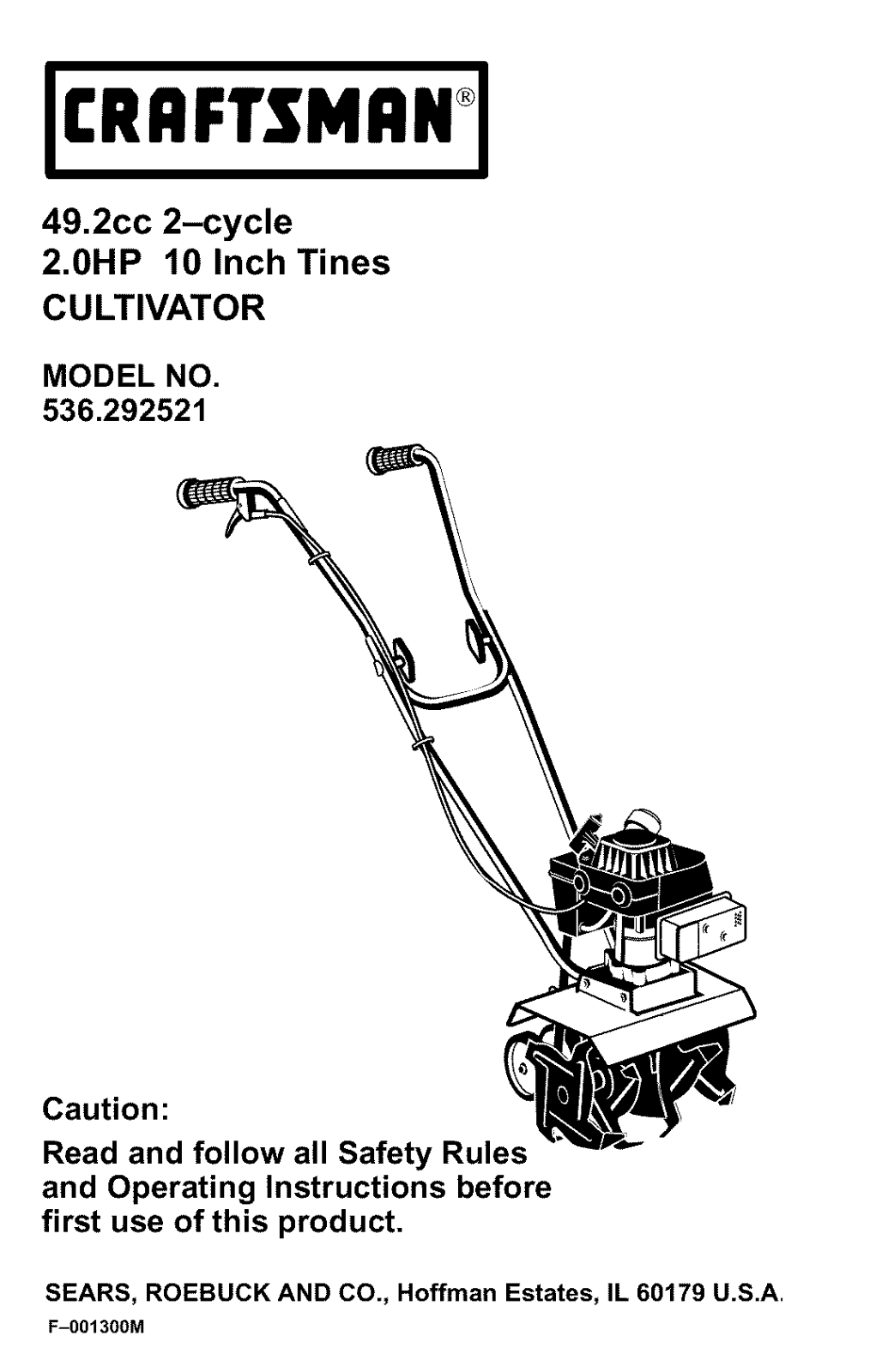

Craftsman 536.292521 User Manual

49.2cc 2-cycle

2.0HP 10 Inch Tines
CULTIVATOR

MODEL NO.

536.292521

Caution:
Read and follow all Safety Rules

and Operating Instructions before
first use of this product.

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

F-001300M

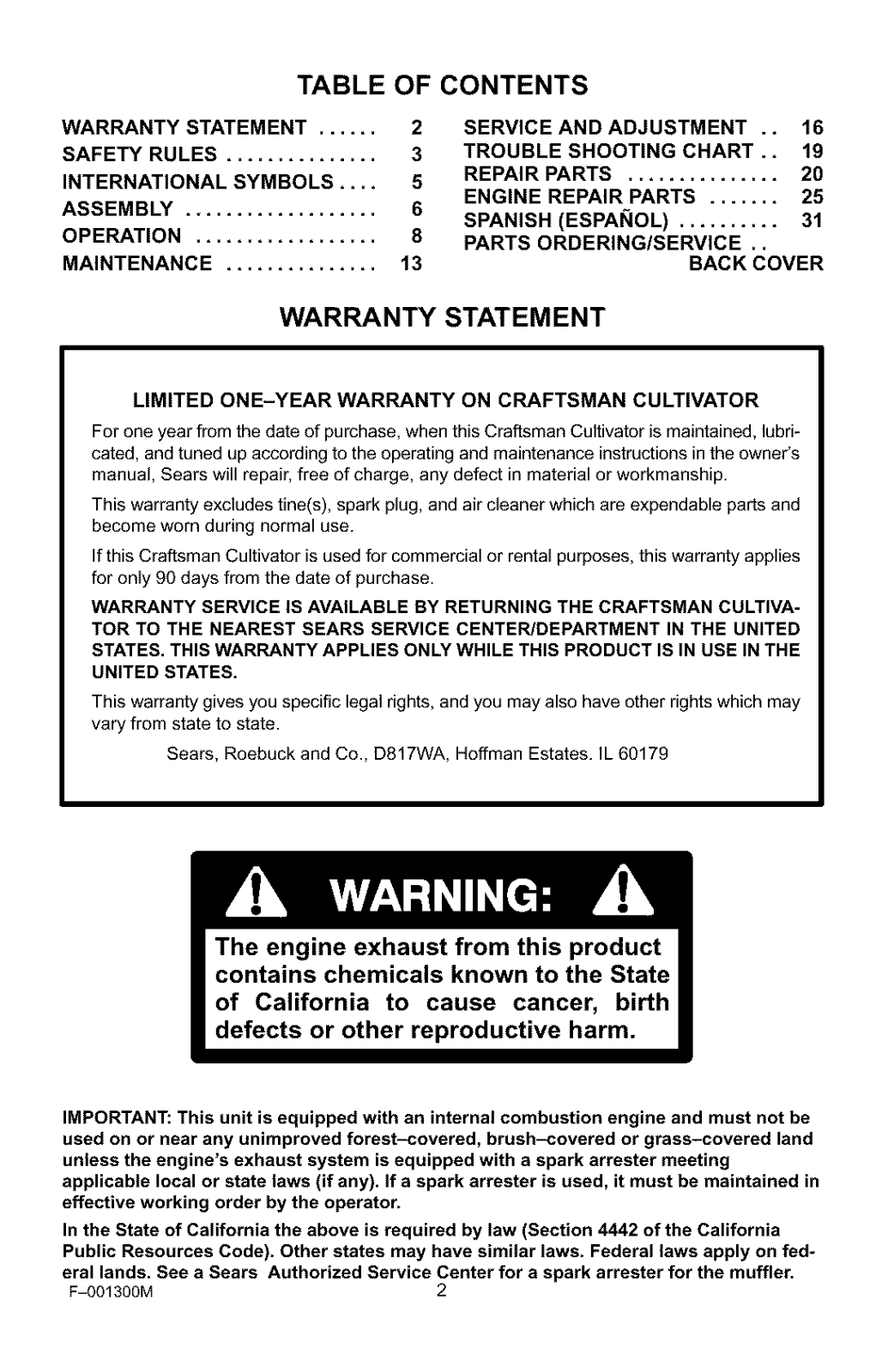

TABLE OF CONTENTS

WARRANTY STATEMENT .....

SAFETY RULES ..............

INTERNATIONAL SYMBOLS,,.

ASSEMBLY ..................

OPERATION .................

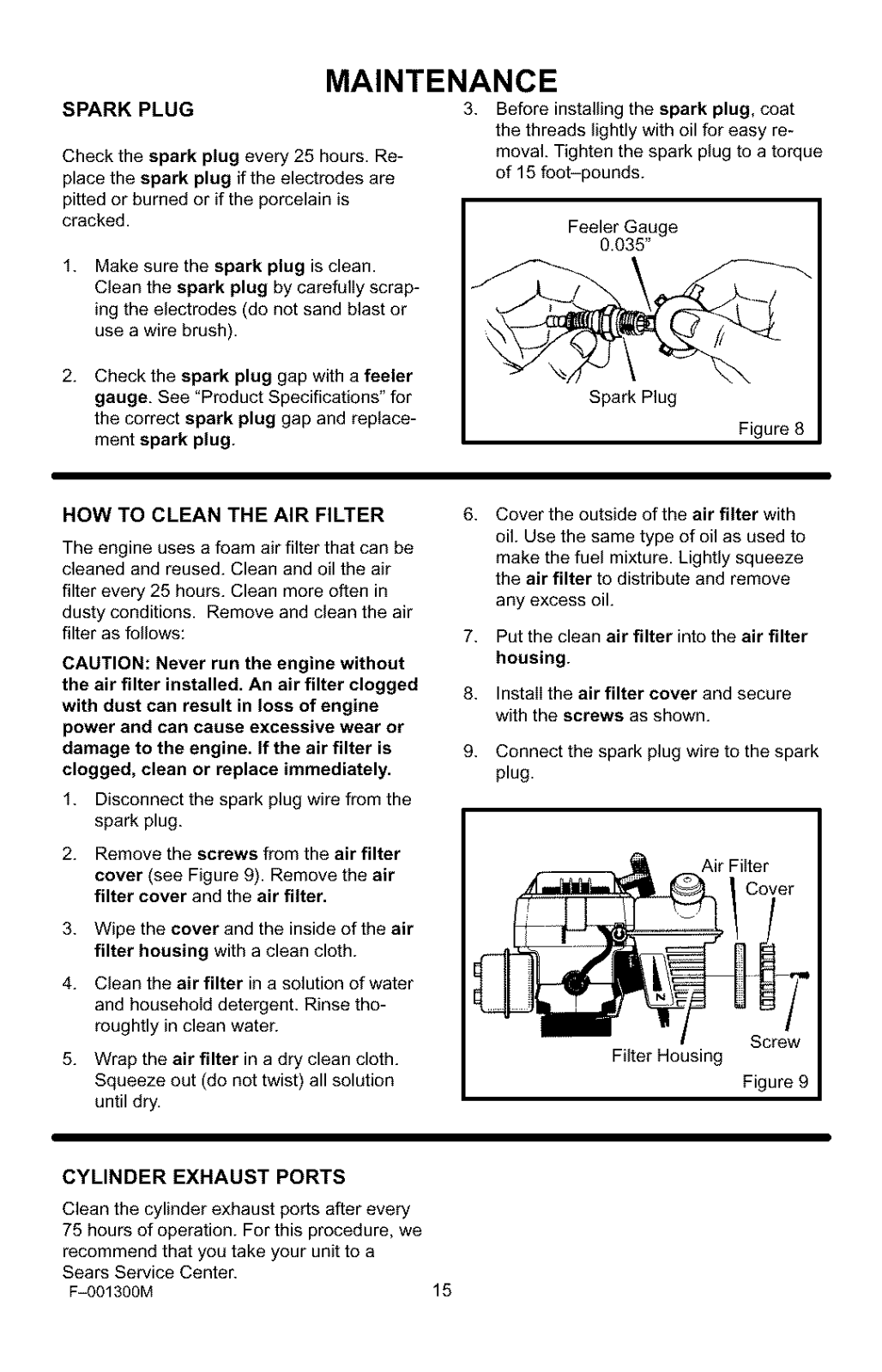

MAINTENANCE ..............

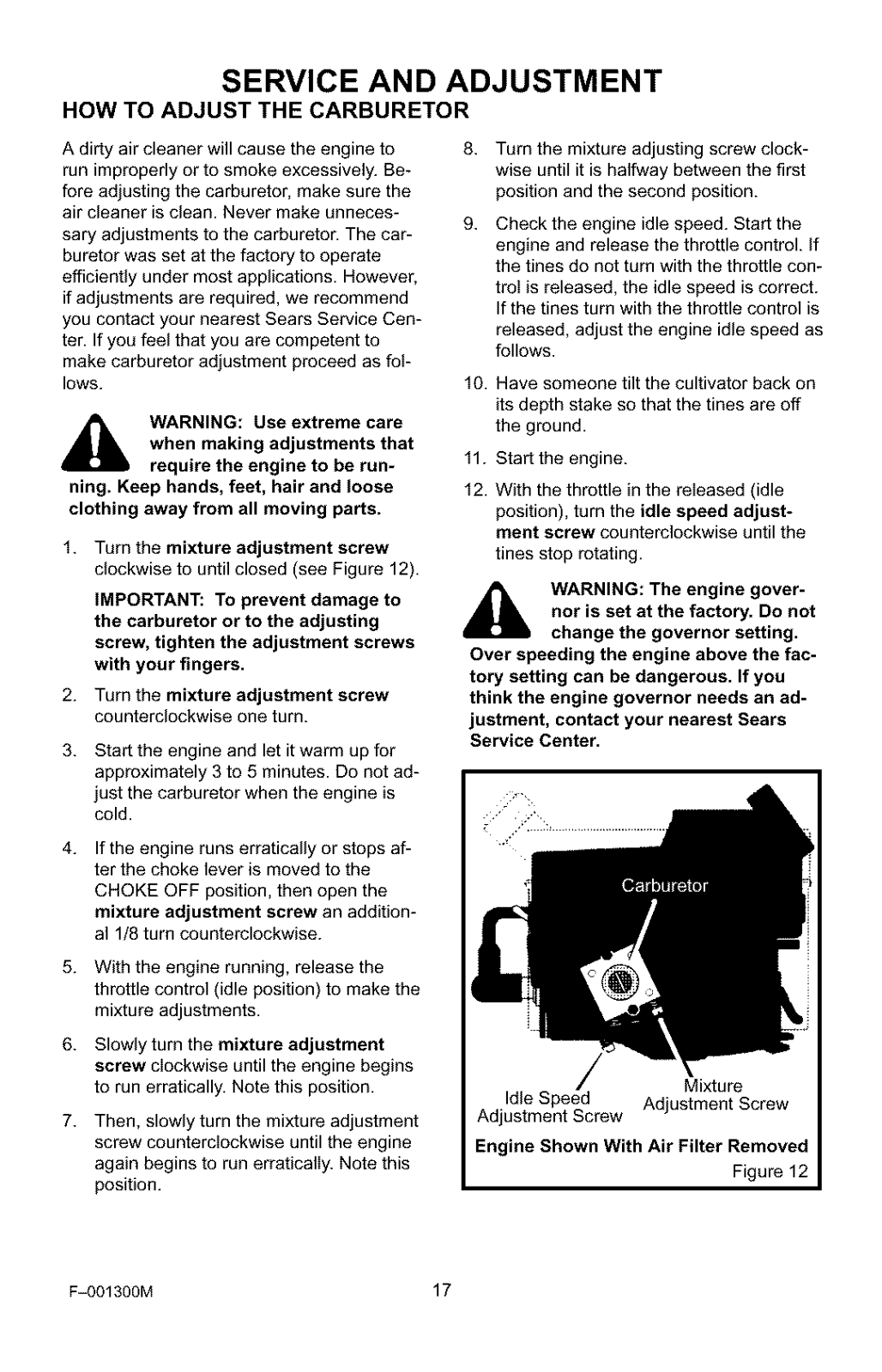

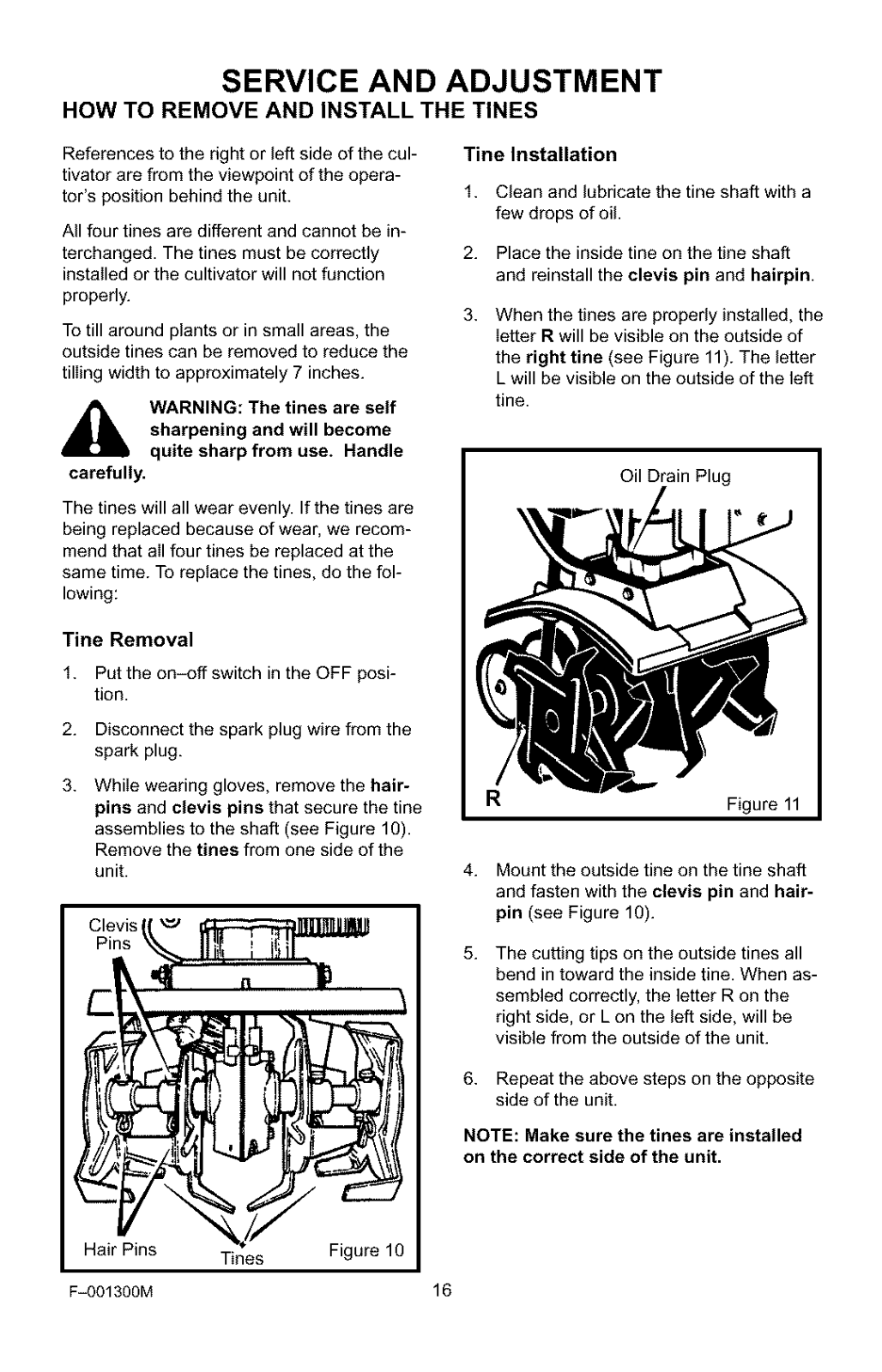

2 SERVICE AND ADJUSTMENT .. 16
3 TROUBLE SHOOTING CHART., 19

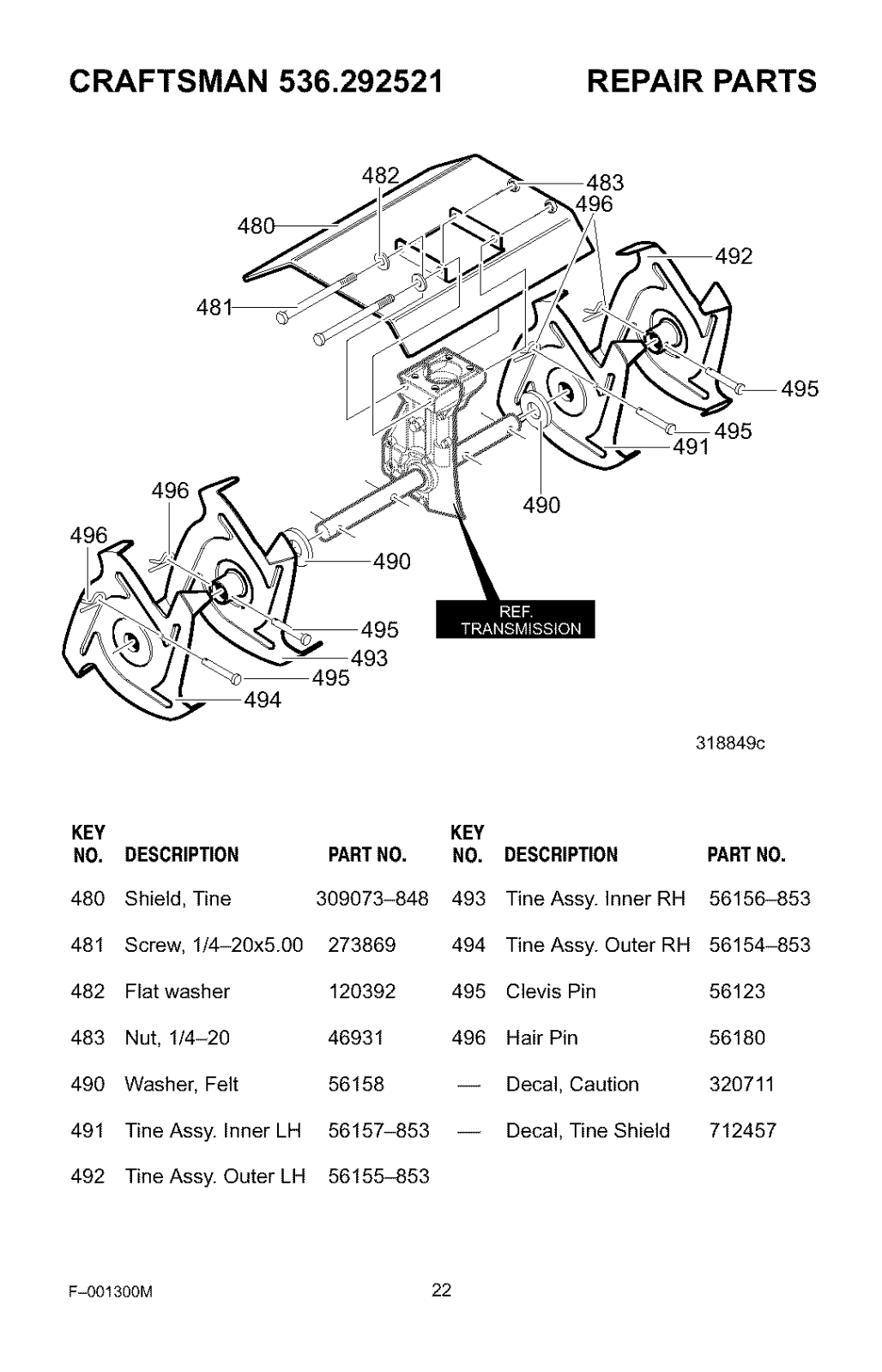

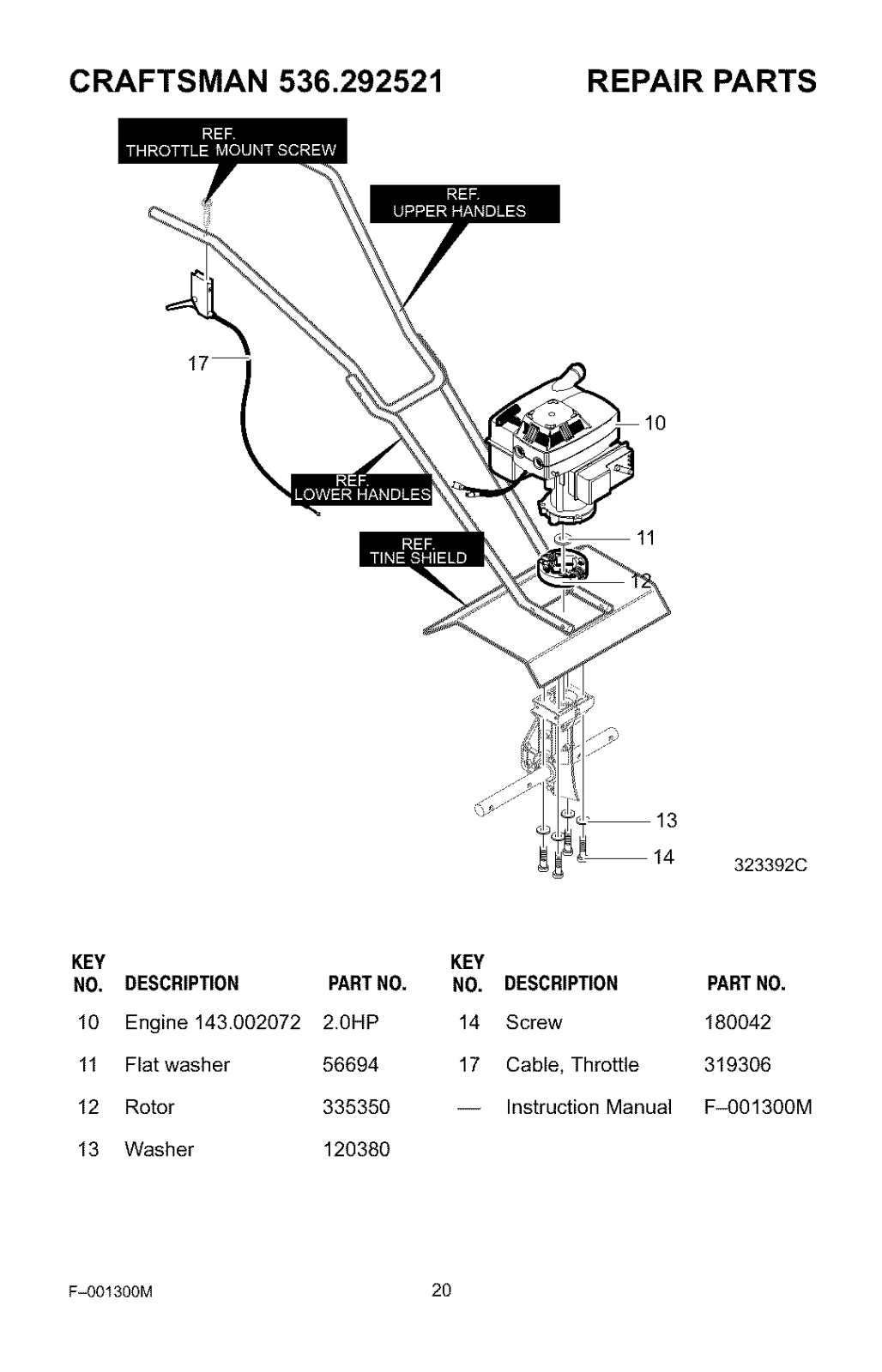

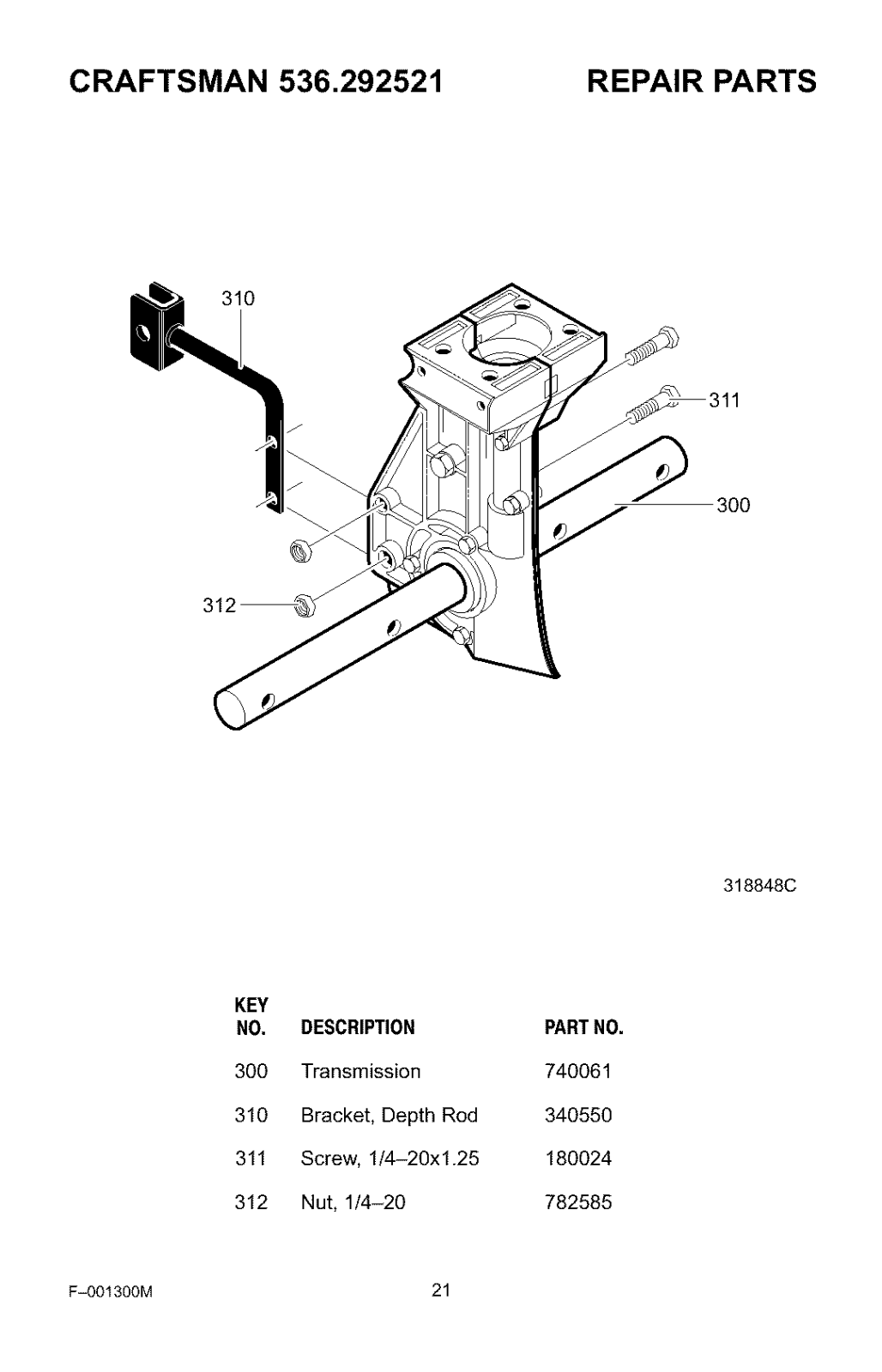

5 REPAIR PARTS ............... 20

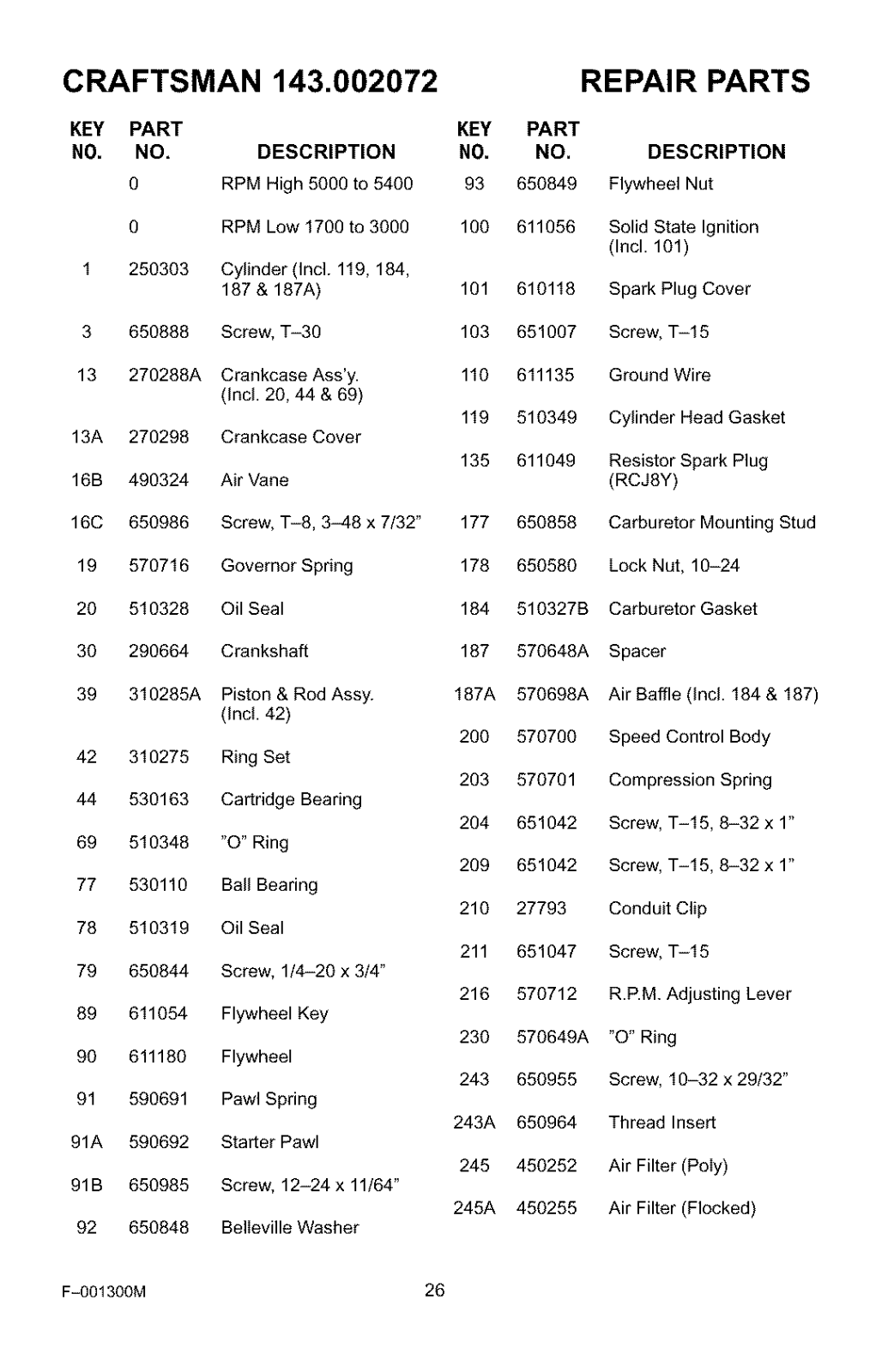

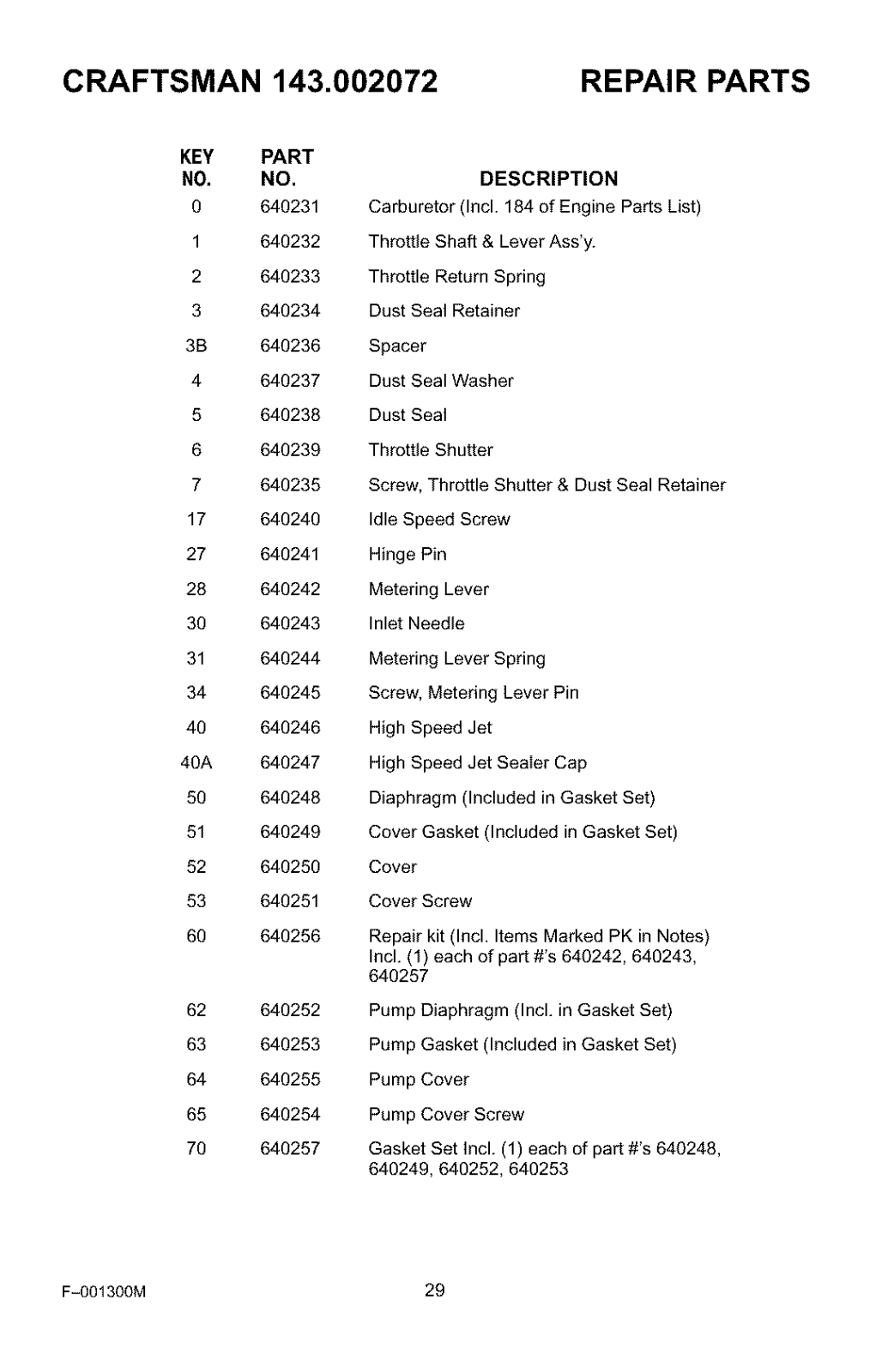

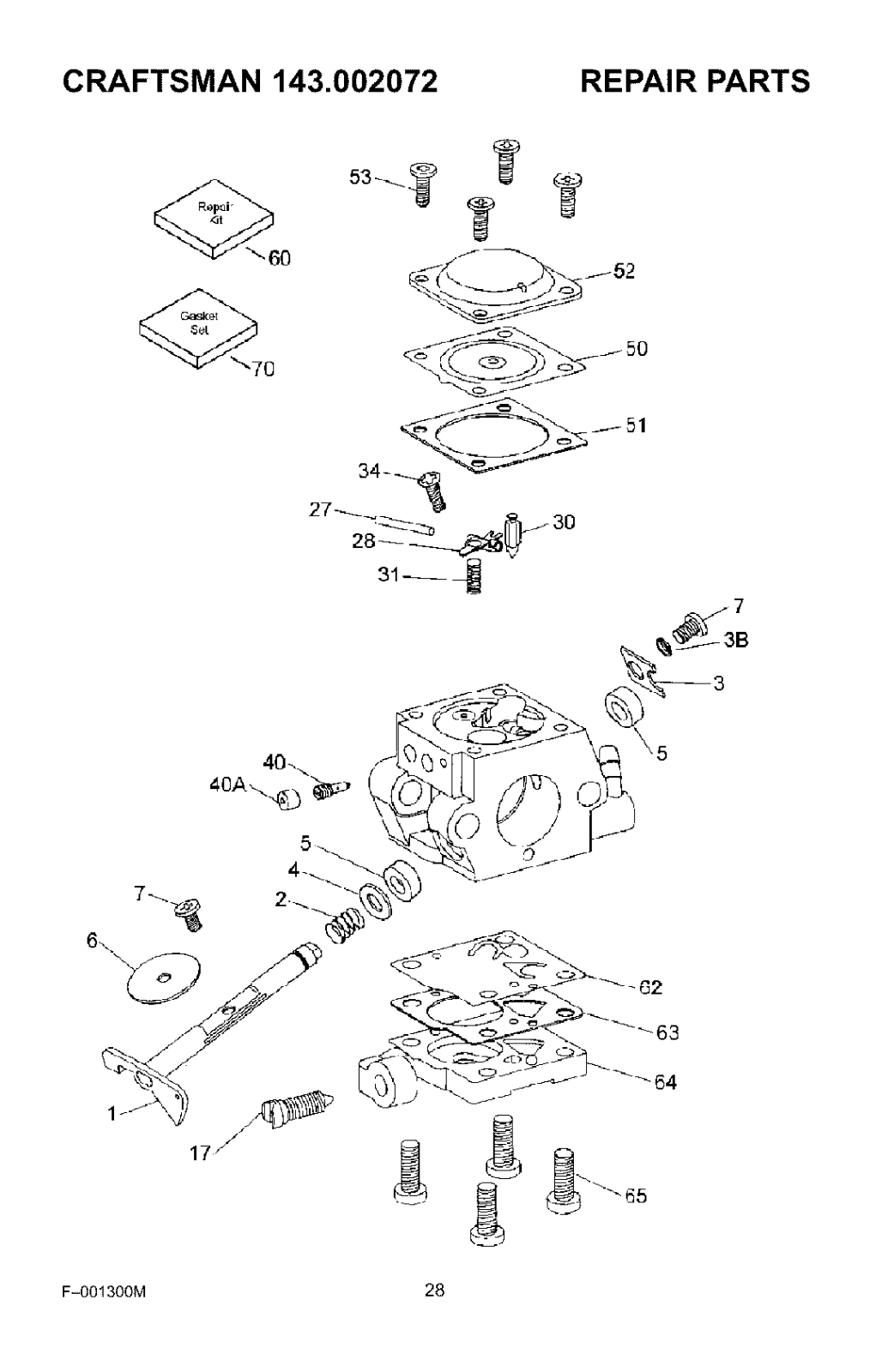

ENGINE REPAIR PARTS ....... 25

6

SPANISH (ESPAI_IOL) .......... 31

8 PARTS ORDERING/SERVICE ..

13 BACK COVER

WARRANTY STATEMENT

LIMITED ONE-YEAR WARRANTY ON CRAFTSMAN CULTIVATOR

For one year from the date of purchase, when this Craftsman Cultivator is maintained, lubri-

cated, and tuned up according to the operating and maintenance instructions in the owner's

manual, Sears will repair, free of charge, any defect in material or workmanship.

This warranty excludes tiRe(s), spark plug, and air cteaner which are expendable parts and

become worn during normal use.
If this Craftsman Cultivator is used for commercial or rental purposes, this warranty applies

for onIy 90 days from the date of purchase.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN CULTIVA-

TOR TO THE NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED
STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE

UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which may
vary from state to state.

Sears, Roebuck and Co., D817WA, Hoftman Estates. IL 60179

IMPORTANT: This unit is equipped with an internal combustion engine and must not be
used on or near any unimproved forest-covered, brush-covered or grass-covered land
unless the engine's exhaust system is equipped with a spark attester meeting

applicable local or state laws (if any). If a spark attester is used, it must be maintained in
effective working order by the operator.

In the State of California the above is required by iaw (Section 4442 of the California
Public Resources Code). Other states may have similar laws. Federal laws apply on fed-

eral lands. See a Sears Authorized Service Center for a spark arrester for the muffler.

F=001300M 2

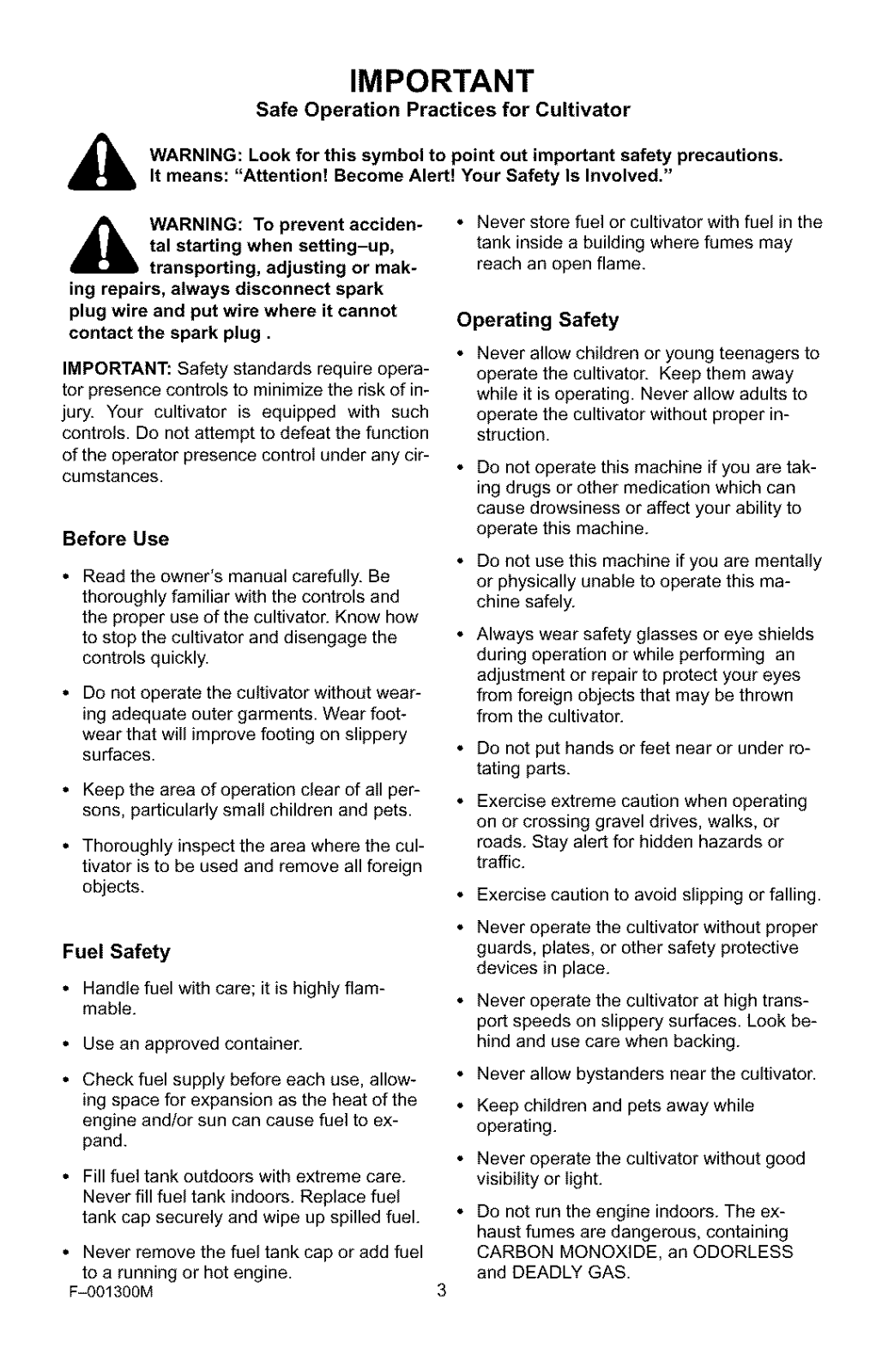

IMPORTANT

Safe Operation Practices for Cultivator

WARNING: Look for this symbol to point out important safety precautions.It means'. "Attention! Become Alert. Your Safety |s Involved.

_IL ARNING: To prevent acciden-

tal starting when setting-up,

transporting, adjusting or mak-
ing repairs, always disconnect spark
plug wire and put wire where it cannot

contact the spark plug.

IMPORTANT: Safety standards require opera-

tor presence contro% to minimize the risk of in-
jury. Your cultivator is equipped with such

controls. Do not attempt to defeat the function

of the operator presence control under any cir-
cumstances.

Before Use

• Read the owner's manual carefully. Be
thoroughly familiar with the controls and

the proper use of the cultivator. Know how
to stop the cultivator and disengage the
controls quickly.

• Do not operate the cultivator without wear-

ing adequate outer garments. Wear foot-
wear that wiil improve footing on slippery

surfaces.

• Keep the area of operation dear of al per-
sons, particulady small children and pets.

• Thoroughly inspect the area where the cul-
tivator is to be used and remove all foreign

objects.

Fuel Safety

• Handle fuel with care; it is highly flam-
mable.

• Use an approved container.

• Check fuel supply before each use, allow-
ing space for expansion as the heat of the
engine and/or sun can cause rue} to ex-

pand.

• Fill fuel tank outdoors with extreme care.

Never fill fuel tank indoors. Replace fuel

tank cap securely and wipe up spilled fuel.

• Never remove the fuel tank cap or add fuel
to a running or hot engine.

F_O01300M

• Never store fuel or cultivator with fuel in the
tank inside a building where fumes may

reach an open flame.

Operating Safety

• Never allow children or young teenagers to
operate the cultivator. Keep them away

while it is operating. Never allow adults to
operate the cultivator without proper in-

struction.

• Do not operate this machine if you are tak-
ing drugs or other medication which can

cause drowsiness or affect your abi{ity to
operate this machine.

• Do not use this machine if you ate mentally
or physically unable to operate this ma-

chine safely.

• Always wear safety glasses or eye shields
during operation or while performing an
adjustment or repair to protect your eyes

from foreign objects that may be thrown
from the cultivator.

• Do not put hands or feet near or under ro-
tating parts.

• Exercise extreme caution when operating

on or crossing gravel drives, walks, or
roads. Stay alert for hidden hazards or
traffic.

• Esercise caution to avoid slipping or falling.

• Never operate the cultivator without proper
guards, plates, or other safety protective

devices in place.

• Never operate the cultivator at high trans-

port speeds on slippery surfaces. Look be-
hind and use care when backing.

• Never allow bystanders near the cultivator.

• Keep children and pets away while
operating.

• Never operate the cultivator without good
visibility or Iight.

• Do not run the engine indoors. The ex-
haust fumes are dangerous, containing
CARBON MONOXIDE, an ODORLESS
and DEADLY GAS.

IMPORTANT

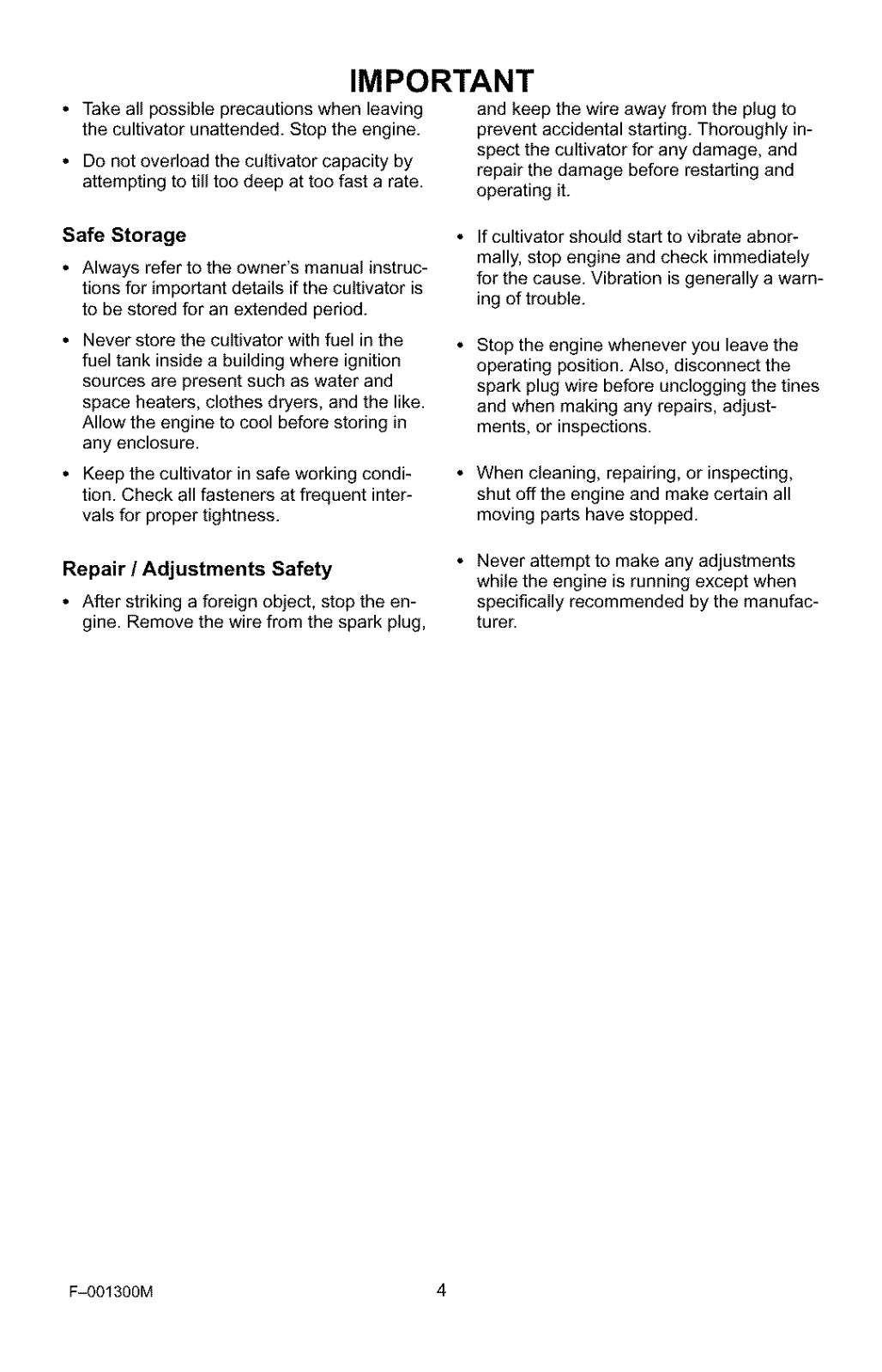

• Take all possible precautions when leaving and keep the wire away from the plug to
the cultivator unattended. Stop the engine, prevent accidental starting. Thoroughly in-

, Do not overload the cultivator capacity by spect the cultivator for any damage, and

attempting to till too deep at too fast a rate. operating it.

repair the damage before restarting and

Safe Storage

• Always refer to the owner's manual instruc-
tions for important details if the cultivator is
to be stored for an extended period.

• Never store the cultivator with fuel in the
fuel tank inside a building where ignition

sources are present such as water and
space heaters, clothes dryers, and the like.
Allow the engine to cool before storing in
any enclosure.

• Keep the cultivator in safe working condi-
tion. Check all fasteners at frequent inter-
vals for proper tightness.

Repair / Adjustments Safety

• After striking a foreign object, stop the en-
gine. Remove the wire from the spark plug,

If cultivator should start to vibrate abnor-
mally, stop engine and check immediately
for the cause. Vibration is generally a warn-

ing of trouble.

Stop the engine whenever you leave the
operating position. Also, disconnect the
spark plug wire before unclogging the tines
and when making any repairs, adjust-
ments, or inspections.

When cleaning, repairing, or inspecting,
shut offthe engine and make certain all
moving parts have stopped.

Never attempt to make any adjustments
while the engine is running except when
specifically recommended by the manufac-

turer

F=001300M 4

IMPORTANT

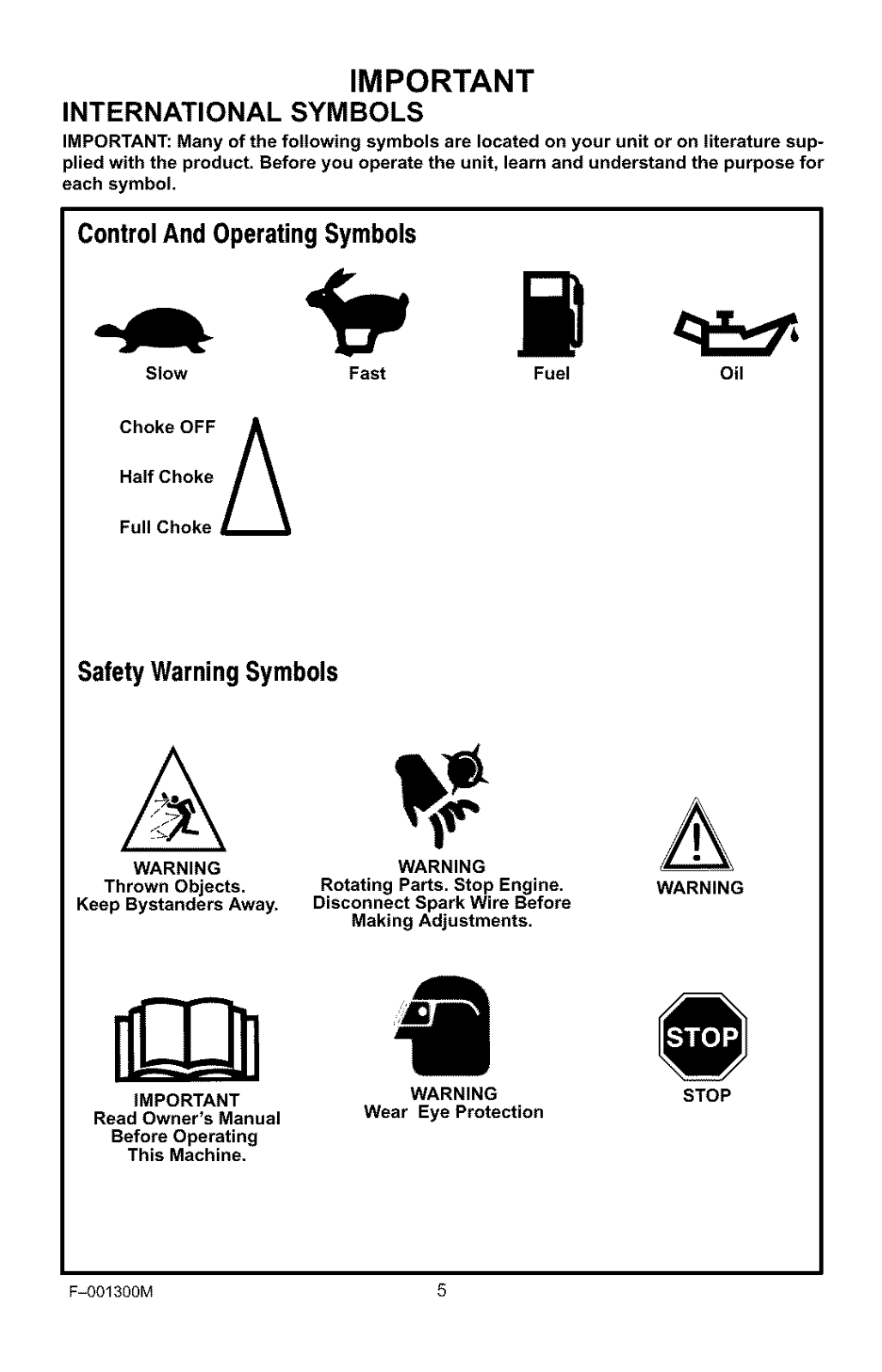

INTERNATIONAL SYMBOLS

IMPORTANT: Many of the following symbols are located on your unit or on literature sup-
plied with the product. Before you operate the unit, learn and understand the purpose for

each symbol.

Control And OperatingSymbols

Slow Fast Fuel Oil

Half Choke

Choke OFF A

Full Choke

Safety Warning Symbols

WARNING WARNING

Thrown Objects. Rotating Parts. Stop Engine. WARNING

Keep Bystanders Away. Disconnect Spark Wire Before

IMPORTANT WARNING STOP

Read Owner's Manual Wear Eye Protection

Before Operating

This Machine.

F-OO1300M 5

Making Adjustments.

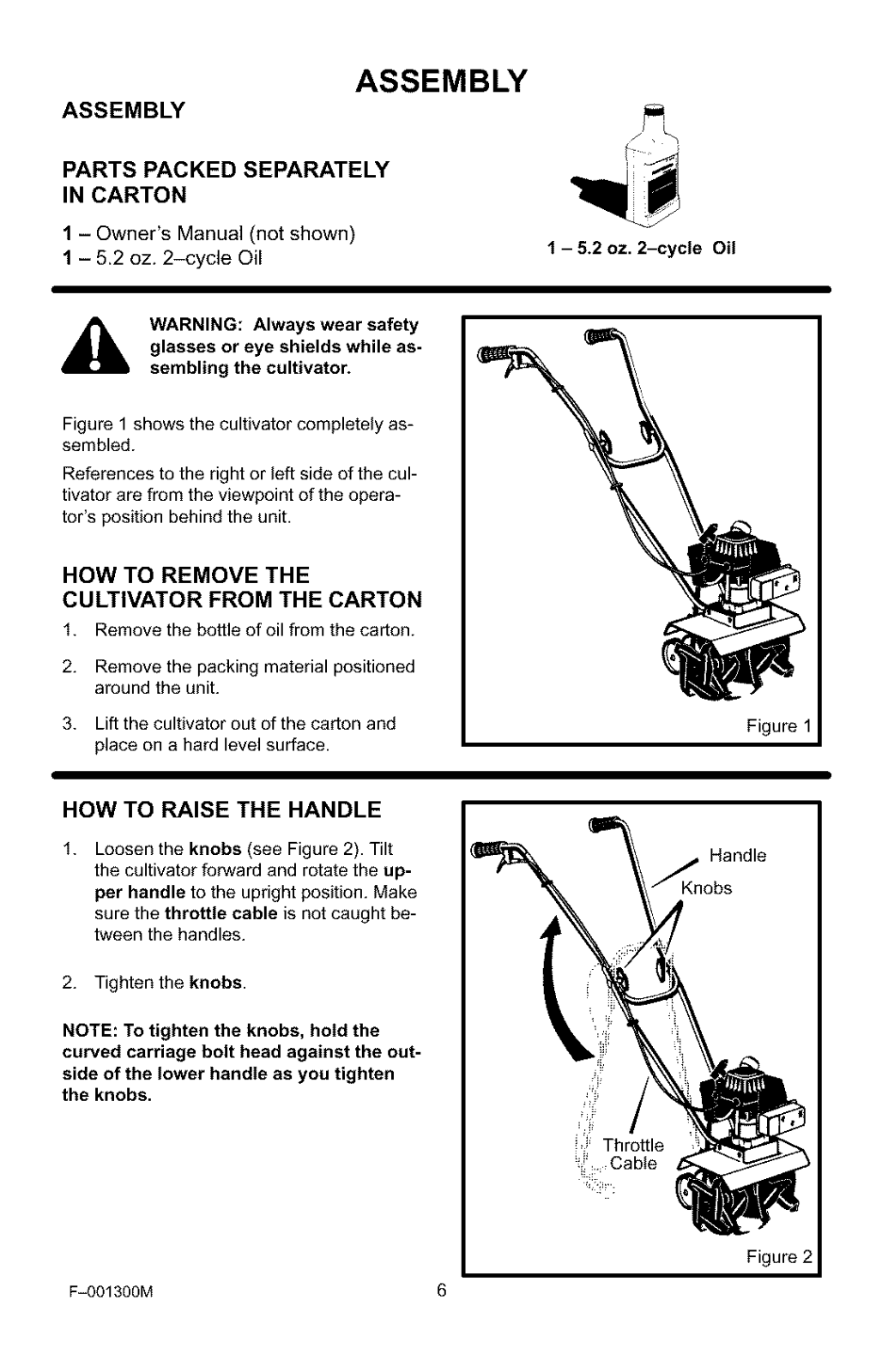

ASSEMBLY

ASSEMBLY

PARTS PACKED SEPARATELY
IN CARTON

1- Owner's Manual (not shown)
1- 5.2 oz. 2-cycle Oil

glasses or eye shields while as-

WARNING: Always wear safety
sembling the cultivator.

Figure 1 shows the cultivator completely as-

sembled.

References to the right or left side of the cul-

tivator are from the viewpoint of the opera-
tot's position behind the unit.

HOW TO REMOVE THE

CULTIVATOR FROM THE CARTON

1. Removethe bottle of oil from the carton.

2. Removethe packing materialpositioned
aroundthe unit.

3. Liftthe cultivator out of the carton and
place on a hard level surface.

HOW TO RAISE THE HANDLE

1. Loosen the knobs (see Figure 2). Tilt
the cultivator forward and rotate the up-

per handle to the upright position. Make
sure the throttle cable is not caught be-

tween the handles.

f - 5.2 oz. 2-cycle Oil

Figure 1

Handle

Knobs

2. Tighten the knobs.

NOTE: To tighten the knobs, hold the

curved carriage bolt head against the out-
side of the lower handle as you tighten

the knobs.

F=001300M 6

Figure 2

ASSEMBLY

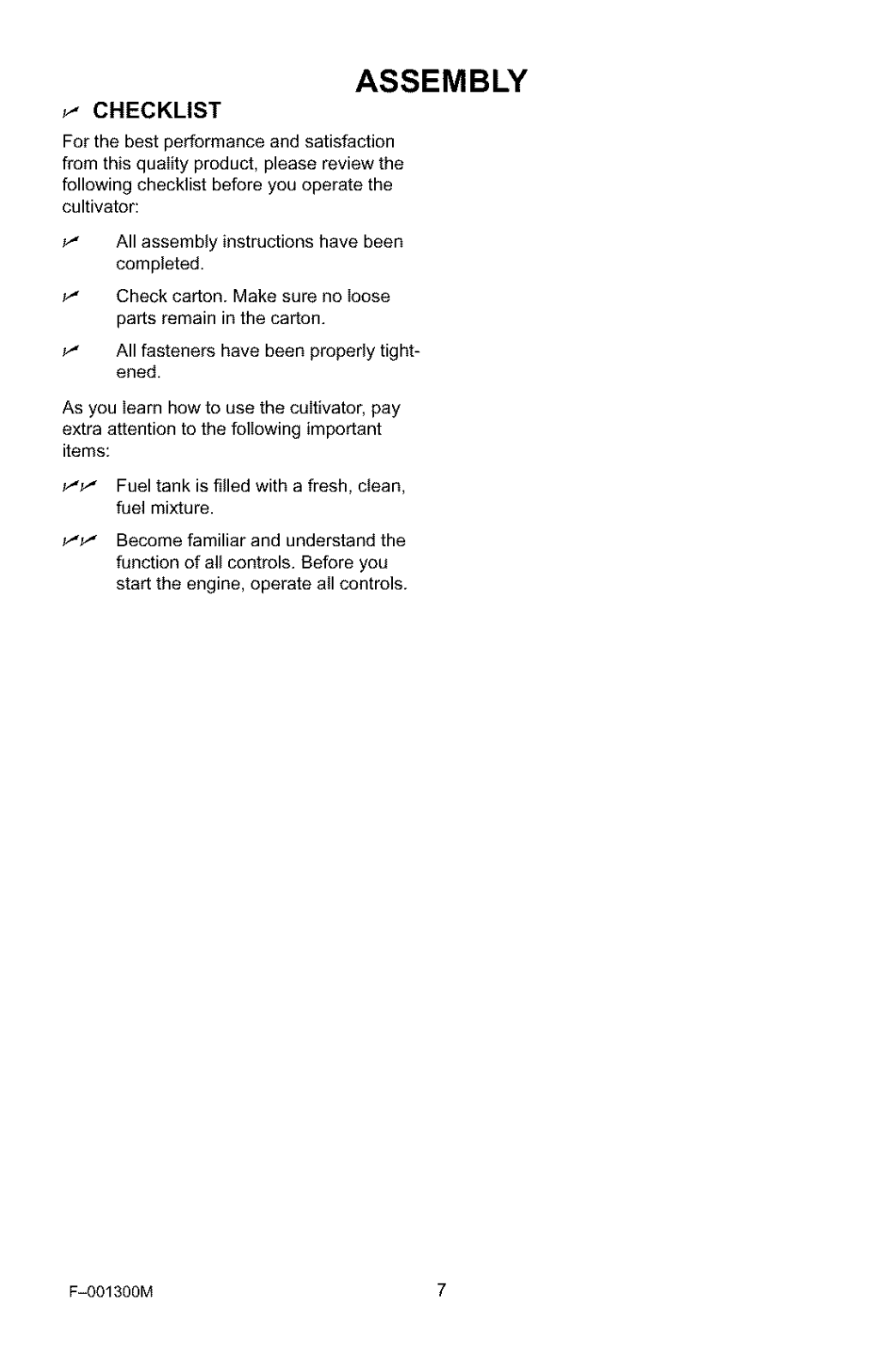

_." CHECKLIST

For the best performance and satisfaction

from this quality product, please review the
following checklist before you operate the

cultivator:
v" All assembly instructions have been

completed.

v" Check carton. Make sure no loose

parts remain in the carton.

v" All fasteners have been properly tight-

ened.

As you learn how to use the cultivator', pay
extra attention to the following important

items:

v'_" Fuel tank is filled with a fresh, clean,

fuel mixture.

v'_" Become familiar and understand the

function of all controls. Before you
start the engine, operate all controls.

F=001300M 7

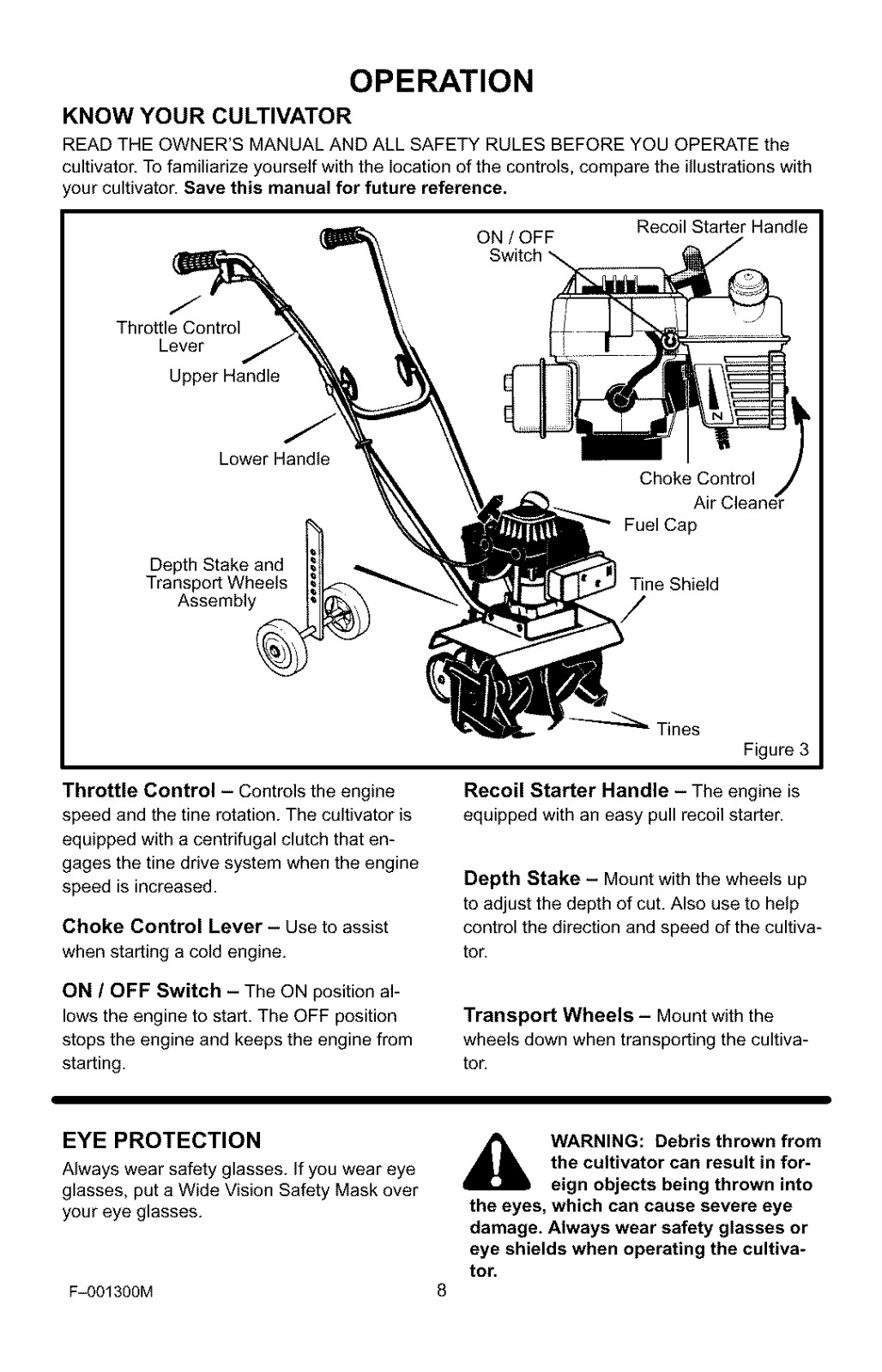

OPERATION

KNOW YOUR CULTIVATOR

READ THE OWNER'S MANUAL AND ALL SAFETY RULES BEFORE YOU OPERATE the

cultivator. To familiarize yourself with the Iocation of the controls, compare the illustrations with

our cultivator'. Save this manual for future reference.

ON / OFF

Switch

/

Throttle Control

Lever

Upper Handle

Recoil Starter Handle

Lower Handle

Assembly_

Throttle Control i Controls the engine
speed and the tine rotation. The cultivator is
equipped with a centrifugal clutch that en-

gages the tine drive system when the engine
speed is increased.

Choke Control Lever - Use to assist
when starting a cold engine.

ON / OFF Switch - The ON position al-

lows the engine to start. The OFF position

stops the engine and keeps the engine from
starting.

Choke Control

Fuel Cap

Tine Shield

Tines

Figure 3

Recoil Starter Handle - The engine is

equipped with an easy pull recoil starter.

Depth Stake - Mount with the wheels up

to adjust the depth of cut. Also use to help
control the direction and speed of the cultiva-
tor.

Transport Wheels i Mount with the
wheels down when transporting the cultiva-

tor.

EYE PROTECTION

Always wear safety glasses. If you wear eye
glasses, put a Wide Vision Safety Mask over

your eye glasses.

F-001300M

the cultivator can result in for-
WARNING: Debris thrown from

eign objects being thrown into

the eyes, which can cause severe eye
damage. Always wear safety glasses or

eye shields when operating the cultiva-
tor.

OPERATION

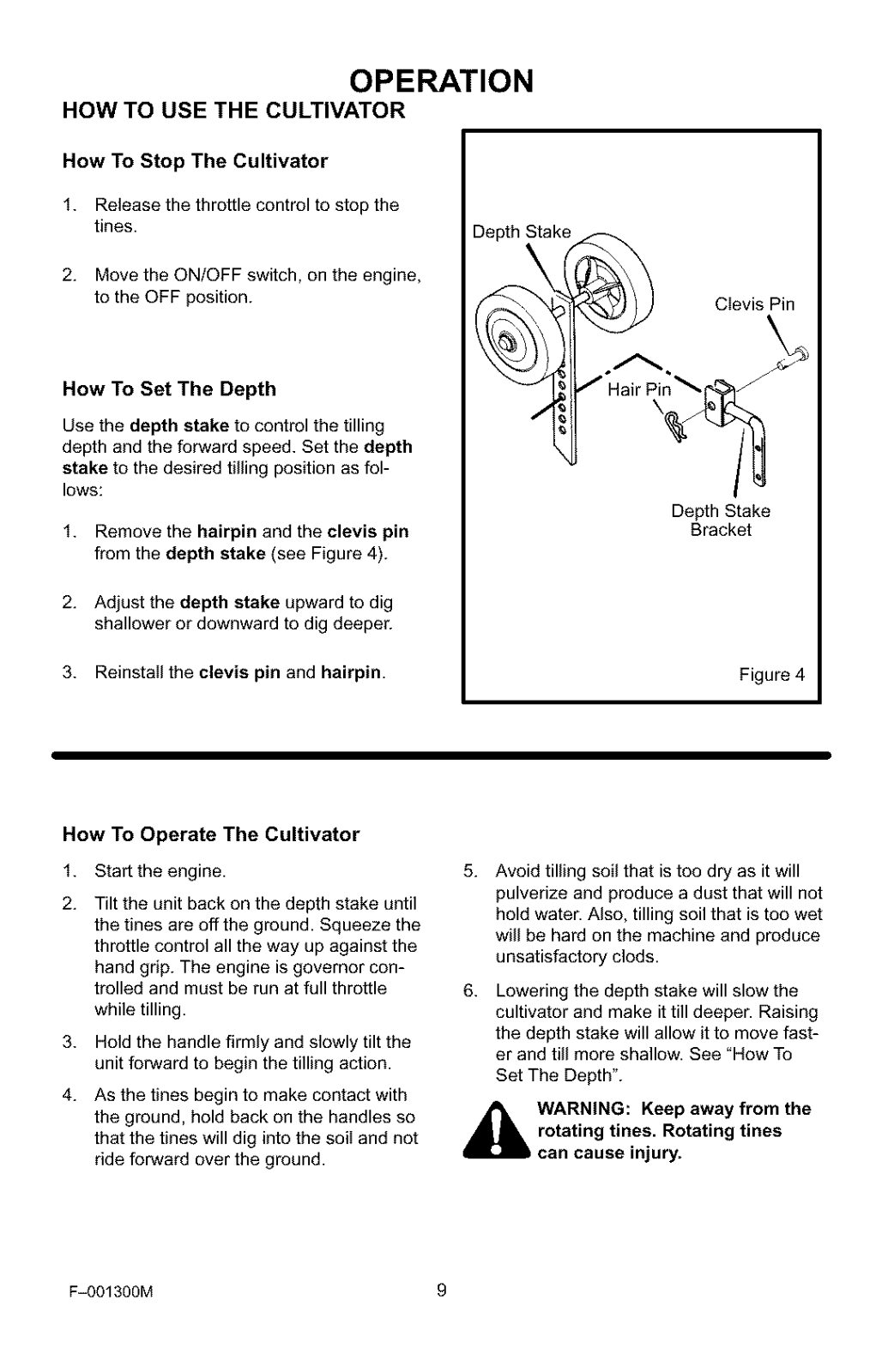

HOW TO USE THE CULTIVATOR

How To Stop The Cultivator

1. Release the throttle control to stop the
tines.

2. Move the ON/OFF switch, on the engine,

to the OFF position.

How To Set The Depth

Use the depth stake to control the tilling
depth and the forward speed. Set the depth
stake to the desired tilling position as fol-

lows:

1. Remove the hairpin and the clevis pin
from the depth stake (see Figure 4).

2. Adjust the depth stake upward to dig
shallower or downward to dig deeper.

Depth Stake

Clevis Pin

Depth Stake

Bracket

3. Reinstall the clevis pin and hairpin.

How To Operate The Cultivator

1. Start the engine.

2. Tilt the unit back on the depth stake until

the tines are offthe ground. Squeeze the
throttle control all the way up against the

hand grip. The engine is governor con-

trolled and must be run at full throttle
while tilling.

3. Hold the handle firmly and slowly tilt the
unit forward to begin the tilling action.

4. As the tines begin to make contact with

the ground, hold back on the handles so
that the tines will dig into the soiI and not

ride forward over the ground.

F-001300M 9

Figure 4

5. Avoid tilling soil that is too dry as it will
pulverize and produce a dust that will not

hold water'. Also, tilling soil that is too wet

will be hard on the machine and produce

unsatisfactory clods.

6. Lowering the depth stake will slow the
cultivator and make it till deeper'. Raising

the depth stake will allow it to move fast-

er and till more shallow. See "How To
Set The Depth".

_ ARNING: Keep away from the

rotating tines. Rotating tines

can cause injury.

OPERATION

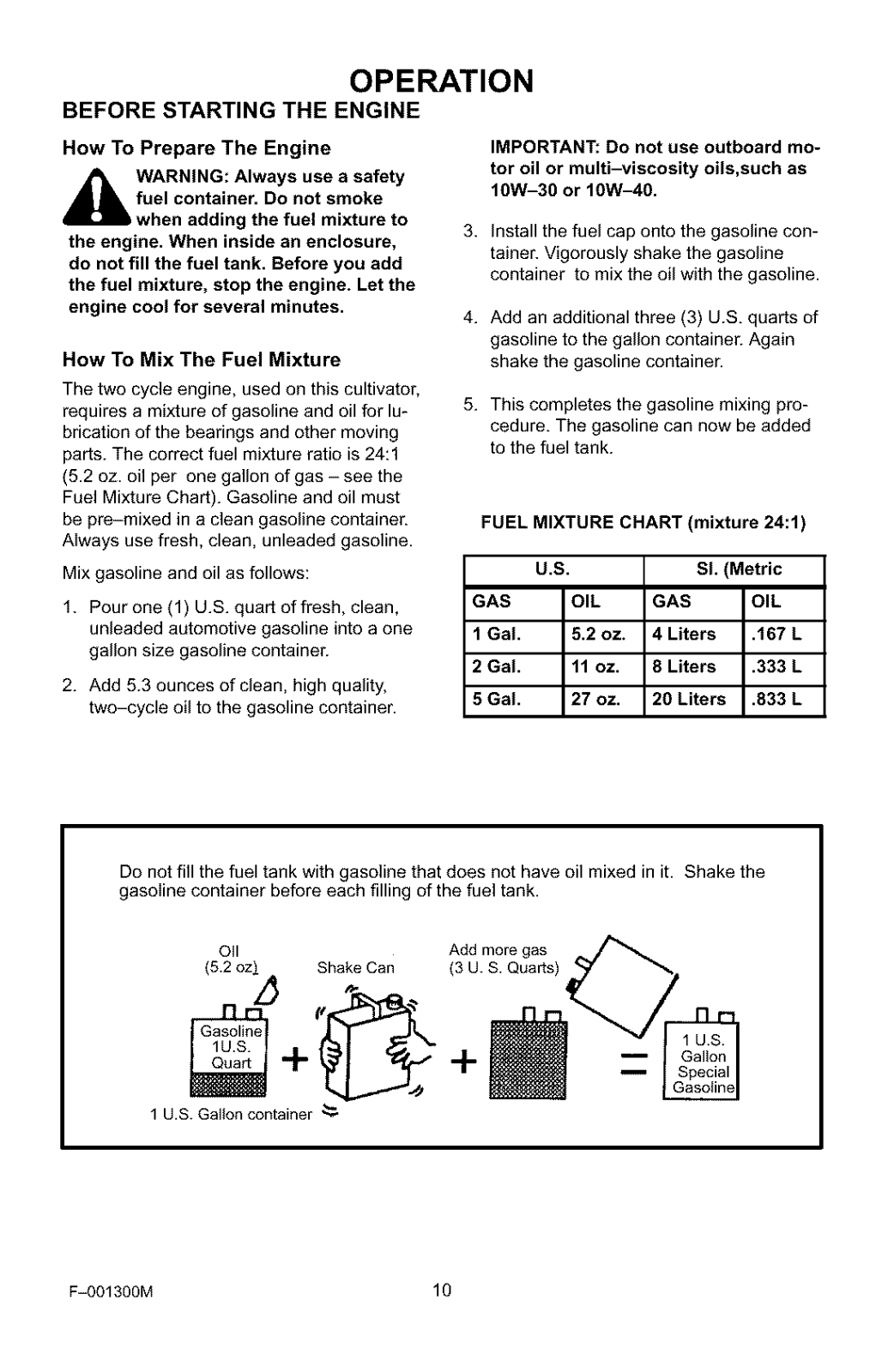

BEFORE STARTING THE ENGINE

How To Prepare The Engine

A WARNING: Always use a safety

_when adding the fuel mixture to

How To Mix The Fuel Mixture

The two cycle engine, used on this cultivator,

requires a mixture of gasoline and oil for lu-
brication of the bearings and other moving

parts. The correct fuel mixture ratio is 24:1

(5.2 oz. oil per one gallon of gas - see the

Fuel Mixture Chart). Gasoline and oil must
be pre-mixed in a clean gasoline container.

Always use fresh, clean, unleaded gasoline.

Mix gasoline and oil as follows:

1. Pour one (1) U.S. quart of fresh, clean,

2. Add 5.3 ounces of clean, high quality,

fuel container. Do not smoke

the engine. When inside an enclosure,
do not fill the fuel tank. Before you add

the fuel mixture, stop the engine. Let the
engine cool for several minutes.

unleaded automotive gasoline into a one
gallon size gasoline container.

two-cycle oil to the gasoline container.

IMPORTANT: Do not use outboard mo-

tor oil or multi-viscosity oils,such as

10W-30 or 10W-40.

3.

install the fuel cap onto the gasoline con-

tainer. Vigorously shake the gasoline
container to mix the oil with the gasoline.

4.

Add an additional three (3) U.S. quarts of
gasoline to the gallon container. Again

shake the gasoline container.

5.

This completes the gasoline mixing pro-
cedure. The gasoline can now be added

to the fuel tank.

FUEL MIXTURE CHART (mixture 24:1)

U.S. Sl. (Metric

GAS OIL GAS OIL

1 Gal. 5.2 oz. 4 Liters .167 L

2 Gal. 11 oz. 8 Liters .333 L
5 Gal. 27 oz. 20 Liters .833 L

Do not fill the fuel tank with gasoline that does not have oil mixed in it. Shake the

gasoline container before each filling of the fuel tank.

(5.2 ozI Shake Can (3 U.S. Quarts)

Ol, /

Add moregas

+ +

1 U.S. Gallon container '_

F-001300M 10

OPERATION

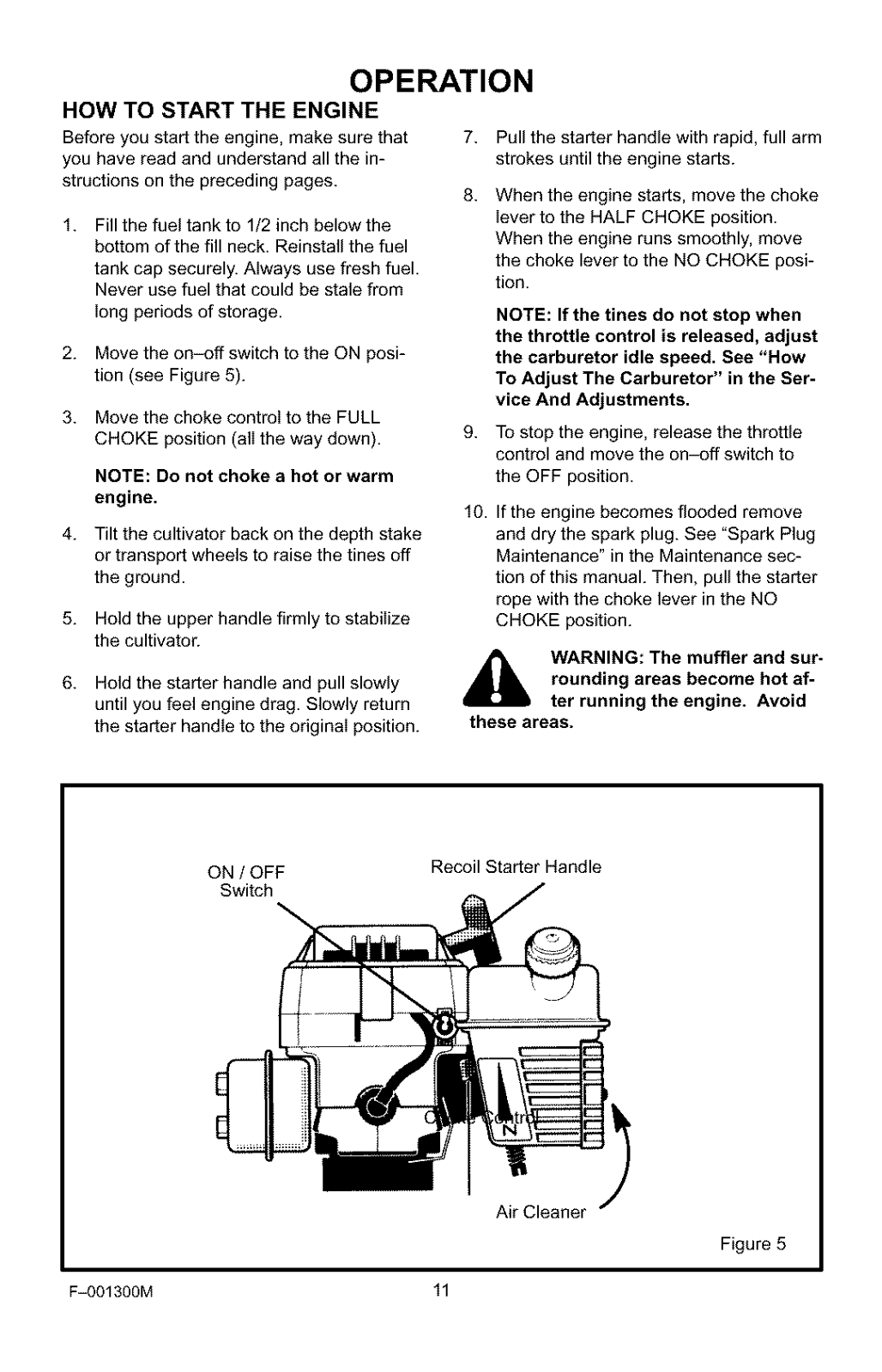

HOW TO START THE ENGINE

Before you start the engine, make sure that

you have read and understand all the in-
structions on the preceding pages.

1. Fill the fuel tank to 1/2 inch below the
bottom of the fill neck. Reinstall the fuel

tank cap securely. AIways use fresh fuel.

Never use fuel that could be stale from
iong periods of storage.

2. Move the on-off switch to the ON posi-
tion (see Figure 5).

3. Move the choke controI to the FULL

CHOKE position (ali the way down).

NOTE: Do not choke a hot or warm
engine.

4. Tilt the cultivator back on the depth stake

or transport wheels to raise the tines off

the ground.

5. Hold the upper handle firmly to stabiiize
the cultivator.

7. Pull the starter handle with rapid, full arm
strokes until the engine starts.

8.

When the engine starts, move the choke

Iever to the HALF CHOKE position.

When the engine runs smoothly, move
the choke lever to the NO CHOKE posi-

tion.

NOTE: If the tines do not stop when

the throttle control is released, adjust
the carburetor idle speed. See "How

To Adjust The Carburetor" in the Ser-
vice And Adjustments.

g.

To stop the engine, release the throttle

control and move the on-off switch to

the OFF position.

10.

If the engine becomes flooded remove
and dry the spark plug. See "Spark Plug

Maintenance" in the Maintenance sec-

tion of this manual. Then, pull the starter

rope with the choke lever in the NO
CHOKE position.

6. Hold the starter handle and pull slowly
until you feel engine drag. Slowly return

the starter handle to the original position.

ON / OFF

Switch

F-001300M

rounding areas become hot af-

WARNING: The muffler and sur-

these areas.

Recoil Starter Handle

11

ter running the engine. Avoid

Air Cleaner

Figure 5

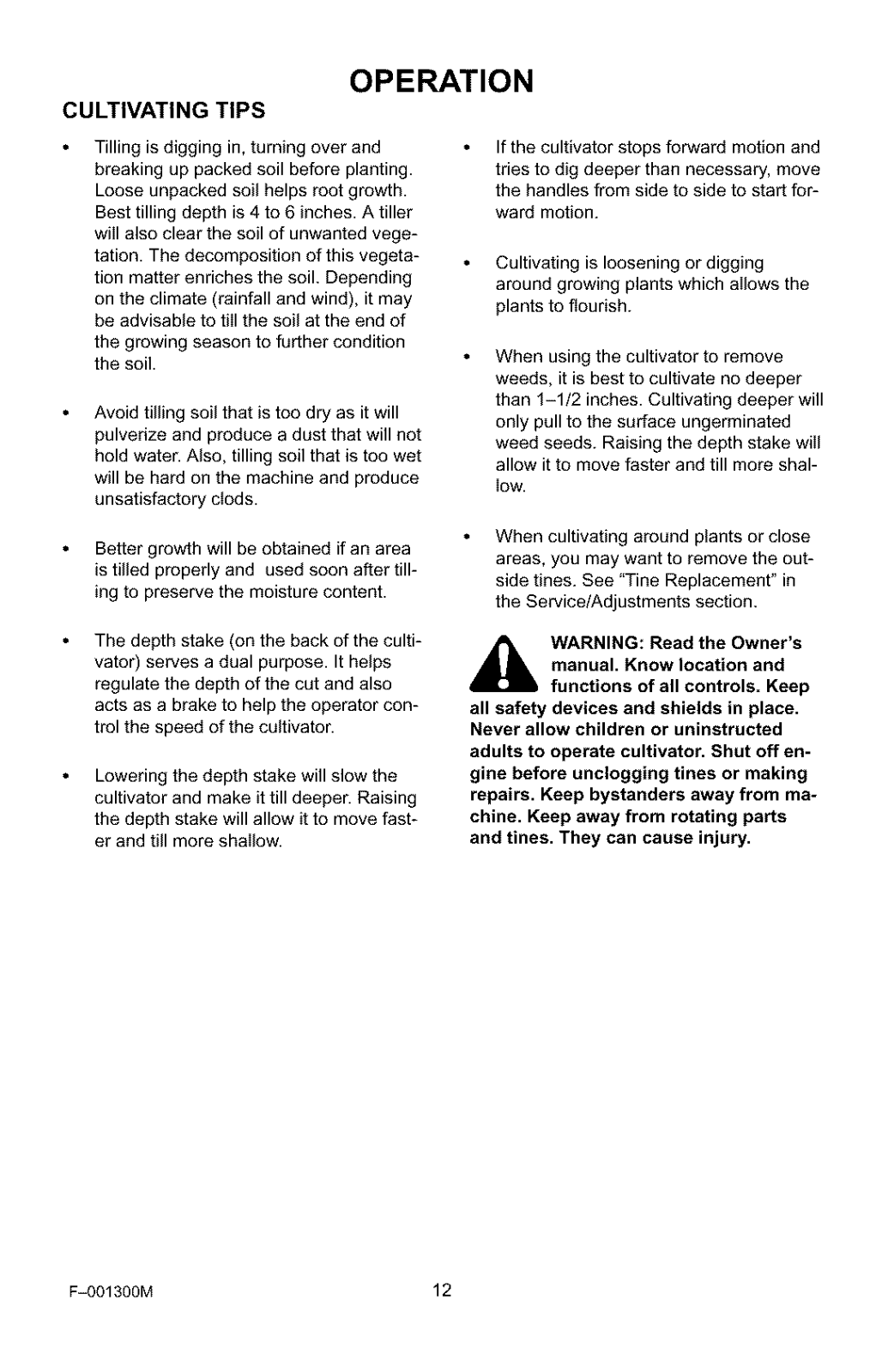

CULTIVATING TIPS

OPERATION

Tilling is digging in, turning over and

breaking up packed soil before planting.
Loose unpacked soil helps root growth.

Best tilling depth is 4 to 6 inches. A tiller

wiII also clear the soil of unwanted vege-
tation. The decomposition of this vegeta-

tion matter enriches the soil. Depending

on the climate (rainfall and wind), it may
be advisable to tilI the soil at the end of

the growing season to further condition
the soil.

Avoid tilling soil that is too dry as it will

pulverize and produce a dust that will not
hold water. Also, tilling soil that is too wet

will be hard on the machine and produce

unsatisfactory clods.

Better growth will be obtained if an area
is tilled properly and used soon after till-

ing to preserve the moisture content.

The depth stake (on the back of the culti-
vato o serves a dual purpose. It helps

regulate the depth of the cut and also
acts as a brake to help the operator con-

trol the speed of the cultivator.

Lowering the depth stake will slow the
cultivator and make it till deeper'. Raising

the depth stake will allow it to move fast-

er and till more shallow.

If the cultivator stops forward motion and

tries to dig deeper than necessary, move
the handles from side to side to start for-

ward motion.

Cultivating is loosening or digging
around growing plants which allows the

plants to flourish.

When using the cultivator to remove
weeds, it is best to cultivate no deeper

than 1-1/2 inches. Cultivating deeper will

only pull to the surface ungerminated

weed seeds. Raising the depth stake wilI

allow it to move faster and till more shal-
low.

When cultivating around piants or close

areas, you may want to remove the out-
side tines. See "Tine Replacement" in

the Service/Adjustments section.

manual. Know location and
WARNING: Read the Owner's

functions of all controls. Keep

all safety devices and shields in place.

Never allow children or uninstructed

adults to operate cultivator. Shut off en-
gine before unclogging tines or making

repairs. Keep bystanders away from ma-

chine. Keep away from rotating parts
and tines. They can cause injury.

F-OO1300M 12

MAINTENANCE

CUSTOMER RESPONSIBILITIES

SERVICE RECORDS After

Fill in dates as you Before First Every Every Before

complete regular Each 2 25 75 Before Each SERVICE

service. Use Hours Hours Hours Storage Season DATES

TightenAI] Screws and I I I I I I

Nuts N/ N/ ....

Lubricate Tine Shaft

Check Spark Plug

Clean and Oil Air Cleaner ' '
Filter • N _] • •

Clean Cylinder Exhaust
Ports

Drain Fuel " " " " " _/ " "

I I i i

PRODUCT SPECIFICATIONS

Model No.: 536.292521
Date Of Purchase:
Horse Power: 2

Displacement: 3.0 cu. in.

(49.2 cc.)

Gasoline Capacity: 20 oz.
Fuel/Oil Mix Ratio: 24:1 Oil To Gas

(5.3 oz. oil to 1 gal. gas
(use unleaded regular)

Spark Plug: Champion

RCJ-6Y

Spark Plug Gap: 0.035 inch
Idle RPM: 1700-3000

F-OO1300M 13

GENERAL RECOMMENDATIONS

The warranty on this cultivator does not cov-
er items that have been subjected to opera-

tor abuse or negligence. To receive full value
from the warranty, the operator must main-

tain the cultivator as instructed in this

manual.

Some adjustments must be made periodical-

ly to properly maintain your cultivator.

All adjustments in the Service and Adjust-

ments section of this manual must be

checked at least once each season.

MAINTENANCE

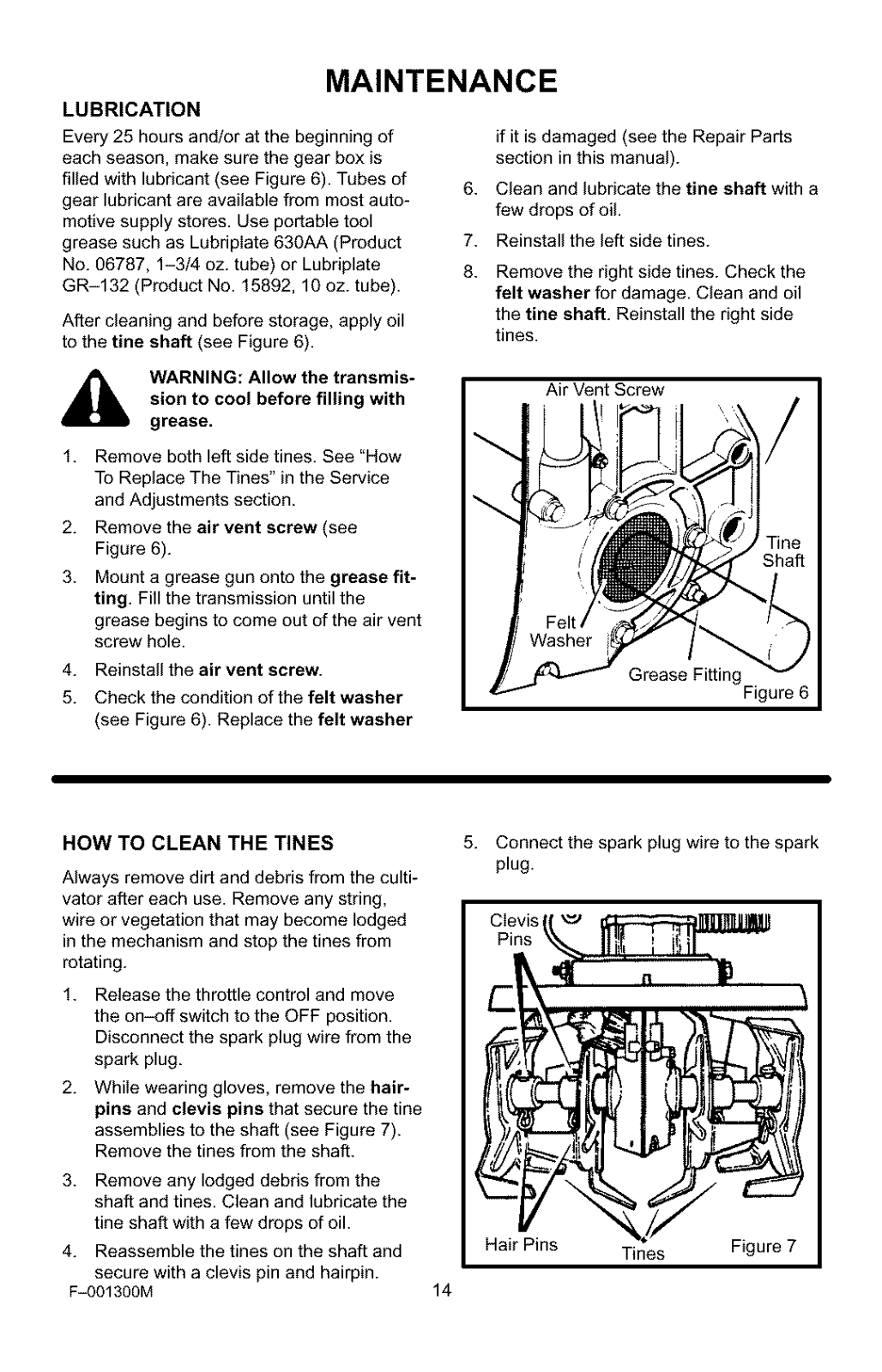

LUBRICATION

Every 25 hours and/or at the beginning of

each season, make sure the gear box is
filled with lubricant (see Figure 6). Tubes of

gear lubricant are available from most auto-

motive supply stores. Use portable tool

grease such as Lubriplate 630AA (Product

No. 06787, 1-3/4 oz. tube) or Lubdplate

GR-132 (Product No. 15892, 10 oz. tube).
After cleaning and before storage, apply oil

to the tine shaft (see Figure 6).

if it is damaged (see the Repair Parts
section in this manual).

6. Clean and lubricate the tine shaft with a
few drops of oil.

7. Reinstall the left side tines.

8. Remove the right side tines. Check the
felt washer for damage. Clean and oil
the tine shaft. Reinstall the right side

tines.

_1_ ARNING: Allow the transmis-

1. Remove both left side tines. See "How

2. Remove the air vent screw (see

3. Mount a grease gun onto the grease fit-

4. Reinstall the air vent screw.

5. Check the condition of the felt washer

sion to cool before filling with
grease.

To Replace The Tines" in the Service

and Adjustments section.

Figure 6).

ting. Fill the transmission until the

grease begins to come out of the air vent
screw hole.

(see Figure 6). Replace the felt washer

HOW TO CLEAN THE TINES

Always remove dirt and debris from the culti-
vator after each use. Remove any string,

wire or vegetation that may become lodged

in the mechanism and stop the tines from
rotating.

f. Release the throttle control and move

the on-off switch to the OFF position.

Disconnect the spark plug wire from the
spark plug.

2. While wearing gloves, remove the hair-
pins and clevis pins that secure the tine

assemblies to the shaft (see Figure 7).
Remove the tines from the shaft.

3. Remove any lodged debris from the
shaft and tines. Clean and lubricate the

tine shaft with a few drops of oil.

4. Reassemble the tines on the shaft and
secure with a clevis pin and hairpin.

F_001300M

Air Vent Screw

-%

Grease Fitting

5. Connect the spark plug wire to the spark
plug.

Hair Pins

14

Tines

Figure 7

Figure 6

MAINTENANCE

SPARK PLUG

Check the spark plug every 25 hours. Re-

place the spark plug if the electrodes are
pitted or burned or if the porcelain is

cracked.

1. Make sure the spark plug is clean.
Clean the spark plug by carefully scrap-

ing the electrodes (do not sand blast or
use a wire brush).

2. Check the spark plug gap with a feeler
gauge. See "Product Specifications" for

the correct spark plug gap and replace-

ment spark plug.

HOW TO CLEAN THE AIR FILTER

The engine uses a foam air filter that can be
cleaned and reused. Clean and oil the air

filter every 25 hours. Clean more often in
dusty conditions. Remove and clean the air

filter as follows:

CAUTION: Never run the engine without
the air filter installed. An air filter clogged

with dust can result in loss of engine

power and can cause excessive wear or

damage to the engine. If the air filter is
clogged, clean or replace immediately.

1. Disconnect the spark plug wire from the
spark plug.

2. Remove the screws from the air filter
cover (see Figure 9). Remove the air

filter cover and the air filter.

3. Wipe the cover and the inside of the air

filter housing with a clean cloth.

4. Clean the air filter in a solution of water
and household detergent. Rinse tho-

roughtly in clean water.

5. Wrap the air filter in a dry clean cloth.
Squeeze out (do not twist) all solution
until dry.

3. Before installing the spark plug, coat
the threads lightly with oil for easy re-

moval. Tighten the spark ptug to a torque
of 15 foot-pounds.

Feeler Gauge

0.035"

Spark Plug

Figure 8

6.

Cover the outside of the air filter with
oil. Use the same type of oil as used to

make the fuel mixture. Lightly squeeze

the air filter to distribute and remove

any excess oil.

7.

Put the clean air filter into the air filter

housing.

8.

Install the air filter cover and secure

with the screws as shown.

9.

Connect the spark plug wire to the spark
plug.

Air Fiiter

Filter Housing

Screw

Figure 9

CYLINDER EXHAUST PORTS

Clean the cylinder exhaust ports after every
75 hours of operation. For this procedure, we

recommend that you take your unit to a

Sears Service Center.

F-001300M 15

SERVICE AND ADJUSTMENT

HOW TO REMOVE AND INSTALL THE TINES

References to the right or left side of the cul-

tivator are from the viewpoint of the opera-
tor's position behind the unit.

All four tines are different and cannot be in-
terchanged. The tines must be correctly

installed or the cultivator will not function
propedy.

To till around plants or in small areas, the
outside tines can be removed to reduce the

tilIing width to approximately 7 inches.

sharpening and will become

WARNING: The tines are self
quite sharp from use. Handle

carefully.

The tines will all wear evenly. If the tines are

being replaced because of wear, we recom-
mend that all four tines be replaced at the

same time. To replace the tines, do the fol-

lowing:

Tine Removal

1. Put the on-off switch in the OFF posi-
tion.

2. Disconnect the spark plug wire from the
spark plug.

3. While wearing gloves, remove the hair-
pins and clevis pins that secure the tine

assemblies to the shaft (see Figure 10).
Remove the tines from one side of the

unit.

Tine Installation

1. Clean and lubricate the tine shaft with a
few drops of oil.

2. Place the inside tine on the tine shaft
and reinstall the clevis pin and hairpin.

3. When the tines are properly installed, the
Ietter R will be visible on the outside of

the right tine (see Figure 11). The letter

L will be visible on the outside of the left

tine.

Oil Drain Plug

,4 _- "_mP'-,_,-

r_ Figure 11

4.

Mount the outside tine on the tine shaft
and fasten with the clevis pin and hair-

pin (see Figure 10).

5.

The cutting tips on the outside tines all

bend in toward the inside tine. When as-
sembled correctly, the letter R on the

right side, or L on the left side, will be

visible from the outside of the unit.

Hair Pins Tines Figure 10

F-001300M 16

6. Repeat the above steps on the opposite
side of the unit.

NOTE: Make sure the tines are installed

on the correct side of the unit.

SERVICE AND ADJUSTMENT

HOW TO ADJUST THE CARBURETOR

A dirty air cleaner will cause the engine to

run improperly or to smoke excessively. Be-

fore adjusting the carburetor, make sure the
air cleaner is dean. Never make unneces-

sary adjustments to the carburetor'. The car-

buretor was set at the factory to operate

efficiently under most applications. However,

if adjustments are required, we recommend

you contact your nearest Sears Service Cen-
ter. If you feel that you are competent to

make carburetor adjustment proceed as foI-
lows.

_lb WARNING: Use extreme care

ning. Keep hands, feet, hair and loose
clothing away from all moving parts.

1. Turn the mixture adjustment screw

2. Turn the mixture adjustment screw

3. Start the engine and let it warm up for

4. If the engine runs erratically or stops af-

5. With the engine running, release the

6. Slowly turn the mixture adjustment

7. Then, slowly turn the mixture adjustment

when making adjustments that

require the engine to be run-

clockwise to until closed (see Figure 12).
IMPORTANT: To prevent damage to

the carburetor or to the adjusting

screw, tighten the adjustment screws

with your fingers.

counterclockwise one turn.

approximately 3 to 5 minutes. Do not ad-

just the carburetor when the engine is

cold.

ter the choke lever is moved to the

CHOKE OFF position, then open the
mixture adjustment screw an addition-

al 1/8 turn counterclockwise.

throttle control (idle position) to make the

mixture adjustments.

screw clockwise until the engine begins

to run erratically. Note this position.

screw countercIockwise until the engine
again begins to run erraticaliy. Note this

position.

8.

Turn the mixture adjusting screw clock-
wise until it is halfway between the first

_osition and the second position.

9.

Check the engine idle speed. Start the
engine and release the throttle control. If

the tines do not turn with the throttle con-
troI is released, the idle speed is correct.

If the tines turn with the throttle control is
released, adjust the engine idle speed as

follows.

10.

Have someone tilt the cultivator back on
its depth stake so that the tines are off

the ground.

11.

Start the engine.

12.

With the throttle in the released (idle

position), turn the idle speed adjust-
ment screw counterclockwise until the

tines stop rotating.

_lb WARNING: The engine gover-

Over speeding the engine above the fac-
tory setting can be dangerous. If you

think the engine governor needs an ad-
justment, contact your nearest Sears

Service Center.

Adjustment Screw

Engine Shown With Air Filter Removed

nor is set at the factory. Do not
change the governor setting.

Mixture

Idle Speed Adjustment Screw

Figure 12

F-001300M 17

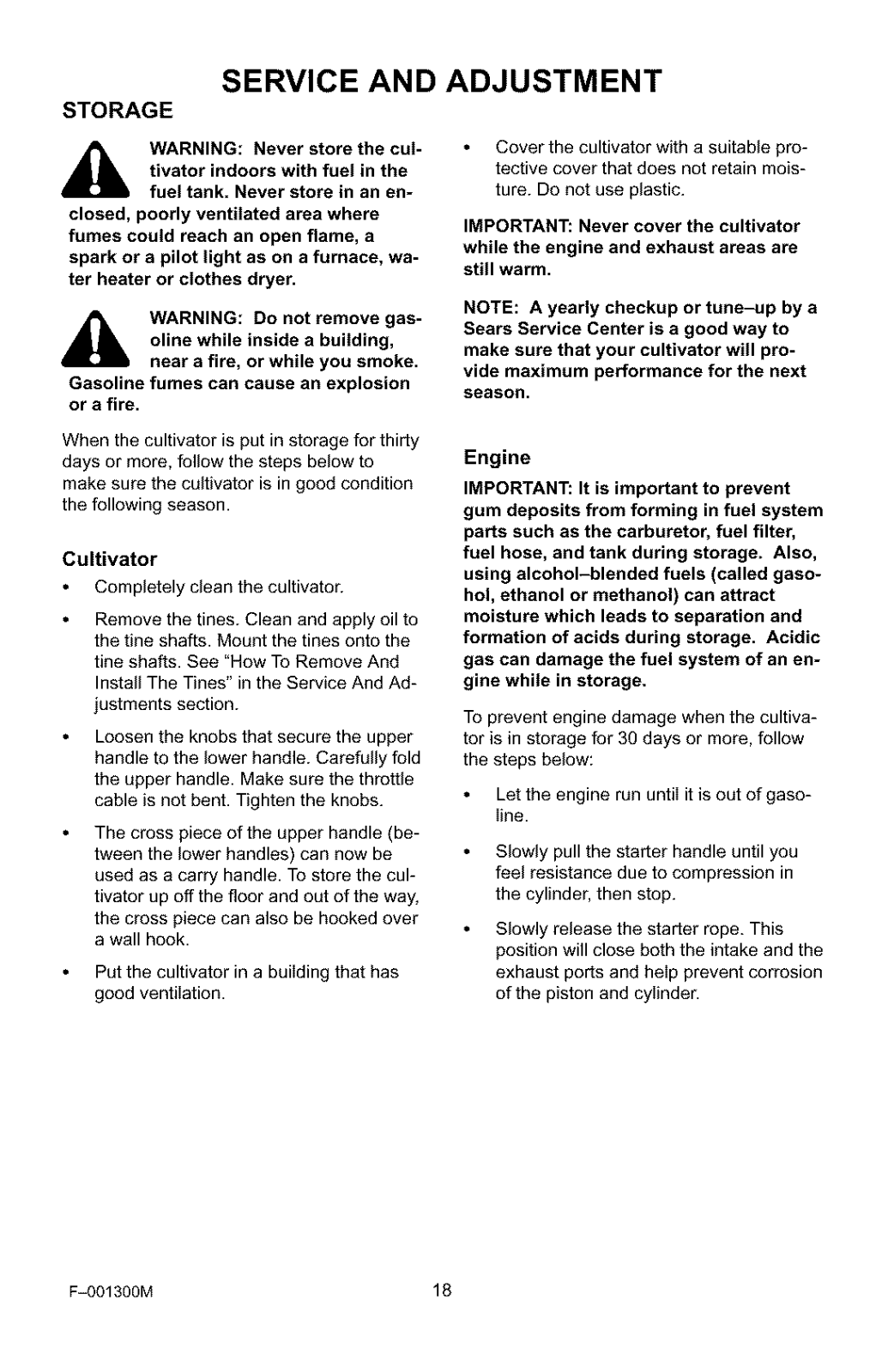

SERVICE AND ADJUSTMENT

STORAGE

_lb ARNING: Never store the cul-

closed, poorly ventilated area where
fumes could reach an open flame, a

spark or a pilot light as on a furnace, wa-
ter heater or clothes dryer.

_lb ARNING: Do not remove gas-

Gasoline fumes can cause an explosion
or a fire.

When the cultivator is put in storage for thirty
days or more, follow the steps below to

make sure the cultivator is in good condition

the following season.

Cultivator

tivator indoors with fuel in the
fuel tank. Never store in an en-

oline while inside a building,
near a fire, or while you smoke.

Completely dean the cultivator.
Remove the tines. Clean and apply oil to

the tine shafts. Mount the tines onto the
tine shafts. See "How To Remove And

Install The Tines" in the Service And Ad-

justments section.

Loosen the knobs that secure the upper
handle to the lower handle. Carefully fold

the upper handle. Make sure the throttle

cable is not bent. Tighten the knobs.

The cross piece of the upper handle (be-
tween the lower handles) can now be

used as a carry handle. To store the cul-

tivator up off the floor and out of the way,
the cross piece can also be hooked over

a wall hook.
Put the cultivator in a building that has

good ventilation.

Cover the cultivator with a suitable pro-

tective cover that does not retain mois-
ture. Do not use plastic.

IMPORTANT: Never cover the cultivator

while the engine and exhaust areas are
still warm.

NOTE: A yearly checkup or tune-up by a

Sears Service Center is a good way to

make sure that your cultivator will pro-

vide maximum performance for the next

season.

Engine

IMPORTANT: It is important to prevent

gum deposits from forming in fuel system

parts such as the carburetor, fuel filter,

fuel hose, and tank during storage. Also,

using alcohol-blended fuels (called gaso-
hol, ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic
gas can damage the fuel system of an en-

gine while in storage.

To prevent engine damage when the cultiva-
tor is in storage for 30 days or more, follow
the steps below:

Let the engine rununtil it is out of gaso-
line.

Slowly pull the starter handle until you

feel resistance due to compression in
the cylinder, then stop.

Slowly release the starter rope. This
position will close both the intake and the

exhaust ports and help prevent corrosion
of the piston and cylinder.

F-OO1300M 18

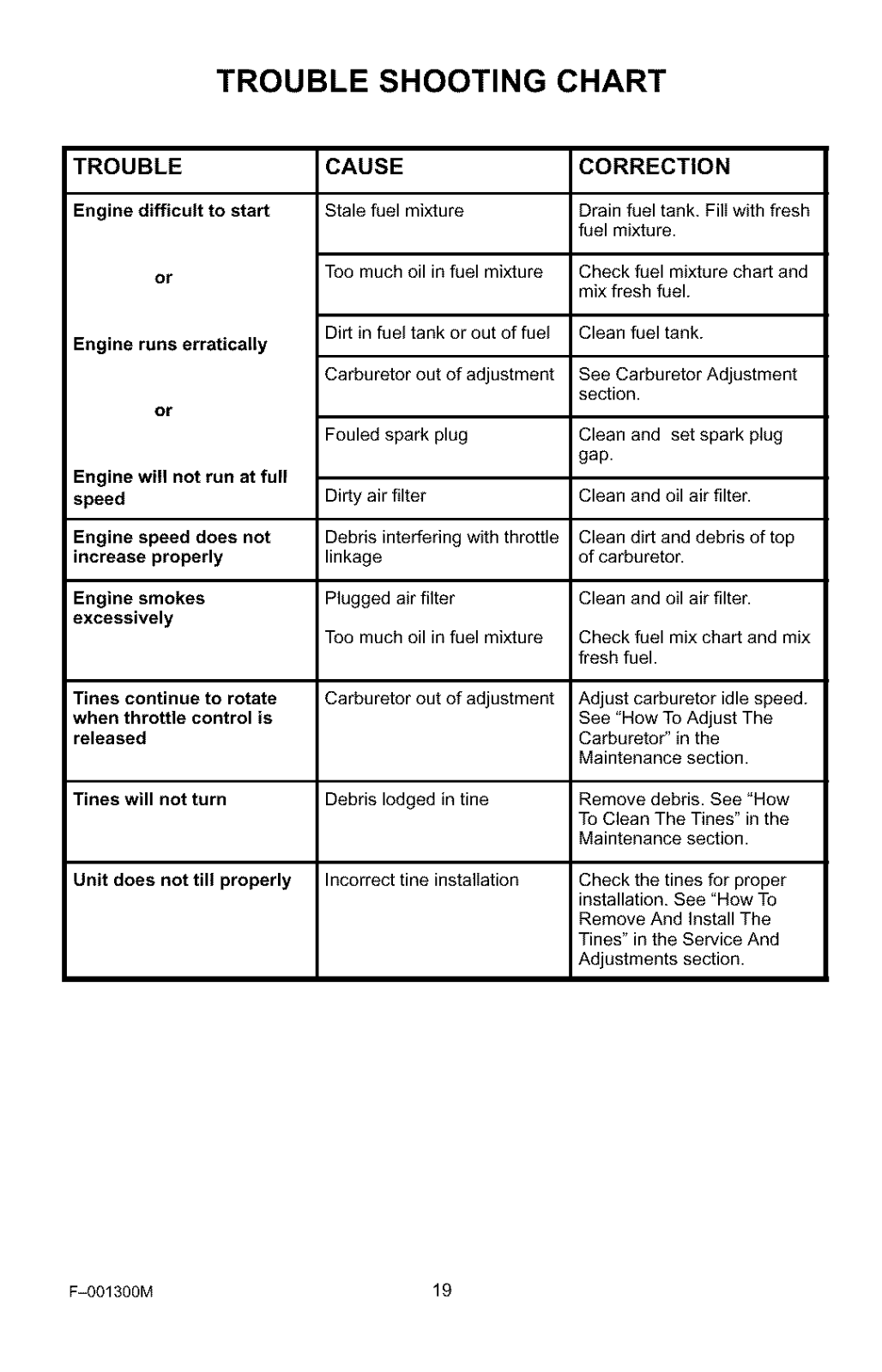

TROUBLE SHOOTING CHART

TROUBLE

Engine difficult to start

or

Engine runs erratically

or

Engine will not run at full
speed

Engine speed does not
increase properly

Engine smokes
excessively

Tines continue to rotate
when throttle control is

released

Tines will not turn

CAUSE

Stale fuel mixture

Too much oil in fuel mixture

Dirt in fuel tank or out of fuel

Carburetor out of adjustment

Fouled spark plug

Dirty air filter

Debris interfering with throttle
linkage

Plugged air filter

Too much oil in fuel mixture

Carburetor out of adjustment

Debris lodged in tine

CORRECTION

Drain fuel tank. FilI with fi'esh
fuel mixture.

Check fuel mixture chart and
mix fresh fuel.

Clean fuel tank.

See Carburetor Adjustment
section.

Clean and set spark plug
gap.

Clean and oil air filter.

Clean dirt and debris of top
of carburetor.

Clean and oil air filter.
Check fuel mix chart and mix

fresh fuel.

Adjust carburetor idle speed.
See "How To Adjust The

Carburetor" in the
Maintenance section.

Remove debris. See "How
To Clean The Tines" in the
Maintenance section.

Unit does not till properly Incorrect tine instalIation

F=001300M 19

Check the tines for proper
installation. See "How To

Remove And Install The
Tines" in the Service And
Adjustments section.

CRAFTSMAN 536.292521 REPAIR PARTS

10

KEY

NO. DESCRIPTION PARTNO.

10 Engine 143.002072 2.0HP

11 Flat washer 56694
12 Rotor 335350
13 Washer 120380

F=OO1300M 20

323392C

KEY

NO. DESCRIPTION PARTNO.

14 Screw 180042

17 Cable, Throttle 319306

-- Instruction Manual F-OO1300M

CRAFTSMAN 536.292521 REPAIR PARTS

310

300

KEY

NO. DESCRIPTION
300 Transmission

310 Bracket, Depth Rod
311 Screw, 1/4-20xl.25

312 Nut, 1/4-20

F-OO1300M 21

318848C

PARTNO.
740061

340550

180024

782585

CRAFTSMAN 536.292521 REPAIR PARTS

482

4814_

496

496

KEY

NO. DESCRIPTION PART NO.

480 Shield, Tine 309073-848

481 Screw, 1/4-20x5.00 273869

482 Flat washer 120392

483 Nut, 1/4-20 46931

490 Washer, Felt 56158

491 Tine Assy. Inner LH 56157-853

492 Tine Assy. Outer LH 56155_53

F=001300M 22

318849c

KEY

NO. DESCRIPTION PARTNO.

493 Tine Assy. Inner RH 56156_53

494 Tine Assy. Outer RH 56154-853
495 Clevis Pin 56123

496 Hair Pin 56180

-- Decal, Caution 320711

-- Decal, Tine Shield 712457

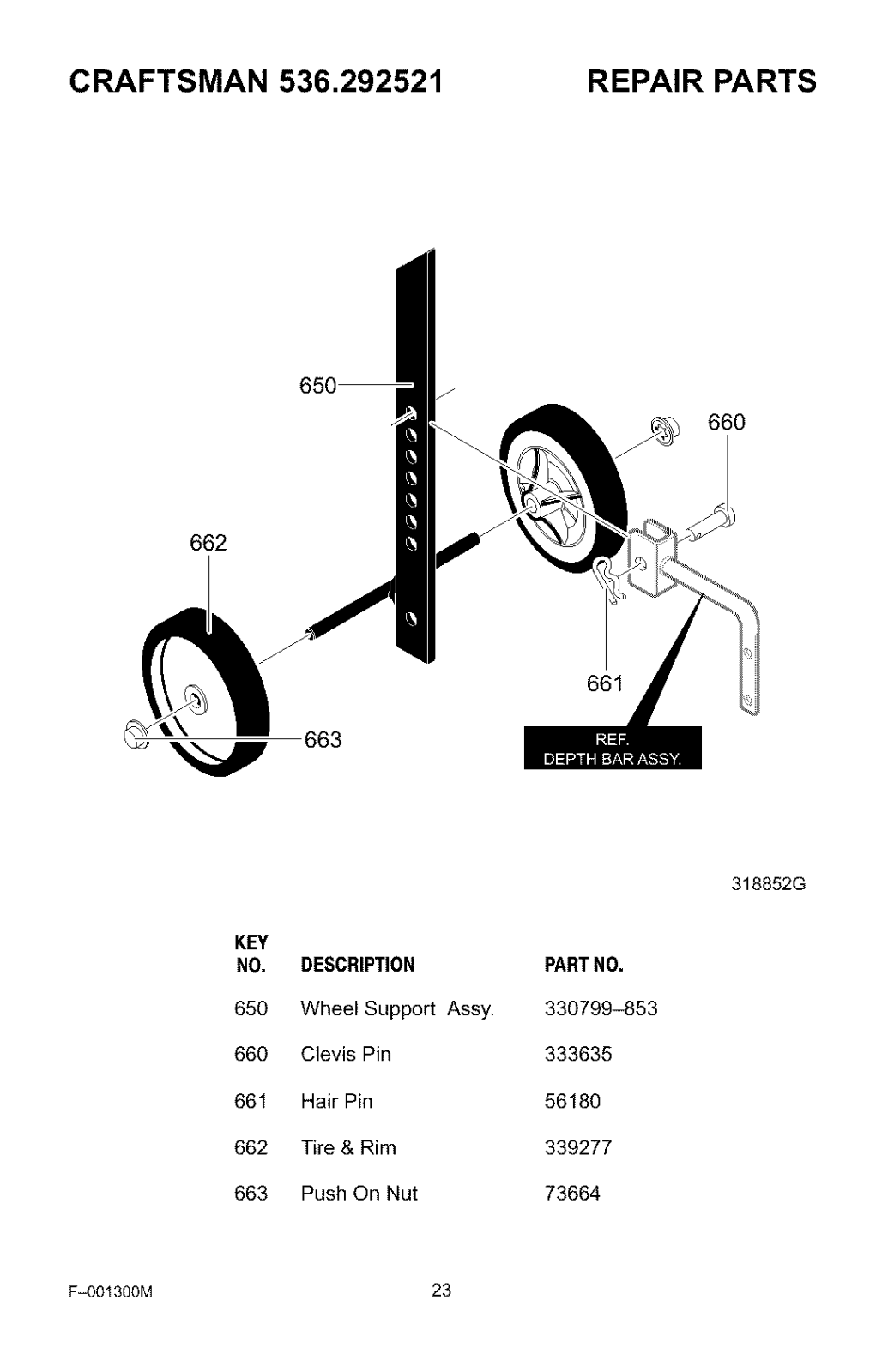

CRAFTSMAN 536.292521 REPAIR PARTS

66O

J

662

661

663

KEY

NO. DESCRIPTION

650 Wheel Support Assy.
660 Clevis Pin

661 Hair Pin

662 Tire & Rim

663 Push On Nut

F=OO1300M 23

318852G

PARTNO.
330799-853

333635

56180

339277

73664

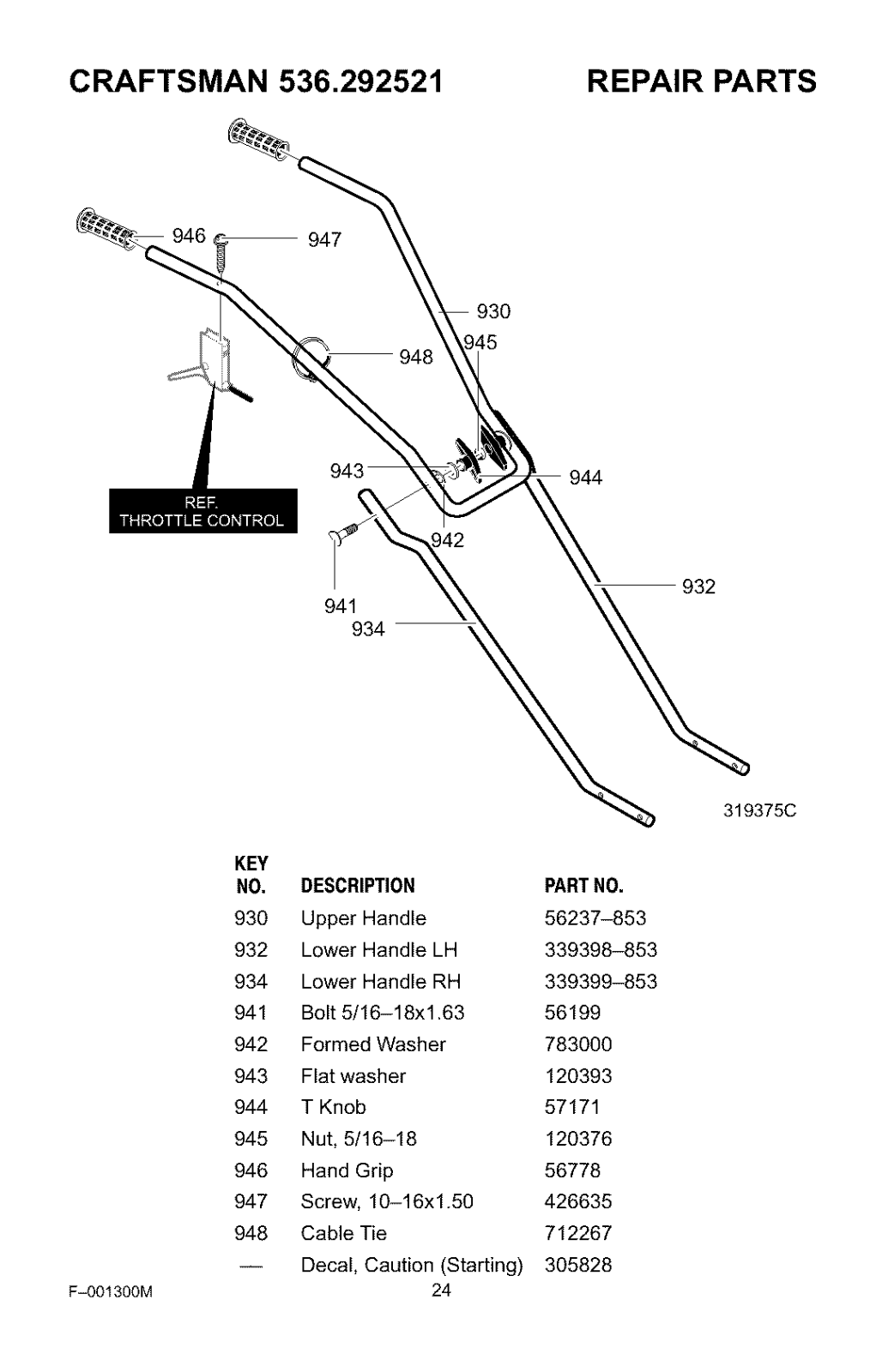

CRAFTSMAN 536.292521 REPAIR PARTS

947

930

[5

944

F=001300M

941

932

934

319375C

KEY

NO. DESCRIPTION PARTNO.

930 Upper Handle 56237-853

932 Lower Handle LH 339398-853
934 Lower Handle RH 339399-853

941 Bolt 5/16-18xl .63 56199
942 Formed Washer 783000

943 Flat washer 120393
944 T Knob 57171

945 Nut, 5116-18 120376
946 Hand Grip 56778

947 Screw, 10-16xl.50 426635
948 Cable Tie 712267

-- Decal, Caution (Starting) 305828
24

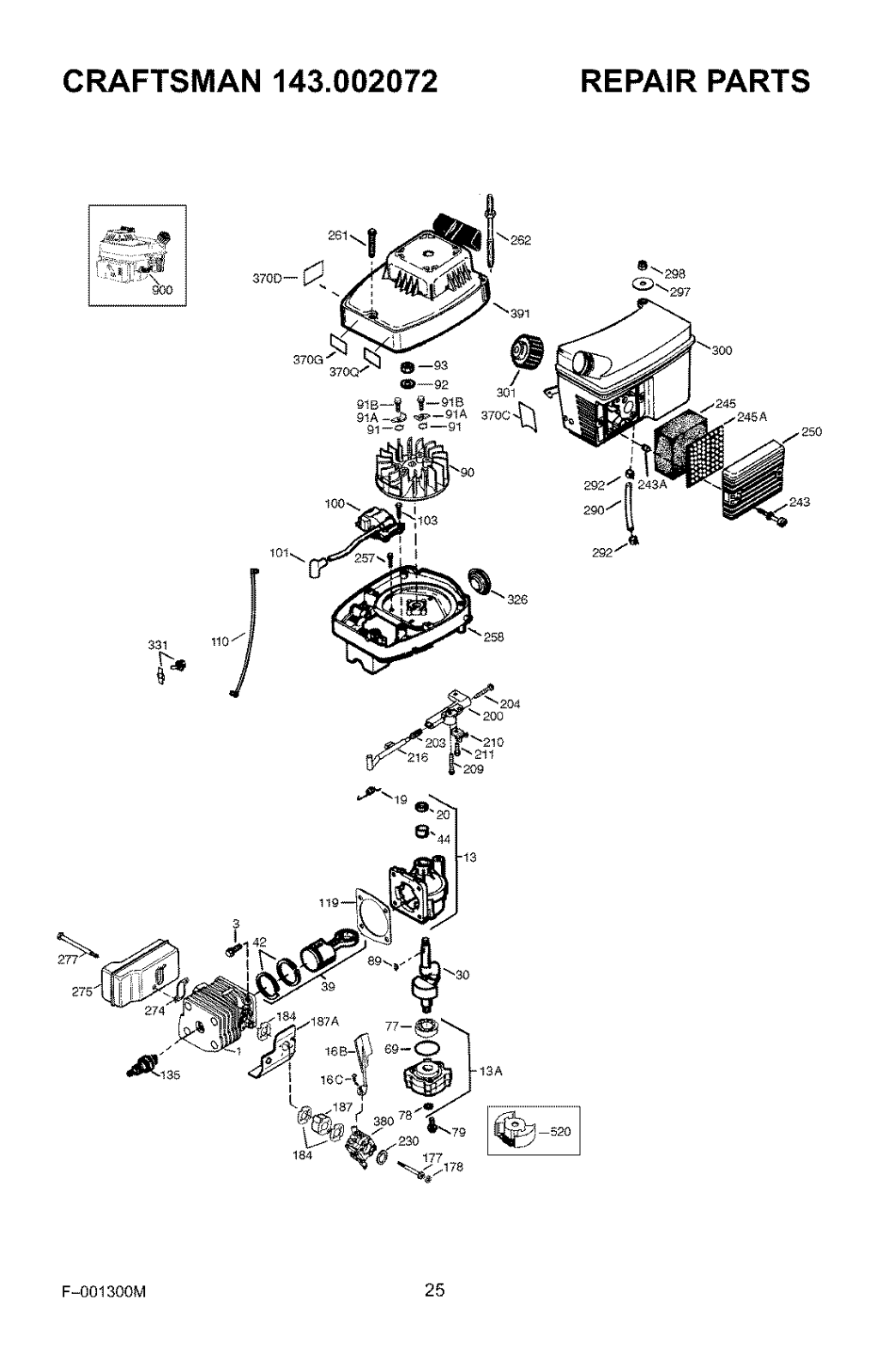

CRAFTSMAN 143.002072 REPAIR PARTS

101\

331

110 f

7250

243

184 177

_/178

F-OO1300M 25

_210

CRAFTSMAN 143.002072

REPAIR PARTS

KEY PART KEY

NO. NO, DESCRIPTION NO.

0 RPM High 5000 to 5400 93
0 RPM Low 1700 to 3000 100

1 250303 Cylinder(Incl. 119, 184,

3 650888 Screw, T-30 103

13 270288A Crankcase Ass'y.

13A 270298 Crankcase Cover

16B 490324 Air Vane

16C 650986 Screw, T-8, 3-48 x 7/32"

19 570716 Governor Spring
20 510328 Oil Seal

30 290664 Crankshaft

39 310285A Piston & Rod Assy.

42 310275 Ring Set

44 530163 Cartridge Bearing

69 510348 "Q" Ring

77 530110 Ball Bearing
78 510319 Oil Seal

79 650844 Screw, 1/4_20 x 3/4"

89 611054 Flywheel Key

90 611180 Flywheel

91 590691 Pawl Spring

91A 590692 Starter Pawl

91B 650985 Screw, 12-24 x 11/64"

92 650848 Belleville Washer

187 & 187A) 101

110

(incl. 20, 44 & 69)

119

135

177

178

184

187

187A 570698A Air Baffle (incl. 184 & 187)

(Incl. 42)

200 570700 Speed Control Body

203 570701 Compression Spring

204 651042 Screw, T-15, 8-32 x 1"

209 651042 Screw, T-15, 8-32 x 1"

210 27793 Conduit Clip

211 651047 Screw, T-15

216 570712 R.RM. Adjusting Lever

230 570649A "Q" Ring

243 650955 Screw, 10=32 x 29/32"

243A 650964 Thread Insert

245 450252 Air Filter (Poly)

245A 450255 Air Filter (Flocked)

PART

NO. DESCRIPTION

650849 Flywheel Nut

611056 Solid State Ignition

(Incl. 101)

610118 Spark Plug Cover

651007 Screw, T-15

611135 Ground Wire

510349 Cylinder Head Gasket

611049 Resistor Spark Plug

(RCJ8Y)

650858 Carburetor Mounting Stud

650580 Lock Nut, 10-24

510327B Carburetor Gasket

570648A Spacer

F-001300M 26

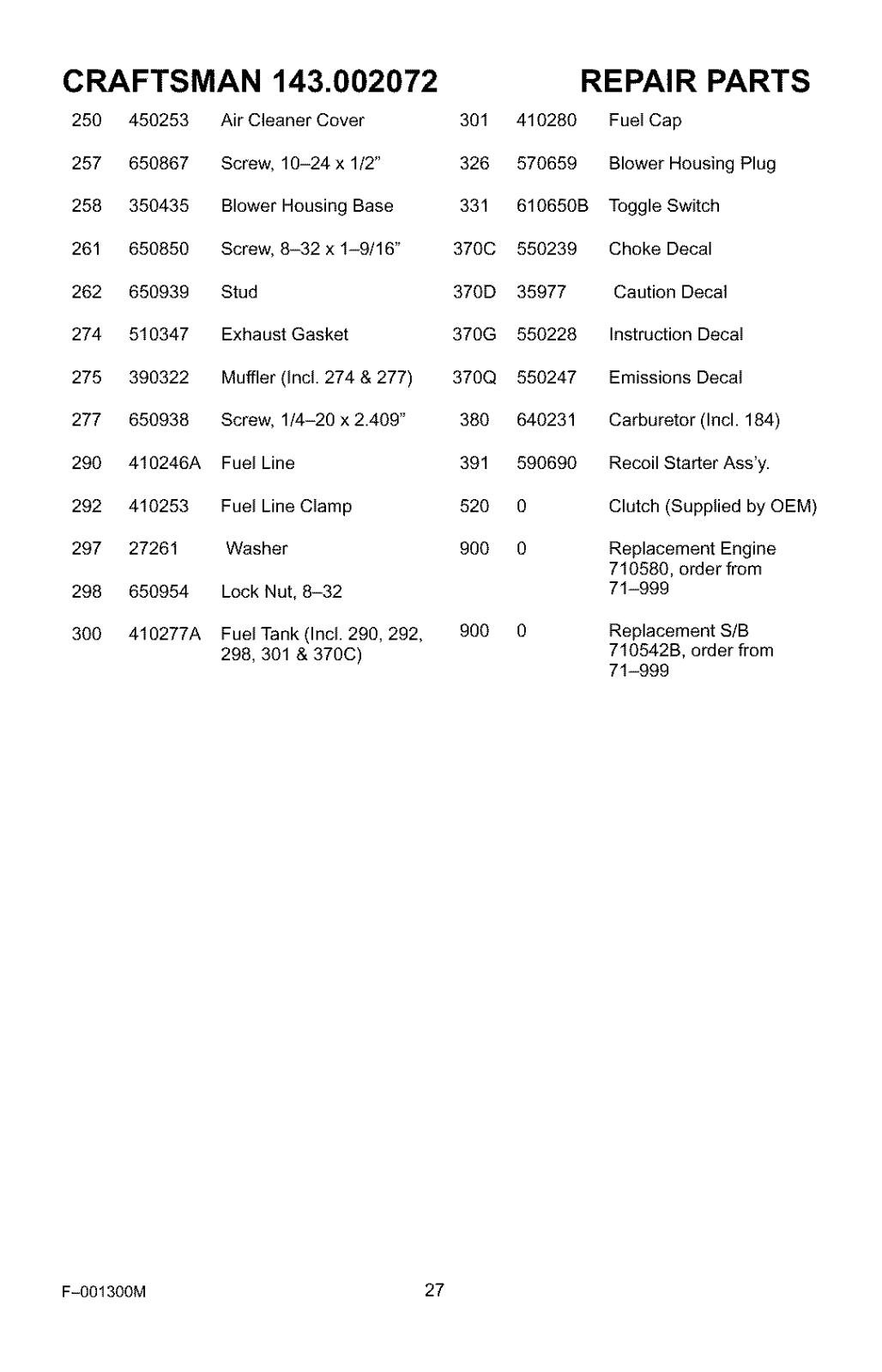

CRAFTSMAN 143.002072

250 450253 Air Cleaner Cover

REPAIR PARTS

301 410280 Fuei Cap

257 650867 Screw, 10-24 x 1/2"

258 350435 Blower Housing Base

261 650850 Screw, 8-32 x 1-9/16"

262 650939 Stud

274 510347 Exhaust Gasket

275 390322 Muffler (incl. 274 & 277)

277 650938 Screw, 1/4-20 x 2.409"

290 410246A Fuel Line

292 410253 Fuel Line Clamp

297 27261 Washer

298 650954 Lock Nut, 8-32

300 410277A FuelTank (Incl. 290, 292,

298, 301 & 3700)

326 570659 Blower Housing Plug

331 610650B Toggle Switch

370C 550239 Choke Decal

370D 35977 Caution Decal

370G 550228 Instruction Decai

370Q 550247 Emissions Decal

380 640231 Carburetor (Incl. 184)

391 590690 Recoil Starter Ass'y.

520 0 Clutch (Supplied by OEM)

900 0 Replacement Engine

900 0 Replacement S/B

710580, order from
71-999

710542B, order from
71-999

F-OO1300M 27

CRAFTSMAN 143.002072 REPAIR PARTS

60

_-'_. 152

iS0

F-OO1300M 28

CRAFTSMAN 143.002072 REPAIR PARTS

KEY

NO.

o

1
2
3

3B

4
5

6

7

17

27
28

30
31
34

4O

40A

50
51
52
53

60

62
63
64

65
70

PART
NO. DESCRIPTION

640231 Carburetor" (Incl. 184 of Engine Parts List)
640232 Throttle Shaft & Lever Ass'y.

640233 Throttle Return Spring
640234 Dust Seal Retainer

640236 Spacer
640237 Dust Seal Washer
640238 Dust Seal
640239 Throttle Shutter

640235 Screw, Throttle Shutter & Dust Seal Retainer
640240 Idle Speed Screw

640241 Hinge Pin
640242 Metering Lever

640243 Inlet Needle
640244 Metering Lever Spring

640245 Screw, Metering Lever Pin
640246 High Speed Jet

640247 High Speed Jet Sealer Cap
640248 Diaphragm (Included in Gasket Set)
640249 Cover Gasket (Included in Gasket Set)

640250 Cover
640251 Cover Screw

640256 Repair kit (Incl. Items Marked PK in Notes)

Incl. (I) each of part #'s 640242, 640243,
640257

640252 Pump Diaphragm (Incl. in Gasket Set)
640253 Pump Gasket (Included in Gasket Set)

640255 Pump Cover
640254 Pump Cover Screw
640257 Gasket Set Incl. (1) each of part #'s 640248,

640249, 640252, 640253

F-OO1300M 29

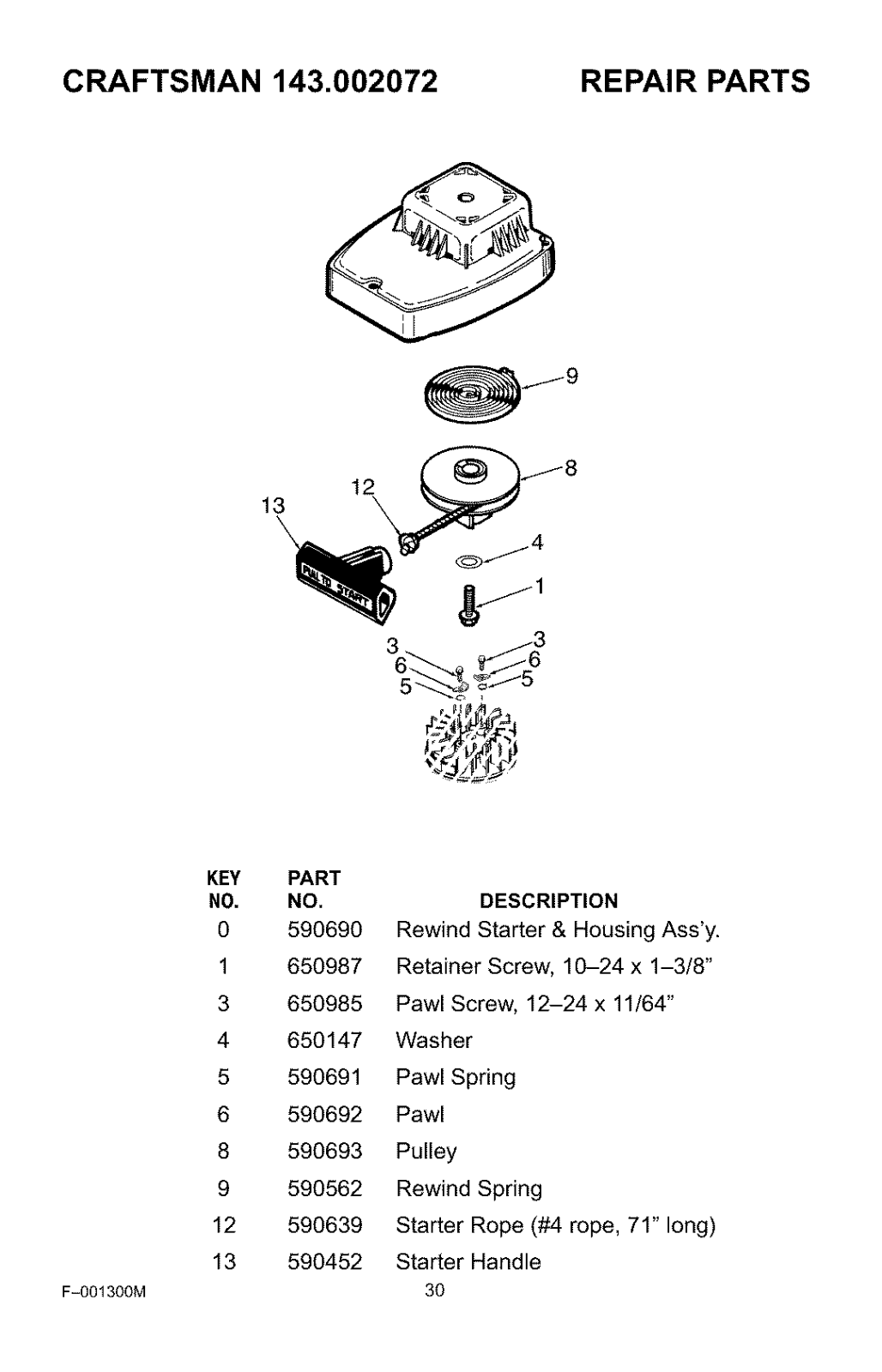

CRAFTSMAN 143.002072 REPAIR PARTS

F-001300M

KEY

NO.

0

1
3
4

5
6
8

9

12
13

13

PART
NO.

590690
650987

650985
650147

590691
590692
590693

590562
590639
590452

12

DESCRIPTION

Rewind Starter & Housing Ass'y.
Retainer Screw, 10-24 x 1-3/8"
Pawl Screw, 12-24 x 11/64"

Washer

Pawl Spring
Pawl

Pulley
Rewind Spring

Starter Rope (#4 rope, 71" long)
Starter Handle

30

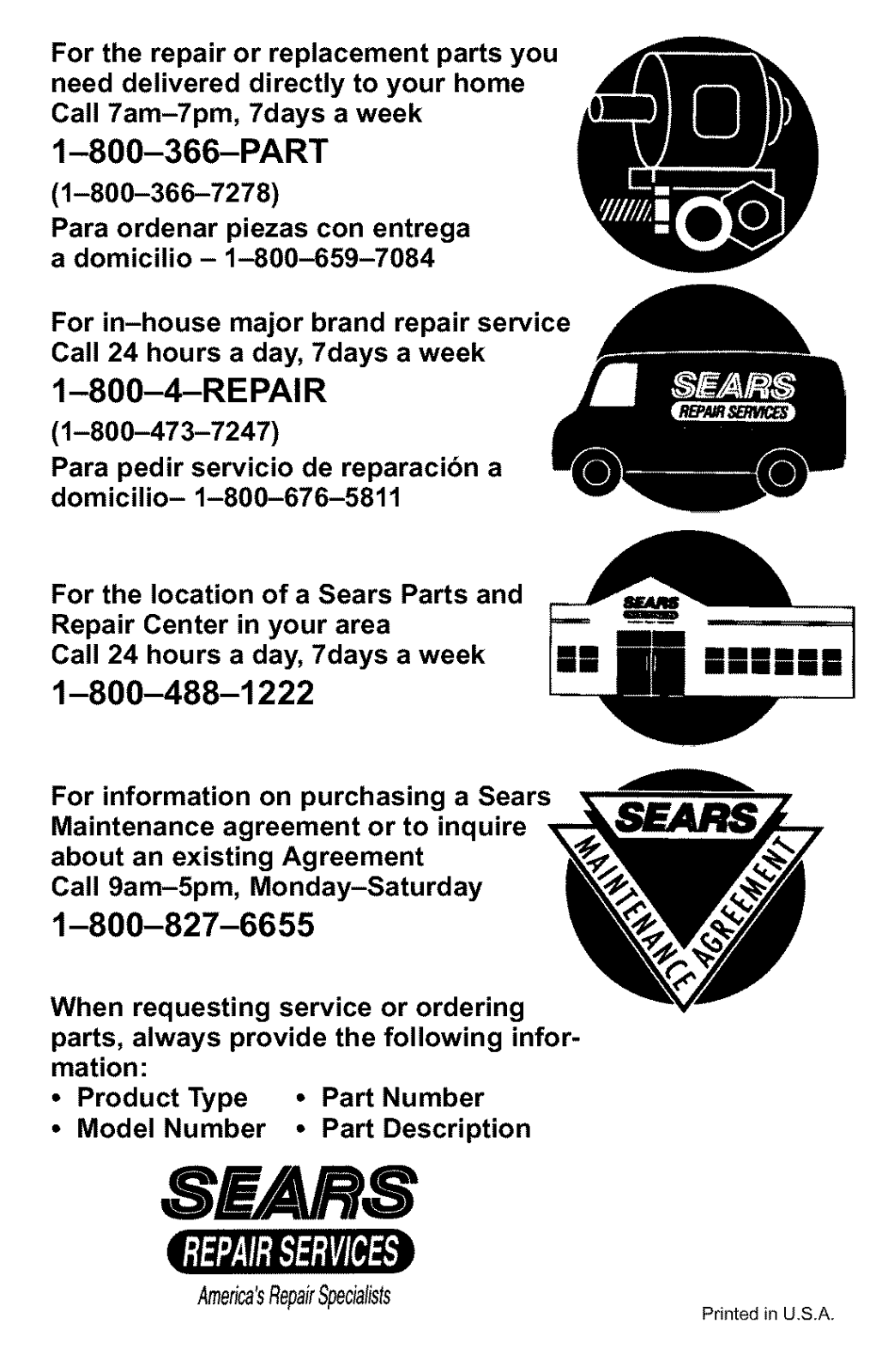

For the repair or replacement parts you
need delivered directly to your home

Call 7am-7pm, 7days a week

1-800-366-PART

(1-800-366-7278)
Para ordenar piezas con entrega

a domicilio - 1-800-659-7084

For in-house major brand repair service
Call 24 hours a day, 7days a week

1-800-4-REPAIR

(1-800-473-7247)
Para pedir servicio de reparacibn a

domicilio- 1-800-676-5811

For the location of a Sears Parts and
Repair Center in your area

Call 24 hours a day, 7days a week

1-800-488-1222

gggggg

For information on purchasing a Sears
Maintenance agreement or to inquire

about an existing Agreement

Call 9am-5pm, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following infor-
mation:

• Product Type • Part Number

• Model Number • Part Description

America'sRepairSpecialists

Printed in U.S.A.
