Craftsman 3BS12401 User Manual

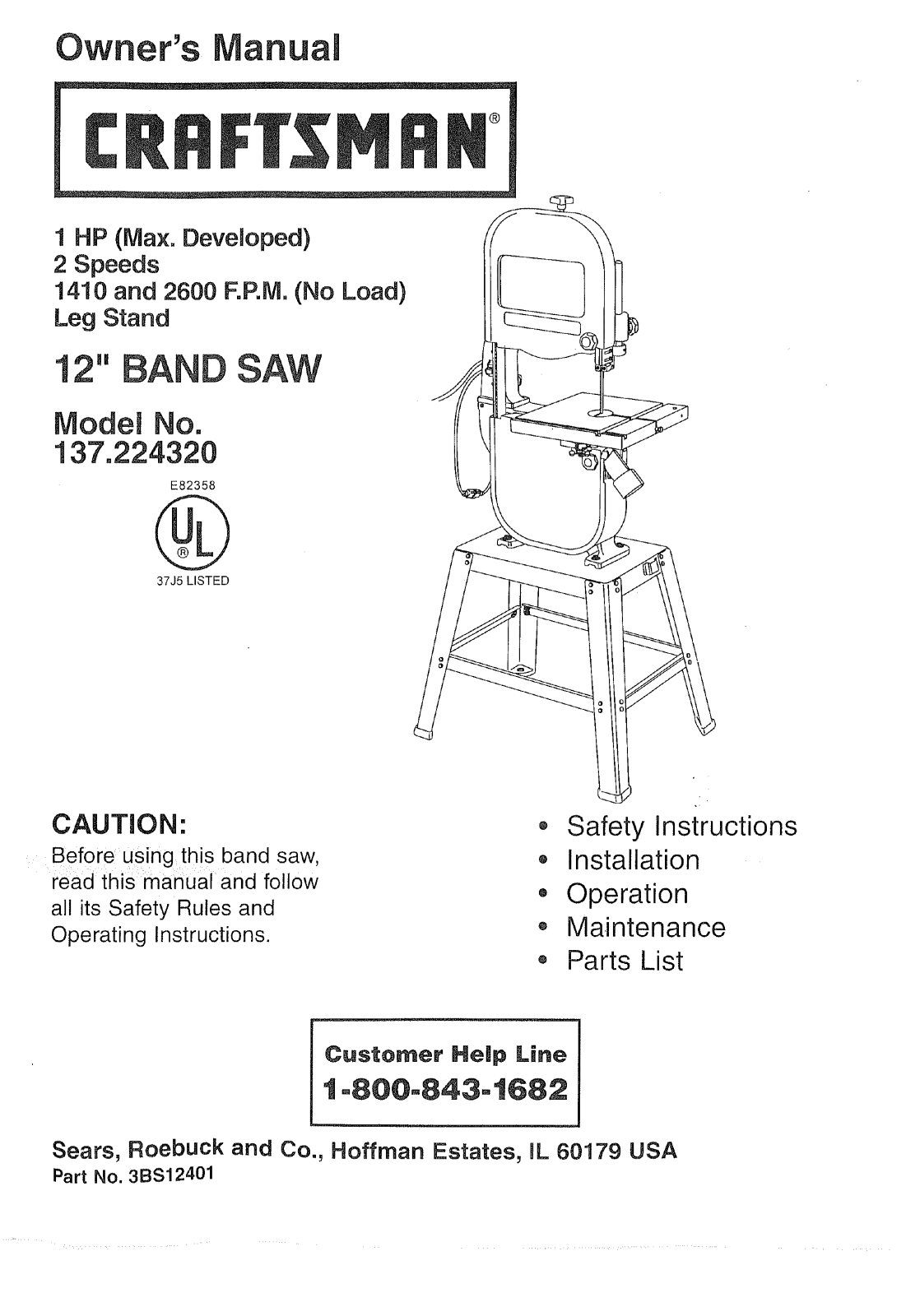

Owner's Manui

1 HP (Max. Developed)

2 Speeds

1410 and 2600 F.P.IVI.(No Load)

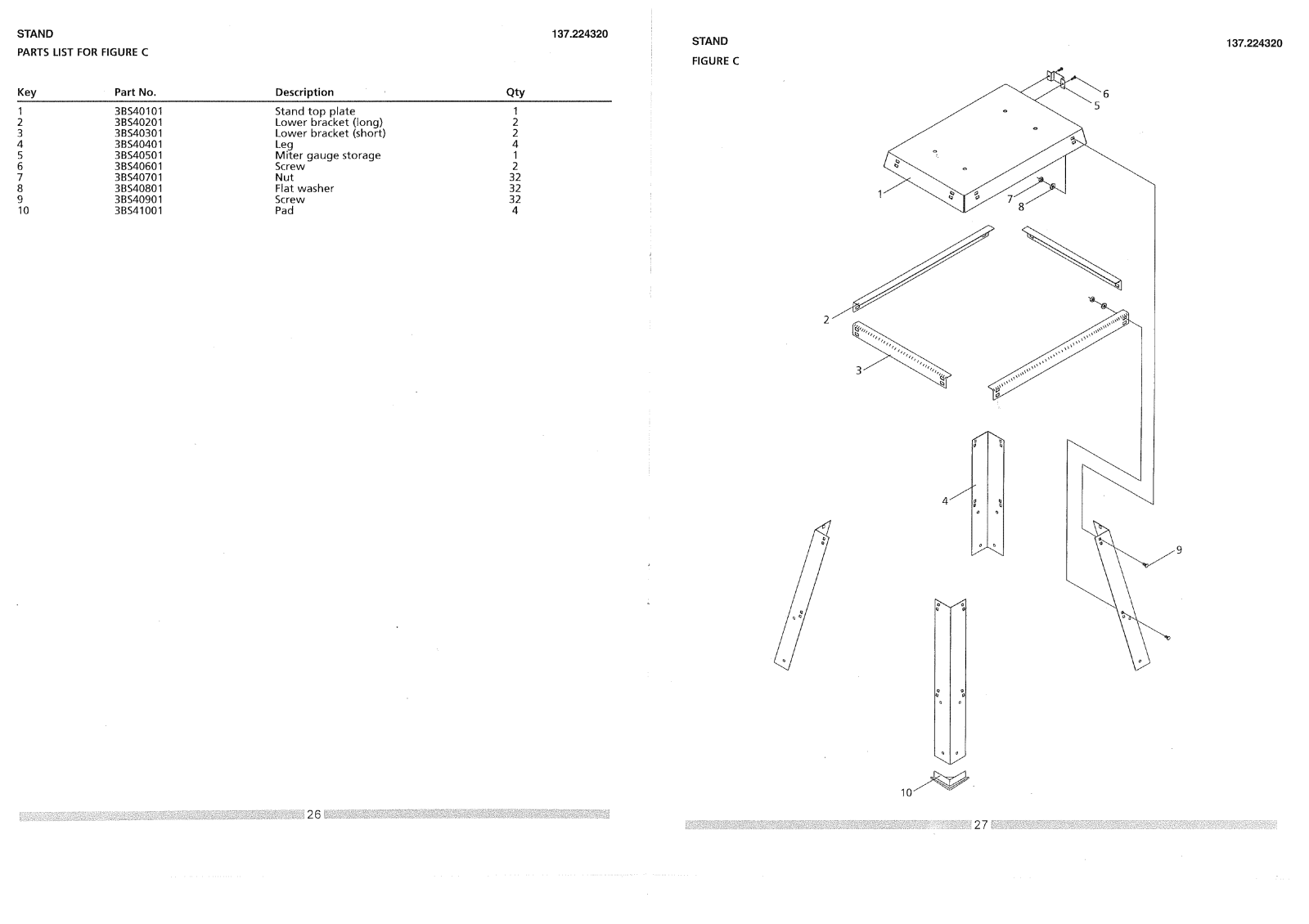

Leg Stand

SAW

Model No.

137.224320

E82358

®

37J5 LISTED

CAUTION:

Before using th!s band saw,

read this manual and follow

all its Safety Rules and
Operating Instructions.

® Safety Instructions

• Installation

• Operation
,, Maintenance

o Parts List

Customer Help Line

1=800-843-1682

Sears, Roebuck and Co., Hoffman Estates, mL60179 USA

Part No. 3BS12401

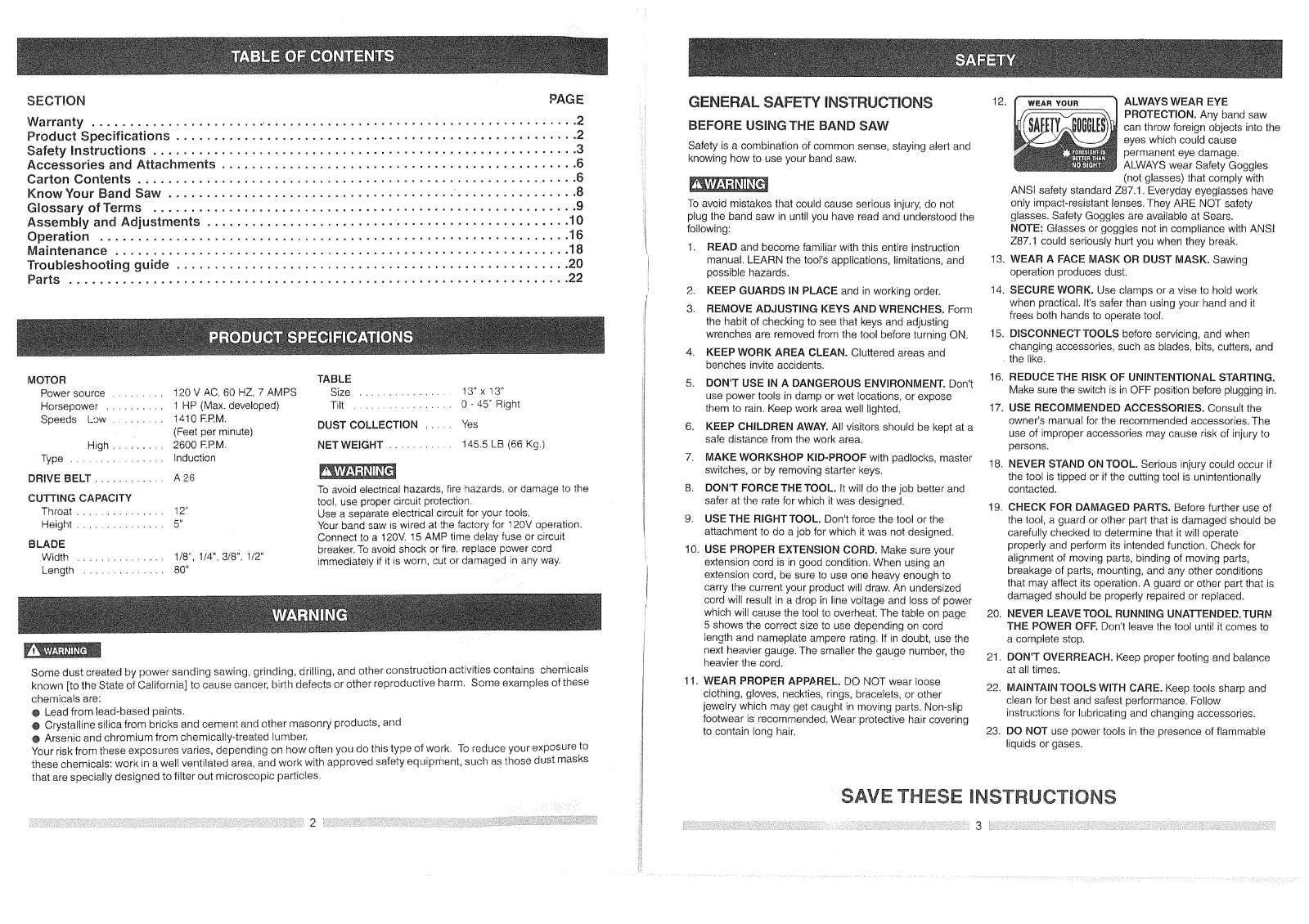

SECTION PAGE

Warranty ......... .............. ......................................... 2

Product Specifications ..................................................... 2

Safety Instructions ........................................................ 3

Accessories and Attachments ............................................... 6

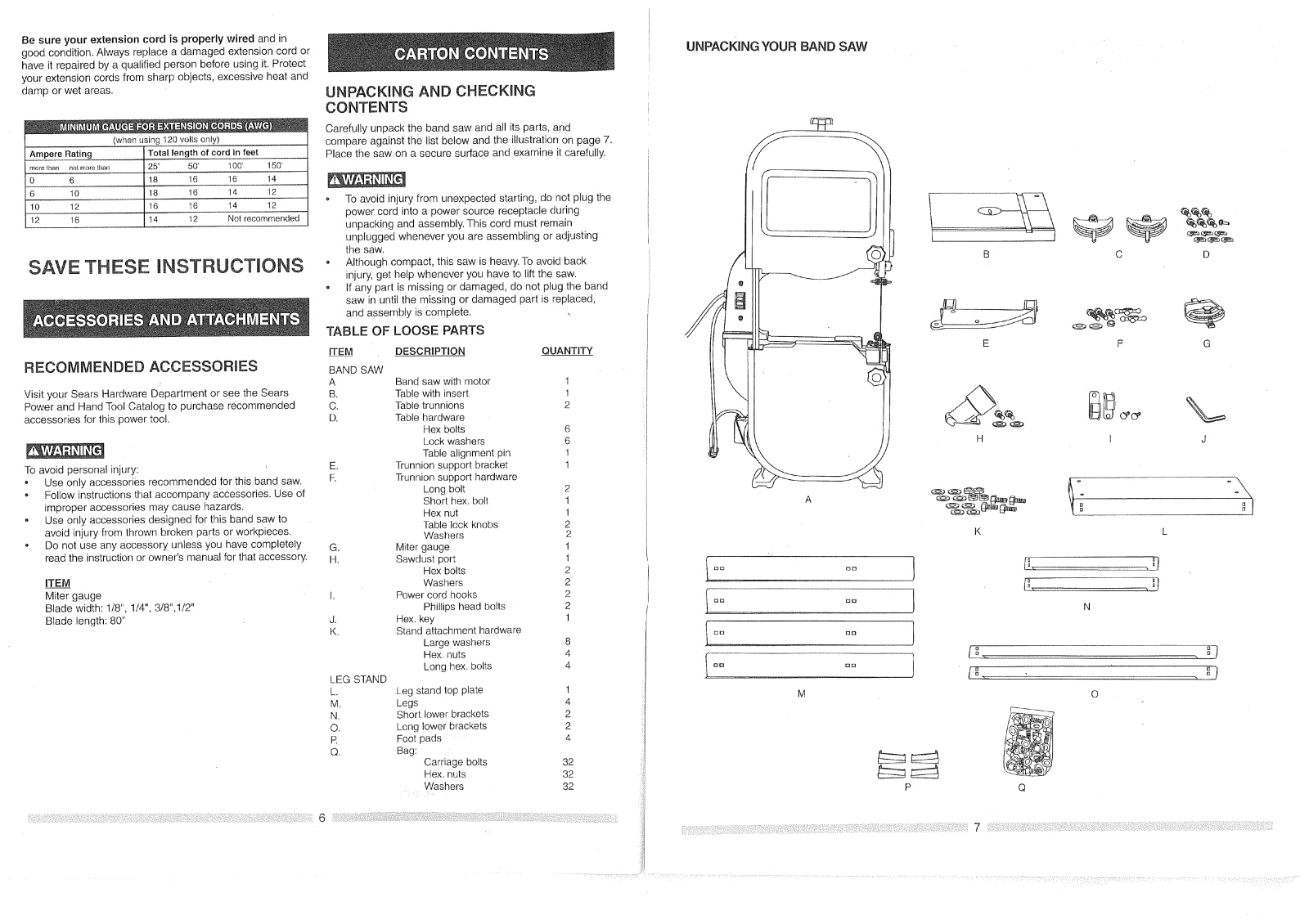

Carton Contents ........................................................... 6

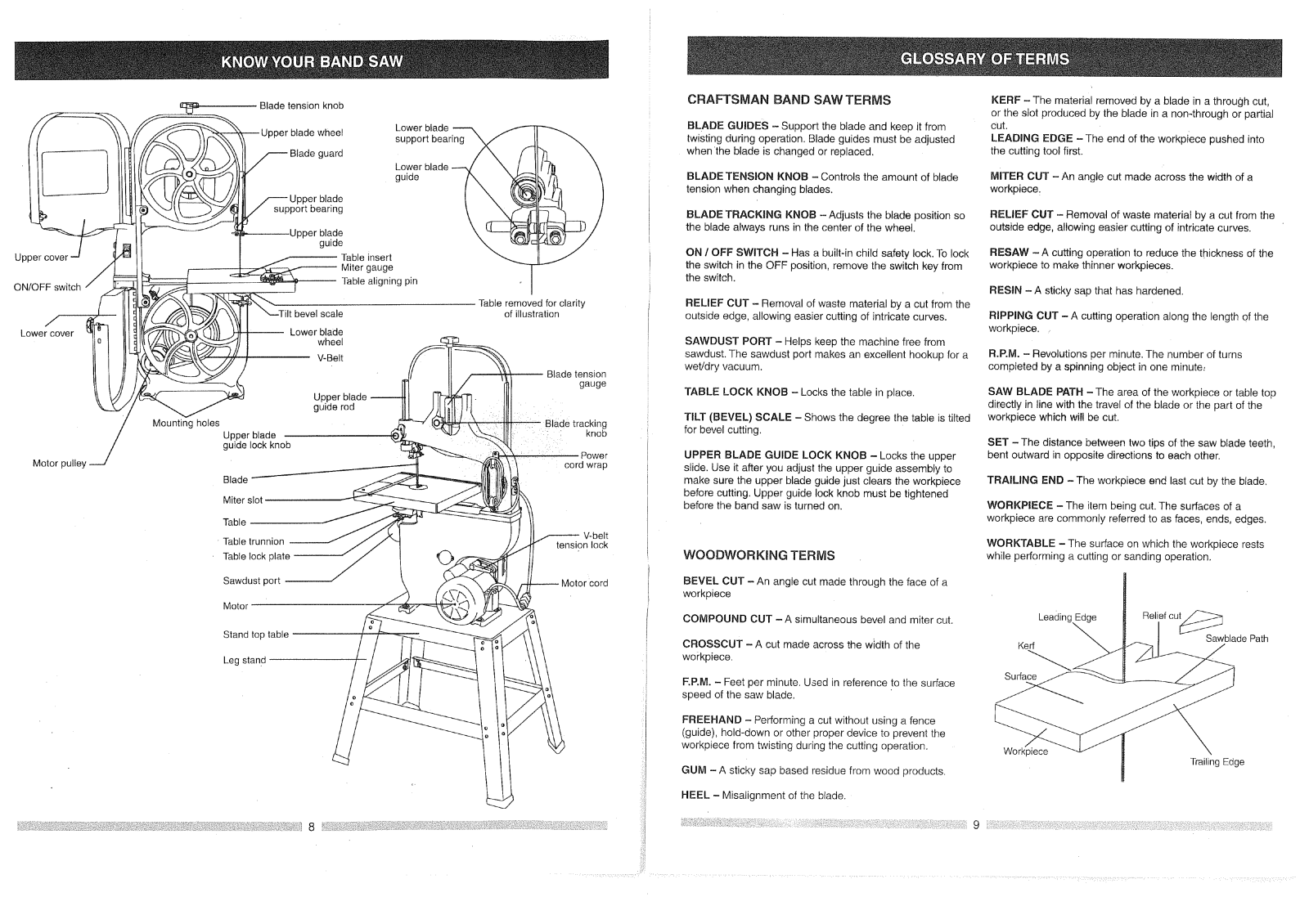

Know Your Band Saw ...................................... ................ 8

Glossary of Terms .................................................. ...... 9

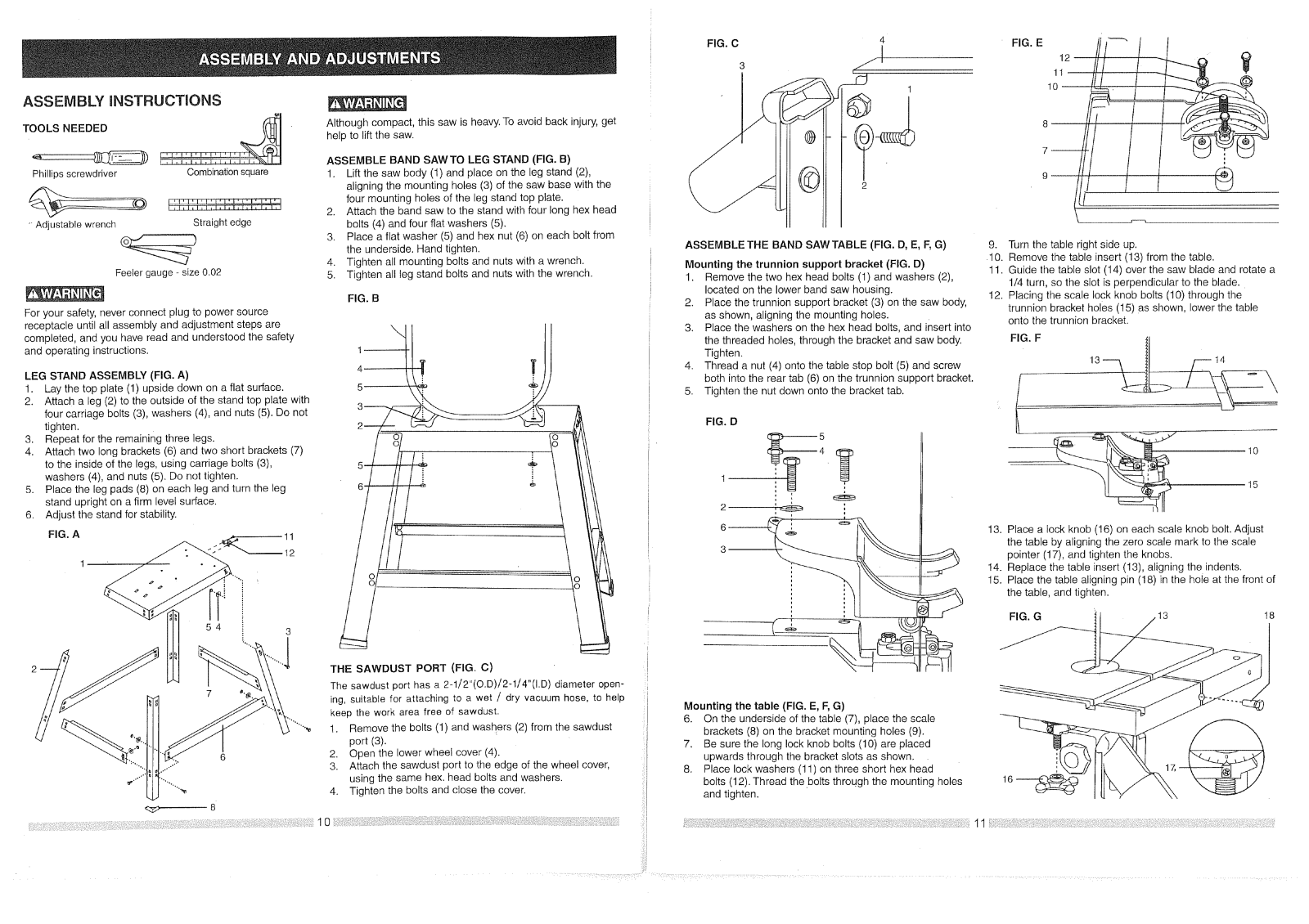

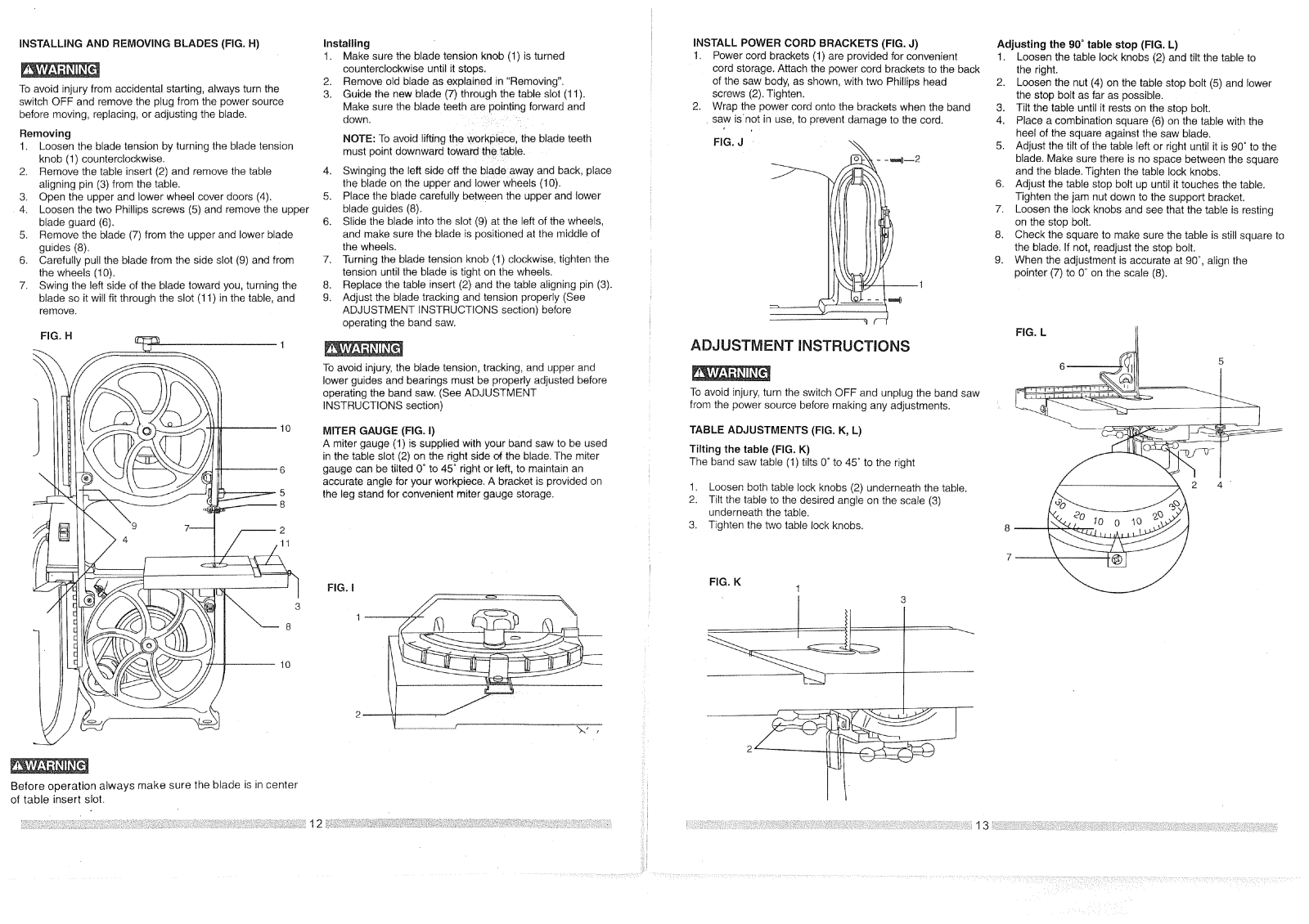

Assembly and Adjustments ......................... ....................... 10

Operation .............................................................. 16

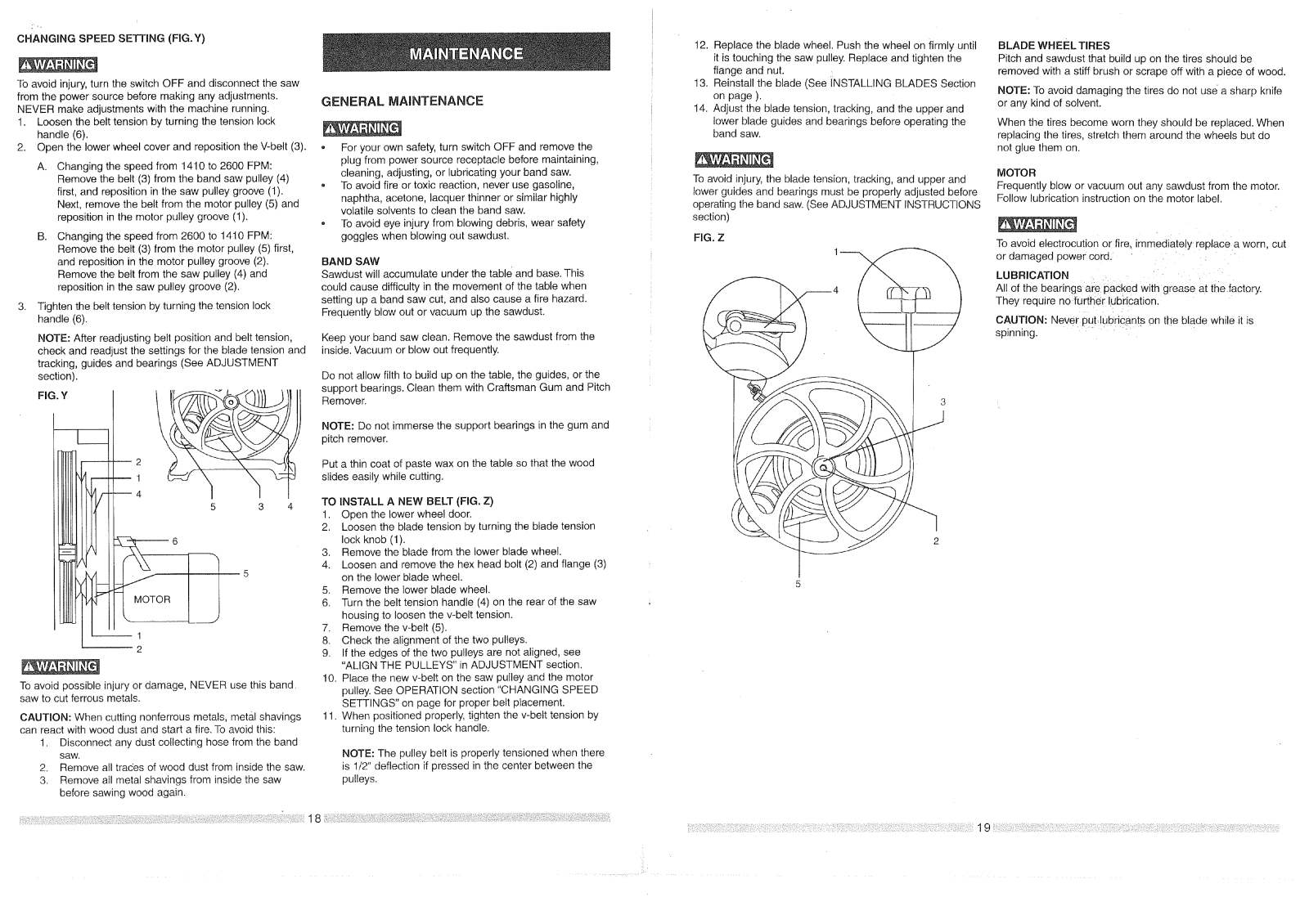

Maintenance ............................................................ 18

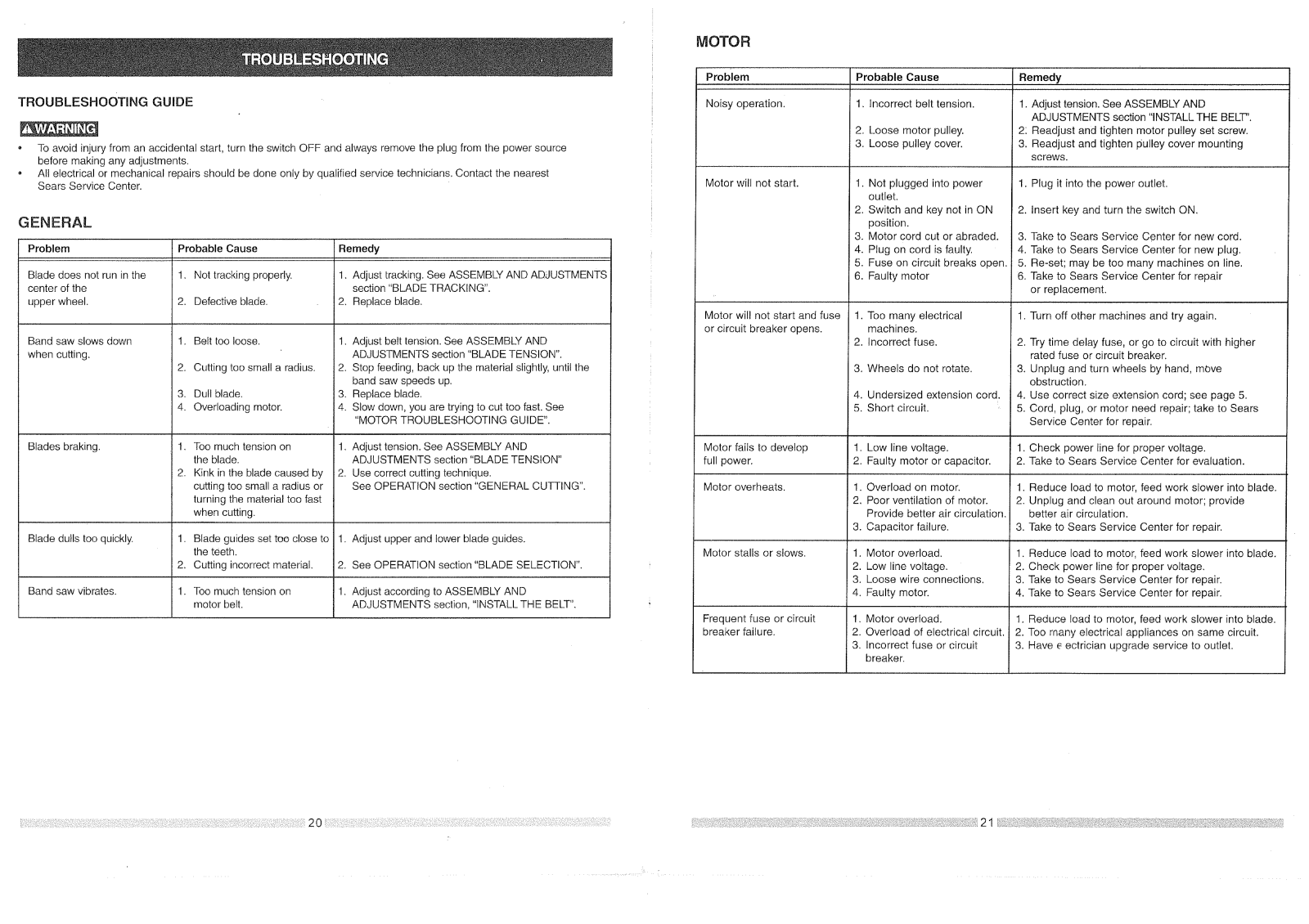

Troubleshooting guide .................................................... 20

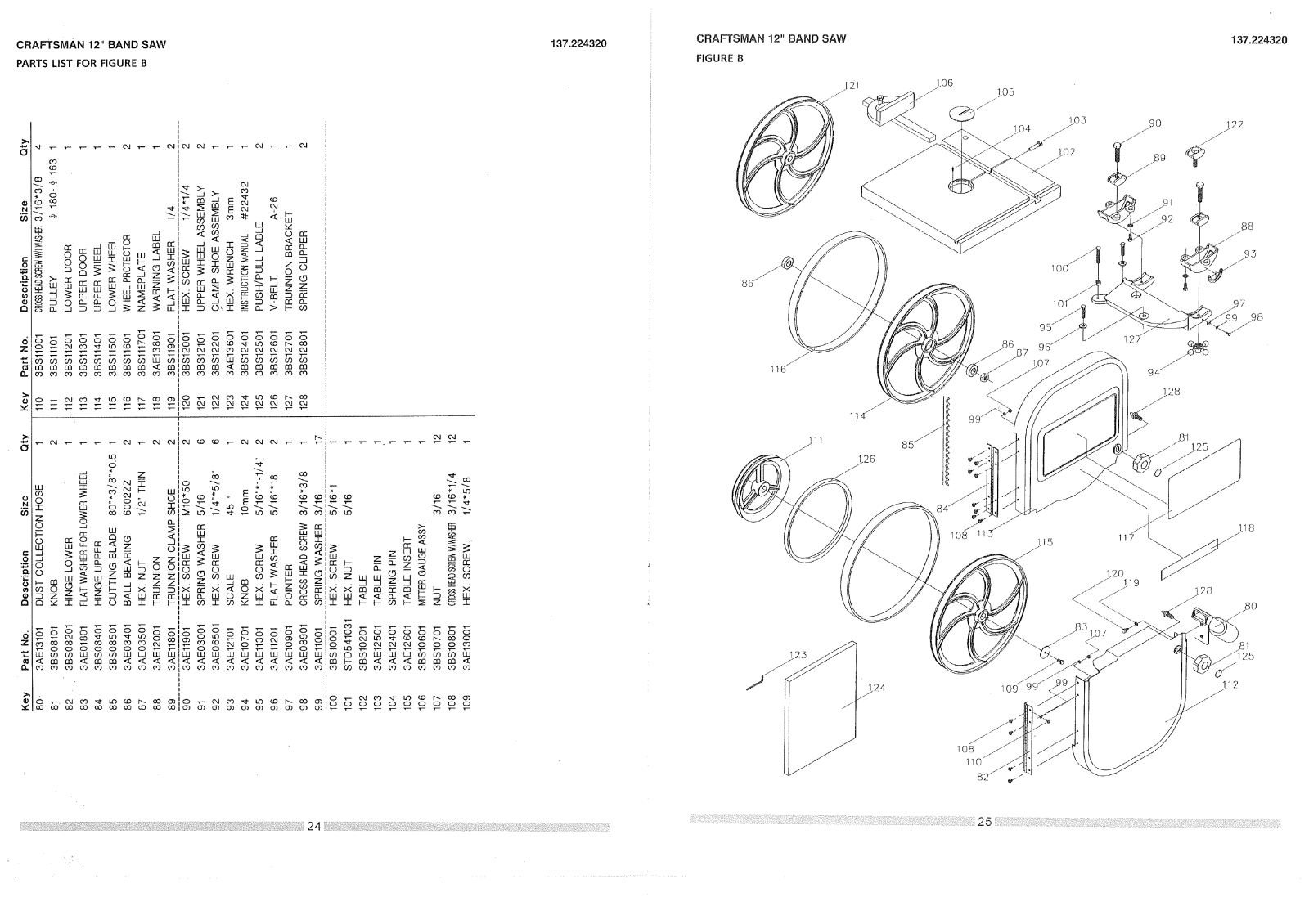

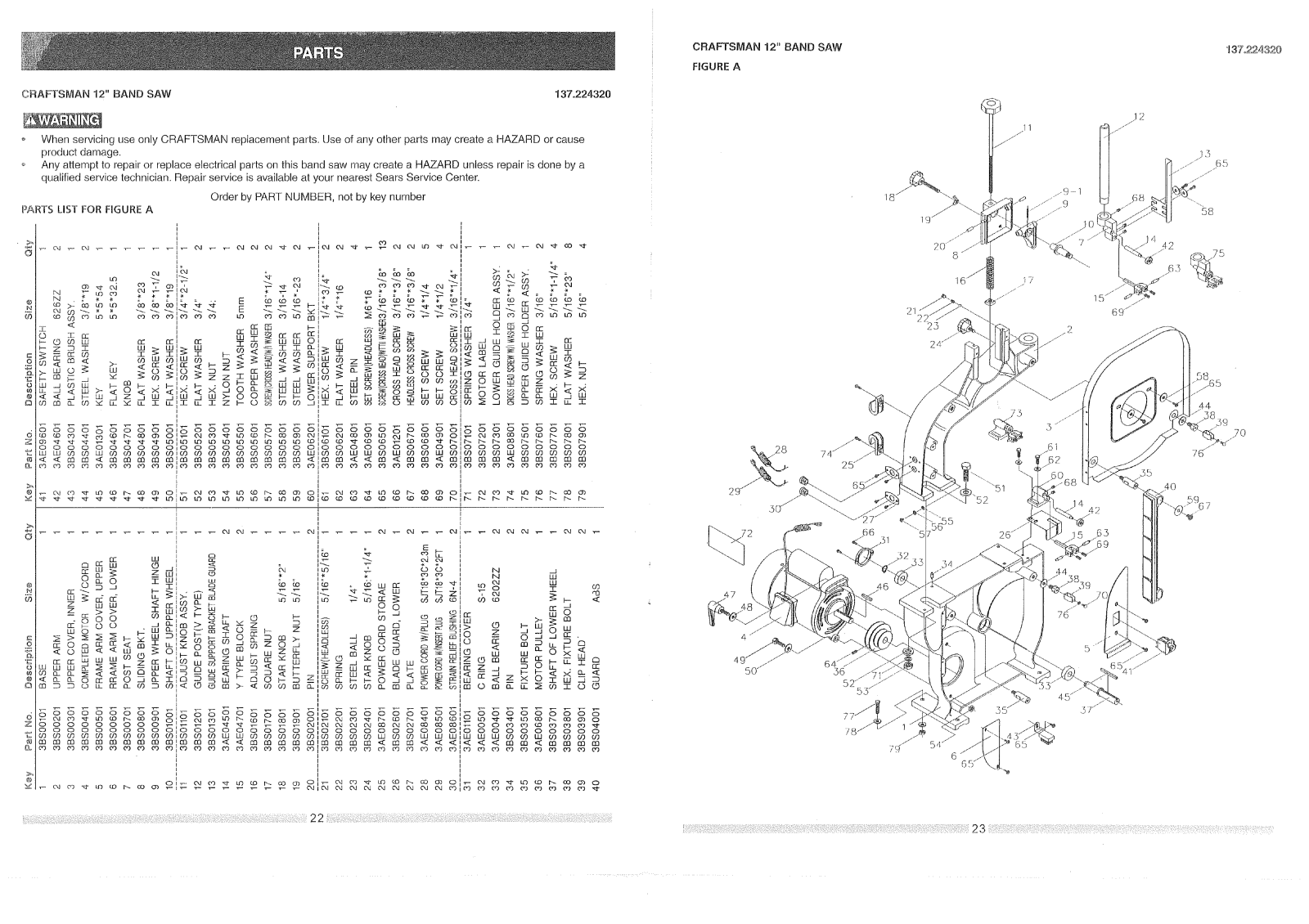

Parts .................................................................. 22

MOTOR

Power source ......... 120 V AC, 60 HZ, 7 AMPS

Horsepower .......... 1 HP (Max. developed)

Speeds Low ......... 1410ERM.

(Feet per minute)

High ......... 2600 RRM.

Type ................ Induction

DRIVE BELT ............ A 26

CUTTING CAPACITY

Throat ............... 12"

Height ............... 5"

BLADE

Width ............... 1/8", 1/4". 3/8';. 1/2"

Length .............. 80"

Some dust created by power sanding sawing, grinding, drilling, and other construction activities contains chemicals

known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are:

® Lead from lead-based paints.
@ Crystalline silica from bricks and cement and other masonry products, and

@ Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to

these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks

that are specially designed to filter out microscopic particles.

TABLE

Size ................ 13" x 13"

Tilt ................. 0 - 45° Right

DUST COLLECTION ..... Yes

NET WEIGHT ........... !45.5 LB (66 Kg.)

To avoid electrical hazards, fire hazards, or damage to the
tool, use proper circuit protection.

Use a separate electrical circuit for your tools.
Your band saw is wired at the factory for 120V operation.

Connect to a 120',/, 15 AMP time delay fuse or circuit
breaker. To avoid shock or fire, replace power cord

immediately if it is worn, cut or damaged in any way.

GENERAL SAFETY INSTRUCTIONS

;! i

BEFORE USING THE BAND SAW

Safety is a combination of common sense, staying alert and
knowing how to use your band saw.

To avoid mistakes that could cause serious injury, do not
plug the band saw in until you have read and understood the

following:

1. READ and become familiar with this entire instruction
manual. LEARN the tool's applications, limitations, and

possible hazards.

2. KEEP GUARDS IN PLACE and in working order.

3. REMOVE ADJUSTING KEYS AND WRENCHES. Form
the habit of checking to see that keys and adjusting

wrenches are removed from the tool before turning ON.

4. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.

5. DON'T USE IN A DANGEROUS ENVIRONMENT. Don't
use power tools in damp or wet locations, or expose

them to rain. Keep work area well lighted.

6. KEEP CHILDREN AWAY. All visitors should be kept at a

safe distance from the work area.

7.

MAKE WORKSHOP KID-PROOF with padlocks, master
switches, or by removing starter keys.

8.

DON'T FORCE THE TOOL. It will do the job better and
safer at the rate for which it was designed.

9.

USE THE RIGHTTOOL. Don't force the tool or the

attachment to do a job for which it was not designed.

10.

USE PROPER EXTENSION CORD. Make sure your

extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to

carry the current your product will draw. An undersized
cord will result in a drop in line voltage and loss of power

which wilt cause the tool to overheat. The table on page
5 shows the correct size to use depending on cord

length and nameplate ampere rating. If in doubt, use the
next heavier gauge. The smaller the gauge numbeq the

heavier the cord.

11.

WEAR PROPER APPAREL. DO NOT wear loose
clothing, gloves, neckties, rings, bracelets, or other

jewelry which may get caught in moving parts. Non-slip
footwear is recommended. Wear protective hair covering

to contain long hair. 23.

12.

13.

14.

15.

16. REDUCETHE RISK OF UNINTENTIONAL STARTING.

17. USE RECOMMENDED ACCESSORIES. Consult the

18. NEVER STAND ON TOOL. Serious injury could occur if

19. CHECK FOR DAMAGED PARTS. Before further use of

20. NEVER LEAVE TOOL RUNNING UNATTENDED.TURN

21. DON'T OVERREACH. Keep proper footing and balance

22.

WEARYOUR ALWAYS WEAR EYE

PROTECTION. Any band saw
can throw foreign objects into the

eyes which could cause
permanent eye damage.

ALWAYS wear Safety Goggles
(not glasses) that comply with

ANSI safety standard Z87.1, Everyday eyeglasses have
only impact-resistant lenses. They ARE NOT safety

glasses. Safety Goggles are available at Sears.
NOTE: Glasses or goggles not in compliance with ANSI

Z87,1 could seriously hurt you when they break.
WEAR A FACE MASK OR DUST MASK. Sawing

operation produces dust.
SECURE WORK. Use clamps or a vise to hotd work

when practical. It's safer than using your hand and it
frees both hands to operate tool.

DISCONNECTTOOLS before servicing, and when

changing accessories, such as blades, bits, cutters, and

•the like.

Make sure the switch is in OFF position before plugging in.

owner's manual for the recommended accessories. The
use of improper accessories may cause risk of injury to

persons,

the tool is tipped or if the cutting tool is unintentionally
contacted.

the tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate

properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,

breakage of parts, mounting, and any other conditions
that may affect its operation. A guard or other part that is

damaged should be properly repaired or replaced.

THE POWER OFF. Don't leave the tool until it comes to
a complete stop,

at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and

clean for best and safest performance. Follow
instructions for lubricating and changing accessories.

DO NOT use power tools in the presence of flammable
liquids or gases.

SAVE THESE NSTRUCT ONS

3

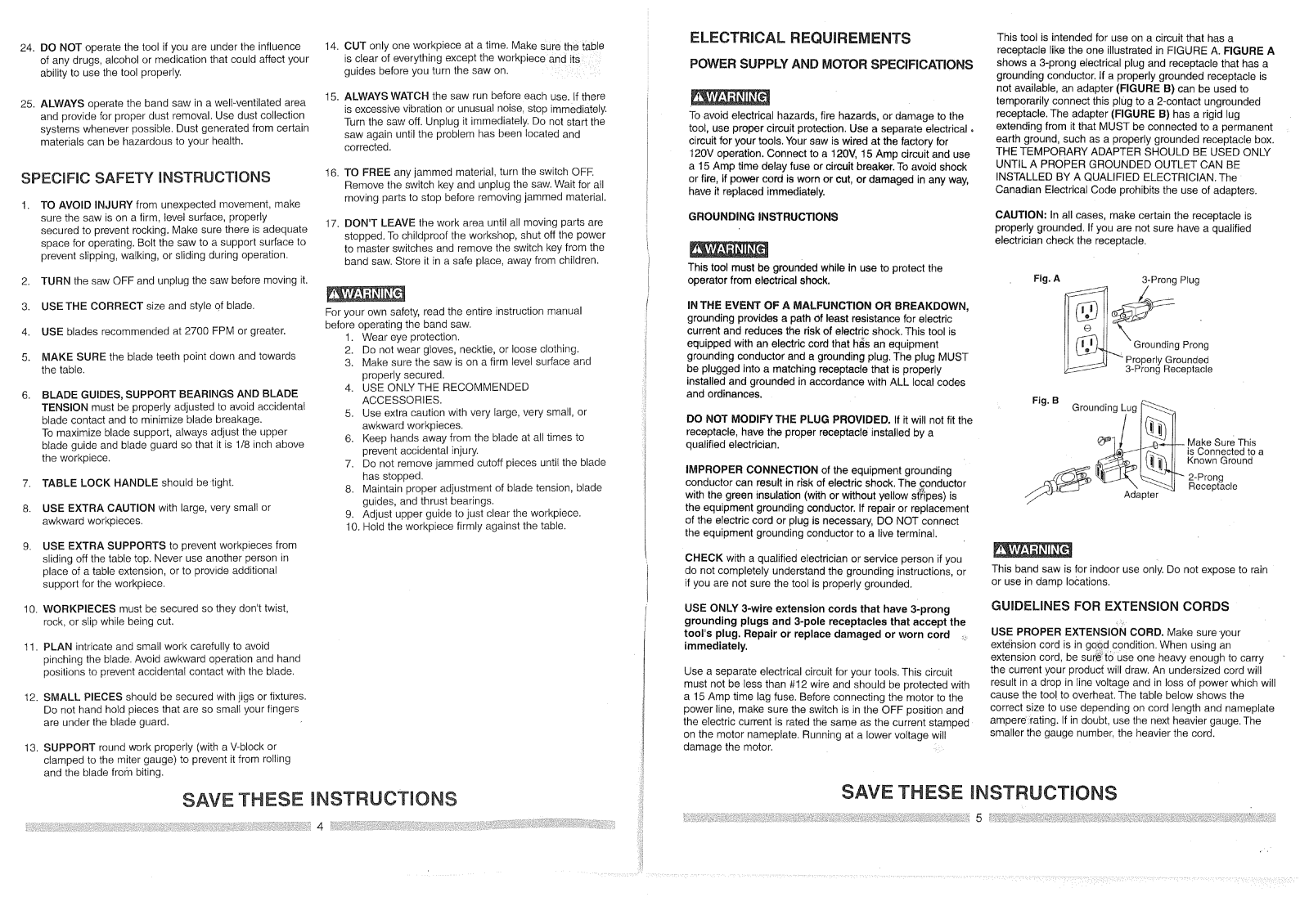

24.DONOToperatethetoolifyouareundertheinfluence 14.CUTonlyoneworkpieceatatime.Makesurethetable
ofanydrugs,alcoholormedicationthatcouldaffectyour isclearofeverythingexcepttheworkpieceandits

abilitytousethetoolproperly, guidesbeforeyouturnthesawon.

15.ALWAYSWATCHthesawrunbeforeeachuse.Ifthere

25.ALWAYSoperatethebandsawinawell-ventilatedarea
andprovideforproperdustremoval.Usedustcollection

systemswheneverpossible.Dustgeneratedfromcertain
materialscanbehazardoustoyourhealth.

SPECIFIC SAFETY INSTRUCTIONS

,

TO AVOID INJURY from unexpected movement, make
sure the saw is on a firm, level surface, properly

secured to prevent rocking. Make sure there is adequate
space for operating. Bolt the saw to a support surface to
prevent slipping, walking, or sliding during operation.

2. TURN the saw OFF and unplug the saw before moving it.

isexcessivevibrationorunusualnoise,stopimmediately.
Turnthesawoff.Unplugitimmediately.Donotstartthe
sawagainuntiltheproblemhasbeenlocatedand

corrected.

!6.

TO FREE any jammed material, turn the switch OFF.
Remove the switch key and unplug the saw. Wait for all

moving parts to stop before removing jammed material.

17.

DON'T LEAVE the work area until all moving parts are
stopped. To childproof the workshop, shut off the power

to master switches and remove the switch key from the
band saw. Store it in a safe place, away from children.

ELECTRICAL REQUIREMENTS

POWER SUPPLY AND MOTOR SPECIFICATIONS

To avoid electrical hazards, fire hazards, or damage to the
tool, use proper circuit protection. Use a separate electrical,

circuit for your tools. Your saw is wired at the factory for

120V operation. Connect to a 120V, 15 Amp circuit and use

a 15 Amp time delay fuse or circuit breaker. To avoid shock
or fire, if power cord is worn or cut, or damaged in any way,

have it replaced immediately.

GROUNDING INSTRUCTIONS

This tool must be grounded while in use to protect the
operator from electrical shock.

This tool is intended for use on a circuit that has a
receptacle like the one illustrated in FIGURE A. FIGURE A
shows a 3-prong electrical plug and receptacle that has a
grounding conductor, tf a properly grounded receptacle is

not available, an adapter (FIGURE B) can be used to
temporarily connect this plug to a 2-contact ungrounded

receptacle. The adapter (FIGURE B) has a rigid lug

extending from it that MUST be connected to a permanent
earth ground, such as a properly grounded receptacle box.
THE TEMPORARY ADAPTER SHOULD BE USED ONLY

UNTIL A PROPER GROUNDED OUTLET CAN BE

INSTALLED BY A QUALIFIED ELECTRICIAN. The
Canadian Electrical Code prohibits the use of adapters.

CAUTION: In all cases, make certain the receptacle is

properly grounded. If you are not sure have a qualified
electrician check the receptacle.

Fig. A

3-Prong Plug

3. USE THE CORRECT size and style of blade.

4. USE blades recommended at 2700 FPM or greater.

5. MAKE SURE the blade teeth point down and towards
the table.

,

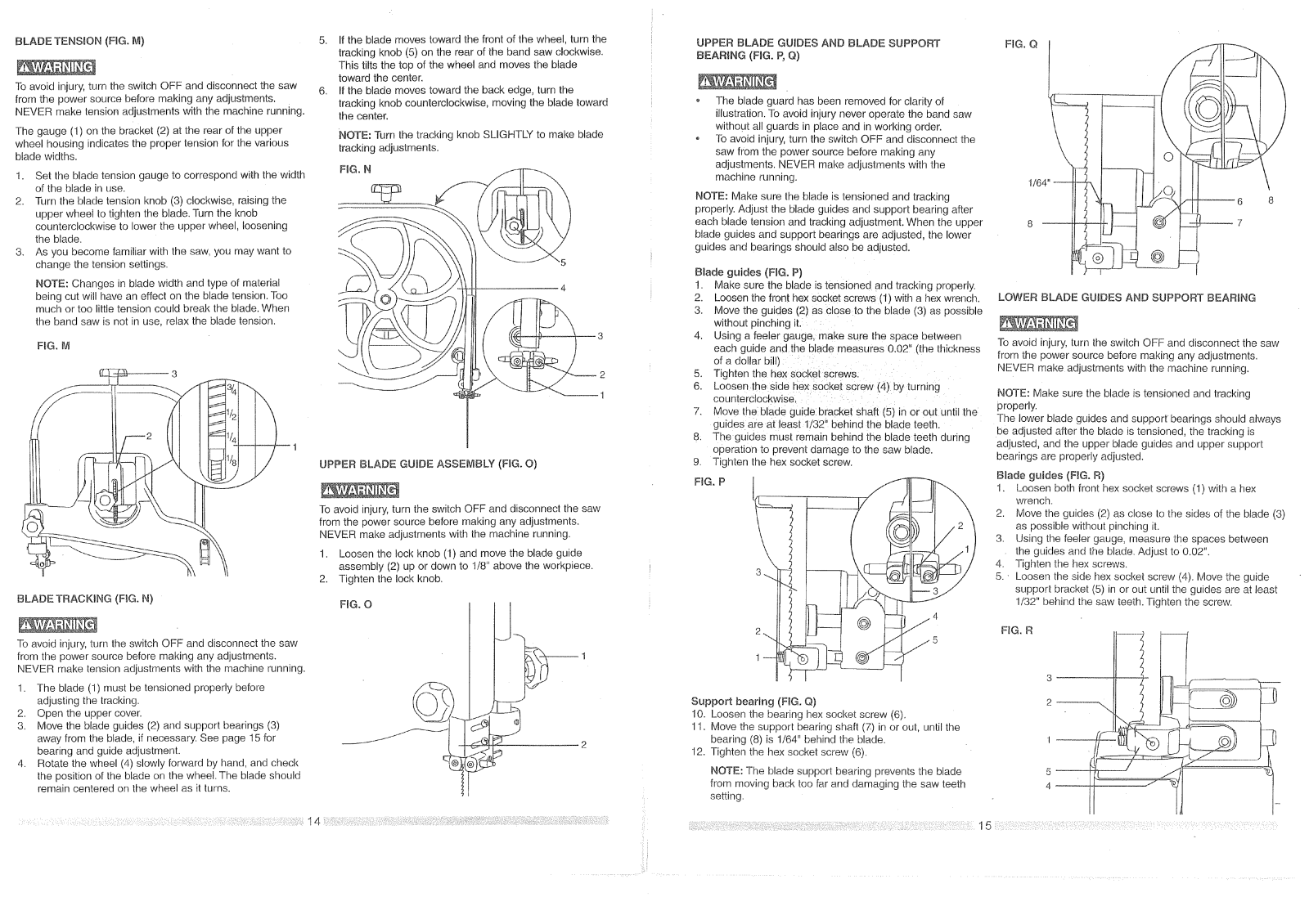

BLADE GUIDES, SUPPORT BEARINGS AND BLADE
TENSION must be properly adjusted to avoid accidental
blade contact and to minimize blade breakage.

To maximize blade support, always adjust the upper
blade guide and blade guard so that it is 1/8 inch above

the workpiece.

7. TABLE LOCK HANDLE should betight.

8. USE EXTRA CAUTION with large, very small or
awkward workpieces.

9, USE EXTRA SUPPORTS to prevent workpieces from

sliding off the table top. Never use another person in
place of a table extension, or to provide additional

support for the workpiece.

10. WORKPIECES must be secured so they don't twist,
rock, or slip while being cut.

11. PLAN intricate and small work carefully to avoid

pinching the blade. Avoid awkward operation and hand

positions to prevent accidental contact with the blade,

12. SMALL PIECES should be secured with jigs or fixtures.
Do not hand hold pieces that are so small your fingers

are under the blade guard.

13. SUPPORT round work properly (with a V-block or
clamped to the miter gauge) to prevent it from rolling
and the blade from biting.

SAVE THESE INSTRUCTmONS

For your own safety, read the entire instruction manual
before operating the band saw.

1. Wear eye protection.

2. Do not wear gloves, necktie, or loose clothing.

3. Make sure the saw is on a firm level surface and
properly secured.

4. USE ONLY THE RECOMMENDED
ACCESSORIES.

5. Use extra caution with very large, very small, or
awkward workpieces.

6. Keep hands away from the blade at all times to
prevent accidental injury.

7. Do not remove jammed cutoff pieces until the blade

has stopped.

8. Maintain proper adjustment of blade tension, blade
guides, and thrust bearings.

9. Adjust upper guide to just clear the workpiece.

t0. Hold the workpiece firmly against the table.

_!ill

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN,

grounding provides a path of least resistance for electric

current and reduces the riskof electric shock. This toolis
equipped with an electriccord that h_s an equipment

groundingconductor and a grounding plug. The plug MUST
be plugged into a matching receptacle that is properly
installed and grounded in accordance with ALL local codes

and ordinances.

DO NOT MODIFYTHE PLUG PROVIDED. If it will not fit the
receptacle, have the proper receptacle installed by a

qualified electrician.

IMPROPER CONNECTION of the equipment grounding
conductor can result in risk of electric shock, The conductor

with the green insulation (with or without yellow stripes) is
the equipment grounding conductor. If repair or replacement
of the electric cord or plug is necessary, DO NOT connect

the equipment grounding conductor to a live terminal.

CHECK with a qualified electrician or service person if you

do not completely understand the grounding instructions, or
if you are not sure the tool is properly grounded.

USE ONLY 3-wire extension cords that have 3-prong
grounding plugs and 3-pole receptacles that accept the

tool's plug. Repair or replace damaged or worn cord
immediately.

Use a separate electrical circuit for your tools. This circuit
must not be less than #12 wire and should be protected with

a 15 Amp time lag fuse. Before connecting the motor to the
power line, make sure the switch is in the OFF position and

the electric current is rated the same as the current stamped
on the motor nameplate. Running at a lower voltage will

damage the motor.

SAVE THESE NSTRUCT ONS

Grounding Prong

Properly Grounded

3-Prong Receptacle

Fig. B Grounding Lug ____.._

(_]/ _1 Make sure This

_.,_--_f-:_... J is Connected to a

_._¢_p ! i]_" _ Known Ground

__ 't_l _ L----._-" IF" 2-Prong

.._¢_----_-_" _ .N. '-_-"--_. Receptacle

//,i<Y_- Adapter

This band saw is for indoor use only. Do not expose to rain
or use in damp Ioc:ations.

GUIDELINES FOR EXTENSION CORDS

USE PROPER EXTENSION CORD. Make sure-your

extehsion cord is in goed condition. When using an
extension cord, be su[_ ts use one heavy enough to carry
the current your produc'_will draw. An undersized cord will

result in a drop in line voltage and in loss of power which will
cause the too! to overheat. The table below shows the

correct size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.

5

Be sure your extension cord is properly wired and in

good condition. Always replace a damaged extension cord or

have it repaired by a qualified person before using it. Protect

your extension cords from sharp objects, excessive heat and

damp or wet areas.

(when using 120 volts only)

Ampere Rating

more qhan not more th;_n

0 6
6 10
10 12
12 16

Totallength ofcordinfeet
25' 50' 100' 150'

i18 16 16 14

18 16 14 12
t6 16 14 12
14 12 Notrecommended

SAVE THESE iNSTRUCTiONS

RECOMMENDED ACCESSORIES

Visit your Sears Hardware Department or see the Sears
Power and Hand Tool Catalog to purchase recommended

accessories for this power tool.

To avoid personal injury:

• Use only accessories recommended for this band saw.
o Follow instructions that accompany accessories. Use of

improper accessories may cause hazards.

Use only accessories designed for this band saw to

avoid injury from thrown broken parts or workpieces.

Do not use any accessory unless you have completely
read the instruction or owner's manual for that accessory.

ITEM
Miter gauge

Blade width: 1/8", 1/4", 3/8",1/2"
Blade length: 80"

UNPACKING AND CHECKING
CONTENTS

Carefully unpack the band saw and all its parts, and
compare against the list below and the illustration on page 7.

Place the saw on a secure surface and examine it carefully.

o To avoid injury from unexpected starting, do not plug the

power cord into a power source receptacle during
unpacking and assembly. This cord must remain

unplugged whenever you are assembling or adjusting
the saw.

o Although compact, this saw is heavy. To avoid back

injury, get help whenever you have to lift the saw.

• If any part is missing or damaged, do not plug the band
saw in until the missing or damaged part is replaced,

and assembly is complete.

TABLE OF LOOSE PARTS

ITEM DESCRIPTION QUANTITY
BAND SAW

A Band saw with motor 1
B. Table with insert 1
C. Table trunnions 2
D. Table hardware

Hex bolts 6
Lock washers 6

Table alignment pin 1
E. Trunnion support bracket !
F. Trunnion support hardware

Long bolt 2
Short hex. bolt 1

Hex nut 1

Table lock knobs 2

Washers 2

G. Miter gauge 1

H. Sawdust port 1

Hex bolts 2
Washers 2

I. Power cord hooks 2

Phillips head bolts 2

J. Hex. key 1

K. Stand attachment hardware

Large washers 8
Hex. nuts 4

Long hex. bolts 4
LEG STAND
L. Leg stand top plate

M. Legs
N. Short lower brackets

O. Long lower brackets
R Foot pads
Q. Bag:

Carriage bolts

Hex. nuls

Washers

1
4
2
2
4

32
32
32

UNPACKING YOUR BAND SAW

B C D

E F G

H I J

A

K L

oo °o F, ,°!

I 1 ° °

f °° °° 1

N

I °o I

I°° °° 1

M O

P

Upper cover

ON/OFF switch

Lower cover

Motor pulley

Mounting holes

Blade tension knob

support bearing

Upper blade
guide lock knob

Blade
Miter slot

Table
Table trunnion

Table lock plate

"blade wheel

guard

3er blade

Upper blade

guide

Table insert
Miter gauge

-- Table aligning pin

bevel scale

Lower blade

wheel

V-Belt

Upper blade
guide red

Lower blade
support bearing

Lower blade
guide

Table removed for clarity

of illustration

Blade tension

ilade tracking

cord wrap

tension lock

gauge

knob

Power

V-belt

CRAFTSMAN BAND SAW TERMS

BLADE GUIDES - Support the blade and keep it from

twistingduring operation. Blade guides must be adjusted
when the blade is changed or replaced.

BLADE TENSION KNOB - Controls the amount of blade
tension when changing blades.

BLADE TRACKING KNOB - Adjusts the blade position so

the blade always runs in the center of the wheel.

ON / OFF SWITCH - Has a built-in child safety lock. To lock
the switch in the OFF position, remove the switch key from

the switch.

RELIEF CUT - Removal of waste material by a cut from the
outside edge, allowing easier cutting of intricate curves.

SAWDUST PORT - Helps keep the machine free from

sawdust. The sawdust port makes an excellent hookup for a
wet/dry vacuum.

TABLE LOCK KNOB - Locks the table in place.

TILT (BEVEL) SCALE - Shows the degree the table istilted
for bevel cutting.

UPPER BLADE GUIDE LOCK KNOB - Locks the upper
slide. Use it after you adjust the upper guide assembly to
make sure the upper blade guide just clears the workpiece

before cutting. Upper guide lock knob must be tightened

before the band saw is turned on.

WOODWORKING TERMS

KERF - The material removed by a blade in a through cut,
or the slot produced by the blade in a nomthrough or partial

cut.
LEADING EDGE - The end of the workpiece pushed into

the cutting tool first.

MITER CUT - An angle cut made across the width of a
workpiece.

RELIEF CUT - Removal of waste material by a cut from the
outside edge, allowing easier cutting of intricate curves.

RESAW - A cutting operation to reduce the thickness of the

workpiece to make thinner workpieces.

RESIN - A sticky sap that has hardened.

RIPPING CUT - A cutting operation along the length of the

workpiece.

R.P.M. - Revolutions per minute. The number of turns

completed by a spinning object in one minute:

SAW BLADE PATH - The area of the workpiece or table top
directly in line with the travel of the blade or the part of the
workpiece which wilt be cut.

SET -The distance between two tips of the saw blade teeth,
bent outward in opposite directions to each other.

TRAILING END - The workpiece end last cut by the blade.

WORKPIECE - The item being cut. The surfaces of a
workpiece are commonly referred to as faces, ends, edges.

WORKTABLE - The surface on which the workpiece rests
while performing a cutting or sanding operation.

Sawdust port

Motor

Stand top table

Leg stan d

_i!ii!i

BEVEL CUT - An angle cut made through the face of a
workpiece

COMPOUND CUT - A simultaneous bevel and miter cut. LeadingEdge

CROSSCUT - A cut made across the width of the Kerr
workpiece.

RRM. - Feet per minute. Used in reference to the surface

Surface

speed of the saw blade.

FREEHAND - Performing a cut without using a fence
(guide), hold-down or other proper device to prevent the

werkpiece from twisting during the cutting operation.

Workpiece

GUM - A sticky sap based residue from wood products.

HEEL - Misatignment of the blade.

Relief cu_

Sawblade Path

Trailing Edge

ASSEMBLY iNSTRUCTiONS

FIG. C

FIG. E "---"

3

12

1

TOOLS NEEDED . v("_

_Ipl,l,l,l,_

Phillipsscrewdriver

Combinationsquare

_l_j41'l_l'l'('l ' I'1'

' Adjustable wrench Straight edge

_)

Feelergauge - size 0.02

For your safety, never connect plug to power source
receptacle until all assembly and adjustment steps are
completed, and you have read and understood the safety

and operating instructions.

LEG STAND ASSEMBLY (FIG. A)

1. Lay the top plate (1) upside down on a flat surface.

2. Attach a leg (2) to the outside of the stand top plate with
four carriage bolts (3), washers (4), and nuts (5). Do not
tighten.

3. Repeat for the remaining three legs.

4. Attach two long brackets (6) and two short brackets (7)
to the inside of the legs, using carriage bolts (3),

washers (4), and nuts (5). Do not tighten.

5. Place the leg pads (8) on each leg and turn the leg

stand upright on a firm level surface.

6. Adjust the stand for stability.

FIG. A 11

1

Although compact, this saw is heavy. To avoid back injury, get

help to lift the saw.
ASSEMBLE BAND SAWTO LEG STAND (FIG. B)

1. Lift the saw body (1) and place on the leg stand (2),
aligning the mounting holes (3) of the saw base with the

four mounting holes of the leg stand top plate.

2. Attach the band saw to the stand with four long hex head
bolts (4) and four flat washers (5).

3. Place a flat washer (5) and hex nut (6) on each bolt from
the underside. Hand tighten.

4. Tighten all mounting bolts and nuts with a wrench.

5. Tighten all leg stand bolts and nuts with the wrench.

FIG. B

5

• 6 _

ASSEMBLE THE BAND SAW TABLE (FIG. D, E, F, G)

Mounting the trunnion support bracket (FIG. D)

1. Remove the two hex head bolts (1) and washers (2),
located on the lower band saw housing.

2. Place the trunnion support bracket (3) on the saw body,
as shown, aligning the mounting holes.

3. Place the washers on the hex head bolts, and insert into

the threaded holes, through the bracket and saw body.
Tighten.

4. Thread a nut (4) onto the table stop bolt (5) and screw

both into the rear tab (6) on the trunnion support bracket.

5. Tighten the nut down onto the bracket tab.

FIG. D

4•

1

2

3

'9

i ,

9. Turn the table right side up.

10. Remove the table insert (13) from the table.

11. Guide the table slot (14) over the saw blade and rotate a
1/4 turn, so the slot is perpendicular to the blade.

12. Placing the scale lock knob bolts (10) through the

trunnion bracket holes (15) as shown, lower the table
onto the trunnion bracket.

FIG. F

15

13. Place a lock knob (16) on each scale knob bolt. Adjust
the table by aligning the zero scale mark to the scale

pointer (17), and tighten the knobs.

14. Replace the table insert (13), aligning the indents.

15. Place the table aligning pin (18) in the hoie at the front of
the table, and tighten.

THE SAWDUST PORT (FIG. C)
The sawdust port has a 2-1/2"(O.D)/2-1/4"(I.D) diameter open-

ing, suitable for attaching to a wet / dry vacuum hose, to help

keep the work area free of sawdust.

, '"',_ !. Remove the bolts (1) and washers (2) from the sawdust i

port (3). i

2. Open the lower wheel cover (4).

3. Attach the sawdust port to the edge of the wheel cover,

_,..... .... using the same hex. head bolts and washers. :J

...."_ 4. Tighten the bolts and close the cover.

8

10

FIG. G 13 18

i

Mounting the table (FIG. E, F, G)

6. On the underside of the table (7), place the scale
brackets (8) on the bracket mounting holes (9).

7. Be sure the long lock knob bolts (10) are placed
upwards through the bracket slots as shown.

8. Place lock washers (11) on three short hex head

bolts (12). Thread the bolts through the mounting holes
and tighten.

INSTALLING AND REMOVING BLADES (FIG. H)

To avoid injury from accidental starting, always turn the
switch OFF and remove the plug from the power source

before moving, replacing, or adjusting the blade.
Removing

1. Loosen the blade tension by turning the blade tension
knob (1) counterclockwise.

2. Remove the table insert (2) and remove the table
aligning pin (3) from the table.

3. Open the upper and lower wheel cover doors (4).

4. Loosen the two Phillips screws (5) and remove the upper

blade guard (6).

5. Remove the blade (7) from the upper and lower blade
guides (8).

6. Carefully pull the blade from the side slot (9) and from
the wheels (10).

7. Swing the left side of the blade toward you, turning the

blade so it wilt fit through the slot (11) in the table, and
remove.

FIG. H

Installing

1. Make sure the blade tensior knob (1) is turned
counterclockwise until it stops.

2. Remove o_eblade as explained in "Removing"

3. Guide the new blade (7) through the table slot (11).
Make sure the blade teeth are pointing forward and

down.
NOTE: To avoid lifting the workpiece, lhe blade teeth

must point aownwara toward the table.

4. Swinging the left side off the blade away and back. place

the blade on the upper and lower wheels (10).

5. Place the blade carefully between the upper and lower
blade gulaes (8).

6. Slide the blade into the slot (9) at the left of the wheels•

and maKe sure the blade is positioned at the rniddle of
the wheels.

7. Turning the blade tension knob (1) clockwise, tighten the

tension until the blade is tignt on the wheels.

8. Replace the table insert (2) and the table aligning a_n(3).

9. Adjust the utade tracking and tension properly (See

ADJUSTMENT INSTRUCTIONS sectlont before
operating the band saw.

INSTALL POWER CORD BRACKETS (FIG. J)

1. Power cord brackets (1) are provided for convenient
cord storage. Attach the power cord brackets to the back

of the saw body, as shown, with two Phillips head
screws (2). Tighten.

2. Wrap the power cord onto the brackets when the band
saw is'not in use, to prevent damage to the cord.

FIG. J

_ Fy""_

ADJUSTMENT INSTRUCTIONS

Adjusting the 90 °table stop (FIG. L)

1. Loosen the table lock knobs (2) and tilt the table to
the right.

2. Loosen the nut (4) on the table stop bolt (5) and lower
the stop bolt as far as possible.

3. Tilt the table until it rests on the stop bolt.

4. Place a combination square (6) on the table with the
heel of the square against the saw blade.

5. Adjust the tilt of the table left or r ght unt it is 90° to the

blade. Make sure there is no space between the square
and the blade. Tighten the table lock knobs.

6. Adjust the table stop bolt up until it touches the table.

Tighten the jam nut down to the support bracket.

7. Loosen the lock knobs and see that the table is resting

on the stop bolt.

8. Check the square to make sure the table is still square to
the blade. If not, readjust the stop bolt.

9. When the adjustment is accurate at 90°, align the
pointer (7) to 0° on the scale (8).

FIG. L

To avoid injury, the blade tension, tracking, and upper ana

6

lower guides and bearings must be properly adjusted before

operating the band saw. (See ADJUSTMENT

INSTRUCTIONS section)

10

MITER GAUGE (FIG. I)

A miter gauge (1) is supplied with your band saw to be used
in the table slot (2) on the right side of the blade. The miter

6

gauge can be tilted 0° to 45° right or left, to maintain an
accurate angle for your workpiece. A bracket is provided on

5

3

the leg stand for convenient miter gauge storage.

To avoid injury, turn the switch OFF and unplug the band saw
from the power source before making any adjustments.

TABLE ADJUSTMENTS (FIG. K, L)
Tilting the table (FIG. K)

The band saw table (1) tilts 0°to 45° to the right

1. Loosen both table lock knobs (2) underneath the table.

2. Tilt the table to the desired angle on the scale (3)

2 4

underneath the table.

2

1

3. Tighten the two table lock knobs.

8 I

10 0 10

7

FIG. I

3

I

8

I0

FIG. K

1

3

Before operation always make sure the blade is in center
of table insert slot.

. :...i".:: • _i. -• .:_ .": _ ••12_:'_ _ :i_:_ ..•: -: ".•:.:_Y-. : _

.... ...... ¸(i!ii:!ii i:iii!! !?:??ii¸¸:'! ¸¸¸¸¸¸:' :

BLADE TENSION (FIG. M)

To avoid injury, turn the switch OFF and disconnect the saw
from the power source before rnaking any adjustments,

NEVER make tension adjustments with the machine running.
The gauge (1) on the bracket (2) at the rear of the upper

wheel housing indicates the proper tension for the various
blade widths.

1. Set the blade tension gauge to correspond with the width
of the blade in use.

2. Turn the blade tension knob (3) clockwise, raising the
upper wheel to tighten the blade. Turn the knob

counterclockwise to lower the upper wheel, loosening
the blade.

3. As you become familiar with the saw, you may want to
change the tension settings.

NOTE: Changes in blade width and type of material
being cut will have an effect on the blade tension. Too

much or too little tension could break the blade. When
the band saw is not in use, relax the blade tension.

F_G. M

BLADE TRACKING (FIG, N)

To avoid injury, turn the switch OFF and disconnect the saw
from the power source before making any adjustments.

NEVER make tension adjustments with the machine running.

1. The blade (1) must be tensioned properly before
adjusting the tracking.

2. Open the upper cover.

3. Move the blade guides (2) and support bearings (3)
away from the blade, if necessary. See page 15 for

bearing and guide adjustment.

4. Rotate the wheel (4) slowly forward by hand, and check
the position of the blade on the wheel. The blade should

remain centered on the wheel as it turns.

If the blade moves toward the front of the wheel, turn the

tracking knob (5) on the rear of the band saw clockwise.

This tilts the top of the wheel and moves the blade
toward the center.

If the blade moves toward the back edge, turn the
tracking knob counterclockwise, moving the blade toward

the center.

NO'rE: Turn the tracking knob SLIGHTLY to make blade

tracking adjustments.

5

4

UPPER BLADE GUBDE ASSEMBLY (FIG. O)

To avoid injury, turn the switch OFF and disconnect the saw
from the power source before making any adjustments.

NEVER make adjustments with the machine running.

1. Loosen the lock knob (1) and move the blade guide
assembly (2) up or down to 1/8" above the workpiece.

2. Tighten the lock knob.
FiG. O

J

UPPER BLADE GUIDES AND BLADE SUPPORT
BEARING (FIG. P, Q)

o The blade guard has been removed for clarity of

illustration. To avoid injury never operate the band saw

without all guards in place and in working order.
To avoid injury, turn the switch OFF and disconnect the

saw from the power source before making any
adjustments. NEVER make adjustments with the

machine running.

NOTE: Make sure the blade is tensioned and tracking
properly. Adjust the blade guides and support bearing after

each blade tension and Iracking adjustment. When the upper
blade guides and supporl bearings are adjusted, the lower

guides and bearings should also be adjusted.

Blade guides (HG. P)
!. Make sure the blade is tensioned and tracking properly.

2. Loosen the front hex socket screws (1) with a hex wrench.

3. Move the guides (2) as close to the blade (3) as possible
without pinching it. :

4. Using a feeler gaugel make sure the space between
each guide and the blade measures 0.02!' (the thickness

of a dollar bill) ........

5.

Tighten the hex socket screws:

6.

Loosen the:side hex socket screw (4)by turning

counterclockwise, ::

7.

Move the blade guide:bracket shaft (5) in or out until the

guide s are at least 1/3Z' behind the blade teeth.

8;

The guides must remain behind the blade teeth during
operation to prevent damage to the saw blade.

9.

Tighten the hex socket screw.

FIG. P

4

2

1

5

Support bearing (FIG, Q)

10. Loosen the bearing hex socket screw (6).
11, Move the support bearing shaft (7:)in or out, until the

bearing (8) is 1/64" behind the blade.

12. Tighten the hex socket screw (6).
NOTE: The blade support bearing prevents the blade

from moving back too far and damaging the saw teeth
setting.

FIG. O

LOWER BLADE GUIDES AND SUPPORT BEARING

To avoid injury, turn the switch OFF and disconnect the saw
from the power source before making any adjustments.

NEVER make adjustments with the machine running.

NOTE: Make sure the blade is tensioned and tracking

properly.
The lower blade guides and support bearings should always
be adjusted after the blade is tensioned, the tracking is

adjusted, and the upper blade guides and upper support
bearings are properly adjusted.

Blade guides (FIG. R)

1. Loosen both front hex socket screws (1) with a hex
wrench.

2. Move the guides (2) as close to the sides of the blade (3)
as possible without pinching it.

3. Using the feeler gauge, measure the spaces between
the guides and the blade. Adjust to 0.02".

4. Tighten the hex screws.

5. _ Loosen the side hex socket screw (4). Move the guide
suppod bracket (5) in or out until the guides are at least

1/32" behind the saw teeth. Tighten the screw.

F_G, R

3

_'L_

2

I

5--

4--

4

.... 0 ; 0: ! i;_iO:i_? i: ¸:i; i ;£{i!:;:ill ;;ii _i!i¸iii!i¸¸I;I{_i:i¸i¸ i'i¸iii¸!_i_;:iiiiiii:;il14 il;ii_!!!i¸¸if:¸i_!_i:i!iii!i¸ii:;_:_};:iil¸i_i_ii!li¸¸i;ii!!i¸:!!ii_i!i:!¸¸ii!_iiIJiiiiil¸:il_iii!iii!i;il¸I!¸iilil¸ii!i!!!ii!iiiii!:!iiiSiii_!_!iiii!iiiii!i!_:iiiii!i!:!ili!iii:ii_iiiiiiii!_i!!ii!!iii:_!ilii!!i!iiii!iii!iiii!:iii!!!iiiii_iliiii!i!iiii!i:ii:ii!i¸!ii'iiii:i¸i!!ii!ii:iiiiiiiii:i¸!!il¸¸!ii! !

iI

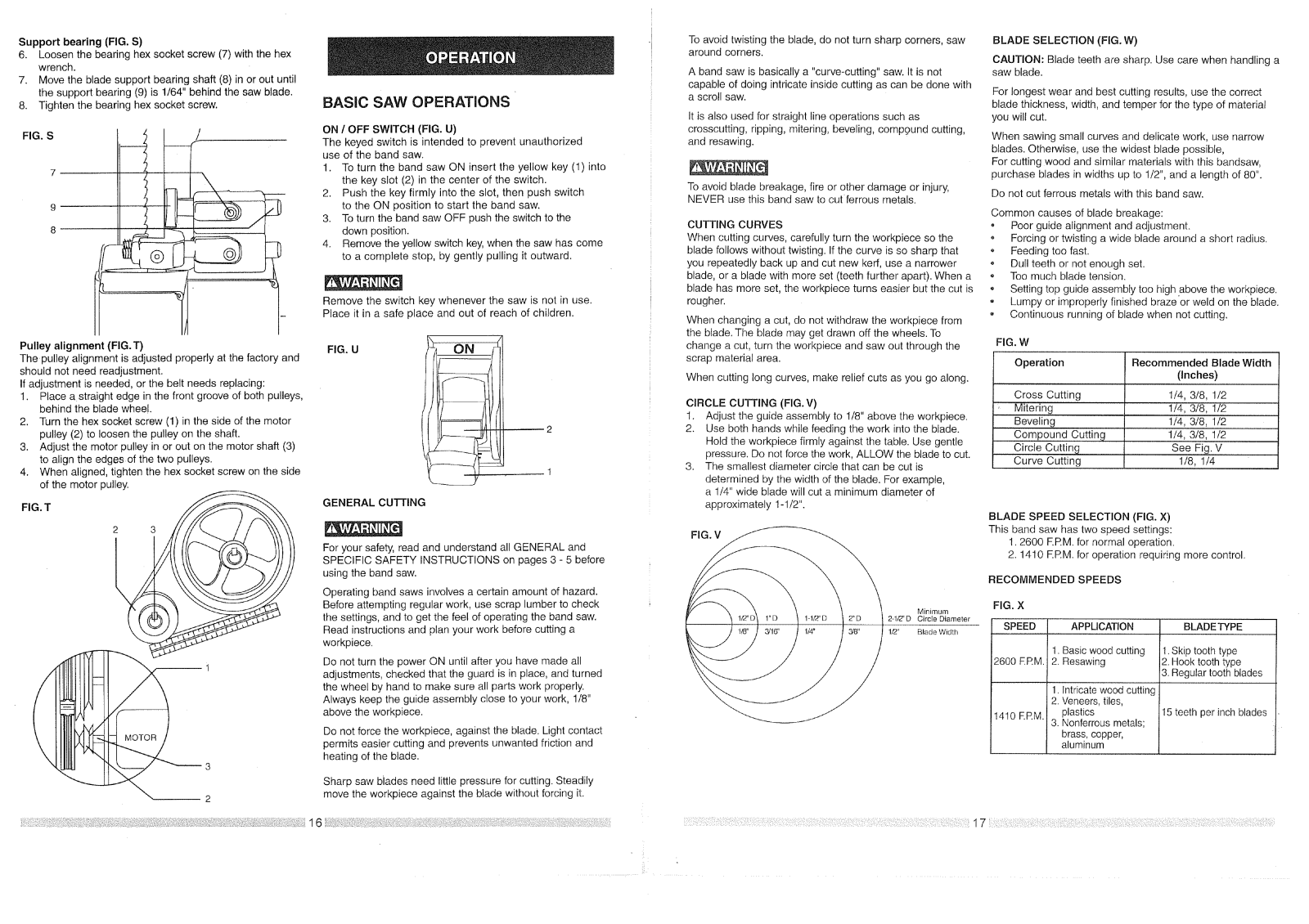

Support bearing (FIG. S)

6. Loosen the bearing hex socket screw (7) with the hex
wrench.

7. Move the blade support bearing shaft (8) in or out until
the support bearing (9) is 1/64" behind the saw blade.

8. Tighten the bearing hex socket screw.

FIG. S

9

8

Pulley alignment (FIG.T)
The pulley alignment is adjusted properly at the factory and

should not need readjustment.
If adjustment is needed, or the belt needs replacing:

1. Place a straight edge in the front groove of both pulleys,
behind the blade wheel

2. Turn the hex socket screw (1) in the side of the motor
pulley (2) to loosen the pulley on the shaft.

3. Adjust the motor pulley in or out on the motor shaft (3)
to align the edges of the two pulleys.

4. When aligned, tighten the hex socket screw on the side
of the motor pulley.

FIG. T

BASIC SAW OPERATIONS

ON / OFF SWITCH (FIG. U)
The keyed switch is intended to prevent unauthorized

use of the band saw.

1. To turn the band saw ON insert the yellow key (1) into
the key slot (2) in the center of the switch.

2. Push the key firmly into the slot, then push switch
to the ON position to start the band saw.

3. To turn the band saw OFF push the switch to the
down position.

4. Remove the yellow switch key,when the saw has come
to a complete stop, by gently pulling it outward.

Remove the switch key whenever the saw is not in use.
Place it in a safe place and out of reach of children.

FIG. U

l ON

GENERAL CUTTING

For your safety, read and understand all GENERAL and

SPECIFIC SAFETY INSTRUCTIONS on pages 3 - 5 before

using the band saw.

Operating band saws involves a certain amount of hazard.

Before attempting regular work, use scrap lumber to check

the settings, and to get the feel of operating the band saw.

Read instructions and plan your work before cutting a

workpiece.

Do not turn the power ON until after you have made all
adjustments, checked that the guard is in place, and turned

the wheel by hand to make sure all parts work properly.
Always keep the guide assembly close to your work, 1/8"

above the workpiece.
Do not force the workpiece, against the blade. Light contact

permits easier cutting and prevents unwanted friction and
heating of the blade.

To avoid twisting the blade, do not turn sharp corners, saw
around corners.

A band saw is basically a "curve-cutting" saw. It is not
capable of doing intricate inside cutting as can be done with

a scroll saw.

It is also used for straight line operations such as
crosscutting, ripping, mitering, beveling, compound cutting,
and resawing.

To avoid blade breakage, fire or other damage or injury,
NEVER use this band saw to cut ferrous metals.

CUTTING CURVES

When cutting curves, carefully turn the workpiece so the
blade follows without twisting. If the curve is so sharp that

you repeatedly back up and cut new kerr, use a narrower
blade, or a blade with more set (teeth further apart). When a

blade has more set, the workpiece turns easier but the cut is
rougher.

When changing a cut, do not withdraw the workpiece from
the blade. The blade may get drawn off the wheels. To
change a cut, turn the workpiece and saw out through the

scrap material area.

When cutting long curves, make relief cuts as you go along.

CIRCLE CUTTING (FIG. V)

1. Adjust the guide assembly to 1/8" above the workpiece.

2. Use both hands while feeding the work into the blade.
Hold the workpiece firmly against the table. Use gentle

pressure. Do not force the work, ALLOW the blade to cut.

3. The smallest diameter circle that can be cut is

determined by the width of the blade. For example,
a 1/4" wide blade will cut a minimum diameter of

approximately 1-1/2".

FIG. V

Minimum

2-1/Z'D Circle Diameter

1/2" Blade Width

BLADE SELECTION (FIG. W)

CAUTION: Blade teeth are sharp. Use care when handling a
saw blade.

For longest wear and best cutting results, use the correct
blade thickness, width, and temper for the type of material

you will cut.

When sawing small curves and delicate work, use narrow
blades. Otherwise, use the widest blade possible,

For cutting wood and similar materials with this bandsaw,

purchase blades in widths up to 1/2", and a length of 80".
Do not cut ferrous metals with this band saw.

Common causes of blade breakage:

• Poor guide alignment and adjustment.

o Forcing or twisting a wide blade around a short radius.

• Feeding too fast.
Dull teeth or not enough set.

Too much blade tension.

o Setting top guide assembly too high .above the workpiece.

- Lumpy or improperly finished braze or weld on the blade.

Continuous running of blade when not cutting.

FIG. W

Operation

Recommended Blade Width

(Inches)

Cross Cutting
Mitering
Beveling

Compound Cutting

Circle Cutting
Curve Cutting

1/4, 3/8, 1/2
1/4, 3/8, 1/2
1/4, 3/8, 1/2
1/4, 3/8, 1/2

See Fig. V

1/8, 1/4

BLADE SPEED SELECTION (FIG. X)

This band saw has two speed settings:

1. 2600 RRM. for normal operation.

2. 1410 RRM. for operation requiring more control.

RECOMMENDED SPEEDS

FIG. X

SPEED APPLICATION BLADETYPE

1.Basic wood cutting 1.Skip tooth type

2600 KRM. 2. Resawing 2.Hook tooth type

3.Regular tooth blades

1.Intricatewood cutting

2.Veneers, tiles,

1410 RRM. 15 teeth per inch blades

plastics

3. Nonferrous metals;
brass, copper,

aluminum

Sharp saw biades need little pressure for cutting. Steadily
move the workpiece against the blade without forcing it.

16 :

17

CHANGING SPEED SE'I-FING (FIG.Y)

To avoid injury, turn the switch OFF and disconnect the saw
from the power source before making any adjustments.

NEVER make adjustments with the machine running.

1. Loosen the belt tension by turning the tension lock
handle (6).

2. Open the lower wheel cover and reposition the V-belt (3).
A. Changing the speed from 1410 to 2600 FPM:

Remove the belt (3) from the band saw pulley (4)
first, and reposition in the saw pulley groove (1).
Next, remove the belt from the motor pulley (5) and

reposition in the motor pulley groove (1).

B. Changing the speed from 2600 to 1410 FPM:

Remove the belt (3) from the motor pulley (5) first,
and reposition in the motor pulley groove (2).

Remove the belt from the saw pulley (4) and
reposition in the saw pulley groove (2).

3. Tighten the belt tension by turning the tension lock
handle (6).

NOTE: After readjusting belt position and belt tension,
check and readjust the settings for the blade tension and

tracking, guides and bearings (See ADJUSTMENT
section).

GENERAL MAINTENANCE

. For your own safety, turn switch OFF and remove the

plug from power source receptacle before maintaining,
cleaning, adjusting, or lubricating your band saw.

, To avoid fire or toxic reaction, never use gasoline,

naphtha, acetone, lacquer thinner or similar highly
volatile solvents to clean the band saw.

, To avoid eye injury from blowing debris, wear safety

goggles when blowing out sawdust.

BAND SAW
Sawdust will accumulate under the table and base. This

could cause difficulty in the movement of the table when
setting up a band saw cut, and also cause a fire hazard.
Frequently blow out or vacuum up the sawdust.

Keep your band saw clean. Remove the sawdust from the
inside. Vacuum or blow out frequently.

Do not allow filth to build up on the table, the guides, or the

support bearings. Clean them with Craftsman Gum and Pitch

Remover.

12 Replace the blade wheel. Push the wheel on firmly until

it is touching the saw pulley. Replace and tighten the

flange and nut.

13. Reinstall the blade (See iNSTALLING BLADES Section
on page ).

14. Adjust the blade tension, tracking, and the upper and
lower blade guides and bearings before operating the

band saw.

To avoid injury, the blade tension, tracking, and upper and
tower guides and bearings musl be properly adjusted before

operating the band saw. (See ADJUSTMENT INSTRUCTIONS
section)

FIG. Z

BLADE WHEEL TIRES

Pitch and sawdust that build up on the tires should be
removed with a stiff brush or scrape off with a piece of wood.

NOTE: To avoid damaging the tires do not use a sharp knife
or any kind of solvent.

When the tires become worn they should be replaced. When

replacing the tires, stretch them around the wheels but do
not glue them on.

MOTOR
Frequently blow or vacuum out any sawdust from the motor.

Follow lubrication instruction on the motor label.

To avoid electrocution or fire immediately replace a worn, cut

or damaged power cord. '
LUBRICATION

All of the bearings ar# packed with grease at ti'_e.factory.
They require no further IL_brication.

CAUTION: Never put.lubric.ar_tson the blade while it is
spinning.

--1

--4
5 3

5

MOTOR

1

2

To avoid possible injury or damage, NEVER use this band
saw to cut ferrous metals.

CAUTION: When cutting nonferrous metals, metal shavings
can react with wood dust and start a fire. To avoid this:

1. Disconnect any dust collecting hose from the band

SaW.

2. Remove all traces of wood dust from inside the saw.

3. Remove all metal shavings from inside the saw
before sawing wood again.

NOTE: Do not immerse the support bearings in the gum and

pitch remover.

Put a thin coat of paste wax on the table so that the wood

slides easily while cutting.

TO INSTALL A NEW BELT (FIG. Z)

1. Open the lower wheel door.

2. Loosen the blade tension by turning the blade tension
lock knob (!).

3. Remove the blade from the lower blade wheel

4. Loosen and remove the hex head bolt (2) and flange (3)

on the lower blade wheel.

5. Remove the lower blade wheel.

6. Turn the belt tension handle (4) on the rear of the saw
housing to loosen the v-belt tension.

7. Remove the v-belt (5).

8. Check the alignment of the two pulleys.

9. If the edges of the two pulleys are not aligned, see
"ALIGN THE PULLEYS" in ADJUSTMENT section.

!0. Place the new v-belt on the saw puiley and the motor

pulley. See OPERATION section "CHANGING SPEED
SETTINGS" on page for proper belt placement.

11. When positioned properly, tighten the v-belt tension by
turning the tension lock handle.

NOTE: The pulley belt is properly tensioned when there
is 1/2" deflection if pressed in the center between the
pulleys.

MOTOR

TROUBLESHOOTING GUIDE

, To avoid injury from an accidental start, turn the switch OFF and always remove the plug from the power source

before making any adjustments.

+ All electrical or mechanical repairs should be done only by qualified service technicians• Contact the nearest

Sears Service Center.

GENERAL

Problem

Blade does not run in the
center of the

upper wheel.

Band saw slows down
when cutting.

Probable Cause

1. Not tracking properly.

2. Defective blade.

1. Belt too loose•

2. Cutting too small a radius.

3. Dull blade.

4. Overloading motor.

Remedy

1. Adjust tracking. See ASSEMBLY AND ADJUSTMENTS
section "BLADE TRACKING".

2. Replace blade.

1. Adjust belt tension. See ASSEMBLY AND
ADJUSTMENTS section "BLADE TENSION".

2. Stop feeding, back up the material slightly, until the
band saw speeds up.

3. Replace blade.

4. Slow down, you are trying to cut too fast. See

"MOTOR TROUBLESHOOTING GUIDE".

Problem

Noisy operation.

Motor will not start.

Motor will not start and fuse

or circuit breaker opens.

Probable Cause

1. Incorrect belt tension.

2. Loose motor pulley.

3. Loose pulley cover.

.

Not plugged into power

outlet•

.

Switch and key not in ON 2.
position.

.

Motor cord cut or abraded. 3.

4.

Plug on cord is faulty. 4.

5.

Fuse on circuit breaks open. 5.

6.

Faulty motor 6.

.

Too many electrical 1.

machines.

2.

Incorrect fuse. 2.

3.

Wheels do not rotate• 3.

4.

Undersized extension cord. 4.

5.

Short circuit. 5.

Remedy

1. Adjust tension. See ASSEMBLY AND
ADJUSTMENTS section "INSTALL THE BELT".

2: Readjust and tighten motor pulley set screw.

3. Readjust and tighten pulley cover mounting
screws.

1. Plug it into the power outlet.

Insert key and turn the switch ON.

Take to Sears Service Center for new cord.
Take to Sears Service Center for new plug.
Re-set; may be too many machines on line.

Take to Sears Service Center for repair

or replacement•

Turn off other machines and try again.

Try time delay fuse, or go to circuit with higher

rated fuse or circuit breaker.
Unplug and turn wheels by hand, move

obstruction.
Use correct size extension cord; see page 5.
Cord, plug, or motor need repair; take to Sears

Service Center for repair.

Blades braking.

1. Too much tension on
the blade•

2. Kink in the blade caused by
cutting too small a radius or
turning the material too fast
when cutting.

Blade dulls too quickly.

1. Blade guides set toe close to
the teeth.

2. Cutting incorrect material•

Band saw vibrates. 1. Too much tension on

motor belt.

1. Adjust tension. See ASSEMBLY AND
ADJUSTMENTS section "BLADE TENSION"

2. Use correct cutting technique.
See OPERATION section "GENERAL CUTTING".

1. Adjust upper and lower blade guides.

2. See OPERATION section "BLADE SELECTION".

1. Adjust according to ASSEMBLY AND
ADJUSTMENTS section, "INSTALL THE BELT".

Motor fails to develop

full power.

Motor overheats•

Motor stalls or slows•

Frequent fuse or circuit
breaker failure.

1,

Low line voltage.

2.

Faulty motor or capacitor.

.

Overload on motor. 1.

2.

Poor ventilation of motor. 2.
Provide better air circulation.

3.

Capacitor failure. 3.

1

• Motor overload. 1.

2.

Low line voltage. 2.

3.

Loose wire connections• 3.

4.

Faulty motor. 4.

1

• Motor overload.

2.

Overload of electrical circuit.

3.

Incorrect fuse or circuit
breaker.

1. Check power line for proper voltage.

2. Take to Sears Service Center for evaluation.

Reduce load to motor, feed work slower into blade•

Unplug and clean out around motor; provide
better air circulation.

Take to Sears Service Center for repair•

Reduce load to motor, feed work slower into blade.
Check power line for proper voltage.

Take to Sears Service Center for repair.

Take to Sears Service Center for repair.

1. Reduce load to motor, feed work slower into blade.

2. Too many electrical appliances on same circuit.

3. Have e ectrician upgrade service to outlet.

21

CRAFTSMAN 12" BAND SAW 137.224320

o When servicing use only CRAFTSMAN replacement parts. Use of any other parts may create a HAZARD or cause

product damage•

+ Any attempt to repair or replace electrical parts on this band saw may create a HAZARD unless repair is done by a

qualified service technician. Repair service is available at your nearest Sears Service Center.

Order by PART NUMBER, not by key number

PARTS LIST FOR FIGURE A

° i

ci

o+

CRAFTSMAN 12" BAND SAW
FIGURE A

137o224320

+]2

I1

/

//

i+

2:

N i

i

i

o

i

76

CRAFTSMAN12"BAND SAW

PARTS LIST FOR FIGURE B

o

d i

I

I
I

I
I

I
I

I
I

I

i ,t---

_ O,"T" z G.. ;> F- bg

1

i 0 _
I04 (M

137.224320

CRAFTSMAN 12" BAND SAW

137.224320

FIGURE B

121

].04

(

w

86

#.

o

_,

GI

#.

_zZ_Z_

a__omz

9 z

I
I

I

o',lo

-_lCq

1

1
1

1
1

1.1.1_u_

0,o

"rl_

Z 7_ . _

_Ix cc

r_ rr" _ LU

I

o,S N

o0,_ o

N NI_

I

I

O3 1

117

.20

j) l 9

/1124¸

STAND

PARTSLIST FOR FIGURE C

Key Part No. Description Qty

1 3BS40101 Stand top plate 1
2 3BS40201 Lower bracket (long) 2

3 3BS40301 Lower bracket (short) 2

4 3BS40401 Leg 4

5 3BS40501 Miter gauge storage 1

6 3BS40601 Screw 2
7 3BS40701 Nut 32
8 3BS40801 Flat washer 32
9 3BS40901 Screw 32

10 3BS41001 Pad 4

137.224320
STAND

FIGURE C

137.224320

1

..4

o

J_

q
