Craftsman 11593 User Manual

PERATOR'S MAN AL

19.2 VOLT SPOTLIGHT

Model No.

315.115930

BATTERIES AND CHARGERS SOLD

WARNING: To reduce the risk of injury, the user must read and understand the

operator's manual before using this product.

SEPARATELY

ACCEPTS ALL CRAFTSMAN 19.2 V

BATTERY PACKS

Craftsman Consumer Helpline: 1-800-932-3188

Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA Visit the Craftsman web page: www.sears.com/craftsman

987000-315 11-10-08 (REV:01)

Save this manual for future reference

C [IS

• Warranty .......................................................................................................................................................................... 2

• Introduction ..................................................................................................................................................................... 2

• General Safety Rules ....................................................................................................................................................... 3

• Symbols ........................................................................................................................................................................... 4

• Features ........................................................................................................................................................................... 5

• Assembly ...................................................................................................................................................................... 5-6

• Operation ...................................................................................................................................................................... 6-7

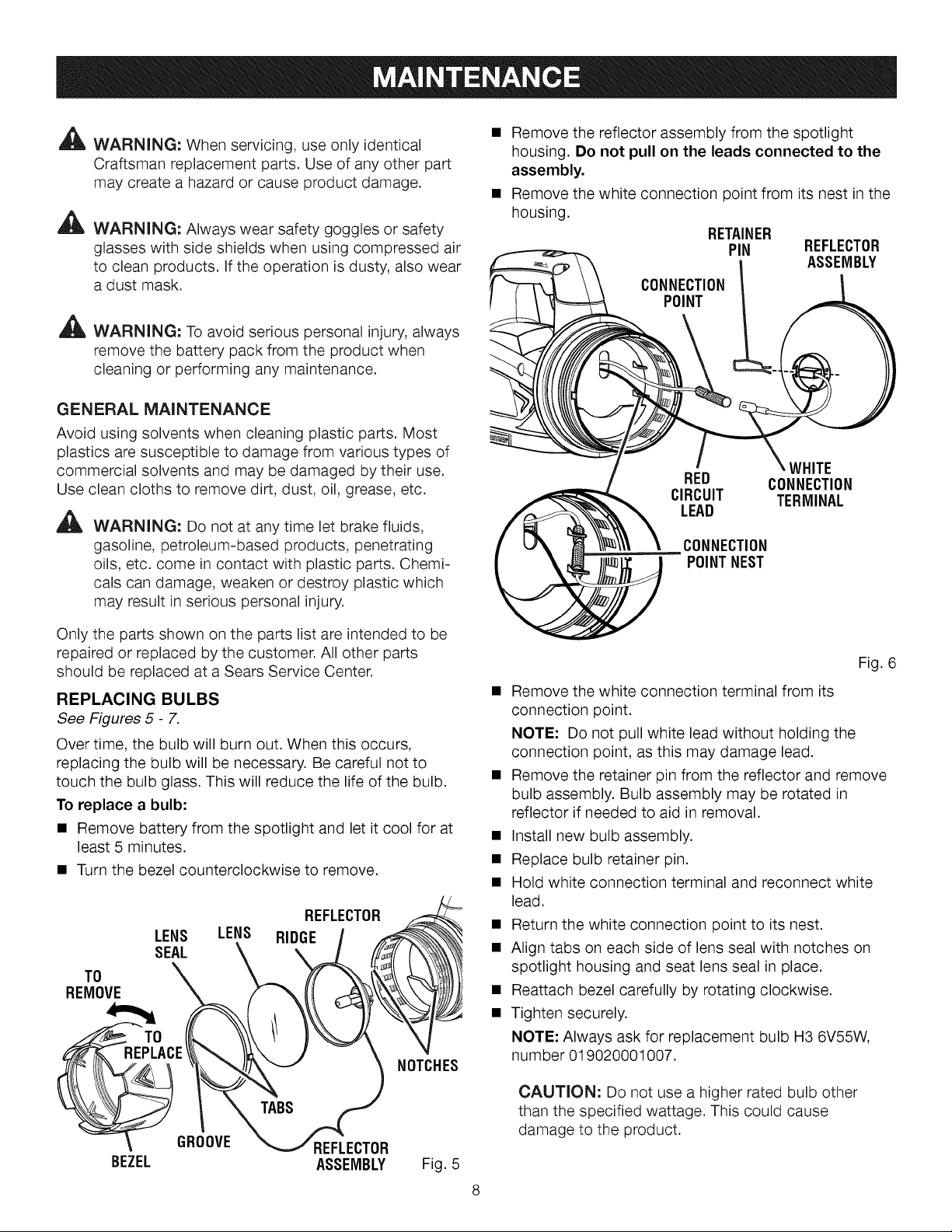

• Maintenance ................................................................................................................................................................. 8-9

• Parts Ordering/Service ..................................................................................................................................... Back Page

ONE-YEAR FULL WARRANTY ON CRAFTSMAN TOOL If this Craftsman tool fails to give complete satisfaction within one year from date of purchase, RETURN iT TO ANY

SEARS STORE OR OTHER CRAFTSMAN OUTLET iN THE UNITED STATES FOR FREE REPLACEMENT. If this Craftsman tool is used for commercial or rental purposes, this warranty applies for only 90 days from the date of

purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities

contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure

to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust

masks that are specially designed to filter out microscopic particles.

iMPORTANT SAFETY iNSTRUCTiONS

WARNING! READ AND UNDERSTAND ALL

INSTRUCTIONS. Failure to follow all instructions

listed below, may result in electric shock, fire and/or serious personal injury.

WARNING! When using electric appliances, basic

precautions should always be fol)owed, including the following:

• Read all the instructions before using the appliance.

• To reduce the risk of injury, close supervision is necessary when an appliance is used near children.

• To reduce the risk of electrical shock, do not put spotlight or charger in water or other liquid. Do not

place or store appliance where it can fall or be pulled into

a tub or sink.

• Use only the charger supplied by the manufacturer to recharge.

• Use only recommended battery pack. Any attempt to use another battery pack will cause damage to your

spotlight and could possibly explode, cause a fire, or

personal injury.

MODEL BATTERY PACK CHARGER

(M-ion)

315.113740

(130285003,

130285006)

315.113710

(Mu(ti-Chemistry)

315.259260

(140351001)

(130156001)

315.115930

BATTERY PACK

(Ni-Cd)

315.259260 (140351001)

1425301 _11041)

130279003,

130279005

(Item No. 911375)

315.115730

(140301003)

315.115720

(140301001)

• Remove battery pack from spotlight before replacing bulb or performing any routine maintenance or cleaning.

Replace bulb with same type rated H3 6V55W.

• Do not disassemble the spotlight.

• Do not place spotlight or battery pack near fire or

heat. They may explode. Also, do not dispose of a worn

out battery pack by incinerating. Do not incinerate the

battery, even if it is severely damaged or completely worn

out. The battery may explode in fire.

• Do not operate spotlight or charger near flammable liquids or in gaseous or explosive atmospheres.

Internal sparks may ignite fumes.

• Do not store your spotlight in a clamp or wet location.

Do not store in locations where the temperature is less than 50°F or more than 10001=.Do not store in outside sheds or in vehicles.

• Do not permit children to use spotlight unsupervised. It is not a toy. The temperature of the bulb will become

hot after being on for only a short period of time. This hot

temperature can cause burn injury if touched and can

create sufficient heat to melt some fabrics.

• If wrapped or in contact with fabrics, the spotlight lens can produce sufficient heat to melt some fabrics.

To avoid serious personal injury, never allow the spotlight

lens to come in contact with anything.

• Keep light dry, clean, and free from oil and grease.

Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong

solvent to clean the spotlight.

• Don't expose spotlight to rain. Water entering a power

tool will increase the risk of electric shock or malfunction.

• Do not overreach. Keep proper footing and balance

at all times. Proper footing and balance enable better

control of the spotlight in unexpected situations. Do not use on a ladder or unstable support.

• Do not leave the spotlight unattended while in the ON position.

SPOTLIGHT USE AND CARE

• This product is of household type.

• Store spotlight out of the reach of children and other untrained persons. Spotlights are dangerous in the

hands of untrained users.

• Let spotlight cool for several minutes after use before changing the bulb.

• Do not use or permit use of spotlight in bed or

sleeping bags. This spotlight lens can melt fabric and a

burn injury could result.

• Do not shine spotlight into the eyes.

SAFETY RULES FOR BATTERY SPOTLIGHTS

• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact

with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets

in your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention.

• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of

serious personal injury, never use any cordless product

in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water

immediately.

• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject

to explosion. Properly dispose of a dropped or damaged

battery immediately. Failure to heed this warning can result in serious personal injury.

• If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized

service center to avoid risk.

• Risk of burns-do not touch. Risk of fire-keep away

from combustible materials.

• The lens gets very hot during use. To reduce the risk of burns, do not touch hot lens. To reduce the risk of fire, keep

away from combustible materials while in operation.

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL

NAME

DESIGNATION/EXPLANATION

min

===

n o

[]

.../min

Volts Amperes

Minutes

Alternating Current

Direct Current

No Load Speed

Class II Construction

Per Minute

Wet Conditions Alert

Read The Operator's Manual

Safety Alert

Hot Surfaces

Voltage Current

Time Type of current

Type or a characteristic of current

Rotational speed, at no load

Double-insulated construction Revolutions, strokes, surface speed, orbits etc., per minute

Do not expose to rain or use in damp locations.

To reduce the risk of injury, user must read and understand operator's manual before using this product.

Precautions that involve your safety.

To reduce the risk of injury or damage, avoid contact with any hot surface.

This product uses nickel-cadmium and lithium-ion batteries. Local,

Recycle Symbols

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL MEANING

DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result

WARNING:

CAUTION:

CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property

_ WARNING: To avoid serious personal injury, do not attempt to use this product until you read thoroughly and

understand completely the operator's manual. If you do not understand the warnings and instructions in the opera-

tor's manual, do not use this product. Call the Craftsman Consumer Helpline at 1-800-932-3188 for assistance.

in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could result

in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, may result in

minor or moderate injury.

damage.

state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.

SAVE THESE INSTRUCTIONS

PRODUCT SPECIFICATIONS

Bulb .................................................................. 6 V Halogen Weight ..................................................................... 1.5 Ibs.

LOCK-0N

BUTTON

SWITCH

TRIGGER

KNOW YOUR SPOTLIGHT

See Figure 1.

The safe use of this product requires an understanding of the information on the product and in this operator's manual as well as a knowledge of the project you are at- tempting. Before use of this product, familiarize yourself with all operating features and safety rules.

UNPACKING This product requires tag removal.

[] Carefully remove the product and any accessories from

the box. Make sure that all items listed in the packing

list are included.

[] Inspect the product carefully to make sure no breakage

or damage occurred during shipping.

[] Do not discard the packing material until you have

carefully inspected and satisfactorily operated the

product.

[] If any parts are damaged or missing, please call

1-800-932-3188 for assistance.

Fig. 1

LOCK-ON BUTTON The lock-on button is convenient for continuous use for

extended periods of time.

PACKING LIST Spotlight

Operator's Manual

_, WARNING: If any parts are damaged or missing

do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury.

WARNING: Do not attempt to modify this product

or create accessories not recommended for use with

this product. Any such alteration or modification is

misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING: To prevent accidental starting that

could cause serious personal injury,always remove

the battery pack from the product when assembling

parts.

REMOVING THE WARNING LABEL

See Figure 2.

The spotlight has an attached paper warning label on the

lens. Remove this warning label before use as shown in

figure 2.

WARNING: Do not allow familiarity with products to make you careless. Remember that a careless

fraction of a second is sufficient to inflict serious injury.

PULLTABTO

REMOVE

Fig. 2

_ WARNING: The lens gets very hot during use. To

reduce the risk of burns, do not touch hot lens. To reduce the risk of fire, keep away from combustible

materials while in operation.

WARNING: Always wear safety goggles or safety glasses with side shields when operating products. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING: Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or

accessories not recommended can result in serious personal injury.

APPLICATIONS You may use this product for the purposes listed below:

• To illuminate any areas requiring additional light

• To illuminate distant objects

CAUTION: Operate in a well ventilated area. Do not block vents. Keep them clear to allow proper

ventilation.

This product will accept DieHardo 19.2 V lithium-ion

battery packs and Craftsman 19.2 V nickel-cadmium battery packs.

For complete charging and battery instructions, refer to

the Operator's Manual for the battery packs and chargers

listed in the General Safety Rules. BATTERY PROTECTION FEATURES

DieHardo 19.2 V lithium-ion battery packs are designed

with features that protect the lithium-ion cells and

maximize battery life. If the tool stops during use, release the trigger to reset

and resume operation. If the tool still does not work, the

battery needs to be recharged.
