COR48RFTMD
XPLODED VIEW
E
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
ILLUSTRATED PARTS LIST
REACH-IN FREEZER
FIGURE 1
Item No. Part No. Name
1 1042211 Motor Cover Assembly
2 1035303 Green Power Switch
3 1035301 Red Door Ajar Switch
4 1035300 Condenser Eliminator Switch
5 1035304 Thermometer
6 1035224 Timer Clock
7 FIGURE 2 Refrigeration System
8 1035221 Shelf Clips
9 1035297 Right and Left Flat Shelf
10 FIGURE 3 Complete Condensing Unit
115V/60Hz
11 1035277 Door Hinge
COR48RFTMD 1 of 5 Manual Part No.: 630460264IPL
© IMI Cornelius Inc., 2006 August 16, 2006
Item No. Part No. Name
12 1035302 Door Switch
13 1035210 Pilaster Buttons
14 1041350 Door Lock Assembly
15 FIGURE 5 Interior Lighting System
16 1042210 Mullion Assembly
17 1035288 Pilaster 48”
18 1035219 Casters without Brakes
19 1035220 Casters with Brakes
20 1041348 Adjustable Legs (Optional)
21 1042209 Evaporator Pan Bracket
22 1035287 Evaporator Pan
23 FIGURE 4 Swing Door System
Revision: A
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR48RFTMD
EFRIGERATION SYSTEM
R
FIGURE 2
Item No. Part No. Name
1 1042208 Heater Exchanger
2 1035228 Evaporator
3 1043038 Thermodisk 2-wire
4 1035251 Thermodisk 3-wire
5 1034982 Defrost Rod Heater
Item No. Part No. Name
7 1035285 Evaporator Fan Motor
8 1035269 Evaporator Fan Blade
9 1035250 Thermostat
10 1042546 Baffle
11 1035274 Fan Guard
6 1042207 Evaporator Fan Motor Bracket
Manual Part No.: 630460264IPL 2 of 5 COR48RFTMD
August 16, 2006 © IMI Cornelius Inc., 2006
Revision: A
COR48RFTMD
ONDENSING UNIT ASSEMBLY AND ITS COMPONENTS
C
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
FIGURE 3
Item No. Part No. Name
1 1035237 Compressor 1/2HP 115V/
60Hz
2 1035292 Relays
3 1042205 Condenser
4 1042204 Drier
Item No. Part No. Name
6 1035279 Condenser Fan Motor
7 1042194 Condenser Fan Motor
Bracket
8 1042193 Capacitor
9 1042192 Power Cord
5 1042195 Condenser Fan Blade
COR48RFTMD 3 of 5 Manual Part No.: 630460264IPL
© IMI Cornelius Inc., 2006 August 16, 2006
Revision: A
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR48RFTMD
WING DOOR ASSEMBLY AND ITS COMPONENTS
S
FIGURE 4
Item No. Part No. Name
1 1035270 Magnetic Gasket
2 1042191 Left Complete Door
3 1042190 Right Complete Door
Manual Part No.: 630460264IPL 4 of 5 COR48RFTMD
August 16, 2006 © IMI Cornelius Inc., 2006
Revision: A
Item No. Part No. Name
4 1035277 Door Hinge Assembly
5 1042189 Door Handle
6 1041350 Cylinder Locks
COR48RFTMD

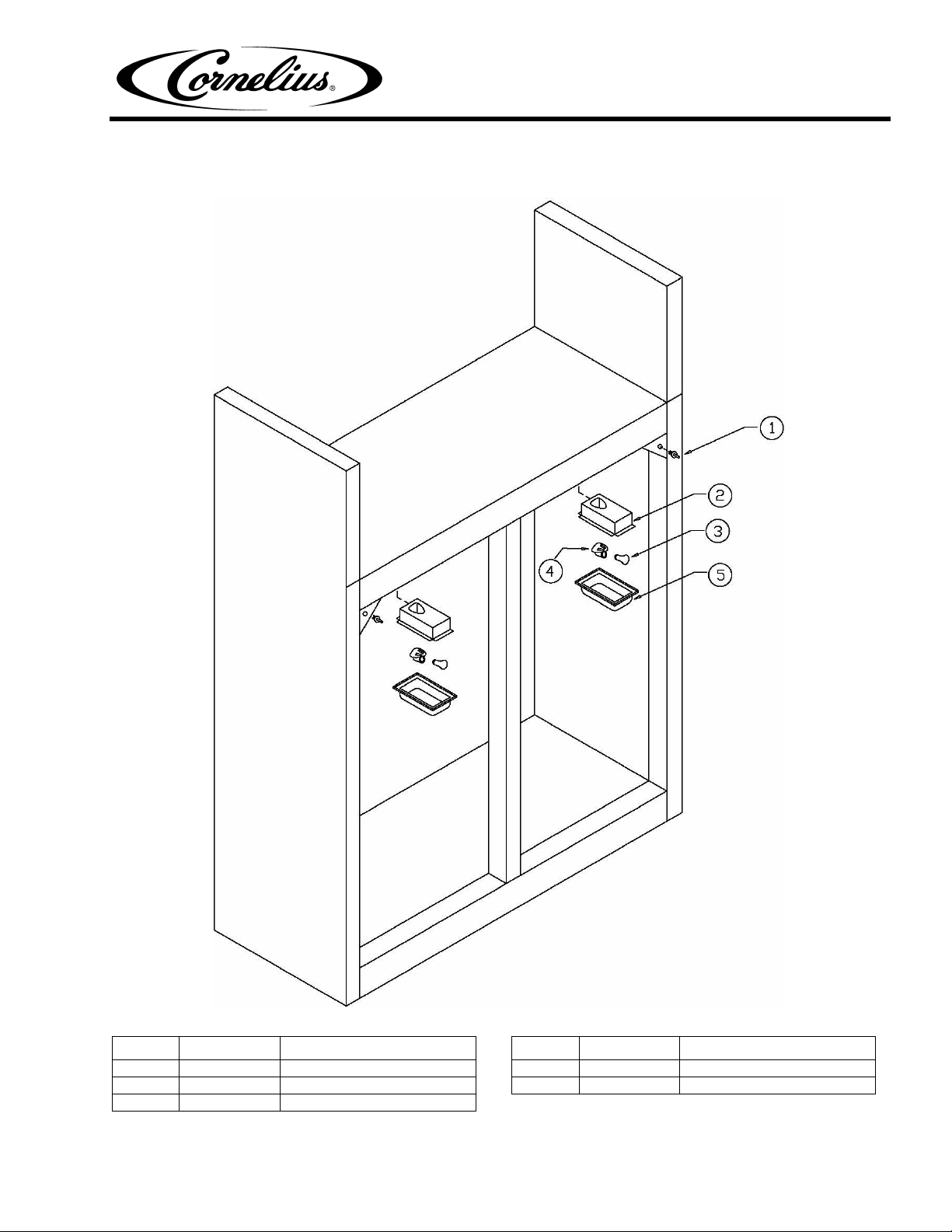

NTERIOR LIGHTING SYSTEM ASSEMBLY AND ITS COMPONENTS
I
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
FIGURE 5
Item No. Part No. Name
1 1035302 Interior Light Switch
2 1042188 Bulb Bracket
Item No. Part No. Name
4 1042187 Bulb Socket
5 1042186 Bulb Guard
3 1035209 Bulb 25 Watts
COR48RFTMD 5 of 5 Manual Part No.: 630460264IPL
© IMI Cornelius Inc., 2006 August 16, 2006
Revision: A
