Cornelius COR35VMSD Parts List
COR35VMSD
XPLODED VIEW
E
IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
ILLUSTRATED PARTS LIST
VISUAL MERCHANDISER
Item No. Part No. Name

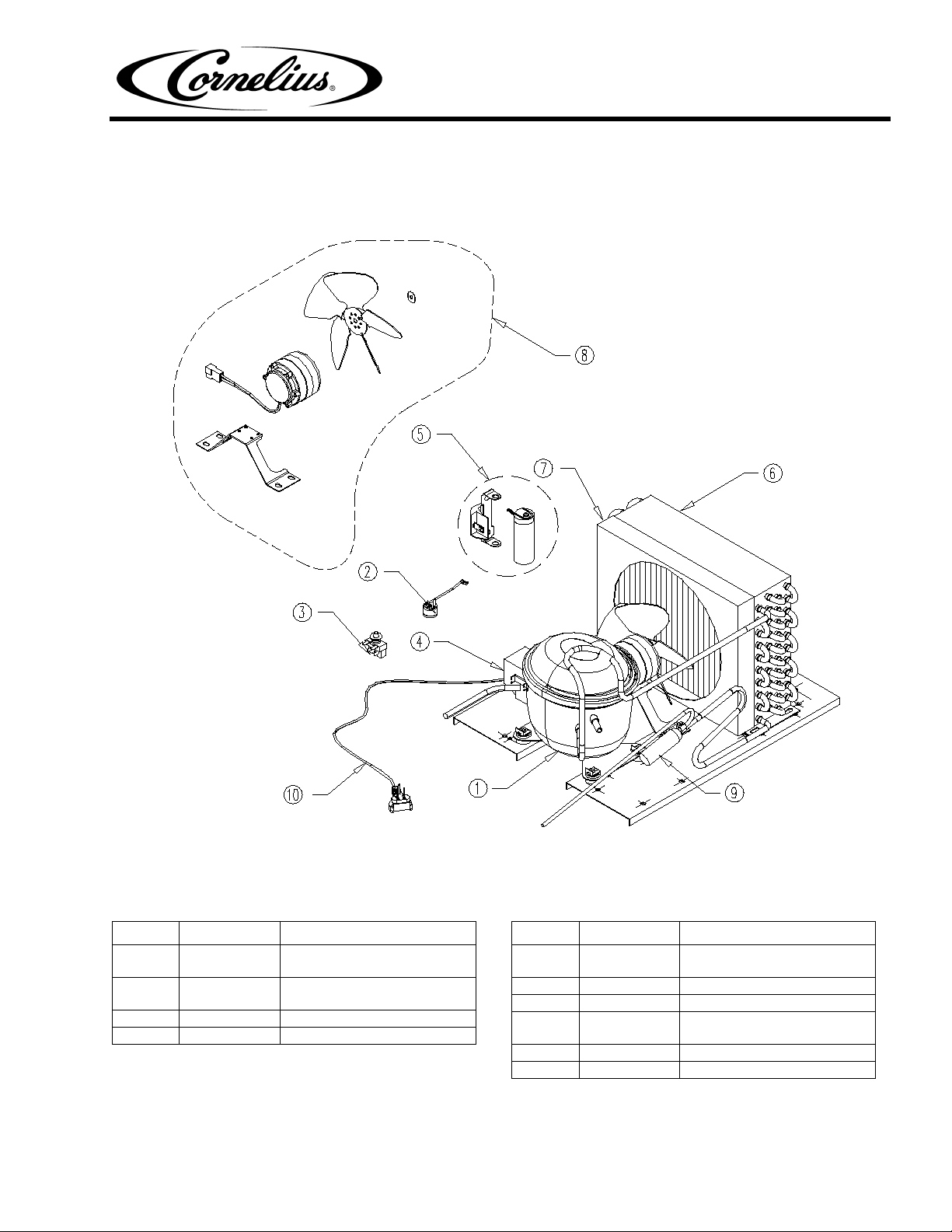

3 FIGURE 3 Condensing unit 1/3 HP
115V/60Hz

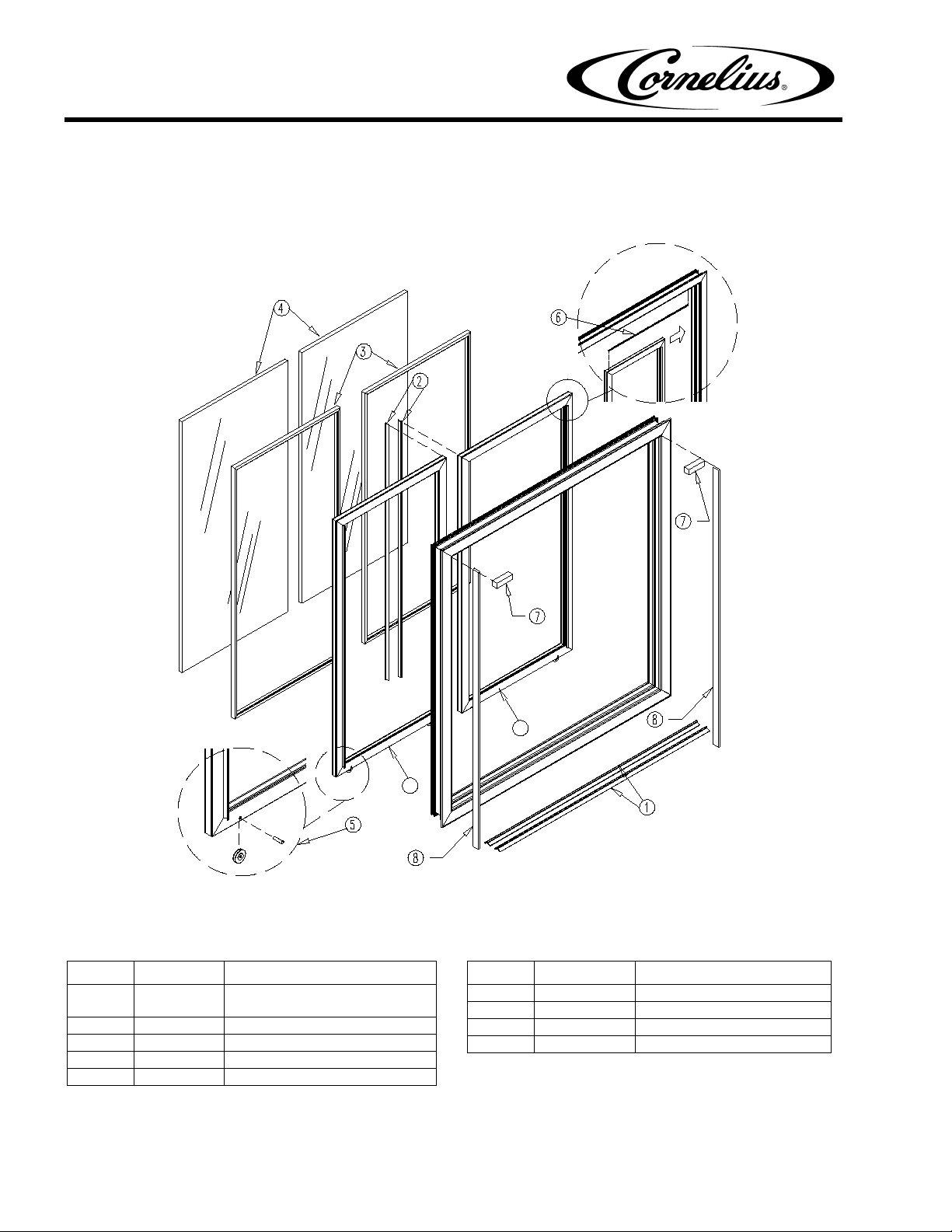

4 FIGURE 4 Sliding door system
5A 1035044 Sliding door track Vert
5B 1035045 Sliding door track Horiz
8 1035032 Header sign
9 1034919 Pilaster 48”
5A
5B
FIGURE 1
Item No. Part No. Name
10 1035036 Right flat shelf
1035037 Left flat shelf
11 1033450 Shelf clips
12 1035038 Front grill
13 1035039 Water pan
14 1033235 Leveling legs
COR35VMSD 1 of 5 Manual Part No.: 630460250IPL
© IMI Cornelius Inc., 2005-2006 Revision Date: March 14, 2006
Revision: B
IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
COR35VMSD
EFRIGERATION SYSTEM
R
FIGURE 2
Item No. Part No. Name
1 1034923 Evaporator
2 1034924 Accumulator
3 1035392 Heat exchanger
4 1034925 Thermostat
Manual Part No.: 630460250IPL 2 of 5 COR35VMSD
Revision Date: March 14, 2006 © IMI Cornelius Inc., 2005-2006
Revision: B
Item No. Part No. Name
5 1037654 Thermostat bracket
7 1035042 Fan motor bracket
8 1034855 Fan motor and blade
9 1033247 Fan guard
