The products, technical information, and instructions contained in this manual are subject to change without notice.
These instructions are not intended to cover all details or variations of the equipment, nor to provide for every possible
contingency in the installation, operation or maintenance of this equipment. This manual assumes that the person(s)
working on the equipment have been trained and are skilled in working with electrical, plumbing, pneumatic, and
mechanical equipment. It is assumed that appropriate safety precautions are taken and that all local safety and construction requirements are being met, in addition to the information contained in this manual.
This Product is warranted only as provided in Cornelius’ Commercial Warrant applicable to this Product and is subject
to all of the restrictions and limitations contained in the Commercial Warranty.
Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting
from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal
service conditions with respect to the Product, (2) improper voltage, (3) inadequate wiring, (4) abuse, (5) accident, (6)
alteration, (7) misuse, (8) neglect, (9) unauthorized repair or the failure to utilize suitably qualified and trained persons
to perform service and/or repair of the Product, (10) improper cleaning, (11) failure to follow installation, operating,
cleaning or maintenance instructions, (12) use of “non-authorized” parts (i.e., parts that are not 100% compatible with
the Product) which use voids the entire warranty, (13) Product parts in contact with water or the product dispensed
which are adversely impacted by changes in liquid scale or chemical composition.
Contact Information:
To inquire about current revisions of this and other documentation or for assistance with any Cornelius product contact:
www.cornelius.com
800-238-3600
Trademarks and Copyrights:
This document contains proprietary information and it may not be reproduced in any way without permission from
Cornelius.
This document contains the original instructions for the unit described.
• Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/caution labels on the unit
(decals, labels or laminated cards).
• Read and understand ALL applicable OSHA (Occupational Safety and Health Administration) safety regulations before operating this unit.
Recognition
Recognize Safety Alerts
This is the safety alert symbol. When you see it in this manual or on the unit,
be alert to the potential of personal injury or damage to the unit.
DIFFERENT TYPESOF ALERTS
Indicates an immediate hazardous situation which if not avoided WILL result in serious injury, death or equipment
damage.
Indicates a potentially hazardous situation which, if not avoided, COULD result in serious injury, death, or equipment
damage.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury or equipment
damage.
SAFETY TIPS
• Carefully read and follow all safety messages in this manual and safety signs on the unit.
• Keep safety signs in good condition and replace missing or damaged items.
• Learn how to operate the unit and how to use the controls properly.
• Do not let anyone operate the unit without proper training. This appliance is not intended for use by very
young children or infirm persons without supervision. Young children should be supervised to ensure that
they do not play with the appliance.
• Keep your unit in proper working condition and do not allow unauthorized modifications to the unit.
QUALIFIED SERVICE PERSONNEL
Only trained and certified electrical, plumbing and refrigeration technicians should service this unit. ALL WIRING
AND PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES. FAILURE TO COMPLY COULD
RESULT IN SERIOUS INJURY, DEATH OR EQUIPMENT DAMAGE.
This unit has been specifically designed to provide protection against personal injury. To ensure continued protection
observe the following:
Disconnect power to the unit before servicing following all lock out/tag out procedures established by the user. Verify
all of the power is off to the unit before any work is performed.
Failure to disconnect the power could result in serious injury, death or equipment damage.
Always be sure to keep area around the unit clean and free of clutter. Failure to keep this area clean may result in
injury or equipment damage.
SHIPPING AND STORAGE
Before shipping, storing, or relocating the unit, the unit must be sanitized and all sanitizing solution must be drained
from the system. A freezing ambient environment will cause residual sanitizing solution or water remaining inside the
unit to freeze resulting in damage to internal components.
Remcor “CH” Series Refrigerated Recirculating Water Chillers are designed to provide a continuous flow of clean
cooling water at a constant temperature and to handle a variety of closed loop and tank cooling applications.
The CH consists of a refrigeration system with associated operating controls housed in a sturdy sheet metal cabinet.
A standard pump and reservoir package provides a complete self-contained water cooling and circulating system.
CH Chillers are designed to operate in a clean laboratory or industrial environment where ambient temperatures
o
range from 50
F to 100
constant supply of cooling liquid to the application.
NOTE: Please read through this manual before starting the chiller.
Cooling Capacity* Watts/BTU17,584/60,000
Compressor5 H.P.
CondenserAir Cooled
Temperature Controller
Pump*2CS (12 GPM @ 50 PSI)
Reservoir40 Gallons
Voltage (Full Load Amps)
Dimensions W x D x H (inches)36” x 36” x 65”
Inlet/Outlet Fitting Size1 inch
o
F. Once properly installed, the CH Chiller will run virtually maintenance free and provide a
Table 1. Specifications
ModelCH5000
o
Digital Display 40-100
CH5002A 230/60/3 (28)
CH5003A 460/60/3 (14)
F
* Call the Service Department for proper pump identifaction.
SPECIFICATION NOTES
1. The figures for power and cooling capacity are listed for air-cooled units with a circulation temperature of
o
68
F, and ambient temperature of 80
2. Cooling capacity will be affected as follows: Derate 17% for 50 Hz operation. Derate 1% for each degree
Fahrenheit drop in recirculating temperature. Derate 0.5% for each degree Fahrenheit increase in ambient
temperature. Optional pumps will decrease net cooling capacity.
3. The operating water temperature range for water is 40
are required, the Technical Service Department must be contacted so the appropriate ranges can be set.
4. All CH Chillers are thoroughly tested before leaving the factory to ensure that each unit meets these specifications prior to shipment.
Never operate the chiller with the panels removed. Always use the power switch to turn off the chiller when it is not
being used. Always ensure that all air inlets and outlets are free of obstructions.
Install the chiller indoors in a well ventilated area where ambient temperatures will never fall below 50
o
100
F. To obtain optimum cooling capacity, the ambient temperature should be 80o F or below.
Standard CH Chillers have air-cooled condensers. On air-cooled units it is important that the air intake and discharge
are not obstructed. Avoid hot air discharge from other equipment or enclosed areas where heat buildup could cause a
significant rise in ambient temperatures. A minimum of two feet of space on all four sides of the chiller will be sufficient
to prevent obstruction. Water-cooled units should be located near a water source and drain.
o
F or rise above
Figure 1. Installation Details
ELECTRICAL
All wiring must conform to the National Electric Code and any applicable local codes. The chiller must be
PERMANENTLY wired by means of electrical conduit to a properly fused disconnect of proper amperage or wired to a
properly rated power cord and plugged into an outlet with the appropriate disconnect and amperage rating. The
electrical junction box located on the upper rear of the chiller, includes a four–terminal strip for power supply
connections The data plate, located beside the junction box, indicates the actual phase, voltage and amperage for
each chiller.
On three phase applications, it is important that the rotation of the pump, when supplied, is correct. Running the pump
in reverse for more than a few seconds results in permanent pump damage. When the pump is running, shaft rot ation
must match the direction indicated on the pump housing. If the rotation is incorrect, reverse two of the three incoming
power supply leads.
PLUMBING
Follow standard plumbing practices and local codes in making water connections. The chiller inlet and outlet
connections are 1-inch FPT. Flexible hose and fittings are recommended for plumbing the system. A No. 20 mesh
strainer should be installed on the chiller inlet to prevent foreign particles from entering the system and should be
cleaned monthly. Lines should be routed with as few bends as possible. Prevent lines from running near radiators, hot
water pipes, etc. Any lengths of tubing that are exposed to high ambient temperatures should be insulated to prevent
condensation and/or significant liquid heat loss.
Chiller with Reservoir
The reservoir can be filled by removing the water fill cap located on the upper rear of the chiller (See Fluid
Recommendations section). After ensuring that the drain valve is closed, fill the reservoir via the full port with clean
water until the water level sight glass on the front of the unit indicates “FULL” the fill cap should then be reinstalled
before operation begins.
Chiller without Reservoir
The chiller and system piping should be filled with clean water ensuring that all air is purged from the system.
Figure 2. Chiller Plumbing Schematic with Pump and Tank (Standard)
It is important to check the pump rotation on the three phase units. Remove the lower side panel to expose the pump.
Turn the pump power switch to the “ON” position for a few seconds. Observe the motor shaft to ensure that it is turning
in the direction indicated by the arrow located on the pump housing. If the rotation is incorrect, reverse two of the three
incoming power supply leads at the terminal strip. After changing the leads, check the pump rotation.
Running the pump in reverse for more than a few seconds results in permanent pump damage.
After ensuring that the system piping is free from obstruction and that all valves are open, turn the pump power switch
to the “ON” position. The pump power indicator should illuminate, indicating that the pump is operating.
All Chillers with pumps are provided with a pressure regulating valve on the pump discharge. This valve is preset at
the factory to ensure that system pressure does not exceed the capabilities of the pump motor and/or piping. If this
valve requires adjustment, please contact the factory for proper setting procedure and pressures.
A flow meter and throttling valve can be added in the chiller inlet line in order to monitor and/or adjust the flow rate
through the Chiller.
Once the flow has been established, the thermostat can be adjusted to the desired set–point.
Chiller without Pump
A flow meter and throttling valve can be added in the Chiller inlet line in order to monitor and/or adjust the flow rate
through the Chiller.
Once the flow has been established, the thermostat can be adjusted to the desired set–point. See thermostat
adjustment.

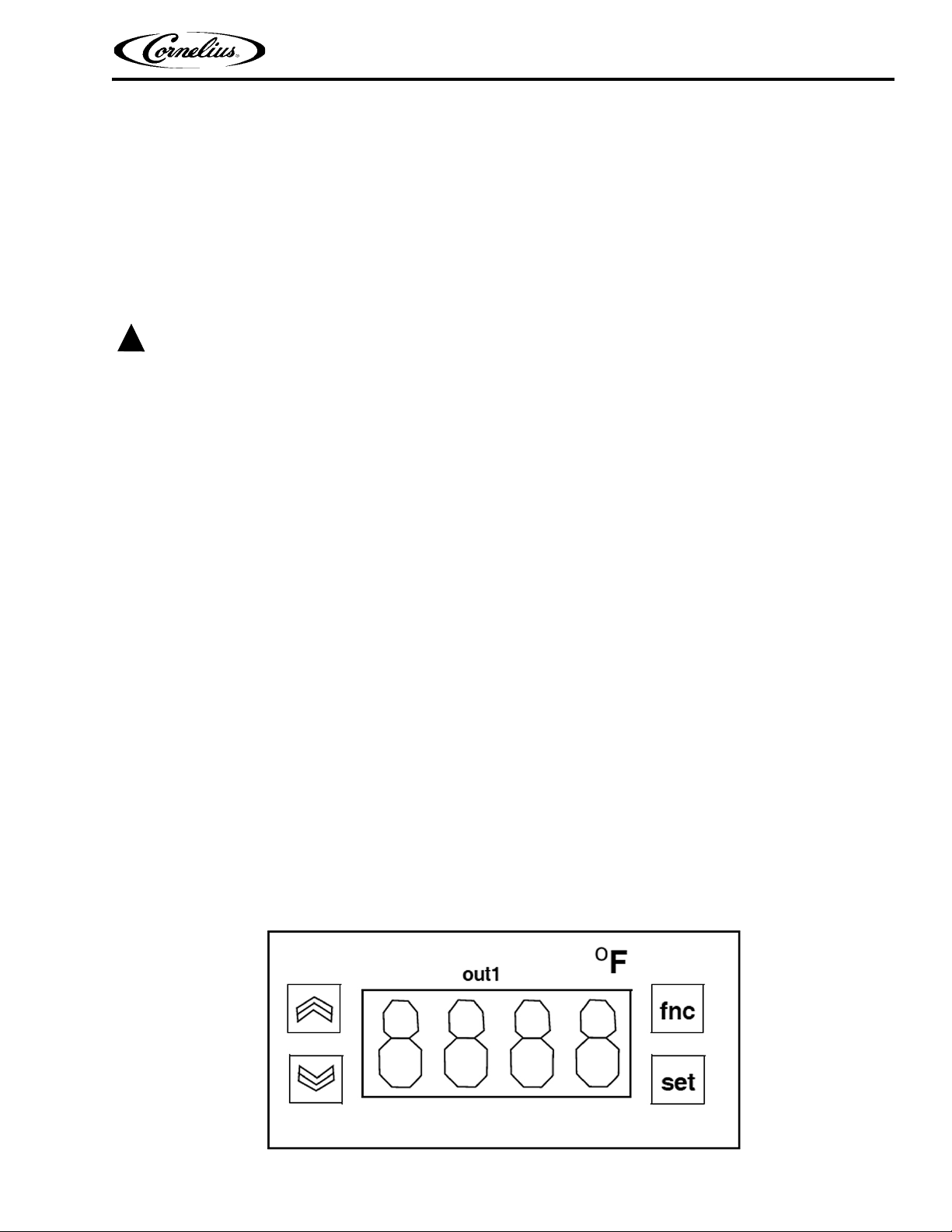

STANDARD THEROSTAT ELIWELL IC902
The following procedure should be followed to adjust the Eliwell IC902 thermostat temperature setting:
1. To set the “SET POINT”, press and release the “SET” button. “SET” displays.
2. Press the “SET” button again, the current “SET POINT” is displayed. Press the UP or DOWN button to
change the “SET POINT” to the desired temperature.
3. Press the “fnc” button twice to exit the program. The current liquid temperature is displayed.
The thermostat has a range that is preset at the factory. The range is 40
is required, please contact the Technical Service Department.
1. To set the “SET POINT” for Level 1. Press and release the “SET” button, Re1 should be displayed.
2. Press the “SET” button, the current SET POINT TEMPERATURE should be displayed. Press the UP or
DOWN button to change the SET POINT.
3. To set the “SET POINT” for Level 2. Press and release the “SET” button, Re2 should be displayed.
4. Press the “SET” button, the current SET POINT TEMPERATURE should be displayed. Press the UP or
DOWN button to change the SET POINT.
5. Press the fnc button to exit the program.
o
The thermostat has a range that has been preset at the factory. The range is 40
this range is required, please contact the Technical Service Department.
F to 100o F. If operation outside of
Cooling Start-Up
Once flow is established and the thermostat is set to the desired set–point, turn the control power switch to “ON”.
Ensure that the air is flowing in the left side (facing the control panel) and out the right side. If not, reverse two of the
three incoming power supply leads at the terminal strip. Once again, check for correct air flow. All alarm indicators
should be extinguished and the Chiller refrigeration system will cycle in order to maintain the established set–point.
Re-check the reservoir level to ensure that it is ”FULL” (if so equipped) and add water if necessary.
The Chiller is now ready for normal operation.
Figure 6. Control Panel
Control Panel
1. TEMPERATURE INDICATOR/CONTROLLER (Thermostat) – Combines a precise temperature control
and accurate set ability with a convenient LED temperature readout that indicates system liquid temperature.
2. CONTROL POWER SWITCH – A simple (ON/OFF) switch that switches power to the control circuit. This
switch must be “ON” for the Chiller to operate.
3. COOLING LIGHT – A green light that indicates refrigeration system operation. This light cycles on and off
in response to the thermostat.
4. HIGH PRESSURE ALARM LIGHT – A red light that indicates high refrigeration pressure.
5. LOW PRESSURE ALARM LIGHT – A red light that indicates low refrigeration pressure.
6. LOW TEMPERATURE ALARM LIGHT– A red light that indicates and abnormally low system fluid tempera-
ture.
7. PUMP POWER SWITCH – A simple (ON/OFF) switch that switches power to the Chiller pump. This switch
must be “ON” for the Chiller to operate.
Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all
power is off to the unit before performing any work.
Failure to comply could result in serious injury, death or damage to the equipment.
The chiller requires very little normal maintenance.
1. On AIR-COOLED Chillers, the condenser fins should be cleaned by blowing compressed air through the
condenser from the fan side as required to eliminate any dirt or debris that may accumulate over time. This
can severely reduce the performance of the Chiller. Cleanable air filters are available as an option. Contact
the factory for information.
2. The circulation system should be drained and flushed periodically to avoid build-up and possible restriction of flow by contaminates.
Each chiller is provided with three standard safety controls. These controls are arranged in series in the control circuit
to automatically shut down the unit in the event that a condition exists which could be harmful to the refrigeration
system components. This section includes a brief description of each control, its location and some troubleshooting
hints that may be helpful.
HIGH PRESSURE CONTROL (HPC)
This control prevents system operation in the event that the high side pressure exceeds 250 PSIG. If this occurs,
check the following:
1. That the condenser is clean and that the air inlets and outlets are unobstructed.
2. That the ambient temperature at the chiller location is below 100
3. That the fan blade is rotating.
Press the reset button located on the front of the control to restart the chiller. This control is located in the upper left
hand corner of the electric box. If the control opens again, check the control setting with refrigeration gauges. If the
setting is correct, contact technical service department.
LOW TEMPERATURE CONTROL (LTC)
This control prevents system operation in the event that the fluid inside the evaporator falls below 35
check the following:
1. That the thermostat set point is set at 40
2. That the flow through the system is greater than 2 gallons per minute.
o
F or greater.
o
F.
o
F. If this occurs,
This control is mounted in the lower left hand corner of the electric box. It automatically resets itself once the water
temperature is restored to 38
solution is used. Contact Technical Service Department for temperatures below those stated here (See Fluid
Recommendations section).
o
F. The low temperature control may be adjusted for lower temperatures if a glycol
LOW PRESSURE CONTROL (LPC)
This control prevents system operation in the event that the low side pressure falls below 44 psi. If this occurs,
check the following:
1. That the thermostat set point is set at 40
2. That the flow through the system is greater than 2 gallons per minute.
3. That no bubbles are present in the sight glass.
4. That water bypass valve allows flow through the Chiller in a “dead head” situation.
This control is located to the right of the high pressure control in the electric box. It automatically resets itself once the
low side pressure rises to approximately 64 psi. If the control opens again, check the control setting with refrigeration
gauges. If setting is correct, contact Technical Service Department.
When servicing a chiller, it is important to note the information contained on the data plate located in the upper rear
of the unit.
If technical assistance is needed, the phone technician will need the Serial Number of your Chiller. That information is
found on the Data Plate along with the model number, voltage requirements and refrigerant information.
The Serial Number is also needed when replacement parts are being ordered or for any warranty claims.
Figure 8. Sample Data Plate for CH5002-A
Be sure to include the serial number on any documentation or billing information.
