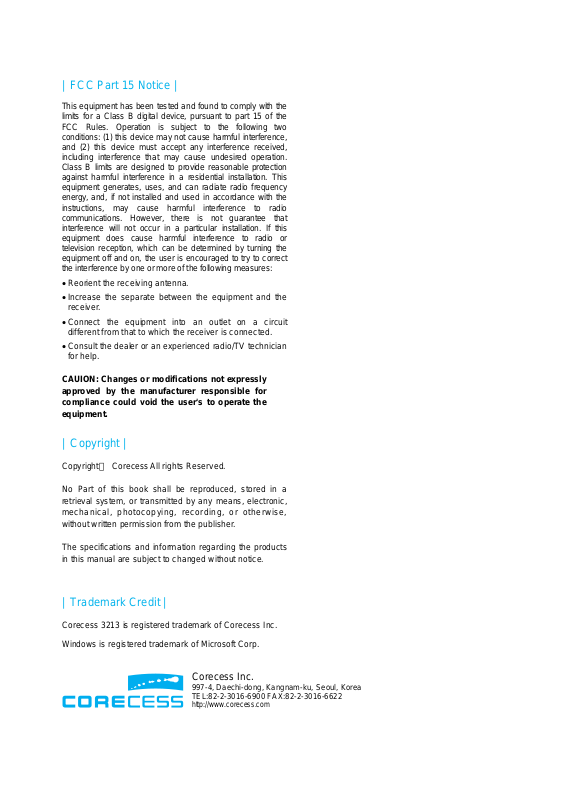

| FCC Part 15 Notice |
This equipment ha s been t ested an d fou nd to comply with th e
limits for a Class B digital dev ice, pursuant to part 15 of the
FCC Rules. Operation is subject to the following two
conditions: (1) this dev ice may not cause harmful interfer ence,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Class B limits are d esigned to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy, and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is not guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined b y turning the
equipment off and on, the user is encourage d to try to correct
the interference by one or more of the following measures:
•
Reorient the receiving antenna.
•
Increase the separate between the equipment and the
receiver.
•
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician
for help.
CAUION: Changes or modifications not expressly
approved by the manufacturer responsible for
compliance could void the user's to operate the
equipment.
| Copyright |
Copyrightⓒ Corecess All rights Reserved.
No Part of this book shall be reproduced, stored in a
retrieval system, or transmitted by any means, electronic,
mechanical, photocopying, recording, or otherwise,
without written permission from the publisher.
The specifications and information regarding the products
in this manual are subject to changed without notice.
| Trademark Credit |
Corecess 3213 is registered trademark of Corecess Inc.
Windows is registered trademark of Microsoft Corp.
Corecess Inc.
997-4, Daechi-dong, Kangnam-ku, Seoul, Korea
TEL:82-2-3016-6900 FAX:82-2-3016-6622
http://www.corecess.com
Thank you for using the product of Corecess.
This manual helps users to install and configure
the Corecess VDSL Modem Corecess 3213.
English
Table of Contents
Introduction ··························································· 4
Unpacking the Box ··············································· 4
Installing the Corecess 3213 ································ 5
Configuring the TCP/IP ········································ 7
Troubleshooting ·················································· 10
Technical Specification s ····································· 12
Introduction
The Corecess 3213 is an Very-high-data-rate Digital Subscriber Line (VDSL) modem used for
home connectivity to an VDSL service provider network over an Ethernet network connection. The
Corecess 3213 VDSL modem can transmit and receive data at rates up to 16Mbps.
Unpacking the Box
Check the shipping carton carefully to ensure that the contents include the items you ordered.
Installation Guide
VDSL Cable
(RJ-11 Telephone Cable )
Note : The PC with Ethernet port or adapter is neccssary to install the Corecess 3213.
Before installing the Corecess 3213, prepare a PC with Ethernet port or adapter.
Corecess 3213
Power Supply and
Power Cord
Ethernet Cable
(Straight-through Category-5)
4
Corecess 3213 Installation Guide
Installing the Corecess 3213
Connecting Cables
n Connecting the VDSL Line (LINE Port)
Connect the provided VDSL cable to the LINE port of the Corecess 3213 and then connect the
other end of the cable to the wall receptacle.
o Connecting a Tel ephone (PHONE Port)
Connect a telephone cable to the PHONE port of the Corecess 3213 and then connect the
other end of the cable to your telephone.
p Connecting a PC (LAN Port)
Connect the provided Ethernet cable to the LAN port of the Corecess 3213 and then connect
the other end of the cable to Ethernet port on the back of your PC.
q
Connecting the Power Supply (DC IN Port)
Connect the provided power supply cable into the DC IN port of the Corecess 3213.
r Connecting the Power Cord
Connect the provided power cord to the power supply and connect the other end of the cord to
an appropriate electrical outlet.
Caution : Yo u must power on the C orecess 3213 before powering on your PC. If you p ower
on your PC first, PC’ s IP address may not be properly assigned. In thi s case, assign new I P
address referring to ‘Troubleshooting’ on page 10-11 or restart your PC.
English
5
Power on the Corecess 3213
After connecting the Corecess 3213, turn on the Corecess 3213 by pressing the power switch on
the rear panel of the Corecess 3213.
When you have powered up the Corecess 3213, check the status of the four LEDs on the front
panel by the following table:
LED Color Status Description
POWER ON DC power is being supplied to the Corecess 3213.
LINK ON The modem is connecting to VDSL network.
LAN ON The LAN port is connecting to Ethernet port on your PC.
DATA
Green
Blink Data is being sent to or received from VDSL network.
6
Corecess 3213 Installation Guide
Configuring the TCP/IP
After you install the Corecess 3213, next is to configure the TCP/IP network protocol.
Caution: When you configure t he TCP/IP, leave the default value of any other configuration
that is not mentioned in the following description.
Windows 95/98/ME
1. Click the Start button and select Settings ¼ Control Panel.
Figure 1)
(
2. Double-click the Network
3. Select TCP/IP in the ‘The following network components are ins talled’ list and click Properties.
Figure 2
(
)
Select the [IP Addres s] tab and click the Obtain IP address automatically. (Figure 3)
4.
5. Select the [DNS Configuration] tab and click the Disable DNS. (
Select the [Gateway] tab and check there is no gateway
6.
Figure 2
installed. If there are installed gateways, delete them by
clicking [Remove]. Click OK.
7. At the <Network> dialog box, click
prompts you to restart. Click
icon.
(Figure 5)
Yes.
Figure 3
OK. The system
Figure 4)
Figure 1
Figure 4
English
Figure 5
7
Windows 2000/NT
1. Click the Start button and select Settings ¼ Network and
Dial-up Connections. (
Figure 1
2. Right-click the Local Area Connection icon at the
<Network and Dial-up Connections> windows and select
Properties menu. (
Figure 2
3. At the <Local Area Connection Properties> dialog box, select the Internet Protocol (T CP/IP) in
the ‘Components checks are used by this connection’ list and click Properties.
4. At the <Internet Protocol (TCP/IP Properties)> dialog box, click the Obtain an IP address
automatically and the Obtain DNS server address automatically. Then click Advanced to check
the TCP/IP settings for accuracy. (
5. The <Advanced TCP/IP Settings> dialog box appears. At the [IP Settings] t ab, check that the IP
Address is set to Enable DHCP. (
6. Select the [DNS] tab and check that the Append primary and connection specific DNS suffix is
selected. Click OK. (
Figure 6)
)
Figure 1
)
Figure 2
(Figure 3)
Figure 4
Figure 5
)
Figure 3
)
Figure 5
Figure 4
Figure 6
8
Corecess 3213 Installation Guide
Windows XP
1. Click the Start button and select Settings menu. (
Figure 1
)
2. Double-click the Network icon at the <Control Panel>
window.
Figure 1
3. Right-click the Local Area Connection icon at the <Network
Connections> windows and select Properties menu. (
Figure 2
)
4. At the <Local Area Connection Properties> dialog box, select
the Internet Protocol (TCP/IP) in the ‘This connection uses the
following items’ list and click Properties. (
Figure 3)
Figure 2
5. At the <Internet Protocol (TCP/IP) Properties)> dialog box, click the Obtain an IP address
automatically and the Obtain DNS server address automatically. Then click Advanced to check
the TCP/IP settings for accuracy. (
Figure 4)
Figure 3
Figure 4
6. The <Advanced TCP/IP Settings> dialog box appears. At the [IP Settings] t ab, check that the IP
Address is set to Enable DHCP. (
Figure 5)
7. Select the [DNS] tab and check that the Append primary and connection specific DNS suffix is
selected. Click OK. (
Figure 6)
English
Figure 5
Figure 6
9
Troubleshooting
If you cannot connect to VDSL network, please check the status of the LEDs on the front panel,
and then ensure the following:
Check the LAN LED
1.
If the LAN LED goes off, ensure that the Ethernet cable is firmly connected both to the Ethernet
port on the Corecess 3213 and LAN port on your PC.
2. Check the LINK LED
If the LINK LED blinks continuously and never stays solid on, ensure that the VDSL cable is
firmly connected to the LINE port on the Corecess 3213. If the LINK LED still blinks, contact
your VDSL service provider.
If the LINK LED goes off, turn off the power of the Corecess 3213 by pressing the power switch
and turn on the power again. If LINK LED still goes off, contact your vendor.
3. Check your PC’s IP address
If all LEDs operate normally and cables are firmly connected to the ports, ensure that your PC’s
IP address is properly assigned. Otherwise assign a new IP address according to your
operating system.
Windows 95/98/ME
n
Click the Start
o Input Winipcfg and press the [Enter]
key .
button and select Run.
p Select Ethernet adapter connected with
the Corecess 3213 and click Release All.
q
Click Renew All.
10
Corecess 3213 Installation Guide
Windows 2000/NT/XP
n
Click the Start
o
Input cmd and press the [Enter] key .
4. Restart your PC
If new IP address is not assigned properly or you cannot solve the problem, ensure that the
Corecess 3213 turns on and then restart your PC.
button and select Run.
p
The DOS-prompt appears. Input ipconfig
/release and press
q Input ipconfig /renew and press
key.
[Enter] key.
[Enter]
English
11
Technical Specifications
Description Specification
VDSL Standard
y ETSI VDSL Standard
ANSI VDSL Standard
Standard
y
ITU VDSL Standard
y
IEEE Standard
y IEEE 802.3 10/100Base-TX
Ethernet
10/100Base-TX (IEEE 802.3)
y
y Connector: RJ-45
Interface
Connector
LED
Environmental
Conditions
Physical
Conditions
VDSL Line
y Line Code: Quadrature Amplitude Modulation (QAM)
QAM 4 - QAM 256 configurable
Up/Downstream: 16Mbps
y
Duplexing scheme: Frequency Division Multiplexing (FDD)
y
Band allocation: 3.94 – 8.26 MHz (Upstream)
y
0.64 – 3.76 MHz (Downstream)
y Connector: RJ-11
y 2 RJ-11 connectors (PHONE, LINE)
y 1 RJ-45 connector (LAN)
1 Power socket (DC IN)
y
y POWER: Indicates DC power status
y LINK: Indicates connection status with VDSL network
LAN: Indicates connection status with PC’s LAN card
y
y DATA : Indicates data transmit/receive status via VDSL network
y Temperature: -10°C ~ 50°C
Humidity: 5% ~ 90%
y
y Dimension: 140(W) x 30(H) x 150(D) mm
y Weight: 250g
Power
Requirements
12
Input: 88-264VAC, 50-60Hz, DC 5V/2A
y
y Power consumption: Normal 2.6, Max. 4 Watt
Corecess 3213 Installation Guide
