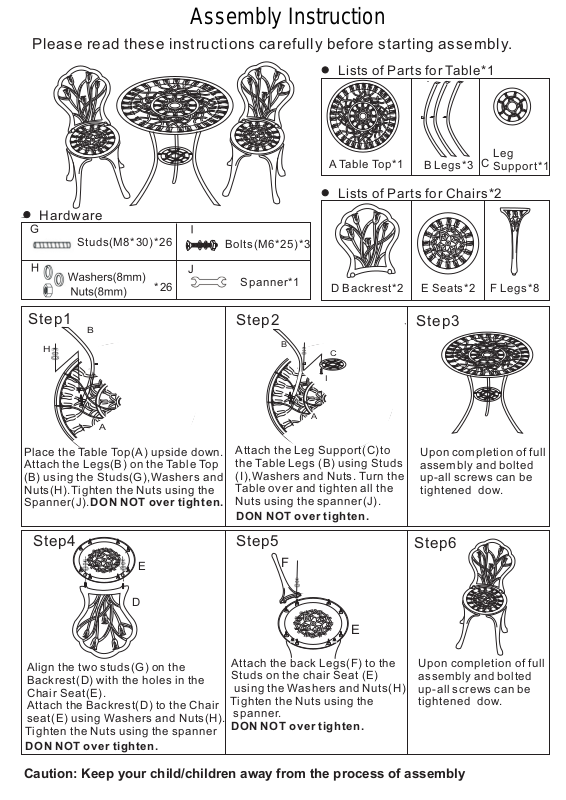

Assembly Instruction
Please read these instructions carefully before starting assembly.
Lists of Parts for Table*1
Leg
C
Support*1
Hardware
A Table Top*1
B Legs*3
Lists of Parts for Chairs*2
Studs(M8*30)*26
J
*26
Step1
B
H
A
Place the Table Top(A) upside down.
Attach the Legs(B) on the Table Top
(B) using the Studs(G),Washers and
Nuts(H).Tighten the Nuts using the
Spanner(J).DON NOT over tighten.
Bolts(M6*25)*3
Spanner*1
D Backrest*2
Step2
B
Attach the Leg Support(C)to
the Table Legs (B) using Studs
(I),Washers and Nuts. Turn the
Table over and tighten all the
Nuts using the spanner(J).
DON NOT over tighten.
C
I
A
E Seats*2
F Legs*8
Step3
Upon completion of full
assembly and bolted
up-all screws can be
tightened dow.
Step4
E
D
Step5
Step6
F
E
Align the two studs(G) on the
Backrest(D) with the holes in the
Chair Seat(E).
Attach the Backrest(D) to the Chair
seat(E) using Washers and Nuts(H).
Tighten the Nuts using the spanner
DON NOT over tighten.
Attach the back Legs(F) to the
Studs on the chair Seat (E)
using the Washers and Nuts(H)
Tighten the Nuts using the
spanner.
DON NOT over tighten.
Upon completion of full
assembly and bolted
up-all screws can be
tightened dow.
Caution: Keep your child/children away from the process of assembly
