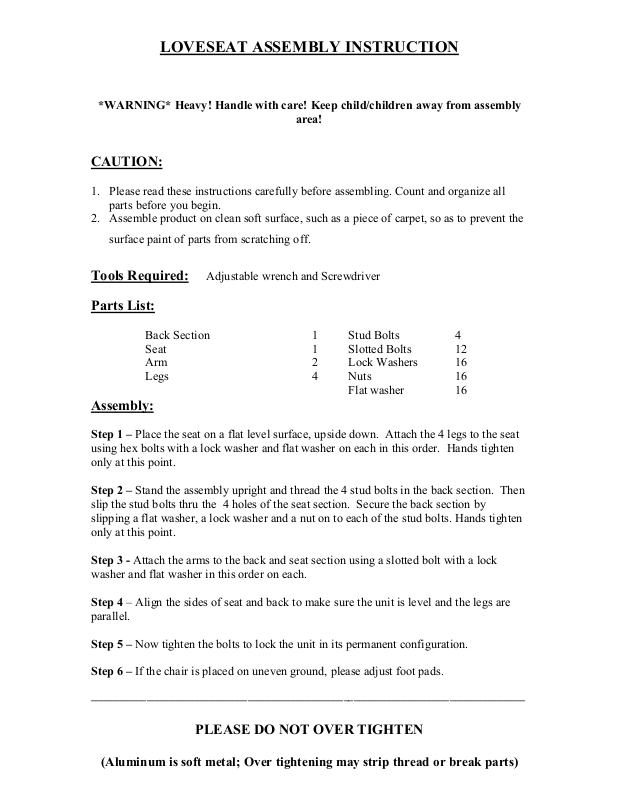

LOVESEAT ASSEMBLY INSTRUCTION
1. Please read these instructions carefully before assembling. Count and organize all
2. Assemble product on clean soft surface, such as a piece of carpet, so as to prevent the
*WARNING* Heavy! Handle with care! Keep child/children away from assembly
area!
CAUTION:
parts before you begin.
surface paint of parts from scratching off.
Tools Required: Adjustable wrench and Screwdriver
Parts List:
Back Section 1 Stud Bolts 4
Seat 1 Slotted Bolts 12
Arm 2 Lock Washers 16
Legs 4 Nuts 16
Flat washer 16
Assembly:
Step 1 – Place the seat on a flat level surface, upside down. Attach the 4 legs to the seat
using hex bolts with a lock washer and flat washer on each in this order. Hands tighten
only at this point.
Step 2 – Stand the assembly upright and thread the 4 stud bolts in the back section. Then
slip the stud bolts thru the 4 holes of the seat section. Secure the back section by
slipping a flat washer, a lock washer and a nut on to each of the stud bolts. Hands tighten
only at this point.
Step 3 - Attach the arms to the back and seat section using a slotted bolt with a lock
washer and flat washer in this order on each.
Step 4 – Align the sides of seat and back to make sure the unit is level and the legs are
parallel.
Step 5 – Now tighten the bolts to lock the unit in its permanent configuration.
Step 6 – If the chair is placed on uneven ground, please adjust foot pads.
______________________________________________________________________________________
PLEASE DO NOT OVER TIGHTEN
(Aluminum is soft metal; Over tightening may strip thread or break parts)
