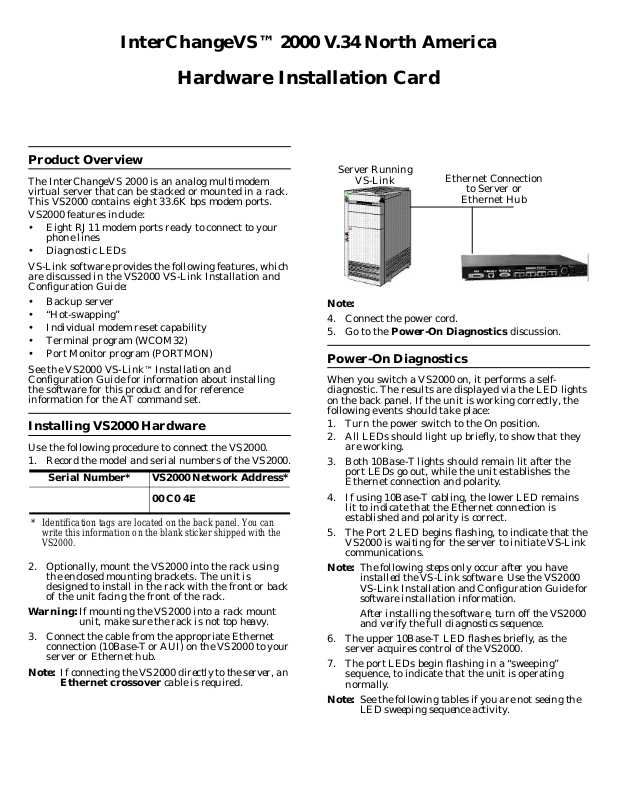

InterChangeVS™ 2000 V.34 North America
Hardware Installation Card
Product Overview
The InterChangeVS 2000 is an analog multimodem
virtual server that can be stacked or mounted in a rack.
This VS2000 contains eight 33.6K bps modem ports.
VS2000 features include:
• Eight RJ11 modem ports ready to connect to your
phone lines
• Diagnostic LEDs
VS-Link software provides the following features, which
are discussed in the VS2000 VS-Link Installation and
Configuration Guide:
• Backup server
• “Hot-swapping”
• Individual modem reset capability
• Terminal program (WCOM32)
• Port Monitor program (PORTMON)
See the VS2000 VS-Link
Configuration Guide for information about installing
the software for this product and for reference
information for the AT command set.
™ Installation and
Installing VS2000 Hardware
Use the following procedure to connect the VS2000.
1. Record the model and serial numbers of the VS2000.
Serial Number* VS2000 Network Address*
00 C0 4E
* Identification tags are located on the back panel. You can
write this information on the blank sticker shipped with the
VS2000.
2. Optionally, mount the VS2000 into the rack using
the enclosed mounting brackets. The unit is
designed to install in the rack with the front or back
of the unit facing the front of the rack.
Warning: If mounting the VS2000 into a rack mount
3. Connect the cable from the appropriate Ethernet
connection (10Base-T or AUI) on the VS2000 to your
server or Ethernet hub.
Note: If connecting the VS2000 directly to the server, an
unit, make sure the rack is not top heavy.
Ethernet crossover cable is required.
Server Running
VS-Link
Note:
4. Connect the power cord.
5. Go to the Power-On Diagnostics discussion.
Ethernet Connection
to Server or
Ethernet Hub
Power-On Diagnostics
When you switch a VS2000 on, it performs a selfdiagnostic. The results are displayed via the LED lights
on the back panel. If the unit is working correctly, the
following events should take place:
1. Turn the power switch to the On position.
2. All LEDs should light up briefly, to show that they
are working.
3. Both 10Base-T lights should remain lit after the
port LEDs go out, while the unit establishes the
Ethernet connection and polarity.
4. If using 10Base-T cabling, the lower LED remains
lit to indicate that the Ethernet connection is
established and polarity is correct.
5. The Port 2 LED begins flashing, to indicate that the
VS2000 is waiting for the server to initiate VS-Link
communications.
Note: The following steps only occur after you have
installed the VS-Link software. Use the VS2000
VS-Link Installation and Configuration Guide for
software installation information.
After installing the software, turn off the VS2000
and verify the full diagnostics sequence.
6. The upper 10Base-T LED flashes briefly, as the
server acquires control of the VS2000.
7. The port LEDs begin flashing in a “sweeping”
sequence, to indicate that the unit is operating
normally.
Note: See the following tables if you are not seeing the
LED sweeping sequence activity.
LED Light 10Base-T LED Description
Upper
Upper
Lower
Lower
During the power on cycle (first few
Flashes
Briefly
seconds after the power is turned on),
this LED flashes briefly to display link
polarity on the 10Base-T connection.
Flashing
The light flashes briefly during
transmissions as a general indicator of
activity.
On
Off
VS2000 is correctly attached to the
LAN by the RJ45 10Base-T connector.
VS2000 is not connected to the LAN
properly or it is connected to the AUI
port.
Ethernet Crossover Cable
If you are connecting from the VS2000 10Base-T
connector directly to the NIC card in the server, you
need a crossover cable, wired as follows:
Table 1. Ethernet Crossover Cable
Pin Connects to Pin
1 3
2 6
3 1
6 2
Pin 1
Pin 8
Receptacle
Note: If using an AUI connection to the server, you can
determine proper polarity by using an AUI to
10Base-T converter box.
Indicator Ports 1 through 8 LED Description
Flash
Briefly
All LEDs light briefly during the power-on
sequence and then turn off.
1 LED Lit* RAM self-test failure or mainboard error.
2 LEDs Lit* Ethernet hardware initialization failure.
3 LEDs Lit* A hardware self-test failure.
4 LEDs Lit* A flash memory configuration error.
All LEDs on for about 0.5 seconds then
All
Flashing/
Individual
Flashing
one or more individual port LEDs on for
about 0.5 seconds indicates that the
individual port or ports, whose LED is
flashing, encountered a problem during
port/modem initialization.
* The LEDs light up for a about a minute and then the
hardware resets and the same cycle repeats.
Modem Cables
The VS2000 modem ports use standard telephone-type
unshielded twisted-pair cables with RJ11 modular
connectors. These cables can be purchased anywhere
commercial or consumer telephone products are sold.
If you choose to build your own cables, use the following
information:
Pin 1 Pin 4
The connector pinouts are as shown below:
Pins RJ11 Connector Signals
1
2
3
4
Not used
Ring
Tip
Not used
Pin 1
Remote Connector
The DB9 port labeled “Remote” is reserved for Comtrol
Corporation repair and maintenance use. No useraccessible signals are present on this port.
Operating Conditions
This table illustrates VS2000 operating conditions:
Environmental Condition Value
Air temperature:
System on
System off
0 to 40
-20 to 85
o
C
o
C
Altitude 0 to 10,000 feet
Humidity (non-condensing):
System on
System off
8% to 80%
20% to 80%
Electromagnetic Compliance
This table lists electromagnetic compliance
certifications:
Electromagnetic Compliance Status
Canadian EMC requirements Yes
FCC Class A certification Yes
FCC Part 68 certification Yes
Ringer Equivalency Number 0.8B
UL Listed Yes
Surge protection
ESD surge protection
exceeding 20 KV
When building cables, use Category 3 (or better)
unshielded wiring.
Hardware Specifications
FCC Notices
The following table illustrates hardware specifications:
Topic
Modems/VS2000 8
Number of VS2000/server
Telco connector RJ11
Baud rate 33.6K bps (Maximum)
Device driver control:
Data bits
Parity
Stop bits
Heat output 81.84 BTU/Hr
Mean time between failures 7 years
Power consumption 24 W
Current consumption 200 mA (at 120 VAC)
Line voltage 100 - 240 VAC
Ethernet host interface
Weight 5 lbs
Dimensions (without feet or
brackets)
Hardware
Specifications
Dependent on operating
system
7 or 8
Odd, Even, None
1 or 2
AUI or
10Base-T (10 MB/sec)
16.75” x 11” x 1.75”
Safety Notices
Installation of inside wire may bring you close to
electrical wire, conduit, terminals and other electrical
facilities. Extreme caution must be used to avoid
electrical shock from such facilities. Avoid contact with
electrical current by following these guidelines:
• Use tools with insulated handles.
• Do not place telephone wiring or connections in any
conduit, outlet or junction box containing electrical
wiring.
Note: Do not work on your telephone wiring at all if you
• Telephone wiring must be at least 6 feet from bare
• Before working with existing inside wiring, check all
• Do not place a jack where it would allow a person to
• Protectors and grounding wire placed by the service
CAUTION: Do not touch telephone wiring during
wear a pacemaker. Telephone lines carry
electrical current.
power wiring or lightning rods and associated wires,
and at least 6 inches from other wire (antenna
wires, doorbell wires, wires from transformers to
neon signs), steam or hot water pipes, and heating
ducts.
electrical outlets for a square telephone dial light
transformer and unplug it from the electrical outlet.
Failure to unplug all telephone transformers can
cause electrical shock.
use the telephone while in a bathtub, shower,
swimming pool, or similar hazardous location.
provider must not be connected to, removed, or
modified by the customer.
lightning!
Radio Frequency Interference (RFI) (FCC 15.105)
The VS2000 has been tested and found to comply with
the limits for Class A digital devices pursuant to Part 15
of the Federal Communications Commission rules.
The VS2000 generates, uses, and can radiate radio
frequency energy, and if not installed and used in
accordance with this card, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, you are encouraged to try and correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and
the receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Labeling Requirements (FCC 15.19)
The VS2000 complies with part 15 of FCC rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received,
including interference that may cause undesired
operation.
Modifications (FCC 15.21)
Changes or modifications to this equipment not
expressly approved by Comtrol Corporation may void
the user's authority to operate this equipment.
Cables (FCC 15.27)
This equipment is certified for Class A operation when
used with unshielded cables.
FCC Part 68 Notice
1. This equipment complies with Part 68 of FCC rules.
On the bottom panel of the unit is a label containing
the FCC registration number, ringer equivalence
number, and the USOC jack code.
2. The VS2000 uses FCC compliant modular plugs, it
is designed to be connected to the telephone network
or premises wiring using a compatible modular jack
which is FCC Part 68 compliant.
3. If this equipment causes harm to the telephone
network, the telephone company will notify you in
advance that temporary discontinuance of service
may be required. But, if advance notice is not
practical, the telephone company will notify you as
soon as possible. Also you will be advised of your
right to file a complaint with the FCC, if you believe
it is necessary.
4. The telephone company may make changes in its
facilities, equipment, operations, or procedures that
could affect the operation of the equipment. If this
happens, the telephone company will provide
advance notice in order for you to make necessary
modifications in order to maintain uninterrupted
service.
5. If the equipment is causing harm to the network,
the telephone company may request you to remove
the equipment from the network until the problem
is resolved. If so, contact Comtrol Corporation at
651-631-7654.
6.No repairs are to be made by you. Repairs are to be
made only by Comtrol or its licensees.
Unauthorized repairs void the warranty and the
registration.
7.This equipment cannot be used for public coin
service provided by the telephone company.
Connection to Party Line Service is subject to state
tariffs. (Contact the state public utility commission,
public service commission, or corporation
commission for information.)
VS2000 - Canada
The VS2000 connects directly to off-premises Common
Carrier facilities using the standard two-wire telephone
connection. In some cases, the building’s inside wiring
associated with a single line individual server may be
extended by means of a certified connector assembly
(telephone extension card).
NOTICE: The Industry Canada label identifies certified
equipment. This certification means the equipment
meets telecommunications network protective,
operational, and safety requirements as prescribed in the
appropriate Terminal Equipment Technical
Requirements document(s). The Department does not
guarantee the equipment will operate to the user’s
satisfaction.
Before installing this equipment, users should ensure
that it is permissible to be connected to the facilities of
the local telecommunications company. The equipment
must also be installed using an acceptable method of
connection. The customer should be aware that
compliance with the above conditions may not prevent
degradation of service in some situations.
Repairs to certified equipment should be coordinated by
a representative designated by the supplier. Any
repairs or alterations made by the user to this
equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user
to disconnect the equipment.
Users should ensure for their own protection that the
electrical ground connections of the power utility,
telephone lines, and internal metallic water pipe
system, if present, are connected together. This
precaution may be particularly important in rural areas.
CAUTION: Users should not attempt to make such
connections themselves, but should contact the
appropriate electric inspection authority or electrician,
as appropriate.
NOTICE: The Ringer Equivalence Number (REN)
assigned to each terminal device provides an indication
of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on
an interface may consist of any combination of devices,
subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not
exceed 5.
This digital apparatus meets the Class A limits for radio
noise for digital apparatus set out in the interferencecausing equipment standard entitled: “Digital
Apparatus,” ICES-003 of Industry Canada.
When connecting the VS2000 to the telephone service,
avoid contact with the telecommunications lead wire.
Grasp the insulated part of the jack, and do not contact
the back of the circuit board. Telephone wiring can carry
dangerous voltages from electrical faults or lightning.
External Wiring
Any external communications wiring you may install
needs to be constructed to all relevant electrical codes.
In the United States this is the National Electrical Code
Article 800. Contact a licensed electrician for details.
Canada - Return Center
In Canada, contact the following Return Center:
Gandacar Consulting, Ltd
189 Lake Avenue East
Carlton Place, Ontario
Canada K7C 1J7 Phone: 800-563-5102
Technical Support
If you need technical support, contact Comtrol using one
of the following methods.
• email: support@comtrol.com
FAX: (651) 631-8117
•
• Phone: (651) 631-7654
FTP Site: ftp://ftp.comtrol.com
•
• Web Site: http://www.comtrol.com
Comtrol has a staff of technical support representatives
to help you.
First Edition, July 7, 1998
Copyright © 1998. Comtrol Corporation.
All Rights Reserved.
Comtrol Corporation makes no representations or
warranties with regard to the contents of this document
or to the suitability of the Comtrol product for any
particular purpose. Specifications subject to change
without notice. Some software or features may not be
available at the time of publication. Contact your
reseller for current product information.
Trademark Notices
Comtrol, InterChangeVS, and VS-Link are trademarks
of Comtrol Corporation.
Other product names mentioned herein may be
trademarks and/or registered trademarks of their
respective owners.
6631
Loading...
