ROCKETLINX ES7105
Industrial PoE Switch
Quick Installation Guide
2000538 Rev C
www.comtrol.com
Page 2
Introduction
Wngay
t
The RocketLinx ES7105 is an Industrial PoE Power switch that conforms to the IEEE
802.3af Power over Ethernet standard. The RocketLinx ES7105 provides four
10/100BASE-TX PoE ports with one standard 10/100BASE-TX Ethernet port.
For detailed information, refer to the RocketLinx ES7105 User Guide, which is
available on the RocketLinx CD or you can download the latest version.
Package Check List
The following items should be in the product box:
RocketLinx ES7105 Industrial Ethernet PoE Switch
Mounting kit with footpad
Quick Installation Guide
CD-ROM that contains the RocketLinx ES7105 User Guide
Mounting the Unit
If desired, you can use the screws provided in the mounting kit and mount the ES7105
on a wall.
Grounding RocketLinx ES7105 Switch
Connect the frame ground on the switch to an earth ground to ensure safety and to
prevent noise.
Earth Ground Screw
PoE Port
1 to 4
Port 5
Fast Ethernet UTP
PWR 1
PWR 2
Alarm Relay
1A@DC24V
Page 3
Wiring the Power Inputs
W
t
Use the following procedure to wire the power inputs. The working voltage is
48VDC or -48VDC.
1. Insert the positive and negative wires into the V+ and V- contact on the terminal
block connector.
2. Tighten the wire-clamp screws to prevent the DC wires from becoming loose.
Wiring the Relay Output
1A@24V
PWR1
+
Power 1
Wire: 12 to 24 AWG
PWR2
-
FAULT
+
Power 2
-
iring the Relay Outpu
The relay output alarm contacts are in the middle of the terminal block connector.
1A@24V
PWR1
+
Relay Output Alarm Contacts
-
FAULT
1A@24V
PWR2
+
-
Page 4

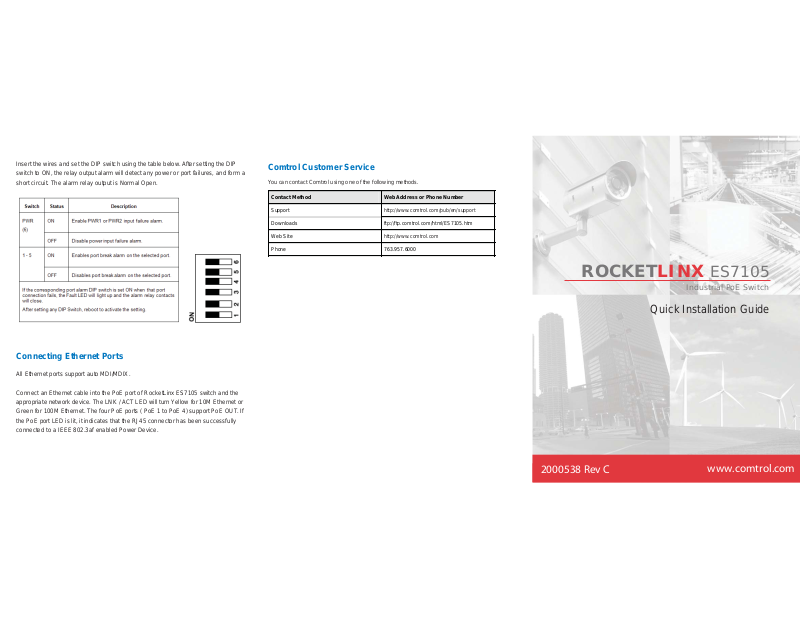

Insert the wires and set the DIP switch using the table below. After setting the DIP
switch to ON, the relay output alarm will detect any power or port failures, and form a
short circuit. The alarm relay output is Normal Open.
Connecting Ethernet Ports
All Ethernet ports support auto MDI/MDIX.
Connect an Ethernet cable into the PoE port of RocketLinx ES7105 switch and the
appropriate network device. The LNK / ACT LED will turn Yellow for 10M Ethernet or
Green for 100M Ethernet. The four PoE ports ( PoE 1 to PoE 4) support PoE OUT. If
the PoE port LED is lit, it indicates that the RJ45 connector has been successfully
connected to a IEEE 802.3af enabled Power Device.
Page 5
Comtrol Customer Service
You can contact Comtrol using one of the following methods.
Contact Method Web Address or Phone Number
Support http://www.comtrol.com/pub/en/support
Downloads ftp://ftp.comtrol.com/html/ES7105.htm
Web Site http://www.comtrol.com
Phone 763.957.6000
